Basics of Backbone.js with Example Code

1. Priyanka Wadhwa

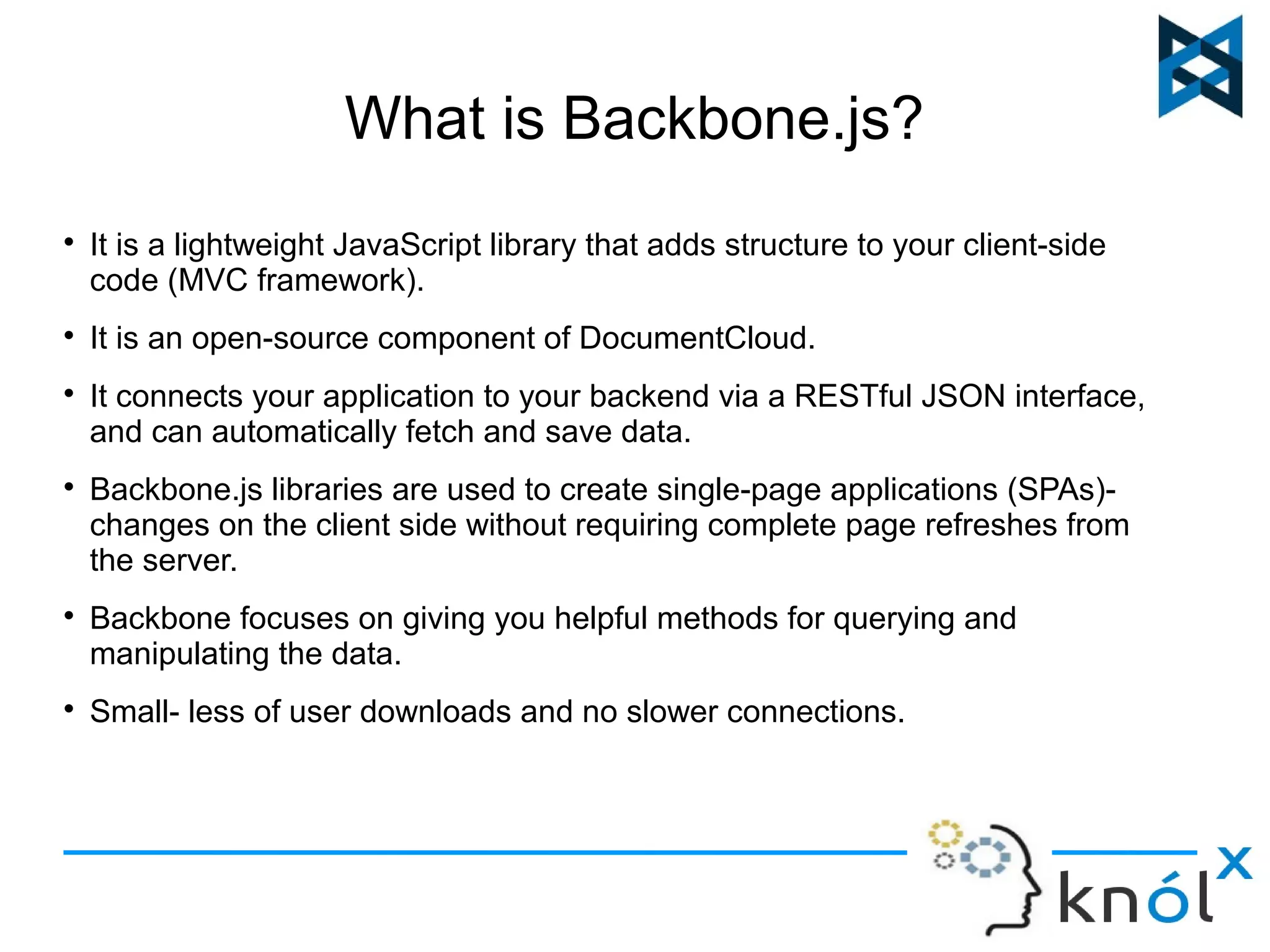

2. What is Backbone.js?
 It is a lightweight JavaScript library that adds structure to your client-side
code (MVC framework).
 It is an open-source component of DocumentCloud.
 It connects your application to your backend via a RESTful JSON interface,
and can automatically fetch and save data.
 Backbone.js libraries are used to create single-page applications (SPAs)-
changes on the client side without requiring complete page refreshes from
the server.
 Backbone focuses on giving you helpful methods for querying and
manipulating the data.
 Small- less of user downloads and no slower connections.

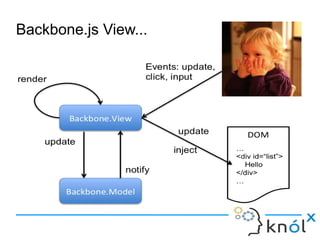

3. Backbone.js View...

4. MVC?
Models represent the domain-specific knowledge and data in an application.
They can notify observers when their state changes.
Views typically constitute the user interface in an application. They observe
models, but don’t directly communicate with them.
Collections handle input (clicks or user actions) and update models.
In a finished Backbone app, you don't
have to write the glue code that looks
into the DOM to find an element with a
specific id, and update the HTML manually
— when the model changes, the views
simply update themselves.

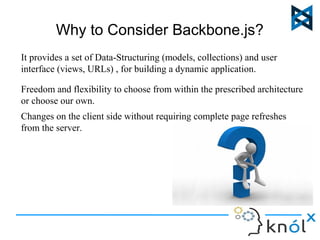

5. Why to Consider Backbone.js?
It provides a set of Data-Structuring (models, collections) and user
interface (views, URLs) , for building a dynamic application.
Freedom and flexibility to choose from within the prescribed architecture
or choose our own.
Changes on the client side without requiring complete page refreshes
from the server.

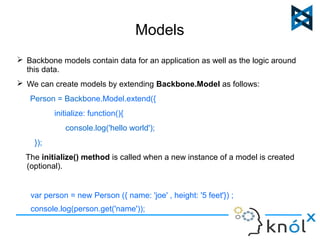

6. Models
 Backbone models contain data for an application as well as the logic around
this data.
 We can create models by extending Backbone.Model as follows:
Person = Backbone.Model.extend({
initialize: function(){
console.log('hello world');
});
The initialize() method is called when a new instance of a model is created
(optional).
var person = new Person ({ name: 'joe' , height: '5 feet'}) ;
console.log(person.get('name'));

7. Cont...
Default values:
defaults:{
name: "Alice",
height:"unknown"
};
var person = new Person();
console.log(person.get('name'));
Model.get()
Get the current value of an attribute from the model.
Model.set()
Model.set() sets a hash containing one or more attributes on
the model. When any of these attributes alter the state of the

8. Validation.
Backbone supports model validation through model.validate() ,
which allows checking the attribute values for a model prior to setting
them.
var Person = new Backbone.Model({name: 'Jeremy'});
Person.validate = function(attrs) {
if (!attrs.name) {
return 'I need your name';
}
};
Person.set({name: 'Samuel'});
console.log(Person.get('name'));
// 'Samuel'
// Remove the name attribute, force validation

9. Example(Model)...
Person =
Backbone.Model.extend({
initialize: function(){
console.log('hello world');
this.bind("change:name",
function() {
console.log(this.get('name

10. View
 Backbone views are used to reflect what your applications
look like. They are also used to listen to events and react
accordingly.
 To create a new view, simply extend Backbone.View:
var View = Backbone.View.extend({
TagName: 'li',
events: {
'dblclick label': 'edit',
'keypress .edit': 'updateOnEnter',
'blur .edit':
'close'
},
});

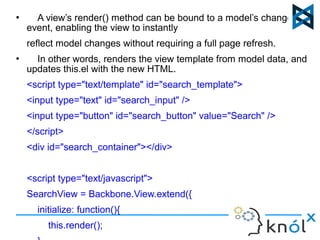

11.  A view’s render() method can be bound to a model’s change()
event, enabling the view to instantly
reflect model changes without requiring a full page refresh.
 In other words, renders the view template from model data, and
updates this.el with the new HTML.
<script type="text/template" id="search_template">
<input type="text" id="search_input" />
<input type="button" id="search_button" value="Search" />
</script>
<div id="search_container"></div>
<script type="text/javascript">
SearchView = Backbone.View.extend({
initialize: function(){
this.render();
},

12. el?
el is a reference to a DOM element, and all views must have one. Views can use el
to compose their element’s content and then insert it into the DOM all at once, which
makes for faster rendering because the browser performs the minimum required
number of reflows.
// defining a pre-existing DOM element where we want to show the view.
<div id=”container”>
<button>Load</button>
<ul id=”list”></ul>
</div>
Var View= Backbone.View.extend({
Initialize: function() {
console.log(“view”)
}
});
var view = new View({ el: $('#container')});
Or

13. Cont...
//creating a new DOM element
var view = new View ({ tagName , className , id , attributes })
Or
var TodosView = Backbone.View.extend({
tagName: 'ul',
className: 'container',
id: 'todos',
});
var todosView = new TodosView();
console.log(todosView.el);

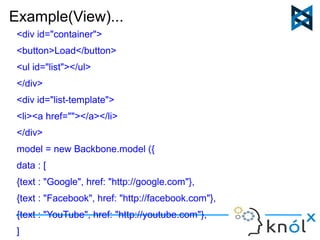

14. Example(View)...
<div id="container">
<button>Load</button>
<ul id="list"></ul>
</div>
<div id="list-template">
<li><a href=""></a></li>
</div>
model = new Backbone.model ({
data : [
{text : "Google", href: "http://google.com"},
{text : "Facebook", href: "http://facebook.com"},
{text : "YouTube", href: "http://youtube.com"},
]

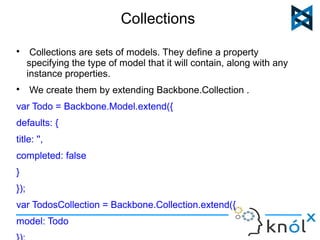

15. Collections
 Collections are sets of models. They define a property
specifying the type of model that it will contain, along with any
instance properties.
 We create them by extending Backbone.Collection .
var Todo = Backbone.Model.extend({
defaults: {
title: '',
completed: false
}
});
var TodosCollection = Backbone.Collection.extend({
model: Todo
});

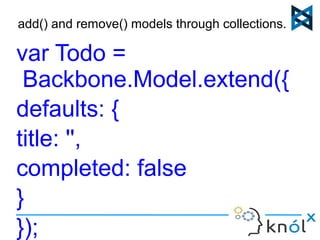

16. add() and remove() models through collections...
var Todo =
Backbone.Model.extend({
defaults: {
title: '',
completed: false
}
});

17. Some events used in collections..
Reset() : people.reset([{ name : “bob”}, { name : “jim”}])
Events:
 On - people.on ('remove' , function () { })
 Get - people.get(2)
 At - people.at (index)
 Push - people.push( )
 Pop - people.pop( )
 Sort - people.sort( )
 Pluck - people.pluck('name')
 Where - people.where({name : “joe”}));

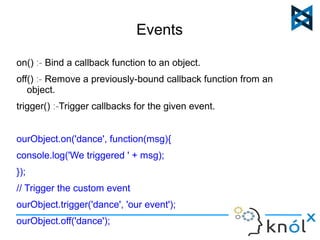

18. Events
on() :- Bind a callback function to an object.
off() :- Remove a previously-bound callback function from an
object.
trigger() :-Trigger callbacks for the given event.
ourObject.on('dance', function(msg){
console.log('We triggered ' + msg);
});
// Trigger the custom event
ourObject.trigger('dance', 'our event');
ourObject.off('dance');

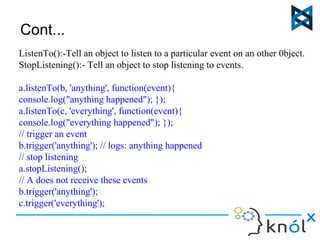

19. Cont...
ListenTo():-Tell an object to listen to a particular event on an other 0bject.
StopListening():- Tell an object to stop listening to events.
a.listenTo(b, 'anything', function(event){
console.log("anything happened"); });
a.listenTo(c, 'everything', function(event){
console.log("everything happened"); });
// trigger an event
b.trigger('anything'); // logs: anything happened
// stop listening
a.stopListening();
// A does not receive these events
b.trigger('anything');
c.trigger('everything');

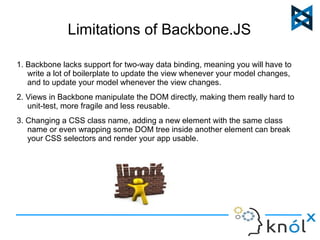

20. Limitations of Backbone.JS
1. Backbone lacks support for two-way data binding, meaning you will have to
write a lot of boilerplate to update the view whenever your model changes,
and to update your model whenever the view changes.
2. Views in Backbone manipulate the DOM directly, making them really hard to
unit-test, more fragile and less reusable.
3. Changing a CSS class name, adding a new element with the same class
name or even wrapping some DOM tree inside another element can break
your CSS selectors and render your app usable.

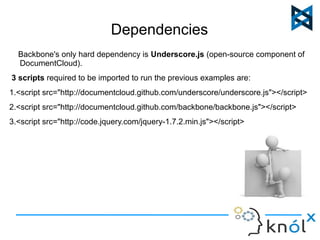

21. Dependencies
Backbone's only hard dependency is Underscore.js (open-source component of
DocumentCloud).
3 scripts required to be imported to run the previous examples are:
1.<script src="http://documentcloud.github.com/underscore/underscore.js"></script>
2.<script src="http://documentcloud.github.com/backbone/backbone.js"></script>
3.<script src="http://code.jquery.com/jquery-1.7.2.min.js"></script>
