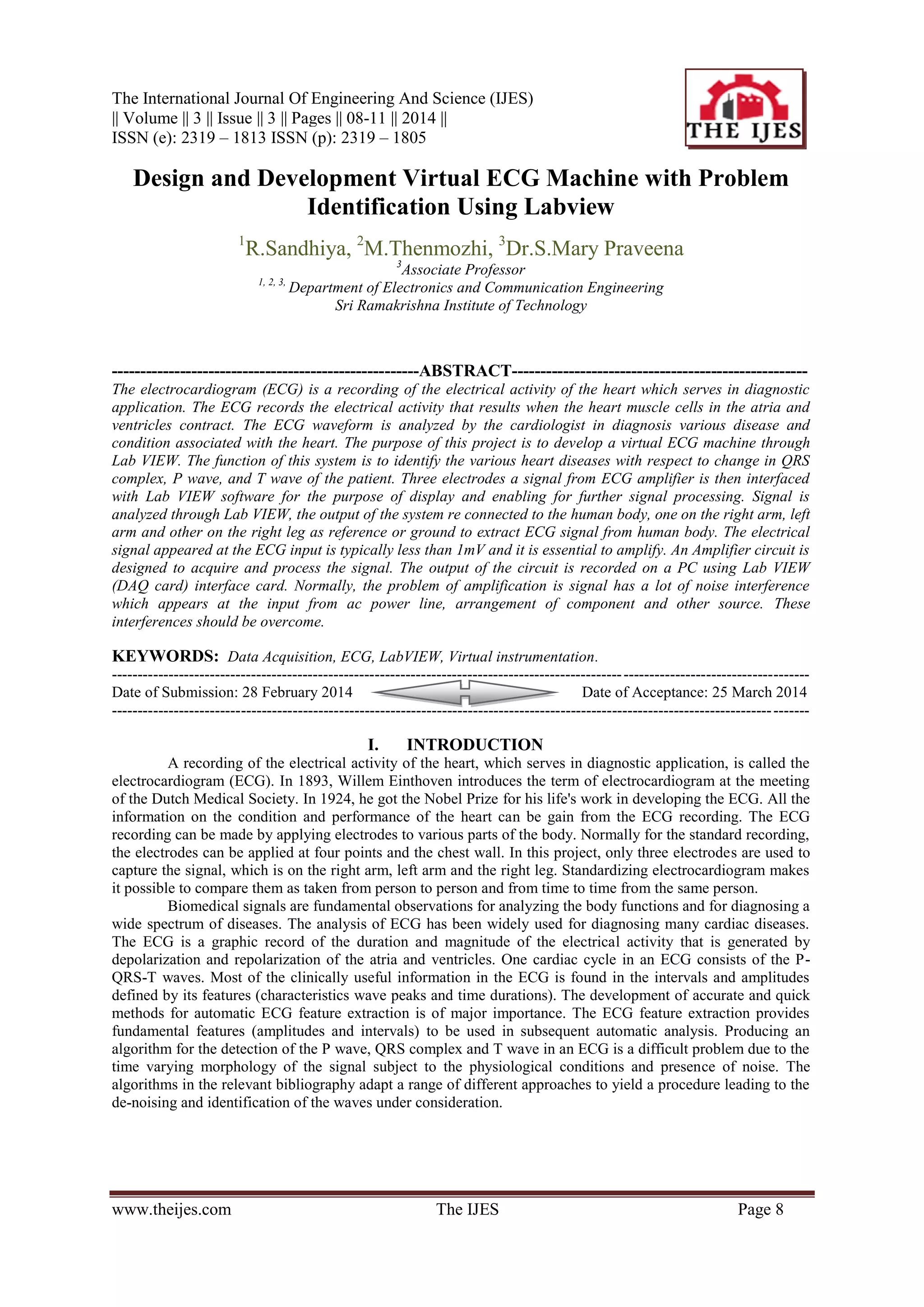

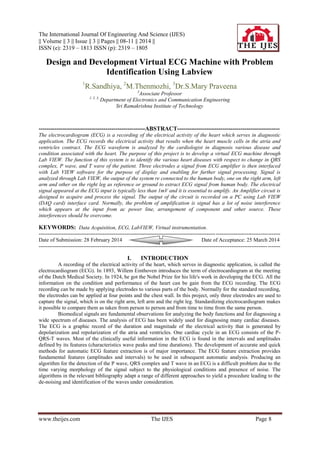

1. The International Journal Of Engineering And Science (IJES)
|| Volume || 3 || Issue || 3 || Pages || 08-11 || 2014 ||
ISSN (e): 2319 – 1813 ISSN (p): 2319 – 1805
www.theijes.com The IJES Page 8
Design and Development Virtual ECG Machine with Problem
Identification Using Labview
1
R.Sandhiya, 2
M.Thenmozhi, 3
Dr.S.Mary Praveena
3
Associate Professor
1, 2, 3,
Department of Electronics and Communication Engineering
Sri Ramakrishna Institute of Technology
------------------------------------------------------ABSTRACT----------------------------------------------------
The electrocardiogram (ECG) is a recording of the electrical activity of the heart which serves in diagnostic
application. The ECG records the electrical activity that results when the heart muscle cells in the atria and
ventricles contract. The ECG waveform is analyzed by the cardiologist in diagnosis various disease and
condition associated with the heart. The purpose of this project is to develop a virtual ECG machine through
Lab VIEW. The function of this system is to identify the various heart diseases with respect to change in QRS
complex, P wave, and T wave of the patient. Three electrodes a signal from ECG amplifier is then interfaced
with Lab VIEW software for the purpose of display and enabling for further signal processing. Signal is
analyzed through Lab VIEW, the output of the system re connected to the human body, one on the right arm, left
arm and other on the right leg as reference or ground to extract ECG signal from human body. The electrical
signal appeared at the ECG input is typically less than 1mV and it is essential to amplify. An Amplifier circuit is
designed to acquire and process the signal. The output of the circuit is recorded on a PC using Lab VIEW
(DAQ card) interface card. Normally, the problem of amplification is signal has a lot of noise interference
which appears at the input from ac power line, arrangement of component and other source. These
interferences should be overcome.
KEYWORDS: Data Acquisition, ECG, LabVIEW, Virtual instrumentation.
---------------------------------------------------------------------------------------------------------------------------------------
Date of Submission: 28 February 2014 Date of Acceptance: 25 March 2014
---------------------------------------------------------------------------------------------------------------------------------------
I. INTRODUCTION
A recording of the electrical activity of the heart, which serves in diagnostic application, is called the
electrocardiogram (ECG). In 1893, Willem Einthoven introduces the term of electrocardiogram at the meeting
of the Dutch Medical Society. In 1924, he got the Nobel Prize for his life's work in developing the ECG. All the
information on the condition and performance of the heart can be gain from the ECG recording. The ECG
recording can be made by applying electrodes to various parts of the body. Normally for the standard recording,
the electrodes can be applied at four points and the chest wall. In this project, only three electrodes are used to
capture the signal, which is on the right arm, left arm and the right leg. Standardizing electrocardiogram makes
it possible to compare them as taken from person to person and from time to time from the same person.
Biomedical signals are fundamental observations for analyzing the body functions and for diagnosing a
wide spectrum of diseases. The analysis of ECG has been widely used for diagnosing many cardiac diseases.
The ECG is a graphic record of the duration and magnitude of the electrical activity that is generated by
depolarization and repolarization of the atria and ventricles. One cardiac cycle in an ECG consists of the P-
QRS-T waves. Most of the clinically useful information in the ECG is found in the intervals and amplitudes
defined by its features (characteristics wave peaks and time durations). The development of accurate and quick
methods for automatic ECG feature extraction is of major importance. The ECG feature extraction provides
fundamental features (amplitudes and intervals) to be used in subsequent automatic analysis. Producing an
algorithm for the detection of the P wave, QRS complex and T wave in an ECG is a difficult problem due to the
time varying morphology of the signal subject to the physiological conditions and presence of noise. The
algorithms in the relevant bibliography adapt a range of different approaches to yield a procedure leading to the
de-noising and identification of the waves under consideration.

2. Design and Development Virtual ECG Machine with Problem Identification Using Labview
www.theijes.com The IJES Page 9
These approaches are mainly based on wavelet, matched filters, Poisson transform, mathematical
morphology, fuzzy logic, Lab VIEW. From the bibliography, it is seen that Lab VIEW can be used effectively
for QRS detection. In a virtual instrumentation system, a computer including calculating, storing, replaying,
accessing, displaying and file managing etc. are used which realize performing the functions of traditional
instrumentation via software. Therefore a Virtual ECG Instrumentation system is a new Instrumentation system,
which is much better and flexible with the aid of computer intelligent resource.
1.2 Heart Blood Flow Sequence
In the lungs up oxygen and releases carbon dioxide. This oxygenated blood flows back through the
pulmonary vein to the left atrium. The blood then travels through In the lungs, the blood picks the mitral valve
to the left ventricle, and is then pumped through the aortic valve to the aorta. The aorta branches into the many
arteries, and then capillaries, delivering oxygenated blood to the body's organs, tissues and cells. Once the
capillaries deliver the oxygen to the cells, the now deoxygenated blood travels to veins, and then to the superior
and inferior vena cava to start all over again. Both left and right sides of the heart pumps blood at the same time.
The blood is pumped out of the heart each time the heart muscle contracts or beats. This is called the systole.
This pumping takes place in two stages. First the right and left atria contract pumping blood into the right and
left ventricles, respectively. Then the ventricles contract pumping blood out of the heart. The heart muscle then
relaxes, called the diastole, and the heart fills with blood again before the next heartbeat. the heart just like any
other organ requires blood to supply it with oxygen and other nutrients so that it can do its work.
Figure 1.2.1 Heart Blood Flow Sequence
The heart does not extract oxygen and other nutrients from the blood flowing inside it. The heart gets
its blood from coronary arteries that eventually carry blood within the heart muscle.
In Figure 1.2, P wave is created by atrial depolarization. PR interval represents transmission of an
electrical impulse from node through the atria. QRS complex represents depolarization of ventricles and their
subsequent contraction. ST segment, from completion of QRS complex to the beginning of T wave, represents
the start of the repolarization of the ventricles. T wave represents the repolarization of ventricles. U wave is not
clear and it is difficult to identify, frequently causing miscalculations in ECG readings.
Figure 1.2.2 normal ECG wave
Physiological conditions and presence of noise. The algorithms in the relevant bibliography adapt a
range of different approaches to yield a procedure leading to the de-noising and identification of the waves
under consideration. Then the amplified signal is given to NI-DAQ which provides interface between the
hardware and the pc(Lab VIEW),which display the output waveform.

3. Design and Development Virtual ECG Machine with Problem Identification Using Labview
www.theijes.com The IJES Page 10
2.1block Diagram Of Virtual Ecg Machine
The major components involved in virtual ECG machine are electrodes, amplifier, NI-DAQ and Lab
VIEW software. Input Signal from Electrode Leads ECG Amplifier NI-DAQ (PC Interface) Lab VIEW
Software.
Figure 2.1 Block diagram of virtual ECG machine
Figure2.1 the biopotential signal picked up from patient body through the electrode that can be amplified by the
ECG amplifier then the signal is given to NI-DAQ which provides interface between the hardware and the
pc(labview).
3.1WORKING PRINCIAL OF VIRTUAL ECG MACHINE
Figure 3.1 Circuit Diagram as isolation, must be added to this circuit
The low current noise of the AD620 allows its use in ECG monitors where high source resistances of
1 MΩ or higher are not uncommon. The AD620’s low power, low supply voltage requirements, and space-
saving 8-lead mini-DIP and SOIC package offerings make it an excellent choice for battery- powered data
recorders. Furthermore, the low bias currents and low current noise, coupled with the low voltage noise of the
AD620, improve the dynamic range for better performance. The value of capacitor C1 is chosen to maintain
stability of the right leg drive loop. Proper safeguards, such to protect the patient from possible harm.
4.1ABNORMAL P-R INTERVAL
In this ECG signal, the time period of P-R interval is varied. A short PR interval may indicate a pre-excitation
syndrome via an accessory pathway that leads to early activation of the ventricles.
Figure 4.1.1 Block diagram of abnormal P-R interval
Figure 4.1.2 Simulation result for abnormal P-R interval

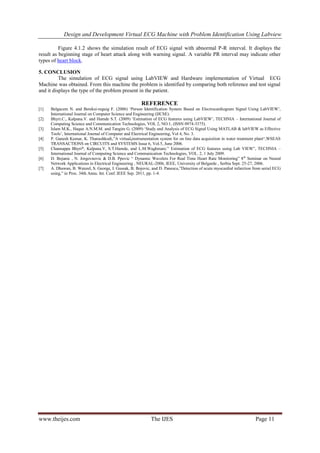

4. Design and Development Virtual ECG Machine with Problem Identification Using Labview
www.theijes.com The IJES Page 11
Figure 4.1.2 shows the simulation result of ECG signal with abnormal P-R interval. It displays the
result as beginning stage of heart attack along with warning signal. A variable PR interval may indicate other
types of heart block.
5. CONCLUSION
The simulation of ECG signal using LabVIEW and Hardware implementation of Virtual ECG
Machine was obtained. From this machine the problem is identified by comparing both reference and test signal
and it displays the type of the problem present in the patient.
REFERENCE
[1] Belgacem N. and Bereksi-reguig F. (2006) ‘Person Identification System Based on Electrocardiogram Signal Using LabVIEW’,
International Journal on Computer Science and Engineering (IJCSE).
[2] Bhyri.C., Kalpana.V. and Hamde S.T. (2009) ‘Estimation of ECG features using LabVIEW’, TECHNIA – International Journal of
Computing Science and Communication Technologies, VOL 2, NO.1, (ISSN 0974-3375).
[3] Islam M.K., Haque A.N.M.M. and Tangim G. (2009) ‘Study and Analysis of ECG Signal Using MATLAB & labVIEW as Effective
Tools’, International Journal of Computer and Electrical Engineering, Vol 4, No. 3.
[4] P. Ganesh Kumar, K. Thanushkodi,”A virtual,instrumentation system for on line data acquisition in water treatment plant“,WSEAS
TRANSACTIONS on CIRCUITS and SYSTEMS Issue 6, Vol.5, June 2006.
[5] Channappa Bhyri*, Kalpana.V, S.T.Hamde, and L.M.Waghmare.” Estimation of ECG features using Lab VIEW”, TECHNIA –
International Journal of Computing Science and Communication Technologies, VOL. 2, 1 July 2009.
[6] D. Bojanic , N. Jorgovnovic & D.B. Ppovic “ Dynamic Wavelets For Real Time Heart Rate Monitoring” 8th
Seminar on Neural
Network Applications in Electrical Engineering , NEURAL-2006, IEEE, University of Belgarde , Serbia Sept. 25-27, 2006.
[7] A. Dhawan, B. Wenzel, S. George, I. Gussak, B. Bojovic, and D. Panescu,”Detection of acute myocardial infarction from serial ECG
using,” in Proc. 34th Annu. Int. Conf. IEEE Sep. 2011, pp. 1-4.
