Azure SQL Database

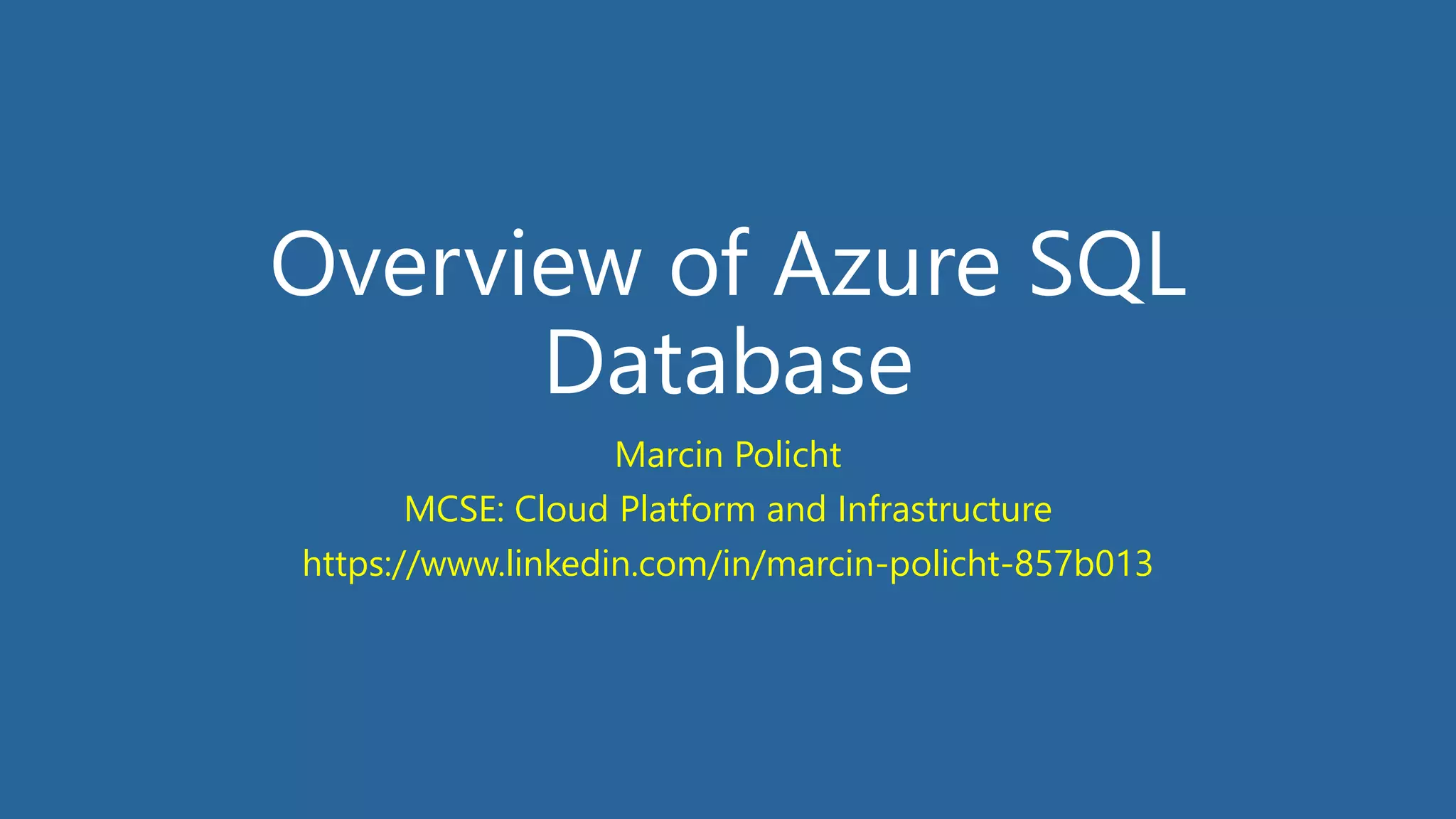

- 1. Overview of AzureSQL Database Marcin Policht MCSE: Cloud Platform and Infrastructure https://www.linkedin.com/in/marcin-policht-857b013

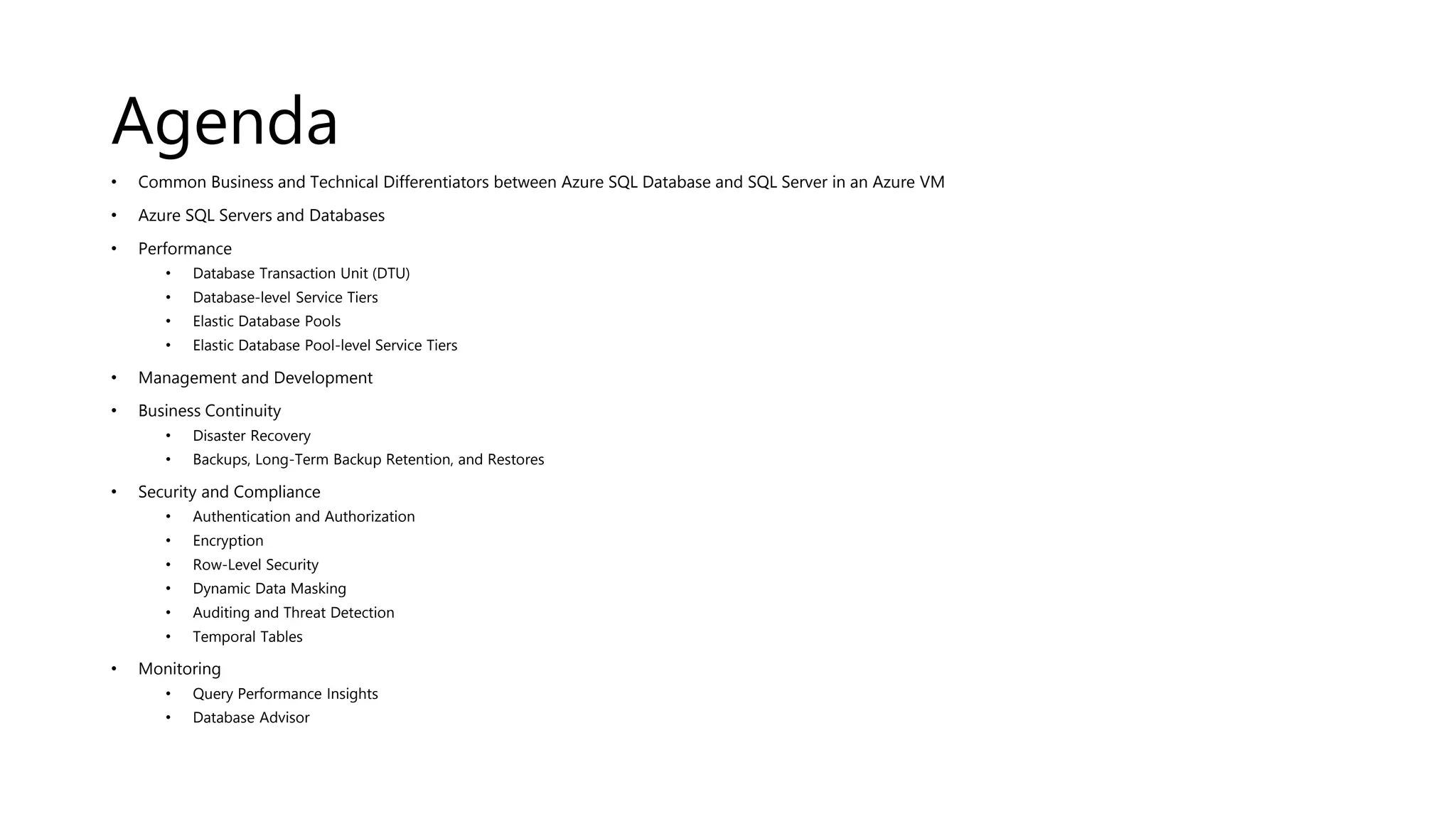

- 2. Agenda • Common Businessand Technical Differentiators between Azure SQL Database and SQL Server in an Azure VM • Azure SQL Servers and Databases • Performance • Database Transaction Unit (DTU) • Database-level Service Tiers • Elastic Database Pools • Elastic Database Pool-level Service Tiers • Management and Development • Business Continuity • Disaster Recovery • Backups, Long-Term Backup Retention, and Restores • Security and Compliance • Authentication and Authorization • Encryption • Row-Level Security • Dynamic Data Masking • Auditing and Threat Detection • Temporal Tables • Monitoring • Query Performance Insights • Database Advisor
- 3. Azure SQL Database AzureSQL Database is a cloud-based relational database service, built on the Microsoft SQL Server engine designed to deliver predictable performance and scalability, with virtually no downtime and near-zero server- level administration.
- 4. Common Business Differentiators AzureSQL Database • You’re building new cloud-based applications to take advantage of cost savings and performance. • You need agility and scalability. • You want databases replicated in different regions of the world for disaster recovery. • You want to minimize server-level management overhead. SQL Server in an Azure VM • You want to build enterprise applications with OLTP databases larger than 4 TB. • You have existing IT resources and can maintain stewardship over backups, high availability and disaster recovery.
- 5. Common Technical Differentiators AzureSQL Database SQL Server in an Azure VM • AlwaysOn Availability Groups/Database mirroring/Failover Clustering • Active Directory authentication • SQL Server Agent • Cross-database queries • Integration Services • Analysis Services • Database snapshots • Reporting Services • Profiler • Data Quality Services • Direct Azure VNet connectivity • Service Broker • Resource Governor https://docs.microsoft.com/en-us/azure/sql-database/sql-database-features • Active Geo-Replication • Azure Active Directory authentication • SSMS MFA • Autoscaling • Elastic pools • Elastic jobs • Elastic queries • Azure Data Factory • Azure Analysis Services • Server and database-level firewall • Elastic database tools • Threat detection • Database Advisor
- 6. Azure SQL Serversand Databases Servers • Logical constructs • Host databases • Designate: • an Azure region • resource group • Serve as • security boundaries: • logins • server-level firewalls • connection endpoints: • auto-generated FQDN • xxxx.database.windows.net Databases • Share logical server settings • Have individually assigned: • Service tier: • Basic • Standard • Premium • Premium RS (preview) • Performance level • Expressed in DTUs • Provide additional security: • users (including contained users) • database-level firewalls
- 7. Database Transaction Unit(DTU) . • A unit of measurement of platform resources guaranteed to be available to an Azure SQL database • CPU • Memory • I/O (data and transaction log) • Based on an OLTP benchmark workload • For details, refer to SQL Database benchmark overview • Directly proportional to database performance • e.g. a database with 1750 DTUs will have 350x more compute power than a database with 5 DTUs Intended for performance-based sizing of Azure SQL Database
- 8. Database-level Service Tiers . •Represent performance and capacity: • Max DTUs (up to 4,000) • Max database size (up to 4 TB) • Max in-memory OLTP storage (up to 32 GB) • Max concurrent workers (up to 6,400) • Max concurrent logins (up to 6,400) • Max concurrent sessions (up to 30,000) • Backup retention period (up to 35 days) • Availability SLA • 99.99% - Basic, Standard, Premium • 99.9% - Premium RS • Further divided into performance levels: • Standard: S0, S1, S2, S3 • Premium: P1, P2, P4, P6, P11, P15 • Premium RS: PRS1, PRS2, PRS4, PRS6 • Shared max database size • Different performance characteristics Basic, Standard, Premium, Premium RS (preview)
- 9. Management In majority ofcases, working with Azure SQL Database data is the same as working with SQL Server data. • Rich and up-to-date transact- SQL (T-SQL) support • A few differences in DDL and DML(*) • Stored procedures, user-defined functions, triggers, and views • Newest features from SQL Server 2016 • The same tools: • SSMS, Visual Studio • Automation via PowerShell, Azure CLI, REST API (*) https://docs.microsoft.com/en-us/azure/sql-database/sql-database-transact-sql-information
- 10. Developing Solutions Azure SQLDatabase tasks, scripts, methods, functions and processes can be created and managed in Visual Studio using SQL Server Data Tools. Azure SQL Database lets you parse and query data represented in JSON format, and export your relational data as JSON text. Connection libraries (on Windows, Linux, and Mac) for: • ADO.NET • Java • PHP (Windows only) • Node.js • Python • Ruby • C/C++ (Windows and Linux)
- 11. Elastic Database Pools •A set number of eDTUs for a set price: • Predictable cost • Individual databases within the pool can autoscale: • Autoscaling boundaries determined by the min eDTU and max eDTU per database • min eDTU and max eDTU are pool level settings • Size limited by the smaller of the database service tier and remaining pool storage • Performance expressed in eDTUs • eDTU = DTU Cost effective solution to manage multiple databases with different usage patterns
- 12. Elastic Database Pool-levelService Tiers . • Represent performance and capacity (per pool): • Max number of databases (up to 500) • Max eDTUs (up to 4,000) • Max data storage (up to 750 GB) • Max in-memory OLTP storage (up to 12 GB) • Max concurrent workers (up to 2,400) • Max concurrent logins (up to 2,400) • Max concurrent sessions (up to 30,000) • Min eDTU per database (down to 0) • Max eDTU per database (up to 4,000) • Divided into performance levels: • Based on total eDTUs per pool • Varying max data per pool size and performance characteristics • Each database in a pool has performance characteristics determined by the matching single database service tier • The min and max eDTU per database are determined by the pool performance level Basic, Standard, Premium, and Premium RS (preview)
- 13. Disaster Recovery • Asynchronousreplication of committed transactions • Available for all service tiers • Source and target can be standalone or pooled • Up to 4 readable secondaries: • can be located in any Azure region (requires a server at that location) • must use the same service tier • performance level can differ • Manual failover and failback • ERT < 30s, RPO < 5s • Replication reestablished automatically Built-in support offering minimal RTO and RPO
- 14. Backups • Read AccessGeo-Redundant (RA-GRS) • Retention service tier-dependent: • Basic: 7 days • Standard and Premium: 35 days • Frequency: • Transaction log: 5-10 minutes • Differential: every few hours • Full: weekly, starting immediately after db creation Automatic backup capabilities
- 15. Long-Term Backup Retention(preview) • Requires an Azure Recovery vault: • Assigned on the server level • LRS or GRS (you decide) • Once configured, automatically copies full backups to the vault • Preserves encryption (TDE) • Configurable retention period (between 1 week and 10 years) • Cost according to the Azure Backup service pricing rates Supplements built-in backup capabilities beyond service tier- specific retention period
- 16. Restores • Point-in-time • inthe same region • within the service tier-specific retention period • Long-term • Within up to 10 years (when using long term retention with Azure Recovery Services vault) • Results in creation of a new database: • to any server in any region • within the same subscription • geo-restore uses full and differential backups (up to an hour of RPO) Point-in-time and long-term restore capabilities
- 17. Authentication and Authorization •Authentication • SQL Server principals • logins: • one or more defined in master • users: • master – manage server-wide roles • user databases - include contained database users • Azure AD security principals • login: • defined in master • the server-level Azure AD Admin (privileges equivalent to the server admin) • users • user databases - Azure AD contained database users • Authorization • Role membership • Object-level permissions Support for two types of identities
- 18. Security • Encryption • TransparentData Encryption • Always Encrypted • Column/cell-level encryption • Row-level security • Dynamic data masking • Auditing • Threat detection • Firewall rules • Server-level • Database-level Includes the latest features of SQL Server 2016.
- 19. Encryption Support for “alwaysencrypted” and “transparent” encryption of the database, backups, transaction log files, and secondaries (DR) • Always encrypted • Data encrypted and decrypted within client apps • Always Encrypted-enabled driver • Transparent Data Encryption • Encryption via a symmetric key • The symmetric key protected by a built-in server-specific certificate • Certificates managed by Microsoft
- 20. Row-level security • Basedon characteristics of user or app executing queries: • group membership • execution context • Simplifies the design and coding of security in your application • Logic is located in the database tier Azure SQL Database supports row-level security making it easy to partition query results based on a user or an app
- 21. Dynamic Data Masking •Policy-based • Based on masking rules and masking functions (e.g. credit card, email, etc.) • Supports user-based exclusions • A set of SQL users or AAD identities • Admin users always excluded • Hides sensitive data in the result set of a query targeting designated fields • Created and managed: • In the Azure Portal • Programmatically via SDKs and services • Scripting and T-SQL commands Dynamic data masking prevents unauthorized access to sensitive data by “masking” fields based on roles or permissions.
- 22. Auditing and ThreatDetection (preview) Capabilities • Retain an audit trail of selected event categories • Track database activity using preconfigured reports • Receive email alerts in response to suspicious events, unusual activity, and trends. Audited actions • Data access • DML – data changes • DCL – logins, users, roles and permissions • DDL – schema changes • Security exceptions
- 23. Temporal Tables Temporal Tablesprovide administrators and developers the ability to track and analyze historical changes in data, similar to concepts of versioning, and even allow retention polices, similar to a document management system.
- 24. Query Performance Insight •Deeper insight into your databases resource consumption • The ability to drill down into the details of a query, view its text and history of resource utilization • Performance tuning annotations that show actions performed by SQL Azure Database Advisor • Relies on Query Store Makes it easy to troubleshoot Azure SQL Database performance
- 25. Database Advisor • Threeimpact-based categories: • High impact recommendations should provide the most significant performance impact. • Medium impact recommendations should improve performance, but not substantially. • Low impact recommendations should provide better performance than without, but improvements might not be significant. • Recommendations: • Create index • Drop index • Parameterize queries • Fix schema issues Recommendations to improve query performance
