How to Tango with Salesforce & jQueryMobile for HTML5 Goodness

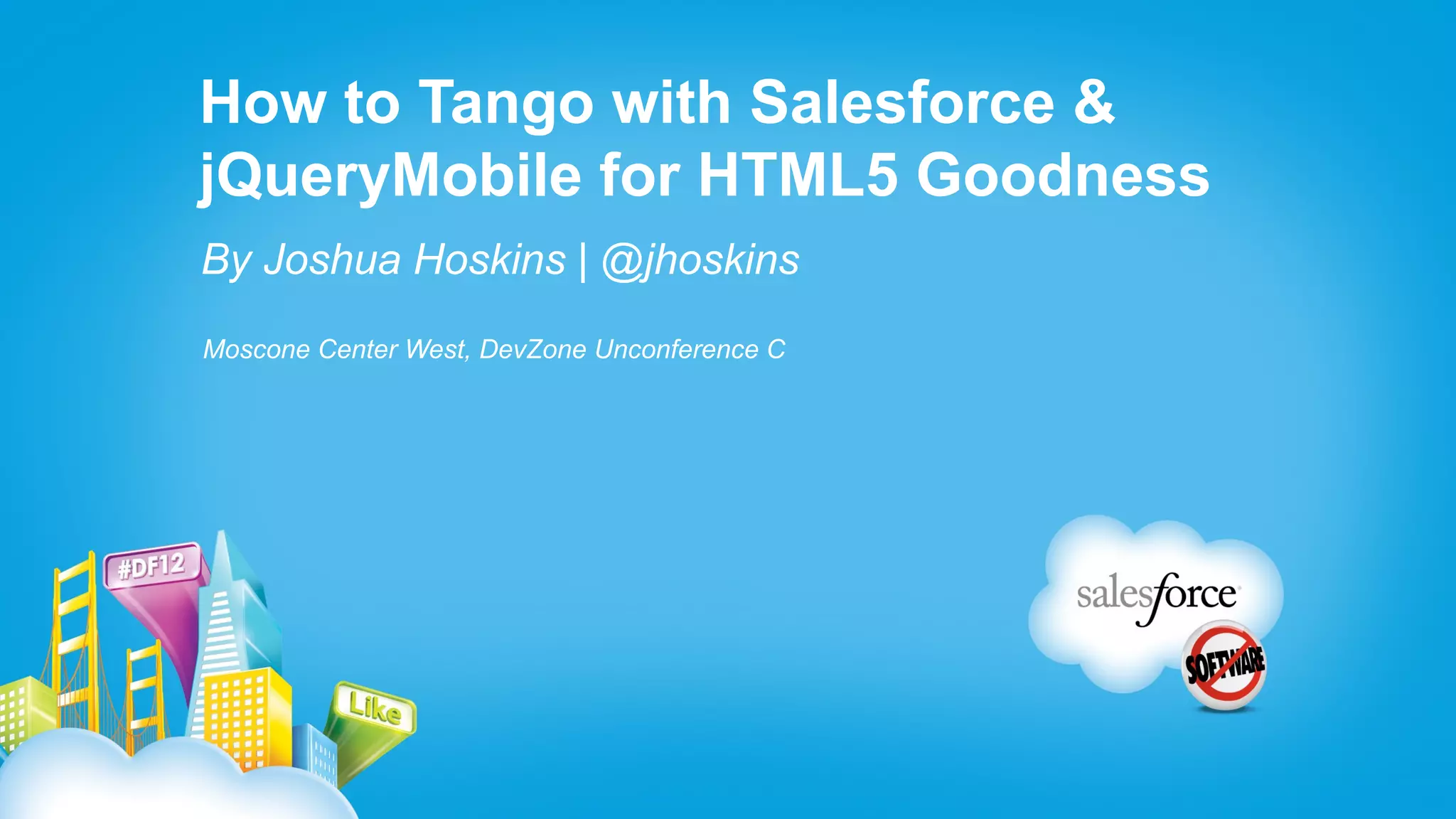

- 1. How to Tangowith Salesforce & jQueryMobile for HTML5 Goodness By Joshua Hoskins | @jhoskins Moscone Center West, DevZone Unconference C

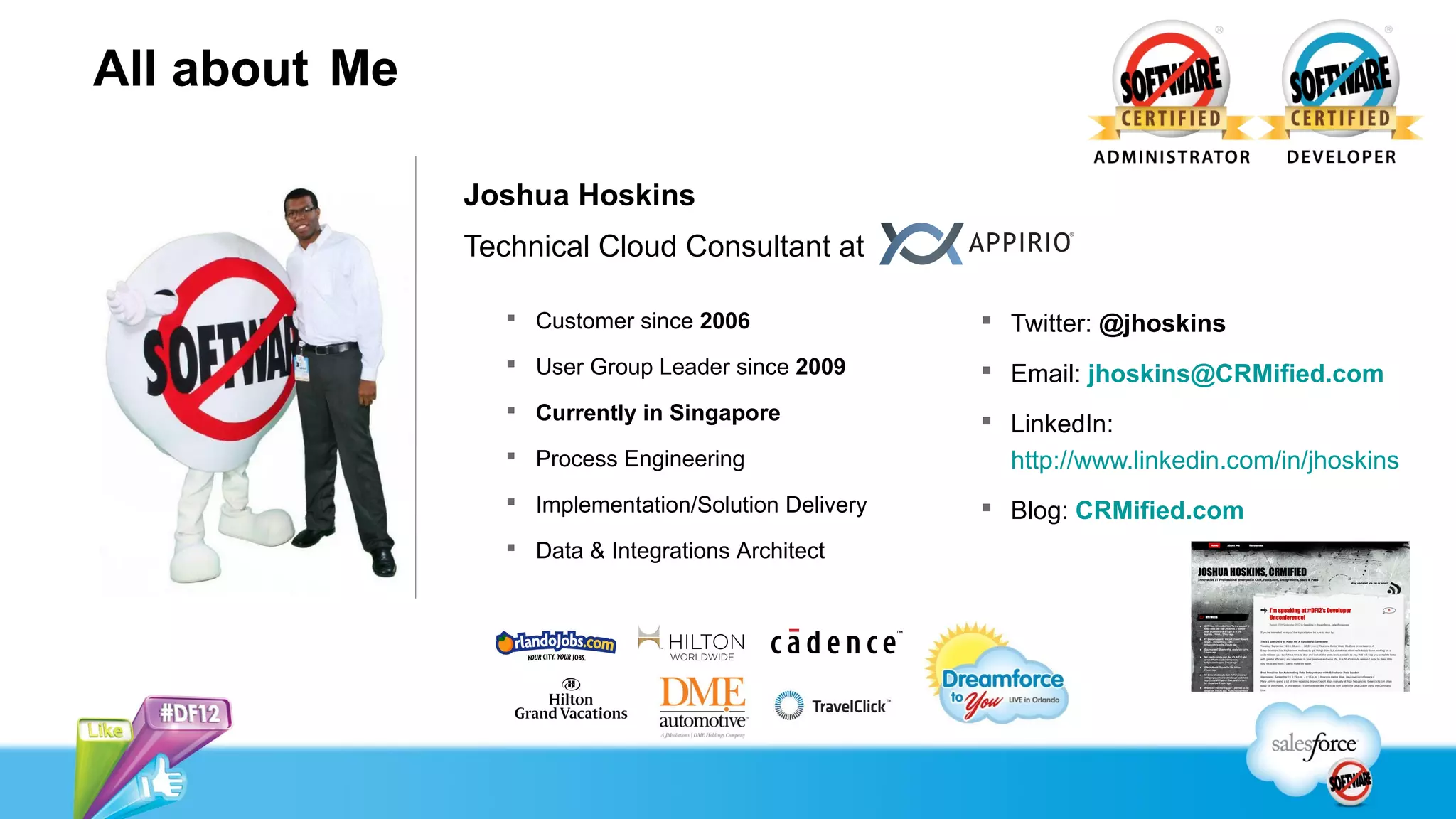

- 2. All about Me Joshua Hoskins Technical Cloud Consultant at Customer since 2006 Twitter: @jhoskins User Group Leader since 2009 Email: jhoskins@CRMified.com Currently in Singapore LinkedIn: Process Engineering http://www.linkedin.com/in/jhoskins Implementation/Solution Delivery Blog: CRMified.com Data & Integrations Architect

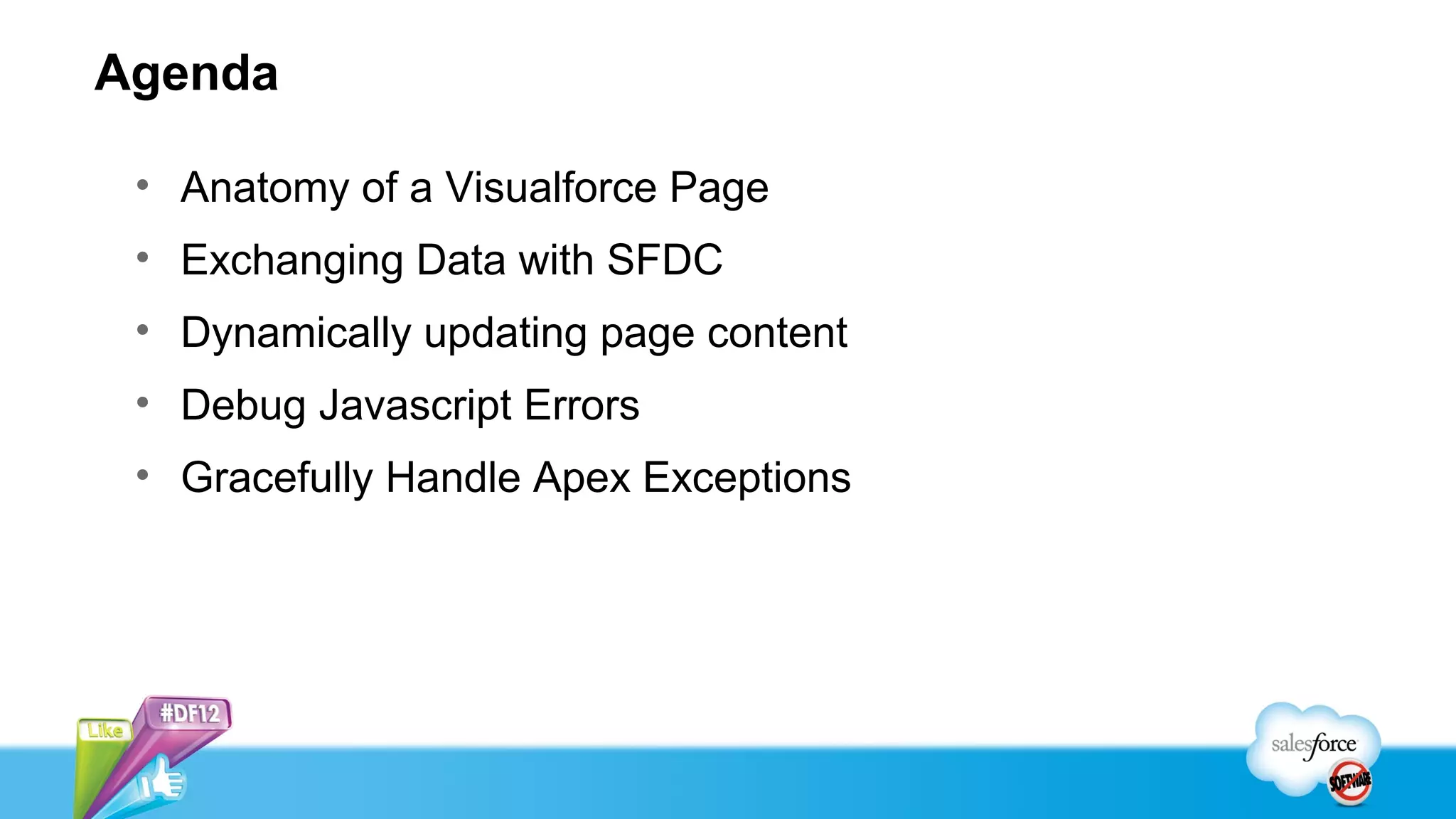

- 3. Agenda • Anatomyof a Visualforce Page • Exchanging Data with SFDC • Dynamically updating page content • Debug Javascript Errors • Gracefully Handle Apex Exceptions

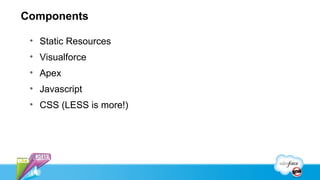

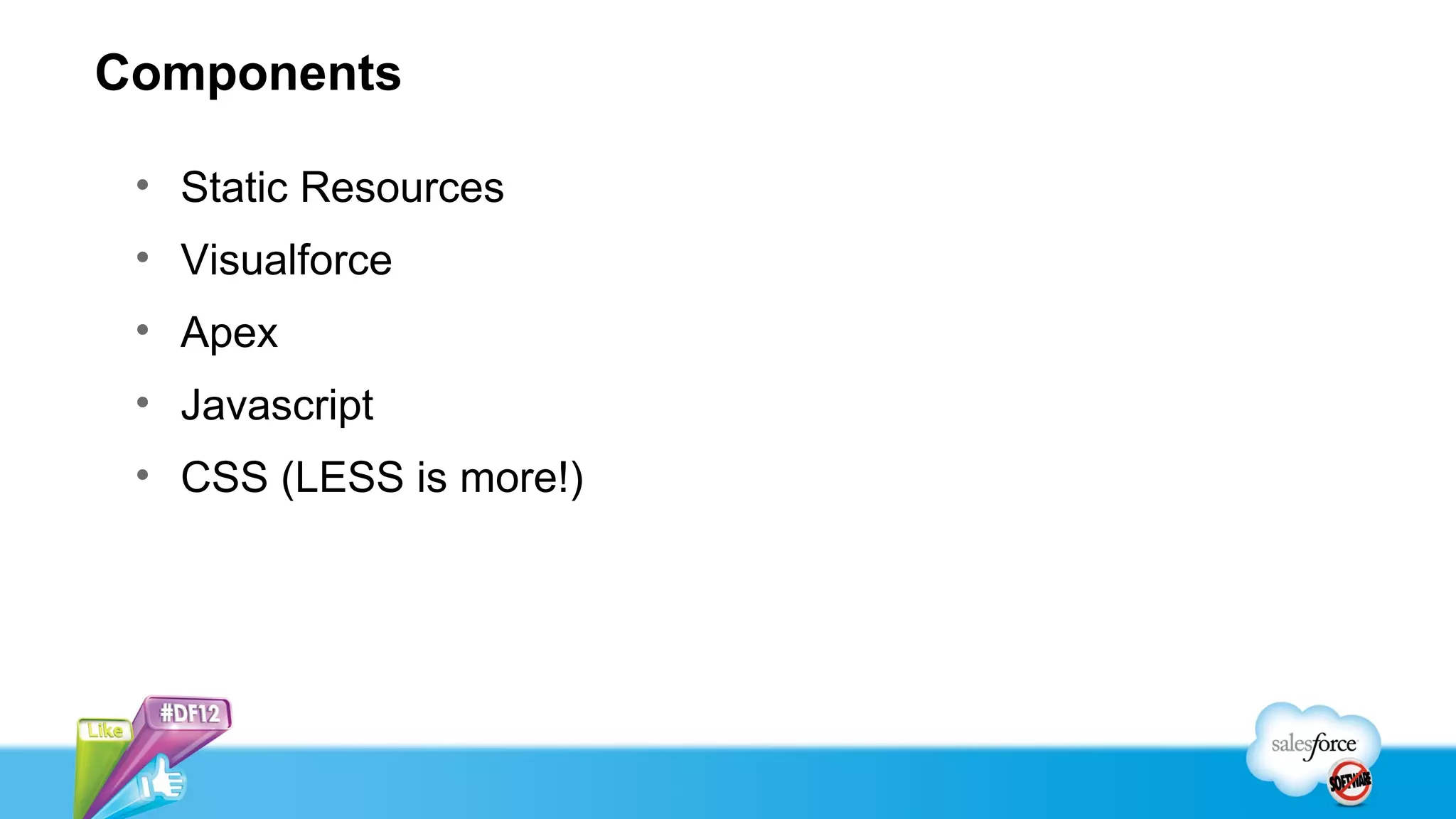

- 4. Components • StaticResources • Visualforce • Apex • Javascript • CSS (LESS is more!)

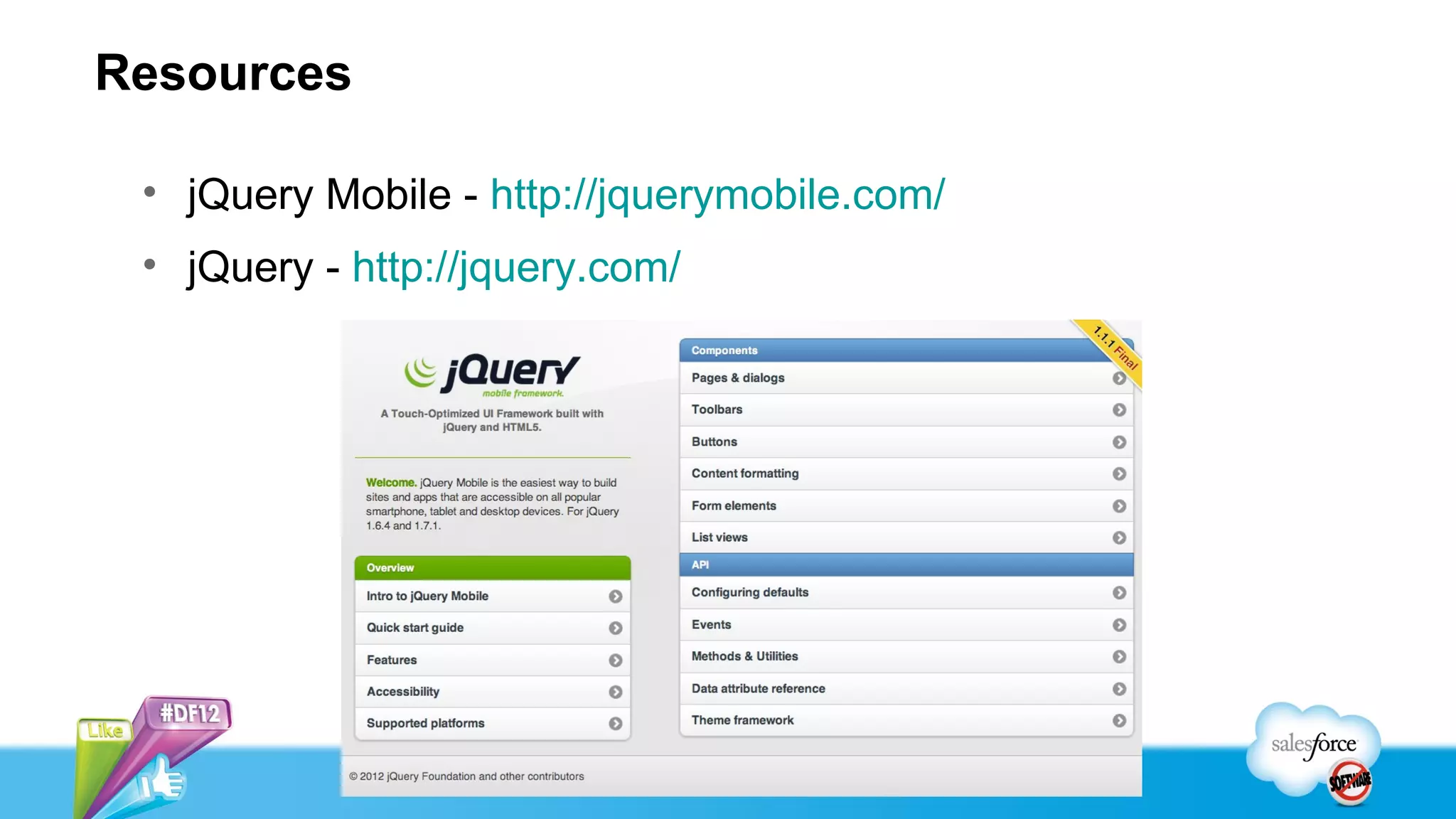

- 5. Resources • jQueryMobile - http://jquerymobile.com/ • jQuery - http://jquery.com/

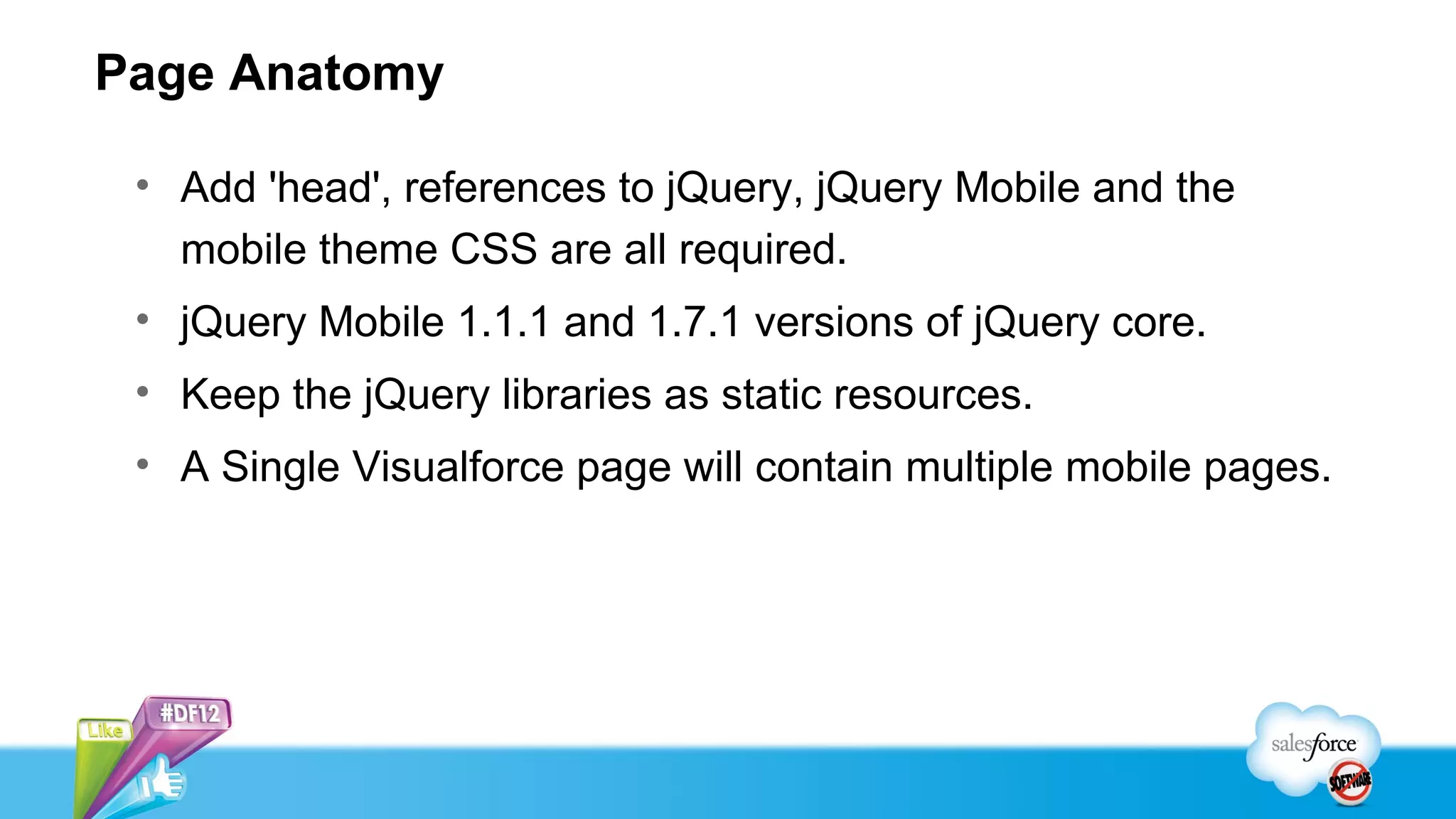

- 6. Page Anatomy •Add 'head', references to jQuery, jQuery Mobile and the mobile theme CSS are all required. • jQuery Mobile 1.1.1 and 1.7.1 versions of jQuery core. • Keep the jQuery libraries as static resources. • A Single Visualforce page will contain multiple mobile pages.

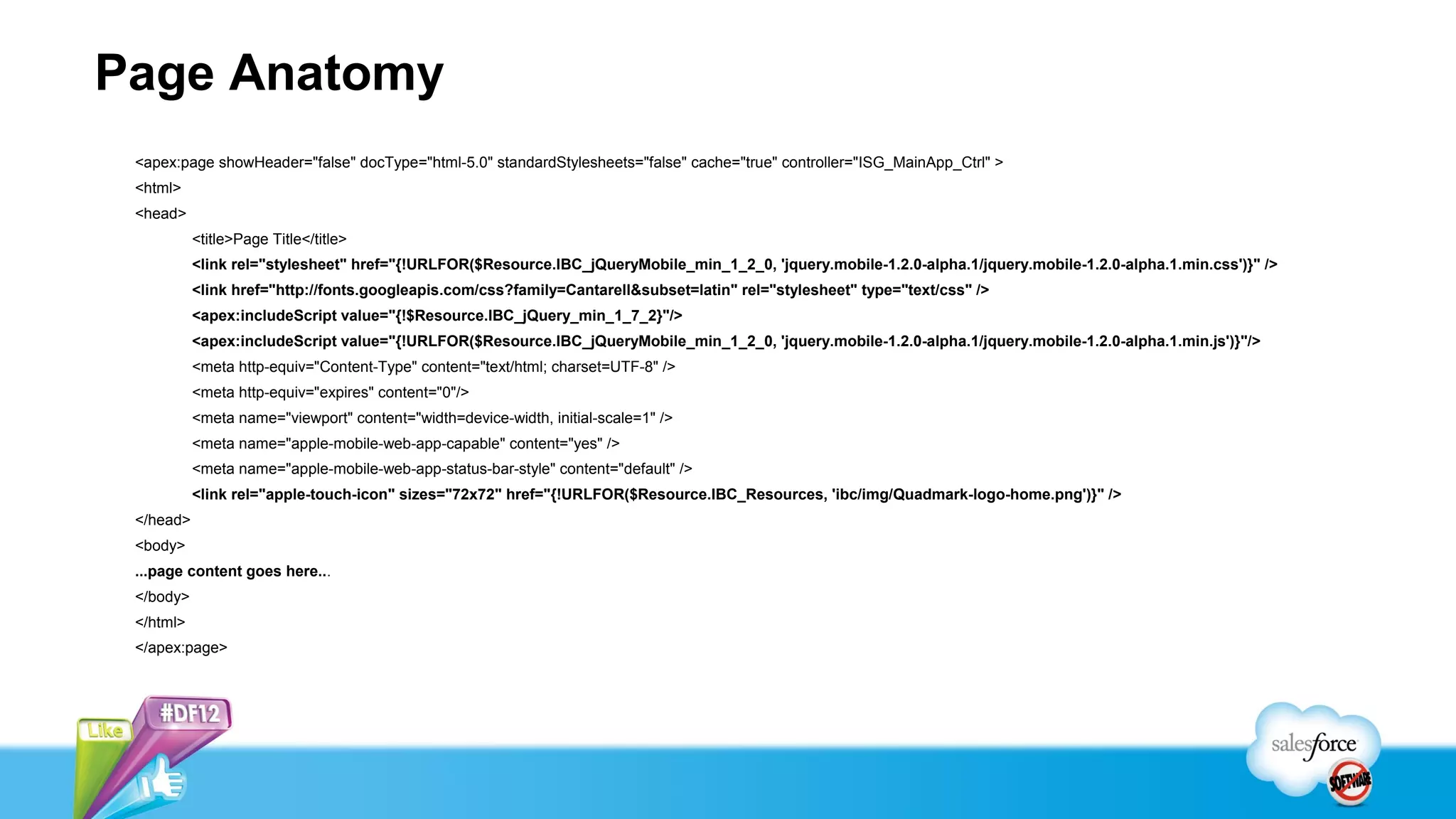

- 7. Page Anatomy <apex:pageshowHeader="false" docType="html-5.0" standardStylesheets="false" cache="true" controller="ISG_MainApp_Ctrl" > <html> <head> <title>Page Title</title> <link rel="stylesheet" href="{!URLFOR($Resource.IBC_jQueryMobile_min_1_2_0, 'jquery.mobile-1.2.0-alpha.1/jquery.mobile-1.2.0-alpha.1.min.css')}" /> <link href="http://fonts.googleapis.com/css?family=Cantarell&subset=latin" rel="stylesheet" type="text/css" /> <apex:includeScript value="{!$Resource.IBC_jQuery_min_1_7_2}"/> <apex:includeScript value="{!URLFOR($Resource.IBC_jQueryMobile_min_1_2_0, 'jquery.mobile-1.2.0-alpha.1/jquery.mobile-1.2.0-alpha.1.min.js')}"/> <meta http-equiv="Content-Type" content="text/html; charset=UTF-8" /> <meta http-equiv="expires" content="0"/> <meta name="viewport" content="width=device-width, initial-scale=1" /> <meta name="apple-mobile-web-app-capable" content="yes" /> <meta name="apple-mobile-web-app-status-bar-style" content="default" /> <link rel="apple-touch-icon" sizes="72x72" href="{!URLFOR($Resource.IBC_Resources, 'ibc/img/Quadmark-logo-home.png')}" /> </head> <body> ...page content goes here... </body> </html> </apex:page>

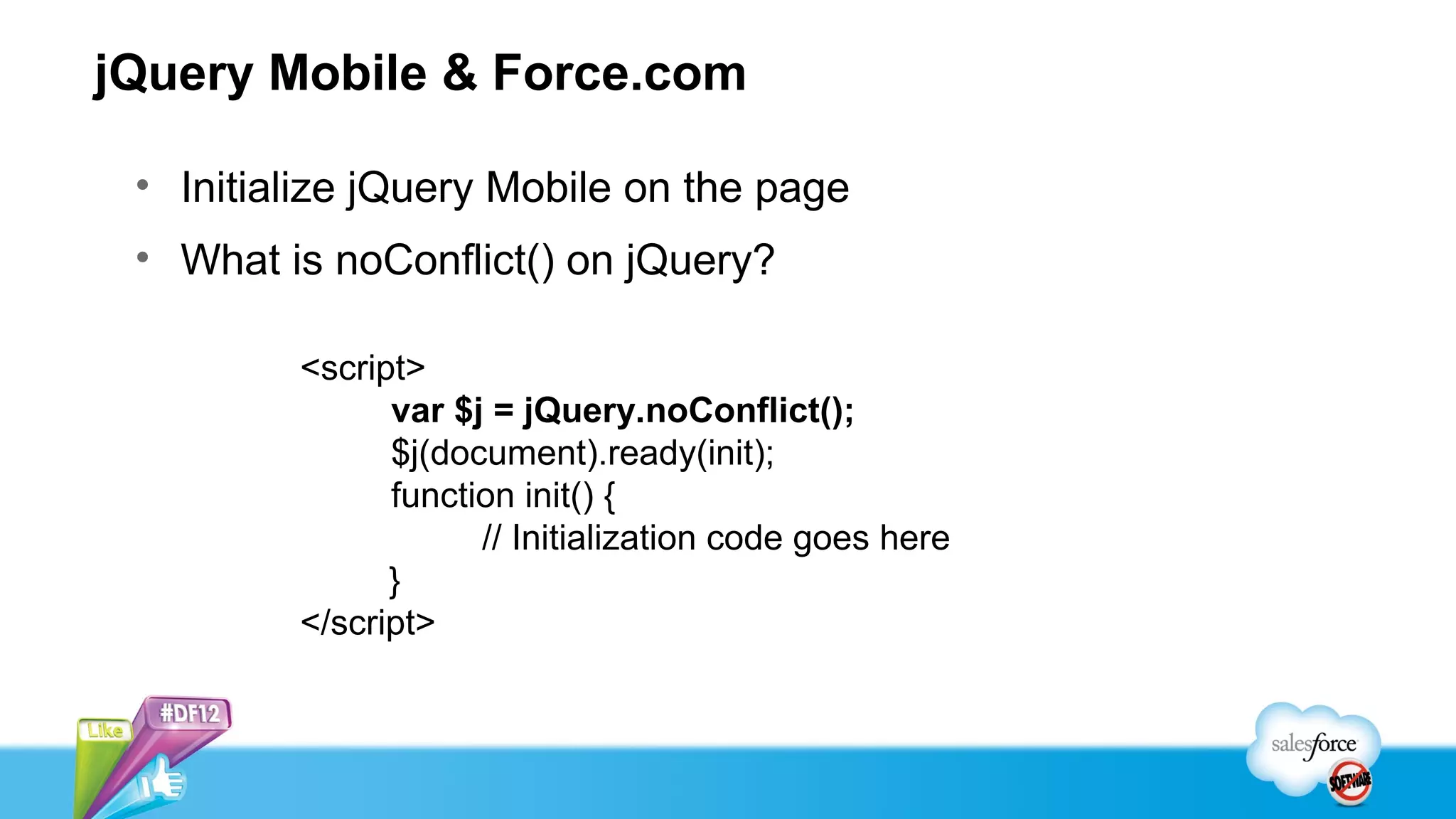

- 8. jQuery Mobile &Force.com • Initialize jQuery Mobile on the page • What is noConflict() on jQuery? <script> var $j = jQuery.noConflict(); $j(document).ready(init); function init() { // Initialization code goes here } </script>

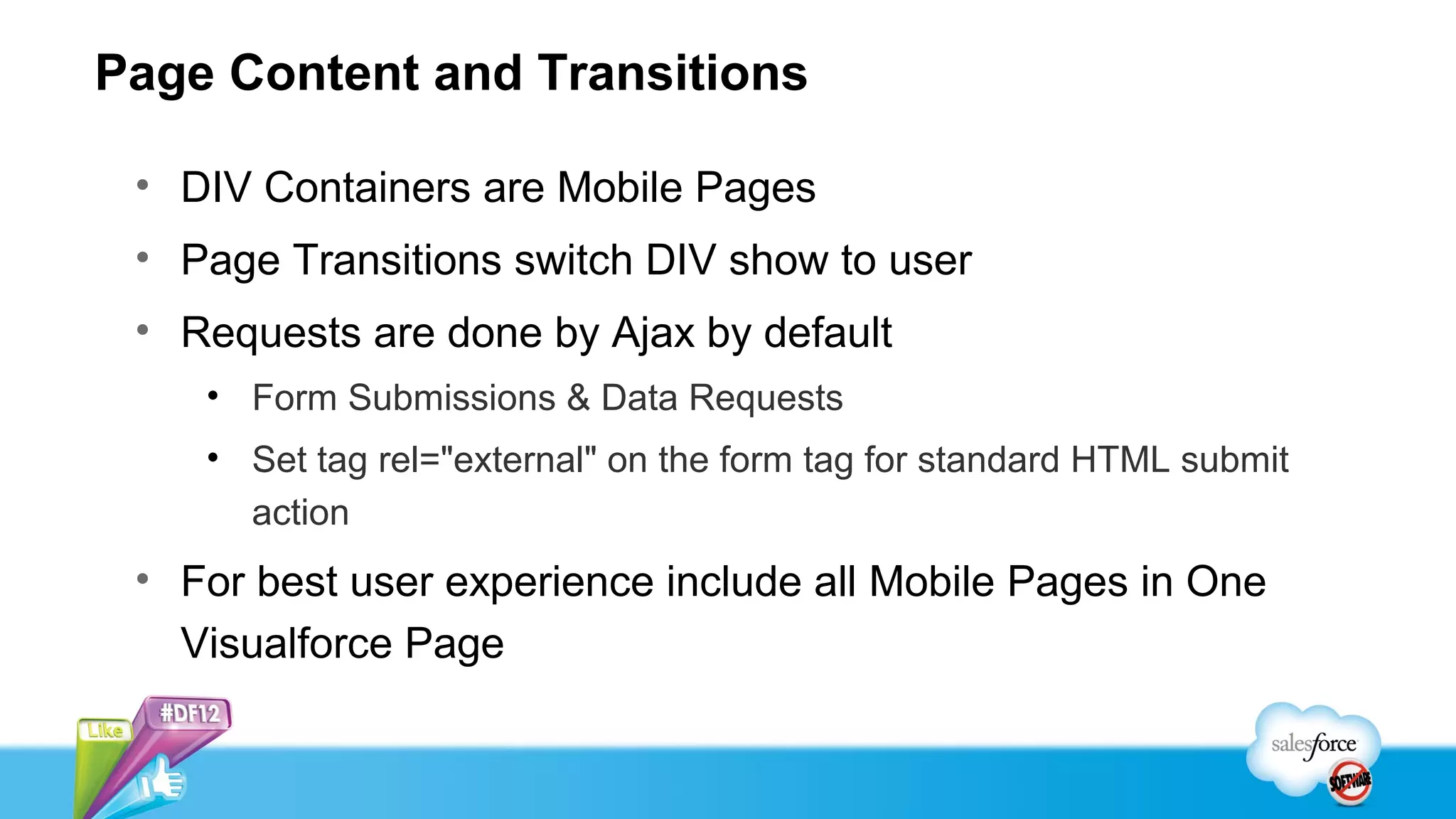

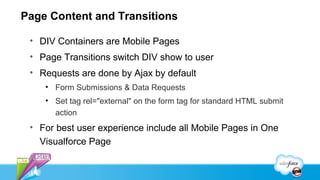

- 9. Page Content andTransitions • DIV Containers are Mobile Pages • Page Transitions switch DIV show to user • Requests are done by Ajax by default • Form Submissions & Data Requests • Set tag rel="external" on the form tag for standard HTML submit action • For best user experience include all Mobile Pages in One Visualforce Page

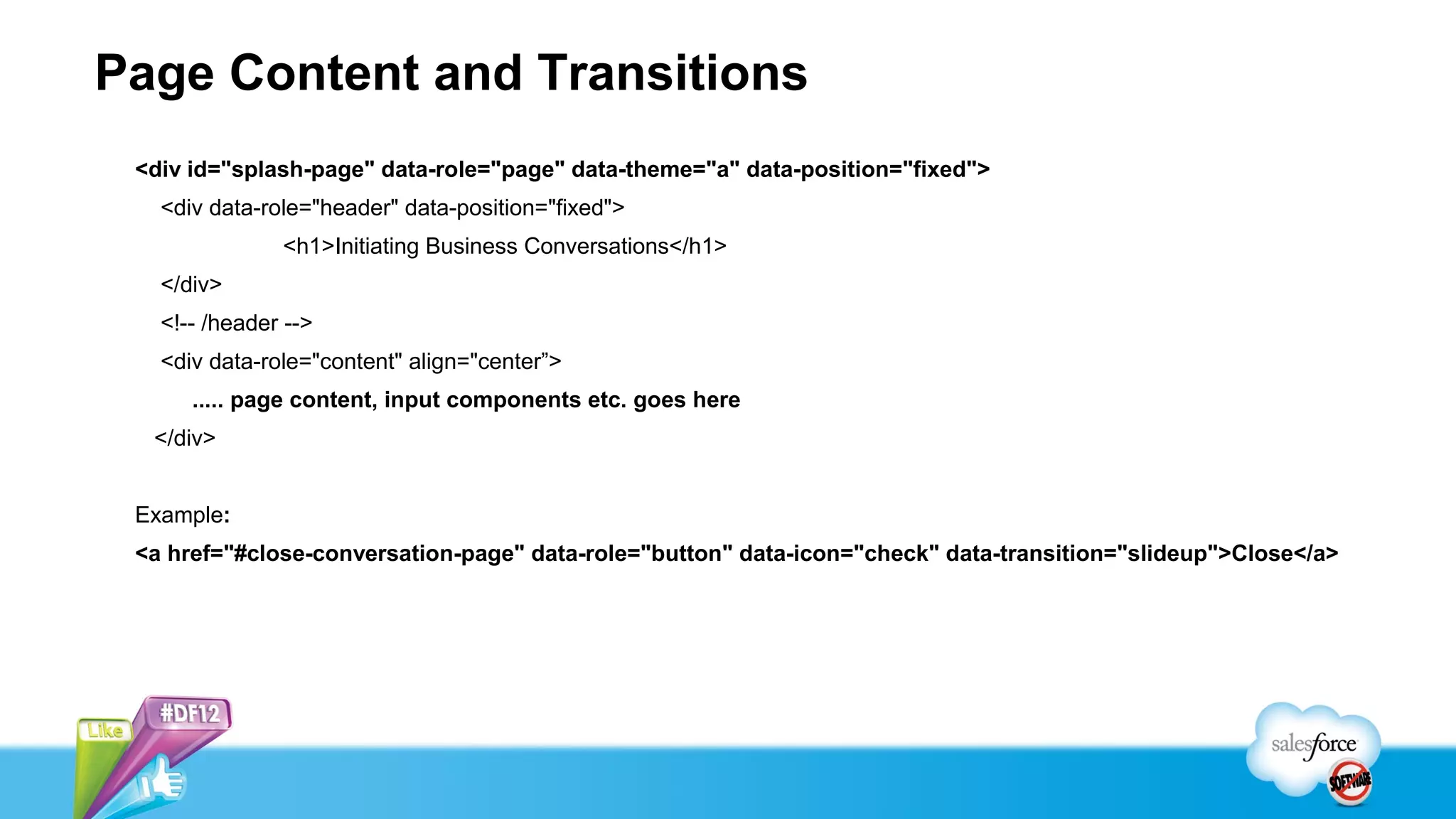

- 10. Page Content andTransitions <div id="splash-page" data-role="page" data-theme="a" data-position="fixed"> <div data-role="header" data-position="fixed"> <h1>Initiating Business Conversations</h1> </div> <!-- /header --> <div data-role="content" align="center”> ..... page content, input components etc. goes here </div> Example: <a href="#close-conversation-page" data-role="button" data-icon="check" data-transition="slideup">Close</a>
- 11.
- 12.
- 13.
- 14.
- 15.
- 16.

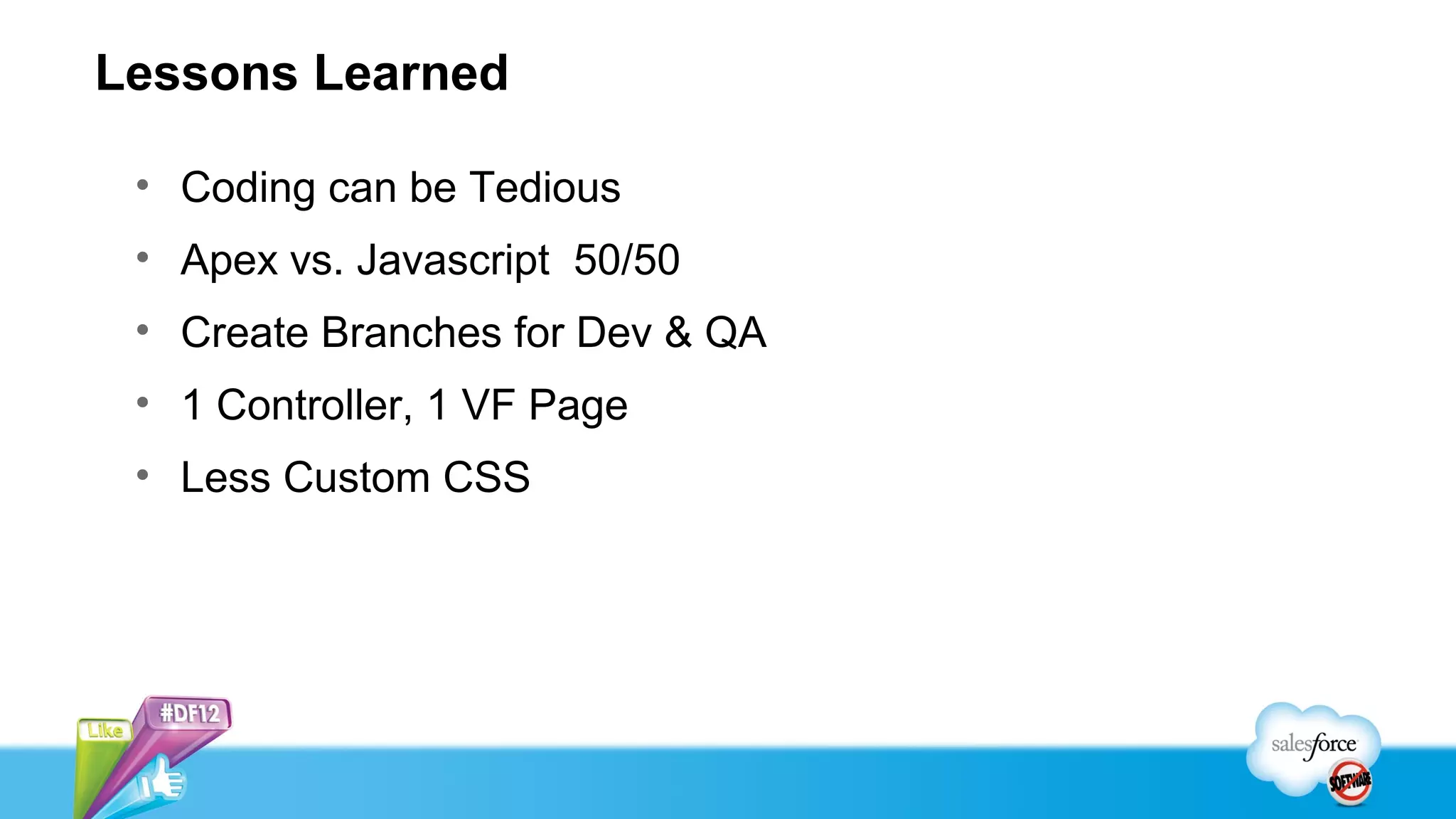

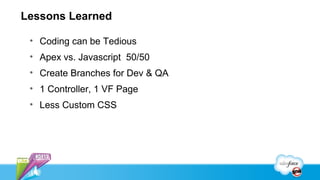

- 17. Lessons Learned •Coding can be Tedious • Apex vs. Javascript 50/50 • Create Branches for Dev & QA • 1 Controller, 1 VF Page • Less Custom CSS

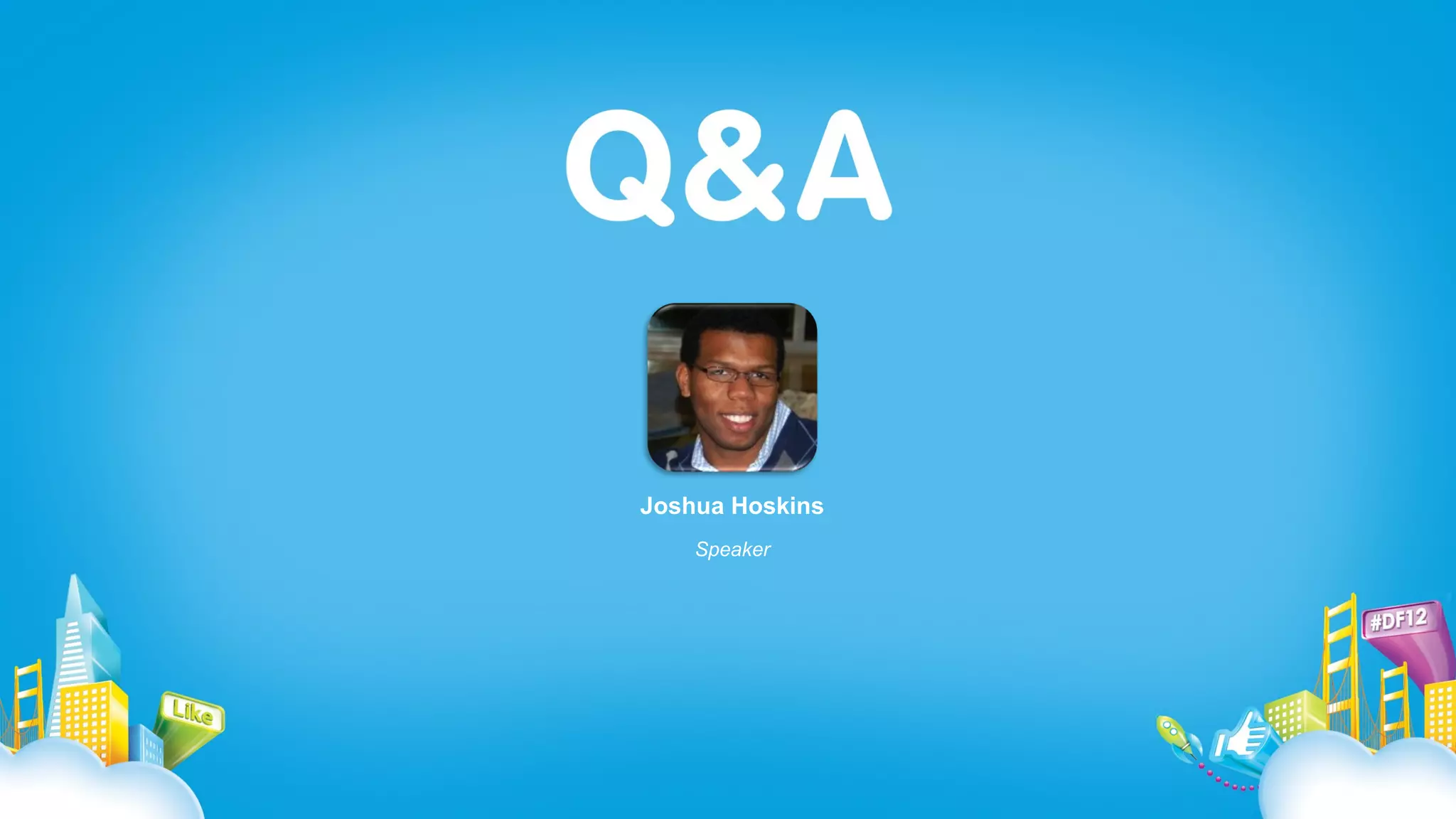

- 18. Joshua Hoskins Speaker
- 19. Appirio Helps EnterprisesPower Their Business with Public Cloud Solutions Helping Enterprises Become: Efficient Effective Agile Social Mobile Technology-enabled professional services, supported by 500 cloud experts and a 50,000+ cloud developer community 5 years, 300 enterprises, 1.5M users moved to the cloud 19
Editor's Notes
- #3 Customer since 2006 User Group Leader since 2009 Currently in Singapore Companies I’ve worked for are listed.
- #9 Many libraries including SF own make use of $ as function or variable name call noConflict method to prevent conflict with other libraries
- #10 Single page serves as container for multiple mobile pages represented as div elements. Number of different page transitions are available typically jQuery simply switches div that is visible on mobile device to show a new page. Requests are done as ajax by default, things such as form submit for example The standard form submit or use of apex:form tag is possible only by turning OFF default ajax processing for the page segment (set tag rel="external" on the form tag for standard HTML submit action) For best user experience and application performance it is best to have all pages in same HTML Open IDE
- #12 Call remote Controller methods from jQuery, JavaScript Visual Force with Winter 12' release introduced remote methods. Simple annotation @RemoteAction makes any controller method remote and can be called from page JavaScript can pass methods parameters as primitive types, sObjects and collections of primitives and sObjects Controller methods must be global static to be remote NOTE: Documentation states global or public but public methods do not work NOT visible some bug in APEX or VFP
- #13 Call remote Controller methods from jQuery, JavaScript Visual Force with Winter 12' release introduced remote methods. Simple annotation @RemoteAction makes any controller method remote and can be called from page JavaScript can pass methods parameters as primitive types, sObjects and collections of primitives and sObjects Controller methods must be global static to be remote NOTE: Documentation states global or public but public methods do not work NOT visible some bug in APEX or VFP
- #14 Call remote Controller methods from jQuery, JavaScript Visual Force with Winter 12' release introduced remote methods. Simple annotation @RemoteAction makes any controller method remote and can be called from page JavaScript can pass methods parameters as primitive types, sObjects and collections of primitives and sObjects Controller methods must be global static to be remote NOTE: Documentation states global or public but public methods do not work NOT visible some bug in APEX or VFP
- #15 Call remote Controller methods from jQuery, JavaScript Visual Force with Winter 12' release introduced remote methods. Simple annotation @RemoteAction makes any controller method remote and can be called from page JavaScript can pass methods parameters as primitive types, sObjects and collections of primitives and sObjects Controller methods must be global static to be remote NOTE: Documentation states global or public but public methods do not work NOT visible some bug in APEX or VFP
- #16 Call remote Controller methods from jQuery, JavaScript Visual Force with Winter 12' release introduced remote methods. Simple annotation @RemoteAction makes any controller method remote and can be called from page JavaScript can pass methods parameters as primitive types, sObjects and collections of primitives and sObjects Controller methods must be global static to be remote NOTE: Documentation states global or public but public methods do not work NOT visible some bug in APEX or VFP
- #17 Call remote Controller methods from jQuery, JavaScript Visual Force with Winter 12' release introduced remote methods. Simple annotation @RemoteAction makes any controller method remote and can be called from page JavaScript can pass methods parameters as primitive types, sObjects and collections of primitives and sObjects Controller methods must be global static to be remote NOTE: Documentation states global or public but public methods do not work NOT visible some bug in APEX or VFP
