![Our first program
org 0x7c00
mov ax,0xb800
mov ds,ax
;mov byte [ds:0],0x1b
here:
inc byte [ds:0]
jmp here
times 510 - ($-$$) db 0
dw 0xAA55
hello.asm bochsrc.bxrc
boot: floppy
floppya: 1_44=hello, status=inserted
megs: 16
#ata0-master: type=disk, mode=flat, path="30M.sample"
nasm hello.asm
ndisasm hello
bochs -q -f bochsrx.bxrc
Debugger:
bochsdbg -q -f bochsrx.bxrc
run](https://image.slidesharecdn.com/assembly-programming-i-180818154333/75/Assembly-programming-8-2048.jpg)

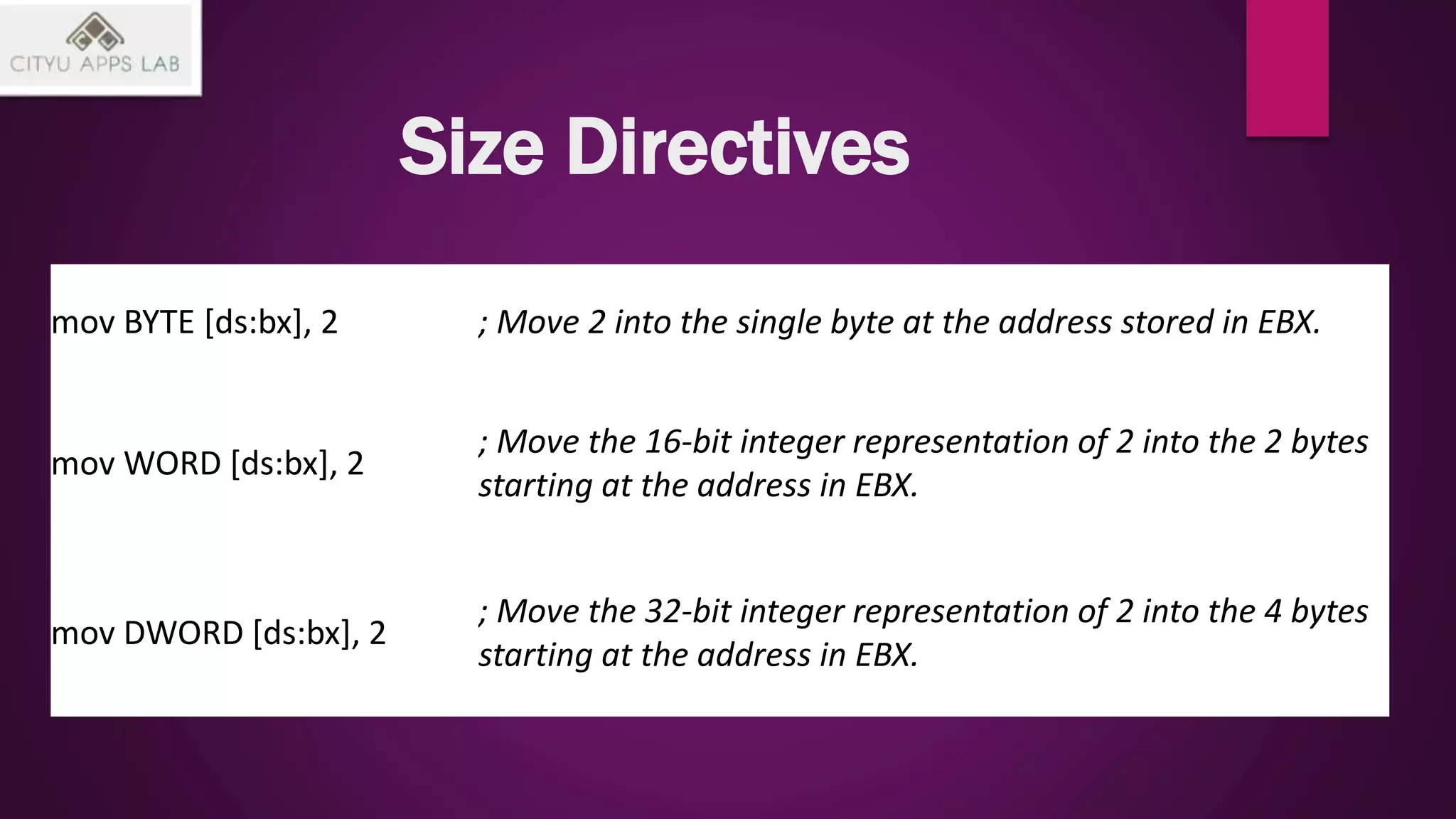

![Size Directives
mov BYTE [ds:bx], 2 ; Move 2 into the single byte at the address stored in EBX.
mov WORD [ds:bx], 2
; Move the 16-bit integer representation of 2 into the 2 bytes
starting at the address in EBX.
mov DWORD [ds:bx], 2
; Move the 32-bit integer representation of 2 into the 4 bytes
starting at the address in EBX.](https://image.slidesharecdn.com/assembly-programming-i-180818154333/75/Assembly-programming-12-2048.jpg)
More Related Content
Assembly programming
- 1.
- 2. Peter Cheung • Programmer •Ask me quedtions at peter@quantr.Hk

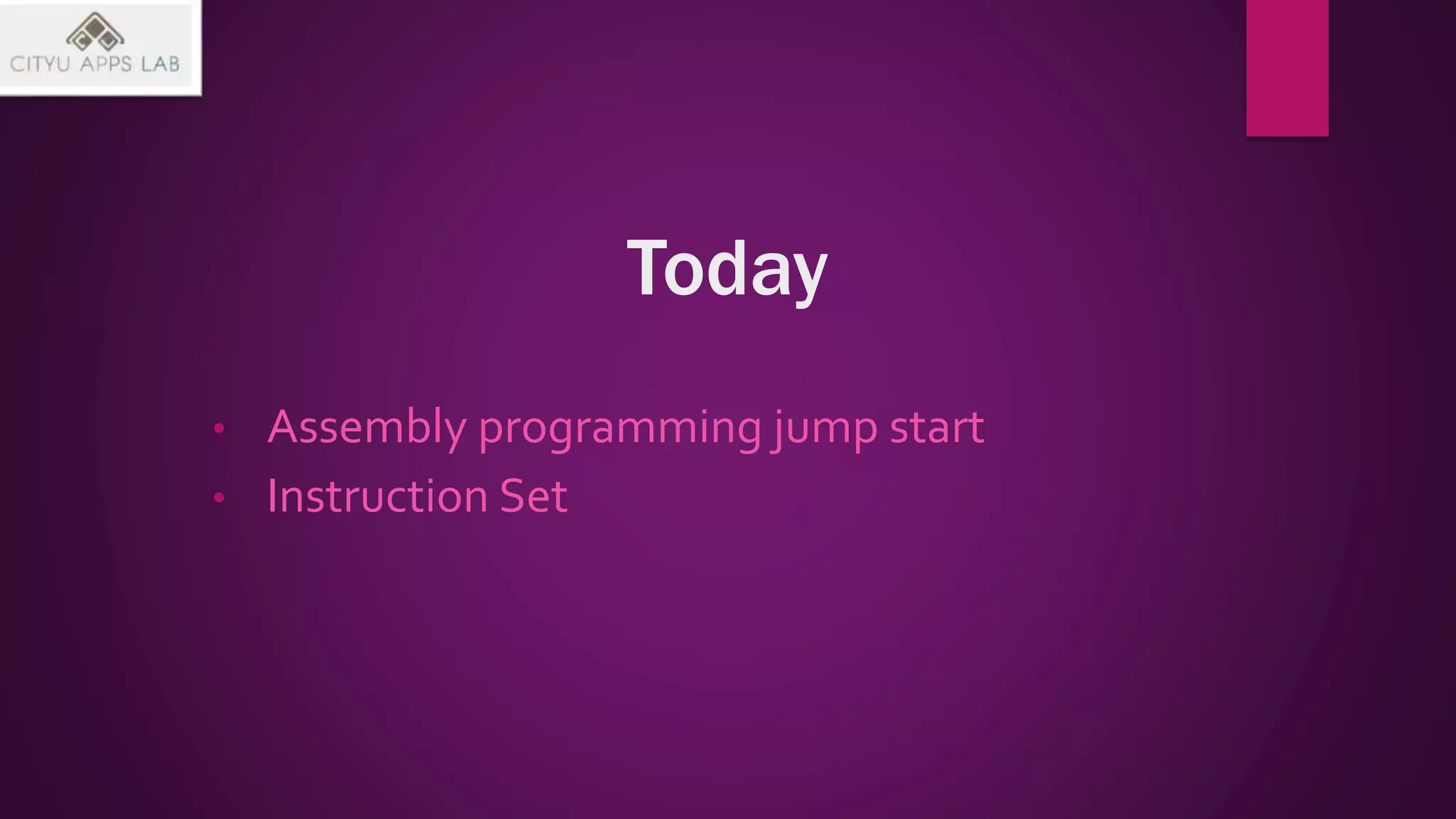

- 3. Today • Assembly programmingjump start • Instruction Set

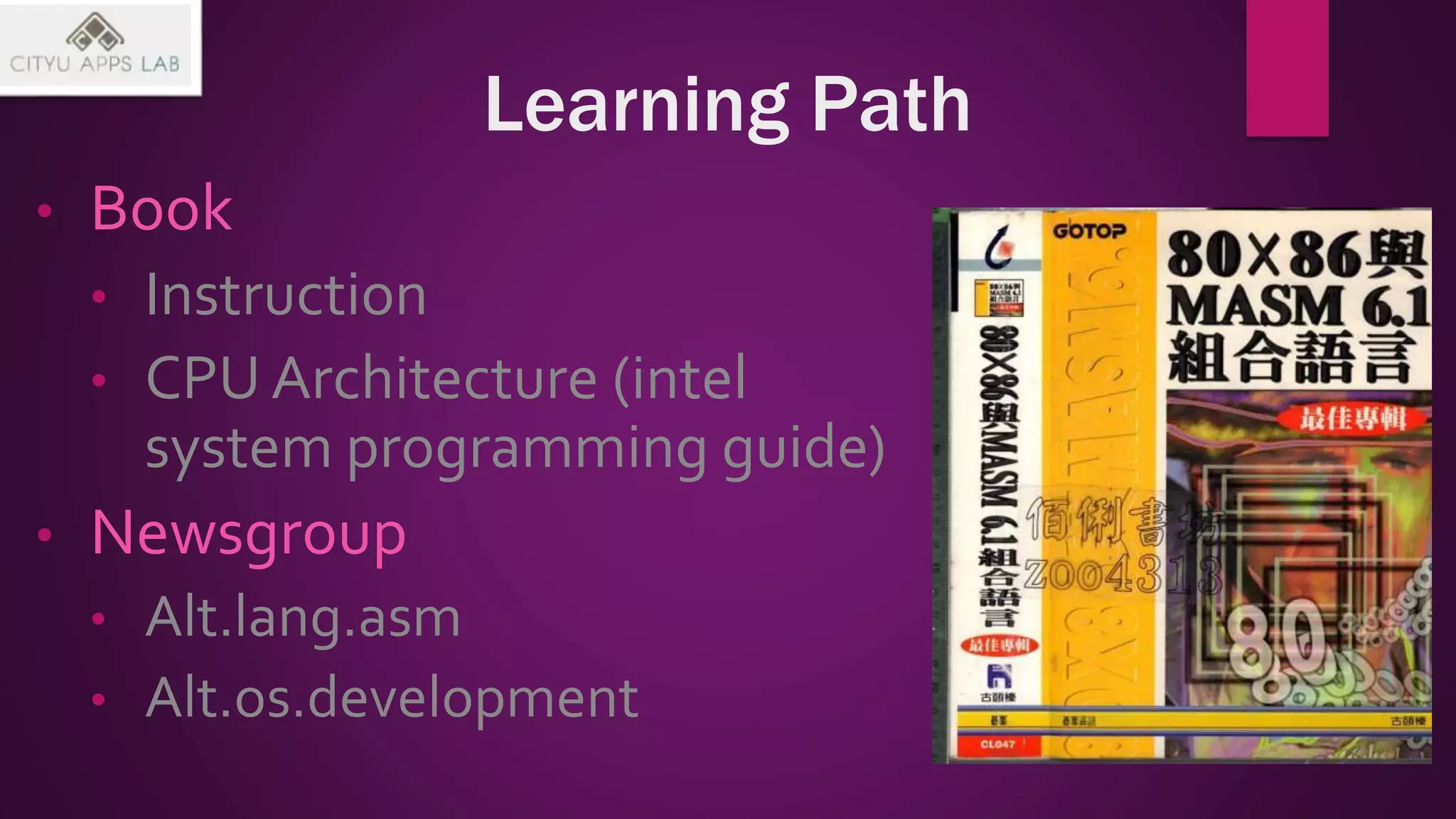

- 4. Learning Path • Book •Instruction • CPU Architecture (intel system programming guide) • Newsgroup • Alt.lang.asm • Alt.os.development

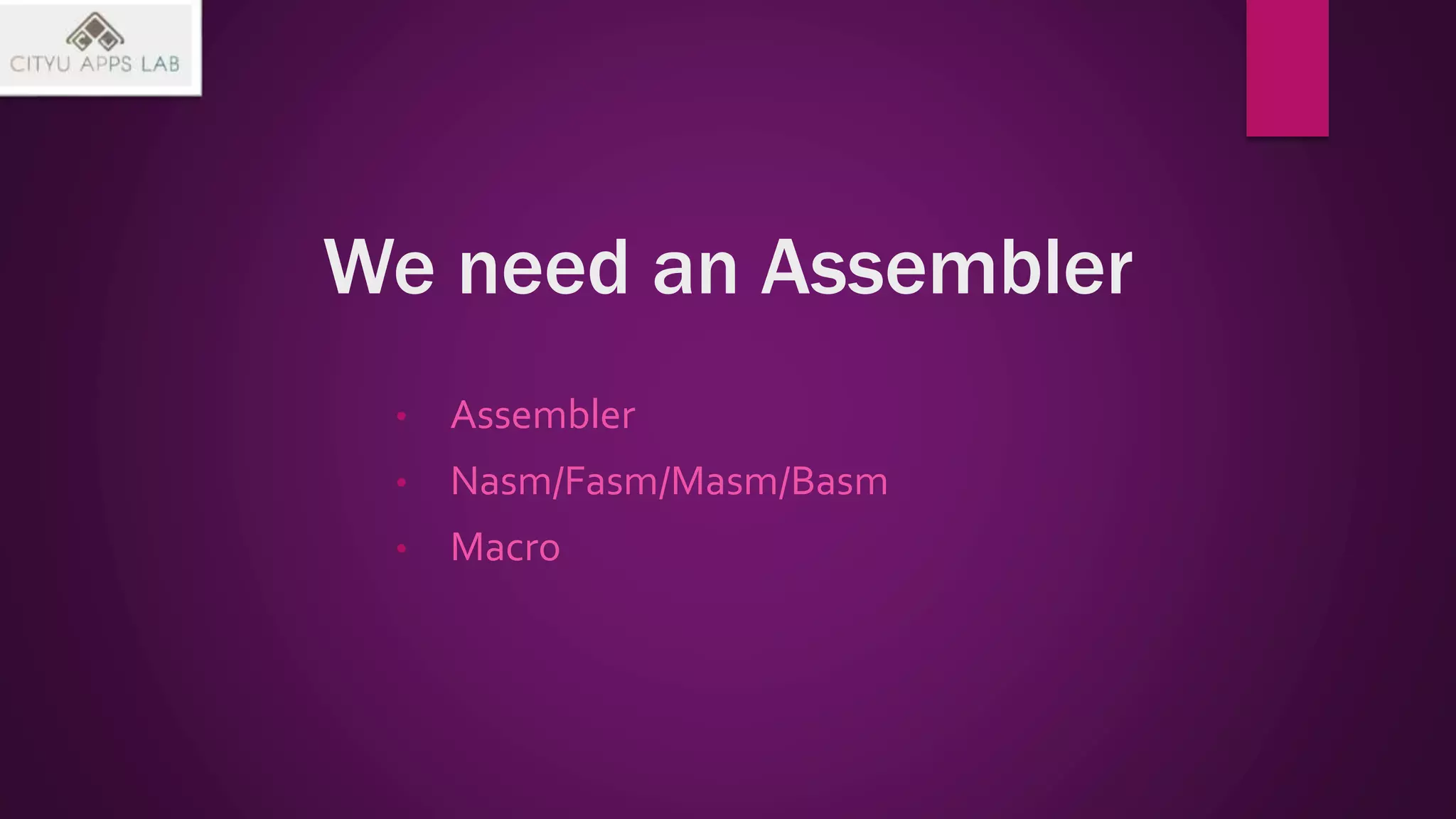

- 5. We need anAssembler • Assembler • Nasm/Fasm/Masm/Basm • Macro
- 6. We need anway to debug • http://bochs.sourceforge.net

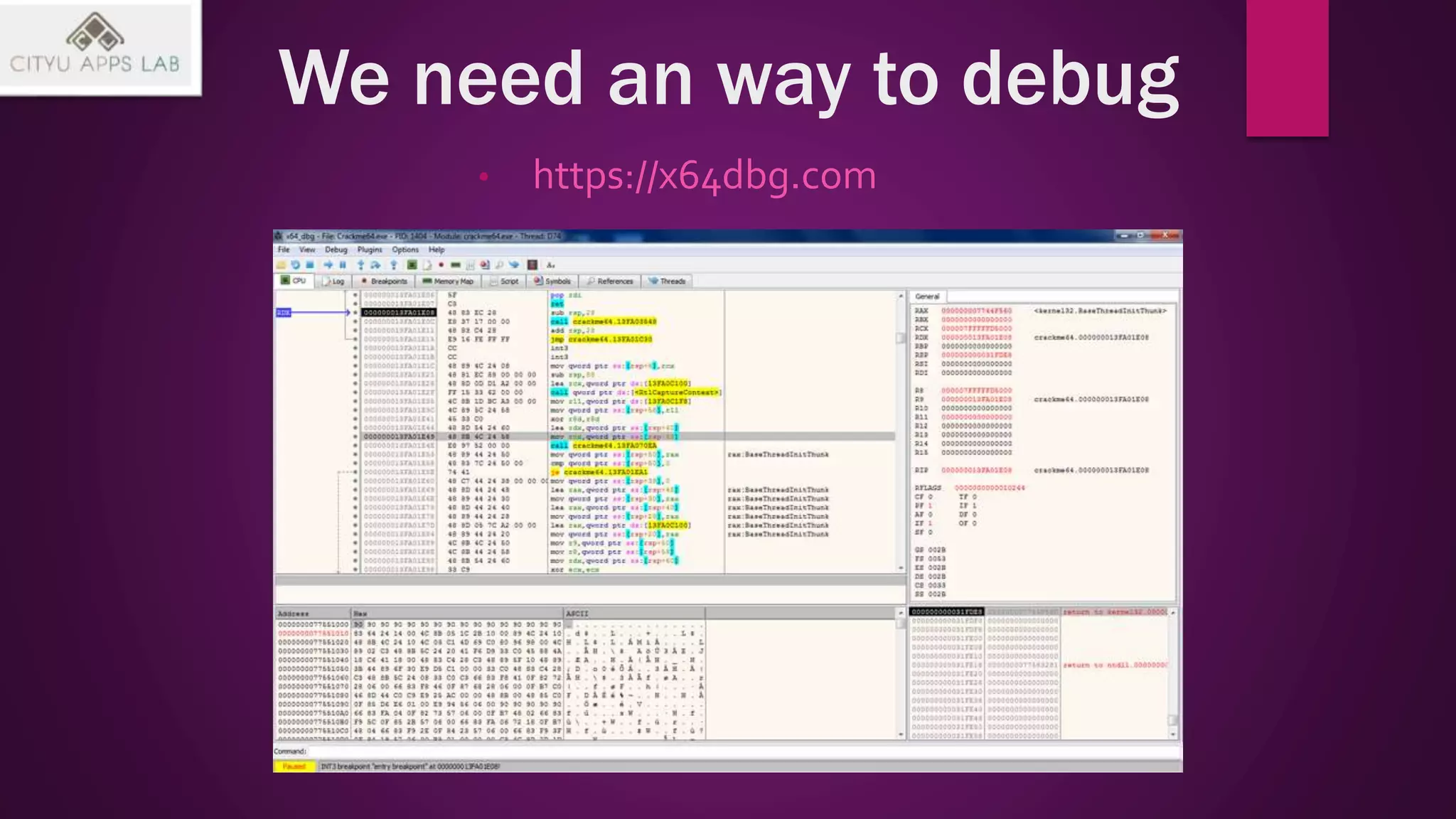

- 7. We need anway to debug • https://x64dbg.com

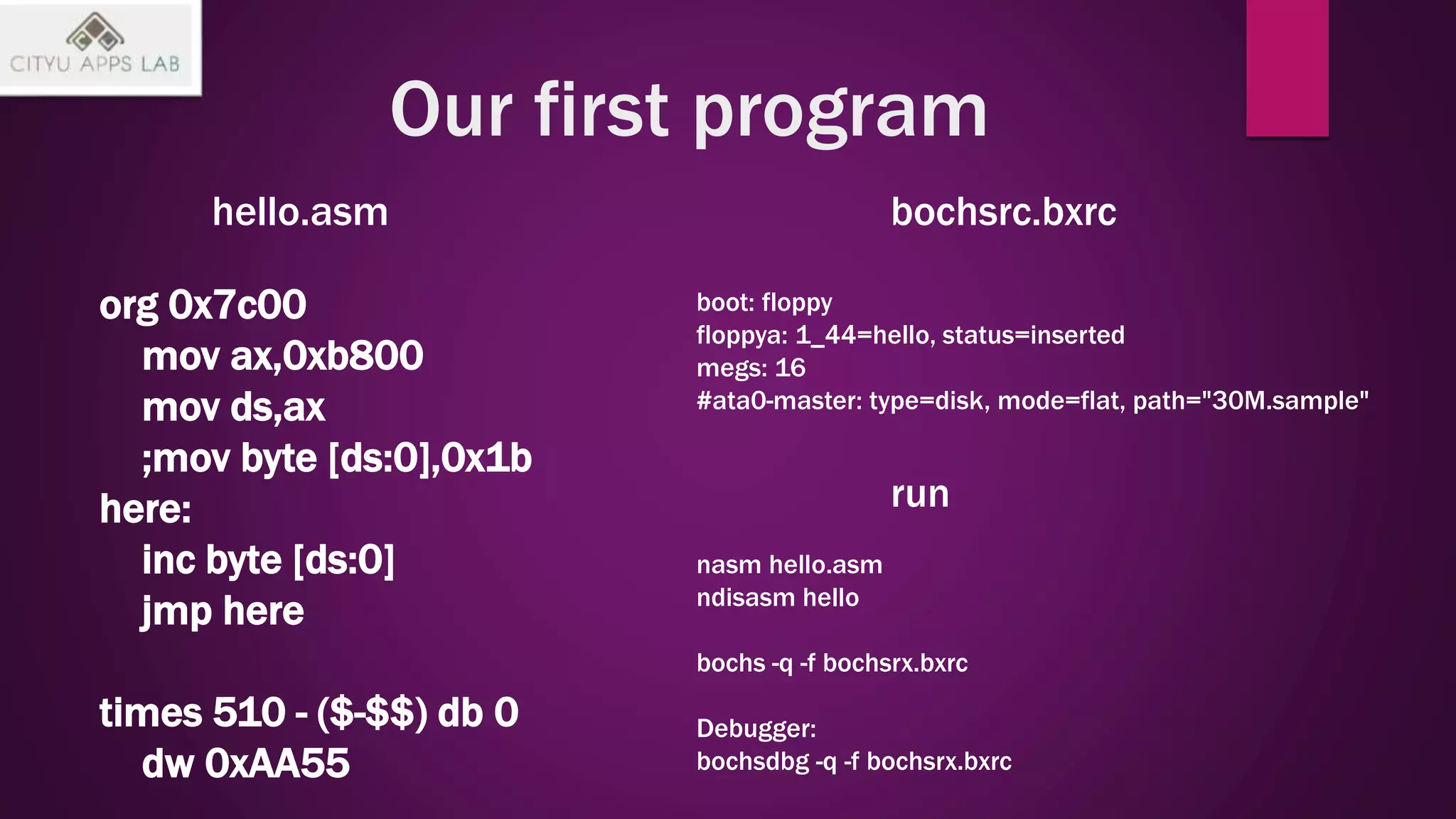

- 8. Our first program org0x7c00 mov ax,0xb800 mov ds,ax ;mov byte [ds:0],0x1b here: inc byte [ds:0] jmp here times 510 - ($-$$) db 0 dw 0xAA55 hello.asm bochsrc.bxrc boot: floppy floppya: 1_44=hello, status=inserted megs: 16 #ata0-master: type=disk, mode=flat, path="30M.sample" nasm hello.asm ndisasm hello bochs -q -f bochsrx.bxrc Debugger: bochsdbg -q -f bochsrx.bxrc run
- 9.
- 10.
- 11.
- 12. Size Directives mov BYTE[ds:bx], 2 ; Move 2 into the single byte at the address stored in EBX. mov WORD [ds:bx], 2 ; Move the 16-bit integer representation of 2 into the 2 bytes starting at the address in EBX. mov DWORD [ds:bx], 2 ; Move the 32-bit integer representation of 2 into the 4 bytes starting at the address in EBX.

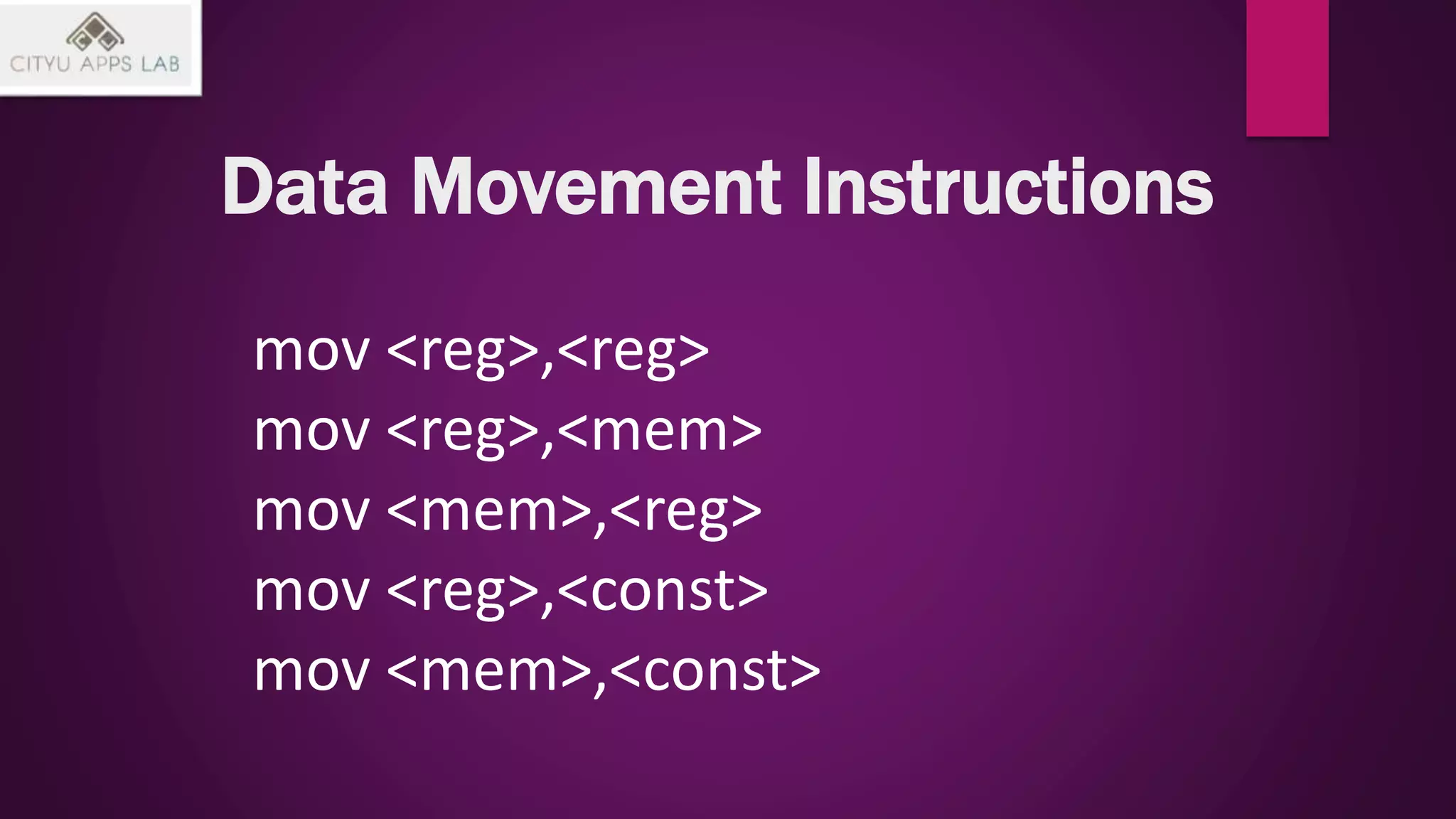

- 13. Data Movement Instructions mov<reg>,<reg> mov <reg>,<mem> mov <mem>,<reg> mov <reg>,<const> mov <mem>,<const>

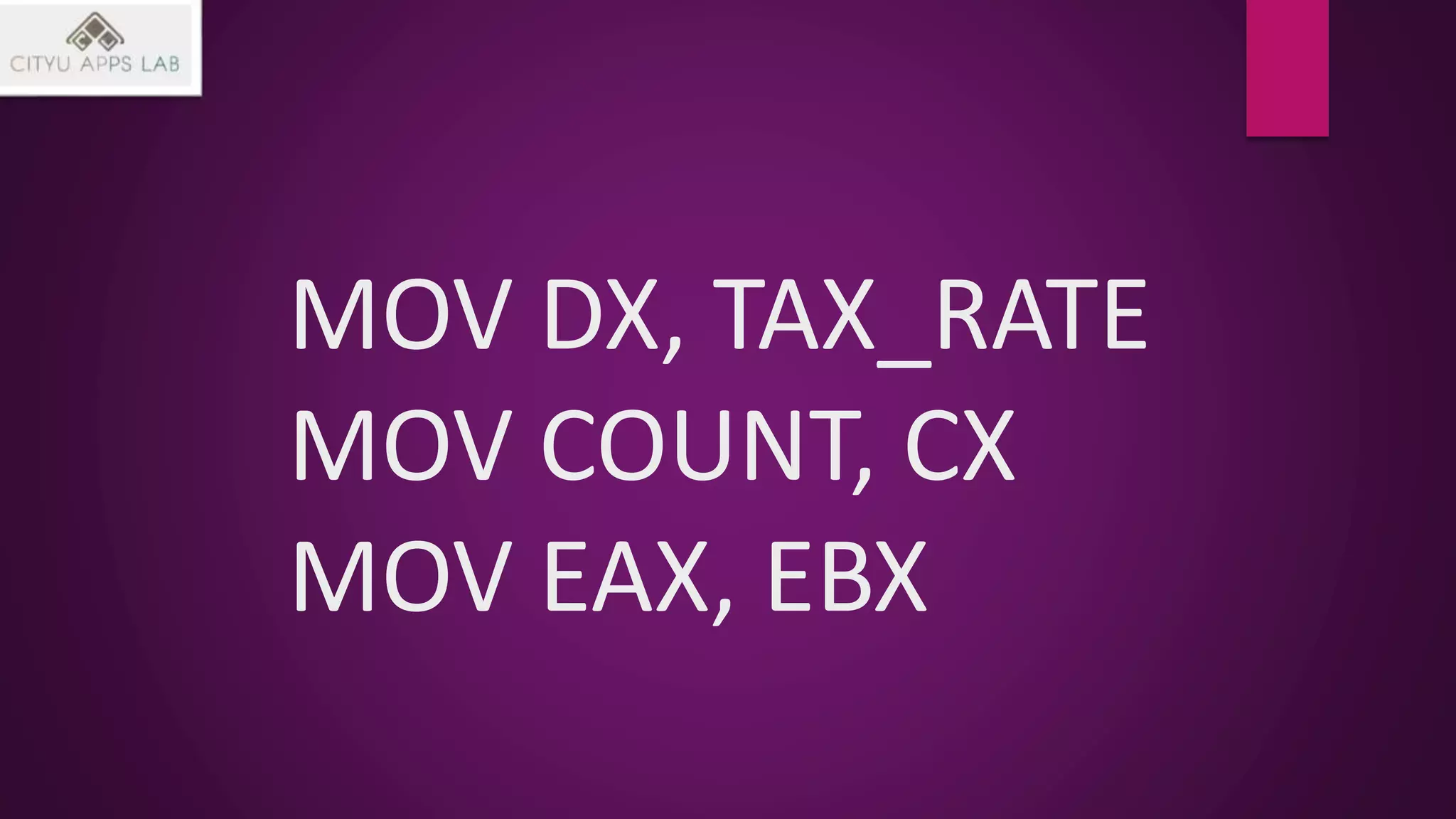

- 14. MOV DX, TAX_RATE MOVCOUNT, CX MOV EAX, EBX

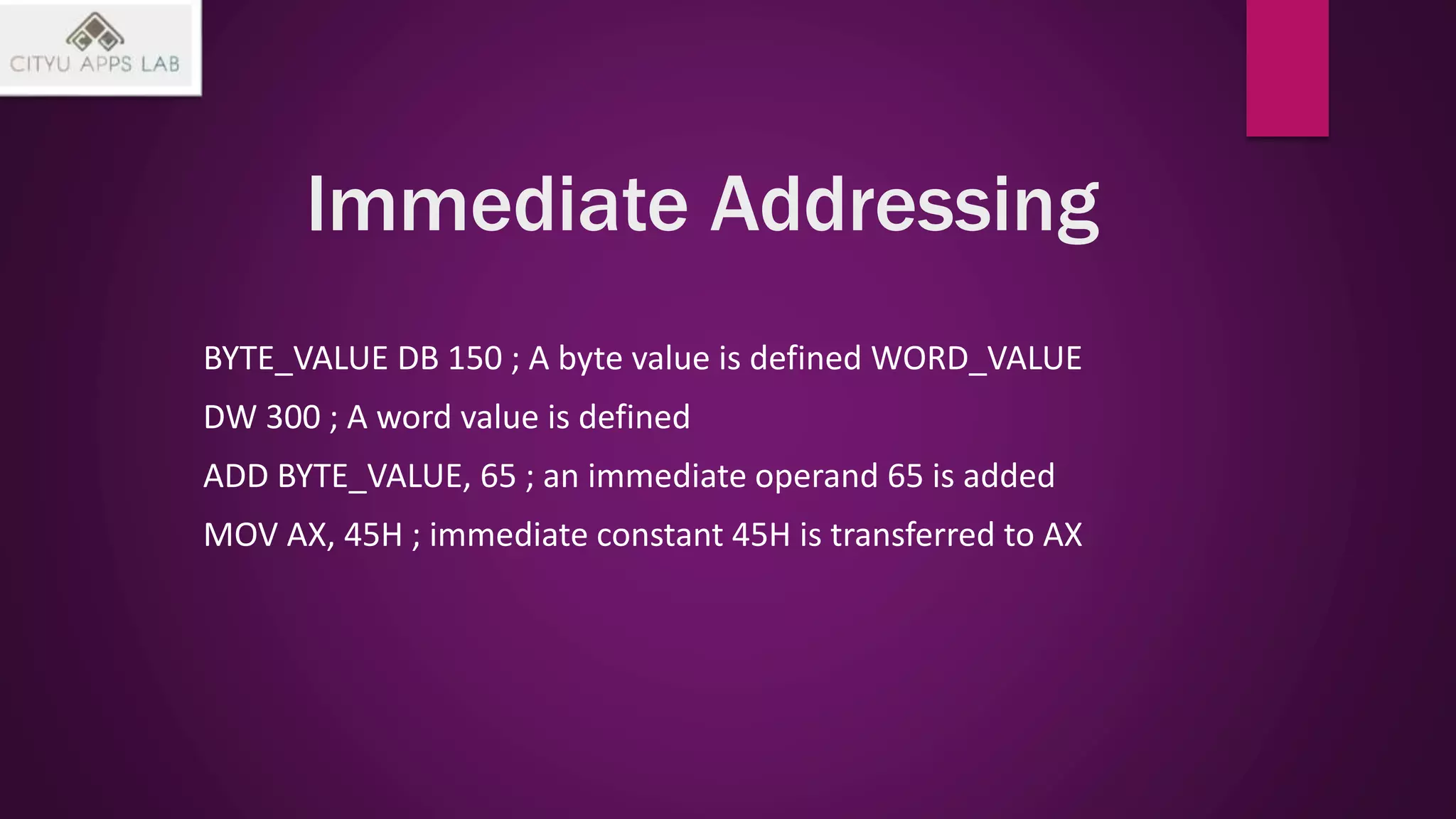

- 15. Immediate Addressing BYTE_VALUE DB150 ; A byte value is defined WORD_VALUE DW 300 ; A word value is defined ADD BYTE_VALUE, 65 ; an immediate operand 65 is added MOV AX, 45H ; immediate constant 45H is transferred to AX
- 16.

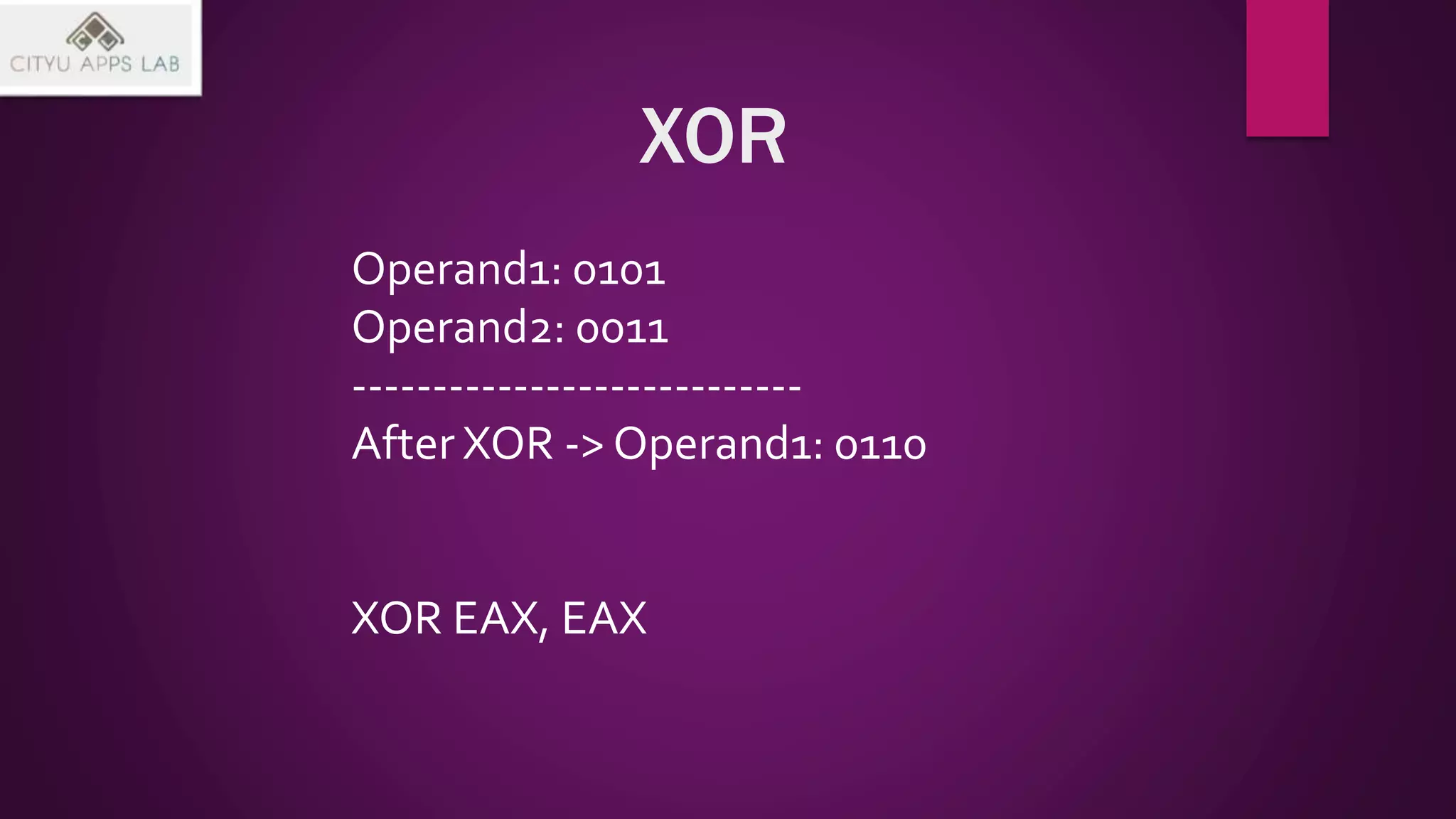

- 17. XOR Operand1: 0101 Operand2: 0011 ---------------------------- AfterXOR -> Operand1: 0110 XOR EAX, EAX

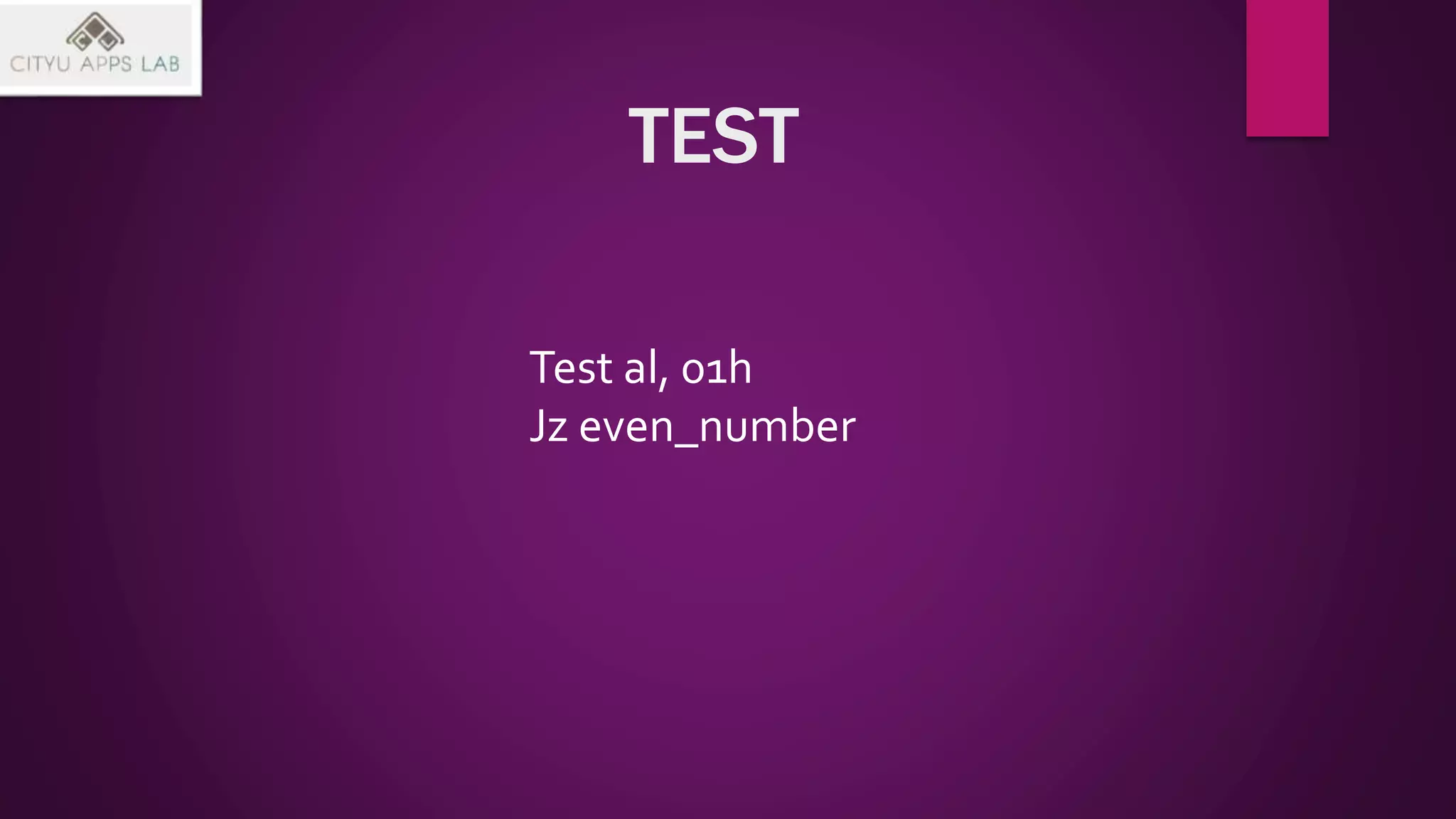

- 18. TEST Test al, 01h Jzeven_number

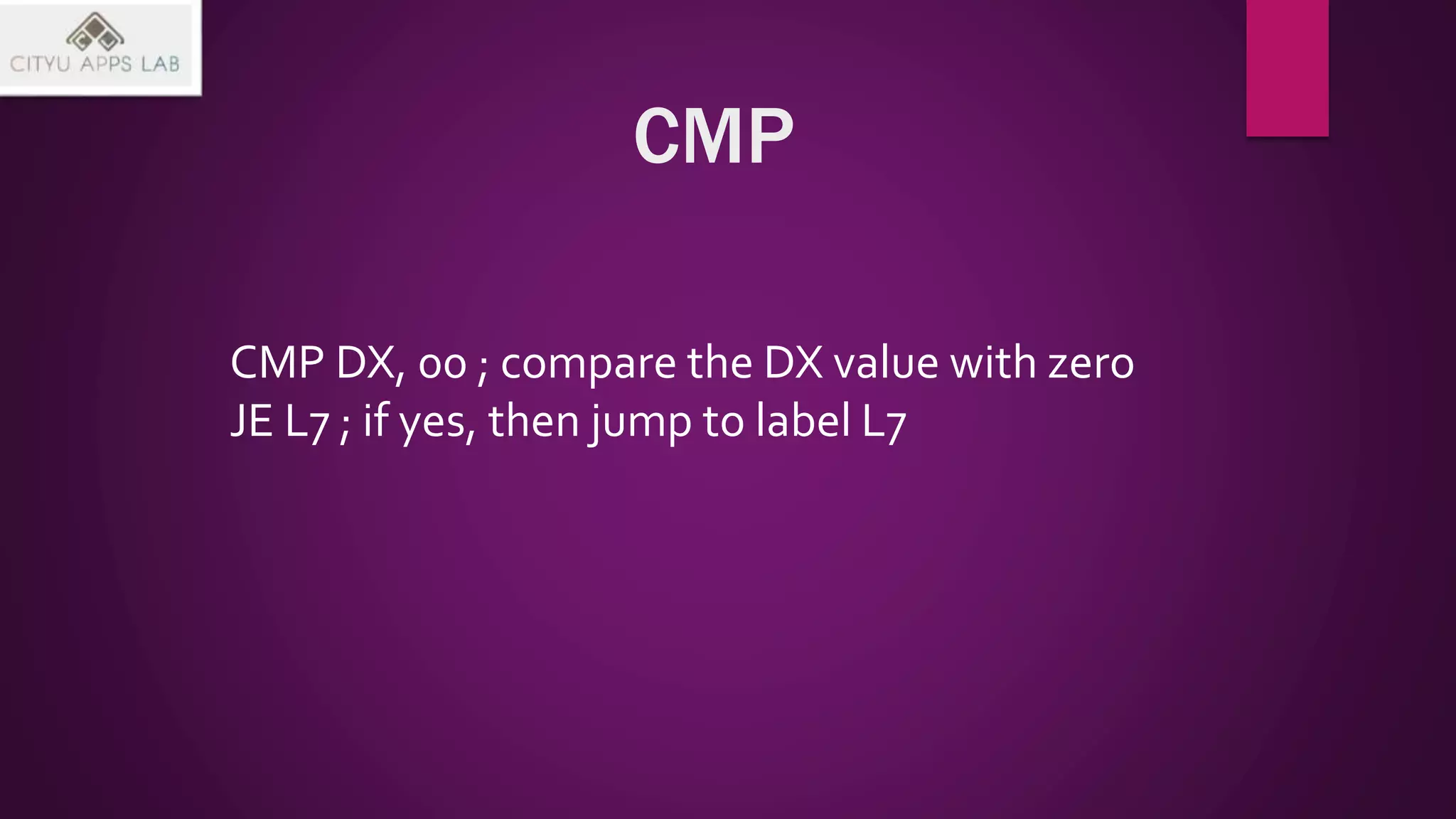

- 19. CMP CMP DX, 00; compare the DX value with zero JE L7 ; if yes, then jump to label L7

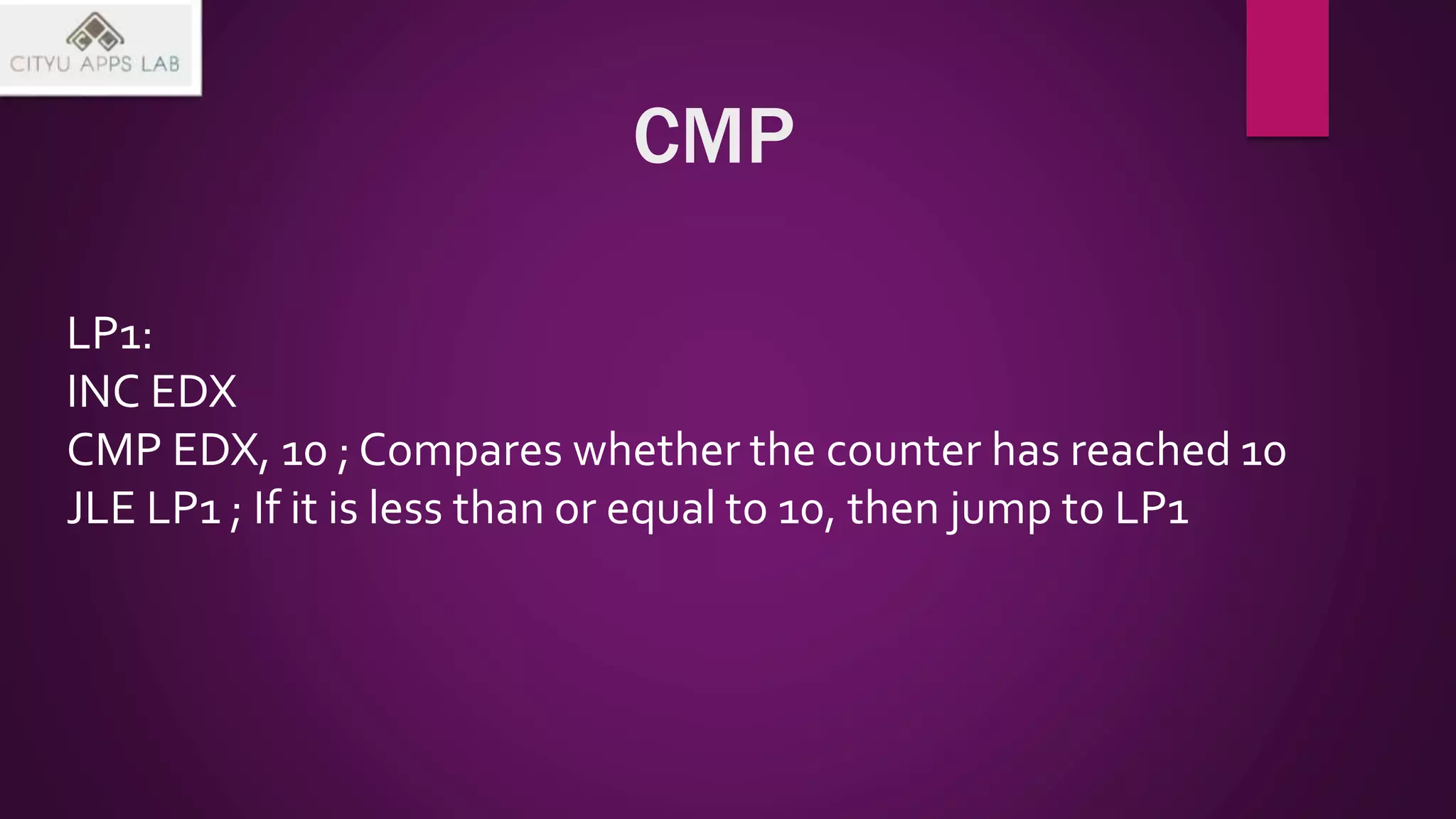

- 20. CMP LP1: INC EDX CMP EDX,10 ; Compares whether the counter has reached 10 JLE LP1 ; If it is less than or equal to 10, then jump to LP1

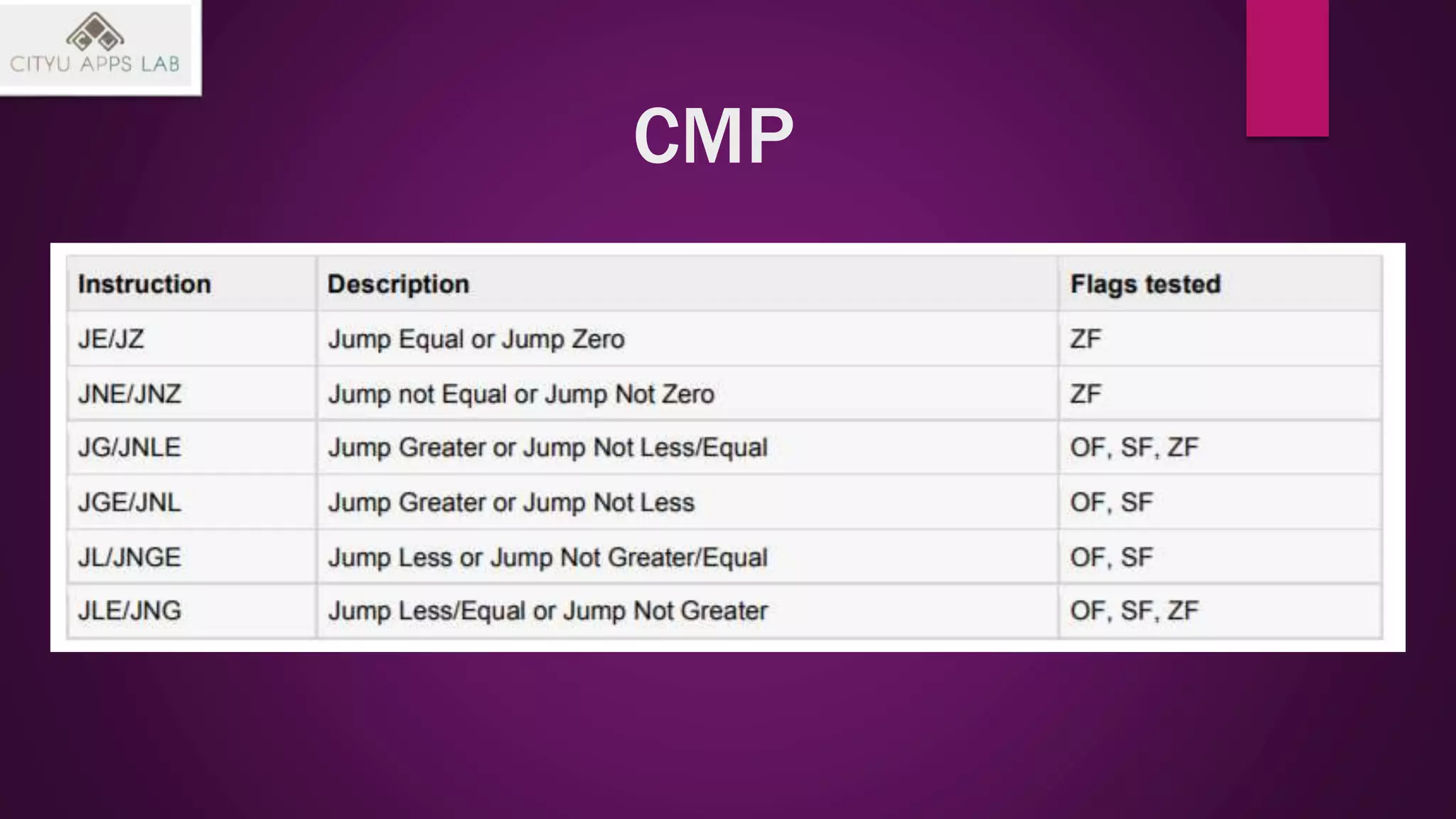

- 21.
