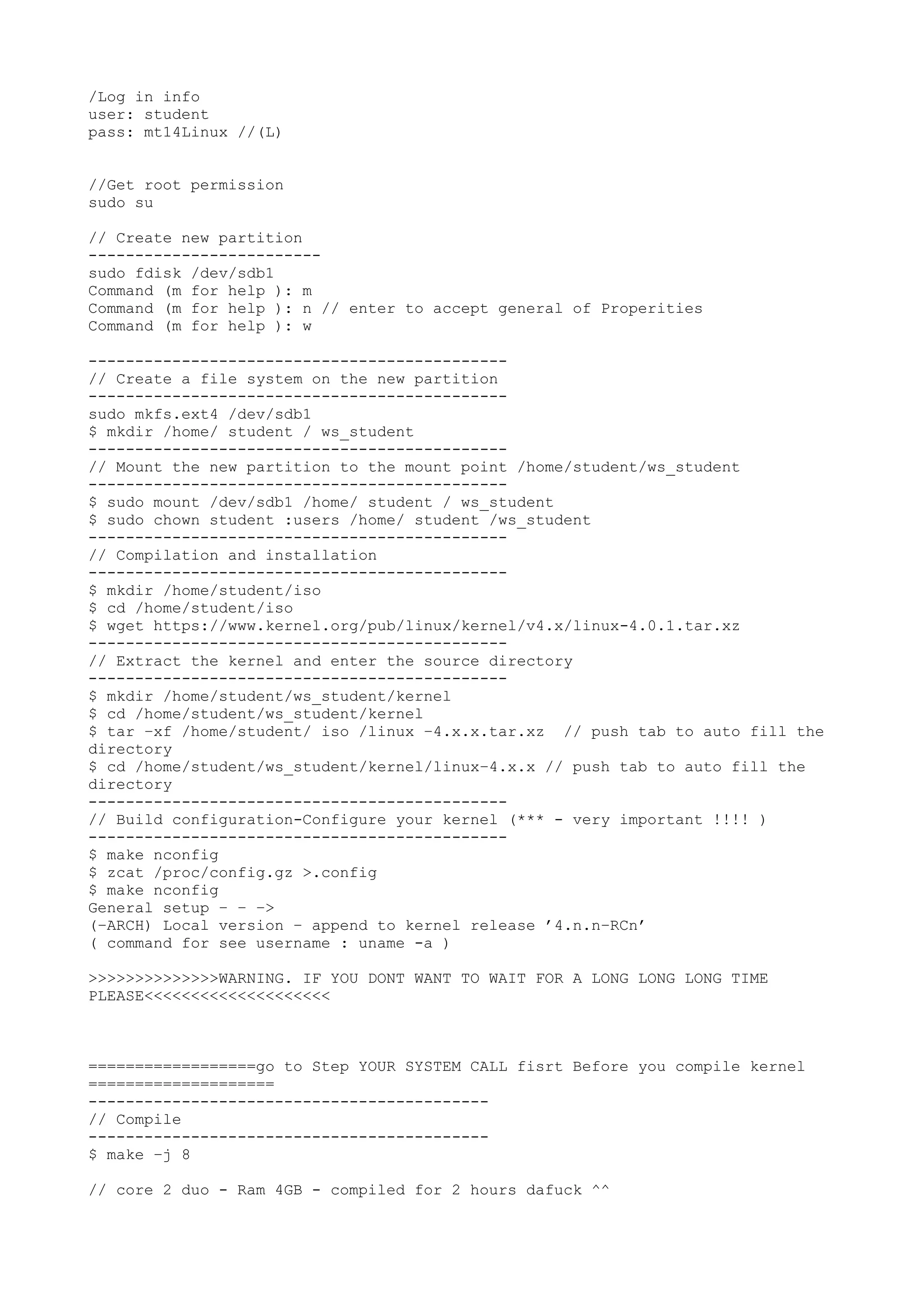

1. /Log in info
user: student
pass: mt14Linux //(L)
//Get root permission
sudo su
// Create new partition
-------------------------
sudo fdisk /dev/sdb1
Command (m for help ): m
Command (m for help ): n // enter to accept general of Properities
Command (m for help ): w
---------------------------------------------
// Create a file system on the new partition
---------------------------------------------
sudo mkfs.ext4 /dev/sdb1
$ mkdir /home/ student / ws_student
---------------------------------------------
// Mount the new partition to the mount point /home/student/ws_student
---------------------------------------------
$ sudo mount /dev/sdb1 /home/ student / ws_student
$ sudo chown student :users /home/ student /ws_student
---------------------------------------------
// Compilation and installation
---------------------------------------------
$ mkdir /home/student/iso
$ cd /home/student/iso
$ wget https://www.kernel.org/pub/linux/kernel/v4.x/linux-4.0.1.tar.xz
---------------------------------------------
// Extract the kernel and enter the source directory
---------------------------------------------
$ mkdir /home/student/ws_student/kernel
$ cd /home/student/ws_student/kernel
$ tar −xf /home/student/ iso /linux −4.x.x.tar.xz // push tab to auto fill the
directory
$ cd /home/student/ws_student/kernel/linux−4.x.x // push tab to auto fill the
directory
---------------------------------------------
// Build configuration-Configure your kernel (*** - very important !!!! )
---------------------------------------------
$ make nconfig
$ zcat /proc/config.gz >.config
$ make nconfig
General setup − − −>
(−ARCH) Local version − append to kernel release ’4.n.n−RCn’
( command for see username : uname -a )
>>>>>>>>>>>>>>WARNING. IF YOU DONT WANT TO WAIT FOR A LONG LONG LONG TIME
PLEASE<<<<<<<<<<<<<<<<<<<<
==================go to Step YOUR SYSTEM CALL fisrt Before you compile kernel
====================
-------------------------------------------
// Compile
-------------------------------------------
$ make −j 8
// core 2 duo - Ram 4GB - compiled for 2 hours dafuck ^^

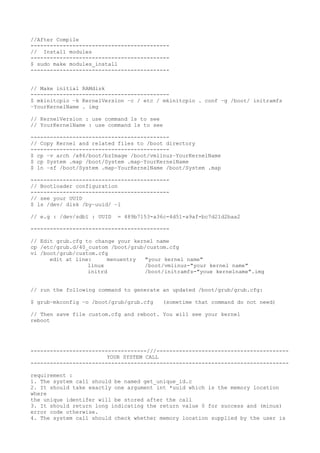

2. //After Compile
-------------------------------------------
// Install modules
-------------------------------------------
$ sudo make modules_install
-------------------------------------------
// Make initial RAMdisk
-------------------------------------------
$ mkinitcpio −k KernelVersion −c / etc / mkinitcpio . conf −g /boot/ initramfs
−YourKernelName . img
// KernelVersion : use command ls to see
// YourKernelName : use command ls to see
-------------------------------------------
// Copy Kernel and related files to /boot directory
-------------------------------------------
$ cp −v arch /x86/boot/bzImage /boot/vmlinuz−YourKernelName
$ cp System .map /boot/System .map−YourKernelName
$ ln −sf /boot/System .map−YourKernelName /boot/System .map
-------------------------------------------
// Bootloader configuration
-------------------------------------------
// see your UUID
$ ls /dev/ disk /by−uuid/ −l
// e.g : /dev/sdb1 : UUID = 489b7153-a36c-4d51-a9af-bc7d21d2baa2
-------------------------------------------
// Edit grub.cfg to change your kernel name
cp /etc/grub.d/40_custom /boot/grub/custom.cfg
vi /boot/grub/custom.cfg
edit at line: menuentry "your kernel name"
linux /boot/vmlinuz-"your kernel name"
initrd /boot/initramfs-"youe kernelname".img
// run the following command to generate an updated /boot/grub/grub.cfg:
$ grub−mkconfig −o /boot/grub/grub.cfg (sometime that command do not need)
// Then save file custom.cfg and reboot. You will see your kernel
reboot
------------------------------------///-----------------------------------------
YOUR SYSTEM CALL
--------------------------------------------------------------------------------
requirement :
1. The system call should be named get_unique_id.c
2. It should take exactly one argument int *uuid which is the memory location
where
the unique identifer will be stored after the call
3. It should return long indicating the return value 0 for success and (minus)
error code otherwise.
4. The system call should check whether memory location supplied by the user is

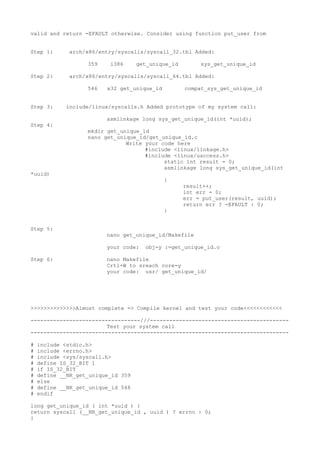

3. valid and return -EFAULT otherwise. Consider using function put_user from
Step 1: arch/x86/entry/syscalls/syscall_32.tbl Added:
359 i386 get_unique_id sys_get_unique_id
Step 2: arch/x86/entry/syscalls/syscall_64.tbl Added:
546 x32 get_unique_id compat_sys_get_unique_id
Step 3: include/linux/syscalls.h Added prototype of my system call:
asmlinkage long sys_get_unique_id(int *uuid);
Step 4:
mkdir get_unique_id
nano get_unique_id/get_unique_id.c
Write your code here
#include <linux/linkage.h>
#include <linux/uaccess.h>
static int result = 0;
asmlinkage long sys_get_unique_id(int
*uuid)
{
result++;
int err = 0;
err = put_user(result, uuid);
return err ? -EFAULT : 0;
}
Step 5:
nano get_unique_id/Makefile
your code: obj-y :=get_unique_id.o
Step 6: nano Makefile
Crtl+W to sreach core-y
your code: usr/ get_unique_id/
>>>>>>>>>>>>>>Almost complete => Compile kernel and test your code<<<<<<<<<<<<
----------------------------------///-------------------------------------------
Test your system call
--------------------------------------------------------------------------------
# include <stdio.h>
# include <errno.h>
# include <sys/syscall.h>
# define IS_32_BIT 1
# if IS_32_BIT
# define __NR_get_unique_id 359
# else
# define __NR_get_unique_id 548
# endif
long get_unique_id ( int *uuid ) {
return syscall (__NR_get_unique_id , uuid ) ? errno : 0;
}

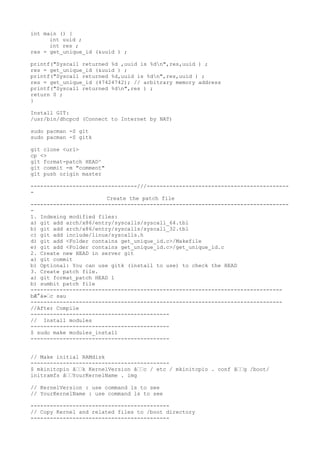

4. int main () {
int uuid ;
int res ;
res = get_unique_id (&uuid ) ;
printf("Syscall returned %d ,uuid is %dn",res,uuid ) ;
res = get_unique_id (&uuid ) ;
printf("Syscall returned %d,uuid is %dn",res,uuid ) ;
res = get_unique_id (47424742); // arbitrary memory address
printf("Syscall returned %dn",res ) ;
return 0 ;
}
Install GIT:
/usr/bin/dhcpcd (Connect to Internet by NAT)
sudo pacman -S git
sudo pacman -S gitk
git clone <url>
cp <>
git format-patch HEAD^
git commit -m "comment"
git push origin master
---------------------------------///--------------------------------------------
-
Create the patch file
--------------------------------------------------------------------------------
-
1. Indexing modified files:
a) git add arch/x86/entry/syscalls/syscall_64.tbl
b) git add arch/x86/entry/syscalls/syscall_32.tbl
c) git add include/linux/syscalls.h
d) git add <Folder contains get_unique_id.c>/Makefile
e) git add <Folder contains get_unique_id.c>/get_unique_id.c
2. Create new HEAD in server git
a) git commit
b) Optional: You can use gitk (install to use) to check the HEAD
3. Create patch file.
a) git format_patch HEAD 1
b) sumbit patch file
------------------------------------------------------------------------------
bÆ°á»›c sau
------------------------------------------------------------------------------
//After Compile
-------------------------------------------
// Install modules
-------------------------------------------
$ sudo make modules_install
-------------------------------------------
// Make initial RAMdisk
-------------------------------------------
$ mkinitcpio â››k KernelVersion â››c / etc / mkinitcpio . conf â››g /boot/
initramfs â››YourKernelName . img
// KernelVersion : use command ls to see
// YourKernelName : use command ls to see
-------------------------------------------
// Copy Kernel and related files to /boot directory
-------------------------------------------

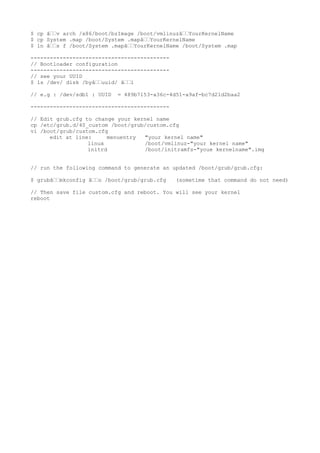

5. $ cp ∈v arch /x86/boot/bzImage /boot/vmlinuz∈YourKernelName
$ cp System .map /boot/System .map∈YourKernelName
$ ln ∈s f /boot/System .map∈YourKernelName /boot/System .map
-------------------------------------------
// Bootloader configuration
-------------------------------------------
// see your UUID
$ ls /dev/ disk /by∈uuid/ ∈l
// e.g : /dev/sdb1 : UUID = 489b7153-a36c-4d51-a9af-bc7d21d2baa2
-------------------------------------------
// Edit grub.cfg to change your kernel name
cp /etc/grub.d/40_custom /boot/grub/custom.cfg
vi /boot/grub/custom.cfg
edit at line: menuentry "your kernel name"
linux /boot/vmlinuz-"your kernel name"
initrd /boot/initramfs-"youe kernelname".img
// run the following command to generate an updated /boot/grub/grub.cfg:
$ grub∈mkconfig ∈o /boot/grub/grub.cfg (sometime that command do not need)
// Then save file custom.cfg and reboot. You will see your kernel
reboot

6. $ cp ∈v arch /x86/boot/bzImage /boot/vmlinuz∈YourKernelName
$ cp System .map /boot/System .map∈YourKernelName
$ ln ∈s f /boot/System .map∈YourKernelName /boot/System .map
-------------------------------------------
// Bootloader configuration
-------------------------------------------
// see your UUID
$ ls /dev/ disk /by∈uuid/ ∈l
// e.g : /dev/sdb1 : UUID = 489b7153-a36c-4d51-a9af-bc7d21d2baa2
-------------------------------------------
// Edit grub.cfg to change your kernel name
cp /etc/grub.d/40_custom /boot/grub/custom.cfg
vi /boot/grub/custom.cfg
edit at line: menuentry "your kernel name"
linux /boot/vmlinuz-"your kernel name"
initrd /boot/initramfs-"youe kernelname".img
// run the following command to generate an updated /boot/grub/grub.cfg:
$ grub∈mkconfig ∈o /boot/grub/grub.cfg (sometime that command do not need)
// Then save file custom.cfg and reboot. You will see your kernel
reboot
