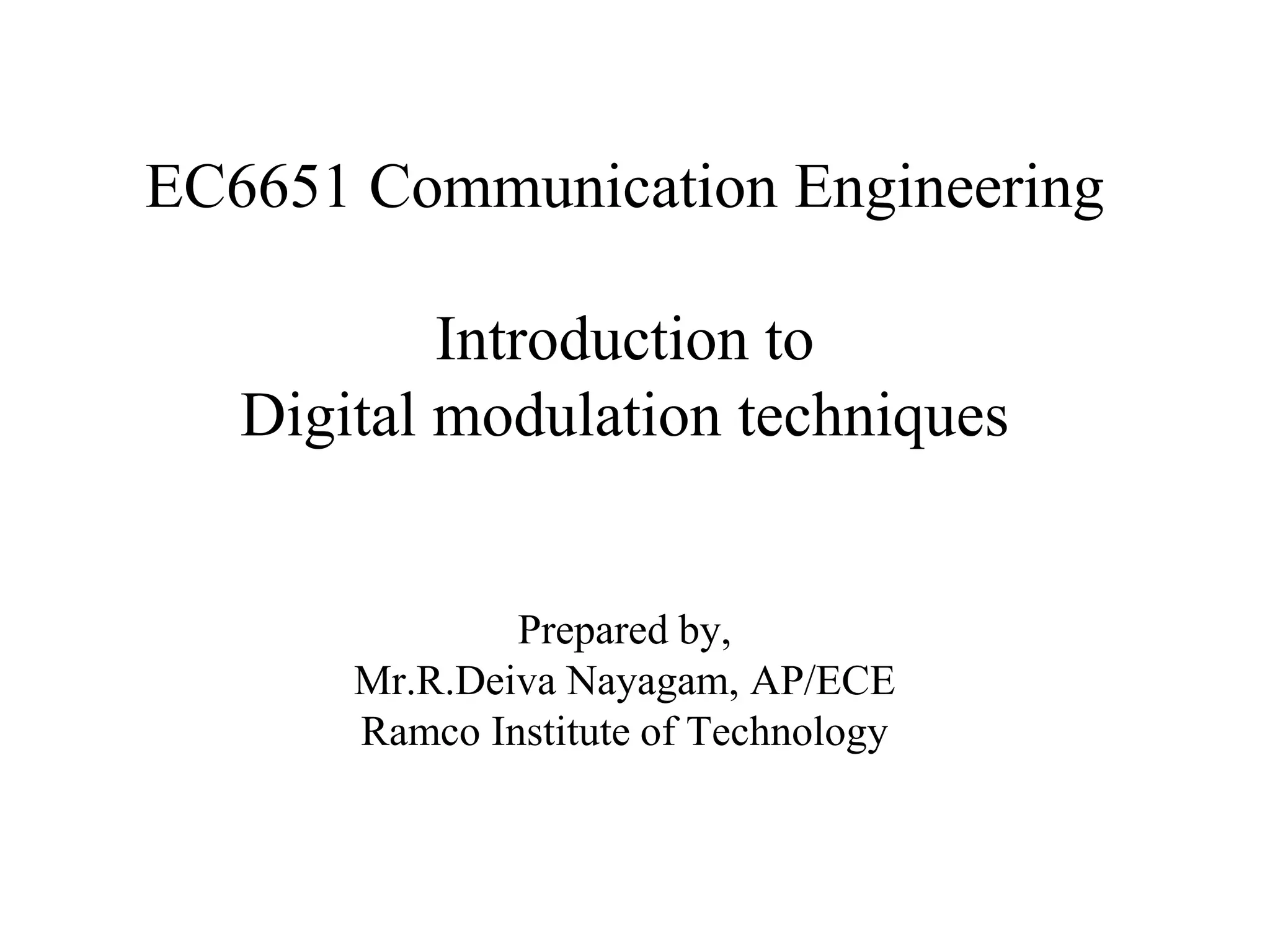

1. EC6651 Communication Engineering
Introduction to
Digital modulation techniques
Prepared by,
Mr.R.Deiva Nayagam, AP/ECE
Ramco Institute of Technology

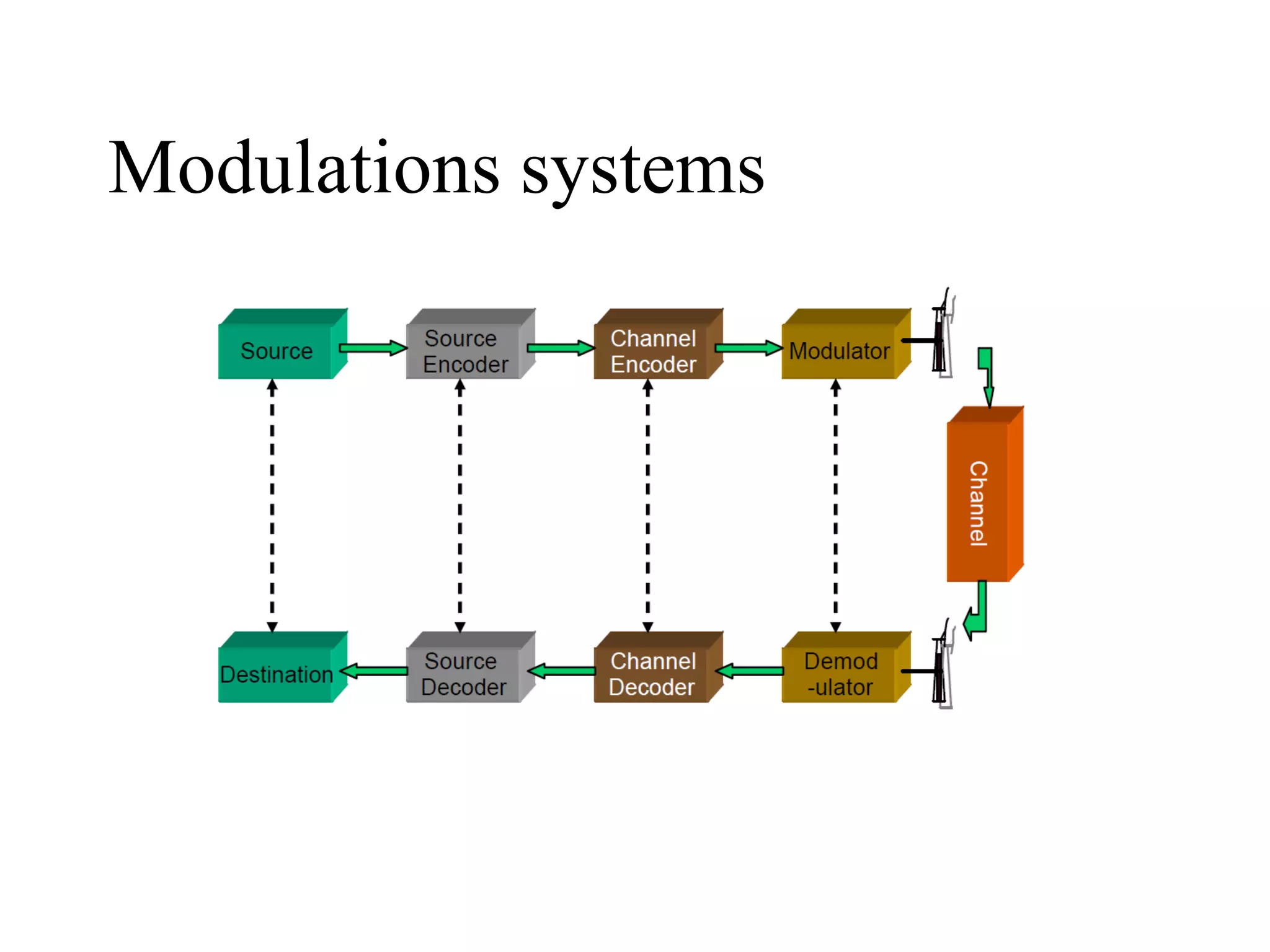

2. Modulations systems

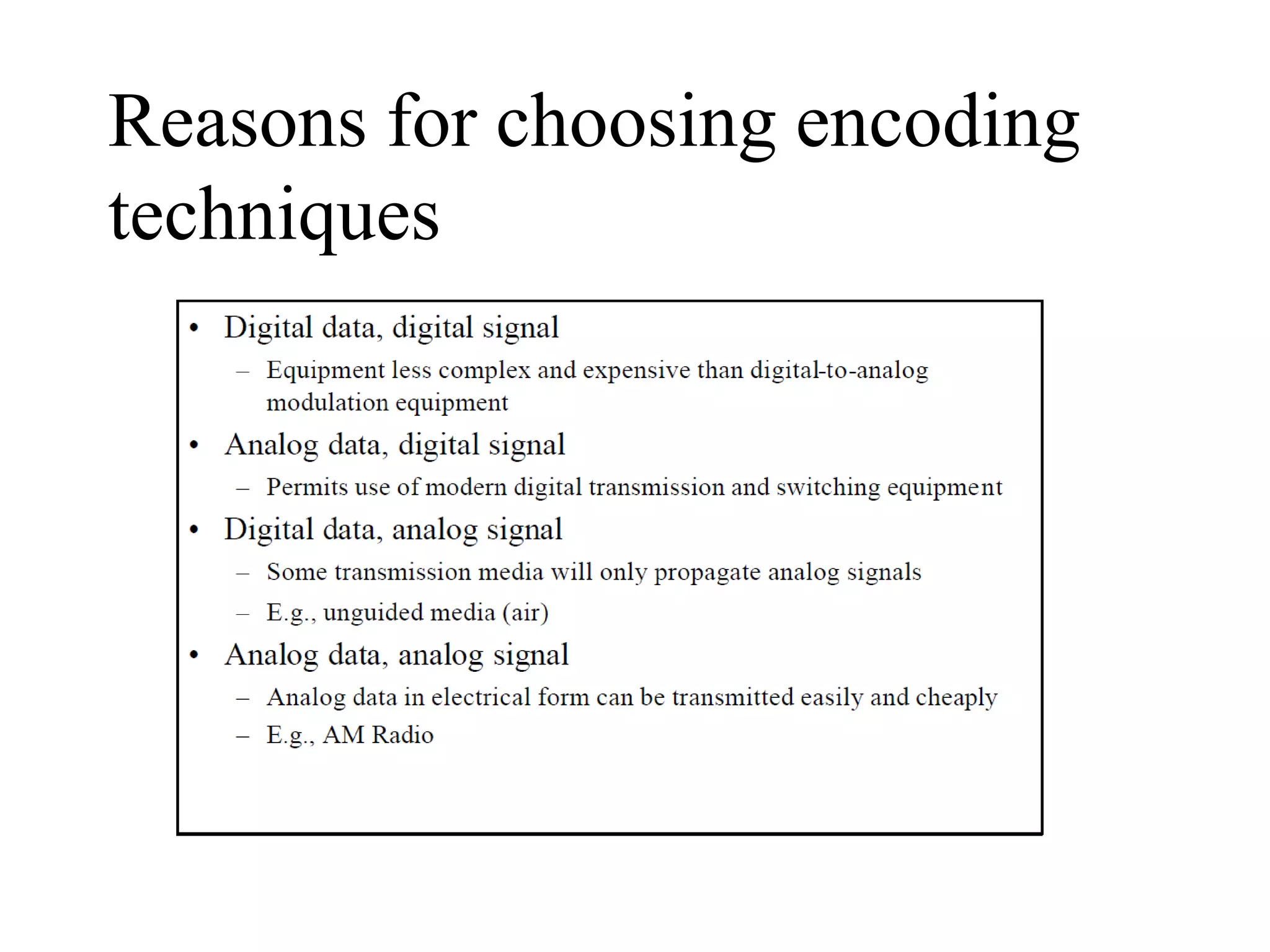

3. Reasons for choosing encoding
techniques

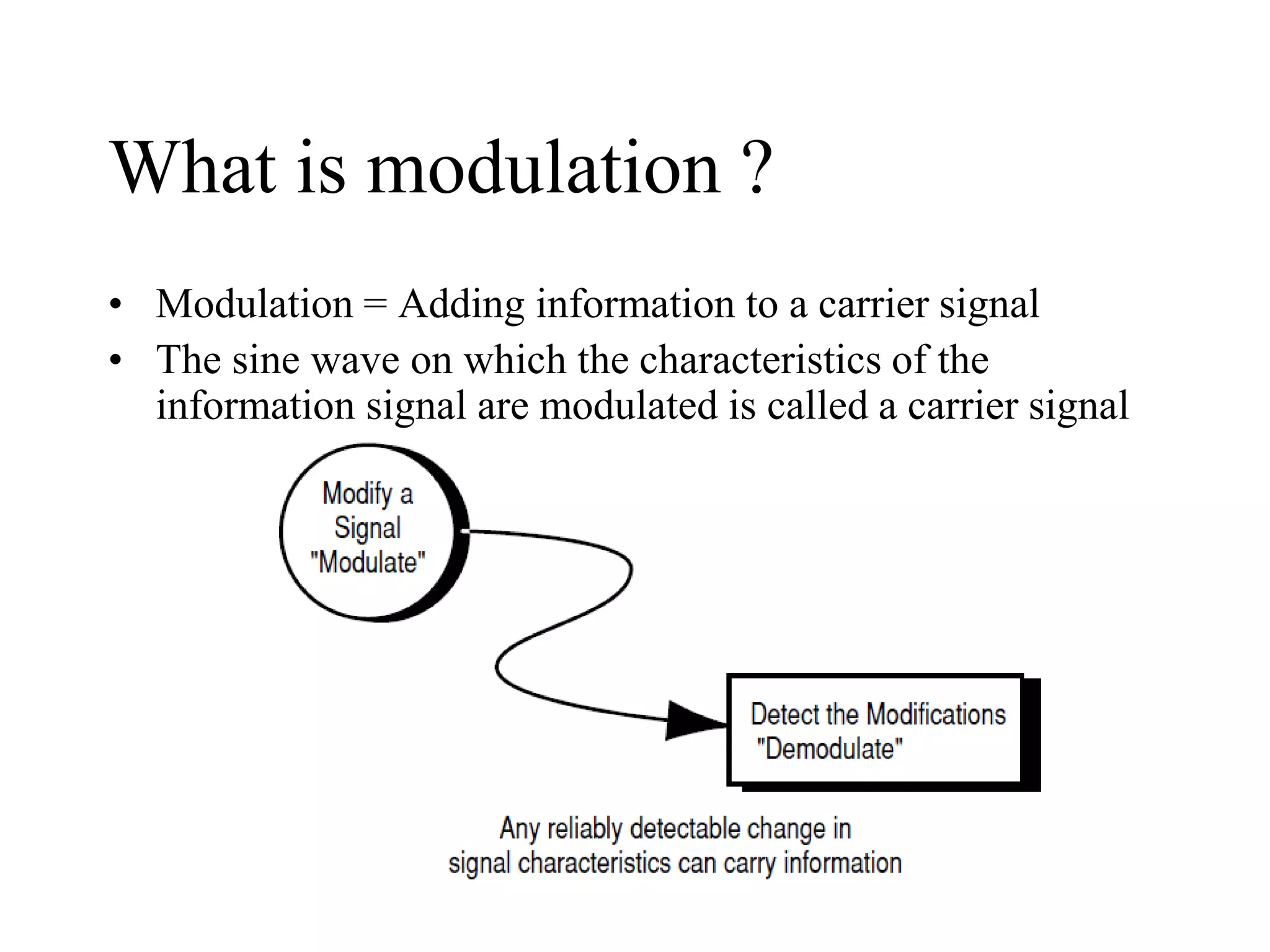

4. What is modulation ?
• Modulation = Adding information to a carrier signal
• The sine wave on which the characteristics of the
information signal are modulated is called a carrier signal

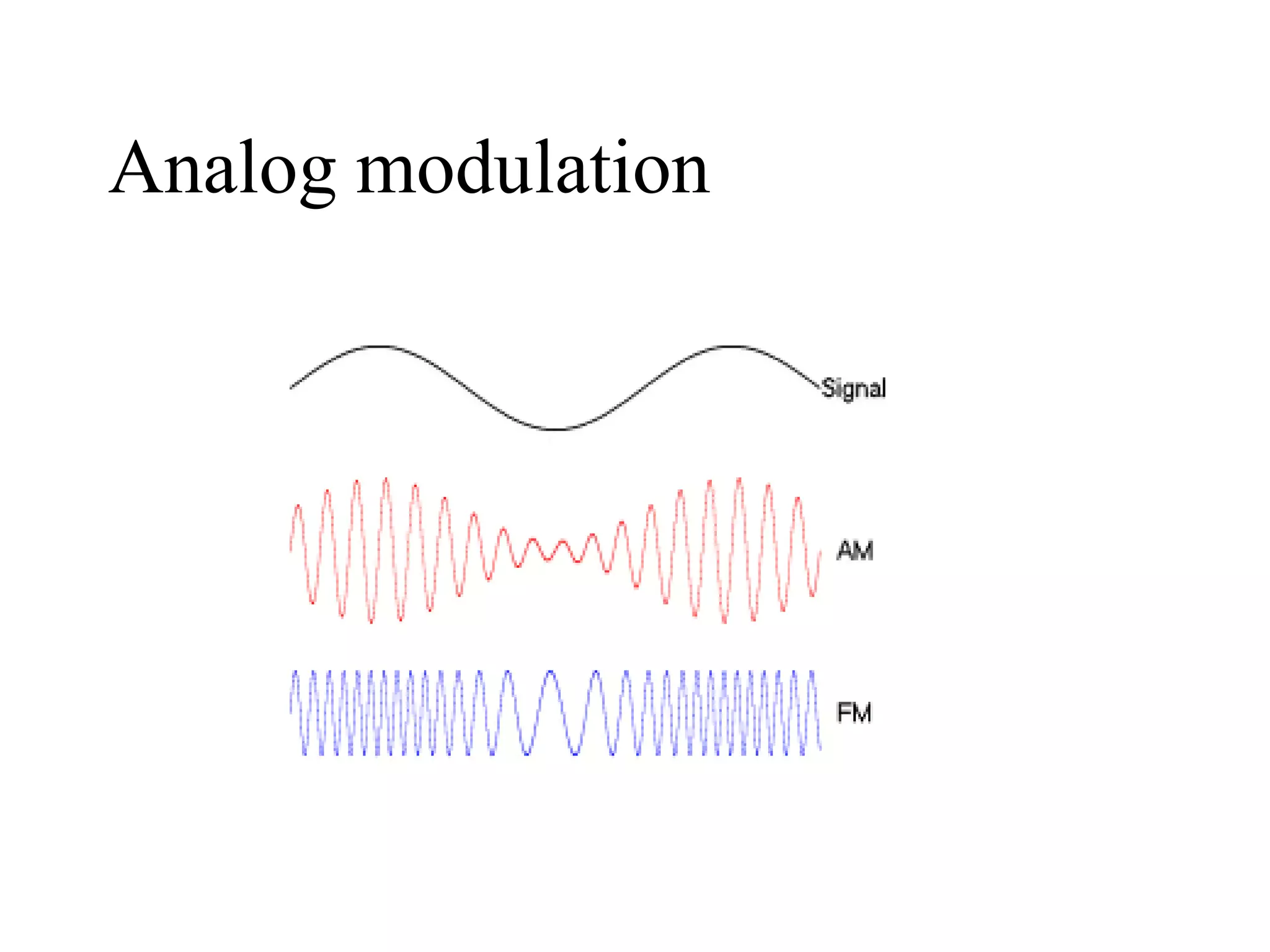

5. Analog modulation

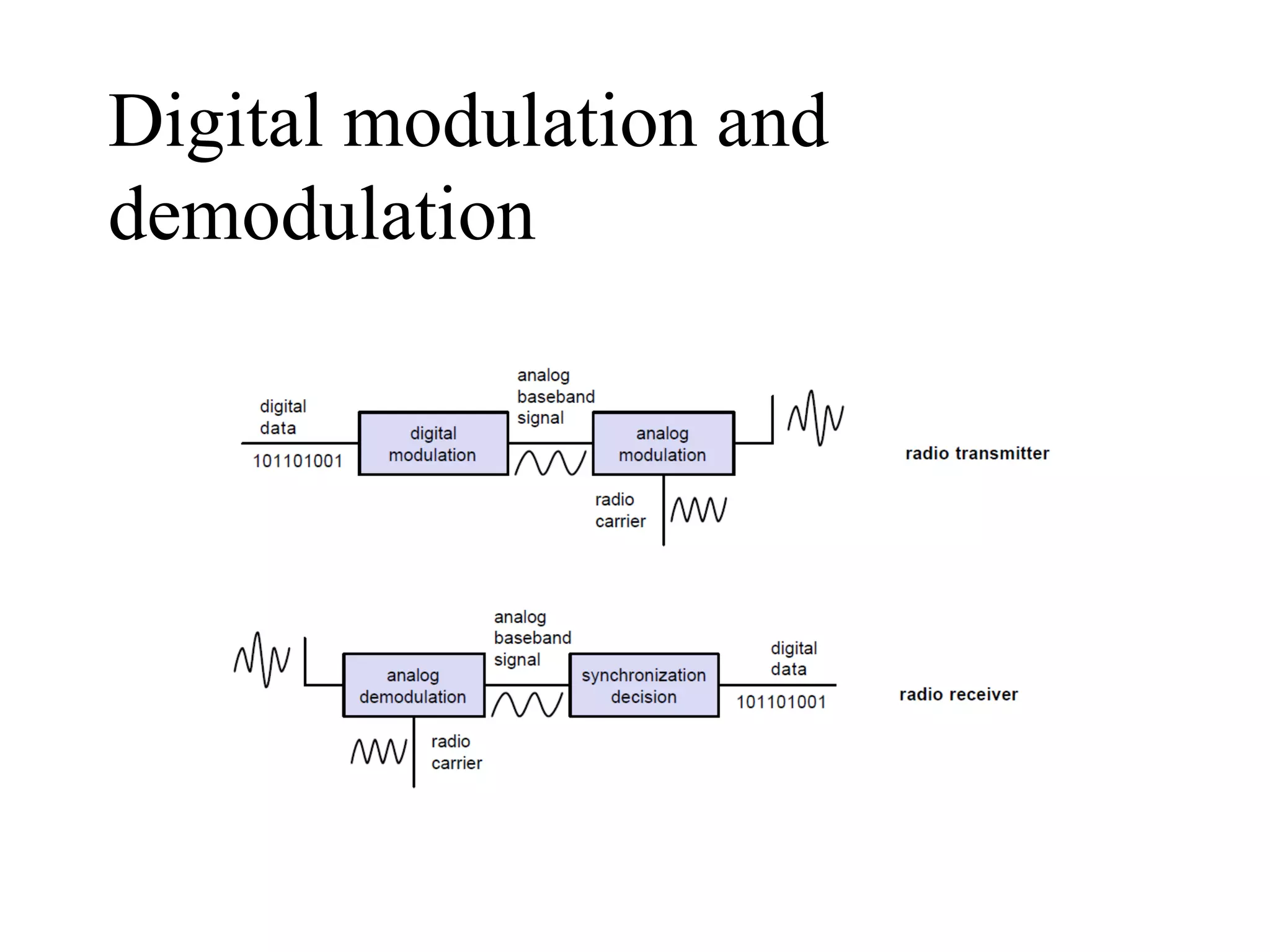

6. Digital modulation and
demodulation

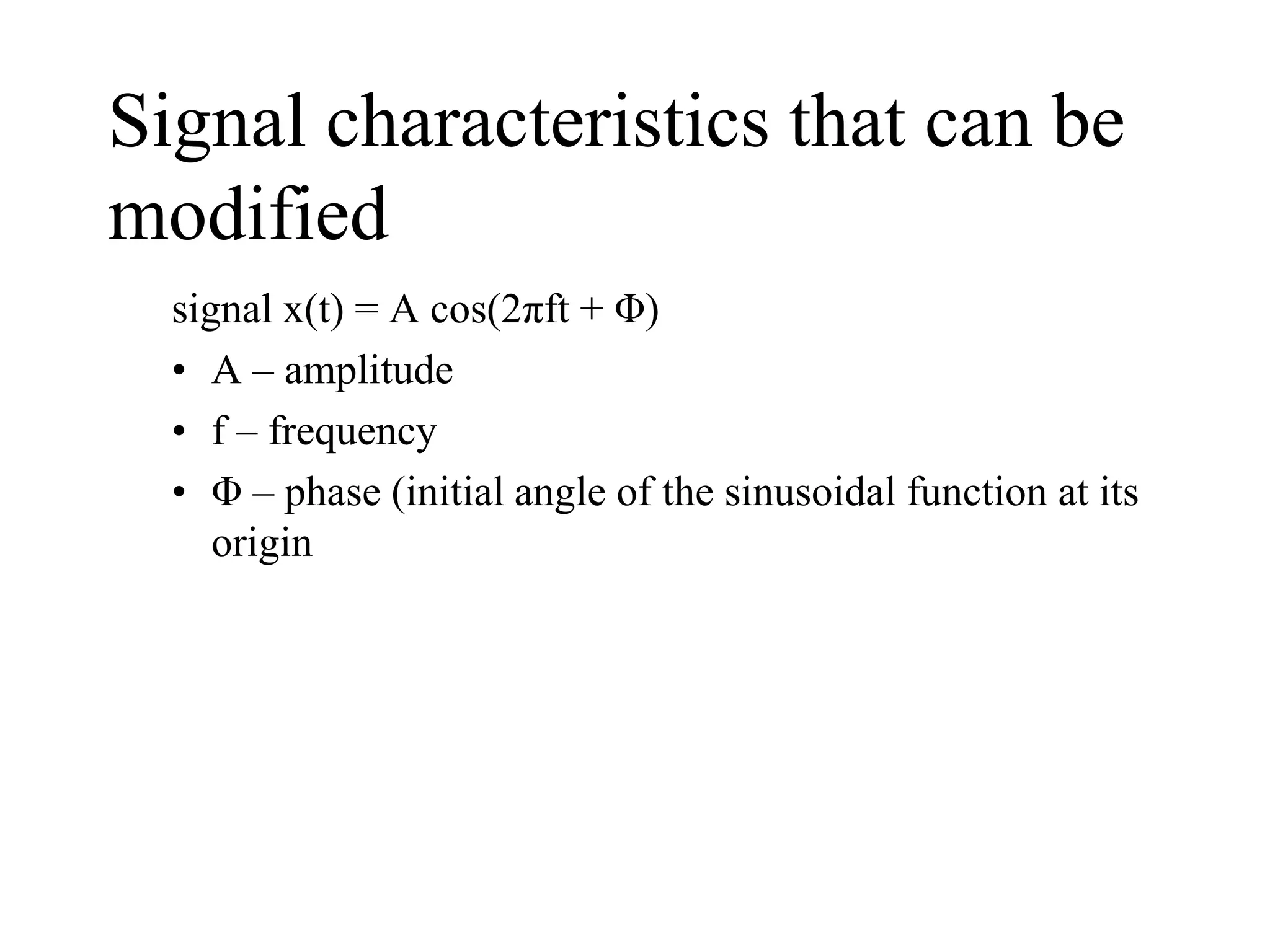

7. Signal characteristics that can be
modified
signal x(t) = A cos(2πft + Φ)
• A – amplitude
• f – frequency
• Φ – phase (initial angle of the sinusoidal function at its
origin

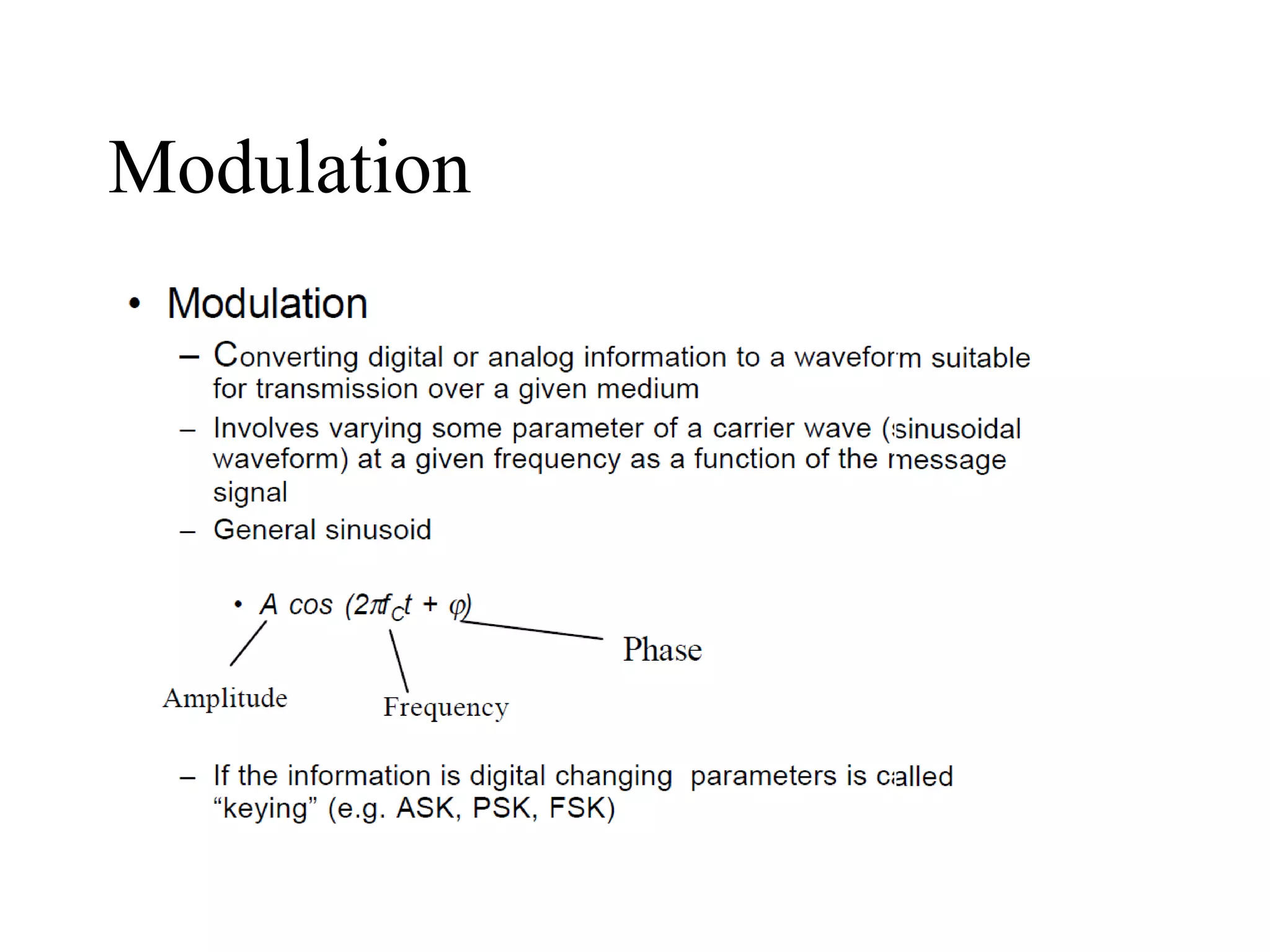

8. Modulation

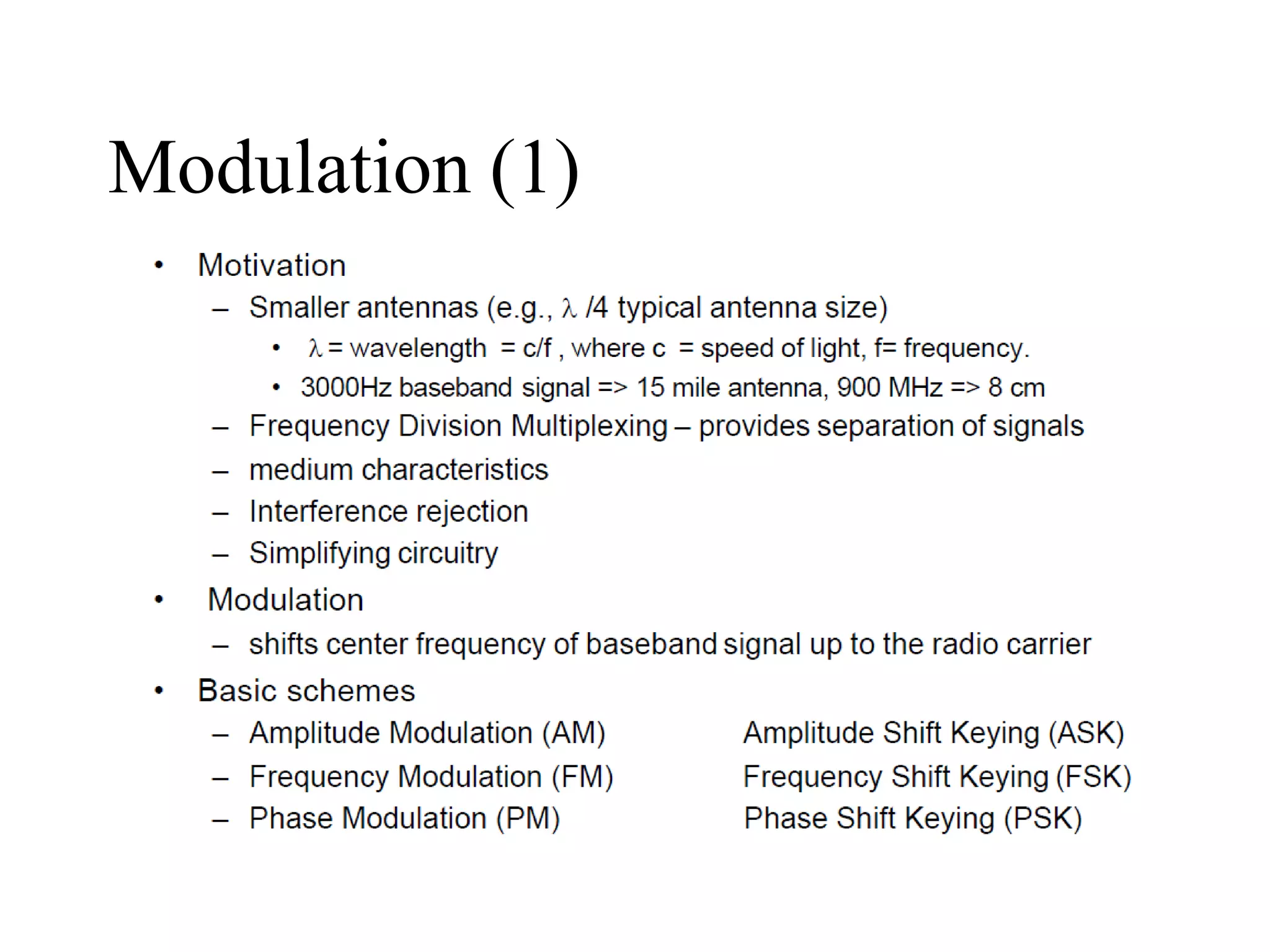

9. Modulation (1)

10. Digital modulation techniques

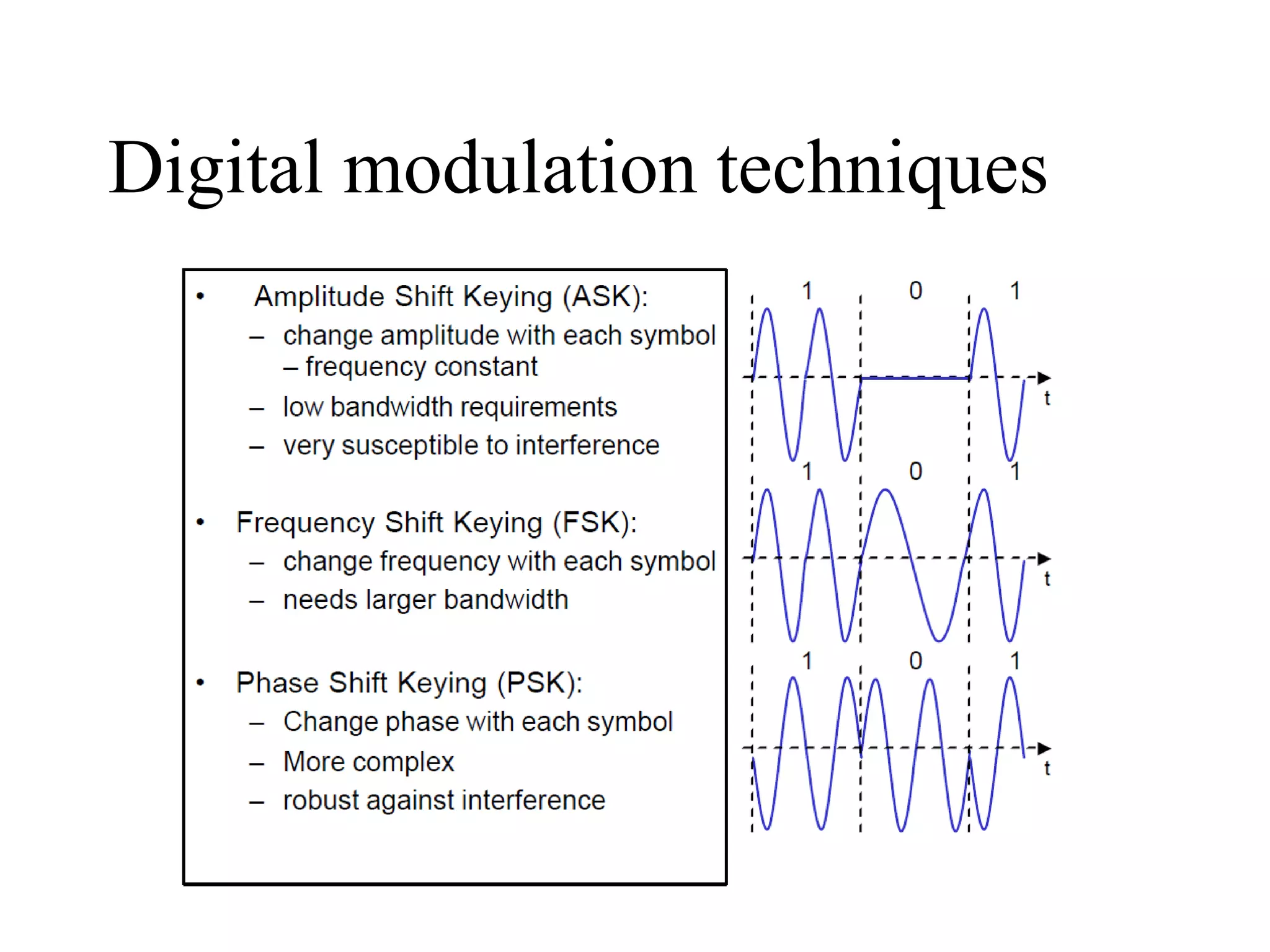

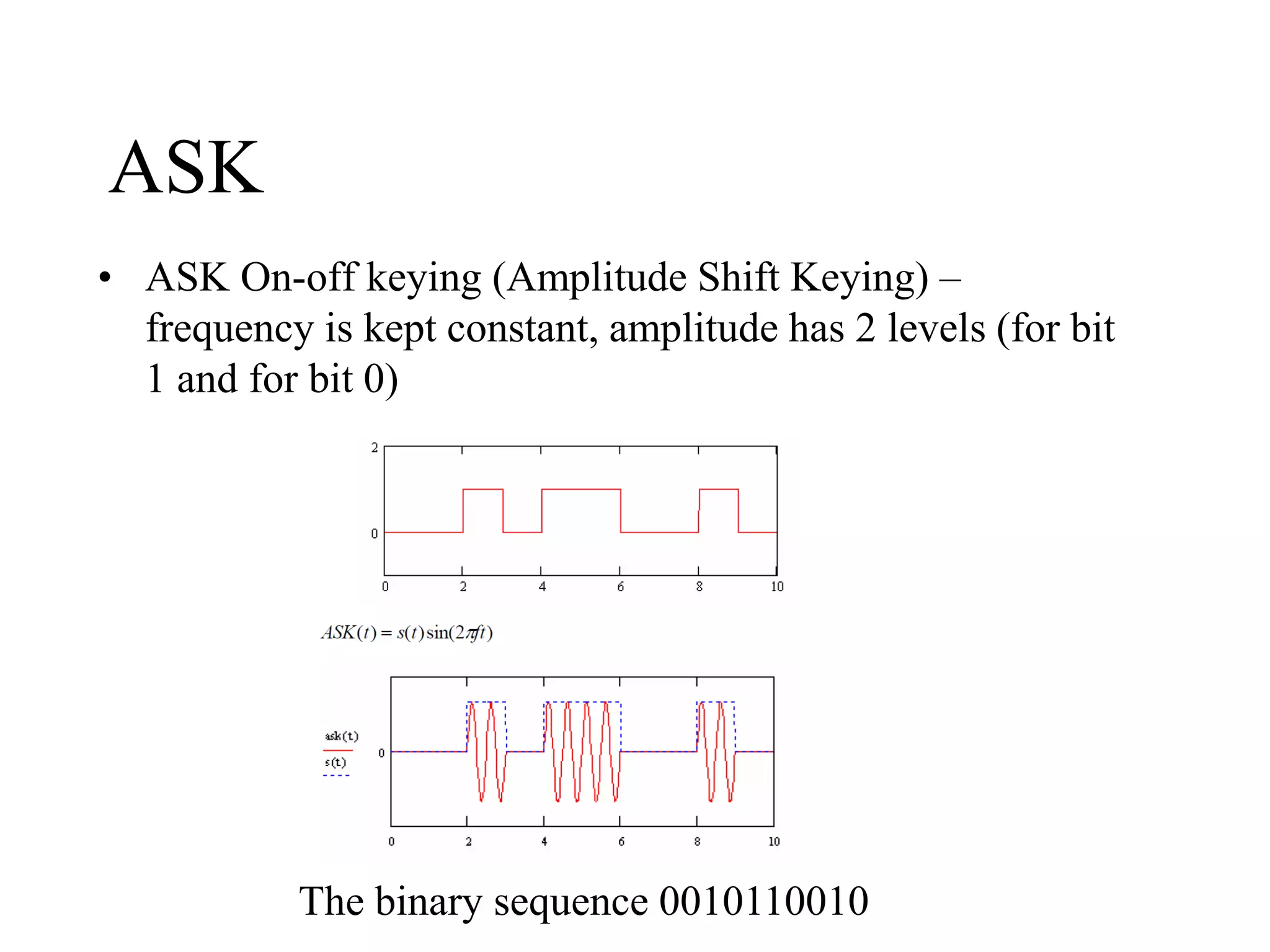

11. ASK
• ASK On-off keying (Amplitude Shift Keying) –
frequency is kept constant, amplitude has 2 levels (for bit
1 and for bit 0)
The binary sequence 0010110010

12. FSK (Frequency shift keyring)

13. PSK (Phase shift keyring)

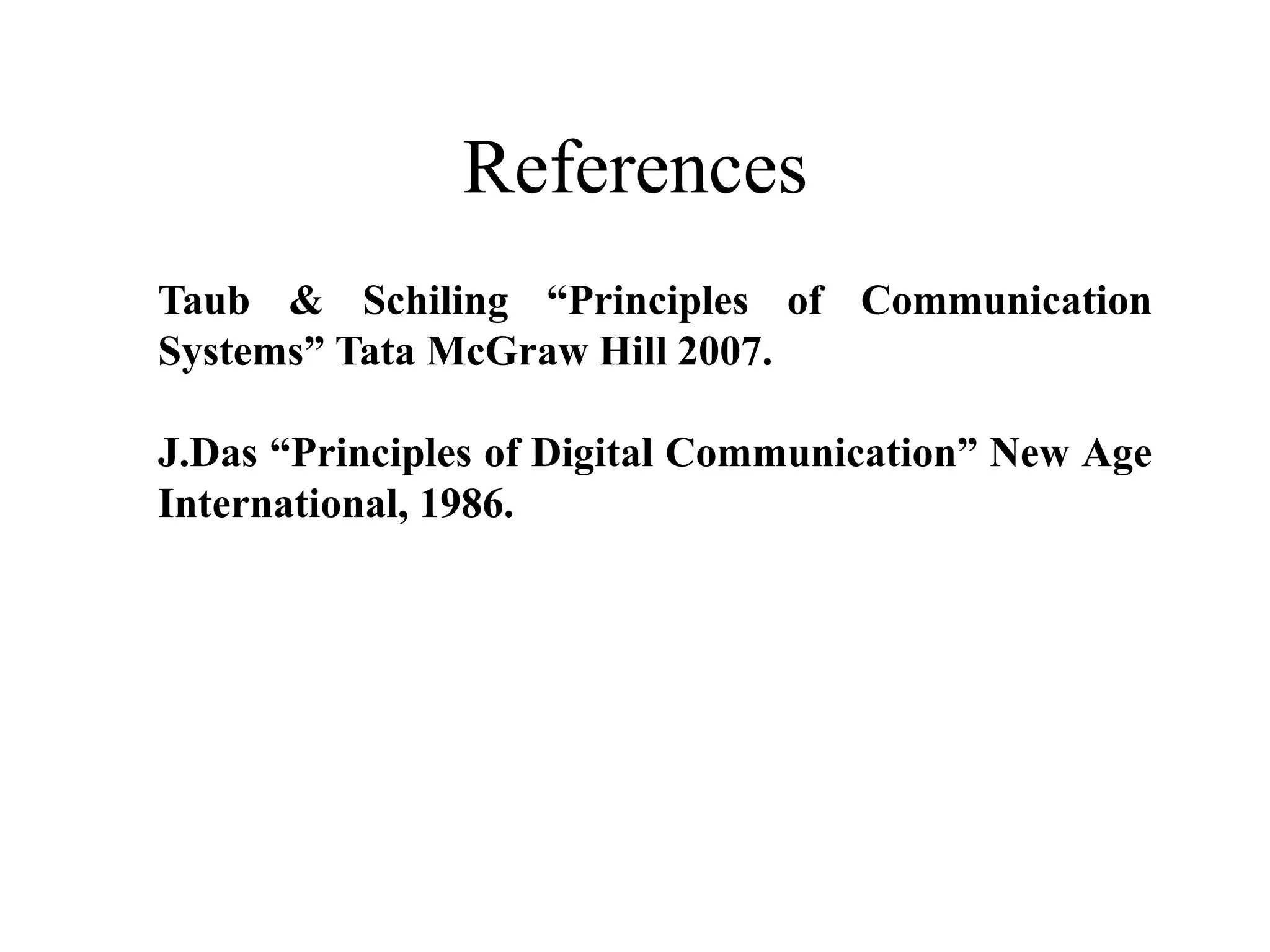

14. References
Taub & Schiling “Principles of Communication
Systems” Tata McGraw Hill 2007.
J.Das “Principles of Digital Communication” New Age
International, 1986.
