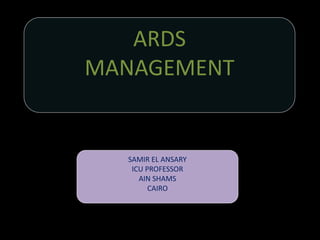

- 1. ARDS MANAGEMENT SAMIR EL ANSARY ICUPROFESSOR AIN SHAMS CAIRO
- 2. Global Critical Care https://www.facebook.com/groups/1451610115129555/#!/groups/145 1610115129555/ Wellcomein our new group ..... Dr.SAMIR EL ANSARY

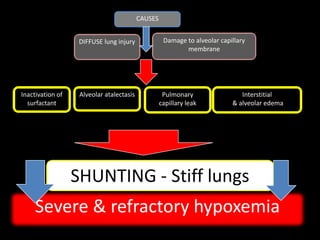

- 3. Pulmonary capillary leak Inactivation of surfactant Interstitial &alveolar edema Severe & refractory hypoxemia SHUNTING - Stiff lungs Alveolar atalectasis Damage to alveolar capillary membrane DIFFUSE lung injury CAUSES

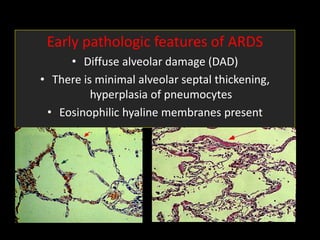

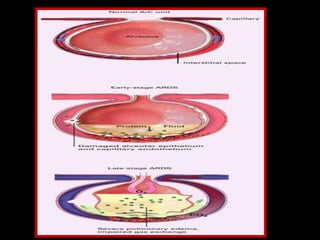

- 4. Early pathologic featuresof ARDS • Diffuse alveolar damage (DAD) • There is minimal alveolar septal thickening, hyperplasia of pneumocytes • Eosinophilic hyaline membranes present

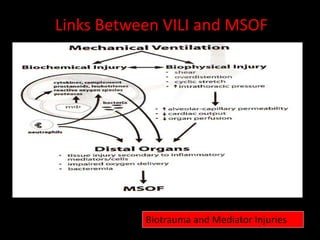

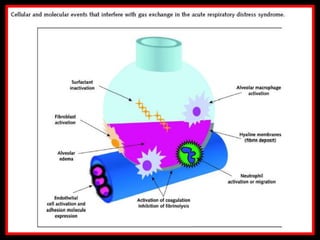

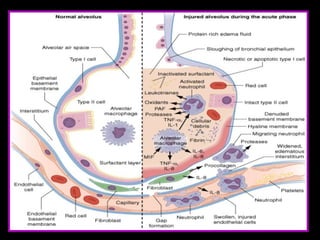

- 8. Links Between VILIand MSOF Biotrauma and Mediator Injuries

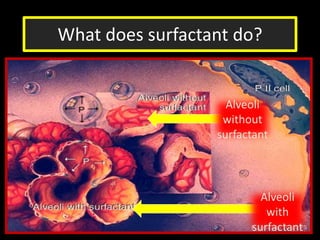

- 9. What does surfactantdo? Alveoli without surfactant Alveoli with surfactant
- 10. Cyanosis Pao2 / Fio2< 200 REFRACTORY HYPOXEMIA

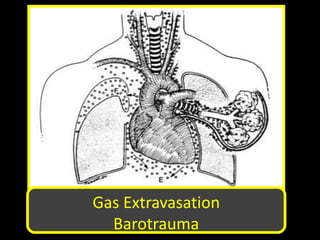

- 11.

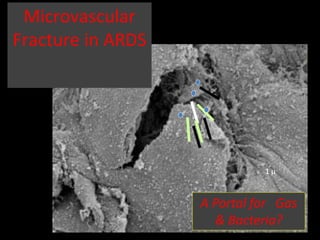

- 12. 1 A Portalfor Gas & Bacteria? Microvascular Fracture in ARDS

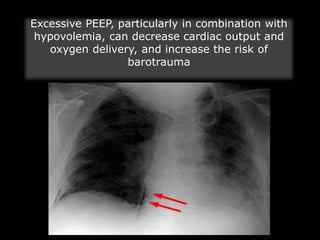

- 13. Excessive PEEP, particularlyin combination with hypovolemia, can decrease cardiac output and oxygen delivery, and increase the risk of barotrauma
- 14.

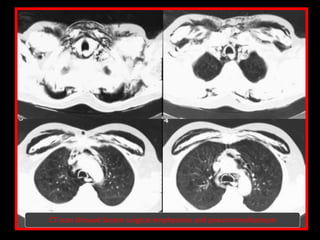

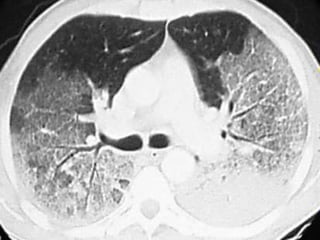

- 16. CT scan showedSevere surgical emphysema and pneumomediasteum

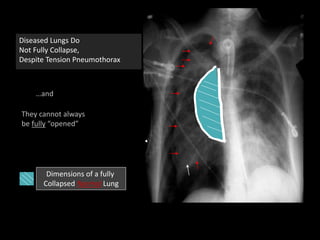

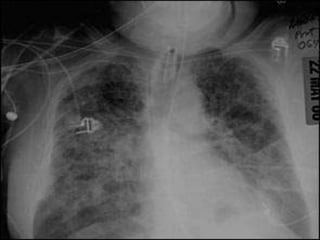

- 20. Diseased Lungs Do NotFully Collapse, Despite Tension Pneumothorax …and They cannot always be fully “opened” Dimensions of a fully Collapsed Normal Lung

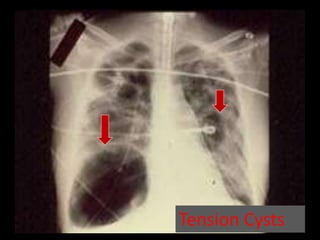

- 21.

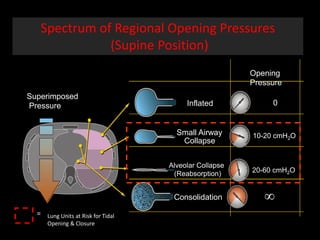

- 22. Spectrum of RegionalOpening Pressures (Supine Position) Superimposed Pressure Inflated 0 Alveolar Collapse (Reabsorption) 20-60 cmH2O Small Airway Collapse 10-20 cmH2O Consolidation Lung Units at Risk for Tidal Opening & Closure = Opening Pressure

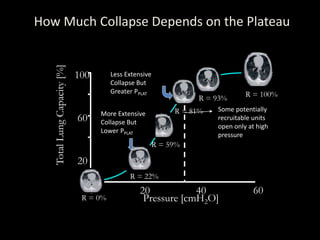

- 23. How Much CollapseDepends on the Plateau R = 100% 20 60 100 Pressure [cmH2O] 20 40 60 TotalLungCapacity[%] R = 22% R = 81% R = 93% 0 0 R = 0% R = 59% Some potentially recruitable units open only at high pressure More Extensive Collapse But Lower PPLAT Less Extensive Collapse But Greater PPLAT

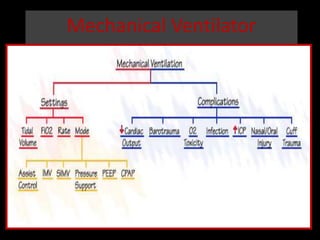

- 24.

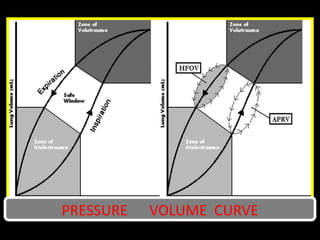

- 25.

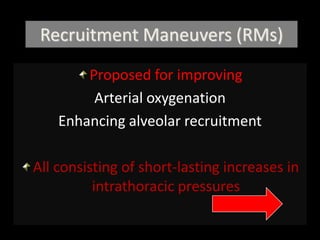

- 26. Recruitment Maneuvers (RMs) Proposedfor improving Arterial oxygenation Enhancing alveolar recruitment All consisting of short-lasting increases in intrathoracic pressures

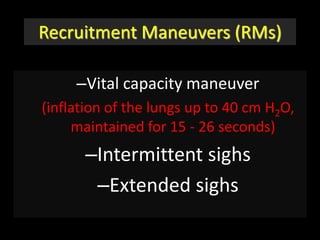

- 27. Recruitment Maneuvers (RMs) –Vitalcapacity maneuver (inflation of the lungs up to 40 cm H2O, maintained for 15 - 26 seconds) –Intermittent sighs –Extended sighs
- 28. Recruitment Maneuvers (RMs) –Intermittentincrease of PEEP –Continuous positive airway pressure (CPAP) –Increasing the ventilatory pressures to a plateau pressure of 50 cm H2O for 1-2 minutes

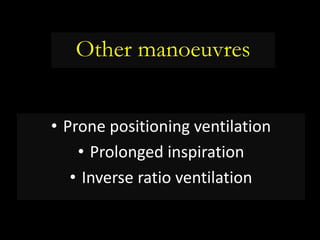

- 29. Other manoeuvres • Pronepositioning ventilation • Prolonged inspiration • Inverse ratio ventilation

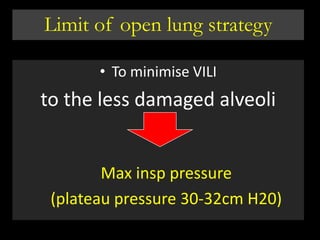

- 30. Limit of openlung strategy • To minimise VILI to the less damaged alveoli Max insp pressure (plateau pressure 30-32cm H20)
- 31. Limit of openlung strategy Max pressure remains unchanged TV will decrease Alveolar ventilation will decrease Alv V: dead space vent ratio will decrease

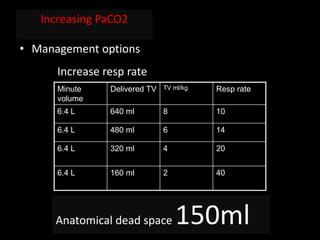

- 32. Increasing PaCO2 • Managementoptions Increase resp rate Minute volume Delivered TV TV ml/kg Resp rate 6.4 L 640 ml 8 10 6.4 L 480 ml 6 14 6.4 L 320 ml 4 20 6.4 L 160 ml 2 40 Anatomical dead space 150ml

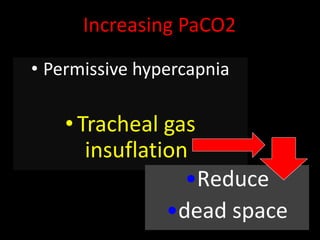

- 33. Increasing PaCO2 • Permissivehypercapnia • Tracheal gas insuflation •Reduce •dead space

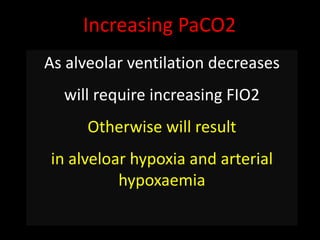

- 34. Increasing PaCO2 As alveolarventilation decreases will require increasing FIO2 Otherwise will result in alveloar hypoxia and arterial hypoxaemia
- 35. Liquid Ventilation More clinical trialsare req. to demonst. efficacy.

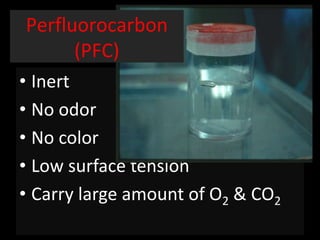

- 36. • Inert • Noodor • No color • Low surface tension • Carry large amount of O2 & CO2 Perfluorocarbon (PFC)

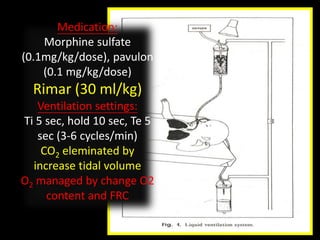

- 37. Medication: Morphine sulfate (0.1mg/kg/dose), pavulon (0.1mg/kg/dose) Rimar (30 ml/kg) Ventilation settings: Ti 5 sec, hold 10 sec, Te 5 sec (3-6 cycles/min) CO2 eleminated by increase tidal volume O2 managed by change O2 content and FRC

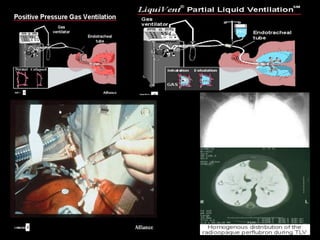

- 39. ON START OFGAS VENTILATION ONE HOUR AFTER PLV 48 HOUR AFTER PLV 3 WEEKS AFTER PLV Partial liquid ventilation with perflubron in premature infants with severe respiratory distress syndrome

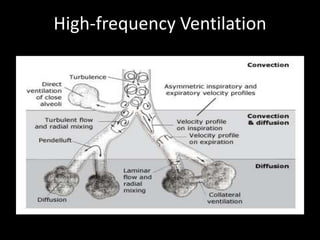

- 40. High-frequency Oscillatory Ventilation •Active expiration Pressurised circuit
- 41.

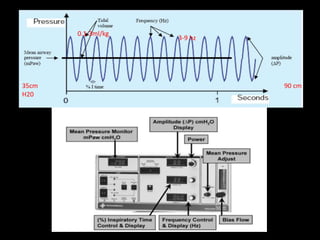

- 42.

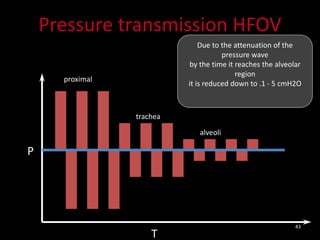

- 43. 43 Pressure transmission HFOV P T proximal trachea alveoli Dueto the attenuation of the pressure wave by the time it reaches the alveolar region it is reduced down to .1 - 5 cmH2O

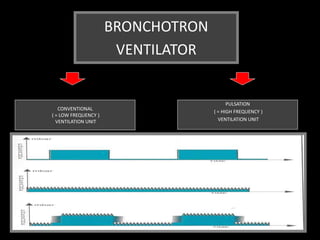

- 44. BRONCHOTRON VENTILATOR CONVENTIONAL ( = LOWFREQUENCY ) VENTILATION UNIT PULSATION ( = HIGH FREQUENCY ) VENTILATION UNIT

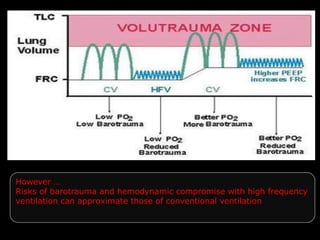

- 45. However … Risks ofbarotrauma and hemodynamic compromise with high frequency ventilation can approximate those of conventional ventilation

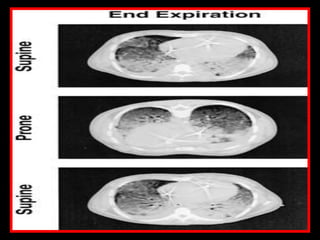

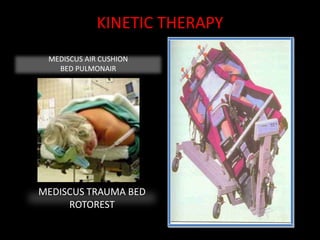

- 46. KINETIC THERAPY MEDISCUS AIRCUSHION BED PULMONAIR MEDISCUS TRAUMA BED ROTOREST

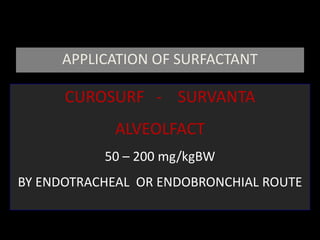

- 48. APPLICATION OF SURFACTANT CUROSURF- SURVANTA ALVEOLFACT 50 – 200 mg/kgBW BY ENDOTRACHEAL OR ENDOBRONCHIAL ROUTE

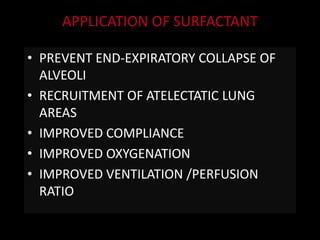

- 49. APPLICATION OF SURFACTANT •PREVENT END-EXPIRATORY COLLAPSE OF ALVEOLI • RECRUITMENT OF ATELECTATIC LUNG AREAS • IMPROVED COMPLIANCE • IMPROVED OXYGENATION • IMPROVED VENTILATION /PERFUSION RATIO

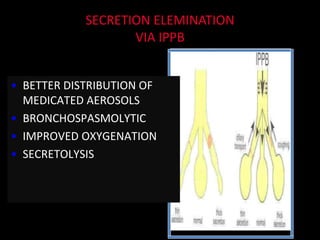

- 50. SECRETION ELEMINATION VIA IPPB •BETTER DISTRIBUTION OF MEDICATED AEROSOLS • BRONCHOSPASMOLYTIC • IMPROVED OXYGENATION • SECRETOLYSIS
- 51. JET THERAPY • SECRETOLYSIS( SECRETION MOBILISATION ) • DISSOLUTION OF RESORPTIVE ATELECTASES • IMPROVED OXYGENATION • INTRACRANIAL PRESSURE REDUCTION
- 52. CLINI – JET HIGHFREQUENCY JET VENTILATION HFJV HANDY INSTRUMENT PRODUCES SHORT GAS PULSES FOR SECRETOLYSIS DISSOLVE SECRETIONS ( KETCHUP EFFECT )

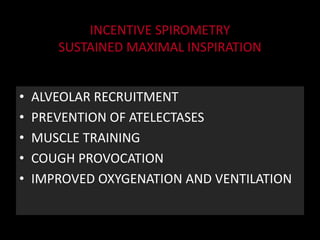

- 53. INCENTIVE SPIROMETRY SUSTAINED MAXIMALINSPIRATION • ALVEOLAR RECRUITMENT • PREVENTION OF ATELECTASES • MUSCLE TRAINING • COUGH PROVOCATION • IMPROVED OXYGENATION AND VENTILATION

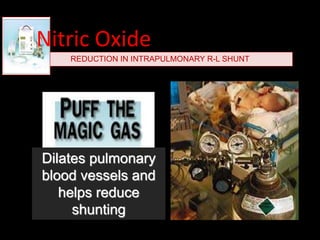

- 54. Dilates pulmonary blood vesselsand helps reduce shunting REDUCTION IN INTRAPULMONARY R-L SHUNT Nitric Oxide
- 55. GOOD LUCK SAMIR ELANSARY ICU PROFESSOR AIN SHAMS CAIRO elansarysamir@yahoo.com Global Critical Care https://www.facebook.com/groups/1451610115129555/#!/groups/145 1610115129555/ Wellcome in our new group ..... Dr.SAMIR EL ANSARY
