1. NGINX App Sec
August 2020
Chris Witeck – Director of Product Management
Rajiv Kapoor – Sr Product Marketing Manager
Daniel Edgar – Sr Technical Product Manager

2. | ©2020 F52
SECURING CRITICAL BUSINESS APPLICATIONS WITH NGINX
Agenda
Challenges with Securing Modern Apps
NGINX Portfolio Overview
NGINX Plus Application Security
NGINX App Protect Demo
NGINX Controller Application Security
NGINX Offer Summary

3. | ©2020 F53
Challenges With Securing Modern Apps

4. | ©2020 F54
DevOps view of SecOpsSecOps view of DevOps
SecOps

5. | ©2020 F55

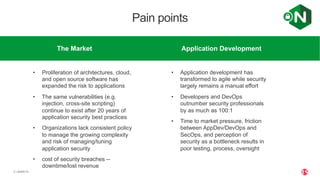

Application DevelopmentThe Market
• Proliferation of architectures, cloud,
and open source software has
expanded the risk to applications
• The same vulnerabilities (e.g.
injection, cross-site scripting)
continue to exist after 20 years of
application security best practices
• Organizations lack consistent policy
to manage the growing complexity
and risk of managing/tuning
application security
• cost of security breaches --
downtime/lost revenue
• Application development has
transformed to agile while security
largely remains a manual effort
• Developers and DevOps
outnumber security professionals
by as much as 100:1
• Time to market pressure, friction
between AppDev/DevOps and
SecOps, and perception of
security as a bottleneck results in
poor testing, process, oversight

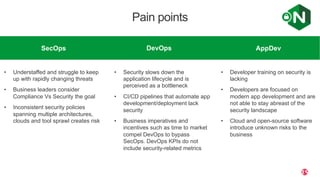

Pain points

6. | ©2020 F56
DevOpsSecOps AppDev
• Understaffed and struggle to keep
up with rapidly changing threats
• Business leaders consider
Compliance Vs Security the goal
• Inconsistent security policies
spanning multiple architectures,
clouds and tool sprawl creates risk
• Security slows down the
application lifecycle and is
perceived as a bottleneck
• CI/CD pipelines that automate app
development/deployment lack
security
• Business imperatives and
incentives such as time to market
compel DevOps to bypass
SecOps. DevOps KPIs do not
include security-related metrics
• Developer training on security is
lacking
• Developers are focused on
modern app development and are
not able to stay abreast of the
security landscape
• Cloud and open-source software
introduce unknown risks to the
business
Pain points

7. | ©2020 F57
DEVOPS /
APPLICATIONS
NETOPS /
OPERATIONS
Application
Business Logic
End User
Most applications require numerous application services between the
code and the customer
APPLICATION
DELIVERY
ExamplesAPI
gateway
Ingress
controller
App / web
server
Load
balancer

8. | ©2020 F58
DEVOPS /
APPLICATIONS
NETOPS /
OPERATIONS

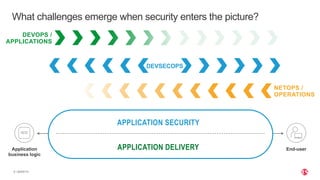

What challenges emerge when security enters the picture?
DEVSECOPS
Application
business logic
End-user
APPLICATION SECURITY
APPLICATION DELIVERY

9. | ©2020 F59

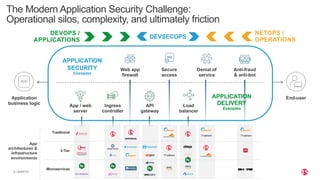

Application
business logic
End-user
The Modern Application Security Challenge:
Operational silos, complexity, and ultimately friction
API
gateway
Web app
firewall
Ingress
controller
App / web
server
Denial of
service
Anti-fraud
& anti-bot
Load
balancer
Secure
access
Traditional
3-Tier
Microservices
App
architectures &
infrastructure
environments
APPLICATION
SECURITY
Examples
APPLICATION
DELIVERY
Examples
DEVOPS /
APPLICATIONS
DEVSECOPS
NETOPS /
OPERATIONS

10. | ©2020 F510
App services must include both app delivery and app security, which
reinforce each other through visibility and controls
APPLICATION SECURITY
APPLICATION DELIVERY
Visibility Controls
Application
Business Logic
End User
DEVOPS /
APPLICATIONS
NETOPS /
OPERATIONS
DEVSECOPS
Visibility across app
services
More easily embed security
along the data path
Apply policies and
controls consistently

11. | ©2020 F511

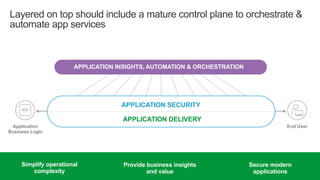

Layered on top should include a mature control plane to orchestrate &
automate app services
APPLICATION SECURITY
APPLICATION DELIVERY
Application
Business Logic
End User
APPLICATION INSIGHTS, AUTOMATION & ORCHESTRATION
Simplify operational
complexity
Provide business insights
and value
Secure modern
applications

12. | ©2020 F512
NGINX Application Security

13. | ©2020 F513
Addressing application security challenges
Embed Security Policy Your
Pipeline
Secure Modern Apps Improve App Performance
“Docker instances that have an unprotected port are used to instantiate a
container running Ubuntu Linux, install a download utility, and then
execute a 600-line program written in the Go programming language.
The script attempts to turn off security, stop any competing cryptominers,
and download the malicious cryptominer known as "Kinsing." –
Dark Reading, April 2020
“many security and compliance monitoring tools have not kept up with
this pace of change, as they simply weren’t built to test code at the speed
DevOps requires. This has only solidified the view that security is the
biggest block to rapid application development…” –
What is DevSecOps? CSO Online Jan 2018
“Tools that don’t integrate into the Software Development Lifecycle
disrupt DevSecOps initiatives and development processes, rather than
supporting them.” –
The challenges of shifting to DevSecOps- ITProPortal, Sept 2018

14. | ©2020 F514
Addressing application security challenges
Embed Security Policy Your
Pipeline
Integrate security controls directly into
your pipeline with security as code.
Secure Modern Apps
Strong security controls for
microservices, containers, APIs, and
other modern topologies.
Improve App Performance
The high performance WAF drives down
operational costs and improve user the user
experience without compromising security.
security policies and
protection optimized for
DevOps workflow
secure apps for any
environment with consistency
and centralized visibility
security services and tools
adaptable per app
& technology
NGINX Investments
“Focus on Guardrails
vs Gates”
“Build Once,
Run Anywhere”
“Adaptive & Scalable
App Services"

15. | ©2020 F515

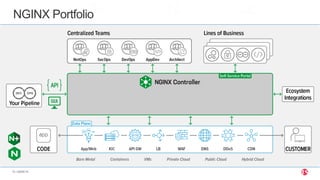

NGINX Portfolio

16. NGINX Plus Application
Security

17. Platform control planes
Legacy NGINX Controller ● F5 BIG-IQ ● Third-party ecosystems ● Build Your Own
Eliminate tool sprawl | Lightweight and highly portable | Abstract underlying
infrastructure
NGINX Plus
NGINX App Protect

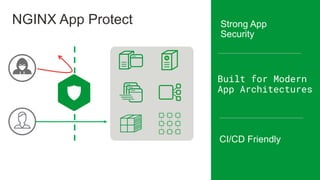

18. Strong App
Security
Built for Modern
App Architectures
CI/CD Friendly
NGINX App Protect

19. | ©2020 F520

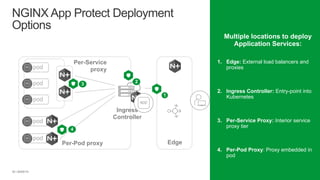

NGINX App Protect Deployment
Options
Edge
Ingress
Controller
pod
pod
pod
pod
pod
Per-Pod proxy
Per-Service
proxy
Multiple locations to deploy
Application Services:
1. Edge: External load balancers and
proxies
2. Ingress Controller: Entry-point into
Kubernetes
3. Per-Service Proxy: Interior service
proxy tier
4. Per-Pod Proxy: Proxy embedded in
pod
1
23
4

20. | ©2020 F521
NGINX App Protect Demo

21. | ©2020 F522
NGINX Controller Application Security

22. | ©2020 F5 NETWORKS23 CONFIDENTIAL

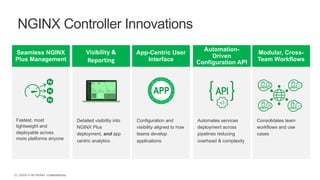

NGINX Controller Innovations
Seamless NGINX
Plus Management
App-Centric User
Interface
Visibility &
Reporting
Modular, Cross-
Team Workflows
APP
Fastest, most
lightweight and
deployable across
more platforms anyone
Configuration and
visibility aligned to how
teams develop
applications
Detailed visibility into
NGINX Plus
deployment, and app
centric analytics
Consolidates team
workflows and use
cases
Automation-
Driven
Configuration API
Automates services
deployment across
pipelines reducing
overhead & complexity

23. | ©2020 F5 NETWORKS24
Respond with
Intelligent Insights
Simplify Code to
Customer Delivery
Empower with Self-
Service
NGINX Controller
Future Add-On

24. | ©2020 F5 NETWORKS25
SUMMER BETA, FALL COMMERCIAL AVAILABILITY

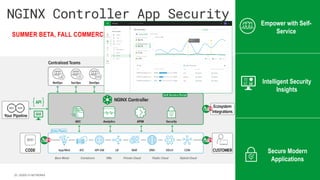

NGINX Controller App Security

25. NGINX Controller App Sec Module
(Summer/Fall 2020)
AppSec Offer Summary
NGINX App
Protect for
NGINX Plus
(available now)
ModSecurity for
NGINX Plus
(available now)
ModSecurity
OSS
(available
now)
à
Compliance
Requirements
–
Higher
Performance
–
Easier
Tuning
à
Individual App/
Infrastructure
Emphasis
Enterprise Emphasis w/
App Centric Controls
and DevOps Ease of Use
Free

26. NGINX App Protect
1. Request a free trial of NGINX App Protect:
https://www.nginx.com/free-trial-request/
2. Learn more : https://www.nginx.com/products/nginx-
app-protect/
NGINX Controller
1. Request a free trial of NGINX Controller:
https://www.nginx.com/free-trial-request-nginx-
controller/
2. Learn more: https://www.nginx.com/products/nginx-
Want to Learn More?
