NGINX: Back to Basics – APCJ

The document is a comprehensive guide on installing and configuring NGINX as a web server, reverse proxy, and load balancer, aimed at technical solutions architects. It outlines key features, installation procedures for various operating systems, and detailed configuration steps, including setting up multiple services and advanced features like health checks and rate limiting. Additionally, it provides links to resources for further learning and support on NGINX.

Embed presentation

Downloaded 60 times
NGINX: Back to the Basics INSTALL & CONFIGURE – WEB SERVER, REVERSE PROXY AND LOAD BALANCER Jay Desai Solutions Architect, Melbourne, Australia
| ©2019 F52 Today’s Host Jay Desai • Technical Solutions Architect, Melbourne - Australia
| ©2019 F53 Agenda 1. Introducing NGINX 2. Install NGINX 3. Configure Web Server 4. Configure Reverse Proxy 5. Configure Load Balancer 6. Link to Resources
| ©2019 F54 NGINX – Evolution Map 2004 •NGINX 0.1 2007 •“Viable” 2011 •NGINX, Inc. •NGINX 1.0 2013 •NGINX Plus R1 First Commercial Offering 2018 •NGINX Unit 1.0 •Controller 1.0 2019 •Controller 2.0 (API mgmt.) •NGINX Plus R18 •Acquired by F5 Networks 2020 •Controller 3.4 •NGINX Plus R22 •APP Protect
| ©2019 F55 #1 450 million Source: Netcraft May 2020 Web Server Survey “Most websites use NGINX”
| ©2019 F56 NGINX - Embracing a Multitude of Use Cases Web Server Reverse Proxy Load Balancer Cache Web Application Firewall Internal DDOS Protection API Gateway K8s IC Sidecar Proxy
| ©2019 F57 Let’s workshop!
| ©2019 F58 Enterprise Architecture Client / Browser Internet / WAN NGINX: Reverse Proxy, Load Balancer & Web Server Backend Services / Applications
| ©2019 F59 What we’re going to build Client / Browser + InternetNGINX: Reverse Proxy, Load Balancer & Web Server Other Services / Applications Some Services / Applications +
| ©2019 F510 • Laptop • Internet connection • Linux host / VM / Docker • NGINX already installed? −$ nginx -v Confidential – Do Not Distribute What will you need
| ©2019 F511 CONFIDENTIAL Installing NGINX (simple) CentOS / RHEL • yum install nginx Ubuntu / Debian • apt-get install nginx Docker • docker pull nginx MacOS / MacBook • Use a VM or Docker $ docker run --name mynginx -d -p 8080:80 nginx

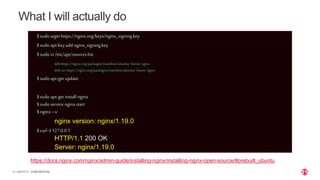

| ©2019 F512 CONFIDENTIAL What I will actually do $sudo wgethttps://nginx.org/keys/nginx_signing.key $sudo apt-keyadd nginx_signing.key $sudo vi /etc/apt/sources.list deb https://nginx.org/packages/mainline/ubuntu/ bionic nginx deb-src https://nginx.org/packages/mainline/ubuntu/ bionic nginx $sudo apt-get update $sudo apt-get install nginx $sudo service nginxstart $nginx–v nginx version: nginx/1.19.0 $ curl -I 127.0.0.1 HTTP/1.1 200 OK Server: nginx/1.19.0 https://docs.nginx.com/nginx/admin-guide/installing-nginx/installing-nginx-open-source/#prebuilt_ubuntu
| ©2019 F513 CONFIDENTIAL Some Useful NGINX Commands $sudo service nginx{start|stop|status|restart|reload|force-reload|upgrade|configtest|check-reload} $sudo nginx–v #versionof NGINX $sudo nginx–V #version &EnabledModules $sudo nginx–t #nginxconfiguration test $sudo nginx–T #Full configuration dump
| ©2019 F514 Status: Now we have successfully Installed NGINX Next: Configure Web Server
| ©2019 F515 $curl http://localhost <!DOCTYPE html> <html> <head> <title>Welcometonginx!</title> <style> body { width:35em; margin:0auto; font-family:Tahoma, Verdana,Arial, sans-serif; } </style> </head> <body> <h1>Welcometo nginx!</h1> <p>If you see thispage, the nginxweb server is successfullyinstalledand working.Furtherconfigurationisrequired.</p> <p>For onlinedocumentationand support please refer to <a href="http://nginx.org/">nginx.org</a>.<br/> Commercial support isavailableat <a href="http://nginx.com/">nginx.com</a>.</p> <p><em>Thankyou for usingnginx.</em></p> </body> </html>

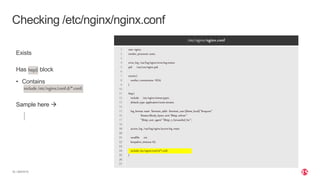

| ©2019 F516 Checking /etc/nginx/nginx.conf Exists Has http{} block • Contains include/etc/nginx/conf.d/*.conf; Sample here  /etc/nginx/nginx.conf 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 user nginx; worker_processes auto; error_log /var/log/nginx/error.lognotice; pid /var/run/nginx.pid; events{ worker_connections 1024; } http{ include /etc/nginx/mime.types; default_type application/octet-stream; log_format main '$remote_addr- $remote_user[$time_local]"$request"' '$status$body_bytes_sent"$http_referer"' '"$http_user_agent""$http_x_forwarded_for"'; access_log /var/log/nginx/access.log main; sendfile on; keepalive_timeout 65; include/etc/nginx/conf.d/*.conf; _ }

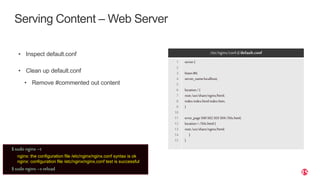

| ©2019 F517 Serving Content – Web Server • Inspect default.conf • Clean up default.conf • Remove #commented out content /etc/nginx/conf.d/default.conf 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 server{ listen80; server_namelocalhost; location/{ root/usr/share/nginx/html; index index.htmlindex.htm; } error_page500502503504/50x.html; location= /50x.html{ root/usr/share/nginx/html; } } $sudo nginx–t nginx: the configuration file /etc/nginx/nginx.conf syntax is ok nginx: configuration file /etc/nginx/nginx.conf test is successful $sudo nginx–s reload
| ©2019 F518 CONFIDENTIAL Create index.html file – APP 1 $ cd /opt $ sudo mkdir services $ cd services $ sudo mkdir App1 $ sudo mkdir App2 $ cd App1 $ sudo touch index.html $ sudo vim index.html Copy This  SAVE /opt/services/App1/index.html 1 2 3 4 5 6 7 8 9 10 11 12 13 14 1516 17 18 <!doctypehtml> <htmllang="en-US"> <head> <linkrel="icon"type="image/png" href="https://www.nginx.com/wp-content/uploads/2019/10/favicon-48x48.ico" sizes="48x48"> <h1>ThisismyAPP1</h1> <style> body{ background-color:#FF0000;} </style> <title>RED-APP 1</title> </head> </html>
| ©2019 F519 CONFIDENTIAL Create index.html file – APP 2 $ cd /opt/services/App2 $ sudo touch index.html $ sudo vim index.html Copy This  SAVE /opt/services/App1/index.html 1 2 3 4 5 6 7 8 9 10 11 12 13 14 1516 17 18 <!doctypehtml> <htmllang="en-US"> <head> <linkrel="icon"type="image/png" href="https://www.nginx.com/wp-content/uploads/2019/10/favicon-48x48.ico" sizes="48x48"> <h1>ThisismyAPP2</h1> <style> body{ background-color:#00FF00;} </style> <title>RED-APP 2</title> </head> </html>

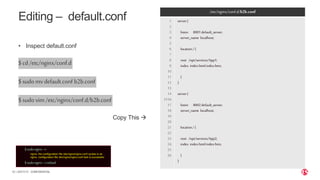

| ©2019 F520 CONFIDENTIAL Editing – default.conf • Inspect default.conf $cd/etc/nginx/conf.d $sudomvdefault.conf b2b.conf $sudovim/etc/nginx/conf.d/b2b.conf Copy This  /etc/nginx/conf.d/b2b.conf 1 2 3 4 5 6 7 8 9 10 11 12 13 14 1516 17 18 19 20 21 22 23 24 25 26 server{ listen 8001default_server; server_name localhost; location/{ root /opt/services/App1; index index.htmlindex.htm; } } server{ listen 8002default_server; server_name localhost; location/{ root /opt/services/App2; index index.htmlindex.htm; } } $sudo nginx–t nginx: the configuration file /etc/nginx/nginx.conf syntax is ok nginx: configuration file /etc/nginx/nginx.conf test is successful $sudo nginx–s reload
| ©2019 F521 $ curl http://localhost:8001 <!doctype html> <html lang="en-US"> . <h1>This is my APP1</h1> . $ curl http://localhost:8002 <!doctype html> <html lang="en-US"> . <h1>This is my APP2</h1> .
| ©2019 F522 Status: We are serving two applications/services Next: Configure Reverse Proxy & Load Balancer

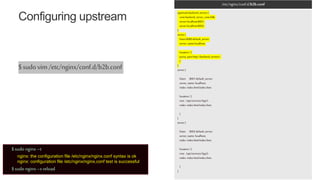

| ©2019 F523 Configuring upstream /etc/nginx/conf.d/b2b.conf upstreambackend_servers{ zonebackend_server_zone64k; serverlocalhost:8001; serverlocalhost:8002; } server{ listen8080 default_server; server_namelocalhost; location/{ proxy_passhttp://backend_servers/; } } server{ listen 8001 default_server; server_name localhost; index index.htmlindex.htm; location/{ root /opt/services/App1; index index.htmlindex.htm; } } server{ listen 8002 default_server; server_name localhost; index index.htmlindex.htm; location/{ root /opt/services/App2; index index.htmlindex.htm; } } $sudovim/etc/nginx/conf.d/b2b.conf $sudo nginx–t nginx: the configuration file /etc/nginx/nginx.conf syntax is ok nginx: configuration file /etc/nginx/nginx.conf test is successful $sudo nginx–s reload

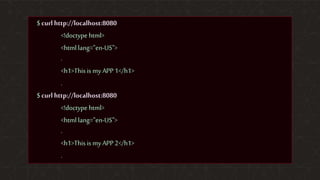

| ©2019 F524 $ curl http://localhost:8080 <!doctype html> <html lang="en-US"> . <h1>This is my APP1</h1> . $ curl http://localhost:8080 <!doctype html> <html lang="en-US"> . <h1>This is my APP2</h1> .
| ©2019 F525 Configuring upstream: Adding Servers /etc/nginx/conf.d/b2b.conf upstreambackend_servers{ zonebackend_server_zone64k; least_conn; serverlocalhost:8001; serverlocalhost:8002; www.jdaus.net:9083; } server{ listen8080 default_server; server_namelocalhost; location/{ proxy_passhttp://backend_servers/; } } server{ listen 8001 default_server; server_name localhost; index index.htmlindex.htm; location/{ root /opt/services/App1; index index.htmlindex.htm; } } server{ listen 8002 default_server; server_name localhost; index index.htmlindex.htm; location/{ root /opt/services/App2; index index.htmlindex.htm; } } $sudovim/etc/nginx/conf.d/b2b.conf $sudo nginx–t nginx: the configuration file /etc/nginx/nginx.conf syntax is ok nginx: configuration file /etc/nginx/nginx.conf test is successful $sudo nginx–s reload
| ©2019 F526 $ curl http://localhost:8080 <!doctype html> <html lang="en-US"> . <h1>This is my APP1</h1> . $ curl http://localhost:8080 <!doctype html> <html lang="en-US"> . <h1>This is my APP2</h1> .
| ©2019 F527 Status: Now we have configured Web Server, Reverse Proxy & Load Balancer Next: Unique Features
| ©2019 F528 Shifting to NGINX PLUS

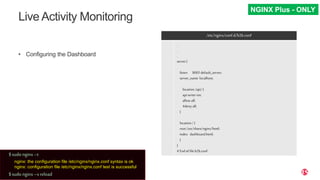

| ©2019 F529 Live Activity Monitoring • Configuring the Dashboard /etc/nginx/conf.d/b2b.conf . . . . . . . . . . . . server{ listen 8005default_server; server_name localhost; location/api/{ apiwrite=on; allowall; #denyall; } location/{ root/usr/share/nginx/html; index dashboard.html; } } #End offileb2b.conf NGINX Plus - ONLY $sudo nginx–t nginx: the configuration file /etc/nginx/nginx.conf syntax is ok nginx: configuration file /etc/nginx/nginx.conf test is successful $sudo nginx–s reload

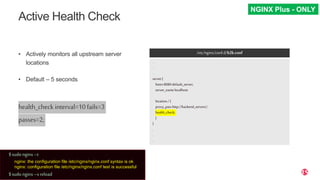

| ©2019 F530 Active Health Check • Actively monitors all upstream server locations • Default – 5 seconds health_check interval=10fails=3 passes=2; /etc/nginx/conf.d/b2b.conf . . . server{ listen8080default_server; server_namelocalhost; location/{ proxy_passhttp://backend_servers/; health_check; } } . . . NGINX Plus - ONLY $sudo nginx–t nginx: the configuration file /etc/nginx/nginx.conf syntax is ok nginx: configuration file /etc/nginx/nginx.conf test is successful $sudo nginx–s reload

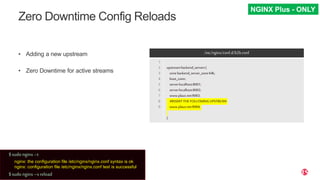

| ©2019 F531 Zero Downtime Config Reloads • Adding a new upstream • Zero Downtime for active streams /etc/nginx/conf.d/b2b.conf 1 2 3 4 5 6 7 8 9 upstreambackend_servers{ zonebackend_server_zone64k; least_conn; serverlocalhost:8001; serverlocalhost:8002; www.jdaus.net:9083; #INSERTTHE FOLLOWINGUPSTREAM www.jdaus.net:9084; } NGINX Plus - ONLY $sudo nginx–t nginx: the configuration file /etc/nginx/nginx.conf syntax is ok nginx: configuration file /etc/nginx/nginx.conf test is successful $sudo nginx–s reload

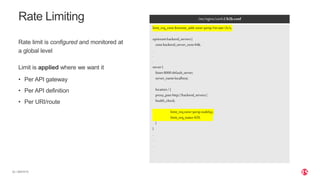

| ©2019 F532 Rate Limiting Rate limit is configured and monitored at a global level Limit is applied where we want it • Per API gateway • Per API definition • Per URI/route /etc/nginx/conf.d/b2b.conf limit_req_zone$remote_addrzone=perip:1mrate=2r/s; upstreambackend_servers{ zonebackend_server_zone64k; . . . server{ listen8000default_server; server_namelocalhost; location/{ proxy_passhttp://backend_servers/; health_check; limit_reqzone=peripnodelay; limit_req_status429; } } . . .

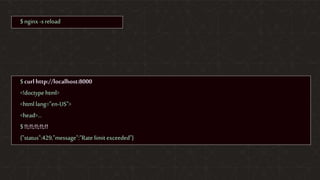

| ©2019 F533 $ nginx -s reload $ curlhttp://localhost:8000 <!doctype html> <html lang="en-US"> <head>… $ !!;!!;!!;!!;!! {"status":429,"message":”Rate limit exceeded"}
| ©2019 F534 How did we do? 1. Installing NGINX 2. Configuring Webserver 3. Configure Reverse Proxy & Load Balancer 4. Active Health Check 5. Zero Downtime Configuration Reloads

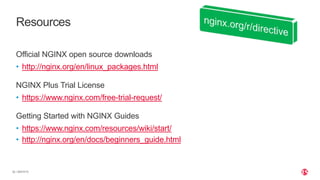

| ©2019 F535 Resources Official NGINX open source downloads • http://nginx.org/en/linux_packages.html NGINX Plus Trial License • https://www.nginx.com/free-trial-request/ Getting Started with NGINX Guides • https://www.nginx.com/resources/wiki/start/ • http://nginx.org/en/docs/beginners_guide.html
