Secured APIM-as-a-Service
Frank Zhu

2. | ©2018 F5 NETWORKS2
Objective

3. | ©2018 F5 NETWORKS3
Bring DevOps best practices into Operations
Provision & Security
Turn Gate into Guardrail

4. | ©2018 F5 NETWORKS4
Challenges

5. | ©2018 F5 NETWORKS5
Digital Transformation Challenges
SpeedComplexity Attack Surface Collaboration
✓ Inconsistent Security
solution across
cloud environments
✓ Lack of DevOps
friendly security tools
(CI/CD pipeline)
✓ Implement security early in
the development process
✓ Deploy in modern
architecture
✓ Microservices creates
Additional attack vectors
& new attack types
✓ SecOps view of DevOps:
“They don’t take
security seriously”
✓ DevOps View of SecOps:
“They constantly are
interrupting our pipeline,
slowing us down, all for
the sake of security”

6. | ©2018 F5 NETWORKS6
The Solution

7. | ©2018 F5 NETWORKS7
Declarative
Support Base Templates
predefined or externalreference
Adaptation layer: Base Template Adaption
Option to customize the initial policy
{"policy": {
"name":"AppPolicy01",
"description":"AppV1.1 - DEMO FOR DECLARATIVE AND WEBHOOKS CAPABILITIES",
"template":{ "name":"POLICY_TEMPLATE_RAPID_DEPLOYMENT" },
"enforcementMode":"blocking",
"server-technologies":[
{
"serverTechnologyName":"MySQL"
} ],
"signature-settings":{
"signatureStaging": false
},
"modifications": [{
"entityChanges": {
"type": "explicit"
},
"entity": {
"name": "log"
},
"entityKind": "tm:asm:policies:filetypes:filetypestate",
"action": "delete",
"description": "Delete Disallowed File Type"
} ] }
Modification layer: Policy builder suggestions
Part of the modification layer and can be shared between
policies

8. | ©2020 F58
 Shift-Left 
API Testing
API
Implementation
API Definition API Onboarding
API
Deployment
API Runtime
Development OperationsSelf Service

9. | ©2018 F5 NETWORKS9
Secured APIM-as-a-Service

10. | ©2018 F5 NETWORKS10
Secured APIM-as-a-Microservice

11. | ©2018 F5 NETWORKS11
Deployment Options

12. | ©2018 F5 NETWORKS12

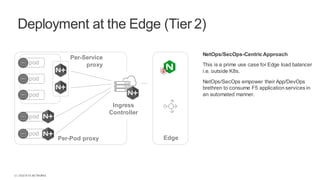

Deployment at the Edge (Tier 2)
Ingress
Controller
pod
pod
pod
pod
pod
Per-Pod proxy
Per-Service
proxy
Edge
NetOps/SecOps-Centric Approach
This is a prime use case for Edge load balancer
i.e. outside K8s.
NetOps/SecOps empower their App/DevOps
brethren to consume F5 application services in
an automated manner.

13. | ©2018 F5 NETWORKS13
Deployment on the Ingress Controller (Tier 3)
Ingress
Controller
pod
pod
pod
pod
pod
Per-Pod proxy
Per-Service
proxy
Edge
K8s SecOps/DevSecOps-Centric Approach
Appropriate solution when secured policies are
under direction of NetOps or DevOps teams.
Policies are defined and associated with
services using Kubernetes API.
NGINX Ingress Controller RBAC allows:
• Admin users to enforce policies per listener
• DevOps users to select policy per Ingress
Resource
Leverage Container Ingress Services to
scale NGINX Ingress Controller and add other
application services (LB, DNS, DDoS, IAM).

14. | ©2018 F5 NETWORKS14
Deployment forA Specific Service (Tier 3)
Ingress
Controller
pod
pod
pod
pod
pod
Per-Pod proxy
Per-Service
proxy
Edge
DevSecOps-Centric Approach
Appropriate solution when secured policies
are under direction of the DevSecOps team,
and specific to a small number of services.
Protection is implemented using a front-end
proxy service for the protected service(s).
• Easy to deploy securely
• Security updates require re-deployment of
per-service proxy tier
Allows for greater resource control and
reduces complexity of IC configuration.

15. | ©2018 F5 NETWORKS15

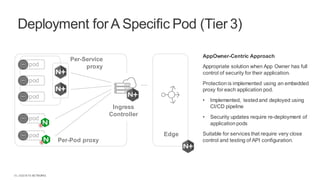

Deployment forA Specific Pod (Tier 3)
Ingress
Controller
pod
pod
pod
pod
pod
Per-Pod proxy
Per-Service
proxy
Edge
AppOwner-Centric Approach
Appropriate solution when App Owner has full
control of security for their application.
Protection is implemented using an embedded
proxy for each application pod.
• Implemented, tested and deployed using
CI/CD pipeline
• Security updates require re-deployment of
application pods
Suitable for services that require very close
control and testing of API configuration.

16. | ©2018 F5 NETWORKS16
Meet the Team

17. | ©2018 F5 NETWORKS17
DevOps squad: 6-8 resources:
1. Tech lead
2. Scrum Master
3. Test Developer
4. Deployment Developer
5. 2-4 Full-Stack Developers
Two-Pizza Team

19. | ©2018 F5 NETWORKS19
Discovery Questions

20. | ©2018 F5 NETWORKS20
1. How many APIsnowand overthe next year? How many Teams?
2. Internalor Externalconsumers?Determineswhat they need froma DevPortal& Auth Requirements
3. API stylesin use – REST,XML, gRPC,GraphQL.Nowvs Future.
4. Contractfirstapproach(Do theydesignbeforetheybuild APIs)? Existingspecs?
5. Deploymentflow(how many teams have to touchit)
6. Automationrequirements-DevOpspractices,CI/CD maturity
7. How are the APIs deliveredtoday?Reverseproxy,load balancer,simpleAPIgateway,APImgtsolution
8. What’s wrong with it? Whatchanged? Needthem to share what they really need.
9. Are they modernizing? Forreal,or brownfieldmix/mess
10. Lookingto augment,rip/replace,Performanceand latency
APIM Focus

21. | ©2018 F5 NETWORKS21
1. Existing WAFsolutions
2. The Deploymentoptionsrequirements
3. Describerthe existing communication/interactionbetweenDevelopmentand Operationsteams
4. How is the API implementationtested?Whattoolsare used?
5. Is there value to unify the securitytestsforAPI?
WAF Focus
