This application note is intended to be a source of guidance and to help reduce confusion pertaining to the design, configuration, selection, sizing, and installation of Uninterruptable Power Supply (UPS) systems. This document is a useful information source for electrical consultants, electrical engineers, facility managers, and design and build contractors.
In the recent past, many design engineers have tried to create the perfect UPS solution for supporting critical loads. However, these designs have generally overlooked coverage for changing load profiles (e.g. leading power factor), sleep mode, and advanced scalability solutions. Such solutions and/or options can assist in gaining higher system efficiency, without exposing the critical load to disruptions from the utility.
This paper presents information related to various generic types of current UPS units, complete with their merits and demerits. It covers different topologies and various system solutions for clients. Auxiliary items, such as the battery bank, diesel generator set, and switchgear are included in the document since they also form an integral part of a UPS system.
To aid in the reduction of the carbon footprint, the paper has indicated achievable operational efficiency figures for different solutions.
A typical generic UPS Specification has been included as an Appendix to this paper to support electrical engineering professionals.
This application note is intended to be a source of guidance and to help reduce confusion pertaining to the design, configuration, selection, sizing, and installation of Uninterruptable Power Supply (UPS) systems. This document is a useful information source for electrical consultants, electrical engineers, facility managers, and design and build contractors.
In the recent past, many design engineers have tried to create the perfect UPS solution for supporting critical loads. However, these designs have generally overlooked coverage for changing load profiles (e.g. leading power factor), sleep mode, and advanced scalability solutions. Such solutions and/or options can assist in gaining higher system efficiency, without exposing the critical load to disruptions from the utility.
This paper presents information related to various generic types of current UPS units, complete with their merits and demerits. It covers different topologies and various system solutions for clients. Auxiliary items, such as the battery bank, diesel generator set, and switchgear are included in the document since they also form an integral part of a UPS system.
To aid in the reduction of the carbon footprint, the paper has indicated achievable operational efficiency figures for different solutions.
A typical generic UPS Specification has been included as an Appendix to this paper to support electrical engineering professionals.
INTRODUCTION BASIC TECHNIQUES TYPE OF BUSES
Y BUS MATRIX POWER SYSTEM COMPONENTS BUS ADMITTANCE MATRIX
Power (Load) flow study is the analysis of a power system in normal steady-state operation
This study will determine:
The project is based on electric heating and its method. This project is a college project done by students. So the project might have some mistakes. Use this project as any source is restricted. The project is uploaded only because of the benefits of the students who want to get the basic idea of the powerpoint presentation of a project.
The frequency of a system is dependent on active power balance
As frequency is a common factor throughout the system, a change in active power demand at one point is reflected throughout the system
Because there are many generators supplying power into the system, some means must be provided to allocate change in demand to the generators
speed governor on each generating unit provides primary speed control function
supplementary control originating at a central control center allocates generation
In an interconnected system, with two or more independently controlled areas, the generation within each area has to be controlled so as to maintain scheduled power interchange
The control of generation and frequency is commonly known as load frequency control (LFC) or automatic generation control (AGC)
This application note is intended to be a source of guidance and to help reduce confusion pertaining to the design, configuration, selection, sizing, and installation of Uninterruptable Power Supply (UPS) systems. This document is a useful information source for electrical consultants, electrical engineers, facility managers, and design and build contractors.
In the recent past, many design engineers have tried to create the perfect UPS solution for supporting critical loads. However, these designs have generally overlooked coverage for changing load profiles (e.g. leading power factor), sleep mode, and advanced scalability solutions. Such solutions and/or options can assist in gaining higher system efficiency, without exposing the critical load to disruptions from the utility.
This paper presents information related to various generic types of current UPS units, complete with their merits and demerits. It covers different topologies and various system solutions for clients. Auxiliary items, such as the battery bank, diesel generator set, and switchgear are included in the document since they also form an integral part of a UPS system.
To aid in the reduction of the carbon footprint, the paper has indicated achievable operational efficiency figures for different solutions.
A typical generic UPS Specification has been included as an Appendix to this paper to support electrical engineering professionals.
INTRODUCTION BASIC TECHNIQUES TYPE OF BUSES
Y BUS MATRIX POWER SYSTEM COMPONENTS BUS ADMITTANCE MATRIX
Power (Load) flow study is the analysis of a power system in normal steady-state operation
This study will determine:
The project is based on electric heating and its method. This project is a college project done by students. So the project might have some mistakes. Use this project as any source is restricted. The project is uploaded only because of the benefits of the students who want to get the basic idea of the powerpoint presentation of a project.
The frequency of a system is dependent on active power balance
As frequency is a common factor throughout the system, a change in active power demand at one point is reflected throughout the system
Because there are many generators supplying power into the system, some means must be provided to allocate change in demand to the generators
speed governor on each generating unit provides primary speed control function
supplementary control originating at a central control center allocates generation
In an interconnected system, with two or more independently controlled areas, the generation within each area has to be controlled so as to maintain scheduled power interchange
The control of generation and frequency is commonly known as load frequency control (LFC) or automatic generation control (AGC)
The main feature of this power supply is, when no load is there it automatically switches off. It is a circuit which mainly act as a protector circuit and achieved through an arrangement of transistors and relay. Embedded system
requires a regulated power supply. This power supply circuit gives a variable regulated supply and switches off in no load condition.
As the fifth in a series of tutorials on the power system, Leonardo ENERGY introduces its minute lecture on voltage and frequency control, using the analogy of a metal/rubber plate to demonstrate the centralised nature of frequency control, whereas voltage control is more a local matter.
Earth resistance is a key parameter in determining the efficiency of earthing systems. In this application note we look at the measurement of earth resistance.
After a description of some universal fundamentals (e.g. standards, error margins and the influence of the weather), various measurement methods are discussed. A common feature of all the methods is that they determine the earth impedance by measuring the voltage across the earthing system for a known test current. Apart from that, there is a wide degree of variation in the internal circuitry of the measuring instruments used and the layout and arrangement of the external measuring circuit. A major distinction can be made between methods that draw current directly from the supply, and those methods that don’t.
Each method has its own particular disadvantages such as limited applicability, electric shock hazard, larger measurement errors, or requiring more time and effort to complete. The various advantages and disadvantages of the individual measurement techniques are described in the final chapters of this application note.
Maintenance and Troubleshooting of Uninterruptible Power Supply (UPS) Systems...Living Online
Supplying reliable electric power for critical systems is an essential part of modern industrial installations. Uninterrupted DC emergency power supply systems are used in various installations ranging from power generating stations to consumer-end substations and various applications such as control power to emergency lighting and small but critical motive loads. AC uninterrupted supply equipment find wide use in critical applications such as control, instrumentation, computer and communication systems as well as other types of installations.
Electrical engineers in any industry or other large facilities in diverse areas such as commercial buildings, transportation systems such as railways, airports etc. are bound to come across AC or DC uninterrupted power supply systems. This manual covers the basic understanding of various options of UPS systems available, the principle of operation and of the main energy source in most of the modern UPS installations, viz., the battery.
MORE INFORMATION: http://www.idc-online.com/content/uninterruptible-power-supply-ups-systems-23?id=146
Electrical power distribution system essentially is the system that receives power from one or more points of power supply and then distributes it over to different electrical equipment individually.
The main feature of this power supply is, when no load is there it automatically switches off. It is a circuit which mainly act as a protector circuit and achieved through an arrangement of transistors and relay. Embedded system
requires a regulated power supply. This power supply circuit gives a variable regulated supply and switches off in no load condition.
As the fifth in a series of tutorials on the power system, Leonardo ENERGY introduces its minute lecture on voltage and frequency control, using the analogy of a metal/rubber plate to demonstrate the centralised nature of frequency control, whereas voltage control is more a local matter.
Earth resistance is a key parameter in determining the efficiency of earthing systems. In this application note we look at the measurement of earth resistance.
After a description of some universal fundamentals (e.g. standards, error margins and the influence of the weather), various measurement methods are discussed. A common feature of all the methods is that they determine the earth impedance by measuring the voltage across the earthing system for a known test current. Apart from that, there is a wide degree of variation in the internal circuitry of the measuring instruments used and the layout and arrangement of the external measuring circuit. A major distinction can be made between methods that draw current directly from the supply, and those methods that don’t.
Each method has its own particular disadvantages such as limited applicability, electric shock hazard, larger measurement errors, or requiring more time and effort to complete. The various advantages and disadvantages of the individual measurement techniques are described in the final chapters of this application note.
Maintenance and Troubleshooting of Uninterruptible Power Supply (UPS) Systems...Living Online
Supplying reliable electric power for critical systems is an essential part of modern industrial installations. Uninterrupted DC emergency power supply systems are used in various installations ranging from power generating stations to consumer-end substations and various applications such as control power to emergency lighting and small but critical motive loads. AC uninterrupted supply equipment find wide use in critical applications such as control, instrumentation, computer and communication systems as well as other types of installations.
Electrical engineers in any industry or other large facilities in diverse areas such as commercial buildings, transportation systems such as railways, airports etc. are bound to come across AC or DC uninterrupted power supply systems. This manual covers the basic understanding of various options of UPS systems available, the principle of operation and of the main energy source in most of the modern UPS installations, viz., the battery.
MORE INFORMATION: http://www.idc-online.com/content/uninterruptible-power-supply-ups-systems-23?id=146
Electrical power distribution system essentially is the system that receives power from one or more points of power supply and then distributes it over to different electrical equipment individually.
What is an Uninterruptible Power Supply (UPS)Md Jahid Shah
An uninterruptible power supply (UPS) is an enhanced battery system that activates itself in the event of a power failure and acts as the primary power source until electronic equipment can be safely shut down.
The purpose of a UPS is to maintain consistent power levels and prevent fluctuations that could damage digital or mechanical equipment. All types of UPS systems are designed to maintain consistent power levels and prevent fluctuations that could damage digital or mechanical equipment, but there are different types of designs that provide different levels of protection.
Tags: best uninterruptible power supply, uninterruptible power supply calculator, uninterrupted power supply calculator.
Scenarios for Specifying an Uninterruptible Power Supply for Industrial Appli...Classic Controls, Inc.
For a number of years, some industries have used UPSs as a matter of course in applications requiring
uninterrupted process control. These include power-generation facilities, both fossil and nuclear, and petrochemical
plants and refineries.
Recently, other types of industrial companies (pulp and paper mills, steel mills, pharmaceutical manufacturing and
cogeneration facilities) have created a need for UPSs by incorporating DCSs into their plants to control their
processes. Additional control equipment, such as supervisory control and data acquisition (SCADA) systems,
energy management systems (EMSs), boiler-control and microprocessor-based instrumentation, give power
protection an even more important role in industry.
Redundant power supply architecture for self healing substation using ultraca...eSAT Publishing House
IJRET : International Journal of Research in Engineering and Technology is an international peer reviewed, online journal published by eSAT Publishing House for the enhancement of research in various disciplines of Engineering and Technology. The aim and scope of the journal is to provide an academic medium and an important reference for the advancement and dissemination of research results that support high-level learning, teaching and research in the fields of Engineering and Technology. We bring together Scientists, Academician, Field Engineers, Scholars and Students of related fields of Engineering and Technology
UPS Electrical Design and Installation by Critical Power Supplies.
Important considerations for the electrical design and installation of UPS systems in mission critical applications.
Where Critical Power applications are concerned, the electrical design and installation of a UPS (uninterruptible power supply) system is crucially important for several reasons.
Firstly, it must work in alignment with installations already on site and not interfere with other electrical
equipment. This is particularly important for industrial and healthcare installations where there may already
be critical equipment (medical and life support, for example) in operation.
It all starts with a site survey.
A pre-installation site survey will reveal details about the scope of the electrical work to be undertaken.
Such information will reveal, for instance, the type of electrical loads, power quality issues, harmonics, whether it is a
high, medium or low voltage installation and electrical distribution set up, including the breaker sizes already on site
and their discrimination.
If you would like more information please contact sales on 0800 978 8988 or email sales@criticalpowersupplies.co.uk
(a)What do you mean by smart substation, smart feeders & Transmission system?
(b)What is need of smart substation, smart feeders & Transmission system?
(c) What are various merits and benefits of smart substation, smart feeders & Transmission system?
(d) Various technologies to make adjusting system into smart substation, smart distribution & Transmission system?
Data Center Power Infrastructure, Data Center Power Infrastructure explained, how is power distributed in the data center, what is the use of the generator in the data center
Running UPS in Economy Mode To Save Energyjerianasmith
Uniterruptible Power Supply play two important roles as providing quality power supply and also act as power backup solutions. As, importance of datacenter is increasing day by day that is why awareness of the potential to run on-line UPS in a less resilient power mode known as ECO-mode is also growing to reduce running costs.
AMETEK Solidstate Controls is a recognized global leader in the manufacture of industrial power equipment. Some of the energy products manufactured are uninterruptible power supply systems, industrial inverters, renewable energy inverters, battery chargers, power conditioners, bypass switches, monitoring equipment, cathodic protection rectifiers.
The changing world of energy is making it increasingly challenging to optimize power reliability, energy costs, and operational efficiency in critical power environments such as
hospitals, data centers, airports, and manufacturing facilities. Utility power grids are getting more dynamic, facility power distribution systems are becoming more complex, and
cyberattacks threaten network stability. More competitive pressures and environmental regulations are pushing expectations for energy efficiency and business sustainability higher than ever. Addressing these challenges requires new
digital tools designed specifically to enable faster response to opportunities and risks related to power system reliability and operations.
Electrical Substation and Switchyard DesignLiving Online
Electrical substations form important nodal points in all power networks. Substations can be of various capacities, voltages, configurations and types depending on what is the application for which the substation is being designed. Location and layout of a substation present a number of challenges to the designer due to a large variety of options available to a designer. There are ever so many constraints too that need to be kept in mind; technical, environmental and naturally financial. Arriving at an optimum design within these constraints is as much an art as it is a science. Designing a substation which will operate with utmost reliability for at the least three or four decades involves a thorough knowledge of the current state-of-the art equipment, emerging technologies, the tools for presenting and evaluating all available options and a good appreciation of power system operation and maintenance. This course will present a comprehensive capsule of all the knowledge essential for a substation designer and walk the participants through the substation design process using a set of interlinked case studies.
FOR MORE INFORMATION: http://www.idc-online.com/content/electrical-substation-and-switchyard-design-25
Various Custom Power Devices for Power Quality Improvement A Reviewijtsrd
Power electronic devices form a major part in today’s industrial and household applications. However, the power quality of these devices is highly degraded due to lot of reasons including voltage fluctuation and flicker, harmonics, transients, voltage imbalance, and many more. These voltage disturbances lead to maximum failures in electrical distribution systems. In this review paper, various techniques including both network reconfiguring and compensating type devices are discussed to ameliorate the power quality in the distribution systems. Various power quality issues and their characteristics have been depicted. Some of the techniques discussed to improve the power quality in distribution systems which include filters, unified power quality conditioner UPQC , dynamic voltage restorer DVR , and distribution static synchronous compensator D STATCOM . The design parameters and implementation of these techniques in electrical machines are also discussed. Mukesh Chandra Rav | Pramod Kumar Rathore "Various Custom Power Devices for Power Quality Improvement: A Review" Published in International Journal of Trend in Scientific Research and Development (ijtsrd), ISSN: 2456-6470, Volume-6 | Issue-3 , April 2022, URL: https://www.ijtsrd.com/papers/ijtsrd49829.pdf Paper URL: https://www.ijtsrd.com/engineering/electrical-engineering/49829/various-custom-power-devices-for-power-quality-improvement-a-review/mukesh-chandra-rav
A new generation of instruments and tools to monitor buildings performanceLeonardo ENERGY
What is the added value of monitoring the flexibility, comfort, and well-being of a building? How can occupants be better informed about the performance of their building? And how to optimize a building's maintenance?
The slides were presented during a webinar and roundtable with a focus on a new generation of instruments and tools to monitor buildings' performance, and their link with the Smart Readiness Indicator (SRI) for buildings as introduced in the EU's Energy Performance of Buildings Directive (EPBD).
Link to the recordings: https://youtu.be/ZCFhmldvRA0
Addressing the Energy Efficiency First Principle in a National Energy and Cli...Leonardo ENERGY
When designing energy and climate policies, EU Member States have to apply the Energy Efficiency First Principle: priority should be given to measures reducing energy consumption before other decarbonization interventions are adopted. This webinar summarizes elements of the energy and climate policy of Cyprus illustrating how national authorities have addressed this principle so far, and outline challenges towards its much more rigorous implementation that is required in the coming years.
Auctions for energy efficiency and the experience of renewablesLeonardo ENERGY
Auctions are an emerging market-based policy instrument to promote energy efficiency that has started to gain traction in the EU and worldwide. This presentation provides an overview and comparison of several energy efficiency auctions and derives conclusions on the effects of design elements based on auction theory and on experiences of renewable energy auctions. We include examples from energy efficiency auctions in Brazil, Canada, Germany, Portugal, Switzerland, Taiwan, UK, and US.
A recording of this presentation can be viewed at:
https://youtu.be/aC0h4cXI9Ug
Energy efficiency first – retrofitting the building stock finalLeonardo ENERGY
Retrofitting the building stock is a challenging undertaking in many respects - including costs. Can it nevertheless qualify as a measure under the Energy Efficiency First principle? Which methods can be applied for the assessment and what are the results in terms of the cost-effectiveness of retrofitting the entire residential building stock? How do the results differ for minimization of energy use, CO2 emissions and costs? And which policy conclusions can be drawn?
This presentation was used during the 18th webinar in the Odyssee-Mure on Energy Efficiency Academy on February 3, 2022.
A link to the recording: https://youtu.be/4pw_9hpA_64
How auction design affects the financing of renewable energy projects Leonardo ENERGY
Recording available at https://youtu.be/lPT1o735kOk
Renewable energy auctions might affect the financing of renewable energy (RE) projects. This webinar presents the results of the AURES II project exploring this topic. It discusses how auction designs ranging from bid bonds to penalties and remuneration schemes impact financing and discusses creating a low-risk auction support framework.
This presentation discusses the contribution of Energy Efficiency Funds to the financing of energy efficiency in Europe. The analysis is based on the MURE database on energy efficiency policies. As an example, the German Energy Efficiency Fund is described in more detail.
This is the 17th webinar in the Odyssee-Mure on Energy Efficiency Academy.
Recordings are available on: https://youtu.be/KIewOQCgQWQ
(see updated version of this presentation:
https://www.slideshare.net/sustenergy/energy-efficiency-funds-in-europe-updated)
The Energy Efficiency First Principle is a key pillar of the European Green Deal. A prerequisite for its widespread application is to secure financing for energy efficiency investments.
This presentation discusses the contribution of Energy Efficiency Funds to the financing of energy efficiency in Europe. The analysis is based on the MURE database on energy efficiency policies. As an example, the German Energy Efficiency Fund is described in more detail.
This is the 17th webinar in the Odyssee-Mure on Energy Efficiency Academy.
Recordings are available on: https://youtu.be/KIewOQCgQWQ
Five actions fit for 55: streamlining energy savings calculationsLeonardo ENERGY
During the first year of the H2020 project streamSAVE, multiple activities were organized to support countries in developing savings estimations under Art.3 and Art.7 of the Energy Efficiency Directive (EED).
A fascinating output of the project so far is the “Guidance on Standardized saving methodologies (energy, CO2 and costs)” for a first round of five so-called Priority Actions. This Guidance will assist EU member states in more accurately calculating savings for a set of new energy efficiency actions.
This webinar presents this Guidance and other project findings to the broader community, including industry and markets.
AGENDA
14:00 Introduction to streamSAVE
(Nele Renders, Project Coordinator)
14:10 Views from the EU Commission and the link with Fit-for-55 (Anne-Katherina Weidenbach, DG ENER)
14:20 The streamSAVE guidance and its platform illustrated (Elisabeth Böck, AEA)
14:55 A view from industry: What is the added value of streamSAVE (standardized) methods in frame of the EED (Conor Molloy, AEMS ECOfleet)
14:55 Country experiences: the added value of standardized methods (Elena Allegrini, ENEA, Italy)
The recordings of the webinar can be found on https://youtu.be/eUht10cUK1o
This webinar analyses energy efficiency trends in the EU for the period 2014-2019 and the impact of COVID-19 in 2020 (based on estimates from Enerdata).
The speakers present the overall trend in total energy supply and in final energy consumption, as well as details by sector, alongside macro-economic data. They will explain the main drivers of the variation in energy consumption since 2014 and determine the impact of energy savings.
Speakers:
Laura Sudries, Senior Energy Efficiency Analyst, Enerdata
Bruno Lapillonne, Scientific Director, Enerdata
The recordings of the presentation (webinar) can be viewed at:
https://youtu.be/8RuK5MroTxk
Energy and mobility poverty: Will the Social Climate Fund be enough to delive...Leonardo ENERGY
Prior to the current soaring energy prices across Europe, the European Commission proposed, as part of the FitFor55 climate and energy package, the EU Social Climate Fund to mitigate the expected social impact of extending the EU ETS to transport and heating.
The report presented in this webinar provides an update of the European Energy Poverty Index, published for the first time in 2019, which shows the combined effect of energy and mobility poverty across Member States. Beyond the regular update of the index, the report provides analysis of the existing EU policy framework related to energy and transport poverty. France is used as a case study given the “yellow vest” movement, which was triggered by the proposed carbon tax on fuels.
Watch the recordings of the webinar:
https://youtu.be/i1Jdd3H05t0
Does the EU Emission Trading Scheme ETS Promote Energy Efficiency?Leonardo ENERGY
This policy brief analyzes the main interacting mechanisms between the Energy Efficiency Directive (EED) and the EU Emission Trading Scheme (ETS). It presents a detailed top-down approach, based on the ODYSSEE energy indicators, to identify energy savings from the EU ETS.
The main task consists in isolating those factors that contribute to the change in energy consumption of industrial branches covered by the EU ETS, and the energy transformation sector (mainly the electricity sector).
Speaker:
Wolfgang Eichhammer (Head of the Competence Center Energy Policy and Energy Markets @Fraunhofer Institute for Systems and Innovation Research ISI)
The recordings of this webinar can be watched via:
https://youtu.be/TS6PxIvtaKY
Energy efficiency, structural change and energy savings in the manufacturing ...Leonardo ENERGY
The first part of the presentations presents the energy efficiency improvements in the manufacturing sector since 2000, and the role of structural change between the different branches and energy savings. It will compare the improvements in Denmark and other countries with EU average. This part is based on ODYSSEE data.
The second part of the presentation presents the development in Denmark in more detail, and it will compare the energy efficiency improvement, corrected for structural change, with the reported savings from the Energy Efficiency Obligation Scheme.
Recordings of the live webinar are on https://youtu.be/VVAdw_CS51A
Energy Sufficiency Indicators and Policies (Lea Gynther, Motiva)Leonardo ENERGY
This policy brief looks at questions ‘how to measure energy sufficiency’, ‘which policies and measures can be used to address energy sufficiency’ and ‘how they are used in Europe today’.
Energy sufficiency refers to a situation where everyone has access to the energy services they need, whilst the impacts of the energy system do not exceed environmental limits. The level of ambition needed to address energy sufficiency is higher than in the case of energy efficiency.
This is the 13th edition of the Odyssee-Mure on Energy Efficiency Academy, and number 519 in the Leonardo ENERGY series. The recording of the live presentation can be found on https://www.youtube.com/watch?v=jEAdYbI0wDI&list=PLUFRNkTrB5O_V155aGXfZ4b3R0fvT7sKz
The Super-efficient Equipment and Appliance Deployment (SEAD) Initiative Prod...Leonardo ENERGY
The Super-efficient Equipment and Appliance Deployment (SEAD) Initiative Product Efficiency Call to Action, by Melanie Slade - IEA and Nicholas Jeffrey - UK BEIS
State of ICS and IoT Cyber Threat Landscape Report 2024 previewPrayukth K V
The IoT and OT threat landscape report has been prepared by the Threat Research Team at Sectrio using data from Sectrio, cyber threat intelligence farming facilities spread across over 85 cities around the world. In addition, Sectrio also runs AI-based advanced threat and payload engagement facilities that serve as sinks to attract and engage sophisticated threat actors, and newer malware including new variants and latent threats that are at an earlier stage of development.
The latest edition of the OT/ICS and IoT security Threat Landscape Report 2024 also covers:
State of global ICS asset and network exposure
Sectoral targets and attacks as well as the cost of ransom
Global APT activity, AI usage, actor and tactic profiles, and implications
Rise in volumes of AI-powered cyberattacks
Major cyber events in 2024
Malware and malicious payload trends
Cyberattack types and targets
Vulnerability exploit attempts on CVEs
Attacks on counties – USA
Expansion of bot farms – how, where, and why
In-depth analysis of the cyber threat landscape across North America, South America, Europe, APAC, and the Middle East
Why are attacks on smart factories rising?
Cyber risk predictions
Axis of attacks – Europe
Systemic attacks in the Middle East
Download the full report from here:
https://sectrio.com/resources/ot-threat-landscape-reports/sectrio-releases-ot-ics-and-iot-security-threat-landscape-report-2024/
GraphRAG is All You need? LLM & Knowledge GraphGuy Korland
Guy Korland, CEO and Co-founder of FalkorDB, will review two articles on the integration of language models with knowledge graphs.
1. Unifying Large Language Models and Knowledge Graphs: A Roadmap.
https://arxiv.org/abs/2306.08302
2. Microsoft Research's GraphRAG paper and a review paper on various uses of knowledge graphs:
https://www.microsoft.com/en-us/research/blog/graphrag-unlocking-llm-discovery-on-narrative-private-data/
The Art of the Pitch: WordPress Relationships and SalesLaura Byrne
Clients don’t know what they don’t know. What web solutions are right for them? How does WordPress come into the picture? How do you make sure you understand scope and timeline? What do you do if sometime changes?
All these questions and more will be explored as we talk about matching clients’ needs with what your agency offers without pulling teeth or pulling your hair out. Practical tips, and strategies for successful relationship building that leads to closing the deal.
JMeter webinar - integration with InfluxDB and GrafanaRTTS
Watch this recorded webinar about real-time monitoring of application performance. See how to integrate Apache JMeter, the open-source leader in performance testing, with InfluxDB, the open-source time-series database, and Grafana, the open-source analytics and visualization application.
In this webinar, we will review the benefits of leveraging InfluxDB and Grafana when executing load tests and demonstrate how these tools are used to visualize performance metrics.
Length: 30 minutes
Session Overview
-------------------------------------------
During this webinar, we will cover the following topics while demonstrating the integrations of JMeter, InfluxDB and Grafana:
- What out-of-the-box solutions are available for real-time monitoring JMeter tests?
- What are the benefits of integrating InfluxDB and Grafana into the load testing stack?
- Which features are provided by Grafana?
- Demonstration of InfluxDB and Grafana using a practice web application
To view the webinar recording, go to:
https://www.rttsweb.com/jmeter-integration-webinar
Builder.ai Founder Sachin Dev Duggal's Strategic Approach to Create an Innova...Ramesh Iyer
In today's fast-changing business world, Companies that adapt and embrace new ideas often need help to keep up with the competition. However, fostering a culture of innovation takes much work. It takes vision, leadership and willingness to take risks in the right proportion. Sachin Dev Duggal, co-founder of Builder.ai, has perfected the art of this balance, creating a company culture where creativity and growth are nurtured at each stage.
Connector Corner: Automate dynamic content and events by pushing a buttonDianaGray10
Here is something new! In our next Connector Corner webinar, we will demonstrate how you can use a single workflow to:
Create a campaign using Mailchimp with merge tags/fields
Send an interactive Slack channel message (using buttons)
Have the message received by managers and peers along with a test email for review
But there’s more:
In a second workflow supporting the same use case, you’ll see:
Your campaign sent to target colleagues for approval
If the “Approve” button is clicked, a Jira/Zendesk ticket is created for the marketing design team
But—if the “Reject” button is pushed, colleagues will be alerted via Slack message
Join us to learn more about this new, human-in-the-loop capability, brought to you by Integration Service connectors.
And...
Speakers:
Akshay Agnihotri, Product Manager
Charlie Greenberg, Host
UiPath Test Automation using UiPath Test Suite series, part 4DianaGray10
Welcome to UiPath Test Automation using UiPath Test Suite series part 4. In this session, we will cover Test Manager overview along with SAP heatmap.
The UiPath Test Manager overview with SAP heatmap webinar offers a concise yet comprehensive exploration of the role of a Test Manager within SAP environments, coupled with the utilization of heatmaps for effective testing strategies.
Participants will gain insights into the responsibilities, challenges, and best practices associated with test management in SAP projects. Additionally, the webinar delves into the significance of heatmaps as a visual aid for identifying testing priorities, areas of risk, and resource allocation within SAP landscapes. Through this session, attendees can expect to enhance their understanding of test management principles while learning practical approaches to optimize testing processes in SAP environments using heatmap visualization techniques
What will you get from this session?
1. Insights into SAP testing best practices
2. Heatmap utilization for testing
3. Optimization of testing processes
4. Demo
Topics covered:
Execution from the test manager
Orchestrator execution result
Defect reporting
SAP heatmap example with demo
Speaker:
Deepak Rai, Automation Practice Lead, Boundaryless Group and UiPath MVP
Dev Dives: Train smarter, not harder – active learning and UiPath LLMs for do...UiPathCommunity
💥 Speed, accuracy, and scaling – discover the superpowers of GenAI in action with UiPath Document Understanding and Communications Mining™:
See how to accelerate model training and optimize model performance with active learning
Learn about the latest enhancements to out-of-the-box document processing – with little to no training required
Get an exclusive demo of the new family of UiPath LLMs – GenAI models specialized for processing different types of documents and messages
This is a hands-on session specifically designed for automation developers and AI enthusiasts seeking to enhance their knowledge in leveraging the latest intelligent document processing capabilities offered by UiPath.
Speakers:
👨🏫 Andras Palfi, Senior Product Manager, UiPath
👩🏫 Lenka Dulovicova, Product Program Manager, UiPath
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf91mobiles
91mobiles recently conducted a Smart TV Buyer Insights Survey in which we asked over 3,000 respondents about the TV they own, aspects they look at on a new TV, and their TV buying preferences.
Essentials of Automations: Optimizing FME Workflows with ParametersSafe Software
Are you looking to streamline your workflows and boost your projects’ efficiency? Do you find yourself searching for ways to add flexibility and control over your FME workflows? If so, you’re in the right place.
Join us for an insightful dive into the world of FME parameters, a critical element in optimizing workflow efficiency. This webinar marks the beginning of our three-part “Essentials of Automation” series. This first webinar is designed to equip you with the knowledge and skills to utilize parameters effectively: enhancing the flexibility, maintainability, and user control of your FME projects.
Here’s what you’ll gain:
- Essentials of FME Parameters: Understand the pivotal role of parameters, including Reader/Writer, Transformer, User, and FME Flow categories. Discover how they are the key to unlocking automation and optimization within your workflows.
- Practical Applications in FME Form: Delve into key user parameter types including choice, connections, and file URLs. Allow users to control how a workflow runs, making your workflows more reusable. Learn to import values and deliver the best user experience for your workflows while enhancing accuracy.
- Optimization Strategies in FME Flow: Explore the creation and strategic deployment of parameters in FME Flow, including the use of deployment and geometry parameters, to maximize workflow efficiency.
- Pro Tips for Success: Gain insights on parameterizing connections and leveraging new features like Conditional Visibility for clarity and simplicity.
We’ll wrap up with a glimpse into future webinars, followed by a Q&A session to address your specific questions surrounding this topic.
Don’t miss this opportunity to elevate your FME expertise and drive your projects to new heights of efficiency.
3. Publication No Cu0115
Issue Date: August 2012
Page ii
CONTENTS
Summary ........................................................................................................................................................ 1
Introduction.................................................................................................................................................... 2
Basic functions of UPS systems....................................................................................................................... 2
Different types of basic UPS systems .............................................................................................................. 2
Rotary UPS systems ................................................................................................................................................3
Diesel rotary UPS systems........................................................................................................................3
Hybrid rotary UPS systems.......................................................................................................................3
UPS with mechanical flywheel .................................................................................................................4
Static UPS systems..................................................................................................................................................4
Static UPS main components .......................................................................................................................... 6
UPS System efficiency................................................................................................................................... 10
UPS Input breaker sizes ................................................................................................................................ 10
UPS size selection ......................................................................................................................................... 11
Site location.................................................................................................................................................. 11
Generic Specifications for a UPS System ....................................................................................................... 11
Generator set sizing...................................................................................................................................... 11
Conclusion .................................................................................................................................................... 12
References.................................................................................................................................................... 12
Annex: Generic Specifications for a UPS System ........................................................................................... 13
4. Publication No Cu0115
Issue Date: August 2012
Page 1

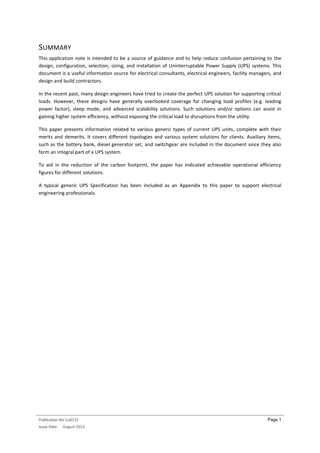

SUMMARY
This application note is intended to be a source of guidance and to help reduce confusion pertaining to the
design, configuration, selection, sizing, and installation of Uninterruptable Power Supply (UPS) systems. This
document is a useful information source for electrical consultants, electrical engineers, facility managers, and
design and build contractors.
In the recent past, many design engineers have tried to create the perfect UPS solution for supporting critical
loads. However, these designs have generally overlooked coverage for changing load profiles (e.g. leading
power factor), sleep mode, and advanced scalability solutions. Such solutions and/or options can assist in
gaining higher system efficiency, without exposing the critical load to disruptions from the utility.
This paper presents information related to various generic types of current UPS units, complete with their
merits and demerits. It covers different topologies and various system solutions for clients. Auxiliary items,
such as the battery bank, diesel generator set, and switchgear are included in the document since they also
form an integral part of a UPS system.
To aid in the reduction of the carbon footprint, the paper has indicated achievable operational efficiency
figures for different solutions.
A typical generic UPS Specification has been included as an Appendix to this paper to support electrical
engineering professionals.
5. Publication No Cu0115
Issue Date: August 2012
Page 2
INTRODUCTION
In our modern, digital world we all have an expectation that power failure or disturbance is not an option.
Most of us are dependent upon readily available and reliably functioning critical business, telecommunication,
banking, medical, and other applications. We expect to access information or the ability to carry out
commercial transactions on demand, 24 hours a day, 7 days a week, and every day of a year. There is an
essential need therefore to have an electrical supply that has a more than merely adequate resilience and
availability incorporated to support critical applications.
It is possible to achieve a high quality power supply by eliminating single points of failure and utilizing UPS
systems with superior availability. A suitable standby generator system can provide cover for any long-term
utility outages.
UPS power systems now form part of the value chain for most companies since power quality and availability
have direct impact on the continuity of their operations. In some cases, a major discontinuity may even
jeopardize survival of the business itself.
BASIC FUNCTIONS OF UPS SYSTEMS
A UPS ensures continuity of the power supply regardless of fluctuations or interruptions in the utility supply.
This is an essential requirement for all critical applications such as IT/data centres, stock exchanges, aerospace
applications, et cetera. Such fluctuations and interruptions can have major consequences if there is even a
momentary break in the supply.
Add to this requirement the fact that the UPS needs to provide a clean and stable power supply, free from
voltage distortion, frequency variations, electrical noise, harmonics, spikes, brownouts, and surges.
Disturbances of these sorts can damage equipment. If any of the power quality based issues listed above occur
in the mains supply at a significant level then critical loads and computer systems can fail. However, the most
basic type of UPS system (and one which is not a genuine online system) provides a very low degree of
protection from poor power quality of mains supply. Hence such basic units are not recommended for major
critical applications.
The key purpose of a UPS system is to act as a buffer between the raw electrical mains supply and sensitive
equipment such as medical scanners and radar systems, et cetera. A general survey of the UPS market
indicates that the proportion of principal users is as follows: 70% administration plus data processing and
banking; 25% telecoms, marine, and industrial applications; with the remaining 5% spread across a wide
variety of other applications.
In the event of brownout or blackout, the UPS provides necessary—albeit limited—backup from a stored
energy source incorporated within the system. If the utility fails for a prolonged period, then most critical
systems are backed up by an alternative source, for example, a standby generator.
DIFFERENT TYPES OF BASIC UPS SYSTEMS
The following three different UPS topologies are stated within the EN/IEC62040-3 Standard:
VFI—UPS output is independent of input mains supply voltage and frequency variations
VI—UPS output is dependent on input mains supply frequency variations but mains supply voltage
variations are conditioned
VFD—UPS output is dependent on mains supply voltage and frequency variations

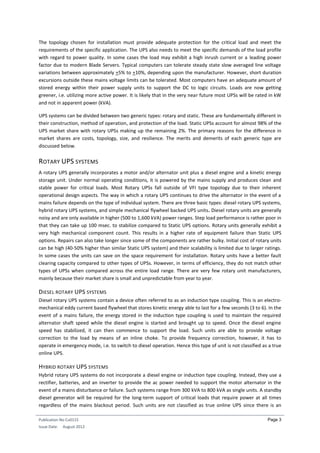

6. Publication No Cu0115
Issue Date: August 2012
Page 3
The topology chosen for installation must provide adequate protection for the critical load and meet the
requirements of the specific application. The UPS also needs to meet the specific demands of the load profile
with regard to power quality. In some cases the load may exhibit a high inrush current or a leading power
factor due to modern Blade Servers. Typical computers can tolerate steady state slow averaged line voltage
variations between approximately +5% to +10%, depending upon the manufacturer. However, short duration
excursions outside these mains voltage limits can be tolerated. Most computers have an adequate amount of
stored energy within their power supply units to support the DC to logic circuits. Loads are now getting
greener, i.e. utilizing more active power. It is likely that in the very near future most UPSs will be rated in kW
and not in apparent power (kVA).
UPS systems can be divided between two generic types: rotary and static. These are fundamentally different in
their construction, method of operation, and protection of the load. Static UPSs account for almost 98% of the
UPS market share with rotary UPSs making up the remaining 2%. The primary reasons for the difference in
market shares are costs, topology, size, and resilience. The merits and demerits of each generic type are
discussed below.
ROTARY UPS SYSTEMS
A rotary UPS generally incorporates a motor and/or alternator unit plus a diesel engine and a kinetic energy
storage unit. Under normal operating conditions, it is powered by the mains supply and produces clean and
stable power for critical loads. Most Rotary UPSs fall outside of VFI type topology due to their inherent
operational design aspects. The way in which a rotary UPS continues to drive the alternator in the event of a
mains failure depends on the type of individual system. There are three basic types: diesel rotary UPS systems,
hybrid rotary UPS systems, and simple mechanical flywheel backed UPS units. Diesel rotary units are generally
noisy and are only available in higher (500 to 1,600 kVA) power ranges. Step load performance is rather poor in
that they can take up 100 msec. to stabilize compared to Static UPS options. Rotary units generally exhibit a
very high mechanical component count. This results in a higher rate of equipment failure than Static UPS
options. Repairs can also take longer since some of the components are rather bulky. Initial cost of rotary units
can be high (40-50% higher than similar Static UPS system) and their scalability is limited due to larger ratings.
In some cases the units can save on the space requirement for installation. Rotary units have a better fault
clearing capacity compared to other types of UPSs. However, in terms of efficiency, they do not match other
types of UPSs when compared across the entire load range. There are very few rotary unit manufacturers,
mainly because their market share is small and unpredictable from year to year.
DIESEL ROTARY UPS SYSTEMS
Diesel rotary UPS systems contain a device often referred to as an induction type coupling. This is an electro-
mechanical eddy current based flywheel that stores kinetic energy able to last for a few seconds (3 to 6). In the
event of a mains failure, the energy stored in the induction type coupling is used to maintain the required
alternator shaft speed while the diesel engine is started and brought up to speed. Once the diesel engine
speed has stabilized, it can then commence to support the load. Such units are able to provide voltage
correction to the load by means of an inline choke. To provide frequency correction, however, it has to
operate in emergency mode, i.e. to switch to diesel operation. Hence this type of unit is not classified as a true
online UPS.
HYBRID ROTARY UPS SYSTEMS
Hybrid rotary UPS systems do not incorporate a diesel engine or induction type coupling. Instead, they use a
rectifier, batteries, and an inverter to provide the ac power needed to support the motor alternator in the
event of a mains disturbance or failure. Such systems range from 300 kVA to 800 kVA as single units. A standby
diesel generator will be required for the long-term support of critical loads that require power at all times
regardless of the mains blackout period. Such units are not classified as true online UPS since there is an

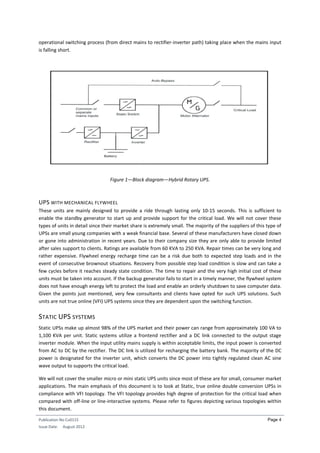

7. Publication No Cu0115
Issue Date: August 2012
Page 4
operational switching process (from direct mains to rectifier-inverter path) taking place when the mains input
is falling short.
Figure 1—Block diagram—Hybrid Rotary UPS.
UPS WITH MECHANICAL FLYWHEEL
These units are mainly designed to provide a ride through lasting only 10-15 seconds. This is sufficient to
enable the standby generator to start up and provide support for the critical load. We will not cover these
types of units in detail since their market share is extremely small. The majority of the suppliers of this type of
UPSs are small young companies with a weak financial base. Several of these manufacturers have closed down
or gone into administration in recent years. Due to their company size they are only able to provide limited
after sales support to clients. Ratings are available from 60 KVA to 250 KVA. Repair times can be very long and
rather expensive. Flywheel energy recharge time can be a risk due both to expected step loads and in the
event of consecutive brownout situations. Recovery from possible step load condition is slow and can take a
few cycles before it reaches steady state condition. The time to repair and the very high initial cost of these
units must be taken into account. If the backup generator fails to start in a timely manner, the flywheel system
does not have enough energy left to protect the load and enable an orderly shutdown to save computer data.
Given the points just mentioned, very few consultants and clients have opted for such UPS solutions. Such
units are not true online (VFI) UPS systems since they are dependent upon the switching function.
STATIC UPS SYSTEMS
Static UPSs make up almost 98% of the UPS market and their power can range from approximately 100 VA to
1,100 KVA per unit. Static systems utilize a frontend rectifier and a DC link connected to the output stage
inverter module. When the input utility mains supply is within acceptable limits, the input power is converted
from AC to DC by the rectifier. The DC link is utilized for recharging the battery bank. The majority of the DC
power is designated for the inverter unit, which converts the DC power into tightly regulated clean AC sine
wave output to supports the critical load.
We will not cover the smaller micro or mini static UPS units since most of these are for small, consumer market
applications. The main emphasis of this document is to look at Static, true online double conversion UPSs in
compliance with VFI topology. The VFI topology provides high degree of protection for the critical load when
compared with off-line or line-interactive systems. Please refer to figures depicting various topologies within
this document.
8. Publication No Cu0115
Issue Date: August 2012
Page 5
Figure 2—UPS with the double-conversion online topology.
Figure 3—Simplified diagram of off-line UPS.
Figure 4—UPS with the passive standby topology.
Note: The Inverter is connected in parallel and acts simply to back up utility power.
9. Publication No Cu0115
Issue Date: August 2012
Page 6

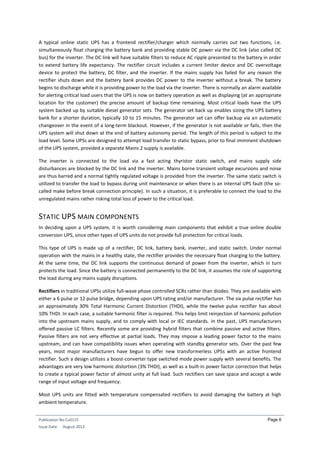

A typical online static UPS has a frontend rectifier/charger which normally carries out two functions, i.e.
simultaneously float charging the battery bank and providing stable DC power via the DC link (also called DC
bus) for the inverter. The DC link will have suitable filters to reduce AC ripple presented to the battery in order
to extend battery life expectancy. The rectifier circuit includes a current limiter device and DC overvoltage
device to protect the battery, DC filter, and the inverter. If the mains supply has failed for any reason the
rectifier shuts down and the battery bank provides DC power to the inverter without a break. The battery
begins to discharge while it is providing power to the load via the inverter. There is normally an alarm available
for alerting critical load users that the UPS is now on battery operation as well as displaying (at an appropriate
location for the customer) the precise amount of backup time remaining. Most critical loads have the UPS
system backed up by suitable diesel generator sets. The generator set back up enables sizing the UPS battery
bank for a shorter duration, typically 10 to 15 minutes. The generator set can offer backup via an automatic
changeover in the event of a long-term blackout. However, if the generator is not available or fails, then the
UPS system will shut down at the end of battery autonomy period. The length of this period is subject to the
load level. Some UPSs are designed to attempt load transfer to static bypass, prior to final imminent shutdown
of the UPS system, provided a separate Mains 2 supply is available.
The inverter is connected to the load via a fast acting thyristor static switch, and mains supply side
disturbances are blocked by the DC link and the inverter. Mains borne transient voltage excursions and noise
are thus barred and a normal tightly regulated voltage is provided from the inverter. The same static switch is
utilized to transfer the load to bypass during unit maintenance or when there is an internal UPS fault (the so-
called make before break connection principle). In such a situation, it is preferable to connect the load to the
unregulated mains rather risking total loss of power to the critical load.
STATIC UPS MAIN COMPONENTS
In deciding upon a UPS system, it is worth considering main components that exhibit a true online double
conversion UPS, since other types of UPS units do not provide full protection for critical loads.
This type of UPS is made up of a rectifier, DC link, battery bank, inverter, and static switch. Under normal
operation with the mains in a healthy state, the rectifier provides the necessary float charging to the battery.
At the same time, the DC link supports the continuous demand of power from the inverter, which in turn
protects the load. Since the battery is connected permanently to the DC link, it assumes the role of supporting
the load during any mains supply disruptions.
Rectifiers in traditional UPSs utilize full-wave phase controlled SCRs rather than diodes. They are available with
either a 6 pulse or 12 pulse bridge, depending upon UPS rating and/or manufacturer. The six pulse rectifier has
an approximately 30% Total Harmonic Current Distortion (THDI), while the twelve pulse rectifier has about
10% THDI. In each case, a suitable harmonic filter is required. This helps limit reinjection of harmonic pollution
into the upstream mains supply, and to comply with local or IEC standards. In the past, UPS manufacturers
offered passive LC filters. Recently some are providing hybrid filters that combine passive and active filters.
Passive filters are not very effective at partial loads. They may impose a leading power factor to the mains
upstream, and can have compatibility issues when operating with standby generator sets. Over the past few
years, most major manufacturers have begun to offer new transformerless UPSs with an active frontend
rectifier. Such a design utilizes a boost-converter type switched mode power supply with several benefits. The
advantages are very low harmonic distortion (3% THDI), as well as a built-in power factor correction that helps
to create a typical power factor of almost unity at full load. Such rectifiers can save space and accept a wide
range of input voltage and frequency.
Most UPS units are fitted with temperature compensated rectifiers to avoid damaging the battery at high
ambient temperature.
10. Publication No Cu0115
Issue Date: August 2012
Page 7

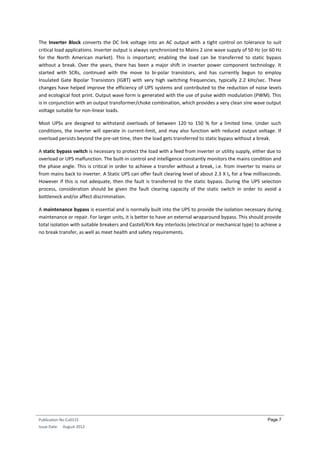

The Inverter Block converts the DC link voltage into an AC output with a tight control on tolerance to suit
critical load applications. Inverter output is always synchronized to Mains 2 sine wave supply of 50 Hz (or 60 Hz
for the North American market). This is important; enabling the load can be transferred to static bypass
without a break. Over the years, there has been a major shift in inverter power component technology. It
started with SCRs, continued with the move to bi-polar transistors, and has currently begun to employ
Insulated Gate Bipolar Transistors (IGBT) with very high switching frequencies, typically 2.2 kHz/sec. These
changes have helped improve the efficiency of UPS systems and contributed to the reduction of noise levels
and ecological foot print. Output wave form is generated with the use of pulse width modulation (PWM). This
is in conjunction with an output transformer/choke combination, which provides a very clean sine wave output
voltage suitable for non-linear loads.
Most UPSs are designed to withstand overloads of between 120 to 150 % for a limited time. Under such
conditions, the inverter will operate in current-limit, and may also function with reduced output voltage. If
overload persists beyond the pre-set time, then the load gets transferred to static bypass without a break.
A static bypass switch is necessary to protect the load with a feed from inverter or utility supply, either due to
overload or UPS malfunction. The built-in control and intelligence constantly monitors the mains condition and
the phase angle. This is critical in order to achieve a transfer without a break, i.e. from inverter to mains or
from mains back to inverter. A Static UPS can offer fault clearing level of about 2.3 X In for a few milliseconds.
However if this is not adequate, then the fault is transferred to the static bypass. During the UPS selection
process, consideration should be given the fault clearing capacity of the static switch in order to avoid a
bottleneck and/or affect discrimination.
A maintenance bypass is essential and is normally built into the UPS to provide the isolation necessary during
maintenance or repair. For larger units, it is better to have an external wraparound bypass. This should provide
total isolation with suitable breakers and Castell/Kirk Key interlocks (electrical or mechanical type) to achieve a
no break transfer, as well as meet health and safety requirements.

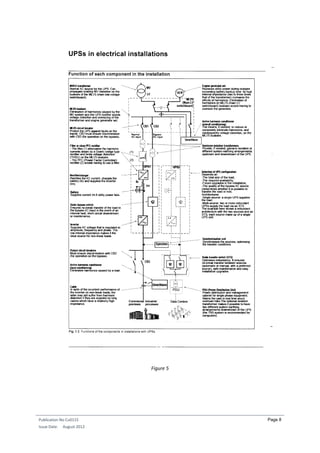

12. Publication No Cu0115
Issue Date: August 2012
Page 9

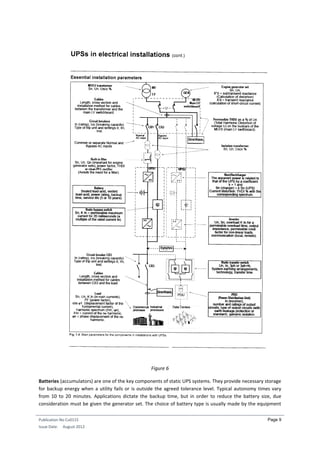

Figure 6
Batteries (accumulators) are one of the key components of static UPS systems. They provide necessary storage
for backup energy when a utility fails or is outside the agreed tolerance level. Typical autonomy times vary
from 10 to 20 minutes. Applications dictate the backup time, but in order to reduce the battery size, due
consideration must be given the generator set. The choice of battery type is usually made by the equipment
13. Publication No Cu0115
Issue Date: August 2012
Page 10
supplier and/or consultants. Users need to be aware of the type of battery used and the maintenance
procedures required since these parameters may influence the choice of equipment and the related TCO.
Stationary batteries are used when weight is not important, and are usually of the sealed lead acid (SLA) type
because of their lower cost. For larger UPSs, it is recommended that a battery is employed that utilizes a 10
year design life. Note that SLA batteries need to be kept within operating temperature range of 10 to 25
o
C to
achieve optimum life expectancy. Most UPS units are fitted with temperature compensated rectifiers to avoid
damaging the battery at high ambient temperatures. Vented lead acid cells can be utilized for longer life but
they are more expensive, demand more maintenance, and may require more space in addition to posing a
greater a risk of hydrogen emission. There is a trend towards the use of the Sodium Nickel (Zebra) battery for
UPS applications. The Zebra battery has more benefits compared to the standard SLA unit, but there are still
some limitations both on the technical and commercial front. SLA batteries are available for use within a UPS
cabinet, in separate cabinets, or on steel racks. Careful consideration needs to be given to the selection of the
battery monitoring system—from string monitoring right down to block monitoring—depending on UPS size
and budget. Most good UPSs have basic built-in battery monitoring system. However, clients should be aware
that basic monitoring systems do not offer life expectancy projections or cell performance trend
measurements. Under normal operation, the battery bank is on float charge but following any blackout the
battery will require full recharge from the rectifier. A typical battery bank may take several hours to reach
repeat duty charge level or full capacity.
It is worth noting the difference between design life and operational life of SLA batteries. A 10 year design life
battery may last only about 7 years, even when used and maintained in line with the manufacturer’s
recommendations for ambient temperature, routine impedance testing, et cetera.
Since batteries are particularly heavy, it is important to make sure that structural issues, such as point
loadings, are addressed beginning at the project design stage. A number considerations need to be considered,
including safety steps during installation and future regular maintenance.
UPS SYSTEM EFFICIENCY
The full load efficiency of a typical double conversion true online UPS can range from 93% to 97%. This
depends on the manufacturer and the type of UPS design, from traditional rectifier (6 or 12 pulse) to Active
front-end power factor corrected rectifier. It is important that UPS selection is NOT based simply on its
projected high efficiency; due consideration needs to be given to its operational mode as well.
There are UPSs that offer higher efficiency by operating in bypass/stand-by/ECO mode option. This ECO mode
is utilized while the mains are in a healthy state; otherwise the unit switches back to a double conversion path.
Be aware that the ECO mode does not protect the load to the same extent as a unit that operates continuously
in online mode.
System operational efficiency of parallel units can be enhanced by an automatic sleep mode. Such a mode
starts to operate only when the actual load drops to a figure that is well below the installed capacity and
without sacrificing the planned redundancy.

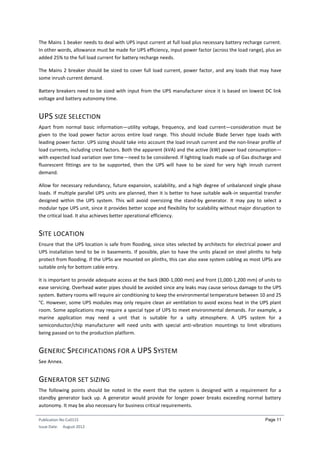

UPS INPUT BREAKER SIZES
Most large UPS system installations are designed with two separate breakers—Mains 1 and Mains 2. Mains 1
feeds the online path, i.e. rectifier input while Mains 2 feeds the bypass path, i.e. static switch path. Typical
sizing should be based on international and local guidelines and on information provided by the UPS
manufacturer. Other design parameters such as discrimination and expected short-circuit currents
downstream of each breaker must be considered as well.
14. Publication No Cu0115
Issue Date: August 2012
Page 11
The Mains 1 beaker needs to deal with UPS input current at full load plus necessary battery recharge current.
In other words, allowance must be made for UPS efficiency, input power factor (across the load range), plus an
added 25% to the full load current for battery recharge needs.
The Mains 2 breaker should be sized to cover full load current, power factor, and any loads that may have
some inrush current demand.
Battery breakers need to be sized with input from the UPS manufacturer since it is based on lowest DC link
voltage and battery autonomy time.
UPS SIZE SELECTION
Apart from normal basic information—utility voltage, frequency, and load current—consideration must be
given to the load power factor across entire load range. This should include Blade Server type loads with
leading power factor. UPS sizing should take into account the load inrush current and the non-linear profile of
load currents, including crest factors. Both the apparent (kVA) and the active (kW) power load consumption—
with expected load variation over time—need to be considered. If lighting loads made up of Gas discharge and
fluorescent fittings are to be supported, then the UPS will have to be sized for very high inrush current
demand.
Allow for necessary redundancy, future expansion, scalability, and a high degree of unbalanced single phase
loads. If multiple parallel UPS units are planned, then it is better to have suitable walk-in sequential transfer
designed within the UPS system. This will avoid oversizing the stand-by generator. It may pay to select a
modular type UPS unit, since it provides better scope and flexibility for scalability without major disruption to
the critical load. It also achieves better operational efficiency.
SITE LOCATION
Ensure that the UPS location is safe from flooding, since sites selected by architects for electrical power and
UPS installation tend to be in basements. If possible, plan to have the units placed on steel plinths to help
protect from flooding. If the UPSs are mounted on plinths, this can also ease system cabling as most UPSs are
suitable only for bottom cable entry.
It is important to provide adequate access at the back (800-1,000 mm) and front (1,000-1,200 mm) of units to
ease servicing. Overhead water pipes should be avoided since any leaks may cause serious damage to the UPS
system. Battery rooms will require air conditioning to keep the environmental temperature between 10 and 25
°C. However, some UPS modules may only require clean air ventilation to avoid excess heat in the UPS plant
room. Some applications may require a special type of UPS to meet environmental demands. For example, a
marine application may need a unit that is suitable for a salty atmosphere. A UPS system for a
semiconductor/chip manufacturer will need units with special anti-vibration mountings to limit vibrations
being passed on to the production platform.
GENERIC SPECIFICATIONS FOR A UPS SYSTEM
See Annex.
GENERATOR SET SIZING
The following points should be noted in the event that the system is designed with a requirement for a
standby generator back up. A generator would provide for longer power breaks exceeding normal battery
autonomy. It may be also necessary for business critical requirements.
15. Publication No Cu0115
Issue Date: August 2012
Page 12

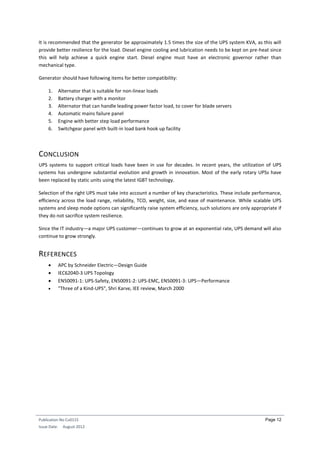

It is recommended that the generator be approximately 1.5 times the size of the UPS system KVA, as this will
provide better resilience for the load. Diesel engine cooling and lubrication needs to be kept on pre-heat since
this will help achieve a quick engine start. Diesel engine must have an electronic governor rather than
mechanical type.
Generator should have following items for better compatibility:
1. Alternator that is suitable for non-linear loads
2. Battery charger with a monitor
3. Alternator that can handle leading power factor load, to cover for blade servers
4. Automatic mains failure panel
5. Engine with better step load performance
6. Switchgear panel with built-in load bank hook up facility
CONCLUSION
UPS systems to support critical loads have been in use for decades. In recent years, the utilization of UPS
systems has undergone substantial evolution and growth in innovation. Most of the early rotary UPSs have
been replaced by static units using the latest IGBT technology.
Selection of the right UPS must take into account a number of key characteristics. These include performance,
efficiency across the load range, reliability, TCO, weight, size, and ease of maintenance. While scalable UPS
systems and sleep mode options can significantly raise system efficiency, such solutions are only appropriate if
they do not sacrifice system resilience.
Since the IT industry—a major UPS customer—continues to grow at an exponential rate, UPS demand will also
continue to grow strongly.
REFERENCES
APC by Schneider Electric—Design Guide
IEC62040-3 UPS Topology
EN50091-1: UPS-Safety, EN50091-2: UPS-EMC, EN50091-3: UPS—Performance
"Three of a Kind-UPS", Shri Karve, IEE review, March 2000
16. Publication No Cu0115
Issue Date: August 2012
Page 13

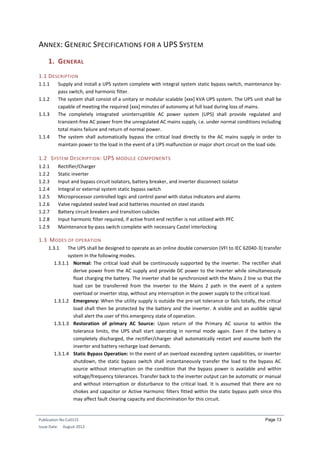

ANNEX: GENERIC SPECIFICATIONS FOR A UPS SYSTEM
1. GENERAL
1.1 DESCRIPTION
1.1.1 Supply and install a UPS system complete with integral system static bypass switch, maintenance by-
pass switch, and harmonic filter.
1.1.2 The system shall consist of a unitary or modular scalable [xxx] kVA UPS system. The UPS unit shall be
capable of meeting the required [xxx] minutes of autonomy at full load during loss of mains.
1.1.3 The completely integrated uninterruptible AC power system (UPS) shall provide regulated and
transient-free AC power from the unregulated AC mains supply, i.e. under normal conditions including
total mains failure and return of normal power.
1.1.4 The system shall automatically bypass the critical load directly to the AC mains supply in order to
maintain power to the load in the event of a UPS malfunction or major short circuit on the load side.
1.2 SYSTEM DESCRIPTION: UPS MODULE COMPONENTS
1.2.1 Rectifier/Charger
1.2.2 Static inverter
1.2.3 Input and bypass circuit isolators, battery breaker, and inverter disconnect isolator
1.2.4 Integral or external system static bypass switch
1.2.5 Microprocessor controlled logic and control panel with status indicators and alarms
1.2.6 Valve regulated sealed lead acid batteries mounted on steel stands
1.2.7 Battery circuit breakers and transition cubicles
1.2.8 Input harmonic filter required, if active front end rectifier is not utilized with PFC
1.2.9 Maintenance by-pass switch complete with necessary Castel interlocking
1.3 MODES OF OPERATION
1.3.1 The UPS shall be designed to operate as an online double conversion (VFI to IEC 62040-3) transfer
system in the following modes.
1.3.1.1 Normal: The critical load shall be continuously supported by the inverter. The rectifier shall
derive power from the AC supply and provide DC power to the inverter while simultaneously
float charging the battery. The inverter shall be synchronized with the Mains 2 line so that the
load can be transferred from the inverter to the Mains 2 path in the event of a system
overload or inverter stop, without any interruption in the power supply to the critical load.
1.3.1.2 Emergency: When the utility supply is outside the pre-set tolerance or fails totally, the critical
load shall then be protected by the battery and the inverter. A visible and an audible signal
shall alert the user of this emergency state of operation.
1.3.1.3 Restoration of primary AC Source: Upon return of the Primary AC source to within the
tolerance limits, the UPS shall start operating in normal mode again. Even if the battery is
completely discharged, the rectifier/charger shall automatically restart and assume both the
inverter and battery recharge load demands.
1.3.1.4 Static Bypass Operation: In the event of an overload exceeding system capabilities, or inverter
shutdown, the static bypass switch shall instantaneously transfer the load to the bypass AC
source without interruption on the condition that the bypass power is available and within
voltage/frequency tolerances. Transfer back to the inverter output can be automatic or manual
and without interruption or disturbance to the critical load. It is assumed that there are no
chokes and capacitor or Active Harmonic filters fitted within the static bypass path since this
may affect fault clearing capacity and discrimination for this circuit.
17. Publication No Cu0115
Issue Date: August 2012
Page 14

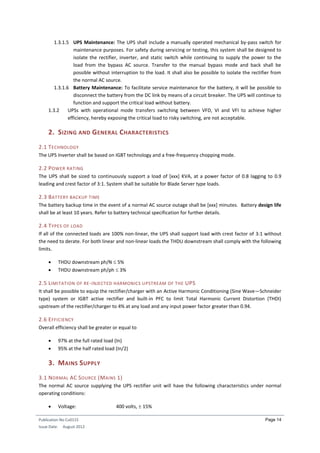

1.3.1.5 UPS Maintenance: The UPS shall include a manually operated mechanical by-pass switch for
maintenance purposes. For safety during servicing or testing, this system shall be designed to
isolate the rectifier, inverter, and static switch while continuing to supply the power to the
load from the bypass AC source. Transfer to the manual bypass mode and back shall be
possible without interruption to the load. It shall also be possible to isolate the rectifier from
the normal AC source.
1.3.1.6 Battery Maintenance: To facilitate service maintenance for the battery, it will be possible to
disconnect the battery from the DC link by means of a circuit breaker. The UPS will continue to
function and support the critical load without battery.
1.3.2 UPSs with operational mode transfers switching between VFD, VI and VFI to achieve higher
efficiency, hereby exposing the critical load to risky switching, are not acceptable.
2. SIZING AND GENERAL CHARACTERISTICS
2.1 TECHNOLOGY
The UPS Inverter shall be based on IGBT technology and a free-frequency chopping mode.
2.2 POWER RATING
The UPS shall be sized to continuously support a load of [xxx] KVA, at a power factor of 0.8 lagging to 0.9
leading and crest factor of 3:1. System shall be suitable for Blade Server type loads.
2.3 BATTERY BACKUP TIME
The battery backup time in the event of a normal AC source outage shall be [xxx] minutes. Battery design life
shall be at least 10 years. Refer to battery technical specification for further details.
2.4 TYPES OF LOAD
If all of the connected loads are 100% non-linear, the UPS shall support load with crest factor of 3:1 without
the need to derate. For both linear and non-linear loads the THDU downstream shall comply with the following
limits.
THDU downstream ph/N 5%
THDU downstream ph/ph 3%
2.5 LIMITATION OF RE-INJECTED HARMONICS UPSTREAM OF THE UPS
It shall be possible to equip the rectifier/charger with an Active Harmonic Conditioning (Sine Wave—Schneider
type) system or IGBT active rectifier and built-in PFC to limit Total Harmonic Current Distortion (THDI)
upstream of the rectifier/charger to 4% at any load and any input power factor greater than 0.94.
2.6 EFFICIENCY
Overall efficiency shall be greater or equal to
97% at the full rated load (In)
95% at the half rated load (In/2)
3. MAINS SUPPLY
3.1 NORMAL AC SOURCE (MAINS 1)
The normal AC source supplying the UPS rectifier unit will have the following characteristics under normal
operating conditions:
Voltage: 400 volts, 15%
18. Publication No Cu0115
Issue Date: August 2012
Page 15

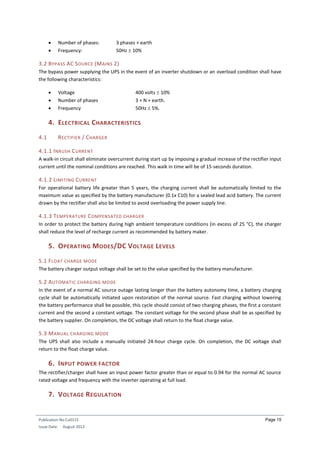

Number of phases: 3 phases + earth
Frequency: 50Hz 10%
3.2 BYPASS AC SOURCE (MAINS 2)
The bypass power supplying the UPS in the event of an inverter shutdown or an overload condition shall have
the following characteristics:
Voltage 400 volts 10%
Number of phases 3 + N + earth.
Frequency 50Hz 5%.
4. ELECTRICAL CHARACTERISTICS
4.1 RECTIFIER / CHARGER
4.1.1 INRUSH CURRENT
A walk-in circuit shall eliminate overcurrent during start up by imposing a gradual increase of the rectifier input
current until the nominal conditions are reached. This walk in time will be of 15-seconds duration.
4.1.2 LIMITING CURRENT
For operational battery life greater than 5 years, the charging current shall be automatically limited to the
maximum value as specified by the battery manufacturer (0.1x C10) for a sealed lead acid battery. The current
drawn by the rectifier shall also be limited to avoid overloading the power supply line.
4.1.3 TEMPERATURE COMPENSATED CHARGER
In order to protect the battery during high ambient temperature conditions (in excess of 25 °C), the charger
shall reduce the level of recharge current as recommended by battery maker.
5. OPERATING MODES/DC VOLTAGE LEVELS
5.1 FLOAT CHARGE MODE
The battery charger output voltage shall be set to the value specified by the battery manufacturer.
5.2 AUTOMATIC CHARGING MODE
In the event of a normal AC source outage lasting longer than the battery autonomy time, a battery charging
cycle shall be automatically initiated upon restoration of the normal source. Fast charging without lowering
the battery performance shall be possible, this cycle should consist of two charging phases, the first a constant
current and the second a constant voltage. The constant voltage for the second phase shall be as specified by
the battery supplier. On completion, the DC voltage shall return to the float charge value.
5.3 MANUAL CHARGING MODE
The UPS shall also include a manually initiated 24-hour charge cycle. On completion, the DC voltage shall
return to the float charge value.
6. INPUT POWER FACTOR
The rectifier/charger shall have an input power factor greater than or equal to 0.94 for the normal AC source
rated voltage and frequency with the inverter operating at full load.
7. VOLTAGE REGULATION
19. Publication No Cu0115
Issue Date: August 2012
Page 16
The rectifier shall ensure that the DC output voltage fluctuates by less than 0.5% irrespective of load and AC
input voltage variations.
8. BATTERY
The battery shall be sized to ensure continuity in the supply to the inverter for at least [xxx] minutes up to the
end of life of the battery, in the event of the normal AC source failure with the inverter operating at full load—
kVA at a power factor of 0.8. The batteries shall be of the VRLA type to BS6290 Pt. 4 1997 made by Exide or
Yuasa, mounted on a steel rack. Sizing calculations shall assume an ambient temperature of 15 to 20
centigrade. The batteries shall be protected against deep discharge.
9. INVERTER
9.1 The inverter shall be sized for Blade Server type loads and to supply a rated load of [xxx] kVA at 0.8pf lag
to 0.9 leading and shall comply with the specification as listed below.
9.1.1 Rated Voltage: 380/400/415 Vrms, adjustable to 3%
9.1.2 Number of phases: 3 phases + neutral + earth
9.1.3 Steady state voltage regulation: Within 1% for a balanced load between 0 and 100% of the rated
load
9.1.4 Voltage transients: Output voltage transients shall not exceed 5% of the rated voltage for 0 to 100%,
or 100 to 0% for step loads. In all cases the voltage shall return to within the steady state tolerances in
less than 20 milliseconds.
9.1.5 Phase to phase harmonic distortion: The UPS shall be designed with a system limiting the THD of the
phase to phase output voltage to 3% and the individual harmonic distortion to 1.5% irrespective of
the type of load.
9.1.6 Output frequency: 50 Hz 0.5 Hz, adjustable up to 2 Hz
9.1.7 Overload capacity: 110% of load for 1 hour, 125% of load for 10 minutes. and 150% load for 1 minute
10. SYNCHRONIZATION WITH BYPASS POWER
10.1 Bypass power is within tolerance: To enable the transfer to bypass power the inverter output voltage
shall be synchronized with the bypass source voltage. During normal operation, the synchronization system
shall automatically limit the phase deviation between the voltage to less than 3 degrees. If the bypass source is
a generator the synchronization tolerances shall be 2 Hz.
10.2 Bypass power outside tolerance: The inverter shall switch over to free running mode with internal
synchronization, regulating its own frequency to within 0.04%. When bypass supply returns to within
tolerances, the inverter shall automatically resynchronize.
11. STATIC BYPASS
11.1 Static bypass function: Facilitates the instant transfer of the load from the inverter to the bypass supply
and back without disturbance to the load. Transfer shall take place automatically in the event of a major
overload or an internal malfunction within UPS. Manual initiation of this transfer as well as transfer back
to the inverter shall also be possible.
11.2 Compliance with previous sub-paragraph 1.3.2.5 is a key requirement.
Uninterrupted automatic transfer shall be inhibited under the following conditions
When transfer to the bypass is activated manually or remotely
In the event of multiple transfer-retransfer operations in the control circuitry limited to three
operations in any 10 minute period. The fourth transfer locks the load on the bypass source.
UPS failure
12. MECHANICAL CHARACTERISTICS
20. Publication No Cu0115
Issue Date: August 2012
Page 17

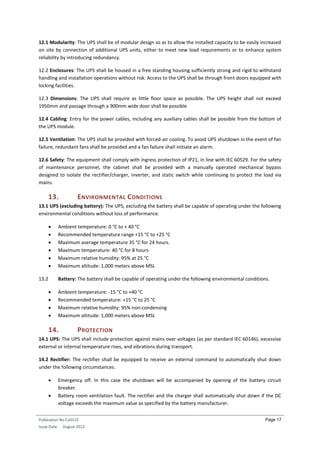

12.1 Modularity: The UPS shall be of modular design so as to allow the installed capacity to be easily increased
on site by connection of additional UPS units, either to meet new load requirements or to enhance system
reliability by introducing redundancy.
12.2 Enclosures: The UPS shall be housed in a free standing housing sufficiently strong and rigid to withstand
handling and installation operations without risk. Access to the UPS shall be through front doors equipped with
locking facilities.
12.3 Dimensions: The UPS shall require as little floor space as possible. The UPS height shall not exceed
1950mm and passage through a 900mm wide door shall be possible
12.4 Cabling: Entry for the power cables, including any auxiliary cables shall be possible from the bottom of
the UPS module.
12.5 Ventilation: The UPS shall be provided with forced-air cooling. To avoid UPS shutdown in the event of fan
failure, redundant fans shall be provided and a fan failure shall initiate an alarm.
12.6 Safety: The equipment shall comply with ingress protection of IP21, in line with IEC 60529. For the safety
of maintenance personnel, the cabinet shall be provided with a manually operated mechanical bypass
designed to isolate the rectifier/charger, inverter, and static switch while continuing to protect the load via
mains.
13. ENVIRONMENTAL CONDITIONS
13.1 UPS (excluding battery): The UPS, excluding the battery shall be capable of operating under the following
environmental conditions without loss of performance.
Ambient temperature: 0 °C to + 40 °C
Recommended temperature range +15 °C to +25 °C
Maximum average temperature 35 °C for 24 hours.
Maximum temperature: 40 °C for 8 hours
Maximum relative humidity: 95% at 25 °C
Maximum altitude: 1,000 meters above MSL
13.2 Battery: The battery shall be capable of operating under the following environmental conditions.
Ambient temperature: -15 °C to +40 °C
Recommended temperature: +15 °C to 25 °C
Maximum relative humidity: 95% non-condensing
Maximum altitude: 1,000 meters above MSL
14. PROTECTION
14.1 UPS: The UPS shall include protection against mains over voltages (as per standard IEC 60146), excessive
external or internal temperature rises, and vibrations during transport.
14.2 Rectifier: The rectifier shall be equipped to receive an external command to automatically shut down
under the following circumstances.
Emergency off. In this case the shutdown will be accompanied by opening of the battery circuit
breaker.
Battery room ventilation fault. The rectifier and the charger shall automatically shut down if the DC
voltage exceeds the maximum value as specified by the battery manufacturer.
21. Publication No Cu0115
Issue Date: August 2012
Page 18

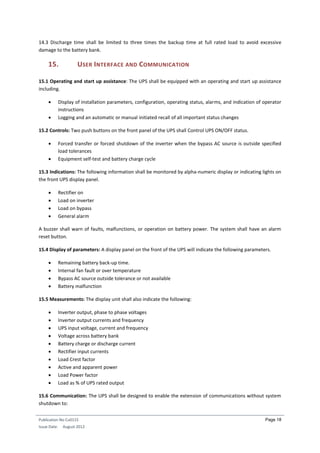

14.3 Discharge time shall be limited to three times the backup time at full rated load to avoid excessive
damage to the battery bank.
15. USER INTERFACE AND COMMUNICATION
15.1 Operating and start up assistance: The UPS shall be equipped with an operating and start up assistance
including.
Display of installation parameters, configuration, operating status, alarms, and indication of operator
instructions
Logging and an automatic or manual initiated recall of all important status changes
15.2 Controls: Two push buttons on the front panel of the UPS shall Control UPS ON/OFF status.
Forced transfer or forced shutdown of the inverter when the bypass AC source is outside specified
load tolerances
Equipment self-test and battery charge cycle
15.3 Indications: The following information shall be monitored by alpha-numeric display or indicating lights on
the front UPS display panel.
Rectifier on
Load on inverter
Load on bypass
General alarm
A buzzer shall warn of faults, malfunctions, or operation on battery power. The system shall have an alarm
reset button.
15.4 Display of parameters: A display panel on the front of the UPS will indicate the following parameters.
Remaining battery back-up time.
Internal fan fault or over temperature
Bypass AC source outside tolerance or not available
Battery malfunction
15.5 Measurements: The display unit shall also indicate the following:
Inverter output, phase to phase voltages
Inverter output currents and frequency
UPS input voltage, current and frequency
Voltage across battery bank
Battery charge or discharge current
Rectifier input currents
Load Crest factor
Active and apparent power
Load Power factor
Load as % of UPS rated output
15.6 Communication: The UPS shall be designed to enable the extension of communications without system
shutdown to:
22. Publication No Cu0115
Issue Date: August 2012
Page 19
A building and energy management system utilizing a RS485 serial link communication board capable
of implementing the J-Bus protocol.
A computer network management system. The UPS shall be supplied with an SNMP communications
board for connection to an Ethernet network.
IP address
16. MAINTENANCE
16.1 The UPS subassemblies shall be accessible from the front.
16.2 The UPS shall be equipped with a self-test function to verify the correct system operation.
16.3 The UPS control and monitoring assembly shall be fully microprocessor based. This shall allow:
Auto compensation of component drift
Self-adjustment of component sub-assemblies
A socket for connection to a computer-aided diagnostics system
16.4 UPS system shall be tested annually by utilizing a load bank to check various parameters including
autonomy of the battery.
16.5 Emergency call out telephone number shall be displayed on UPS.
16.6 Date of last service by UPS manufacturer and due date for the next service shall be recorded on a chart
placed inside the UPS door.
16.7 UPS maintenance shall be carried out by trained engineers from the UPS manufacturer and not any
other third party service firms. This will help to protect the original Product Liability Insurance cover
provided by the UPS manufacturer.
17. STANDARDS AND TESTS
17.1 The UPS equipment shall be designed in accordance with the standards as listed below:
IEC 146-4: UPS-Performance
EN50091-1: UPS-Safety
EN50091-2: UPS-EMC
ENV50091-3:UPS-Performance
IEC60950/EN 60950: safety of IT equipment, including electrical business equipment
IEC 61000-2-2: Compatibility levels for low-frequency conducted disturbances and signalling in public
low voltage power supply systems
IEC 61000-3-4: Limits for harmonic current emissions
IEC 61000-4: EMC- electrical fast transient/burst immunity
EN 55011: Limits and methods of measurements of radio interference characteristics of industrial,
scientific, and medical (ISM) radio-frequency equipment—Level A conducted and radiated emissions
IEC 439: Low voltage switch gear and control gear assemblies
IEC 60529: Degrees of protection provided by enclosures (IP Code)
ISO 3746: Sound power levels
BS 6290 Pt.4 1997
IEC 62040-3
CE marking
23. Publication No Cu0115
Issue Date: August 2012
Page 20

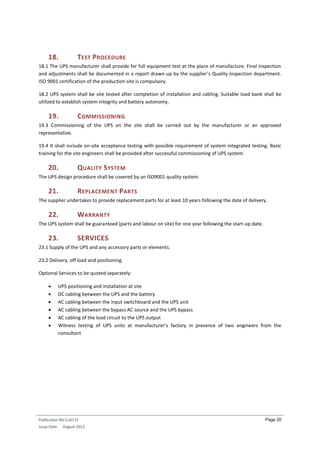

18. TEST PROCEDURE
18.1 The UPS manufacturer shall provide for full equipment test at the place of manufacture. Final inspection
and adjustments shall be documented in a report drawn up by the supplier’s Quality Inspection department.
ISO 9001 certification of the production site is compulsory.
18.2 UPS system shall be site tested after completion of installation and cabling. Suitable load bank shall be
utilized to establish system integrity and battery autonomy.
19. COMMISSIONING
19.3 Commissioning of the UPS on the site shall be carried out by the manufacturer or an approved
representative.
19.4 It shall include on-site acceptance testing with possible requirement of system integrated testing. Basic
training for the site engineers shall be provided after successful commissioning of UPS system.
20. QUALITY SYSTEM
The UPS design procedure shall be covered by an ISO9001 quality system.
21. REPLACEMENT PARTS
The supplier undertakes to provide replacement parts for at least 10 years following the date of delivery.
22. WARRANTY
The UPS system shall be guaranteed (parts and labour on site) for one year following the start-up date.
23. SERVICES
23.1 Supply of the UPS and any accessory parts or elements.
23.2 Delivery, off load and positioning.
Optional Services to be quoted separately:
UPS positioning and installation at site
DC cabling between the UPS and the battery
AC cabling between the input switchboard and the UPS unit
AC cabling between the bypass AC source and the UPS bypass
AC cabling of the load circuit to the UPS output
Witness testing of UPS units at manufacturer’s factory in presence of two engineers from the
consultant
