Availability Based Tariff
by
Krishnakumar R V
M.E Power Engineering & Management
Anna University Chennai
CEG Campus

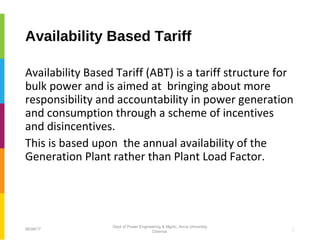

Availability Based Tariff
Availability Based Tariff (ABT) is a tariff structure for
bulk power and is aimed at bringing about more
responsibility and accountability in power generation
and consumption through a scheme of incentives
and disincentives.
This is based upon the annual availability of the
Generation Plant rather than Plant Load Factor.
206/06/17
Dept of Power Engineering & Mgmt., Anna University
Chennai

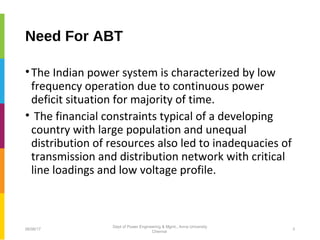

Need For ABT
•The Indian power system is characterized by low
frequency operation due to continuous power
deficit situation for majority of time.
• The financial constraints typical of a developing
country with large population and unequal
distribution of resources also led to inadequacies of
transmission and distribution network with critical
line loadings and low voltage profile.
06/06/17 3
Dept of Power Engineering & Mgmt., Anna University
Chennai
Contd.,
•The scarcity of power and the commercial
mechanism before ABT (based on take-off of power
by States rather than schedules from Central pool)
led to low frequency operation.
•The tariff mechanism did not provide any incentive
to reduce generation under high frequency or to
maximize generation under low frequency.
06/06/17 4
Dept of Power Engineering & Mgmt., Anna University
Chennai

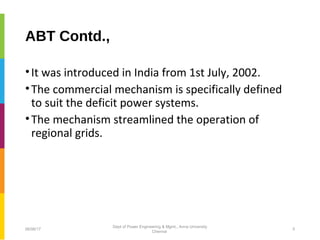

ABT Contd.,
•It was introduced in India from 1st July, 2002.
•The commercial mechanism is specifically defined
to suit the deficit power systems.
•The mechanism streamlined the operation of
regional grids.
06/06/17 5
Dept of Power Engineering & Mgmt., Anna University
Chennai

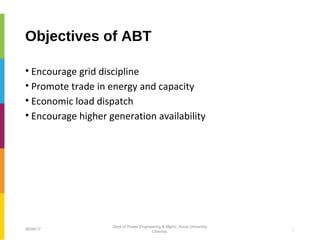

Objectives of ABT
• Encourage grid discipline
• Promote trade in energy and capacity
• Economic load dispatch
• Encourage higher generation availability
606/06/17
Dept of Power Engineering & Mgmt., Anna University
Chennai

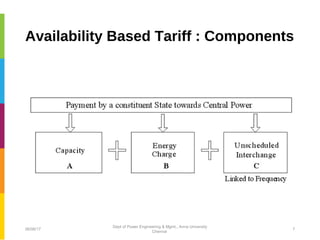

Availability Based Tariff : Components
06/06/17 7
Dept of Power Engineering & Mgmt., Anna University
Chennai

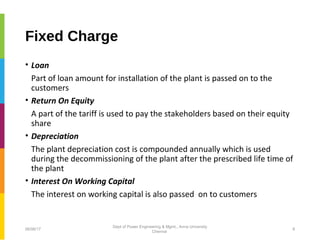

Fixed Charge
• Loan
Part of loan amount for installation of the plant is passed on to the
customers
• Return On Equity
A part of the tariff is used to pay the stakeholders based on their equity
share
• Depreciation
The plant depreciation cost is compounded annually which is used
during the decommissioning of the plant after the prescribed life time of
the plant
• Interest On Working Capital
The interest on working capital is also passed on to customers
06/06/17 8
Dept of Power Engineering & Mgmt., Anna University
Chennai

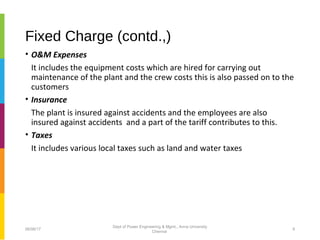

Fixed Charge (contd.,)
• O&M Expenses
It includes the equipment costs which are hired for carrying out
maintenance of the plant and the crew costs this is also passed on to the
customers
• Insurance
The plant is insured against accidents and the employees are also
insured against accidents and a part of the tariff contributes to this.
• Taxes
It includes various local taxes such as land and water taxes
06/06/17 9
Dept of Power Engineering & Mgmt., Anna University
Chennai

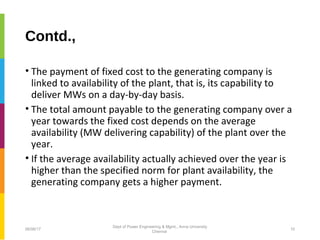

Contd.,
• The payment of fixed cost to the generating company is
linked to availability of the plant, that is, its capability to
deliver MWs on a day-by-day basis.
• The total amount payable to the generating company over a
year towards the fixed cost depends on the average
availability (MW delivering capability) of the plant over the
year.
• If the average availability actually achieved over the year is
higher than the specified norm for plant availability, the
generating company gets a higher payment.
06/06/17 10
Dept of Power Engineering & Mgmt., Anna University
Chennai

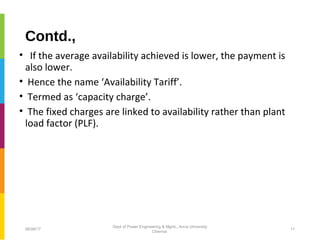

Contd.,
• If the average availability achieved is lower, the payment is
also lower.
• Hence the name ‘Availability Tariff’.
• Termed as ‘capacity charge’.
• The fixed charges are linked to availability rather than plant
load factor (PLF).
06/06/17 11
Dept of Power Engineering & Mgmt., Anna University
Chennai

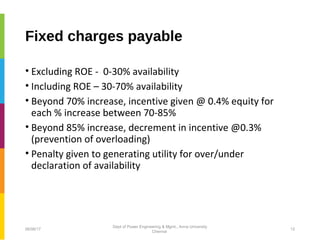

Fixed charges payable
• Excluding ROE - 0-30% availability
• Including ROE – 30-70% availability
• Beyond 70% increase, incentive given @ 0.4% equity for
each % increase between 70-85%
• Beyond 85% increase, decrement in incentive @0.3%
(prevention of overloading)
• Penalty given to generating utility for over/under
declaration of availability
06/06/17 12
Dept of Power Engineering & Mgmt., Anna University
Chennai

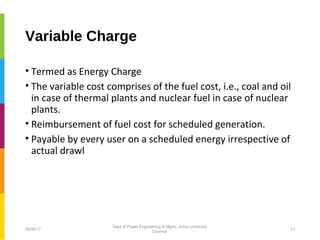

Variable Charge
• Termed as Energy Charge
• The variable cost comprises of the fuel cost, i.e., coal and oil
in case of thermal plants and nuclear fuel in case of nuclear
plants.
• Reimbursement of fuel cost for scheduled generation.
• Payable by every user on a scheduled energy irrespective of
actual drawl
06/06/17 13
Dept of Power Engineering & Mgmt., Anna University
Chennai

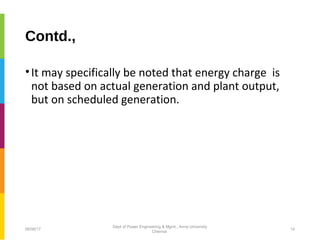

Contd.,
•It may specifically be noted that energy charge is
not based on actual generation and plant output,
but on scheduled generation.
06/06/17 14
Dept of Power Engineering & Mgmt., Anna University
Chennai

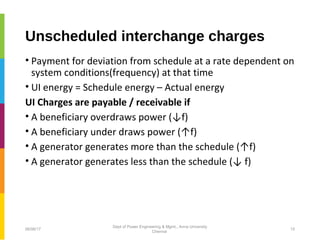

Unscheduled interchange charges
• Payment for deviation from schedule at a rate dependent on
system conditions(frequency) at that time
• UI energy = Schedule energy – Actual energy
UI Charges are payable / receivable if
• A beneficiary overdraws power (↓f)
• A beneficiary under draws power (↑f)
• A generator generates more than the schedule (↑f)
• A generator generates less than the schedule (↓ f)
06/06/17 15
Dept of Power Engineering & Mgmt., Anna University
Chennai

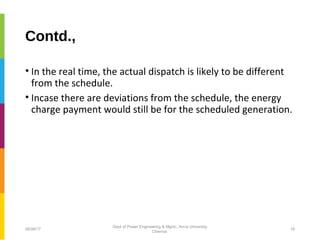

Contd.,
• In the real time, the actual dispatch is likely to be different
from the schedule.
• Incase there are deviations from the schedule, the energy
charge payment would still be for the scheduled generation.
06/06/17 16
Dept of Power Engineering & Mgmt., Anna University
Chennai

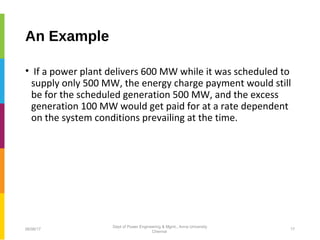

An Example
• If a power plant delivers 600 MW while it was scheduled to
supply only 500 MW, the energy charge payment would still
be for the scheduled generation 500 MW, and the excess
generation 100 MW would get paid for at a rate dependent
on the system conditions prevailing at the time.
06/06/17 17
Dept of Power Engineering & Mgmt., Anna University
Chennai

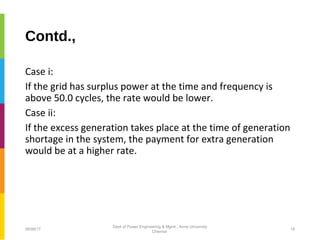

Contd.,
Case i:
If the grid has surplus power at the time and frequency is
above 50.0 cycles, the rate would be lower.
Case ii:
If the excess generation takes place at the time of generation
shortage in the system, the payment for extra generation
would be at a higher rate.
06/06/17 18
Dept of Power Engineering & Mgmt., Anna University
Chennai

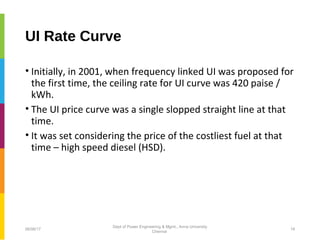

UI Rate Curve
• Initially, in 2001, when frequency linked UI was proposed for
the first time, the ceiling rate for UI curve was 420 paise /
kWh.
• The UI price curve was a single slopped straight line at that
time.
• It was set considering the price of the costliest fuel at that
time – high speed diesel (HSD).
06/06/17 19
Dept of Power Engineering & Mgmt., Anna University
Chennai

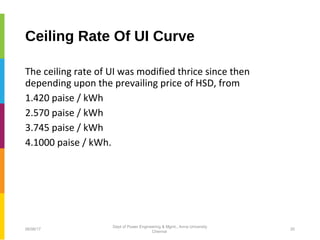

Ceiling Rate Of UI Curve
The ceiling rate of UI was modified thrice since then
depending upon the prevailing price of HSD, from
1.420 paise / kWh
2.570 paise / kWh
3.745 paise / kWh
4.1000 paise / kWh.
06/06/17 20
Dept of Power Engineering & Mgmt., Anna University
Chennai
Dual Sloped Curve
UI curve became a dual slope curve with
1.Less penalty (incentive) around the nominal frequency.
2.While heavy penalty (incentive) at lower frequencies.
06/06/17 21
Dept of Power Engineering & Mgmt., Anna University
Chennai

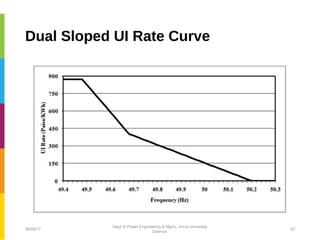

Dual Sloped UI Rate Curve
06/06/17 22
Dept of Power Engineering & Mgmt., Anna University
Chennai
Dual Sloped Curve
Slope 1
The price of UI at 50.2 Hz is zero and increased to 387.50 paisa
per unit at 49.70 Hz linearly with a slope of 15.5 paisa per 0.02
Hz.
Slope 2:
After 49.70Hz linearly increased at the rate of 47 paisa per 0.02
Hz till 49.5 Hz.
Ceiling Price:
At 49.5 Hz and below, the price of UI power is 873 paisa per unit.
06/06/17 23
Dept of Power Engineering & Mgmt., Anna University
Chennai

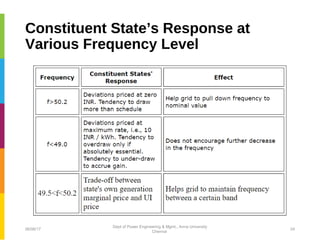

Constituent State’s Response at
Various Frequency Level
06/06/17 24
Dept of Power Engineering & Mgmt., Anna University
Chennai

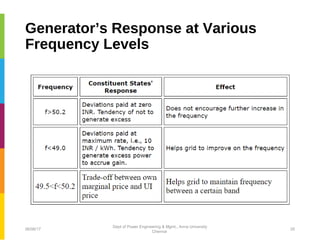

Generator’s Response at Various
Frequency Levels
06/06/17 25
Dept of Power Engineering & Mgmt., Anna University
Chennai

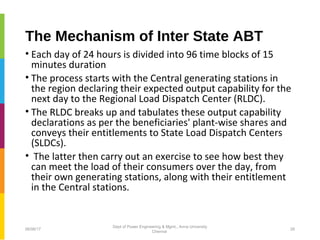

The Mechanism of Inter State ABT
• Each day of 24 hours is divided into 96 time blocks of 15
minutes duration
• The process starts with the Central generating stations in
the region declaring their expected output capability for the
next day to the Regional Load Dispatch Center (RLDC).
• The RLDC breaks up and tabulates these output capability
declarations as per the beneficiaries' plant-wise shares and
conveys their entitlements to State Load Dispatch Centers
(SLDCs).
• The latter then carry out an exercise to see how best they
can meet the load of their consumers over the day, from
their own generating stations, along with their entitlement
in the Central stations.
06/06/17 26
Dept of Power Engineering & Mgmt., Anna University
Chennai

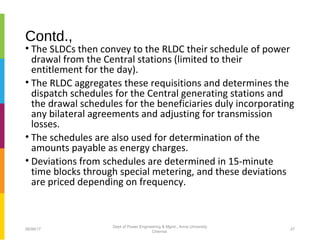

Contd.,
• The SLDCs then convey to the RLDC their schedule of power
drawal from the Central stations (limited to their
entitlement for the day).
• The RLDC aggregates these requisitions and determines the
dispatch schedules for the Central generating stations and
the drawal schedules for the beneficiaries duly incorporating
any bilateral agreements and adjusting for transmission
losses.
• The schedules are also used for determination of the
amounts payable as energy charges.
• Deviations from schedules are determined in 15-minute
time blocks through special metering, and these deviations
are priced depending on frequency.
06/06/17 27
Dept of Power Engineering & Mgmt., Anna University
Chennai

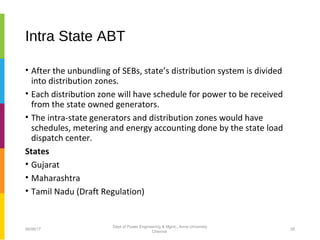

Intra State ABT
• After the unbundling of SEBs, state’s distribution system is divided
into distribution zones.
• Each distribution zone will have schedule for power to be received
from the state owned generators.
• The intra-state generators and distribution zones would have
schedules, metering and energy accounting done by the state load
dispatch center.
States
• Gujarat
• Maharashtra
• Tamil Nadu (Draft Regulation)
06/06/17 28
Dept of Power Engineering & Mgmt., Anna University
Chennai

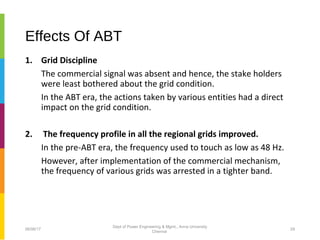

Effects Of ABT
1. Grid Discipline
The commercial signal was absent and hence, the stake holders
were least bothered about the grid condition.
In the ABT era, the actions taken by various entities had a direct
impact on the grid condition.
2. The frequency profile in all the regional grids improved.
In the pre-ABT era, the frequency used to touch as low as 48 Hz.
However, after implementation of the commercial mechanism,
the frequency of various grids was arrested in a tighter band.
06/06/17 29
Dept of Power Engineering & Mgmt., Anna University
Chennai

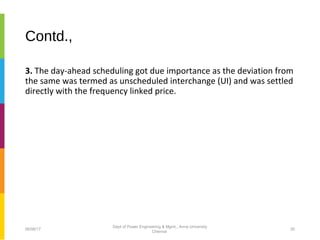

Contd.,
3. The day-ahead scheduling got due importance as the deviation from
the same was termed as unscheduled interchange (UI) and was settled
directly with the frequency linked price.
06/06/17 30
Dept of Power Engineering & Mgmt., Anna University
Chennai

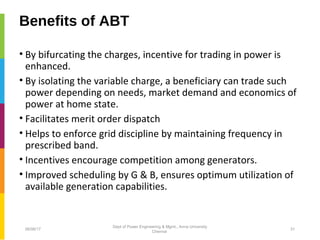

Benefits of ABT
• By bifurcating the charges, incentive for trading in power is
enhanced.
• By isolating the variable charge, a beneficiary can trade such
power depending on needs, market demand and economics of
power at home state.
• Facilitates merit order dispatch
• Helps to enforce grid discipline by maintaining frequency in
prescribed band.
• Incentives encourage competition among generators.
• Improved scheduling by G & B, ensures optimum utilization of
available generation capabilities.
06/06/17 31
Dept of Power Engineering & Mgmt., Anna University
Chennai

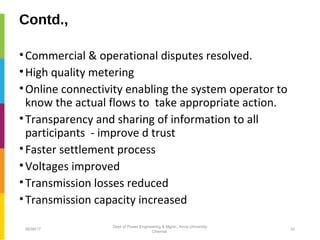

Contd.,
•Commercial & operational disputes resolved.
•High quality metering
•Online connectivity enabling the system operator to
know the actual flows to take appropriate action.
•Transparency and sharing of information to all
participants - improve d trust
•Faster settlement process
•Voltages improved
•Transmission losses reduced
•Transmission capacity increased
06/06/17 32
Dept of Power Engineering & Mgmt., Anna University
Chennai

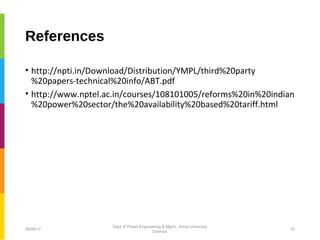

References
• http://npti.in/Download/Distribution/YMPL/third%20party
%20papers-technical%20info/ABT.pdf
• http://www.nptel.ac.in/courses/108101005/reforms%20in%20indian
%20power%20sector/the%20availability%20based%20tariff.html
06/06/17 33
Dept of Power Engineering & Mgmt., Anna University
Chennai

More Related Content

What's hot

Power System Operation and Control
Power System Operation and ControlPower System Operation and Control
Power System Operation and Control
Biswajit Pratihari

Power system planning & operation [eceg 4410]
Power system planning & operation [eceg 4410]Power system planning & operation [eceg 4410]
Power system planning & operation [eceg 4410]
Sifan Welisa

Objectives of shunt compensation
Objectives of shunt compensationObjectives of shunt compensation
Objectives of shunt compensation
Ayyarao T S L V


What's hot (20)

Economics of power generation
Economics of power generationEconomics of power generation
Economics of power generation

Disadvantages of corona, radio interference, inductive interference between p...
Disadvantages of corona, radio interference, inductive interference between p...Disadvantages of corona, radio interference, inductive interference between p...
Disadvantages of corona, radio interference, inductive interference between p...

FACTS DEVICES AND POWER SYSTEM STABILITY ppt
FACTS DEVICES AND POWER SYSTEM STABILITY pptFACTS DEVICES AND POWER SYSTEM STABILITY ppt
FACTS DEVICES AND POWER SYSTEM STABILITY ppt

Protection and control of Microgrid
Protection and control of MicrogridProtection and control of Microgrid
Protection and control of Microgrid

POWER SYSTEM OPERATION AND CONTROL
POWER SYSTEM OPERATION AND CONTROLPOWER SYSTEM OPERATION AND CONTROL
POWER SYSTEM OPERATION AND CONTROL

automatic power factor controller
automatic power factor controllerautomatic power factor controller
automatic power factor controller

Control of hvdc system
Control of hvdc systemControl of hvdc system
Control of hvdc system

Voltage sag
Voltage sagVoltage sag
Voltage sag

Power System Operation and Control
Power System Operation and ControlPower System Operation and Control
Power System Operation and Control

automatic power factor correction
automatic power factor correction automatic power factor correction
automatic power factor correction

Synchronous generator
Synchronous generatorSynchronous generator
Synchronous generator

LOAD FREQUENCY AND VOLTAGE GENERATION CONTROL
LOAD FREQUENCY AND VOLTAGE GENERATION CONTROLLOAD FREQUENCY AND VOLTAGE GENERATION CONTROL
LOAD FREQUENCY AND VOLTAGE GENERATION CONTROL

Maximum power point tracking algorithms for wind energy systems
Maximum power point tracking algorithms for wind energy systemsMaximum power point tracking algorithms for wind energy systems
Maximum power point tracking algorithms for wind energy systems

What is load management
What is load managementWhat is load management
What is load management

Firing angle control
Firing angle controlFiring angle control
Firing angle control

Fixed and variable speed turbine
Fixed and variable speed turbineFixed and variable speed turbine
Fixed and variable speed turbine

Power system planning & operation [eceg 4410]
Power system planning & operation [eceg 4410]Power system planning & operation [eceg 4410]
Power system planning & operation [eceg 4410]

Grid integration issues and solutions
Grid integration issues and solutionsGrid integration issues and solutions
Grid integration issues and solutions

Objectives of shunt compensation
Objectives of shunt compensationObjectives of shunt compensation
Objectives of shunt compensation

Upfc & fact
Upfc & factUpfc & fact
Upfc & fact


Similar to Availability Based Tariff and UI charges

Solar, Batteries & E-Mobility_Intersolar 2016_Final
Solar, Batteries & E-Mobility_Intersolar 2016_FinalSolar, Batteries & E-Mobility_Intersolar 2016_Final
Solar, Batteries & E-Mobility_Intersolar 2016_Final
Jacob McKee

Wind Exchange 2015 Report
Wind Exchange 2015 ReportWind Exchange 2015 Report
Wind Exchange 2015 Report
Joshua Chokera

Satnam_Singh Resume_1
Satnam_Singh Resume_1Satnam_Singh Resume_1
Satnam_Singh Resume_1
Satnam Singh


Similar to Availability Based Tariff and UI charges (20)

Tariff Setting In the Indian Power Sector-An Overview
Tariff Setting In the Indian Power Sector-An OverviewTariff Setting In the Indian Power Sector-An Overview
Tariff Setting In the Indian Power Sector-An Overview

Comparative Study on Forecasting & Scheduling - Solar & Wind 05.03.19
Comparative Study on Forecasting & Scheduling - Solar & Wind 05.03.19Comparative Study on Forecasting & Scheduling - Solar & Wind 05.03.19
Comparative Study on Forecasting & Scheduling - Solar & Wind 05.03.19

Electric vehicles
Electric vehiclesElectric vehicles
Electric vehicles

POWER SYSTEM PLANNING
POWER SYSTEM PLANNINGPOWER SYSTEM PLANNING
POWER SYSTEM PLANNING

PSP_PHES_Pricining Mechanism.pdf
PSP_PHES_Pricining Mechanism.pdfPSP_PHES_Pricining Mechanism.pdf
PSP_PHES_Pricining Mechanism.pdf

FedEx Poster
FedEx PosterFedEx Poster
FedEx Poster

Net energy metering manual for three schemes
Net energy metering manual for three schemesNet energy metering manual for three schemes
Net energy metering manual for three schemes

Solar, Batteries & E-Mobility_Intersolar 2016_Final
Solar, Batteries & E-Mobility_Intersolar 2016_FinalSolar, Batteries & E-Mobility_Intersolar 2016_Final
Solar, Batteries & E-Mobility_Intersolar 2016_Final

Demand Side Management in Micro Grid
Demand Side Management in Micro GridDemand Side Management in Micro Grid
Demand Side Management in Micro Grid

Load Forecasting
Load ForecastingLoad Forecasting
Load Forecasting

POWER PLANT ECONOMICS AND ENVIRONMENTAL CONSIDERATIONS - SNIST
POWER  PLANT  ECONOMICS AND ENVIRONMENTAL  CONSIDERATIONS - SNISTPOWER  PLANT  ECONOMICS AND ENVIRONMENTAL  CONSIDERATIONS - SNIST
POWER PLANT ECONOMICS AND ENVIRONMENTAL CONSIDERATIONS - SNIST

Choosing Green: Status and Challenges of RE based Open Access
Choosing Green: Status and Challenges of RE based Open AccessChoosing Green: Status and Challenges of RE based Open Access
Choosing Green: Status and Challenges of RE based Open Access

Abt meter
Abt meterAbt meter
Abt meter

Wind Exchange 2015 Report
Wind Exchange 2015 ReportWind Exchange 2015 Report
Wind Exchange 2015 Report

What is availability tariff
What is availability tariffWhat is availability tariff
What is availability tariff

10 pv o&m budgeting - pricing & practices - epri v1
10   pv o&m budgeting - pricing & practices - epri v110   pv o&m budgeting - pricing & practices - epri v1
10 pv o&m budgeting - pricing & practices - epri v1

Deviation Settlement Mechanism for Improving Grid Frequency Regime in India.pptx
Deviation Settlement Mechanism for Improving Grid Frequency Regime in India.pptxDeviation Settlement Mechanism for Improving Grid Frequency Regime in India.pptx
Deviation Settlement Mechanism for Improving Grid Frequency Regime in India.pptx

ENERGY AUDIT
ENERGY AUDITENERGY AUDIT
ENERGY AUDIT

Dr.pptx1
Dr.pptx1Dr.pptx1
Dr.pptx1

Satnam_Singh Resume_1
Satnam_Singh Resume_1Satnam_Singh Resume_1
Satnam_Singh Resume_1


Recently uploaded

ALCOHOL PRODUCTION- Beer Brewing Process.pdf
ALCOHOL PRODUCTION- Beer Brewing Process.pdfALCOHOL PRODUCTION- Beer Brewing Process.pdf
ALCOHOL PRODUCTION- Beer Brewing Process.pdf
Madan Karki

Final DBMS Manual (2).pdf final lab manual
Final DBMS Manual (2).pdf final lab manualFinal DBMS Manual (2).pdf final lab manual
Final DBMS Manual (2).pdf final lab manual
BalamuruganV28

Tembisa Central Terminating Pills +27838792658 PHOMOLONG Top Abortion Pills F...
Tembisa Central Terminating Pills +27838792658 PHOMOLONG Top Abortion Pills F...Tembisa Central Terminating Pills +27838792658 PHOMOLONG Top Abortion Pills F...
Tembisa Central Terminating Pills +27838792658 PHOMOLONG Top Abortion Pills F...
drjose256

Microkernel in Operating System | Operating System
Microkernel in Operating System | Operating SystemMicrokernel in Operating System | Operating System
Microkernel in Operating System | Operating System
Sampad Kar

Activity Planning: Objectives, Project Schedule, Network Planning Model. Time...
Activity Planning: Objectives, Project Schedule, Network Planning Model. Time...Activity Planning: Objectives, Project Schedule, Network Planning Model. Time...
Activity Planning: Objectives, Project Schedule, Network Planning Model. Time...
Lovely Professional University


Recently uploaded (20)

Quiz application system project report..pdf
Quiz application system project report..pdfQuiz application system project report..pdf
Quiz application system project report..pdf

ALCOHOL PRODUCTION- Beer Brewing Process.pdf
ALCOHOL PRODUCTION- Beer Brewing Process.pdfALCOHOL PRODUCTION- Beer Brewing Process.pdf
ALCOHOL PRODUCTION- Beer Brewing Process.pdf

Module-III Varried Flow.pptx GVF Definition, Water Surface Profile Dynamic Eq...
Module-III Varried Flow.pptx GVF Definition, Water Surface Profile Dynamic Eq...Module-III Varried Flow.pptx GVF Definition, Water Surface Profile Dynamic Eq...
Module-III Varried Flow.pptx GVF Definition, Water Surface Profile Dynamic Eq...

SLIDESHARE PPT-DECISION MAKING METHODS.pptx
SLIDESHARE PPT-DECISION MAKING METHODS.pptxSLIDESHARE PPT-DECISION MAKING METHODS.pptx
SLIDESHARE PPT-DECISION MAKING METHODS.pptx

Piping and instrumentation diagram p.pdf
Piping and instrumentation diagram p.pdfPiping and instrumentation diagram p.pdf
Piping and instrumentation diagram p.pdf

Geometric constructions Engineering Drawing.pdf
Geometric constructions Engineering Drawing.pdfGeometric constructions Engineering Drawing.pdf
Geometric constructions Engineering Drawing.pdf

Final DBMS Manual (2).pdf final lab manual
Final DBMS Manual (2).pdf final lab manualFinal DBMS Manual (2).pdf final lab manual
Final DBMS Manual (2).pdf final lab manual

Multivibrator and its types defination and usges.pptx
Multivibrator and its types defination and usges.pptxMultivibrator and its types defination and usges.pptx
Multivibrator and its types defination and usges.pptx

Tembisa Central Terminating Pills +27838792658 PHOMOLONG Top Abortion Pills F...
Tembisa Central Terminating Pills +27838792658 PHOMOLONG Top Abortion Pills F...Tembisa Central Terminating Pills +27838792658 PHOMOLONG Top Abortion Pills F...
Tembisa Central Terminating Pills +27838792658 PHOMOLONG Top Abortion Pills F...

AI in Healthcare Innovative use cases and applications.pdf
AI in Healthcare Innovative use cases and applications.pdfAI in Healthcare Innovative use cases and applications.pdf
AI in Healthcare Innovative use cases and applications.pdf

Introduction to Artificial Intelligence and History of AI
Introduction to Artificial Intelligence and History of AIIntroduction to Artificial Intelligence and History of AI
Introduction to Artificial Intelligence and History of AI

Supermarket billing system project report..pdf
Supermarket billing system project report..pdfSupermarket billing system project report..pdf
Supermarket billing system project report..pdf

Raashid final report on Embedded Systems
Raashid final report on Embedded SystemsRaashid final report on Embedded Systems
Raashid final report on Embedded Systems

BORESCOPE INSPECTION for engins CFM56.pdf
BORESCOPE INSPECTION for engins CFM56.pdfBORESCOPE INSPECTION for engins CFM56.pdf
BORESCOPE INSPECTION for engins CFM56.pdf

Microkernel in Operating System | Operating System
Microkernel in Operating System | Operating SystemMicrokernel in Operating System | Operating System
Microkernel in Operating System | Operating System

Activity Planning: Objectives, Project Schedule, Network Planning Model. Time...
Activity Planning: Objectives, Project Schedule, Network Planning Model. Time...Activity Planning: Objectives, Project Schedule, Network Planning Model. Time...
Activity Planning: Objectives, Project Schedule, Network Planning Model. Time...

Interfacing Analog to Digital Data Converters ee3404.pdf
Interfacing Analog to Digital Data Converters ee3404.pdfInterfacing Analog to Digital Data Converters ee3404.pdf
Interfacing Analog to Digital Data Converters ee3404.pdf

Filters for Electromagnetic Compatibility Applications
Filters for Electromagnetic Compatibility ApplicationsFilters for Electromagnetic Compatibility Applications
Filters for Electromagnetic Compatibility Applications

Research Methodolgy & Intellectual Property Rights Series 1
Research Methodolgy & Intellectual Property Rights Series 1Research Methodolgy & Intellectual Property Rights Series 1
Research Methodolgy & Intellectual Property Rights Series 1

Vip ℂall Girls Karkardooma Phone No 9999965857 High Profile ℂall Girl Delhi N...
Vip ℂall Girls Karkardooma Phone No 9999965857 High Profile ℂall Girl Delhi N...Vip ℂall Girls Karkardooma Phone No 9999965857 High Profile ℂall Girl Delhi N...
Vip ℂall Girls Karkardooma Phone No 9999965857 High Profile ℂall Girl Delhi N...


Availability Based Tariff and UI charges

  • 1. Availability Based Tariff by Krishnakumar R V M.E Power Engineering & Management Anna University Chennai CEG Campus
  • 2. Availability Based Tariff Availability Based Tariff (ABT) is a tariff structure for bulk power and is aimed at bringing about more responsibility and accountability in power generation and consumption through a scheme of incentives and disincentives. This is based upon the annual availability of the Generation Plant rather than Plant Load Factor. 206/06/17 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 3. Need For ABT •The Indian power system is characterized by low frequency operation due to continuous power deficit situation for majority of time. • The financial constraints typical of a developing country with large population and unequal distribution of resources also led to inadequacies of transmission and distribution network with critical line loadings and low voltage profile. 06/06/17 3 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 4. Contd., •The scarcity of power and the commercial mechanism before ABT (based on take-off of power by States rather than schedules from Central pool) led to low frequency operation. •The tariff mechanism did not provide any incentive to reduce generation under high frequency or to maximize generation under low frequency. 06/06/17 4 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 5. ABT Contd., •It was introduced in India from 1st July, 2002. •The commercial mechanism is specifically defined to suit the deficit power systems. •The mechanism streamlined the operation of regional grids. 06/06/17 5 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 6. Objectives of ABT • Encourage grid discipline • Promote trade in energy and capacity • Economic load dispatch • Encourage higher generation availability 606/06/17 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 7. Availability Based Tariff : Components 06/06/17 7 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 8. Fixed Charge • Loan Part of loan amount for installation of the plant is passed on to the customers • Return On Equity A part of the tariff is used to pay the stakeholders based on their equity share • Depreciation The plant depreciation cost is compounded annually which is used during the decommissioning of the plant after the prescribed life time of the plant • Interest On Working Capital The interest on working capital is also passed on to customers 06/06/17 8 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 9. Fixed Charge (contd.,) • O&M Expenses It includes the equipment costs which are hired for carrying out maintenance of the plant and the crew costs this is also passed on to the customers • Insurance The plant is insured against accidents and the employees are also insured against accidents and a part of the tariff contributes to this. • Taxes It includes various local taxes such as land and water taxes 06/06/17 9 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 10. Contd., • The payment of fixed cost to the generating company is linked to availability of the plant, that is, its capability to deliver MWs on a day-by-day basis. • The total amount payable to the generating company over a year towards the fixed cost depends on the average availability (MW delivering capability) of the plant over the year. • If the average availability actually achieved over the year is higher than the specified norm for plant availability, the generating company gets a higher payment. 06/06/17 10 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 11. Contd., • If the average availability achieved is lower, the payment is also lower. • Hence the name ‘Availability Tariff’. • Termed as ‘capacity charge’. • The fixed charges are linked to availability rather than plant load factor (PLF). 06/06/17 11 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 12. Fixed charges payable • Excluding ROE - 0-30% availability • Including ROE – 30-70% availability • Beyond 70% increase, incentive given @ 0.4% equity for each % increase between 70-85% • Beyond 85% increase, decrement in incentive @0.3% (prevention of overloading) • Penalty given to generating utility for over/under declaration of availability 06/06/17 12 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 13. Variable Charge • Termed as Energy Charge • The variable cost comprises of the fuel cost, i.e., coal and oil in case of thermal plants and nuclear fuel in case of nuclear plants. • Reimbursement of fuel cost for scheduled generation. • Payable by every user on a scheduled energy irrespective of actual drawl 06/06/17 13 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 14. Contd., •It may specifically be noted that energy charge is not based on actual generation and plant output, but on scheduled generation. 06/06/17 14 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 15. Unscheduled interchange charges • Payment for deviation from schedule at a rate dependent on system conditions(frequency) at that time • UI energy = Schedule energy – Actual energy UI Charges are payable / receivable if • A beneficiary overdraws power (↓f) • A beneficiary under draws power (↑f) • A generator generates more than the schedule (↑f) • A generator generates less than the schedule (↓ f) 06/06/17 15 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 16. Contd., • In the real time, the actual dispatch is likely to be different from the schedule. • Incase there are deviations from the schedule, the energy charge payment would still be for the scheduled generation. 06/06/17 16 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 17. An Example • If a power plant delivers 600 MW while it was scheduled to supply only 500 MW, the energy charge payment would still be for the scheduled generation 500 MW, and the excess generation 100 MW would get paid for at a rate dependent on the system conditions prevailing at the time. 06/06/17 17 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 18. Contd., Case i: If the grid has surplus power at the time and frequency is above 50.0 cycles, the rate would be lower. Case ii: If the excess generation takes place at the time of generation shortage in the system, the payment for extra generation would be at a higher rate. 06/06/17 18 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 19. UI Rate Curve • Initially, in 2001, when frequency linked UI was proposed for the first time, the ceiling rate for UI curve was 420 paise / kWh. • The UI price curve was a single slopped straight line at that time. • It was set considering the price of the costliest fuel at that time – high speed diesel (HSD). 06/06/17 19 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 20. Ceiling Rate Of UI Curve The ceiling rate of UI was modified thrice since then depending upon the prevailing price of HSD, from 1.420 paise / kWh 2.570 paise / kWh 3.745 paise / kWh 4.1000 paise / kWh. 06/06/17 20 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 21. Dual Sloped Curve UI curve became a dual slope curve with 1.Less penalty (incentive) around the nominal frequency. 2.While heavy penalty (incentive) at lower frequencies. 06/06/17 21 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 22. Dual Sloped UI Rate Curve 06/06/17 22 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 23. Dual Sloped Curve Slope 1 The price of UI at 50.2 Hz is zero and increased to 387.50 paisa per unit at 49.70 Hz linearly with a slope of 15.5 paisa per 0.02 Hz. Slope 2: After 49.70Hz linearly increased at the rate of 47 paisa per 0.02 Hz till 49.5 Hz. Ceiling Price: At 49.5 Hz and below, the price of UI power is 873 paisa per unit. 06/06/17 23 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 24. Constituent State’s Response at Various Frequency Level 06/06/17 24 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 25. Generator’s Response at Various Frequency Levels 06/06/17 25 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 26. The Mechanism of Inter State ABT • Each day of 24 hours is divided into 96 time blocks of 15 minutes duration • The process starts with the Central generating stations in the region declaring their expected output capability for the next day to the Regional Load Dispatch Center (RLDC). • The RLDC breaks up and tabulates these output capability declarations as per the beneficiaries' plant-wise shares and conveys their entitlements to State Load Dispatch Centers (SLDCs). • The latter then carry out an exercise to see how best they can meet the load of their consumers over the day, from their own generating stations, along with their entitlement in the Central stations. 06/06/17 26 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 27. Contd., • The SLDCs then convey to the RLDC their schedule of power drawal from the Central stations (limited to their entitlement for the day). • The RLDC aggregates these requisitions and determines the dispatch schedules for the Central generating stations and the drawal schedules for the beneficiaries duly incorporating any bilateral agreements and adjusting for transmission losses. • The schedules are also used for determination of the amounts payable as energy charges. • Deviations from schedules are determined in 15-minute time blocks through special metering, and these deviations are priced depending on frequency. 06/06/17 27 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 28. Intra State ABT • After the unbundling of SEBs, state’s distribution system is divided into distribution zones. • Each distribution zone will have schedule for power to be received from the state owned generators. • The intra-state generators and distribution zones would have schedules, metering and energy accounting done by the state load dispatch center. States • Gujarat • Maharashtra • Tamil Nadu (Draft Regulation) 06/06/17 28 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 29. Effects Of ABT 1. Grid Discipline The commercial signal was absent and hence, the stake holders were least bothered about the grid condition. In the ABT era, the actions taken by various entities had a direct impact on the grid condition. 2. The frequency profile in all the regional grids improved. In the pre-ABT era, the frequency used to touch as low as 48 Hz. However, after implementation of the commercial mechanism, the frequency of various grids was arrested in a tighter band. 06/06/17 29 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 30. Contd., 3. The day-ahead scheduling got due importance as the deviation from the same was termed as unscheduled interchange (UI) and was settled directly with the frequency linked price. 06/06/17 30 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 31. Benefits of ABT • By bifurcating the charges, incentive for trading in power is enhanced. • By isolating the variable charge, a beneficiary can trade such power depending on needs, market demand and economics of power at home state. • Facilitates merit order dispatch • Helps to enforce grid discipline by maintaining frequency in prescribed band. • Incentives encourage competition among generators. • Improved scheduling by G & B, ensures optimum utilization of available generation capabilities. 06/06/17 31 Dept of Power Engineering & Mgmt., Anna University Chennai
  • 32. Contd., •Commercial & operational disputes resolved. •High quality metering •Online connectivity enabling the system operator to know the actual flows to take appropriate action. •Transparency and sharing of information to all participants - improve d trust •Faster settlement process •Voltages improved •Transmission losses reduced •Transmission capacity increased 06/06/17 32 Dept of Power Engineering & Mgmt., Anna University Chennai

Editor's Notes

  1. The UI mechanism of ABT serves the purpose of balancing market in real time. Any generator or utility is allowed to inject power into the pool or draw from the pool at UI prices as long as the frequency is maintained within the stipulated band of 49.5-50.2 Hz.
