App Extension
2014/6/20

@TachibanaKaoru

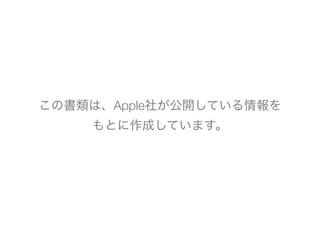

この書類は、Apple社が公開している情報を
もとに作成しています。

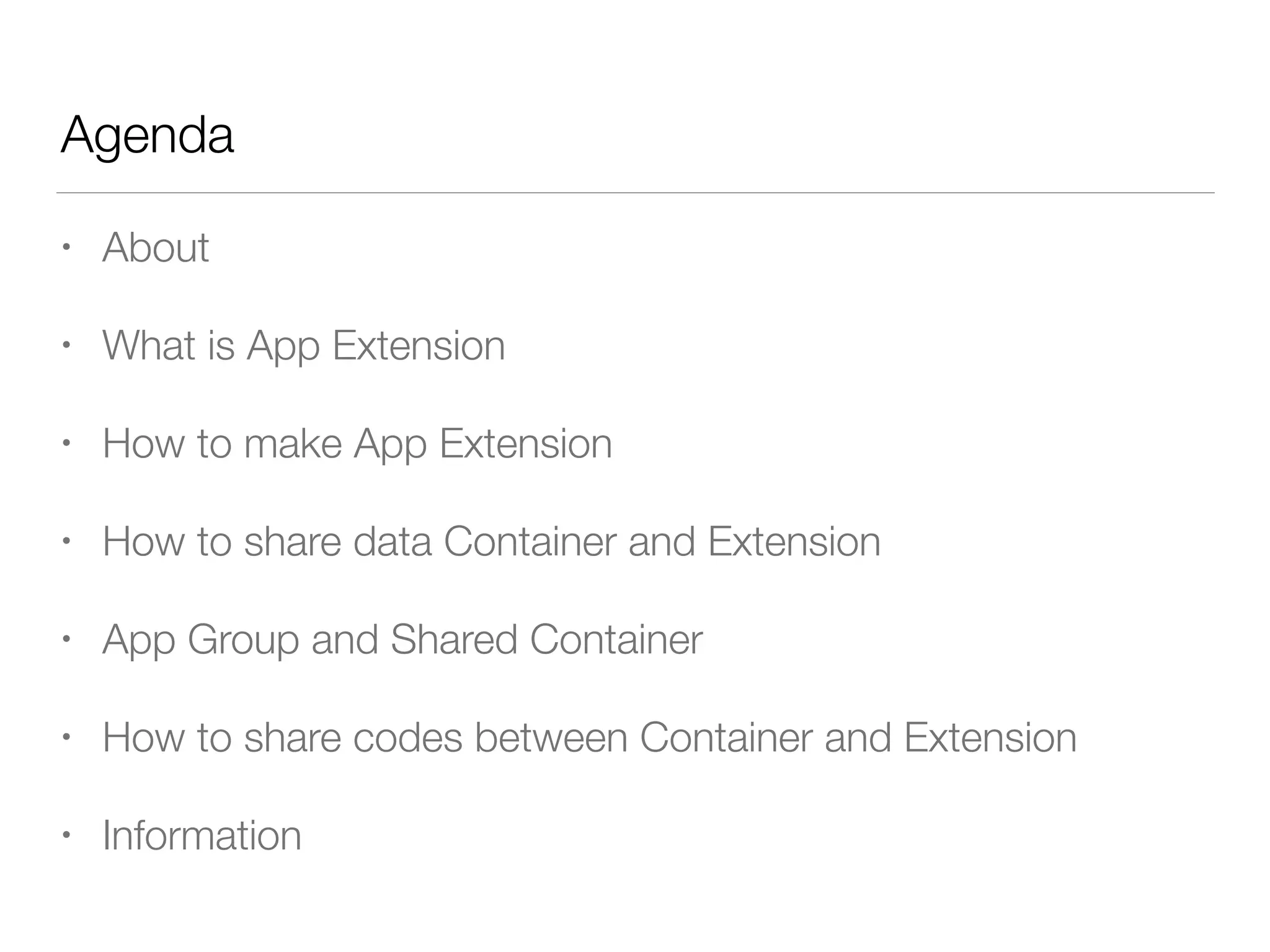

Agenda
• About
• What is App Extension
• How to make App Extension
• How to share data Container and Extension
• App Group and Shared Container
• How to share codes between Container and Extension
• Information

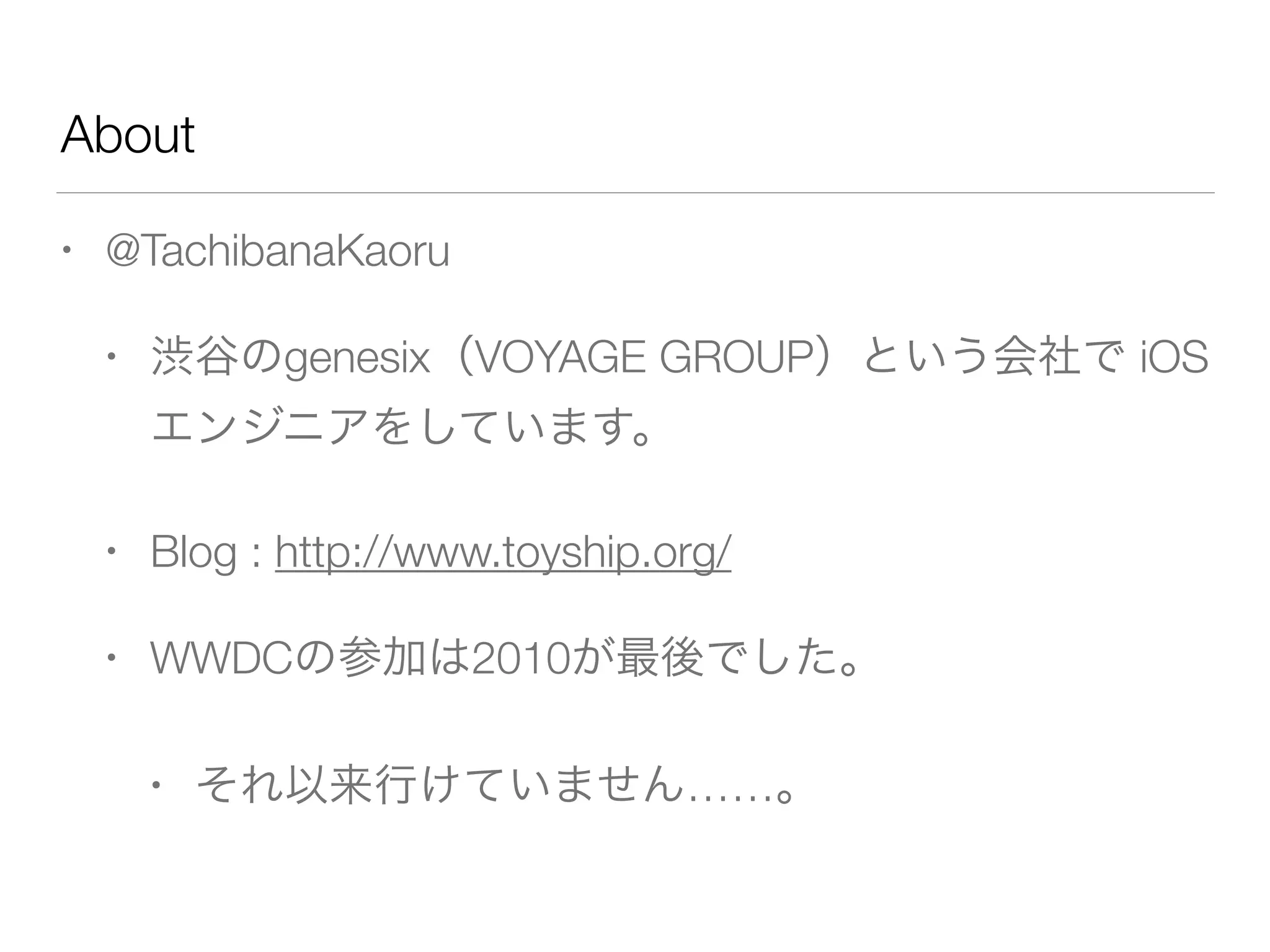

About
• @TachibanaKaoru
• 渋谷のgenesix(VOYAGE GROUP)という会社で iOS
エンジニアをしています。
• Blog : http://www.toyship.org/
• WWDCの参加は2010が最後でした。
• それ以来行けていません……。

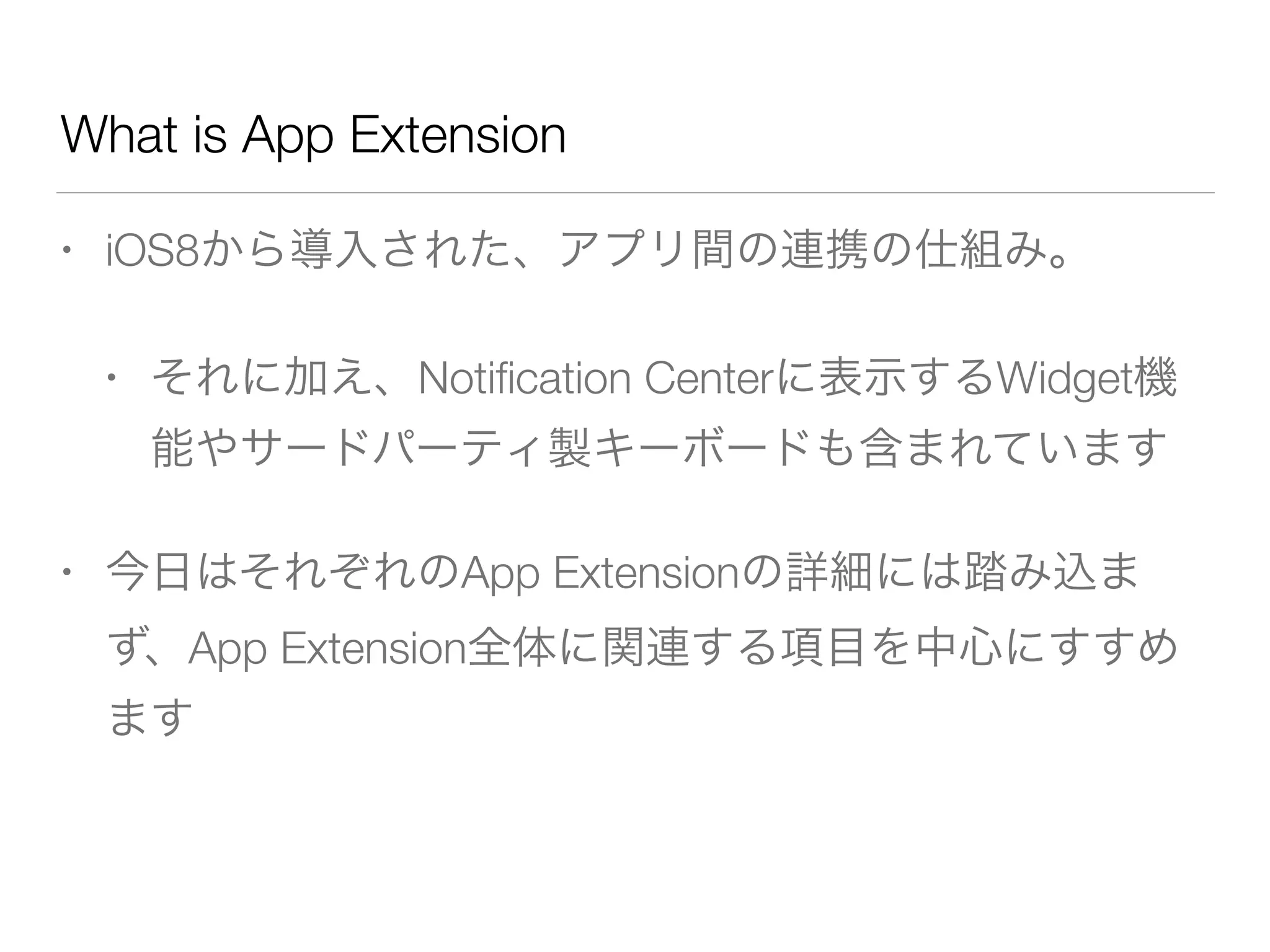

What is App Extension
• iOS8から導入された、アプリ間の連携の仕組み。
• それに加え、Notification Centerに表示するWidget機
能やサードパーティ製キーボードも含まれています
• 今日はそれぞれのApp Extensionの詳細には踏み込ま
ず、App Extension全体に関連する項目を中心にすすめ
ます

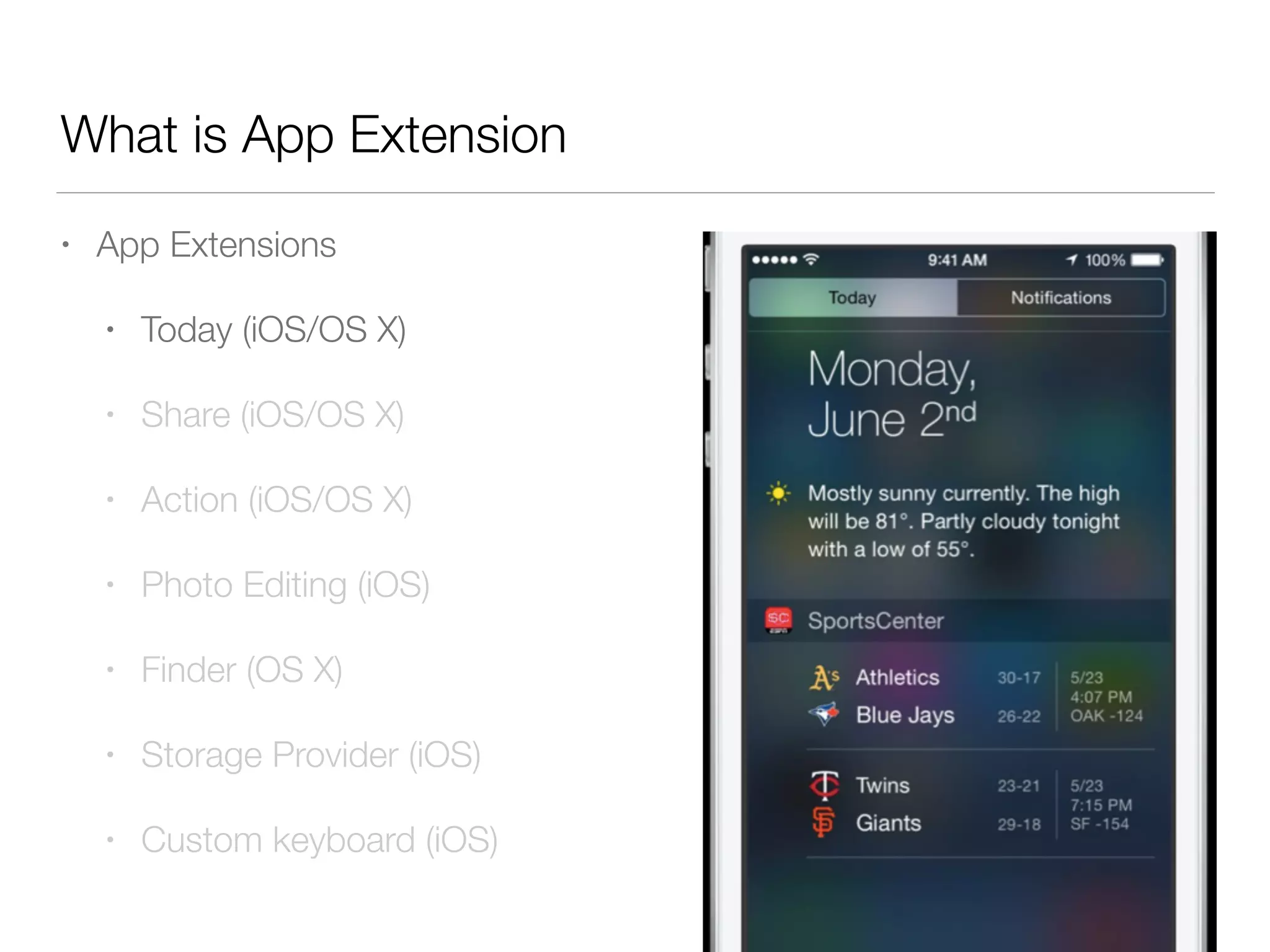

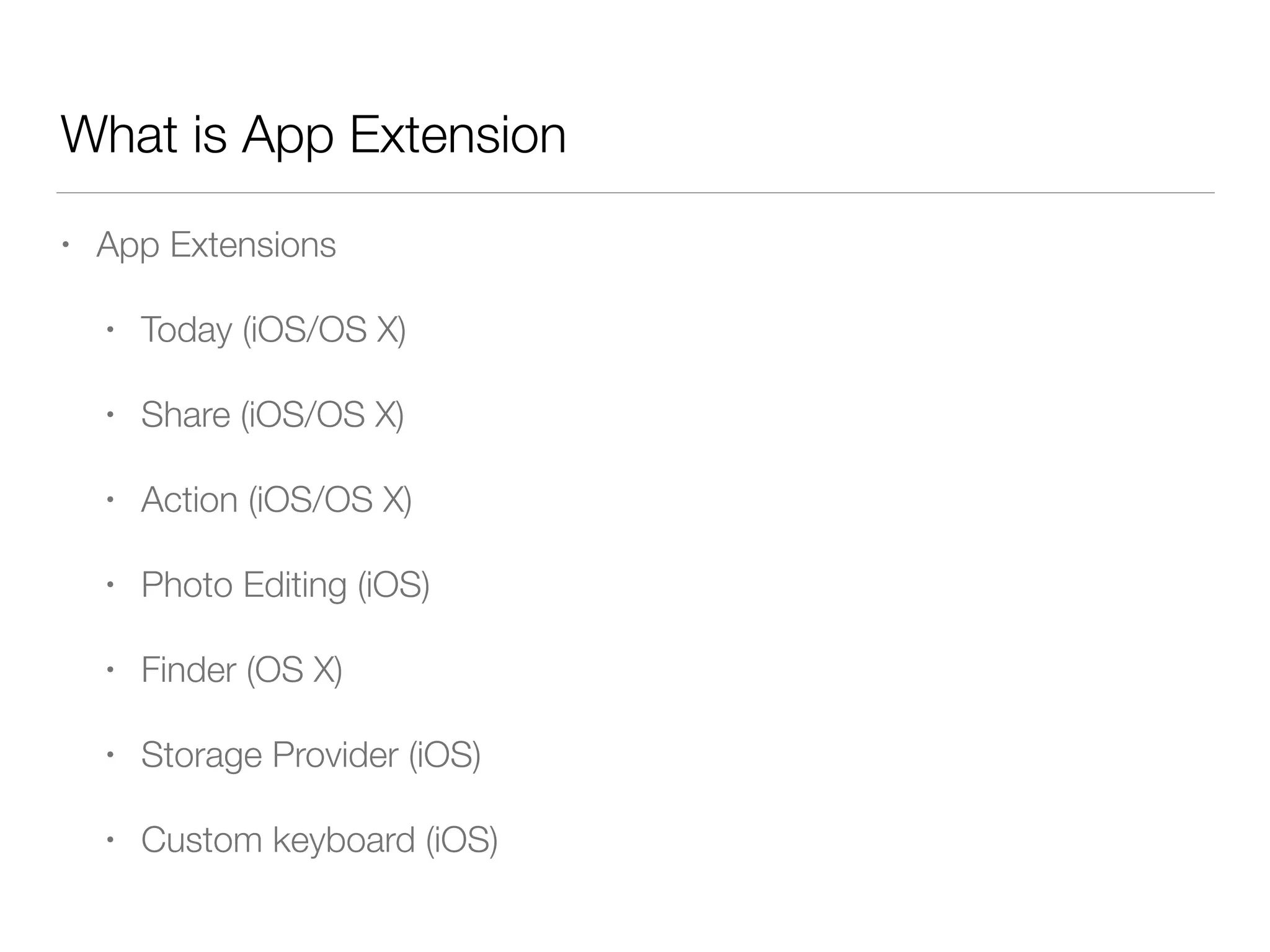

What is App Extension
• App Extensions
• Today (iOS/OS X)
• Share (iOS/OS X)
• Action (iOS/OS X)
• Photo Editing (iOS)
• Finder (OS X)
• Storage Provider (iOS)
• Custom keyboard (iOS)
What is App Extension
• App Extensions
• Today (iOS/OS X)
• Share (iOS/OS X)
• Action (iOS/OS X)
• Photo Editing (iOS)
• Finder (OS X)
• Storage Provider (iOS)
• Custom keyboard (iOS)
What is App Extension
• App Extensions
• Today (iOS/OS X)
• Share (iOS/OS X)
• Action (iOS/OS X)
• Photo Editing (iOS)
• Finder (OS X)
• Storage Provider (iOS)
• Custom keyboard (iOS)

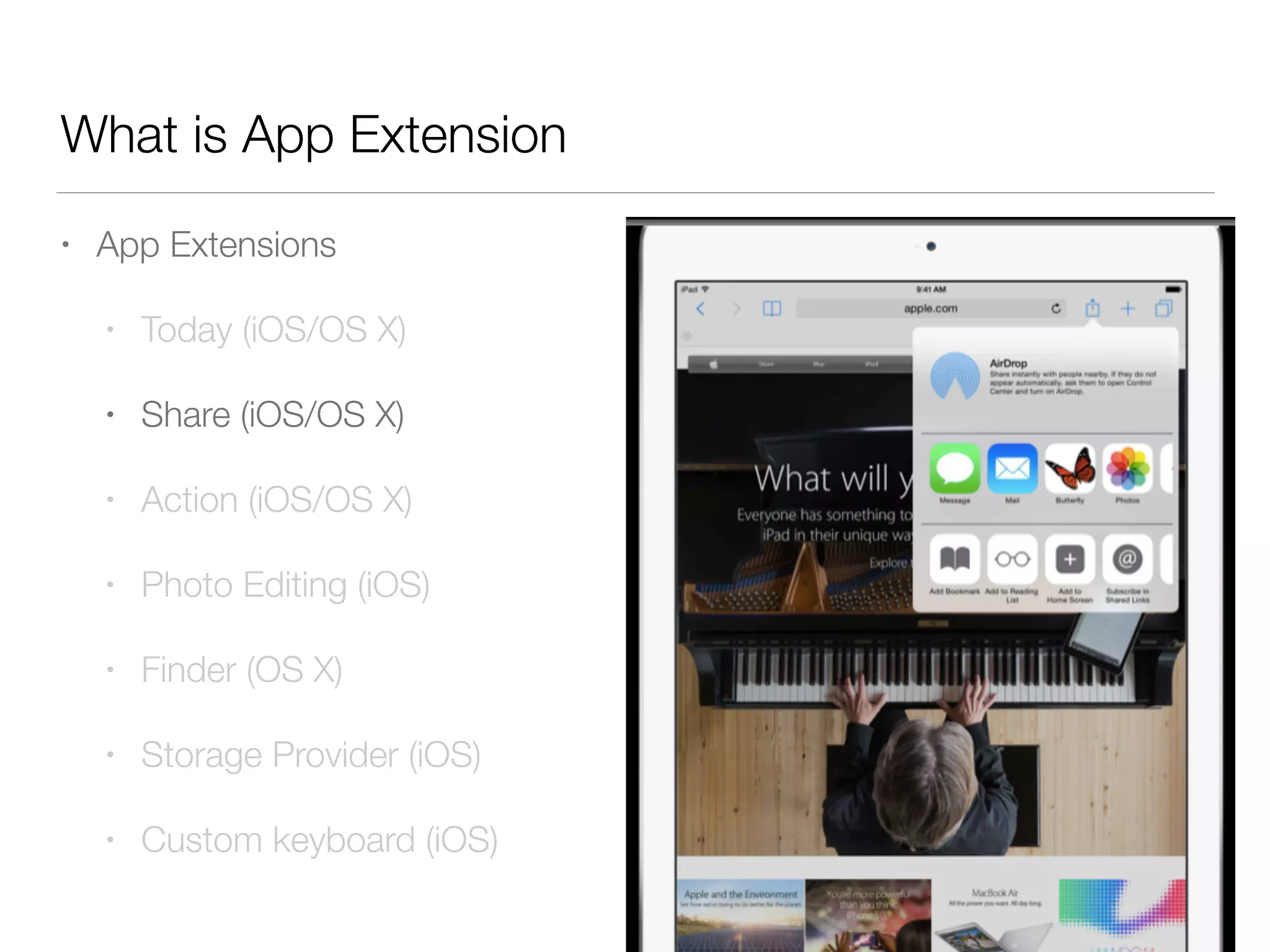

What is App Extension
• App Extensions
• Today (iOS/OS X)
• Share (iOS/OS X)
• Action (iOS/OS X)
• Photo Editing (iOS)
• Finder (OS X)
• Storage Provider (iOS)
• Custom keyboard (iOS)

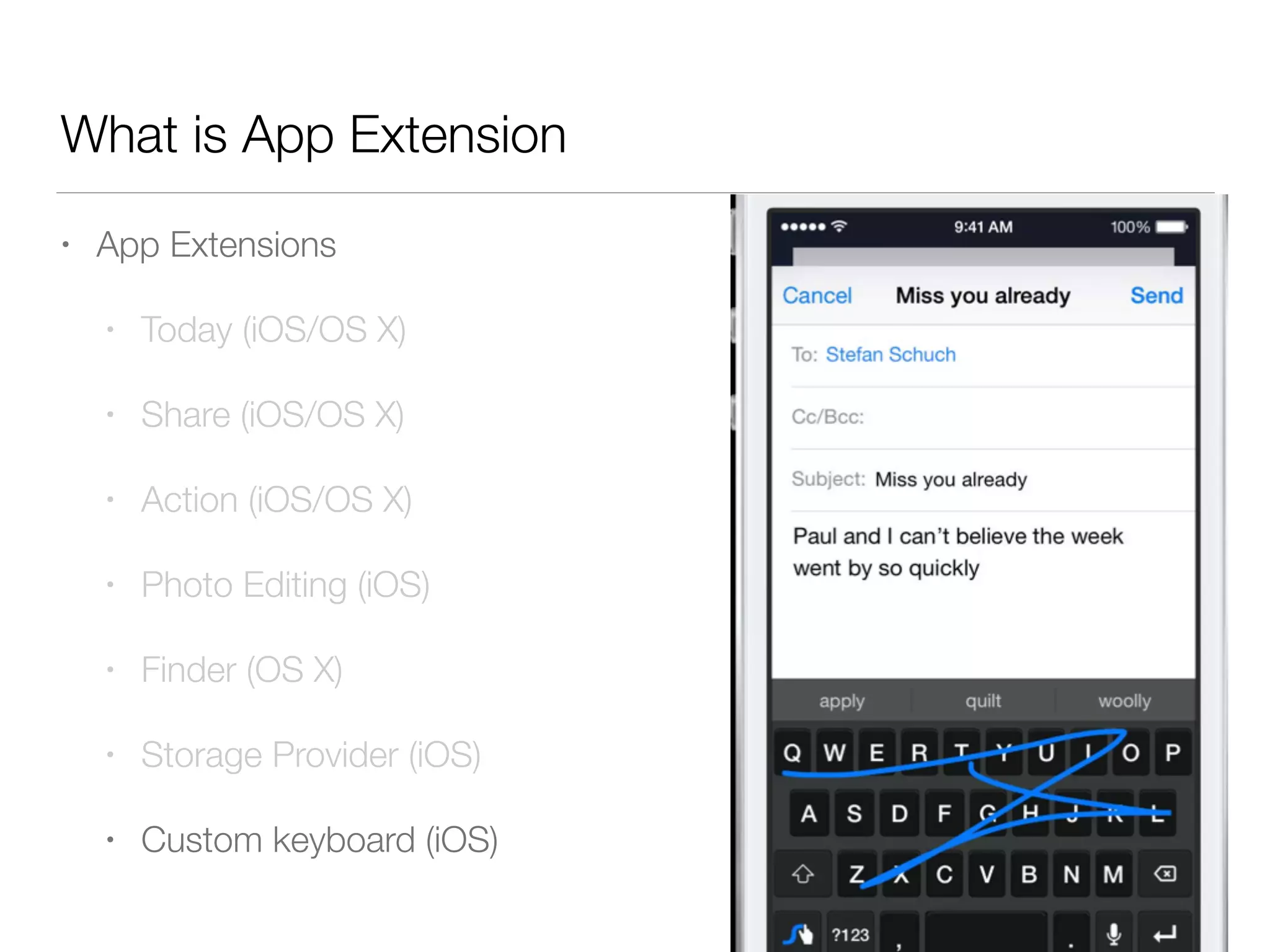

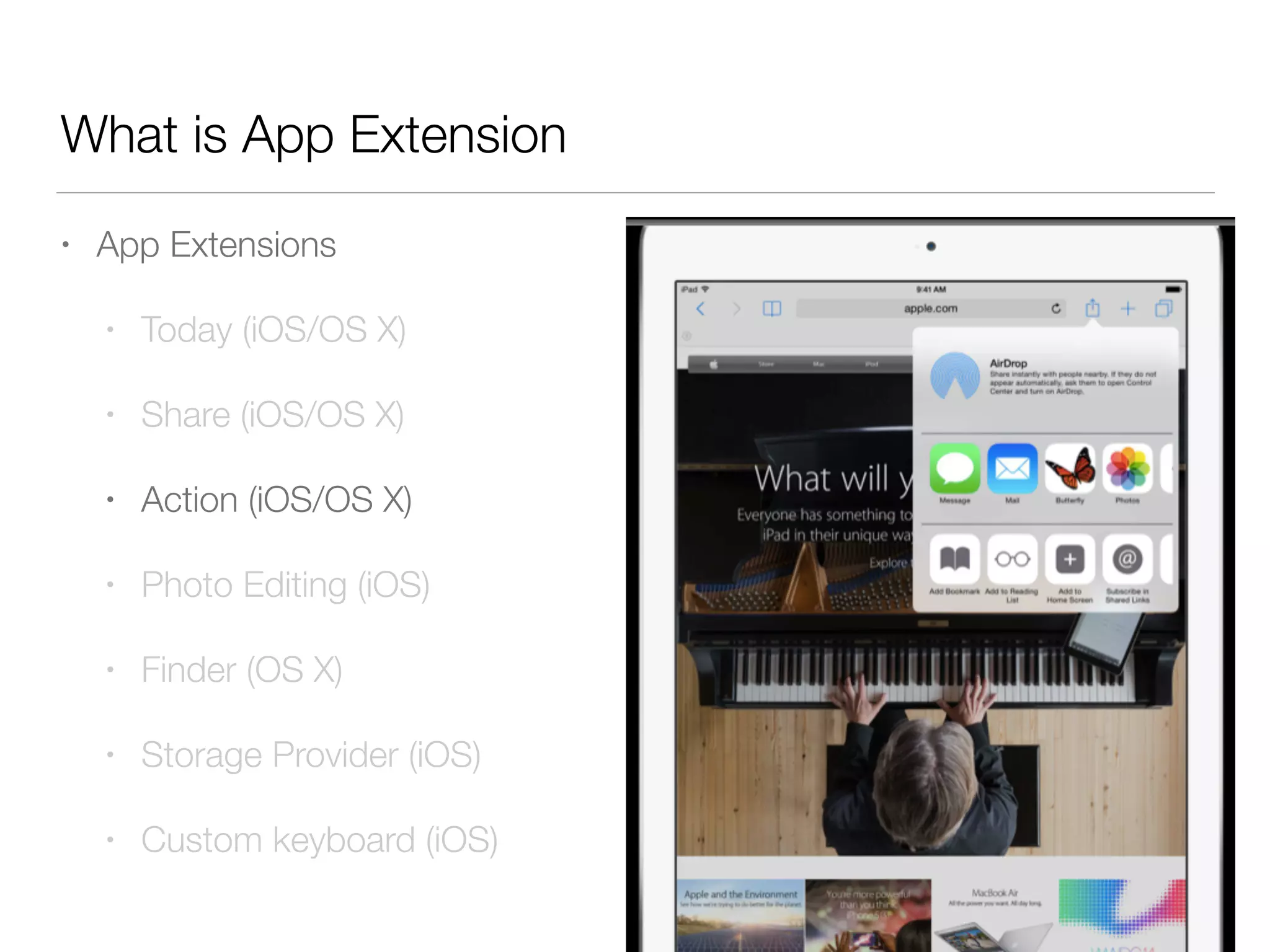

What is App Extension
• App Extensions
• Today (iOS/OS X)
• Share (iOS/OS X)
• Action (iOS/OS X)
• Photo Editing (iOS)
• Finder (OS X)
• Storage Provider (iOS)
• Custom keyboard (iOS)

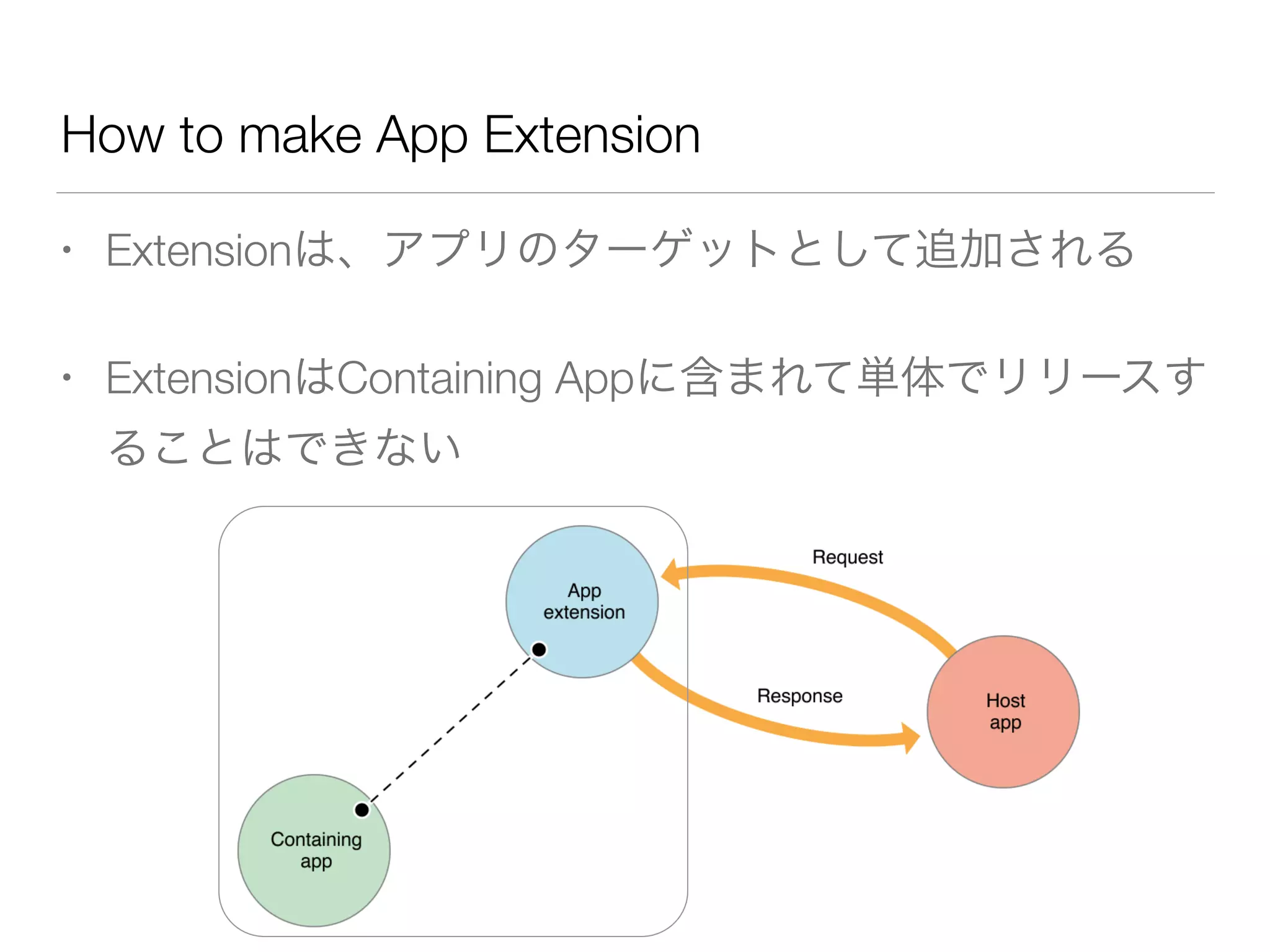

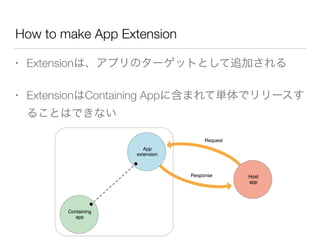

How to make App Extension
• Extensionは、アプリのターゲットとして追加される
• ExtensionはContaining Appに含まれて単体でリリースす
ることはできない

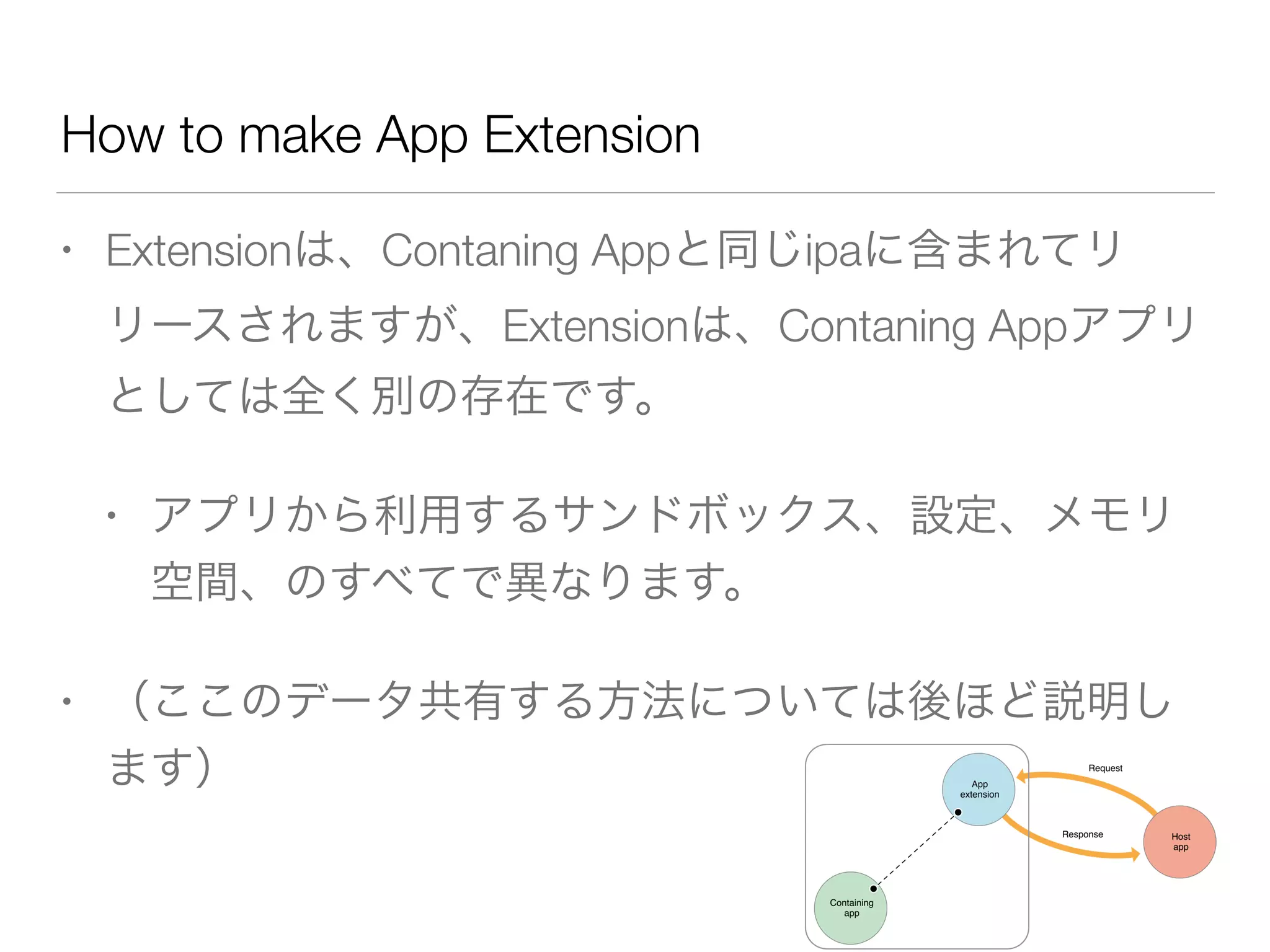

How to make App Extension
• Extensionは、Contaning Appと同じipaに含まれてリ
リースされますが、Extensionは、Contaning Appアプリ
としては全く別の存在です。
• アプリから利用するサンドボックス、設定、メモリ
空間、のすべてで異なります。
• (ここのデータ共有する方法については後ほど説明し
ます)

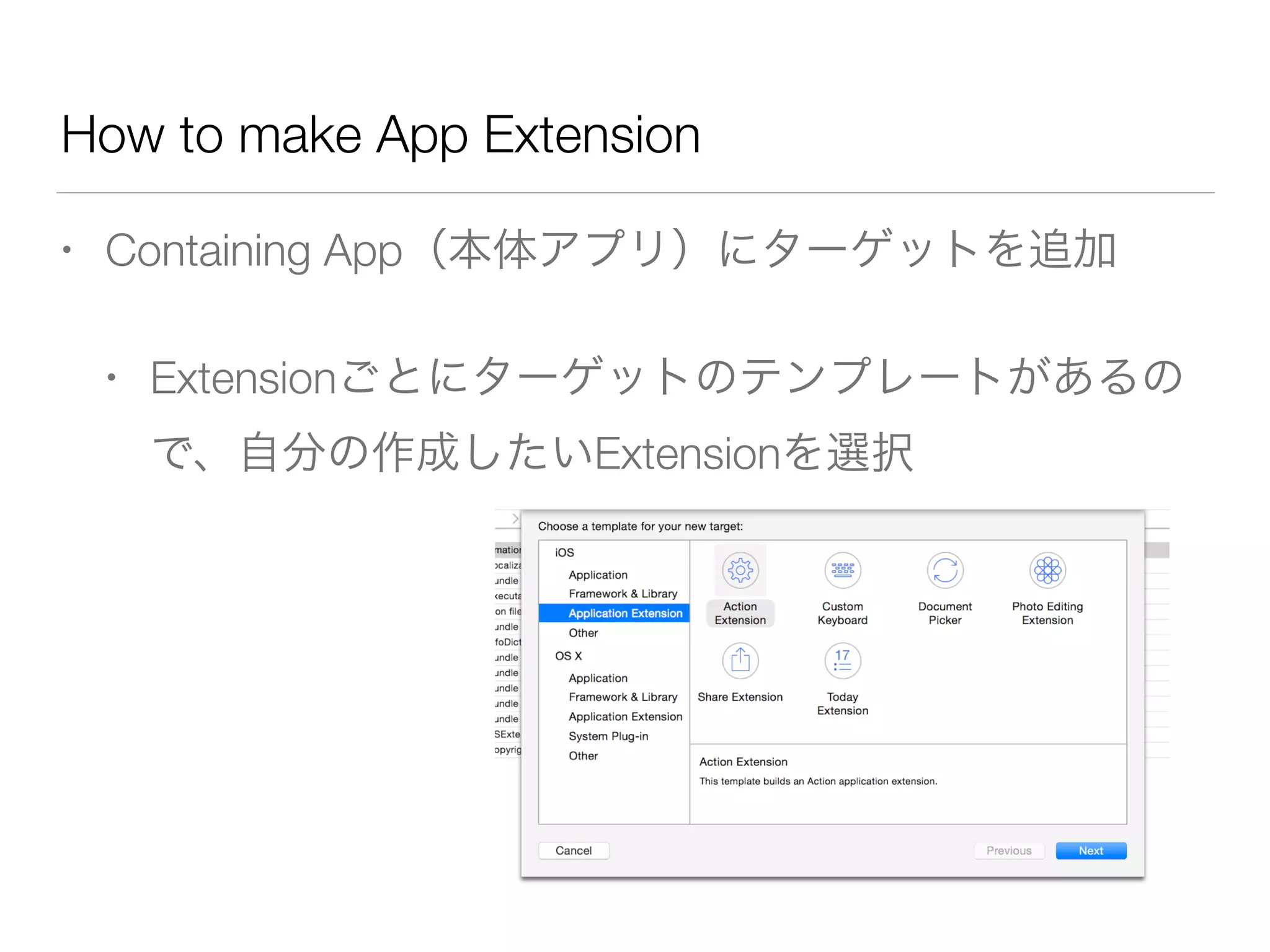

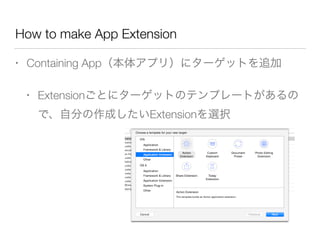

How to make App Extension
• Containing App(本体アプリ)にターゲットを追加
• Extensionごとにターゲットのテンプレートがあるの
で、自分の作成したいExtensionを選択

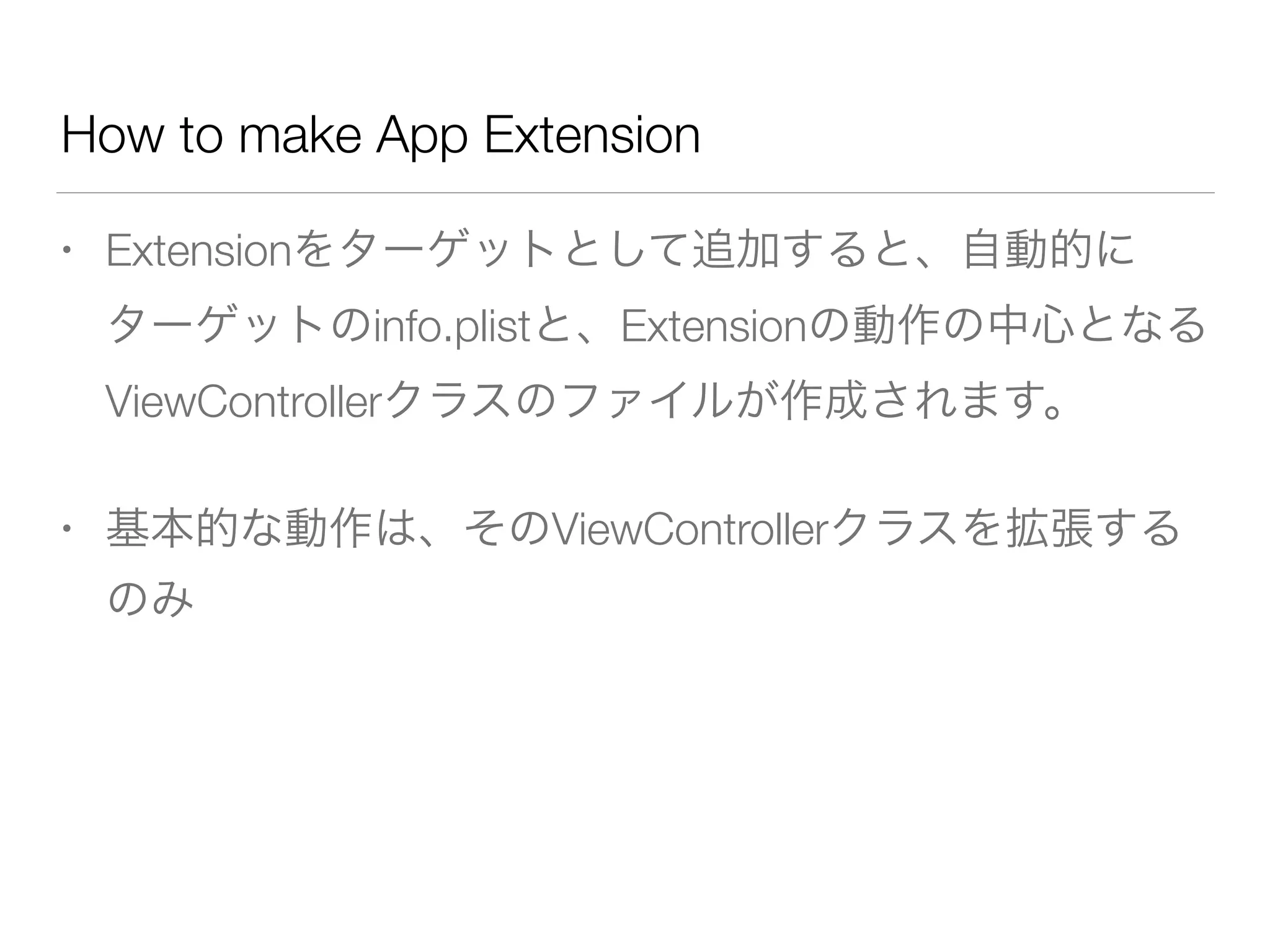

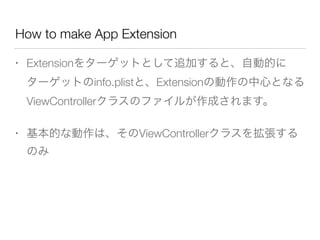

How to make App Extension
• Extensionをターゲットとして追加すると、自動的に
ターゲットのinfo.plistと、Extensionの動作の中心となる
ViewControllerクラスのファイルが作成されます。
• 基本的な動作は、そのViewControllerクラスを拡張する
のみ

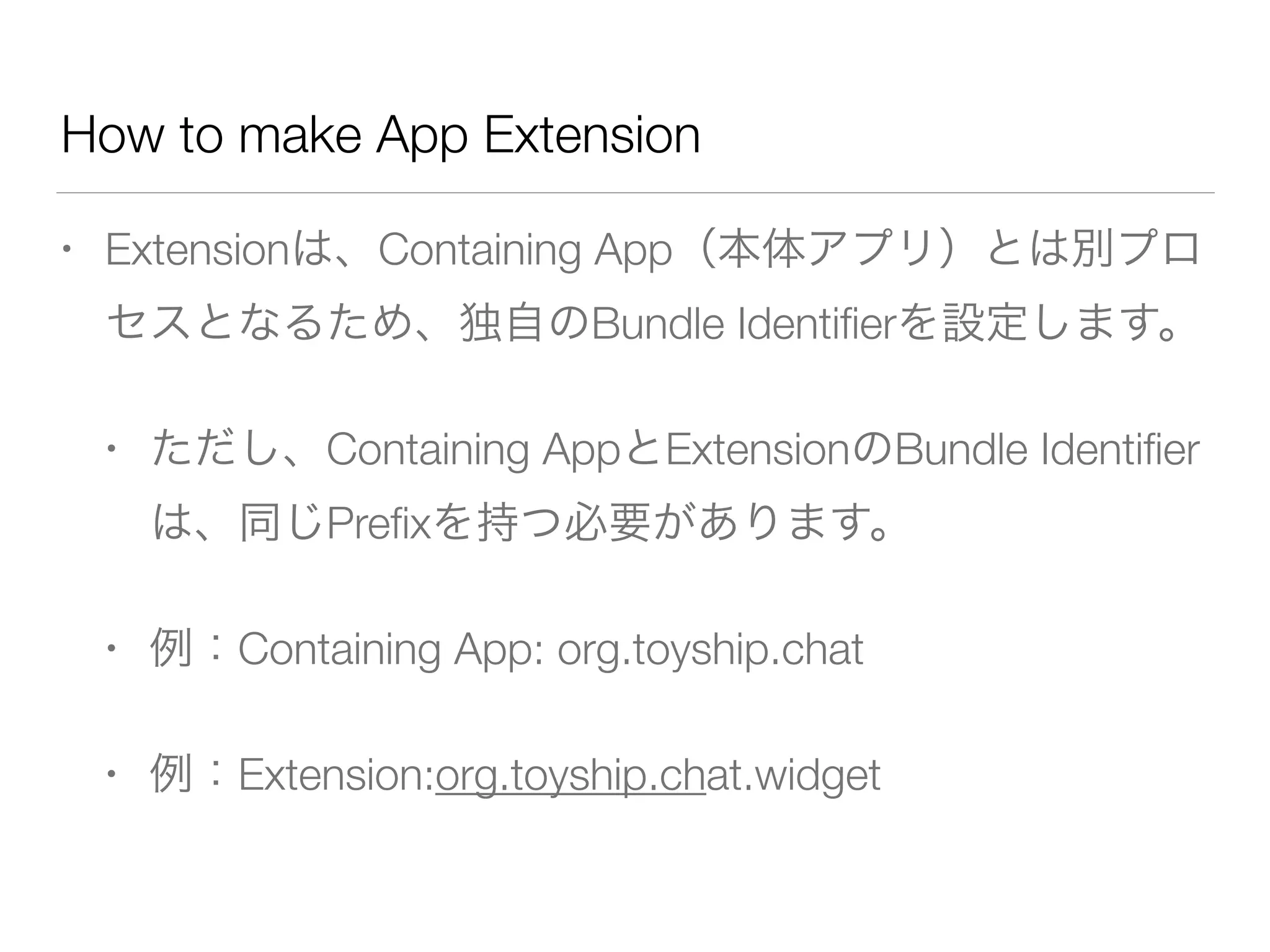

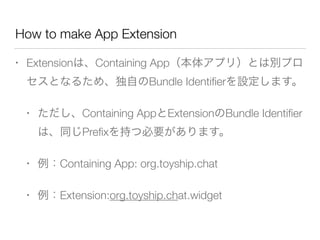

How to make App Extension
• Extensionは、Containing App(本体アプリ)とは別プロ
セスとなるため、独自のBundle Identifierを設定します。
• ただし、Containing AppとExtensionのBundle Identifier
は、同じPrefixを持つ必要があります。
• 例:Containing App: org.toyship.chat
• 例:Extension:org.toyship.chat.widget

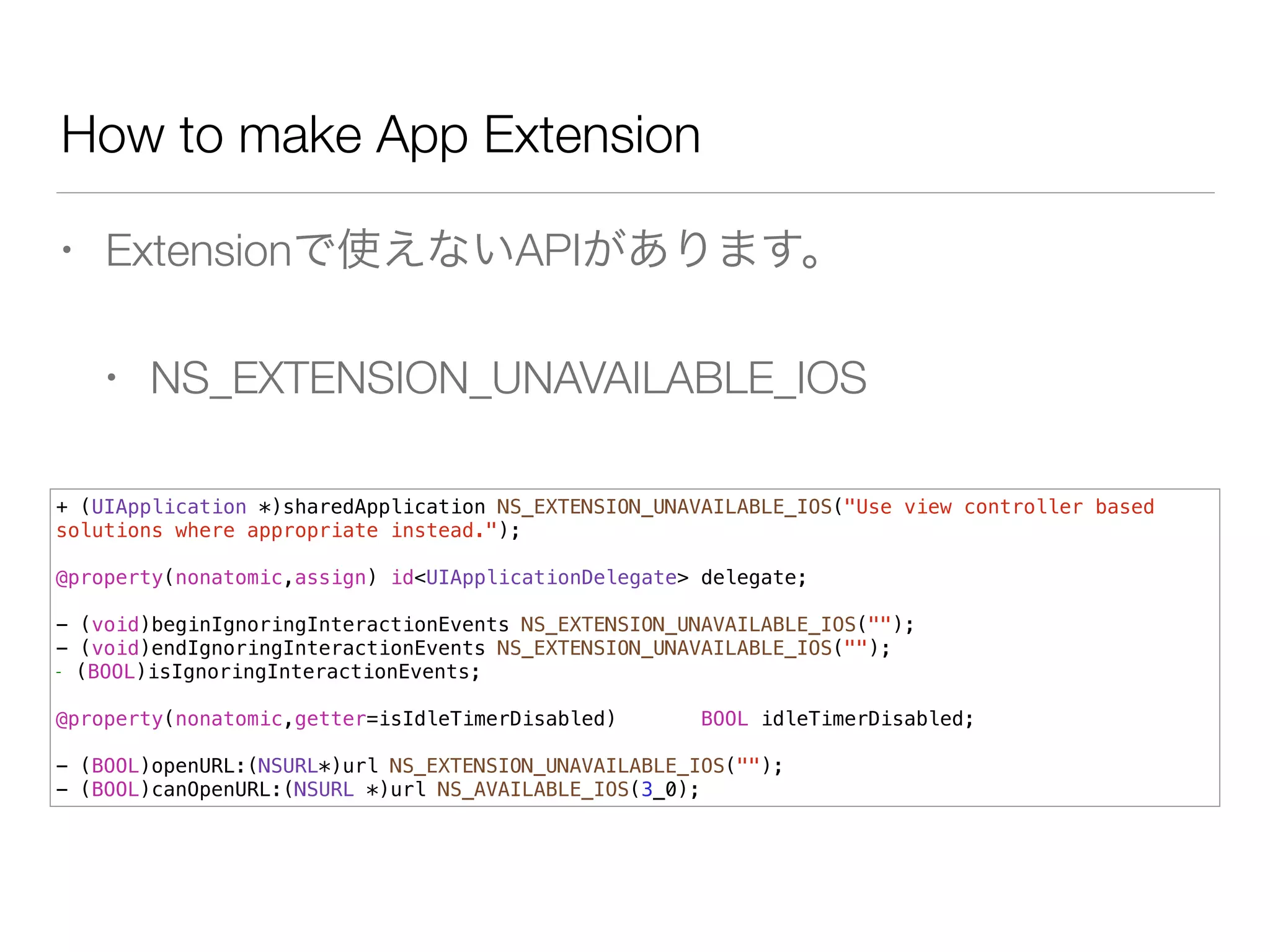

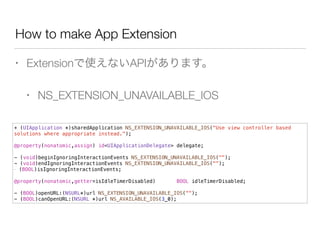

How to make App Extension
• Extensionで使えないAPIがあります。
• NS_EXTENSION_UNAVAILABLE_IOS
+ (UIApplication *)sharedApplication NS_EXTENSION_UNAVAILABLE_IOS("Use view controller based
solutions where appropriate instead.");
!
@property(nonatomic,assign) id<UIApplicationDelegate> delegate;
!
- (void)beginIgnoringInteractionEvents NS_EXTENSION_UNAVAILABLE_IOS("");
- (void)endIgnoringInteractionEvents NS_EXTENSION_UNAVAILABLE_IOS("");
- (BOOL)isIgnoringInteractionEvents;
!
@property(nonatomic,getter=isIdleTimerDisabled) BOOL idleTimerDisabled;
!
- (BOOL)openURL:(NSURL*)url NS_EXTENSION_UNAVAILABLE_IOS("");
- (BOOL)canOpenURL:(NSURL *)url NS_AVAILABLE_IOS(3_0);

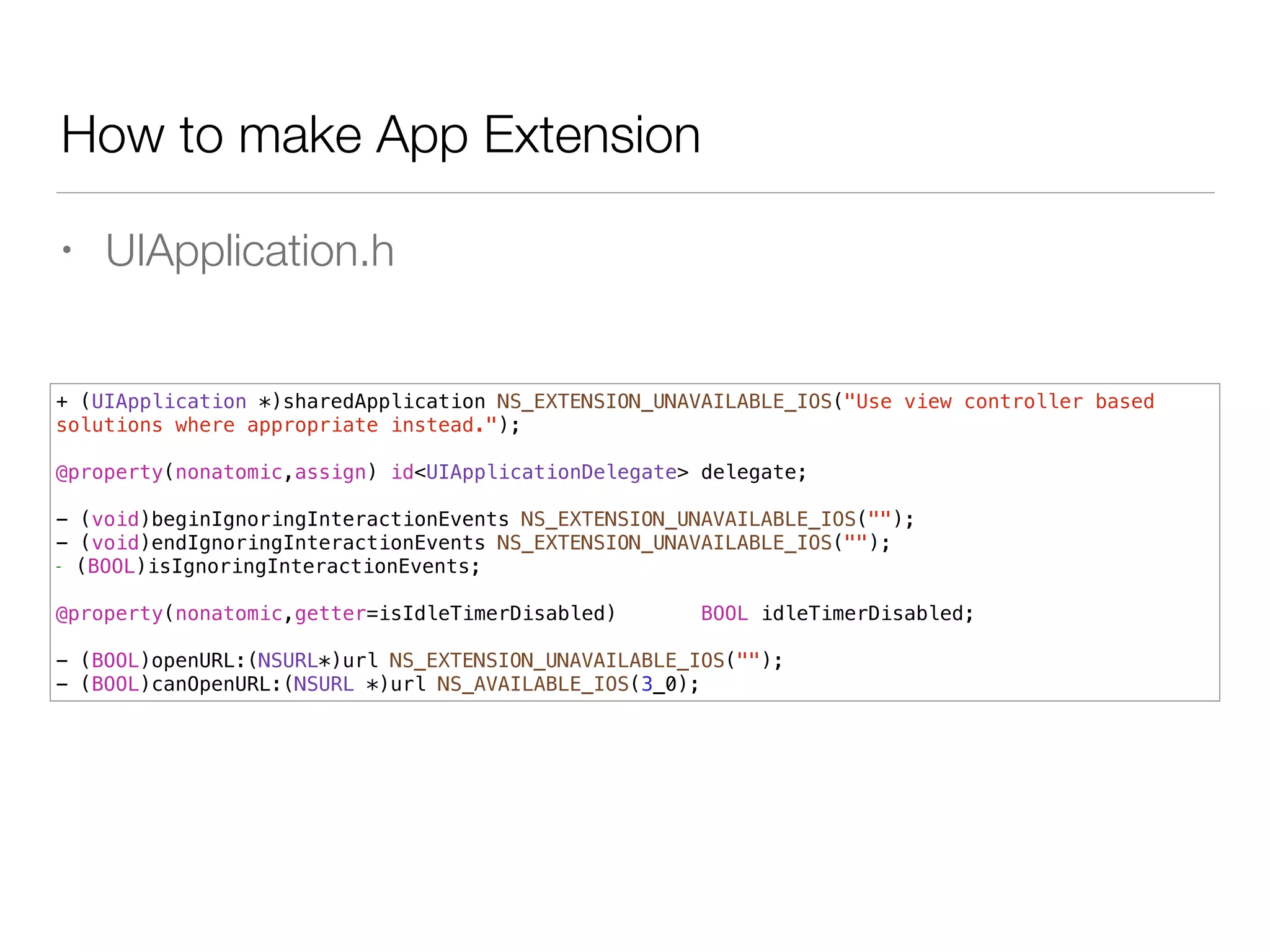

How to make App Extension
• UIApplication.h
+ (UIApplication *)sharedApplication NS_EXTENSION_UNAVAILABLE_IOS("Use view controller based
solutions where appropriate instead.");
!
@property(nonatomic,assign) id<UIApplicationDelegate> delegate;
!
- (void)beginIgnoringInteractionEvents NS_EXTENSION_UNAVAILABLE_IOS("");
- (void)endIgnoringInteractionEvents NS_EXTENSION_UNAVAILABLE_IOS("");
- (BOOL)isIgnoringInteractionEvents;
!
@property(nonatomic,getter=isIdleTimerDisabled) BOOL idleTimerDisabled;
!
- (BOOL)openURL:(NSURL*)url NS_EXTENSION_UNAVAILABLE_IOS("");
- (BOOL)canOpenURL:(NSURL *)url NS_AVAILABLE_IOS(3_0);

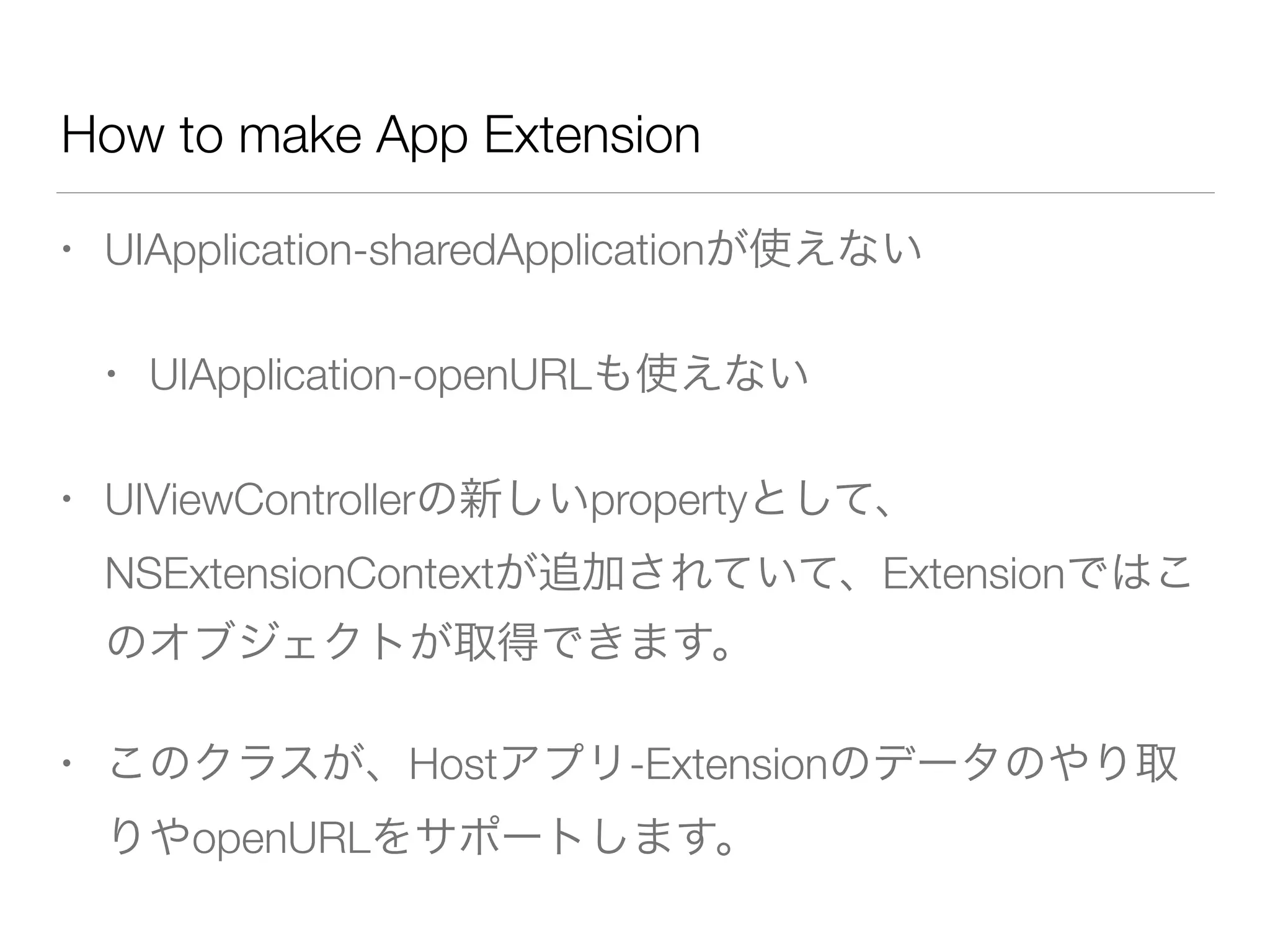

How to make App Extension
• UIApplication-sharedApplicationが使えない
• UIApplication-openURLも使えない
• UIViewControllerの新しいpropertyとして、
NSExtensionContextが追加されていて、Extensionではこ
のオブジェクトが取得できます。
• このクラスが、Hostアプリ-Extensionのデータのやり取
りやopenURLをサポートします。

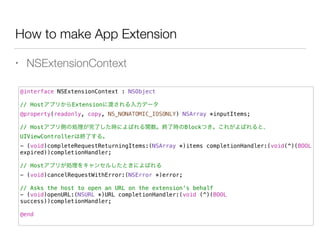

How to make App Extension
• NSExtensionContext
@interface NSExtensionContext : NSObject
!
// HostアプリからExtensionに渡される入力データ
@property(readonly, copy, NS_NONATOMIC_IOSONLY) NSArray *inputItems;
!
// Hostアプリ側の処理が完了した時によばれる関数。終了時のBlockつき。これがよばれると、
UIViewControllerは終了する。
- (void)completeRequestReturningItems:(NSArray *)items completionHandler:(void(^)(BOOL
expired))completionHandler;
!
// Hostアプリが処理をキャンセルしたときによばれる
- (void)cancelRequestWithError:(NSError *)error;
!
// Asks the host to open an URL on the extension's behalf
- (void)openURL:(NSURL *)URL completionHandler:(void (^)(BOOL
success))completionHandler;
!
@end
How to make App Extension

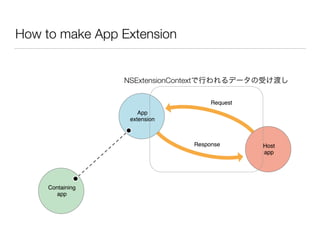

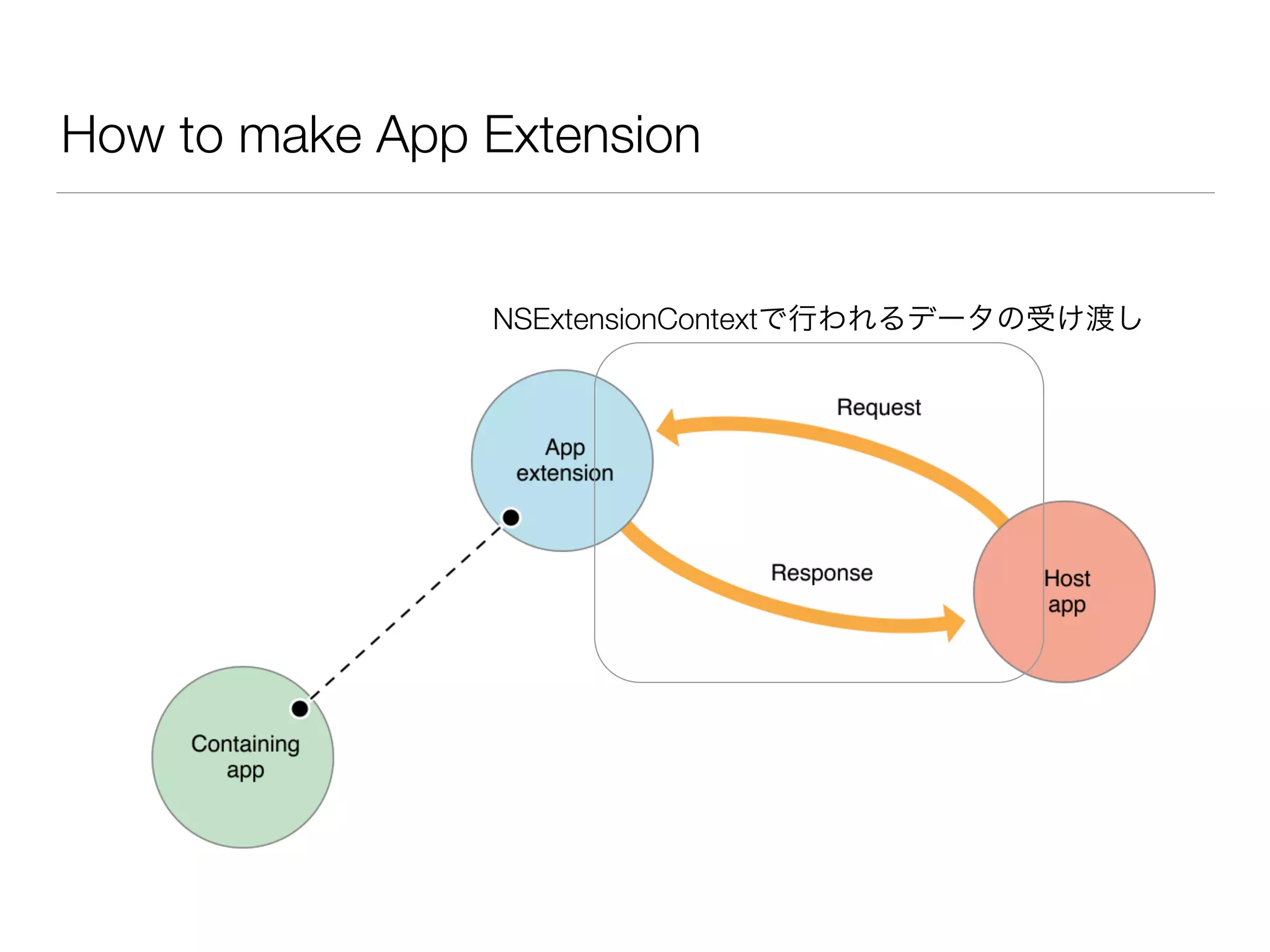

NSExtensionContextで行われるデータの受け渡し

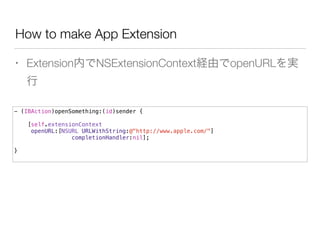

How to make App Extension
• Extension内でNSExtensionContext経由でopenURLを実
行
- (IBAction)openSomething:(id)sender {
[self.extensionContext
openURL:[NSURL URLWithString:@"http://www.apple.com/"]
completionHandler:nil];
!
}

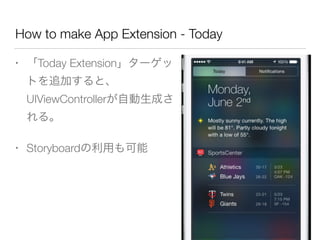

How to make App Extension - Today
• 「Today Extension」ターゲッ
トを追加すると、
UIViewControllerが自動生成さ
れる。
• Storyboardの利用も可能

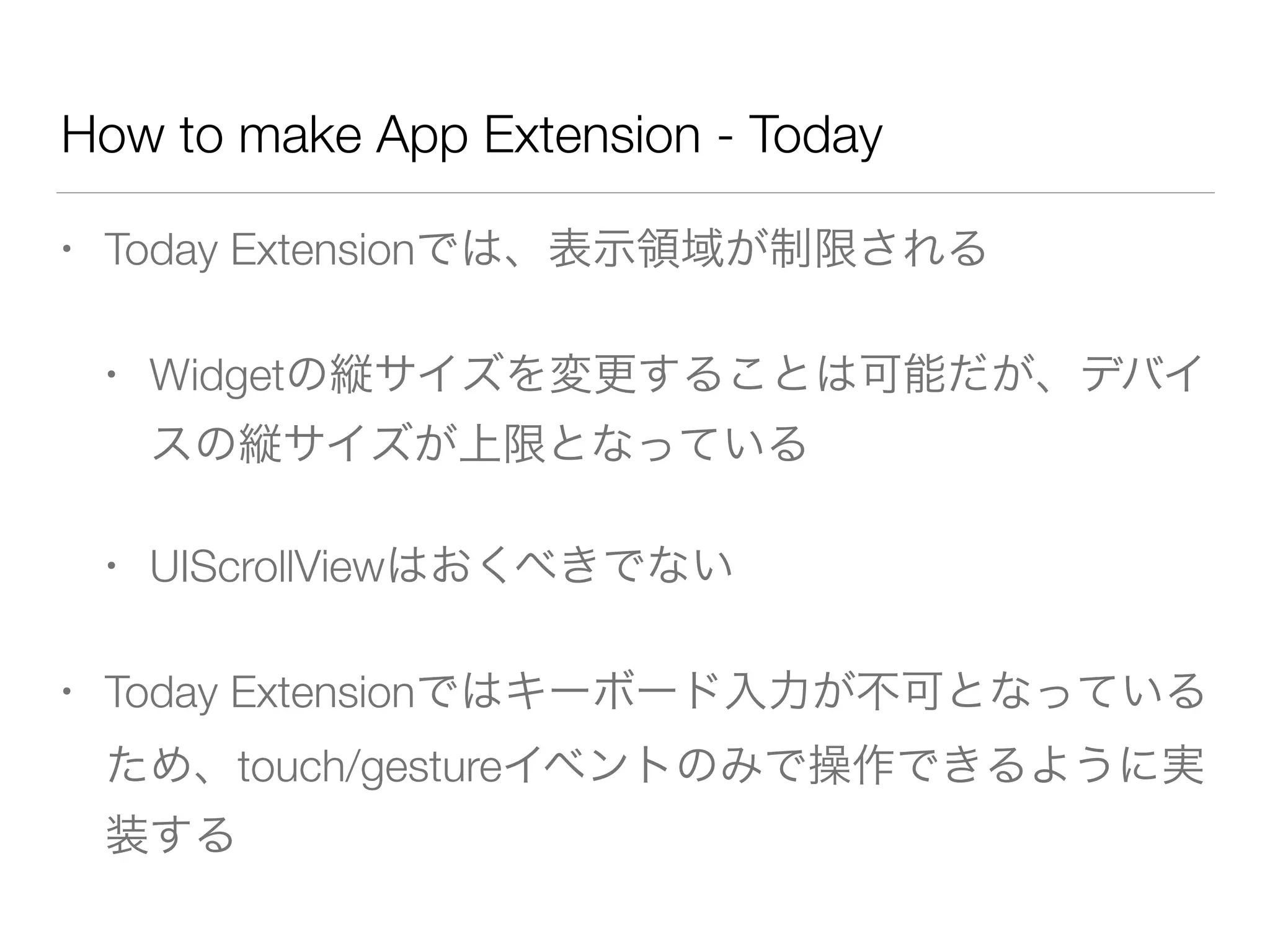

How to make App Extension - Today
• Today Extensionでは、表示領域が制限される
• Widgetの縦サイズを変更することは可能だが、デバイ
スの縦サイズが上限となっている
• UIScrollViewはおくべきでない
• Today Extensionではキーボード入力が不可となっている
ため、touch/gestureイベントのみで操作できるように実
装する

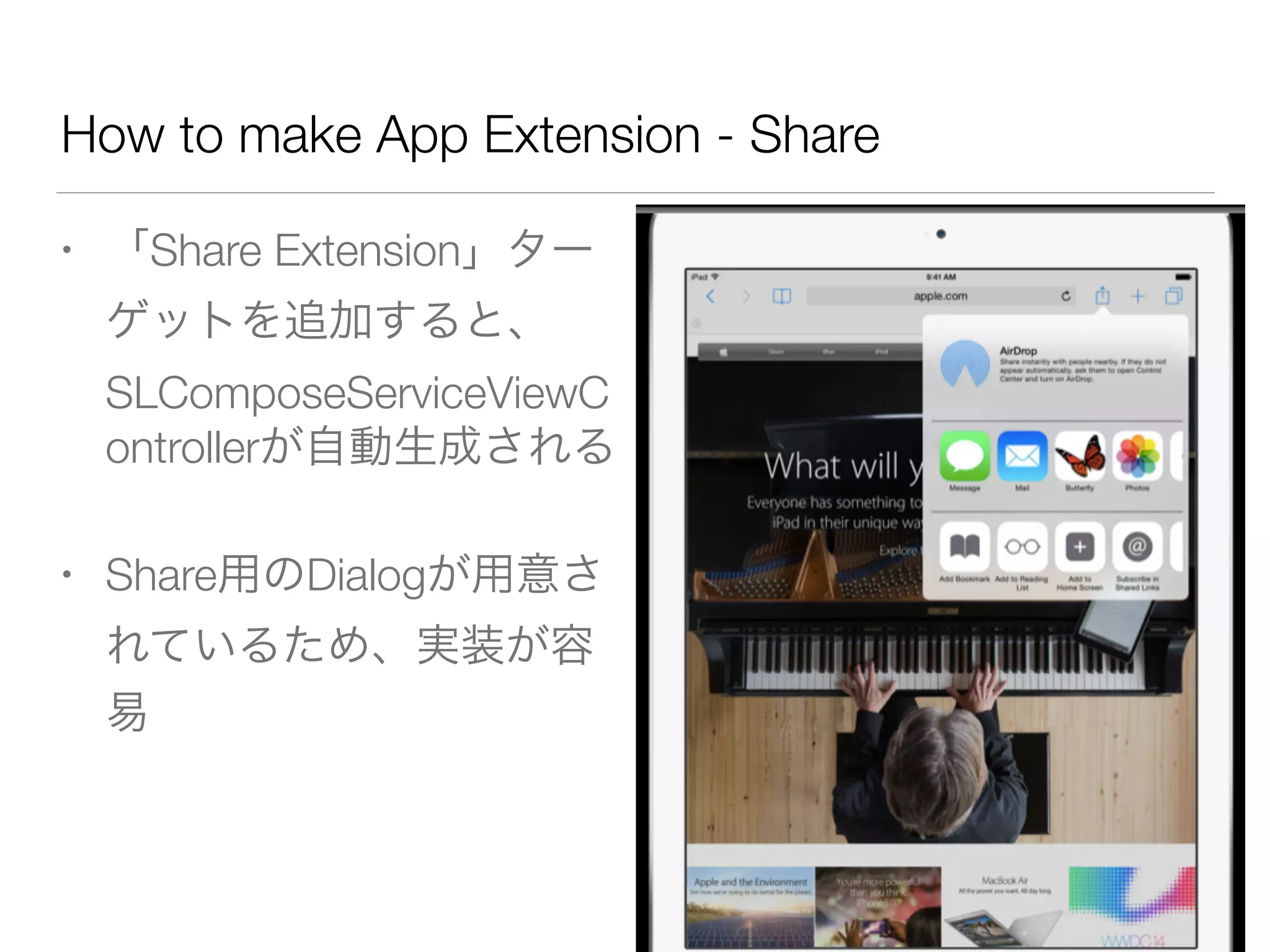

How to make App Extension - Share
• 「Share Extension」ター
ゲットを追加すると、
SLComposeServiceViewC
ontrollerが自動生成される
• Share用のDialogが用意さ
れているため、実装が容
易

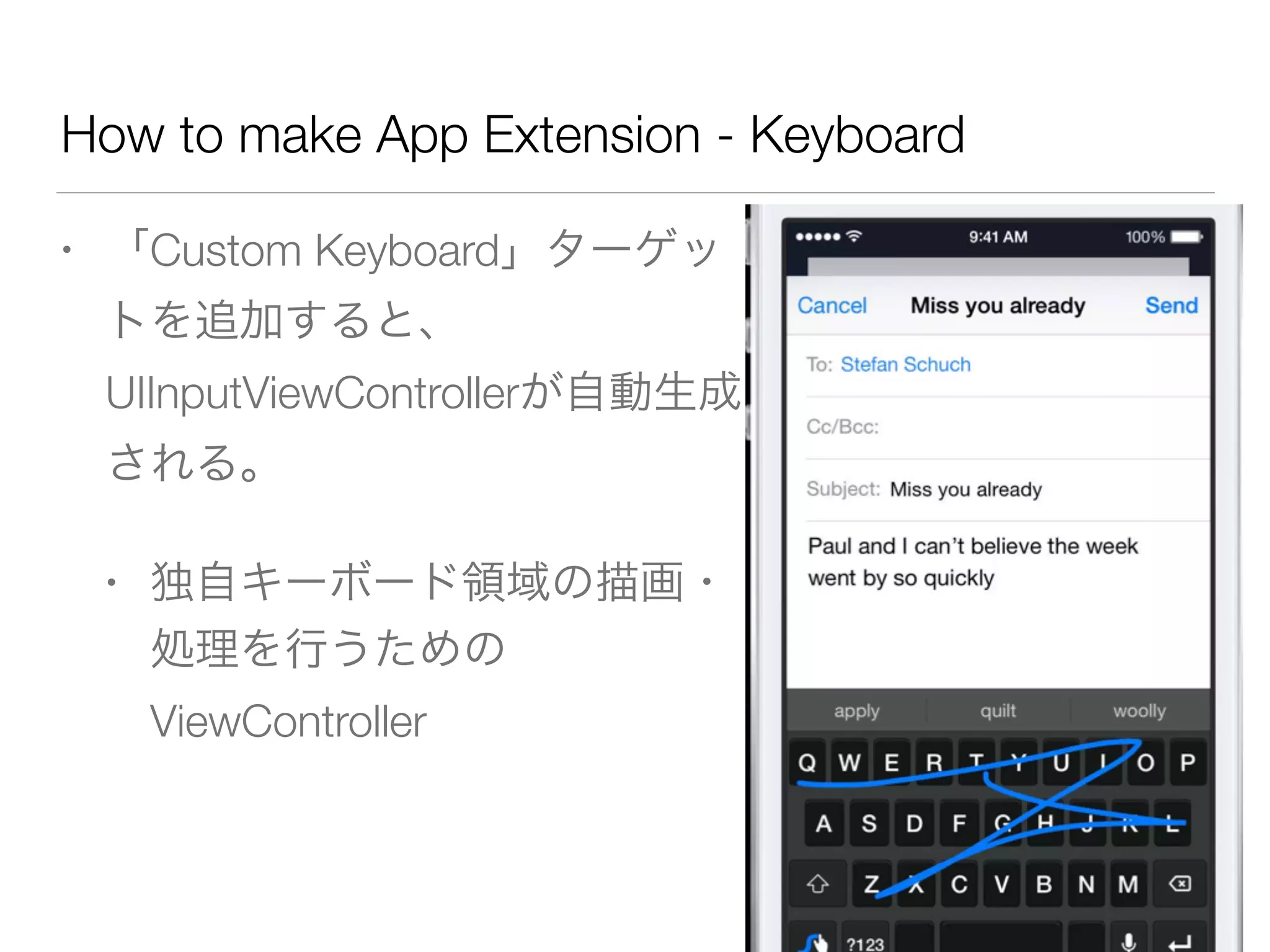

How to make App Extension - Keyboard
• 「Custom Keyboard」ターゲッ
トを追加すると、
UIInputViewControllerが自動生成
される。
• 独自キーボード領域の描画・
処理を行うための
ViewController

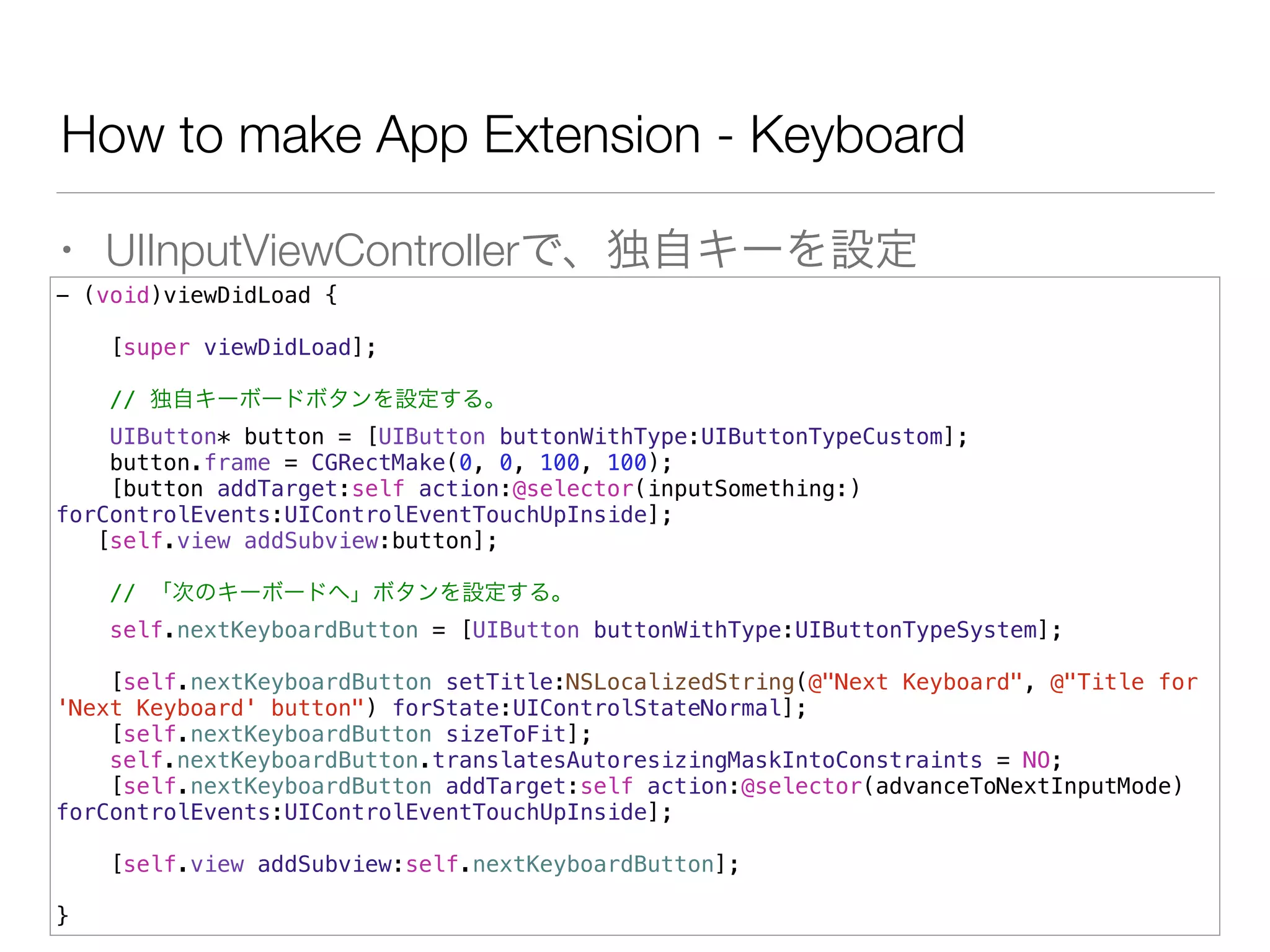

How to make App Extension - Keyboard
• UIInputViewControllerで、独自キーを設定
- (void)viewDidLoad {
[super viewDidLoad];
// 独自キーボードボタンを設定する。
UIButton* button = [UIButton buttonWithType:UIButtonTypeCustom];
button.frame = CGRectMake(0, 0, 100, 100);
[button addTarget:self action:@selector(inputSomething:)
forControlEvents:UIControlEventTouchUpInside];
[self.view addSubview:button];
// 「次のキーボードへ」ボタンを設定する。
self.nextKeyboardButton = [UIButton buttonWithType:UIButtonTypeSystem];
[self.nextKeyboardButton setTitle:NSLocalizedString(@"Next Keyboard", @"Title for
'Next Keyboard' button") forState:UIControlStateNormal];
[self.nextKeyboardButton sizeToFit];
self.nextKeyboardButton.translatesAutoresizingMaskIntoConstraints = NO;
[self.nextKeyboardButton addTarget:self action:@selector(advanceToNextInputMode)
forControlEvents:UIControlEventTouchUpInside];
[self.view addSubview:self.nextKeyboardButton];
}

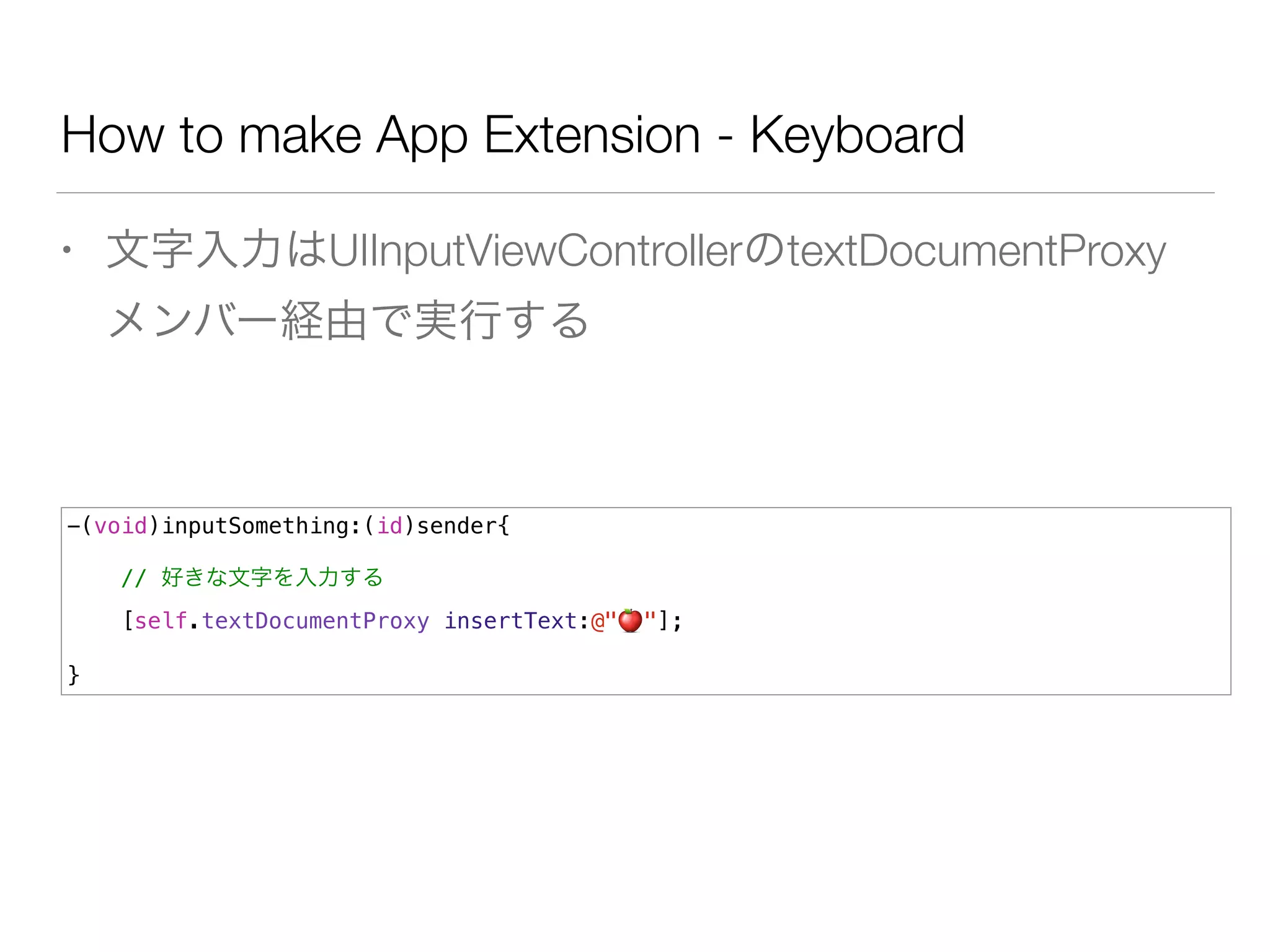

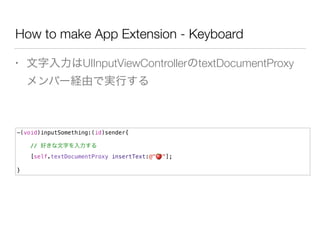

How to make App Extension - Keyboard
• 文字入力はUIInputViewControllerのtextDocumentProxy
メンバー経由で実行する
-(void)inputSomething:(id)sender{
// 好きな文字を入力する
[self.textDocumentProxy insertText:@"🍎 "];
}

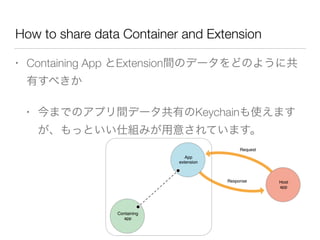

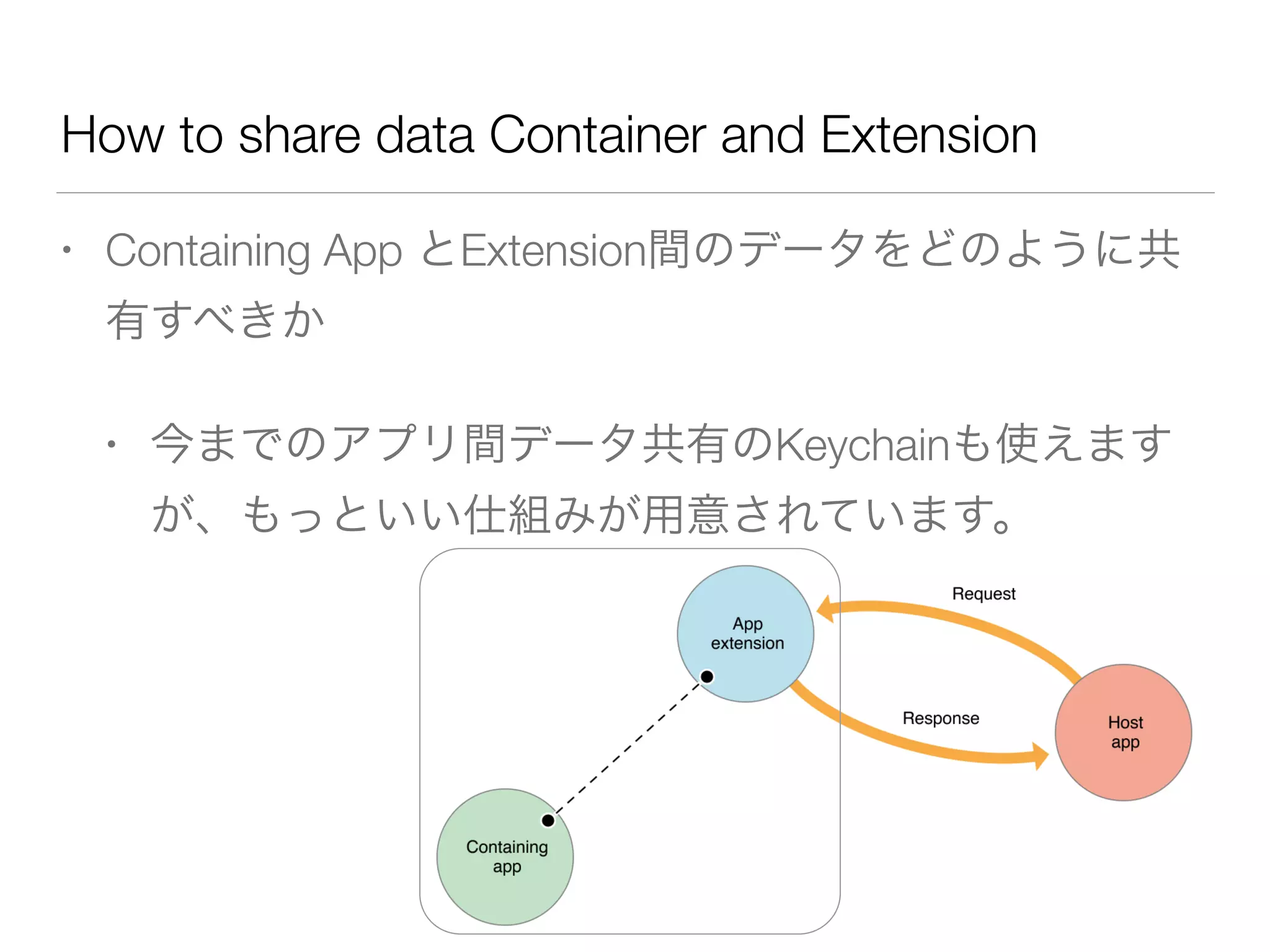

How to share data Container and Extension
• Containing App とExtension間のデータをどのように共
有すべきか
• 今までのアプリ間データ共有のKeychainも使えます
が、もっといい仕組みが用意されています。

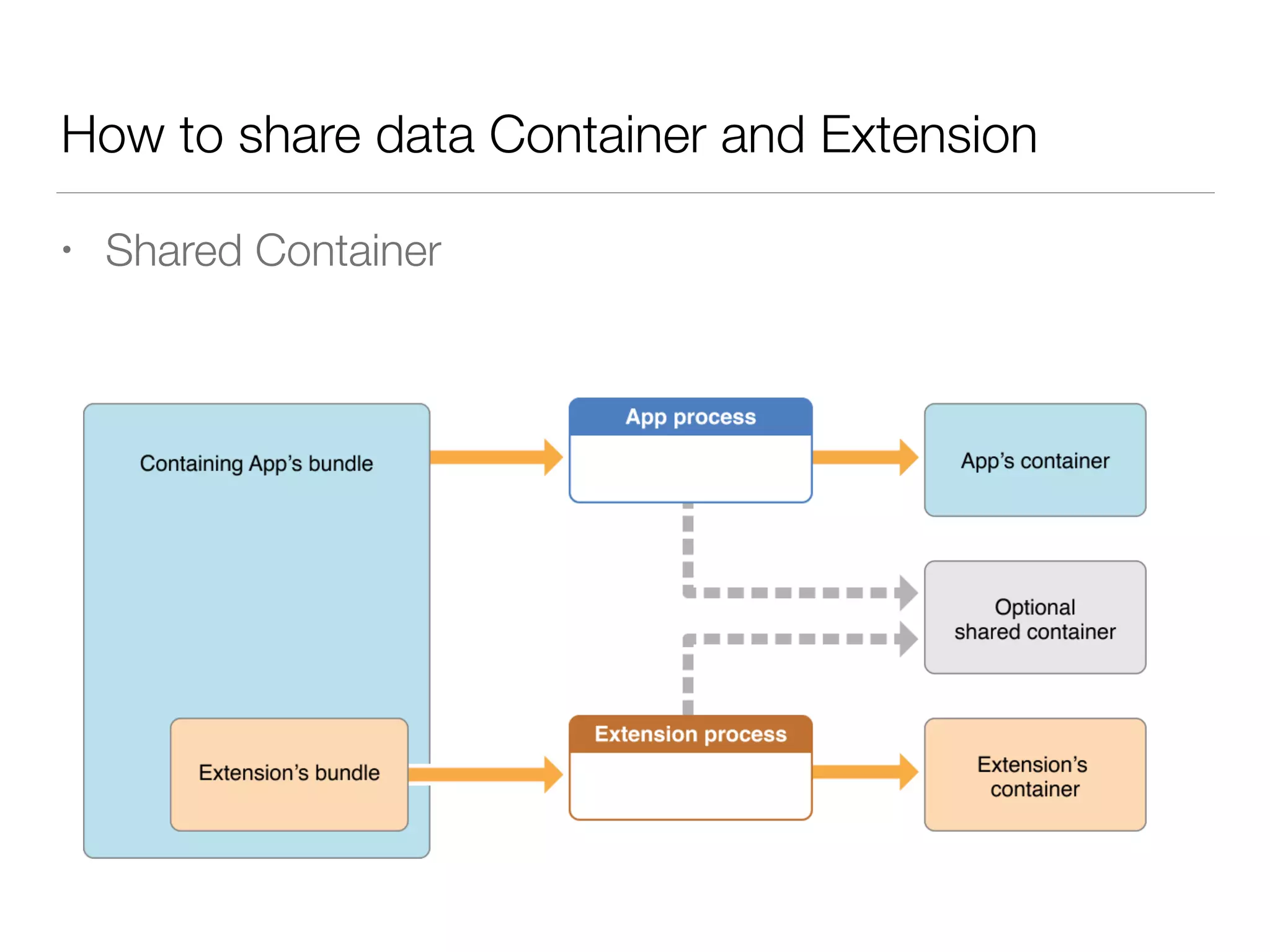

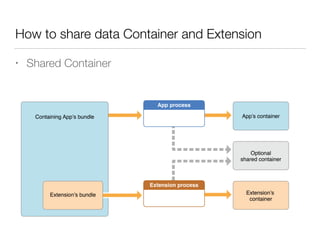

How to share data Container and Extension
• Shared Container

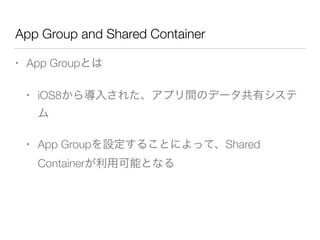

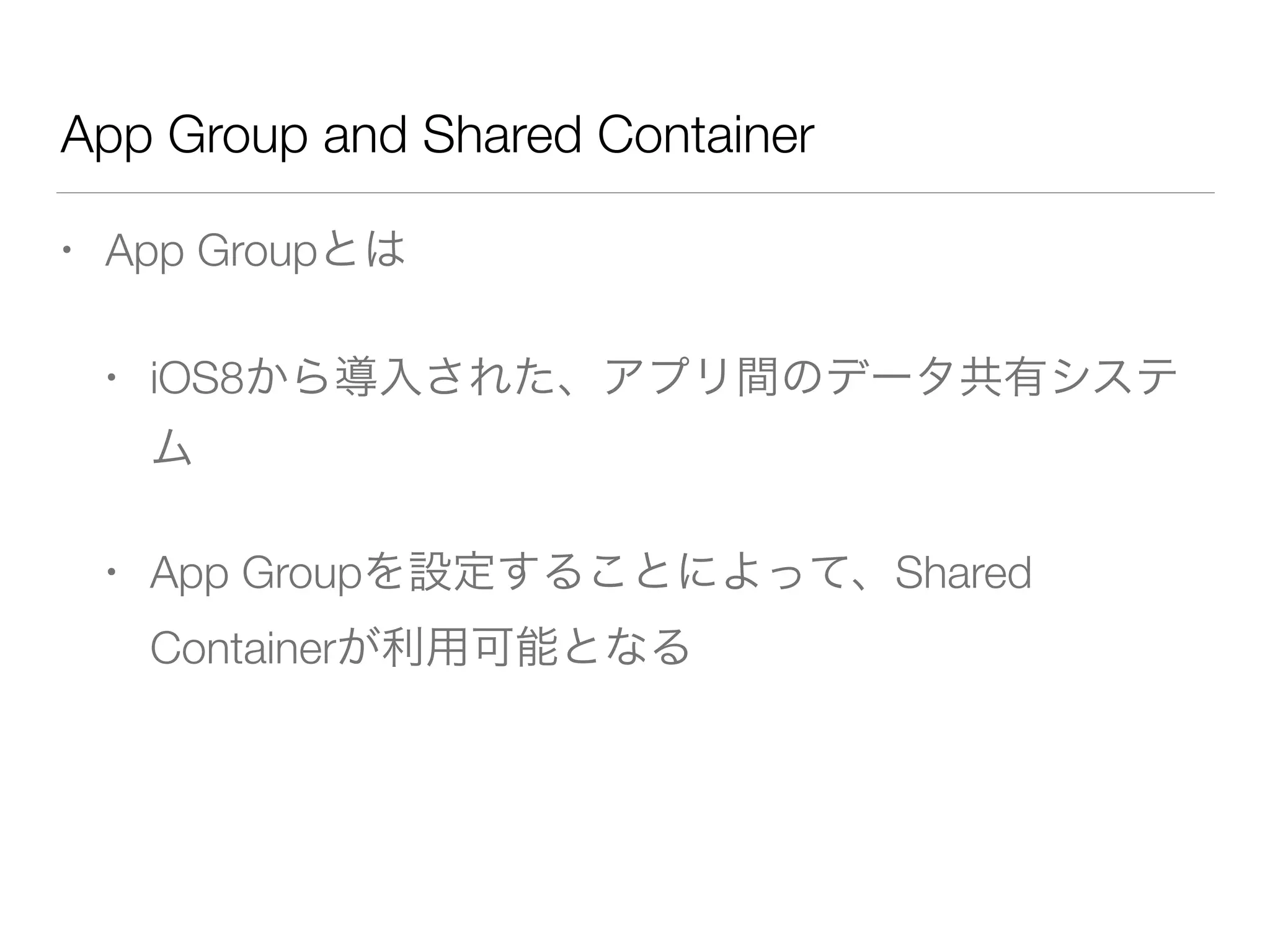

App Group and Shared Container
• App Groupとは
• iOS8から導入された、アプリ間のデータ共有システ
ム
• App Groupを設定することによって、Shared
Containerが利用可能となる

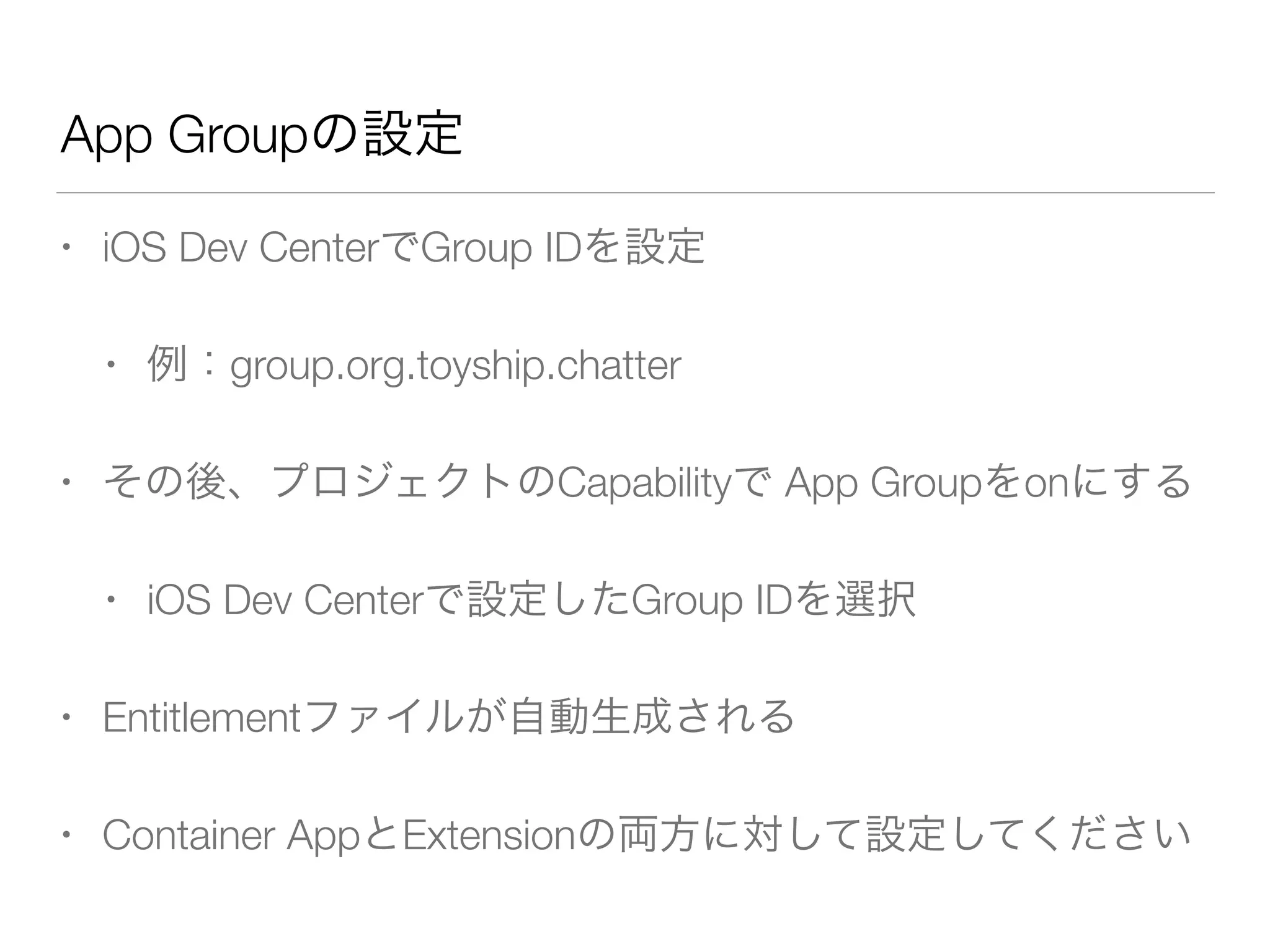

App Groupの設定
• iOS Dev CenterでGroup IDを設定
• 例:group.org.toyship.chatter
• その後、プロジェクトのCapabilityで App Groupをonにする
• iOS Dev Centerで設定したGroup IDを選択
• Entitlementファイルが自動生成される
• Container AppとExtensionの両方に対して設定してください

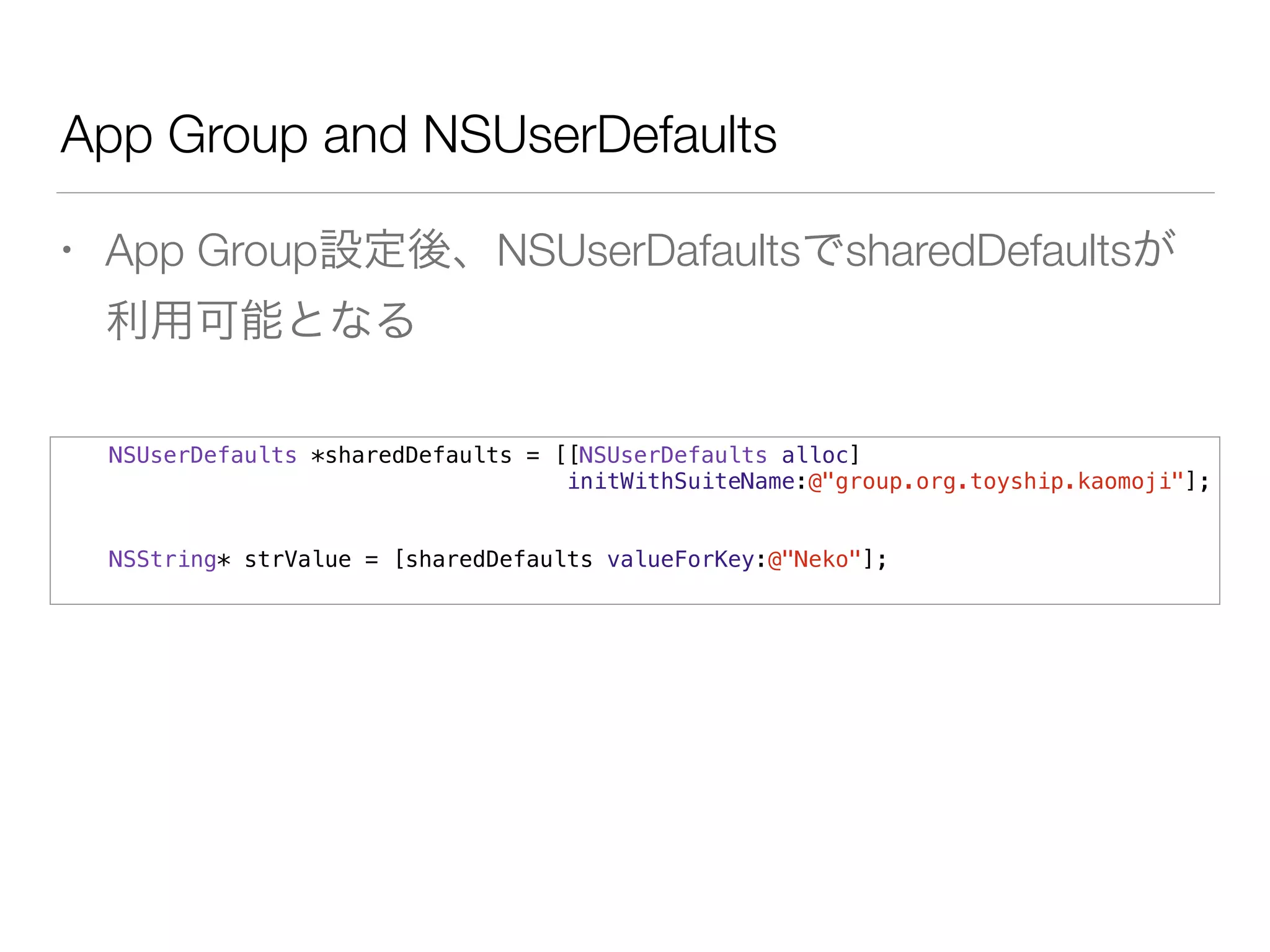

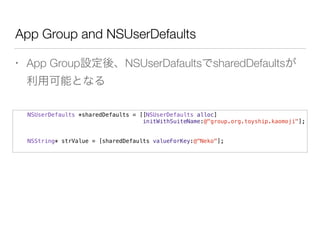

App Group and NSUserDefaults
• App Group設定後、NSUserDafaultsでsharedDefaultsが
利用可能となる
NSUserDefaults *sharedDefaults = [[NSUserDefaults alloc]
initWithSuiteName:@"group.org.toyship.kaomoji"];
NSString* strValue = [sharedDefaults valueForKey:@"Neko"];

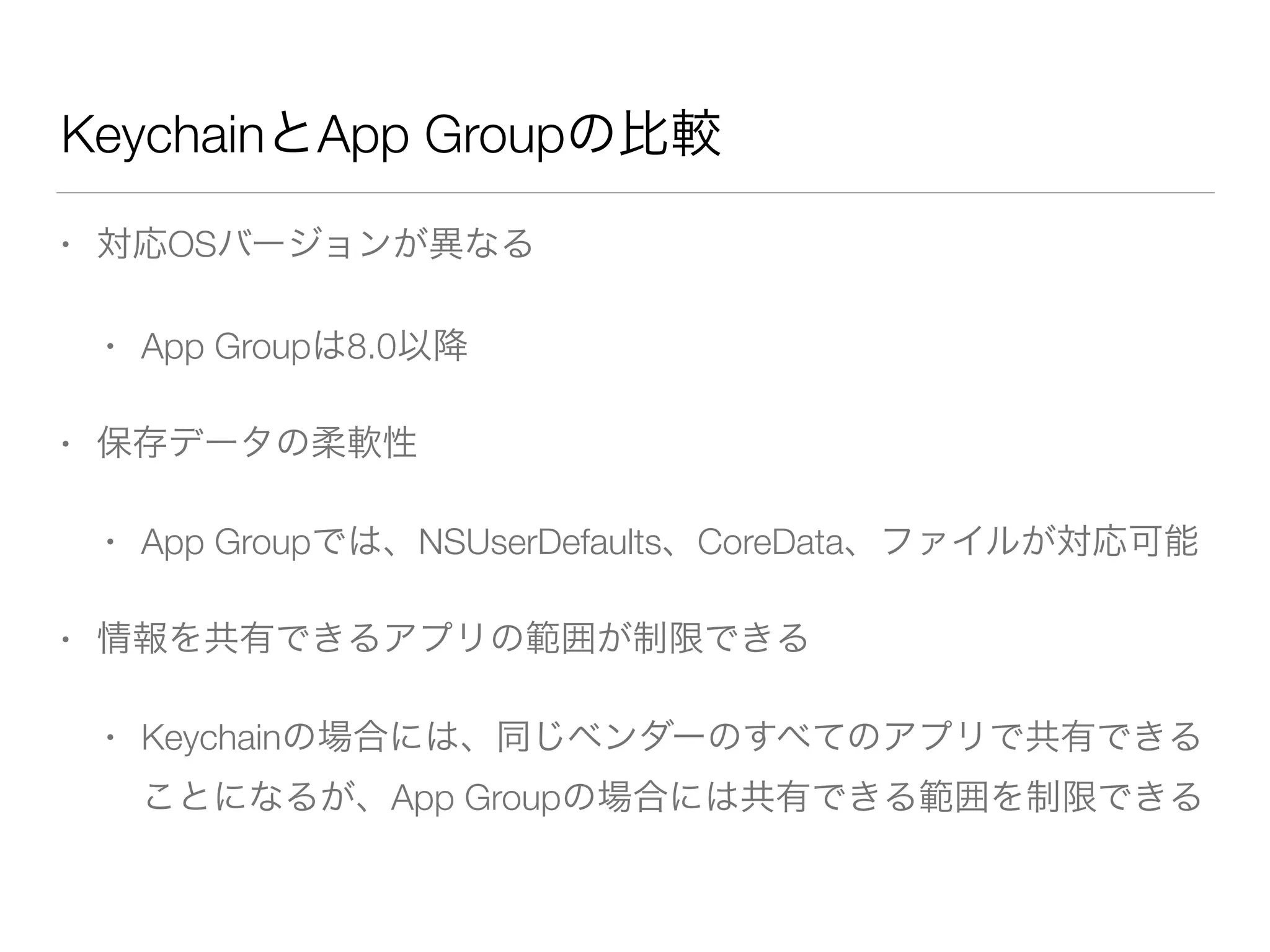

KeychainとApp Groupの比較
• 対応OSバージョンが異なる
• App Groupは8.0以降
• 保存データの柔軟性
• App Groupでは、NSUserDefaults、CoreData、ファイルが対応可能
• 情報を共有できるアプリの範囲が制限できる
• Keychainの場合には、同じベンダーのすべてのアプリで共有できる
ことになるが、App Groupの場合には共有できる範囲を制限できる

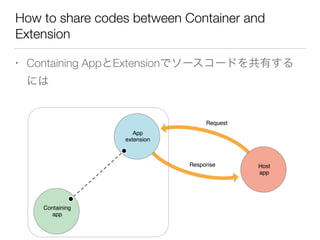

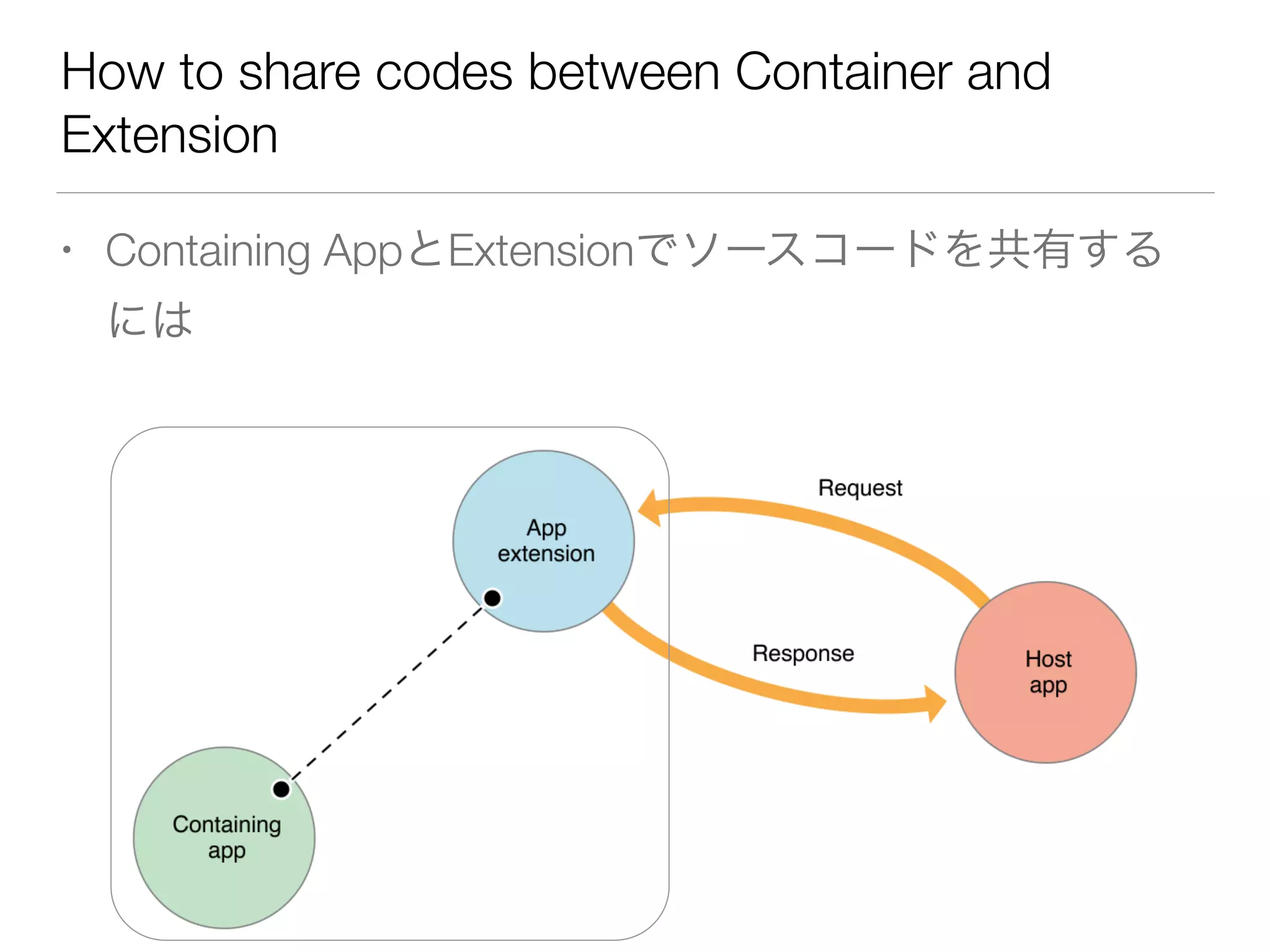

How to share codes between Container and
Extension
• Containing AppとExtensionでソースコードを共有する
には

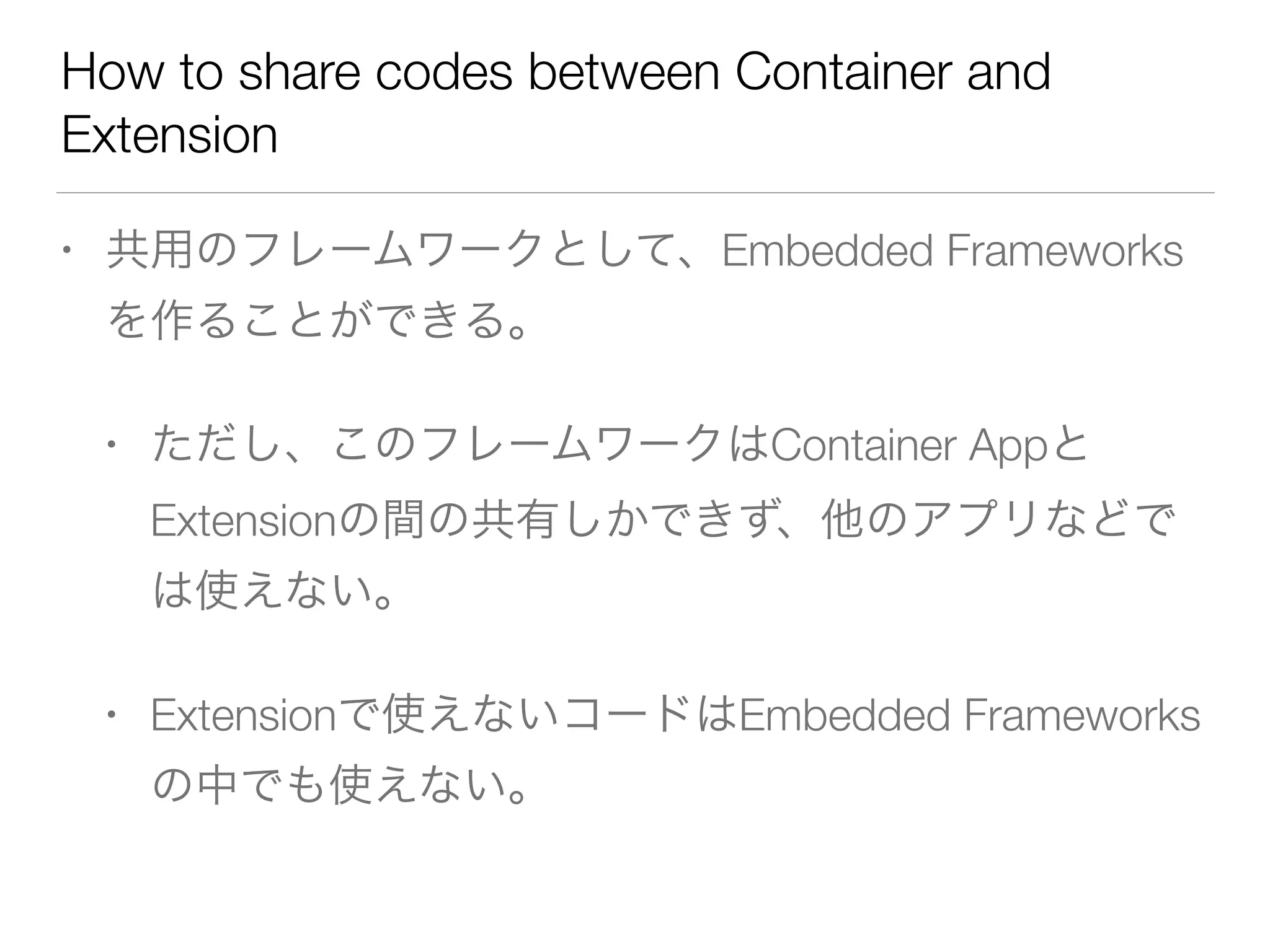

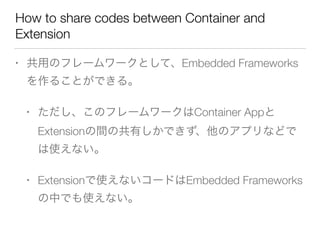

How to share codes between Container and
Extension
• 共用のフレームワークとして、Embedded Frameworks
を作ることができる。
• ただし、このフレームワークはContainer Appと
Extensionの間の共有しかできず、他のアプリなどで
は使えない。
• Extensionで使えないコードはEmbedded Frameworks
の中でも使えない。

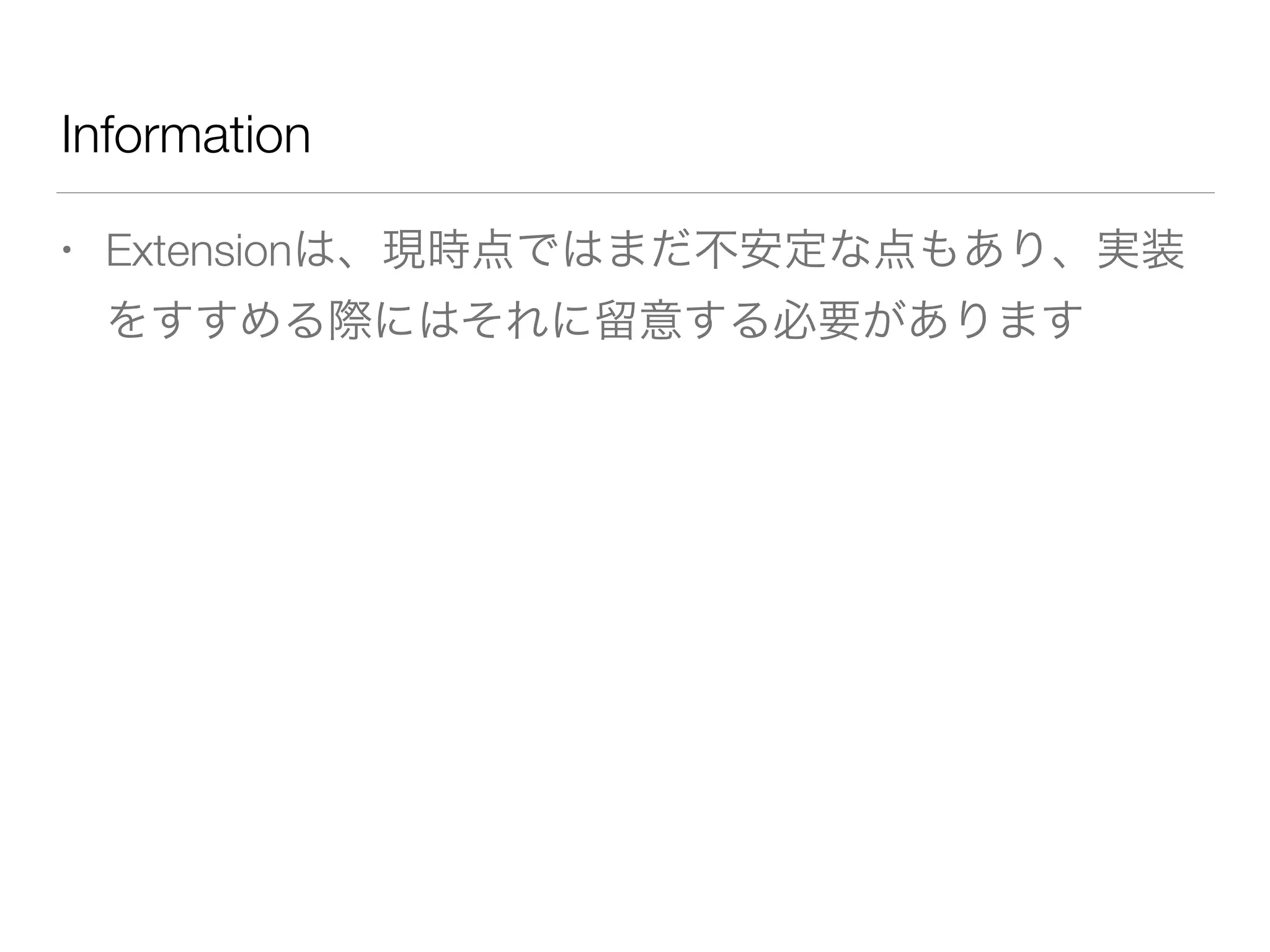

Information
• Extensionは、現時点ではまだ不安定な点もあり、実装
をすすめる際にはそれに留意する必要があります

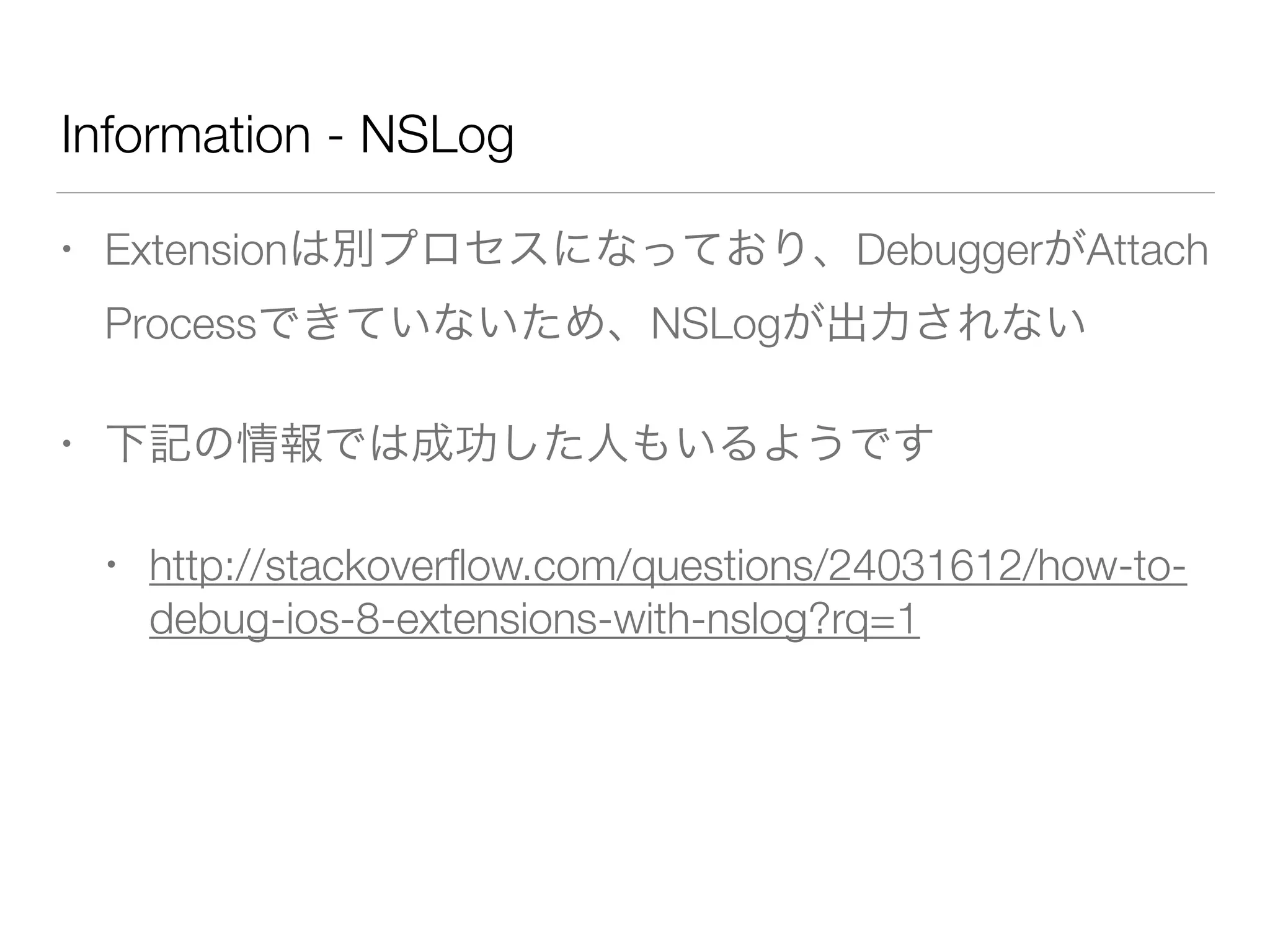

Information - NSLog
• Extensionは別プロセスになっており、DebuggerがAttach
Processできていないため、NSLogが出力されない
• 下記の情報では成功した人もいるようです
• http://stackoverflow.com/questions/24031612/how-to-
debug-ios-8-extensions-with-nslog?rq=1
!

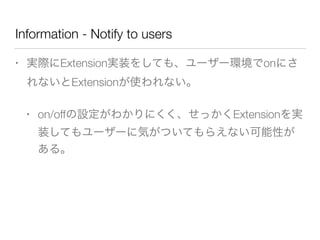

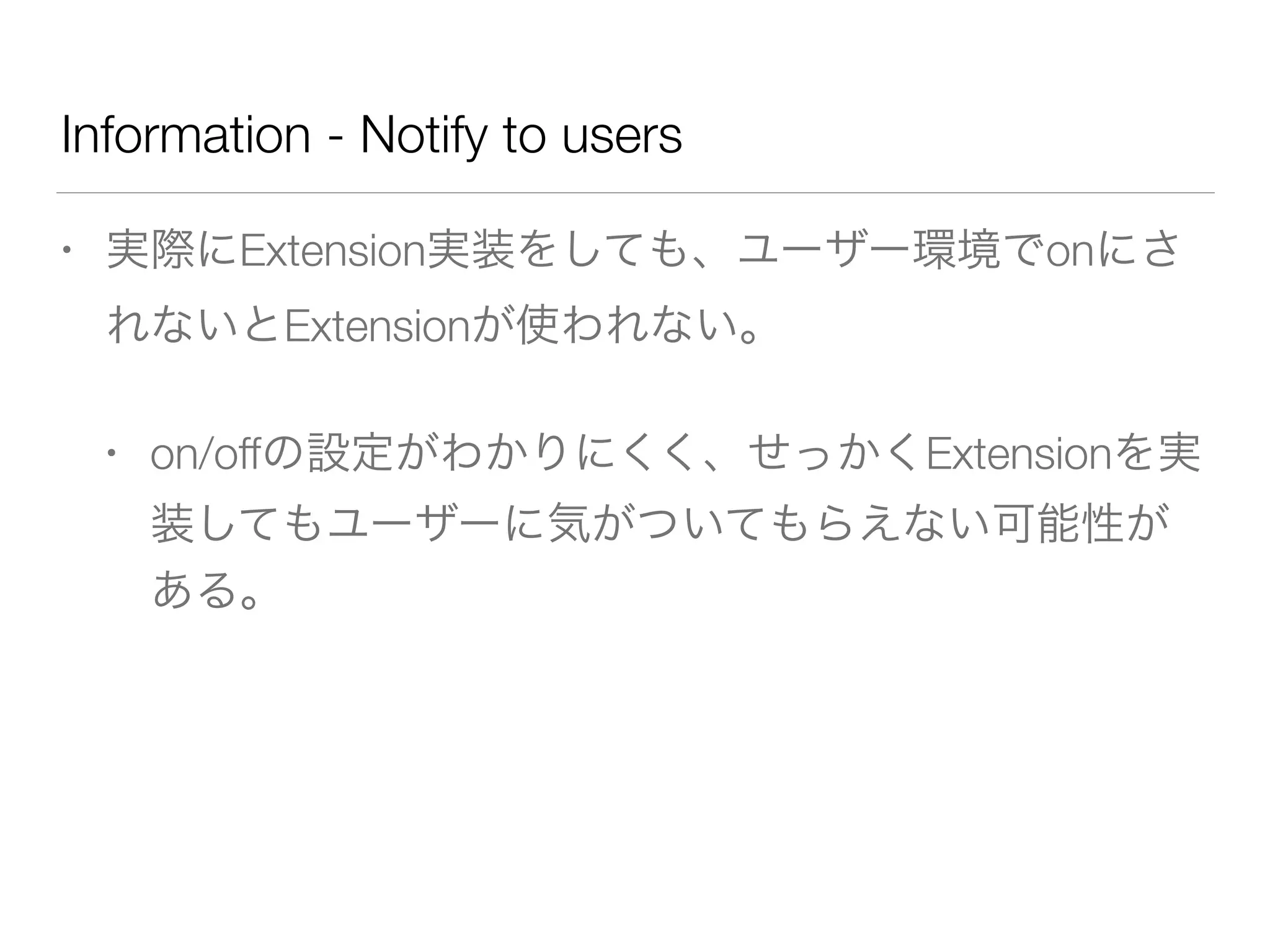

Information - Notify to users
• 実際にExtension実装をしても、ユーザー環境でonにさ
れないとExtensionが使われない。
• on/offの設定がわかりにくく、せっかくExtensionを実
装してもユーザーに気がついてもらえない可能性が
ある。
Fin
