Anatomy-Physiol-Lecture08-Nervous-System

Functions of the Nervous System
1. Sensory input—gathering information
§ Sensory receptors monitor changes, called stimuli,
occurring inside and outside the body
2. Integration
§ Nervous system processes and interprets sensory
input and decides whether action is needed
3. Motor output
§ A response, or effect, activates muscles or glands
© 2018 Pearson Education, Inc.

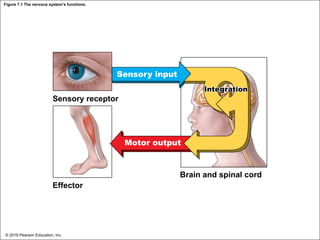

Figure 7.1 The nervous system’s functions.
Sensory input
Sensory receptor
Motor output
Brain and spinal cord
Effector
Integration

Organization of the Nervous System
§ Nervous system classifications are based on:
§ Structures (structural classification)
§ Activities (functional classification)

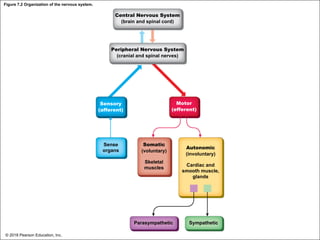

Figure 7.2 Organization of the nervous system.
Central Nervous System
(brain and spinal cord)
Peripheral Nervous System
(cranial and spinal nerves)
Sensory
(afferent)
Motor
(efferent)
Sense
organs
Somatic
(voluntary)
Skeletal
muscles
Autonomic
(involuntary)
Cardiac and
smooth muscle,
glands
Parasympathetic Sympathetic

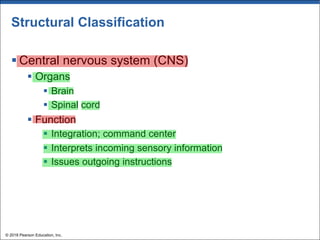

Structural Classification
§ Central nervous system (CNS)
§ Organs
§ Brain
§ Spinal cord
§ Function
§ Integration; command center
§ Interprets incoming sensory information
§ Issues outgoing instructions

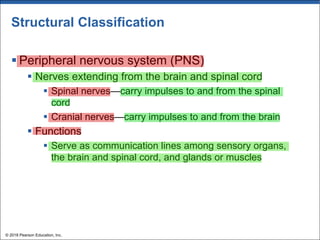

Structural Classification
§ Peripheral nervous system (PNS)
§ Nerves extending from the brain and spinal cord
§ Spinal nerves—carry impulses to and from the spinal
cord
§ Cranial nerves—carry impulses to and from the brain
§ Functions
§ Serve as communication lines among sensory organs,
the brain and spinal cord, and glands or muscles

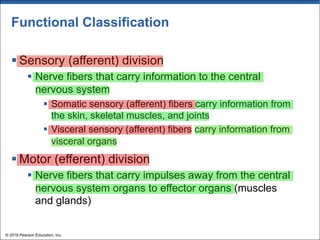

Functional Classification
§ Sensory (afferent) division
§ Nerve fibers that carry information to the central
nervous system
§ Somatic sensory (afferent) fibers carry information from
the skin, skeletal muscles, and joints
§ Visceral sensory (afferent) fibers carry information from
visceral organs
§ Motor (efferent) division
§ Nerve fibers that carry impulses away from the central
nervous system organs to effector organs (muscles
and glands)

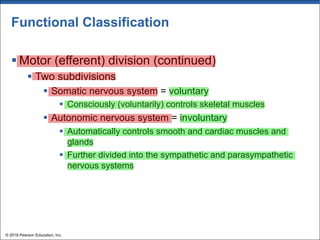

Functional Classification
§ Motor (efferent) division (continued)
§ Two subdivisions
§ Somatic nervous system = voluntary
§ Consciously (voluntarily) controls skeletal muscles
§ Autonomic nervous system = involuntary
§ Automatically controls smooth and cardiac muscles and
glands
§ Further divided into the sympathetic and parasympathetic
nervous systems

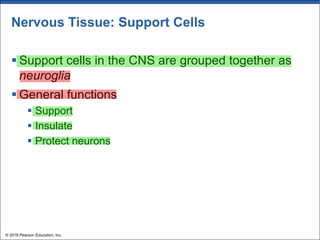

Nervous Tissue: Support Cells
§ Support cells in the CNS are grouped together as
neuroglia
§ General functions
§ Support
§ Insulate
§ Protect neurons

Nervous Tissue: Structure and Function
§ Nervous tissue is made up of two principal cell
types
§ Supporting cells (called neuroglia, or glial cells, or glia)
§ Resemble neurons
§ Unable to conduct nerve impulses
§ Never lose the ability to divide
§ Neurons

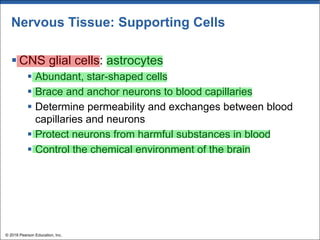

Nervous Tissue: Supporting Cells
§ CNS glial cells: astrocytes
§ Abundant, star-shaped cells
§ Brace and anchor neurons to blood capillaries
§ Determine permeability and exchanges between blood
capillaries and neurons
§ Protect neurons from harmful substances in blood
§ Control the chemical environment of the brain

Figure 7.3a Supporting cells (neuroglia) of nervous tissue.
Capillary
Neuron
Astrocyte
(a) Astrocytes are the most abundant
and versatile neuroglia.

§ CNS glial cells: microglia
§ Spiderlike phagocytes
§ Monitor health of nearby neurons
§ Dispose of debris

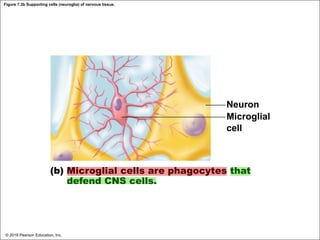

Figure 7.3b Supporting cells (neuroglia) of nervous tissue.
Neuron
Microglial
cell
(b) Microglial cells are phagocytes that
defend CNS cells.

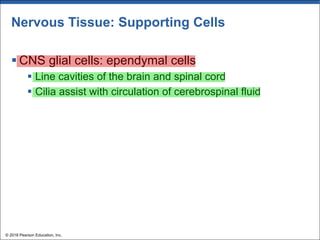

§ CNS glial cells: ependymal cells
§ Line cavities of the brain and spinal cord
§ Cilia assist with circulation of cerebrospinal fluid

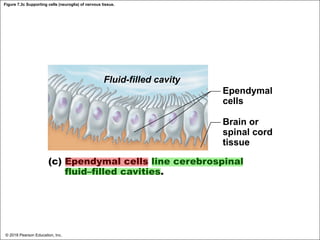

Figure 7.3c Supporting cells (neuroglia) of nervous tissue.
Fluid-filled cavity
Ependymal
cells
Brain or
spinal cord
tissue
(c) Ependymal cells line cerebrospinal
fluid–filled cavities.

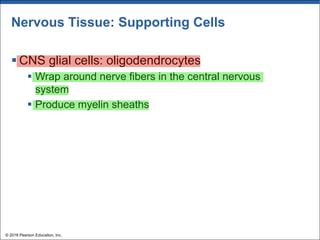

§ CNS glial cells: oligodendrocytes
§ Wrap around nerve fibers in the central nervous
system
§ Produce myelin sheaths

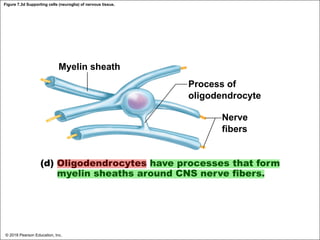

Figure 7.3d Supporting cells (neuroglia) of nervous tissue.
Myelin sheath
Process of
oligodendrocyte
Nerve
fibers
(d) Oligodendrocytes have processes that form
myelin sheaths around CNS nerve fibers.

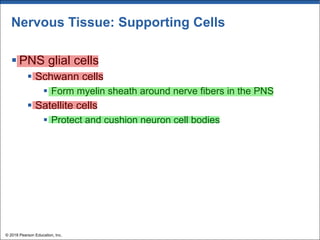

§ PNS glial cells
§ Schwann cells
§ Form myelin sheath around nerve fibers in the PNS
§ Satellite cells
§ Protect and cushion neuron cell bodies

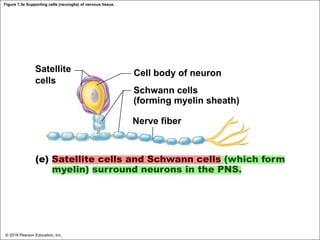

Figure 7.3e Supporting cells (neuroglia) of nervous tissue.
Satellite
cells
Cell body of neuron
Schwann cells
(forming myelin sheath)
Nerve fiber
(e) Satellite cells and Schwann cells (which form
myelin) surround neurons in the PNS.

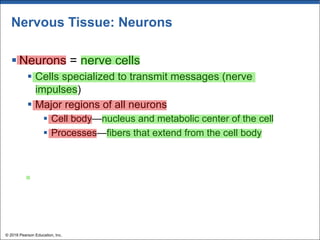

Nervous Tissue: Neurons
§ Neurons = nerve cells
§ Cells specialized to transmit messages (nerve
impulses)
§ Major regions of all neurons
§ Cell body—nucleus and metabolic center of the cell
§ Processes—fibers that extend from the cell body

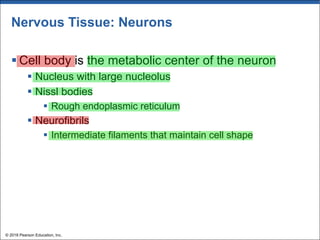

§ Cell body is the metabolic center of the neuron
§ Nucleus with large nucleolus
§ Nissl bodies
§ Rough endoplasmic reticulum
§ Neurofibrils
§ Intermediate filaments that maintain cell shape

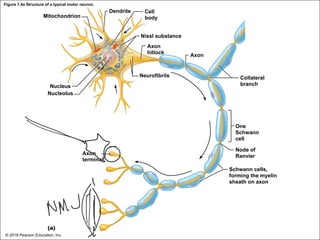

Figure 7.4a Structure of a typical motor neuron.
Mitochondrion
Dendrite Cell
body
Nissl substance
Axon
hillock
Axon
Neurofibrils
Nucleus
Nucleolus
Collateral
branch
One
Schwann
cell
Axon
terminal
Node of
Ranvier
Schwann cells,
forming the myelin
sheath on axon
(a)

Figure 7.4b Structure of a typical motor neuron.
Neuron
cell body
Dendrite
(b)

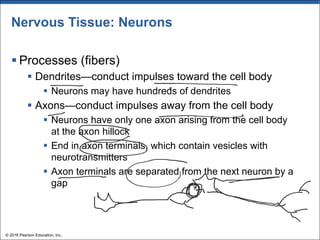

§ Processes (fibers)
§ Dendrites—conduct impulses toward the cell body
§ Neurons may have hundreds of dendrites
§ Axons—conduct impulses away from the cell body
§ Neurons have only one axon arising from the cell body
at the axon hillock
§ End in axon terminals, which contain vesicles with
neurotransmitters
§ Axon terminals are separated from the next neuron by a
gap

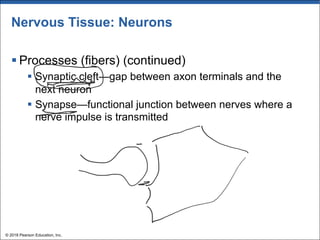

§ Processes (fibers) (continued)
§ Synaptic cleft—gap between axon terminals and the
next neuron
§ Synapse—functional junction between nerves where a
nerve impulse is transmitted

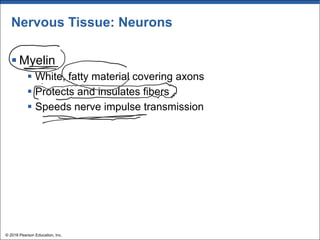

§ Myelin
§ White, fatty material covering axons
§ Protects and insulates fibers
§ Speeds nerve impulse transmission

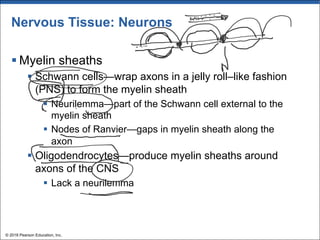

§ Myelin sheaths
§ Schwann cells—wrap axons in a jelly roll–like fashion
(PNS) to form the myelin sheath
§ Neurilemma—part of the Schwann cell external to the
myelin sheath
§ Nodes of Ranvier—gaps in myelin sheath along the
axon
§ Oligodendrocytes—produce myelin sheaths around
axons of the CNS
§ Lack a neurilemma

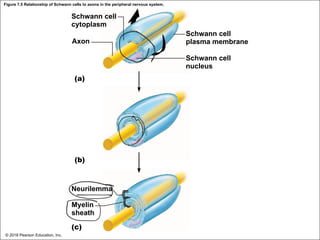

Figure 7.5 Relationship of Schwann cells to axons in the peripheral nervous system.
Schwann cell
cytoplasm
Axon
Schwann cell
plasma membrane
Schwann cell
nucleus
(a)
(b)
Neurilemma
Myelin
sheath
(c)

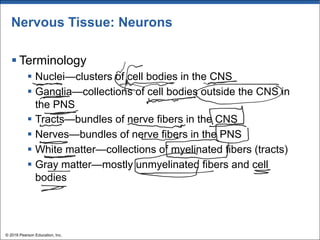

§ Terminology
§ Nuclei—clusters of cell bodies in the CNS
§ Ganglia—collections of cell bodies outside the CNS in
the PNS
§ Tracts—bundles of nerve fibers in the CNS
§ Nerves—bundles of nerve fibers in the PNS
§ White matter—collections of myelinated fibers (tracts)
§ Gray matter—mostly unmyelinated fibers and cell
bodies

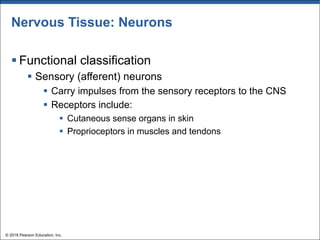

§ Functional classification
§ Sensory (afferent) neurons
§ Carry impulses from the sensory receptors to the CNS
§ Receptors include:
§ Cutaneous sense organs in skin
§ Proprioceptors in muscles and tendons

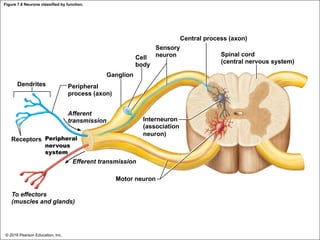

Figure 7.6 Neurons classified by function.
Cell
body
Ganglion
Dendrites Peripheral
process (axon)
Afferent
transmission
Receptors Peripheral
nervous
system
Central process (axon)
Sensory
neuron Spinal cord
(central nervous system)
Interneuron
(association
neuron)
Efferent transmission
Motor neuron
To effectors
(muscles and glands)

Figure 7.7a Types of sensory receptors.
(a) Free nerve endings (pain
and temperature receptors)

Figure 7.7b Types of sensory receptors.
(b) Meissner’s corpuscle
(touch receptor)

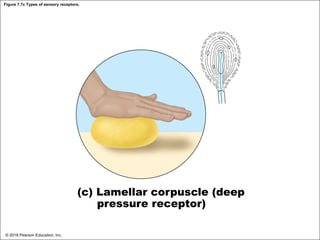

Figure 7.7c Types of sensory receptors.
(c) Lamellar corpuscle (deep
pressure receptor)

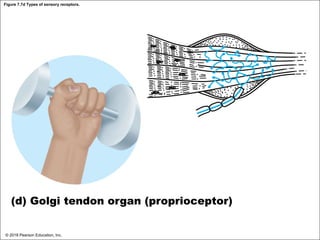

Figure 7.7d Types of sensory receptors.
(d) Golgi tendon organ (proprioceptor)

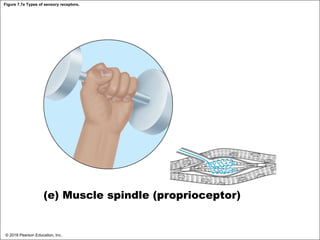

Figure 7.7e Types of sensory receptors.
(e) Muscle spindle (proprioceptor)

§ Functional classification (continued)
§ Motor (efferent) neurons
§ Carry impulses from the central nervous system to
viscera and/or muscles and glands
§ Interneurons (association neurons)
§ Cell bodies located in the CNS
§ Connect sensory and motor neurons

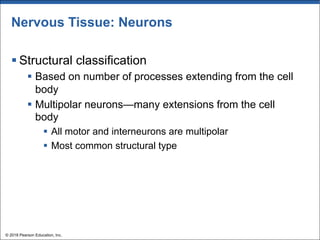

§ Structural classification
§ Based on number of processes extending from the cell
body
§ Multipolar neurons—many extensions from the cell
body
§ All motor and interneurons are multipolar
§ Most common structural type

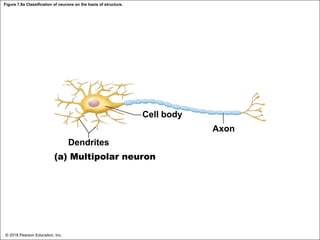

Figure 7.8a Classification of neurons on the basis of structure.
Cell body
Axon
Dendrites
(a) Multipolar neuron

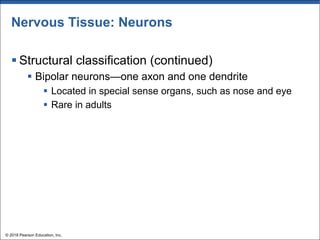

§ Structural classification (continued)
§ Bipolar neurons—one axon and one dendrite
§ Located in special sense organs, such as nose and eye
§ Rare in adults

Figure 7.8b Classification of neurons on the basis of structure.
Cell body
Dendrite
(b) Bipolar neuron
Axon

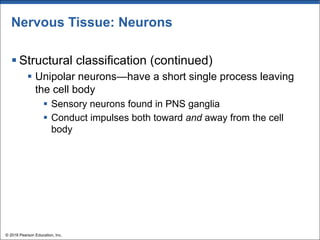

§ Structural classification (continued)
§ Unipolar neurons—have a short single process leaving
the cell body
§ Sensory neurons found in PNS ganglia
§ Conduct impulses both toward and away from the cell
body

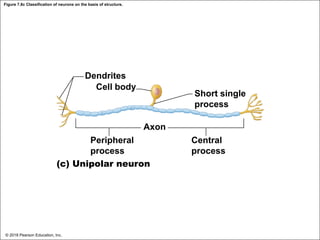

Figure 7.8c Classification of neurons on the basis of structure.
Dendrites
Cell body
Short single
process
Axon
Peripheral
process
(c) Unipolar neuron
Central
process

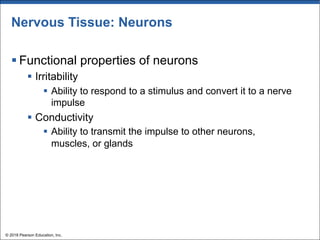

§ Functional properties of neurons
§ Irritability
§ Ability to respond to a stimulus and convert it to a nerve
impulse
§ Conductivity
§ Ability to transmit the impulse to other neurons,
muscles, or glands

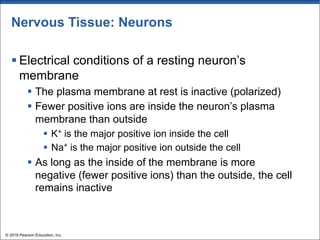

§ Electrical conditions of a resting neuron’s
membrane
§ The plasma membrane at rest is inactive (polarized)
§ Fewer positive ions are inside the neuron’s plasma
membrane than outside
§ K+ is the major positive ion inside the cell
§ Na+ is the major positive ion outside the cell
§ As long as the inside of the membrane is more
negative (fewer positive ions) than the outside, the cell
remains inactive

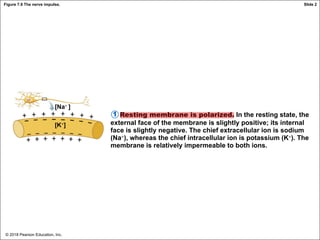

Figure 7.9 The nerve impulse.
Resting membrane is polarized. In the resting state, the
external face of the membrane is slightly positive; its internal
face is slightly negative. The chief extracellular ion is sodium
(Na+), whereas the chief intracellular ion is potassium (K+). The
membrane is relatively impermeable to both ions.
1
[Na+ ]
[K+]
Slide 2

§ Action potential initiation and generation
§ A stimulus changes the permeability of the neuron’s
membrane to sodium ions
§ Sodium channels now open, and sodium (Na+)
diffuses into the neuron
§ The inward rush of sodium ions changes the polarity at
that site and is called depolarization

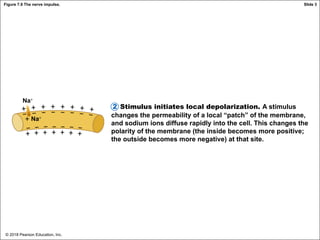

Stimulus initiates local depolarization. A stimulus
changes the permeability of a local “patch” of the membrane,
and sodium ions diffuse rapidly into the cell. This changes the
polarity of the membrane (the inside becomes more positive;
the outside becomes more negative) at that site.
2
Na+
Na+
Slide 3

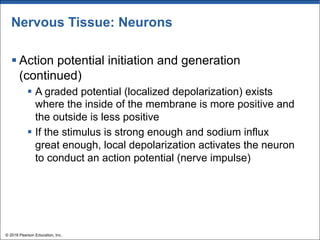

§ Action potential initiation and generation
(continued)
§ A graded potential (localized depolarization) exists
where the inside of the membrane is more positive and
the outside is less positive
§ If the stimulus is strong enough and sodium influx
great enough, local depolarization activates the neuron
to conduct an action potential (nerve impulse)

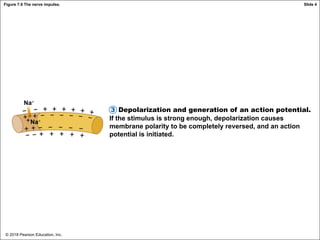

Depolarization and generation of an action potential.
If the stimulus is strong enough, depolarization causes
membrane polarity to be completely reversed, and an action
potential is initiated.
3
Na+
Na+
Slide 4

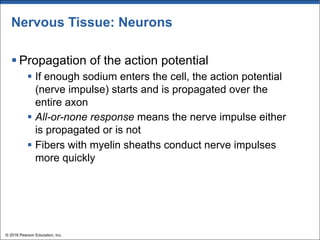

§ Propagation of the action potential
§ If enough sodium enters the cell, the action potential
(nerve impulse) starts and is propagated over the
entire axon
§ All-or-none response means the nerve impulse either
is propagated or is not
§ Fibers with myelin sheaths conduct nerve impulses
more quickly

Propagation of the action potential. Depolarization of the
first membrane patch causes permeability changes in the
adjacent membrane, and the events described in step are
repeated. Thus, the action potential propagates rapidly along the
entire length of the membrane.
4
2
Slide 5

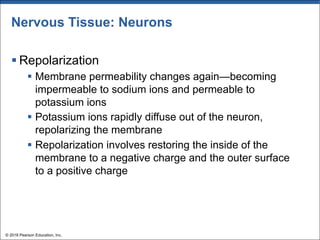

§ Repolarization
§ Membrane permeability changes again—becoming
impermeable to sodium ions and permeable to
potassium ions
§ Potassium ions rapidly diffuse out of the neuron,
repolarizing the membrane
§ Repolarization involves restoring the inside of the
membrane to a negative charge and the outer surface
to a positive charge

Repolarization. Potassium ions diffuse out of the cell as
the membrane permeability changes again, restoring the
negative charge on the inside of the membrane and the
positive charge on the outside surface. Repolarization occurs
in the same direction as depolarization.
5
K+
K+
Slide 6

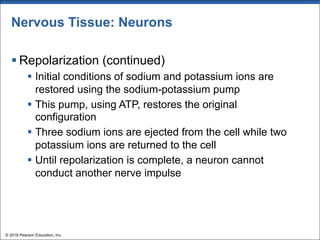

§ Repolarization (continued)
§ Initial conditions of sodium and potassium ions are
restored using the sodium-potassium pump
§ This pump, using ATP, restores the original
configuration
§ Three sodium ions are ejected from the cell while two
potassium ions are returned to the cell
§ Until repolarization is complete, a neuron cannot
conduct another nerve impulse

Initial ionic conditions restored. The ionic conditions
of the resting state are restored later by the activity of the
sodium-potassium pump. Three sodium ions are ejected for
every two potassium ions carried back into the cell.
6
Cell
exterior
K
+
Diffusion
Na
+
Diffusion
Cell
interior
Na+ – K+
pump
Plasma
membrane
Slide 7

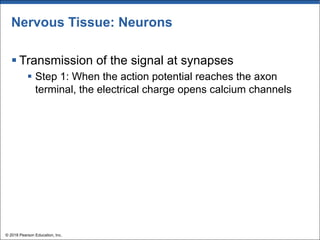

§ Transmission of the signal at synapses
§ Step 1: When the action potential reaches the axon
terminal, the electrical charge opens calcium channels

Figure 7.10 How neurons communicate at chemical synapses.
Axon of
transmitting
neuron
Receiving
neuron
Dendrite
Action
potential
arrives.
Vesicles
Synaptic
cleft
Axon terminal
1
Slide 2

(continued)

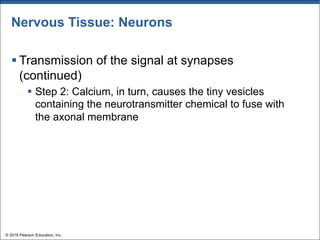

§ Step 2: Calcium, in turn, causes the tiny vesicles
containing the neurotransmitter chemical to fuse with
the axonal membrane

Receiving neuron
Vesicle
fuses with
plasma
membrane.
Synaptic
cleft Ion
channels
Neurotransmitter
molecules
Receiving neuron
Transmitting neuron
2

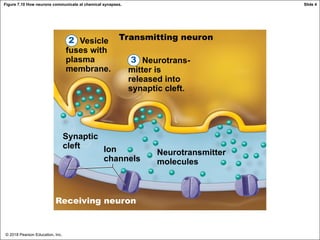

Slide 3

(continued)

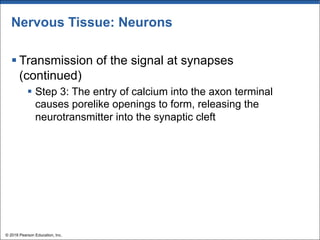

§ Step 3: The entry of calcium into the axon terminal
causes porelike openings to form, releasing the
neurotransmitter into the synaptic cleft

Receiving neuron
Vesicle
fuses with
plasma
membrane.
Neurotrans-
mitter is
released into
synaptic cleft.
Synaptic
cleft Ion
channels
Neurotransmitter
molecules
Receiving neuron
Transmitting neuron
3
Slide 4
2

(continued)
§ Step 4: The neurotransmitter molecules diffuse across
the synaptic cleft and bind to receptors on the
membrane of the next neuron

Receiving neuron
Vesicle
fuses with
plasma
membrane.
Neurotrans-
mitter binds
to receptor
on receiving
neuron’s
membrane.
Neurotrans-
mitter is
released into
synaptic cleft.
Synaptic
cleft Ion
channels
Neurotransmitter
molecules
Receiving neuron
Transmitting neuron
4
Slide 5
3
2

(continued)

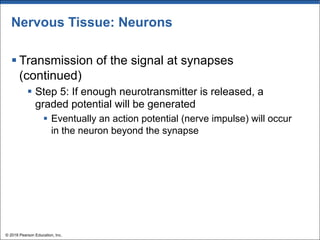

§ Step 5: If enough neurotransmitter is released, a
graded potential will be generated
§ Eventually an action potential (nerve impulse) will occur
in the neuron beyond the synapse

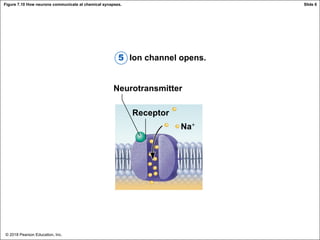

Receiving neuron
Ion channel opens.
Neurotransmitter
Receptor
Na+
Slide 6
5

(continued)
§ Step 6: The electrical changes prompted by
neurotransmitter binding are brief
§ The neurotransmitter is quickly removed from the
synapse either by reuptake or by enzymatic activity
§ Transmission of an impulse is electrochemical
§ Transmission down neuron is electrical
§ Transmission to next neuron is chemical

Receiving neuron
Ion channel closes.
Neurotransmitter is
broken down and
released.
Na+
6
Slide 7

BioFlix: How Synapses Work

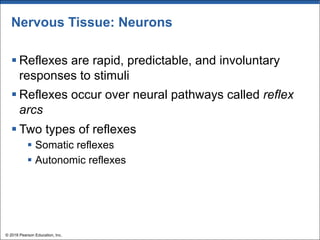

§ Reflexes are rapid, predictable, and involuntary
responses to stimuli
§ Reflexes occur over neural pathways called reflex
arcs
§ Two types of reflexes
§ Somatic reflexes
§ Autonomic reflexes

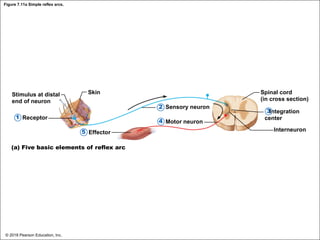

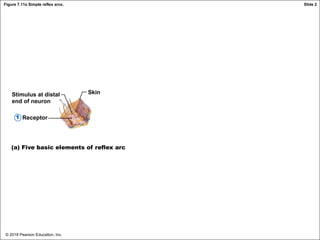

Figure 7.11a Simple reflex arcs.
Stimulus at distal
end of neuron
Receptor
Skin
Sensory neuron
Motor neuron
Effector
Spinal cord
(in cross section)
Integration
center
Interneuron
(a) Five basic elements of reflex arc
1
5
4
2
3

§ Somatic reflexes
§ Reflexes that stimulate the skeletal muscles
§ Involuntary, although skeletal muscle is normally under
voluntary control
§ Example: pulling your hand away from a hot object
§ Autonomic reflexes
§ Regulate the activity of smooth muscles, the heart,
and glands
§ Example: regulation of smooth muscles, heart and
blood pressure, glands, digestive system

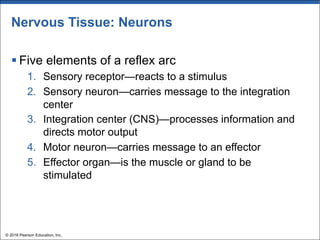

§ Five elements of a reflex arc
1. Sensory receptor—reacts to a stimulus
2. Sensory neuron—carries message to the integration
center
3. Integration center (CNS)—processes information and
directs motor output
4. Motor neuron—carries message to an effector
5. Effector organ—is the muscle or gland to be
stimulated

Stimulus at distal
end of neuron
Receptor
Skin
1
Slide 2

Stimulus at distal
end of neuron
Receptor
Skin
Sensory neuron
Spinal cord
(in cross section)
Interneuron
1
2
Slide 3

Stimulus at distal
end of neuron
Receptor
Skin
Sensory neuron
Spinal cord
(in cross section)
Interneuron
1
2
3 Integration
center
Slide 4

Stimulus at distal
end of neuron
Receptor
Skin
Sensory neuron
Motor neuron
Spinal cord
(in cross section)
Interneuron
1
4
2
3 Integration
center
Slide 5

Stimulus at distal
end of neuron
Receptor
Skin
Sensory neuron
Motor neuron
Effector
Spinal cord
(in cross section)
Interneuron
1
5
4
2
3 Integration
center
Slide 6

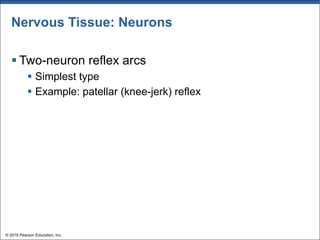

§ Two-neuron reflex arcs
§ Simplest type
§ Example: patellar (knee-jerk) reflex

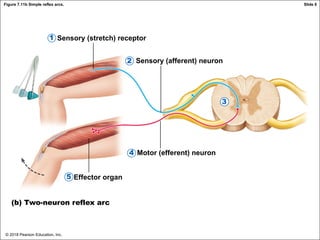

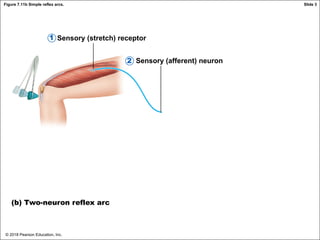

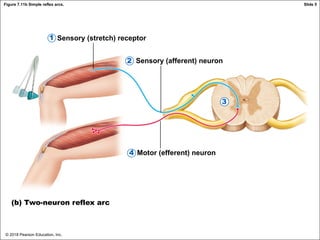

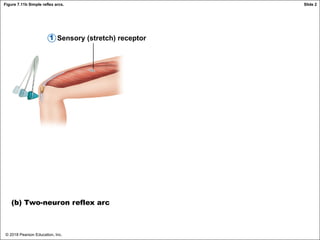

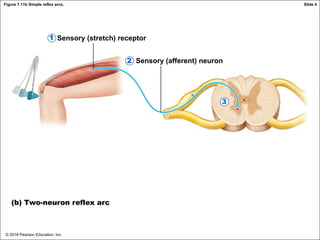

Figure 7.11b Simple reflex arcs.
Sensory (stretch) receptor
Sensory (afferent) neuron
Motor (efferent) neuron
Effector organ
(b) Two-neuron reflex arc
1
2
3
4
5
Slide 1

1
Slide 2

1
2
Slide 3

1
2
3
Slide 4

1
2
3
4
Slide 5

Effector organ
1
2
3
4
5
Slide 6

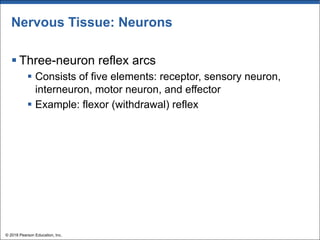

§ Three-neuron reflex arcs
§ Consists of five elements: receptor, sensory neuron,
interneuron, motor neuron, and effector
§ Example: flexor (withdrawal) reflex

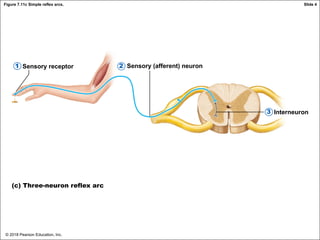

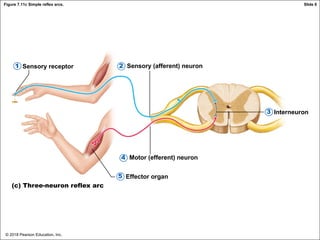

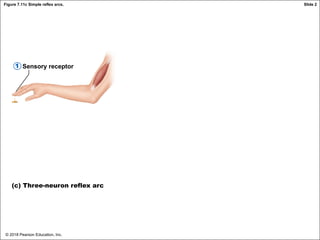

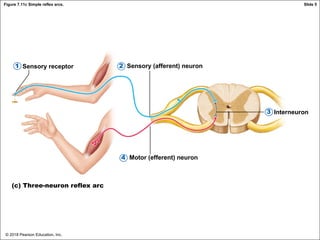

Figure 7.11c Simple reflex arcs.
Sensory receptor Sensory (afferent) neuron
Interneuron
Effector organ
(c) Three-neuron reflex arc
2
1
3
4
5
Slide 1

Sensory receptor
1
Slide 2

2
1
Slide 3

Interneuron
2
1
3
Slide 4

Interneuron
2
1
3
4
Slide 5

Interneuron
Effector organ
2
1
3
4
5
Slide 6

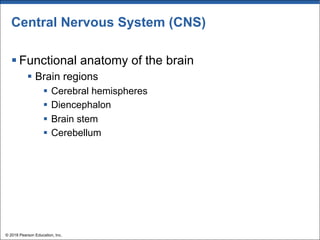

Central Nervous System (CNS)
§ Functional anatomy of the brain
§ Brain regions
§ Cerebral hemispheres

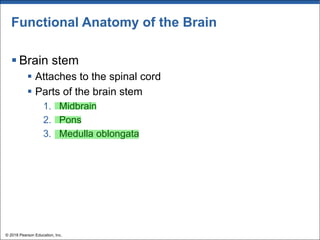

§ Diencephalon
§ Brain stem
§ Cerebellum

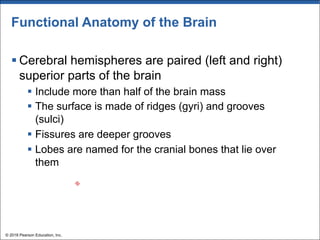

Functional Anatomy of the Brain
§ Cerebral hemispheres are paired (left and right)
superior parts of the brain
§ Include more than half of the brain mass
§ The surface is made of ridges (gyri) and grooves
(sulci)
§ Fissures are deeper grooves
§ Lobes are named for the cranial bones that lie over
them

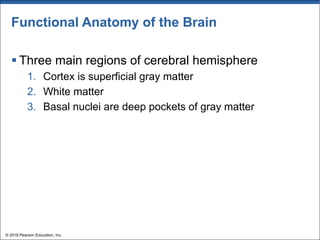

§ Three main regions of cerebral hemisphere
1. Cortex is superficial gray matter
2. White matter
3. Basal nuclei are deep pockets of gray matter

Figure 7.12a Development and regions of the human brain.
Cerebral
hemisphere
Outline of
diencephalon
Midbrain
Cerebellum
Brain stem
(a) 13 weeks

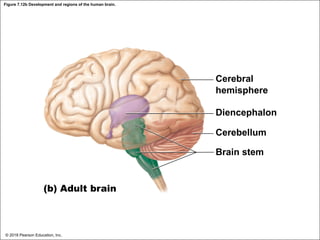

Figure 7.12b Development and regions of the human brain.
Cerebral
hemisphere
Diencephalon
Cerebellum
Brain stem
(b) Adult brain

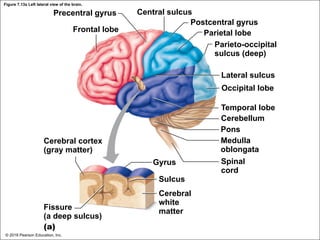

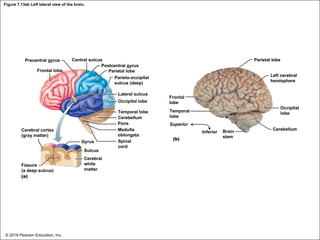

Figure 7.13ab Left lateral view of the brain.
Precentral gyrus
Frontal lobe
Central sulcus
Postcentral gyrus
Parietal lobe
Parieto-occipital
sulcus (deep)
Lateral sulcus
Occipital lobe
Temporal lobe
Cerebellum
Pons
Medulla
oblongata
Spinal
cord
Frontal
lobe
Temporal
lobe
Superior
Inferior
(b)
Brain
stem
Parietal lobe
Left cerebral
hemisphere
Occipital
lobe
Cerebellum
Cerebral cortex
(gray matter)
Gyrus
Sulcus
Fissure
(a deep sulcus)
(a)
Cerebral
white
matter

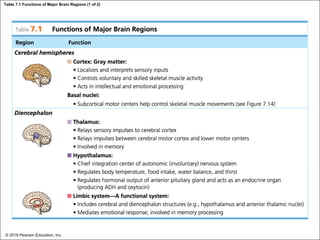

Table 7.1 Functions of Major Brain Regions (1 of 2)

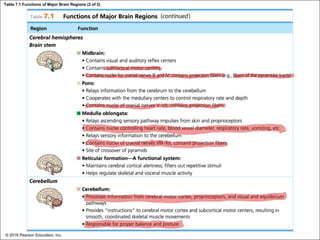

Table 7.1 Functions of Major Brain Regions (2 of 2)

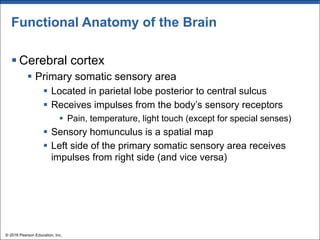

§ Cerebral cortex
§ Primary somatic sensory area
§ Located in parietal lobe posterior to central sulcus
§ Receives impulses from the body’s sensory receptors
§ Pain, temperature, light touch (except for special senses)
§ Sensory homunculus is a spatial map
§ Left side of the primary somatic sensory area receives
impulses from right side (and vice versa)

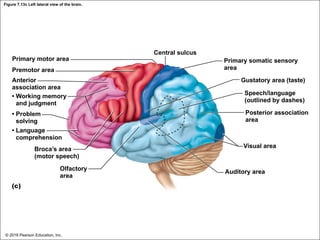

Figure 7.13c Left lateral view of the brain.
Primary motor area
Premotor area
Anterior
association area
• Working memory
and judgment
• Problem
solving
• Language
comprehension
Broca’s area
(motor speech)
Olfactory
area
(c)
Central sulcus
Primary somatic sensory
area
Gustatory area (taste)
Speech/language
(outlined by dashes)
Posterior association
area
Visual area
Auditory area

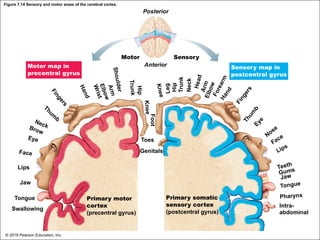

Figure 7.14 Sensory and motor areas of the cerebral cortex.
Posterior
Motor
Anterior
Sensory
Toes
Genitals
Lips
Jaw
Tongue
Swallowing
Primary motor
cortex
(precentral gyrus)
Primary somatic
sensory cortex
(postcentral gyrus)
Pharynx
Intra-
abdominal
Motor map in
precentral gyrus
Sensory map in
postcentral gyrus
Face
Eye
Brow
Neck
Thum
b
F
i
n
g
e
r
s
H
a
n
d
W
r
i
s
t
E
l
b
o
w
A
r
m
S
h
o
u
l
d
e
r
H
ip
T
ru
n
k
K
n
e
e
Foot
K
n
e
e
L
e
g
Hip
Trunk
Neck
H
e
a
d
A
r
m
E
l
b
o
w
F
o
r
e
a
r
m
H
a
n
d
F
i
n
g
e
r
s
T
h
u
m
b
E
y
e
Nose
Face
Lips
Teeth
Gums
Jaw
Tongue

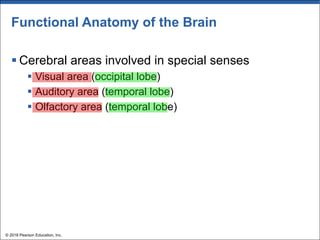

§ Cerebral areas involved in special senses
§ Visual area (occipital lobe)
§ Auditory area (temporal lobe)
§ Olfactory area (temporal lobe)

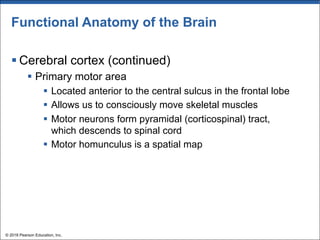

§ Cerebral cortex (continued)
§ Primary motor area
§ Located anterior to the central sulcus in the frontal lobe
§ Allows us to consciously move skeletal muscles
§ Motor neurons form pyramidal (corticospinal) tract,
which descends to spinal cord
§ Motor homunculus is a spatial map

Figure 7.13a Left lateral view of the brain.
Precentral gyrus
Frontal lobe
Central sulcus
Postcentral gyrus
Parietal lobe
Parieto-occipital
sulcus (deep)
Lateral sulcus
Occipital lobe
Temporal lobe
Cerebellum
Pons
Medulla
oblongata
Gyrus
Sulcus
Spinal
cord
Cerebral cortex
(gray matter)
Fissure
(a deep sulcus)
(a)
Cerebral
white
matter

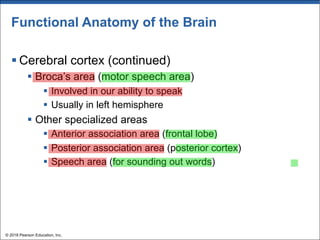

§ Cerebral cortex (continued)
§ Broca’s area (motor speech area)
§ Involved in our ability to speak
§ Usually in left hemisphere
§ Other specialized areas
§ Anterior association area (frontal lobe)
§ Posterior association area (posterior cortex)
§ Speech area (for sounding out words)

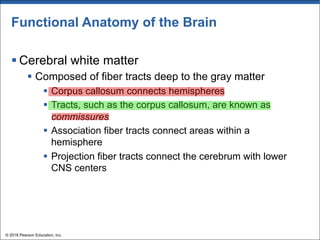

§ Cerebral white matter
§ Composed of fiber tracts deep to the gray matter
§ Corpus callosum connects hemispheres
§ Tracts, such as the corpus callosum, are known as
commissures
§ Association fiber tracts connect areas within a
hemisphere
§ Projection fiber tracts connect the cerebrum with lower
CNS centers

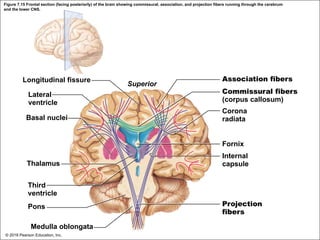

Figure 7.15 Frontal section (facing posteriorly) of the brain showing commissural, association, and projection fibers running through the cerebrum
and the lower CNS.
Longitudinal fissure
Lateral
ventricle
Basal nuclei
Superior
Association fibers
Commissural fibers
(corpus callosum)
Corona
radiata
Fornix
Thalamus
Third
ventricle
Pons
Medulla oblongata
Internal
capsule
Projection
fibers

§ Basal nuclei
§ “Islands” of gray matter buried deep within the white
matter of the cerebrum
§ Regulate voluntary motor activities by modifying
instructions sent to skeletal muscles by the primary
motor cortex

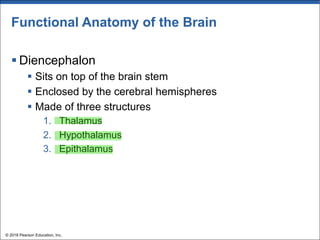

§ Diencephalon
§ Sits on top of the brain stem
§ Enclosed by the cerebral hemispheres
§ Made of three structures
1. Thalamus
2. Hypothalamus
3. Epithalamus

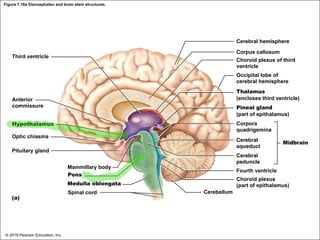

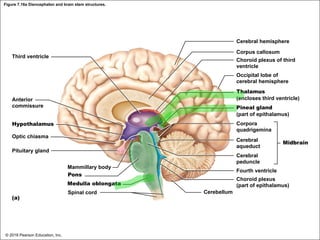

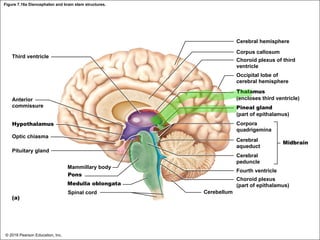

Figure 7.16a Diencephalon and brain stem structures.
Cerebral hemisphere
Third ventricle
Corpus callosum
Choroid plexus of third
ventricle
Occipital lobe of
cerebral hemisphere
Anterior
commissure
Hypothalamus
Optic chiasma
Pituitary gland
Mammillary body
Pons
Medulla oblongata
(a)
Thalamus
(encloses third ventricle)
Pineal gland
(part of epithalamus)
Corpora
quadrigemina
Cerebral
aqueduct
Cerebral
peduncle
Fourth ventricle
Choroid plexus
(part of epithalamus)
Cerebellum
Midbrain
Spinal cord

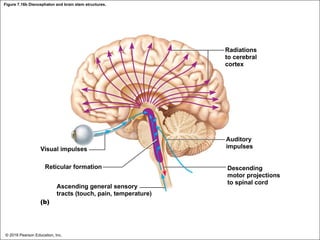

Figure 7.16b Diencephalon and brain stem structures.
Radiations
to cerebral
cortex
Visual impulses
Reticular formation
Ascending general sensory
tracts (touch, pain, temperature)
(b)
Auditory
impulses
Descending
motor projections
to spinal cord

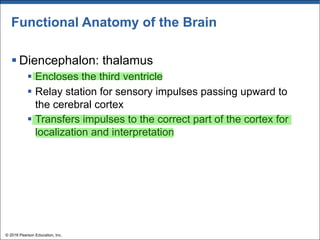

§ Diencephalon: thalamus
§ Encloses the third ventricle
§ Relay station for sensory impulses passing upward to
the cerebral cortex
§ Transfers impulses to the correct part of the cortex for
localization and interpretation

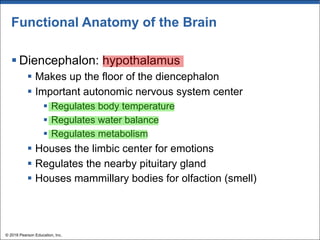

§ Diencephalon: hypothalamus
§ Makes up the floor of the diencephalon
§ Important autonomic nervous system center
§ Regulates body temperature
§ Regulates water balance
§ Regulates metabolism
§ Houses the limbic center for emotions
§ Regulates the nearby pituitary gland
§ Houses mammillary bodies for olfaction (smell)

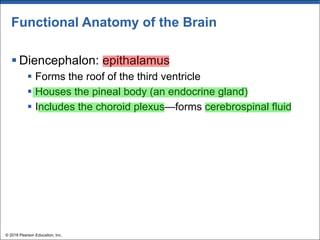

§ Diencephalon: epithalamus
§ Forms the roof of the third ventricle
§ Houses the pineal body (an endocrine gland)
§ Includes the choroid plexus—forms cerebrospinal fluid

§ Brain stem
§ Attaches to the spinal cord
§ Parts of the brain stem
1. Midbrain
2. Pons
3. Medulla oblongata

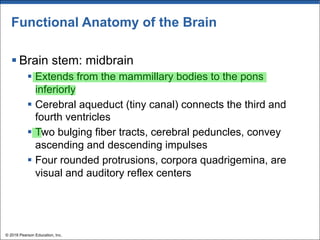

§ Brain stem: midbrain
§ Extends from the mammillary bodies to the pons
inferiorly
§ Cerebral aqueduct (tiny canal) connects the third and
fourth ventricles
§ Two bulging fiber tracts, cerebral peduncles, convey
ascending and descending impulses
§ Four rounded protrusions, corpora quadrigemina, are
visual and auditory reflex centers

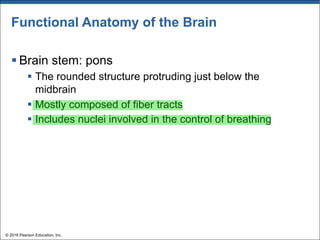

§ Brain stem: pons
§ The rounded structure protruding just below the
midbrain
§ Mostly composed of fiber tracts
§ Includes nuclei involved in the control of breathing

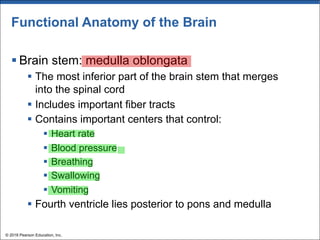

§ Brain stem: medulla oblongata
§ The most inferior part of the brain stem that merges
into the spinal cord
§ Includes important fiber tracts
§ Contains important centers that control:
§ Heart rate
§ Blood pressure
§ Breathing
§ Swallowing
§ Vomiting
§ Fourth ventricle lies posterior to pons and medulla

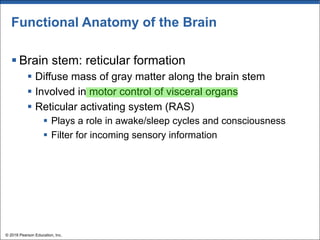

§ Brain stem: reticular formation
§ Diffuse mass of gray matter along the brain stem
§ Involved in motor control of visceral organs
§ Reticular activating system (RAS)
§ Plays a role in awake/sleep cycles and consciousness
§ Filter for incoming sensory information

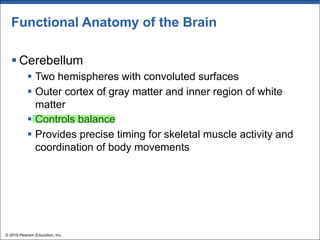

§ Cerebellum
§ Two hemispheres with convoluted surfaces
§ Outer cortex of gray matter and inner region of white
matter
§ Controls balance
§ Provides precise timing for skeletal muscle activity and
coordination of body movements

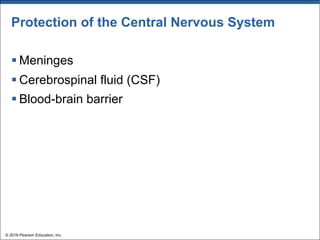

Protection of the Central Nervous System
§ Meninges
§ Cerebrospinal fluid (CSF)
§ Blood-brain barrier

§ Meninges (continued)
§ Dura mater
§ Outermost leathery layer
§ Double-layered external covering
§ Periosteum—attached to inner surface of the skull
§ Meningeal layer—outer covering of the brain
§ Folds inward in several areas
§ Falx cerebri
§ Tentorium cerebelli
Dura maters
Arachnoids layer
pia

§ Meninges (continued)
§ Arachnoid layer
§ Middle layer
§ Weblike extensions span the subarachnoid space to
attach it to the pia mater
§ Subarachnoid space is filled with cerebrospinal fluid
§ Arachnoid granulations protrude through the dura mater
and absorb cerebrospinal fluid into venous blood
§ Pia mater
§ Internal layer
§ Clings to the surface of the brain and spinal cord

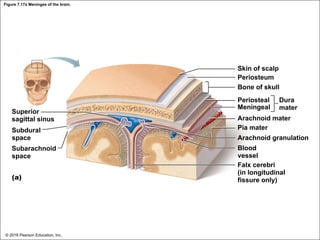

Figure 7.17a Meninges of the brain.
Skin of scalp
Periosteum
Bone of skull
Periosteal
Meningeal
Dura
mater
Superior
sagittal sinus
Subdural
space
Subarachnoid
space
(a)
Arachnoid mater
Pia mater
Arachnoid granulation
Blood
vessel
Falx cerebri
(in longitudinal
fissure only)

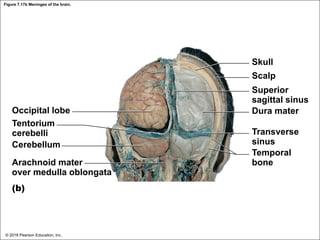

Figure 7.17b Meninges of the brain.
Skull
Scalp
Superior
sagittal sinus
Dura mater
Transverse
sinus
Temporal
bone
Occipital lobe
Tentorium
cerebelli
Cerebellum
Arachnoid mater
over medulla oblongata
(b)

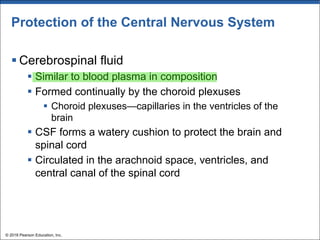

§ Cerebrospinal fluid
§ Similar to blood plasma in composition
§ Formed continually by the choroid plexuses
§ Choroid plexuses—capillaries in the ventricles of the
brain
§ CSF forms a watery cushion to protect the brain and
spinal cord
§ Circulated in the arachnoid space, ventricles, and
central canal of the spinal cord

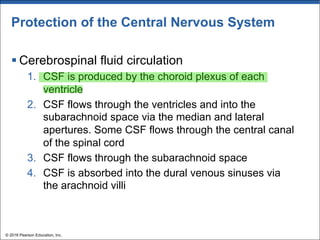

§ Cerebrospinal fluid circulation
1. CSF is produced by the choroid plexus of each
ventricle
2. CSF flows through the ventricles and into the
subarachnoid space via the median and lateral
apertures. Some CSF flows through the central canal
of the spinal cord
3. CSF flows through the subarachnoid space
4. CSF is absorbed into the dural venous sinuses via
the arachnoid villi

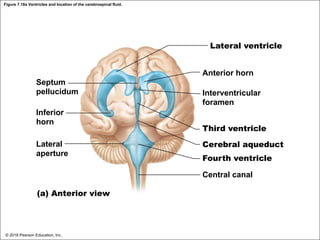

Figure 7.18a Ventricles and location of the cerebrospinal fluid.
Lateral ventricle
Anterior horn
Septum
pellucidum
Inferior
horn
Lateral
aperture
Interventricular
foramen
Third ventricle
Cerebral aqueduct
Fourth ventricle
Central canal
(a) Anterior view

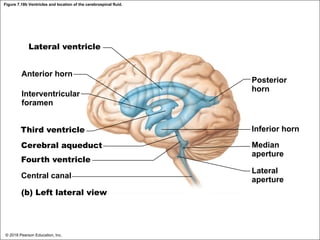

Figure 7.18b Ventricles and location of the cerebrospinal fluid.
Lateral ventricle
Anterior horn
Interventricular
foramen
Third ventricle
Cerebral aqueduct
Fourth ventricle
Central canal
(b) Left lateral view
Posterior
horn
Inferior horn
Median
aperture
Lateral
aperture

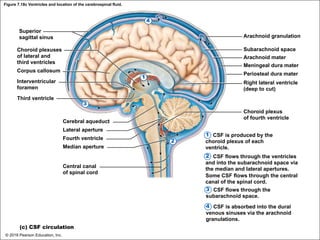

Figure 7.18c Ventricles and location of the cerebrospinal fluid.
Superior
sagittal sinus
Choroid plexuses
of lateral and
third ventricles
Corpus callosum
Interventricular
foramen
Third ventricle
Cerebral aqueduct
Lateral aperture
Fourth ventricle
Median aperture
Choroid plexus
of fourth ventricle
(c) CSF circulation
Arachnoid granulation
Subarachnoid space
Arachnoid mater
Meningeal dura mater
Periosteal dura mater
Right lateral ventricle
(deep to cut)
Central canal
of spinal cord
CSF is produced by the
choroid plexus of each
ventricle.
CSF flows through the ventricles
and into the subarachnoid space via
the median and lateral apertures.
Some CSF flows through the central
canal of the spinal cord.
CSF flows through the
subarachnoid space.
CSF is absorbed into the dural
venous sinuses via the arachnoid
granulations.
2
1
3
4
2
1
3
4

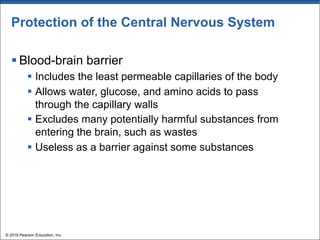

§ Blood-brain barrier
§ Includes the least permeable capillaries of the body
§ Allows water, glucose, and amino acids to pass
through the capillary walls
§ Excludes many potentially harmful substances from
entering the brain, such as wastes
§ Useless as a barrier against some substances

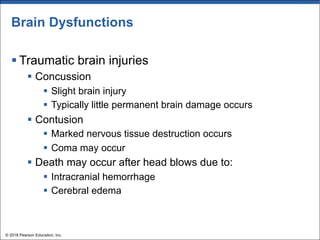

Brain Dysfunctions
§ Traumatic brain injuries
§ Concussion
§ Slight brain injury
§ Typically little permanent brain damage occurs
§ Contusion
§ Marked nervous tissue destruction occurs
§ Coma may occur
§ Death may occur after head blows due to:
§ Intracranial hemorrhage
§ Cerebral edema

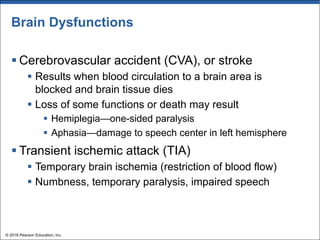

Brain Dysfunctions
§ Cerebrovascular accident (CVA), or stroke
§ Results when blood circulation to a brain area is
blocked and brain tissue dies
§ Loss of some functions or death may result
§ Hemiplegia—one-sided paralysis
§ Aphasia—damage to speech center in left hemisphere
§ Transient ischemic attack (TIA)
§ Temporary brain ischemia (restriction of blood flow)
§ Numbness, temporary paralysis, impaired speech

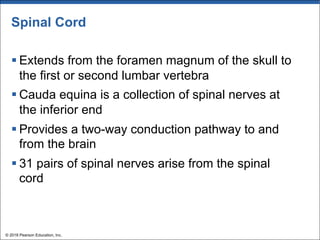

Spinal Cord
§ Extends from the foramen magnum of the skull to
the first or second lumbar vertebra
§ Cauda equina is a collection of spinal nerves at
the inferior end
§ Provides a two-way conduction pathway to and
from the brain
§ 31 pairs of spinal nerves arise from the spinal
cord

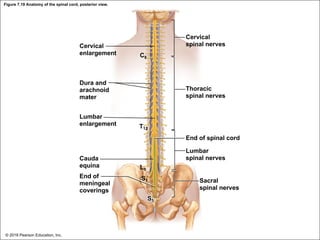

Figure 7.19 Anatomy of the spinal cord, posterior view.
Cervical
enlargement
Cervical
spinal nerves
C8
Dura and
arachnoid
mater
Lumbar
enlargement
Thoracic
spinal nerves
T12
End of spinal cord
Cauda
equina
End of
meningeal
coverings
Lumbar
spinal nerves
L5
S1 Sacral
spinal nerves
S5

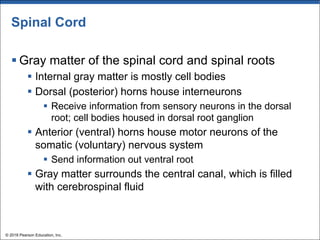

Spinal Cord
§ Gray matter of the spinal cord and spinal roots
§ Internal gray matter is mostly cell bodies
§ Dorsal (posterior) horns house interneurons
§ Receive information from sensory neurons in the dorsal
root; cell bodies housed in dorsal root ganglion
§ Anterior (ventral) horns house motor neurons of the
somatic (voluntary) nervous system
§ Send information out ventral root
§ Gray matter surrounds the central canal, which is filled
with cerebrospinal fluid

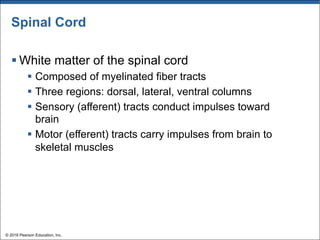

Spinal Cord
§ White matter of the spinal cord
§ Composed of myelinated fiber tracts
§ Three regions: dorsal, lateral, ventral columns
§ Sensory (afferent) tracts conduct impulses toward
brain
§ Motor (efferent) tracts carry impulses from brain to
skeletal muscles

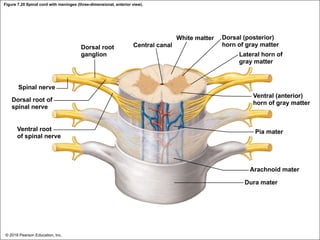

Figure 7.20 Spinal cord with meninges (three-dimensional, anterior view).
Dorsal root
ganglion
Central canal
White matter Dorsal (posterior)
horn of gray matter
Lateral horn of
gray matter
Spinal nerve
Dorsal root of
spinal nerve
Ventral root
of spinal nerve
Ventral (anterior)
horn of gray matter
Pia mater
Arachnoid mater
Dura mater

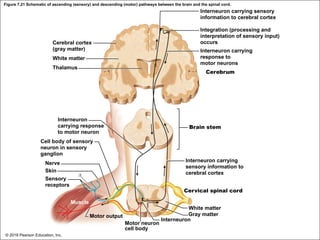

Figure 7.21 Schematic of ascending (sensory) and descending (motor) pathways between the brain and the spinal cord.
Interneuron carrying sensory
information to cerebral cortex
Integration (processing and
interpretation of sensory input)
occurs
Interneuron carrying
response to
motor neurons
Cerebrum
Cerebral cortex
(gray matter)
White matter
Thalamus
Interneuron
carrying response
to motor neuron
Cell body of sensory
neuron in sensory
ganglion
Nerve
Skin
Sensory
receptors
Muscle
Motor output
Motor neuron
cell body
Brain stem
Interneuron carrying
sensory information to
cerebral cortex
Cervical spinal cord
White matter
Gray matter
Interneuron

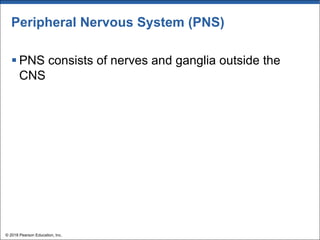

Peripheral Nervous System (PNS)
§ PNS consists of nerves and ganglia outside the
CNS

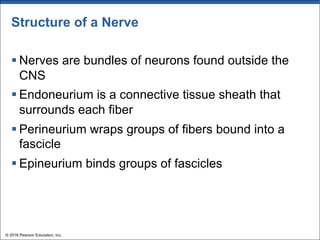

Structure of a Nerve
§ Nerves are bundles of neurons found outside the
CNS
§ Endoneurium is a connective tissue sheath that
surrounds each fiber
§ Perineurium wraps groups of fibers bound into a
fascicle
§ Epineurium binds groups of fascicles

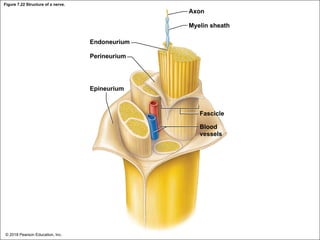

Figure 7.22 Structure of a nerve.
Axon
Myelin sheath
Endoneurium
Perineurium
Epineurium
Fascicle
Blood
vessels

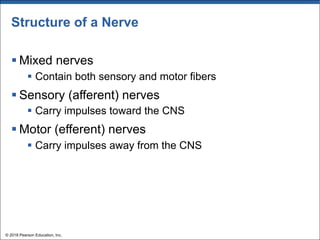

Structure of a Nerve
§ Mixed nerves
§ Contain both sensory and motor fibers
§ Sensory (afferent) nerves
§ Carry impulses toward the CNS
§ Motor (efferent) nerves
§ Carry impulses away from the CNS

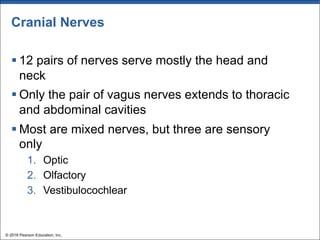

Cranial Nerves
§ 12 pairs of nerves serve mostly the head and
neck
§ Only the pair of vagus nerves extends to thoracic
and abdominal cavities
§ Most are mixed nerves, but three are sensory
only
1. Optic
2. Olfactory
3. Vestibulocochlear

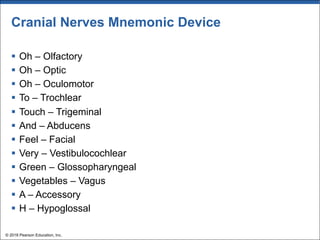

Cranial Nerves Mnemonic Device
§ Oh – Olfactory
§ Oh – Optic
§ Oh – Oculomotor
§ To – Trochlear
§ Touch – Trigeminal
§ And – Abducens
§ Feel – Facial
§ Very – Vestibulocochlear
§ Green – Glossopharyngeal
§ Vegetables – Vagus
§ A – Accessory
§ H – Hypoglossal

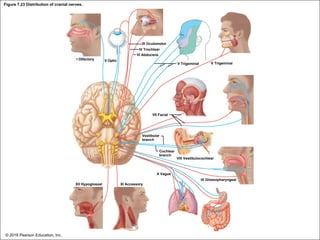

Figure 7.23 Distribution of cranial nerves.
III Oculomotor
IV Trochlear
VI Abducens
I Olfactory II Optic
V Trigeminal V Trigeminal
VII Facial
Vestibular
branch
Cochlear
branch
VIII Vestibulocochlear
X Vagus
IX Glossopharyngeal
XII Hypoglossal XI Accessory

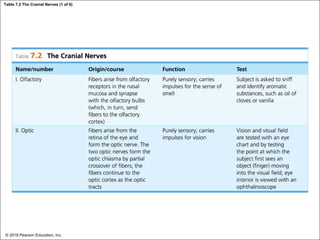

Table 7.2 The Cranial Nerves (1 of 6)

Spinal Nerves
§ Spinal nerves
§ 31 pairs
§ Formed by the combination of the ventral and dorsal
roots of the spinal cord
§ Named for the region of the spinal cord from which
they arise

Figure 7.24a Spinal nerves.
C1
2
3
4
5
6
7
8*
T1
2
3
4
5
6
7
8
9
10
11
12
L1
2
3
4
5
S1
2
3
4
Cervical
nerves
Thoracic
nerves
Lumbar
nerves
Sacral
nerves
Ventral rami form
cervical plexus
(C1 – C5)
Ventral rami form
brachial plexus
(C5 – C8; T1)
No plexus
formed
(intercostal
nerves)
(T2 – T12)
Ventral rami form
lumbar plexus
(L1 – L4)
Ventral rami form
sacral plexus
(L4 – L5; S1 – S4)
(a)
*Note that the cervical nerve C8 emerges inferior to the C7 vertebra, while the other seven cervical nerves
emerge superior to the vertebrae for which they are named.

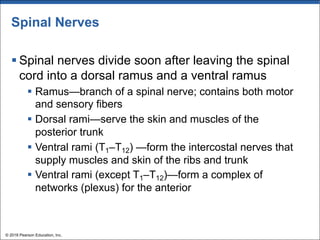

Spinal Nerves
§ Spinal nerves divide soon after leaving the spinal
cord into a dorsal ramus and a ventral ramus
§ Ramus—branch of a spinal nerve; contains both motor
and sensory fibers
§ Dorsal rami—serve the skin and muscles of the
posterior trunk
§ Ventral rami (T1–T12) —form the intercostal nerves that
supply muscles and skin of the ribs and trunk
§ Ventral rami (except T1–T12)—form a complex of
networks (plexus) for the anterior

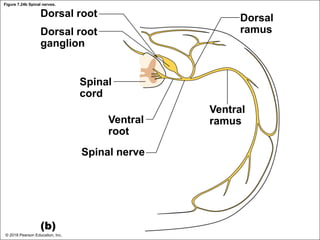

Figure 7.24b Spinal nerves.
Dorsal root
Dorsal root
ganglion
Spinal
cord
Ventral
root
Spinal nerve
Dorsal
ramus
Ventral
ramus
(b)

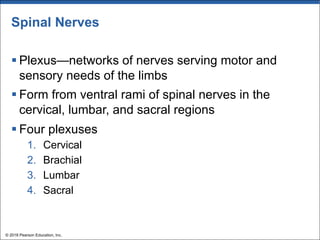

Spinal Nerves
§ Plexus—networks of nerves serving motor and
sensory needs of the limbs
§ Form from ventral rami of spinal nerves in the
cervical, lumbar, and sacral regions
§ Four plexuses
1. Cervical
2. Brachial
3. Lumbar
4. Sacral

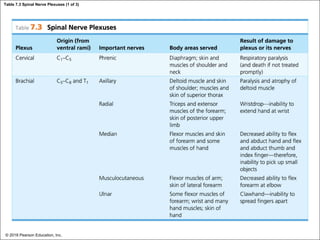

Table 7.3 Spinal Nerve Plexuses (1 of 3)

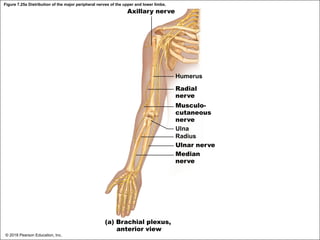

Figure 7.25a Distribution of the major peripheral nerves of the upper and lower limbs.
Axillary nerve
Humerus
Radial
nerve
Musculo-
cutaneous
nerve
Ulna
Radius
Ulnar nerve
Median
nerve
(a) Brachial plexus,
anterior view

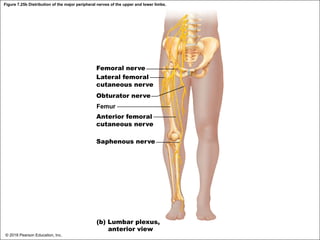

Figure 7.25b Distribution of the major peripheral nerves of the upper and lower limbs.
Femoral nerve
Lateral femoral
cutaneous nerve
Obturator nerve
Femur
Anterior femoral
cutaneous nerve
Saphenous nerve
(b) Lumbar plexus,
anterior view

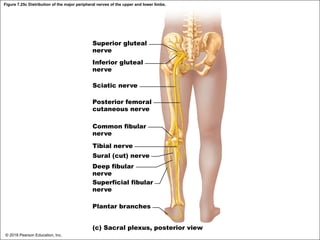

Figure 7.25c Distribution of the major peripheral nerves of the upper and lower limbs.
Superior gluteal
nerve
Inferior gluteal
nerve
Sciatic nerve
Posterior femoral
cutaneous nerve
Common fibular
nerve
Tibial nerve
Sural (cut) nerve
Deep fibular
nerve
Superficial fibular
nerve
Plantar branches
(c) Sacral plexus, posterior view

Autonomic Nervous System
§ Motor subdivision of the PNS
§ Consists only of motor nerves
§ Controls the body automatically (and is also known as
the involuntary nervous system)
§ Regulates cardiac and smooth muscles and glands

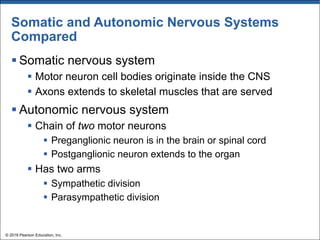

Somatic and Autonomic Nervous Systems
Compared
§ Somatic nervous system
§ Motor neuron cell bodies originate inside the CNS
§ Axons extends to skeletal muscles that are served
§ Autonomic nervous system
§ Chain of two motor neurons
§ Preganglionic neuron is in the brain or spinal cord
§ Postganglionic neuron extends to the organ
§ Has two arms
§ Sympathetic division
§ Parasympathetic division

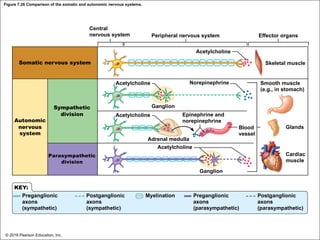

Figure 7.26 Comparison of the somatic and autonomic nervous systems.
Central
nervous system Peripheral nervous system
Acetylcholine
Effector organs
Somatic nervous system Skeletal muscle
Acetylcholine Norepinephrine Smooth muscle
(e.g., in stomach)
Sympathetic
division
Autonomic
nervous
system
Ganglion
Acetylcholine Epinephrine and
norepinephrine
Blood
vessel
Glands
Adrenal medulla
Acetylcholine
Parasympathetic
division
Cardiac
muscle
Ganglion
KEY:
Preganglionic
axons
(sympathetic)
Postganglionic
axons
(sympathetic)
Myelination Preganglionic
axons
(parasympathetic)
Postganglionic
axons
(parasympathetic)

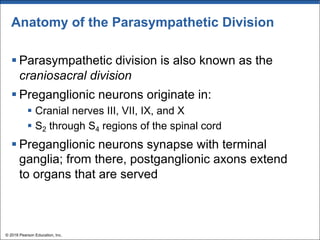

Anatomy of the Parasympathetic Division
§ Parasympathetic division is also known as the
craniosacral division
§ Preganglionic neurons originate in:
§ Cranial nerves III, VII, IX, and X
§ S2 through S4 regions of the spinal cord
§ Preganglionic neurons synapse with terminal
ganglia; from there, postganglionic axons extend
to organs that are served

Figure 7.27 Anatomy of the autonomic nervous system.
Parasympathetic
Eye
Salivary
glands
Heart
Lungs
T1
Thoracic
Sympathetic
Brain stem
Cranial
Eye
Skin
Sympathetic
ganglia
Salivary
glands
Lungs
Heart
Stomach
Pancreas
Liver
and gall-
bladder
Adrenal
gland
Cervical
Stomach
Pancreas
Liver and
gall-
bladder
Bladder
Genitals
L1
Lumbar
Bladder
Sacral
nerves
(S2–S4)
Genitals

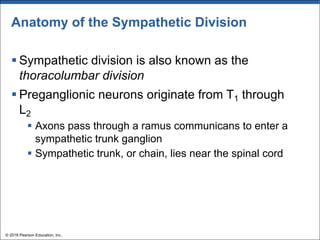

Anatomy of the Sympathetic Division
§ Sympathetic division is also known as the
thoracolumbar division
§ Preganglionic neurons originate from T1 through
L2
§ Axons pass through a ramus communicans to enter a
sympathetic trunk ganglion
§ Sympathetic trunk, or chain, lies near the spinal cord

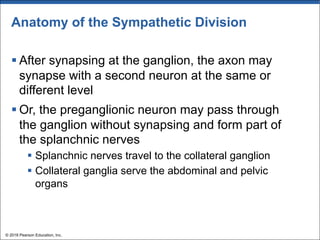

Anatomy of the Sympathetic Division
§ After synapsing at the ganglion, the axon may
synapse with a second neuron at the same or
different level
§ Or, the preganglionic neuron may pass through
the ganglion without synapsing and form part of
the splanchnic nerves
§ Splanchnic nerves travel to the collateral ganglion
§ Collateral ganglia serve the abdominal and pelvic
organs

Figure 7.28 Sympathetic pathways.
Lateral horn of
gray matter
Dorsal root
Dorsal ramus
of spinal nerve
Ventral ramus
of spinal nerve
Sympathetic
trunk
Spinal
nerve
(c)
(a)
(b)
To effector:
blood vessels,
arrector pili
muscles, and
sweat glands
of the skin
Ventral root
Sympathetic
trunk ganglion
Splanchnic
nerve
Gray ramus
communicans
White ramus
communicans
Collateral ganglion
(such as the celiac)
Visceral effector organ
(such as small intestine)

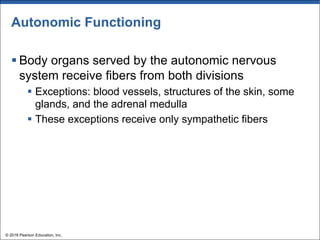

Autonomic Functioning
§ Body organs served by the autonomic nervous
system receive fibers from both divisions
§ Exceptions: blood vessels, structures of the skin, some
glands, and the adrenal medulla
§ These exceptions receive only sympathetic fibers

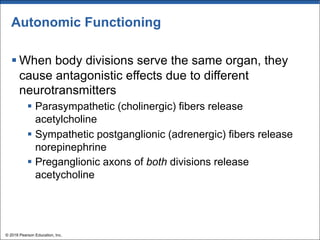

§ When body divisions serve the same organ, they
cause antagonistic effects due to different
neurotransmitters
§ Parasympathetic (cholinergic) fibers release
acetylcholine
§ Sympathetic postganglionic (adrenergic) fibers release
norepinephrine
§ Preganglionic axons of both divisions release
acetycholine

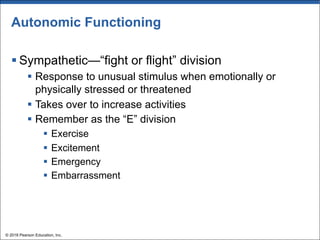

§ Sympathetic—“fight or flight” division
§ Response to unusual stimulus when emotionally or
physically stressed or threatened
§ Takes over to increase activities
§ Remember as the “E” division
§ Exercise
§ Excitement
§ Emergency
§ Embarrassment

§ Parasympathetic—“housekeeping” activites
§ “Rest-and-digest” system
§ Conserves energy
§ Maintains daily necessary body functions
§ Remember as the “D” division
§ Digestion
§ Defecation
§ Diuresis

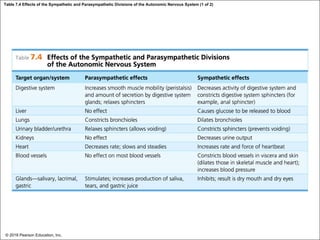

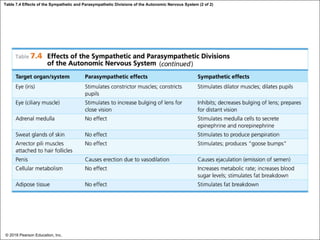

Table 7.4 Effects of the Sympathetic and Parasympathetic Divisions of the Autonomic Nervous System (1 of 2)

Table 7.4 Effects of the Sympathetic and Parasympathetic Divisions of the Autonomic Nervous System (2 of 2)

Developmental Aspects of the Nervous
System
§ The nervous system is formed during the first
month of embryonic development
§ Any maternal infection can have extremely
harmful effects
§ Oxygen deprivation destroys brain cells
§ The hypothalamus is one of the last areas of the
brain to develop

System
§ Severe congenital brain diseases include:
§ Cerebral palsy
§ Anencephaly
§ Hydrocephalus
§ Spina bifida

System
§ Premature babies have trouble regulating body
temperature because the hypothalamus is one of
the last brain areas to mature prenatally
§ Development of motor control indicates the
progressive myelination and maturation of a
child’s nervous system

System
§ Brain growth ends in young adulthood. Neurons die
throughout life and are not replaced; thus, brain
mass declines with age
§ Orthostatic hypotension is low blood pressure due
to changes in body position
§ Healthy aged people maintain nearly optimal
intellectual function
§ Disease—particularly cardiovascular disease—is
the major cause of declining mental function with
age
§ Arteriosclerosis is decreased elasticity of blood vessels

Anatomy-Physiol-Lecture08-Nervous-System

More Related Content

What's hot

Similar to Anatomy-Physiol-Lecture08-Nervous-System

Recently uploaded

Anatomy-Physiol-Lecture08-Nervous-System
