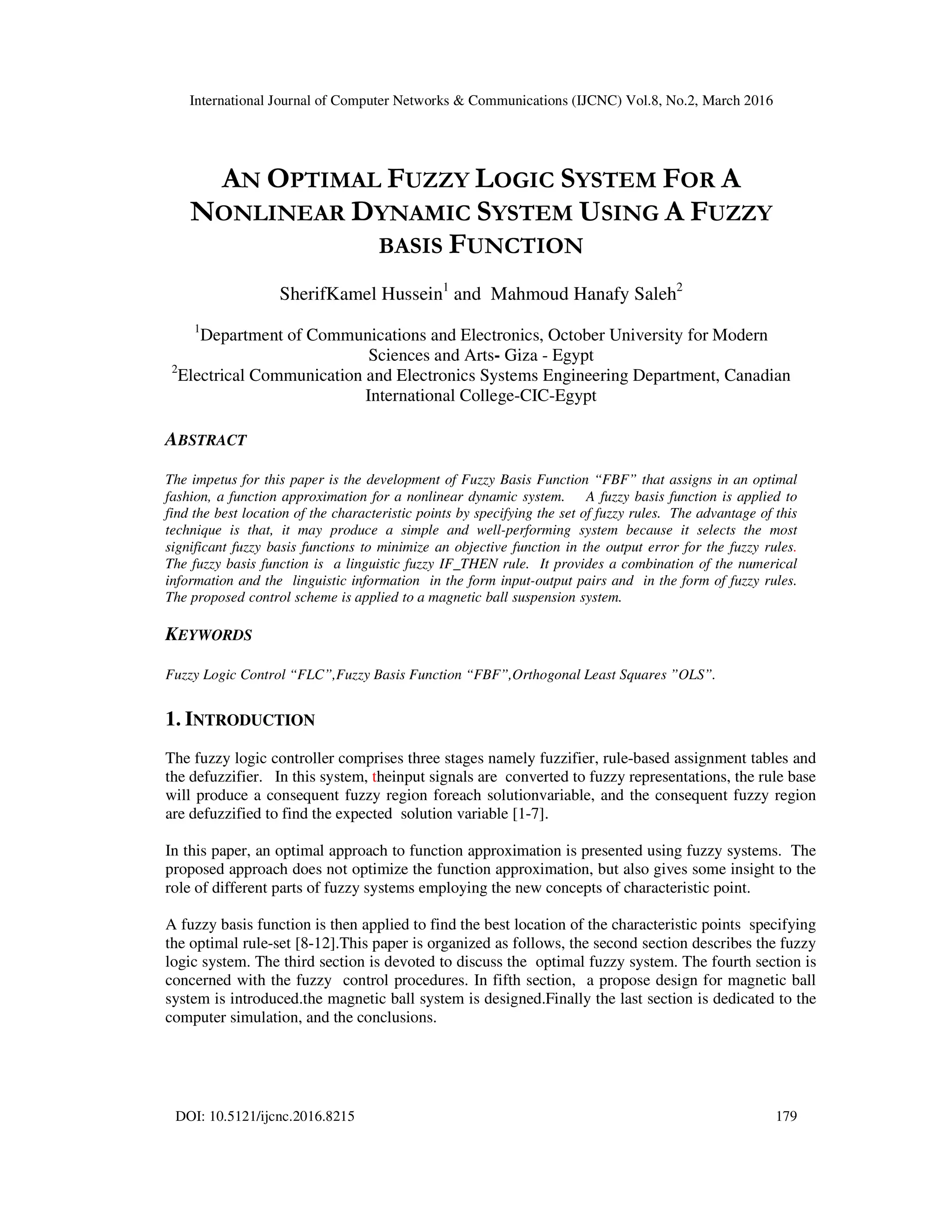

International Journal of Computer Networks & Communications (IJCNC) Vol.8, No.2, March 2016
DOI: 10.5121/ijcnc.2016.8215 179
AN OPTIMAL FUZZY LOGIC SYSTEM FOR A
NONLINEAR DYNAMIC SYSTEM USING A FUZZY
BASIS FUNCTION
SherifKamel Hussein1
and Mahmoud Hanafy Saleh2
1
Department of Communications and Electronics, October University for Modern
Sciences and Arts- Giza - Egypt
2
Electrical Communication and Electronics Systems Engineering Department, Canadian
International College-CIC-Egypt
ABSTRACT
The impetus for this paper is the development of Fuzzy Basis Function “FBF” that assigns in an optimal
fashion, a function approximation for a nonlinear dynamic system. A fuzzy basis function is applied to
find the best location of the characteristic points by specifying the set of fuzzy rules. The advantage of this
technique is that, it may produce a simple and well-performing system because it selects the most
significant fuzzy basis functions to minimize an objective function in the output error for the fuzzy rules.
The fuzzy basis function is a linguistic fuzzy IF_THEN rule. It provides a combination of the numerical
information and the linguistic information in the form input-output pairs and in the form of fuzzy rules.
The proposed control scheme is applied to a magnetic ball suspension system.
KEYWORDS
Fuzzy Logic Control “FLC”,Fuzzy Basis Function “FBF”,Orthogonal Least Squares ”OLS”.
1. INTRODUCTION
The fuzzy logic controller comprises three stages namely fuzzifier, rule-based assignment tables and
the defuzzifier. In this system, theinput signals are converted to fuzzy representations, the rule base
will produce a consequent fuzzy region foreach solutionvariable, and the consequent fuzzy region
are defuzzified to find the expected solution variable [1-7].
In this paper, an optimal approach to function approximation is presented using fuzzy systems. The
proposed approach does not optimize the function approximation, but also gives some insight to the
role of different parts of fuzzy systems employing the new concepts of characteristic point.
A fuzzy basis function is then applied to find the best location of the characteristic points specifying
the optimal rule-set [8-12].This paper is organized as follows, the second section describes the fuzzy
logic system. The third section is devoted to discuss the optimal fuzzy system. The fourth section is
concerned with the fuzzy control procedures. In fifth section, a propose design for magnetic ball
system is introduced.the magnetic ball system is designed.Finally the last section is dedicated to the
computer simulation, and the conclusions.
International Journal of Computer Networks & Communications (IJCNC) Vol.8, No.2, March 2016
180

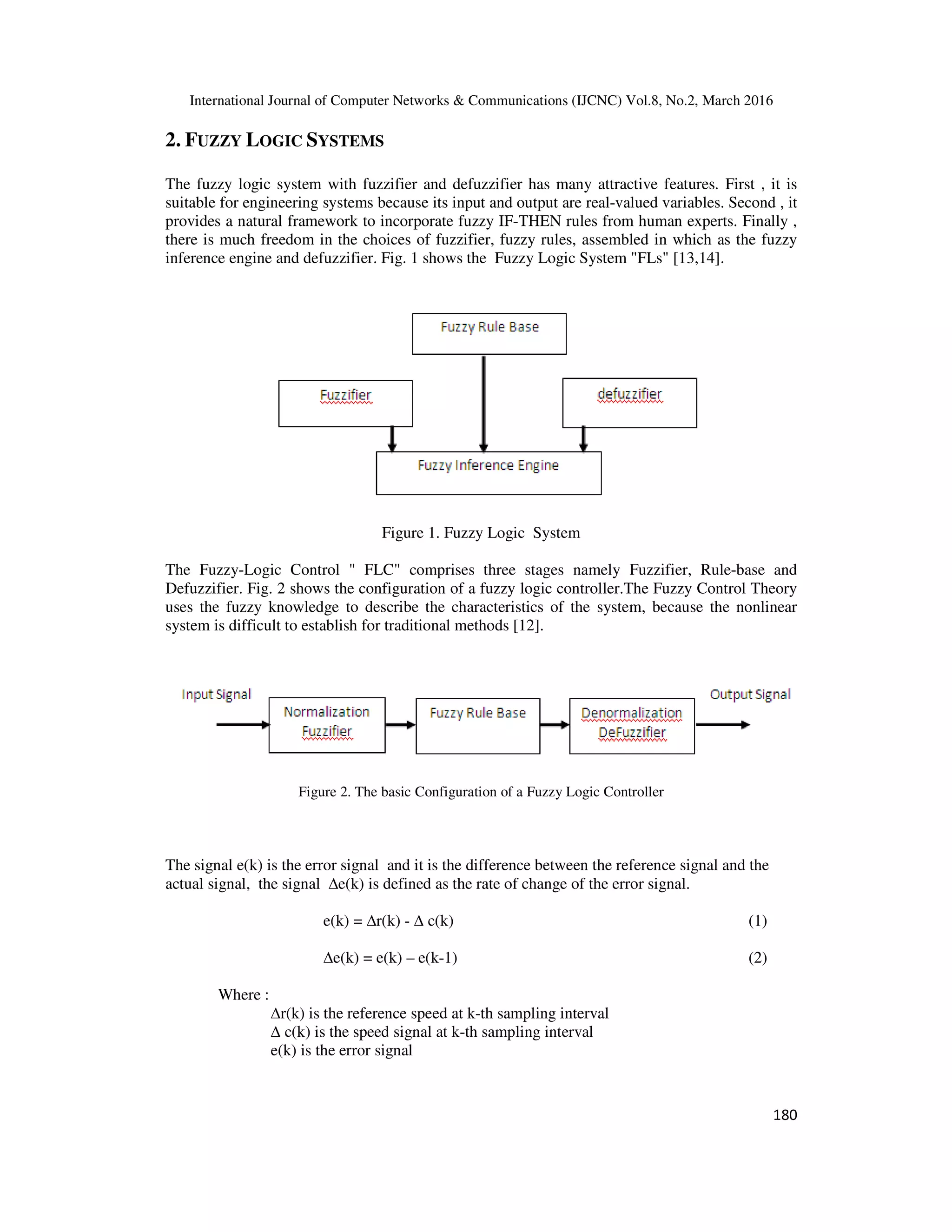

2. FUZZY LOGIC SYSTEMS
The fuzzy logic system with fuzzifier and defuzzifier has many attractive features. First , it is
suitable for engineering systems because its input and output are real-valued variables. Second , it
provides a natural framework to incorporate fuzzy IF-THEN rules from human experts. Finally ,
there is much freedom in the choices of fuzzifier, fuzzy rules, assembled in which as the fuzzy
inference engine and defuzzifier. Fig. 1 shows the Fuzzy Logic System "FLs" [13,14].
Figure 1. Fuzzy Logic System
The Fuzzy-Logic Control " FLC" comprises three stages namely Fuzzifier, Rule-base and
Defuzzifier. Fig. 2 shows the configuration of a fuzzy logic controller.The Fuzzy Control Theory
uses the fuzzy knowledge to describe the characteristics of the system, because the nonlinear
system is difficult to establish for traditional methods [12].
Figure 2. The basic Configuration of a Fuzzy Logic Controller
The signal e(k) is the error signal and it is the difference between the reference signal and the
actual signal, the signal ∆e(k) is defined as the rate of change of the error signal.
e(k) = ∆r(k) - ∆ c(k) (1)
∆e(k) = e(k) – e(k-1) (2)
Where :
∆r(k) is the reference speed at k-th sampling interval
∆ c(k) is the speed signal at k-th sampling interval
e(k) is the error signal
International Journal of Computer Networks & Communications (IJCNC) Vol.8, No.2, March 2016
181

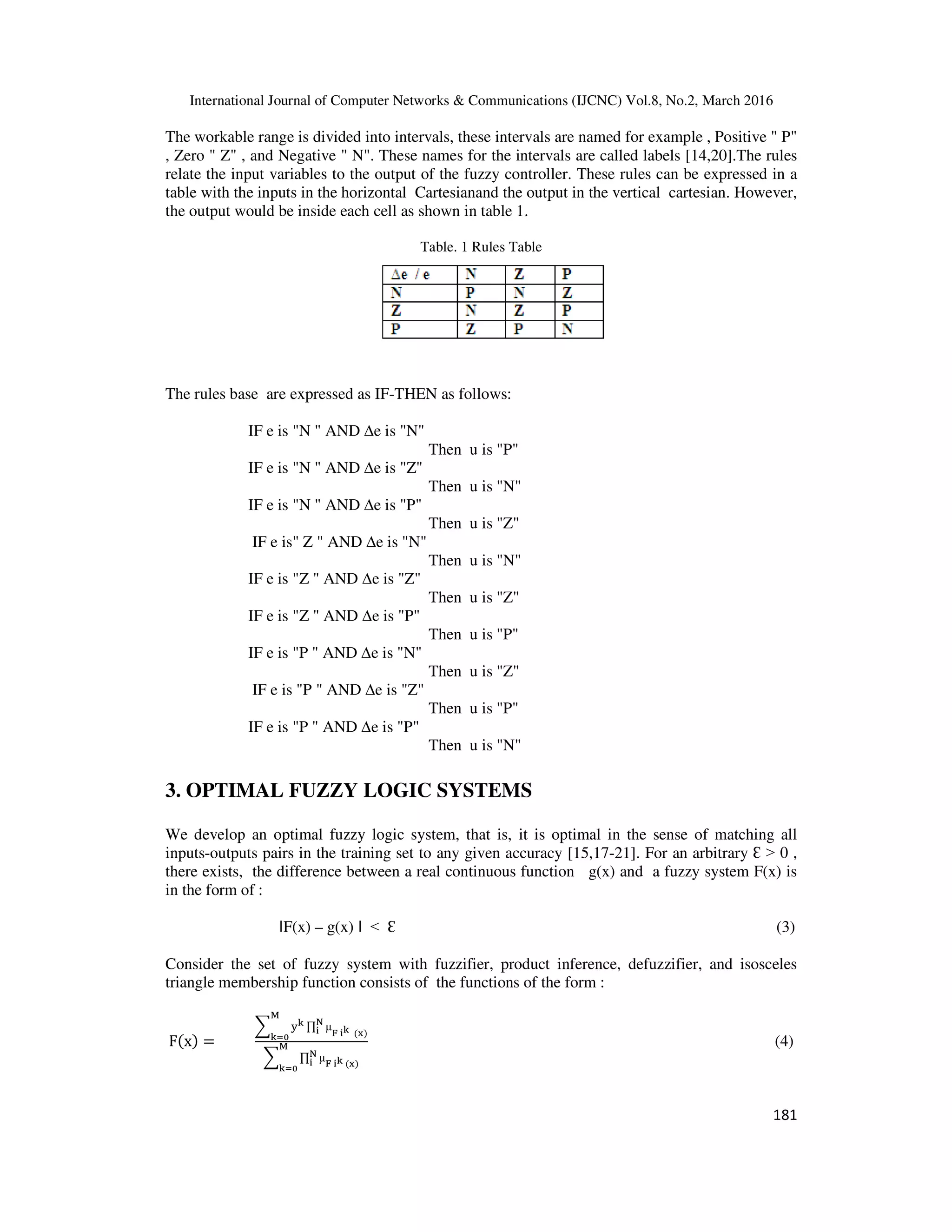

The workable range is divided into intervals, these intervals are named for example , Positive " P"
, Zero " Z" , and Negative " N". These names for the intervals are called labels [14,20].The rules
relate the input variables to the output of the fuzzy controller. These rules can be expressed in a
table with the inputs in the horizontal Cartesianand the output in the vertical cartesian. However,
the output would be inside each cell as shown in table 1.
Table. 1 Rules Table
The rules base are expressed as IF-THEN as follows:
IF e is "N " AND ∆e is "N"
Then u is "P"
IF e is "N " AND ∆e is "Z"
Then u is "N"
IF e is "N " AND ∆e is "P"
Then u is "Z"
IF e is" Z " AND ∆e is "N"
Then u is "N"
IF e is "Z " AND ∆e is "Z"
Then u is "Z"
IF e is "Z " AND ∆e is "P"
Then u is "P"
IF e is "P " AND ∆e is "N"
Then u is "Z"
IF e is "P " AND ∆e is "Z"
Then u is "P"
IF e is "P " AND ∆e is "P"
Then u is "N"
3. OPTIMAL FUZZY LOGIC SYSTEMS
We develop an optimal fuzzy logic system, that is, it is optimal in the sense of matching all
inputs-outputs pairs in the training set to any given accuracy [15,17-21]. For an arbitrary Ɛ ˃ 0 ,
there exists, the difference between a real continuous function g(x) and a fuzzy system F(x) is
in the form of :
ǁF(x) – g(x) ǁ ˂ Ɛ (3)
Consider the set of fuzzy system with fuzzifier, product inference, defuzzifier, and isosceles
triangle membership function consists of the functions of the form :
F x =
∏ µ

∏ µ
(4)
International Journal of Computer Networks & Communications (IJCNC) Vol.8, No.2, March 2016
182

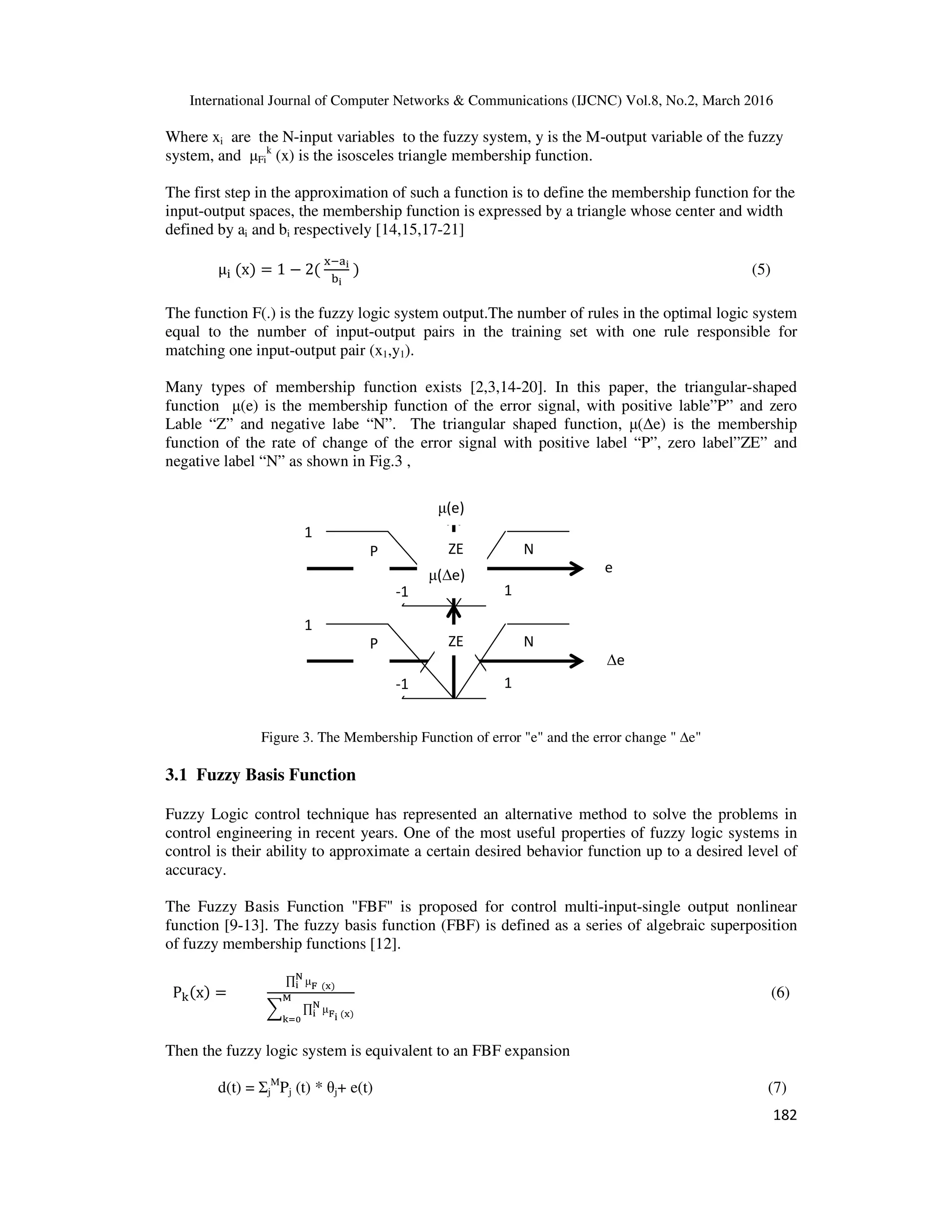

Where xi are the N-input variables to the fuzzy system, y is the M-output variable of the fuzzy
system, and µFi
k
(x) is the isosceles triangle membership function.
The first step in the approximation of such a function is to define the membership function for the
input-output spaces, the membership function is expressed by a triangle whose center and width
defined by ai and bi respectively [14,15,17-21]
μ 	 x = 1 − 2 	 	 (5)
The function F(.) is the fuzzy logic system output.The number of rules in the optimal logic system
equal to the number of input-output pairs in the training set with one rule responsible for
matching one input-output pair (x1,y1).
Many types of membership function exists [2,3,14-20]. In this paper, the triangular-shaped
function µ(e) is the membership function of the error signal, with positive lable”P” and zero
Lable “Z” and negative labe “N”. The triangular shaped function, µ(∆e) is the membership
function of the rate of change of the error signal with positive label “P”, zero label”ZE” and
negative label “N” as shown in Fig.3 ,
Figure 3. The Membership Function of error "e" and the error change " ∆e"
3.1 Fuzzy Basis Function
Fuzzy Logic control technique has represented an alternative method to solve the problems in
control engineering in recent years. One of the most useful properties of fuzzy logic systems in
control is their ability to approximate a certain desired behavior function up to a desired level of
accuracy.
The Fuzzy Basis Function "FBF" is proposed for control multi-input-single output nonlinear
function [9-13]. The fuzzy basis function (FBF) is defined as a series of algebraic superposition
of fuzzy membership functions [12].
P x =
∏ µ
∏ µ
(6)
Then the fuzzy logic system is equivalent to an FBF expansion
d(t) = Σj
M
Pj (t) * θj+ e(t) (7)
µ(e)
e
-1 1
1
ZE NP
e∆
-1 1
1
ZE NP
µ(∆e)
International Journal of Computer Networks & Communications (IJCNC) Vol.8, No.2, March 2016
183

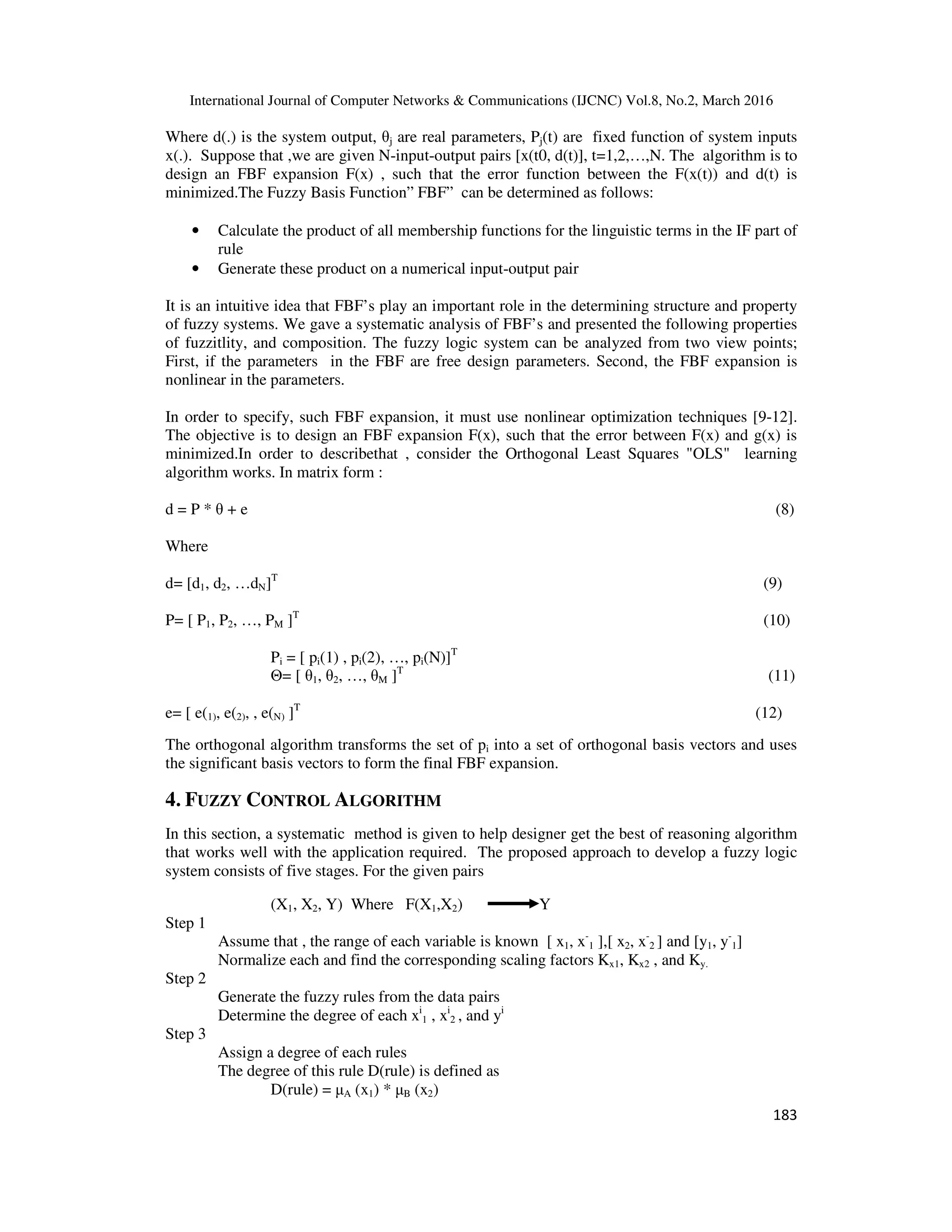

Where d(.) is the system output, θj are real parameters, Pj(t) are fixed function of system inputs
x(.). Suppose that ,we are given N-input-output pairs [x(t0, d(t)], t=1,2,…,N. The algorithm is to
design an FBF expansion F(x) , such that the error function between the F(x(t)) and d(t) is
minimized.The Fuzzy Basis Function” FBF” can be determined as follows:
• Calculate the product of all membership functions for the linguistic terms in the IF part of
rule
• Generate these product on a numerical input-output pair
It is an intuitive idea that FBF’s play an important role in the determining structure and property
of fuzzy systems. We gave a systematic analysis of FBF’s and presented the following properties
of fuzzitlity, and composition. The fuzzy logic system can be analyzed from two view points;
First, if the parameters in the FBF are free design parameters. Second, the FBF expansion is
nonlinear in the parameters.
In order to specify, such FBF expansion, it must use nonlinear optimization techniques [9-12].
The objective is to design an FBF expansion F(x), such that the error between F(x) and g(x) is
minimized.In order to describethat , consider the Orthogonal Least Squares "OLS" learning
algorithm works. In matrix form :
d = P * θ + e (8)
Where
d= [d1, d2, …dN]T
(9)
P= [ P1, P2, …, PM ]T
(10)
Pi = [ pi(1) , pi(2), …, pi(N)]T
Θ= [ θ1, θ2, …, θM ]T
(11)
e= [ e(1), e(2), , e(N) ]T
(12)
The orthogonal algorithm transforms the set of pi into a set of orthogonal basis vectors and uses
the significant basis vectors to form the final FBF expansion.
4. FUZZY CONTROL ALGORITHM
In this section, a systematic method is given to help designer get the best of reasoning algorithm
that works well with the application required. The proposed approach to develop a fuzzy logic
system consists of five stages. For the given pairs
(X1, X2, Y) Where F(X1,X2) Y
Step 1
Assume that , the range of each variable is known [ x1, x-
1 ],[ x2, x-
2 ] and [y1, y-
1]
Normalize each and find the corresponding scaling factors Kx1, Kx2 , and Ky.
Step 2
Generate the fuzzy rules from the data pairs
Determine the degree of each xi
1 , xi
2 , and yi
Step 3
Assign a degree of each rules
The degree of this rule D(rule) is defined as
D(rule) = µA (x1) * µB (x2)
International Journal of Computer Networks & Communications (IJCNC) Vol.8, No.2, March 2016
184

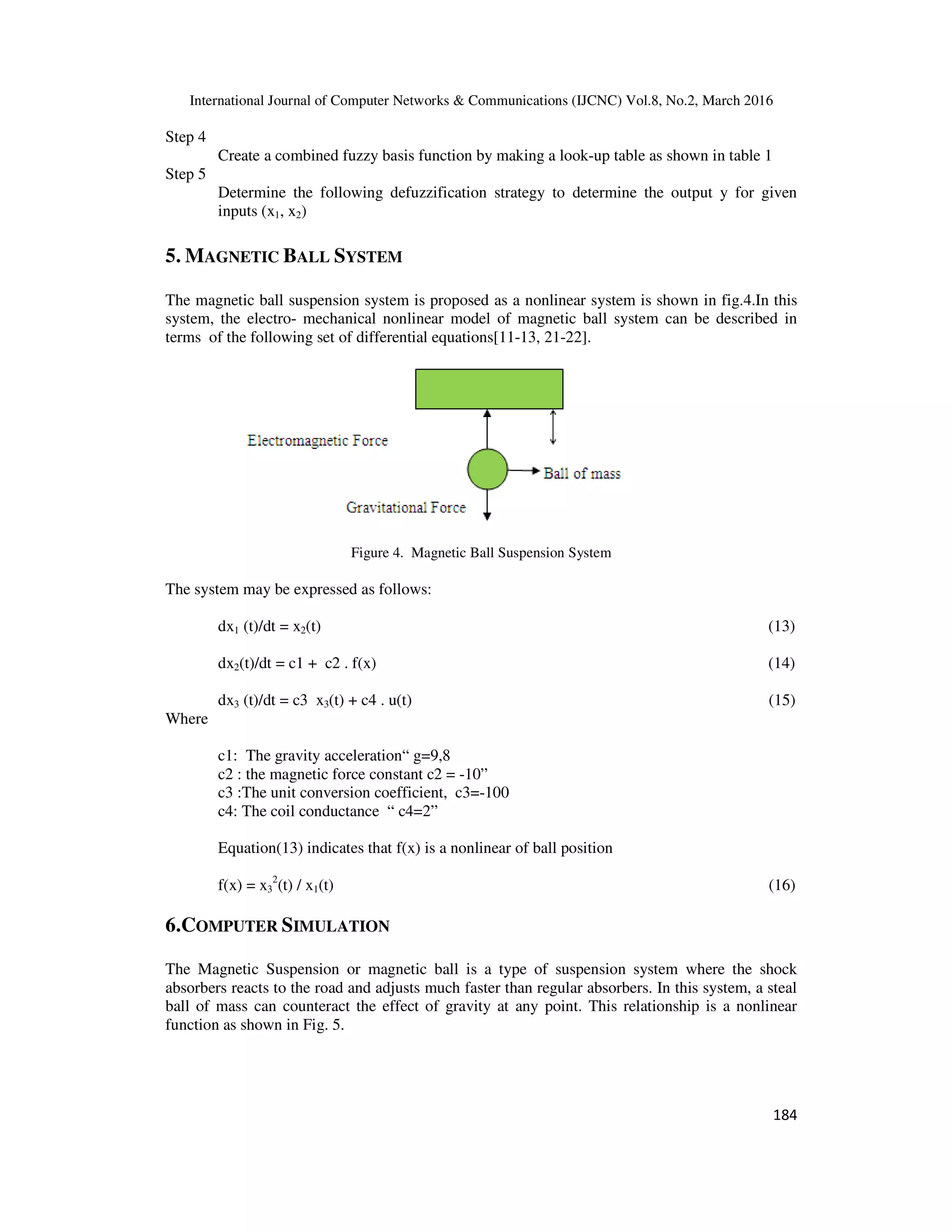

Step 4
Create a combined fuzzy basis function by making a look-up table as shown in table 1
Step 5
Determine the following defuzzification strategy to determine the output y for given
inputs (x1, x2)
5. MAGNETIC BALL SYSTEM
The magnetic ball suspension system is proposed as a nonlinear system is shown in fig.4.In this
system, the electro- mechanical nonlinear model of magnetic ball system can be described in
terms of the following set of differential equations[11-13, 21-22].
Figure 4. Magnetic Ball Suspension System
The system may be expressed as follows:
dx1 (t)/dt = x2(t) (13)
dx2(t)/dt = c1 + c2 . f(x) (14)
dx3 (t)/dt = c3 x3(t) + c4 . u(t) (15)
Where
c1: The gravity acceleration“ g=9,8
c2 : the magnetic force constant c2 = -10”
c3 :The unit conversion coefficient, c3=-100
c4: The coil conductance “ c4=2”
Equation(13) indicates that f(x) is a nonlinear of ball position
f(x) = x3
2
(t) / x1(t) (16)
6.COMPUTER SIMULATION
The Magnetic Suspension or magnetic ball is a type of suspension system where the shock
absorbers reacts to the road and adjusts much faster than regular absorbers. In this system, a steal
ball of mass can counteract the effect of gravity at any point. This relationship is a nonlinear
function as shown in Fig. 5.
International Journal of Computer Networks & Communications (IJCNC) Vol.8, No.2, March 2016
185

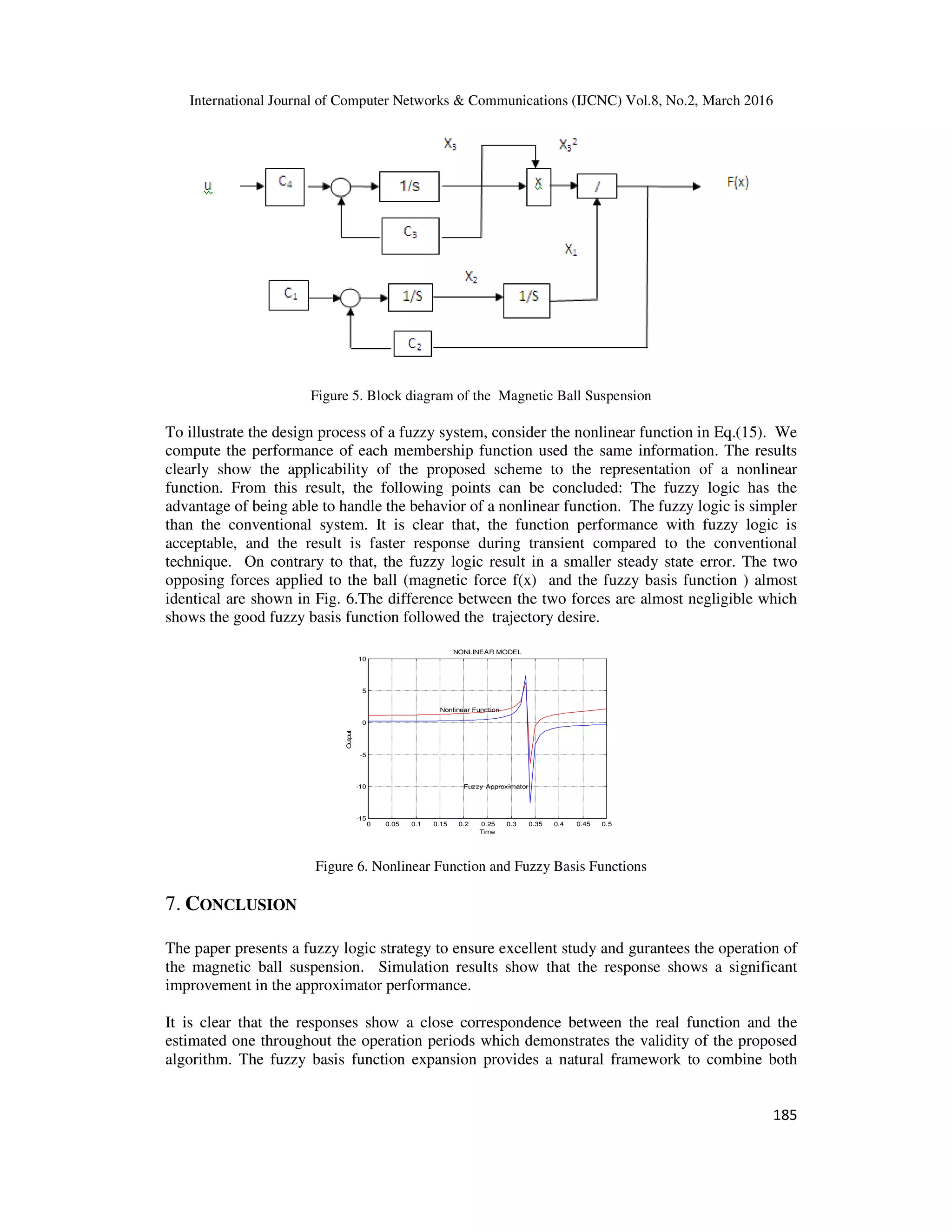

Figure 5. Block diagram of the Magnetic Ball Suspension
To illustrate the design process of a fuzzy system, consider the nonlinear function in Eq.(15). We
compute the performance of each membership function used the same information. The results
clearly show the applicability of the proposed scheme to the representation of a nonlinear
function. From this result, the following points can be concluded: The fuzzy logic has the
advantage of being able to handle the behavior of a nonlinear function. The fuzzy logic is simpler
than the conventional system. It is clear that, the function performance with fuzzy logic is
acceptable, and the result is faster response during transient compared to the conventional
technique. On contrary to that, the fuzzy logic result in a smaller steady state error. The two
opposing forces applied to the ball (magnetic force f(x) and the fuzzy basis function ) almost
identical are shown in Fig. 6.The difference between the two forces are almost negligible which
shows the good fuzzy basis function followed the trajectory desire.
Figure 6. Nonlinear Function and Fuzzy Basis Functions
7. CONCLUSION
The paper presents a fuzzy logic strategy to ensure excellent study and gurantees the operation of
the magnetic ball suspension. Simulation results show that the response shows a significant
improvement in the approximator performance.
It is clear that the responses show a close correspondence between the real function and the
estimated one throughout the operation periods which demonstrates the validity of the proposed
algorithm. The fuzzy basis function expansion provides a natural framework to combine both
0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5
-15
-10
-5
0
5
10
NONLINEAR MODEL
Output
Time
Nonlinear Function
Fuzzy Approximator
International Journal of Computer Networks & Communications (IJCNC) Vol.8, No.2, March 2016
186

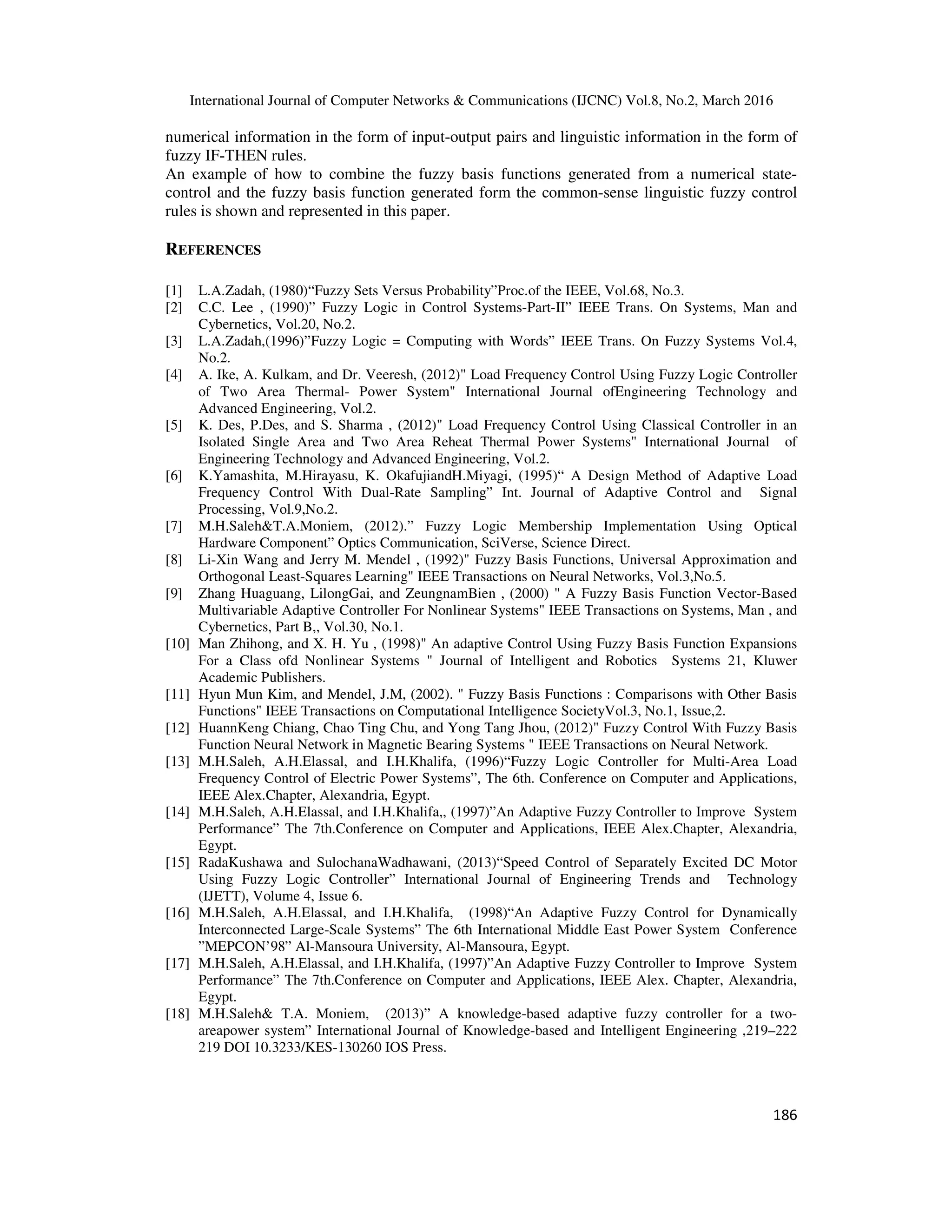

numerical information in the form of input-output pairs and linguistic information in the form of
fuzzy IF-THEN rules.
An example of how to combine the fuzzy basis functions generated from a numerical state-
control and the fuzzy basis function generated form the common-sense linguistic fuzzy control
rules is shown and represented in this paper.
REFERENCES
[1] L.A.Zadah, (1980)“Fuzzy Sets Versus Probability”Proc.of the IEEE, Vol.68, No.3.
[2] C.C. Lee , (1990)” Fuzzy Logic in Control Systems-Part-II” IEEE Trans. On Systems, Man and
Cybernetics, Vol.20, No.2.
[3] L.A.Zadah,(1996)”Fuzzy Logic = Computing with Words” IEEE Trans. On Fuzzy Systems Vol.4,
No.2.
[4] A. Ike, A. Kulkam, and Dr. Veeresh, (2012)" Load Frequency Control Using Fuzzy Logic Controller
of Two Area Thermal- Power System" International Journal ofEngineering Technology and
Advanced Engineering, Vol.2.
[5] K. Des, P.Des, and S. Sharma , (2012)" Load Frequency Control Using Classical Controller in an
Isolated Single Area and Two Area Reheat Thermal Power Systems" International Journal of
Engineering Technology and Advanced Engineering, Vol.2.
[6] K.Yamashita, M.Hirayasu, K. OkafujiandH.Miyagi, (1995)“ A Design Method of Adaptive Load
Frequency Control With Dual-Rate Sampling” Int. Journal of Adaptive Control and Signal
Processing, Vol.9,No.2.
[7] M.H.Saleh&T.A.Moniem, (2012).” Fuzzy Logic Membership Implementation Using Optical
Hardware Component” Optics Communication, SciVerse, Science Direct.
[8] Li-Xin Wang and Jerry M. Mendel , (1992)" Fuzzy Basis Functions, Universal Approximation and
Orthogonal Least-Squares Learning" IEEE Transactions on Neural Networks, Vol.3,No.5.
[9] Zhang Huaguang, LilongGai, and ZeungnamBien , (2000) " A Fuzzy Basis Function Vector-Based
Multivariable Adaptive Controller For Nonlinear Systems" IEEE Transactions on Systems, Man , and
Cybernetics, Part B,, Vol.30, No.1.
[10] Man Zhihong, and X. H. Yu , (1998)" An adaptive Control Using Fuzzy Basis Function Expansions
For a Class ofd Nonlinear Systems " Journal of Intelligent and Robotics Systems 21, Kluwer
Academic Publishers.
[11] Hyun Mun Kim, and Mendel, J.M, (2002). " Fuzzy Basis Functions : Comparisons with Other Basis
Functions" IEEE Transactions on Computational Intelligence SocietyVol.3, No.1, Issue,2.
[12] HuannKeng Chiang, Chao Ting Chu, and Yong Tang Jhou, (2012)" Fuzzy Control With Fuzzy Basis
Function Neural Network in Magnetic Bearing Systems " IEEE Transactions on Neural Network.
[13] M.H.Saleh, A.H.Elassal, and I.H.Khalifa, (1996)“Fuzzy Logic Controller for Multi-Area Load
Frequency Control of Electric Power Systems”, The 6th. Conference on Computer and Applications,
IEEE Alex.Chapter, Alexandria, Egypt.
[14] M.H.Saleh, A.H.Elassal, and I.H.Khalifa,, (1997)”An Adaptive Fuzzy Controller to Improve System
Performance” The 7th.Conference on Computer and Applications, IEEE Alex.Chapter, Alexandria,
Egypt.
[15] RadaKushawa and SulochanaWadhawani, (2013)“Speed Control of Separately Excited DC Motor
Using Fuzzy Logic Controller” International Journal of Engineering Trends and Technology
(IJETT), Volume 4, Issue 6.
[16] M.H.Saleh, A.H.Elassal, and I.H.Khalifa, (1998)“An Adaptive Fuzzy Control for Dynamically
Interconnected Large-Scale Systems” The 6th International Middle East Power System Conference
”MEPCON’98” Al-Mansoura University, Al-Mansoura, Egypt.
[17] M.H.Saleh, A.H.Elassal, and I.H.Khalifa, (1997)”An Adaptive Fuzzy Controller to Improve System
Performance” The 7th.Conference on Computer and Applications, IEEE Alex. Chapter, Alexandria,
Egypt.
[18] M.H.Saleh& T.A. Moniem, (2013)” A knowledge-based adaptive fuzzy controller for a two-
areapower system” International Journal of Knowledge-based and Intelligent Engineering ,219–222
219 DOI 10.3233/KES-130260 IOS Press.

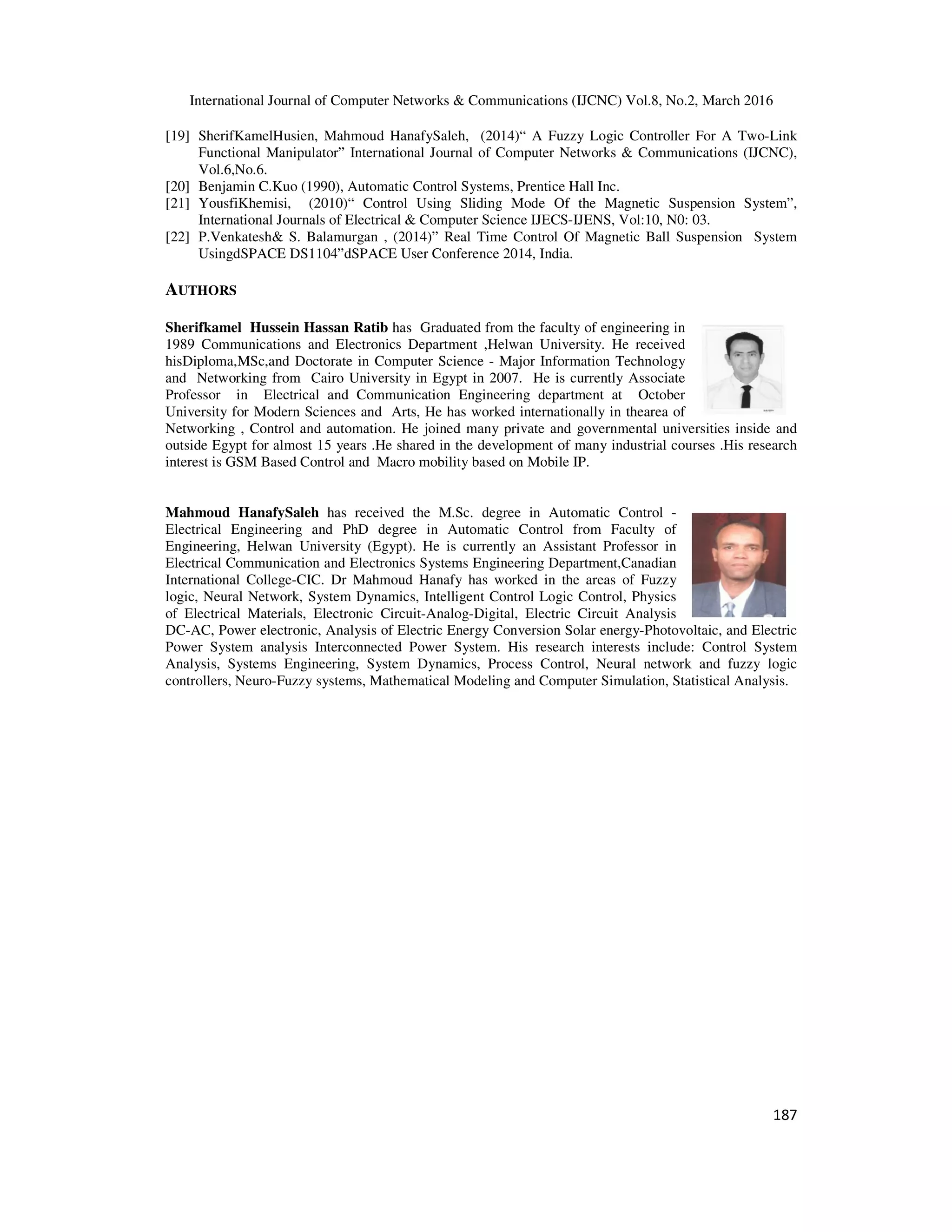

International Journal of Computer Networks & Communications (IJCNC) Vol.8, No.2, March 2016
187
[19] SherifKamelHusien, Mahmoud HanafySaleh, (2014)“ A Fuzzy Logic Controller For A Two-Link
Functional Manipulator” International Journal of Computer Networks & Communications (IJCNC),
Vol.6,No.6.
[20] Benjamin C.Kuo (1990), Automatic Control Systems, Prentice Hall Inc.
[21] YousfiKhemisi, (2010)“ Control Using Sliding Mode Of the Magnetic Suspension System”,
International Journals of Electrical & Computer Science IJECS-IJENS, Vol:10, N0: 03.
[22] P.Venkatesh& S. Balamurgan , (2014)” Real Time Control Of Magnetic Ball Suspension System
UsingdSPACE DS1104”dSPACE User Conference 2014, India.
AUTHORS
Sherifkamel Hussein Hassan Ratib has Graduated from the faculty of engineering in
1989 Communications and Electronics Department ,Helwan University. He received
hisDiploma,MSc,and Doctorate in Computer Science - Major Information Technology
and Networking from Cairo University in Egypt in 2007. He is currently Associate
Professor in Electrical and Communication Engineering department at October
University for Modern Sciences and Arts, He has worked internationally in thearea of
Networking , Control and automation. He joined many private and governmental universities inside and
outside Egypt for almost 15 years .He shared in the development of many industrial courses .His research
interest is GSM Based Control and Macro mobility based on Mobile IP.
Mahmoud HanafySaleh has received the M.Sc. degree in Automatic Control -
Electrical Engineering and PhD degree in Automatic Control from Faculty of
Engineering, Helwan University (Egypt). He is currently an Assistant Professor in
Electrical Communication and Electronics Systems Engineering Department,Canadian
International College-CIC. Dr Mahmoud Hanafy has worked in the areas of Fuzzy
logic, Neural Network, System Dynamics, Intelligent Control Logic Control, Physics
of Electrical Materials, Electronic Circuit-Analog-Digital, Electric Circuit Analysis
DC-AC, Power electronic, Analysis of Electric Energy Conversion Solar energy-Photovoltaic, and Electric
Power System analysis Interconnected Power System. His research interests include: Control System
Analysis, Systems Engineering, System Dynamics, Process Control, Neural network and fuzzy logic
controllers, Neuro-Fuzzy systems, Mathematical Modeling and Computer Simulation, Statistical Analysis.

More Related Content

What's hot

BALANCING BOARD MACHINES
BALANCING BOARD MACHINESBALANCING BOARD MACHINES
BALANCING BOARD MACHINESbutest

IRJET- Design of Photovoltaic System using Fuzzy Logic Controller
IRJET- Design of Photovoltaic System using Fuzzy Logic ControllerIRJET- Design of Photovoltaic System using Fuzzy Logic Controller
IRJET- Design of Photovoltaic System using Fuzzy Logic Controller
IRJET Journal

Simulated Annealing Algorithm for VLSI Floorplanning for Soft Blocks
Simulated Annealing Algorithm for VLSI Floorplanning for Soft BlocksSimulated Annealing Algorithm for VLSI Floorplanning for Soft Blocks
Simulated Annealing Algorithm for VLSI Floorplanning for Soft Blocks
IJCSIS Research Publications

Planes de negocios paper
Planes de negocios paperPlanes de negocios paper
Planes de negocios paper
Guillermo Gallardo

Methods of Manifold Learning for Dimension Reduction of Large Data Sets
Methods of Manifold Learning for Dimension Reduction of Large Data SetsMethods of Manifold Learning for Dimension Reduction of Large Data Sets
Methods of Manifold Learning for Dimension Reduction of Large Data Sets
Ryan B Harvey, CSDP, CSM

Improving Performance of Back propagation Learning Algorithm
Improving Performance of Back propagation Learning AlgorithmImproving Performance of Back propagation Learning Algorithm
Improving Performance of Back propagation Learning Algorithm
ijsrd.com

Resourceful fast dht algorithm for vlsi implementation by split radix algorithm
Resourceful fast dht algorithm for vlsi implementation by split radix algorithmResourceful fast dht algorithm for vlsi implementation by split radix algorithm
Resourceful fast dht algorithm for vlsi implementation by split radix algorithm
eSAT Publishing House

H046014853
H046014853H046014853
H046014853
IJERA Editor

The Positive Effects of Fuzzy C-Means Clustering on Supervised Learning Class...
The Positive Effects of Fuzzy C-Means Clustering on Supervised Learning Class...The Positive Effects of Fuzzy C-Means Clustering on Supervised Learning Class...
The Positive Effects of Fuzzy C-Means Clustering on Supervised Learning Class...
Waqas Tariq

Parallel algorithms
Parallel algorithmsParallel algorithms
Parallel algorithmsguest084d20

Bidirectional Bubble Sort Approach to Improving the Performance of Introsort ...
Bidirectional Bubble Sort Approach to Improving the Performance of Introsort ...Bidirectional Bubble Sort Approach to Improving the Performance of Introsort ...
Bidirectional Bubble Sort Approach to Improving the Performance of Introsort ...
Waqas Tariq

Pointer
PointerPointer
Pointer
manish840

Application of normalized cross correlation to image registration
Application of normalized cross correlation to image registrationApplication of normalized cross correlation to image registration
Application of normalized cross correlation to image registration
eSAT Publishing House

Cpphtp4 ppt 03
Cpphtp4 ppt 03Cpphtp4 ppt 03
Cpphtp4 ppt 03
sanya6900


What's hot (18)

20120140506008 2
20120140506008 220120140506008 2
20120140506008 2

BALANCING BOARD MACHINES
BALANCING BOARD MACHINESBALANCING BOARD MACHINES
BALANCING BOARD MACHINES

IRJET- Design of Photovoltaic System using Fuzzy Logic Controller
IRJET- Design of Photovoltaic System using Fuzzy Logic ControllerIRJET- Design of Photovoltaic System using Fuzzy Logic Controller
IRJET- Design of Photovoltaic System using Fuzzy Logic Controller

Simulated Annealing Algorithm for VLSI Floorplanning for Soft Blocks
Simulated Annealing Algorithm for VLSI Floorplanning for Soft BlocksSimulated Annealing Algorithm for VLSI Floorplanning for Soft Blocks
Simulated Annealing Algorithm for VLSI Floorplanning for Soft Blocks

P1121133705
P1121133705P1121133705
P1121133705

Planes de negocios paper
Planes de negocios paperPlanes de negocios paper
Planes de negocios paper

Methods of Manifold Learning for Dimension Reduction of Large Data Sets
Methods of Manifold Learning for Dimension Reduction of Large Data SetsMethods of Manifold Learning for Dimension Reduction of Large Data Sets
Methods of Manifold Learning for Dimension Reduction of Large Data Sets

Improving Performance of Back propagation Learning Algorithm
Improving Performance of Back propagation Learning AlgorithmImproving Performance of Back propagation Learning Algorithm
Improving Performance of Back propagation Learning Algorithm

Resourceful fast dht algorithm for vlsi implementation by split radix algorithm
Resourceful fast dht algorithm for vlsi implementation by split radix algorithmResourceful fast dht algorithm for vlsi implementation by split radix algorithm
Resourceful fast dht algorithm for vlsi implementation by split radix algorithm

H046014853
H046014853H046014853
H046014853

The Positive Effects of Fuzzy C-Means Clustering on Supervised Learning Class...
The Positive Effects of Fuzzy C-Means Clustering on Supervised Learning Class...The Positive Effects of Fuzzy C-Means Clustering on Supervised Learning Class...
The Positive Effects of Fuzzy C-Means Clustering on Supervised Learning Class...

Parallel algorithms
Parallel algorithmsParallel algorithms
Parallel algorithms

E0212730
E0212730E0212730
E0212730

Bidirectional Bubble Sort Approach to Improving the Performance of Introsort ...
Bidirectional Bubble Sort Approach to Improving the Performance of Introsort ...Bidirectional Bubble Sort Approach to Improving the Performance of Introsort ...
Bidirectional Bubble Sort Approach to Improving the Performance of Introsort ...

Pointer
PointerPointer
Pointer

Application of normalized cross correlation to image registration
Application of normalized cross correlation to image registrationApplication of normalized cross correlation to image registration
Application of normalized cross correlation to image registration

Cpphtp4 ppt 03
Cpphtp4 ppt 03Cpphtp4 ppt 03
Cpphtp4 ppt 03

Zoooooohaib
ZoooooohaibZoooooohaib
Zoooooohaib


Viewers also liked

Infrastructure of services for a smart city
Infrastructure of services for a smart cityInfrastructure of services for a smart city
Infrastructure of services for a smart city
IJCNCJournal

Wormhole attack mitigation in manet a
Wormhole attack mitigation in manet aWormhole attack mitigation in manet a
Wormhole attack mitigation in manet a
IJCNCJournal

Multipath qos aware routing protocol
Multipath qos aware routing protocolMultipath qos aware routing protocol
Multipath qos aware routing protocol
IJCNCJournal

Managing, searching, and accessing iot devices
Managing, searching, and accessing iot devicesManaging, searching, and accessing iot devices
Managing, searching, and accessing iot devices
IJCNCJournal

COST-EFFICIENT RESIDENTIAL ENERGY MANAGEMENT SCHEME FOR INFORMATION-CENTRIC N...
COST-EFFICIENT RESIDENTIAL ENERGY MANAGEMENT SCHEME FOR INFORMATION-CENTRIC N...COST-EFFICIENT RESIDENTIAL ENERGY MANAGEMENT SCHEME FOR INFORMATION-CENTRIC N...
COST-EFFICIENT RESIDENTIAL ENERGY MANAGEMENT SCHEME FOR INFORMATION-CENTRIC N...
IJCNCJournal

Adhoc mobile wireless network enhancement based on cisco devices
Adhoc mobile wireless network enhancement based on cisco devicesAdhoc mobile wireless network enhancement based on cisco devices
Adhoc mobile wireless network enhancement based on cisco devices
IJCNCJournal

Distributed firewalls and ids interoperability checking based on a formal app...
Distributed firewalls and ids interoperability checking based on a formal app...Distributed firewalls and ids interoperability checking based on a formal app...
Distributed firewalls and ids interoperability checking based on a formal app...
IJCNCJournal

A novel secure e contents system for multi-media interchange workflows in e-l...
A novel secure e contents system for multi-media interchange workflows in e-l...A novel secure e contents system for multi-media interchange workflows in e-l...
A novel secure e contents system for multi-media interchange workflows in e-l...
IJCNCJournal

Performance comparison of coded and uncoded ieee 802.16 d systems under stanf...
Performance comparison of coded and uncoded ieee 802.16 d systems under stanf...Performance comparison of coded and uncoded ieee 802.16 d systems under stanf...
Performance comparison of coded and uncoded ieee 802.16 d systems under stanf...
IJCNCJournal

The improvement of end to end delays in network management system using netwo...
The improvement of end to end delays in network management system using netwo...The improvement of end to end delays in network management system using netwo...
The improvement of end to end delays in network management system using netwo...
IJCNCJournal

Regressive admission control enabled by real time qos measurements
Regressive admission control enabled by real time qos measurementsRegressive admission control enabled by real time qos measurements
Regressive admission control enabled by real time qos measurements
IJCNCJournal

Energy efficient clustering in heterogeneous
Energy efficient clustering in heterogeneousEnergy efficient clustering in heterogeneous
Energy efficient clustering in heterogeneous
IJCNCJournal

Concepts and evolution of research in the field of wireless sensor networks
Concepts and evolution of research in the field of wireless sensor networksConcepts and evolution of research in the field of wireless sensor networks
Concepts and evolution of research in the field of wireless sensor networks
IJCNCJournal

A novel algorithm for tcp timeout
A novel algorithm for tcp timeoutA novel algorithm for tcp timeout
A novel algorithm for tcp timeout
IJCNCJournal

THE IMPACT OF NODE MISBEHAVIOR ON THE PERFORMANCE OF ROUTING PROTOCOLS IN MANET
THE IMPACT OF NODE MISBEHAVIOR ON THE PERFORMANCE OF ROUTING PROTOCOLS IN MANETTHE IMPACT OF NODE MISBEHAVIOR ON THE PERFORMANCE OF ROUTING PROTOCOLS IN MANET
THE IMPACT OF NODE MISBEHAVIOR ON THE PERFORMANCE OF ROUTING PROTOCOLS IN MANET
IJCNCJournal

Evaluation of scalability and bandwidth
Evaluation of scalability and bandwidthEvaluation of scalability and bandwidth
Evaluation of scalability and bandwidth
IJCNCJournal

A method of evaluating effect of qo s degradation on multidimensional qoe of ...
A method of evaluating effect of qo s degradation on multidimensional qoe of ...A method of evaluating effect of qo s degradation on multidimensional qoe of ...
A method of evaluating effect of qo s degradation on multidimensional qoe of ...
IJCNCJournal

Evaluation of a topological distance
Evaluation of a topological distanceEvaluation of a topological distance
Evaluation of a topological distance
IJCNCJournal

Priority scheduling for multipath video transmission in wmsns
Priority scheduling for multipath video transmission in wmsnsPriority scheduling for multipath video transmission in wmsns
Priority scheduling for multipath video transmission in wmsns
IJCNCJournal


Viewers also liked (19)

Infrastructure of services for a smart city
Infrastructure of services for a smart cityInfrastructure of services for a smart city
Infrastructure of services for a smart city

Wormhole attack mitigation in manet a
Wormhole attack mitigation in manet aWormhole attack mitigation in manet a
Wormhole attack mitigation in manet a

Multipath qos aware routing protocol
Multipath qos aware routing protocolMultipath qos aware routing protocol
Multipath qos aware routing protocol

Managing, searching, and accessing iot devices
Managing, searching, and accessing iot devicesManaging, searching, and accessing iot devices
Managing, searching, and accessing iot devices

COST-EFFICIENT RESIDENTIAL ENERGY MANAGEMENT SCHEME FOR INFORMATION-CENTRIC N...
COST-EFFICIENT RESIDENTIAL ENERGY MANAGEMENT SCHEME FOR INFORMATION-CENTRIC N...COST-EFFICIENT RESIDENTIAL ENERGY MANAGEMENT SCHEME FOR INFORMATION-CENTRIC N...
COST-EFFICIENT RESIDENTIAL ENERGY MANAGEMENT SCHEME FOR INFORMATION-CENTRIC N...

Adhoc mobile wireless network enhancement based on cisco devices
Adhoc mobile wireless network enhancement based on cisco devicesAdhoc mobile wireless network enhancement based on cisco devices
Adhoc mobile wireless network enhancement based on cisco devices

Distributed firewalls and ids interoperability checking based on a formal app...
Distributed firewalls and ids interoperability checking based on a formal app...Distributed firewalls and ids interoperability checking based on a formal app...
Distributed firewalls and ids interoperability checking based on a formal app...

A novel secure e contents system for multi-media interchange workflows in e-l...
A novel secure e contents system for multi-media interchange workflows in e-l...A novel secure e contents system for multi-media interchange workflows in e-l...
A novel secure e contents system for multi-media interchange workflows in e-l...

Performance comparison of coded and uncoded ieee 802.16 d systems under stanf...
Performance comparison of coded and uncoded ieee 802.16 d systems under stanf...Performance comparison of coded and uncoded ieee 802.16 d systems under stanf...
Performance comparison of coded and uncoded ieee 802.16 d systems under stanf...

The improvement of end to end delays in network management system using netwo...
The improvement of end to end delays in network management system using netwo...The improvement of end to end delays in network management system using netwo...
The improvement of end to end delays in network management system using netwo...

Regressive admission control enabled by real time qos measurements
Regressive admission control enabled by real time qos measurementsRegressive admission control enabled by real time qos measurements
Regressive admission control enabled by real time qos measurements

Energy efficient clustering in heterogeneous
Energy efficient clustering in heterogeneousEnergy efficient clustering in heterogeneous
Energy efficient clustering in heterogeneous

Concepts and evolution of research in the field of wireless sensor networks
Concepts and evolution of research in the field of wireless sensor networksConcepts and evolution of research in the field of wireless sensor networks
Concepts and evolution of research in the field of wireless sensor networks

A novel algorithm for tcp timeout
A novel algorithm for tcp timeoutA novel algorithm for tcp timeout
A novel algorithm for tcp timeout

THE IMPACT OF NODE MISBEHAVIOR ON THE PERFORMANCE OF ROUTING PROTOCOLS IN MANET
THE IMPACT OF NODE MISBEHAVIOR ON THE PERFORMANCE OF ROUTING PROTOCOLS IN MANETTHE IMPACT OF NODE MISBEHAVIOR ON THE PERFORMANCE OF ROUTING PROTOCOLS IN MANET
THE IMPACT OF NODE MISBEHAVIOR ON THE PERFORMANCE OF ROUTING PROTOCOLS IN MANET

Evaluation of scalability and bandwidth
Evaluation of scalability and bandwidthEvaluation of scalability and bandwidth
Evaluation of scalability and bandwidth

A method of evaluating effect of qo s degradation on multidimensional qoe of ...
A method of evaluating effect of qo s degradation on multidimensional qoe of ...A method of evaluating effect of qo s degradation on multidimensional qoe of ...
A method of evaluating effect of qo s degradation on multidimensional qoe of ...

Evaluation of a topological distance
Evaluation of a topological distanceEvaluation of a topological distance
Evaluation of a topological distance

Priority scheduling for multipath video transmission in wmsns
Priority scheduling for multipath video transmission in wmsnsPriority scheduling for multipath video transmission in wmsns
Priority scheduling for multipath video transmission in wmsns


Similar to AN OPTIMAL FUZZY LOGIC SYSTEM FOR A NONLINEAR DYNAMIC SYSTEM USING A FUZZY BASIS FUNCTION

A Mixed Binary-Real NSGA II Algorithm Ensuring Both Accuracy and Interpretabi...
A Mixed Binary-Real NSGA II Algorithm Ensuring Both Accuracy and Interpretabi...A Mixed Binary-Real NSGA II Algorithm Ensuring Both Accuracy and Interpretabi...
A Mixed Binary-Real NSGA II Algorithm Ensuring Both Accuracy and Interpretabi...
IJECEIAES

An optimal general type-2 fuzzy controller for Urban Traffic Network
An optimal general type-2 fuzzy controller for Urban Traffic NetworkAn optimal general type-2 fuzzy controller for Urban Traffic Network
An optimal general type-2 fuzzy controller for Urban Traffic Network
ISA Interchange

Electricity consumption-prediction-model-using neuro-fuzzy-system
Electricity consumption-prediction-model-using neuro-fuzzy-systemElectricity consumption-prediction-model-using neuro-fuzzy-system
Electricity consumption-prediction-model-using neuro-fuzzy-systemCemal Ardil

Symbolic Computation and Automated Reasoning in Differential Geometry
Symbolic Computation and Automated Reasoning in Differential GeometrySymbolic Computation and Automated Reasoning in Differential Geometry
Symbolic Computation and Automated Reasoning in Differential GeometryM Reza Rahmati

Ejsr 86 3
Ejsr 86 3Ejsr 86 3
Efficient Forecasting of Exchange rates with Recurrent FLANN
Efficient Forecasting of Exchange rates with Recurrent FLANNEfficient Forecasting of Exchange rates with Recurrent FLANN
Efficient Forecasting of Exchange rates with Recurrent FLANN
IOSR Journals

Intercept probability analysis in DF time switching full-duplex relaying netw...
Intercept probability analysis in DF time switching full-duplex relaying netw...Intercept probability analysis in DF time switching full-duplex relaying netw...
Intercept probability analysis in DF time switching full-duplex relaying netw...
TELKOMNIKA JOURNAL

A hybrid bacterial foraging and modified particle swarm optimization for mode...
A hybrid bacterial foraging and modified particle swarm optimization for mode...A hybrid bacterial foraging and modified particle swarm optimization for mode...
A hybrid bacterial foraging and modified particle swarm optimization for mode...
IJECEIAES

Design of optimized Interval Arithmetic Multiplier
Design of optimized Interval Arithmetic MultiplierDesign of optimized Interval Arithmetic Multiplier
Design of optimized Interval Arithmetic Multiplier
VLSICS Design

Ag04606202206
Ag04606202206Ag04606202206
Ag04606202206
IJERA Editor

Investigations on Hybrid Learning in ANFIS
Investigations on Hybrid Learning in ANFISInvestigations on Hybrid Learning in ANFIS
Investigations on Hybrid Learning in ANFIS
IJERA Editor

Hybrid neuro-fuzzy-approach-for-automatic-generation-control-of-two--area-int...
Hybrid neuro-fuzzy-approach-for-automatic-generation-control-of-two--area-int...Hybrid neuro-fuzzy-approach-for-automatic-generation-control-of-two--area-int...
Hybrid neuro-fuzzy-approach-for-automatic-generation-control-of-two--area-int...Cemal Ardil

Design of Processing Element (PE3) for Implementing Pipeline FFT Processor
Design of Processing Element (PE3) for Implementing Pipeline FFT Processor Design of Processing Element (PE3) for Implementing Pipeline FFT Processor
Design of Processing Element (PE3) for Implementing Pipeline FFT Processor
ijcisjournal

1.[1 5]implementation of pre compensation fuzzy for a cascade pid controller ...
1.[1 5]implementation of pre compensation fuzzy for a cascade pid controller ...1.[1 5]implementation of pre compensation fuzzy for a cascade pid controller ...
1.[1 5]implementation of pre compensation fuzzy for a cascade pid controller ...
Alexander Decker

How to Decide the Best Fuzzy Model in ANFIS
How to Decide the Best Fuzzy Model in ANFIS How to Decide the Best Fuzzy Model in ANFIS
IMPROVEMENT OF LTE DOWNLINK SYSTEM PERFORMANCES USING THE LAGRANGE POLYNOMIAL...
IMPROVEMENT OF LTE DOWNLINK SYSTEM PERFORMANCES USING THE LAGRANGE POLYNOMIAL...IMPROVEMENT OF LTE DOWNLINK SYSTEM PERFORMANCES USING THE LAGRANGE POLYNOMIAL...
IMPROVEMENT OF LTE DOWNLINK SYSTEM PERFORMANCES USING THE LAGRANGE POLYNOMIAL...
IJCNCJournal

A new design of fuzzy logic controller optimized by PSO-SCSO applied to SFO-D...
A new design of fuzzy logic controller optimized by PSO-SCSO applied to SFO-D...A new design of fuzzy logic controller optimized by PSO-SCSO applied to SFO-D...
A new design of fuzzy logic controller optimized by PSO-SCSO applied to SFO-D...
IJECEIAES

Iaetsd pipelined parallel fft architecture through folding transformation
Iaetsd pipelined parallel fft architecture through folding transformationIaetsd pipelined parallel fft architecture through folding transformation
Iaetsd pipelined parallel fft architecture through folding transformation
Iaetsd Iaetsd

Performance evaluations of grioryan fft and cooley tukey fft onto xilinx virt...
Performance evaluations of grioryan fft and cooley tukey fft onto xilinx virt...Performance evaluations of grioryan fft and cooley tukey fft onto xilinx virt...
Performance evaluations of grioryan fft and cooley tukey fft onto xilinx virt...
csandit

PERFORMANCE EVALUATIONS OF GRIORYAN FFT AND COOLEY-TUKEY FFT ONTO XILINX VIRT...
PERFORMANCE EVALUATIONS OF GRIORYAN FFT AND COOLEY-TUKEY FFT ONTO XILINX VIRT...PERFORMANCE EVALUATIONS OF GRIORYAN FFT AND COOLEY-TUKEY FFT ONTO XILINX VIRT...
PERFORMANCE EVALUATIONS OF GRIORYAN FFT AND COOLEY-TUKEY FFT ONTO XILINX VIRT...
cscpconf


Similar to AN OPTIMAL FUZZY LOGIC SYSTEM FOR A NONLINEAR DYNAMIC SYSTEM USING A FUZZY BASIS FUNCTION (20)

A Mixed Binary-Real NSGA II Algorithm Ensuring Both Accuracy and Interpretabi...
A Mixed Binary-Real NSGA II Algorithm Ensuring Both Accuracy and Interpretabi...A Mixed Binary-Real NSGA II Algorithm Ensuring Both Accuracy and Interpretabi...
A Mixed Binary-Real NSGA II Algorithm Ensuring Both Accuracy and Interpretabi...

An optimal general type-2 fuzzy controller for Urban Traffic Network
An optimal general type-2 fuzzy controller for Urban Traffic NetworkAn optimal general type-2 fuzzy controller for Urban Traffic Network
An optimal general type-2 fuzzy controller for Urban Traffic Network

Electricity consumption-prediction-model-using neuro-fuzzy-system
Electricity consumption-prediction-model-using neuro-fuzzy-systemElectricity consumption-prediction-model-using neuro-fuzzy-system
Electricity consumption-prediction-model-using neuro-fuzzy-system

Symbolic Computation and Automated Reasoning in Differential Geometry
Symbolic Computation and Automated Reasoning in Differential GeometrySymbolic Computation and Automated Reasoning in Differential Geometry
Symbolic Computation and Automated Reasoning in Differential Geometry

Ejsr 86 3
Ejsr 86 3Ejsr 86 3
Ejsr 86 3

Efficient Forecasting of Exchange rates with Recurrent FLANN
Efficient Forecasting of Exchange rates with Recurrent FLANNEfficient Forecasting of Exchange rates with Recurrent FLANN
Efficient Forecasting of Exchange rates with Recurrent FLANN

Intercept probability analysis in DF time switching full-duplex relaying netw...
Intercept probability analysis in DF time switching full-duplex relaying netw...Intercept probability analysis in DF time switching full-duplex relaying netw...
Intercept probability analysis in DF time switching full-duplex relaying netw...

A hybrid bacterial foraging and modified particle swarm optimization for mode...
A hybrid bacterial foraging and modified particle swarm optimization for mode...A hybrid bacterial foraging and modified particle swarm optimization for mode...
A hybrid bacterial foraging and modified particle swarm optimization for mode...

Design of optimized Interval Arithmetic Multiplier
Design of optimized Interval Arithmetic MultiplierDesign of optimized Interval Arithmetic Multiplier
Design of optimized Interval Arithmetic Multiplier

Ag04606202206
Ag04606202206Ag04606202206
Ag04606202206

Investigations on Hybrid Learning in ANFIS
Investigations on Hybrid Learning in ANFISInvestigations on Hybrid Learning in ANFIS
Investigations on Hybrid Learning in ANFIS

Hybrid neuro-fuzzy-approach-for-automatic-generation-control-of-two--area-int...
Hybrid neuro-fuzzy-approach-for-automatic-generation-control-of-two--area-int...Hybrid neuro-fuzzy-approach-for-automatic-generation-control-of-two--area-int...
Hybrid neuro-fuzzy-approach-for-automatic-generation-control-of-two--area-int...

Design of Processing Element (PE3) for Implementing Pipeline FFT Processor
Design of Processing Element (PE3) for Implementing Pipeline FFT Processor Design of Processing Element (PE3) for Implementing Pipeline FFT Processor
Design of Processing Element (PE3) for Implementing Pipeline FFT Processor

1.[1 5]implementation of pre compensation fuzzy for a cascade pid controller ...
1.[1 5]implementation of pre compensation fuzzy for a cascade pid controller ...1.[1 5]implementation of pre compensation fuzzy for a cascade pid controller ...
1.[1 5]implementation of pre compensation fuzzy for a cascade pid controller ...

How to Decide the Best Fuzzy Model in ANFIS
How to Decide the Best Fuzzy Model in ANFIS How to Decide the Best Fuzzy Model in ANFIS
How to Decide the Best Fuzzy Model in ANFIS

IMPROVEMENT OF LTE DOWNLINK SYSTEM PERFORMANCES USING THE LAGRANGE POLYNOMIAL...
IMPROVEMENT OF LTE DOWNLINK SYSTEM PERFORMANCES USING THE LAGRANGE POLYNOMIAL...IMPROVEMENT OF LTE DOWNLINK SYSTEM PERFORMANCES USING THE LAGRANGE POLYNOMIAL...
IMPROVEMENT OF LTE DOWNLINK SYSTEM PERFORMANCES USING THE LAGRANGE POLYNOMIAL...

A new design of fuzzy logic controller optimized by PSO-SCSO applied to SFO-D...
A new design of fuzzy logic controller optimized by PSO-SCSO applied to SFO-D...A new design of fuzzy logic controller optimized by PSO-SCSO applied to SFO-D...
A new design of fuzzy logic controller optimized by PSO-SCSO applied to SFO-D...

Iaetsd pipelined parallel fft architecture through folding transformation
Iaetsd pipelined parallel fft architecture through folding transformationIaetsd pipelined parallel fft architecture through folding transformation
Iaetsd pipelined parallel fft architecture through folding transformation

Performance evaluations of grioryan fft and cooley tukey fft onto xilinx virt...
Performance evaluations of grioryan fft and cooley tukey fft onto xilinx virt...Performance evaluations of grioryan fft and cooley tukey fft onto xilinx virt...
Performance evaluations of grioryan fft and cooley tukey fft onto xilinx virt...

PERFORMANCE EVALUATIONS OF GRIORYAN FFT AND COOLEY-TUKEY FFT ONTO XILINX VIRT...
PERFORMANCE EVALUATIONS OF GRIORYAN FFT AND COOLEY-TUKEY FFT ONTO XILINX VIRT...PERFORMANCE EVALUATIONS OF GRIORYAN FFT AND COOLEY-TUKEY FFT ONTO XILINX VIRT...
PERFORMANCE EVALUATIONS OF GRIORYAN FFT AND COOLEY-TUKEY FFT ONTO XILINX VIRT...


More from IJCNCJournal

Improved MPR Selection Algorithm-Based WS-OLSR Routing Protocol
Improved MPR Selection Algorithm-Based WS-OLSR Routing ProtocolImproved MPR Selection Algorithm-Based WS-OLSR Routing Protocol
Improved MPR Selection Algorithm-Based WS-OLSR Routing Protocol
IJCNCJournal

A Novel Medium Access Control Strategy for Heterogeneous Traffic in Wireless ...
A Novel Medium Access Control Strategy for Heterogeneous Traffic in Wireless ...A Novel Medium Access Control Strategy for Heterogeneous Traffic in Wireless ...
A Novel Medium Access Control Strategy for Heterogeneous Traffic in Wireless ...
IJCNCJournal

May_2024 Top 10 Read Articles in Computer Networks & Communications.pdf
May_2024 Top 10 Read Articles in Computer Networks & Communications.pdfMay_2024 Top 10 Read Articles in Computer Networks & Communications.pdf
May_2024 Top 10 Read Articles in Computer Networks & Communications.pdf
IJCNCJournal

A Topology Control Algorithm Taking into Account Energy and Quality of Transm...
A Topology Control Algorithm Taking into Account Energy and Quality of Transm...A Topology Control Algorithm Taking into Account Energy and Quality of Transm...
A Topology Control Algorithm Taking into Account Energy and Quality of Transm...
IJCNCJournal

Multi-Server user Authentication Scheme for Privacy Preservation with Fuzzy C...
Multi-Server user Authentication Scheme for Privacy Preservation with Fuzzy C...Multi-Server user Authentication Scheme for Privacy Preservation with Fuzzy C...
Multi-Server user Authentication Scheme for Privacy Preservation with Fuzzy C...
IJCNCJournal

Advanced Privacy Scheme to Improve Road Safety in Smart Transportation Systems
Advanced Privacy Scheme to Improve Road Safety in Smart Transportation SystemsAdvanced Privacy Scheme to Improve Road Safety in Smart Transportation Systems
Advanced Privacy Scheme to Improve Road Safety in Smart Transportation Systems
IJCNCJournal

April 2024 - Top 10 Read Articles in Computer Networks & Communications
April 2024 - Top 10 Read Articles in Computer Networks & CommunicationsApril 2024 - Top 10 Read Articles in Computer Networks & Communications
April 2024 - Top 10 Read Articles in Computer Networks & Communications
IJCNCJournal

DEF: Deep Ensemble Neural Network Classifier for Android Malware Detection
DEF: Deep Ensemble Neural Network Classifier for Android Malware DetectionDEF: Deep Ensemble Neural Network Classifier for Android Malware Detection
DEF: Deep Ensemble Neural Network Classifier for Android Malware Detection
IJCNCJournal

High Performance NMF Based Intrusion Detection System for Big Data IOT Traffic
High Performance NMF Based Intrusion Detection System for Big Data IOT TrafficHigh Performance NMF Based Intrusion Detection System for Big Data IOT Traffic
High Performance NMF Based Intrusion Detection System for Big Data IOT Traffic
IJCNCJournal

A Novel Medium Access Control Strategy for Heterogeneous Traffic in Wireless ...
A Novel Medium Access Control Strategy for Heterogeneous Traffic in Wireless ...A Novel Medium Access Control Strategy for Heterogeneous Traffic in Wireless ...
A Novel Medium Access Control Strategy for Heterogeneous Traffic in Wireless ...
IJCNCJournal

A Topology Control Algorithm Taking into Account Energy and Quality of Transm...
A Topology Control Algorithm Taking into Account Energy and Quality of Transm...A Topology Control Algorithm Taking into Account Energy and Quality of Transm...
A Topology Control Algorithm Taking into Account Energy and Quality of Transm...
IJCNCJournal

Multi-Server user Authentication Scheme for Privacy Preservation with Fuzzy C...
Multi-Server user Authentication Scheme for Privacy Preservation with Fuzzy C...Multi-Server user Authentication Scheme for Privacy Preservation with Fuzzy C...
Multi-Server user Authentication Scheme for Privacy Preservation with Fuzzy C...
IJCNCJournal

Advanced Privacy Scheme to Improve Road Safety in Smart Transportation Systems
Advanced Privacy Scheme to Improve Road Safety in Smart Transportation SystemsAdvanced Privacy Scheme to Improve Road Safety in Smart Transportation Systems
Advanced Privacy Scheme to Improve Road Safety in Smart Transportation Systems
IJCNCJournal

DEF: Deep Ensemble Neural Network Classifier for Android Malware Detection
DEF: Deep Ensemble Neural Network Classifier for Android Malware DetectionDEF: Deep Ensemble Neural Network Classifier for Android Malware Detection
DEF: Deep Ensemble Neural Network Classifier for Android Malware Detection
IJCNCJournal

High Performance NMF based Intrusion Detection System for Big Data IoT Traffic
High Performance NMF based Intrusion Detection System for Big Data IoT TrafficHigh Performance NMF based Intrusion Detection System for Big Data IoT Traffic
High Performance NMF based Intrusion Detection System for Big Data IoT Traffic
IJCNCJournal

IoT Guardian: A Novel Feature Discovery and Cooperative Game Theory Empowered...
IoT Guardian: A Novel Feature Discovery and Cooperative Game Theory Empowered...IoT Guardian: A Novel Feature Discovery and Cooperative Game Theory Empowered...
IoT Guardian: A Novel Feature Discovery and Cooperative Game Theory Empowered...
IJCNCJournal

Enhancing Traffic Routing Inside a Network through IoT Technology & Network C...
Enhancing Traffic Routing Inside a Network through IoT Technology & Network C...Enhancing Traffic Routing Inside a Network through IoT Technology & Network C...
Enhancing Traffic Routing Inside a Network through IoT Technology & Network C...
IJCNCJournal

IoT Guardian: A Novel Feature Discovery and Cooperative Game Theory Empowered...
IoT Guardian: A Novel Feature Discovery and Cooperative Game Theory Empowered...IoT Guardian: A Novel Feature Discovery and Cooperative Game Theory Empowered...
IoT Guardian: A Novel Feature Discovery and Cooperative Game Theory Empowered...
IJCNCJournal

** Connect, Collaborate, And Innovate: IJCNC - Where Networking Futures Take ...
** Connect, Collaborate, And Innovate: IJCNC - Where Networking Futures Take ...** Connect, Collaborate, And Innovate: IJCNC - Where Networking Futures Take ...
** Connect, Collaborate, And Innovate: IJCNC - Where Networking Futures Take ...
IJCNCJournal

Enhancing Traffic Routing Inside a Network through IoT Technology & Network C...
Enhancing Traffic Routing Inside a Network through IoT Technology & Network C...Enhancing Traffic Routing Inside a Network through IoT Technology & Network C...
Enhancing Traffic Routing Inside a Network through IoT Technology & Network C...
IJCNCJournal


More from IJCNCJournal (20)

Improved MPR Selection Algorithm-Based WS-OLSR Routing Protocol
Improved MPR Selection Algorithm-Based WS-OLSR Routing ProtocolImproved MPR Selection Algorithm-Based WS-OLSR Routing Protocol
Improved MPR Selection Algorithm-Based WS-OLSR Routing Protocol

A Novel Medium Access Control Strategy for Heterogeneous Traffic in Wireless ...
A Novel Medium Access Control Strategy for Heterogeneous Traffic in Wireless ...A Novel Medium Access Control Strategy for Heterogeneous Traffic in Wireless ...
A Novel Medium Access Control Strategy for Heterogeneous Traffic in Wireless ...

May_2024 Top 10 Read Articles in Computer Networks & Communications.pdf
May_2024 Top 10 Read Articles in Computer Networks & Communications.pdfMay_2024 Top 10 Read Articles in Computer Networks & Communications.pdf
May_2024 Top 10 Read Articles in Computer Networks & Communications.pdf

A Topology Control Algorithm Taking into Account Energy and Quality of Transm...
A Topology Control Algorithm Taking into Account Energy and Quality of Transm...A Topology Control Algorithm Taking into Account Energy and Quality of Transm...
A Topology Control Algorithm Taking into Account Energy and Quality of Transm...

Multi-Server user Authentication Scheme for Privacy Preservation with Fuzzy C...
Multi-Server user Authentication Scheme for Privacy Preservation with Fuzzy C...Multi-Server user Authentication Scheme for Privacy Preservation with Fuzzy C...
Multi-Server user Authentication Scheme for Privacy Preservation with Fuzzy C...

Advanced Privacy Scheme to Improve Road Safety in Smart Transportation Systems
Advanced Privacy Scheme to Improve Road Safety in Smart Transportation SystemsAdvanced Privacy Scheme to Improve Road Safety in Smart Transportation Systems
Advanced Privacy Scheme to Improve Road Safety in Smart Transportation Systems

April 2024 - Top 10 Read Articles in Computer Networks & Communications
April 2024 - Top 10 Read Articles in Computer Networks & CommunicationsApril 2024 - Top 10 Read Articles in Computer Networks & Communications
April 2024 - Top 10 Read Articles in Computer Networks & Communications

DEF: Deep Ensemble Neural Network Classifier for Android Malware Detection
DEF: Deep Ensemble Neural Network Classifier for Android Malware DetectionDEF: Deep Ensemble Neural Network Classifier for Android Malware Detection
DEF: Deep Ensemble Neural Network Classifier for Android Malware Detection

High Performance NMF Based Intrusion Detection System for Big Data IOT Traffic
High Performance NMF Based Intrusion Detection System for Big Data IOT TrafficHigh Performance NMF Based Intrusion Detection System for Big Data IOT Traffic
High Performance NMF Based Intrusion Detection System for Big Data IOT Traffic

A Novel Medium Access Control Strategy for Heterogeneous Traffic in Wireless ...
A Novel Medium Access Control Strategy for Heterogeneous Traffic in Wireless ...A Novel Medium Access Control Strategy for Heterogeneous Traffic in Wireless ...
A Novel Medium Access Control Strategy for Heterogeneous Traffic in Wireless ...

A Topology Control Algorithm Taking into Account Energy and Quality of Transm...
A Topology Control Algorithm Taking into Account Energy and Quality of Transm...A Topology Control Algorithm Taking into Account Energy and Quality of Transm...
A Topology Control Algorithm Taking into Account Energy and Quality of Transm...

Multi-Server user Authentication Scheme for Privacy Preservation with Fuzzy C...
Multi-Server user Authentication Scheme for Privacy Preservation with Fuzzy C...Multi-Server user Authentication Scheme for Privacy Preservation with Fuzzy C...
Multi-Server user Authentication Scheme for Privacy Preservation with Fuzzy C...

Advanced Privacy Scheme to Improve Road Safety in Smart Transportation Systems
Advanced Privacy Scheme to Improve Road Safety in Smart Transportation SystemsAdvanced Privacy Scheme to Improve Road Safety in Smart Transportation Systems
Advanced Privacy Scheme to Improve Road Safety in Smart Transportation Systems

DEF: Deep Ensemble Neural Network Classifier for Android Malware Detection
DEF: Deep Ensemble Neural Network Classifier for Android Malware DetectionDEF: Deep Ensemble Neural Network Classifier for Android Malware Detection
DEF: Deep Ensemble Neural Network Classifier for Android Malware Detection

High Performance NMF based Intrusion Detection System for Big Data IoT Traffic
High Performance NMF based Intrusion Detection System for Big Data IoT TrafficHigh Performance NMF based Intrusion Detection System for Big Data IoT Traffic
High Performance NMF based Intrusion Detection System for Big Data IoT Traffic

IoT Guardian: A Novel Feature Discovery and Cooperative Game Theory Empowered...
IoT Guardian: A Novel Feature Discovery and Cooperative Game Theory Empowered...IoT Guardian: A Novel Feature Discovery and Cooperative Game Theory Empowered...
IoT Guardian: A Novel Feature Discovery and Cooperative Game Theory Empowered...

Enhancing Traffic Routing Inside a Network through IoT Technology & Network C...
Enhancing Traffic Routing Inside a Network through IoT Technology & Network C...Enhancing Traffic Routing Inside a Network through IoT Technology & Network C...
Enhancing Traffic Routing Inside a Network through IoT Technology & Network C...

IoT Guardian: A Novel Feature Discovery and Cooperative Game Theory Empowered...
IoT Guardian: A Novel Feature Discovery and Cooperative Game Theory Empowered...IoT Guardian: A Novel Feature Discovery and Cooperative Game Theory Empowered...
IoT Guardian: A Novel Feature Discovery and Cooperative Game Theory Empowered...

** Connect, Collaborate, And Innovate: IJCNC - Where Networking Futures Take ...
** Connect, Collaborate, And Innovate: IJCNC - Where Networking Futures Take ...** Connect, Collaborate, And Innovate: IJCNC - Where Networking Futures Take ...
** Connect, Collaborate, And Innovate: IJCNC - Where Networking Futures Take ...

Enhancing Traffic Routing Inside a Network through IoT Technology & Network C...
Enhancing Traffic Routing Inside a Network through IoT Technology & Network C...Enhancing Traffic Routing Inside a Network through IoT Technology & Network C...
Enhancing Traffic Routing Inside a Network through IoT Technology & Network C...


Recently uploaded

WATER CRISIS and its solutions-pptx 1234
WATER CRISIS and its solutions-pptx 1234WATER CRISIS and its solutions-pptx 1234
WATER CRISIS and its solutions-pptx 1234
AafreenAbuthahir2

CME397 Surface Engineering- Professional Elective
CME397 Surface Engineering- Professional ElectiveCME397 Surface Engineering- Professional Elective
CME397 Surface Engineering- Professional Elective
karthi keyan

Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)
MdTanvirMahtab2

RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
thanhdowork

Investor-Presentation-Q1FY2024 investor presentation document.pptx
Investor-Presentation-Q1FY2024 investor presentation document.pptxInvestor-Presentation-Q1FY2024 investor presentation document.pptx
Investor-Presentation-Q1FY2024 investor presentation document.pptx
AmarGB2

H.Seo, ICLR 2024, MLILAB, KAIST AI.pdf
H.Seo,  ICLR 2024, MLILAB,  KAIST AI.pdfH.Seo,  ICLR 2024, MLILAB,  KAIST AI.pdf
H.Seo, ICLR 2024, MLILAB, KAIST AI.pdf
MLILAB

Hierarchical Digital Twin of a Naval Power System
Hierarchical Digital Twin of a Naval Power SystemHierarchical Digital Twin of a Naval Power System
Hierarchical Digital Twin of a Naval Power System
Kerry Sado

The Benefits and Techniques of Trenchless Pipe Repair.pdf
The Benefits and Techniques of Trenchless Pipe Repair.pdfThe Benefits and Techniques of Trenchless Pipe Repair.pdf
The Benefits and Techniques of Trenchless Pipe Repair.pdf
Pipe Restoration Solutions

space technology lecture notes on satellite
space technology lecture notes on satellitespace technology lecture notes on satellite
space technology lecture notes on satellite
ongomchris

Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&BDesign and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Sreedhar Chowdam

Water Industry Process Automation and Control Monthly - May 2024.pdf
Water Industry Process Automation and Control Monthly - May 2024.pdfWater Industry Process Automation and Control Monthly - May 2024.pdf
Water Industry Process Automation and Control Monthly - May 2024.pdf
Water Industry Process Automation & Control

Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...
Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...
Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...
AJAYKUMARPUND1

Student information management system project report ii.pdf
Student information management system project report ii.pdfStudent information management system project report ii.pdf
Student information management system project report ii.pdf
Kamal Acharya

Nuclear Power Economics and Structuring 2024
Nuclear Power Economics and Structuring 2024Nuclear Power Economics and Structuring 2024
Nuclear Power Economics and Structuring 2024
Massimo Talia

English lab ppt no titlespecENG PPTt.pdf
English lab ppt no titlespecENG PPTt.pdfEnglish lab ppt no titlespecENG PPTt.pdf
English lab ppt no titlespecENG PPTt.pdf
BrazilAccount1

ethical hacking-mobile hacking methods.ppt
ethical hacking-mobile hacking methods.pptethical hacking-mobile hacking methods.ppt
ethical hacking-mobile hacking methods.ppt
Jayaprasanna4

Final project report on grocery store management system..pdf
Final project report on grocery store management system..pdfFinal project report on grocery store management system..pdf
Final project report on grocery store management system..pdf
Kamal Acharya

Cosmetic shop management system project report.pdf
Cosmetic shop management system project report.pdfCosmetic shop management system project report.pdf
Cosmetic shop management system project report.pdf
Kamal Acharya

AKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdf
AKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdfAKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdf
AKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdf
SamSarthak3

Runway Orientation Based on the Wind Rose Diagram.pptx
Runway Orientation Based on the Wind Rose Diagram.pptxRunway Orientation Based on the Wind Rose Diagram.pptx
Runway Orientation Based on the Wind Rose Diagram.pptx
SupreethSP4


Recently uploaded (20)

WATER CRISIS and its solutions-pptx 1234
WATER CRISIS and its solutions-pptx 1234WATER CRISIS and its solutions-pptx 1234
WATER CRISIS and its solutions-pptx 1234

CME397 Surface Engineering- Professional Elective
CME397 Surface Engineering- Professional ElectiveCME397 Surface Engineering- Professional Elective
CME397 Surface Engineering- Professional Elective

Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)

RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...
RAT: Retrieval Augmented Thoughts Elicit Context-Aware Reasoning in Long-Hori...

Investor-Presentation-Q1FY2024 investor presentation document.pptx
Investor-Presentation-Q1FY2024 investor presentation document.pptxInvestor-Presentation-Q1FY2024 investor presentation document.pptx
Investor-Presentation-Q1FY2024 investor presentation document.pptx

H.Seo, ICLR 2024, MLILAB, KAIST AI.pdf
H.Seo,  ICLR 2024, MLILAB,  KAIST AI.pdfH.Seo,  ICLR 2024, MLILAB,  KAIST AI.pdf
H.Seo, ICLR 2024, MLILAB, KAIST AI.pdf

Hierarchical Digital Twin of a Naval Power System
Hierarchical Digital Twin of a Naval Power SystemHierarchical Digital Twin of a Naval Power System
Hierarchical Digital Twin of a Naval Power System

The Benefits and Techniques of Trenchless Pipe Repair.pdf
The Benefits and Techniques of Trenchless Pipe Repair.pdfThe Benefits and Techniques of Trenchless Pipe Repair.pdf
The Benefits and Techniques of Trenchless Pipe Repair.pdf

space technology lecture notes on satellite
space technology lecture notes on satellitespace technology lecture notes on satellite
space technology lecture notes on satellite

Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&BDesign and Analysis of Algorithms-DP,Backtracking,Graphs,B&B
Design and Analysis of Algorithms-DP,Backtracking,Graphs,B&B

Water Industry Process Automation and Control Monthly - May 2024.pdf
Water Industry Process Automation and Control Monthly - May 2024.pdfWater Industry Process Automation and Control Monthly - May 2024.pdf
Water Industry Process Automation and Control Monthly - May 2024.pdf

Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...
Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...
Pile Foundation by Venkatesh Taduvai (Sub Geotechnical Engineering II)-conver...

Student information management system project report ii.pdf
Student information management system project report ii.pdfStudent information management system project report ii.pdf
Student information management system project report ii.pdf

Nuclear Power Economics and Structuring 2024
Nuclear Power Economics and Structuring 2024Nuclear Power Economics and Structuring 2024
Nuclear Power Economics and Structuring 2024

English lab ppt no titlespecENG PPTt.pdf
English lab ppt no titlespecENG PPTt.pdfEnglish lab ppt no titlespecENG PPTt.pdf
English lab ppt no titlespecENG PPTt.pdf

ethical hacking-mobile hacking methods.ppt
ethical hacking-mobile hacking methods.pptethical hacking-mobile hacking methods.ppt
ethical hacking-mobile hacking methods.ppt

Final project report on grocery store management system..pdf
Final project report on grocery store management system..pdfFinal project report on grocery store management system..pdf
Final project report on grocery store management system..pdf

Cosmetic shop management system project report.pdf
Cosmetic shop management system project report.pdfCosmetic shop management system project report.pdf
Cosmetic shop management system project report.pdf

AKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdf
AKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdfAKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdf
AKS UNIVERSITY Satna Final Year Project By OM Hardaha.pdf

Runway Orientation Based on the Wind Rose Diagram.pptx
Runway Orientation Based on the Wind Rose Diagram.pptxRunway Orientation Based on the Wind Rose Diagram.pptx
Runway Orientation Based on the Wind Rose Diagram.pptx


AN OPTIMAL FUZZY LOGIC SYSTEM FOR A NONLINEAR DYNAMIC SYSTEM USING A FUZZY BASIS FUNCTION

  • 1. International Journal of Computer Networks & Communications (IJCNC) Vol.8, No.2, March 2016 DOI: 10.5121/ijcnc.2016.8215 179 AN OPTIMAL FUZZY LOGIC SYSTEM FOR A NONLINEAR DYNAMIC SYSTEM USING A FUZZY BASIS FUNCTION SherifKamel Hussein1 and Mahmoud Hanafy Saleh2 1 Department of Communications and Electronics, October University for Modern Sciences and Arts- Giza - Egypt 2 Electrical Communication and Electronics Systems Engineering Department, Canadian International College-CIC-Egypt ABSTRACT The impetus for this paper is the development of Fuzzy Basis Function “FBF” that assigns in an optimal fashion, a function approximation for a nonlinear dynamic system. A fuzzy basis function is applied to find the best location of the characteristic points by specifying the set of fuzzy rules. The advantage of this technique is that, it may produce a simple and well-performing system because it selects the most significant fuzzy basis functions to minimize an objective function in the output error for the fuzzy rules. The fuzzy basis function is a linguistic fuzzy IF_THEN rule. It provides a combination of the numerical information and the linguistic information in the form input-output pairs and in the form of fuzzy rules. The proposed control scheme is applied to a magnetic ball suspension system. KEYWORDS Fuzzy Logic Control “FLC”,Fuzzy Basis Function “FBF”,Orthogonal Least Squares ”OLS”. 1. INTRODUCTION The fuzzy logic controller comprises three stages namely fuzzifier, rule-based assignment tables and the defuzzifier. In this system, theinput signals are converted to fuzzy representations, the rule base will produce a consequent fuzzy region foreach solutionvariable, and the consequent fuzzy region are defuzzified to find the expected solution variable [1-7]. In this paper, an optimal approach to function approximation is presented using fuzzy systems. The proposed approach does not optimize the function approximation, but also gives some insight to the role of different parts of fuzzy systems employing the new concepts of characteristic point. A fuzzy basis function is then applied to find the best location of the characteristic points specifying the optimal rule-set [8-12].This paper is organized as follows, the second section describes the fuzzy logic system. The third section is devoted to discuss the optimal fuzzy system. The fourth section is concerned with the fuzzy control procedures. In fifth section, a propose design for magnetic ball system is introduced.the magnetic ball system is designed.Finally the last section is dedicated to the computer simulation, and the conclusions.
  • 2. International Journal of Computer Networks & Communications (IJCNC) Vol.8, No.2, March 2016 180 2. FUZZY LOGIC SYSTEMS The fuzzy logic system with fuzzifier and defuzzifier has many attractive features. First , it is suitable for engineering systems because its input and output are real-valued variables. Second , it provides a natural framework to incorporate fuzzy IF-THEN rules from human experts. Finally , there is much freedom in the choices of fuzzifier, fuzzy rules, assembled in which as the fuzzy inference engine and defuzzifier. Fig. 1 shows the Fuzzy Logic System "FLs" [13,14]. Figure 1. Fuzzy Logic System The Fuzzy-Logic Control " FLC" comprises three stages namely Fuzzifier, Rule-base and Defuzzifier. Fig. 2 shows the configuration of a fuzzy logic controller.The Fuzzy Control Theory uses the fuzzy knowledge to describe the characteristics of the system, because the nonlinear system is difficult to establish for traditional methods [12]. Figure 2. The basic Configuration of a Fuzzy Logic Controller The signal e(k) is the error signal and it is the difference between the reference signal and the actual signal, the signal ∆e(k) is defined as the rate of change of the error signal. e(k) = ∆r(k) - ∆ c(k) (1) ∆e(k) = e(k) – e(k-1) (2) Where : ∆r(k) is the reference speed at k-th sampling interval ∆ c(k) is the speed signal at k-th sampling interval e(k) is the error signal
  • 3. International Journal of Computer Networks & Communications (IJCNC) Vol.8, No.2, March 2016 181 The workable range is divided into intervals, these intervals are named for example , Positive " P" , Zero " Z" , and Negative " N". These names for the intervals are called labels [14,20].The rules relate the input variables to the output of the fuzzy controller. These rules can be expressed in a table with the inputs in the horizontal Cartesianand the output in the vertical cartesian. However, the output would be inside each cell as shown in table 1. Table. 1 Rules Table The rules base are expressed as IF-THEN as follows: IF e is "N " AND ∆e is "N" Then u is "P" IF e is "N " AND ∆e is "Z" Then u is "N" IF e is "N " AND ∆e is "P" Then u is "Z" IF e is" Z " AND ∆e is "N" Then u is "N" IF e is "Z " AND ∆e is "Z" Then u is "Z" IF e is "Z " AND ∆e is "P" Then u is "P" IF e is "P " AND ∆e is "N" Then u is "Z" IF e is "P " AND ∆e is "Z" Then u is "P" IF e is "P " AND ∆e is "P" Then u is "N" 3. OPTIMAL FUZZY LOGIC SYSTEMS We develop an optimal fuzzy logic system, that is, it is optimal in the sense of matching all inputs-outputs pairs in the training set to any given accuracy [15,17-21]. For an arbitrary Ɛ ˃ 0 , there exists, the difference between a real continuous function g(x) and a fuzzy system F(x) is in the form of : ǁF(x) – g(x) ǁ ˂ Ɛ (3) Consider the set of fuzzy system with fuzzifier, product inference, defuzzifier, and isosceles triangle membership function consists of the functions of the form : F x = ∏ µ ∏ µ (4)
  • 4. International Journal of Computer Networks & Communications (IJCNC) Vol.8, No.2, March 2016 182 Where xi are the N-input variables to the fuzzy system, y is the M-output variable of the fuzzy system, and µFi k (x) is the isosceles triangle membership function. The first step in the approximation of such a function is to define the membership function for the input-output spaces, the membership function is expressed by a triangle whose center and width defined by ai and bi respectively [14,15,17-21] μ x = 1 − 2 (5) The function F(.) is the fuzzy logic system output.The number of rules in the optimal logic system equal to the number of input-output pairs in the training set with one rule responsible for matching one input-output pair (x1,y1). Many types of membership function exists [2,3,14-20]. In this paper, the triangular-shaped function µ(e) is the membership function of the error signal, with positive lable”P” and zero Lable “Z” and negative labe “N”. The triangular shaped function, µ(∆e) is the membership function of the rate of change of the error signal with positive label “P”, zero label”ZE” and negative label “N” as shown in Fig.3 , Figure 3. The Membership Function of error "e" and the error change " ∆e" 3.1 Fuzzy Basis Function Fuzzy Logic control technique has represented an alternative method to solve the problems in control engineering in recent years. One of the most useful properties of fuzzy logic systems in control is their ability to approximate a certain desired behavior function up to a desired level of accuracy. The Fuzzy Basis Function "FBF" is proposed for control multi-input-single output nonlinear function [9-13]. The fuzzy basis function (FBF) is defined as a series of algebraic superposition of fuzzy membership functions [12]. P x = ∏ µ ∏ µ (6) Then the fuzzy logic system is equivalent to an FBF expansion d(t) = Σj M Pj (t) * θj+ e(t) (7) µ(e) e -1 1 1 ZE NP e∆ -1 1 1 ZE NP µ(∆e)
  • 5. International Journal of Computer Networks & Communications (IJCNC) Vol.8, No.2, March 2016 183 Where d(.) is the system output, θj are real parameters, Pj(t) are fixed function of system inputs x(.). Suppose that ,we are given N-input-output pairs [x(t0, d(t)], t=1,2,…,N. The algorithm is to design an FBF expansion F(x) , such that the error function between the F(x(t)) and d(t) is minimized.The Fuzzy Basis Function” FBF” can be determined as follows: • Calculate the product of all membership functions for the linguistic terms in the IF part of rule • Generate these product on a numerical input-output pair It is an intuitive idea that FBF’s play an important role in the determining structure and property of fuzzy systems. We gave a systematic analysis of FBF’s and presented the following properties of fuzzitlity, and composition. The fuzzy logic system can be analyzed from two view points; First, if the parameters in the FBF are free design parameters. Second, the FBF expansion is nonlinear in the parameters. In order to specify, such FBF expansion, it must use nonlinear optimization techniques [9-12]. The objective is to design an FBF expansion F(x), such that the error between F(x) and g(x) is minimized.In order to describethat , consider the Orthogonal Least Squares "OLS" learning algorithm works. In matrix form : d = P * θ + e (8) Where d= [d1, d2, …dN]T (9) P= [ P1, P2, …, PM ]T (10) Pi = [ pi(1) , pi(2), …, pi(N)]T Θ= [ θ1, θ2, …, θM ]T (11) e= [ e(1), e(2), , e(N) ]T (12) The orthogonal algorithm transforms the set of pi into a set of orthogonal basis vectors and uses the significant basis vectors to form the final FBF expansion. 4. FUZZY CONTROL ALGORITHM In this section, a systematic method is given to help designer get the best of reasoning algorithm that works well with the application required. The proposed approach to develop a fuzzy logic system consists of five stages. For the given pairs (X1, X2, Y) Where F(X1,X2) Y Step 1 Assume that , the range of each variable is known [ x1, x- 1 ],[ x2, x- 2 ] and [y1, y- 1] Normalize each and find the corresponding scaling factors Kx1, Kx2 , and Ky. Step 2 Generate the fuzzy rules from the data pairs Determine the degree of each xi 1 , xi 2 , and yi Step 3 Assign a degree of each rules The degree of this rule D(rule) is defined as D(rule) = µA (x1) * µB (x2)
  • 6. International Journal of Computer Networks & Communications (IJCNC) Vol.8, No.2, March 2016 184 Step 4 Create a combined fuzzy basis function by making a look-up table as shown in table 1 Step 5 Determine the following defuzzification strategy to determine the output y for given inputs (x1, x2) 5. MAGNETIC BALL SYSTEM The magnetic ball suspension system is proposed as a nonlinear system is shown in fig.4.In this system, the electro- mechanical nonlinear model of magnetic ball system can be described in terms of the following set of differential equations[11-13, 21-22]. Figure 4. Magnetic Ball Suspension System The system may be expressed as follows: dx1 (t)/dt = x2(t) (13) dx2(t)/dt = c1 + c2 . f(x) (14) dx3 (t)/dt = c3 x3(t) + c4 . u(t) (15) Where c1: The gravity acceleration“ g=9,8 c2 : the magnetic force constant c2 = -10” c3 :The unit conversion coefficient, c3=-100 c4: The coil conductance “ c4=2” Equation(13) indicates that f(x) is a nonlinear of ball position f(x) = x3 2 (t) / x1(t) (16) 6.COMPUTER SIMULATION The Magnetic Suspension or magnetic ball is a type of suspension system where the shock absorbers reacts to the road and adjusts much faster than regular absorbers. In this system, a steal ball of mass can counteract the effect of gravity at any point. This relationship is a nonlinear function as shown in Fig. 5.
  • 7. International Journal of Computer Networks & Communications (IJCNC) Vol.8, No.2, March 2016 185 Figure 5. Block diagram of the Magnetic Ball Suspension To illustrate the design process of a fuzzy system, consider the nonlinear function in Eq.(15). We compute the performance of each membership function used the same information. The results clearly show the applicability of the proposed scheme to the representation of a nonlinear function. From this result, the following points can be concluded: The fuzzy logic has the advantage of being able to handle the behavior of a nonlinear function. The fuzzy logic is simpler than the conventional system. It is clear that, the function performance with fuzzy logic is acceptable, and the result is faster response during transient compared to the conventional technique. On contrary to that, the fuzzy logic result in a smaller steady state error. The two opposing forces applied to the ball (magnetic force f(x) and the fuzzy basis function ) almost identical are shown in Fig. 6.The difference between the two forces are almost negligible which shows the good fuzzy basis function followed the trajectory desire. Figure 6. Nonlinear Function and Fuzzy Basis Functions 7. CONCLUSION The paper presents a fuzzy logic strategy to ensure excellent study and gurantees the operation of the magnetic ball suspension. Simulation results show that the response shows a significant improvement in the approximator performance. It is clear that the responses show a close correspondence between the real function and the estimated one throughout the operation periods which demonstrates the validity of the proposed algorithm. The fuzzy basis function expansion provides a natural framework to combine both 0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5 -15 -10 -5 0 5 10 NONLINEAR MODEL Output Time Nonlinear Function Fuzzy Approximator
  • 8. International Journal of Computer Networks & Communications (IJCNC) Vol.8, No.2, March 2016 186 numerical information in the form of input-output pairs and linguistic information in the form of fuzzy IF-THEN rules. An example of how to combine the fuzzy basis functions generated from a numerical state- control and the fuzzy basis function generated form the common-sense linguistic fuzzy control rules is shown and represented in this paper. REFERENCES [1] L.A.Zadah, (1980)“Fuzzy Sets Versus Probability”Proc.of the IEEE, Vol.68, No.3. [2] C.C. Lee , (1990)” Fuzzy Logic in Control Systems-Part-II” IEEE Trans. On Systems, Man and Cybernetics, Vol.20, No.2. [3] L.A.Zadah,(1996)”Fuzzy Logic = Computing with Words” IEEE Trans. On Fuzzy Systems Vol.4, No.2. [4] A. Ike, A. Kulkam, and Dr. Veeresh, (2012)" Load Frequency Control Using Fuzzy Logic Controller of Two Area Thermal- Power System" International Journal ofEngineering Technology and Advanced Engineering, Vol.2. [5] K. Des, P.Des, and S. Sharma , (2012)" Load Frequency Control Using Classical Controller in an Isolated Single Area and Two Area Reheat Thermal Power Systems" International Journal of Engineering Technology and Advanced Engineering, Vol.2. [6] K.Yamashita, M.Hirayasu, K. OkafujiandH.Miyagi, (1995)“ A Design Method of Adaptive Load Frequency Control With Dual-Rate Sampling” Int. Journal of Adaptive Control and Signal Processing, Vol.9,No.2. [7] M.H.Saleh&T.A.Moniem, (2012).” Fuzzy Logic Membership Implementation Using Optical Hardware Component” Optics Communication, SciVerse, Science Direct. [8] Li-Xin Wang and Jerry M. Mendel , (1992)" Fuzzy Basis Functions, Universal Approximation and Orthogonal Least-Squares Learning" IEEE Transactions on Neural Networks, Vol.3,No.5. [9] Zhang Huaguang, LilongGai, and ZeungnamBien , (2000) " A Fuzzy Basis Function Vector-Based Multivariable Adaptive Controller For Nonlinear Systems" IEEE Transactions on Systems, Man , and Cybernetics, Part B,, Vol.30, No.1. [10] Man Zhihong, and X. H. Yu , (1998)" An adaptive Control Using Fuzzy Basis Function Expansions For a Class ofd Nonlinear Systems " Journal of Intelligent and Robotics Systems 21, Kluwer Academic Publishers. [11] Hyun Mun Kim, and Mendel, J.M, (2002). " Fuzzy Basis Functions : Comparisons with Other Basis Functions" IEEE Transactions on Computational Intelligence SocietyVol.3, No.1, Issue,2. [12] HuannKeng Chiang, Chao Ting Chu, and Yong Tang Jhou, (2012)" Fuzzy Control With Fuzzy Basis Function Neural Network in Magnetic Bearing Systems " IEEE Transactions on Neural Network. [13] M.H.Saleh, A.H.Elassal, and I.H.Khalifa, (1996)“Fuzzy Logic Controller for Multi-Area Load Frequency Control of Electric Power Systems”, The 6th. Conference on Computer and Applications, IEEE Alex.Chapter, Alexandria, Egypt. [14] M.H.Saleh, A.H.Elassal, and I.H.Khalifa,, (1997)”An Adaptive Fuzzy Controller to Improve System Performance” The 7th.Conference on Computer and Applications, IEEE Alex.Chapter, Alexandria, Egypt. [15] RadaKushawa and SulochanaWadhawani, (2013)“Speed Control of Separately Excited DC Motor Using Fuzzy Logic Controller” International Journal of Engineering Trends and Technology (IJETT), Volume 4, Issue 6. [16] M.H.Saleh, A.H.Elassal, and I.H.Khalifa, (1998)“An Adaptive Fuzzy Control for Dynamically Interconnected Large-Scale Systems” The 6th International Middle East Power System Conference ”MEPCON’98” Al-Mansoura University, Al-Mansoura, Egypt. [17] M.H.Saleh, A.H.Elassal, and I.H.Khalifa, (1997)”An Adaptive Fuzzy Controller to Improve System Performance” The 7th.Conference on Computer and Applications, IEEE Alex. Chapter, Alexandria, Egypt. [18] M.H.Saleh& T.A. Moniem, (2013)” A knowledge-based adaptive fuzzy controller for a two- areapower system” International Journal of Knowledge-based and Intelligent Engineering ,219–222 219 DOI 10.3233/KES-130260 IOS Press.
  • 9. International Journal of Computer Networks & Communications (IJCNC) Vol.8, No.2, March 2016 187 [19] SherifKamelHusien, Mahmoud HanafySaleh, (2014)“ A Fuzzy Logic Controller For A Two-Link Functional Manipulator” International Journal of Computer Networks & Communications (IJCNC), Vol.6,No.6. [20] Benjamin C.Kuo (1990), Automatic Control Systems, Prentice Hall Inc. [21] YousfiKhemisi, (2010)“ Control Using Sliding Mode Of the Magnetic Suspension System”, International Journals of Electrical & Computer Science IJECS-IJENS, Vol:10, N0: 03. [22] P.Venkatesh& S. Balamurgan , (2014)” Real Time Control Of Magnetic Ball Suspension System UsingdSPACE DS1104”dSPACE User Conference 2014, India. AUTHORS Sherifkamel Hussein Hassan Ratib has Graduated from the faculty of engineering in 1989 Communications and Electronics Department ,Helwan University. He received hisDiploma,MSc,and Doctorate in Computer Science - Major Information Technology and Networking from Cairo University in Egypt in 2007. He is currently Associate Professor in Electrical and Communication Engineering department at October University for Modern Sciences and Arts, He has worked internationally in thearea of Networking , Control and automation. He joined many private and governmental universities inside and outside Egypt for almost 15 years .He shared in the development of many industrial courses .His research interest is GSM Based Control and Macro mobility based on Mobile IP. Mahmoud HanafySaleh has received the M.Sc. degree in Automatic Control - Electrical Engineering and PhD degree in Automatic Control from Faculty of Engineering, Helwan University (Egypt). He is currently an Assistant Professor in Electrical Communication and Electronics Systems Engineering Department,Canadian International College-CIC. Dr Mahmoud Hanafy has worked in the areas of Fuzzy logic, Neural Network, System Dynamics, Intelligent Control Logic Control, Physics of Electrical Materials, Electronic Circuit-Analog-Digital, Electric Circuit Analysis DC-AC, Power electronic, Analysis of Electric Energy Conversion Solar energy-Photovoltaic, and Electric Power System analysis Interconnected Power System. His research interests include: Control System Analysis, Systems Engineering, System Dynamics, Process Control, Neural network and fuzzy logic controllers, Neuro-Fuzzy systems, Mathematical Modeling and Computer Simulation, Statistical Analysis.
