An Introduction to UML
Unified Modeling Language

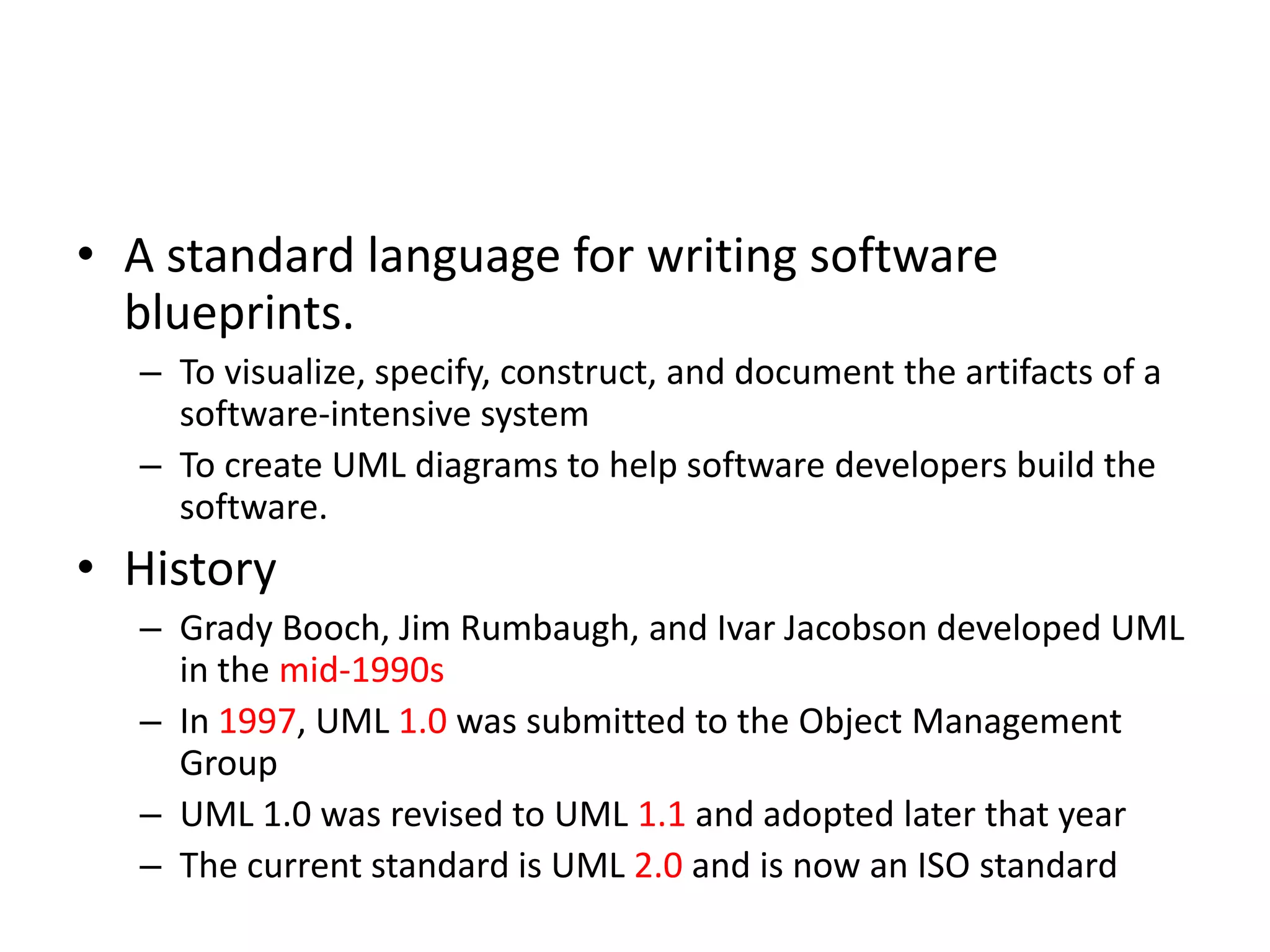

• A standard language for writing software
blueprints.
– To visualize, specify, construct, and document the artifacts of a
software-intensive system
– To create UML diagrams to help software developers build the
software.

• History
– Grady Booch, Jim Rumbaugh, and Ivar Jacobson developed UML
in the mid-1990s
– In 1997, UML 1.0 was submitted to the Object Management
Group
– UML 1.0 was revised to UML 1.1 and adopted later that year
– The current standard is UML 2.0 and is now an ISO standard

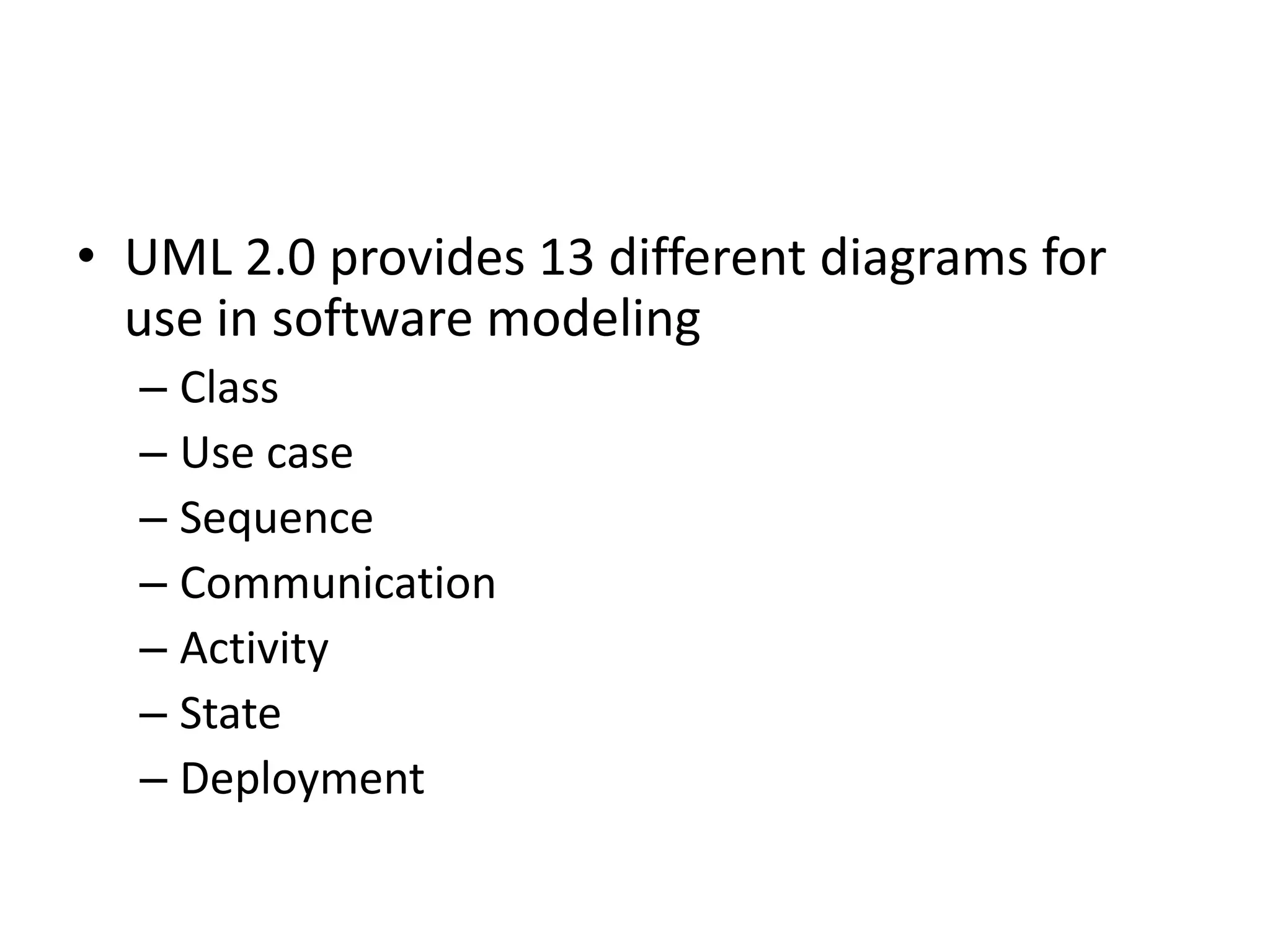

• UML 2.0 provides 13 different diagrams for
use in software modeling
– Class
– Use case
– Sequence
– Communication
– Activity
– State
– Deployment

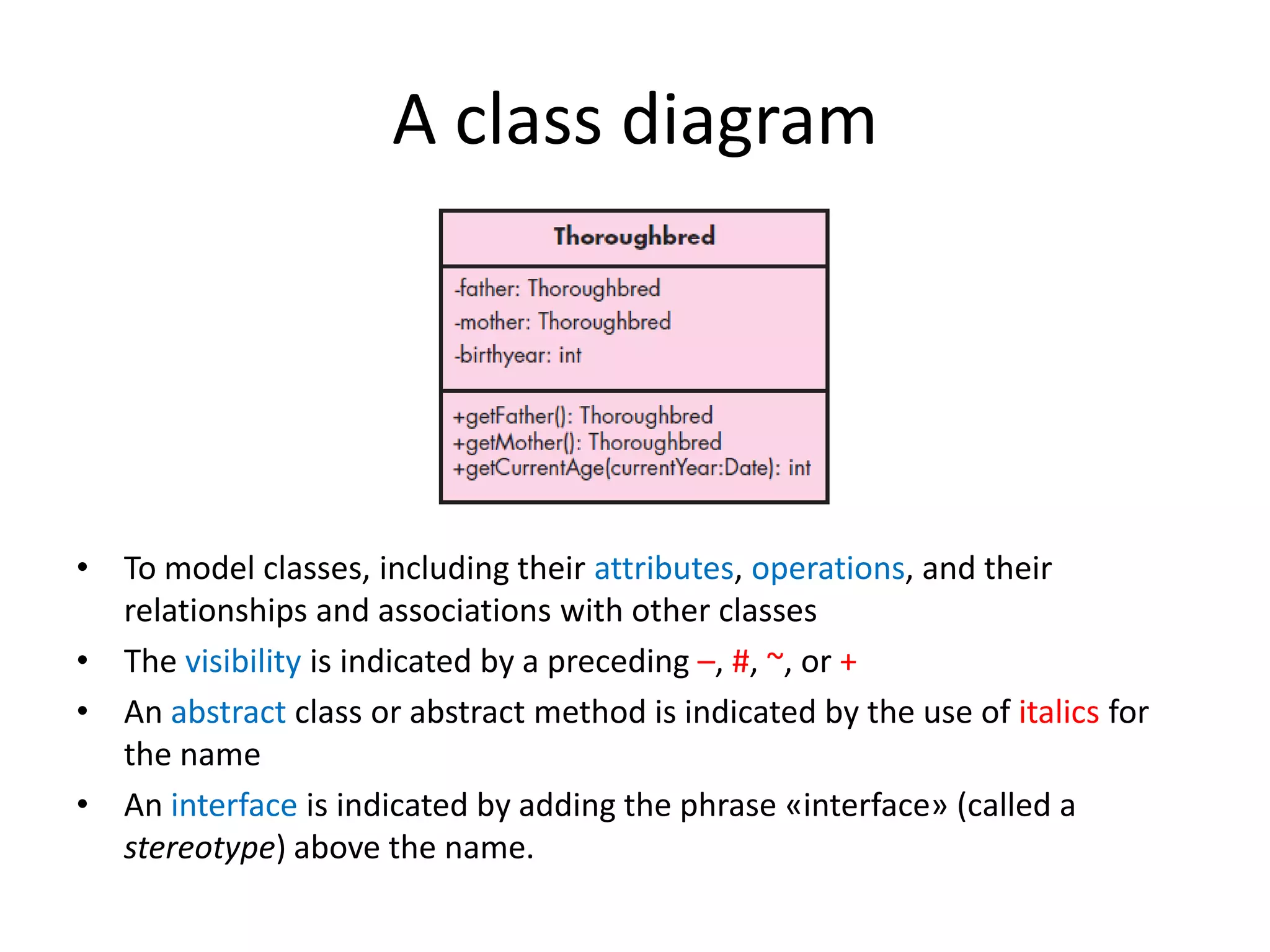

A class diagram

• To model classes, including their attributes, operations, and their
relationships and associations with other classes
• The visibility is indicated by a preceding –, #, ~, or +
• An abstract class or abstract method is indicated by the use of italics for
the name
• An interface is indicated by adding the phrase «interface» (called a
stereotype) above the name.
A class diagram

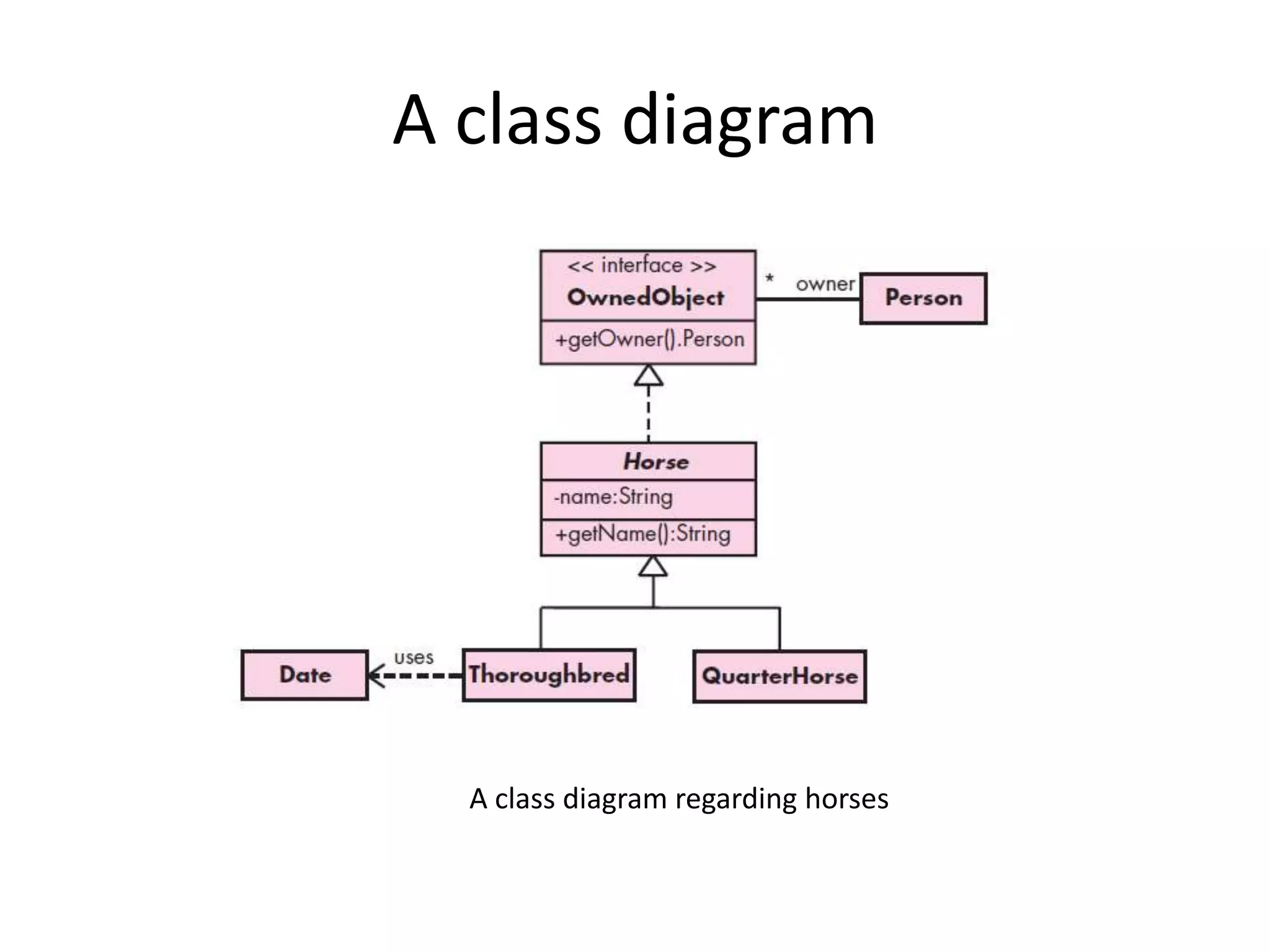

A class diagram regarding horses

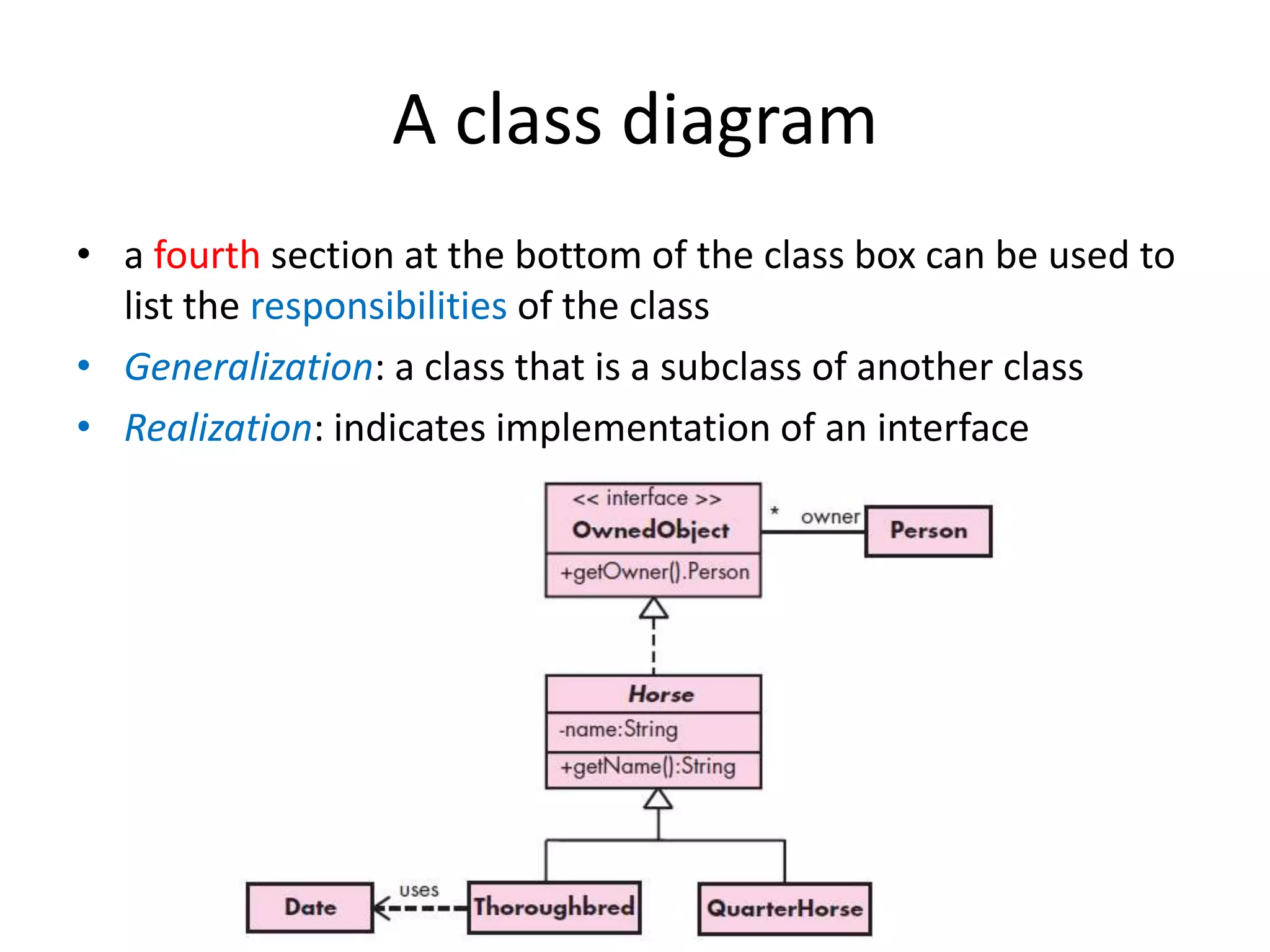

A class diagram
• a fourth section at the bottom of the class box can be used to
list the responsibilities of the class
• Generalization: a class that is a subclass of another class
• Realization: indicates implementation of an interface

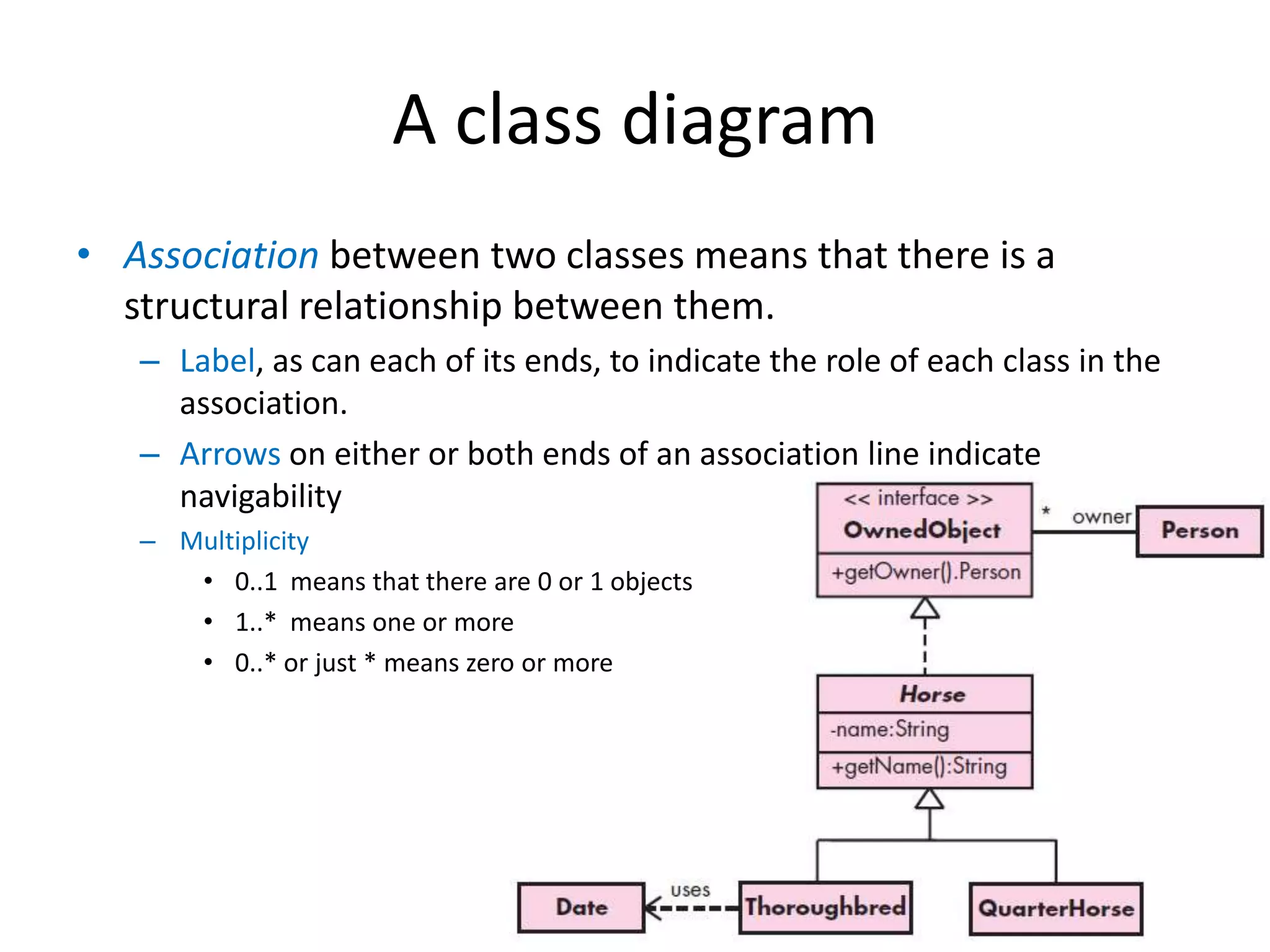

A class diagram
• Association between two classes means that there is a
structural relationship between them.
– Label, as can each of its ends, to indicate the role of each class in the
association.
– Arrows on either or both ends of an association line indicate
navigability
– Multiplicity
• 0..1 means that there are 0 or 1 objects
• 1..* means one or more
• 0..* or just * means zero or more

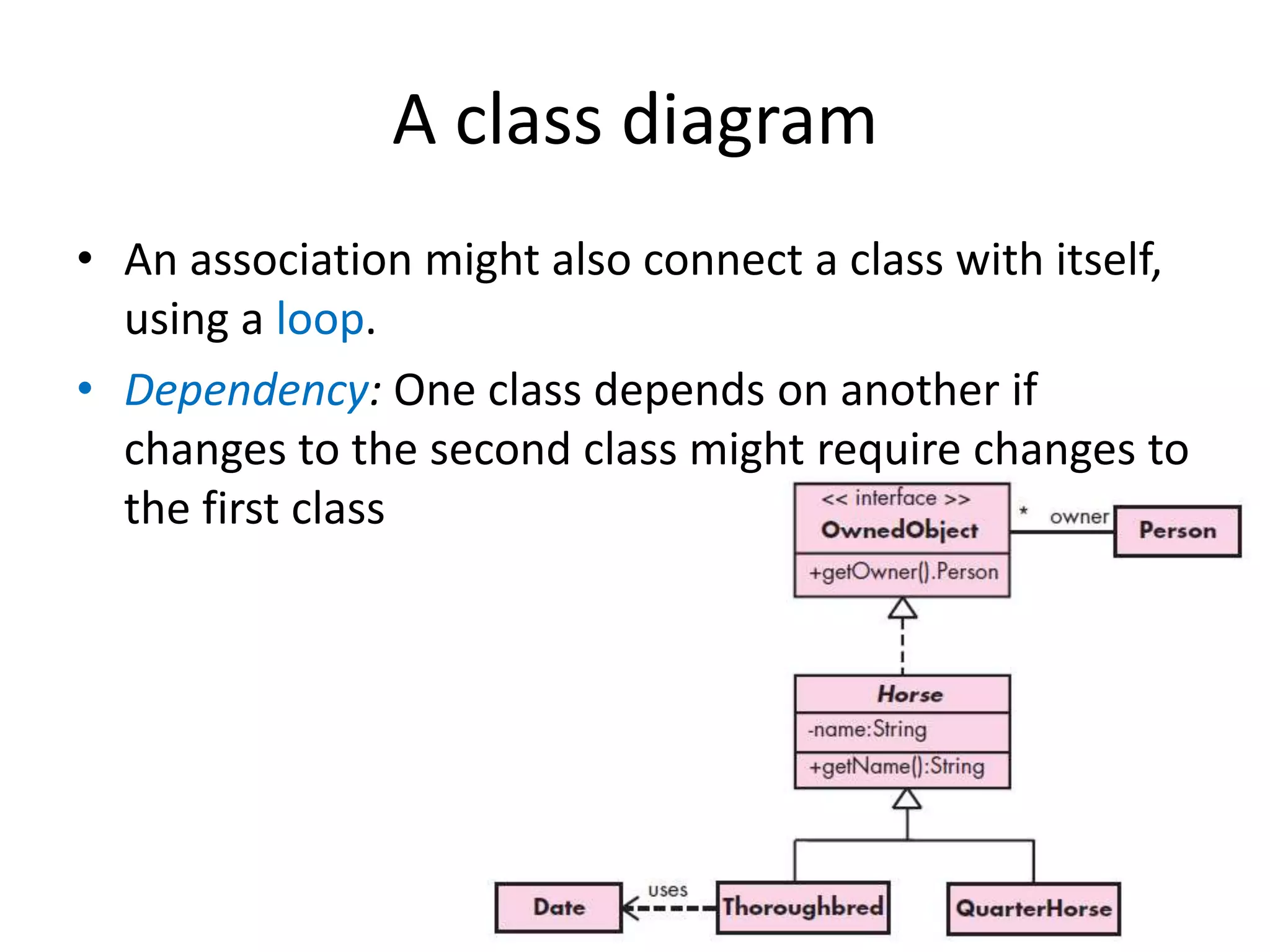

A class diagram
• An association might also connect a class with itself,
using a loop.
• Dependency: One class depends on another if
changes to the second class might require changes to
the first class

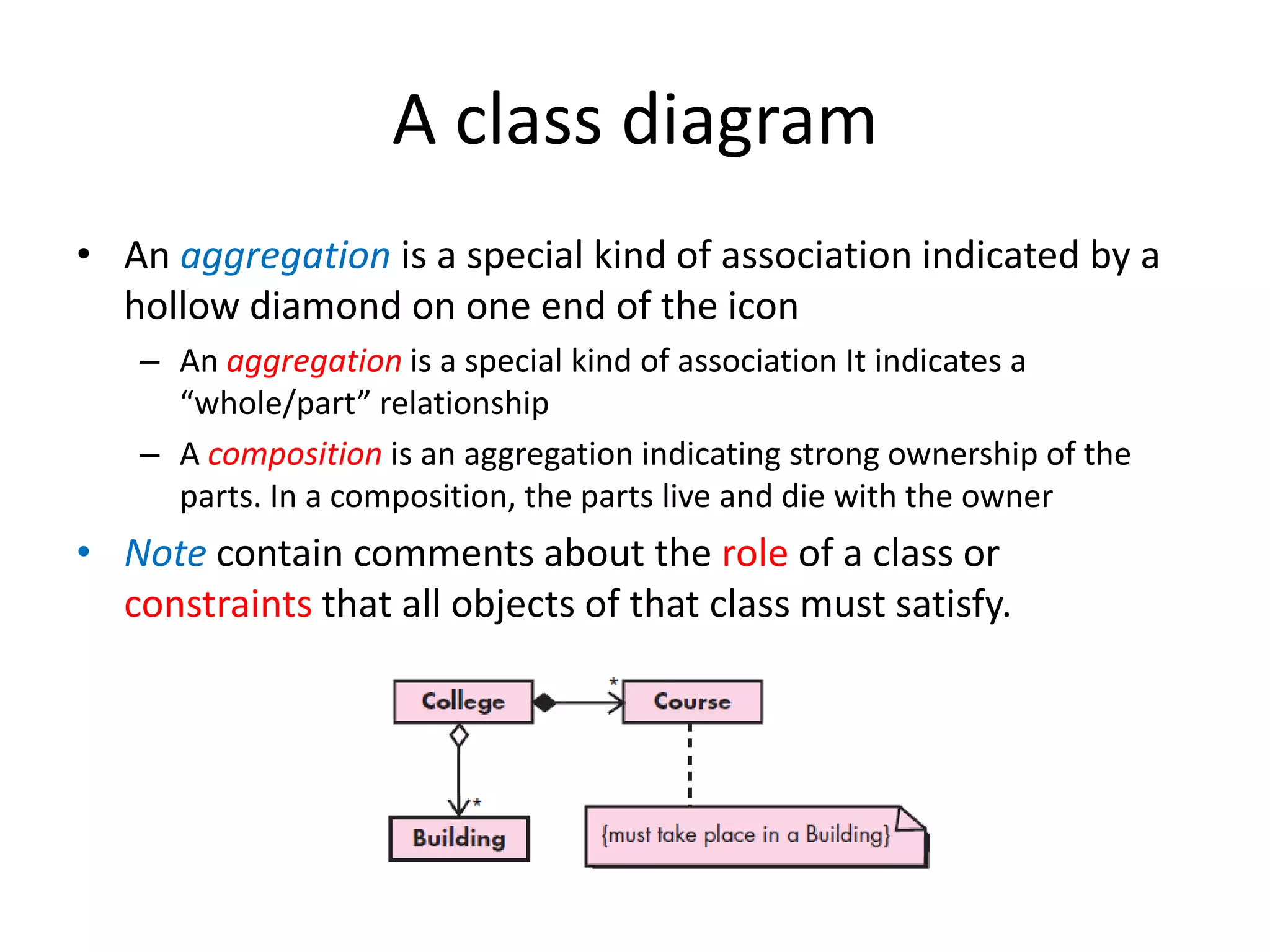

A class diagram
• An aggregation is a special kind of association indicated by a
hollow diamond on one end of the icon
– An aggregation is a special kind of association It indicates a
“whole/part” relationship
– A composition is an aggregation indicating strong ownership of the
parts. In a composition, the parts live and die with the owner

• Note contain comments about the role of a class or
constraints that all objects of that class must satisfy.

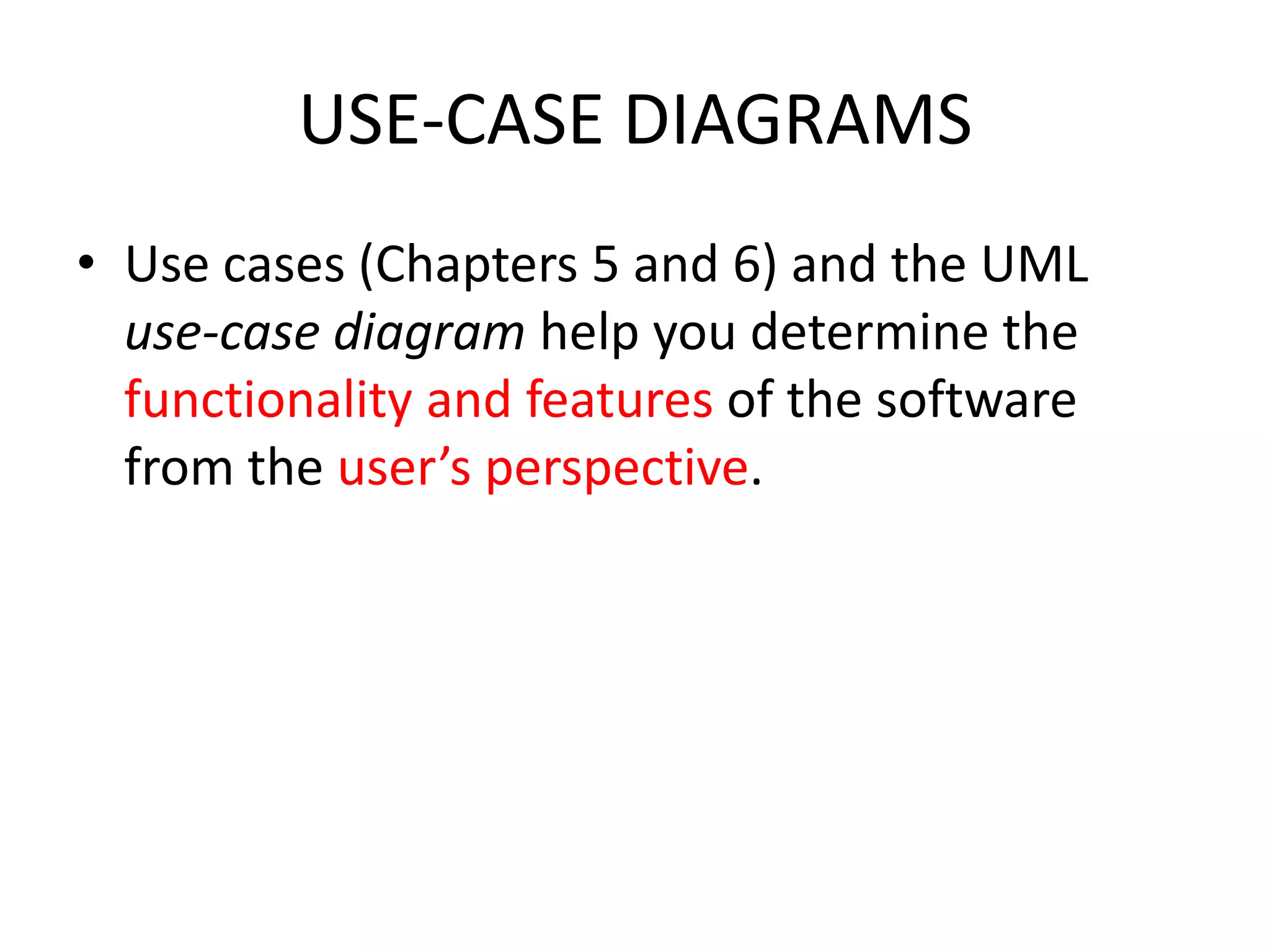

USE-CASE DIAGRAMS
• Use cases (Chapters 5 and 6) and the UML
use-case diagram help you determine the
functionality and features of the software
from the user’s perspective.

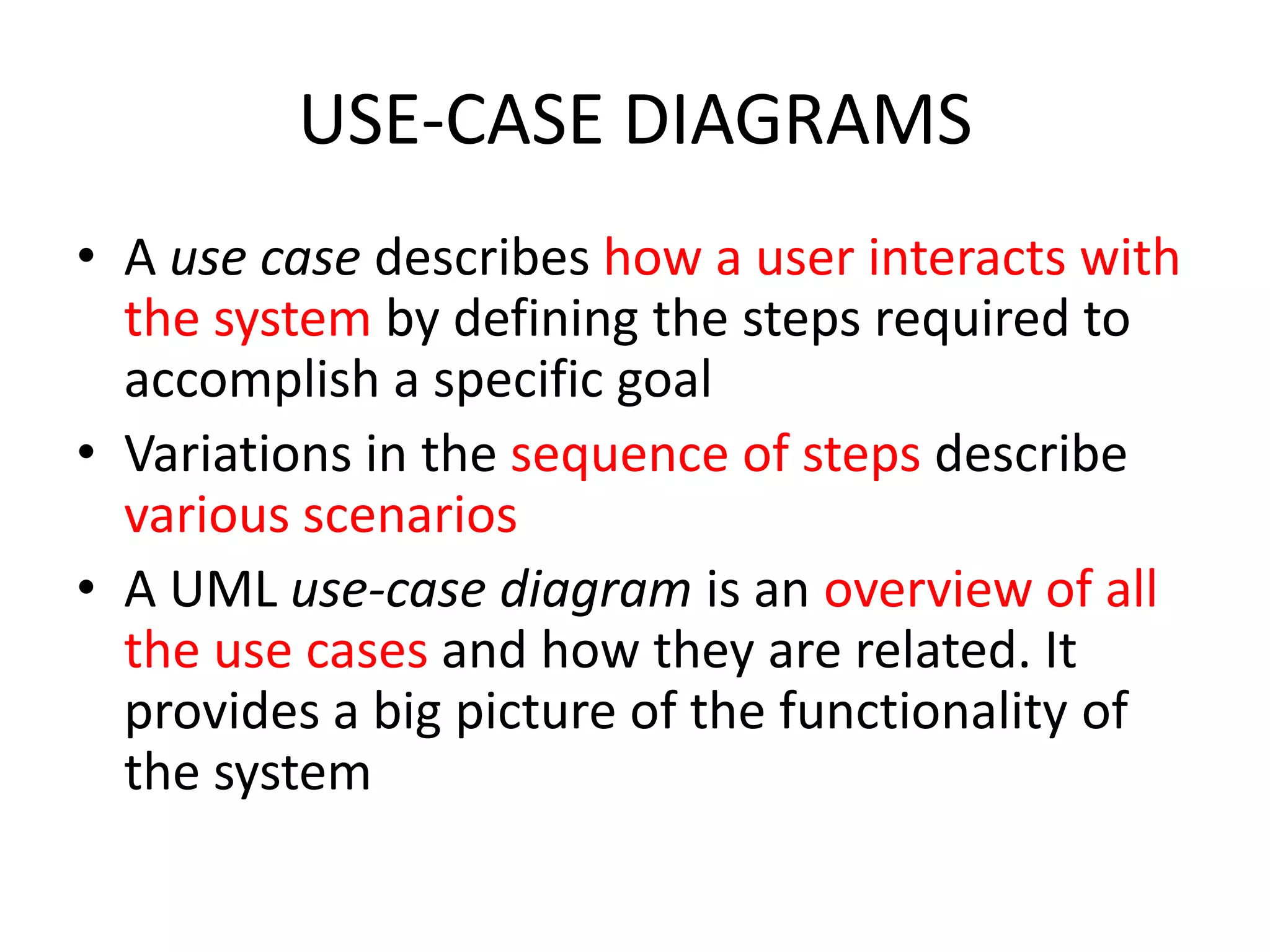

USE-CASE DIAGRAMS
• A use case describes how a user interacts with
the system by defining the steps required to
accomplish a specific goal
• Variations in the sequence of steps describe
various scenarios
• A UML use-case diagram is an overview of all
the use cases and how they are related. It
provides a big picture of the functionality of
the system

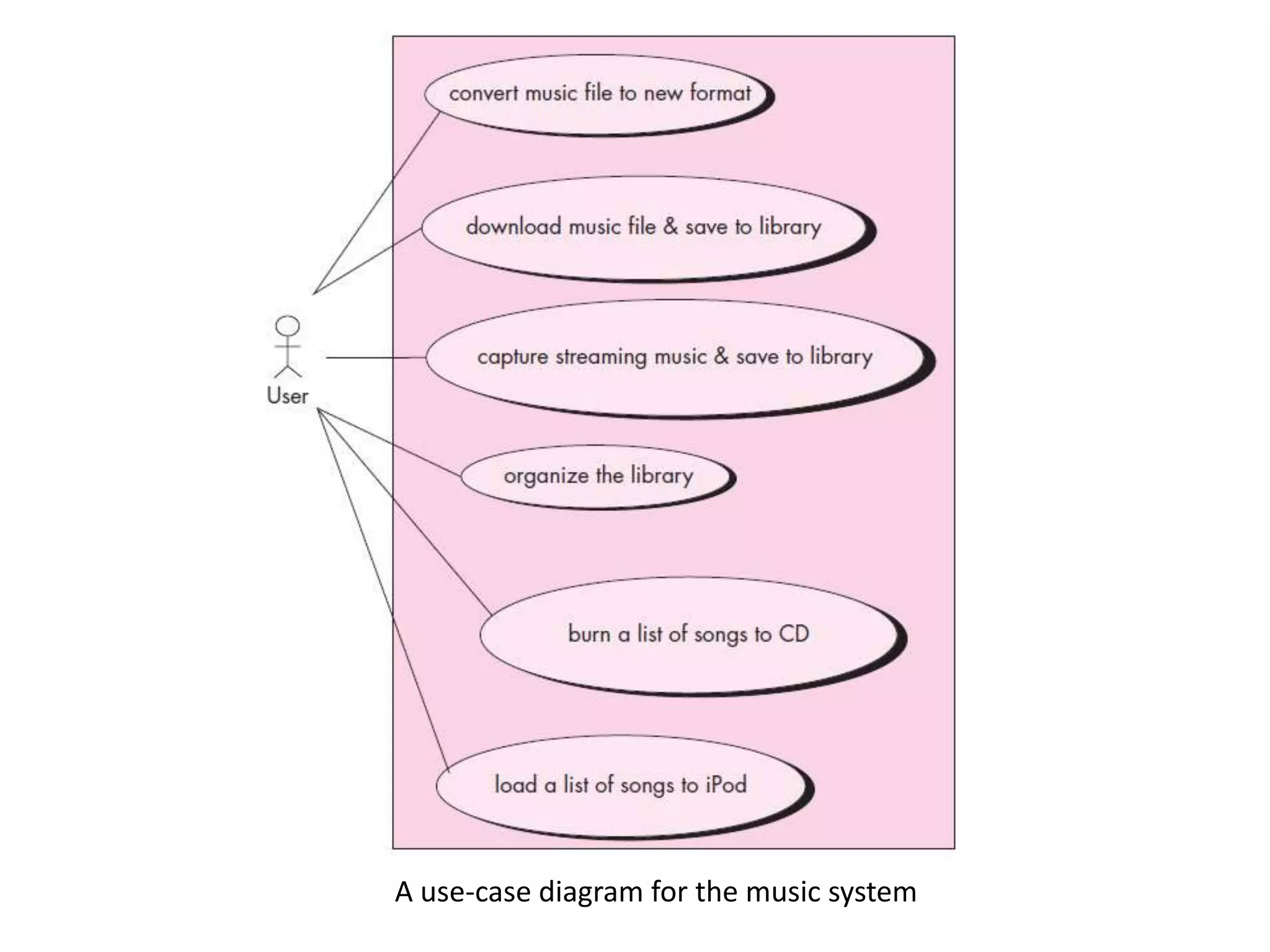

A use-case diagram for the music system

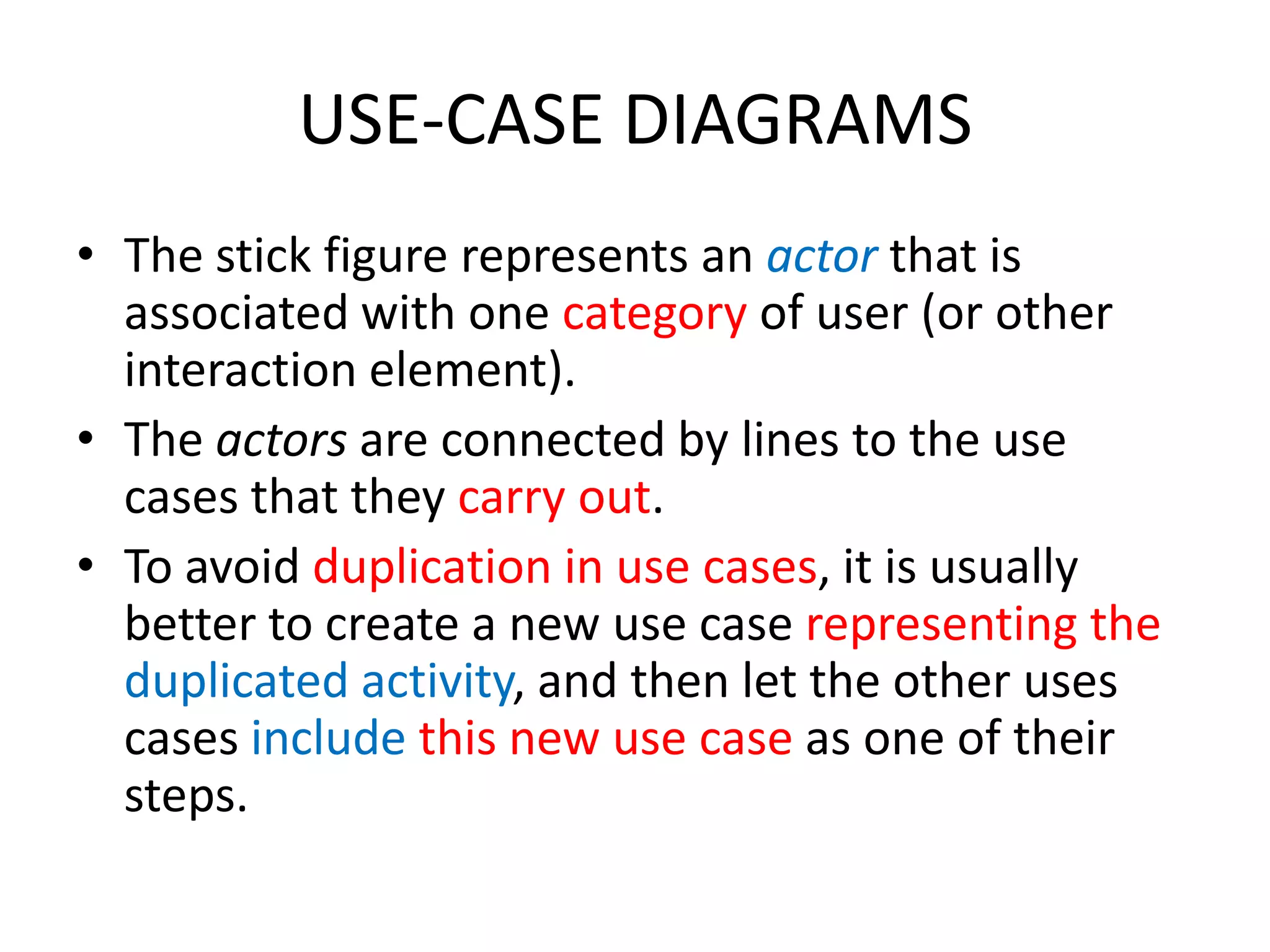

USE-CASE DIAGRAMS
• The stick figure represents an actor that is
associated with one category of user (or other
interaction element).
• The actors are connected by lines to the use
cases that they carry out.
• To avoid duplication in use cases, it is usually
better to create a new use case representing the
duplicated activity, and then let the other uses
cases include this new use case as one of their
steps.

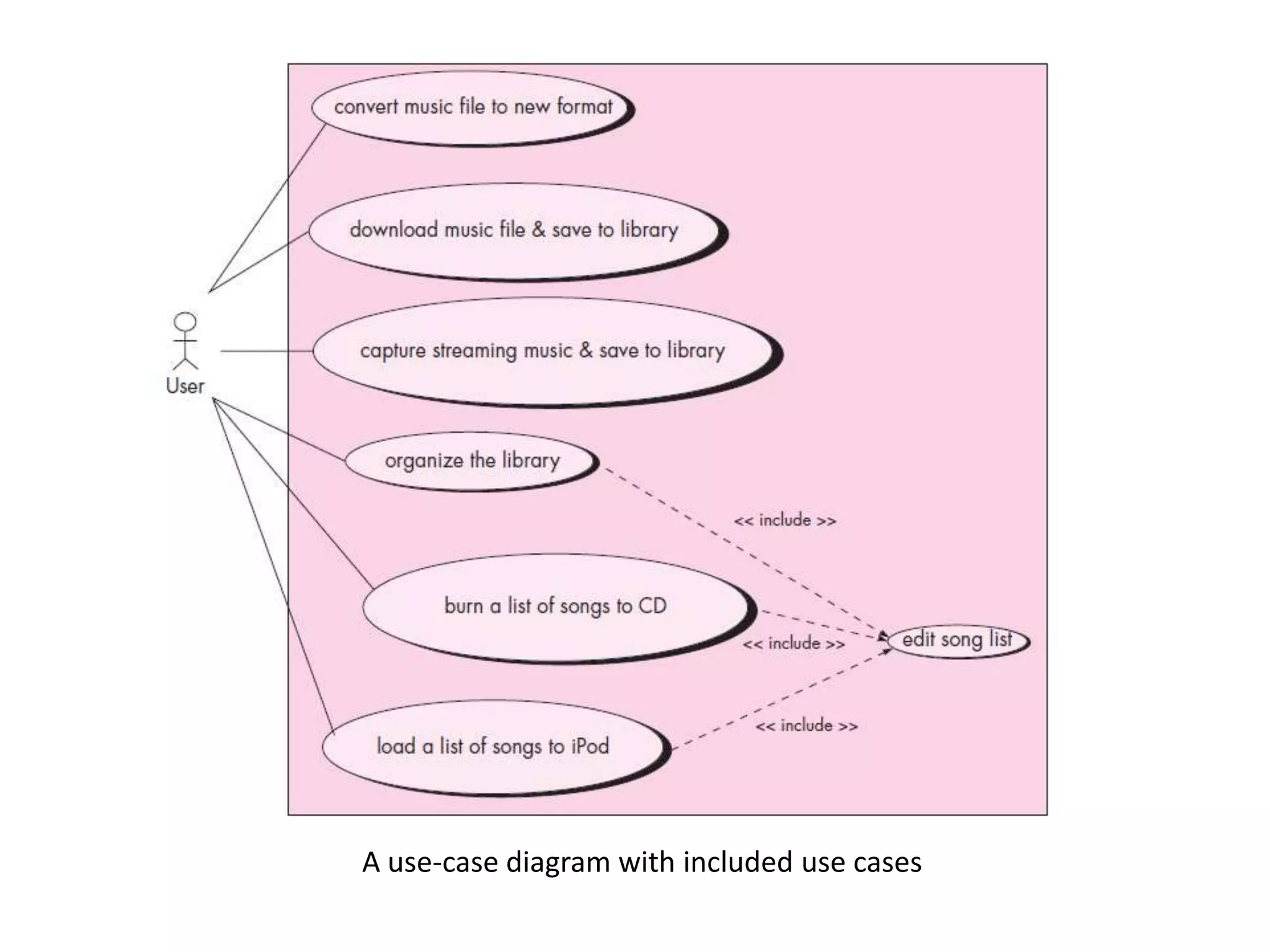

A use-case diagram with included use cases

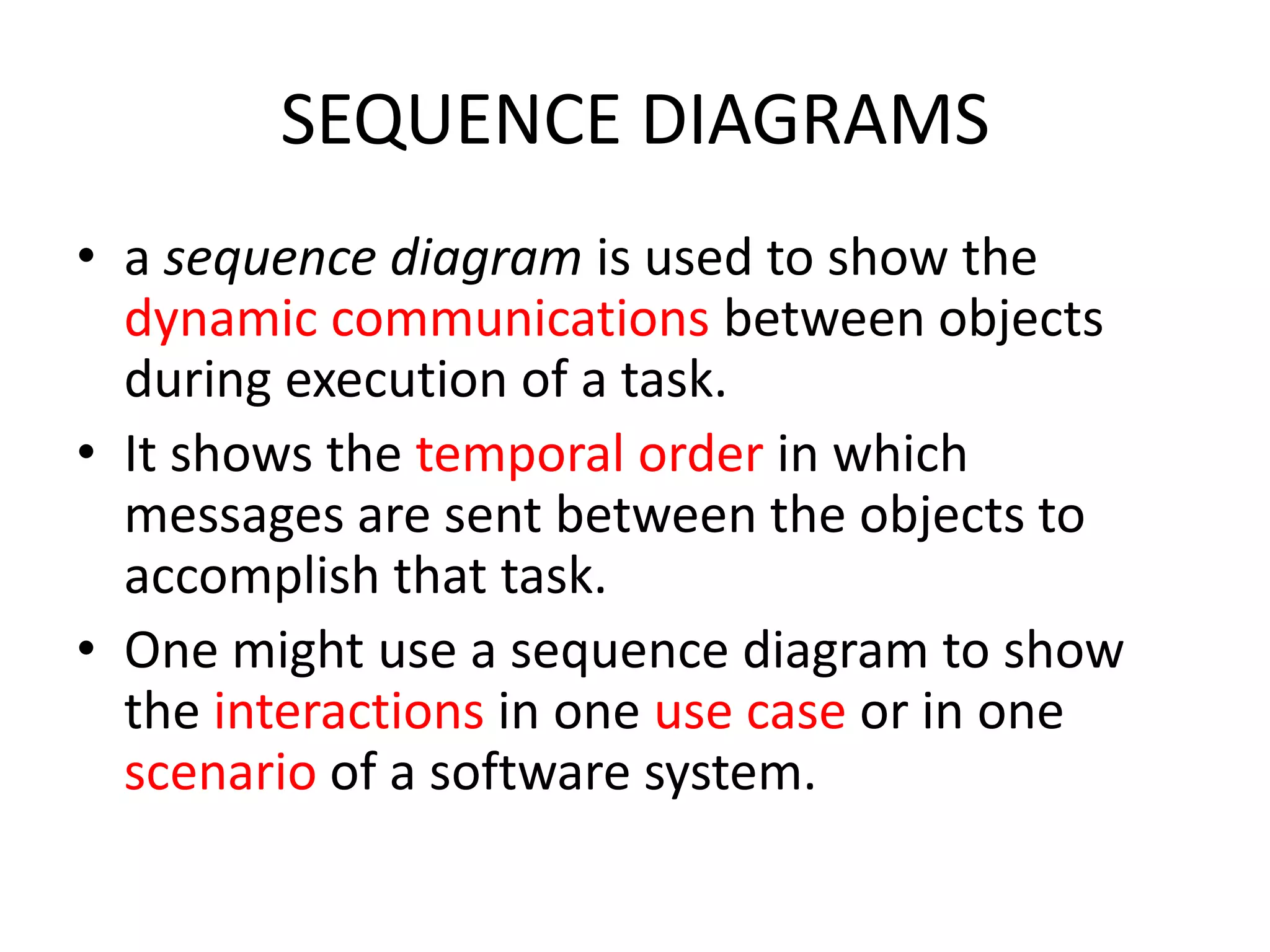

SEQUENCE DIAGRAMS
• a sequence diagram is used to show the
dynamic communications between objects
during execution of a task.
• It shows the temporal order in which
messages are sent between the objects to
accomplish that task.
• One might use a sequence diagram to show
the interactions in one use case or in one
scenario of a software system.

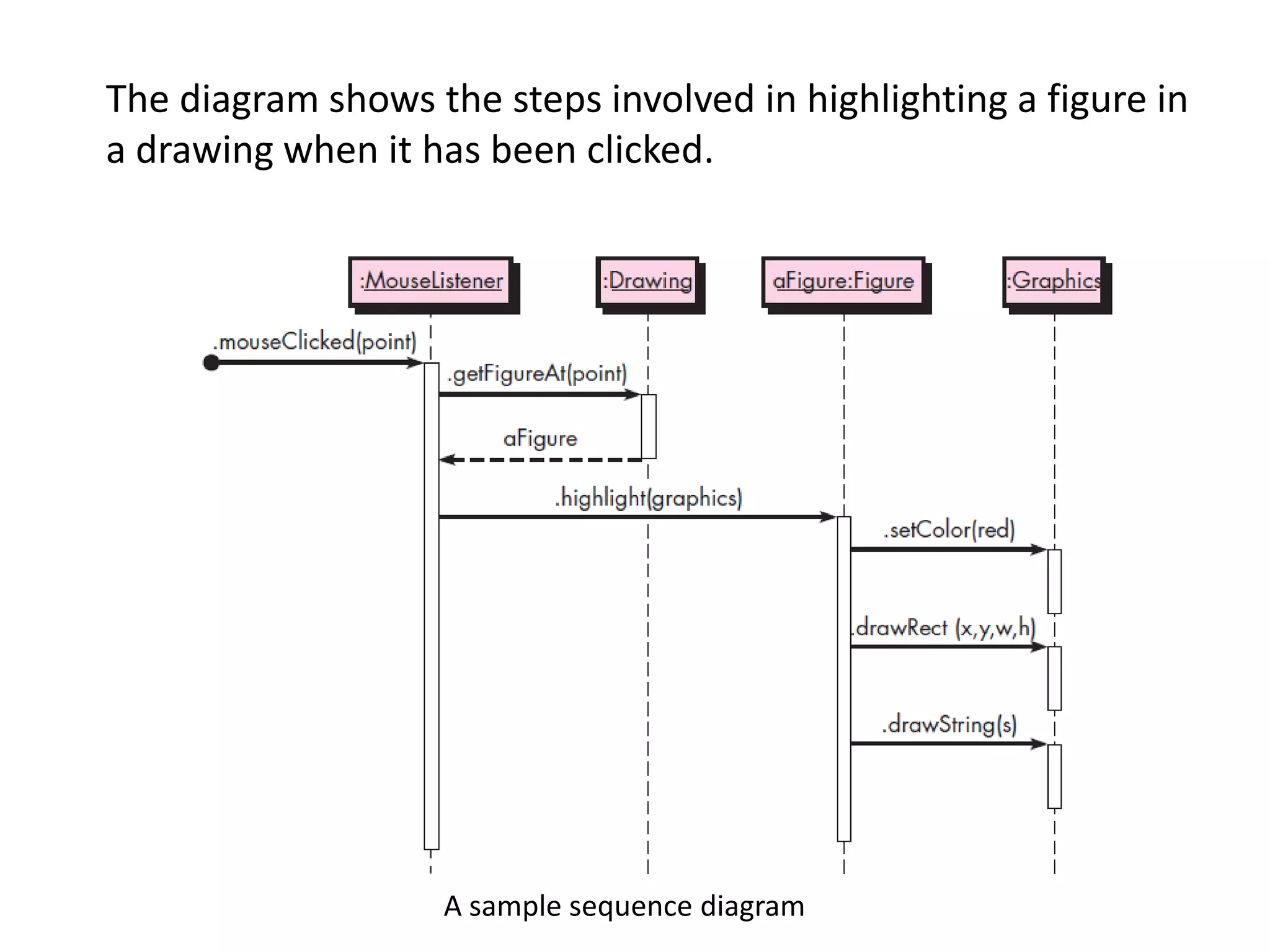

The diagram shows the steps involved in highlighting a figure in
a drawing when it has been clicked.

A sample sequence diagram

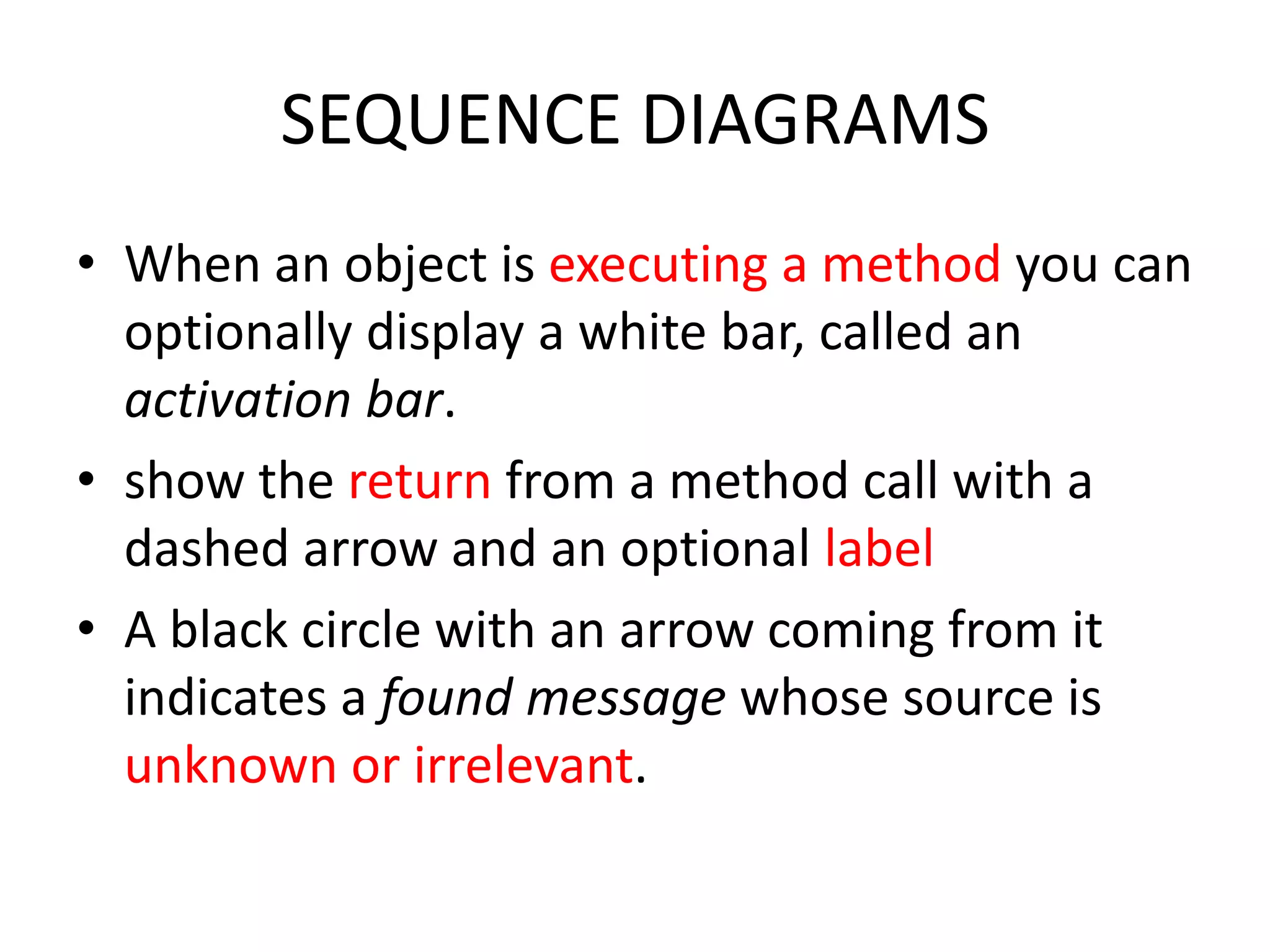

SEQUENCE DIAGRAMS
• When an object is executing a method you can
optionally display a white bar, called an
activation bar.
• show the return from a method call with a
dashed arrow and an optional label
• A black circle with an arrow coming from it
indicates a found message whose source is
unknown or irrelevant.

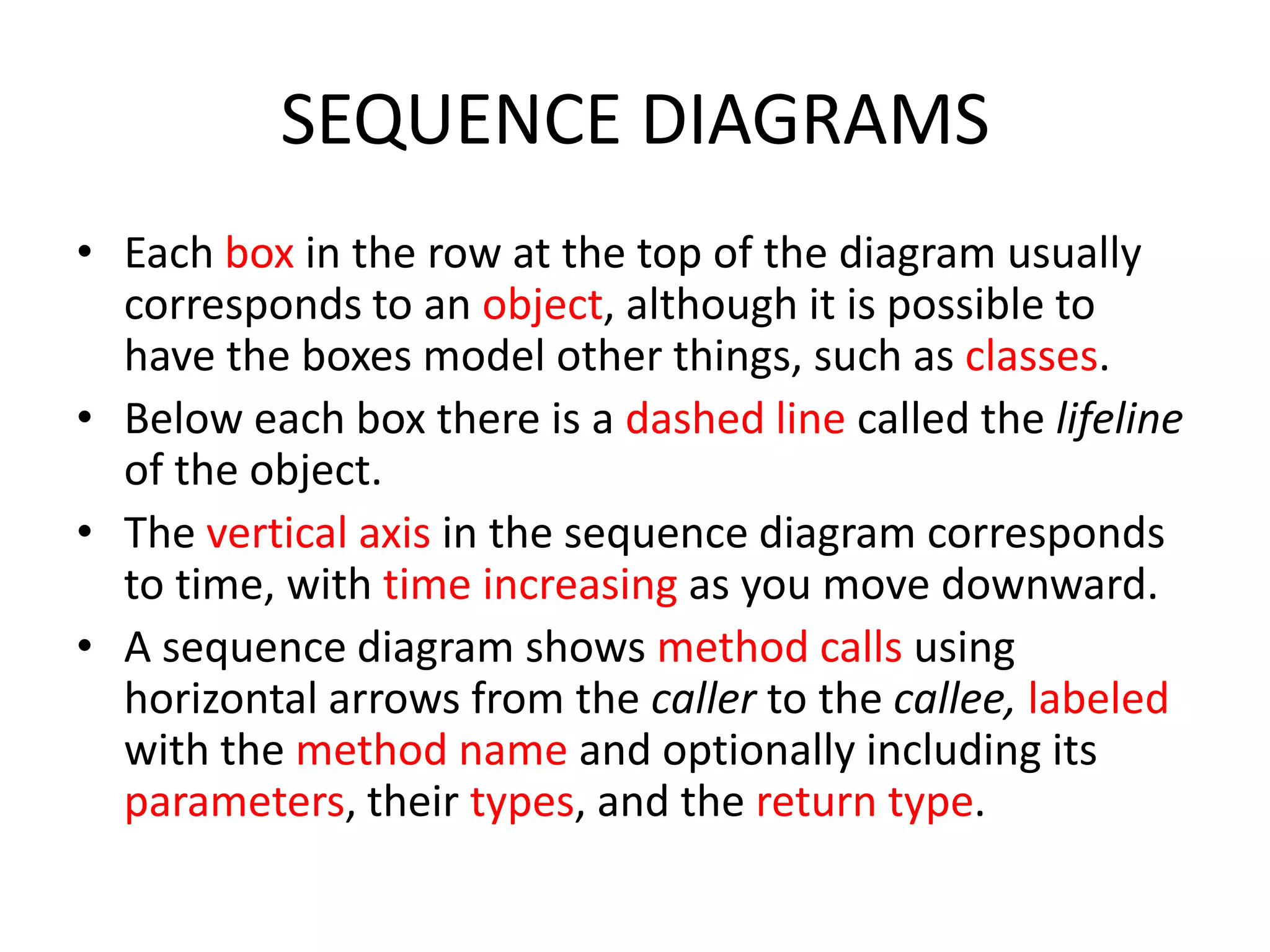

SEQUENCE DIAGRAMS
• Each box in the row at the top of the diagram usually
corresponds to an object, although it is possible to
have the boxes model other things, such as classes.
• Below each box there is a dashed line called the lifeline
of the object.
• The vertical axis in the sequence diagram corresponds
to time, with time increasing as you move downward.
• A sequence diagram shows method calls using
horizontal arrows from the caller to the callee, labeled
with the method name and optionally including its
parameters, their types, and the return type.

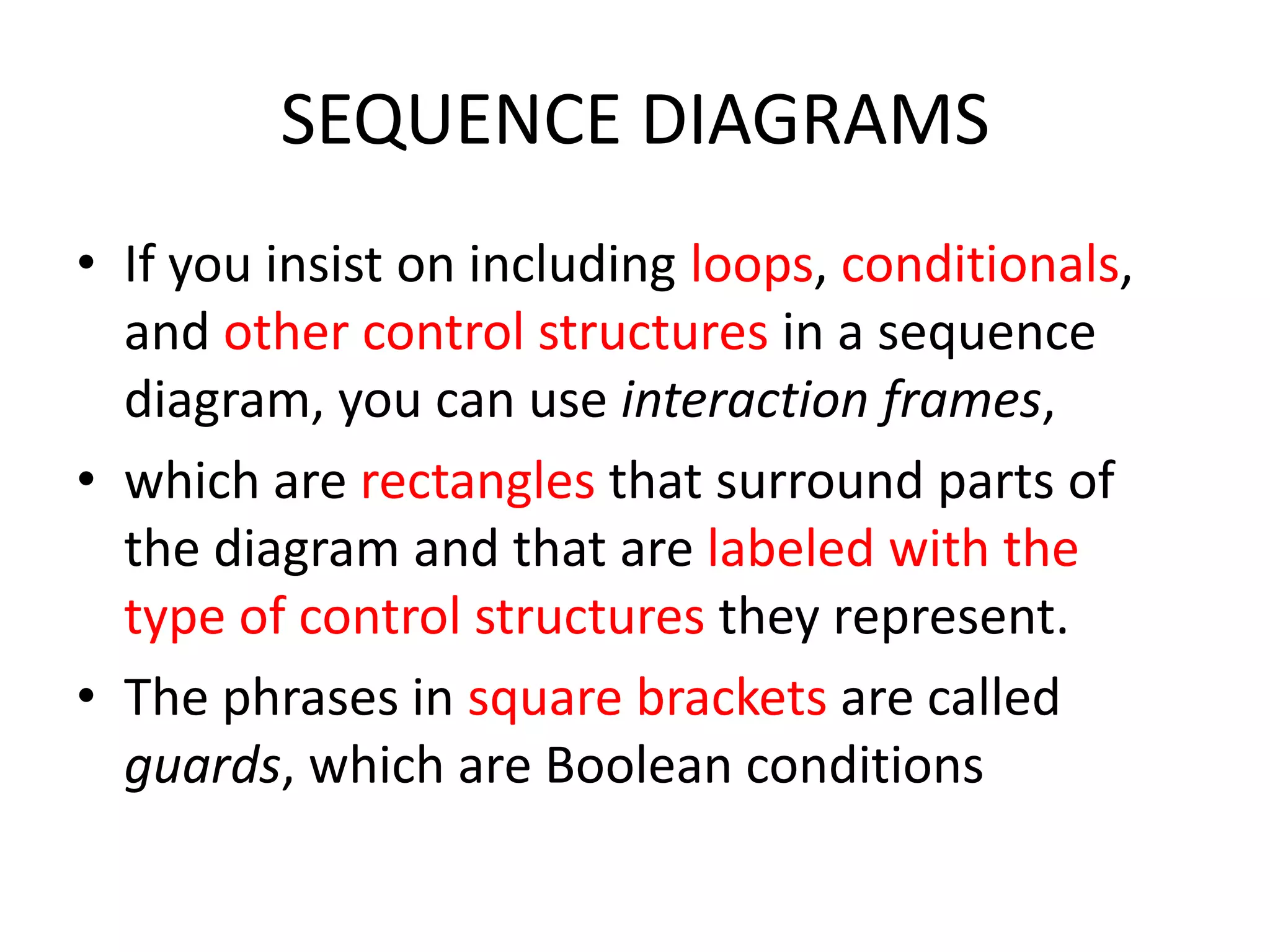

SEQUENCE DIAGRAMS
• If you insist on including loops, conditionals,
and other control structures in a sequence
diagram, you can use interaction frames,
• which are rectangles that surround parts of
the diagram and that are labeled with the
type of control structures they represent.
• The phrases in square brackets are called
guards, which are Boolean conditions

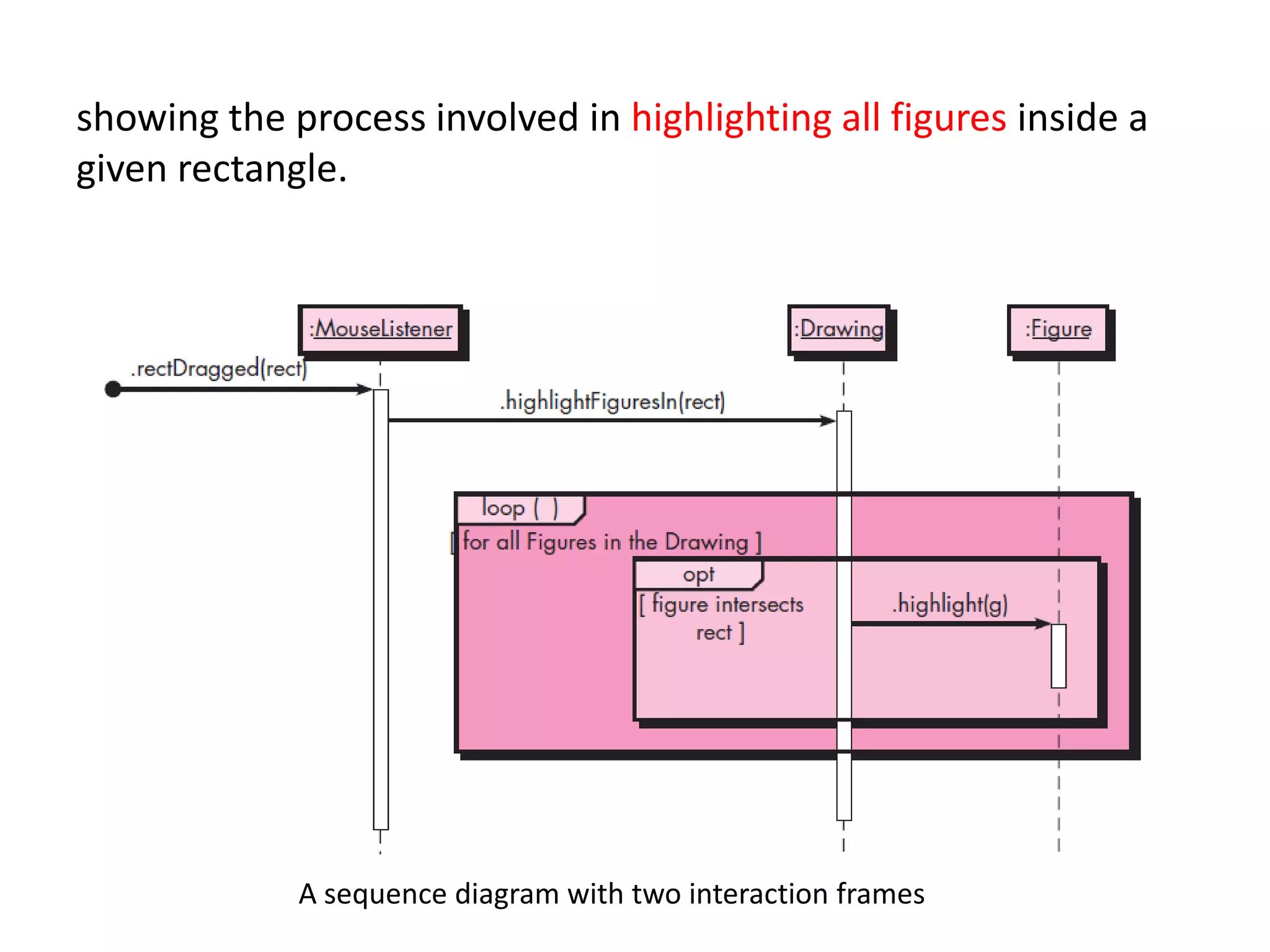

showing the process involved in highlighting all figures inside a
given rectangle.

A sequence diagram with two interaction frames

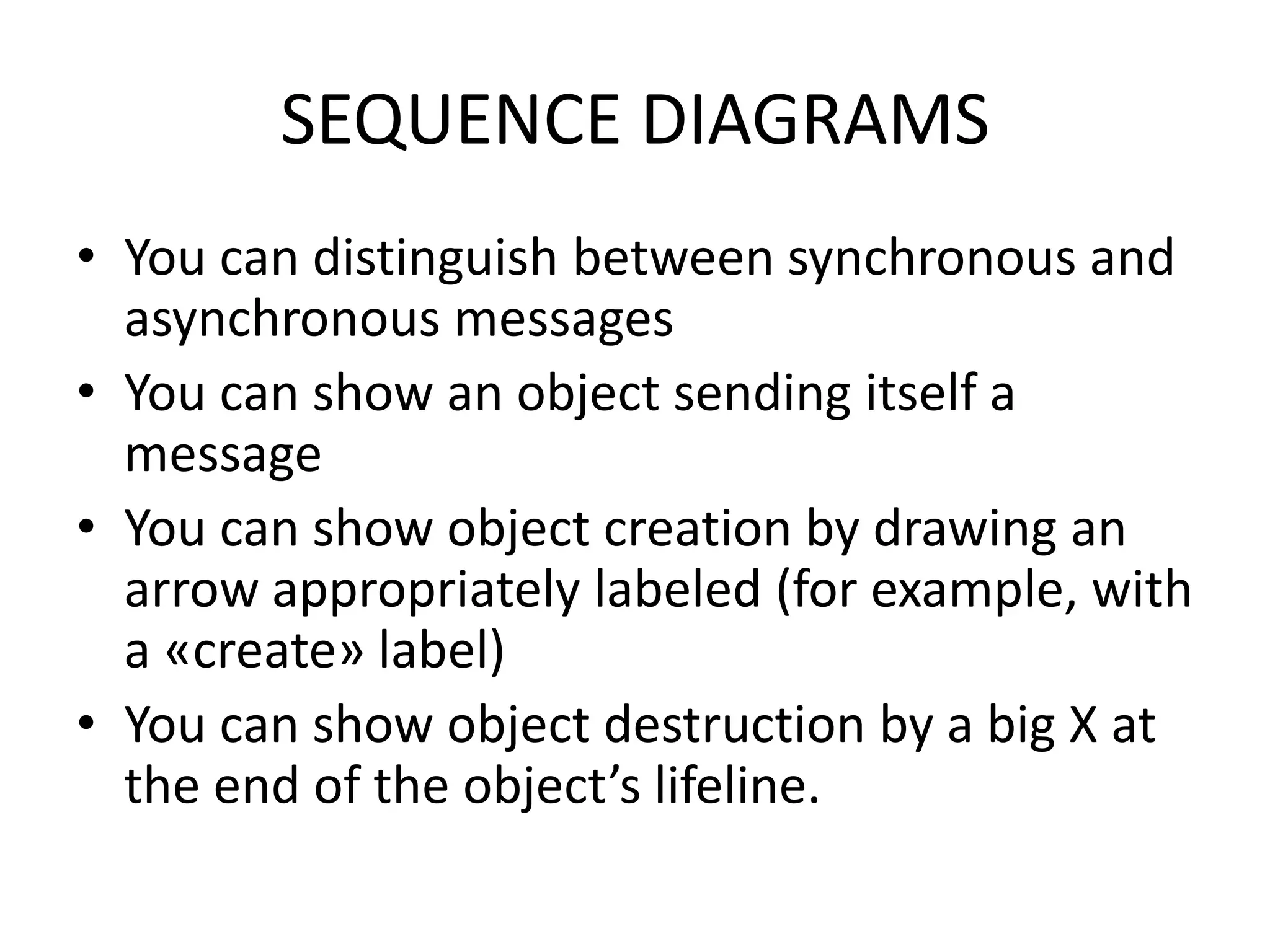

SEQUENCE DIAGRAMS
• You can distinguish between synchronous and
asynchronous messages
• You can show an object sending itself a
message
• You can show object creation by drawing an
arrow appropriately labeled (for example, with
a «create» label)
• You can show object destruction by a big X at
the end of the object’s lifeline.
SEQUENCE DIAGRAMS

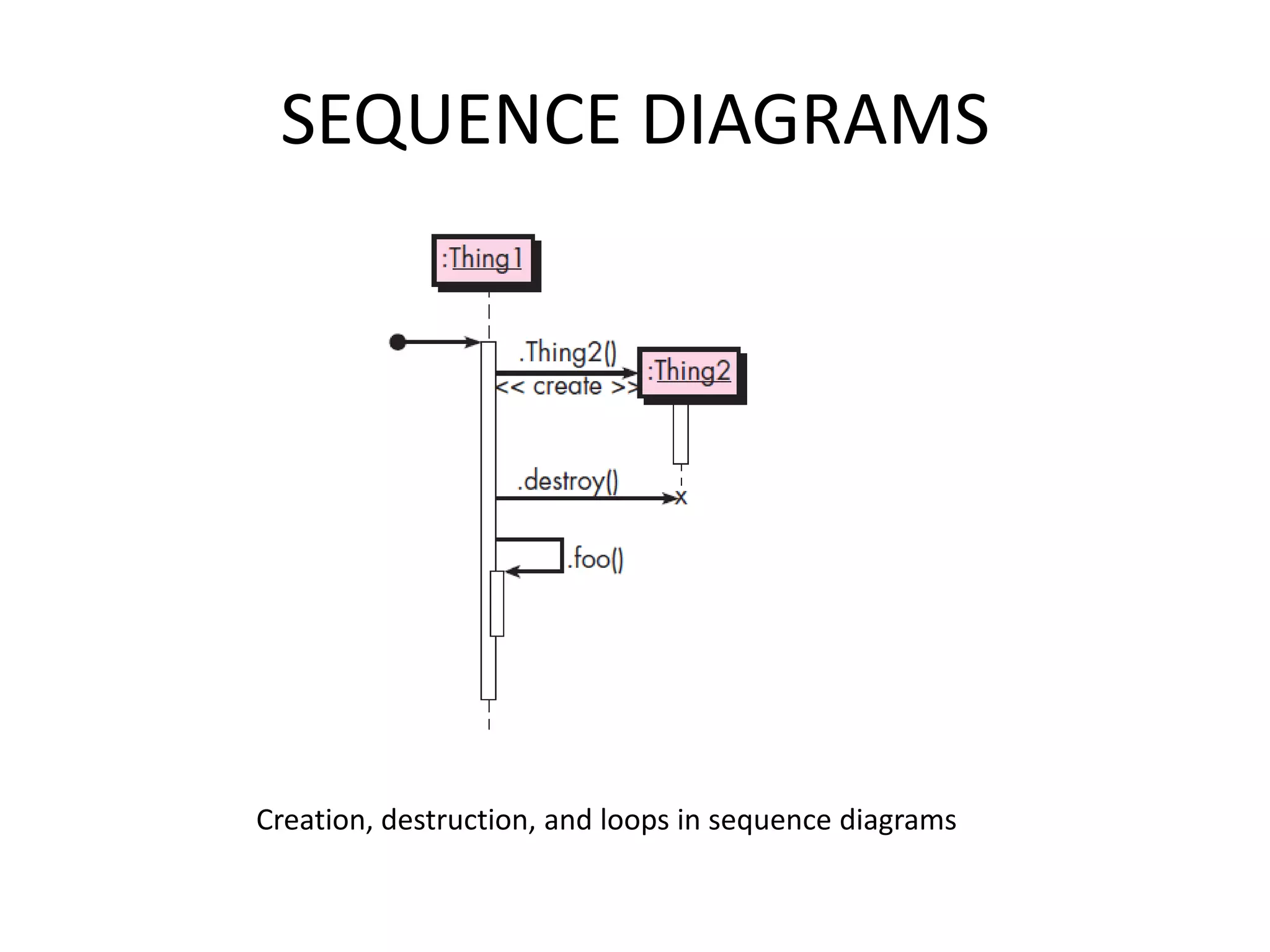

Creation, destruction, and loops in sequence diagrams

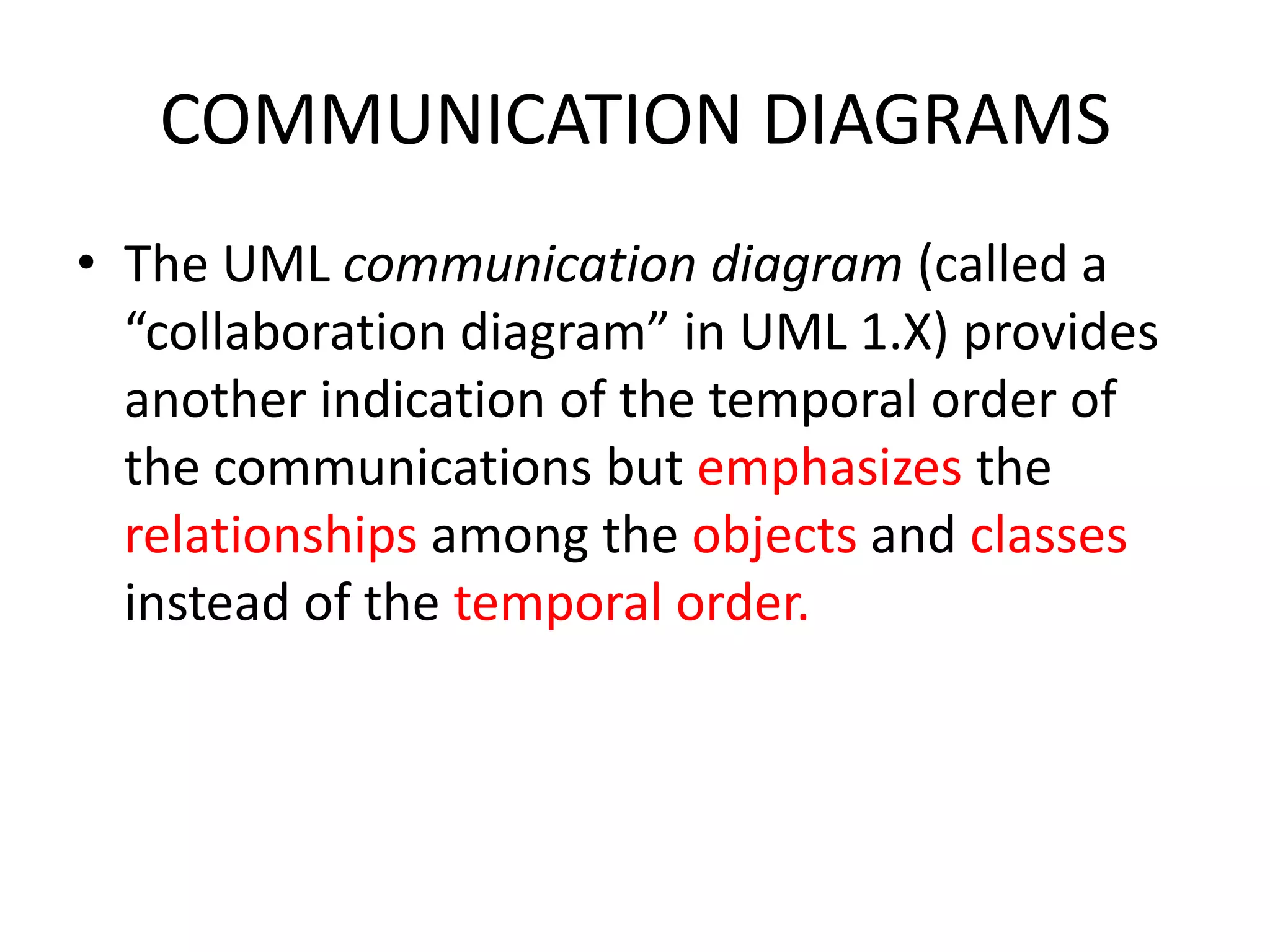

COMMUNICATION DIAGRAMS
• The UML communication diagram (called a
“collaboration diagram” in UML 1.X) provides
another indication of the temporal order of
the communications but emphasizes the
relationships among the objects and classes
instead of the temporal order.

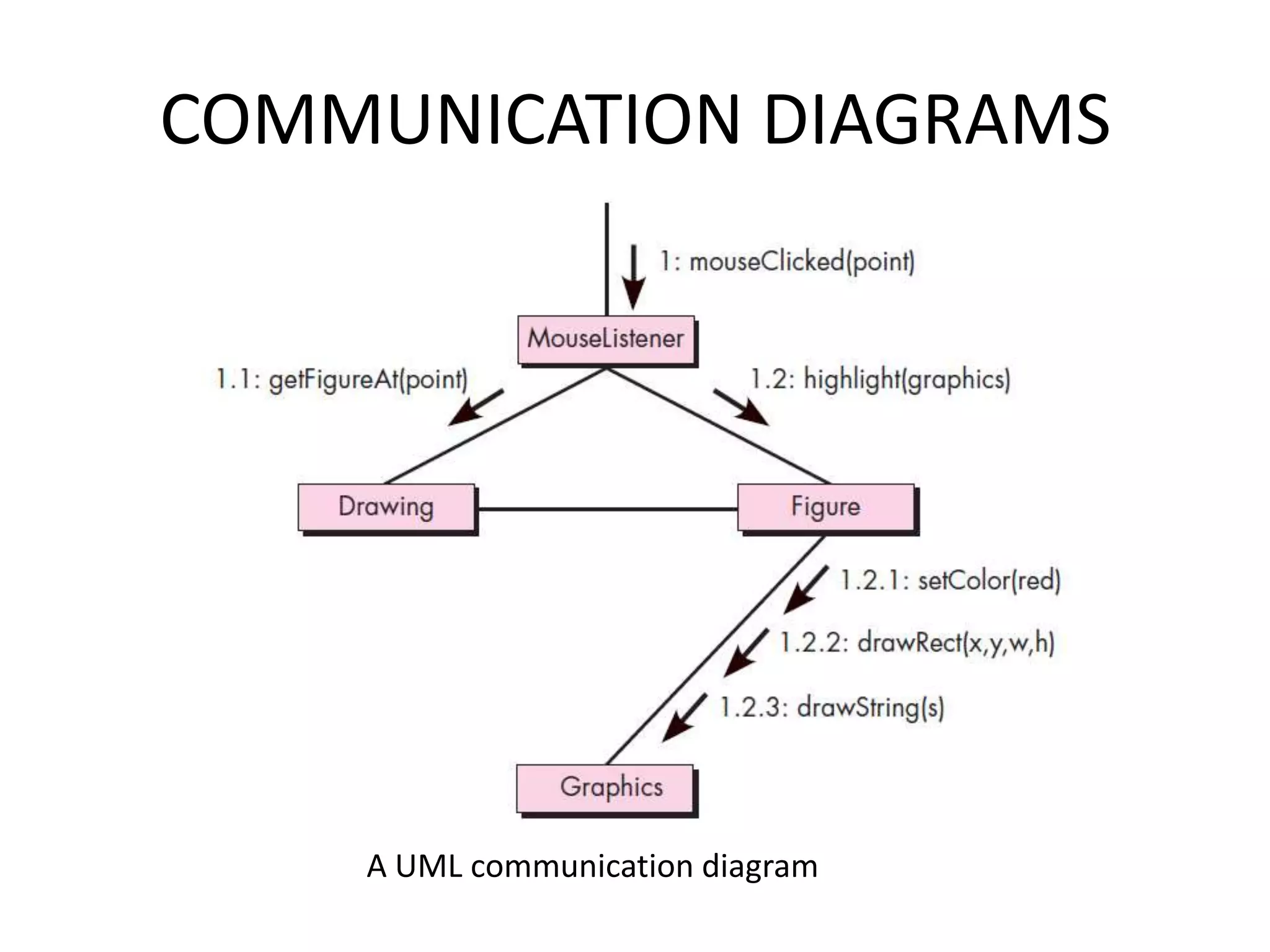

COMMUNICATION DIAGRAMS

A UML communication diagram

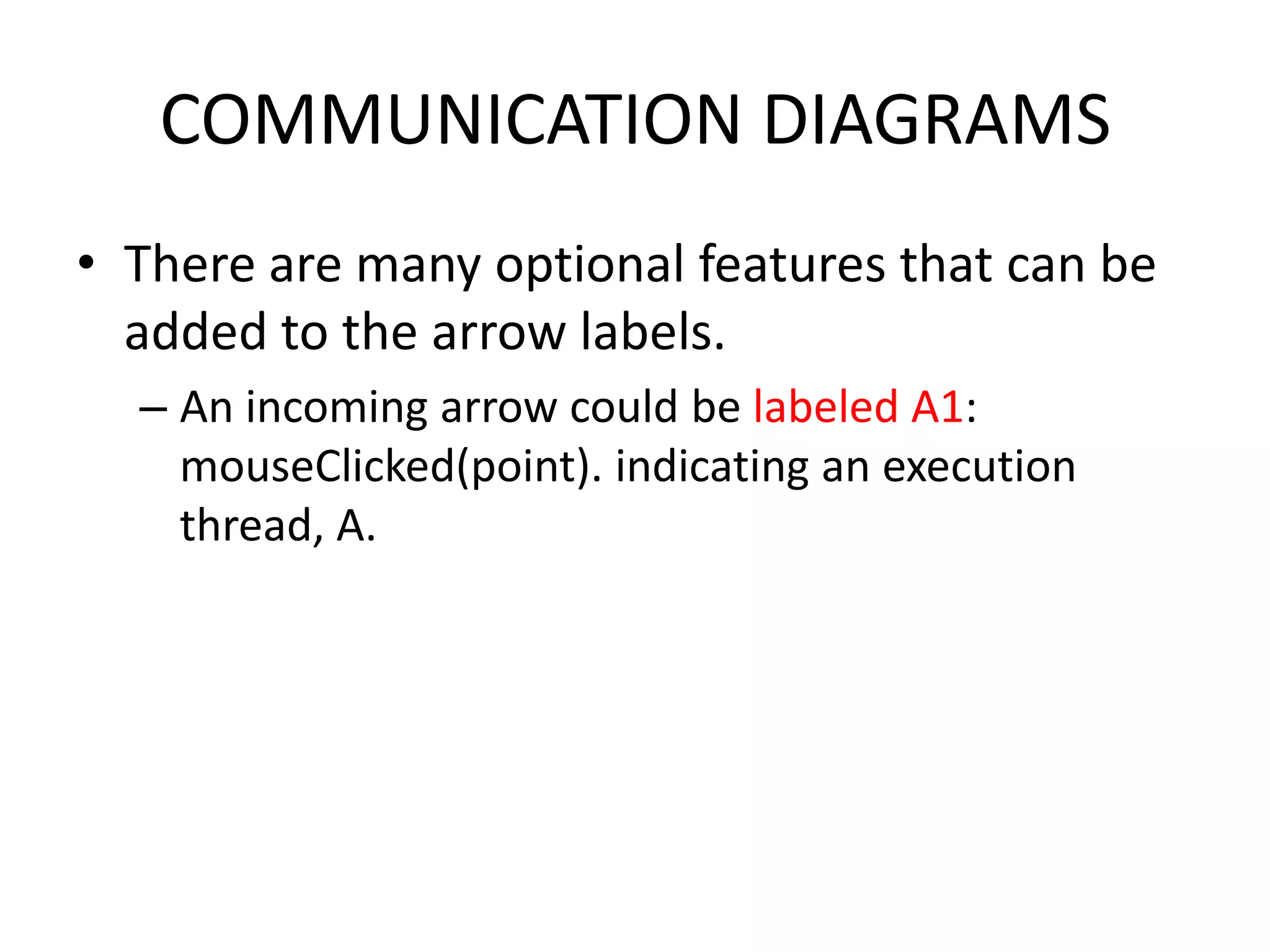

COMMUNICATION DIAGRAMS
• There are many optional features that can be
added to the arrow labels.
– An incoming arrow could be labeled A1:
mouseClicked(point). indicating an execution
thread, A.

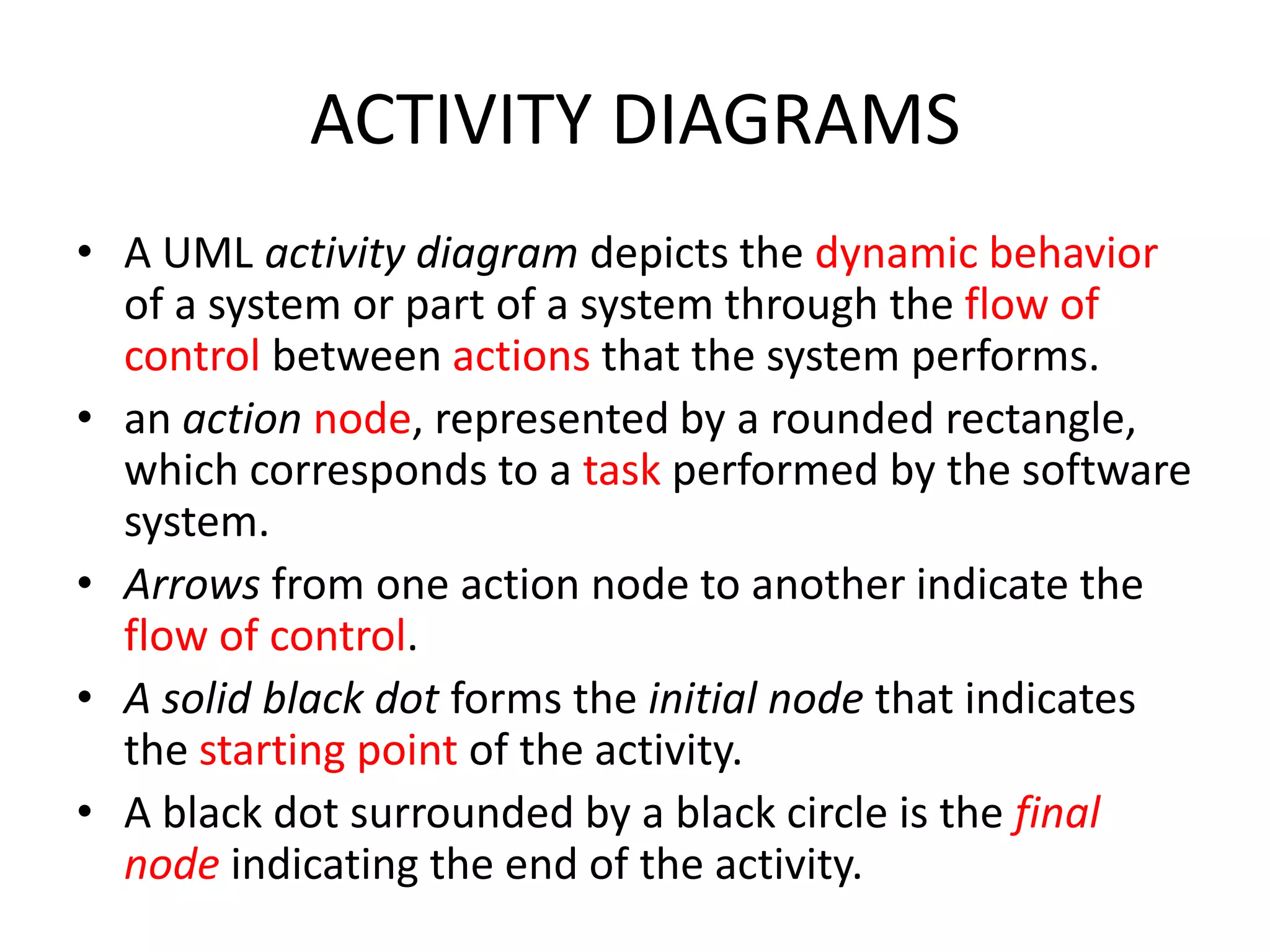

ACTIVITY DIAGRAMS
• A UML activity diagram depicts the dynamic behavior
of a system or part of a system through the flow of
control between actions that the system performs.
• an action node, represented by a rounded rectangle,
which corresponds to a task performed by the software
system.
• Arrows from one action node to another indicate the
flow of control.
• A solid black dot forms the initial node that indicates
the starting point of the activity.
• A black dot surrounded by a black circle is the final
node indicating the end of the activity.

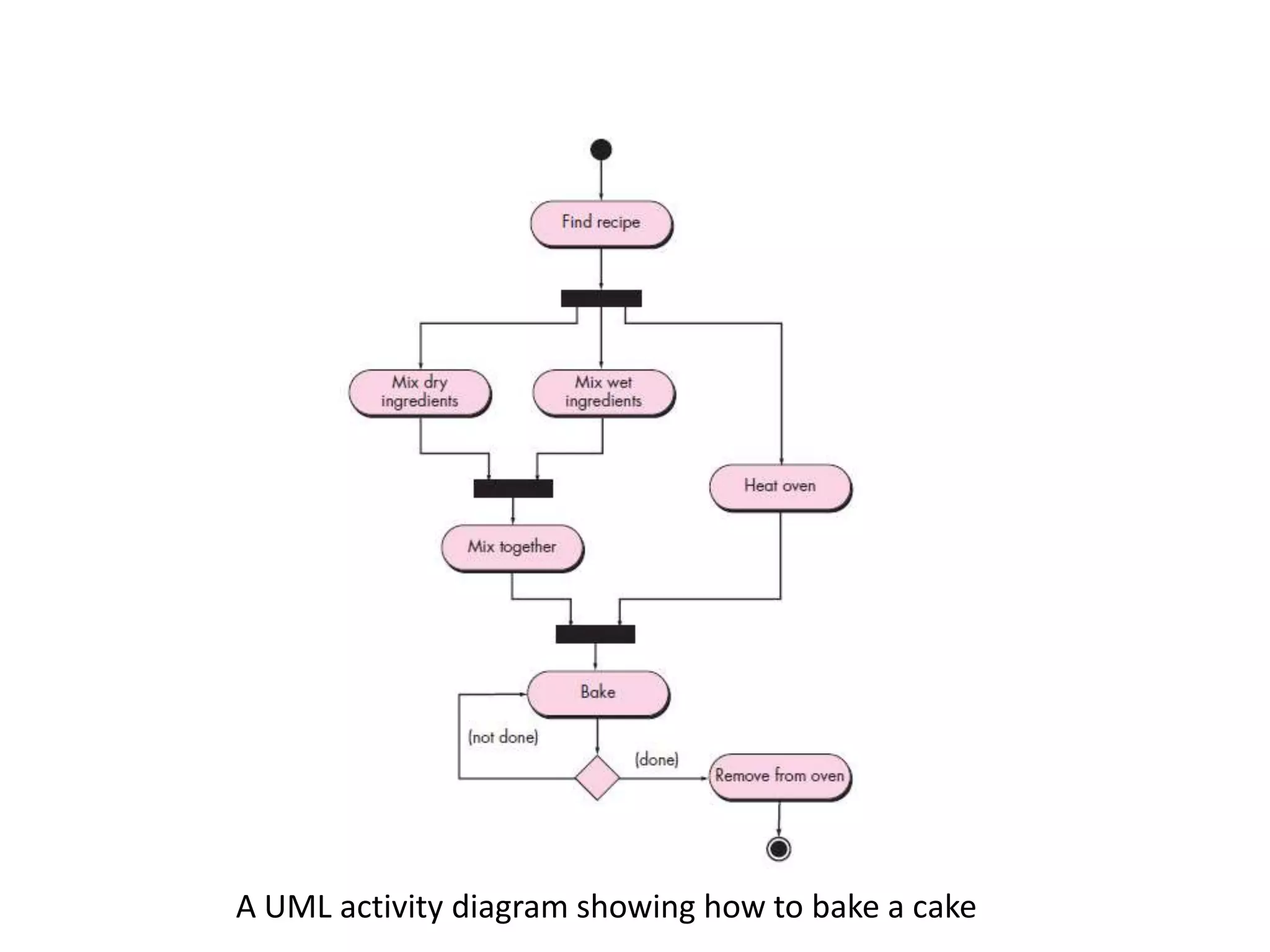

A UML activity diagram showing how to bake a cake

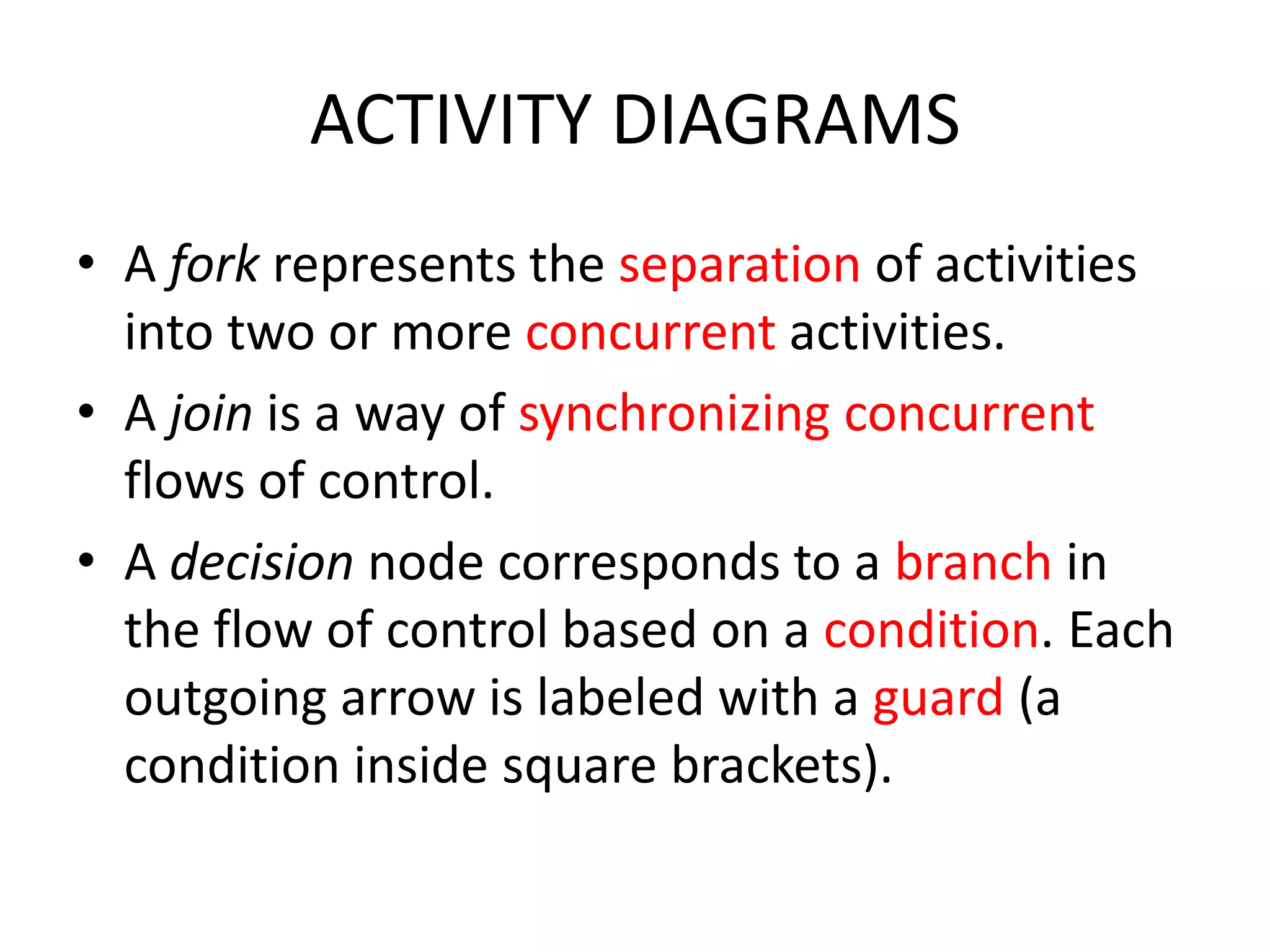

ACTIVITY DIAGRAMS
• A fork represents the separation of activities
into two or more concurrent activities.
• A join is a way of synchronizing concurrent
flows of control.
• A decision node corresponds to a branch in
the flow of control based on a condition. Each
outgoing arrow is labeled with a guard (a
condition inside square brackets).

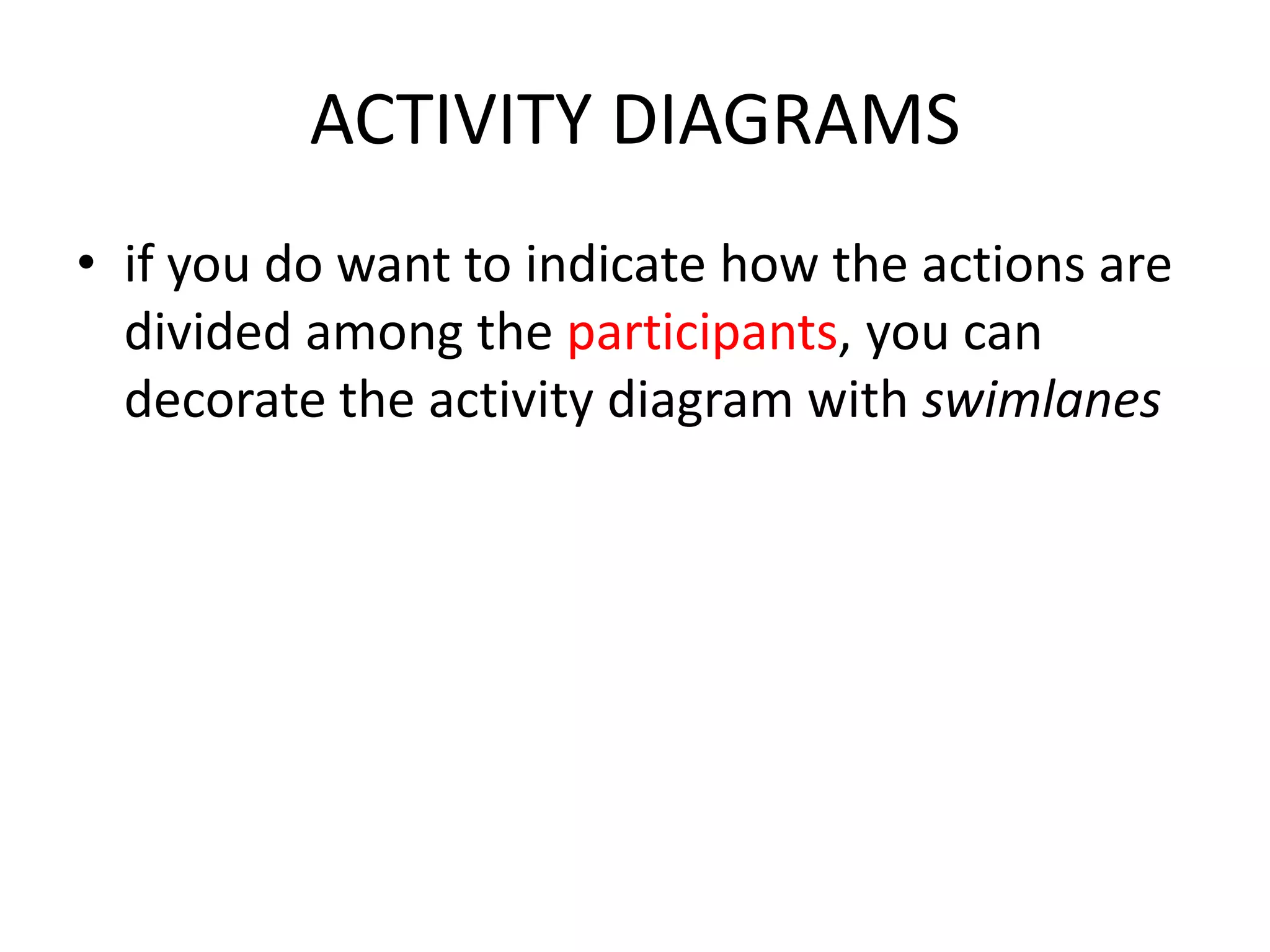

ACTIVITY DIAGRAMS
• if you do want to indicate how the actions are
divided among the participants, you can
decorate the activity diagram with swimlanes

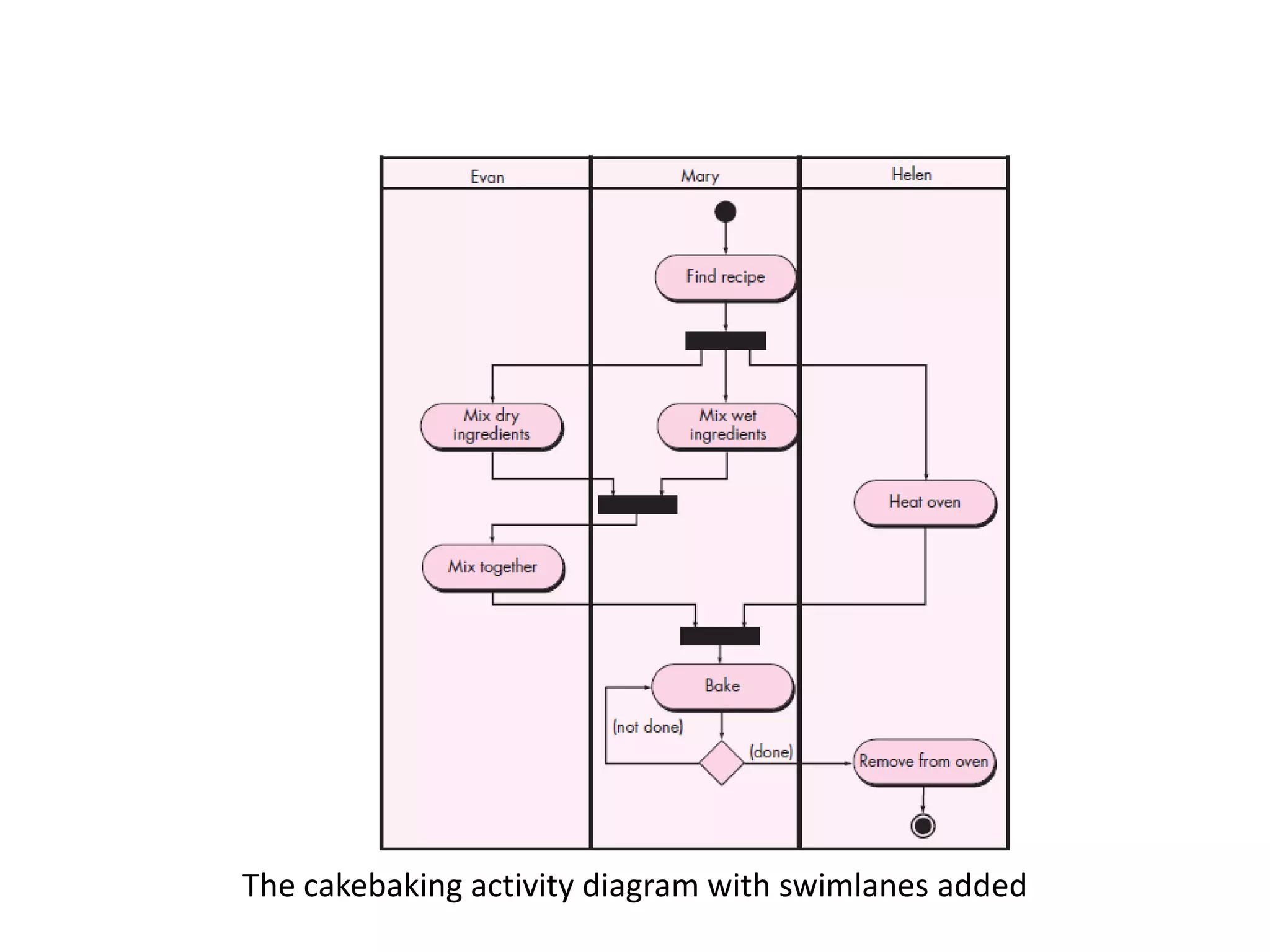

The cakebaking activity diagram with swimlanes added

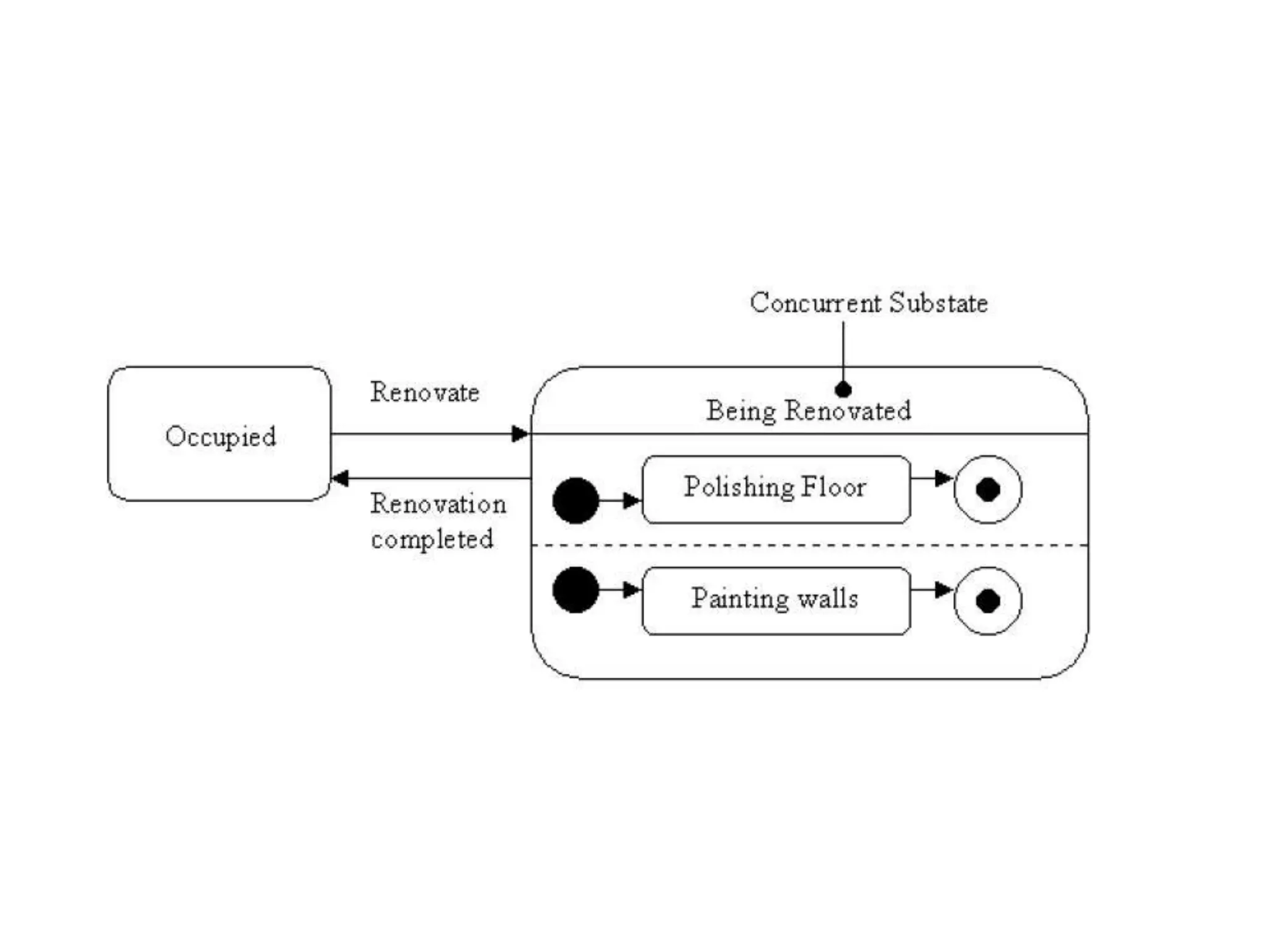

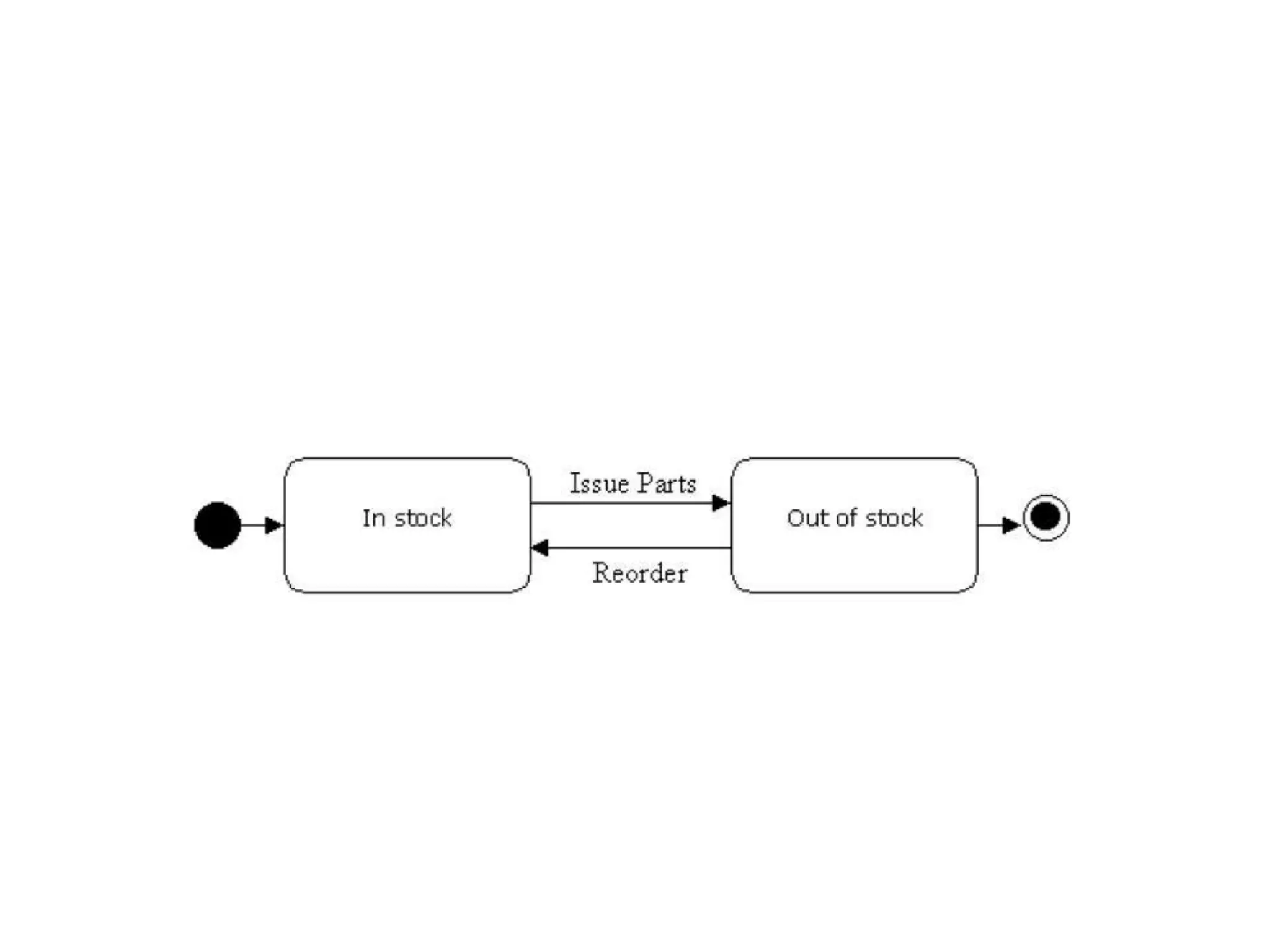

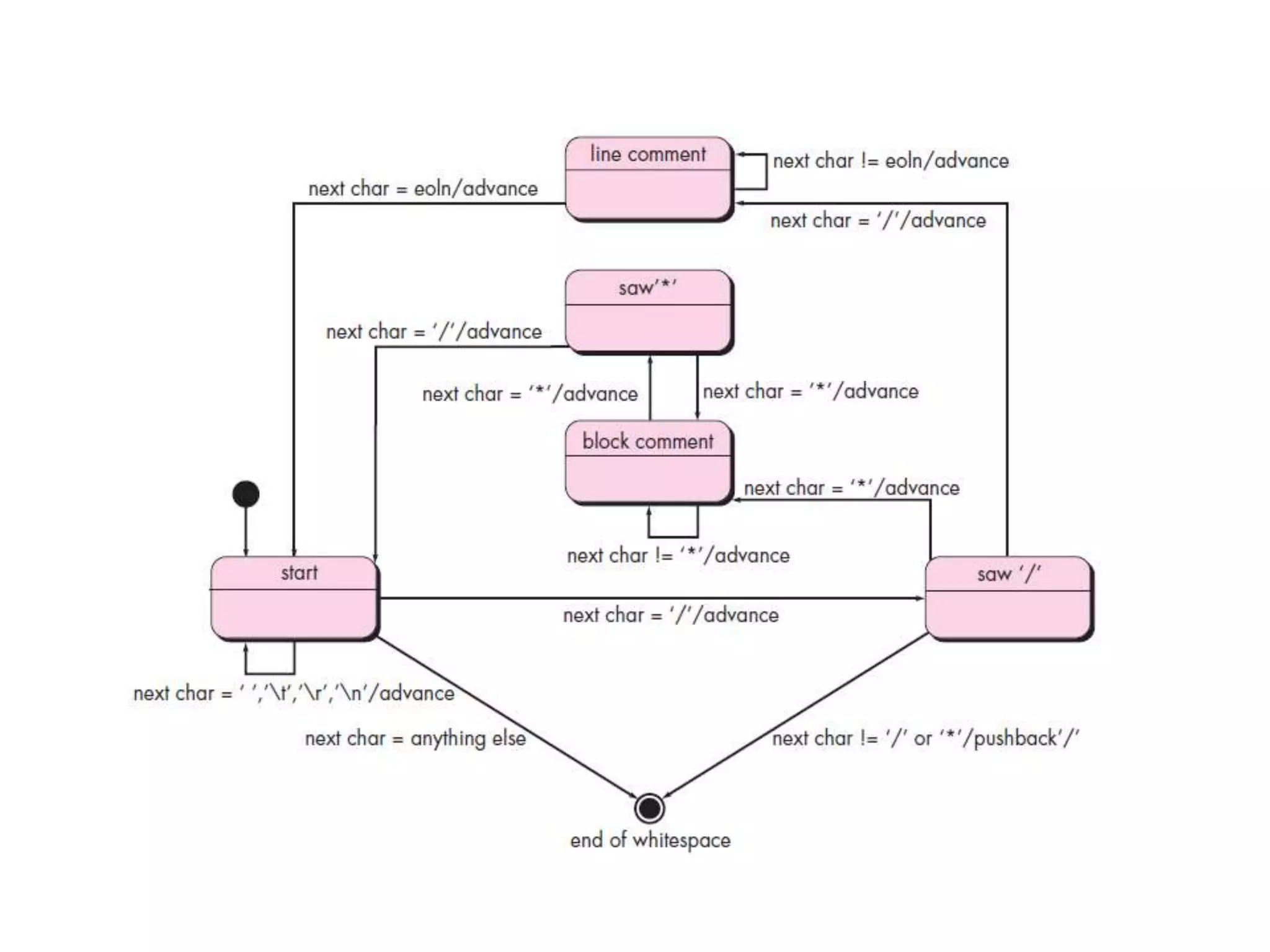

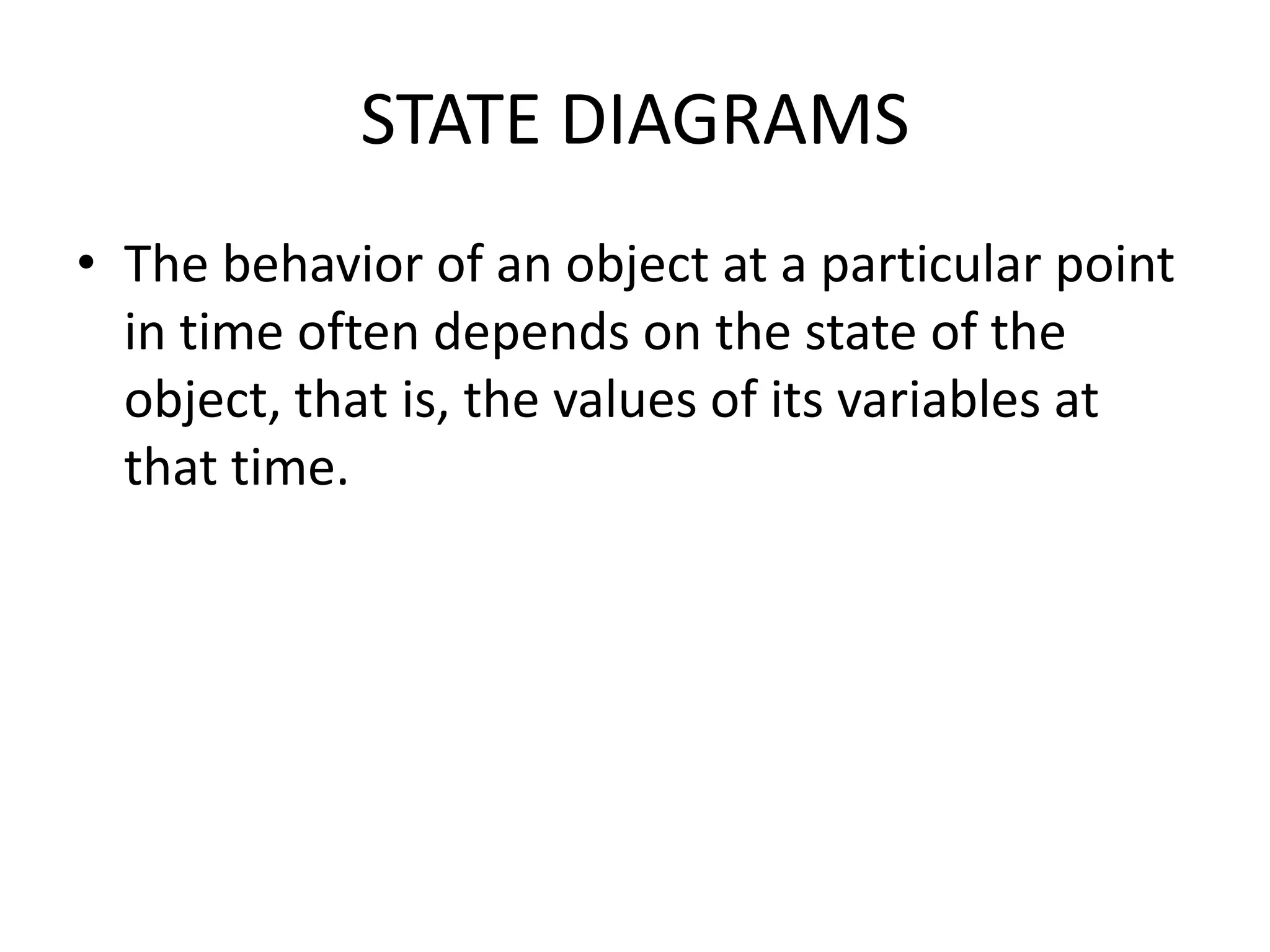

STATE DIAGRAMS
• The behavior of an object at a particular point
in time often depends on the state of the
object, that is, the values of its variables at
that time.
An introduction to uml
An introduction to uml
An introduction to uml
An introduction to uml
An introduction to uml
An introduction to uml
An introduction to uml
An introduction to uml

More Related Content

What's hot

An Automatic Approach to Translate Use Cases to Sequence Diagrams
An Automatic Approach to Translate Use Cases to Sequence DiagramsAn Automatic Approach to Translate Use Cases to Sequence Diagrams
An Automatic Approach to Translate Use Cases to Sequence Diagrams
Mohammed Misbhauddin

Uml
UmlUml
Uml2
Uml2Uml2
Unified Modeling Language
Unified Modeling LanguageUnified Modeling Language
Unified Modeling Language
Prof. Erwin Globio

UML Basics
UML BasicsUML Basics
UML Basics
Serdar Temiz

Intro to UML 2
Intro to UML 2Intro to UML 2
Intro to UML 2
rchakra

M02 Uml Overview
M02 Uml OverviewM02 Uml Overview
M02 Uml Overview
Dang Tuan

Introduction to UML
Introduction to UMLIntroduction to UML
Uml
UmlUml
Uml unified-modeling-language-presented by dileep
Uml unified-modeling-language-presented by dileepUml unified-modeling-language-presented by dileep
Uml unified-modeling-language-presented by dileep
mekhap

4 (uml basic)
4 (uml basic)4 (uml basic)
4 (uml basic)
Majong DevJfu

UML Diagram @ Software engineering discussion
UML Diagram @ Software engineering discussionUML Diagram @ Software engineering discussion
UML Diagram @ Software engineering discussion
CherryBerry2

UML
UMLUML
Class diagram, use case and sequence diagram
Class diagram, use case and sequence diagramClass diagram, use case and sequence diagram
Class diagram, use case and sequence diagram
baabtra.com - No. 1 supplier of quality freshers

Uml with detail
Uml with detailUml with detail
Uml with detail
Hamza Khan

UML Diagrams
UML DiagramsUML Diagrams
UML Diagrams
Kartik Raghuvanshi

UML - Unified Modelling Language
UML - Unified Modelling LanguageUML - Unified Modelling Language
UML - Unified Modelling Language
Anoop VJ

UML and Software Modeling Tools.pptx
UML and Software Modeling Tools.pptxUML and Software Modeling Tools.pptx
UML and Software Modeling Tools.pptx
Nwabueze Obioma

What is UML (Unified Modeling Language)?
What is UML (Unified Modeling Language)?What is UML (Unified Modeling Language)?
What is UML (Unified Modeling Language)?
Eliza Wright

Cs 1023 lec 10 uml (week 3)
Cs 1023 lec 10 uml (week 3)Cs 1023 lec 10 uml (week 3)
Cs 1023 lec 10 uml (week 3)
stanbridge


What's hot (20)

An Automatic Approach to Translate Use Cases to Sequence Diagrams
An Automatic Approach to Translate Use Cases to Sequence DiagramsAn Automatic Approach to Translate Use Cases to Sequence Diagrams
An Automatic Approach to Translate Use Cases to Sequence Diagrams

Uml
UmlUml
Uml

Uml2
Uml2Uml2
Uml2

Unified Modeling Language
Unified Modeling LanguageUnified Modeling Language
Unified Modeling Language

UML Basics
UML BasicsUML Basics
UML Basics

Intro to UML 2
Intro to UML 2Intro to UML 2
Intro to UML 2

M02 Uml Overview
M02 Uml OverviewM02 Uml Overview
M02 Uml Overview

Introduction to UML
Introduction to UMLIntroduction to UML
Introduction to UML

Uml
UmlUml
Uml

Uml unified-modeling-language-presented by dileep
Uml unified-modeling-language-presented by dileepUml unified-modeling-language-presented by dileep
Uml unified-modeling-language-presented by dileep

4 (uml basic)
4 (uml basic)4 (uml basic)
4 (uml basic)

UML Diagram @ Software engineering discussion
UML Diagram @ Software engineering discussionUML Diagram @ Software engineering discussion
UML Diagram @ Software engineering discussion

UML
UMLUML
UML

Class diagram, use case and sequence diagram
Class diagram, use case and sequence diagramClass diagram, use case and sequence diagram
Class diagram, use case and sequence diagram

Uml with detail
Uml with detailUml with detail
Uml with detail

UML Diagrams
UML DiagramsUML Diagrams
UML Diagrams

UML - Unified Modelling Language
UML - Unified Modelling LanguageUML - Unified Modelling Language
UML - Unified Modelling Language

UML and Software Modeling Tools.pptx
UML and Software Modeling Tools.pptxUML and Software Modeling Tools.pptx
UML and Software Modeling Tools.pptx

What is UML (Unified Modeling Language)?
What is UML (Unified Modeling Language)?What is UML (Unified Modeling Language)?
What is UML (Unified Modeling Language)?

Cs 1023 lec 10 uml (week 3)
Cs 1023 lec 10 uml (week 3)Cs 1023 lec 10 uml (week 3)
Cs 1023 lec 10 uml (week 3)


Viewers also liked

Rtrt regulatory perspectiv on real time release testing 27-oct_2011
Rtrt regulatory perspectiv on real time release testing 27-oct_2011Rtrt regulatory perspectiv on real time release testing 27-oct_2011
Rtrt regulatory perspectiv on real time release testing 27-oct_2011
lastrajl

Lecture 3 Software Engineering and Design Introduction to UML
Lecture 3 Software Engineering and Design Introduction to UMLLecture 3 Software Engineering and Design Introduction to UML
Lecture 3 Software Engineering and Design Introduction to UML
op205

Real time release testing
Real time release testing Real time release testing
Introduction to UML
Introduction to UMLIntroduction to UML
Introduction to UML
Lou Franco

New EMA Guidance on Real Time Release Testing.
New EMA Guidance on Real Time Release Testing.New EMA Guidance on Real Time Release Testing.
New EMA Guidance on Real Time Release Testing.
GMP EDUCATION : Not for Profit Organization

Near Infrared Spectroscopy In Off Line Biomass Monitoring Of Candida Utilis C...
Near Infrared Spectroscopy In Off Line Biomass Monitoring Of Candida Utilis C...Near Infrared Spectroscopy In Off Line Biomass Monitoring Of Candida Utilis C...
Near Infrared Spectroscopy In Off Line Biomass Monitoring Of Candida Utilis C...
bengreenman

Swati nir
Swati nirSwati nir
Swati nir
sanjay patil

Iterative Incremental development
Iterative Incremental developmentIterative Incremental development
Iterative Incremental development
Oliver Schreck

Iterative model
Iterative modelIterative model
Iterative model
Vaibhav Dash

Presentation - Rational Unified Process
Presentation - Rational Unified ProcessPresentation - Rational Unified Process
Presentation - Rational Unified Process
Sharad Srivastava

Unified process
Unified processUnified process
Unified process
Jean Pаoli

INTRODUCTION TO UML DIAGRAMS
INTRODUCTION TO UML DIAGRAMSINTRODUCTION TO UML DIAGRAMS
INTRODUCTION TO UML DIAGRAMS
Ashita Agrawal

Ooad Uml
Ooad UmlOoad Uml
Ooad Uml
Dang Tuan

UML- Unified Modeling Language
UML- Unified Modeling LanguageUML- Unified Modeling Language
UML- Unified Modeling Language
Shahzad

Uml - An Overview
Uml - An OverviewUml - An Overview
Uml - An Overview
Raj Thilak S

Uml Presentation
Uml PresentationUml Presentation
Uml Presentation
mewaseem

Employee Management System UML Diagrams Use Case Diagram, Activity Diagram, S...
Employee Management System UML Diagrams Use Case Diagram, Activity Diagram, S...Employee Management System UML Diagrams Use Case Diagram, Activity Diagram, S...
Employee Management System UML Diagrams Use Case Diagram, Activity Diagram, S...
Mohammad Karim Shahbaz

Unified Process
Unified ProcessUnified Process
Unified Process
guy_davis


Viewers also liked (18)

Rtrt regulatory perspectiv on real time release testing 27-oct_2011
Rtrt regulatory perspectiv on real time release testing 27-oct_2011Rtrt regulatory perspectiv on real time release testing 27-oct_2011
Rtrt regulatory perspectiv on real time release testing 27-oct_2011

Lecture 3 Software Engineering and Design Introduction to UML
Lecture 3 Software Engineering and Design Introduction to UMLLecture 3 Software Engineering and Design Introduction to UML
Lecture 3 Software Engineering and Design Introduction to UML

Real time release testing
Real time release testing Real time release testing
Real time release testing

Introduction to UML
Introduction to UMLIntroduction to UML
Introduction to UML

New EMA Guidance on Real Time Release Testing.
New EMA Guidance on Real Time Release Testing.New EMA Guidance on Real Time Release Testing.
New EMA Guidance on Real Time Release Testing.

Near Infrared Spectroscopy In Off Line Biomass Monitoring Of Candida Utilis C...
Near Infrared Spectroscopy In Off Line Biomass Monitoring Of Candida Utilis C...Near Infrared Spectroscopy In Off Line Biomass Monitoring Of Candida Utilis C...
Near Infrared Spectroscopy In Off Line Biomass Monitoring Of Candida Utilis C...

Swati nir
Swati nirSwati nir
Swati nir

Iterative Incremental development
Iterative Incremental developmentIterative Incremental development
Iterative Incremental development

Iterative model
Iterative modelIterative model
Iterative model

Presentation - Rational Unified Process
Presentation - Rational Unified ProcessPresentation - Rational Unified Process
Presentation - Rational Unified Process

Unified process
Unified processUnified process
Unified process

INTRODUCTION TO UML DIAGRAMS
INTRODUCTION TO UML DIAGRAMSINTRODUCTION TO UML DIAGRAMS
INTRODUCTION TO UML DIAGRAMS

Ooad Uml
Ooad UmlOoad Uml
Ooad Uml

UML- Unified Modeling Language
UML- Unified Modeling LanguageUML- Unified Modeling Language
UML- Unified Modeling Language

Uml - An Overview
Uml - An OverviewUml - An Overview
Uml - An Overview

Uml Presentation
Uml PresentationUml Presentation
Uml Presentation

Employee Management System UML Diagrams Use Case Diagram, Activity Diagram, S...
Employee Management System UML Diagrams Use Case Diagram, Activity Diagram, S...Employee Management System UML Diagrams Use Case Diagram, Activity Diagram, S...
Employee Management System UML Diagrams Use Case Diagram, Activity Diagram, S...

Unified Process
Unified ProcessUnified Process
Unified Process


Similar to An introduction to uml

UML tutorial
UML tutorialUML tutorial
UML tutorial
Eliza Wright

Chapter3
Chapter3Chapter3
Chapter3
Fahad Sheref

Case Study Uml
Case Study UmlCase Study Uml
Case Study Uml
ganesh12july

Uml
UmlUml
UNIT-3 Design Using UML (1).pptx
UNIT-3 Design Using UML (1).pptxUNIT-3 Design Using UML (1).pptx
UNIT-3 Design Using UML (1).pptx
viju001

UML Diagrams_UNIT III.ppt
UML Diagrams_UNIT III.pptUML Diagrams_UNIT III.ppt
UML Diagrams_UNIT III.ppt
KavithaMuralidharan2

UML Diagrams.ppt
UML Diagrams.pptUML Diagrams.ppt
UML Diagrams.ppt
jeyasrig

Class diagrams are a type of UML (Unified Modeling Language) diagram used in ...
Class diagrams are a type of UML (Unified Modeling Language) diagram used in ...Class diagrams are a type of UML (Unified Modeling Language) diagram used in ...
Class diagrams are a type of UML (Unified Modeling Language) diagram used in ...
NALESVPMEngg

Uml Diagrams
Uml DiagramsUml Diagrams
UML Diagrams.ppt
UML Diagrams.pptUML Diagrams.ppt
UML Diagrams.ppt
MuhammadjonRahmatull

Uml overview modified
Uml overview modifiedUml overview modified
Uml overview modified
senthilkumar_ak

Modeling software with UML
Modeling software with UMLModeling software with UML
Modeling software with UML
6020 peaks

CASE Tools lab.ppt
CASE Tools lab.pptCASE Tools lab.ppt
CASE Tools lab.ppt
RAJESH S

UML Design Document Training Learn UML .pptx
UML Design Document Training Learn UML .pptxUML Design Document Training Learn UML .pptx
UML Design Document Training Learn UML .pptx
raghavanp4

1. introduction to uml
1. introduction to uml1. introduction to uml
1. introduction to uml
PRABU M

Lect-4: UML diagrams - Unified Modeling Language - SPM
Lect-4: UML diagrams - Unified Modeling Language - SPMLect-4: UML diagrams - Unified Modeling Language - SPM
Lect-4: UML diagrams - Unified Modeling Language - SPM
Mubashir Ali

The Ultimate Sequence Diagram Tutorial
The Ultimate Sequence Diagram TutorialThe Ultimate Sequence Diagram Tutorial
The Ultimate Sequence Diagram Tutorial
Creately

Lecture#03, uml diagrams
Lecture#03, uml diagramsLecture#03, uml diagrams
Lecture#03, uml diagrams
babak danyal

UML Trainings
UML TrainingsUML Trainings
Selab1 slides
Selab1 slidesSelab1 slides
Selab1 slides
Sumedha


Similar to An introduction to uml (20)

UML tutorial
UML tutorialUML tutorial
UML tutorial

Chapter3
Chapter3Chapter3
Chapter3

Case Study Uml
Case Study UmlCase Study Uml
Case Study Uml

Uml
UmlUml
Uml

UNIT-3 Design Using UML (1).pptx
UNIT-3 Design Using UML (1).pptxUNIT-3 Design Using UML (1).pptx
UNIT-3 Design Using UML (1).pptx

UML Diagrams_UNIT III.ppt
UML Diagrams_UNIT III.pptUML Diagrams_UNIT III.ppt
UML Diagrams_UNIT III.ppt

UML Diagrams.ppt
UML Diagrams.pptUML Diagrams.ppt
UML Diagrams.ppt

Class diagrams are a type of UML (Unified Modeling Language) diagram used in ...
Class diagrams are a type of UML (Unified Modeling Language) diagram used in ...Class diagrams are a type of UML (Unified Modeling Language) diagram used in ...
Class diagrams are a type of UML (Unified Modeling Language) diagram used in ...

Uml Diagrams
Uml DiagramsUml Diagrams
Uml Diagrams

UML Diagrams.ppt
UML Diagrams.pptUML Diagrams.ppt
UML Diagrams.ppt

Uml overview modified
Uml overview modifiedUml overview modified
Uml overview modified

Modeling software with UML
Modeling software with UMLModeling software with UML
Modeling software with UML

CASE Tools lab.ppt
CASE Tools lab.pptCASE Tools lab.ppt
CASE Tools lab.ppt

UML Design Document Training Learn UML .pptx
UML Design Document Training Learn UML .pptxUML Design Document Training Learn UML .pptx
UML Design Document Training Learn UML .pptx

1. introduction to uml
1. introduction to uml1. introduction to uml
1. introduction to uml

Lect-4: UML diagrams - Unified Modeling Language - SPM
Lect-4: UML diagrams - Unified Modeling Language - SPMLect-4: UML diagrams - Unified Modeling Language - SPM
Lect-4: UML diagrams - Unified Modeling Language - SPM

The Ultimate Sequence Diagram Tutorial
The Ultimate Sequence Diagram TutorialThe Ultimate Sequence Diagram Tutorial
The Ultimate Sequence Diagram Tutorial

Lecture#03, uml diagrams
Lecture#03, uml diagramsLecture#03, uml diagrams
Lecture#03, uml diagrams

UML Trainings
UML TrainingsUML Trainings
UML Trainings

Selab1 slides
Selab1 slidesSelab1 slides
Selab1 slides


Recently uploaded

Digital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying AheadDigital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying Ahead
Wask

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar
Zilliz

leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
alexjohnson7307

SAP S/4 HANA sourcing and procurement to Public cloud
SAP S/4 HANA sourcing and procurement to Public cloudSAP S/4 HANA sourcing and procurement to Public cloud
SAP S/4 HANA sourcing and procurement to Public cloud
maazsz111

JavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green MasterplanJavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green Masterplan
Miro Wengner

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024
Jason Packer

Choosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptxChoosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptx
Brandon Minnick, MBA

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
saastr

Introduction of Cybersecurity with OSS at Code Europe 2024
Introduction of Cybersecurity with OSS  at Code Europe 2024Introduction of Cybersecurity with OSS  at Code Europe 2024
Introduction of Cybersecurity with OSS at Code Europe 2024
Hiroshi SHIBATA

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU
panagenda

Skybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoptionSkybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoption
Tatiana Kojar

Best 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERPBest 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERP
Pixlogix Infotech

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf
ssuserfac0301

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
Chart Kalyan

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation
tolgahangng

Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Jeffrey Haguewood

AWS Cloud Cost Optimization Presentation.pptx
AWS Cloud Cost Optimization Presentation.pptxAWS Cloud Cost Optimization Presentation.pptx
AWS Cloud Cost Optimization Presentation.pptx
HarisZaheer8

Public CyberSecurity Awareness Presentation 2024.pptx
Public CyberSecurity Awareness Presentation 2024.pptxPublic CyberSecurity Awareness Presentation 2024.pptx
Public CyberSecurity Awareness Presentation 2024.pptx
marufrahmanstratejm

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides
Zilliz

GraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracyGraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracy
Tomaz Bratanic


Recently uploaded (20)

Digital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying AheadDigital Marketing Trends in 2024 | Guide for Staying Ahead
Digital Marketing Trends in 2024 | Guide for Staying Ahead

Fueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte WebinarFueling AI with Great Data with Airbyte Webinar
Fueling AI with Great Data with Airbyte Webinar

leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...
leewayhertz.com-AI in predictive maintenance Use cases technologies benefits ...

SAP S/4 HANA sourcing and procurement to Public cloud
SAP S/4 HANA sourcing and procurement to Public cloudSAP S/4 HANA sourcing and procurement to Public cloud
SAP S/4 HANA sourcing and procurement to Public cloud

JavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green MasterplanJavaLand 2024: Application Development Green Masterplan
JavaLand 2024: Application Development Green Masterplan

Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024Columbus Data & Analytics Wednesdays - June 2024
Columbus Data & Analytics Wednesdays - June 2024

Choosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptxChoosing The Best AWS Service For Your Website + API.pptx
Choosing The Best AWS Service For Your Website + API.pptx

Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...
Deep Dive: AI-Powered Marketing to Get More Leads and Customers with HyperGro...

Introduction of Cybersecurity with OSS at Code Europe 2024
Introduction of Cybersecurity with OSS  at Code Europe 2024Introduction of Cybersecurity with OSS  at Code Europe 2024
Introduction of Cybersecurity with OSS at Code Europe 2024

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU

Skybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoptionSkybuffer SAM4U tool for SAP license adoption
Skybuffer SAM4U tool for SAP license adoption

Best 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERPBest 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERP

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf

How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdfHow to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf
How to Interpret Trends in the Kalyan Rajdhani Mix Chart.pdf

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation

Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...
Salesforce Integration for Bonterra Impact Management (fka Social Solutions A...

AWS Cloud Cost Optimization Presentation.pptx
AWS Cloud Cost Optimization Presentation.pptxAWS Cloud Cost Optimization Presentation.pptx
AWS Cloud Cost Optimization Presentation.pptx

Public CyberSecurity Awareness Presentation 2024.pptx
Public CyberSecurity Awareness Presentation 2024.pptxPublic CyberSecurity Awareness Presentation 2024.pptx
Public CyberSecurity Awareness Presentation 2024.pptx

Programming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup SlidesProgramming Foundation Models with DSPy - Meetup Slides
Programming Foundation Models with DSPy - Meetup Slides

GraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracyGraphRAG for Life Science to increase LLM accuracy
GraphRAG for Life Science to increase LLM accuracy


An introduction to uml

  • 1. An Introduction to UML Unified Modeling Language
  • 2. • A standard language for writing software blueprints. – To visualize, specify, construct, and document the artifacts of a software-intensive system – To create UML diagrams to help software developers build the software. • History – Grady Booch, Jim Rumbaugh, and Ivar Jacobson developed UML in the mid-1990s – In 1997, UML 1.0 was submitted to the Object Management Group – UML 1.0 was revised to UML 1.1 and adopted later that year – The current standard is UML 2.0 and is now an ISO standard
  • 3. • UML 2.0 provides 13 different diagrams for use in software modeling – Class – Use case – Sequence – Communication – Activity – State – Deployment
  • 4. A class diagram • To model classes, including their attributes, operations, and their relationships and associations with other classes • The visibility is indicated by a preceding –, #, ~, or + • An abstract class or abstract method is indicated by the use of italics for the name • An interface is indicated by adding the phrase «interface» (called a stereotype) above the name.
  • 5. A class diagram A class diagram regarding horses
  • 6. A class diagram • a fourth section at the bottom of the class box can be used to list the responsibilities of the class • Generalization: a class that is a subclass of another class • Realization: indicates implementation of an interface
  • 7. A class diagram • Association between two classes means that there is a structural relationship between them. – Label, as can each of its ends, to indicate the role of each class in the association. – Arrows on either or both ends of an association line indicate navigability – Multiplicity • 0..1 means that there are 0 or 1 objects • 1..* means one or more • 0..* or just * means zero or more
  • 8. A class diagram • An association might also connect a class with itself, using a loop. • Dependency: One class depends on another if changes to the second class might require changes to the first class
  • 9. A class diagram • An aggregation is a special kind of association indicated by a hollow diamond on one end of the icon – An aggregation is a special kind of association It indicates a “whole/part” relationship – A composition is an aggregation indicating strong ownership of the parts. In a composition, the parts live and die with the owner • Note contain comments about the role of a class or constraints that all objects of that class must satisfy.
  • 10. USE-CASE DIAGRAMS • Use cases (Chapters 5 and 6) and the UML use-case diagram help you determine the functionality and features of the software from the user’s perspective.
  • 11. USE-CASE DIAGRAMS • A use case describes how a user interacts with the system by defining the steps required to accomplish a specific goal • Variations in the sequence of steps describe various scenarios • A UML use-case diagram is an overview of all the use cases and how they are related. It provides a big picture of the functionality of the system
  • 12. A use-case diagram for the music system
  • 13. USE-CASE DIAGRAMS • The stick figure represents an actor that is associated with one category of user (or other interaction element). • The actors are connected by lines to the use cases that they carry out. • To avoid duplication in use cases, it is usually better to create a new use case representing the duplicated activity, and then let the other uses cases include this new use case as one of their steps.
  • 14. A use-case diagram with included use cases
  • 15. SEQUENCE DIAGRAMS • a sequence diagram is used to show the dynamic communications between objects during execution of a task. • It shows the temporal order in which messages are sent between the objects to accomplish that task. • One might use a sequence diagram to show the interactions in one use case or in one scenario of a software system.
  • 16. The diagram shows the steps involved in highlighting a figure in a drawing when it has been clicked. A sample sequence diagram
  • 17. SEQUENCE DIAGRAMS • When an object is executing a method you can optionally display a white bar, called an activation bar. • show the return from a method call with a dashed arrow and an optional label • A black circle with an arrow coming from it indicates a found message whose source is unknown or irrelevant.
  • 18. SEQUENCE DIAGRAMS • Each box in the row at the top of the diagram usually corresponds to an object, although it is possible to have the boxes model other things, such as classes. • Below each box there is a dashed line called the lifeline of the object. • The vertical axis in the sequence diagram corresponds to time, with time increasing as you move downward. • A sequence diagram shows method calls using horizontal arrows from the caller to the callee, labeled with the method name and optionally including its parameters, their types, and the return type.
  • 19. SEQUENCE DIAGRAMS • If you insist on including loops, conditionals, and other control structures in a sequence diagram, you can use interaction frames, • which are rectangles that surround parts of the diagram and that are labeled with the type of control structures they represent. • The phrases in square brackets are called guards, which are Boolean conditions
  • 20. showing the process involved in highlighting all figures inside a given rectangle. A sequence diagram with two interaction frames
  • 21. SEQUENCE DIAGRAMS • You can distinguish between synchronous and asynchronous messages • You can show an object sending itself a message • You can show object creation by drawing an arrow appropriately labeled (for example, with a «create» label) • You can show object destruction by a big X at the end of the object’s lifeline.
  • 22. SEQUENCE DIAGRAMS Creation, destruction, and loops in sequence diagrams
  • 23. COMMUNICATION DIAGRAMS • The UML communication diagram (called a “collaboration diagram” in UML 1.X) provides another indication of the temporal order of the communications but emphasizes the relationships among the objects and classes instead of the temporal order.
  • 24. COMMUNICATION DIAGRAMS A UML communication diagram
  • 25. COMMUNICATION DIAGRAMS • There are many optional features that can be added to the arrow labels. – An incoming arrow could be labeled A1: mouseClicked(point). indicating an execution thread, A.
  • 26. ACTIVITY DIAGRAMS • A UML activity diagram depicts the dynamic behavior of a system or part of a system through the flow of control between actions that the system performs. • an action node, represented by a rounded rectangle, which corresponds to a task performed by the software system. • Arrows from one action node to another indicate the flow of control. • A solid black dot forms the initial node that indicates the starting point of the activity. • A black dot surrounded by a black circle is the final node indicating the end of the activity.
  • 27. A UML activity diagram showing how to bake a cake
  • 28. ACTIVITY DIAGRAMS • A fork represents the separation of activities into two or more concurrent activities. • A join is a way of synchronizing concurrent flows of control. • A decision node corresponds to a branch in the flow of control based on a condition. Each outgoing arrow is labeled with a guard (a condition inside square brackets).
  • 29. ACTIVITY DIAGRAMS • if you do want to indicate how the actions are divided among the participants, you can decorate the activity diagram with swimlanes
  • 30. The cakebaking activity diagram with swimlanes added

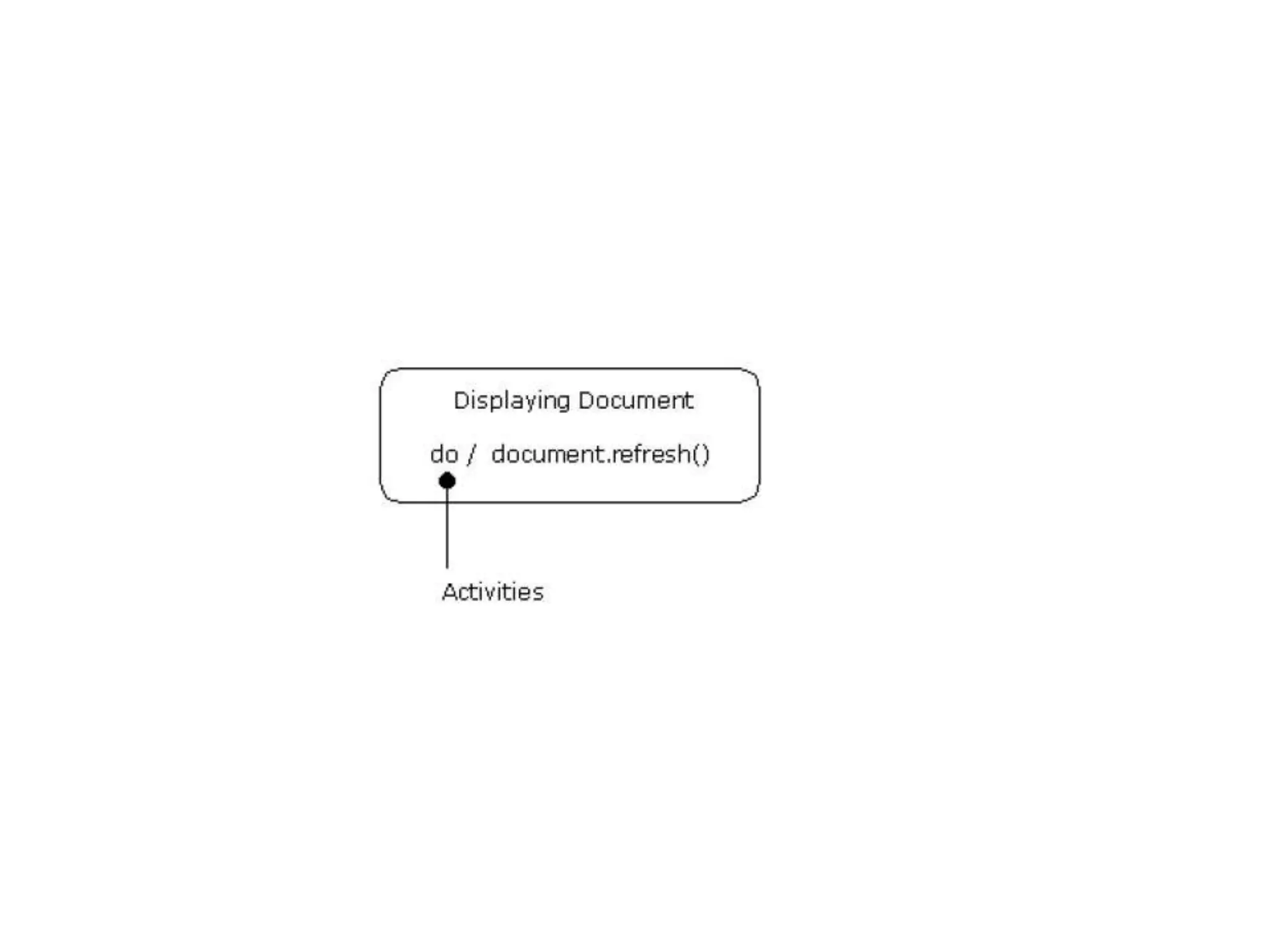

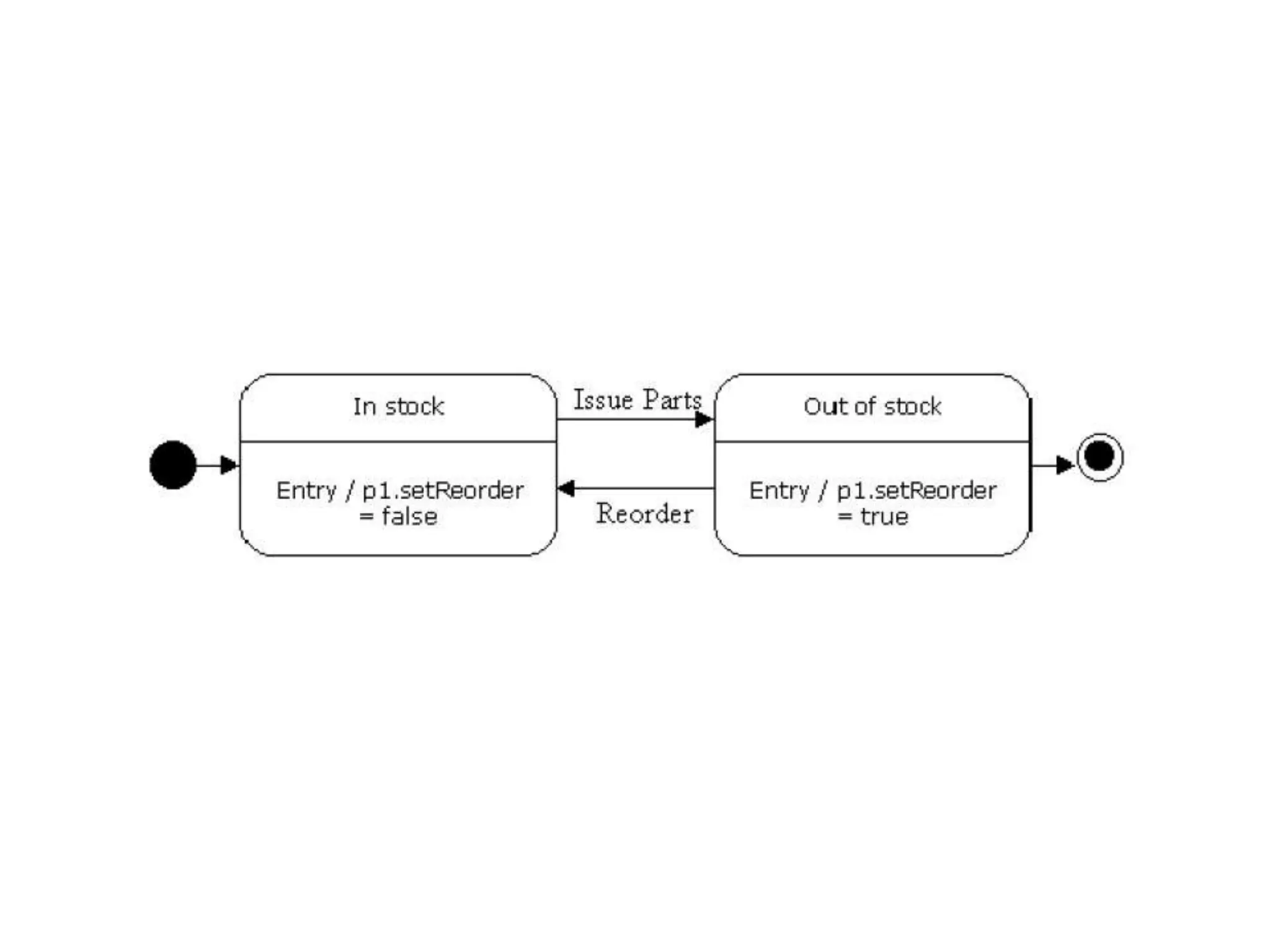

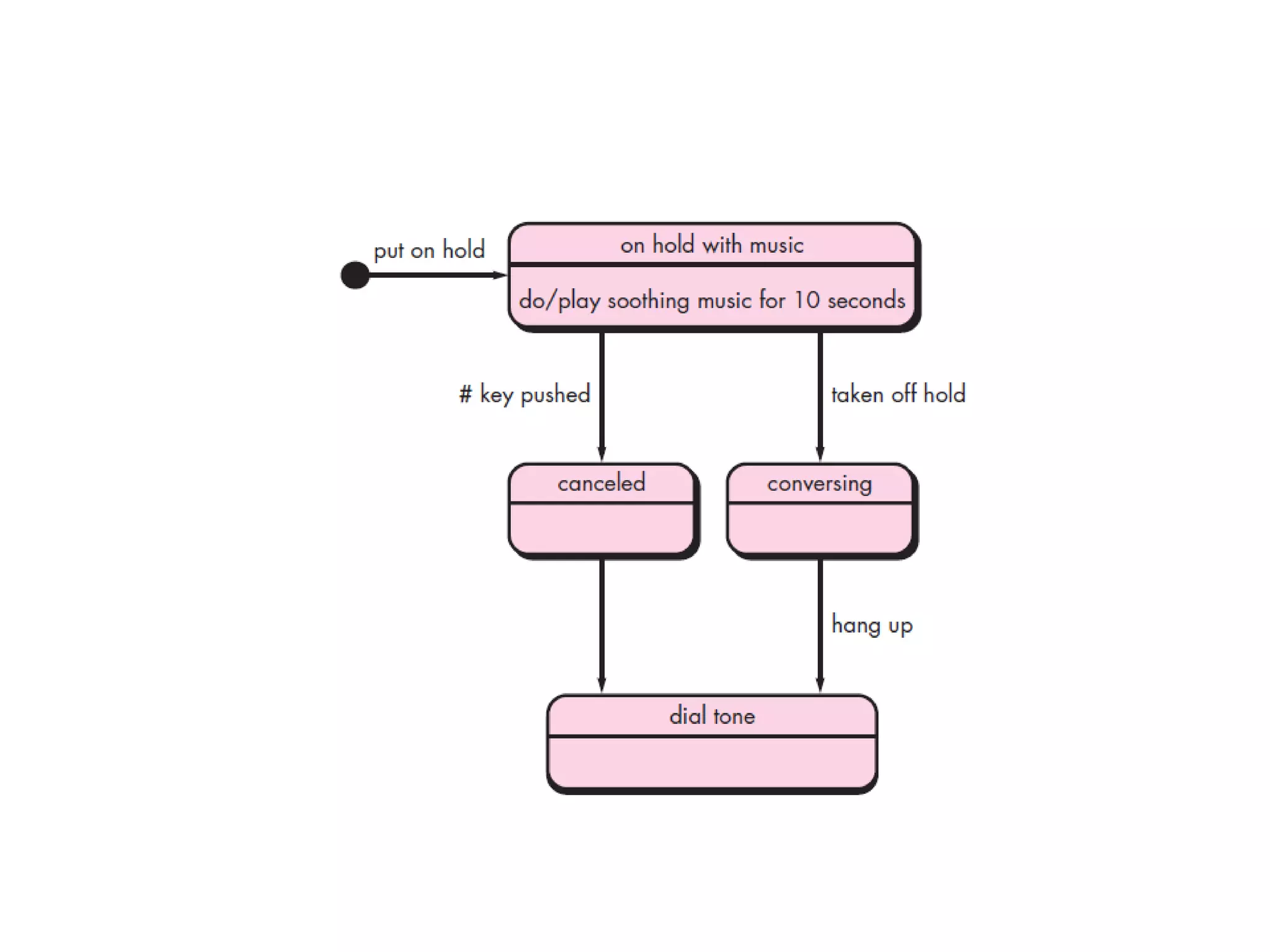

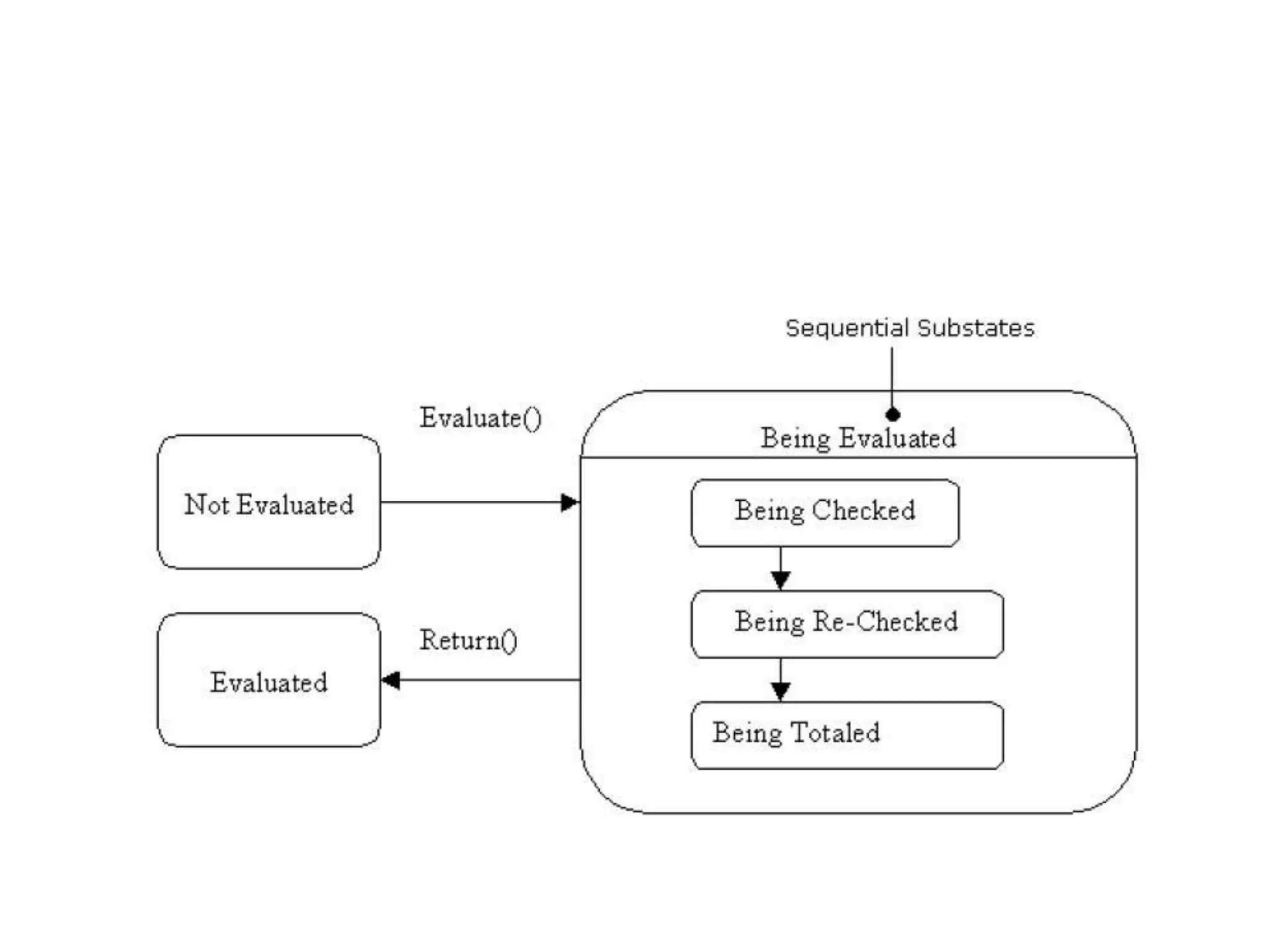

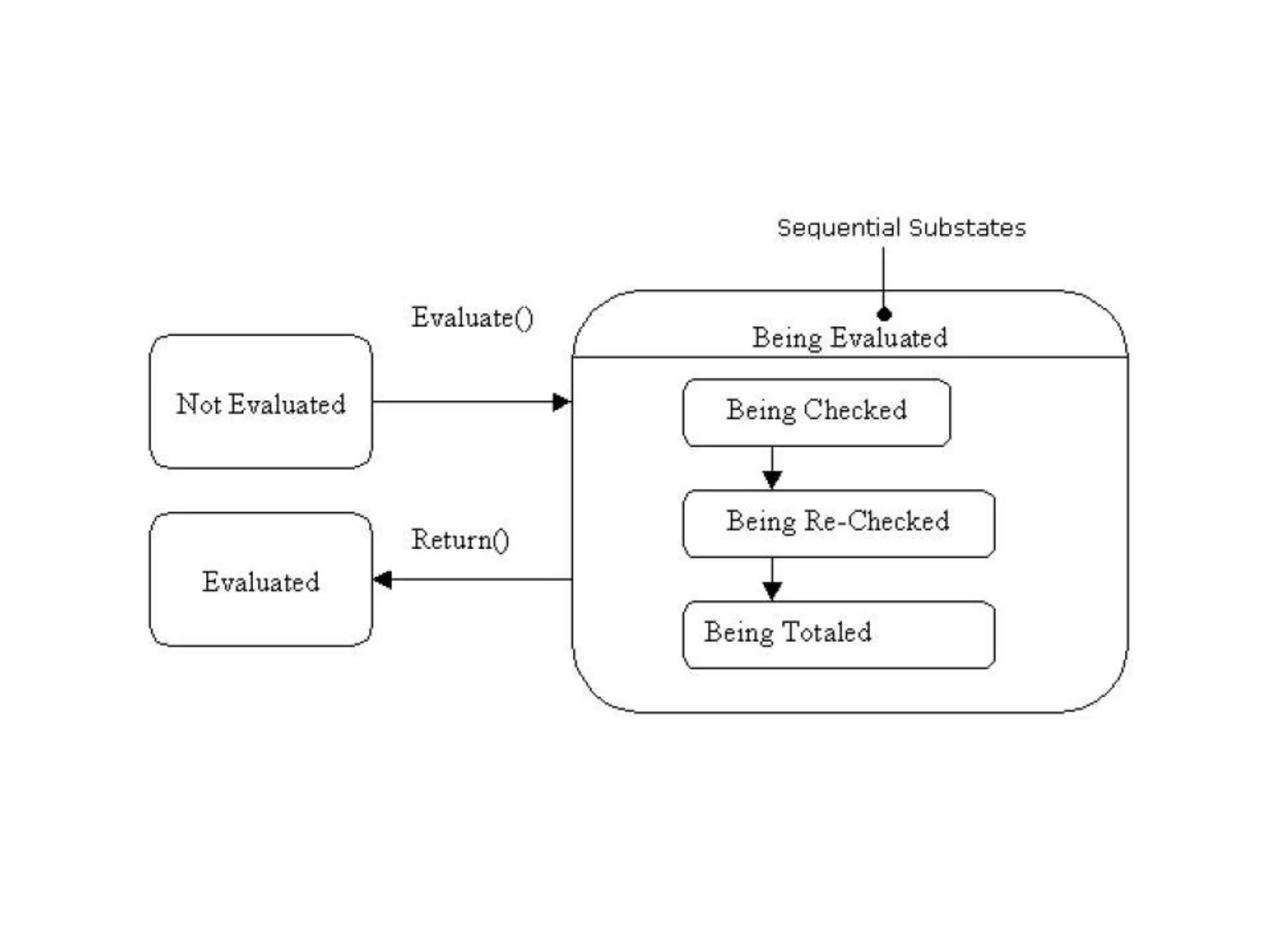

  • 31. STATE DIAGRAMS • The behavior of an object at a particular point in time often depends on the state of the object, that is, the values of its variables at that time.
