Introduction to UML
This document provides an introduction to UML (Unified Modeling Language) diagramming. It explains that UML can be used to visualize problems and solutions, communicate designs by choosing among multiple options, and emphasize important aspects through standard graphical notation. The document then demonstrates and explains the elements of class, sequence, communication, package, activity, use case, and self-referential UML diagrams using examples from a library management system. It concludes by providing additional resources for learning more about UML.
More Related Content
![Coded Agents – with UiPath SDK + LangGraph [Virtual Hands-on Workshop]](https://cdn.slidesharecdn.com/ss_thumbnails/codedagentsdeck-251215155422-5497c599-thumbnail.jpg?width=640&height=640&fit=bounds)
Introduction to UML
- 1.

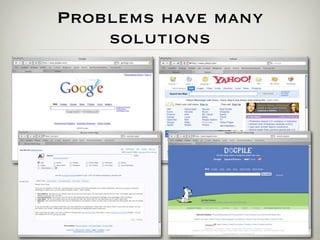

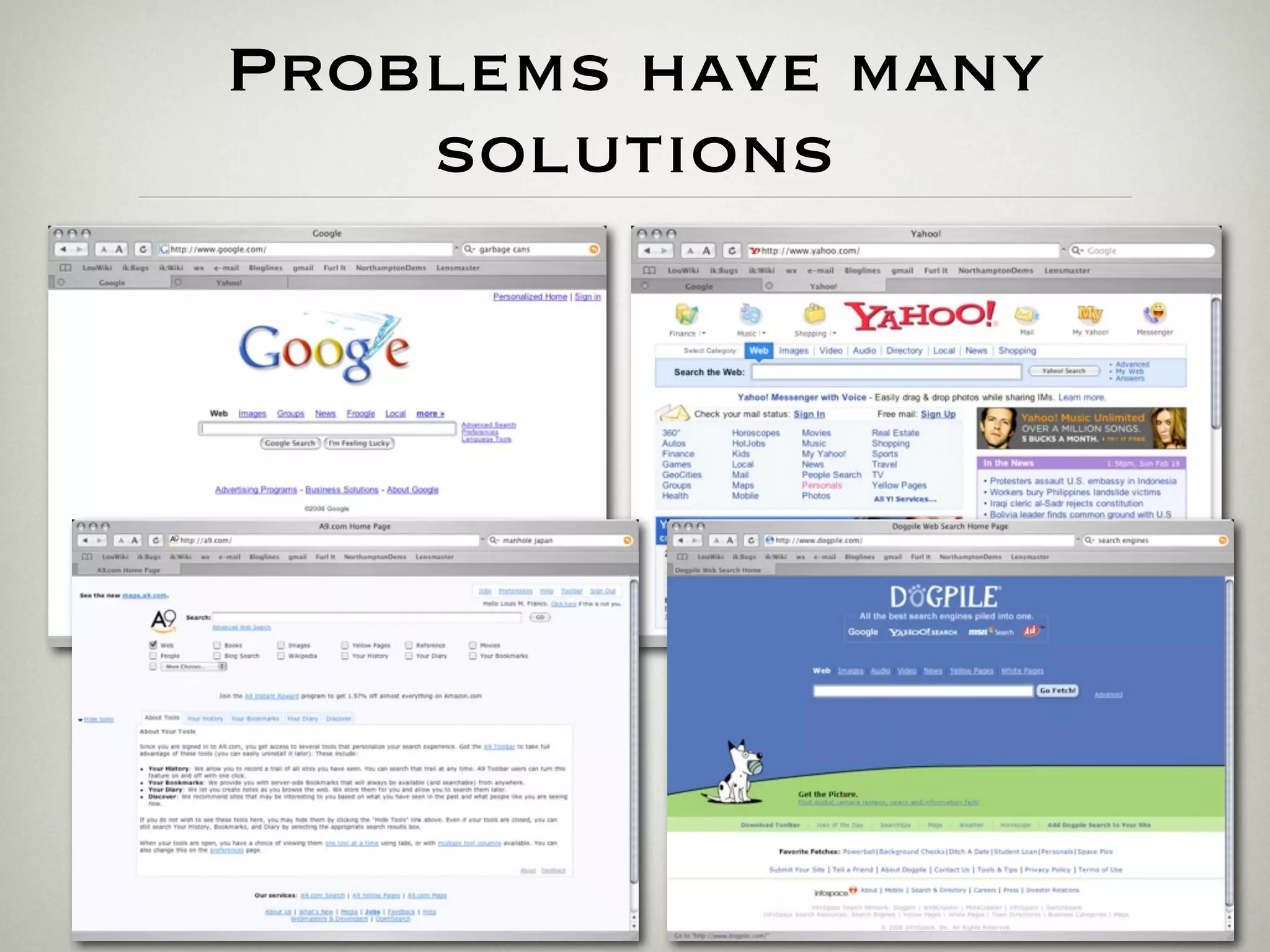

- 2. Problems have many solutions
- 3. Design is about choosing one http://morguefile.com/archive/?display=66493 http://flickr.com/photos/chidorian/4795357/in/set-384742/
- 4.
- 5.

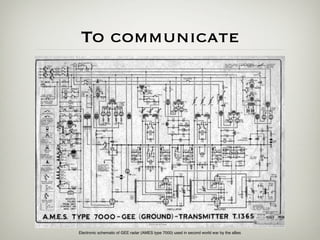

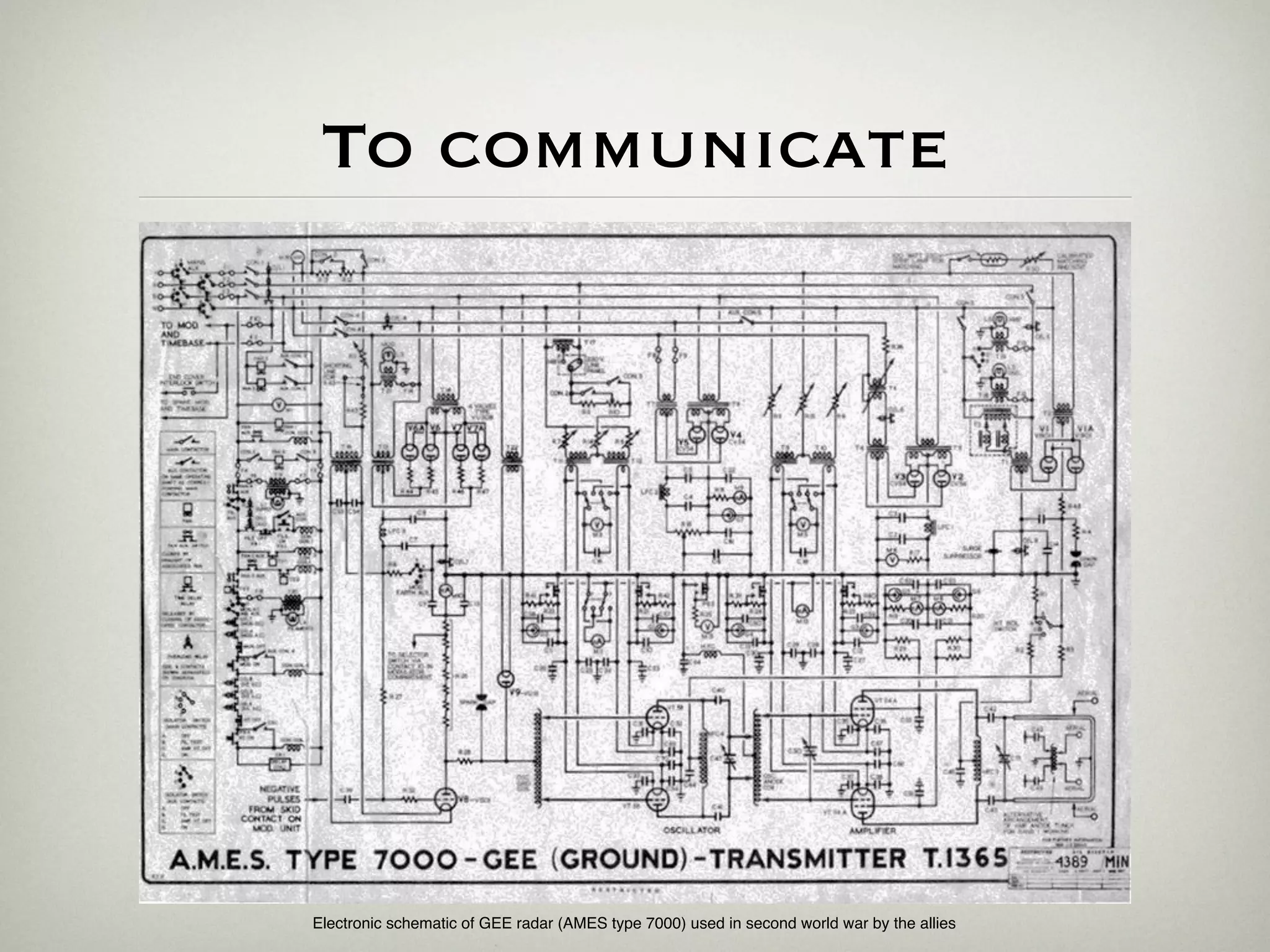

- 6. To communicate Electronic schematicof GEE radar (AMES type 7000) used in second world war by the allies

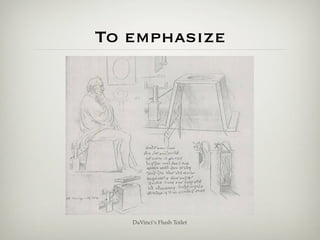

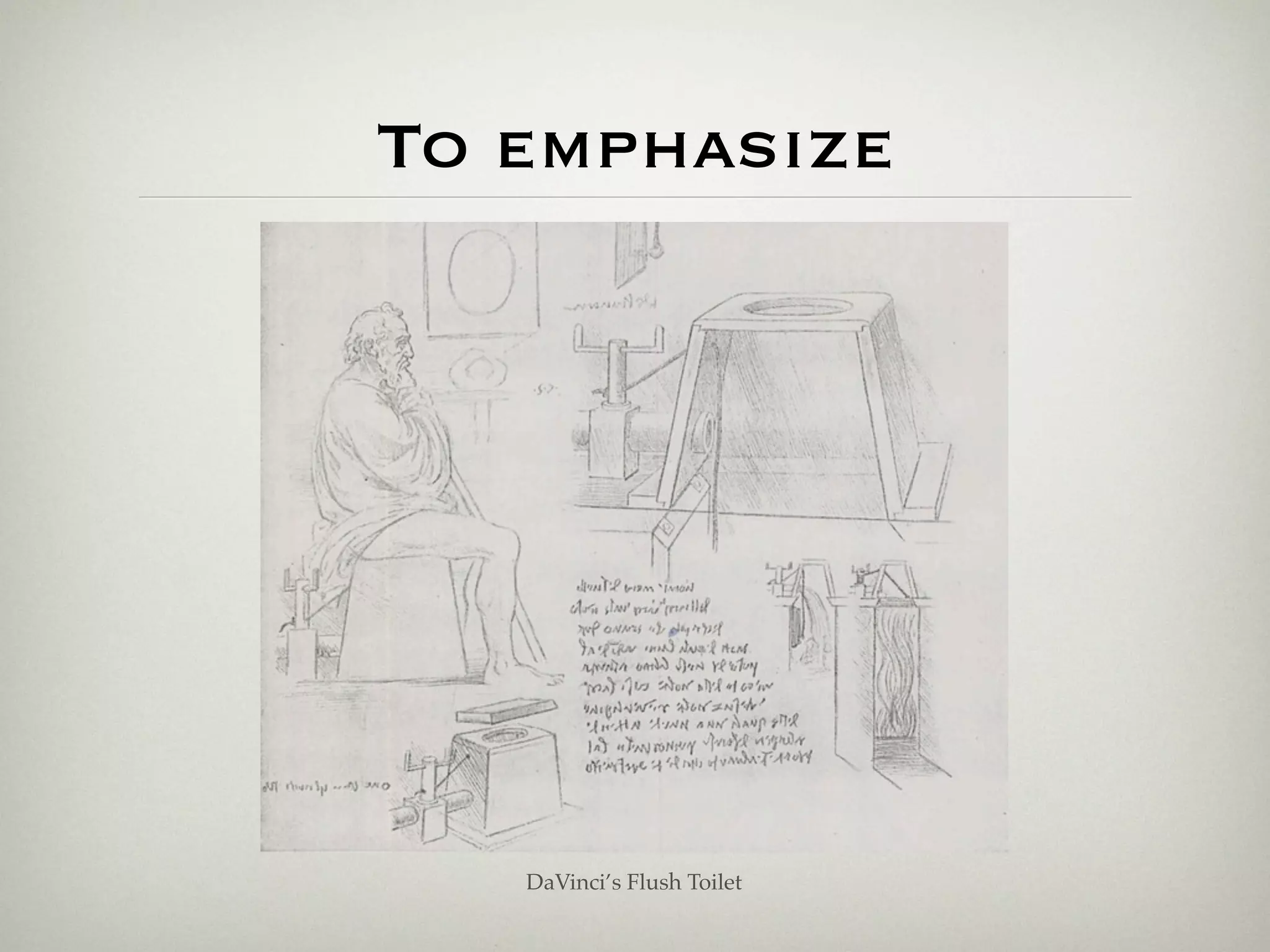

- 7. To emphasize DaVinci’s Flush Toilet
- 8. The UML isa standard graphical notation for describing object-oriented software systems
- 9. Use UML tovisualize, communicate, and emphasize your choices

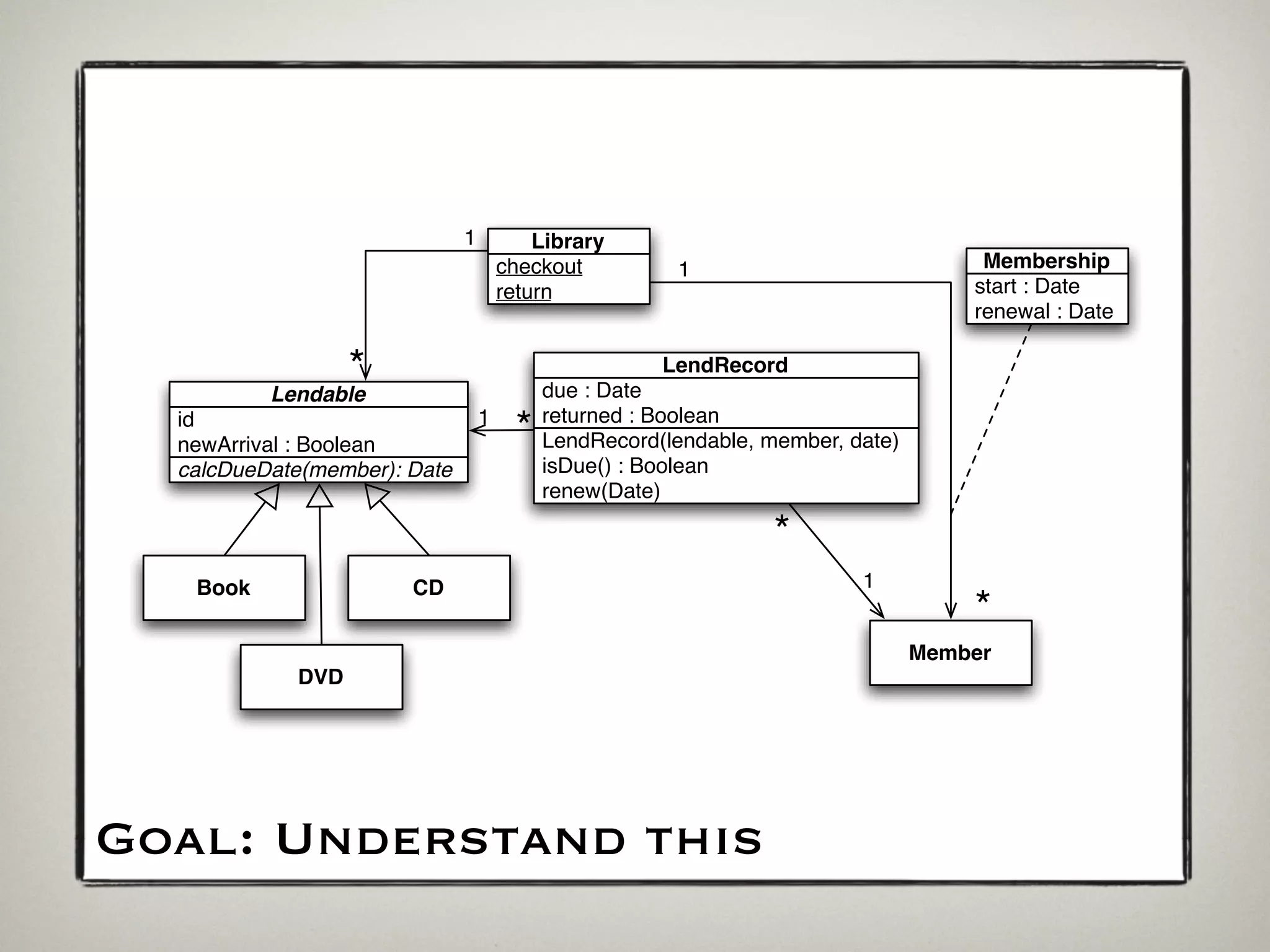

- 10. 1 Library checkout 1 Membership return start : Date renewal : Date * due : Date LendRecord Lendable 1 returned : Boolean id newArrival : Boolean * LendRecord(lendable, member, date) calcDueDate(member): Date isDue() : Boolean renew(Date) * Book CD 1 * Member DVD Goal: Understand this

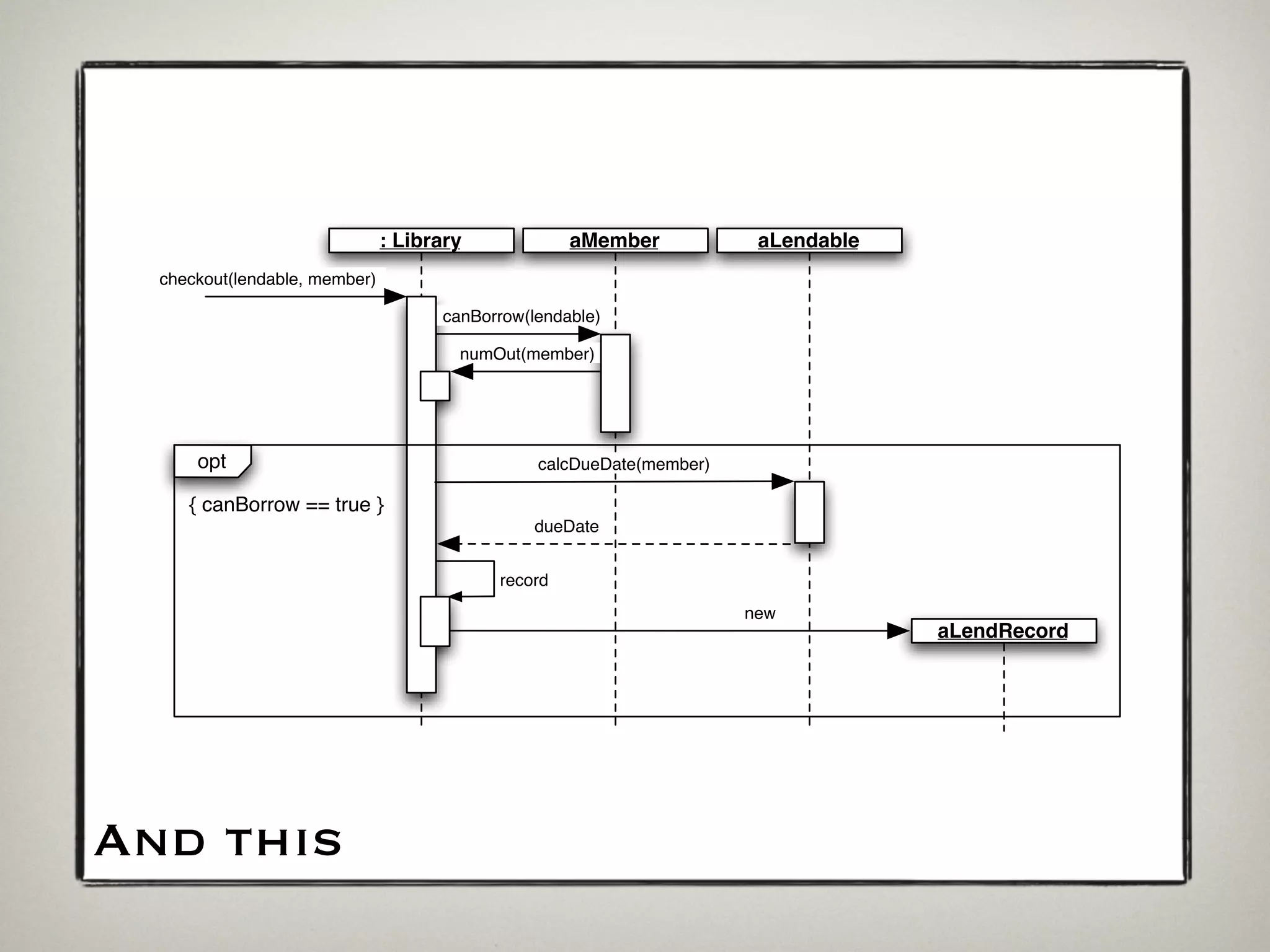

- 11. : Library aMember aLendable checkout(lendable, member) canBorrow(lendable) numOut(member) opt calcDueDate(member) { canBorrow == true } dueDate record new aLendRecord And this

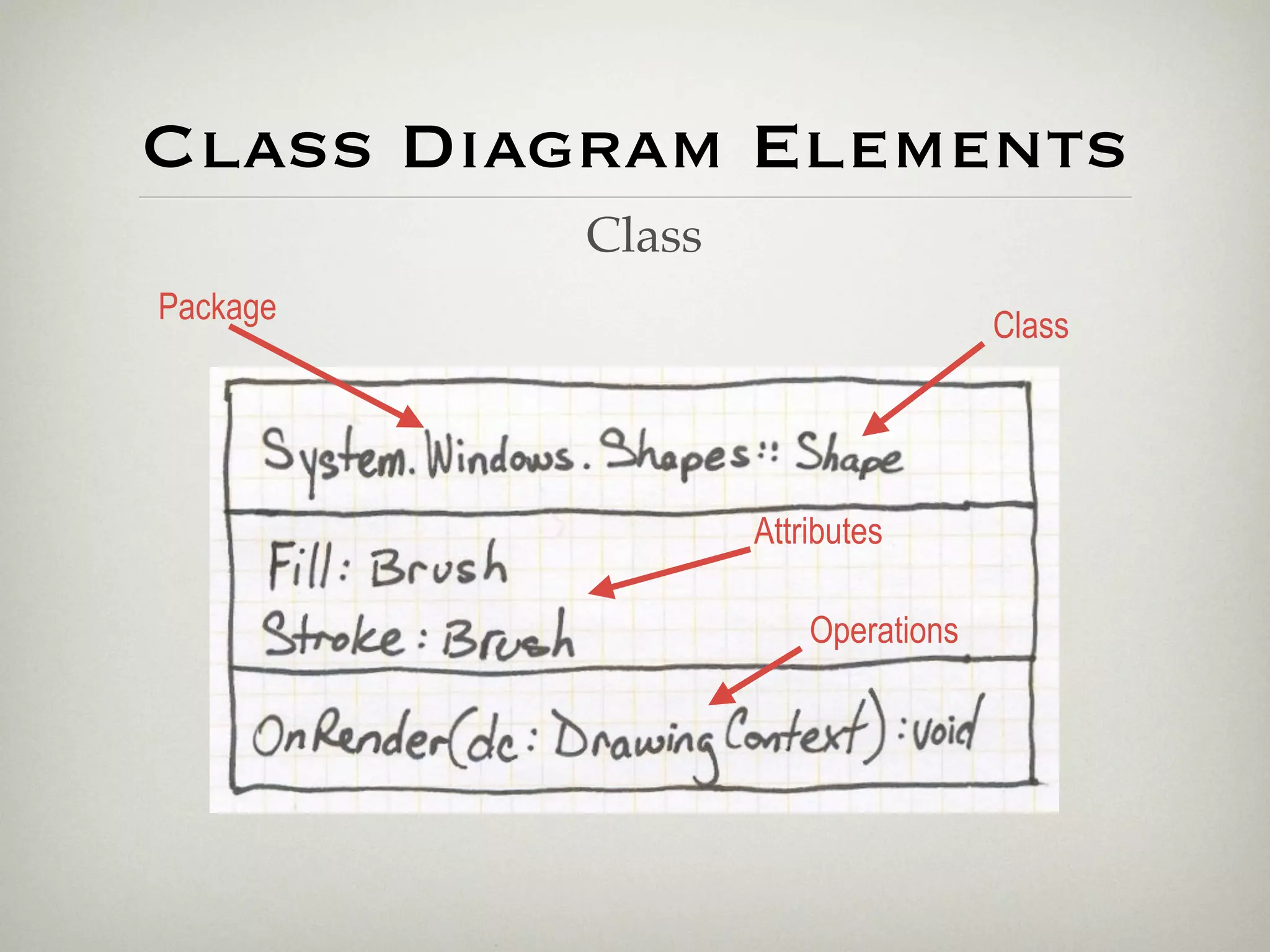

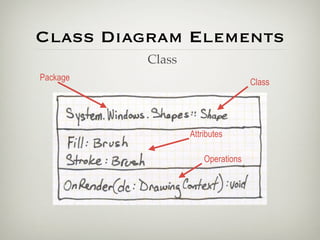

- 12. Class Diagram Elements Class Package Class Attributes Operations

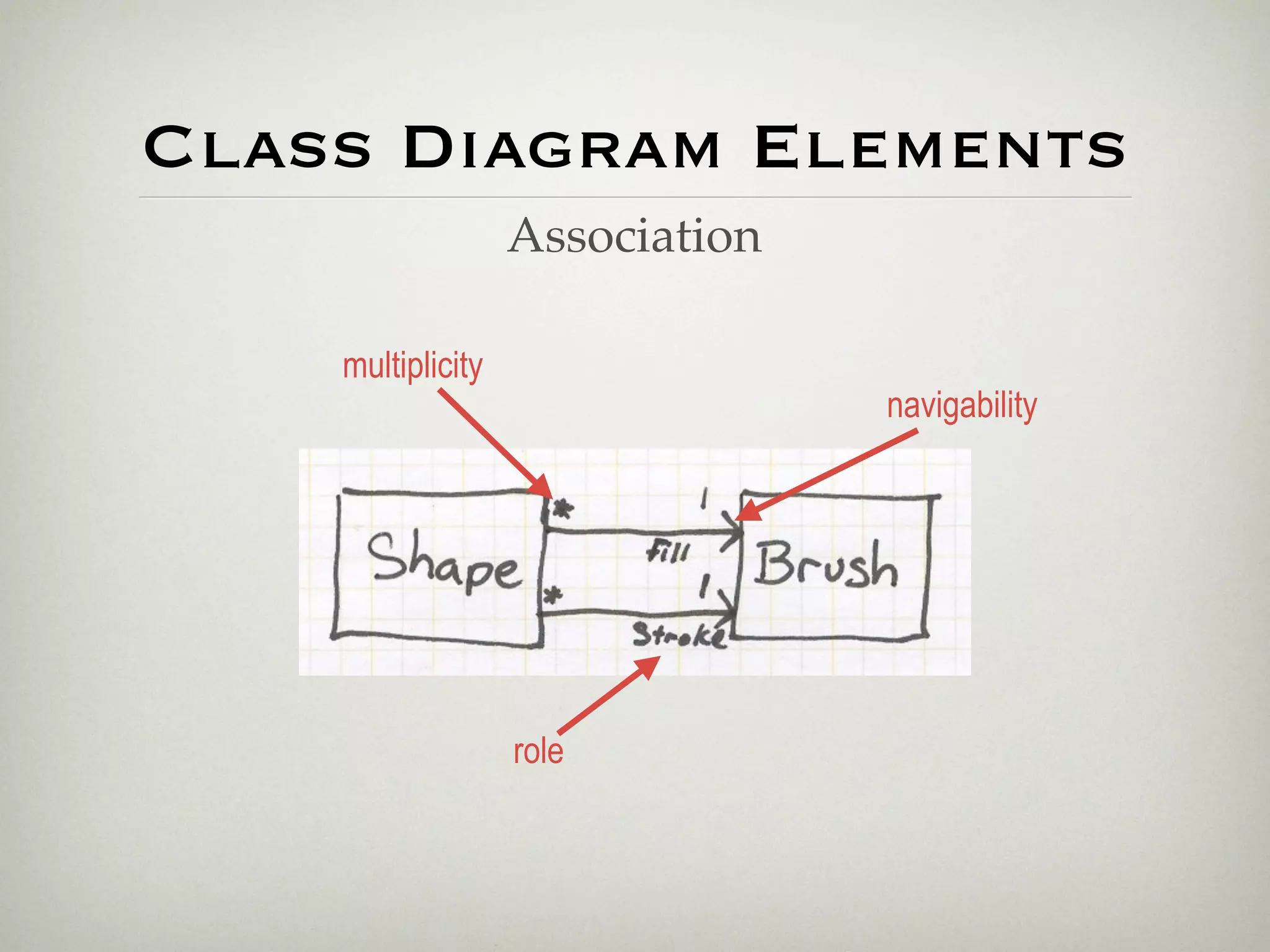

- 13. Class Diagram Elements Association multiplicity navigability role

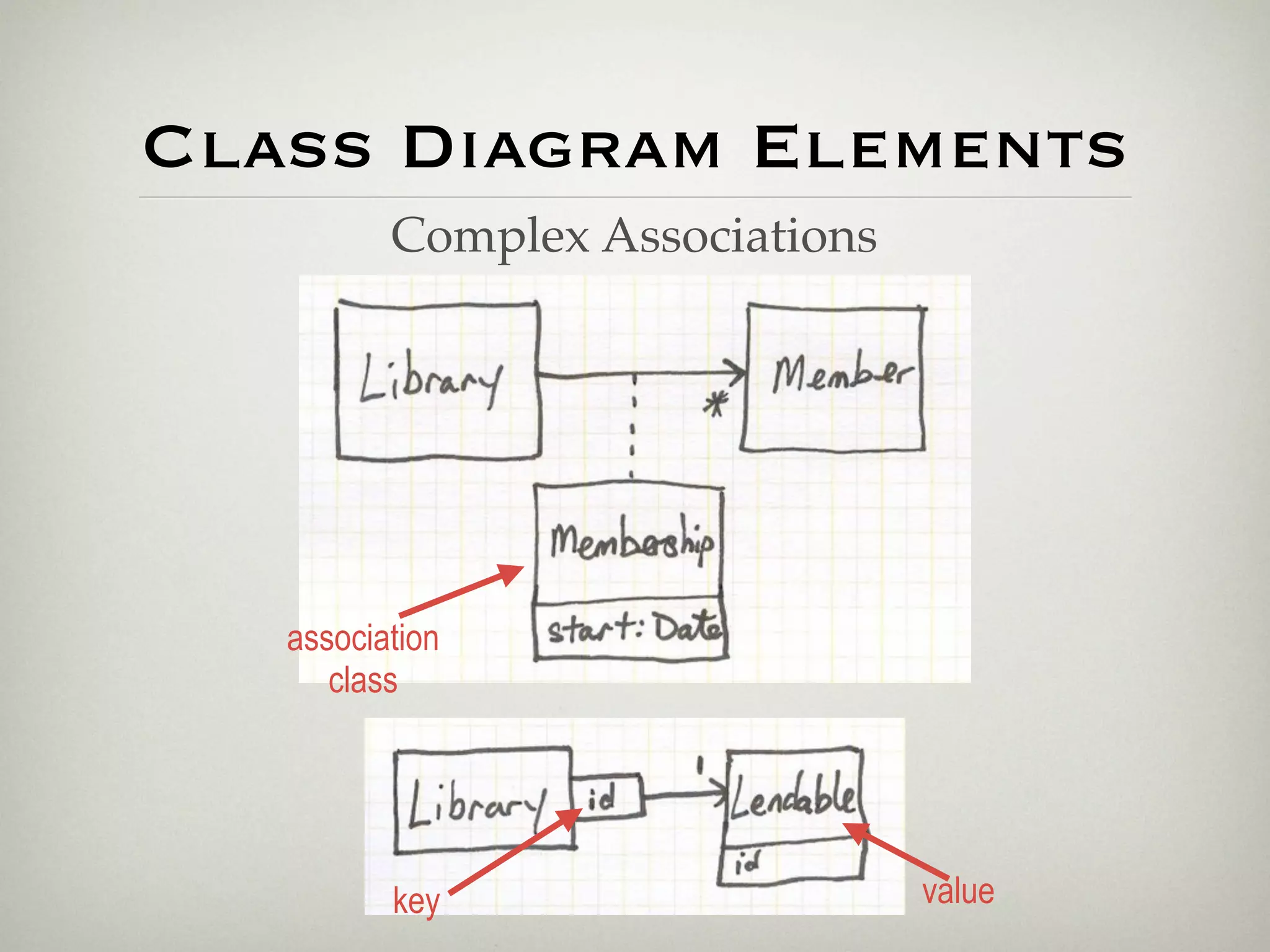

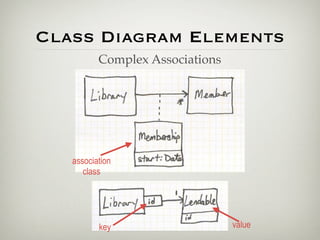

- 14. Class Diagram Elements Complex Associations association class key value

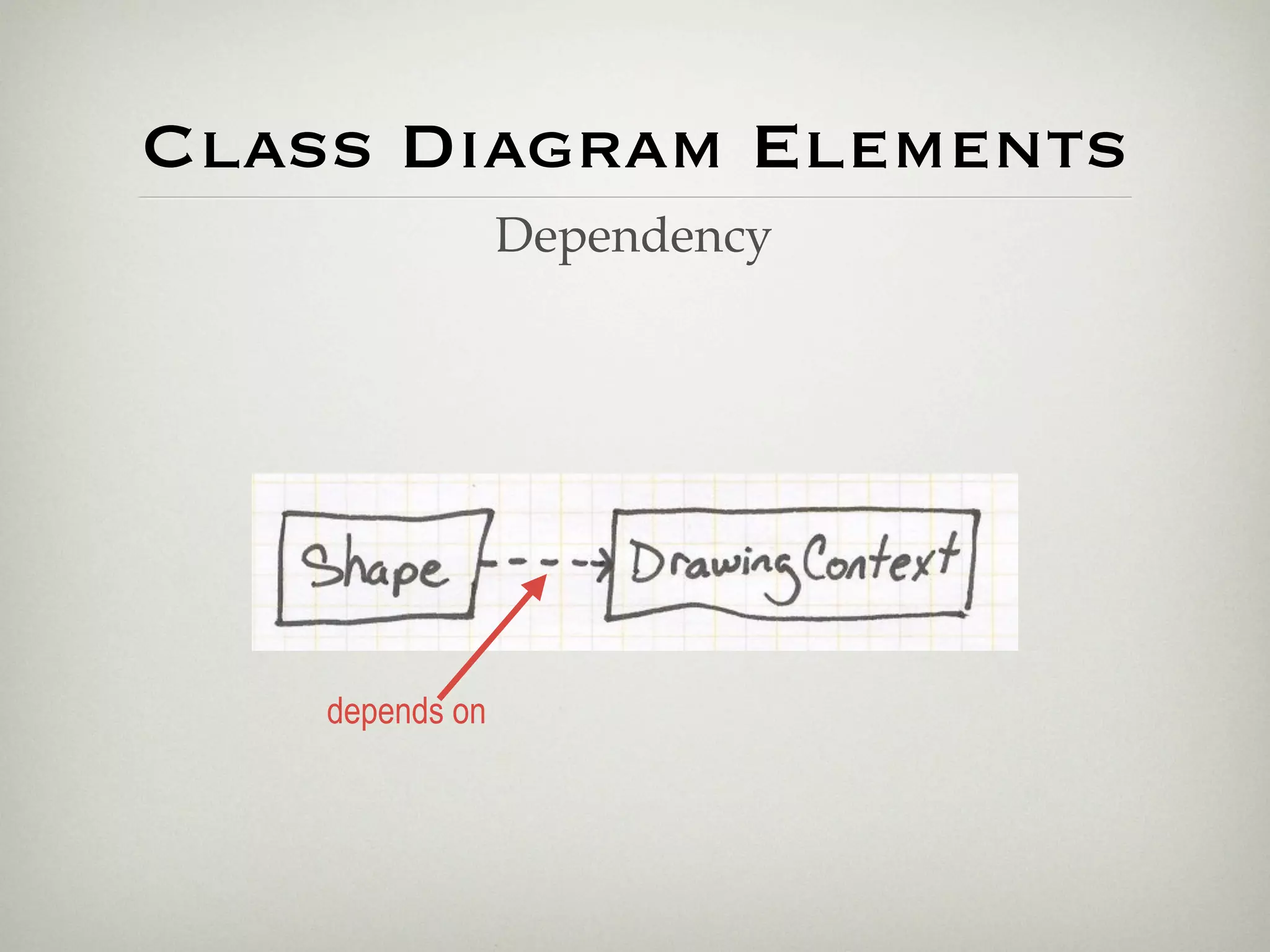

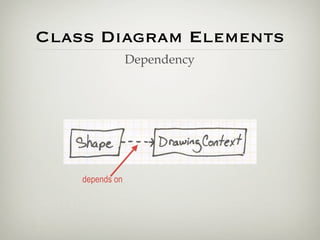

- 15. Class Diagram Elements Dependency depends on

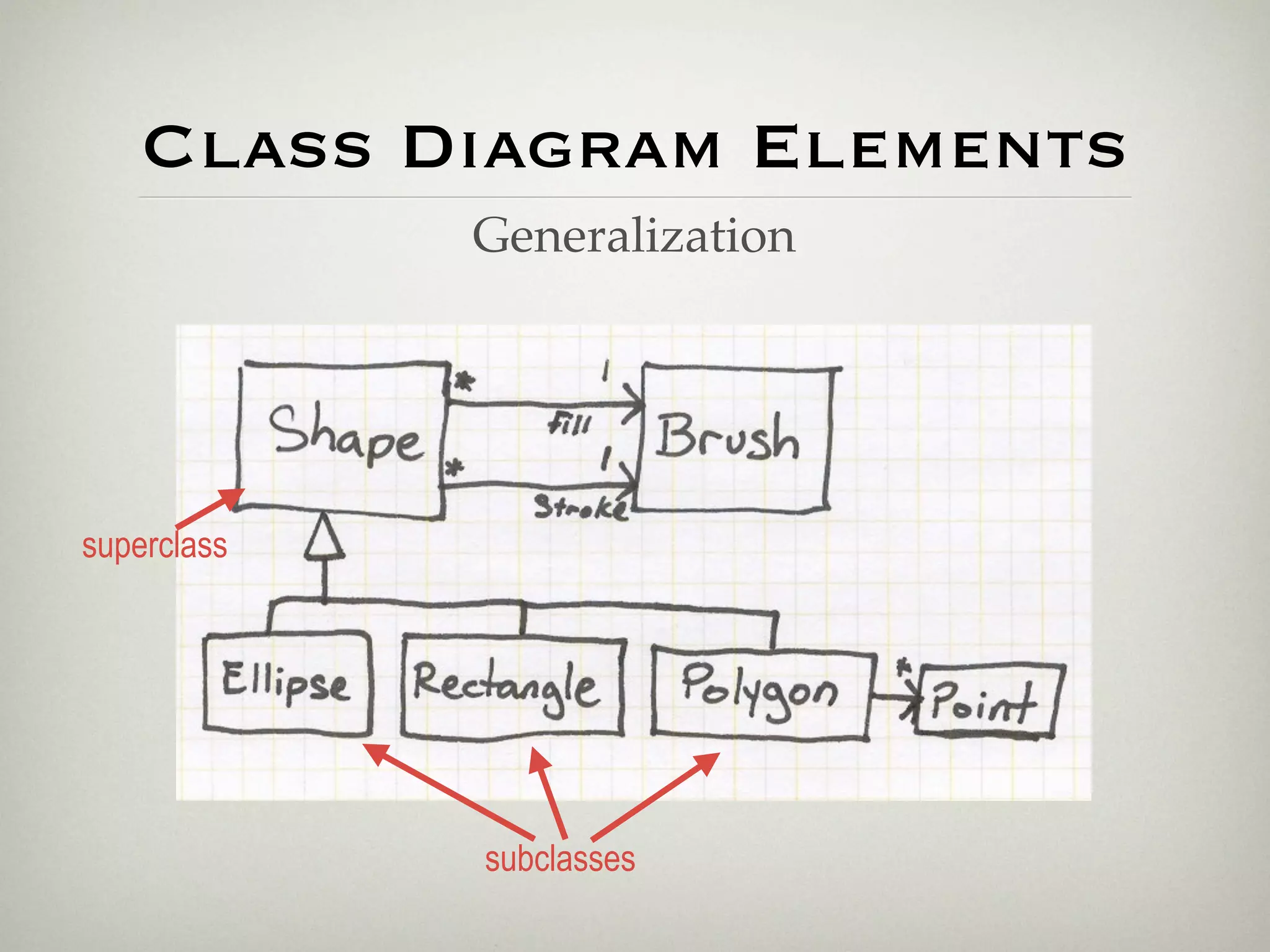

- 16. Class Diagram Elements Generalization superclass subclasses

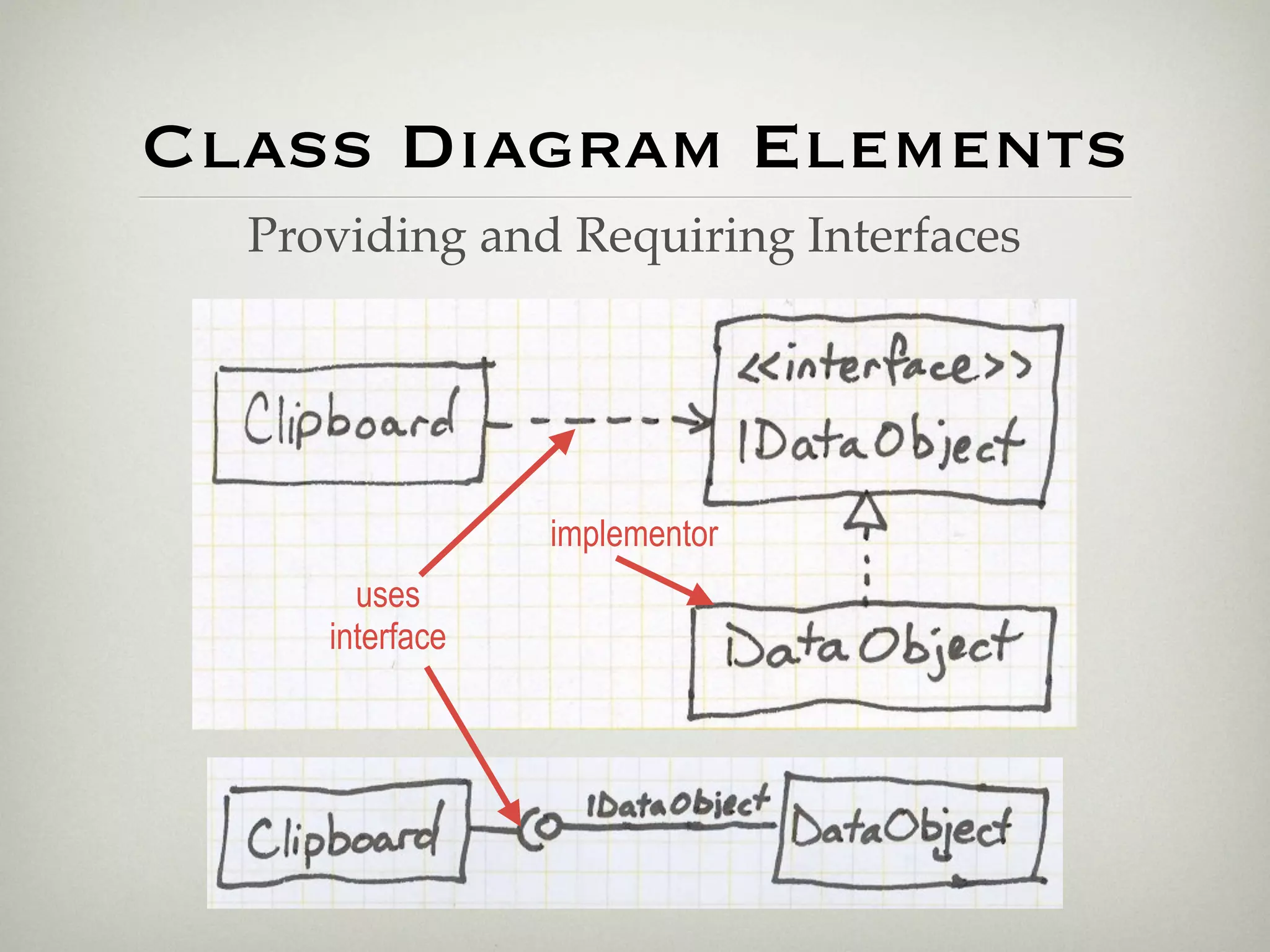

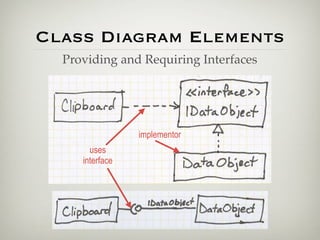

- 17. Class Diagram Elements Providing and Requiring Interfaces implementor uses interface

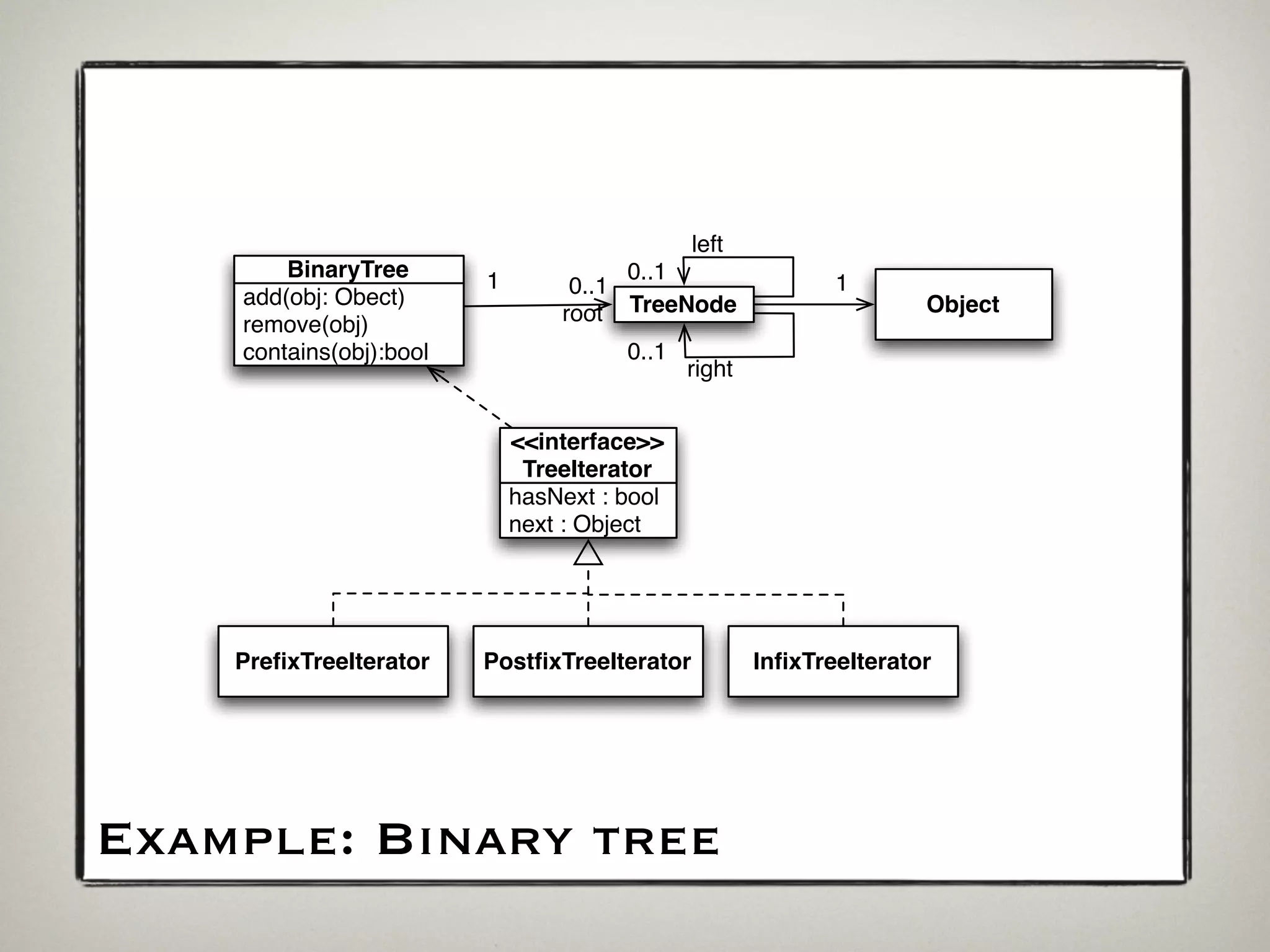

- 18. left BinaryTree 1 0..1 0..1 1 add(obj: Obect) remove(obj) root TreeNode Object contains(obj):bool 0..1 right <<interface>> TreeIterator hasNext : bool next : Object PrefixTreeIterator PostfixTreeIterator InfixTreeIterator Example: Binary tree

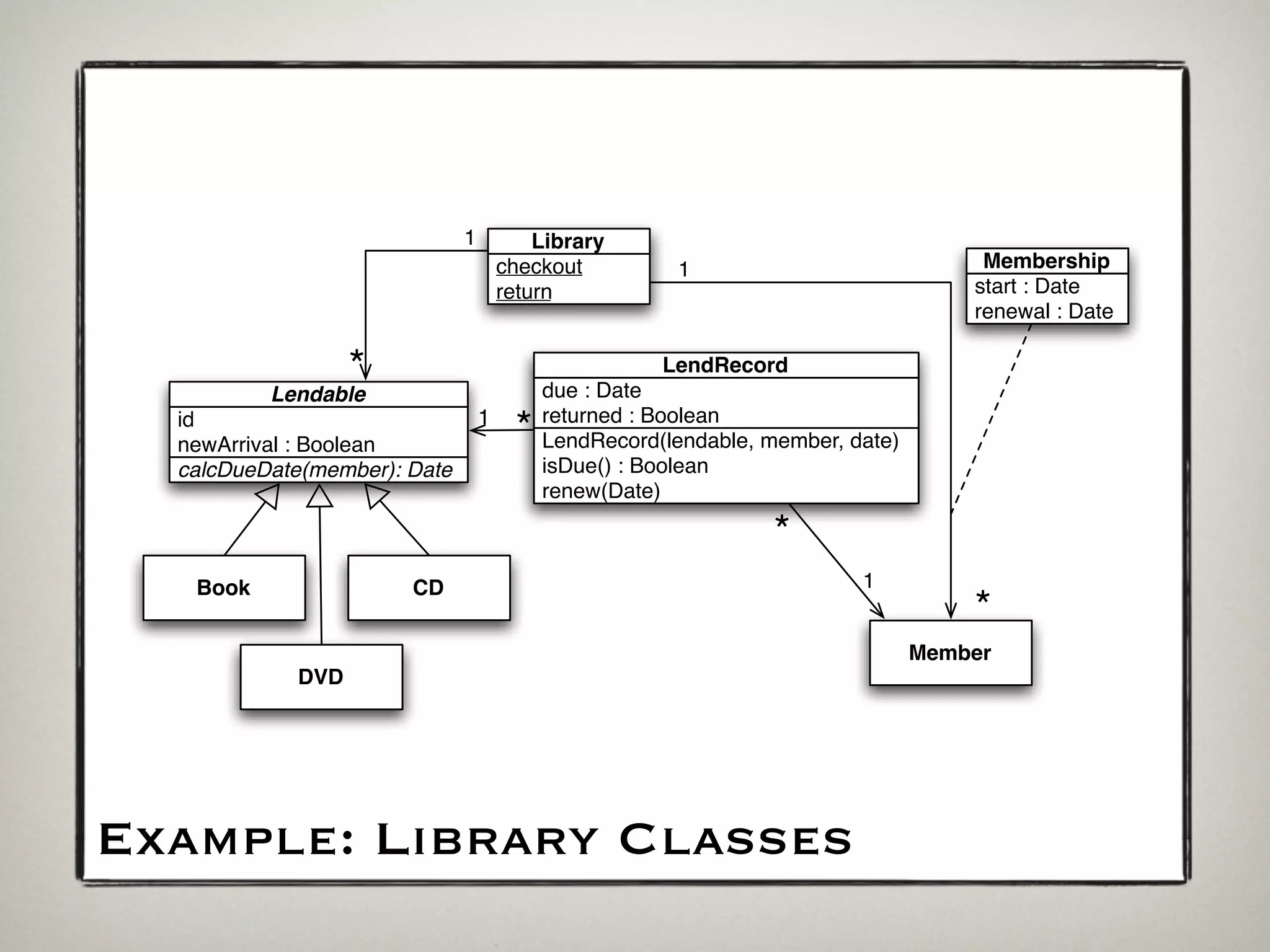

- 19. 1 Library checkout 1 Membership return start : Date renewal : Date * due : Date LendRecord Lendable 1 returned : Boolean id newArrival : Boolean * LendRecord(lendable, member, date) calcDueDate(member): Date isDue() : Boolean renew(Date) * Book CD 1 * Member DVD Example: Library Classes

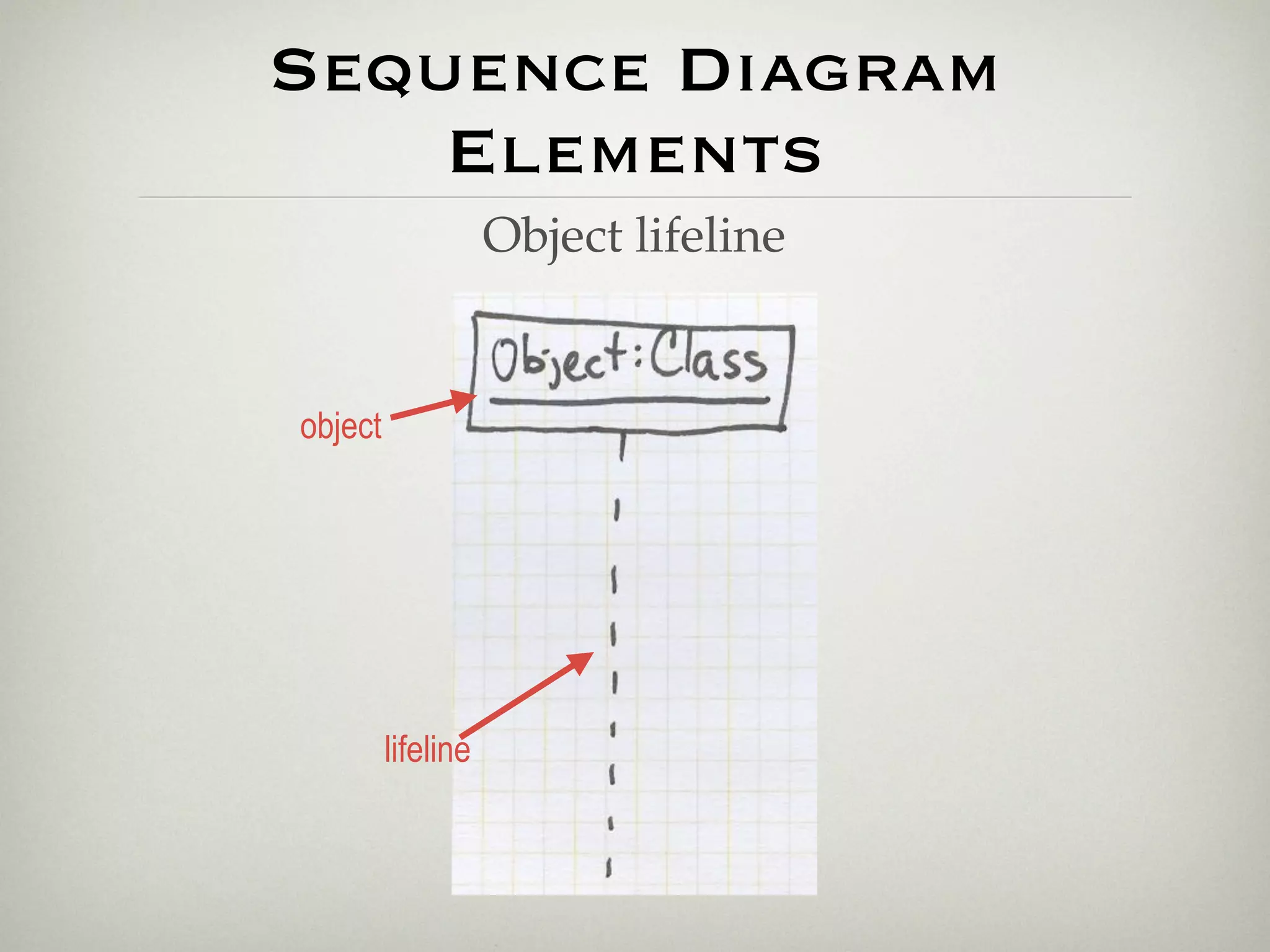

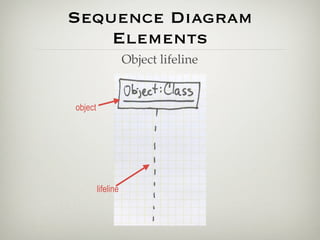

- 20. Sequence Diagram Elements Object lifeline object lifeline

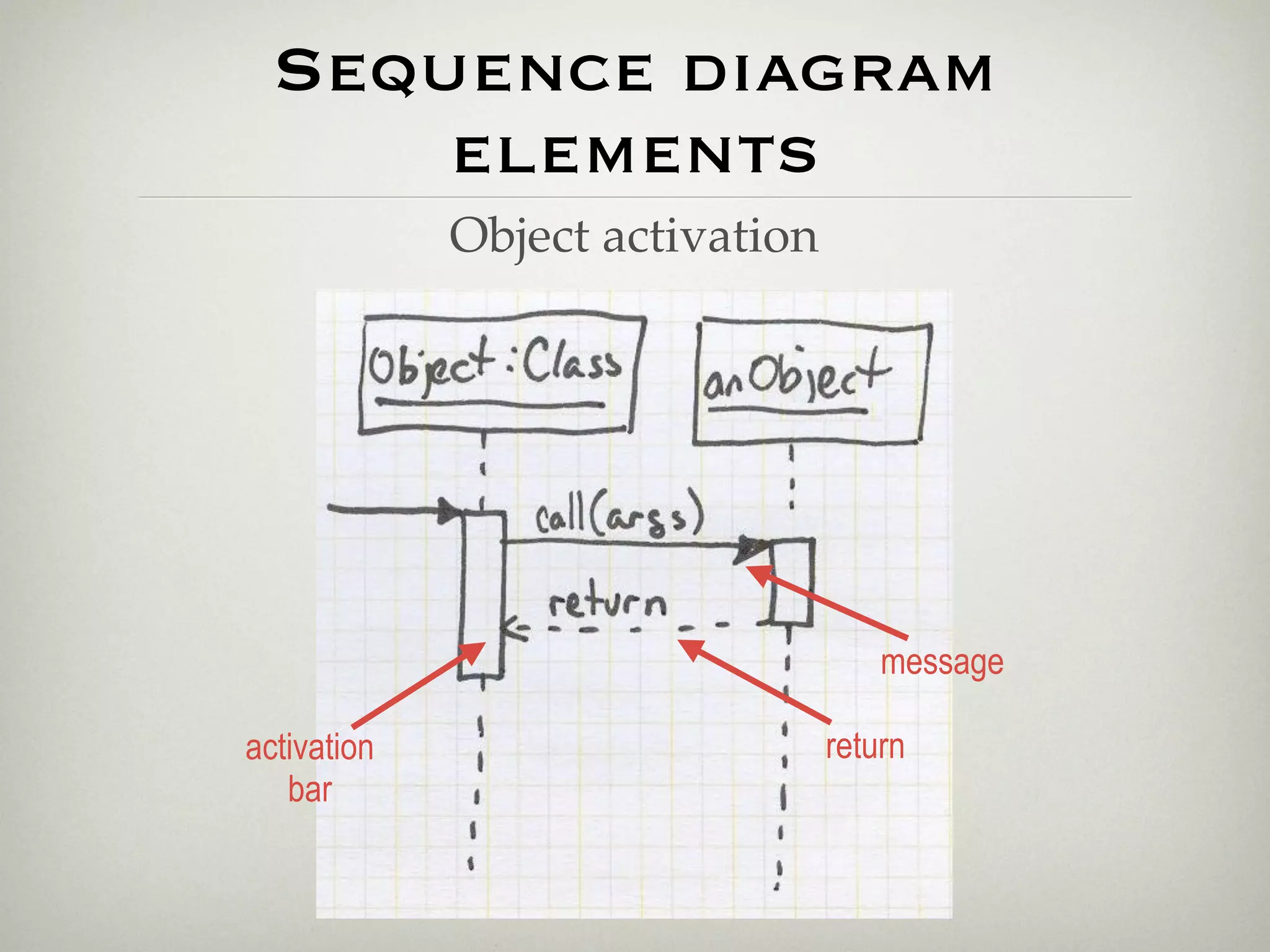

- 21. Sequence diagram elements Object activation message activation return bar

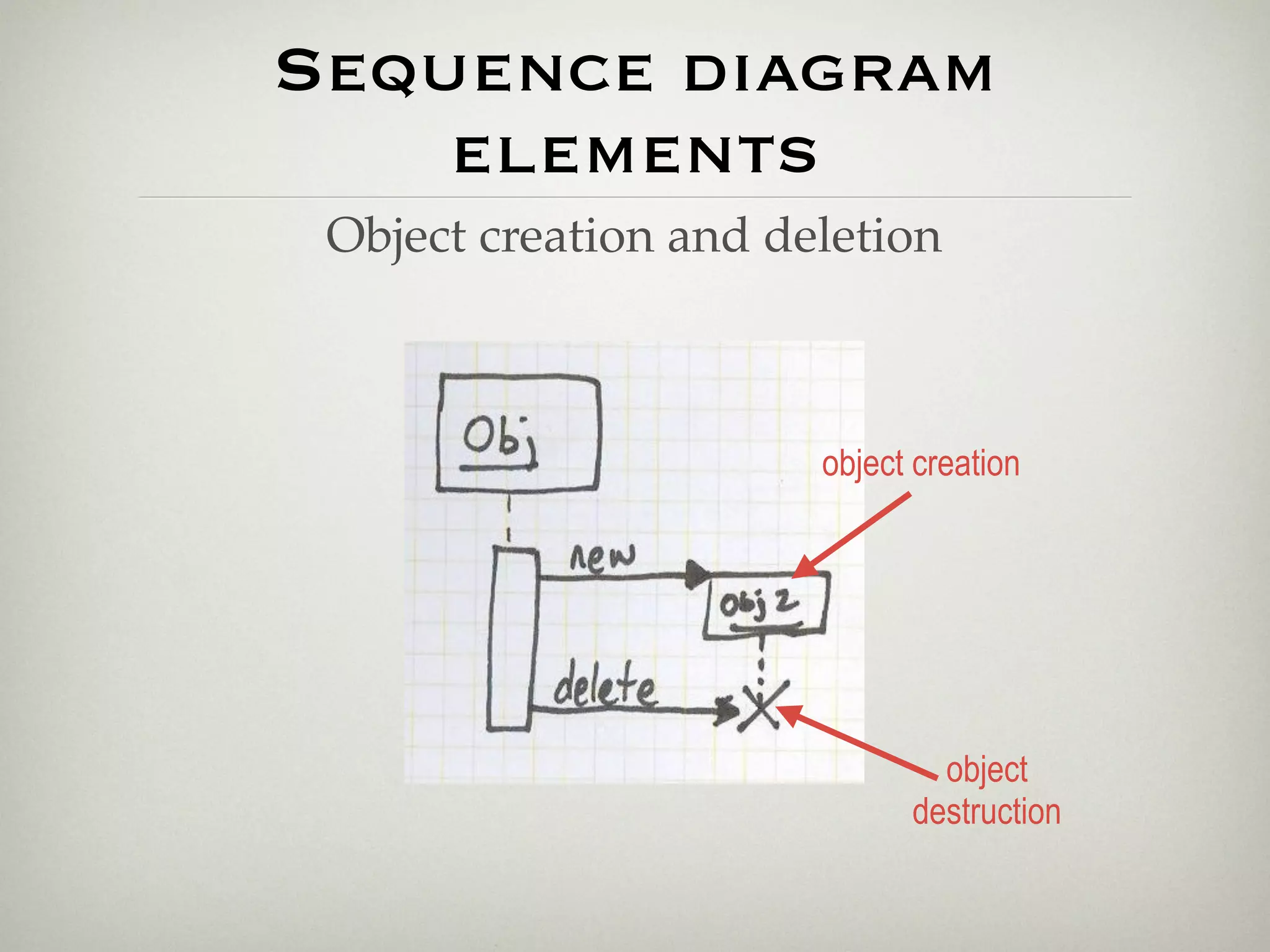

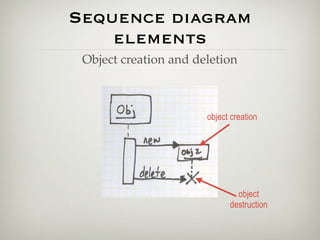

- 22. Sequence diagram elements Object creation and deletion object creation object destruction

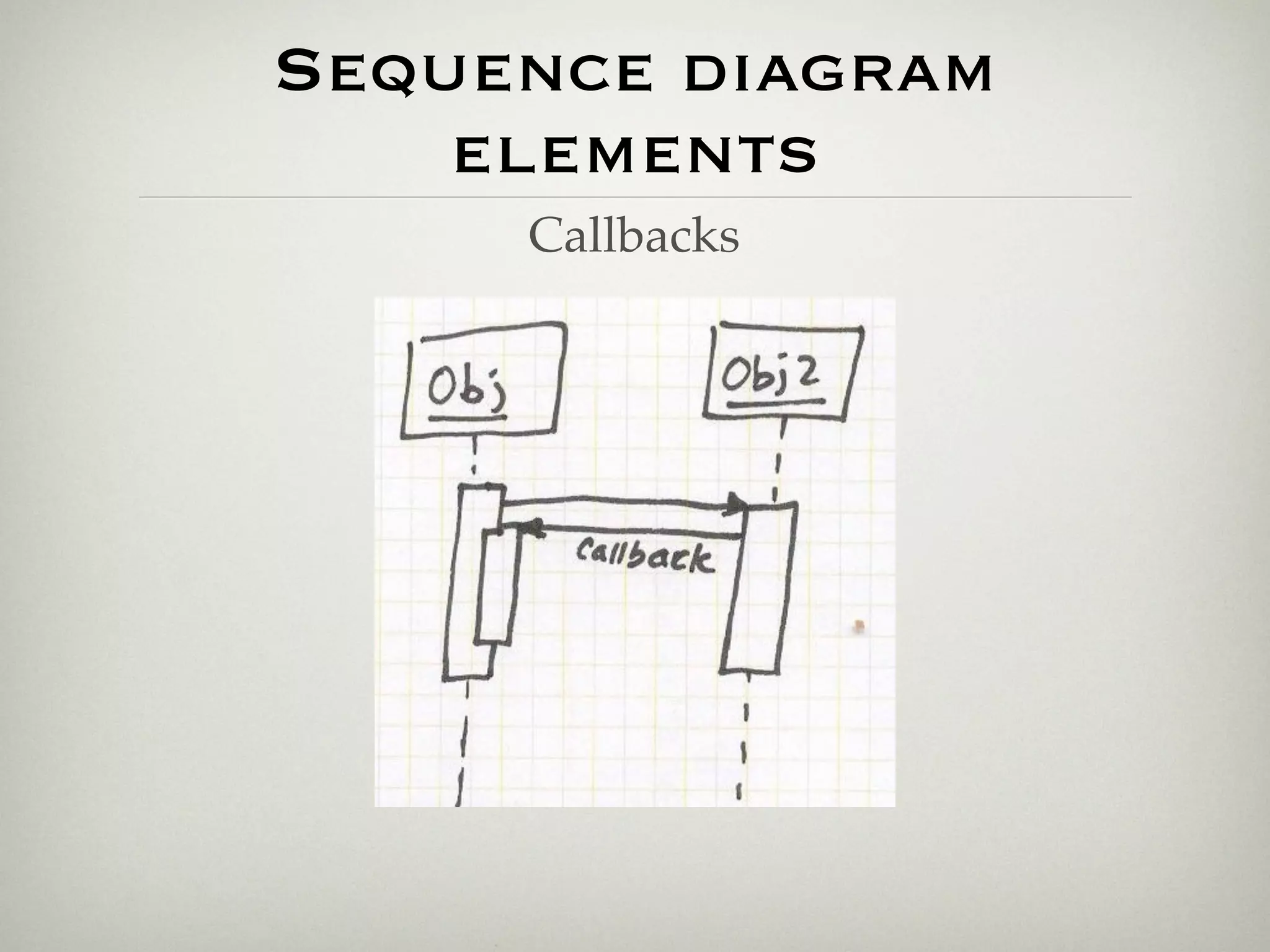

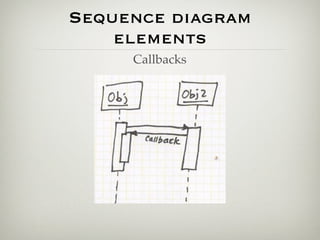

- 23. Sequence diagram elements Callbacks

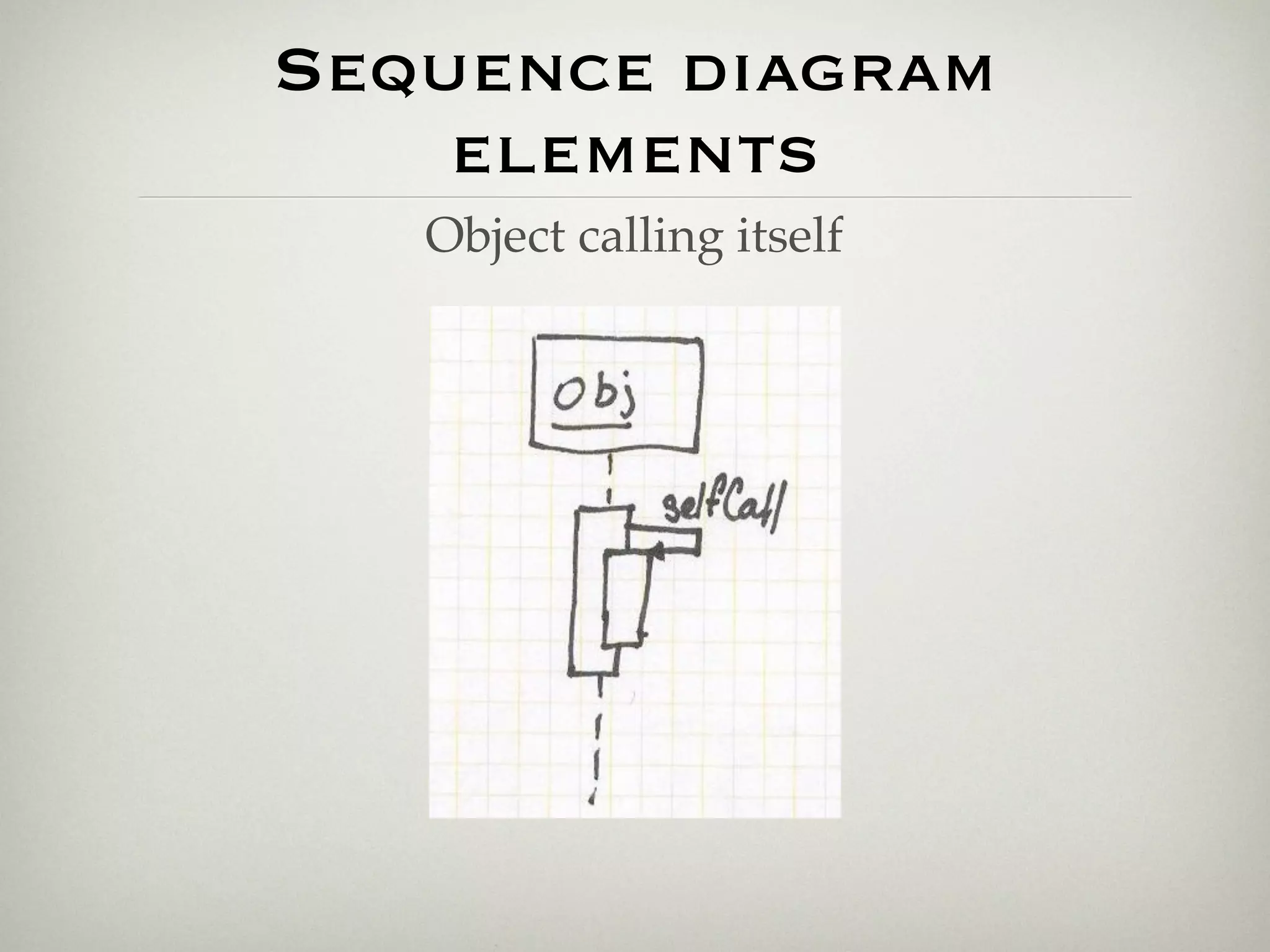

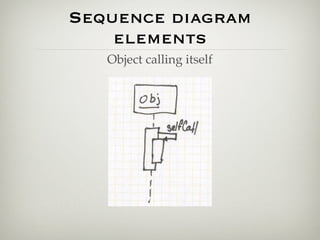

- 24. Sequence diagram elements Object calling itself

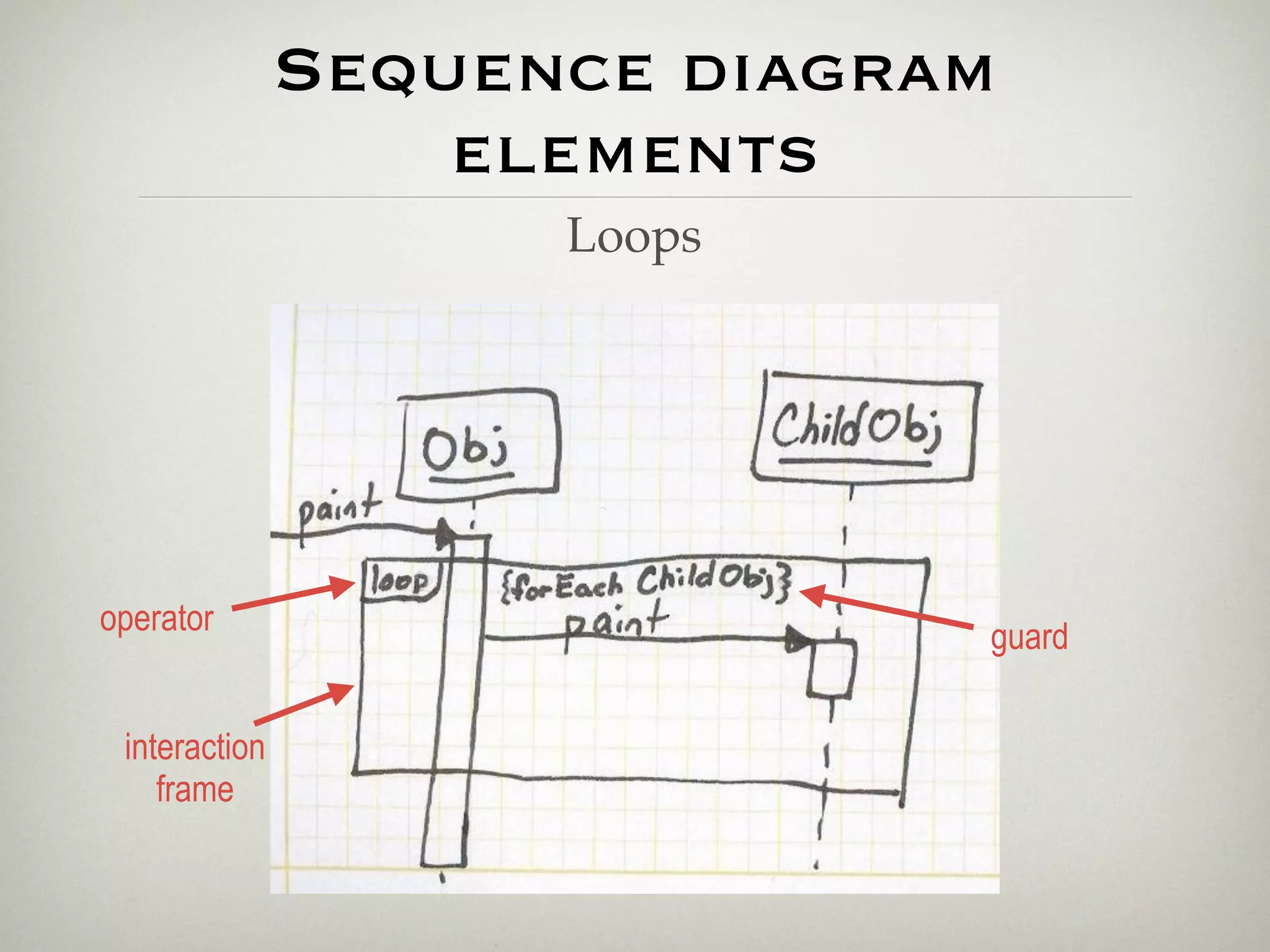

- 25. Sequence diagram elements Loops operator guard interaction frame

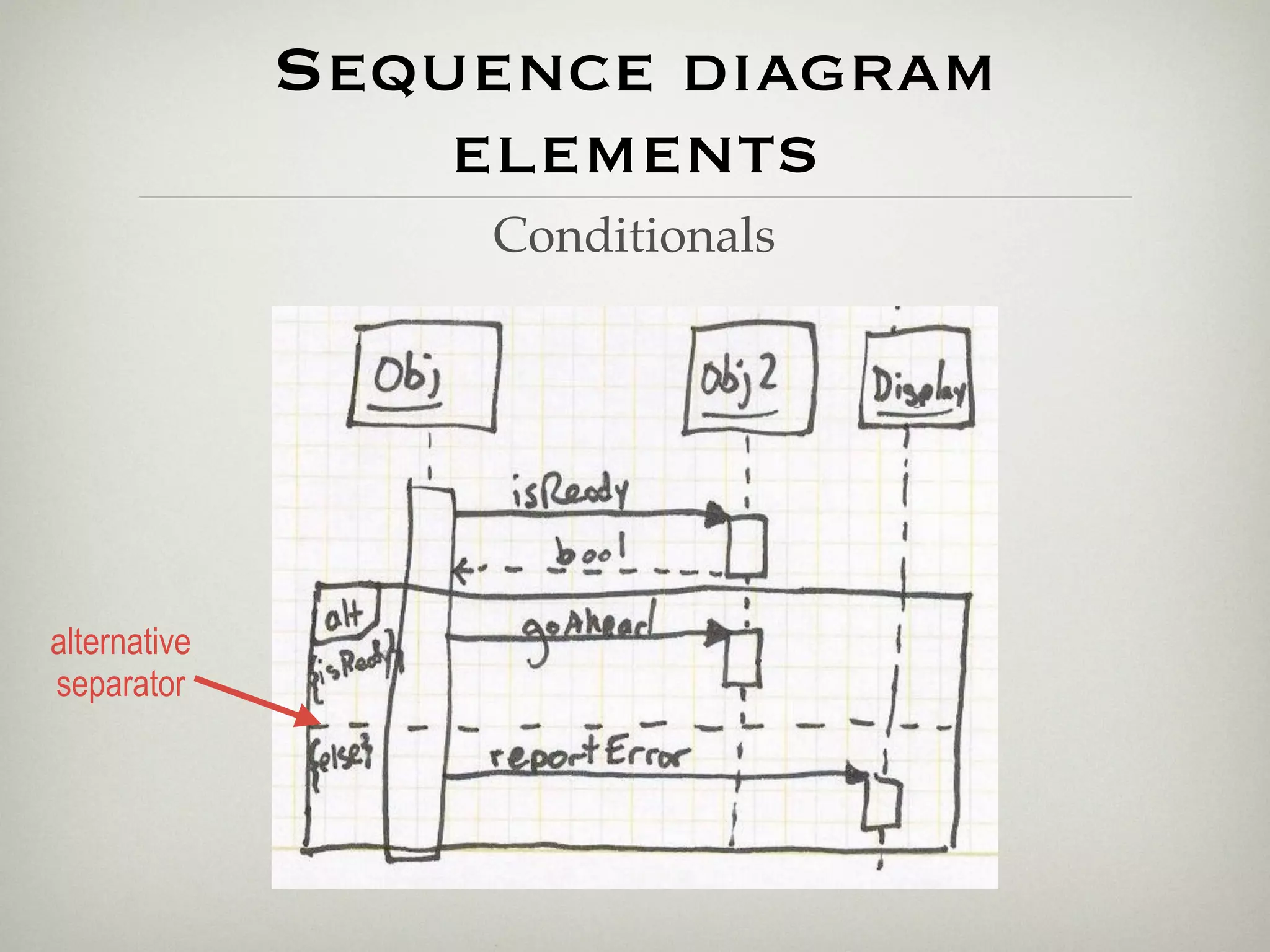

- 26. Sequence diagram elements Conditionals alternative separator

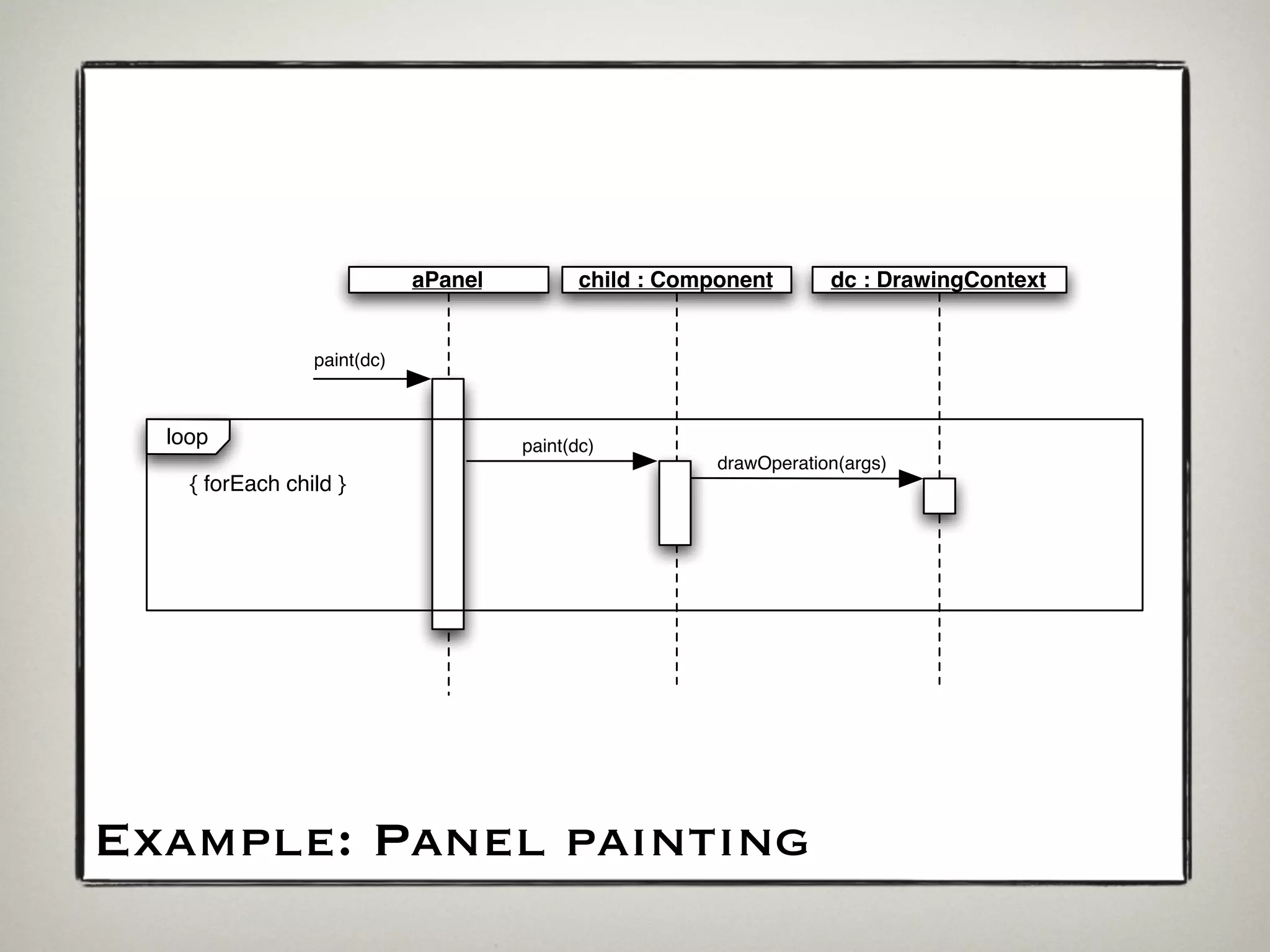

- 27. aPanel child : Component dc : DrawingContext paint(dc) loop paint(dc) drawOperation(args) { forEach child } Example: Panel painting

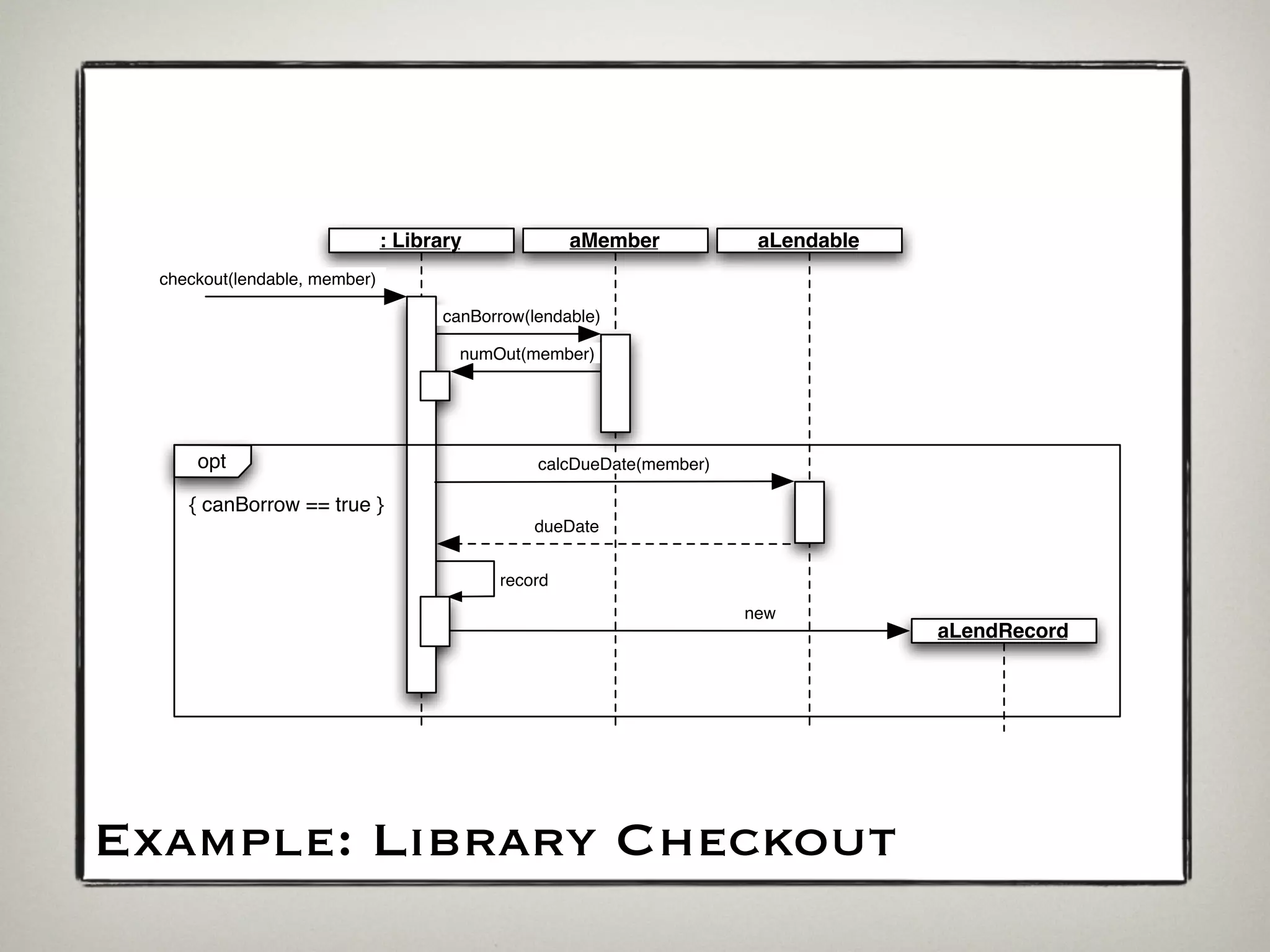

- 28. : Library aMember aLendable checkout(lendable, member) canBorrow(lendable) numOut(member) opt calcDueDate(member) { canBorrow == true } dueDate record new aLendRecord Example: Library Checkout

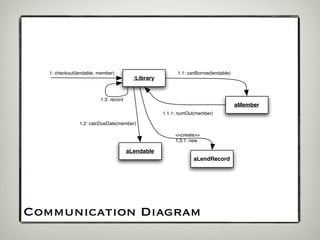

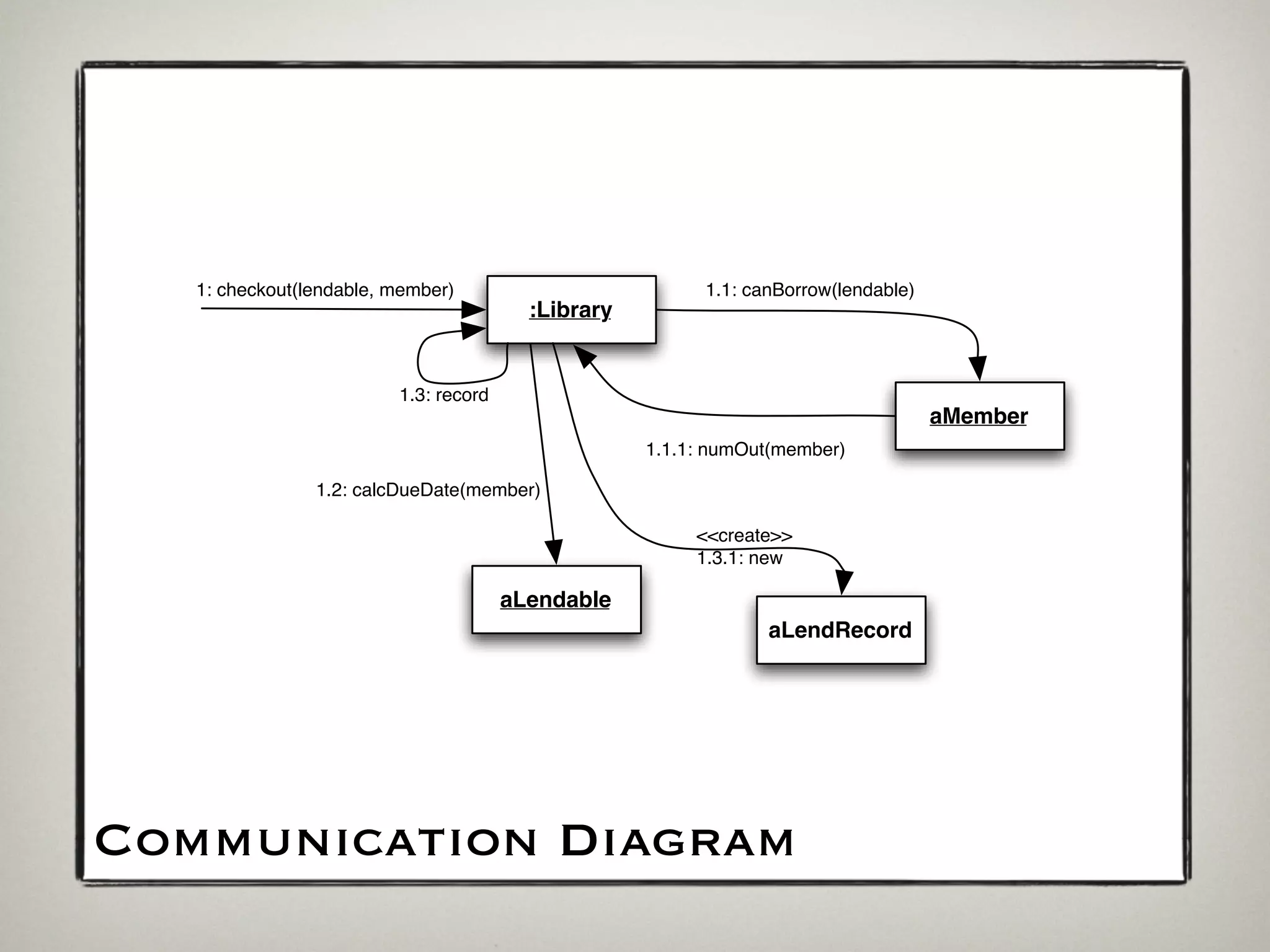

- 29. 1: checkout(lendable, member) 1.1: canBorrow(lendable) :Library 1.3: record aMember 1.1.1: numOut(member) 1.2: calcDueDate(member) <<create>> 1.3.1: new aLendable aLendRecord Communication Diagram

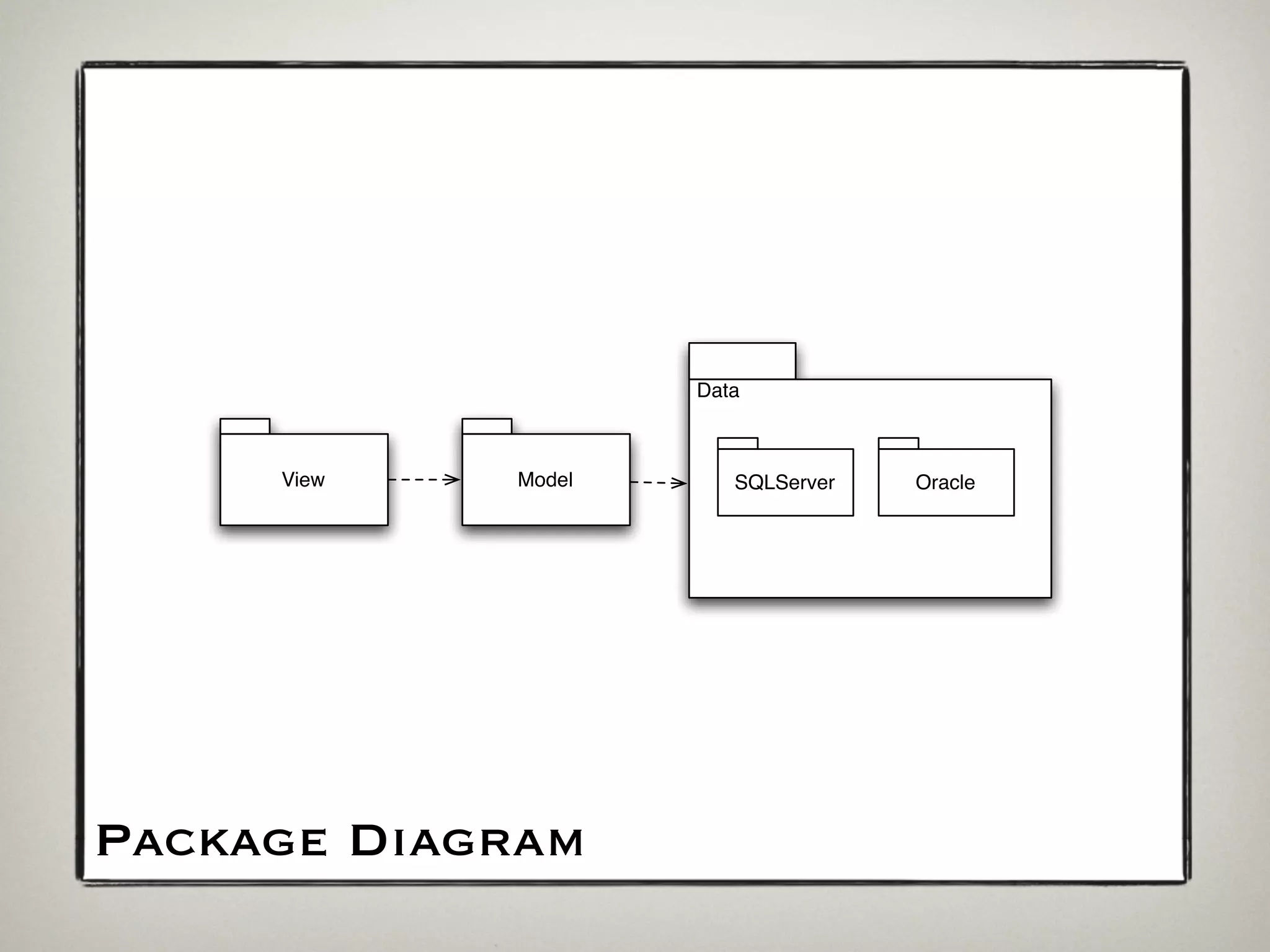

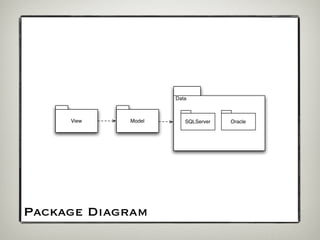

- 30. Data View Model SQLServer Oracle Package Diagram

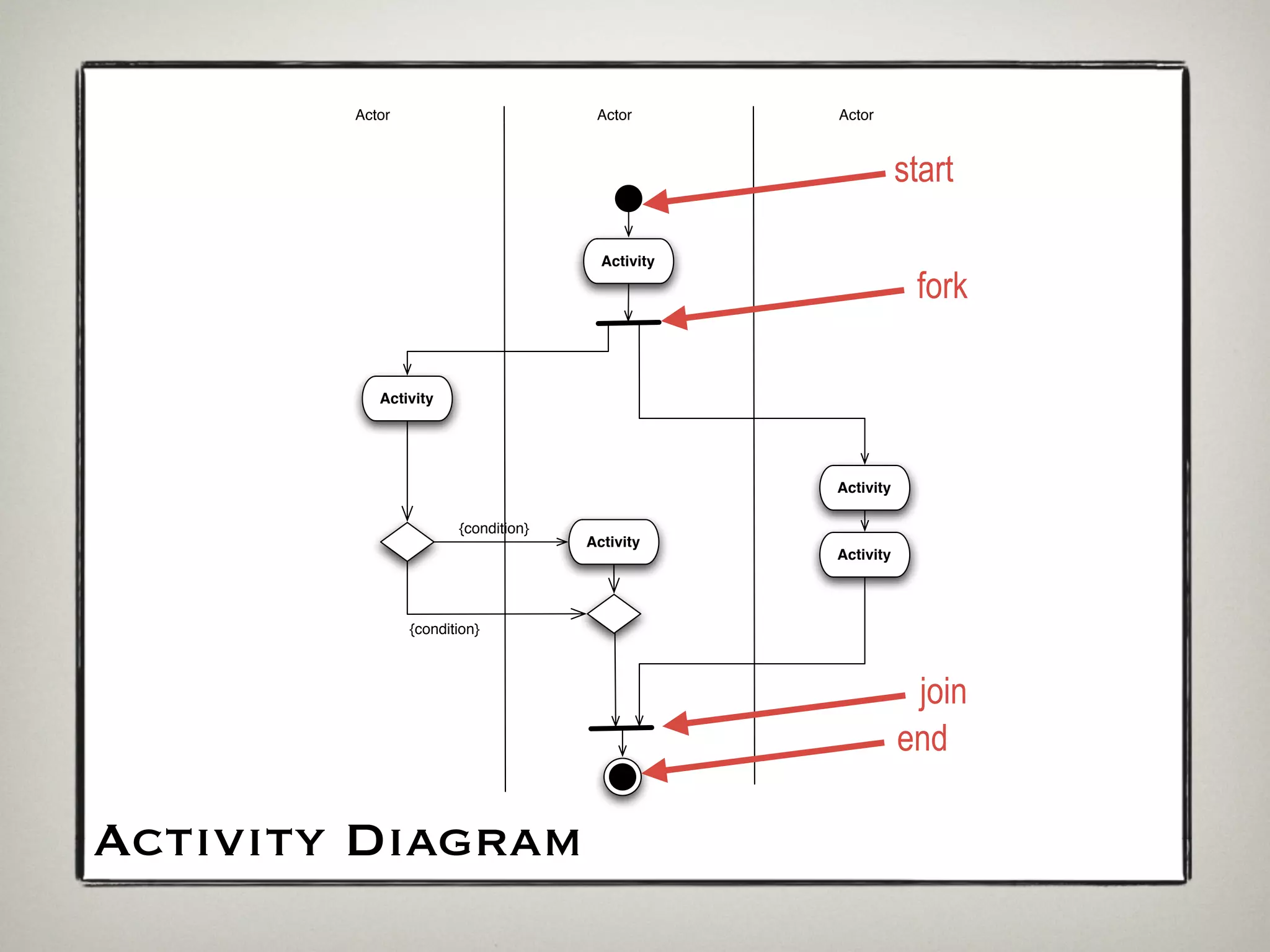

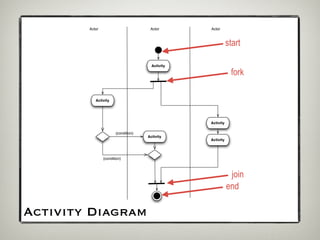

- 31. Actor Actor Actor start Activity fork Activity Activity {condition} Activity Activity {condition} join end Activity Diagram

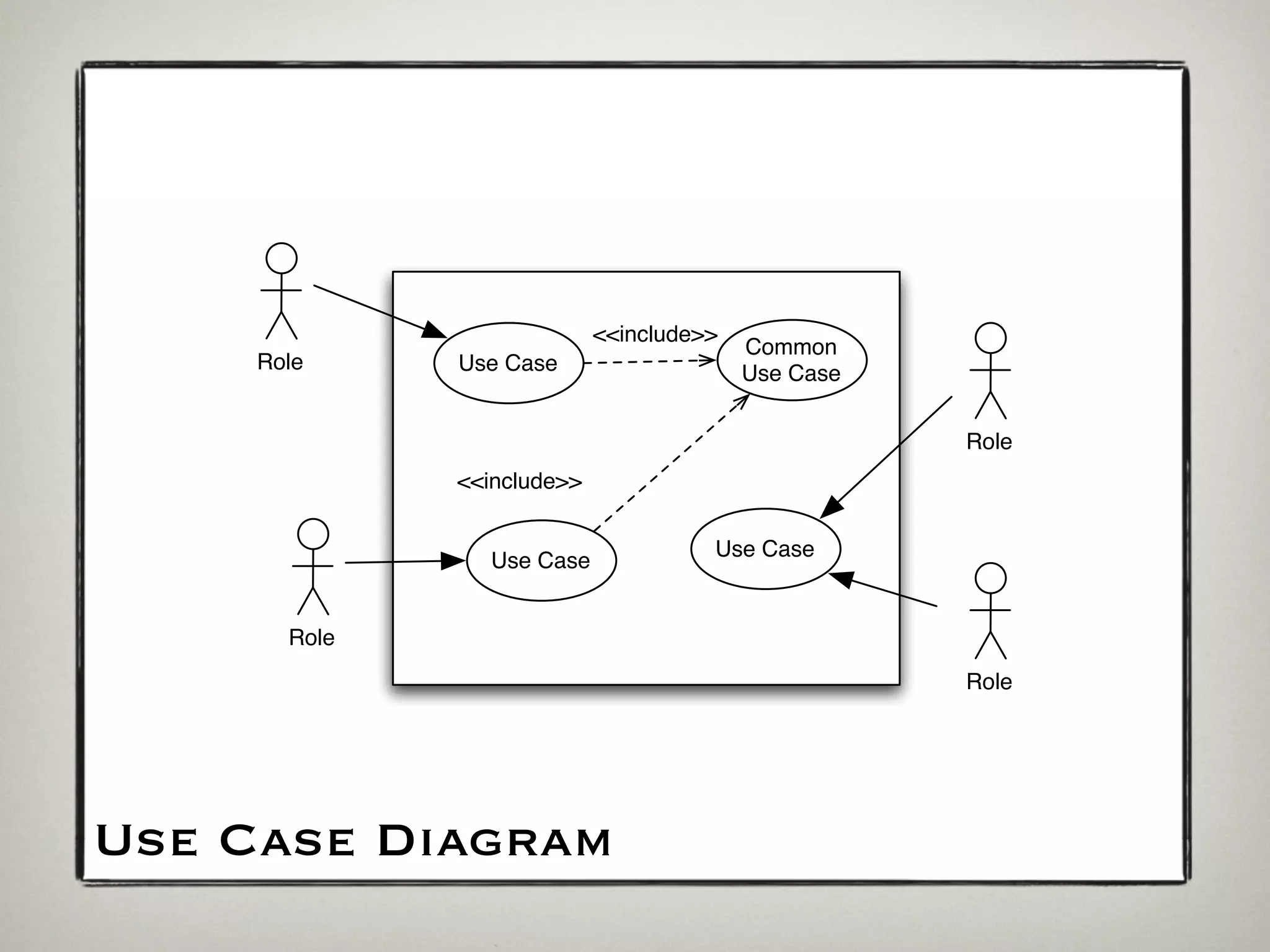

- 32. <<include>> Common Role Use Case Use Case Role <<include>> Use Case Use Case Role Role Use Case Diagram

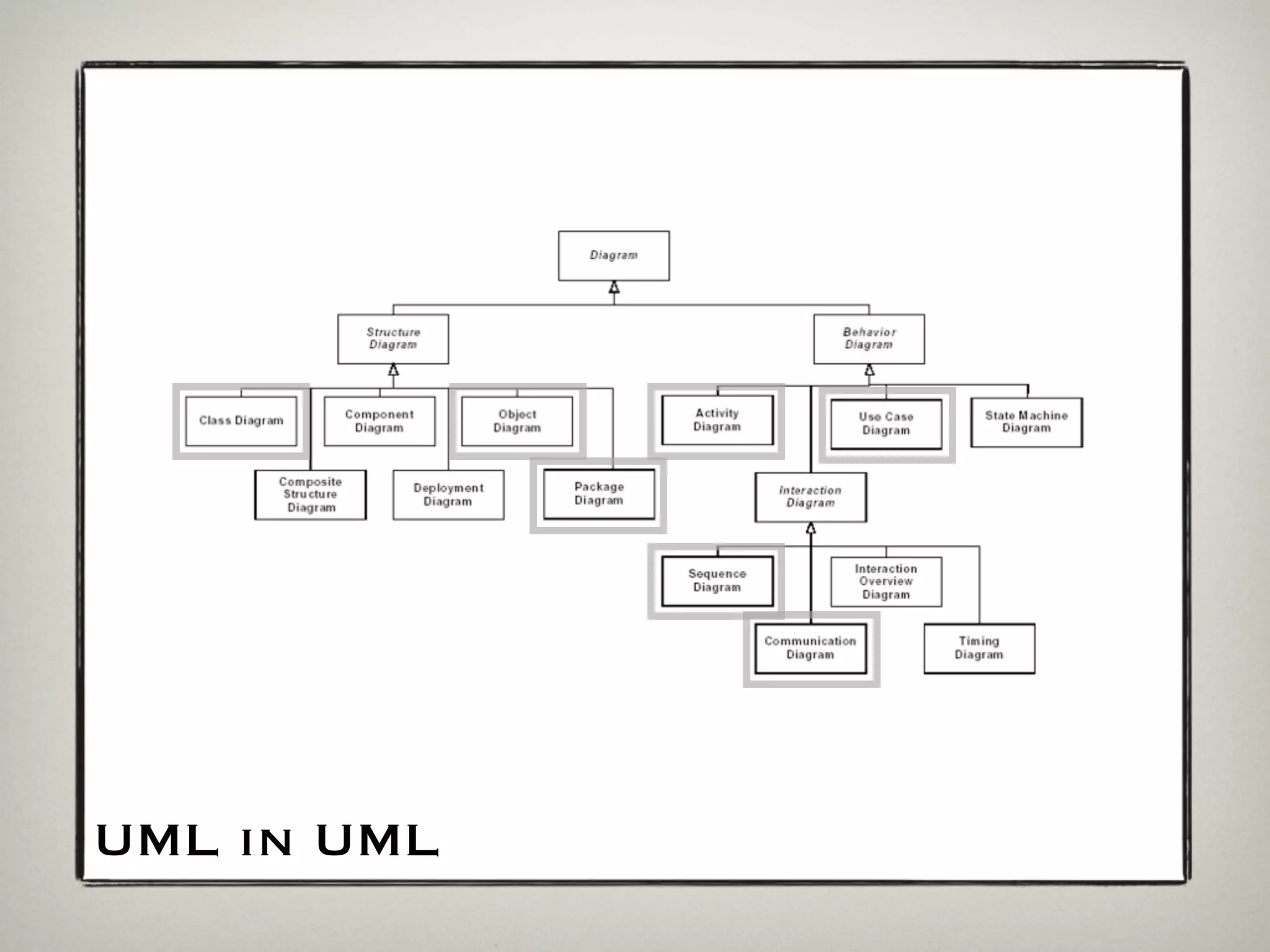

- 33.

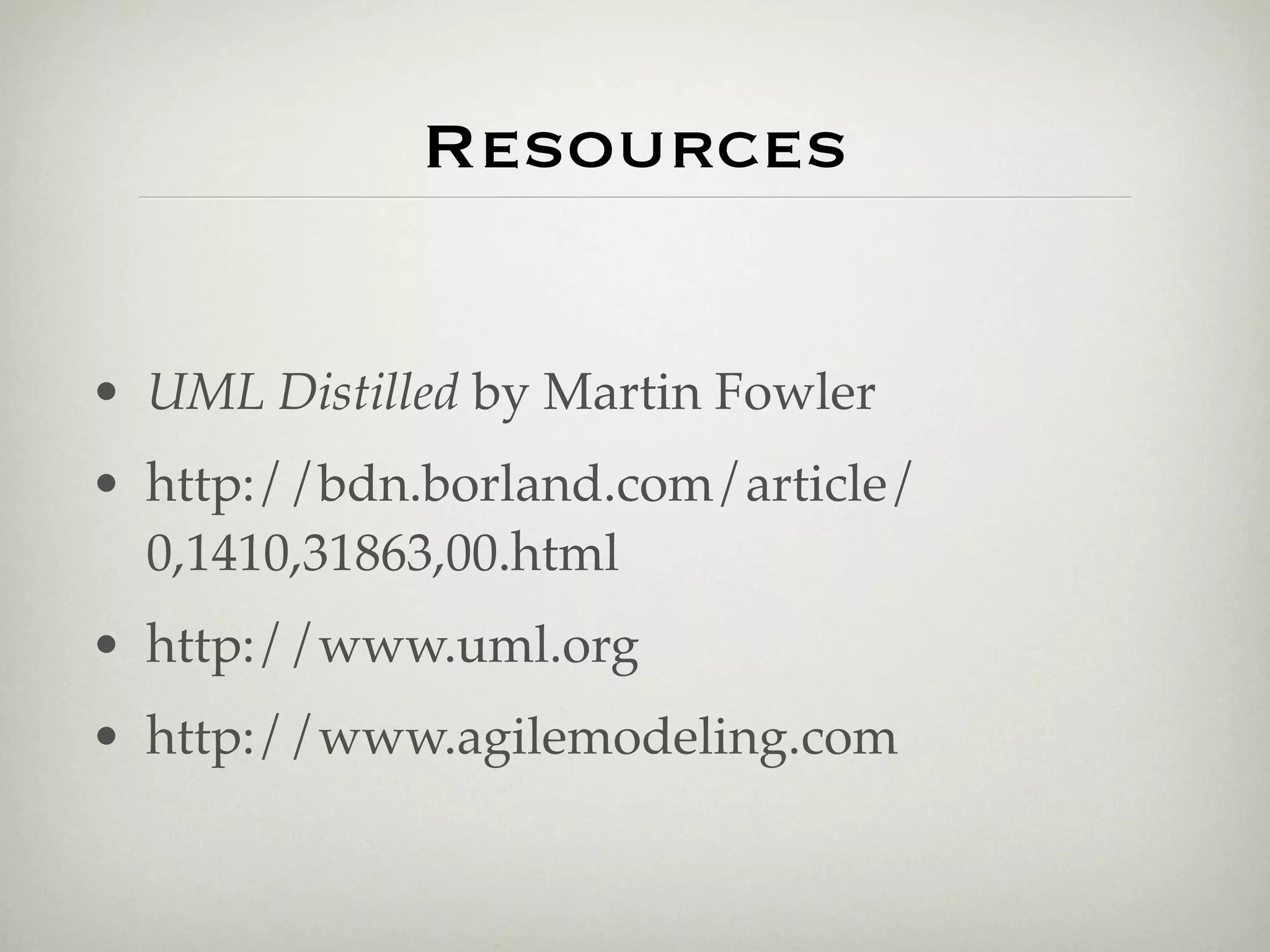

- 34. Resources • UML Distilledby Martin Fowler • http://bdn.borland.com/article/ 0,1410,31863,00.html • http://www.uml.org • http://www.agilemodeling.com
- 35. (cc) 2006 LouFranco Released under the following creative commons license Attribution-NonCommercial-ShareAlike 2.0 http://creativecommons.org/licenses/by-nc-sa/2.0 Each photograph used has a URL for attribution. Please see the original site for the photo’s license.
Editor's Notes
- #2 UML is used to model OO design, but what is design?
- #3 First there are problems, and problems have many solutions. Each solution has its own trade-offs between benefits and drawbacks.
- #4 Design is choosing the combination of tradeoffs that best solves our problem
- #6 1. Faster to model than to implement 2. Helps us choose 3. Try different approaches (to compare) 4. Finish the most promising ones
- #7 1. Communicate to yourself 2. Communicate to implementors 3. Communicate to domain experts
- #8 1. Models show the important choices 2. Leave out details to emphasize 3. Several different views on same structure
- #9 UNIFIED MODELING LANGUAGE Unifies: Booch, Rumbaugh, Jacobson Language: Can be used to implement a software system -- equivalent to code omg (uml.org) &#x201C;A specification defining a graphical language for visualizing, specifying, constructing, and documenting the artifacts of distributed object systems.&#xA0;&#x201C; Unifies 50+ OO modeling systems
- #10 Main point
- #13 Class name could be just the Name or Package::Name attribute spec is attribute:Type[multiplicity] = default value operation spec is operation : (arg: ArgType, arg2: Arg2Type=default) : Type
- #14 1. Everything is optional (name could be class name) 2. Multiplicity 3. Bidirectional
- #15 Top is an association class, where each pairing of Library and Member is represented in a Membership class Bottom is a qualified association where Library has a map of id to Lendable. The Multiplicity is per id. Don&#x2019;t show datastructures, unless ...
- #16 call, create, permit (friend), use
- #17 The word generalization emphasizes the role of the base class. Don&#x2019;t think is-a -- think substitutability.
- #18 Top one emphasizes that Clipboard uses an interface and DataObject is just one of those Bottom one emphasizes that DataObject provides an interface and Clipboard is a class that would use it
- #19 Only time to show datastructures is if that&#x2019;s specifically what you&#x2019;re monitoring
- #21 Objects are underlined, either the object name or the class name is optional. If just showing class, keep the colon. The lifeline is the lifetime of the object -- sequence diagrams are read top-down with time passing as we go down.
- #22 messages are shown with arrows, returns are dashed arrows. Line arrow heads are asynch calls (but you will see half arrows used instead -- old convention). During the bar, the class is active (the message is in the stack frame)
- #30 m calls m.1, m.2, etc. m.n calls m.n.1, m.n.2, etc. Order is 1, 1.1, 1.1.1, 1.2, 1.3, 1.3.1
- #31 All classes in each package need to follow this dependency, classes in view can depend on classes in model, but not vice versa.
- #32 each swim lane has an actor (who is doing the activity) diamond is a branch There are also symbols for sending and receiving signals
