An Introduction to Macrocells
& Small Cells
@3g4gUK

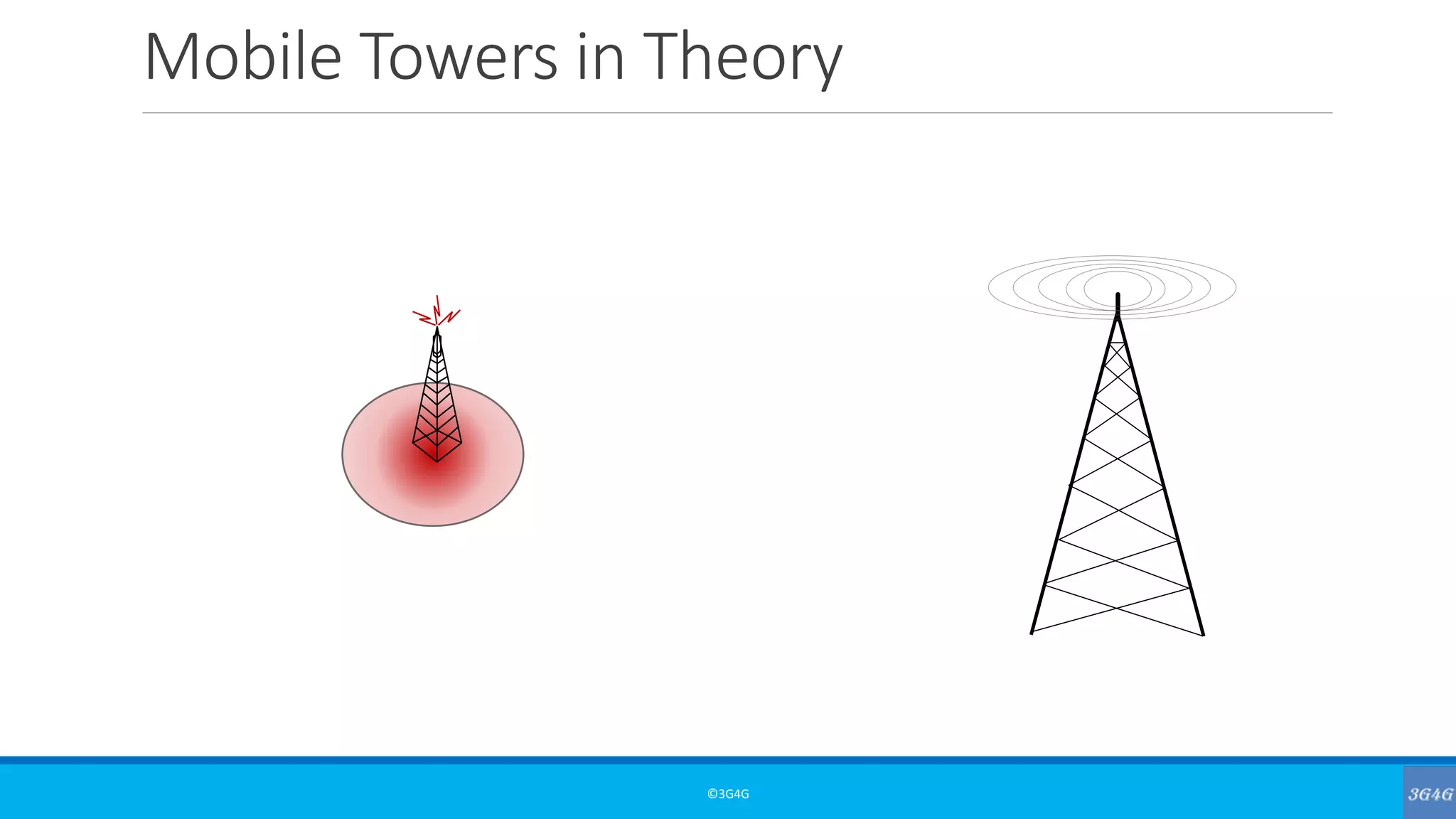

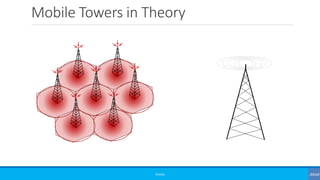

Mobile Towers in Theory
©3G4G
Mobile Towers in Theory
©3G4G
Mobile Towers in Practice
©3G4G

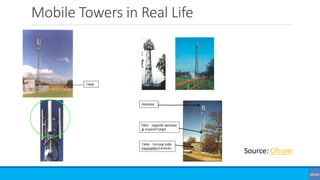

Mobile Towers in Real Life
©3G4G
Source: Ofcom

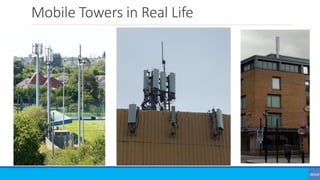

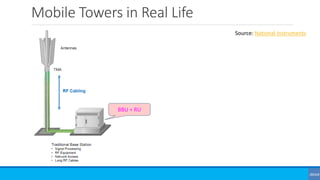

Mobile Towers in Real Life
Mobile Towers in Real Life
BBU + RU
Source: National Instruments

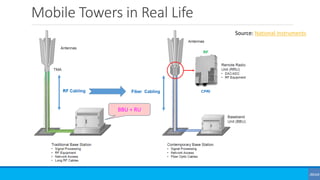

Mobile Towers in Real Life
BBU + RU
Source: National Instruments

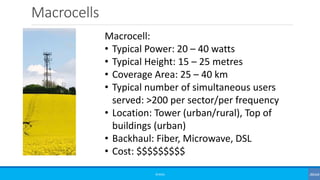

Macrocells
©3G4G
Macrocell:
• Typical Power: 20 – 40 watts
• Typical Height: 15 – 25 metres
• Coverage Area: 25 – 40 km
• Typical number of simultaneous users
served: >200 per sector/per frequency
• Location: Tower (urban/rural), Top of
buildings (urban)
• Backhaul: Fiber, Microwave, DSL
• Cost: $$$$$$$$$

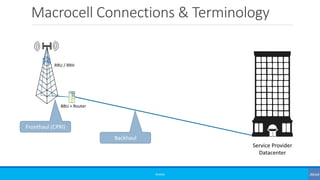

Macrocell Connections & Terminology
©3G4G
BBU + Router
RRU / RRH
Fronthaul (CPRI)
Service Provider
Datacenter
Backhaul

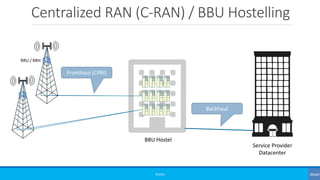

Centralized RAN (C-RAN) / BBU Hostelling
©3G4G
RRU / RRH
Fronthaul (CPRI)
Service Provider
Datacenter
Backhaul
BBU Hostel

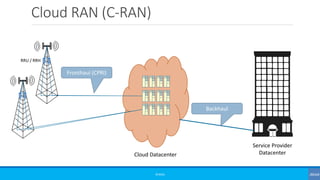

Cloud RAN (C-RAN)
©3G4G
RRU / RRH
Fronthaul (CPRI)
Service Provider
Datacenter
Backhaul
Cloud Datacenter

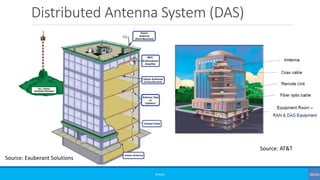

Distributed Antenna System (DAS)
©3G4G
Source: Exuberant Solutions
Source: AT&T

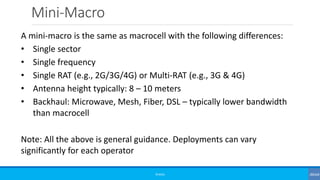

Mini-Macro
©3G4G
A mini-macro is the same as macrocell with the following differences:
• Single sector
• Single frequency
• Single RAT (e.g., 2G/3G/4G) or Multi-RAT (e.g., 3G & 4G)
• Antenna height typically: 8 – 10 meters
• Backhaul: Microwave, Mesh, Fiber, DSL – typically lower bandwidth
than macrocell
Note: All the above is general guidance. Deployments can vary
significantly for each operator

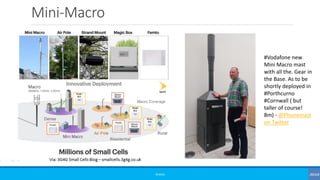

Mini-Macro
©3G4G
#Vodafone new
Mini Macro mast
with all the. Gear in
the Base. As to be
shortly deployed in
#Porthcurno
#Cornwall ( but
taller of course!
8m) - @Phonemast
on Twitter

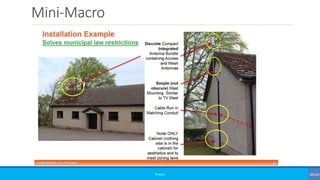

Mini-Macro
©3G4G
Why do we need ‘Small Cells’
©3G4G
Why do we need ‘Small Cells’
©3G4G

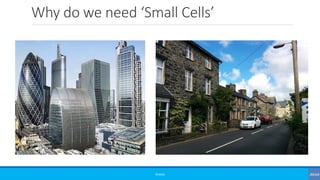

Why do we need ‘Small Cells’
©3G4G
Source: Zahid Ghadialy Source: The Telegraph
Why do we need ‘Small Cells’
©3G4G
Source: TravelSkills
Definition of Small Cells
©3G4G
Small cells or small cellular base stations encompass a number
of different technologies but one could describe them as
anything that's not a typical macro site. They are deployed to
solve network capacity issues in a relatively small area, like a
hot spot or an important zone that is a subset of the umbrella
macro site coverage.
“From our world, everything is a small cell if its not nailed to a
tower. So it could be Wi-Fi, Indoor / Outdoor, DAS, Femtocells,
Metrocells, Remote Radioheads, Microcells and Signal
Boosters as well…” - Iain Gillott, Founder and President, IGR
Research

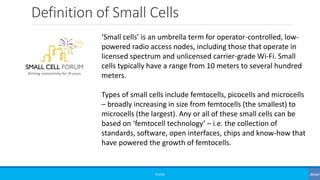

Definition of Small Cells
©3G4G
‘Small cells’ is an umbrella term for operator-controlled, low-
powered radio access nodes, including those that operate in
licensed spectrum and unlicensed carrier-grade Wi-Fi. Small
cells typically have a range from 10 meters to several hundred
meters.
Types of small cells include femtocells, picocells and microcells
– broadly increasing in size from femtocells (the smallest) to
microcells (the largest). Any or all of these small cells can be
based on ‘femtocell technology’ – i.e. the collection of
standards, software, open interfaces, chips and know-how that
have powered the growth of femtocells.

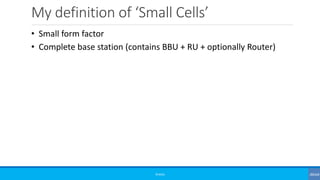

My definition of ‘Small Cells’
©3G4G
• Small form factor
• Complete base station (contains BBU + RU + optionally Router)

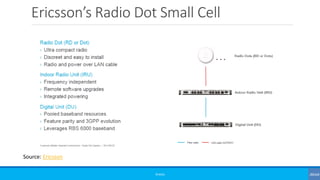

Ericsson’s Radio Dot Small Cell
©3G4G
Source: Ericsson

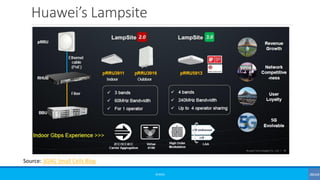

Huawei’s Lampsite
©3G4G
Source: 3G4G Small Cells Blog

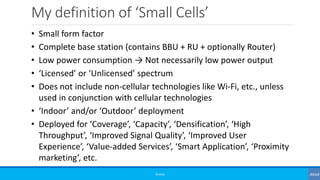

My definition of ‘Small Cells’
©3G4G
• Small form factor
• Complete base station (contains BBU + RU + optionally Router)
• Low power consumption → Not necessarily low power output
• ‘Licensed’ or ‘Unlicensed’ spectrum
• Does not include non-cellular technologies like Wi-Fi, etc., unless
used in conjunction with cellular technologies
• ‘Indoor’ and/or ‘Outdoor’ deployment
• Deployed for ‘Coverage’, ‘Capacity’, ‘Densification’, ‘High
Throughput’, ‘Improved Signal Quality’, ‘Improved User
Experience’, ‘Value-added Services’, ‘Smart Application’, ‘Proximity
marketing’, etc.

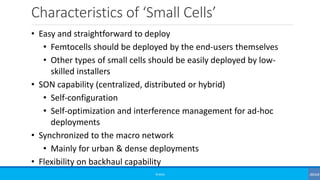

Characteristics of ‘Small Cells’
©3G4G
• Easy and straightforward to deploy
• Femtocells should be deployed by the end-users themselves
• Other types of small cells should be easily deployed by low-
skilled installers
• SON capability (centralized, distributed or hybrid)
• Self-configuration
• Self-optimization and interference management for ad-hoc
deployments
• Synchronized to the macro network
• Mainly for urban & dense deployments
• Flexibility on backhaul capability
Types of Small Cells
©3G4G
• Femtocells – Residential &
Enterprise
• Picocells – Sometimes referred to
as ‘Indoor Metrocells’
• Microcells – Sometimes referred
to as ‘Metrocells’ or ‘Outdoor
Metrocells’
• Meadowcells – Rural Small Cells
Source: Qualcomm

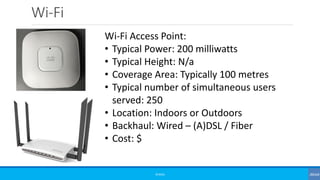

Wi-Fi
©3G4G
Wi-Fi Access Point:
• Typical Power: 200 milliwatts
• Typical Height: N/a
• Coverage Area: Typically 100 metres
• Typical number of simultaneous users
served: 250
• Location: Indoors or Outdoors
• Backhaul: Wired – (A)DSL / Fiber
• Cost: $

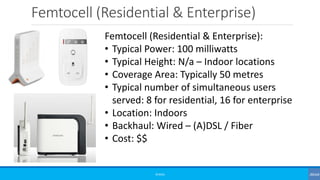

Femtocell (Residential & Enterprise)
©3G4G
Femtocell (Residential & Enterprise):
• Typical Power: 100 milliwatts
• Typical Height: N/a – Indoor locations
• Coverage Area: Typically 50 metres
• Typical number of simultaneous users
served: 8 for residential, 16 for enterprise
• Location: Indoors
• Backhaul: Wired – (A)DSL / Fiber
• Cost: $$

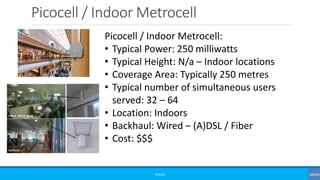

Picocell / Indoor Metrocell
©3G4G
Picocell / Indoor Metrocell:
• Typical Power: 250 milliwatts
• Typical Height: N/a – Indoor locations
• Coverage Area: Typically 250 metres
• Typical number of simultaneous users
served: 32 – 64
• Location: Indoors
• Backhaul: Wired – (A)DSL / Fiber
• Cost: $$$

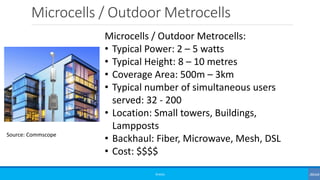

Microcells / Outdoor Metrocells
©3G4G
Microcells / Outdoor Metrocells:
• Typical Power: 2 – 5 watts
• Typical Height: 8 – 10 metres
• Coverage Area: 500m – 3km
• Typical number of simultaneous users
served: 32 - 200
• Location: Small towers, Buildings,
Lampposts
• Backhaul: Fiber, Microwave, Mesh, DSL
• Cost: $$$$
Source: Commscope

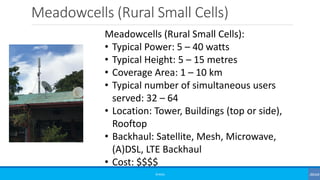

Meadowcells (Rural Small Cells)
©3G4G
Meadowcells (Rural Small Cells):
• Typical Power: 5 – 40 watts
• Typical Height: 5 – 15 metres
• Coverage Area: 1 – 10 km
• Typical number of simultaneous users
served: 32 – 64
• Location: Tower, Buildings (top or side),
Rooftop
• Backhaul: Satellite, Mesh, Microwave,
(A)DSL, LTE Backhaul
• Cost: $$$$

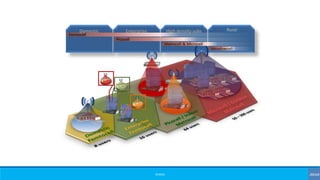

©3G4G
Rural

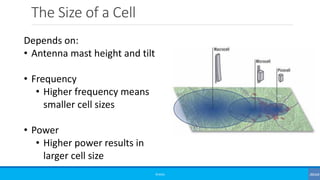

The Size of a Cell
©3G4G
Depends on:
• Antenna mast height and tilt
• Frequency
• Higher frequency means
smaller cell sizes
• Power
• Higher power results in
larger cell size

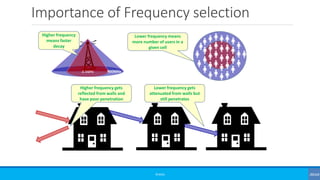

Importance of Frequency selection
©3G4G
2.1GHz 900MHz
Higher frequency
means faster
decay
Lower frequency means
more number of users in a
given cell
Higher frequency gets
reflected from walls and
have poor penetration
Lower frequency gets
attenuated from walls but
still penetrates
More Examples of Small Cells
©3G4G
Telefónica LTE Nano
More Examples of Small Cells
©3G4G
Sprint’s Magic Box
on Drone
More Examples of Small Cells
©3G4G

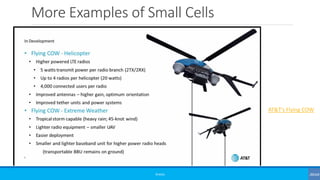

AT&T’s Flying COW
More Examples of Small Cells
©3G4G
KDDI Small Cell Lamppost

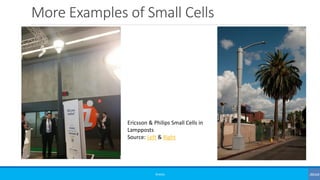

More Examples of Small Cells
©3G4G
Ericsson & Philips Small Cells in
Lampposts
Source: Left & Right

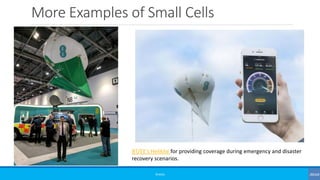

More Examples of Small Cells
©3G4G
BT/EE’s Helikite for providing coverage during emergency and disaster
recovery scenarios.

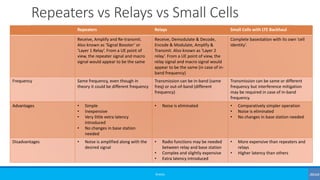

Repeaters vs Relays vs Small Cells
©3G4G
Repeaters Relays Small Cells with LTE Backhaul
Receive, Amplify and Re-transmit.
Also known as ‘Signal Booster’ or
‘Layer 1 Relay’. From a UE point of
view, the repeater signal and macro
signal would appear to be the same
Receive, Demodulate & Decode,
Encode & Modulate, Amplify &
Transmit. Also known as ‘Layer 2
relay’. From a UE point of view, the
relay signal and macro signal would
appear to be the same (in case of in-
band frequency)
Complete basestation with its own ‘cell
identity’.
Frequency Same frequency, even though in
theory it could be different frequency
Transmission can be in-band (same
freq) or out-of-band (different
frequency)
Transmission can be same or different
frequency but interference mitigation
may be required in case of in-band
frequency.
Advantages • Simple
• Inexpensive
• Very little extra latency
introduced
• No changes in base station
needed
• Noise is eliminated • Comparatively simpler operation
• Noise is eliminated
• No changes in base station needed
Disadvantages • Noise is amplified along with the
desired signal
• Radio functions may be needed
between relay and base station
• Complex and slightly expensive
• Extra latency introduced
• More expensive than repeaters and
relays
• Higher latency than others
ICYMI
©3G4G

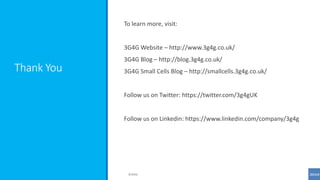

Thank You
To learn more, visit:
3G4G Website – http://www.3g4g.co.uk/
3G4G Blog – http://blog.3g4g.co.uk/
3G4G Small Cells Blog – http://smallcells.3g4g.co.uk/
Follow us on Twitter: https://twitter.com/3g4gUK
Follow us on Linkedin: https://www.linkedin.com/company/3g4g
©3G4G

More Related Content

What's hot

Interference and system capacity
Interference and system capacityInterference and system capacity
Interference and system capacity
AJAL A J

LTE ADVANCED PPT
LTE ADVANCED PPTLTE ADVANCED PPT
LTE ADVANCED PPT
Trinath

Handover &mobility in 4g5g
Handover &mobility in 4g5gHandover &mobility in 4g5g
Handover &mobility in 4g5g
abolfazlzakeri

5G Network Architecture and Design
5G Network Architecture and Design5G Network Architecture and Design
5G Network Architecture and Design
3G4G

Small Cell IN 5G TECHNOLOGY
Small Cell IN 5G TECHNOLOGYSmall Cell IN 5G TECHNOLOGY
Small Cell IN 5G TECHNOLOGY
Gajula Vijay Kumar

Non orthogonal multiple access
Non orthogonal multiple accessNon orthogonal multiple access
Non orthogonal multiple access
ShalikramRajpoot

Assignment Of 5G Antenna Design Technique
Assignment Of 5G Antenna Design TechniqueAssignment Of 5G Antenna Design Technique
4 g LTE, LTE Advance
4 g LTE, LTE Advance 4 g LTE, LTE Advance
4 g LTE, LTE Advance
Sajid Marwat

Introduction to 5G NR
Introduction to 5G NRIntroduction to 5G NR
Introduction to 5G NR
Abhijeet Kumar

Lte Presentation.Ppt
Lte Presentation.PptLte Presentation.Ppt
Lte Presentation.Ppt
vaimalik

NOMA in 5G Networks
NOMA in 5G NetworksNOMA in 5G Networks
NOMA in 5G Networks
SyedShaharyaarHussai

Project Report (Basic Telecom) BSNL
Project Report (Basic Telecom) BSNLProject Report (Basic Telecom) BSNL
Project Report (Basic Telecom) BSNL
Pankaj Purbey

Small scale fading and multipath measurements
Small scale fading and multipath measurementsSmall scale fading and multipath measurements
Small scale fading and multipath measurements
Vrince Vimal

Rayleigh Fading Channel In Mobile Digital Communication System
Rayleigh Fading Channel In Mobile Digital Communication SystemRayleigh Fading Channel In Mobile Digital Communication System
Rayleigh Fading Channel In Mobile Digital Communication System
OUM SAOKOSAL

Outdoor propagatiom model
Outdoor propagatiom modelOutdoor propagatiom model
Outdoor propagatiom model
Krishnapavan Samudrala

Intelligent Networks
Intelligent NetworksIntelligent Networks
Intelligent Networks
Faraz Shahid

UMTS, Introduction.
UMTS, Introduction.UMTS, Introduction.
UMTS, Introduction.
Mateen Shahid

Chap 4 (large scale propagation)
Chap 4 (large scale propagation)Chap 4 (large scale propagation)
Chap 4 (large scale propagation)
asadkhan1327

LTE Architecture
LTE ArchitectureLTE Architecture
LTE Architecture
Manje Gowda

Path Loss and Shadowing
Path Loss and ShadowingPath Loss and Shadowing
Path Loss and Shadowing
Yash Gupta


What's hot (20)

Interference and system capacity
Interference and system capacityInterference and system capacity
Interference and system capacity

LTE ADVANCED PPT
LTE ADVANCED PPTLTE ADVANCED PPT
LTE ADVANCED PPT

Handover &mobility in 4g5g
Handover &mobility in 4g5gHandover &mobility in 4g5g
Handover &mobility in 4g5g

5G Network Architecture and Design
5G Network Architecture and Design5G Network Architecture and Design
5G Network Architecture and Design

Small Cell IN 5G TECHNOLOGY
Small Cell IN 5G TECHNOLOGYSmall Cell IN 5G TECHNOLOGY
Small Cell IN 5G TECHNOLOGY

Non orthogonal multiple access
Non orthogonal multiple accessNon orthogonal multiple access
Non orthogonal multiple access

Assignment Of 5G Antenna Design Technique
Assignment Of 5G Antenna Design TechniqueAssignment Of 5G Antenna Design Technique
Assignment Of 5G Antenna Design Technique

4 g LTE, LTE Advance
4 g LTE, LTE Advance 4 g LTE, LTE Advance
4 g LTE, LTE Advance

Introduction to 5G NR
Introduction to 5G NRIntroduction to 5G NR
Introduction to 5G NR

Lte Presentation.Ppt
Lte Presentation.PptLte Presentation.Ppt
Lte Presentation.Ppt

NOMA in 5G Networks
NOMA in 5G NetworksNOMA in 5G Networks
NOMA in 5G Networks

Project Report (Basic Telecom) BSNL
Project Report (Basic Telecom) BSNLProject Report (Basic Telecom) BSNL
Project Report (Basic Telecom) BSNL

Small scale fading and multipath measurements
Small scale fading and multipath measurementsSmall scale fading and multipath measurements
Small scale fading and multipath measurements

Rayleigh Fading Channel In Mobile Digital Communication System
Rayleigh Fading Channel In Mobile Digital Communication SystemRayleigh Fading Channel In Mobile Digital Communication System
Rayleigh Fading Channel In Mobile Digital Communication System

Outdoor propagatiom model
Outdoor propagatiom modelOutdoor propagatiom model
Outdoor propagatiom model

Intelligent Networks
Intelligent NetworksIntelligent Networks
Intelligent Networks

UMTS, Introduction.
UMTS, Introduction.UMTS, Introduction.
UMTS, Introduction.

Chap 4 (large scale propagation)
Chap 4 (large scale propagation)Chap 4 (large scale propagation)
Chap 4 (large scale propagation)

LTE Architecture
LTE ArchitectureLTE Architecture
LTE Architecture

Path Loss and Shadowing
Path Loss and ShadowingPath Loss and Shadowing
Path Loss and Shadowing


Similar to An Introduction to Macrocells & Small Cells

Telesemana the role of e band and v-band backhaul technologies in het nets 20...
Telesemana the role of e band and v-band backhaul technologies in het nets 20...Telesemana the role of e band and v-band backhaul technologies in het nets 20...
Telesemana the role of e band and v-band backhaul technologies in het nets 20...
Rafael Junquera

Small Cell Networks - Current Research and Future Landscape
Small Cell Networks - Current Research and Future LandscapeSmall Cell Networks - Current Research and Future Landscape
Small Cell Networks - Current Research and Future Landscape
CPqD

ZyXEL LMT3313 LTE Small Cell CPE
ZyXEL LMT3313 LTE Small Cell CPEZyXEL LMT3313 LTE Small Cell CPE
ZyXEL LMT3313 LTE Small Cell CPE
Zyxel Communications Corp.

Get Real
Get RealGet Real
Get Real
Peter Claydon

LTE and Satellite: Solutions for Rural and Public Safety Networking
LTE and Satellite: Solutions for Rural and Public Safety NetworkingLTE and Satellite: Solutions for Rural and Public Safety Networking
LTE and Satellite: Solutions for Rural and Public Safety Networking
Small Cell Forum

TopologicalPlanningandDesignofHeterogeneousMobileNetworksinDenseAreas.pdf
TopologicalPlanningandDesignofHeterogeneousMobileNetworksinDenseAreas.pdfTopologicalPlanningandDesignofHeterogeneousMobileNetworksinDenseAreas.pdf
TopologicalPlanningandDesignofHeterogeneousMobileNetworksinDenseAreas.pdf
BrianJanAdela3

Small Cell Wireless Backhaul Business Case
Small Cell Wireless Backhaul Business CaseSmall Cell Wireless Backhaul Business Case
Small Cell Wireless Backhaul Business Case
Frank Rayal

Smart Grids Versus Microgrids
Smart Grids Versus MicrogridsSmart Grids Versus Microgrids
Smart Grids Versus Microgrids
Université de Liège (ULg)

4 g hetnets μακρής_dec15
4 g hetnets μακρής_dec154 g hetnets μακρής_dec15
4 g hetnets μακρής_dec15
Hamed Raza

Cellular Communications for Utilities
Cellular Communications for UtilitiesCellular Communications for Utilities
Cellular Communications for Utilities
TESCO - The Eastern Specialty Company

Telco evangelist 23 jan 2013
Telco evangelist 23 jan 2013Telco evangelist 23 jan 2013
Telco evangelist 23 jan 2013
David Chambers

Internship Training Project Report "PowerGrid"
Internship Training Project Report "PowerGrid"Internship Training Project Report "PowerGrid"
Internship Training Project Report "PowerGrid"
Raushan11

maaaasss
maaaasssmaaaasss
maaaasss
Fawad Masood

Cellular Enterprise Architecture Solutions
Cellular Enterprise Architecture SolutionsCellular Enterprise Architecture Solutions
Cellular Enterprise Architecture Solutions
David Chambers

ppt on femtocell
ppt on femtocellppt on femtocell
ppt on femtocell
Vikram Kumar

Small Cell @ IT Telkom
Small Cell @ IT TelkomSmall Cell @ IT Telkom
Small Cell @ IT Telkom
Arief Gunawan

a detailed study on femtocell,
a detailed study on femtocell,a detailed study on femtocell,
a detailed study on femtocell,
Ali Ali

Technology Products
Technology ProductsTechnology Products
Technology Products
Abhijit. Annaldasula

cable fault.pptx
cable fault.pptxcable fault.pptx
cable fault.pptx
ramalingams7

UK Spectrum Policy Forum - Professor Rahim Tafazolli, University of Surrey: 5...
UK Spectrum Policy Forum - Professor Rahim Tafazolli, University of Surrey: 5...UK Spectrum Policy Forum - Professor Rahim Tafazolli, University of Surrey: 5...
UK Spectrum Policy Forum - Professor Rahim Tafazolli, University of Surrey: 5...
techUK


Similar to An Introduction to Macrocells & Small Cells (20)

Telesemana the role of e band and v-band backhaul technologies in het nets 20...
Telesemana the role of e band and v-band backhaul technologies in het nets 20...Telesemana the role of e band and v-band backhaul technologies in het nets 20...
Telesemana the role of e band and v-band backhaul technologies in het nets 20...

Small Cell Networks - Current Research and Future Landscape
Small Cell Networks - Current Research and Future LandscapeSmall Cell Networks - Current Research and Future Landscape
Small Cell Networks - Current Research and Future Landscape

ZyXEL LMT3313 LTE Small Cell CPE
ZyXEL LMT3313 LTE Small Cell CPEZyXEL LMT3313 LTE Small Cell CPE
ZyXEL LMT3313 LTE Small Cell CPE

Get Real
Get RealGet Real
Get Real

LTE and Satellite: Solutions for Rural and Public Safety Networking
LTE and Satellite: Solutions for Rural and Public Safety NetworkingLTE and Satellite: Solutions for Rural and Public Safety Networking
LTE and Satellite: Solutions for Rural and Public Safety Networking

TopologicalPlanningandDesignofHeterogeneousMobileNetworksinDenseAreas.pdf
TopologicalPlanningandDesignofHeterogeneousMobileNetworksinDenseAreas.pdfTopologicalPlanningandDesignofHeterogeneousMobileNetworksinDenseAreas.pdf
TopologicalPlanningandDesignofHeterogeneousMobileNetworksinDenseAreas.pdf

Small Cell Wireless Backhaul Business Case
Small Cell Wireless Backhaul Business CaseSmall Cell Wireless Backhaul Business Case
Small Cell Wireless Backhaul Business Case

Smart Grids Versus Microgrids
Smart Grids Versus MicrogridsSmart Grids Versus Microgrids
Smart Grids Versus Microgrids

4 g hetnets μακρής_dec15
4 g hetnets μακρής_dec154 g hetnets μακρής_dec15
4 g hetnets μακρής_dec15

Cellular Communications for Utilities
Cellular Communications for UtilitiesCellular Communications for Utilities
Cellular Communications for Utilities

Telco evangelist 23 jan 2013
Telco evangelist 23 jan 2013Telco evangelist 23 jan 2013
Telco evangelist 23 jan 2013

Internship Training Project Report "PowerGrid"
Internship Training Project Report "PowerGrid"Internship Training Project Report "PowerGrid"
Internship Training Project Report "PowerGrid"

maaaasss
maaaasssmaaaasss
maaaasss

Cellular Enterprise Architecture Solutions
Cellular Enterprise Architecture SolutionsCellular Enterprise Architecture Solutions
Cellular Enterprise Architecture Solutions

ppt on femtocell
ppt on femtocellppt on femtocell
ppt on femtocell

Small Cell @ IT Telkom
Small Cell @ IT TelkomSmall Cell @ IT Telkom
Small Cell @ IT Telkom

a detailed study on femtocell,
a detailed study on femtocell,a detailed study on femtocell,
a detailed study on femtocell,

Technology Products
Technology ProductsTechnology Products
Technology Products

cable fault.pptx
cable fault.pptxcable fault.pptx
cable fault.pptx

UK Spectrum Policy Forum - Professor Rahim Tafazolli, University of Surrey: 5...
UK Spectrum Policy Forum - Professor Rahim Tafazolli, University of Surrey: 5...UK Spectrum Policy Forum - Professor Rahim Tafazolli, University of Surrey: 5...
UK Spectrum Policy Forum - Professor Rahim Tafazolli, University of Surrey: 5...


More from 3G4G

TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...
TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...
TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...
3G4G

Misc: What are No Mobile Coverage Zones called?
Misc: What are No Mobile Coverage Zones called?Misc: What are No Mobile Coverage Zones called?
Misc: What are No Mobile Coverage Zones called?
3G4G

TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…
TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…
TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…
3G4G

TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…
TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…
TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…
3G4G

Beginners: An Quick Introduction to 3GPP
Beginners: An Quick Introduction to 3GPPBeginners: An Quick Introduction to 3GPP
Beginners: An Quick Introduction to 3GPP
3G4G

Misc: Mobile Technology and Healthcare
Misc: Mobile Technology and HealthcareMisc: Mobile Technology and Healthcare
Misc: Mobile Technology and Healthcare
3G4G

Should we stop the shutdown of 2G/3G to save lives??
Should we stop the shutdown of 2G/3G to save lives??Should we stop the shutdown of 2G/3G to save lives??
Should we stop the shutdown of 2G/3G to save lives??
3G4G

Opinion – 5G Reality Check: Speeds
Opinion – 5G Reality Check: SpeedsOpinion – 5G Reality Check: Speeds
Opinion – 5G Reality Check: Speeds
3G4G

Technology Introduction Series: Edge Computing tutorial.pdf
Technology Introduction Series: Edge Computing tutorial.pdfTechnology Introduction Series: Edge Computing tutorial.pdf
Technology Introduction Series: Edge Computing tutorial.pdf
3G4G

6G: Potential Use Cases and Enabling Technologies
6G: Potential Use Cases and Enabling Technologies6G: Potential Use Cases and Enabling Technologies
6G: Potential Use Cases and Enabling Technologies
3G4G

3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)
3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)
3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)
3G4G

3GPP SON Series: Energy Savings (ES)
3GPP SON Series: Energy Savings (ES)3GPP SON Series: Energy Savings (ES)
3GPP SON Series: Energy Savings (ES)
3G4G

3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)
3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)
3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)
3G4G

3GPP SON Series: Minimization of Drive Testing (MDT)
3GPP SON Series: Minimization of Drive Testing (MDT)3GPP SON Series: Minimization of Drive Testing (MDT)
3GPP SON Series: Minimization of Drive Testing (MDT)
3G4G

3GPP SON Series: Coverage and Capacity Optimization (CCO)
3GPP SON Series: Coverage and Capacity Optimization (CCO)3GPP SON Series: Coverage and Capacity Optimization (CCO)
3GPP SON Series: Coverage and Capacity Optimization (CCO)
3G4G

3GPP SON Series: SON in 3GPP Release-10 – Self-healing
3GPP SON Series: SON in 3GPP Release-10 – Self-healing3GPP SON Series: SON in 3GPP Release-10 – Self-healing
3GPP SON Series: SON in 3GPP Release-10 – Self-healing
3G4G

3GPP SON Series: RACH Optimization
3GPP SON Series: RACH Optimization3GPP SON Series: RACH Optimization
3GPP SON Series: RACH Optimization
3G4G

3GPP SON Series: Mobility Robustness Optimization (MRO)
3GPP SON Series: Mobility Robustness Optimization (MRO)3GPP SON Series: Mobility Robustness Optimization (MRO)
3GPP SON Series: Mobility Robustness Optimization (MRO)
3G4G

3GPP SON Series: SON in 3GPP Release-9 – Self-optimization
3GPP SON Series: SON in 3GPP Release-9 – Self-optimization3GPP SON Series: SON in 3GPP Release-9 – Self-optimization
3GPP SON Series: SON in 3GPP Release-9 – Self-optimization
3G4G

Beginners: Energy Consumption in Mobile Networks - RAN Power Saving Schemes
Beginners: Energy Consumption in Mobile Networks - RAN Power Saving SchemesBeginners: Energy Consumption in Mobile Networks - RAN Power Saving Schemes
Beginners: Energy Consumption in Mobile Networks - RAN Power Saving Schemes
3G4G


More from 3G4G (20)

TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...
TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...
TechKnowledge Technology Stories - Part 3: Satellites - Our Friends In The Sk...

Misc: What are No Mobile Coverage Zones called?
Misc: What are No Mobile Coverage Zones called?Misc: What are No Mobile Coverage Zones called?
Misc: What are No Mobile Coverage Zones called?

TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…
TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…
TechKnowledge Technology Stories - Part 2: Connecting Everything Everywhere…

TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…
TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…
TechKnowledge Technology Stories - Part 1: Smaller, Faster, Cheaper and More…

Beginners: An Quick Introduction to 3GPP
Beginners: An Quick Introduction to 3GPPBeginners: An Quick Introduction to 3GPP
Beginners: An Quick Introduction to 3GPP

Misc: Mobile Technology and Healthcare
Misc: Mobile Technology and HealthcareMisc: Mobile Technology and Healthcare
Misc: Mobile Technology and Healthcare

Should we stop the shutdown of 2G/3G to save lives??
Should we stop the shutdown of 2G/3G to save lives??Should we stop the shutdown of 2G/3G to save lives??
Should we stop the shutdown of 2G/3G to save lives??

Opinion – 5G Reality Check: Speeds
Opinion – 5G Reality Check: SpeedsOpinion – 5G Reality Check: Speeds
Opinion – 5G Reality Check: Speeds

Technology Introduction Series: Edge Computing tutorial.pdf
Technology Introduction Series: Edge Computing tutorial.pdfTechnology Introduction Series: Edge Computing tutorial.pdf
Technology Introduction Series: Edge Computing tutorial.pdf

6G: Potential Use Cases and Enabling Technologies
6G: Potential Use Cases and Enabling Technologies6G: Potential Use Cases and Enabling Technologies
6G: Potential Use Cases and Enabling Technologies

3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)
3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)
3GPP SON Series: SON Management in HetNets and Enhanced ICIC (eICIC)

3GPP SON Series: Energy Savings (ES)
3GPP SON Series: Energy Savings (ES)3GPP SON Series: Energy Savings (ES)
3GPP SON Series: Energy Savings (ES)

3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)
3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)
3GPP SON Series: Cell Outage Detection and Compensation (COD & COC)

3GPP SON Series: Minimization of Drive Testing (MDT)
3GPP SON Series: Minimization of Drive Testing (MDT)3GPP SON Series: Minimization of Drive Testing (MDT)
3GPP SON Series: Minimization of Drive Testing (MDT)

3GPP SON Series: Coverage and Capacity Optimization (CCO)
3GPP SON Series: Coverage and Capacity Optimization (CCO)3GPP SON Series: Coverage and Capacity Optimization (CCO)
3GPP SON Series: Coverage and Capacity Optimization (CCO)

3GPP SON Series: SON in 3GPP Release-10 – Self-healing
3GPP SON Series: SON in 3GPP Release-10 – Self-healing3GPP SON Series: SON in 3GPP Release-10 – Self-healing
3GPP SON Series: SON in 3GPP Release-10 – Self-healing

3GPP SON Series: RACH Optimization
3GPP SON Series: RACH Optimization3GPP SON Series: RACH Optimization
3GPP SON Series: RACH Optimization

3GPP SON Series: Mobility Robustness Optimization (MRO)
3GPP SON Series: Mobility Robustness Optimization (MRO)3GPP SON Series: Mobility Robustness Optimization (MRO)
3GPP SON Series: Mobility Robustness Optimization (MRO)

3GPP SON Series: SON in 3GPP Release-9 – Self-optimization
3GPP SON Series: SON in 3GPP Release-9 – Self-optimization3GPP SON Series: SON in 3GPP Release-9 – Self-optimization
3GPP SON Series: SON in 3GPP Release-9 – Self-optimization

Beginners: Energy Consumption in Mobile Networks - RAN Power Saving Schemes
Beginners: Energy Consumption in Mobile Networks - RAN Power Saving SchemesBeginners: Energy Consumption in Mobile Networks - RAN Power Saving Schemes
Beginners: Energy Consumption in Mobile Networks - RAN Power Saving Schemes


Recently uploaded

Digital Artifact 1 - 10VCD Environments Unit
Digital Artifact 1 - 10VCD Environments UnitDigital Artifact 1 - 10VCD Environments Unit
Digital Artifact 1 - 10VCD Environments Unit
chanes7

Assignment_4_ArianaBusciglio Marvel(1).docx
Assignment_4_ArianaBusciglio Marvel(1).docxAssignment_4_ArianaBusciglio Marvel(1).docx
Assignment_4_ArianaBusciglio Marvel(1).docx
ArianaBusciglio

DRUGS AND ITS classification slide share
DRUGS AND ITS classification slide shareDRUGS AND ITS classification slide share
DRUGS AND ITS classification slide share
taiba qazi

Group Presentation 2 Economics.Ariana Buscigliopptx
Group Presentation 2 Economics.Ariana BuscigliopptxGroup Presentation 2 Economics.Ariana Buscigliopptx
Group Presentation 2 Economics.Ariana Buscigliopptx
ArianaBusciglio

clinical examination of hip joint (1).pdf
clinical examination of hip joint (1).pdfclinical examination of hip joint (1).pdf
clinical examination of hip joint (1).pdf
Priyankaranawat4

Introduction to AI for Nonprofits with Tapp Network
Introduction to AI for Nonprofits with Tapp NetworkIntroduction to AI for Nonprofits with Tapp Network
Introduction to AI for Nonprofits with Tapp Network
TechSoup

Advantages and Disadvantages of CMS from an SEO Perspective
Advantages and Disadvantages of CMS from an SEO PerspectiveAdvantages and Disadvantages of CMS from an SEO Perspective
Advantages and Disadvantages of CMS from an SEO Perspective
Krisztián Száraz

A Strategic Approach: GenAI in Education
A Strategic Approach: GenAI in EducationA Strategic Approach: GenAI in Education
A Strategic Approach: GenAI in Education
Peter Windle

PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.
Dr. Shivangi Singh Parihar

Main Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docxMain Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docx
adhitya5119

Digital Artefact 1 - Tiny Home Environmental Design
Digital Artefact 1 - Tiny Home Environmental DesignDigital Artefact 1 - Tiny Home Environmental Design
Digital Artefact 1 - Tiny Home Environmental Design
amberjdewit93

A Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdfA Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdf
Jean Carlos Nunes Paixão

How to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRMHow to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRM
Celine George

Your Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective UpskillingYour Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective Upskilling
Excellence Foundation for South Sudan

Pride Month Slides 2024 David Douglas School District
Pride Month Slides 2024 David Douglas School DistrictPride Month Slides 2024 David Douglas School District
Pride Month Slides 2024 David Douglas School District
David Douglas School District

The basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptxThe basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptx
heathfieldcps1

Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Dr. Vinod Kumar Kanvaria

Biological Screening of Herbal Drugs in detailed.
Biological Screening of Herbal Drugs in detailed.Biological Screening of Herbal Drugs in detailed.
Biological Screening of Herbal Drugs in detailed.
Ashokrao Mane college of Pharmacy Peth-Vadgaon

June 3, 2024 Anti-Semitism Letter Sent to MIT President Kornbluth and MIT Cor...
June 3, 2024 Anti-Semitism Letter Sent to MIT President Kornbluth and MIT Cor...June 3, 2024 Anti-Semitism Letter Sent to MIT President Kornbluth and MIT Cor...
June 3, 2024 Anti-Semitism Letter Sent to MIT President Kornbluth and MIT Cor...
Levi Shapiro

Film vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movieFilm vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movie
Nicholas Montgomery


Recently uploaded (20)

Digital Artifact 1 - 10VCD Environments Unit
Digital Artifact 1 - 10VCD Environments UnitDigital Artifact 1 - 10VCD Environments Unit
Digital Artifact 1 - 10VCD Environments Unit

Assignment_4_ArianaBusciglio Marvel(1).docx
Assignment_4_ArianaBusciglio Marvel(1).docxAssignment_4_ArianaBusciglio Marvel(1).docx
Assignment_4_ArianaBusciglio Marvel(1).docx

DRUGS AND ITS classification slide share
DRUGS AND ITS classification slide shareDRUGS AND ITS classification slide share
DRUGS AND ITS classification slide share

Group Presentation 2 Economics.Ariana Buscigliopptx
Group Presentation 2 Economics.Ariana BuscigliopptxGroup Presentation 2 Economics.Ariana Buscigliopptx
Group Presentation 2 Economics.Ariana Buscigliopptx

clinical examination of hip joint (1).pdf
clinical examination of hip joint (1).pdfclinical examination of hip joint (1).pdf
clinical examination of hip joint (1).pdf

Introduction to AI for Nonprofits with Tapp Network
Introduction to AI for Nonprofits with Tapp NetworkIntroduction to AI for Nonprofits with Tapp Network
Introduction to AI for Nonprofits with Tapp Network

Advantages and Disadvantages of CMS from an SEO Perspective
Advantages and Disadvantages of CMS from an SEO PerspectiveAdvantages and Disadvantages of CMS from an SEO Perspective
Advantages and Disadvantages of CMS from an SEO Perspective

A Strategic Approach: GenAI in Education
A Strategic Approach: GenAI in EducationA Strategic Approach: GenAI in Education
A Strategic Approach: GenAI in Education

PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.PCOS corelations and management through Ayurveda.
PCOS corelations and management through Ayurveda.

Main Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docxMain Java[All of the Base Concepts}.docx
Main Java[All of the Base Concepts}.docx

Digital Artefact 1 - Tiny Home Environmental Design
Digital Artefact 1 - Tiny Home Environmental DesignDigital Artefact 1 - Tiny Home Environmental Design
Digital Artefact 1 - Tiny Home Environmental Design

A Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdfA Independência da América Espanhola LAPBOOK.pdf
A Independência da América Espanhola LAPBOOK.pdf

How to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRMHow to Manage Your Lost Opportunities in Odoo 17 CRM
How to Manage Your Lost Opportunities in Odoo 17 CRM

Your Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective UpskillingYour Skill Boost Masterclass: Strategies for Effective Upskilling
Your Skill Boost Masterclass: Strategies for Effective Upskilling

Pride Month Slides 2024 David Douglas School District
Pride Month Slides 2024 David Douglas School DistrictPride Month Slides 2024 David Douglas School District
Pride Month Slides 2024 David Douglas School District

The basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptxThe basics of sentences session 6pptx.pptx
The basics of sentences session 6pptx.pptx

Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...
Exploiting Artificial Intelligence for Empowering Researchers and Faculty, In...

Biological Screening of Herbal Drugs in detailed.
Biological Screening of Herbal Drugs in detailed.Biological Screening of Herbal Drugs in detailed.
Biological Screening of Herbal Drugs in detailed.

June 3, 2024 Anti-Semitism Letter Sent to MIT President Kornbluth and MIT Cor...
June 3, 2024 Anti-Semitism Letter Sent to MIT President Kornbluth and MIT Cor...June 3, 2024 Anti-Semitism Letter Sent to MIT President Kornbluth and MIT Cor...
June 3, 2024 Anti-Semitism Letter Sent to MIT President Kornbluth and MIT Cor...

Film vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movieFilm vocab for eal 3 students: Australia the movie
Film vocab for eal 3 students: Australia the movie


An Introduction to Macrocells & Small Cells

  • 1. An Introduction to Macrocells & Small Cells @3g4gUK
  • 2. Mobile Towers in Theory ©3G4G
  • 3. Mobile Towers in Theory ©3G4G
  • 4. Mobile Towers in Practice ©3G4G
  • 5. Mobile Towers in Real Life ©3G4G Source: Ofcom
  • 6. Mobile Towers in Real Life
  • 7. Mobile Towers in Real Life BBU + RU Source: National Instruments
  • 8. Mobile Towers in Real Life BBU + RU Source: National Instruments
  • 9. Macrocells ©3G4G Macrocell: • Typical Power: 20 – 40 watts • Typical Height: 15 – 25 metres • Coverage Area: 25 – 40 km • Typical number of simultaneous users served: >200 per sector/per frequency • Location: Tower (urban/rural), Top of buildings (urban) • Backhaul: Fiber, Microwave, DSL • Cost: $$$$$$$$$
  • 10. Macrocell Connections & Terminology ©3G4G BBU + Router RRU / RRH Fronthaul (CPRI) Service Provider Datacenter Backhaul
  • 11. Centralized RAN (C-RAN) / BBU Hostelling ©3G4G RRU / RRH Fronthaul (CPRI) Service Provider Datacenter Backhaul BBU Hostel
  • 12. Cloud RAN (C-RAN) ©3G4G RRU / RRH Fronthaul (CPRI) Service Provider Datacenter Backhaul Cloud Datacenter
  • 13. Distributed Antenna System (DAS) ©3G4G Source: Exuberant Solutions Source: AT&T
  • 14. Mini-Macro ©3G4G A mini-macro is the same as macrocell with the following differences: • Single sector • Single frequency • Single RAT (e.g., 2G/3G/4G) or Multi-RAT (e.g., 3G & 4G) • Antenna height typically: 8 – 10 meters • Backhaul: Microwave, Mesh, Fiber, DSL – typically lower bandwidth than macrocell Note: All the above is general guidance. Deployments can vary significantly for each operator
  • 15. Mini-Macro ©3G4G #Vodafone new Mini Macro mast with all the. Gear in the Base. As to be shortly deployed in #Porthcurno #Cornwall ( but taller of course! 8m) - @Phonemast on Twitter
  • 17. Why do we need ‘Small Cells’ ©3G4G
  • 18. Why do we need ‘Small Cells’ ©3G4G
  • 19. Why do we need ‘Small Cells’ ©3G4G Source: Zahid Ghadialy Source: The Telegraph
  • 20. Why do we need ‘Small Cells’ ©3G4G Source: TravelSkills
  • 21. Definition of Small Cells ©3G4G Small cells or small cellular base stations encompass a number of different technologies but one could describe them as anything that's not a typical macro site. They are deployed to solve network capacity issues in a relatively small area, like a hot spot or an important zone that is a subset of the umbrella macro site coverage. “From our world, everything is a small cell if its not nailed to a tower. So it could be Wi-Fi, Indoor / Outdoor, DAS, Femtocells, Metrocells, Remote Radioheads, Microcells and Signal Boosters as well…” - Iain Gillott, Founder and President, IGR Research
  • 22. Definition of Small Cells ©3G4G ‘Small cells’ is an umbrella term for operator-controlled, low- powered radio access nodes, including those that operate in licensed spectrum and unlicensed carrier-grade Wi-Fi. Small cells typically have a range from 10 meters to several hundred meters. Types of small cells include femtocells, picocells and microcells – broadly increasing in size from femtocells (the smallest) to microcells (the largest). Any or all of these small cells can be based on ‘femtocell technology’ – i.e. the collection of standards, software, open interfaces, chips and know-how that have powered the growth of femtocells.
  • 23. My definition of ‘Small Cells’ ©3G4G • Small form factor • Complete base station (contains BBU + RU + optionally Router)
  • 24. Ericsson’s Radio Dot Small Cell ©3G4G Source: Ericsson
  • 26. My definition of ‘Small Cells’ ©3G4G • Small form factor • Complete base station (contains BBU + RU + optionally Router) • Low power consumption → Not necessarily low power output • ‘Licensed’ or ‘Unlicensed’ spectrum • Does not include non-cellular technologies like Wi-Fi, etc., unless used in conjunction with cellular technologies • ‘Indoor’ and/or ‘Outdoor’ deployment • Deployed for ‘Coverage’, ‘Capacity’, ‘Densification’, ‘High Throughput’, ‘Improved Signal Quality’, ‘Improved User Experience’, ‘Value-added Services’, ‘Smart Application’, ‘Proximity marketing’, etc.
  • 27. Characteristics of ‘Small Cells’ ©3G4G • Easy and straightforward to deploy • Femtocells should be deployed by the end-users themselves • Other types of small cells should be easily deployed by low- skilled installers • SON capability (centralized, distributed or hybrid) • Self-configuration • Self-optimization and interference management for ad-hoc deployments • Synchronized to the macro network • Mainly for urban & dense deployments • Flexibility on backhaul capability
  • 28. Types of Small Cells ©3G4G • Femtocells – Residential & Enterprise • Picocells – Sometimes referred to as ‘Indoor Metrocells’ • Microcells – Sometimes referred to as ‘Metrocells’ or ‘Outdoor Metrocells’ • Meadowcells – Rural Small Cells Source: Qualcomm
  • 29. Wi-Fi ©3G4G Wi-Fi Access Point: • Typical Power: 200 milliwatts • Typical Height: N/a • Coverage Area: Typically 100 metres • Typical number of simultaneous users served: 250 • Location: Indoors or Outdoors • Backhaul: Wired – (A)DSL / Fiber • Cost: $
  • 30. Femtocell (Residential & Enterprise) ©3G4G Femtocell (Residential & Enterprise): • Typical Power: 100 milliwatts • Typical Height: N/a – Indoor locations • Coverage Area: Typically 50 metres • Typical number of simultaneous users served: 8 for residential, 16 for enterprise • Location: Indoors • Backhaul: Wired – (A)DSL / Fiber • Cost: $$
  • 31. Picocell / Indoor Metrocell ©3G4G Picocell / Indoor Metrocell: • Typical Power: 250 milliwatts • Typical Height: N/a – Indoor locations • Coverage Area: Typically 250 metres • Typical number of simultaneous users served: 32 – 64 • Location: Indoors • Backhaul: Wired – (A)DSL / Fiber • Cost: $$$
  • 32. Microcells / Outdoor Metrocells ©3G4G Microcells / Outdoor Metrocells: • Typical Power: 2 – 5 watts • Typical Height: 8 – 10 metres • Coverage Area: 500m – 3km • Typical number of simultaneous users served: 32 - 200 • Location: Small towers, Buildings, Lampposts • Backhaul: Fiber, Microwave, Mesh, DSL • Cost: $$$$ Source: Commscope
  • 33. Meadowcells (Rural Small Cells) ©3G4G Meadowcells (Rural Small Cells): • Typical Power: 5 – 40 watts • Typical Height: 5 – 15 metres • Coverage Area: 1 – 10 km • Typical number of simultaneous users served: 32 – 64 • Location: Tower, Buildings (top or side), Rooftop • Backhaul: Satellite, Mesh, Microwave, (A)DSL, LTE Backhaul • Cost: $$$$
  • 35. The Size of a Cell ©3G4G Depends on: • Antenna mast height and tilt • Frequency • Higher frequency means smaller cell sizes • Power • Higher power results in larger cell size
  • 36. Importance of Frequency selection ©3G4G 2.1GHz 900MHz Higher frequency means faster decay Lower frequency means more number of users in a given cell Higher frequency gets reflected from walls and have poor penetration Lower frequency gets attenuated from walls but still penetrates
  • 37. More Examples of Small Cells ©3G4G Telefónica LTE Nano
  • 38. More Examples of Small Cells ©3G4G Sprint’s Magic Box on Drone
  • 39. More Examples of Small Cells ©3G4G AT&T’s Flying COW
  • 40. More Examples of Small Cells ©3G4G KDDI Small Cell Lamppost
  • 41. More Examples of Small Cells ©3G4G Ericsson & Philips Small Cells in Lampposts Source: Left & Right
  • 42. More Examples of Small Cells ©3G4G BT/EE’s Helikite for providing coverage during emergency and disaster recovery scenarios.
  • 43. Repeaters vs Relays vs Small Cells ©3G4G Repeaters Relays Small Cells with LTE Backhaul Receive, Amplify and Re-transmit. Also known as ‘Signal Booster’ or ‘Layer 1 Relay’. From a UE point of view, the repeater signal and macro signal would appear to be the same Receive, Demodulate & Decode, Encode & Modulate, Amplify & Transmit. Also known as ‘Layer 2 relay’. From a UE point of view, the relay signal and macro signal would appear to be the same (in case of in- band frequency) Complete basestation with its own ‘cell identity’. Frequency Same frequency, even though in theory it could be different frequency Transmission can be in-band (same freq) or out-of-band (different frequency) Transmission can be same or different frequency but interference mitigation may be required in case of in-band frequency. Advantages • Simple • Inexpensive • Very little extra latency introduced • No changes in base station needed • Noise is eliminated • Comparatively simpler operation • Noise is eliminated • No changes in base station needed Disadvantages • Noise is amplified along with the desired signal • Radio functions may be needed between relay and base station • Complex and slightly expensive • Extra latency introduced • More expensive than repeaters and relays • Higher latency than others
  • 45. Thank You To learn more, visit: 3G4G Website – http://www.3g4g.co.uk/ 3G4G Blog – http://blog.3g4g.co.uk/ 3G4G Small Cells Blog – http://smallcells.3g4g.co.uk/ Follow us on Twitter: https://twitter.com/3g4gUK Follow us on Linkedin: https://www.linkedin.com/company/3g4g ©3G4G
