1. INTERNATIONAL JOURNAL FOR TRENDS IN ENGINEERING & TECHNOLOGY
VOLUME 5 ISSUE 1 – MAY 2015 - ISSN: 2349 - 9303
108
An Efficient Execution of Clock Gating
Technique for Logic Circuits
Abstract — Clock gating has been heavily used in reducing the power consumption of the clock network by limiting its activity
factor. Fundamentally, clock gating reduces the dynamic power dissipation by disconnecting the clock from an unused circuit
block. This result in three major components of power consumption: power consumed by combinational logic whose values are
changing on each clock edge; power consumed by flip-flops; power consumed by the clock tree in the design. Here clock gating
approach is done for various logic circuits in response to examine its application.
Index terms— Clock gating; activity factor.
1. INTRODUCTION
Decreasing energy intake in very extensive incorporated
circuit (VLSI) style has become an interesting analysis place.
Most of the convenient gadgets available in the market are
battery power motivated. These gadgets encourage a limited
restriction on the energy dissipation. Decreasing energy intake
in such gadgets enhances battery power significantly. Due to
smaller progression in battery power technology, low energy
style has become a more challenging analysis place.
Power has become a primary consideration during
component style. Dynamic energy can play a role up to 50% of
the total energy dissipation. Clock-gating is the most common
RTL marketing for reducing dynamic energy. Effective clock-
gating execution requires competent application and extensive
confirmation.
There is a range of clock-gating techniques available to
designers. Clearly not all of these are equivalent when it comes
to reducing changing activity. Many changes are simple, while
others are highly protected, trademarked methods. Most clock-
gating is done at the Register Transfer Level (RTL). RTL
clock-gating methods can be arranged into three categories:
system-level, sequential and combinational. System-level
clock-gating blocks clock for an entire prevent, effectively
limiting all performance. On the opposite, combinational and
sequential clock-gating precisely hold clocking while the block
is constantly on the produce outcome.
Energy absorbed in a electronic routine is of two kinds. (1)
Static power and (2) Dynamic power. Static power includes
power dissipated due to leak voltages whereas dynamic power
includes capacitive changing power and brief routine power. In
VLSI routine time indication is used for the synchronization of
effective elements. Clock power is a significant part of power
mainly because time is fed to most of the routine blocks, and
time changes every pattern. Thus the complete time power is a
significant part of complete power dissipation in an electronic
routine. Clock-gating is a well-known strategy to decrease time
power. In a sequential circuit individual block utilization relies
on the program, not all the blocks are used at the same time,
providing an increase to dynamic power decrease chance. By
clock gating strategy, time to a nonproductive section is
impaired, thus preventing the power dissipation due to needless
asking for and discharging of the rarely used routine. The
average power dissipated in an electronic routine is given as.
Paverage = Pdynamic + Pshort-circuit + Pleak +Pstatic (1)
Paverage is the common power dissipation, Pdynamic is the
dynamic power dissipation due to changing of transistors, Pshort-
circuit is the short-circuit present power dissipation when there is
a dc direction from power source down to the floor, Pleak is the
ability dissipation due to leak voltages, P static and is the static
power dissipation
1) Static Power
Static power is the ability dissipated by a gate when it is
non-active or non-productive. Preferably, CMOS
(Complementary Metal Oxide Semiconductor) circuit goes
away no static (DC) power since in the stable condition; there is
no immediate direction from Vdd to the floor.
2) Dynamic power
Dynamic power is the ability dissipated during effective
condition due to changing activity of feedback indication. Since
a feedback can modify without actually leading to reasoning
conversion in the outcome, dynamic power can be dissipated
even when an outcome doesn’t modify its reasoning condition.
This part of dynamic power dissipation is caused by asking for
and discharging parasitic capacitances in the routine. Dynamic
power dissipation in a routine is given as:
pd=αCLfVdd
2 (2)
Where α is the charging activity , f is the function
regularity, CL is the fill capacitance, Vdd is the given volts.
3) Short-Circuit Power
The short-circuit power intake, P short-circuit, is due to the
present circulation through the immediate direction current
between the ability source and the floor during the conversion
stage.
4) Leakage Power
S.Sri Kanchana Devi1
R.Rajalakshmi M.Tech2
1
PG Scholar, 2
Asst.Prof of ECE,
Kalasalingam Institute Of Technology(Affi), Kalasalingam Institute Of Technology(Affi),
Anna University,Srivilliputur. Anna University,Srivilliputur.
sakthisri28@gmail.com rajeemtech@gmail.com

2. INTERNATIONAL JOURNAL FOR TRENDS IN ENGINEERING & TECHNOLOGY
VOLUME 5 ISSUE 1 – MAY 2015 - ISSN: 2349 - 9303
109
The PMOS and NMOS transistors used in a CMOS
reasoning routine generally have non-zero opposite leak and
sub-threshold voltages. These voltages can promote the
complete power dissipation even when the transistors are
executing any charging activity. The leak power dissipation, P
leak is due to two kinds of leak voltages. a)Reverse-bias diode
leak present. b)Sub threshold current through a turned-off
transistor circuit.
2. RELATED WORK
The clock distribution system and registers regularly apply
40% of the power attracted by a processor [5]. The techniques
suggested for reducing clock power integrate preventing
needless moment of signs up by clock gating, using double
edge-activated flip-flops to split the clock repeat [6], and
providing clock inverters by working together a few flip-flops
into a multibit flip-flop. In the research of low power and low
volts VLSI tour, the use and execution of double edge triggered
flip-flop (DETFF) has obtained more attention at the gate stage
style. The benefit of using DETFF is that it allows one to
maintain a continuous throughput while working at only 50
percent the clock regularity. This dissertation analyzes four
previously released to fix double edge triggered flip-flops
(DETFFs) together with the style for their performances, power
dissipation, and low volts, low power programs. For each
DETFF, the maximum wait, power intake, and power are
identified as the primary source of benefit.
The suggested style shows the least power at low currents.
In order to show the advantages in using DEFTTs over
traditional single-edge triggered flip-flops (SETFFs), a digital
half-band FIR filter is designed, used and used as a standard
routine for further research. The execution of the FIR filter with
DETFFs displays power preserving of 38% over the execution
with SETFFs. Today’s technological innovation makes possible
highly effective computers with multi-media abilities.
Customer’s behavior is geared towards better availability and
flexibility.
Gate level net list is given to draw out the gating operate of
each attach [7]. To decrease the amount of additional reasoning
this gating operates is combined. Heuristic criteria considering
three gating features are evaluated in terms of power preserving
and area using 45nm technology. Also attach is motivated by
brief clock beats. The primary goals are reducing the number of
impulses and reduce additional reasoning to apply. For each gi
possibility should be find by Picard peano version finally large
p (gi) is chosen so that clock is private often. Time gating is the
placement of combinational reasoning along the clock path to
prevent the needles changing of signs up and decrease highly
effective power intake. The circumstances under which the
conversion of a sign-up may be securely obstructed can either
be clearly specified by the designer or recognized instantly. We
present a new means for instantly synthesizing these
circumstances in a way that decreases net record perturbation
and is both timing and physical-aware. Our automated
technique is also scalable, using simulator and satisfiability
assessments and requiring no representational reflection. On a
set of standards, our technique efficient decrease the highly
effective clock power by 14.5% on regular. Furthermore, we
illustrate how to apply causing don’t likes you and decrease the
reasoning by 7.0% on regular.
The highly effective changing of the clock network
typically records for 30-40% of the total power intake of a
modern style, and with the growth of low-power requirements
and hear restrictions, reducing this part of the power intake is
crucial. One of the most effective and widely implemented
methods is clock gating, whereby the clock indication is
precisely obstructed for signs up in the style that are non-active
or do not otherwise need to be modified, thus reducing the
common capacitance that must be turned per pattern [8]. The
most common approach is to personally recognize structural
elements that can be deactivated, but in this work, we focus on
automated methods that can be used to net list-level circuit. The
condition under which is a register’s clock can be cased may be
based on its current and next state features, and past methods
have considered such direct calculations and features.
A clock buffer was built to decrease the energy intake,
particular segments of time shrub which is a nonproductive was
kept in off state by gating time alerts [9]. Approximation
criteria and actual criteria were used to fix gate placement
problem. The idea NP-representative (NPR) which is exclusive
for any NP-equivalence sessions, and provided a desk look-up
centered breadth-first search criteria to quickly estimate it; we
used NPRs to effectively check the running equivalence of a
given routine against a huge collection under permutation and
complementation of outcome. The method is more than two
purchases of scale quicker than Hinsberger-Kolla’s criteria. The
strategy is easy for features with up to seven variables; this
number is completely huge to work with many mobile
collections such as lib2, which includes ranges up to six
information and is substantially used by the research team.
A bottom-up strategy [10] for the automated removal and
features of powerful energy control circuits beginning from
architectural logic-level requirements. Our methods make use
of the lightweight BDD-based reflection of Boolean and
pseudo-Boolean features to identify nonproductive
circumstances where time can be ceased without allow precise
probabilistic computations; in particular, they allow the use of
non-equiprobable main feedback withdrawals, a key step in the
development of designs that coordinate the actions of real
component gadgets with a high level of constancy. The results
are motivating, since energy benefits of up to 34% have been
acquired on conventional standard routine Dynamic energy
control is probably the single most effective strategy for energy
minimization ion in digital techniques.
The Boolean actions reflection in Reduced Order Binary
Decision Plan (ROBDP) [11].Flip-Flops which are not to be
clocked was examined by these equations. Number of Flip-
Flops so known as keep websites, then clocked by gating
indication. Hold and Non-hold expression are present in routine
modification. Power intake is reduced to about 29%.
3. CLOCK GATING TECHNIQUE
Today’s consumer needs more performances, power
efficient program and enhanced power devices as time goes, so
to be able to improve power of a program the easiest
management strategy is to close off length of the successive
block of the product when there is no function required from
that area for some length. Clock gating is a strategy that can be
used to manage power dissipated by the clock net is
responsible for a significant part of power dissipation (up to
40%). Clock gating decreases the unwanted modification on the
parts of the clock net by limiting time.
RTL clock gating is the most common strategy used for
optimization and enhancing performances but still it results in
one question that how efficiently style is clock private. Gated
Clock is easily approved strategy to be able to improve power
and can be applied at program stage, gate stage and RTL. Clock
Gating can save more power by not clocking the sign-up if
there is no change in its condition. Clock consistently takes in

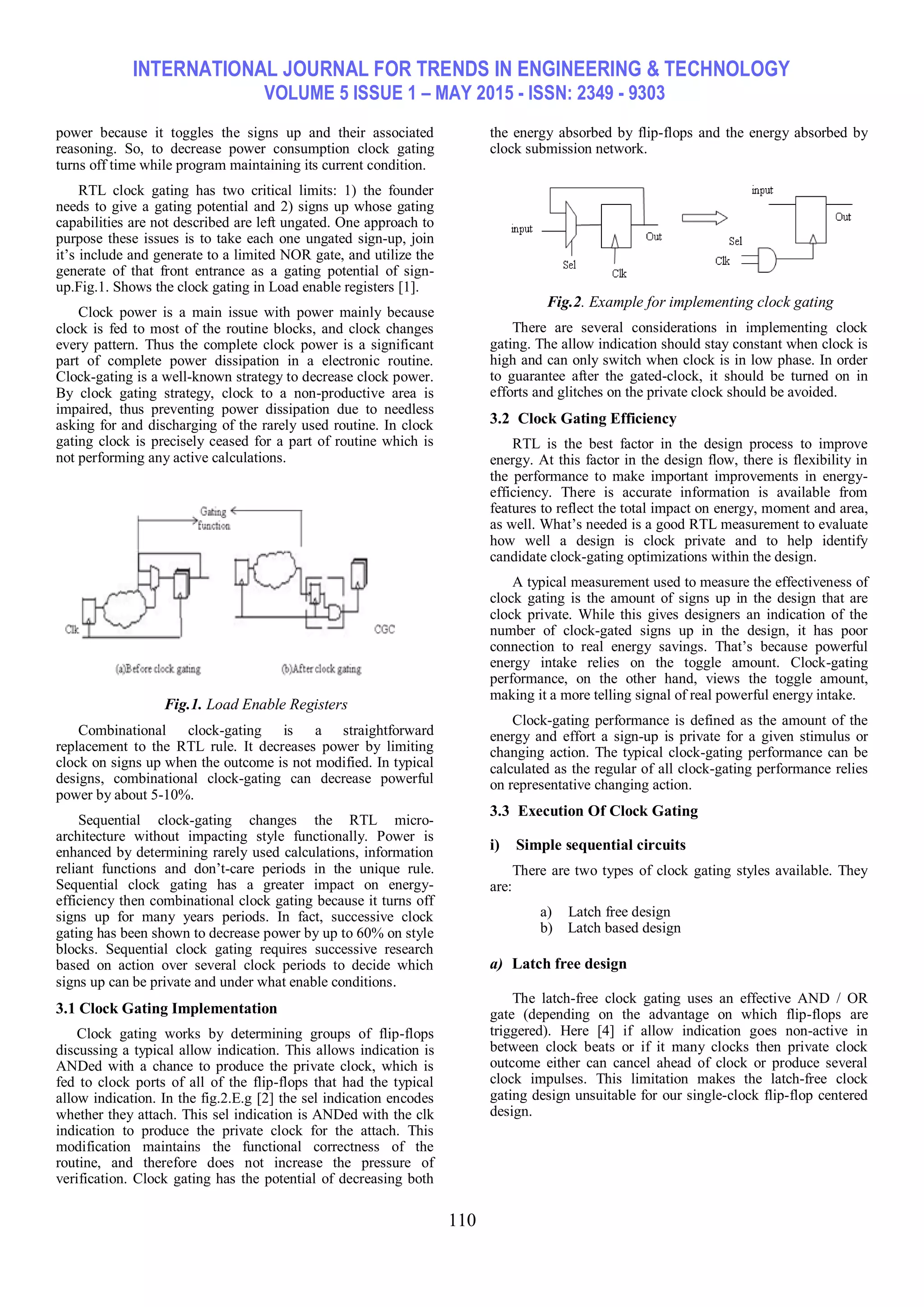

3. INTERNATIONAL JOURNAL FOR TRENDS IN ENGINEERING & TECHNOLOGY
VOLUME 5 ISSUE 1 – MAY 2015 - ISSN: 2349 - 9303
110
power because it toggles the signs up and their associated
reasoning. So, to decrease power consumption clock gating
turns off time while program maintaining its current condition.
RTL clock gating has two critical limits: 1) the founder
needs to give a gating potential and 2) signs up whose gating
capabilities are not described are left ungated. One approach to
purpose these issues is to take each one ungated sign-up, join
it’s include and generate to a limited NOR gate, and utilize the
generate of that front entrance as a gating potential of sign-
up.Fig.1. Shows the clock gating in Load enable registers [1].
Clock power is a main issue with power mainly because
clock is fed to most of the routine blocks, and clock changes
every pattern. Thus the complete clock power is a significant
part of complete power dissipation in a electronic routine.
Clock-gating is a well-known strategy to decrease clock power.
By clock gating strategy, clock to a non-productive area is
impaired, thus preventing power dissipation due to needless
asking for and discharging of the rarely used routine. In clock
gating clock is precisely ceased for a part of routine which is
not performing any active calculations.
Fig.1. Load Enable Registers
Combinational clock-gating is a straightforward
replacement to the RTL rule. It decreases power by limiting
clock on signs up when the outcome is not modified. In typical
designs, combinational clock-gating can decrease powerful
power by about 5-10%.
Sequential clock-gating changes the RTL micro-
architecture without impacting style functionally. Power is
enhanced by determining rarely used calculations, information
reliant functions and don’t-care periods in the unique rule.
Sequential clock gating has a greater impact on energy-
efficiency then combinational clock gating because it turns off
signs up for many years periods. In fact, successive clock
gating has been shown to decrease power by up to 60% on style
blocks. Sequential clock gating requires successive research
based on action over several clock periods to decide which
signs up can be private and under what enable conditions.
3.1 Clock Gating Implementation
Clock gating works by determining groups of flip-flops
discussing a typical allow indication. This allows indication is
ANDed with a chance to produce the private clock, which is
fed to clock ports of all of the flip-flops that had the typical
allow indication. In the fig.2.E.g [2] the sel indication encodes
whether they attach. This sel indication is ANDed with the clk
indication to produce the private clock for the attach. This
modification maintains the functional correctness of the
routine, and therefore does not increase the pressure of
verification. Clock gating has the potential of decreasing both
the energy absorbed by flip-flops and the energy absorbed by
clock submission network.
Fig.2. Example for implementing clock gating
There are several considerations in implementing clock
gating. The allow indication should stay constant when clock is
high and can only switch when clock is in low phase. In order
to guarantee after the gated-clock, it should be turned on in
efforts and glitches on the private clock should be avoided.
3.2 Clock Gating Efficiency
RTL is the best factor in the design process to improve
energy. At this factor in the design flow, there is flexibility in
the performance to make important improvements in energy-
efficiency. There is accurate information is available from
features to reflect the total impact on energy, moment and area,
as well. What’s needed is a good RTL measurement to evaluate
how well a design is clock private and to help identify
candidate clock-gating optimizations within the design.
A typical measurement used to measure the effectiveness of
clock gating is the amount of signs up in the design that are
clock private. While this gives designers an indication of the
number of clock-gated signs up in the design, it has poor
connection to real energy savings. That’s because powerful
energy intake relies on the toggle amount. Clock-gating
performance, on the other hand, views the toggle amount,
making it a more telling signal of real powerful energy intake.
Clock-gating performance is defined as the amount of the
energy and effort a sign-up is private for a given stimulus or
changing action. The typical clock-gating performance can be
calculated as the regular of all clock-gating performance relies
on representative changing action.
3.3 Execution Of Clock Gating
i) Simple sequential circuits
There are two types of clock gating styles available. They
are:
a) Latch free design
b) Latch based design
a) Latch free design
The latch-free clock gating uses an effective AND / OR
gate (depending on the advantage on which flip-flops are
triggered). Here [4] if allow indication goes non-active in
between clock beats or if it many clocks then private clock
outcome either can cancel ahead of clock or produce several
clock impulses. This limitation makes the latch-free clock
gating design unsuitable for our single-clock flip-flop centered
design.

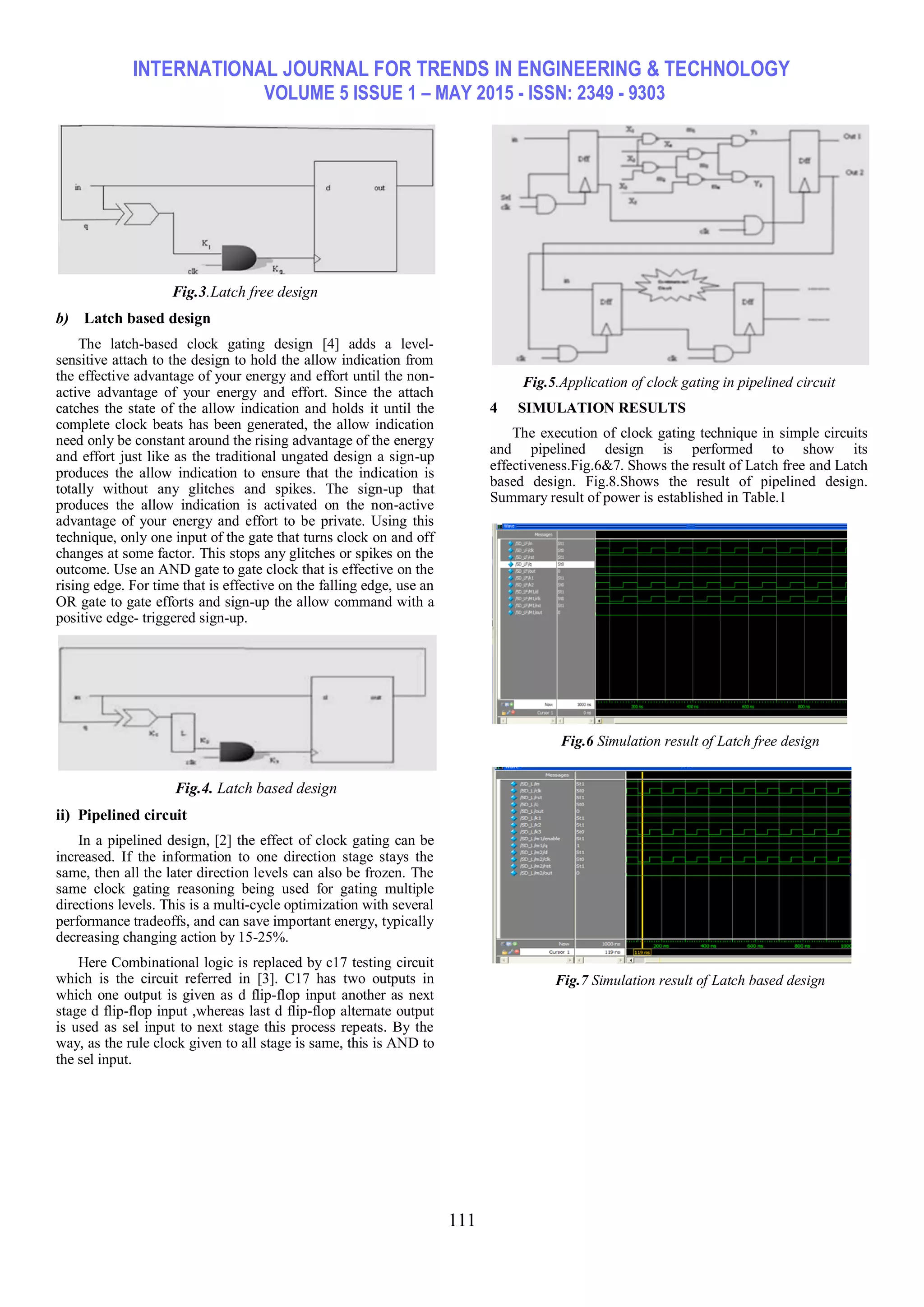

4. INTERNATIONAL JOURNAL FOR TRENDS IN ENGINEERING & TECHNOLOGY
VOLUME 5 ISSUE 1 – MAY 2015 - ISSN: 2349 - 9303
111
Fig.3.Latch free design
b) Latch based design
The latch-based clock gating design [4] adds a level-
sensitive attach to the design to hold the allow indication from
the effective advantage of your energy and effort until the non-
active advantage of your energy and effort. Since the attach
catches the state of the allow indication and holds it until the
complete clock beats has been generated, the allow indication
need only be constant around the rising advantage of the energy
and effort just like as the traditional ungated design a sign-up
produces the allow indication to ensure that the indication is
totally without any glitches and spikes. The sign-up that
produces the allow indication is activated on the non-active
advantage of your energy and effort to be private. Using this
technique, only one input of the gate that turns clock on and off
changes at some factor. This stops any glitches or spikes on the
outcome. Use an AND gate to gate clock that is effective on the
rising edge. For time that is effective on the falling edge, use an
OR gate to gate efforts and sign-up the allow command with a
positive edge- triggered sign-up.
Fig.4. Latch based design
ii) Pipelined circuit
In a pipelined design, [2] the effect of clock gating can be
increased. If the information to one direction stage stays the
same, then all the later direction levels can also be frozen. The
same clock gating reasoning being used for gating multiple
directions levels. This is a multi-cycle optimization with several
performance tradeoffs, and can save important energy, typically
decreasing changing action by 15-25%.
Here Combinational logic is replaced by c17 testing circuit
which is the circuit referred in [3]. C17 has two outputs in
which one output is given as d flip-flop input another as next
stage d flip-flop input ,whereas last d flip-flop alternate output
is used as sel input to next stage this process repeats. By the
way, as the rule clock given to all stage is same, this is AND to
the sel input.
Fig.5.Application of clock gating in pipelined circuit
4 SIMULATION RESULTS
The execution of clock gating technique in simple circuits
and pipelined design is performed to show its
effectiveness.Fig.6&7. Shows the result of Latch free and Latch
based design. Fig.8.Shows the result of pipelined design.
Summary result of power is established in Table.1
Fig.6 Simulation result of Latch free design
Fig.7 Simulation result of Latch based design

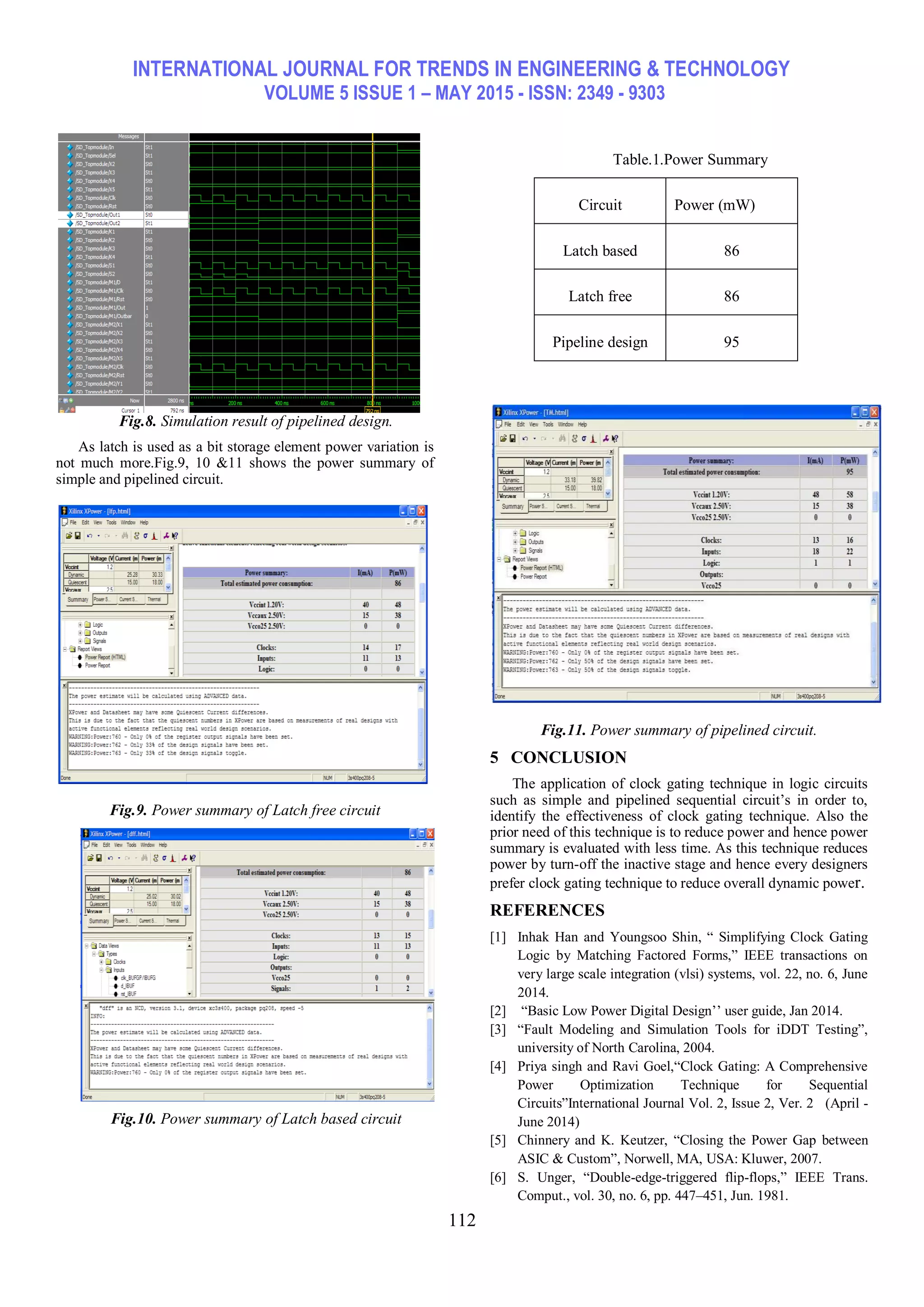

5. INTERNATIONAL JOURNAL FOR TRENDS IN ENGINEERING & TECHNOLOGY
VOLUME 5 ISSUE 1 – MAY 2015 - ISSN: 2349 - 9303
112
Fig.8. Simulation result of pipelined design.
As latch is used as a bit storage element power variation is
not much more.Fig.9, 10 &11 shows the power summary of
simple and pipelined circuit.
Fig.9. Power summary of Latch free circuit
Fig.10. Power summary of Latch based circuit
Table.1.Power Summary
Circuit Power (mW)
Latch based 86
Latch free 86
Pipeline design 95
Fig.11. Power summary of pipelined circuit.
5 CONCLUSION
The application of clock gating technique in logic circuits
such as simple and pipelined sequential circuit’s in order to,
identify the effectiveness of clock gating technique. Also the
prior need of this technique is to reduce power and hence power
summary is evaluated with less time. As this technique reduces
power by turn-off the inactive stage and hence every designers
prefer clock gating technique to reduce overall dynamic power.
REFERENCES
[1] Inhak Han and Youngsoo Shin, ― Simplifying Clock Gating
Logic by Matching Factored Forms,‖ IEEE transactions on
very large scale integration (vlsi) systems, vol. 22, no. 6, June
2014.
[2] ―Basic Low Power Digital Design’’ user guide, Jan 2014.
[3] ―Fault Modeling and Simulation Tools for iDDT Testing‖,
university of North Carolina, 2004.
[4] Priya singh and Ravi Goel,―Clock Gating: A Comprehensive
Power Optimization Technique for Sequential
Circuits‖International Journal Vol. 2, Issue 2, Ver. 2 (April -
June 2014)
[5] Chinnery and K. Keutzer, ―Closing the Power Gap between
ASIC & Custom‖, Norwell, MA, USA: Kluwer, 2007.
[6] S. Unger, ―Double-edge-triggered flip-flops,‖ IEEE Trans.
Comput., vol. 30, no. 6, pp. 447–451, Jun. 1981.

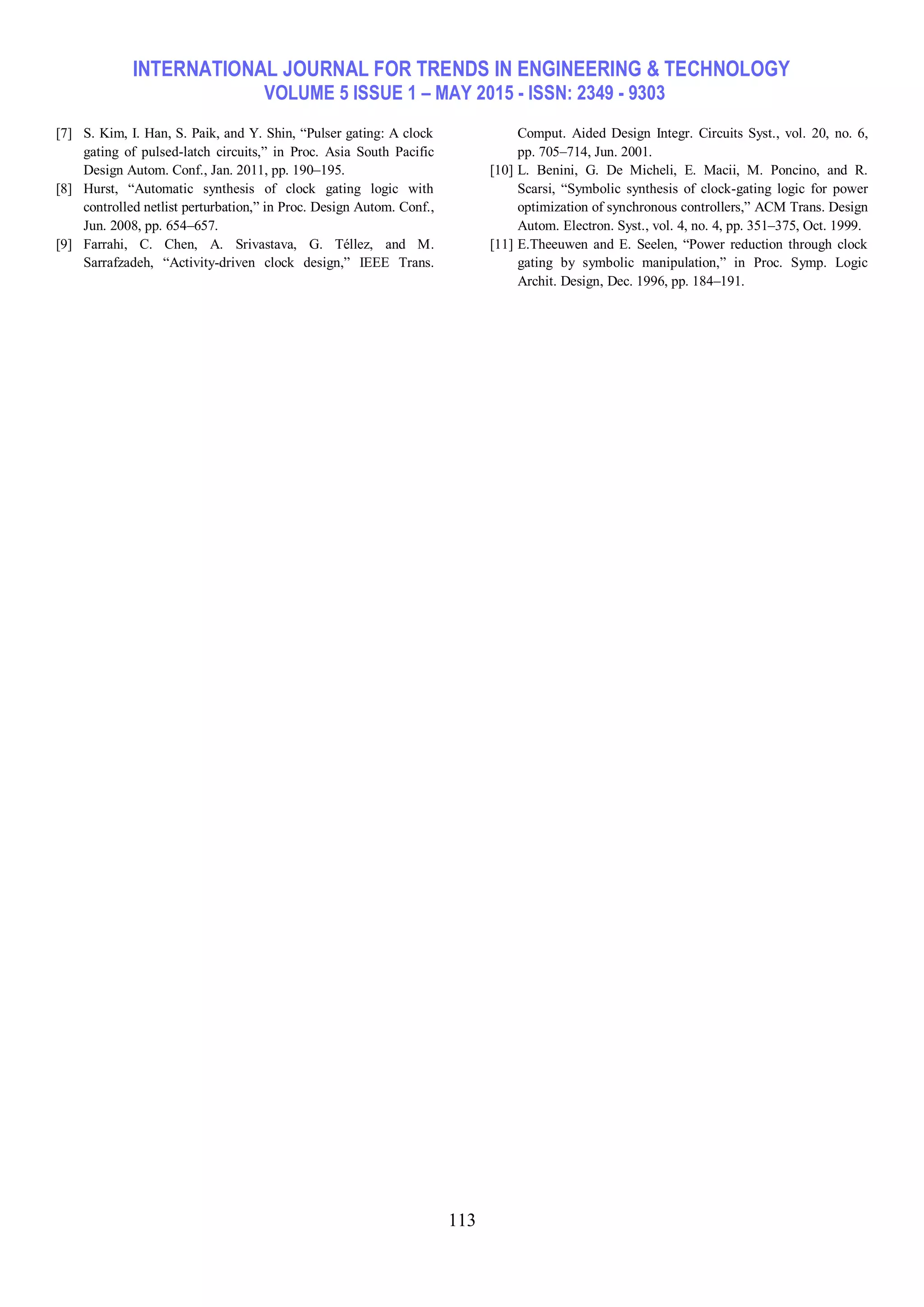

6. INTERNATIONAL JOURNAL FOR TRENDS IN ENGINEERING & TECHNOLOGY
VOLUME 5 ISSUE 1 – MAY 2015 - ISSN: 2349 - 9303
113
[7] S. Kim, I. Han, S. Paik, and Y. Shin, ―Pulser gating: A clock
gating of pulsed-latch circuits,‖ in Proc. Asia South Pacific
Design Autom. Conf., Jan. 2011, pp. 190–195.
[8] Hurst, ―Automatic synthesis of clock gating logic with
controlled netlist perturbation,‖ in Proc. Design Autom. Conf.,
Jun. 2008, pp. 654–657.
[9] Farrahi, C. Chen, A. Srivastava, G. Téllez, and M.
Sarrafzadeh, ―Activity-driven clock design,‖ IEEE Trans.
Comput. Aided Design Integr. Circuits Syst., vol. 20, no. 6,
pp. 705–714, Jun. 2001.
[10] L. Benini, G. De Micheli, E. Macii, M. Poncino, and R.
Scarsi, ―Symbolic synthesis of clock-gating logic for power
optimization of synchronous controllers,‖ ACM Trans. Design
Autom. Electron. Syst., vol. 4, no. 4, pp. 351–375, Oct. 1999.
[11] E.Theeuwen and E. Seelen, ―Power reduction through clock
gating by symbolic manipulation,‖ in Proc. Symp. Logic
Archit. Design, Dec. 1996, pp. 184–191.
