This document provides an overview of Amazon Virtual Private Cloud (VPC), including that it provides a virtual network dedicated to an AWS account. It describes how VPCs are logically isolated, and how to configure VPCs by selecting IP ranges, creating subnets, configuring network gateways and more. It also discusses security aspects like security groups and network access control lists, and networking aspects such as IP addresses, route tables, elastic IP addresses, and network interfaces.

1. Amazon VPC
Encored Technologies, Inc.
Jonghan Seo (jhseo@encoredtech.com)

2. About Amazon VPC
● Virtual Private Cloud
● Virtual network dedicated to an AWS account
● Price
○ No additional charge for VPC itself

3. VPC
● Logically isolated from other VPCs in AWS
● to ‘configure’ VPC
○ selecting IP address range
○ creating subnets
○ configuring network gateways
○ configuring route tables
○ configuring security settings

4. Subnet
● a range of IP addresses in VPC
● public/private subnet
○ Internet Gateway (IGW)
○ public subnet
■ routed to IGW
○ private subnet
■ not routed to IGW
■ can send requests to the internet through Network Access
Translation (NAT)

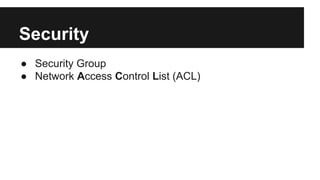

5. Security
● Security Group
● Network Access Control List (ACL)

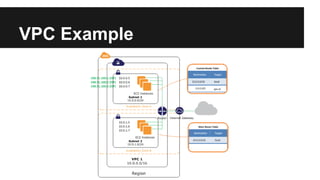

6. VPC Example

7. Configuring VPC
● CIDR (Classless InterDomain Routing)
● examples
○ 192.168.123.123 → 192.168.123.123/32
○ 192.168.10.* → 192.168.10.0/24
○ *.*.*.* → 0.0.0.0/0

8. Configuring VPC
● Creating VPC in an AWS region
○ Selecting IP address ranges for the VPC

9. Configuring VPC
● Creating Subnets
○ Selecting IP address range for each subnet

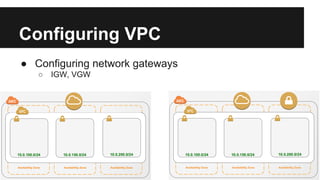

10. Configuring VPC
● Configuring network gateways
○ IGW, VGW

11. Configuring VPC
● Configuring route tables (a public subnet)

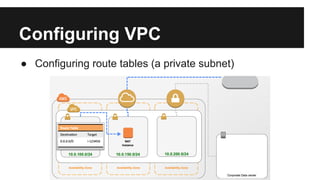

12. Configuring VPC
● Configuring route tables (a private subnet)

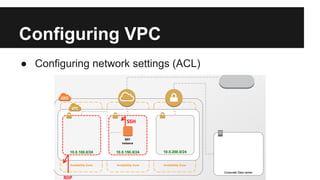

13. Configuring VPC
● Configuring network settings (ACL)

14. Security in VPC
● Specifying allow/deny rules in terms of IPs and ports for
inbound/outbound traffics
● Two Features
○ Security Group(SG)
○ network Access Control Lists (ACL)

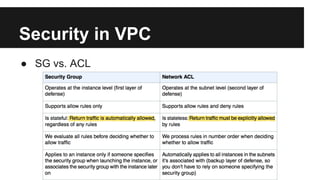

15. Security in VPC
● SG vs. ACL

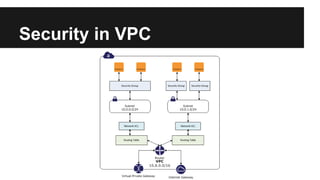

16. Security in VPC

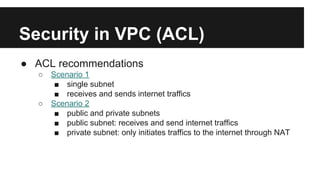

17. Security in VPC (ACL)

18. Security in VPC (ACL)
● ACL recommendations
○ Scenario 1
■ single subnet
■ receives and sends internet traffics
○ Scenario 2
■ public and private subnets
■ public subnet: receives and send internet traffics
■ private subnet: only initiates traffics to the internet through NAT

19. Networking in VPC
● IP address
○ private IP
■ all instances have a primary private IP
■ an instance can have multiple secondary private IP
addresses
○ public IP
■ an instance optionally has a public IP
■ assigned from Amazon’s pool of IPs (not from a amazon
account’s) so it is not persistent.
■ to assign a persistent public IP: EIP(Elastic IP addresses)

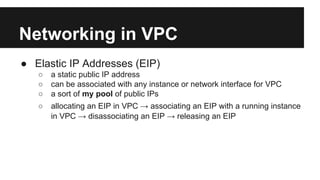

20. Networking in VPC
● Elastic IP Addresses (EIP)
○ a static public IP address
○ can be associated with any instance or network interface for VPC
○ a sort of my pool of public IPs
○ allocating an EIP in VPC → associating an EIP with a running instance
in VPC → disassociating an EIP → releasing an EIP

21. Networking in VPC
● Elastic Network Interface (ENI)
○ a sort of a (virtual) ethernet card
○ attributes:
■ a primary private IP
■ one or more secondary private IP
■ one EIP per private IP
■ one public IP
■ one or more SG
■ a MAC address
■ a source/destination check flag
■ a description

22. Networking in VPC
● route table
○ subnet : route table = n : 1
○ main/custom route table
○ http://docs.aws.amazon.
com/AmazonVPC/latest/UserGuide/VPC_Route_Tables.html

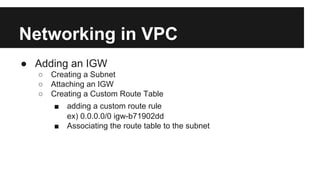

23. Networking in VPC
● Adding an IGW
○ Creating a Subnet
○ Attaching an IGW
○ Creating a Custom Route Table
■ adding a custom route rule
ex) 0.0.0.0/0 igw-b71902dd
■ Associating the route table to the subnet

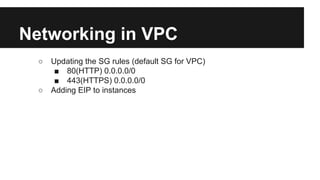

24. Networking in VPC
○ Updating the SG rules (default SG for VPC)
■ 80(HTTP) 0.0.0.0/0
■ 443(HTTPS) 0.0.0.0/0
○ Adding EIP to instances

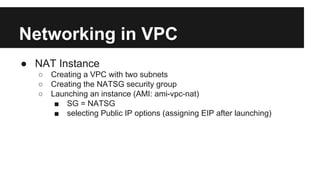

25. Networking in VPC
● NAT Instance
○ Creating a VPC with two subnets
○ Creating the NATSG security group
○ Launching an instance (AMI: ami-vpc-nat)
■ SG = NATSG
■ selecting Public IP options (assigning EIP after launching)

26. Networking in VPC
○ Configuring the NATSG
■ http://docs.aws.amazon.
com/AmazonVPC/latest/UserGuide/VPC_NAT_Instance.
html#NATSG
○ Disabling Source/Destination Checks
■ NAT must send/receive traffic when the source or destination is
not itself
■ Disable the SrcDestCheck attribute
○ Updating the route table for the private subnet
■ 0.0.0.0/0 nat-instance-id

27. AWS VPC - other AWS products
● EC2-VPC
● ElastiCache-VPC
● RDS-VPC
● AS-VPC
● ELB-VPC
● EMR-VPC
● Elastic Beanstalk-VPC
