Criando o seu datacenter virtual vpc e conectividade
The document provides a comprehensive guide on creating and managing virtual data centers using AWS VPC and connectivity options. It covers aspects such as VPC design, subnet architecture, security groups, network ACLs, NAT configurations, and the use of Elastic Load Balancers. Additionally, it emphasizes best practices for tagging, IAM control, and maintaining security while integrating with AWS services.
More Related Content
Similar to Criando o seu datacenter virtual vpc e conectividade
More from Amazon Web Services LATAM
![Lect 1 Number systems and base conversions. [Autosaved].pptx](https://cdn.slidesharecdn.com/ss_thumbnails/lect1numbersystemsandbaseconversions-260111134109-67c2d865-thumbnail.jpg?width=640&height=640&fit=bounds)
Criando o seu datacenter virtual vpc e conectividade
- 1. Criando o seuDatacenter Virtual: VPC e Conectividade Ari Dias Neto, AWS Solutions Architect
- 2. Disclaimer: Do Try Thisat Home! All these designs are in use by customers
- 3. Design… then spend alot of time building and deploying Build and deploy virtual datacenters as fast as you design them version
- 4. Route Table ElasticNetwork Interface Amazon VPC Router Internet Gateway Customer Gateway Virtual Private Gateway VPN ConnectionSubnet Elements of VPC Design
- 5. Availability Zone AAvailability Zone B
- 6. Subnet Availability Zone A Subnet AvailabilityZone B VPC CIDR: 10.1.0.0 /16
- 7. Plan your VPCIP space before creating it • Consider future AWS region expansion • Consider future connectivity to your internal networks • Consider subnet design • VPC can be /16 down to /28 • CIDR cannot be modified after creation • Overlapping IP spaces = future headache
- 8. Public Subnet Private Subnet PublicSubnet Availability Zone B Private Subnet VPC CIDR: 10.1.0.0 /16 Availability Zone A
- 9. Public Subnet Private Subnet PublicSubnet Availability Zone B Private Subnet Instance A 10.1.1.11 /24 Instance C 10.1.3.33 /24 Instance B 10.1.2.22 /24 Instance D 10.1.4.44 /24 VPC CIDR: 10.1.0.0 /16 Availability Zone A
- 10. Public Subnet Availability ZoneA Private Subnet Public Subnet Availability Zone B Private Subnet Instance A 10.1.1.11 /24 Instance C 10.1.3.33 /24 Instance B 10.1.2.22 /24 Instance D 10.1.4.44 /24 VPC CIDR: 10.1.0.0 /16 .1 .1 .1 .1
- 11. Public Subnet Private Subnet PublicSubnet Availability Zone B Private Subnet Instance A 10.1.1.11 /24 Instance C 10.1.3.33 /24 Instance B 10.1.2.22 /24 Instance D 10.1.4.44 /24 VPC CIDR: 10.1.0.0 /16 Route Table Destination Target 10.1.0.0/16 local Availability Zone A
- 12. Leave the MainRoute Table Alone
- 13. Availability Zone B PublicSubnet Availability Zone A Private Subnet Public Subnet Private Subnet Instance A 10.1.1.11 /24 Instance C 10.1.3.33 /24 Instance B 10.1.2.22 /24 Instance D 10.1.4.44 /24 VPC CIDR: 10.1.0.0 /16 Route Table Destination Target 10.1.0.0/16 local 10.1.1.0/24 Instance B
- 14. Network ACLs vs.Security Groups NACLs • Applied to subnets (1 per) • Stateless • Allow & deny (blacklist) • Rules processed in order Security groups • Applied to instance ENI (up to 5 per) • Stateful • Allow only (whitelist) • Rules evaluated as a whole • Can reference other security groups in the same VPC VPC Subnet Elastic network interface Security group Network ACL
- 15. VPC Network ACLs:What Are They Good For? • Enforcing baseline security policy – Example: “No TFTP, NetBIOS or SMTP shall egress this subnet” • Catchall for holes in instance security groups • Segregation of security between network ops and dev ops VPC Subnet Instance
- 16. VPC Network ACLs:Best Practices • Use sparingly, keep it simple • Avoid ephemeral port range allows • Create rule #’s with room to grow • Use IAM to control tightly who can alter or delete NACLs Pushing this will hurt! Default network ACL:
- 17. Create an IAMVPC Admin Group Examples of “High Blast Radius” VPC API calls that should be restricted: AttachInternetGateway AssociateRouteTable CreateRoute DeleteCustomerGateway DeleteInternetGateway DeleteNetworkAcl DeleteNetworkAclEntry DeleteRoute DeleteRouteTable DeleteDhcpOptions ReplaceNetworkAclAssociation DisassociateRouteTable {Support Resource Permissions

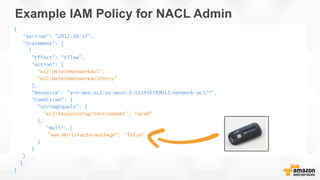

- 18. Example IAM Policyfor NACL Admin { "Version": "2012-10-17", "Statement": [ { "Effect": "Allow", "Action": [ "ec2:DeleteNetworkAcl", "ec2:DeleteNetworkAclEntry" ], "Resource": "arn:aws:ec2:us-west-2:123456789012:network-acl/*", "Condition": { "StringEquals": { "ec2:ResourceTag/Environment": "prod" }, "Null": { "aws:MultiFactorAuthAge": "false" } } } ] }

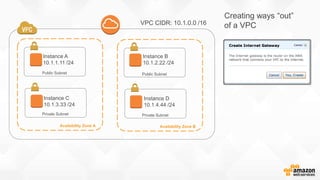

- 19. Public Subnet Availability ZoneA Private Subnet Public Subnet Availability Zone B Private Subnet Instance A 10.1.1.11 /24 Instance C 10.1.3.33 /24 Instance B 10.1.2.22 /24 Instance D 10.1.4.44 /24 VPC CIDR: 10.1.0.0 /16 Creating ways “out” of a VPC
- 20. Public Subnet Availability ZoneA Private Subnet Public Subnet Availability Zone B Private Subnet Instance A 10.1.1.11 /24 Instance C 10.1.3.33 /24 Instance B 10.1.2.22 /24 Instance D 10.1.4.44 /24 VPC CIDR: 10.1.0.0 /16 Virtual Private Gateway Internet Gateway Only 1 IGW and 1 VGW per VPC VPN connection Customer data center Customer data center AWS Direct Connect Route Table Destination Target 10.1.0.0/16 local Internal CIDR VGW
- 21. Public Subnet Availability ZoneA Private Subnet Public Subnet Availability Zone B Private Subnet Instance A 10.1.1.11 /24 Instance C 10.1.3.33 /24 Instance B 10.1.2.22 /24 Instance D 10.1.4.44 /24 VPC CIDR: 10.1.0.0 /16 Route Table Route Table Destination Target 10.1.0.0/16 local 0.0.0.0/0 IGW
- 22. Ways to AssignPublic IPs Elastic IP address (EIP) • Associated with AWS account and not a specific instance • 1 public IP to 1 private IP static NAT mapping • Instance does not “see” an EIP associated to it • Persists independently of the instance • Can be assigned while instance is stopped or running • Can be moved, reassigned to other ENIs
- 23. Ways to AssignPublic IPs Automatic dynamic public IP assignment • Done on instance launch into VPC subnet • Public IP is dynamic and could change if instance is stopped and restarted • Does not count against AWS account EIP limits • Works only on instances with a single ENI
- 24. Public Subnet Availability ZoneA Private Subnet Public Subnet Availability Zone B Private Subnet Instance A Public: 54.200.129.18 Private: 10.1.1.11 /24 Instance C 10.1.3.33 /24 Instance B 10.1.2.22 /24 Instance D 10.1.4.44 /24 Route Table Internet Amazon S3 Amazon Dynamo DB AWS region AWS outside the VPC
- 25. Examples of AWSoutside the VPC • AWS API endpoints – Think about which APIs you might be calling from instances within the VPC – Good examples: Amazon EC2, AWS CloudFormation, Auto Scaling, Amazon SWF, Amazon SQS, Amazon SNS • Regional services – Amazon S3 (Not anymore) – Amazon Dynamo DB • Software and patch repositories – Amazon Linux repo allows access only from AWS public IP blocks
- 26. Public Subnet Availability ZoneA Private Subnet Public Subnet Availability Zone B Private Subnet Instance A Public: 54.200.129.18 Private: 10.1.1.11 /24 Instance C 10.1.3.33 /24 Instance B 10.1.2.22 /24 Instance D 10.1.4.44 /24 Route Table Internet Amazon S3 AWS region And what if instance C in a private subnet needs to reach outside the VPC? It has no route to the IGW and no public IP. Amazon Dynamo DB
- 27. Public Subnet Availability ZoneA Private Subnet Public Subnet Availability Zone B Private Subnet NAT A Public: 54.200.129.18 Private: 10.1.1.11 /24 Instance C 10.1.3.33 /24 Instance B 10.1.2.22 /24 Instance D 10.1.4.44 /24 Internet Amazon S3 AWS region Deploy an instance that functions as a N etwork A ddress T ranslat(or) Route Table Destination Target 10.1.0.0/16 local 0.0.0.0/0 NAT instanc e Amazon Dynamo DB
- 28. What makes upthe Amazon Linux NAT AMI? • $echo 1 > /proc/sys/net/ipv4/ip_forward • $echo 0 > /proc/sys/net/ipv4/conf/eth0/send_redirects • $/sbin/iptables -t nat -A POSTROUTING -o eth0 –s 10.1.0.0/16 -j MASQUERADE • $/sbin/iptables-save • $aws ec2 modify-instance-attributes –instance-id i-xxxxxxxx –source-dest-check “{”Value”:false}” Not much to it: 1. IP forwarding enabled 2. IP NAT Masquerading enabled in iptables for VPC CIDR block 3. Source/destination check is turned off on primary interface
- 29. Public Subnet Availability ZoneA Private Subnet Public Subnet Availability Zone B Private Subnet NAT A Public: 54.200.129.18 Private: 10.1.1.11 /24 Instance C 10.1.3.33 /24 Instance B 10.1.2.22 /24 Instance D 10.1.4.44 /24 Internet Amazon S3 AWS region Other private subnets can share the same routing table and use the NAT But… Amazon Dynamo DB

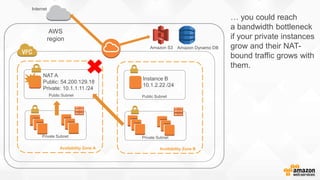

- 30. Public Subnet Availability ZoneA Private Subnet Public Subnet Availability Zone B Private Subnet NAT A Public: 54.200.129.18 Private: 10.1.1.11 /24 Instance B 10.1.2.22 /24 Internet Amazon S3 AWS region … you could reach a bandwidth bottleneck if your private instances grow and their NAT- bound traffic grows with them. Amazon Dynamo DB
- 31.
- 32. Do bandwidth-intensive processesneed to be behind a NAT? • Separate out application components with bandwidth needs • Run components from public subnet instances • Goal is full instance bandwidth out of VPC • Auto Scaling with Public IP makes this easy • NAT still in place for remaining private instances
- 33. Availability Zone AAvailability Zone B Private Subnet Internet Amazon Dynamo DB AWS region Public Subnet Public Subnet NAT Customers Public load balancer Web Servers • Processing app with high outbound Direct to Amazon S3 Public ELB Subnet Private Subnet Public ELB Subnet Multi-AZ Auto Scaling group Auto Scaling group • Public Elastic Load Balancer receives incoming customer HTTP/S requests • Auto Scaling assigns public IP to new web servers • With public IPs, web servers initiate outbound requests • NAT device still in place for private subnets
- 34. Auto Scaling Supportfor Automatic Public IP Assignment $aws autoscaling create-launch-configuration --launch- configuration-name hi-bandwidth-public --image-id ami-xxxxxxxx -- instance-type m1.xlarge --associate-public-ip-address Sample launch configuration (named “hi-bandwidth-public”):

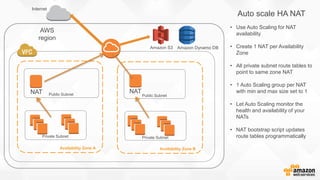

- 35. Availability Zone A PrivateSubnet Availability Zone B Private Subnet Internet Amazon S3 AWS region Public Subnet Public Subnet NAT • Use Auto Scaling for NAT availability • Create 1 NAT per Availability Zone • All private subnet route tables to point to same zone NAT • 1 Auto Scaling group per NAT with min and max size set to 1 • Let Auto Scaling monitor the health and availability of your NATs • NAT bootstrap script updates route tables programmatically Auto scale HA NAT NAT Amazon Dynamo DB

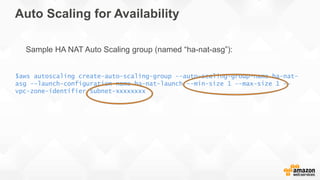

- 36. Auto Scaling forAvailability $aws autoscaling create-auto-scaling-group --auto-scaling-group-name ha-nat- asg --launch-configuration-name ha-nat-launch --min-size 1 --max-size 1 -- vpc-zone-identifier subnet-xxxxxxxx Sample HA NAT Auto Scaling group (named “ha-nat-asg”):
- 37. HA NAT UserData sample: PRIVATE_SUBNETS="`aws ec2 describe-subnets --query 'Subnets[*].SubnetId’ --filters Name=availability- zone,Values=$AVAILABILITY_ZONE Name=vpc-id,Values=$VPC_ID Name=state,Values=available Name=tag:network,Values=private`” if [ -z "$PRIVATE_SUBNETS" ]; then die "No private subnets found to modify for HA NAT." else log "Modifying Route Tables for following private subnets: $PRIVATE_SUBNETS" fi for subnet in $PRIVATE_SUBNETS; do ROUTE_TABLE_ID=`aws ec2 describe-route-tables --query 'RouteTables[*].RouteTableId’ --filters Name=association.subnet-id,Values=$subnet`; if [ "$ROUTE_TABLE_ID" = "$MAIN_RT" ]; then log "$subnet is associated with the VPC Main Route Table. HA NAT script will NOT edit Main Route Table.” elif [ -z "$ROUTE_TABLE_ID" ]; then log "$subnet is not associated with a Route Table. Skipping this subnet." else aws ec2 create-route --route-table-id $ROUTE_TABLE_ID --destination-cidr-block 0.0.0.0/0 --instance-id $INSTANCE_ID && log "$ROUTE_TABLE_ID associated with $subnet modified to point default route to $INSTANCE_ID." if [ $? -ne 0 ] ; then aws ec2 replace-route --route-table-id $ROUTE_TABLE_ID --destination-cidr-block 0.0.0.0/0 --instance-id $INSTANCE_ID fi fi done
- 38. Tag Early, TagOften! • Tagging strategy should be part of early design • Project code, cost center, environment, version, team, business unit • Tag resources right after creation • Tags supported for resource permissions • AWS Billing also supports tags • Tight IAM controls on the creation and editing of tags
- 39. IAM EC2 Rolefor HA NAT Instance { "Version": "2012-10-17", "Statement": [ { "Effect": "Allow", "Action": [ "ec2:DescribeInstances", "ec2:ModifyInstanceAttribute", "ec2:DescribeSubnets", "ec2:DescribeRouteTables", "ec2:CreateRoute", "ec2:ReplaceRoute" ], "Resource": "*" } ] }
- 40. If Design RequirementsKeep High Bandwidth Streams Behind NAT: • Use the 1 HA NAT per Availability Zone design • Vertically scale your NAT instance type to one with a High Network Performance rating • Keep a close watch on your network metrics m1.small Low m1.large Moderate m1.xlarge, c3.2xlarge High t1.micro Very Low
- 41. Take Advantage ofEnhanced Networking • Only available in VPC • Higher PPS, Lower Latency, Lower Jitter • Supported by C3, C4, R3, D2, and I2 instance types • Built into Amazon Linux, but supported in many flavors (including Windows) http://docs.aws.amazon.com/AWSEC2/latest/UserGuide/enhanced-networking.html
- 42.

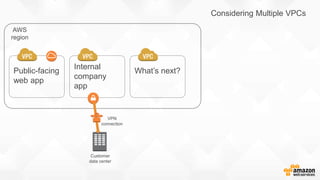

- 43. AWS region Considering Multiple VPCs Public-facing webapp Internal company app What’s next? VPN connection Customer data center
- 44. Common Customer UseCases: • Application isolation • Scope of audit containment • Risk level separation • Separate production from non-production • Multi-tenant isolation • Business unit alignment
- 45.
- 46. AWS region Internal Application toVPC Public-facing web app Internal company app VPN connection Customer data center
- 47. Availability Zone A PrivateSubnet Private Subnet AWS region Virtual Private Gateway VPN connection Customer data center Intranet App Intranet App Availability Zone B Internal customers Internal Application to VPC Route Table Destination Target 10.1.0.0/16 local Corp CIDR VGW
- 48. But… the appwill leverage this for storing data Amazon Dynamo DB
- 49. Availability Zone A PrivateSubnet Private Subnet AWS region Virtual Private Gateway VPN connection Customer data center Intranet App Intranet App Availability Zone B And you don’t really want to do this: Internet Customer border router Customer VPN Internet Dynamo DB
- 50. Control IGW Accessthrough a Proxy Layer • Deploy a proxy control layer between application and IGW • Restrict all outbound HTTP/S access to only approved URL destinations like AWS Services • No route to IGW for private subnets • Control access to proxy through security groups • Must configure proxy setting in OS of instances

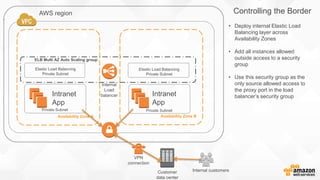

- 51. Availability Zone A PrivateSubnet Private Subnet AWS region VPN connection Customer data center Intranet App Intranet App Availability Zone B Internal customers Controlling the Border Internal Load balancer Elastic Load Balancing Private Subnet Elastic Load Balancing Private Subnet ELB Multi AZ Auto Scaling group • Deploy internal Elastic Load Balancing layer across Availability Zones • Add all instances allowed outside access to a security group • Use this security group as the only source allowed access to the proxy port in the load balancer’s security group
- 52. Put Elastic LoadBalancers in Their Own Subnets • Elastic Load Balancing is Amazon EC2 in your subnets • Elastic Load Balancing is using your private addresses • Separate subnets = separate control • Distinguish load balancing layer from app layers
- 53. Availability Zone A PrivateSubnet(s) Private Subnet(s) AWS region VPN connection Customer data center Intranet App Intranet App Availability Zone B Internal customers Controlling the Border Internal Load balancer Elastic Load Balancing Private Subnet Elastic Load Balancing Private Subnet • Squid Proxy layer deployed between internal load balancer and the IGW border. Proxy Public Subnet Proxy Public Subnet Amazon S3 HTTP/S Multi AZ Auto Scaling group • Only proxy subnets have route to IGW. • Proxy security group allows inbound only from Elastic Load Balancing security group. • Proxy restricts which URLs may pass. In this example, s3.amazonaws.com is allowed. • Egress NACLs on proxy subnets enforce HTTP/S only.
- 54. Squid.conf Sample Config: #CIDR AND Destination Domain based Allow # CIDR Subnet blocks for Internal ELBs acl int_elb_cidrs src 10.1.3.0/24 10.1.4.0/24 # Destination domain for target S3 bucket acl s3_v2_endpoints dstdomain $bucket_name.s3.amazonaws.com # Squid does AND on both ACLs for allow match http_access allow int_elb_cidrs s3_v2_endpoints # Deny everything else http_access deny all
- 55. Using Squid ProxyInstances for Web Service Access in Amazon VPC: http://aws.amazon.com/articles/5995712515781075
- 56. AWS region Public-facing web app Internal company app What’snext? VPN connection Customer data center
- 57. AWS region Public-facing web app Internal company app#1 HA pair VPN endpoints Internal company app #2 Internal company app #3 Internal company app #4 Customer data center Customer gateways (CGW): • 1 per VPN tunnel • 1 public IP per CGW • AWS provides 2 tunnel destinations per region

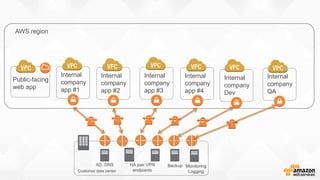

- 58. Public-facing web app Internal company app #2 HApair VPN endpointsCustomer data center Internal company app #3 Internal company app #4 Internal company app #1 Internal company Dev Internal company QA AWS region BackupAD, DNS Monitoring Logging

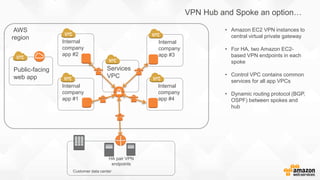

- 59. AWS region Public-facing web app Internal company app #1 HApair VPN endpoints Customer data center VPN Hub and Spoke an option… Internal company app #2 Internal company app #3 Internal company app #4 Services VPC • Amazon EC2 VPN instances to central virtual private gateway • For HA, two Amazon EC2- based VPN endpoints in each spoke • Control VPC contains common services for all app VPCs • Dynamic routing protocol (BGP, OSPF) between spokes and hub
- 60.
- 61. 10.1.0.0/16 10.0.0.0/16 • VPCs withinsame Region Peer Request Peer Accept • Same or Different Accounts • IP Space Cannot Overlap • Only 1 between any 2 VPCs
- 62.
- 63. 10.1.0.0/16 10.0.0.0/16 Route Table Destination Target 10.1.0.0/16local 10.0.0.0/16 PCX-1 Route Table Destination Target 10.0.0.0/16 local 10.1.0.0/16 PCX-1 PCX-1 • No IGW or VGW Required A B • No SPoF • No Bandwidth Bottlenecks
- 64. 10.0.0.0/16 10.0.0.0/16 PCX-1 PCX-2 Subnet1 10.1.1.0/24 Subnet 2 10.1.2.0/24 10.1.0.0/16 Route Table Subnet 1 Destination Target 10.1.0.0/16 local 10.0.0.0/16 PCX-1 Route Table Subnet 2 Destination Target 10.1.0.0/16 local 10.0.0.0/16 PCX-2 A B C
- 65. 10.0.0.0/16 10.0.0.0/16 PCX-1 PCX-2 Subnet1 10.1.1.0/24 Subnet 2 10.1.2.0/24 10.1.0.0/16 Route Table Subnet 1 Destination Target 10.1.0.0/16 local 10.0.1.11/32 PCX-1 Route Table Subnet 2 Destination Target 10.1.0.0/16 local 10.0.0.0/16 PCX-2 A B CSubnet 3 Route Table Subnet 3 Destination Target 10.0.0.0/16 local 10.1.1.0/24 PCX-1 10.0.1.11 Route Table Subnet 1 Destination Target 10.1.0.0/16 local 10.0.0.0/16 PCX-1
- 66.

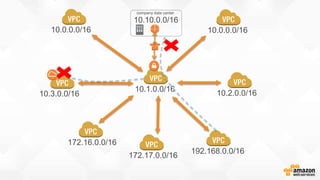

- 67.
- 68.
- 69.

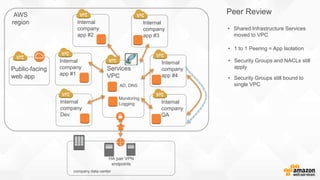

- 70. AWS region Public-facing web app Internal company app #1 HApair VPN endpoints company data center Peer Review Internal company app #2 Internal company app #3 Internal company app #4 Services VPC • Shared Infrastructure Services moved to VPC Internal company Dev Internal company QA AD, DNS Monitoring Logging • 1 to 1 Peering = App Isolation • Security Groups and NACLs still apply • Security Groups still bound to single VPC
- 71. Use IAM toDefine & Enforce a VPC’s Operational State Use EC2 Run Resource Permissions to control: • What AMI can be launched • What VPC or subnet can be targeted • What Security Groups must be in place • Which VPCs allow Peering http://docs.aws.amazon.com/AmazonVPC/latest/UserGuide/VPC_IAM.html For more policy examples:
- 72. AWS region Public-facing web app HA pairVPN endpoints Customer data center AWS region Prod QA Dev
- 73. Bringing It AllBack Home
- 74. Customer data center AWS DirectConnect location AWS Direct Connect Private Virtual Interface (PVI) connects to VGW on VPC • 1 PVI per VPC • 802.1Q VLAN Tags isolate traffic across AWS Direct Connect Private fiber connection One or multiple 50 – 500 Mbps, 1 Gbps or 10 Gbps pipes Simplify with AWS Direct Connect Public-facing web app AWS region Prod QA Dev
- 75. A few bitson AWS Direct Connect… • Dedicated, private pipes into AWS • Create private (VPC) or public interfaces to AWS • Cheaper data-out rates than Internet (data-in still free) • Consistent network performance compared to Internet • At least 1 location to each AWS region (even GovCloud!) • Recommend redundant connections • Multiple AWS accounts can share a connection
- 76. VPC 1 Private VirtualInterface 1 VLAN Tag 101 BGP ASN 7224 BGP Announce 10.1.0.0/16 Interface IP 169.254.251.5/30 10.1.0.0/16 VGW 1 Multiple VPCs Over AWS Direct Connect Customer Switch + Router Customer Interface 0/1.101 VLAN Tag 101 BGP ASN 65001 BGP Announce Customer Internal Interface IP 169.254.251.6/30 VLAN 101 VLAN 102 VLAN 103 VPC 2 10.2.0.0/16 VGW 2 VPC 3 10.3.0.0/16 VGW 3 Private Virtual Interface 2 VLAN Tag 102 BGP ASN 7224 BGP Announce 10.2.0.0/16 Interface IP 169.254.251.9/30 Customer Interface 0/1.102 VLAN Tag 102 BGP ASN 65002 BGP Announce Customer Internal Interface IP 169.254.251.10/30 Customer Interface 0/1.103 VLAN Tag 103 BGP ASN 65003 BGP Announce Customer Internal Interface IP 169.254.251.14/30 Private Virtual Interface 3 VLAN Tag 103 BGP ASN 7224 BGP Announce 10.3.0.0/16 Interface IP 169.254.251.13/30 Route Table Destination Target 10.1.0.0/16 PVI 1 10.2.0.0/16 PVI 2 10.3.0.0/16 PVI 3 Customer Internal Network
- 77. See What YourVGW Sees Before: Enable: After:
- 78. Customer routers Customer internal network AWSDX routers AWS region AWS Direct Connect location Multiple physical connections: • Active / Active links via BGP multi-pathing • Active / Passive also an option • BGP MEDs or local preference can influence route • Bidirectional Forwarding Detection (BFD) protocol supported
- 79. Evolving VPC Design:Recap • Elements of VPC Design • Scalable and Available NAT • One VPC, Two VPC • Controlling the Border • Directory and Name Services in the VPC • VPC Peering • Bringing It All Back Home
