1. Experience Day, Medellín
Networking Services

2. Agenda

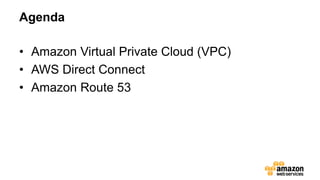

• Amazon Virtual Private Cloud (VPC)
• AWS Direct Connect
• Amazon Route 53

3. Amazon Virtual Private Cloud (VPC)

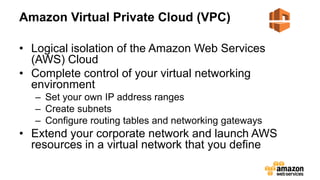

• Logical isolation of the Amazon Web Services
(AWS) Cloud
• Complete control of your virtual networking
environment
– Set your own IP address ranges
– Create subnets
– Configure routing tables and networking gateways
• Extend your corporate network and launch AWS
resources in a virtual network that you define

4. Amazon Virtual Private Cloud (VPC)

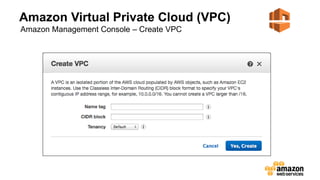

Amazon Management Console – Create VPC

5. Amazon Virtual Private Cloud (VPC)
• Syntax for specifying IP addresses and their
associated routing prefix
• Examples of CIDR notation
• 10.0.0.0/16 (represents 65,536 hosts)
• 10.1.0.0/20 (represents 4,096 hosts)
• 10.2.0.0/23 (represents 512 hosts)
• 10.3.1.0/24 (represents 256 hosts)
Classless Inter-Domain Routing (CIDR) Notation

6. Amazon Virtual Private Cloud (VPC)

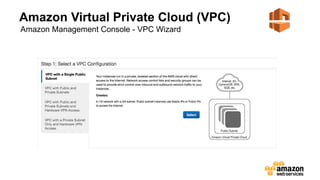

Amazon Management Console - VPC Wizard

7. Amazon Virtual Private Cloud (VPC)

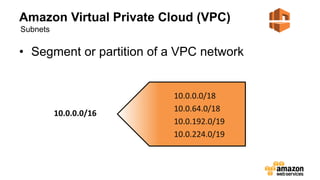

• Segment or partition of a VPC network
10.0.0.0/16
10.0.0.0/18
10.0.64.0/18
10.0.192.0/19
10.0.224.0/19
Subnets

8. Amazon Virtual Private Cloud (VPC)

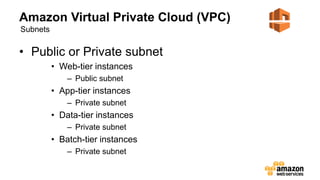

• Public or Private subnet
• Web-tier instances
– Public subnet
• App-tier instances
– Private subnet
• Data-tier instances
– Private subnet
• Batch-tier instances
– Private subnet
Subnets

9. Amazon Virtual Private Cloud (VPC)

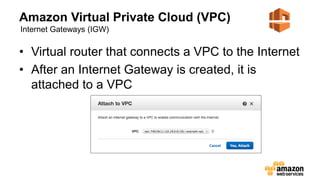

• Virtual router that connects a VPC to the Internet
• After an Internet Gateway is created, it is
attached to a VPC
Internet Gateways (IGW)

10. Amazon Virtual Private Cloud (VPC)

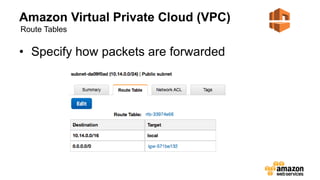

• Specify how packets are forwarded
Route Tables

11. Amazon Virtual Private Cloud (VPC)

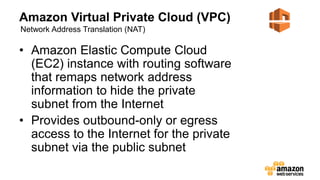

• Amazon Elastic Compute Cloud
(EC2) instance with routing software
that remaps network address
information to hide the private
subnet from the Internet
• Provides outbound-only or egress
access to the Internet for the private
subnet via the public subnet
Network Address Translation (NAT)

12. Amazon Virtual Private Cloud (VPC)

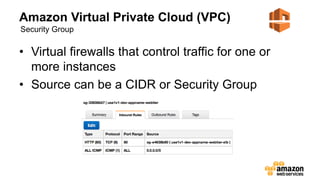

• Virtual firewalls that control traffic for one or
more instances
• Source can be a CIDR or Security Group
Security Group

13. Amazon Virtual Private Cloud (VPC)

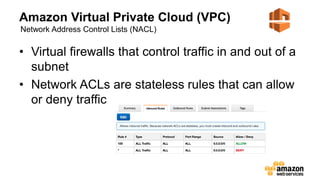

• Virtual firewalls that control traffic in and out of a
subnet
• Network ACLs are stateless rules that can allow
or deny traffic
Network Address Control Lists (NACL)

14. Amazon Virtual Private Cloud (VPC)

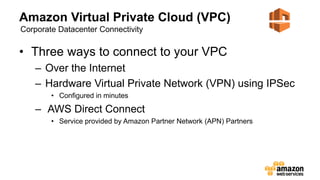

• Three ways to connect to your VPC
– Over the Internet
– Hardware Virtual Private Network (VPN) using IPSec
• Configured in minutes
– AWS Direct Connect
• Service provided by Amazon Partner Network (APN) Partners
Corporate Datacenter Connectivity

15. AWS Direct Connect

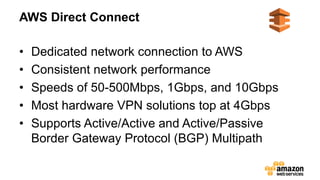

• Dedicated network connection to AWS
• Consistent network performance
• Speeds of 50-500Mbps, 1Gbps, and 10Gbps
• Most hardware VPN solutions top at 4Gbps
• Supports Active/Active and Active/Passive
Border Gateway Protocol (BGP) Multipath

16. Amazon Route 53

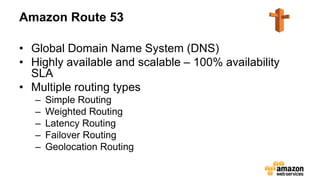

• Global Domain Name System (DNS)
• Highly available and scalable – 100% availability
SLA
• Multiple routing types
– Simple Routing
– Weighted Routing
– Latency Routing
– Failover Routing
– Geolocation Routing
