I discuss basic topic of algorithm, I discuss graph, SCC, BFS, and many topics. Every one can know about graph.

1. Final Year Defense
1
Class presentation

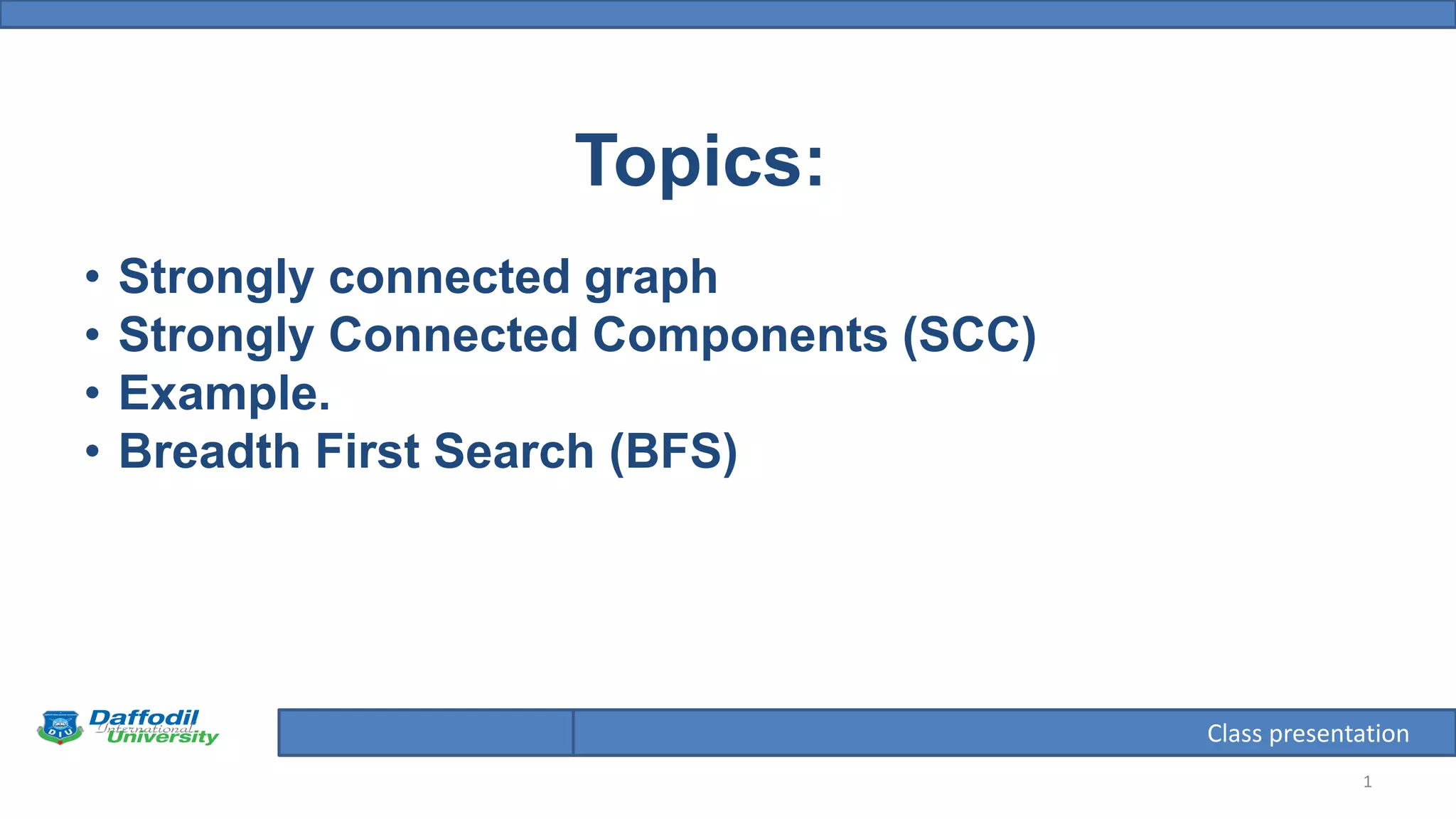

Topics:
• Strongly connected graph
• Strongly Connected Components (SCC)
• Example.
• Breadth First Search (BFS)

2. Final Year Defense
2
Strongly connected graph
A directed graph is called strongly connected if for every
pair of vertices u and v there is a path from u to v and a path
from v to u.
Strongly Connected Components (SCC)
The strongly connected components (SCC) of a directed
graph are its maximal strongly connected subgraphs.
Class presentation

3. Final Year Defense
3

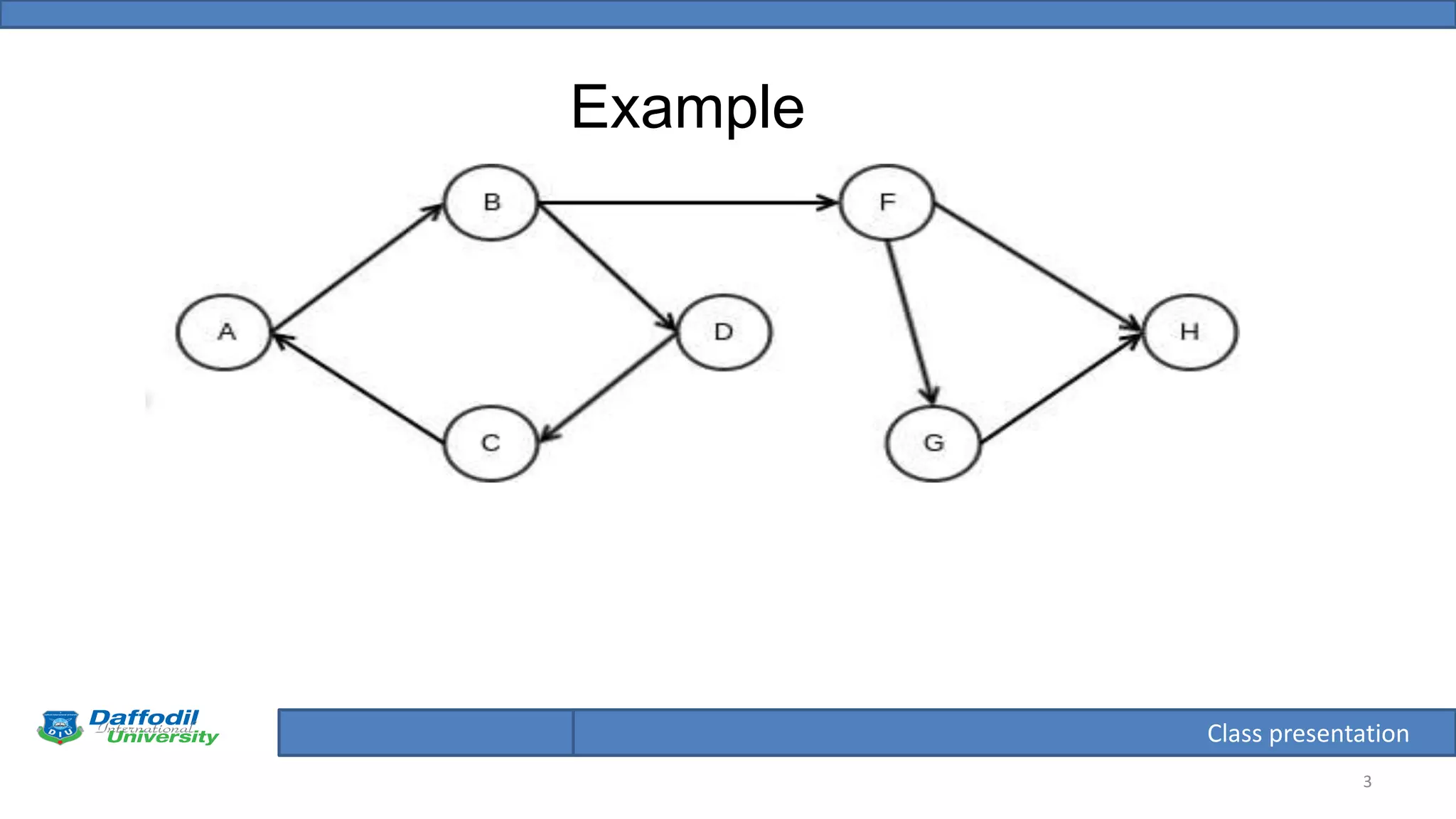

Example
Class presentation

4. Final Year Defense
4
Step 1 : (a) Discover time, (b) Finish Time.
Stack
1/14
2/13 7/12
9/10
8/11
3/6
4/5
A
B
F
G
H
D
C
Class presentation
Push

5. Final Year Defense
5
Step 2: Reverse the direction of a graph
A
B F
H
G
D
C
Class presentation

6. Final Year Defense
6

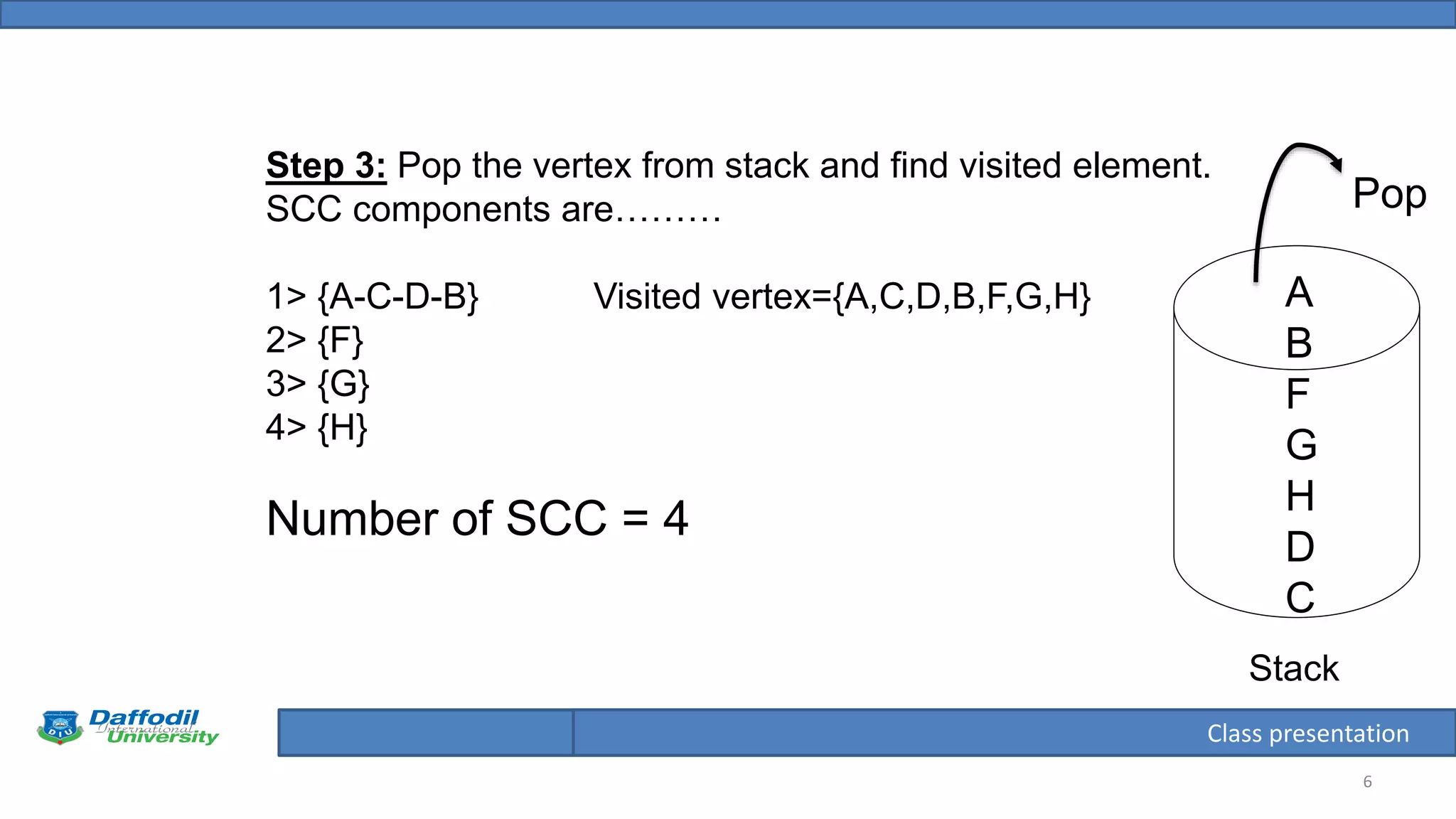

Step 3: Pop the vertex from stack and find visited element.
SCC components are………
1> {A-C-D-B} Visited vertex={A,C,D,B,F,G,H}
2> {F}
3> {G}
4> {H}
Number of SCC = 4
Class presentation
Stack
A
B
F
G
H
D
C
Pop

7. Final Year Defense
7
Breadth First Search
Step 1: S A C
Step 2: A C B
Step 3: C B D E
Step 4: B D E
Step 5:
Step 6:
D E F
E F V
Step 7: F V
Class presentation
