1. ARTIFICAL INTELLIGENCE
(R18 III(II Sem))
Department of computer science and
engineering (AI/ML)
Session 19
by
Asst.Prof.M.Gokilavani
VITS
4/25/2023 Dpaertment of CSE ( AL & ML) 1

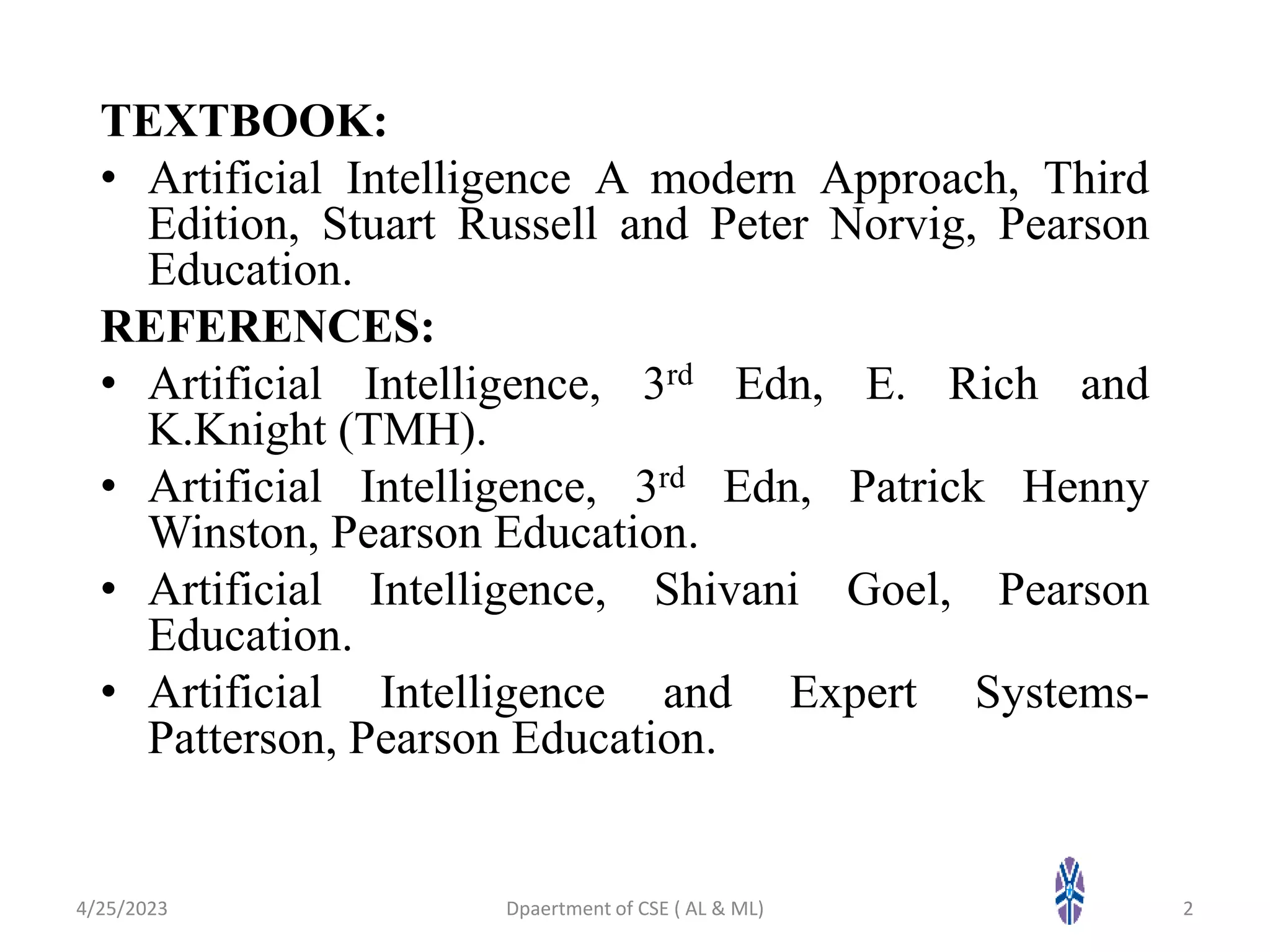

2. TEXTBOOK:
• Artificial Intelligence A modern Approach, Third
Edition, Stuart Russell and Peter Norvig, Pearson
Education.
REFERENCES:
• Artificial Intelligence, 3rd Edn, E. Rich and
K.Knight (TMH).
• Artificial Intelligence, 3rd Edn, Patrick Henny
Winston, Pearson Education.
• Artificial Intelligence, Shivani Goel, Pearson
Education.
• Artificial Intelligence and Expert Systems-
Patterson, Pearson Education.
4/25/2023 Dpaertment of CSE ( AL & ML) 2

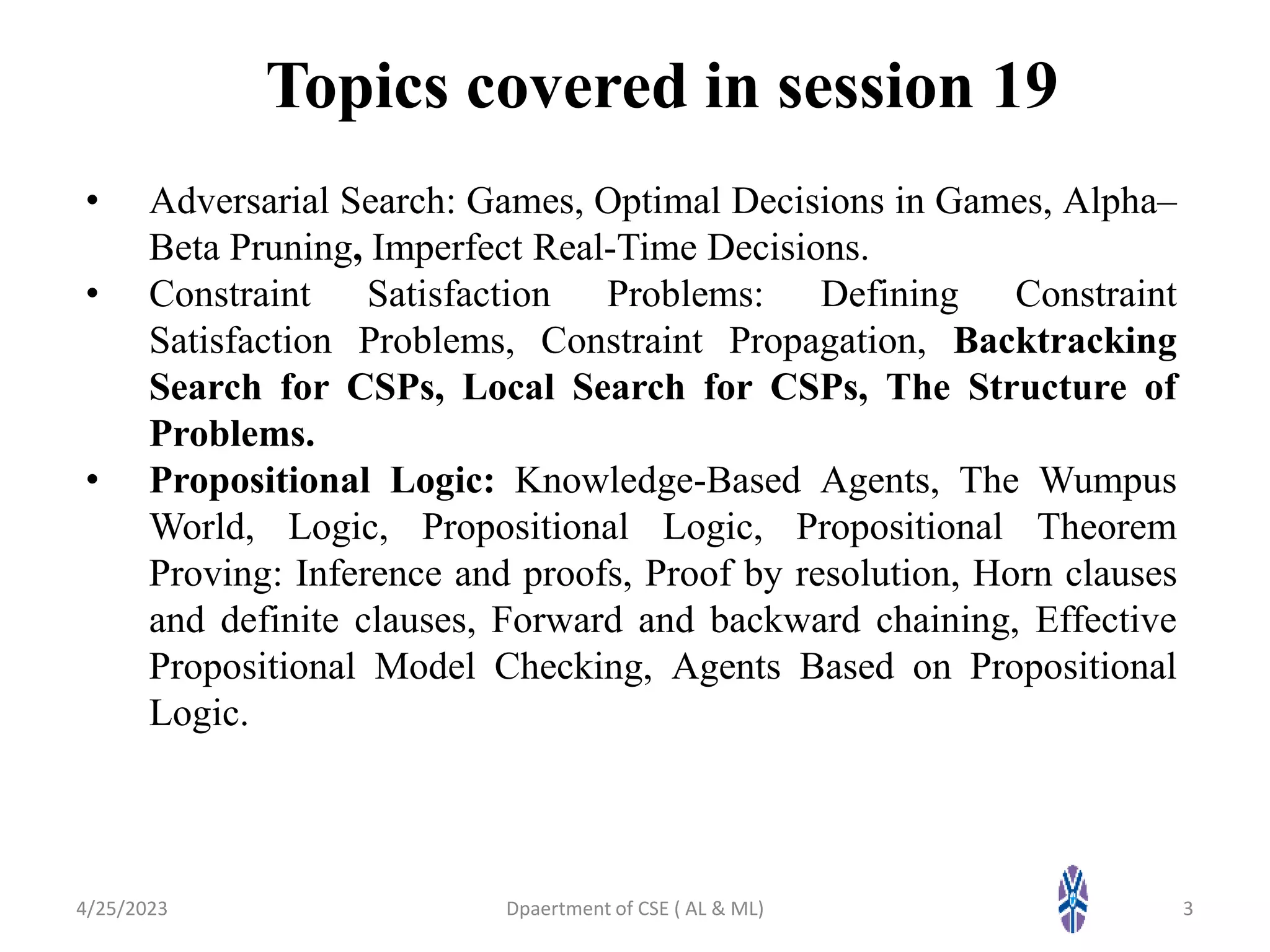

3. Topics covered in session 19
• Adversarial Search: Games, Optimal Decisions in Games, Alpha–
Beta Pruning, Imperfect Real-Time Decisions.
• Constraint Satisfaction Problems: Defining Constraint
Satisfaction Problems, Constraint Propagation, Backtracking
Search for CSPs, Local Search for CSPs, The Structure of
Problems.
• Propositional Logic: Knowledge-Based Agents, The Wumpus
World, Logic, Propositional Logic, Propositional Theorem
Proving: Inference and proofs, Proof by resolution, Horn clauses
and definite clauses, Forward and backward chaining, Effective
Propositional Model Checking, Agents Based on Propositional
Logic.
4/25/2023 Dpaertment of CSE ( AL & ML) 3

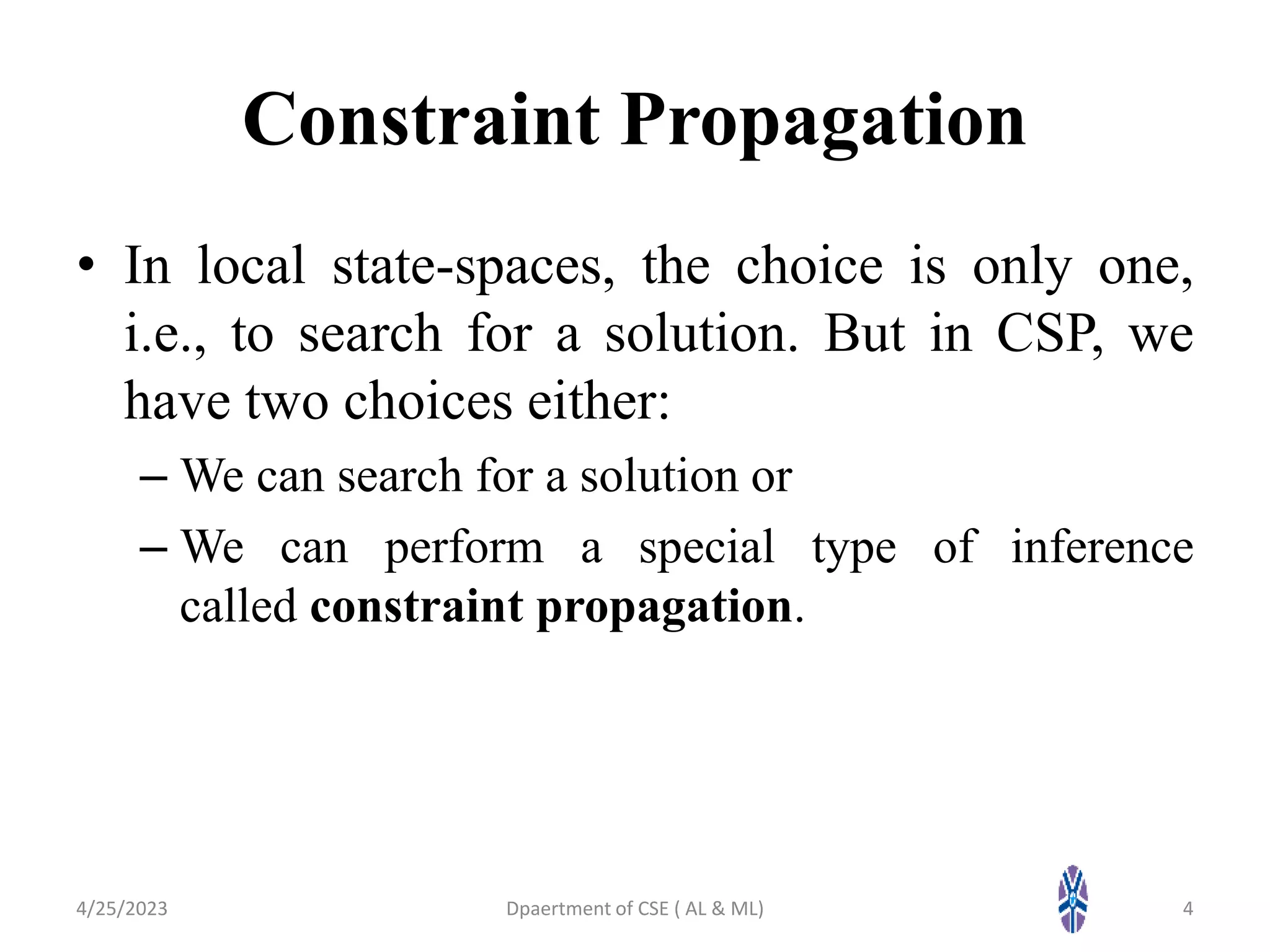

4. Constraint Propagation
• In local state-spaces, the choice is only one,
i.e., to search for a solution. But in CSP, we
have two choices either:
– We can search for a solution or
– We can perform a special type of inference
called constraint propagation.
4/25/2023 4
Dpaertment of CSE ( AL & ML)

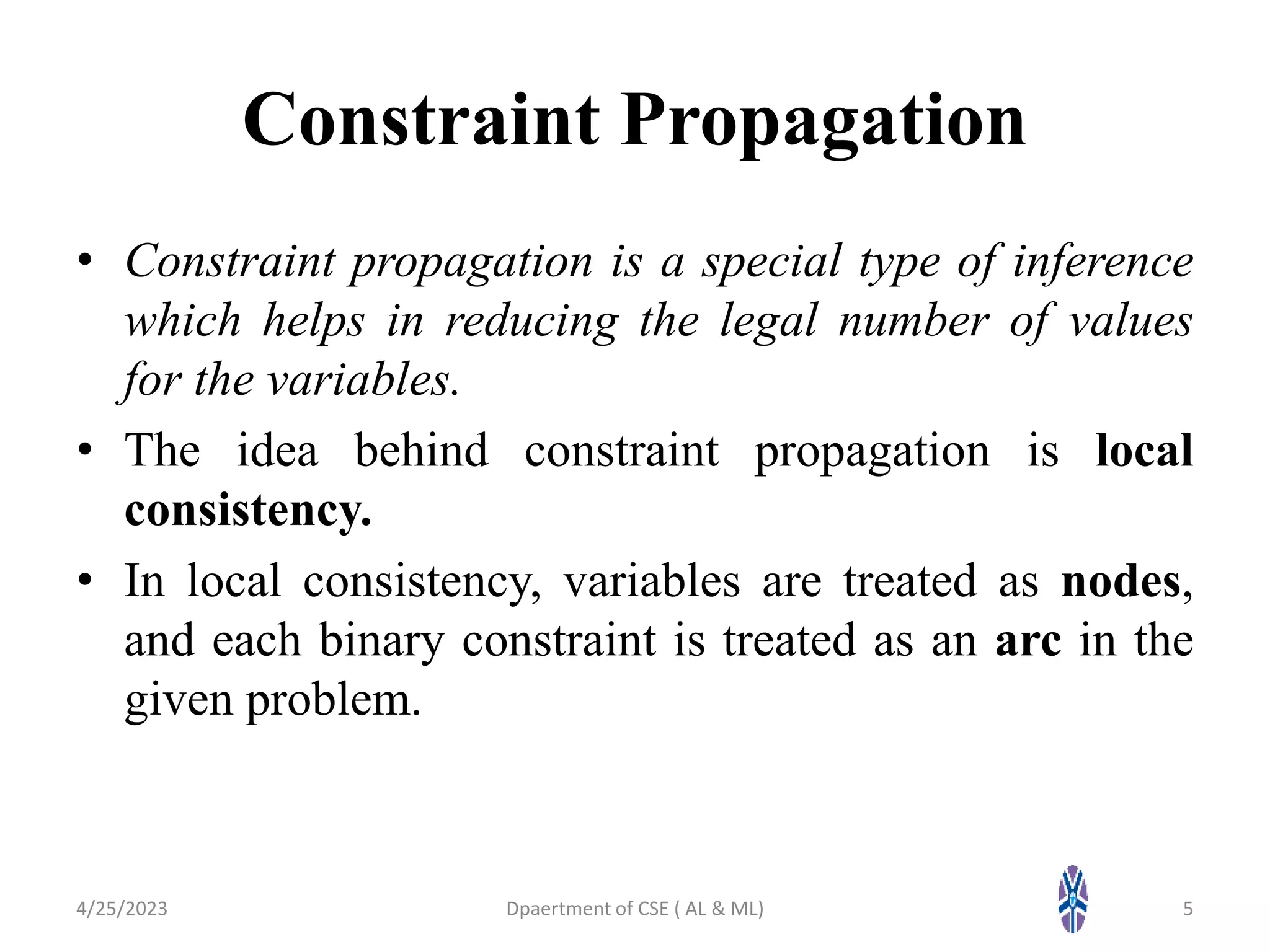

5. Constraint Propagation
• Constraint propagation is a special type of inference
which helps in reducing the legal number of values
for the variables.
• The idea behind constraint propagation is local
consistency.
• In local consistency, variables are treated as nodes,
and each binary constraint is treated as an arc in the
given problem.
4/25/2023 5
Dpaertment of CSE ( AL & ML)

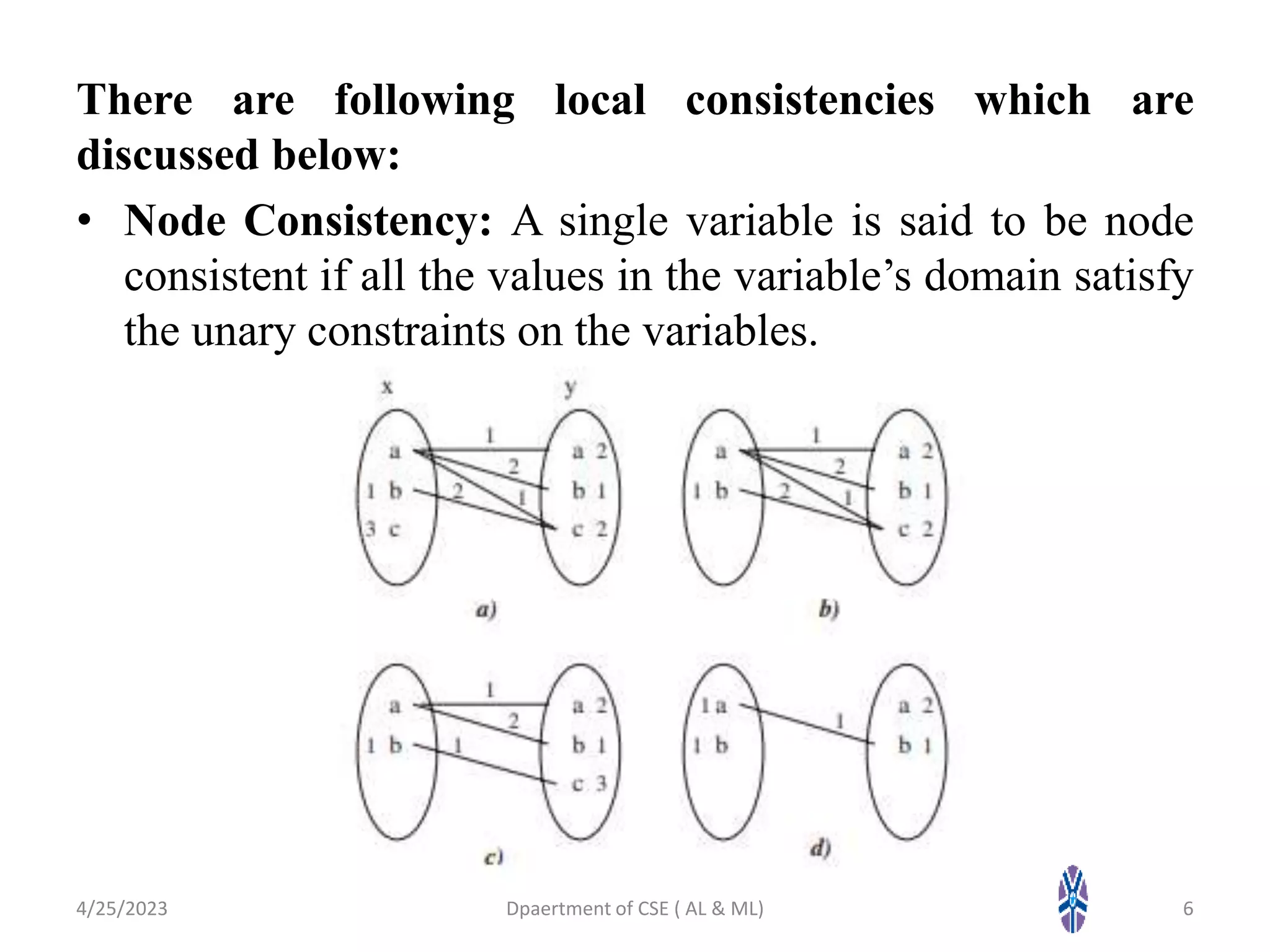

6. There are following local consistencies which are
discussed below:
• Node Consistency: A single variable is said to be node
consistent if all the values in the variable’s domain satisfy
the unary constraints on the variables.
4/25/2023 6
Dpaertment of CSE ( AL & ML)

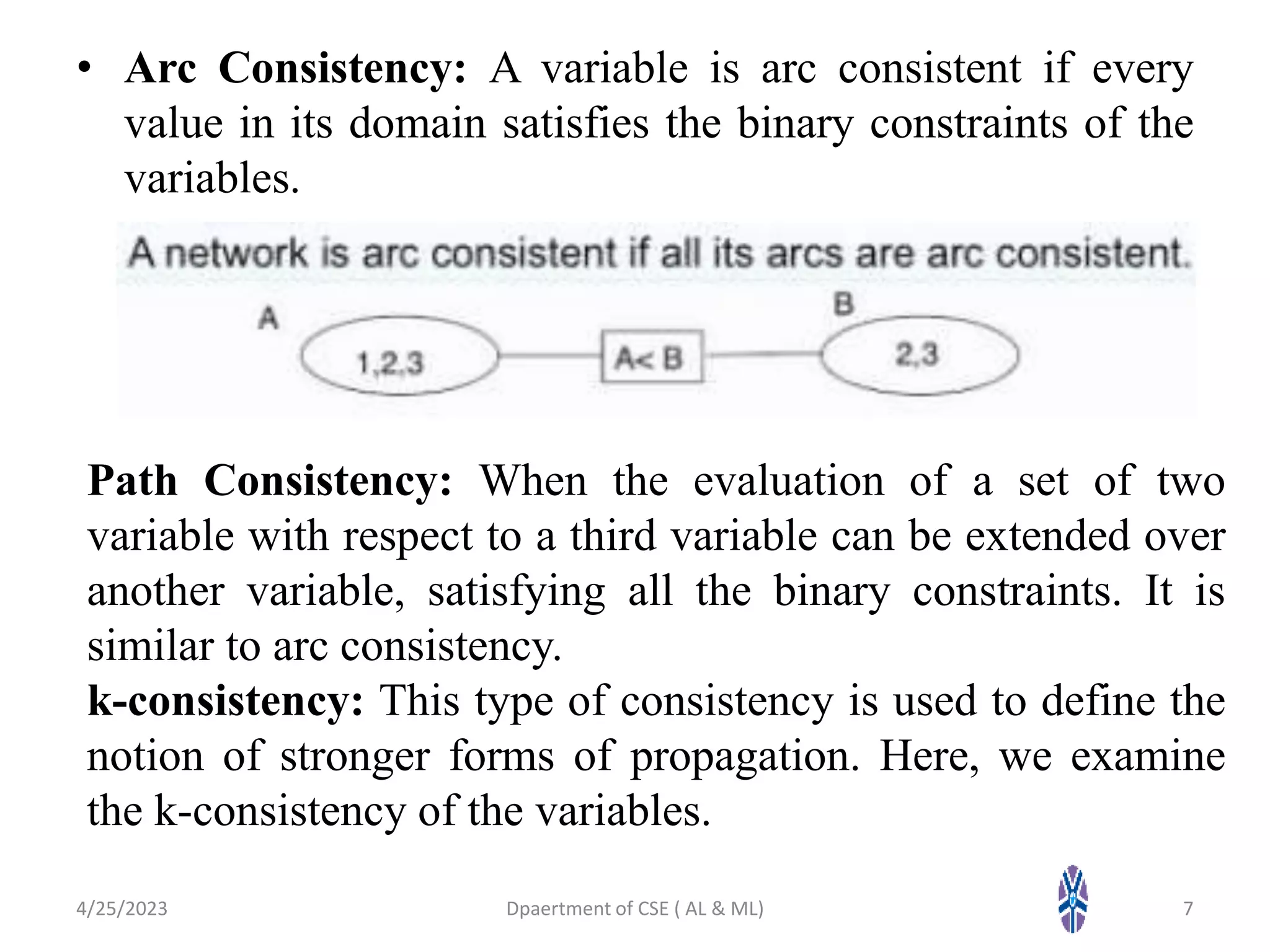

7. • Arc Consistency: A variable is arc consistent if every
value in its domain satisfies the binary constraints of the
variables.
4/25/2023 7
Dpaertment of CSE ( AL & ML)
Path Consistency: When the evaluation of a set of two
variable with respect to a third variable can be extended over
another variable, satisfying all the binary constraints. It is
similar to arc consistency.
k-consistency: This type of consistency is used to define the
notion of stronger forms of propagation. Here, we examine
the k-consistency of the variables.

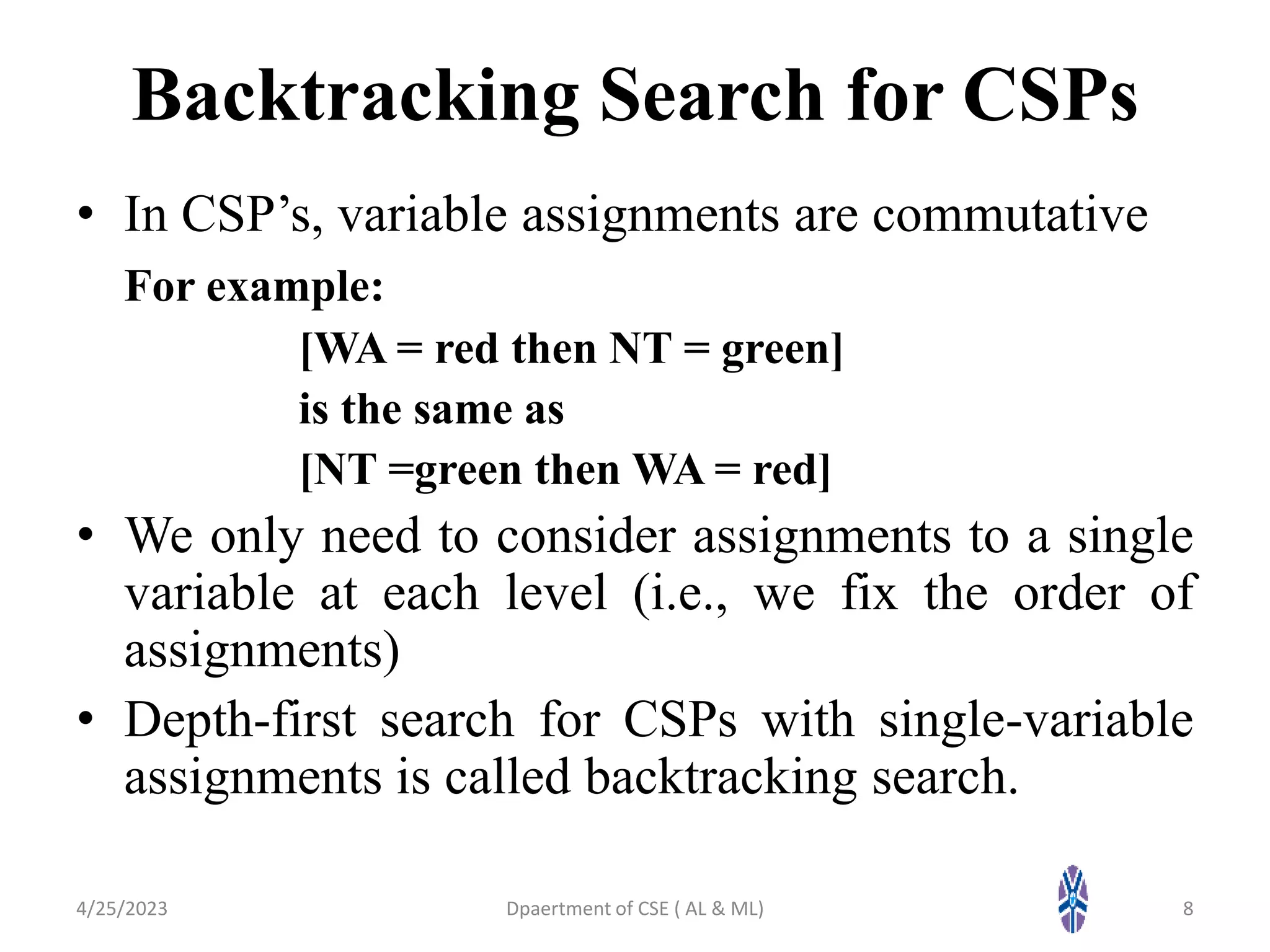

8. Backtracking Search for CSPs
• In CSP’s, variable assignments are commutative
For example:
[WA = red then NT = green]
is the same as
[NT =green then WA = red]
• We only need to consider assignments to a single
variable at each level (i.e., we fix the order of
assignments)
• Depth-first search for CSPs with single-variable
assignments is called backtracking search.
4/25/2023 8
Dpaertment of CSE ( AL & ML)

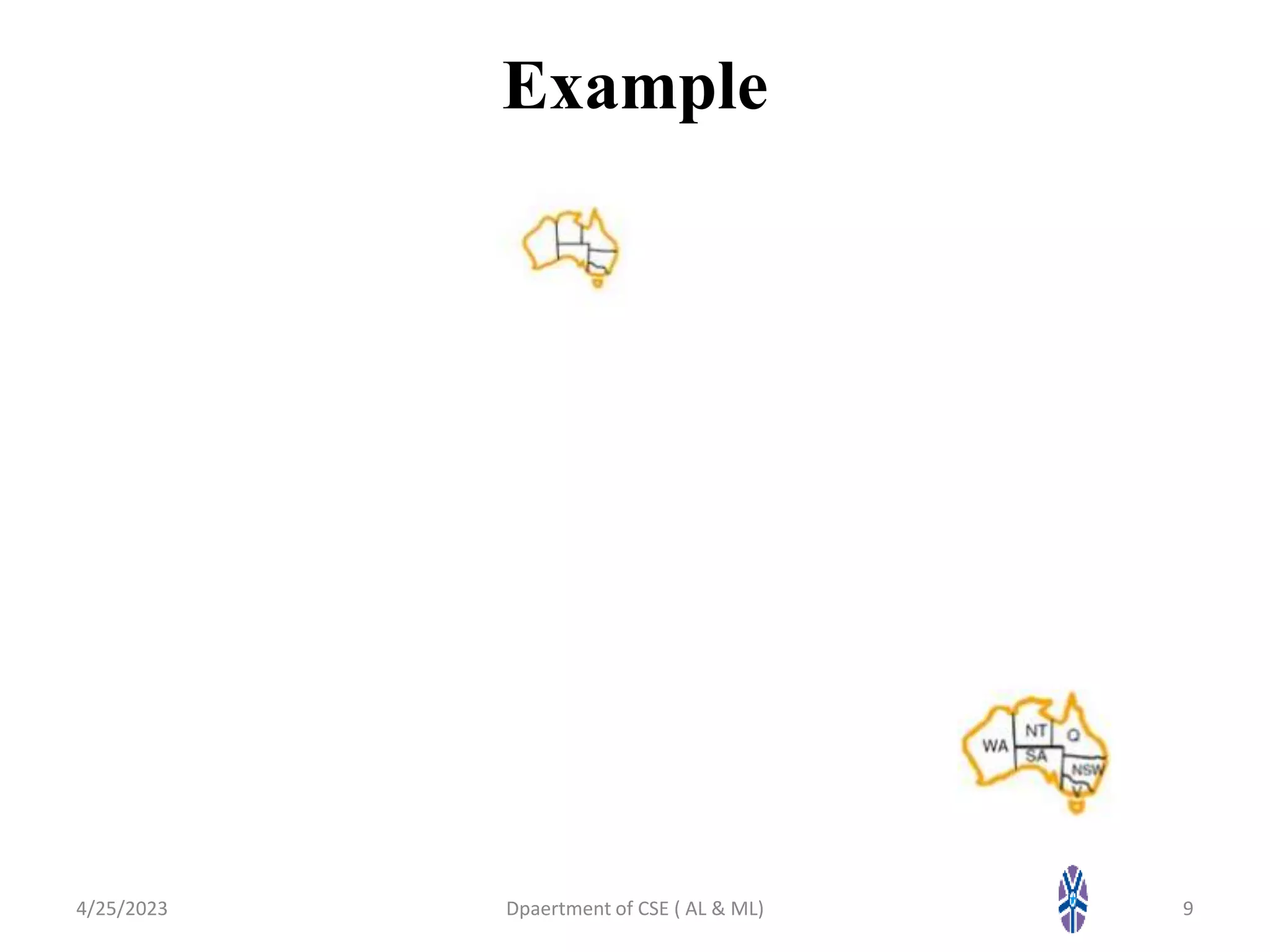

9. Example
4/25/2023 9
Dpaertment of CSE ( AL & ML)

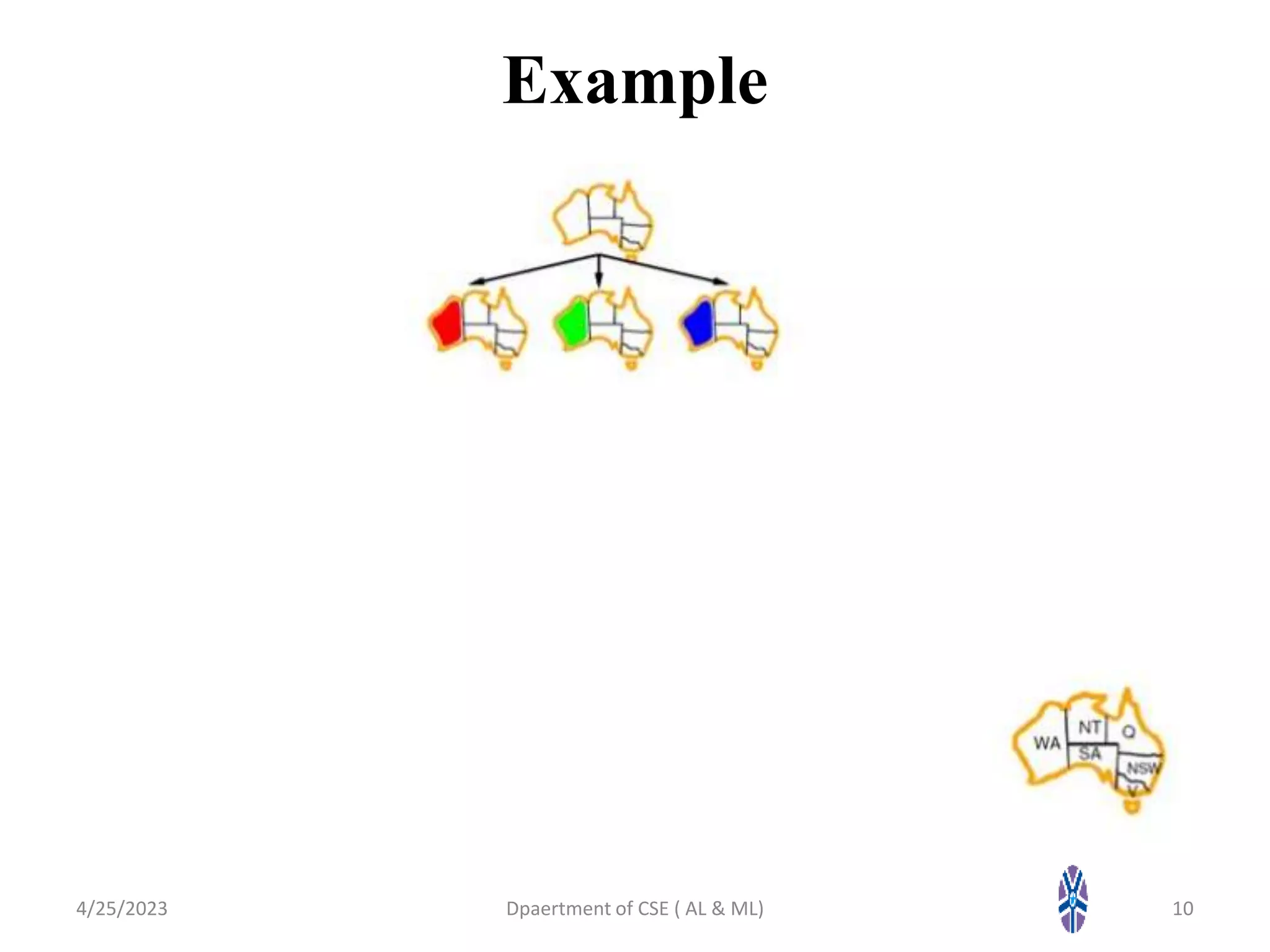

10. Example
4/25/2023 Dpaertment of CSE ( AL & ML) 10

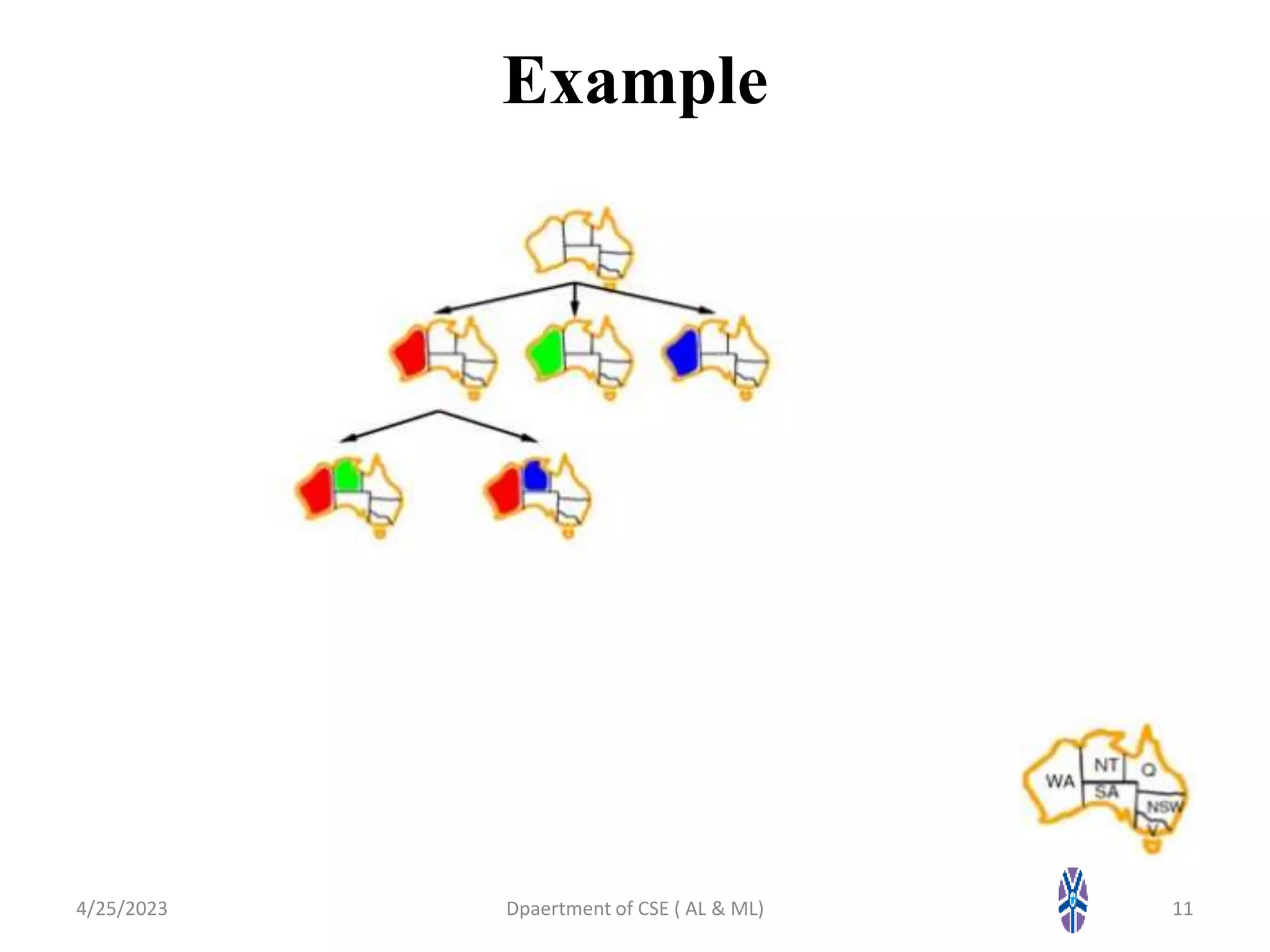

11. Example
4/25/2023 11
Dpaertment of CSE ( AL & ML)

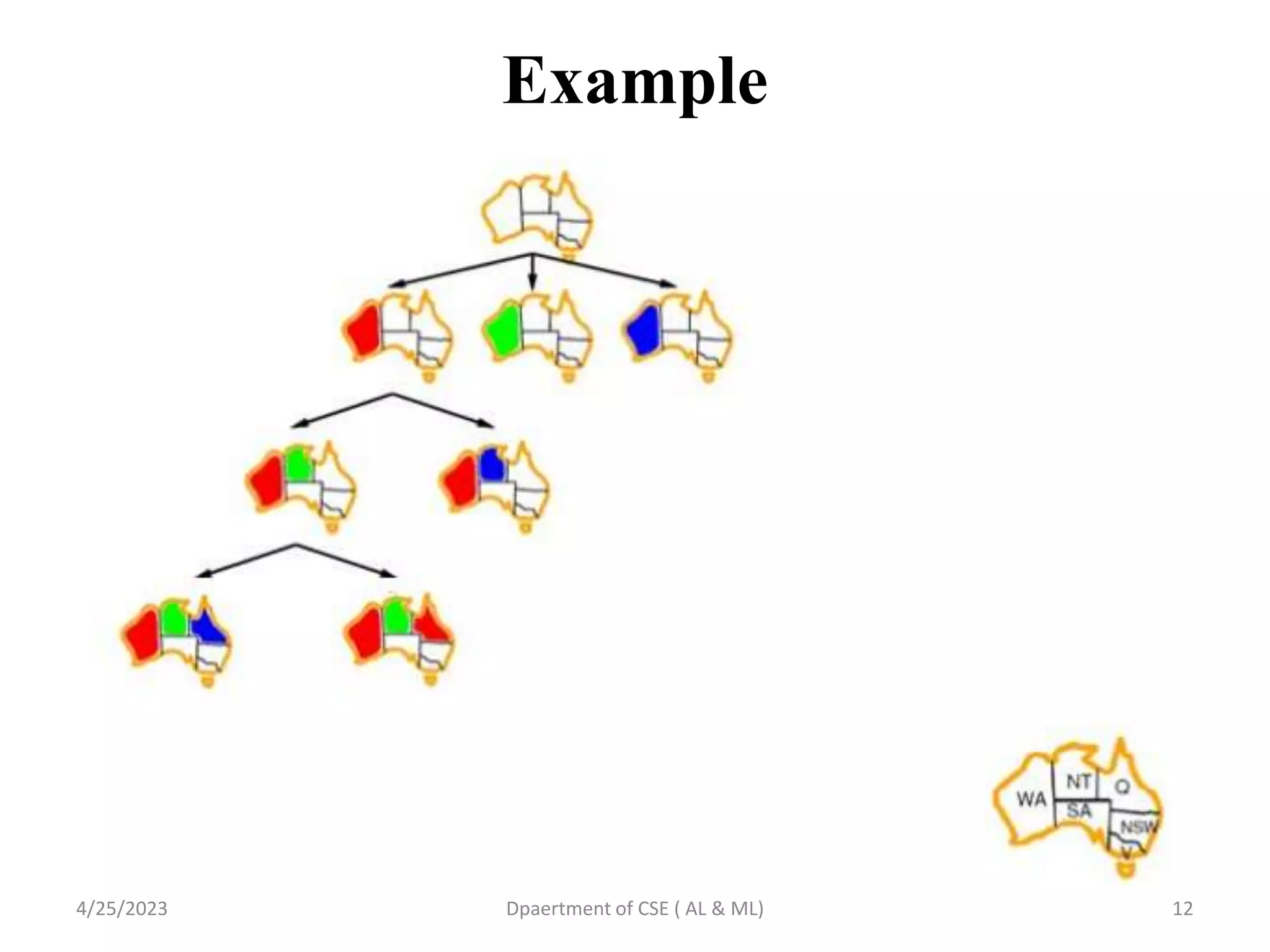

12. Example
4/25/2023 Dpaertment of CSE ( AL & ML) 12

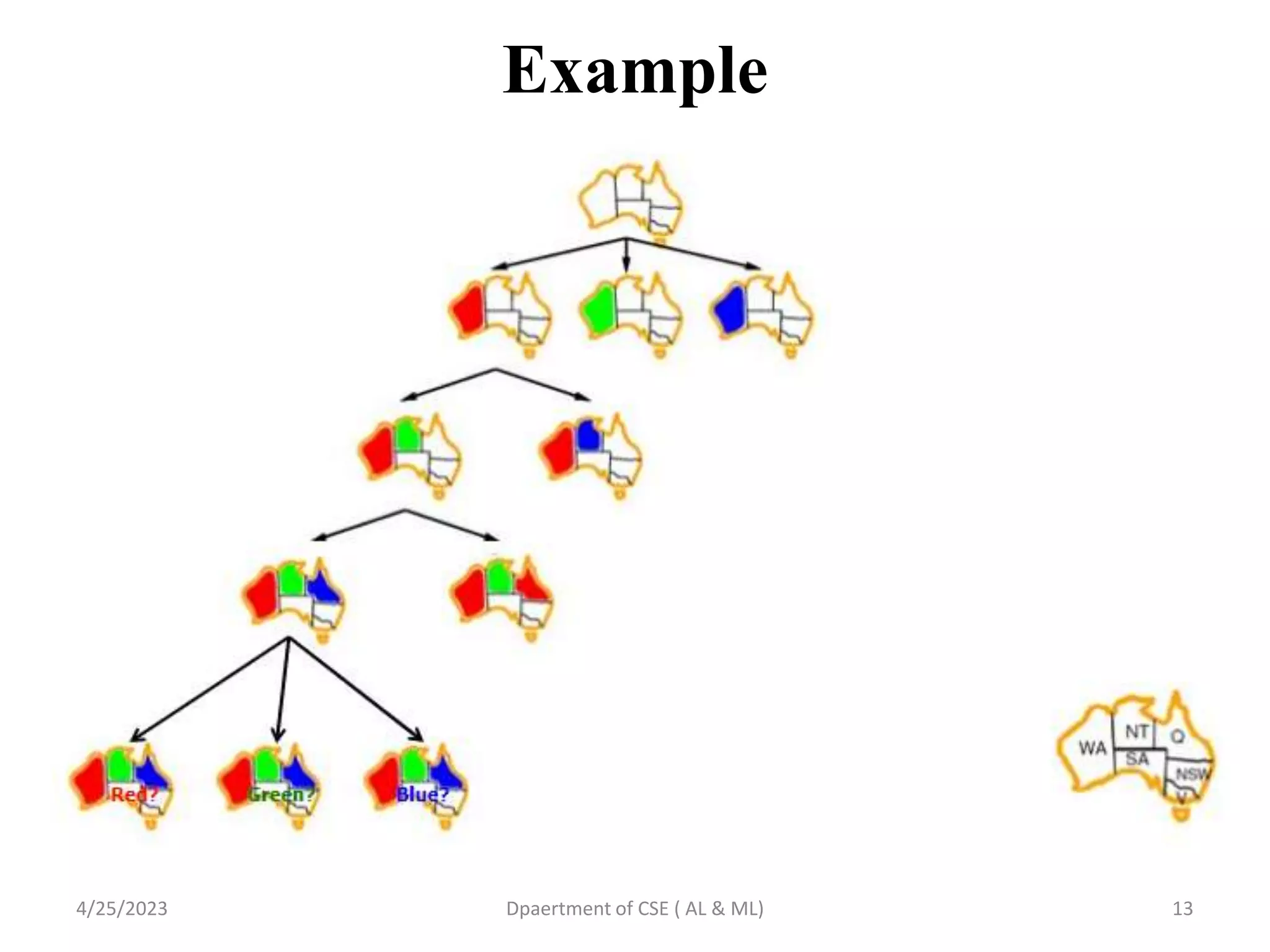

13. Example
4/25/2023 Dpaertment of CSE ( AL & ML) 13

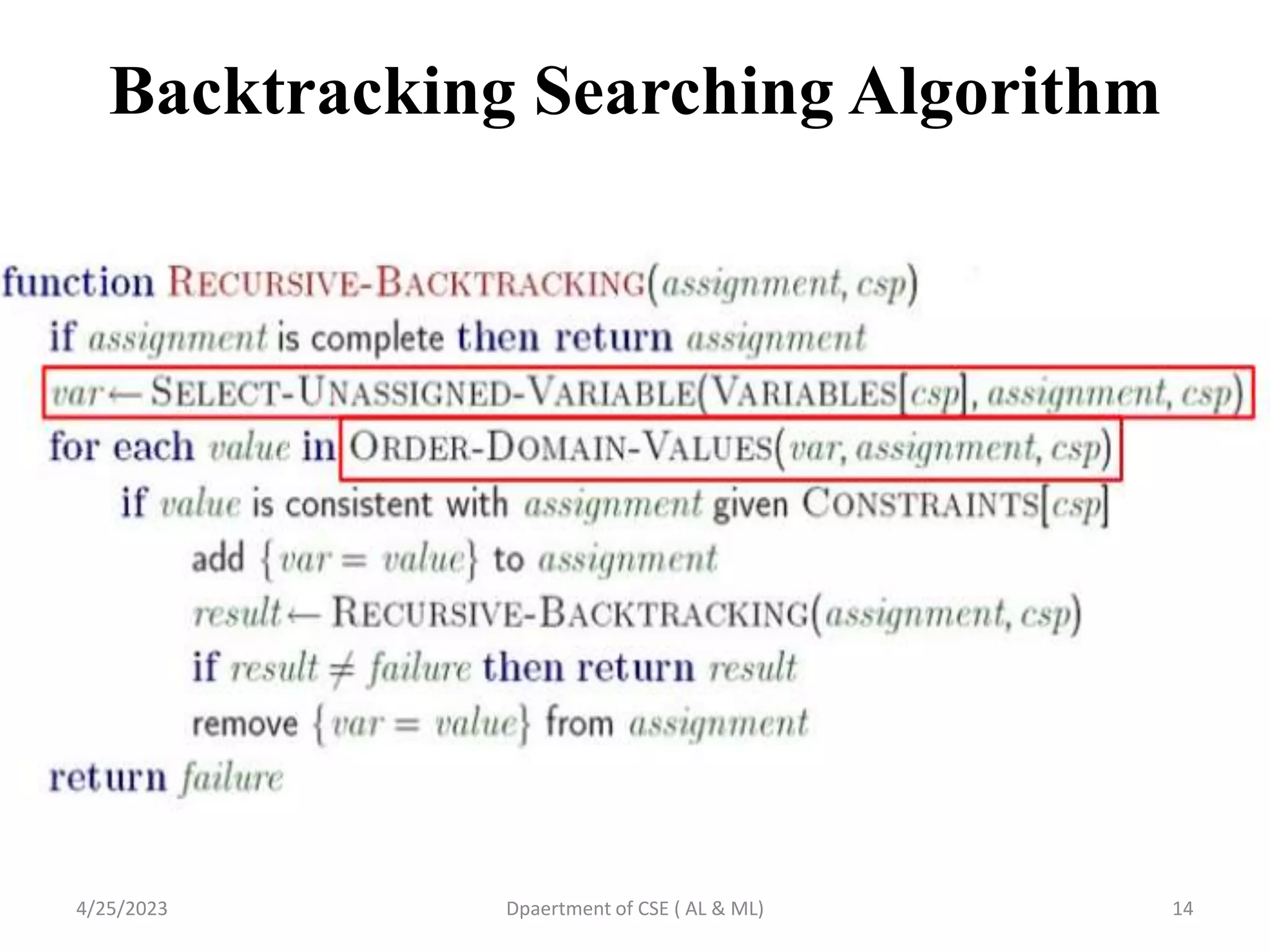

14. Backtracking Searching Algorithm
4/25/2023 Dpaertment of CSE ( AL & ML) 14

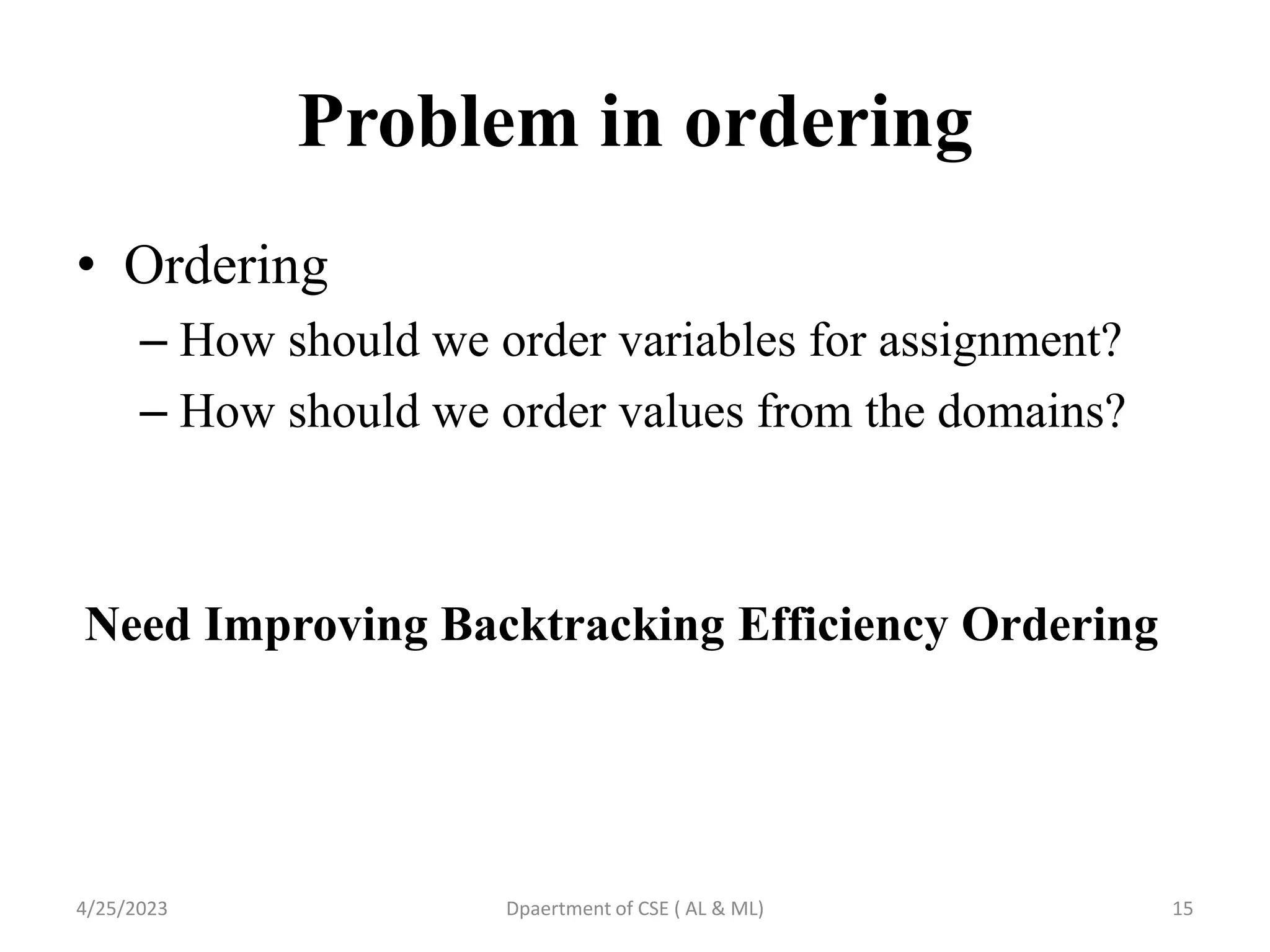

15. Problem in ordering
4/25/2023 Dpaertment of CSE ( AL & ML) 15
• Ordering
– How should we order variables for assignment?
– How should we order values from the domains?
Need Improving Backtracking Efficiency Ordering

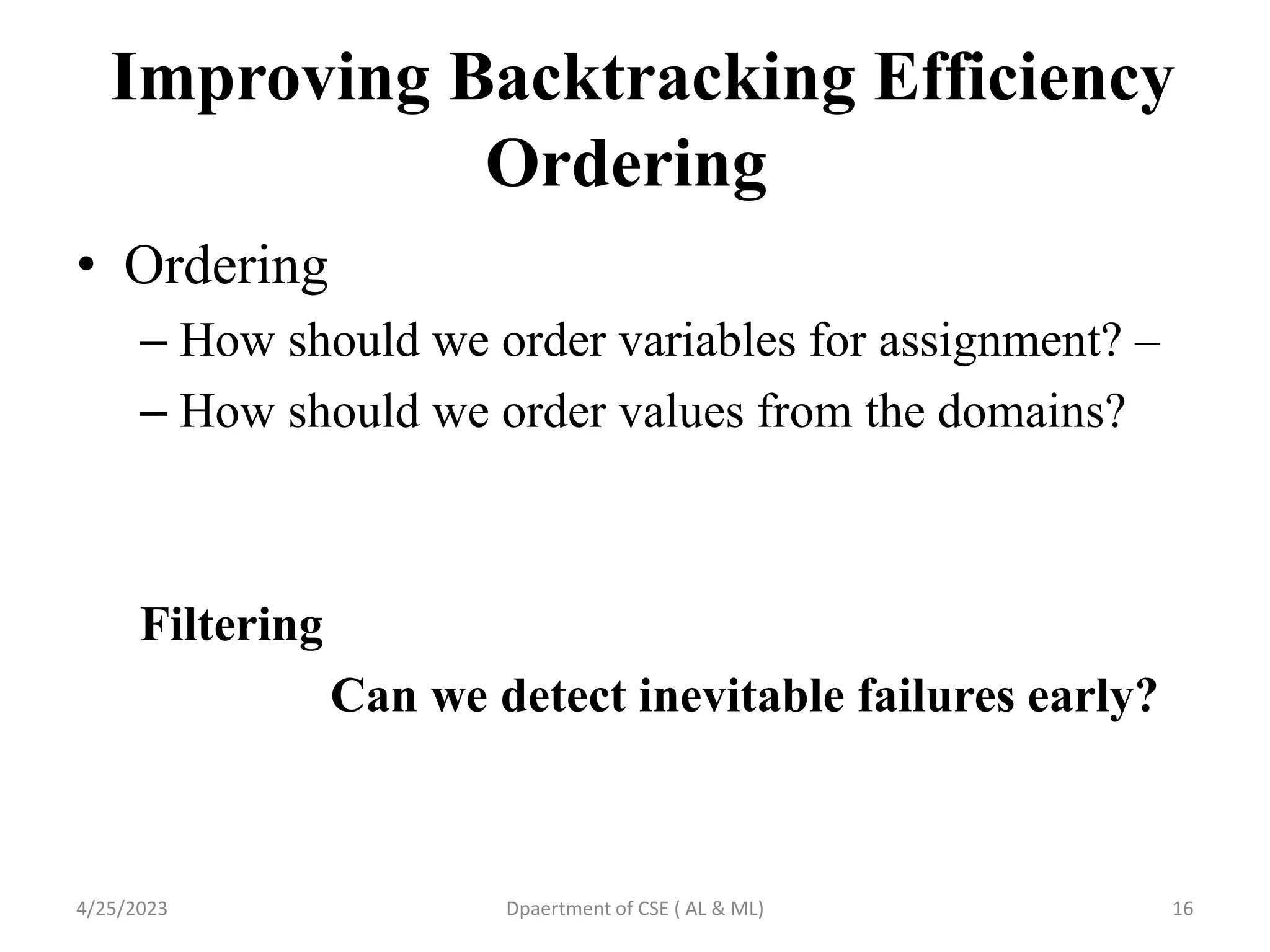

16. Improving Backtracking Efficiency
Ordering
• Ordering
– How should we order variables for assignment? –
– How should we order values from the domains?
Filtering
Can we detect inevitable failures early?
4/25/2023 Dpaertment of CSE ( AL & ML) 16

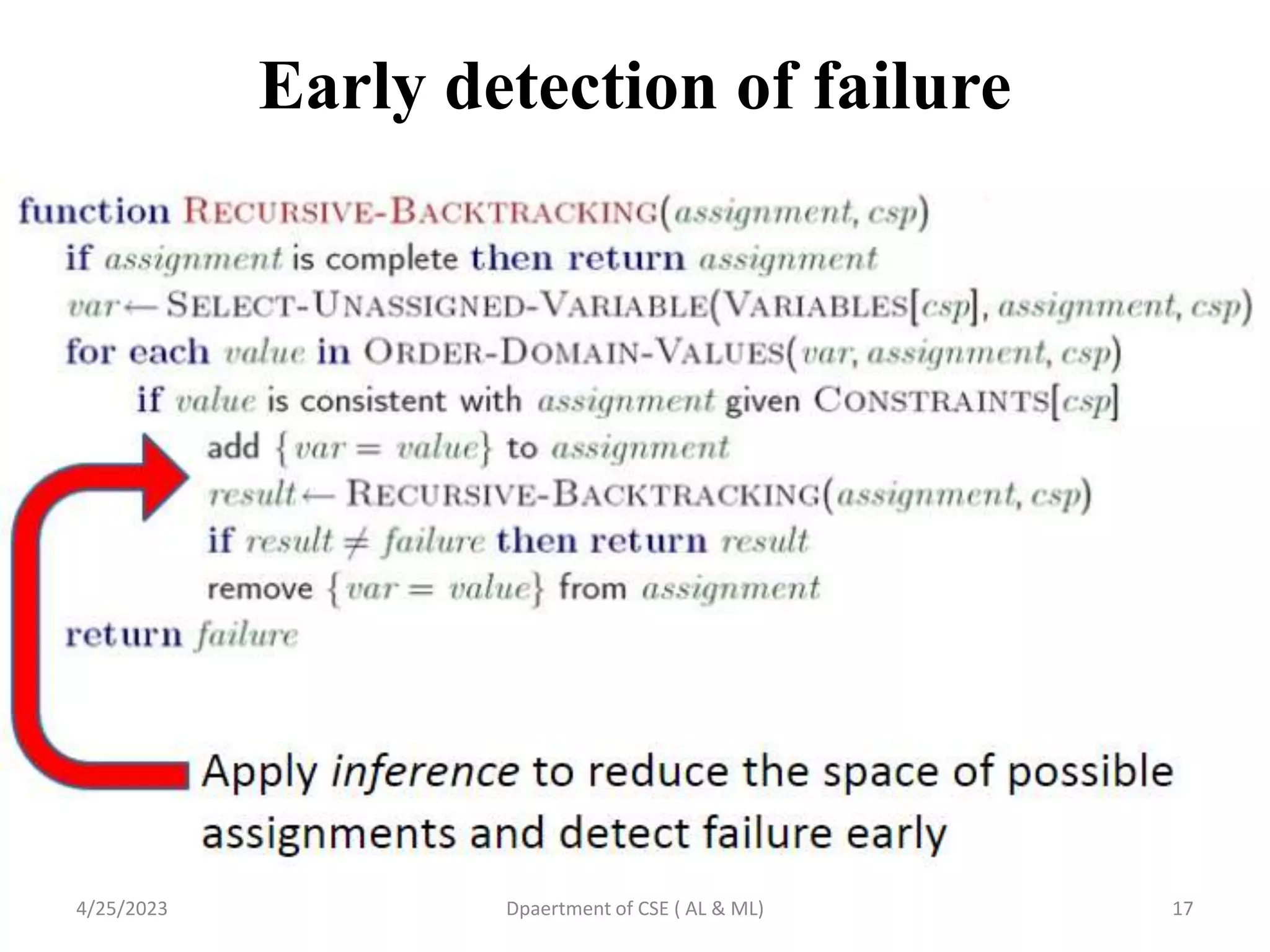

17. Early detection of failure
4/25/2023 Dpaertment of CSE ( AL & ML) 17

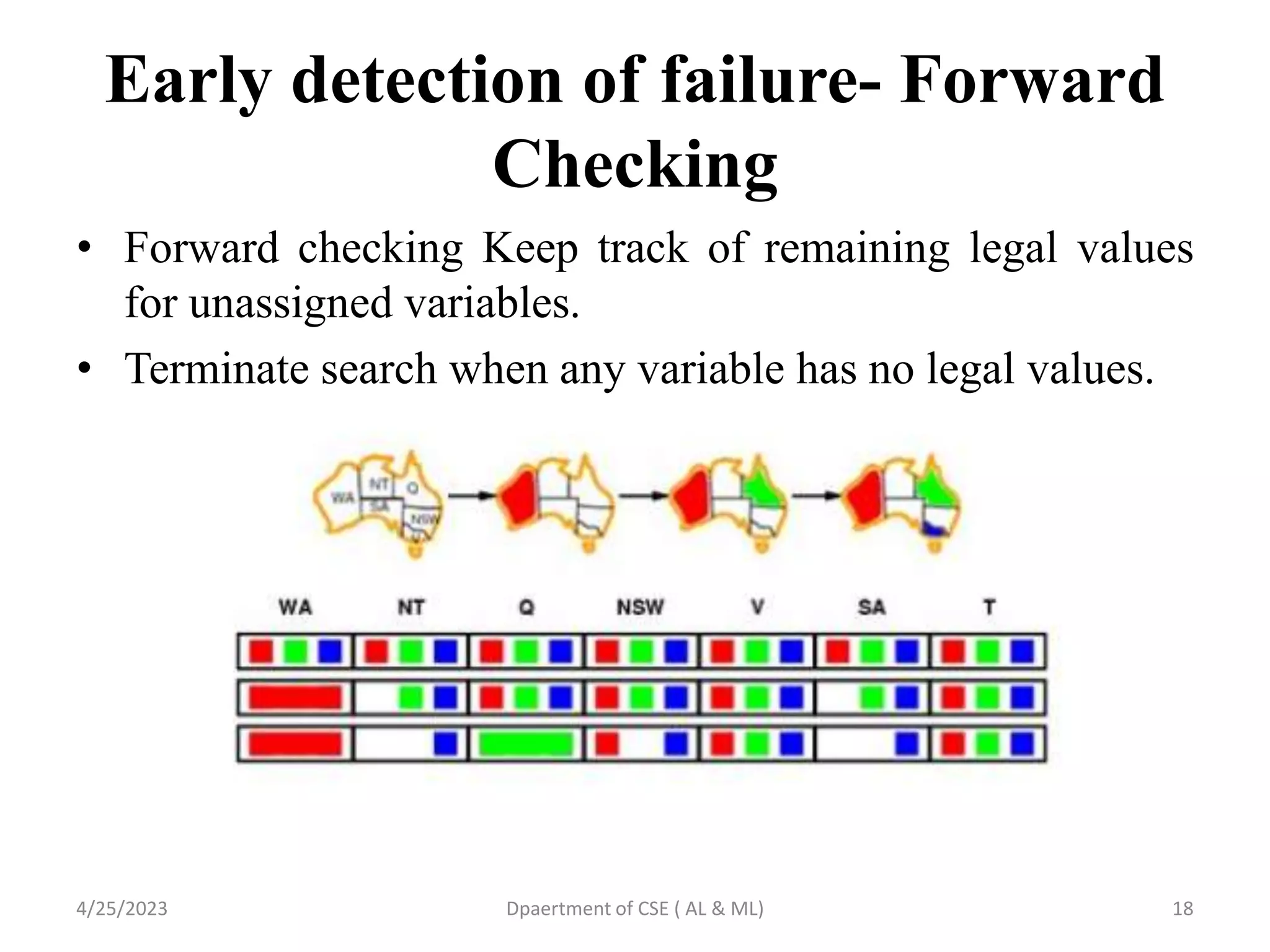

18. Early detection of failure- Forward
Checking
• Forward checking Keep track of remaining legal values
for unassigned variables.
• Terminate search when any variable has no legal values.
4/25/2023 Dpaertment of CSE ( AL & ML) 18

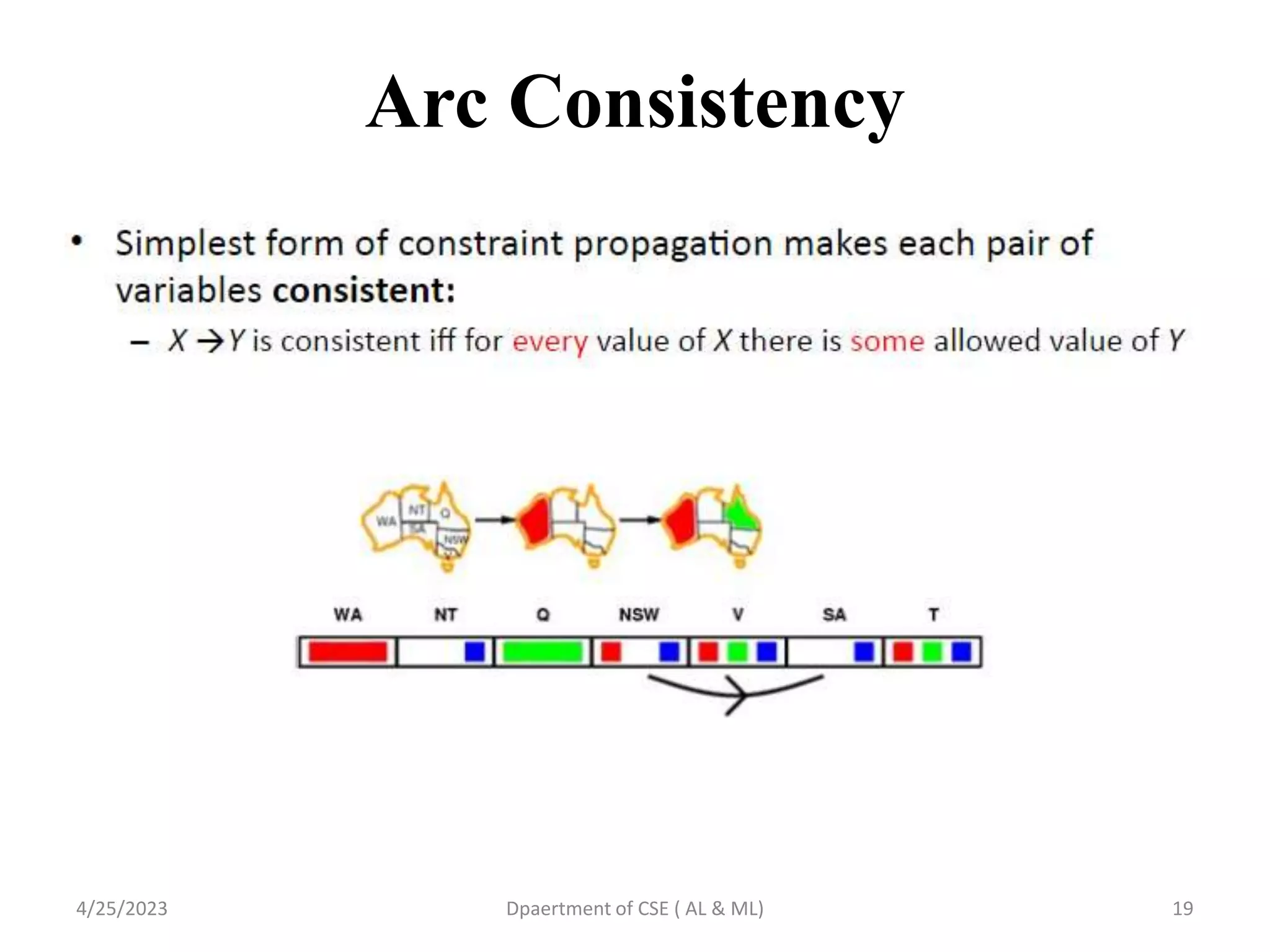

19. Arc Consistency
4/25/2023 Dpaertment of CSE ( AL & ML) 19

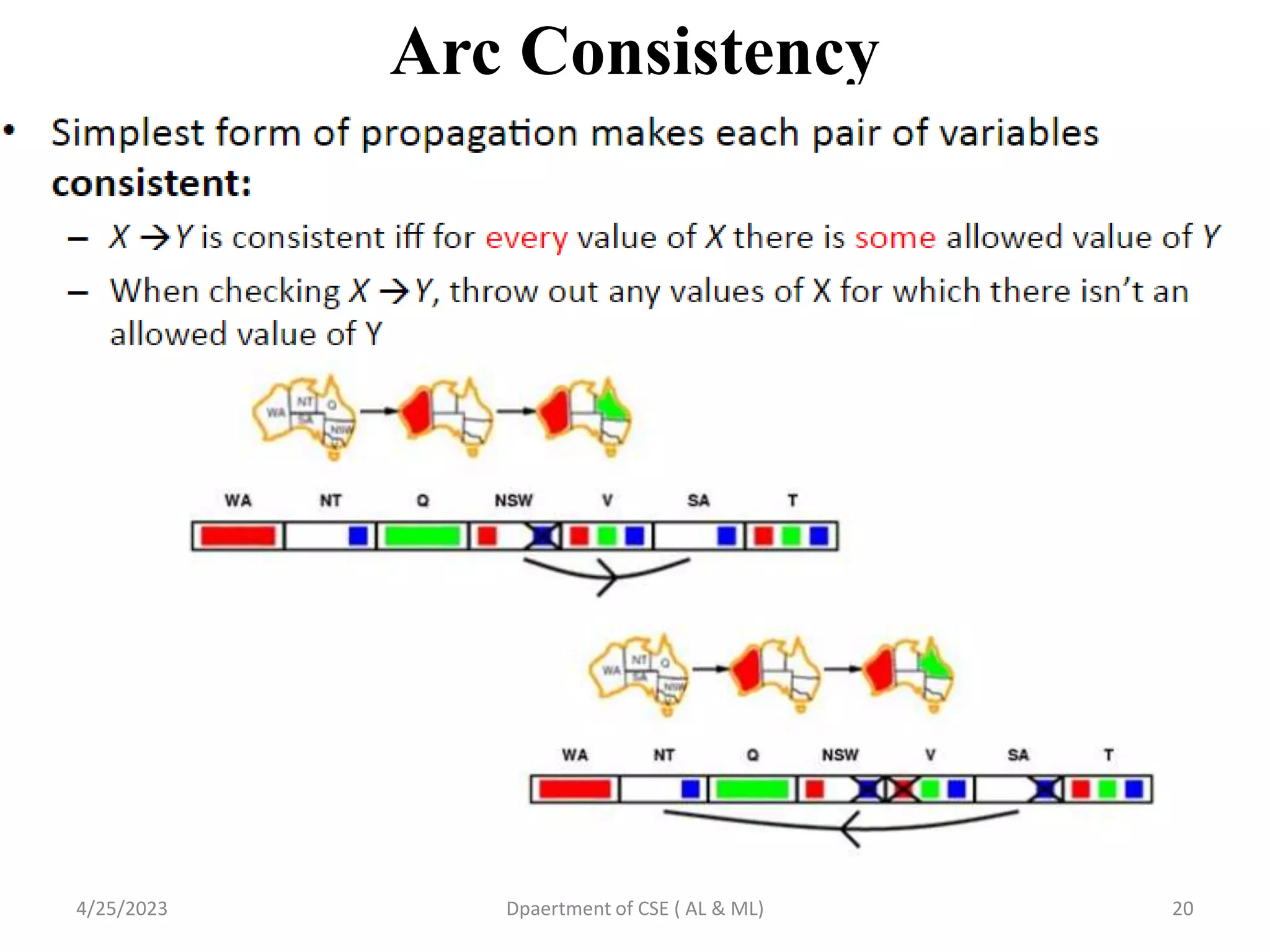

20. Arc Consistency
4/25/2023 Dpaertment of CSE ( AL & ML) 20

21. Problem structure
• Tasmania and the mainland are separate structures. We can
solve them independently and then combine their solutions.
• More generally, we can decompose the CSP into separate
connected components (sub-problems of the CSP).
• Then the solution is the union of the sub- problem solutions.
This can be much more efficient than solving the entire CSP
as one problem.
4/25/2023 Dpaertment of CSE ( AL & ML) 21

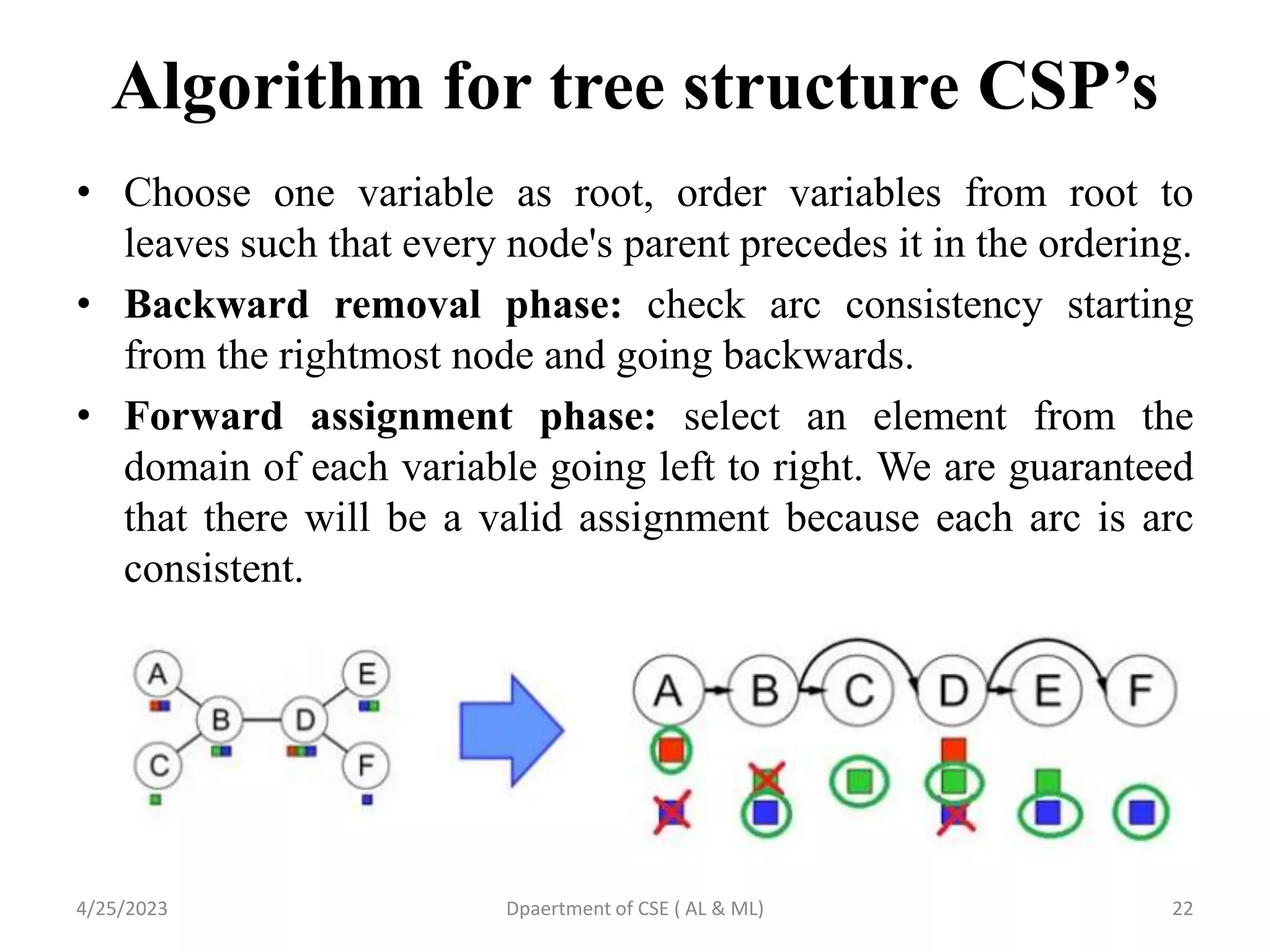

22. Algorithm for tree structure CSP’s
• Choose one variable as root, order variables from root to
leaves such that every node's parent precedes it in the ordering.
• Backward removal phase: check arc consistency starting
from the rightmost node and going backwards.
• Forward assignment phase: select an element from the
domain of each variable going left to right. We are guaranteed
that there will be a valid assignment because each arc is arc
consistent.
4/25/2023 Dpaertment of CSE ( AL & ML) 22

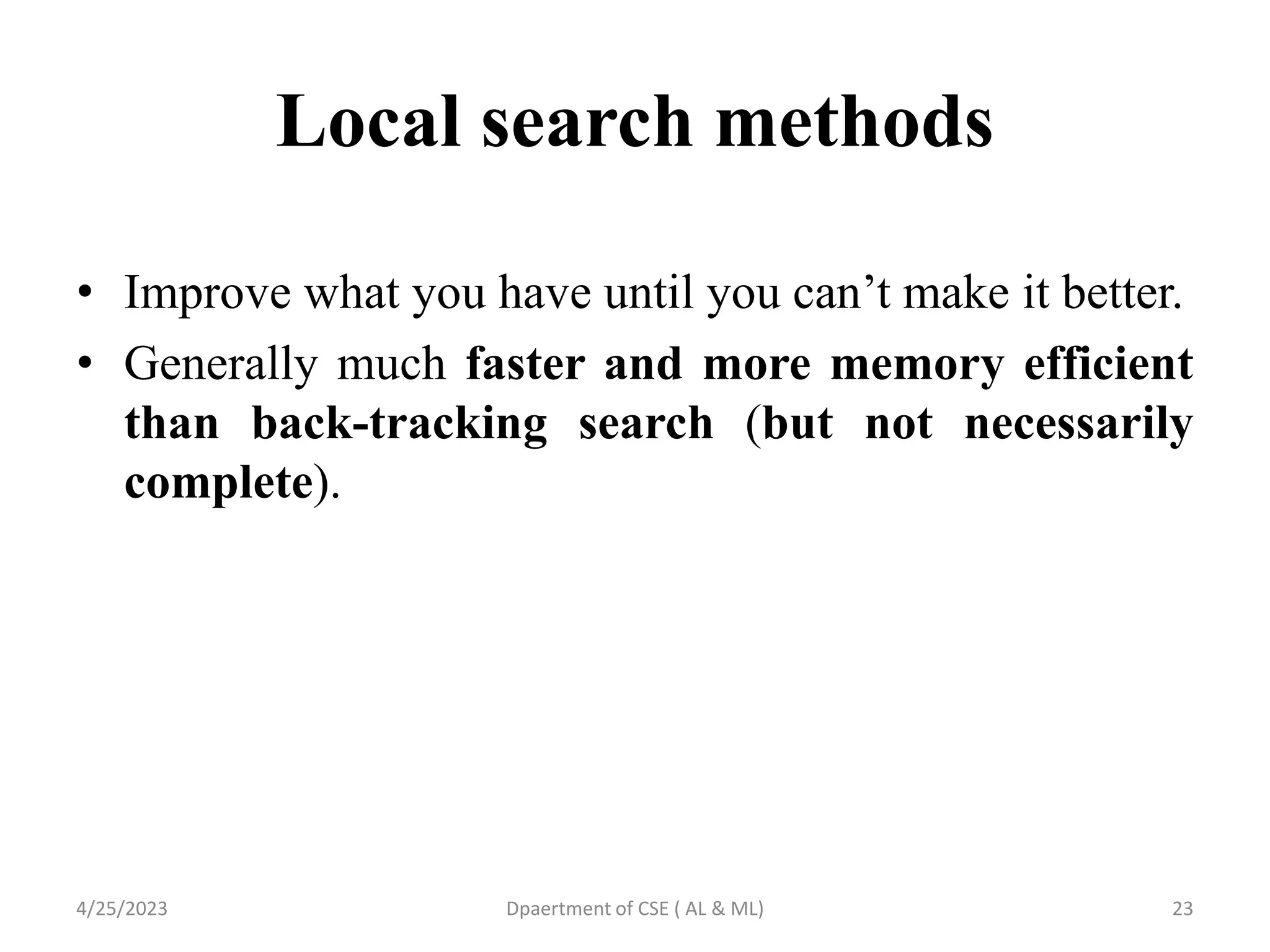

23. Local search methods
• Improve what you have until you can’t make it better.
• Generally much faster and more memory efficient
than back-tracking search (but not necessarily
complete).
4/25/2023 Dpaertment of CSE ( AL & ML) 23

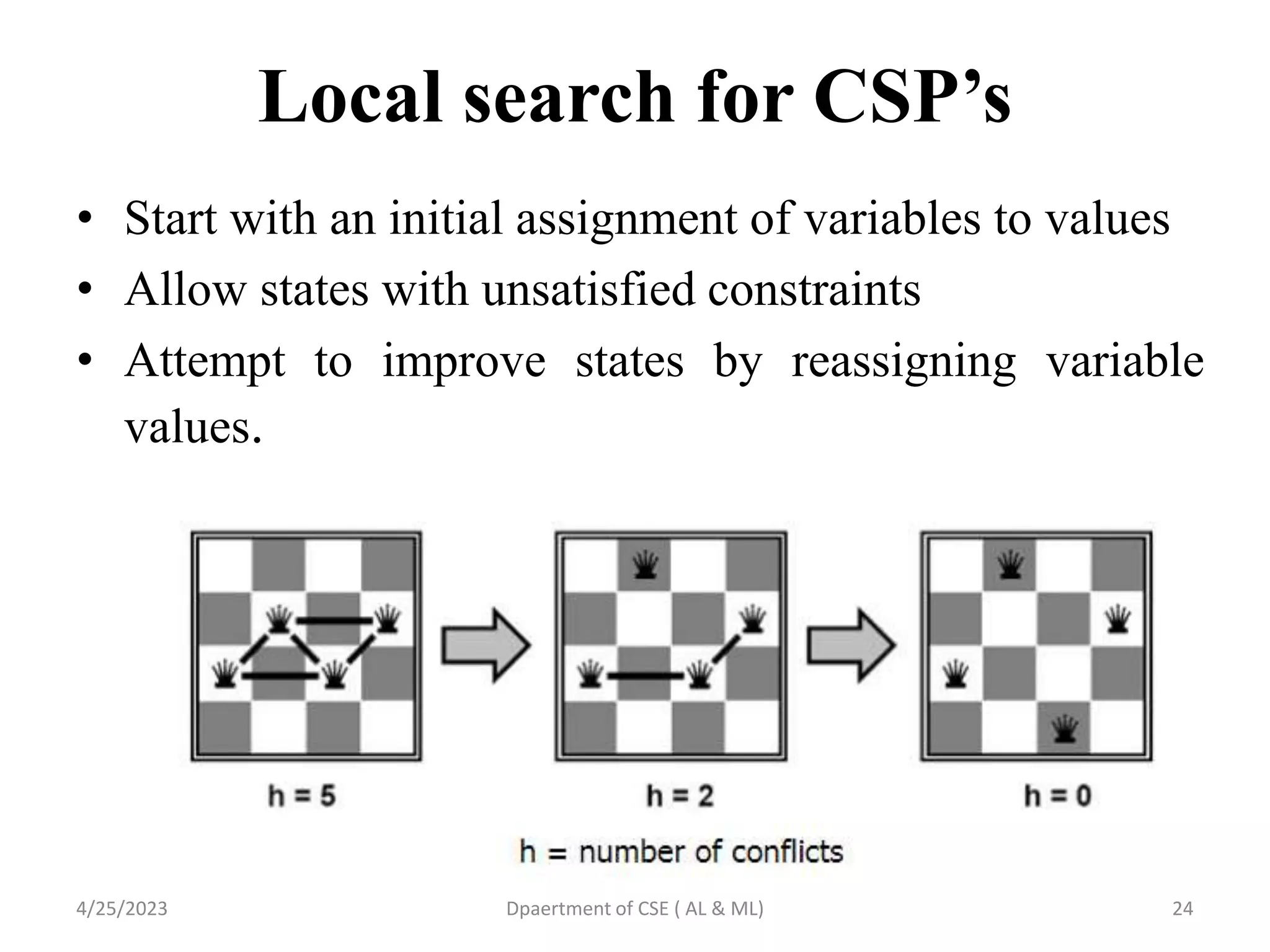

24. Local search for CSP’s
• Start with an initial assignment of variables to values
• Allow states with unsatisfied constraints
• Attempt to improve states by reassigning variable
values.
4/25/2023 Dpaertment of CSE ( AL & ML) 24

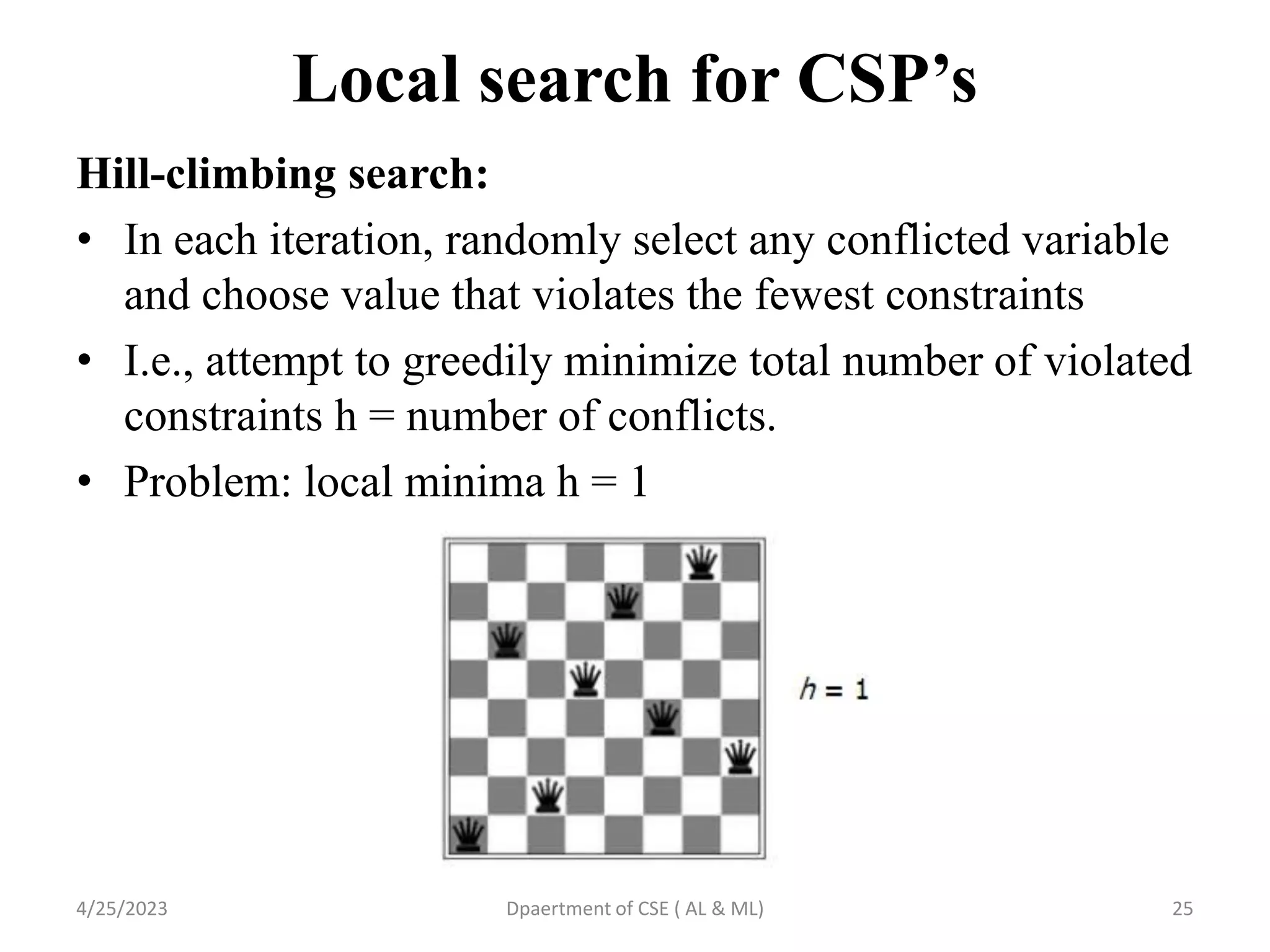

25. Local search for CSP’s
Hill-climbing search:
• In each iteration, randomly select any conflicted variable
and choose value that violates the fewest constraints
• I.e., attempt to greedily minimize total number of violated
constraints h = number of conflicts.
• Problem: local minima h = 1
4/25/2023 Dpaertment of CSE ( AL & ML) 25

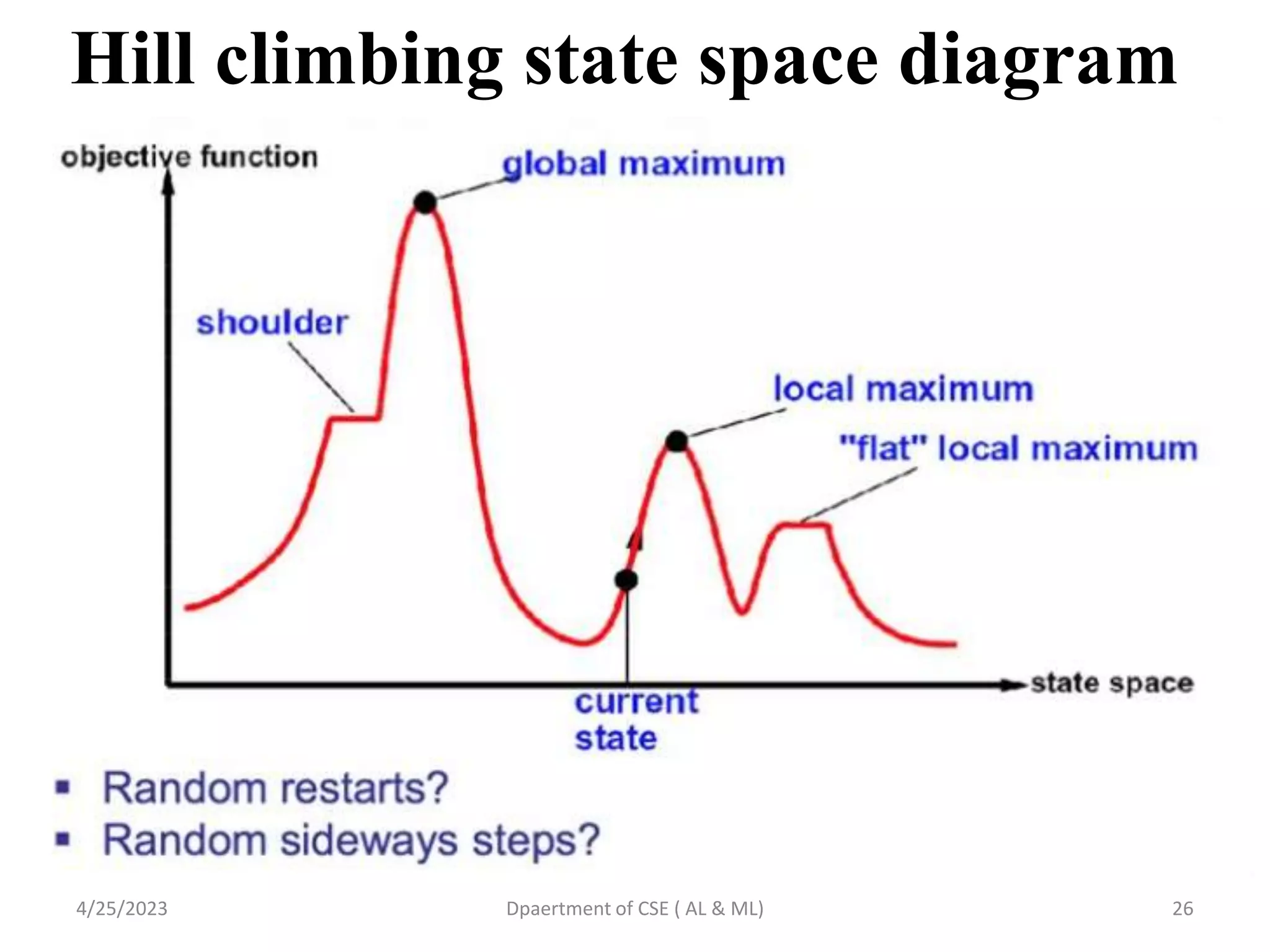

26. Hill climbing state space diagram
4/25/2023 Dpaertment of CSE ( AL & ML) 26

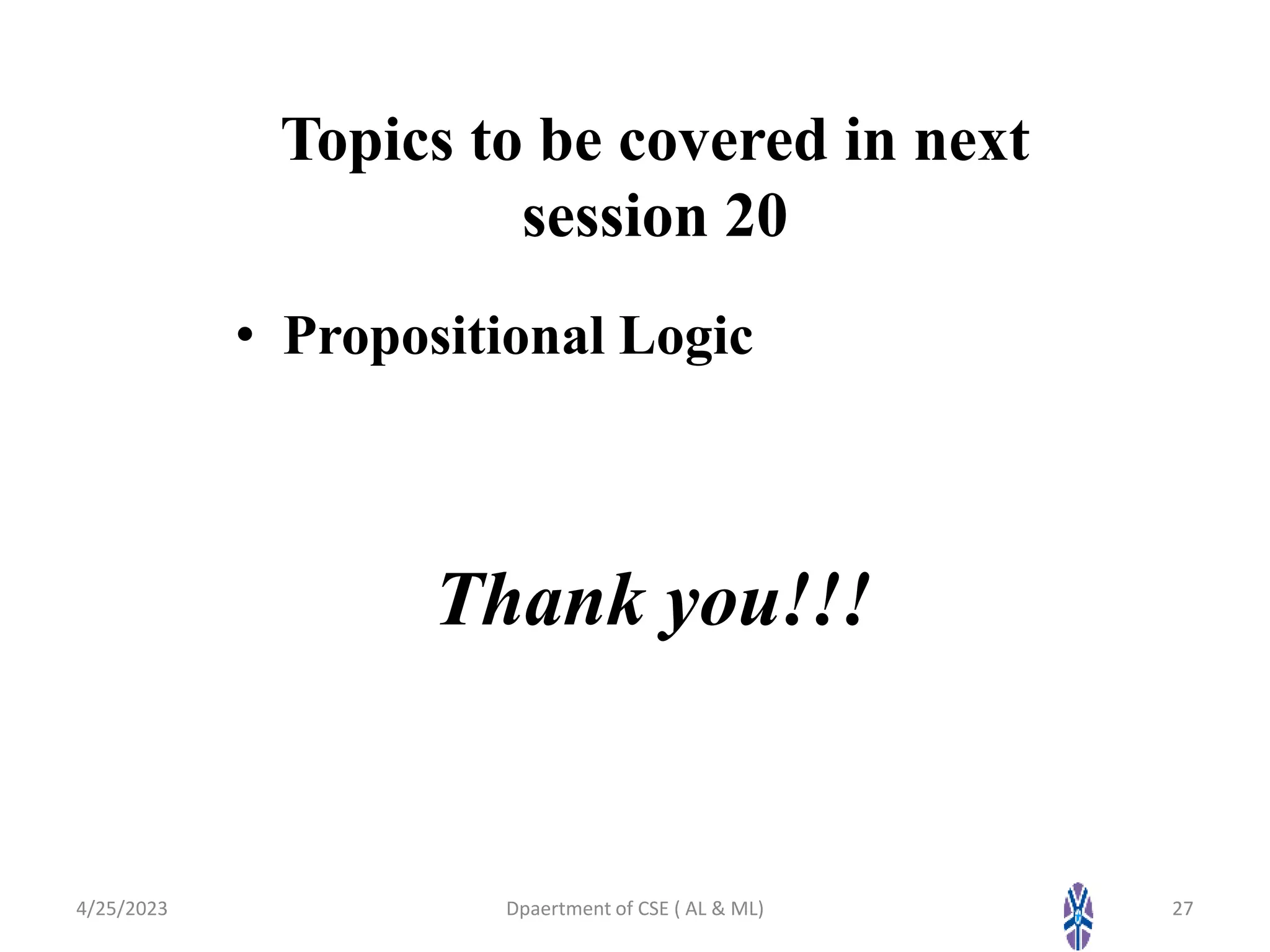

27. Topics to be covered in next
session 20
• Propositional Logic
Thank you!!!
4/25/2023 Dpaertment of CSE ( AL & ML) 27
