- 1. Dose Management and Image Consistency / Quality Bruce Apgar George Curley Digital Imaging Specialist (Global) Sr. Marketing Manager Sr

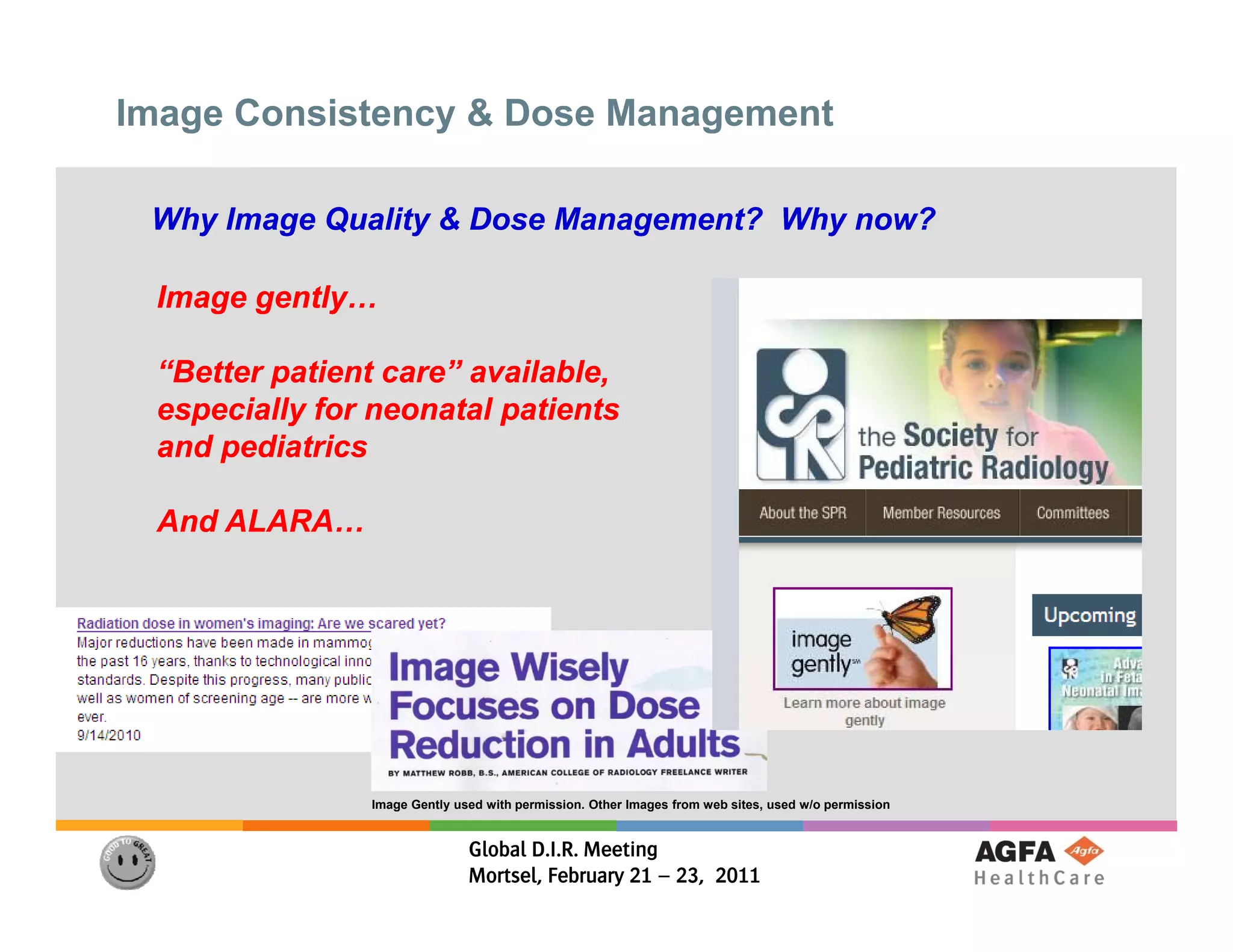

- 2. Image Consistency &Dose Management Why Image Quality & Dose Management? Why now? Image gently… gently “Better patient care” available, especially for neonatal patients and pediatrics And ALARA… Image Gently used with permission. Other Images from web sites, used w/o permission Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

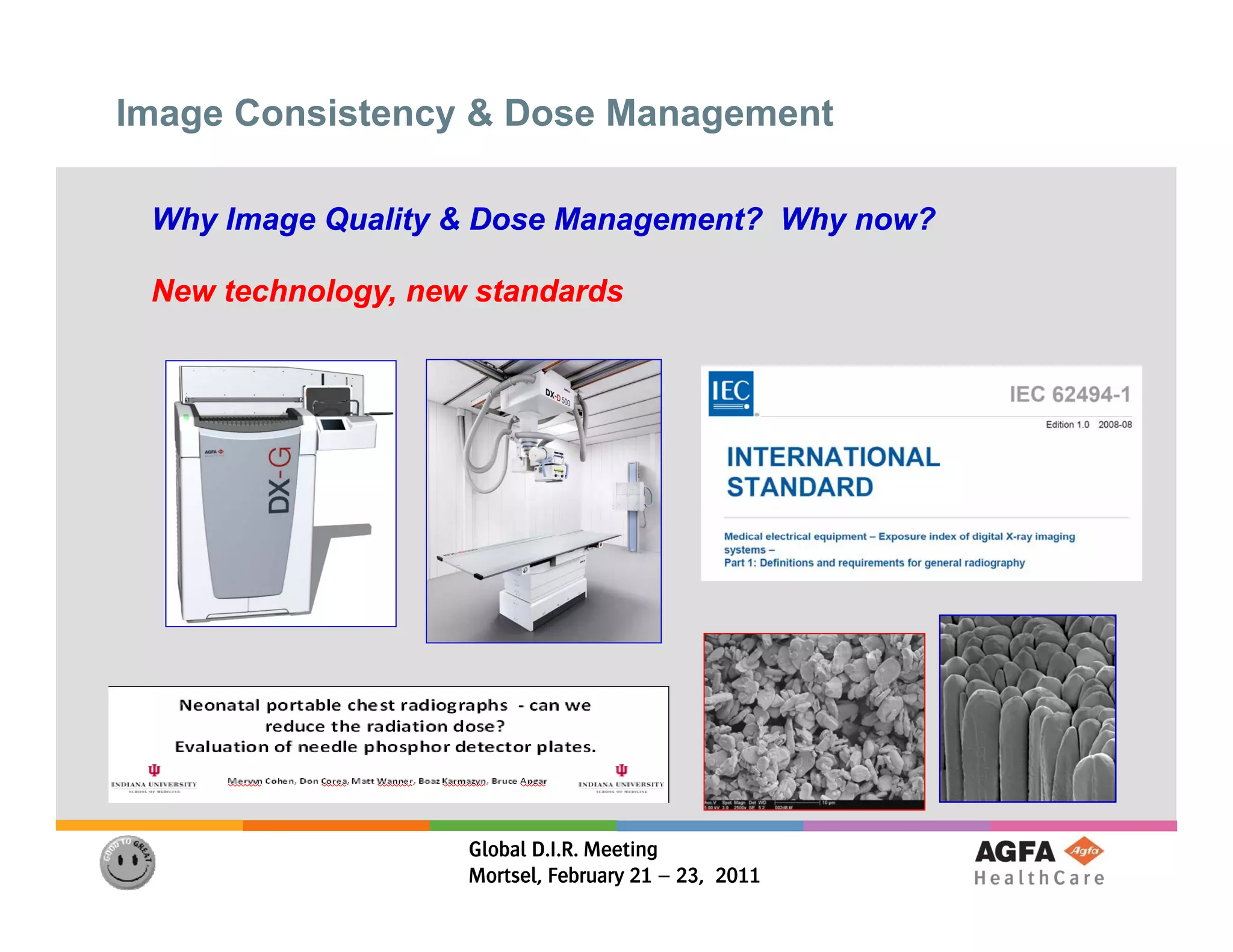

- 3. Image Consistency &Dose Management Why Image Quality & Dose Management? Why now? New technology, new standards technology Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

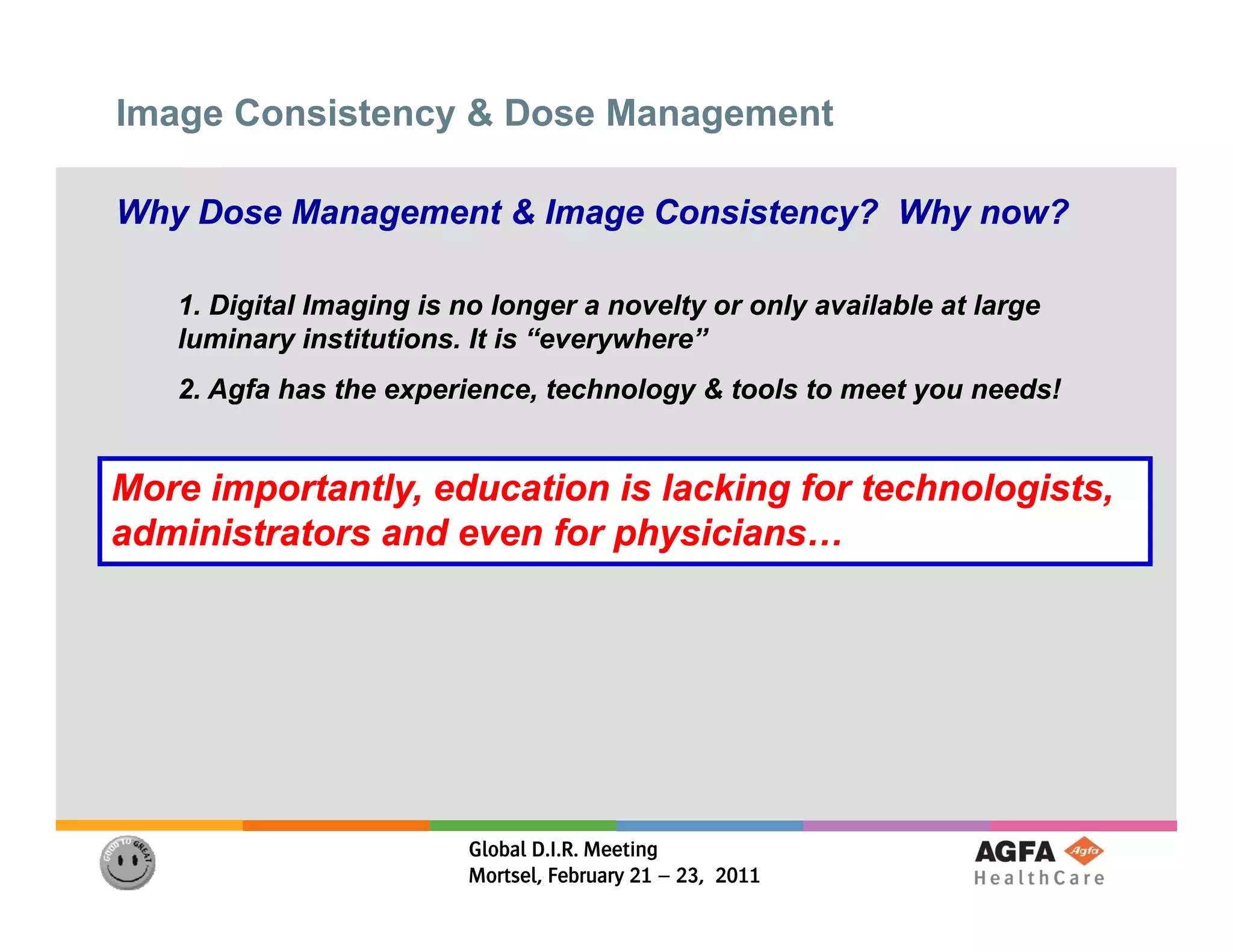

- 4. Image Consistency &Dose Management Why Dose Management & Image Consistency? Why now? 1. Di it l I 1 Digital Imaging is no longer a novelty or only available at large i i l lt l il bl t l luminary institutions. It is “everywhere” 2. Agfa has the experience, technology & tools to meet you needs! More importantly, education is lacking for technologists, administrators and even for physicians physicians… Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

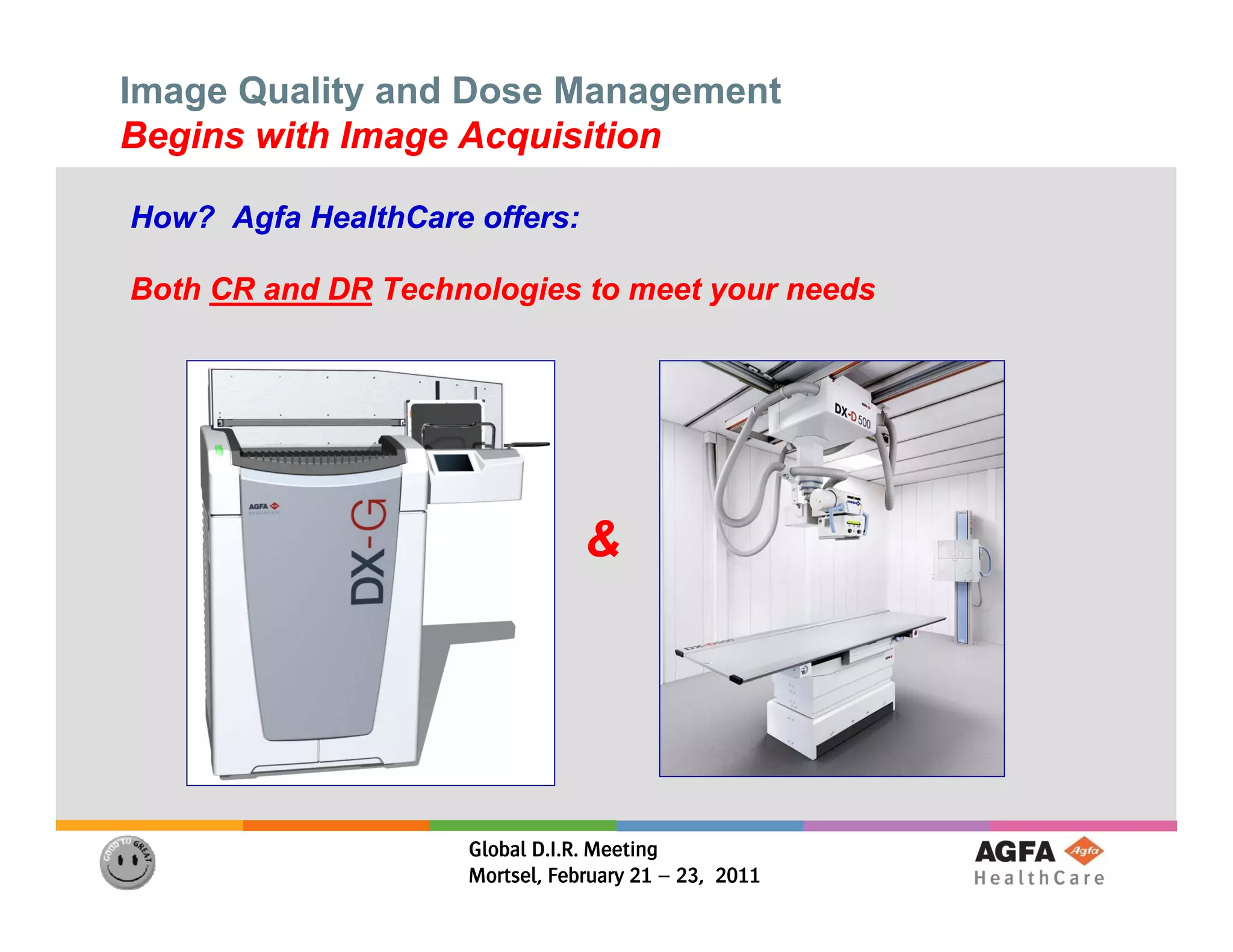

- 5. Image Quality andDose Management Begins with Image Acquisition How? Agfa HealthCare offers: Both CR and DR Technologies to meet your needs & Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

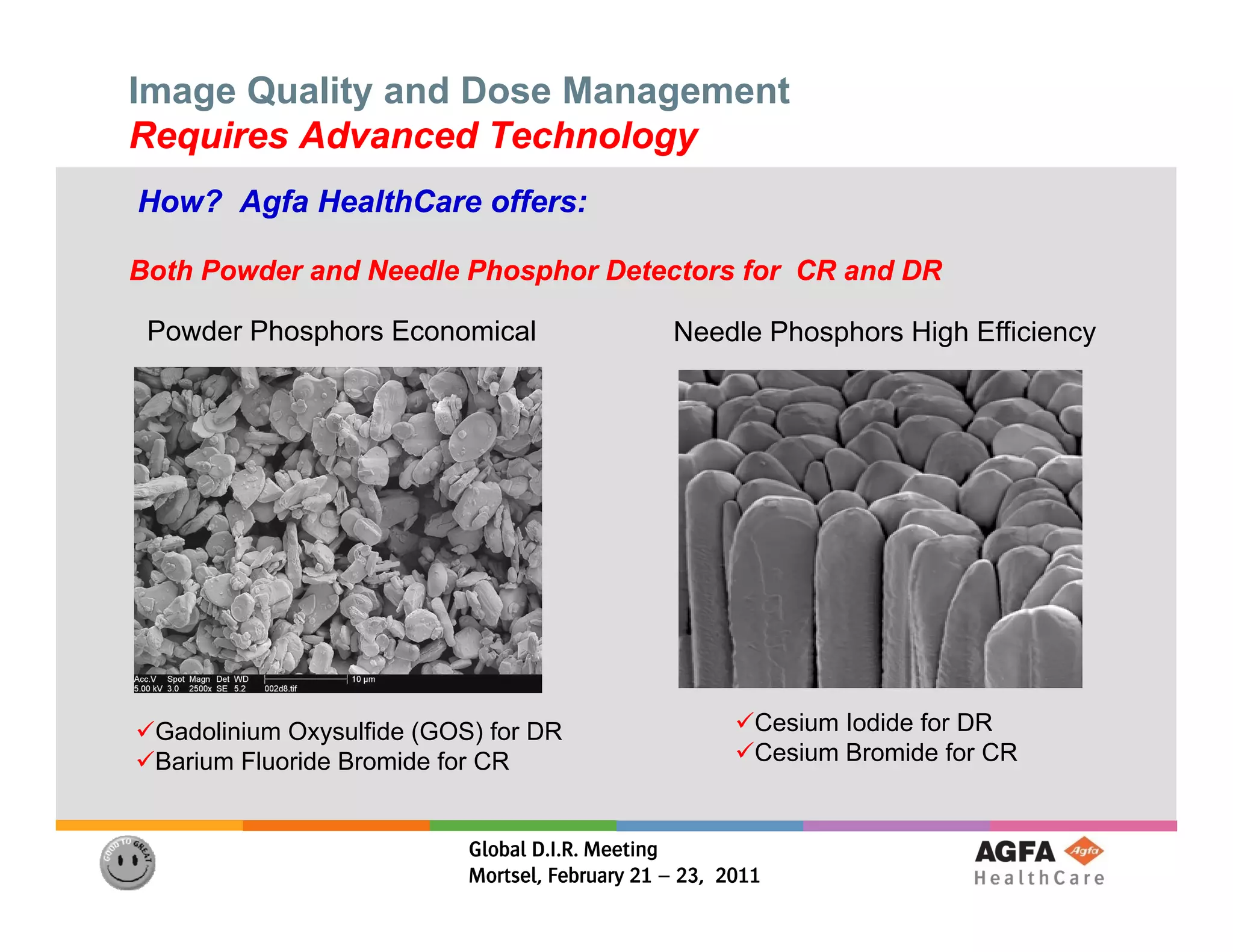

- 6. Image Quality andDose Management Requires Advanced Technology How? Agfa HealthCare offers: Both Powder and Needle Phosphor Detectors for CR and DR Powder Phosphors Economical Needle Phosphors High Efficiency Gadolinium Oxysulfide (GOS) for DR Cesium Iodide for DR Barium Fluoride Bromide for CR Cesium Bromide for CR Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

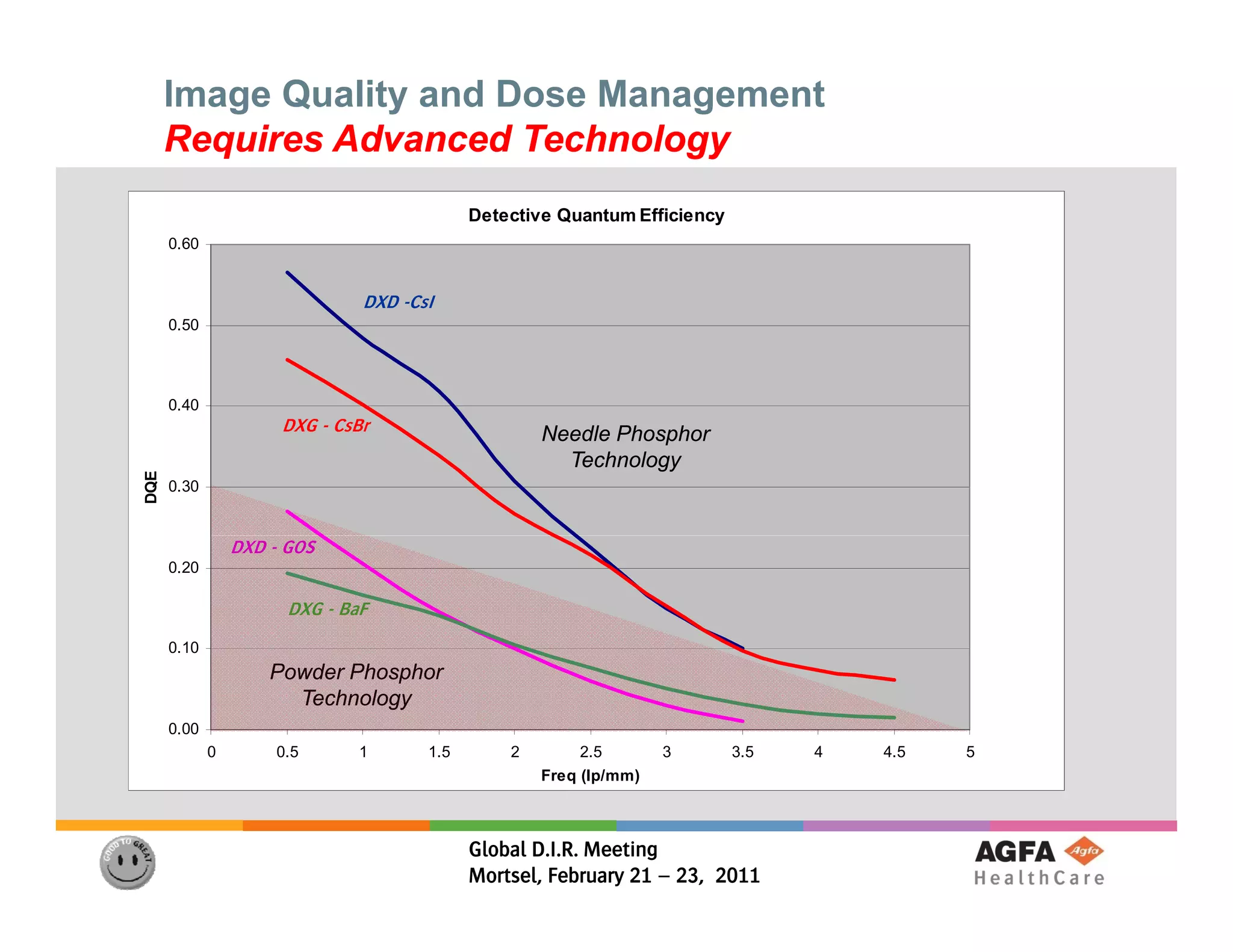

- 7. Image Quality andDose Management Requires Advanced Technology Detective Quantum Efficiency 0.60 DXD -CsI C I 0.50 0.40 DXG - CsBr Needle Phosphor Technology DQE 0.30 DXD - GOS 0.20 DXG - BaF 0.10 Powder Phosphor Technology 0.00 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 Freq (lp/mm) Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

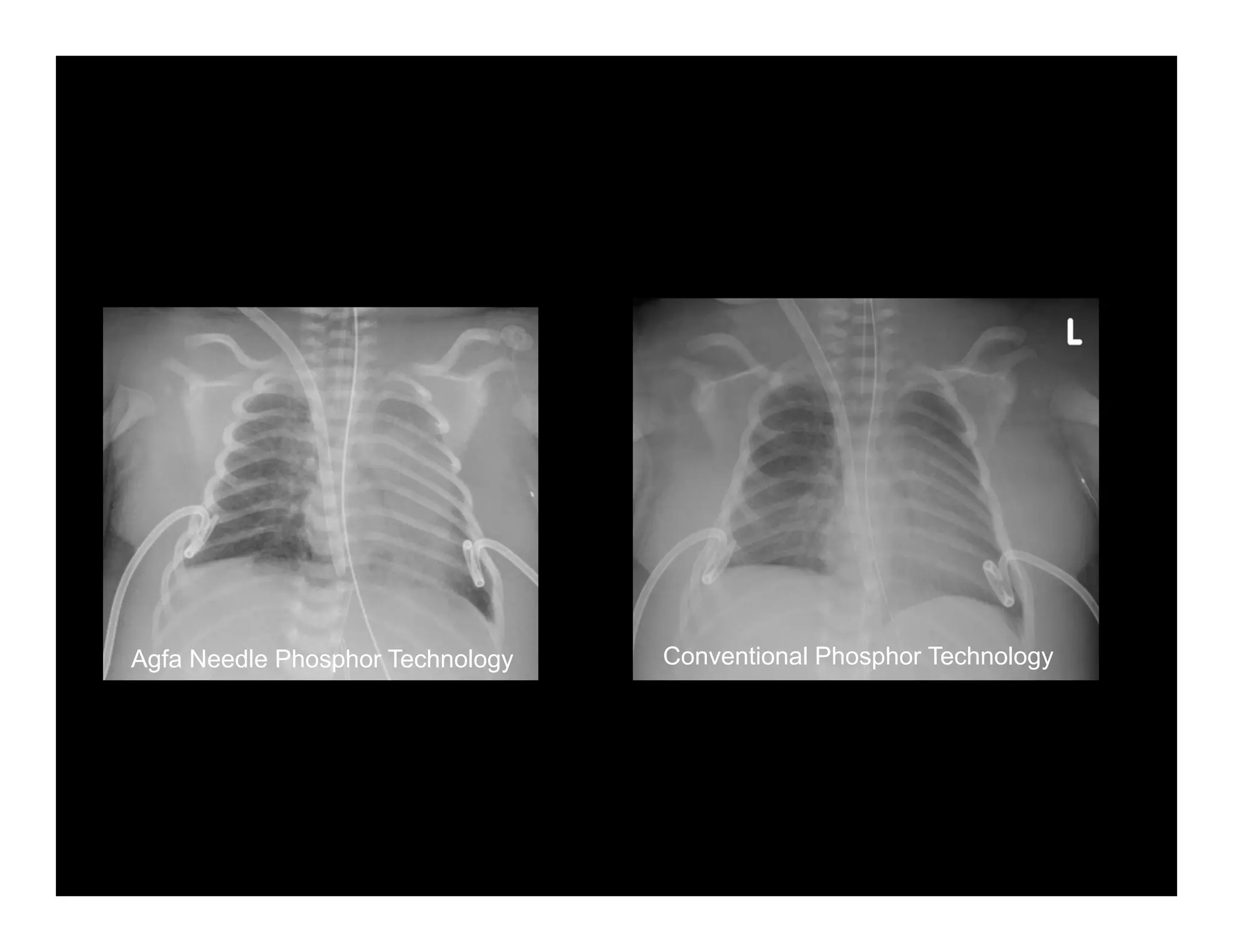

- 8. Agfa Needle PhosphorTechnology Conventional Phosphor Technology Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

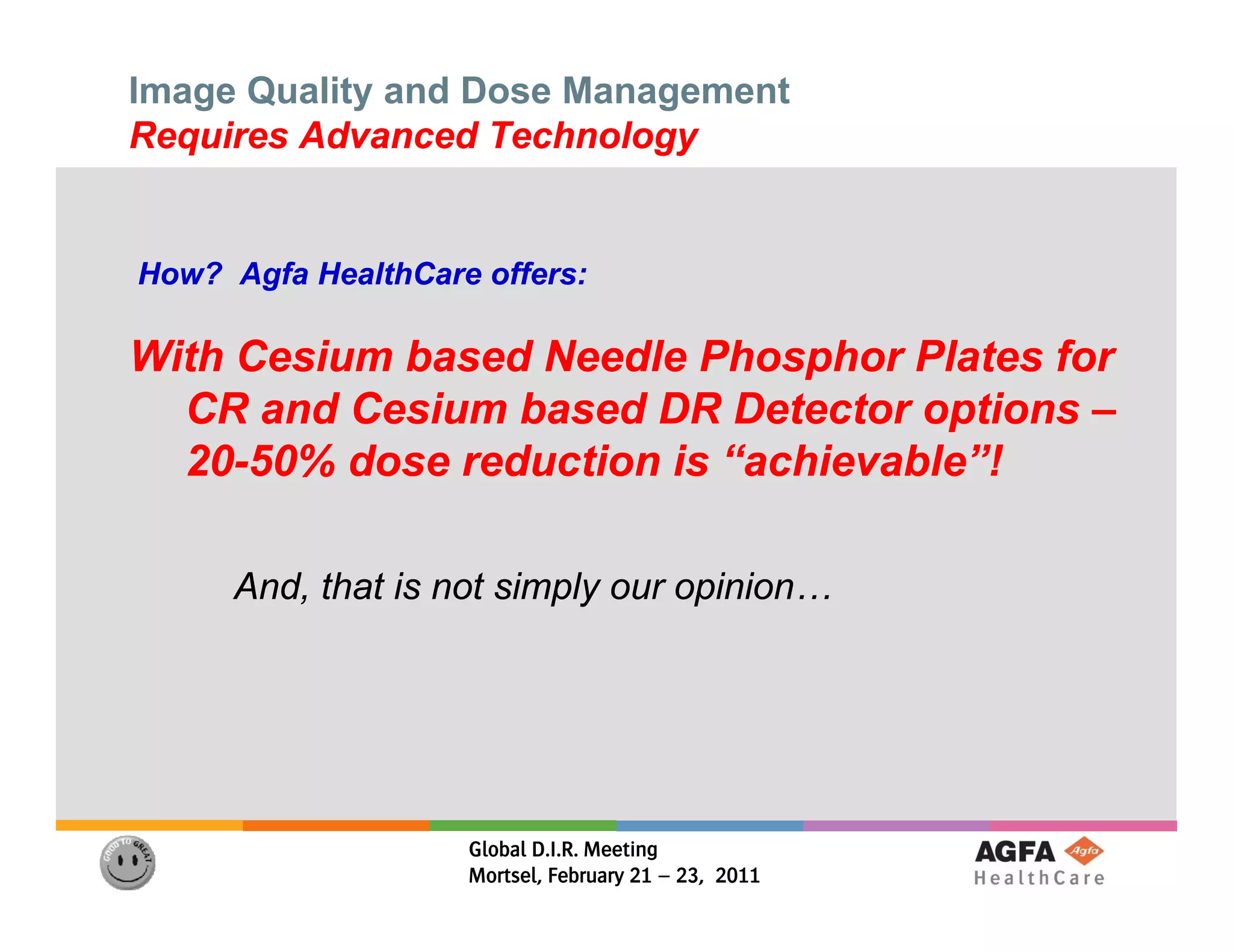

- 9. Image Quality andDose Management Requires Advanced Technology How? Agfa HealthCare offers: With Cesium based Needle Phosphor Plates for CR and Cesium based DR Detector options – 20- 20-50% dose reduction is “achievable”! And, that is not simply our opinion… Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

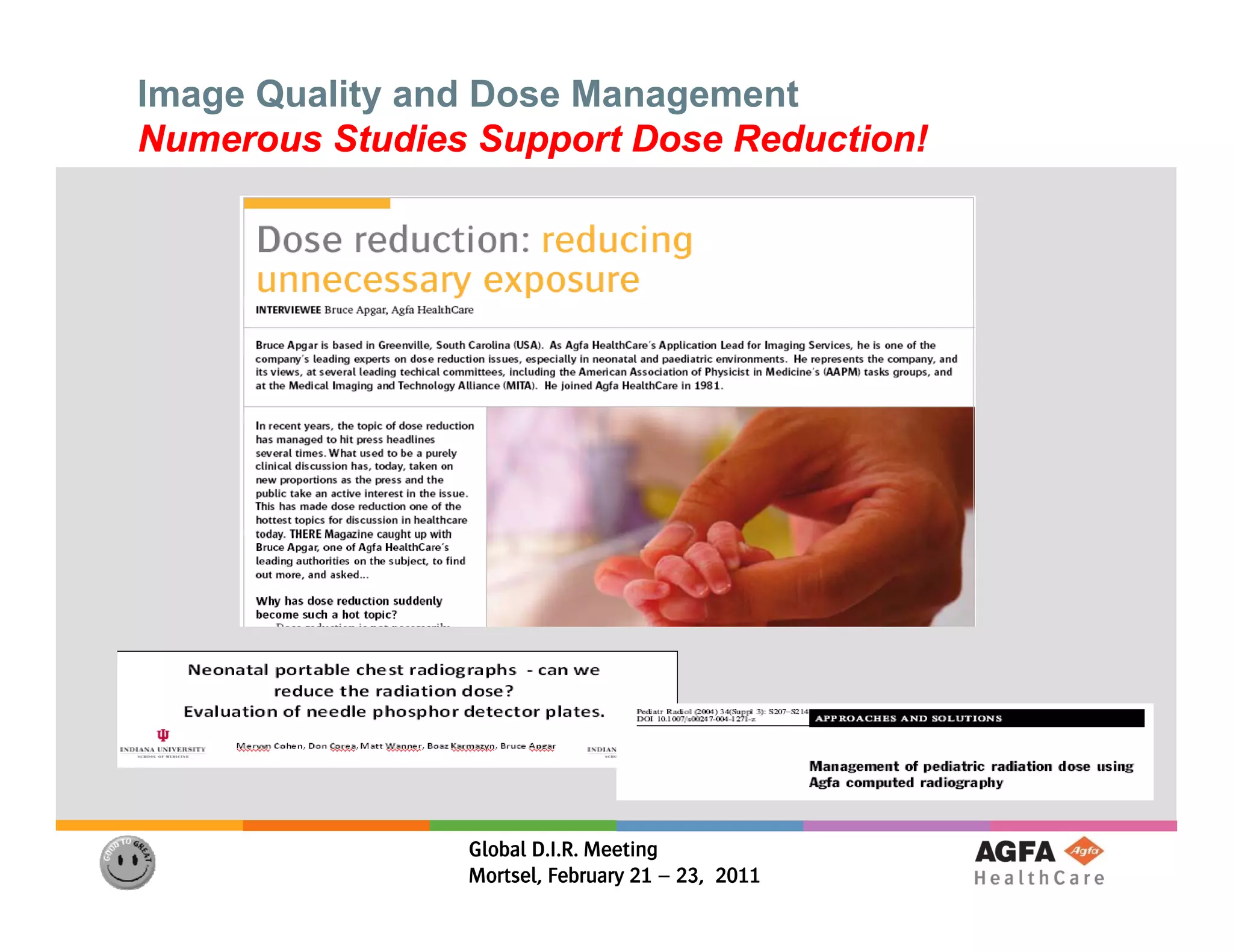

- 10. Image Quality andDose Management Numerous Studies Support Dose Reduction! Global D.I.R. Meeting Mortsel, February 21 – 23, 2011
- 11. Image Quality andDose Management Numerous Studies Support Dose Reduction! Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

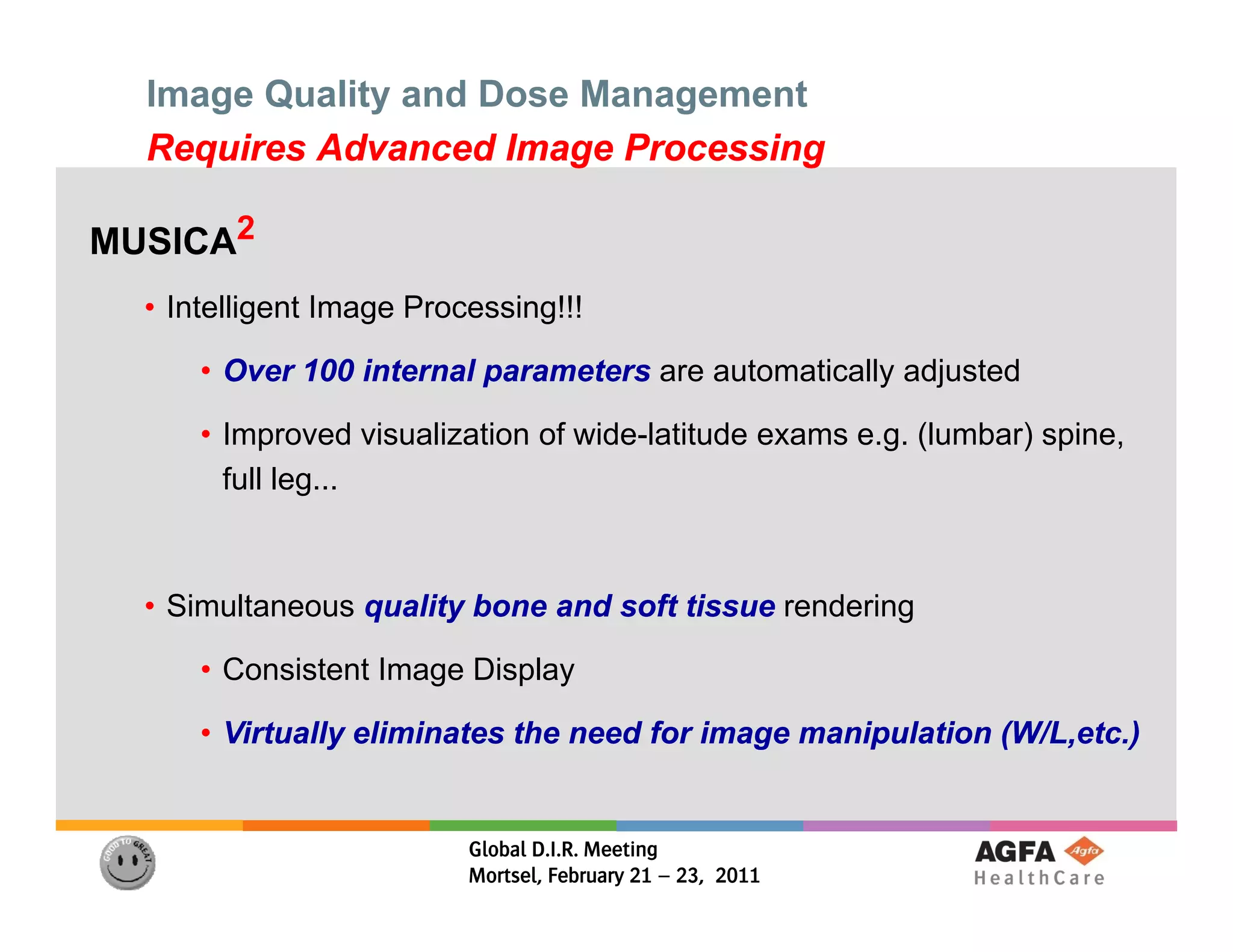

- 12. Image Quality andDose Management Requires Advanced Image Processing MUSICA2 • I lli Intelligent Image Processing!!! I P i !!! • Over 100 internal parameters are automatically adjusted • Improved visualization of wide-latitude exams e.g. (lumbar) spine, full leg... • Simultaneous quality bone and soft tissue rendering • Consistent Image Display • Virtually eliminates the need for image manipulation (W/L,etc.) (W/L,etc.) Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

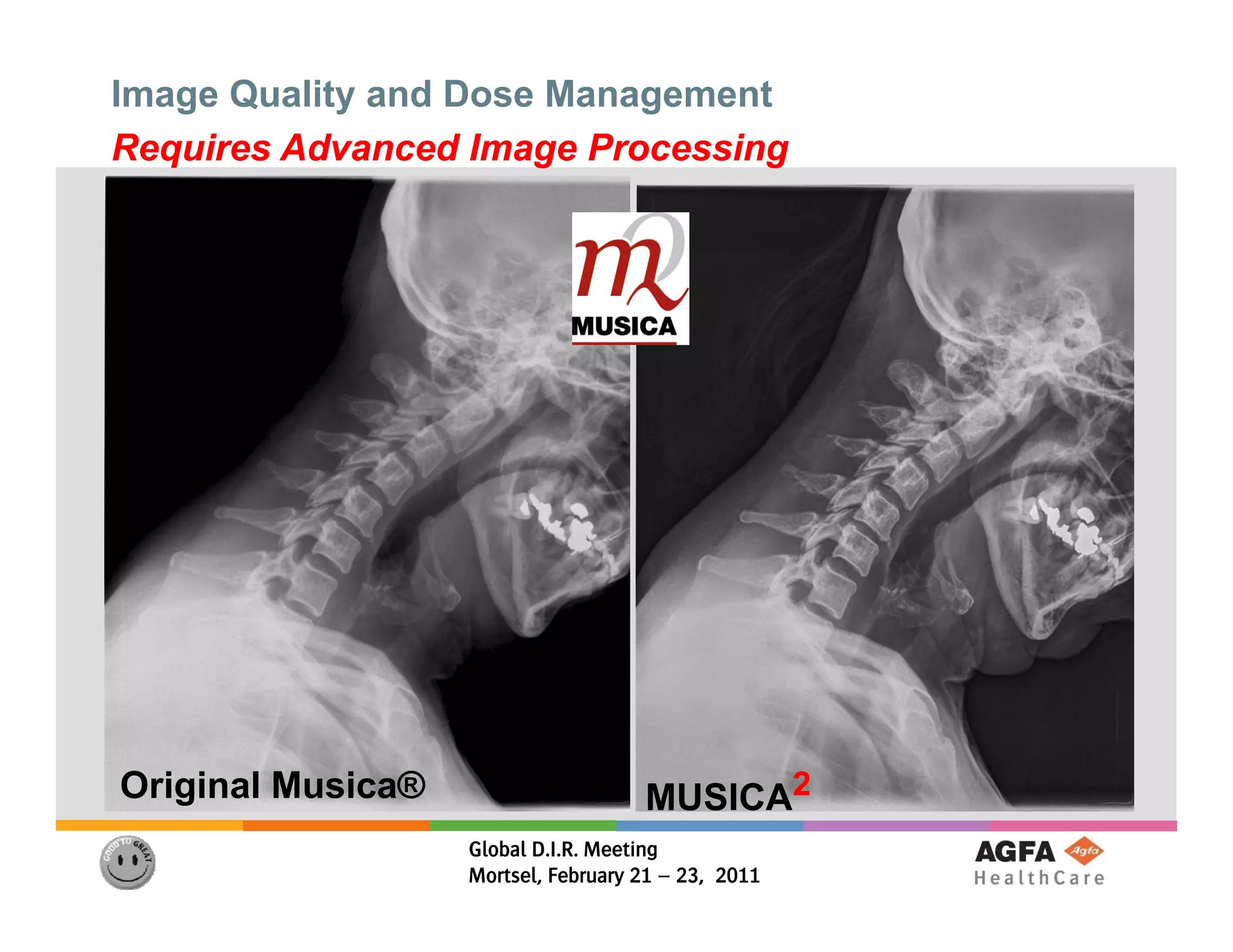

- 13. Image Quality andDose Management Requires Advanced Image Processing Original M i ® O i i l Musica® MUSICA2 Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

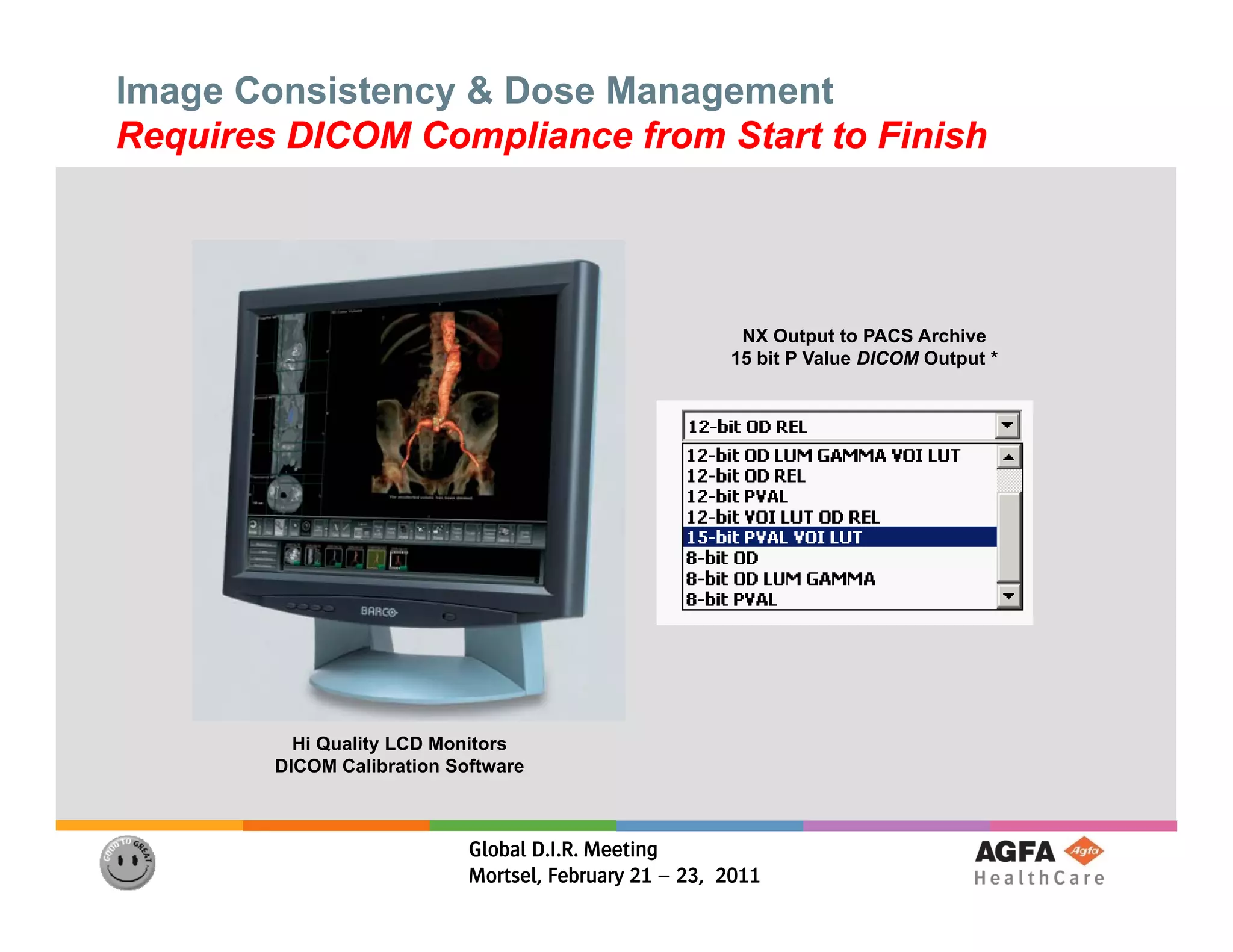

- 14. Image Consistency &Dose Management Requires DICOM Compliance from Start to Finish NX Output to PACS Archive 15 bit P Value DICOM Output * Hi Quality LCD Monitors DICOM Calibration Software Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

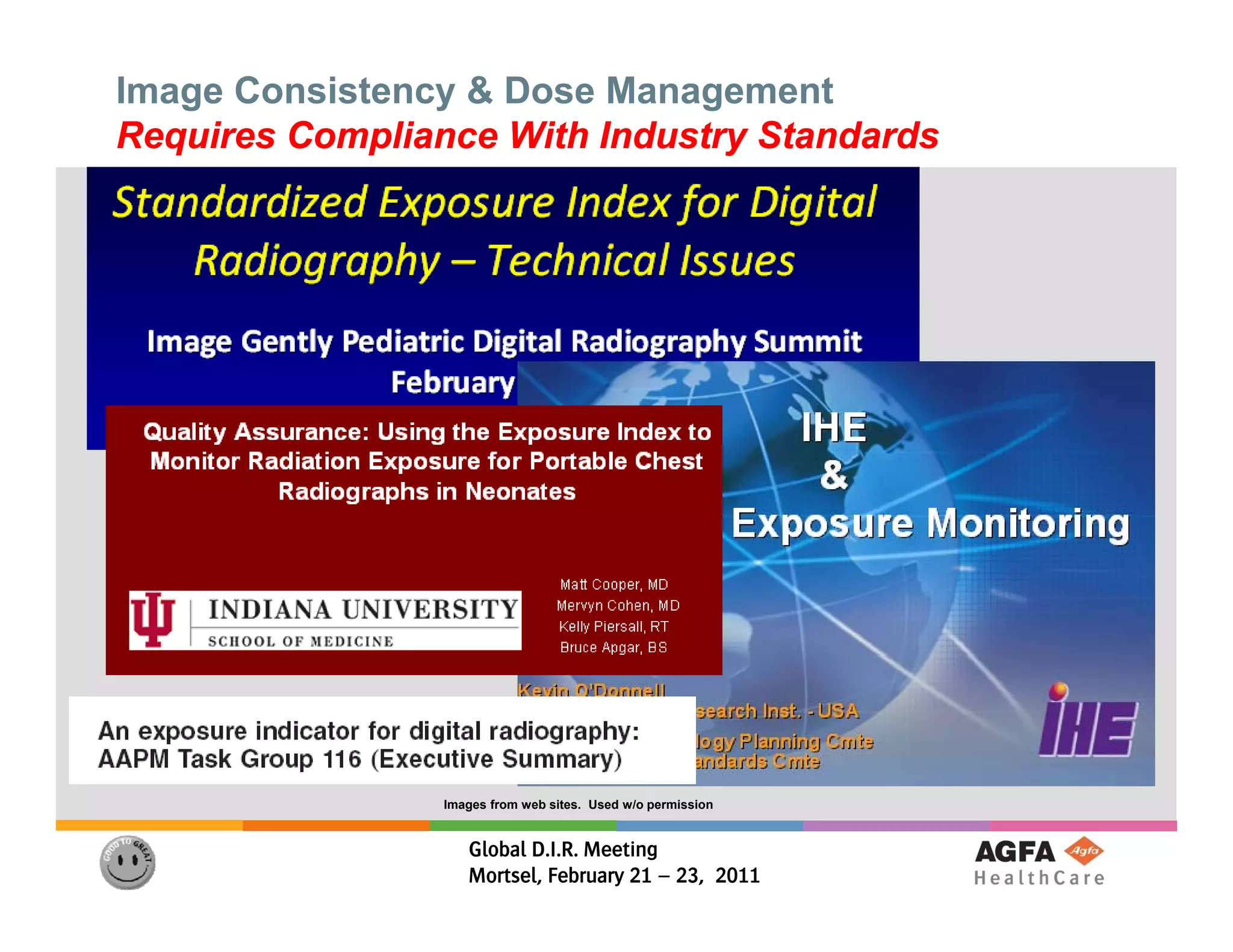

- 15. Image Consistency &Dose Management Requires Compliance With Industry Standards Images from web sites. Used w/o permission Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

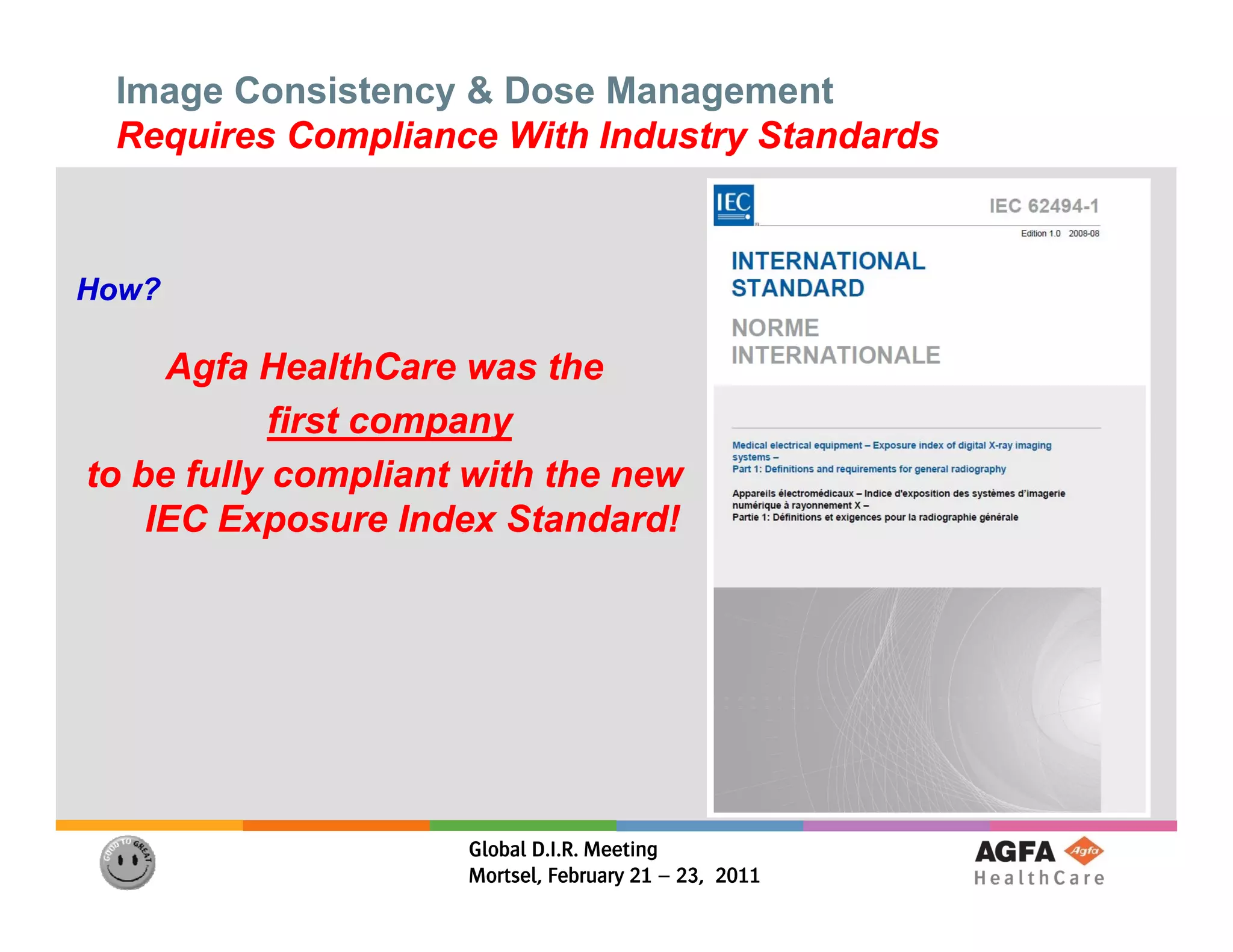

- 16. Image Consistency &Dose Management Requires Compliance With Industry Standards How? Agfa HealthCare was the first company to be fully compliant with the new IEC Exposure Index Standard! p Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

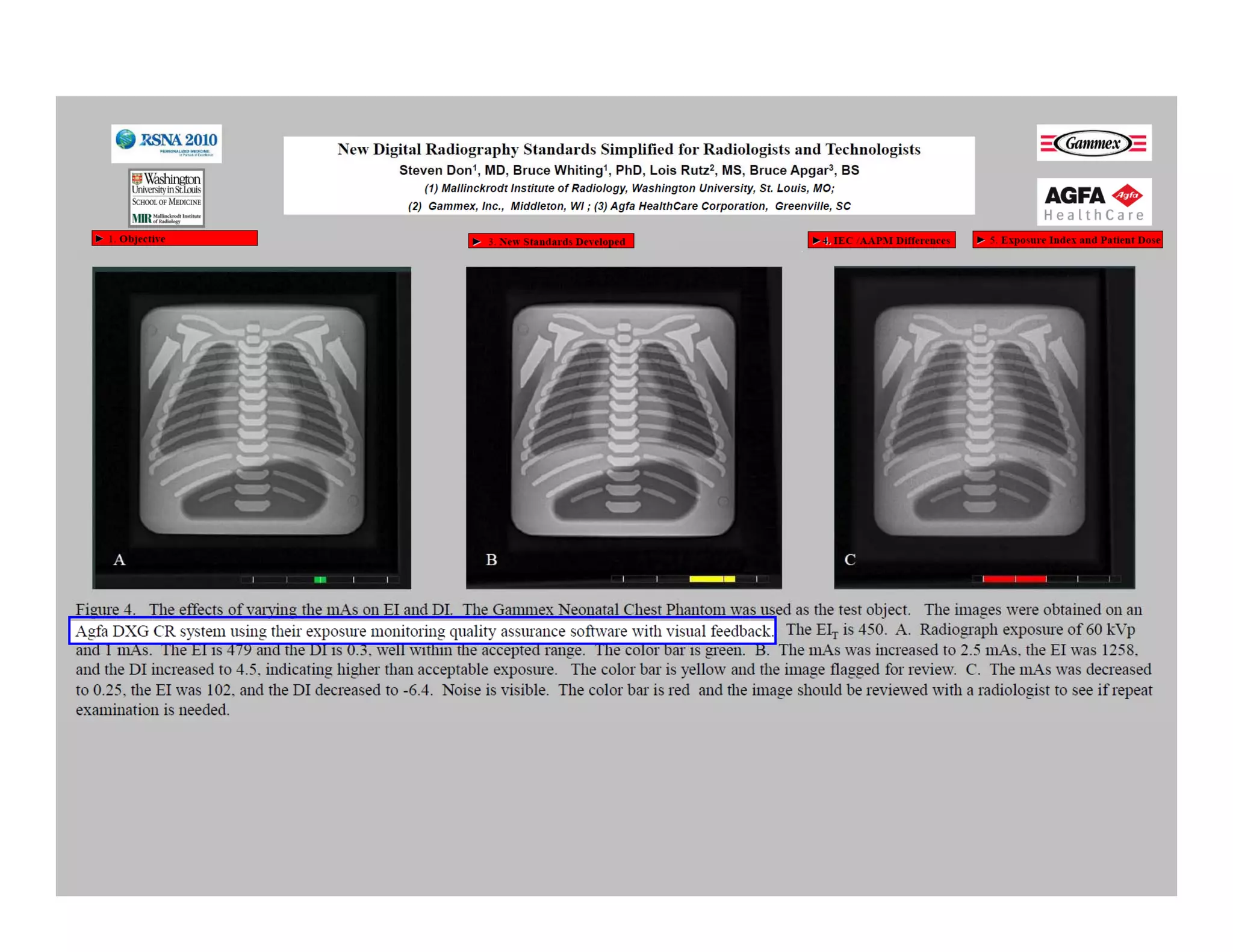

- 17. Global D.I.R. Meeting Mortsel,February 21 – 23, 2011
- 18. RE: LL-PHE1111 LL- New Digital Radiography Standards Simplified for Radiologists and Technologists Dear Dr Don: It is my great pleasure to congratulate you on receiving the Certificate of Merit Award for your education exhibit at the 96th y Scientific Assembly and Annual Meeting of the Radiological Society of North America, November 28-December 3, 2010, McCormick Place, Chicago, Illinois Place Chicago Illinois. Each education exhibit presentation is reviewed by the Education Awards C A d Committee, a separate entity f itt t tit from th Ed the Education E hibit ti Exhibits Committee… After reviewing 1915 education exhibits, the awards committee chose to present … 273 Certificate of Merit p Awards…. Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

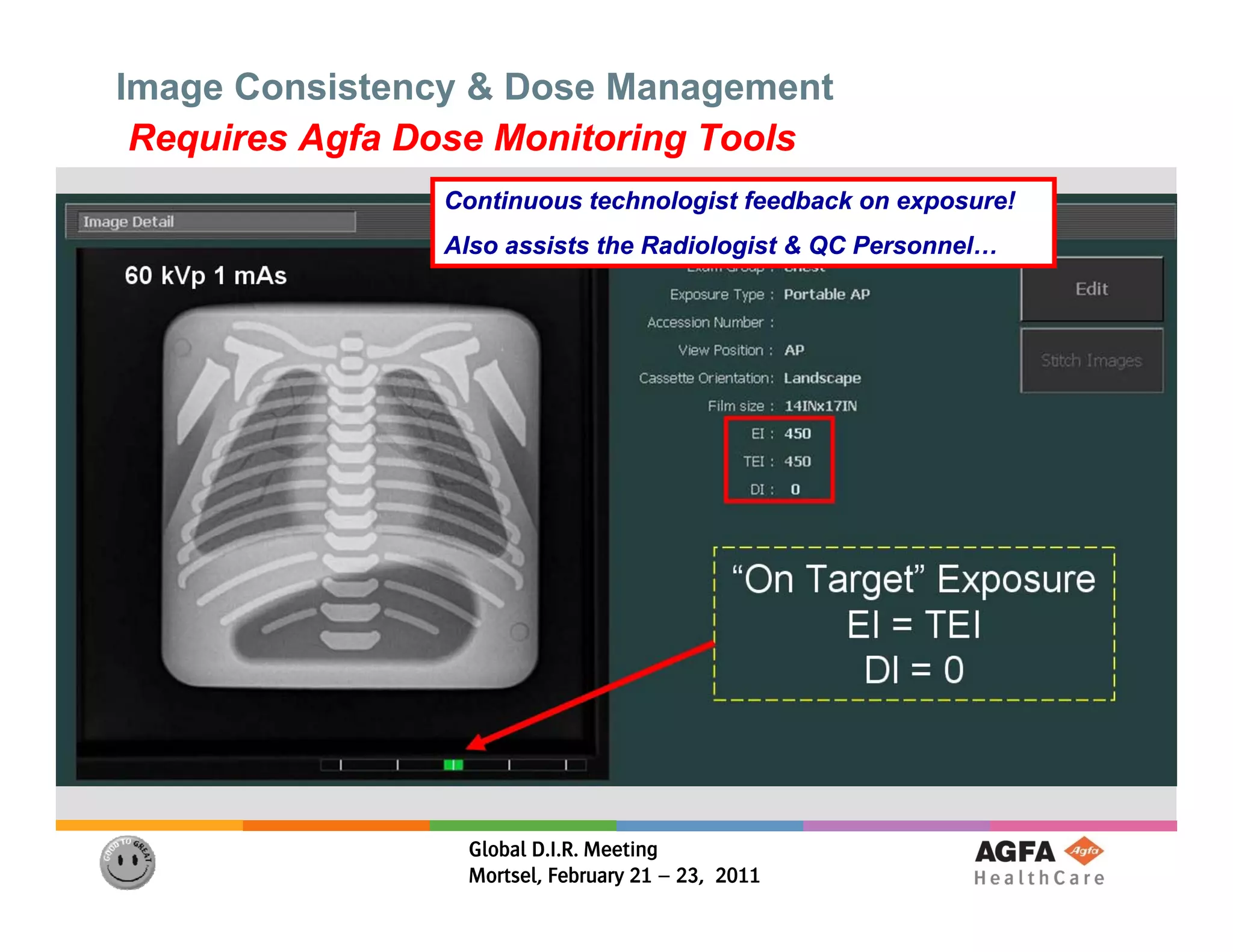

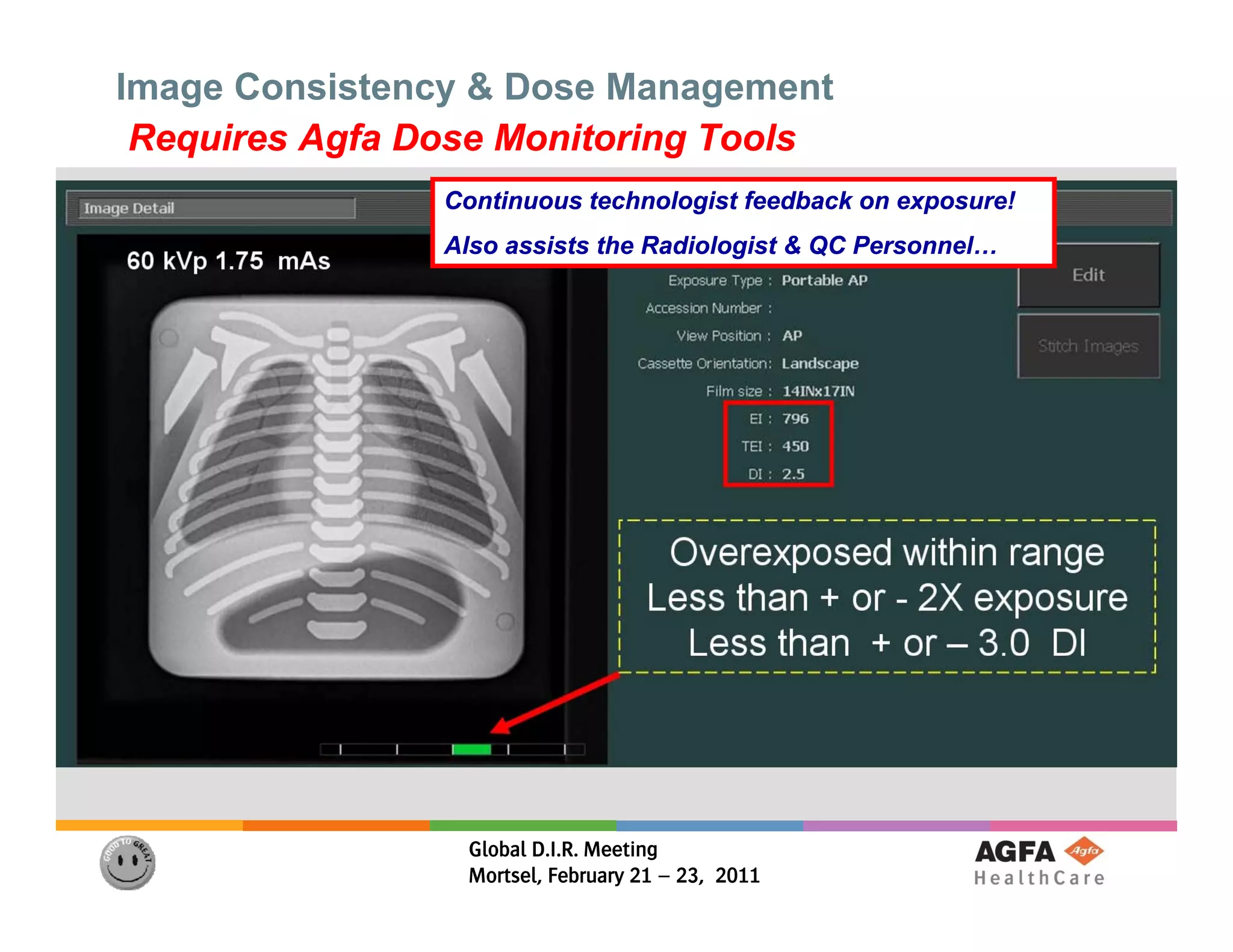

- 19. Image Consistency &Dose Management Requires Agfa Dose Monitoring Tools Continuous technologist feedback on exposure! Also assists the Radiologist & QC Personnel… Global D.I.R. Meeting Mortsel, February 21 – 23, 2011
- 20. Image Consistency &Dose Management Requires Agfa Dose Monitoring Tools Continuous technologist feedback on exposure! Also assists the Radiologist & QC Personnel… Global D.I.R. Meeting Mortsel, February 21 – 23, 2011
- 21. Image Consistency &Dose Management Requires Agfa Dose Monitoring Tools Continuous technologist feedback on exposure! Also assists the Radiologist & QC Personnel… Global D.I.R. Meeting Mortsel, February 21 – 23, 2011
- 22. Image Consistency &Dose Management Requires Agfa Dose Monitoring Tools Continuous technologist feedback on exposure! Also assists the Radiologist & QC Personnel… Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

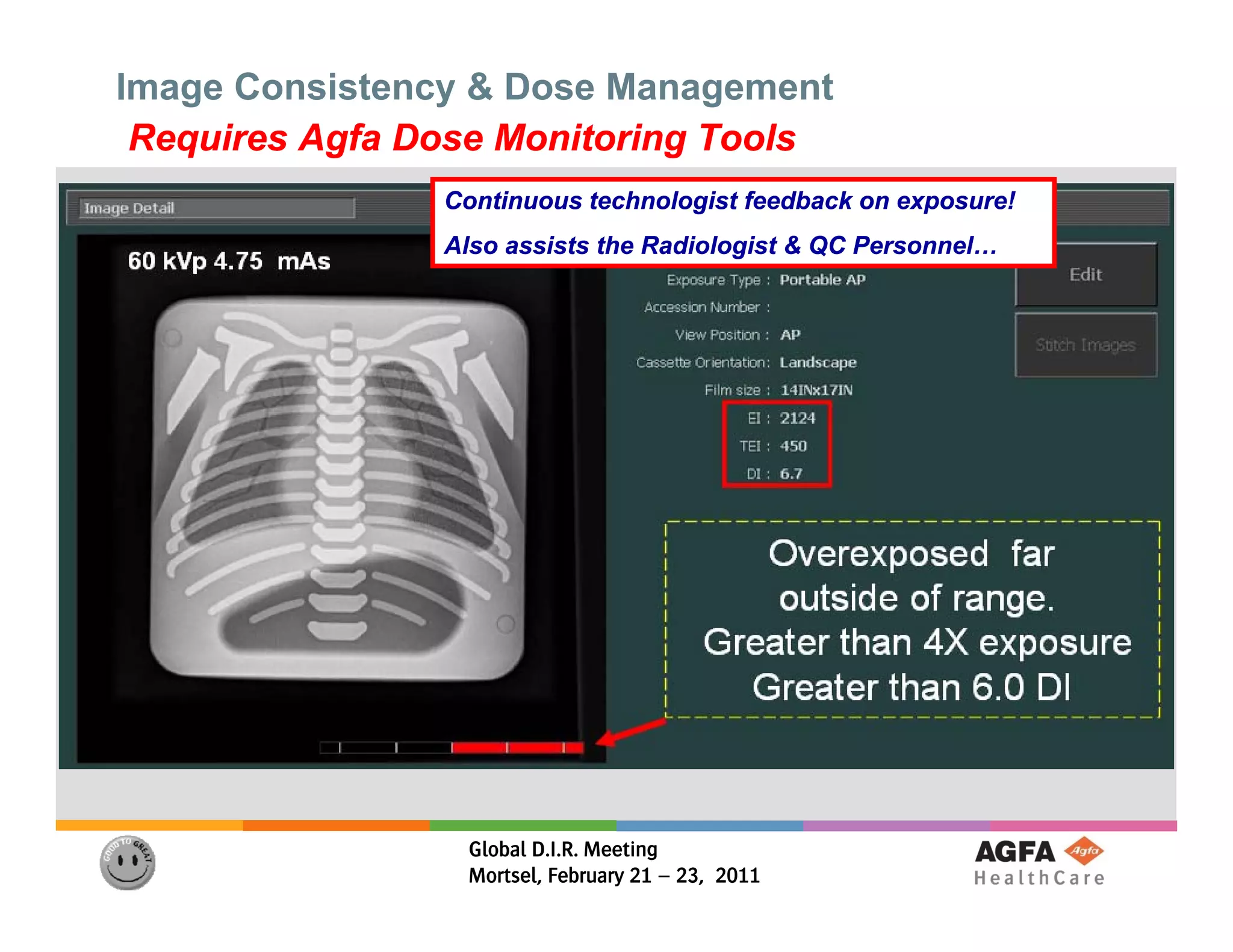

- 23. Image Consistency &Dose Management Requires Agfa Dose Monitoring Tools Continuous technologist feedback on exposure! Also assists the Radiologist & QC Personnel… Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

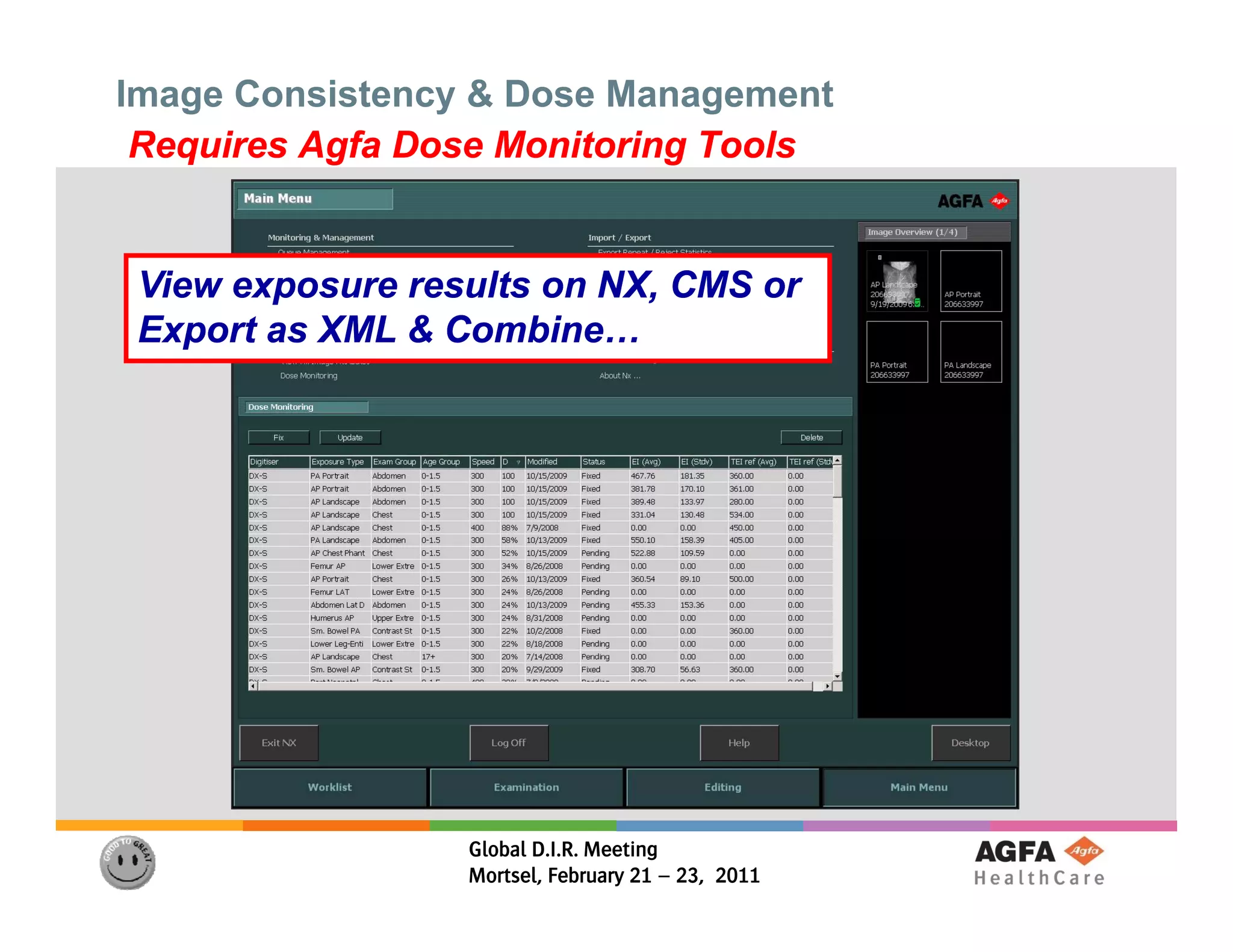

- 24. Image Consistency &Dose Management Requires Agfa Dose Monitoring Tools View exposure results on NX, CMS or Export as XML & Combine… Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

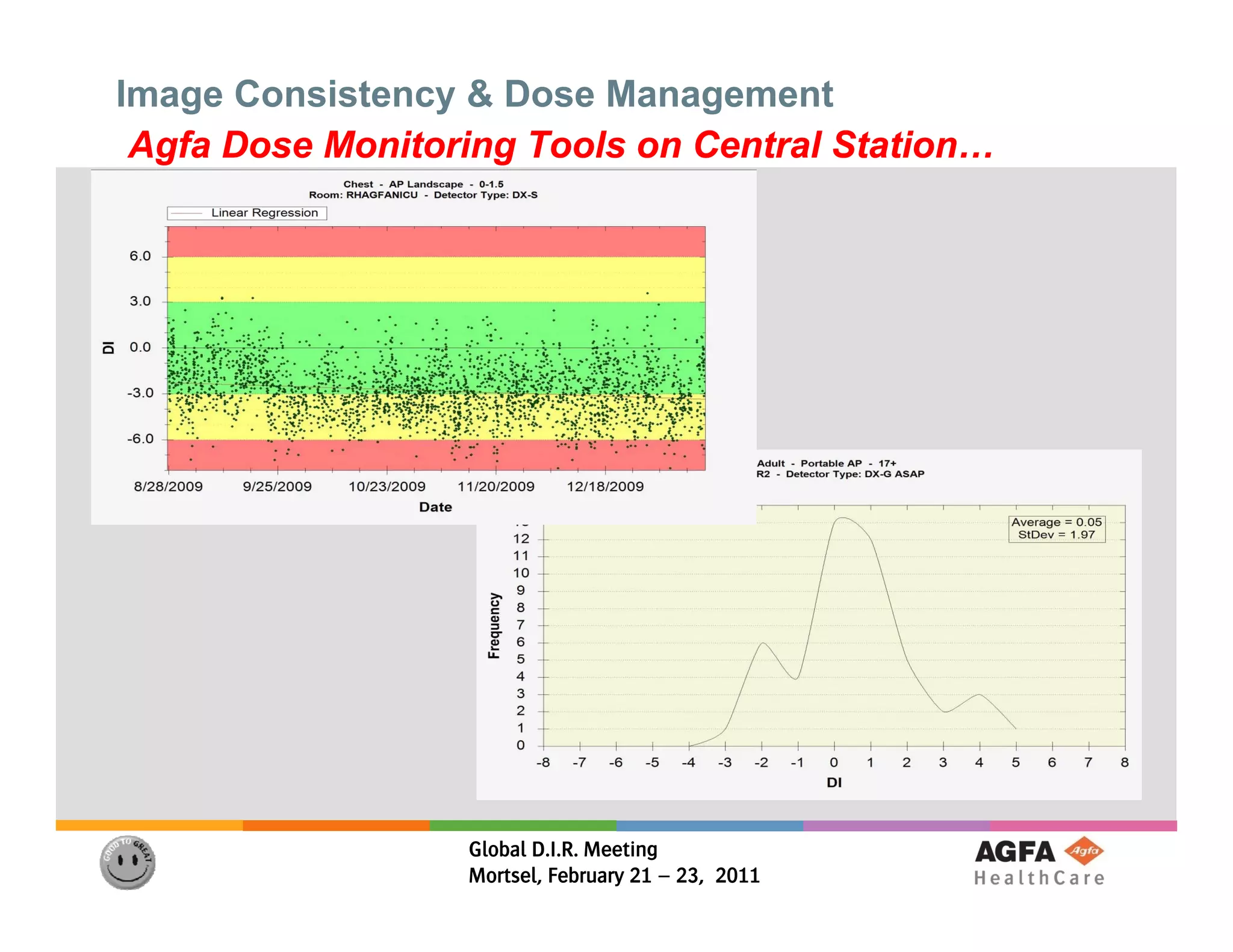

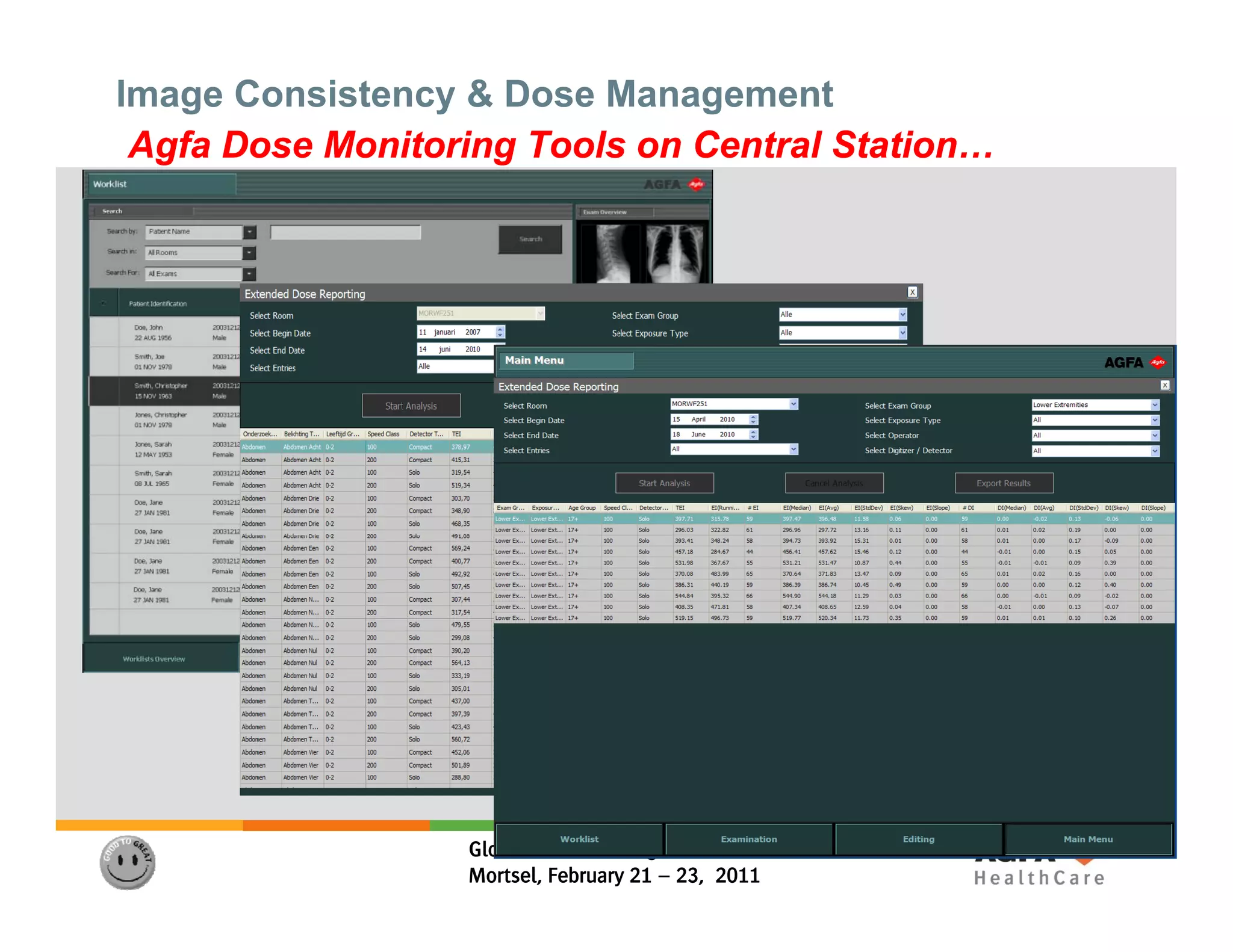

- 25. Image Consistency &Dose Management Agfa Dose Monitoring Tools on Central Station… Global D.I.R. Meeting Mortsel, February 21 – 23, 2011
- 26. Image Consistency &Dose Management Agfa Dose Monitoring Tools on Central Station… Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

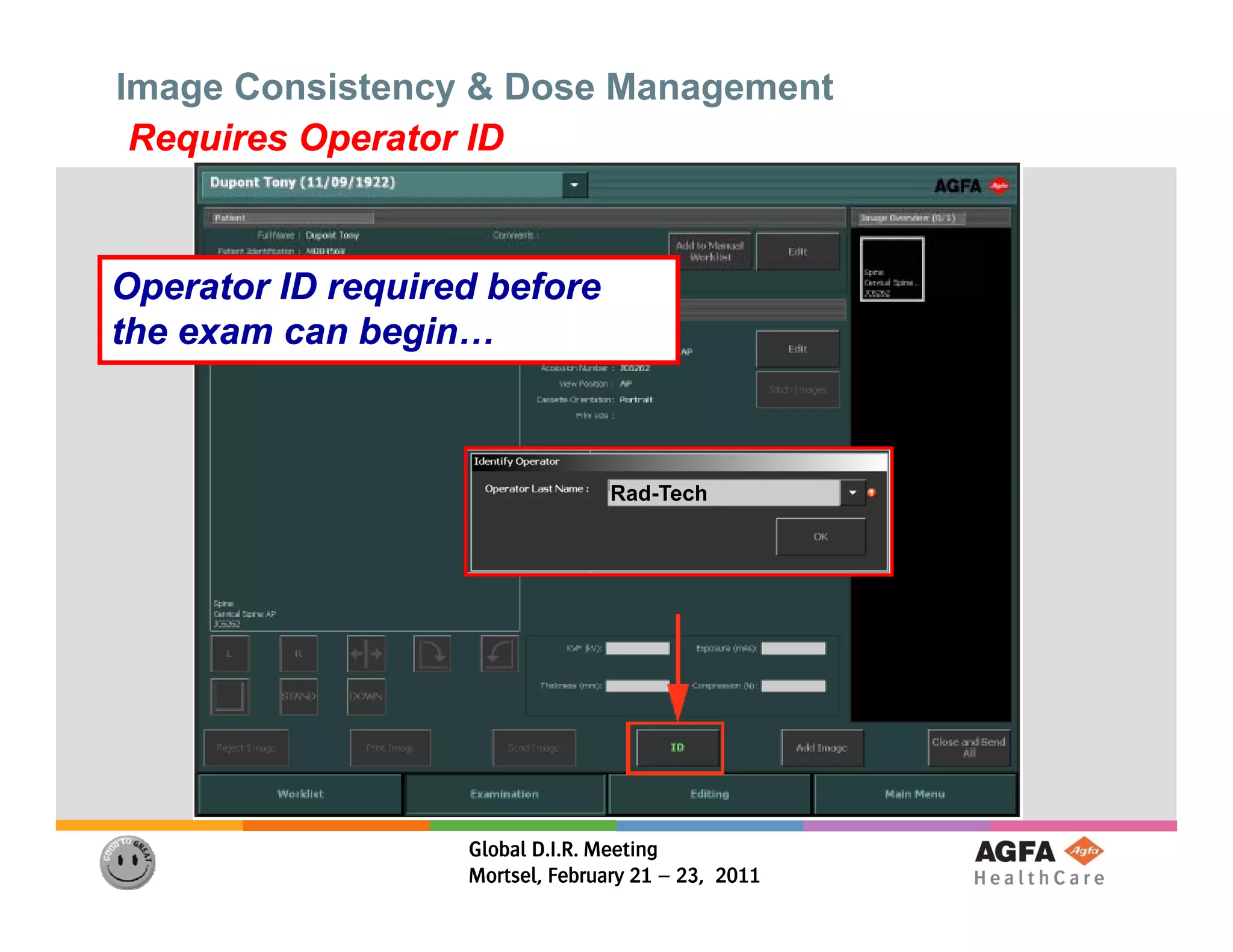

- 27. Image Consistency &Dose Management Requires Operator ID Operator ID required before the exam can begin… Rad-Tech Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

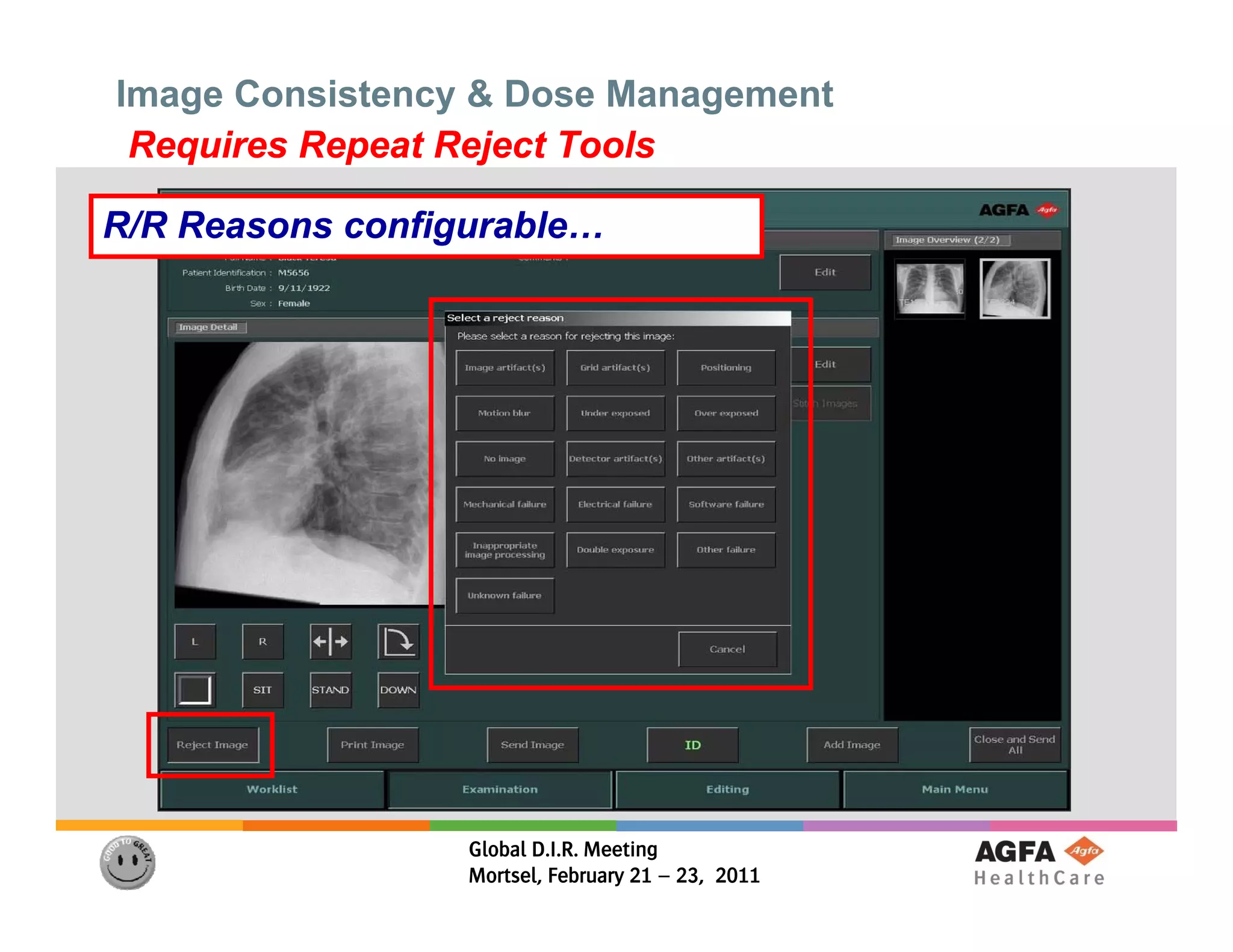

- 28. Image Consistency &Dose Management Requires Repeat Reject Tools R/R Reasons configurable… Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

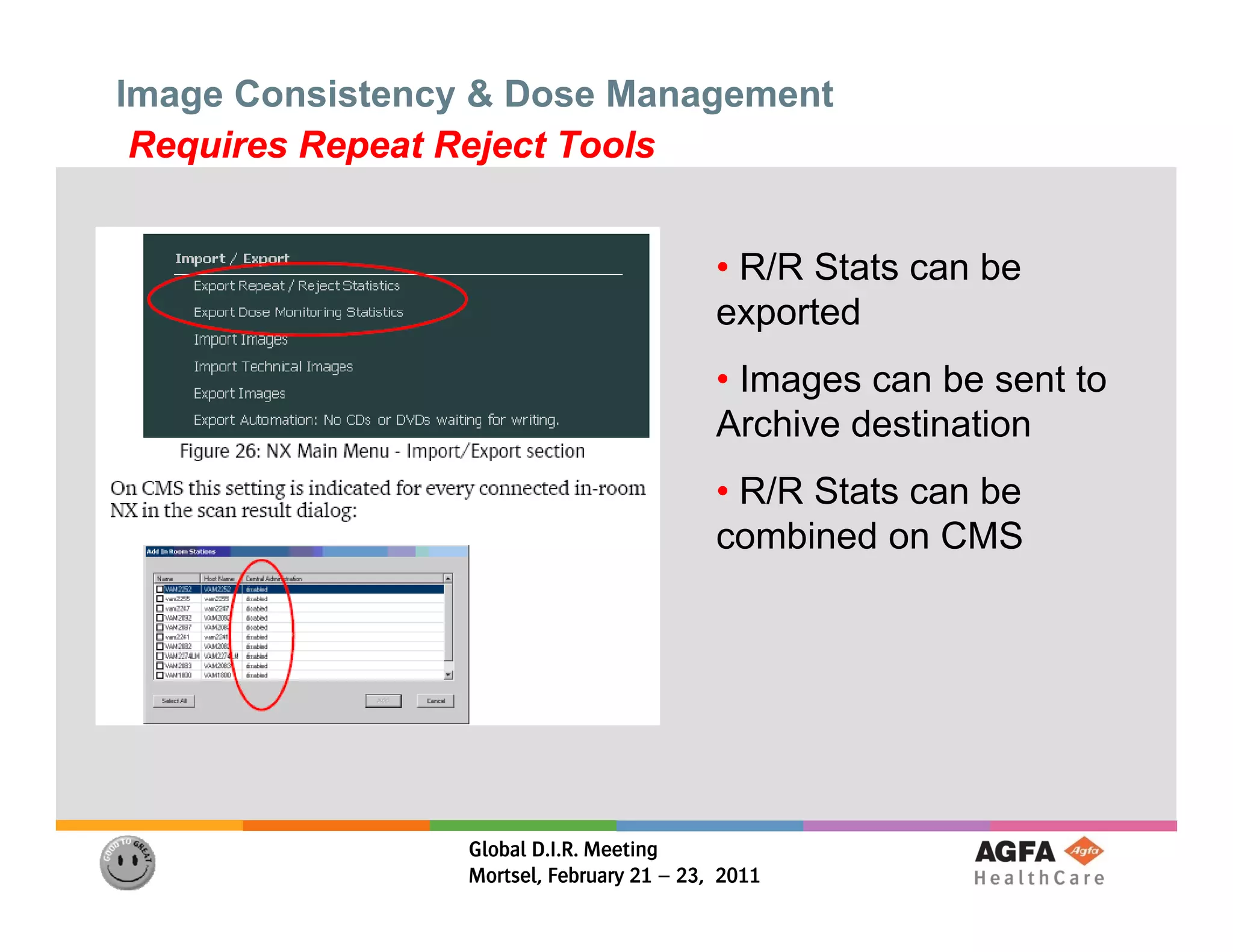

- 29. Image Consistency &Dose Management Requires Repeat Reject Tools • R/R Stats can be exported • Images can be sent to Archive destination A hi d ti ti • R/R Stats can be combined on CMS Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

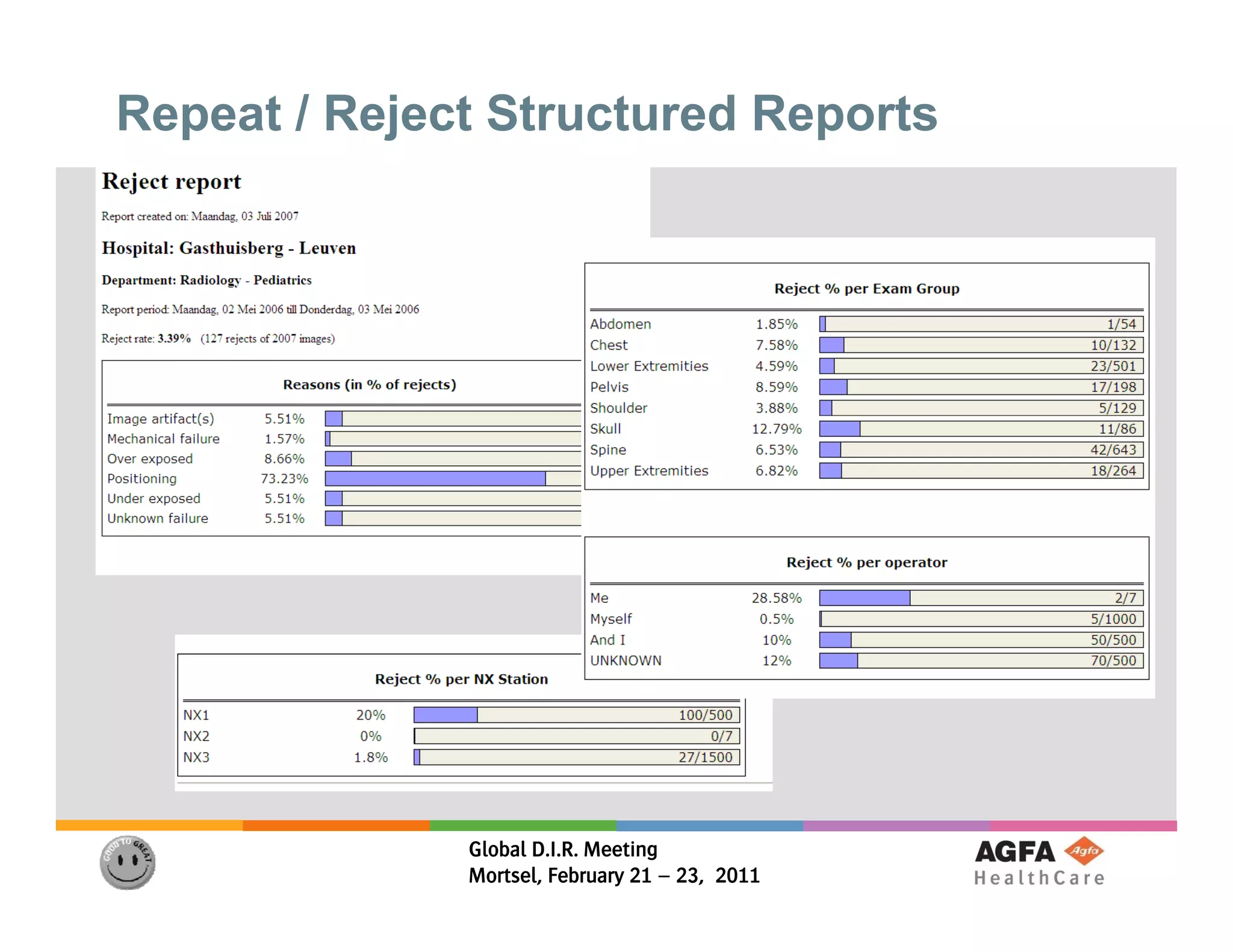

- 30. Repeat / RejectStructured Reports Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

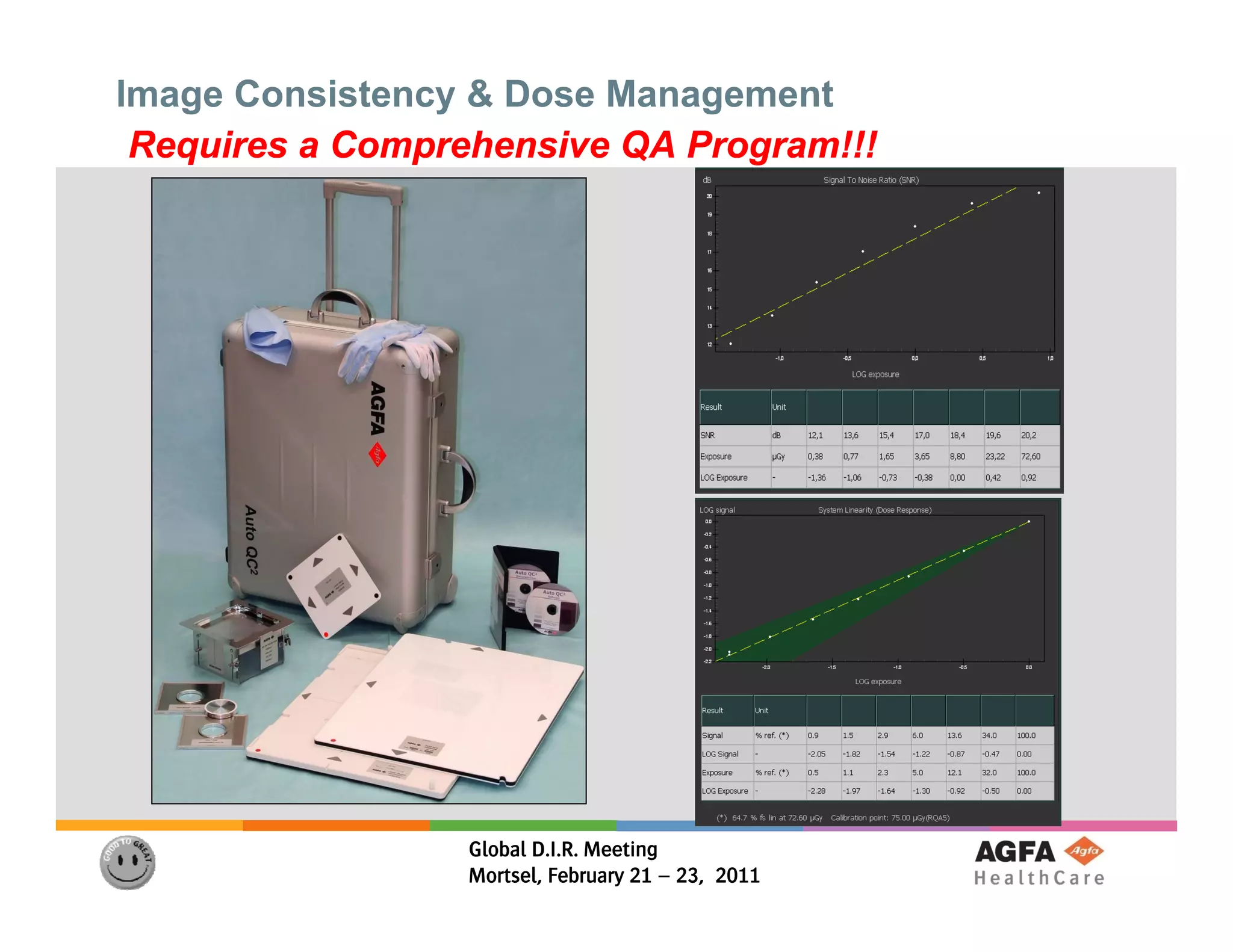

- 31. Image Consistency &Dose Management Requires a Comprehensive QA Program!!! Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

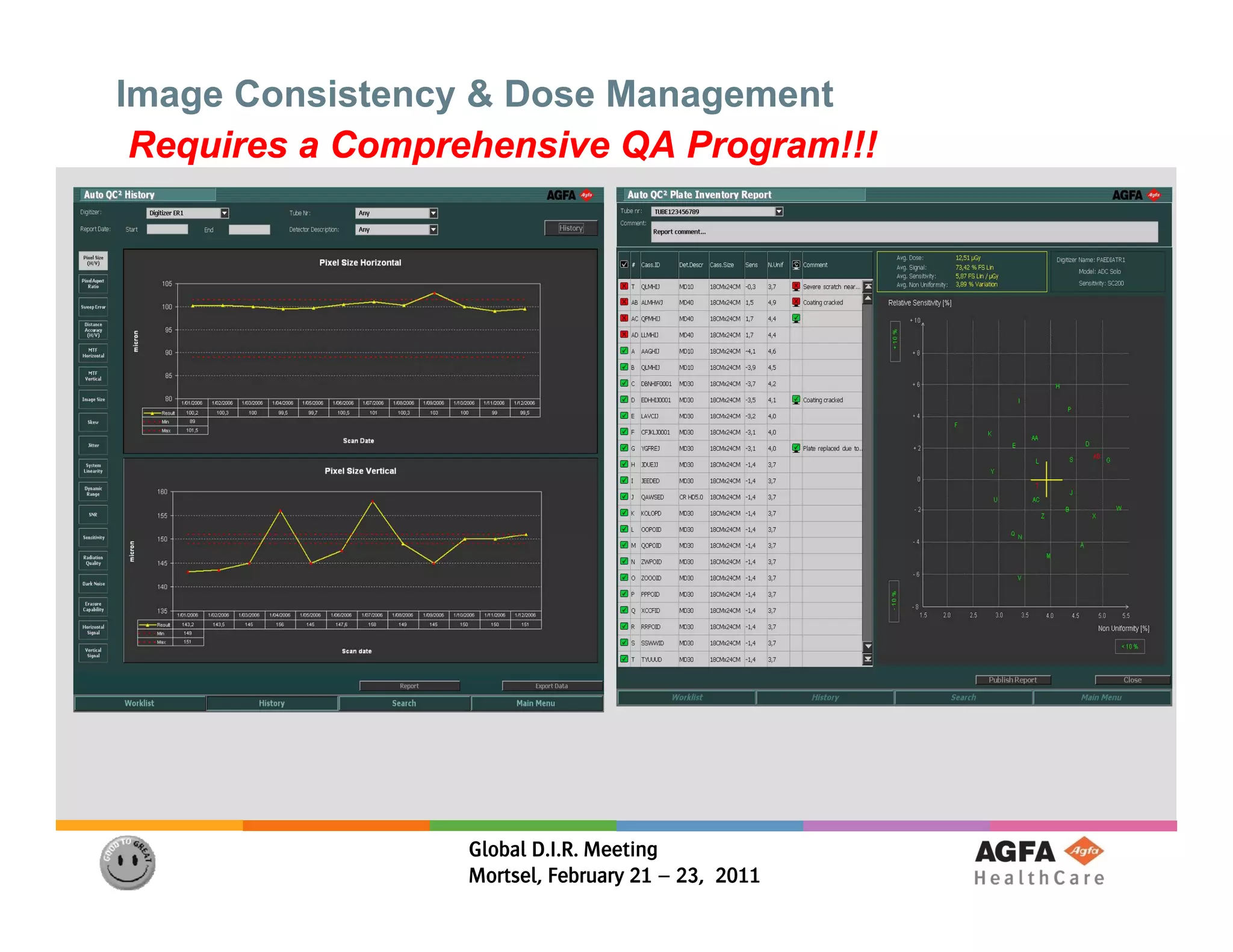

- 32. Image Consistency &Dose Management Requires a Comprehensive QA Program!!! Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

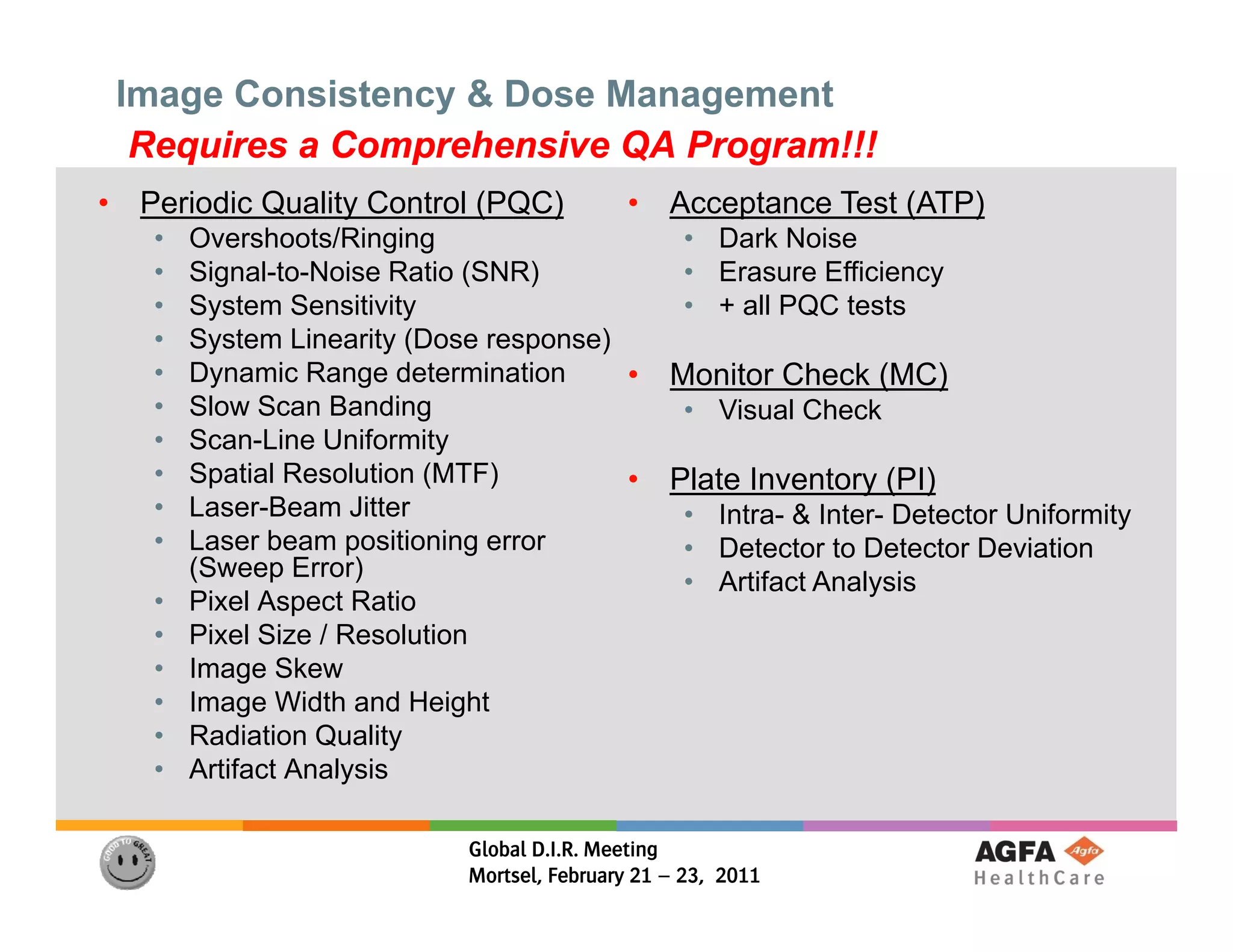

- 33. Image Consistency &Dose Management Requires a Comprehensive QA Program!!! • Periodic Quality Control (PQC) • Acceptance Test (ATP) • Overshoots/Ringing • Dark Noise • Signal-to-Noise Ratio (SNR) • Erasure Efficiency • System Sensitivity S t S iti it • + all PQC tests ll t t • System Linearity (Dose response) • Dynamic Range determination • Monitor Check (MC) • S o Scan a d g Slow Sca Banding • Visual Check • Scan-Line Uniformity • Spatial Resolution (MTF) • Plate Inventory (PI) • Laser-Beam Jitter • Intra- & Inter- Detector Uniformity • Laser beam positioning error • Detector to Detector Deviation (Sweep Error) • Artifact Analysis • Pixel Aspect Ratio • Pixel Size / Resolution • Image Skew • Image Width and Height • Radiation Quality • Artifact Analysis Global D.I.R. Meeting Mortsel, February 21 – 23, 2011

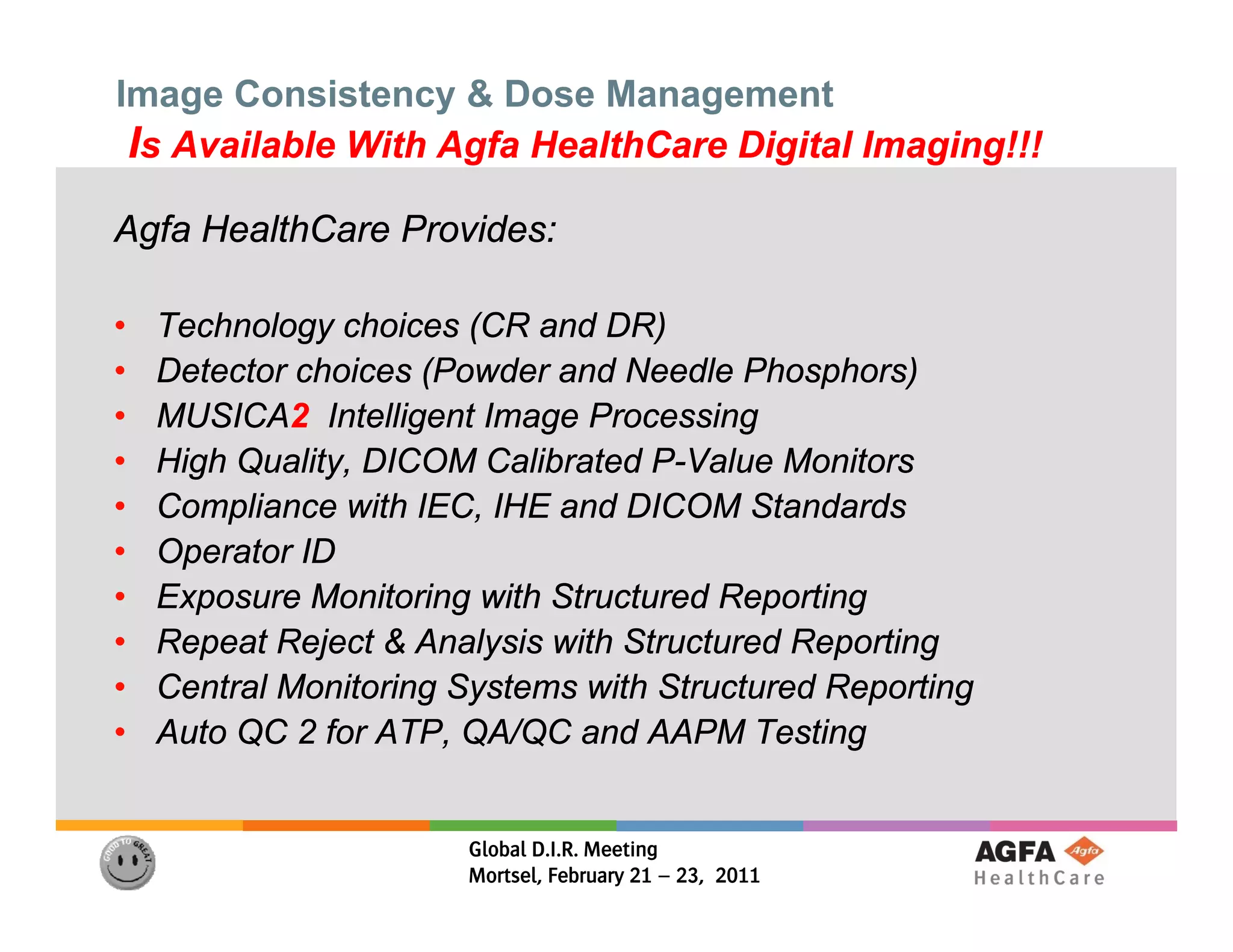

- 34. Image Consistency &Dose Management Is Available With Agfa HealthCare Digital Imaging!!! Agfa HealthCare Provides: • Technology choices (CR and DR) • Detector choices (Powder and Needle Phosphors) • MUSICA2 MUSICA2 Intelligent Image Processing • High Quality, DICOM Calibrated P-Value Monitors P- • Compliance with IEC, IHE and DICOM Standards • Operator ID • Exposure Monitoring with Structured Reporting • Repeat Reject & Analysis with Structured Reporting p j y p g • Central Monitoring Systems with Structured Reporting • Auto QC 2 for ATP, QA/QC and AAPM Testing Global D.I.R. Meeting Mortsel, February 21 – 23, 2011
