AES-NI@Sandy Bridge

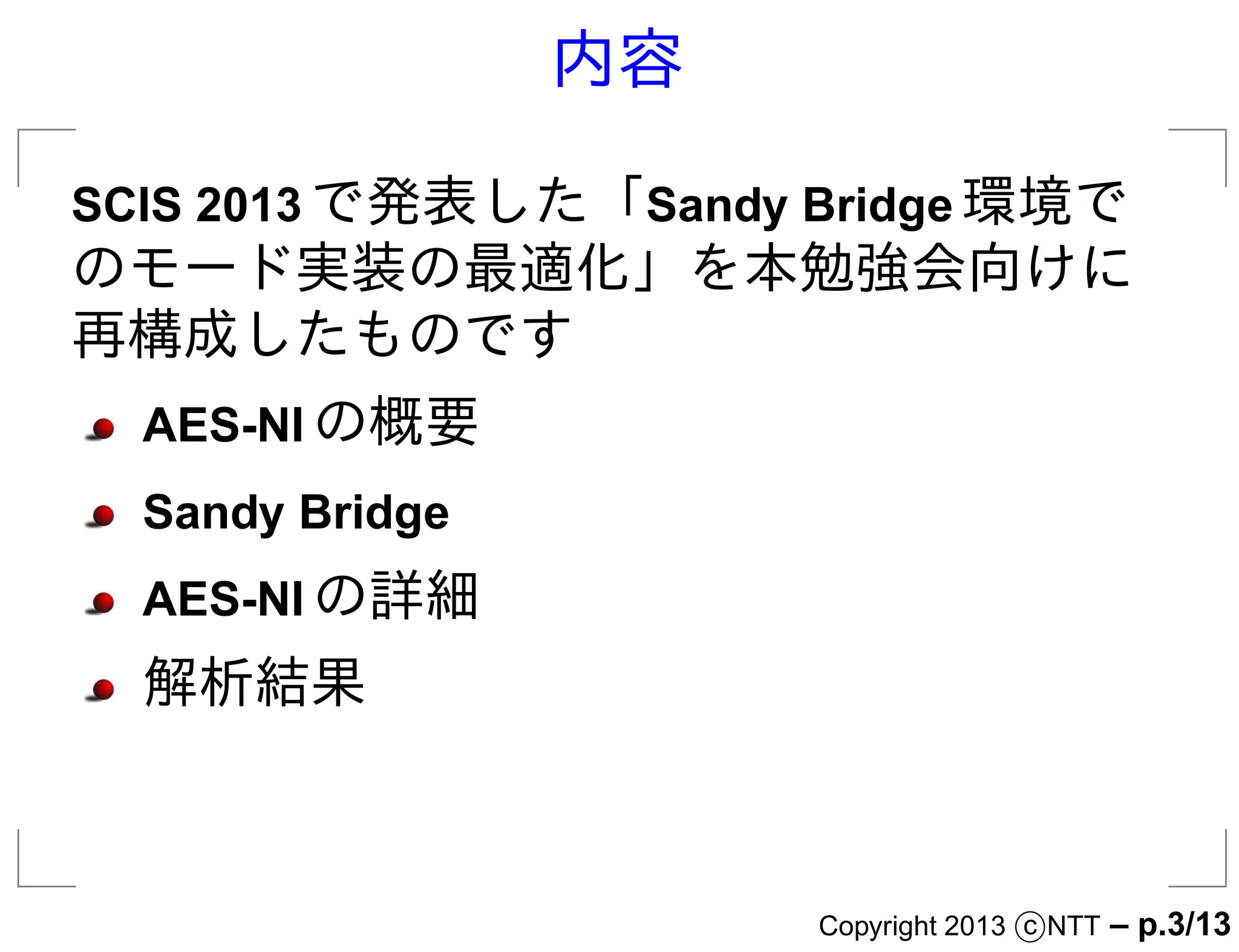

- 3. 内容
SCIS 2013 で発表した「Sandy Bridge 環境で
のモード実装の最適化」を本勉強会向けに
再構成したものです
AES-NI の概要
Sandy Bridge
AES-NI の詳細
解析結果
Copyright 2013 c NTT – p.3/13

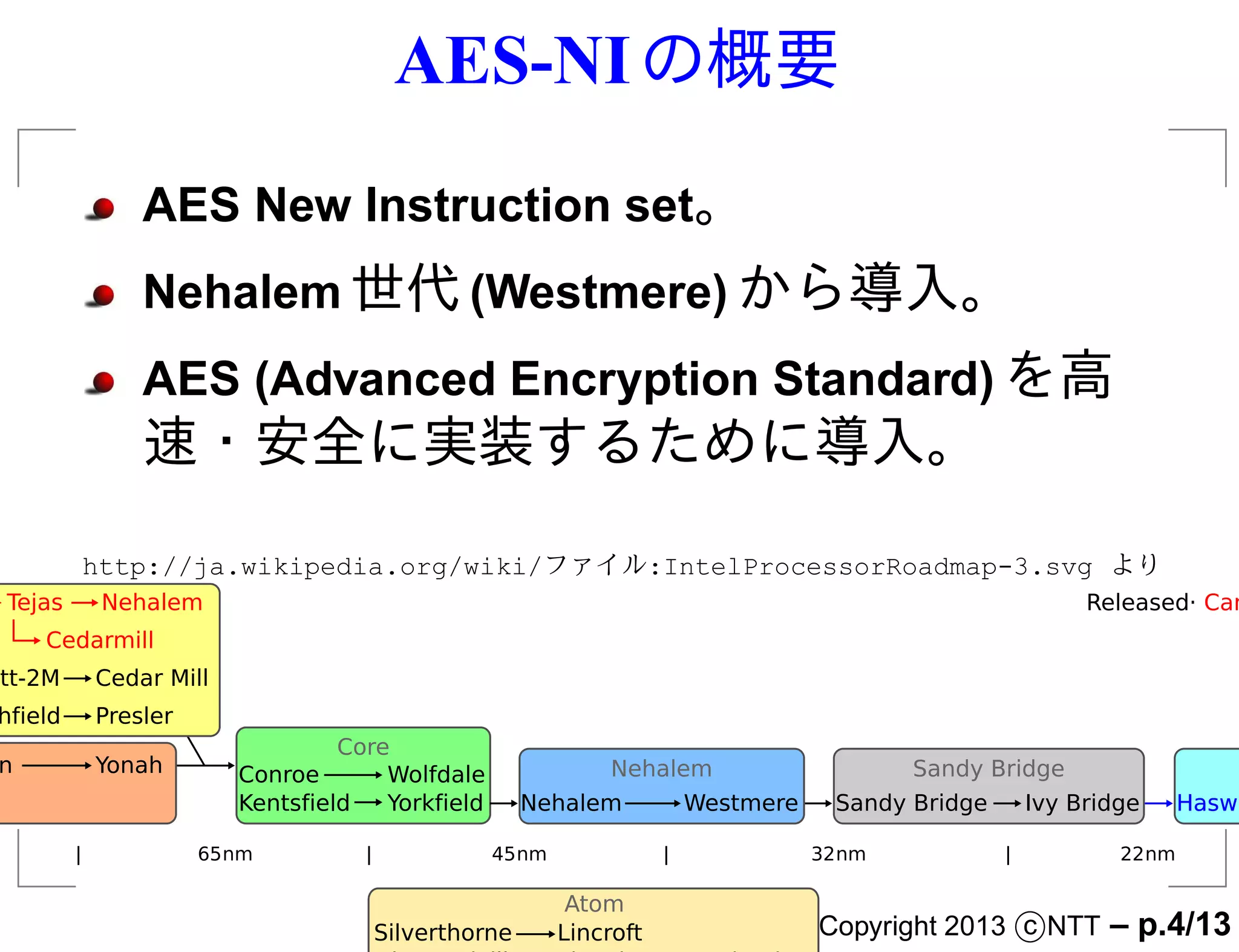

- 4. AES-NI の概要
AES New Instruction set。
Nehalem 世代 (Westmere) から導入。
AES (Advanced Encryption Standard) を高
速・安全に実装するために導入。
http://ja.wikipedia.org/wiki/ファイル:IntelProcessorRoadmap-3.svg より
cott Tejas Nehalem Released· Canceled
Cedarmill
Prescott-2M Cedar Mill
Smithfield Presler
Core
Dothan Yonah Conroe Wolfdale Nehalem Sandy Bridge Haswe
Kentsfield Yorkfield Nehalem Westmere Sandy Bridge Ivy Bridge Haswell B
90nm | 65nm | 45nm | 32nm | 22nm |
Atom
Silverthorne Lincroft Copyright 2013 c NTT – p.4/13

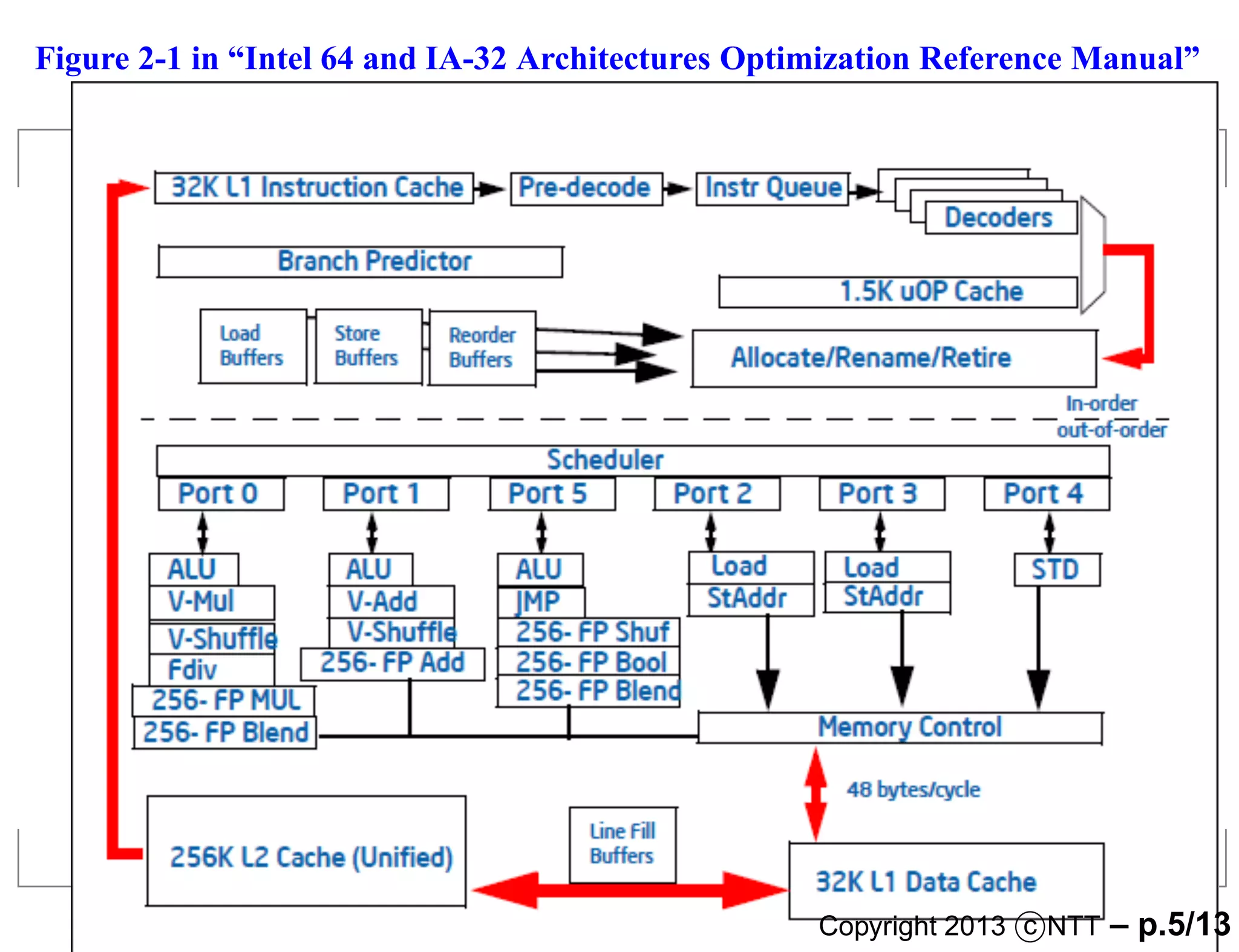

- 5. Figure 2-1 in “Intel 64 and IA-32 Architectures Optimization Reference Manual”
Copyright 2013 c NTT – p.5/13

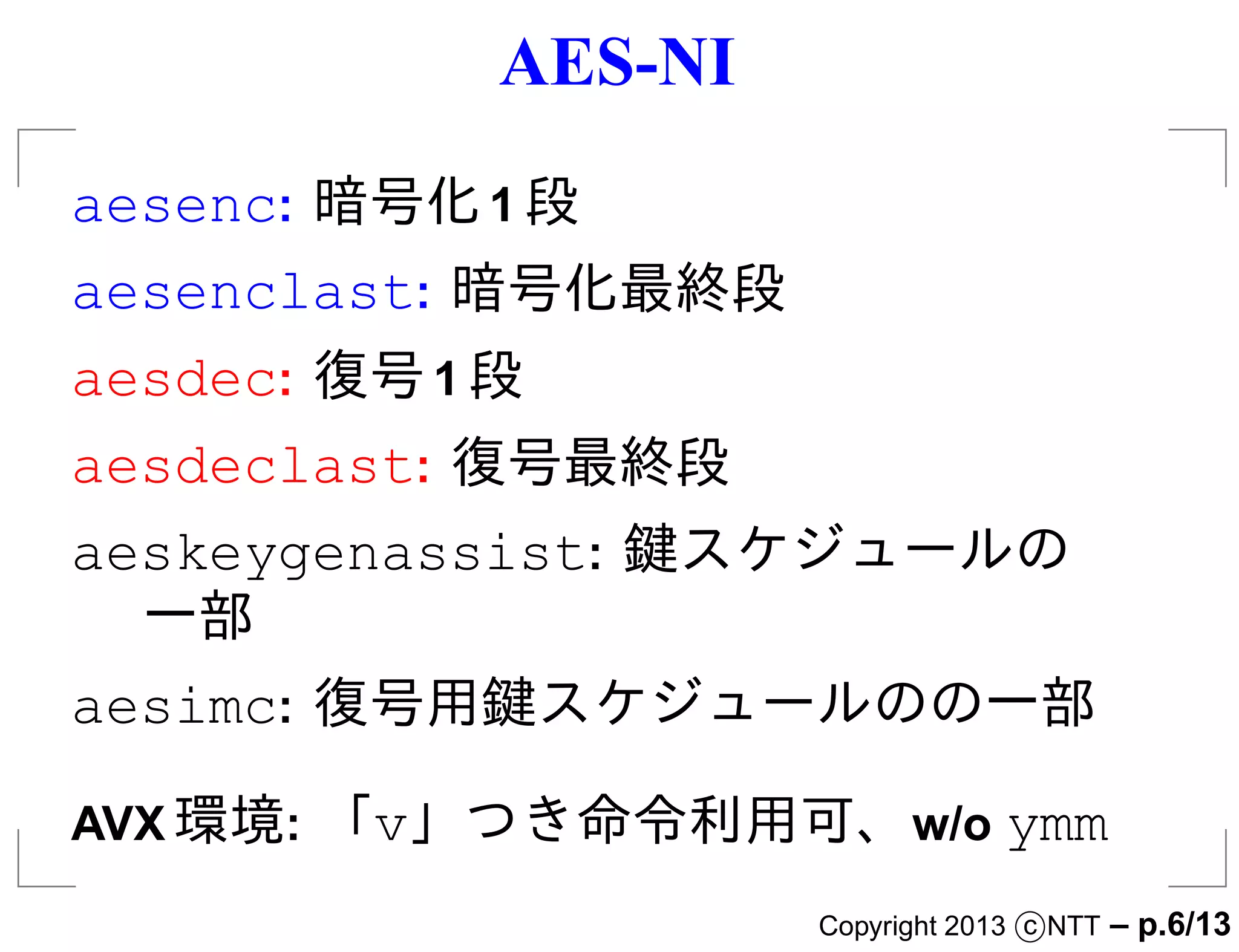

- 6. AES-NI
aesenc: 暗号化 1 段
aesenclast: 暗号化最終段
aesdec: 復号 1 段
aesdeclast: 復号最終段
aeskeygenassist: 鍵スケジュールの
一部
aesimc: 復号用鍵スケジュールのの一部
AVX 環境: 「v」つき命令利用可、w/o ymm
Copyright 2013 c NTT – p.6/13

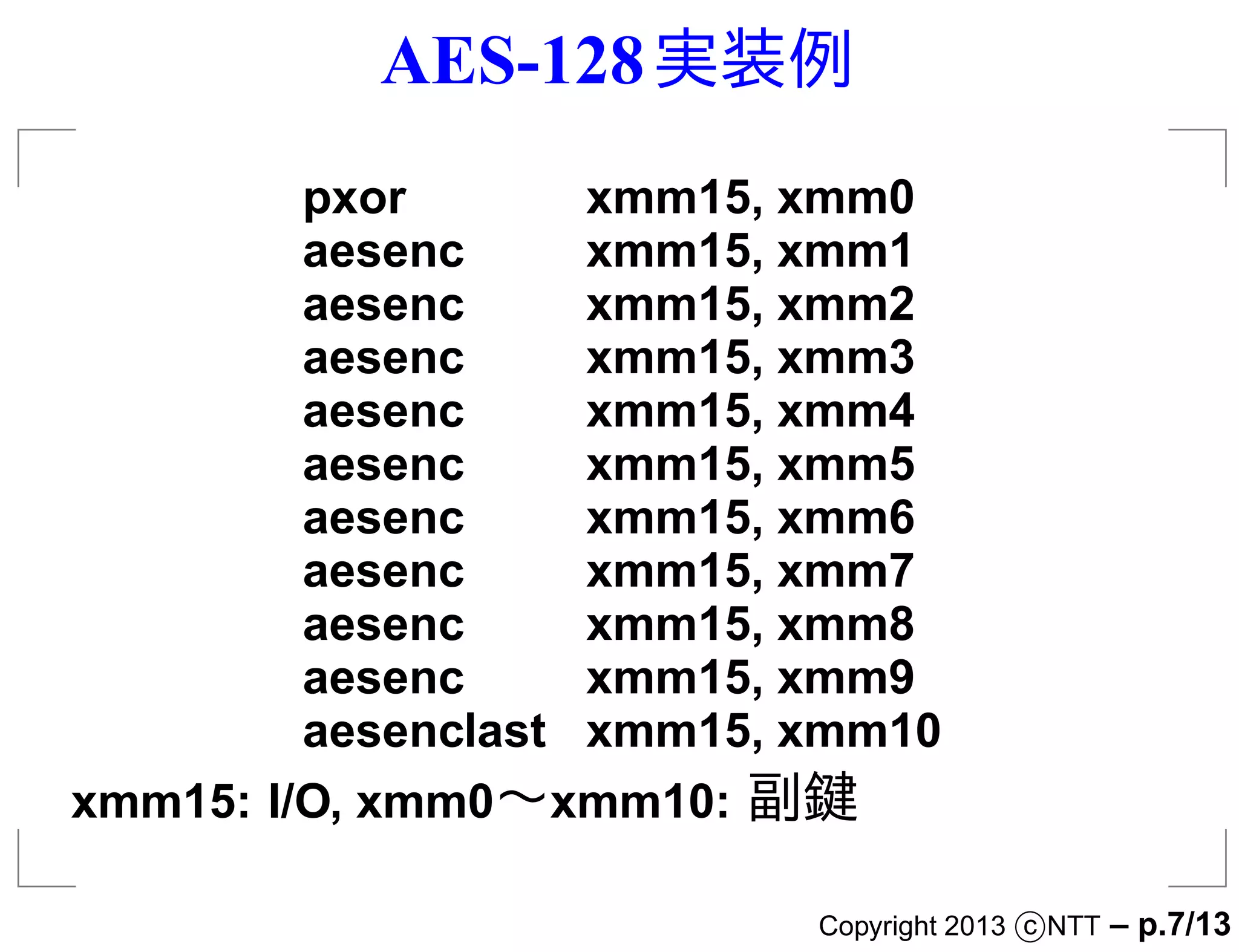

- 7. AES-128 実装例
pxor xmm15, xmm0
aesenc xmm15, xmm1
aesenc xmm15, xmm2
aesenc xmm15, xmm3
aesenc xmm15, xmm4
aesenc xmm15, xmm5
aesenc xmm15, xmm6
aesenc xmm15, xmm7
aesenc xmm15, xmm8
aesenc xmm15, xmm9
aesenclast xmm15, xmm10
xmm15: I/O, xmm0∼xmm10: 副鍵
Copyright 2013 c NTT – p.7/13

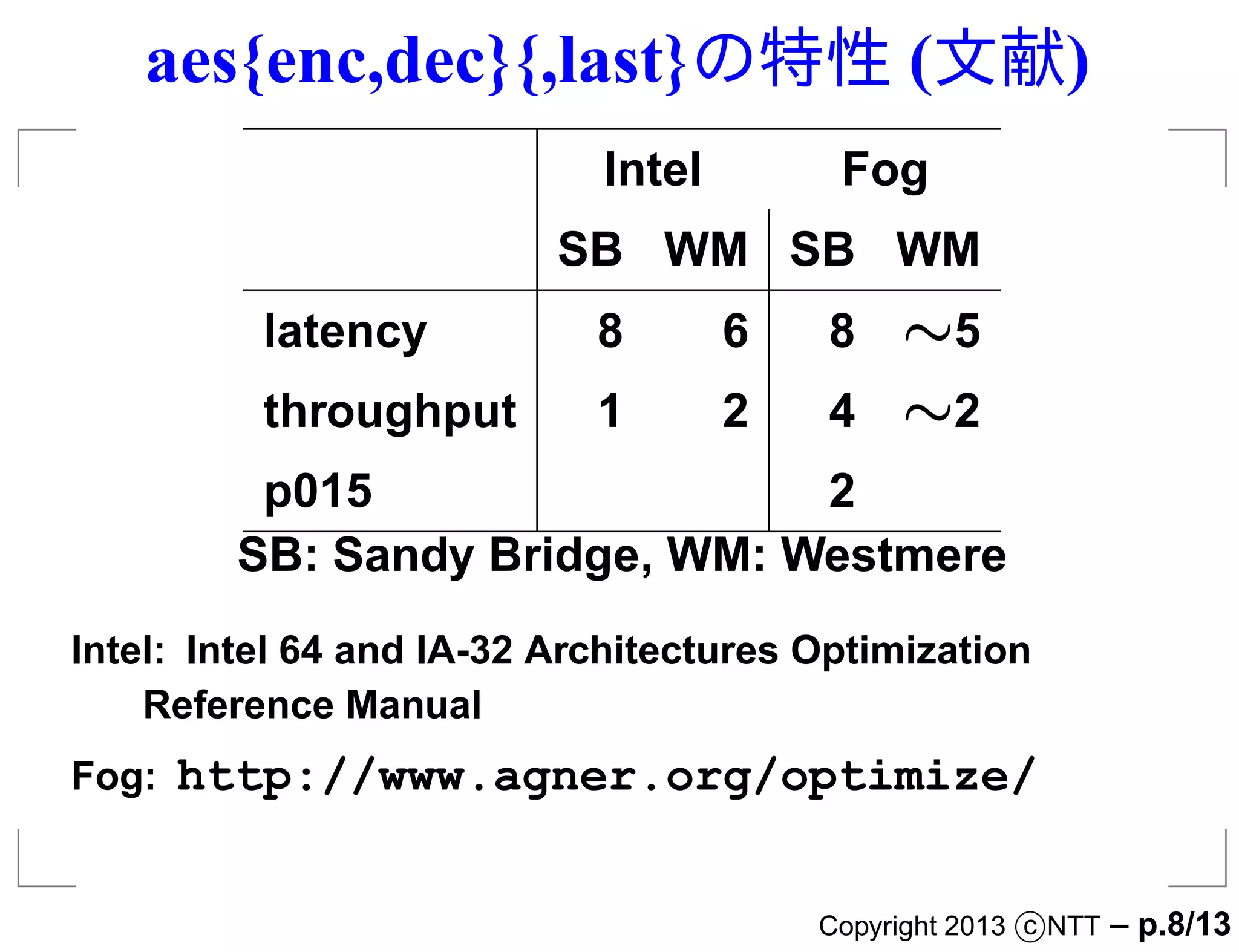

- 8. aes{enc,dec}{,last}の特性 (文献)
Intel Fog
SB WM SB WM
latency 8 6 8 ∼5
throughput 1 2 4 ∼2
p015 2
SB: Sandy Bridge, WM: Westmere
Intel: Intel 64 and IA-32 Architectures Optimization
Reference Manual
Fog: http://www.agner.org/optimize/
Copyright 2013 c NTT – p.8/13
- 9. aes{enc,dec}{,last}の特性 (IACA)
Ryad Benadjila: “Use of AES Instruction Set” @
AES Day 2012
https://www.cosic.esat.kuleuven.be/ecrypt/AESday/
IACA: Intel Architecture Code Analyzer より
Sandy Bridge:
p01: 2×0.5µop×(latency 7, throughput 1)
p5: 1µop×(latency 1, throughput 1)
Westmere:
p0: 2µop×(latency 4, throughput 1)
p5: 1µop×(latency 1, throughput 1)
Copyright 2013 c NTT – p.9/13

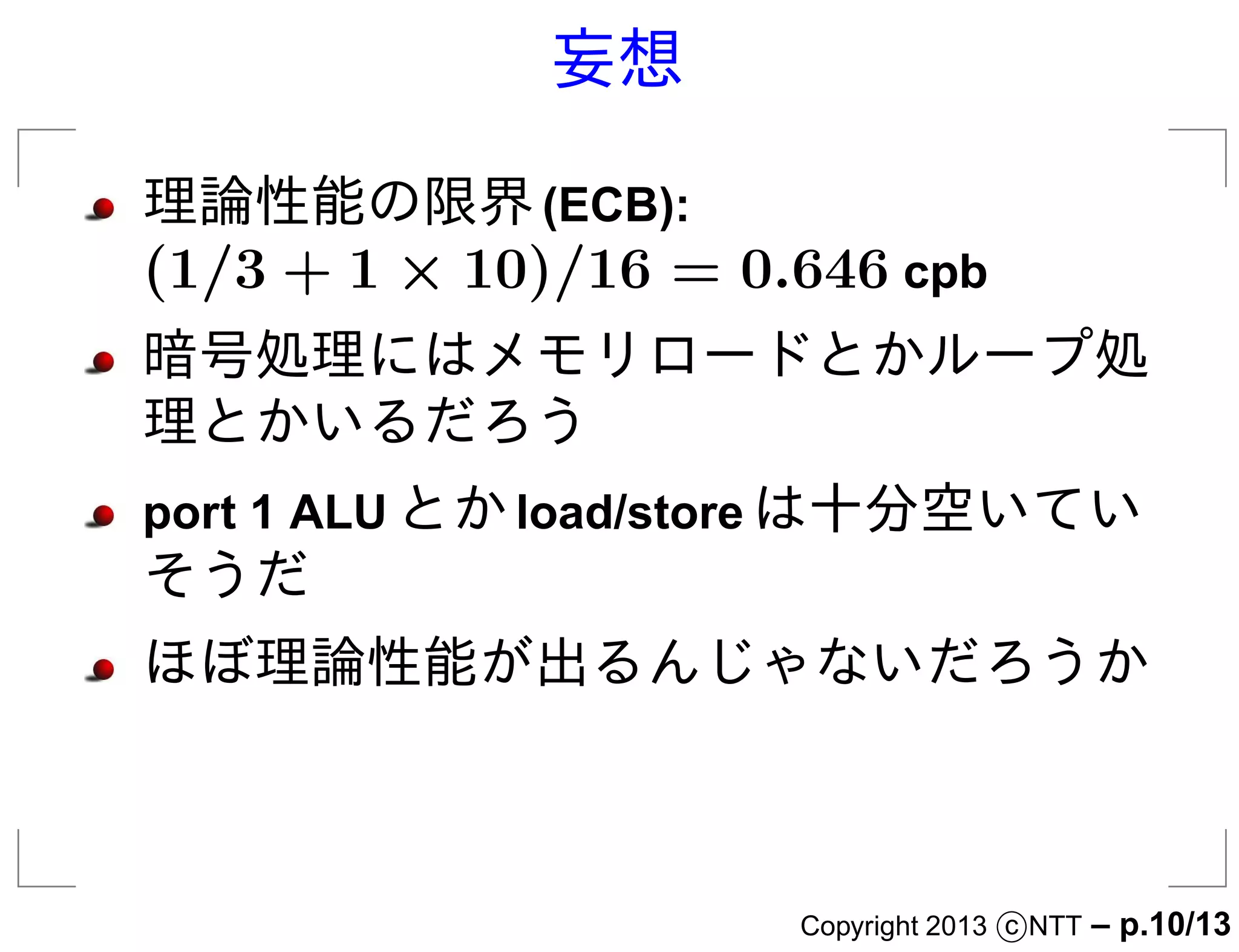

- 10. 妄想
理論性能の限界 (ECB):
(1/3 + 1 × 10)/16 = 0.646 cpb
暗号処理にはメモリロードとかループ処
理とかいるだろう
port 1 ALU とか load/store は十分空いてい
そうだ
ほぼ理論性能が出るんじゃないだろうか
Copyright 2013 c NTT – p.10/13

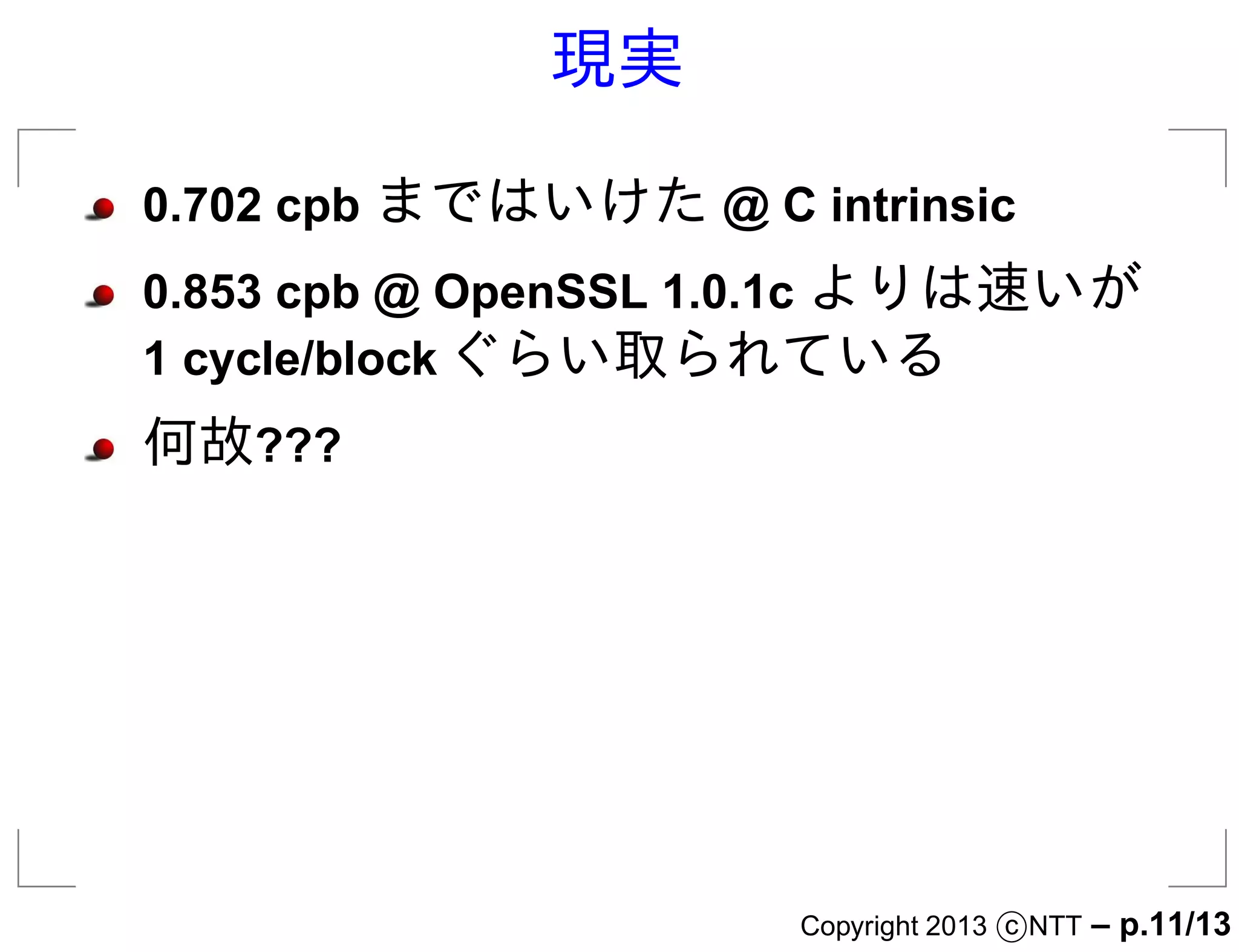

- 11. 現実
0.702 cpb まではいけた @ C intrinsic
0.853 cpb @ OpenSSL 1.0.1c よりは速いが
1 cycle/block ぐらい取られている
何故???
Copyright 2013 c NTT – p.11/13

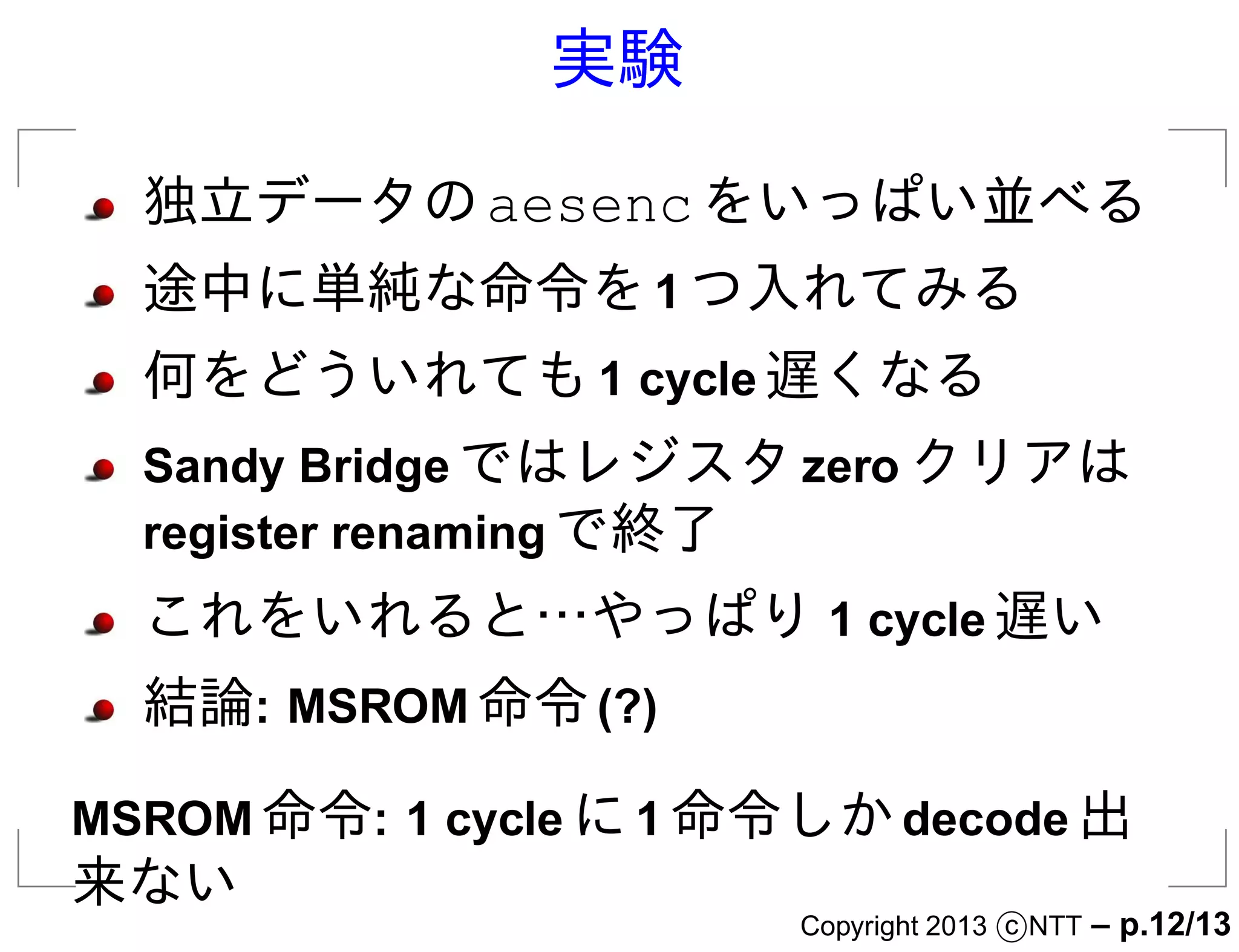

- 12. 実験
独立データの aesenc をいっぱい並べる
途中に単純な命令を 1 つ入れてみる
何をどういれても 1 cycle 遅くなる
Sandy Bridge ではレジスタ zero クリアは
register renaming で終了
これをいれると…やっぱり 1 cycle 遅い
結論: MSROM 命令 (?)
MSROM 命令: 1 cycle に 1 命令しか decode 出
来ない
Copyright 2013 c NTT – p.12/13

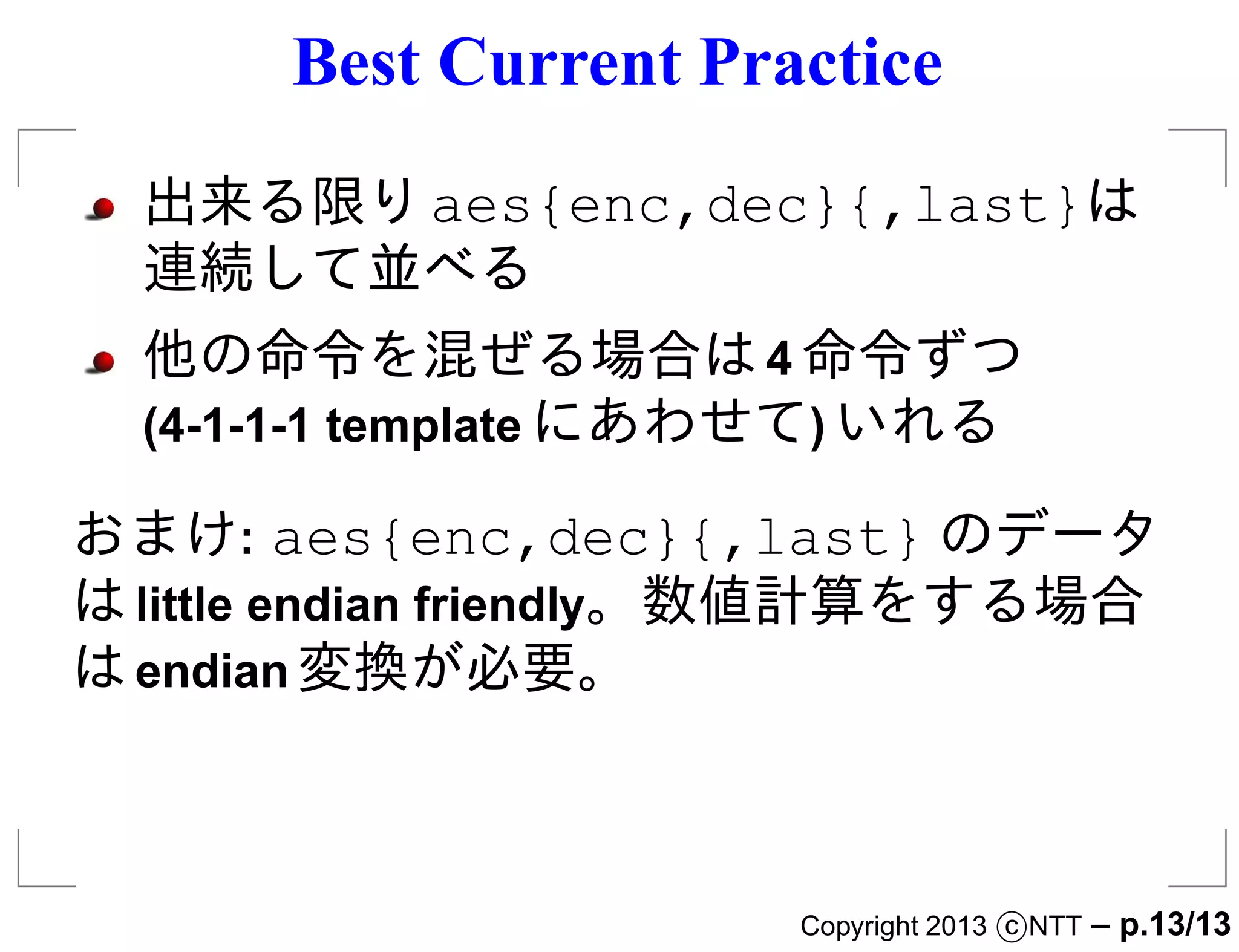

- 13. Best Current Practice
出来る限り aes{enc,dec}{,last}は
連続して並べる
他の命令を混ぜる場合は 4 命令ずつ
(4-1-1-1 template にあわせて) いれる
おまけ: aes{enc,dec}{,last} のデータ
は little endian friendly。数値計算をする場合
は endian 変換が必要。
Copyright 2013 c NTT – p.13/13
