2. Introduction
 A 3D printer file is a way to store information about 3D model.
 All 3D printer files contain the data about the shape of 3D model, their
geometry.
 The 3D printer file formats and tools are tightly coupled.
 There are several file formats that can hold such data. Examples include
STL, OBJ, 3MF, VRML etc.
 STL is the most commonly used 3D printer file format across the globe.

3. STL file format
 The first 3D printer was invented
by Chuck Hull in 1987 at 3D
Systems. The same guy was
behind the STL file format.
 It is a file type created for rapid
prototyping by 3D Systems.
 It was very quickly and easily
adapted by all the 3D modeling
software, slicers, and 3D
printers.
 It stands for STereoLithography
or Standard Triangle Language
or Standard Tessellation
Source - https://all3dp.com/what-is-stl-file-format-
extension-3d-printing/#pointten

4. How does the STL file format store a 3D
model?
 Tessellation is the process of tiling a surface with one or more geometric
shapes.
 Exploiting tessellation to encode surface geometry : store information about
the facets in a file.
Tessellation Paintings Tessellation of cube and sphere
Source - https://all3dp.com/what-is-stl-file-format-extension-3d-printing/#pointten

5. How does an STL file store information about
facets?
 ASCII encoding
 Binary encoding
In both formats, the following
information of each triangle is
stored:
I. The coordinates of the vertices.
II. The components of the unit
normal vector to the triangle.
Source - https://i.all3dp.com/wp-
content/uploads/2016/11/27015532/vertices-

6. Continued…
 The ASCII STL file format
The file continues with information about the covering triangles.
solid <name>
facet normal nx ny nz
outer loop
vertex v1x v1y v1z
vertex v2x v2y v2z
vertex v3x v3y v3z
Endloop
endfacet
endsolid <name>
—The ASCII STL file starts with the mandatory
line
—n is the normal to the triangle and v1, v2
and v3 are the vertices of the triangle. Co-
ordinate values are represented as a floating
point number with sign-mantissa-e-sign-
exponent format, e.g., “3.245000e-002”.
—The file ends with the mandatory line

7. Continued…
 The binary STL file format
If the tessellation involves many small triangles, the ASCII STL file can
become huge. This is why a more compact binary version exists.
UINT8[80] – Header
UINT32 – Number of triangles
foreach triangle
REAL32[3] – Normal vector
REAL32[3] – Vertex 1
REAL32[3] – Vertex 2
REAL32[3] – Vertex 3
UINT16 – Attribute byte count
end
 The binary STL file starts with a 80
character header.
 Each triangle is represented by twelve 32-
bit floating point numbers.
 Just like the ASCII STL file, 3 numbers are
for the 3D Cartesian co-ordinates of the
normal to the triangle.
 The remaining 9 numbers are for the
coordinates of the vertices (three each).

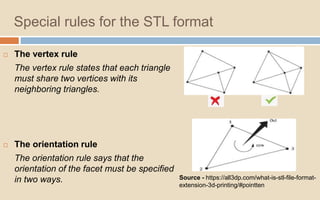

8. Special rules for the STL format
 The vertex rule
The vertex rule states that each triangle
must share two vertices with its
neighboring triangles.
 The orientation rule
The orientation rule says that the
orientation of the facet must be specified
in two ways. Source - https://all3dp.com/what-is-stl-file-format-
extension-3d-printing/#pointten

9. How is an STL file 3D printed?
 For 3D printing, the STL file has to
be opened in a dedicated slicer like
Cura or Simplify3D.
 The slicer chops up STL file into
hundreds (or thousands) of flat
horizontal layers.
 All of this information is then
bundled up into a GCode file.
 Slicer settings do have an impact
the quality of print.
 The next stage is for those separate
two-dimensional layers to be
reassembled as a three-dimensional
Source - https://i.all3dp.com/wp-
content/uploads/2016/02/27113945/Best-3D-printing-

10. Optimizing an STL file for best 3D printing
performance
 The 3D printer will print the object with the same coarseness as specified by
the STL file.
 As the size of the triangle decreases, the number of triangles needed to
cover the surface also increases which leads to gigantic file size.
 It is therefore very important to find the right balance between file size and
print quality.
Source - https://i.all3dp.com/wp-
content/uploads/2016/11/27020134/increasin

11. Continued…
 Let’s dig into the most important settings and find out their optimum values.
Chordal height or tolerance
Source - https://i.all3dp.com/wp-
content/uploads/2016/11/27020138/chord-height.png
Angular deviation or angular tolerance
Source - https://i.all3dp.com/wp-
content/uploads/2016/11/27020137/angular-
0.01-0.001 mm

12. STL file format : Advantages
 Simple and old 3D printer file format.
 Flexibility more facets for better resolution.
 Easy to handle and transfer.
 de facto standard for 3D printing.

13. STL file format : Disadvantages
 STL 3D printer file format stores a lot of redundant information.
Table for ~63,000 triangular facets
 Slow and error-prone.
 Incapable of storing color, material and texture information.
3D file
format
s
PLY
(binary
)
PLY
(ASCII)
OBJ
(ASCII)
VRML
(ASCII)
STL
(binary
)
STL
(ASCII)
Size(M
b)
1.1 2 2 2.7 3 11

14. New file formats
 OBJ file format
 AMF file format
 3MF file format
 VRML file format

15. AMF file format (.AMF)
 The AMF (STL 2.0) 3D printer file format was
developed by ASTM/ISO in 2011 as a
replacement for the STL file format.
 The aim was to address many of the
shortcomings of the STL 3D printer file
formats.
 AMF addresses the issues in STL by using an
XML format with a hierarchy of five elements
viz. object, material, texture, constellation, and
metadata.
 As of today, Solidworks and the Autodesk suite
supports it.
 Among Slicers, Cura has support for AMF.
Source - https://i.all3dp.com/wp-
content/uploads/2017/10/26234325/AM

16. AMF 3D printer file format features
 It allows curved triangles in addition to
planar straight triangles – and it makes all
the difference.
 It has support for all the modern
requirements of 3D printing like RGBA
colors, sub-structures, microstructures,
porous materials.
Source - https://i.all3dp.com/wp-
content/uploads/2017/10/26234321/Curved
Source - https://i.all3dp.com/wp-
content/uploads/2017/10/26234317/dual_material.jpg

17. Continued…
 The “constellation” feature allows
multiple objects to be arranged within
the file, specifying their location and
orientation.
Source - https://i.all3dp.com/wp-
content/uploads/2017/10/26234309/multiple_object_

18. Basic file structure
 Within the AMF brackets, there are five top level elements
<amf>
<object>
<material>
<texture>
<constellation>
<metadata>
</amf>

19. How to write the AMF file format ?
Source -
https://www.nist.gov/sites/default/files/documents/2017/04/28/Lip
son-Cornell-NIST-AMF.pdf

20. Continued…
Source -
https://www.nist.gov/sites/default/files/documents/2017/0
4/28/Lipson-Cornell-NIST-AMF.pdf

21. Continued…
Source -
https://www.nist.gov/sites/default/files/document
s/2017/04/28/Lipson-Cornell-NIST-AMF.pdf

22. Comparision between STL and AMF file
formats
Source -
https://www.nist.gov/sites/default/files/documents/2017/04/28/Lipson-
Cornell-NIST-AMF.pdf
