- 1. Adam Berger ElectricPower Research Institute (EPRI) UKCCSRC Autumn Biannual Meeting 2014 September 11th 2014 Status of North American CO2 Capture and Storage (CCS) Projects
- 2. © 2013 ElectricPower Research Institute, Inc. All rights reserved. 2 About EPRI • US non-profit for collaborative research in electric sector • Research spans electricity production, transportation, consumption, and environmental impacts • Members include 450+ participants in more than 30 countries • Charter is to provide benefit to the public, the electricity sector, and our members

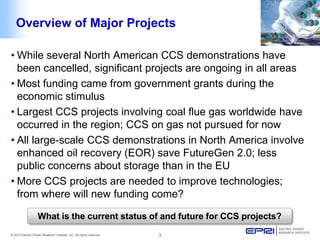

- 3. © 2013 ElectricPower Research Institute, Inc. All rights reserved. 3 Overview of Major Projects • While several North American CCS demonstrations have been cancelled, significant projects are ongoing in all areas • Most funding came from government grants during the economic stimulus • Largest CCS projects involving coal flue gas worldwide have occurred in the region; CCS on gas not pursued for now • All large-scale CCS demonstrations in North America involve enhanced oil recovery (EOR) save FutureGen 2.0; less public concerns about storage than in the EU • More CCS projects are needed to improve technologies; from where will new funding come? What is the current status of and future for CCS projects?

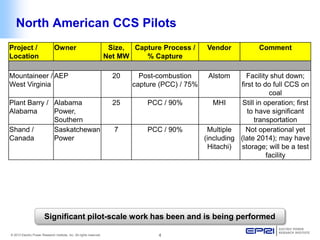

- 4. © 2013 ElectricPower Research Institute, Inc. All rights reserved. 4 North American CCS Pilots Project / Location Owner Size, Net MW Capture Process / % Capture Vendor Comment Mountaineer / West Virginia AEP 20 Post-combustion capture (PCC) / 75% Alstom Facility shut down; first to do full CCS on coal Plant Barry / Alabama Alabama Power, Southern 25 PCC / 90% MHI Still in operation; first to have significant transportation Shand / Canada Saskatchewan Power 7 PCC / 90% Multiple (including Hitachi) Not operational yet (late 2014); may have storage; will be a test facility Significant pilot-scale work has been and is being performed
- 5. © 2013 ElectricPower Research Institute, Inc. All rights reserved. 5 Alstom’s Chilled Ammonia Process at AEP’s Mountaineer Property of Alstom Power and/or AEP Mountaineer • Alstom’s chilled ammonia CO2 post-combustion capture – ~20-MW demonstration at AEP’s Mountaineer Plant in WV – Designed for ~100,000 tonnes-CO2/year; 75% CO2 capture – Injection occurred in saline reservoir using two on-site wells – Capture started in September 2009 and storage in October 2009; 51,000 tonnes captured and 37,500 tonnes stored – Capture project completed in May 2011, storage monitoring continues • Experience – Met design goals (75% capture) – Resolved design issues caused by accelerated schedule – Process improvements identified – Storage permitting is challenging and new to regulators – Calculated cost of electricity for commercial-scale plant ~$113–123/MWh

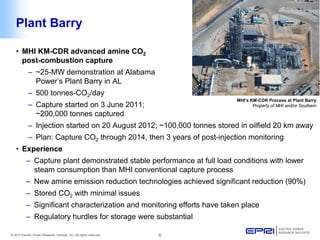

- 6. © 2013 ElectricPower Research Institute, Inc. All rights reserved. 6 Plant Barry MHI’s KM-CDR Process at Plant Barry Property of MHI and/or Southern • MHI KM-CDR advanced amine CO2 post-combustion capture – ~25-MW demonstration at Alabama Power’s Plant Barry in AL – 500 tonnes-CO2/day – Capture started on 3 June 2011; ~200,000 tonnes captured – Injection started on 20 August 2012; ~100,000 tonnes stored in oilfield 20 km away – Plan: Capture CO2 through 2014, then 3 years of post-injection monitoring • Experience – Capture plant demonstrated stable performance at full load conditions with lower steam consumption than MHI conventional capture process – New amine emission reduction technologies achieved significant reduction (90%) – Stored CO2 with minimal issues – Significant characterization and monitoring efforts have taken place – Regulatory hurdles for storage were substantial

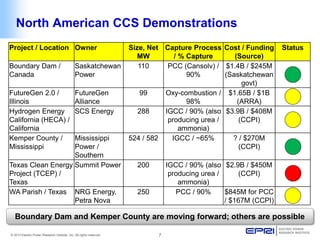

- 7. © 2013 ElectricPower Research Institute, Inc. All rights reserved. 7 North American CCS Demonstrations Project / Location Owner Size, Net MW Capture Process / % Capture Cost / Funding (Source) Status Boundary Dam / Canada Saskatchewan Power 110 PCC (Cansolv) / 90% $1.4B / $245M (Saskatchewan govt) FutureGen 2.0 / Illinois FutureGen Alliance 99 Oxy-combustion / 98% $1.65B / $1B (ARRA) Hydrogen Energy California (HECA) / California SCS Energy 288 IGCC / 90% (also producing urea / ammonia) $3.9B / $408M (CCPI) Kemper County / Mississippi Mississippi Power / Southern 524 / 582 IGCC / ~65% ? / $270M (CCPI) Texas Clean Energy Project (TCEP) / Texas Summit Power 200 IGCC / 90% (also producing urea / ammonia) $2.9B / $450M (CCPI) WA Parish / Texas NRG Energy, Petra Nova 250 PCC / 90% $845M for PCC / $167M (CCPI) Boundary Dam and Kemper County are moving forward; others are possible
- 8. © 2013 ElectricPower Research Institute, Inc. All rights reserved. 8 Boundary Dam Boundary Dam Used with permission from SaskPower • World’s first commercial PCC CCS demonstration; expected on-line in late 2014 • Retrofit Boundary Dam Unit 3 – Increase steam to 124 bar, 565oC – Capture ~1 Mtonnes/year CO2 • Net power of 110 MW after capture • Cansolv process captures SO2 & CO2 • Anticipated energy penalty 21% • Delays due to issues on power plant retrofit (asbestos, welding); CCS unit is done • CO2 for EOR – Some saline storage during commissioning Used with permission from SaskPowerCO2and SO2AbsorbersCO2StripperFlue Gas from PlantCovered Buildings (weather)

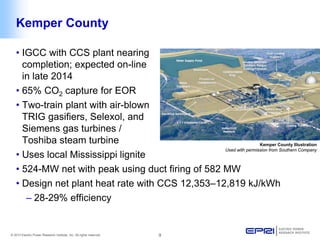

- 9. © 2013 ElectricPower Research Institute, Inc. All rights reserved. 9 • IGCC with CCS plant nearing completion; expected on-line in late 2014 • 65% CO2 capture for EOR • Two-train plant with air-blown TRIG gasifiers, Selexol, and Siemens gas turbines / Toshiba steam turbine • Uses local Mississippi lignite • 524-MW net with peak using duct firing of 582 MW • Design net plant heat rate with CCS 12,353–12,819 kJ/kWh – 28-29% efficiency Kemper County Illustration Used with permission from Southern Company Kemper County

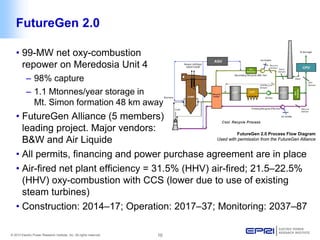

- 10. © 2013 ElectricPower Research Institute, Inc. All rights reserved. 10 FutureGen 2.0 • 99-MW net oxy-combustion repower on Meredosia Unit 4 – 98% capture – 1.1 Mtonnes/year storage in Mt. Simon formation 48 km away • FutureGen Alliance (5 members) leading project. Major vendors: B&W and Air Liquide • All permits, financing and power purchase agreement are in place • Air-fired net plant efficiency = 31.5% (HHV) air-fired; 21.5–22.5% (HHV) oxy-combustion with CCS (lower due to use of existing steam turbines) • Construction: 2014–17; Operation: 2017–37; Monitoring: 2037–87 FutureGen 2.0 Process Flow Diagram Used with permission from the FutureGen Alliance

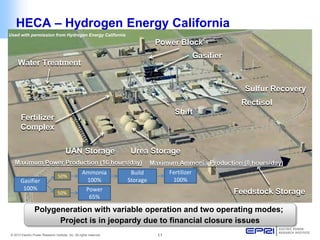

- 11. © 2013 ElectricPower Research Institute, Inc. All rights reserved. 11 Feedstock Storage Urea Storage UAN Storage Power Block Gasifier Water Treatment Sulfur Recovery Fertilizer Complex Shift Rectisol Gasifier 100% Ammonia 60% Power 100% Draw Down Storage Fertilizer 100% 33% 67% 100% 65% Build 50% 50% Maximum Power Production (16 hours/day) Maximum Ammonia Production (8 hours/day) Used with permission from Hydrogen Energy California HECA – Hydrogen Energy California Polygeneration with variable operation and two operating modes; Project is in jeopardy due to financial closure issues

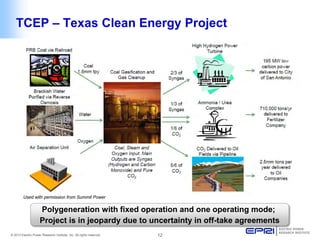

- 12. © 2013 ElectricPower Research Institute, Inc. All rights reserved. 12 TCEP – Texas Clean Energy Project Polygeneration with fixed operation and one operating mode; Project is in jeopardy due to uncertainty in off-take agreements Used with permission from Summit Power

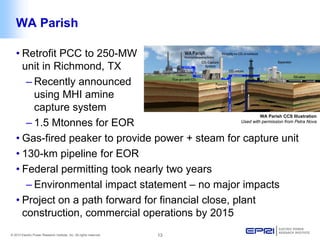

- 13. © 2013 ElectricPower Research Institute, Inc. All rights reserved. 13 WA Parish WA Parish CCS Illustration Used with permission from Petra Nova • Retrofit PCC to 250-MW unit in Richmond, TX – Recently announced using MHI amine capture system – 1.5 Mtonnes for EOR • Gas-fired peaker to provide power + steam for capture unit • 130-km pipeline for EOR • Federal permitting took nearly two years – Environmental impact statement – no major impacts • Project on a path forward for financial close, plant construction, commercial operations by 2015

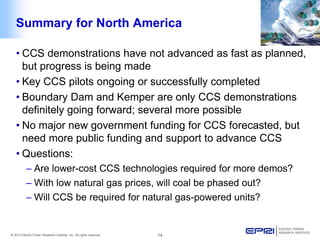

- 14. © 2013 ElectricPower Research Institute, Inc. All rights reserved. 14 Summary for North America • CCS demonstrations have not advanced as fast as planned, but progress is being made • Key CCS pilots ongoing or successfully completed • Boundary Dam and Kemper are only CCS demonstrations definitely going forward; several more possible • No major new government funding for CCS forecasted, but need more public funding and support to advance CCS • Questions: – Are lower-cost CCS technologies required for more demos? – With low natural gas prices, will coal be phased out? – Will CCS be required for natural gas-powered units?
