1. ASF CloudStack – QA Strategy
Apache Cloudstack Collaboration Conference
Dec 1, 2012
Sudha R Ponnaganti,
Sr Manager, SQA Engineering, Citrix Systems Inc.,
Email:sudha.ponnaganti@citrix.com

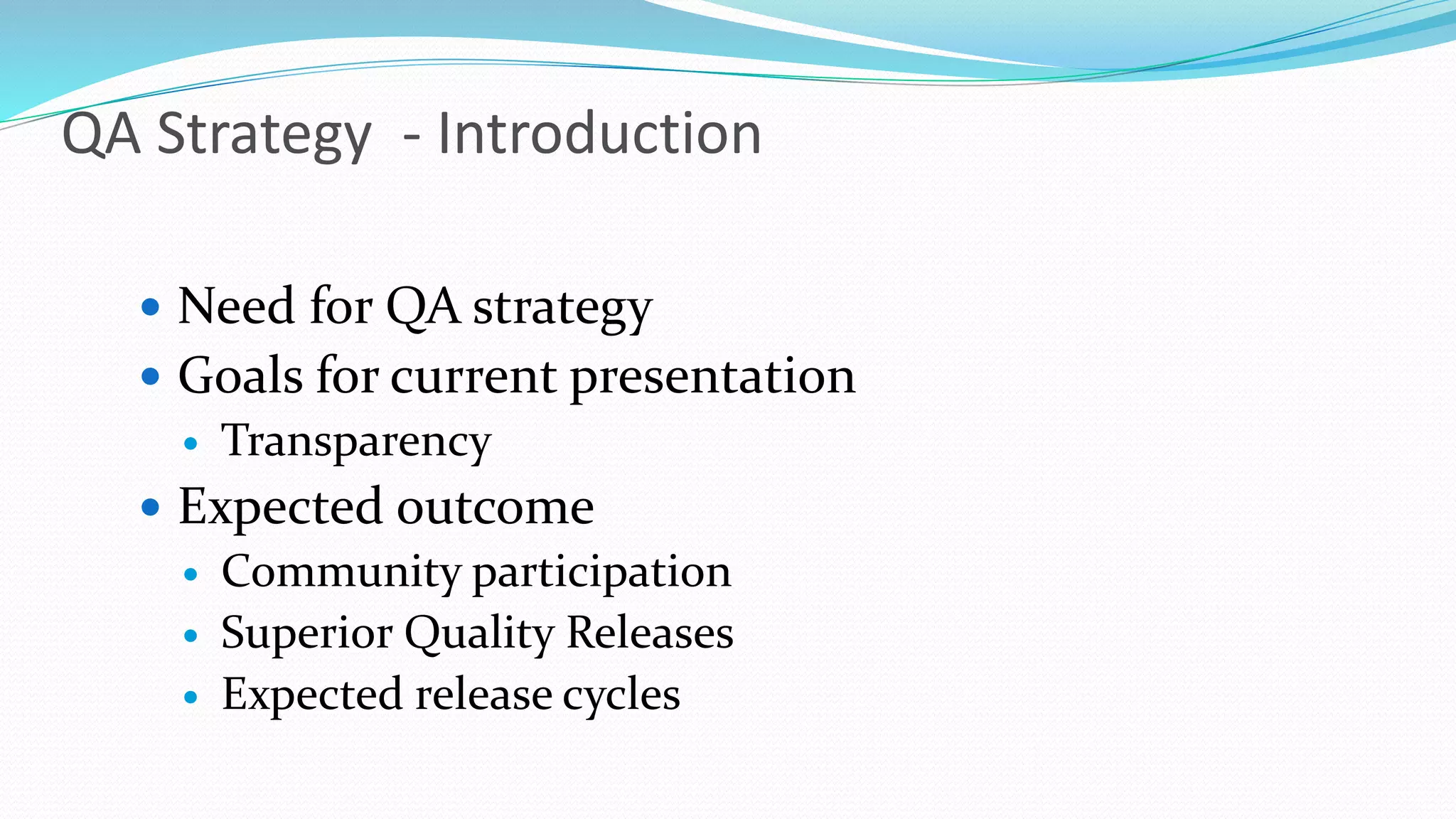

2. QA Strategy - Introduction
 Need for QA strategy
 Goals for current presentation
 Transparency
 Expected outcome
 Community participation
 Superior Quality Releases
 Expected release cycles

3. Agenda
 Releases and QA Overview
 QA strategy
 Future
 Community participation
 Q & A and Feedback

4. Releases and QA Overview

5. Releases and QA overview
QA Activity Major Releases ASF CS Minor Releases ASF CS
Installation and Upgrade validation    
New feature validation  
Regression validation    Automated
Integration validation 
Performance and scalability testing 
Solution validation 
Security review  
Recovery validation 
Usability validation 
L10N validation 
Defect validation    
Documentation review    RN only

6. Continuous Release Cycles
Currently we are doing minor and major releases
 Cycles are longer
 Time based vs. feature based release discussion
There is a need for
 Continuous integration
 Continuous validation

7. Continuous Integration
 Every check-in gets tested as and when it is submitted
 Builds upfront quality faster
 Should take less than 5 minutes to complete
Below is the process that is being worked up on currently
Jenkins kicks off
a job after each
checkin
That job spins up
a devcloud
appliance
devcloud checks
out the commit
that kicked off
the job;
devcloud builds
cloudstack
devcloud adds
itself as a host
devcloud runs
the smoke test

8. Continuous Validation
 Run all the tests on nightly builds
 With current structure, below are the sequence of tests
that run nightly
RAT (
release
audit tool)
Compile +
junit
Docs +
apidocs
Package
building
Install tests Smoke tests
Regression
Tests

9. QA Strategy

10. Installation and Upgrade Validation
 Compatibility Matrix
 Manual Validation
Priority Type TypeofDist Base UpgradeV OS Networking NetworkDevices Storage GuestVMs Browsers FeaturestoCover
Xen KVM Vmware OVM BareMetal
P1 OpenSource ASFCS4.1 CentOS6.3 6.0.2+HF,6.1 RHEL6.2 5.1 2.2.2 N/A Advanced/Basic
VR,F5,SRX,
NetscalerVPX ISCSI,NFS,Local
Template: CentOS5.6PV64bit,
CentOS5.5PV64bit, IE8,FF10,Chrome,SafariBVTs
P1 ASFCS4.1 Ubuntu12.04 6.0.2+HF,6.1 RHEL6.2 5.1 2.2.2 N/A Advanced/Basic
VR,F5,SRX,
NetscalerVPX ISCSI,NFS,Local
Template:OVMSystem.img
ISO: OVMSystem.img IE8,FF10,Chrome,SafariBVTs
Multinode install
P1 Multiple MS ASFCS4.1 CentOS6.3 6.0.2+HF,6.1 RHEL6.2 5.1 2.2.2 N/A Advanced/Basic
VR,F5,SRX,
NetscalerVPX
(NS10,build54.7.nc) ISCSI,NFS,Local
Template: CentOS5.6PV64bit,
CentOS5.5PV64bit,
Windows2008R264bit, IE8,FF10,Chrome,SafariBVTS
P1 ASFCS 4.0 ASFCS4.1 CentOS6.3 6.0.2+HF,6.1 RHEL6.2 5.1 2.2.2 N/A Advanced/Basic
VR,F5,SRX,
NetscalerVPX ISCSI,NFS,Local
Template: CentOS5.6PV64bit,
CentOS5.5PV64bit, IE8,FF10,Chrome,SafariBVTs
P1 ASFCS 4.0 ASFCS4.1 Ubuntu12.04 6.0.2+HF,6.1 RHEL6.2 5.1 2.2.2 N/A Advanced/Basic
VR,F5,SRX,
NetscalerVPX ISCSI,NFS,Local
Template: CentOS5.6PV64bit,
CentOS5.5PV64bit, IE8,FF10,Chrome,SafariBVTs
Compatibility MatrixASF4.1- Supported VsTested
Upgrade
Fresh
Hypervisors

11. Installation and Upgrade Validation
Install and Deployment validation Specifics:
 Install and deployment Validation need to be done in
context of release artifacts to be in alignment with
voting process.
 Step by step instructions are posted here.
 https://cwiki.apache.org/CLOUDSTACK/cloudstack-40-
test-procedure.html

12. New Feature and Regression Validation
New Feature Validation Regression Validation
• QA team writes test cases for new
features based on FS.
• QA posts test plans to community to get
feedback
• QA automates and executes new test
cases for current release. Adds TCs to
regression for future releases
• We can provide template if you need to
add test cases.
• You can find test suites on wiki
• There are around 3000 + test cases in
the regression suite currently.
• This suite includes Automated and
Manual tests
• QA reviews overall feature list and
identifies regression coverage based on
impact for each release – not sustainable
• To be successful in open source env,
need to have 100% automated coverage

13. New Features and Regression Validation
 Various Frameworks are available based on Junit, Python,
Selenium to automate test cases
 A combination of all of these provide comprehensive
coverage
Unit Tests BVT Tests Regression Suite
Other Integration
Suites ( EC2 and
S3)
UI Automation

14. New Features and Regression Validation
• Unit Test framework ( JUnit )
• Provides early feedback and fixes issues close to source
• How to Write Unit tests - https://cwiki.apache.org/CLOUDSTACK/unit-
testing-101.html
• Currently all unit tests running with 100% pass rate
• Runs on every build
• Code coverage results are posted here

15. New feature and Regression Validation
 BVTs and Functional Automation - Marvin
 600+ test cases running on multiple configurations and covering
multiple hypervisors
 How to write functional automated TC :
https://cwiki.apache.org/CLOUDSTACK/testing-with-python.html
BVT
Hypervisor Configuration
Xen ( multiple versions) Advanced, Basic
VM ware Advanced, Basic
KVM Advanced, Basic
OVM Planning
Functional Regression
Hypervisor Configuration
Xen ( multiple versions)
Advanced, Advanced - Netscaler, EIP/ELB Rules, Basic with and
without SG
VM ware Advanced, Advanced - Netscaler, EIP/ELB Rules, Basic w/o SG
KVM
Advanced, Advanced - Netscaler, EIP/ELB Rules, Basic with and
w/o SG
OVM Planning

16. New features and Regression Validation
 Multiple test pods are being setup to run suites in parallel
– around 15 test pods are required
 Porting to ASF CS env has been in progress. BVTs are
done.
 Prasanna and Edison are covering more detailed talk on
Automation on Sunday morning.

17. New Features and Regression Validation
 Integration frameworks
 Currently we are in the process of submitting test suite that
covers EC2 Query API validation – JCloud framework
 Around 40 APIs are automated
 In the process of covering all APIs
 Failed test cases are being fixed
 Need to automate complex scenarios.
 Details on test implementation are posted below
 https://cwiki.apache.org/confluence/display/CLOUDSTACK/EC2+Qu
ery+API+Test+Suite+Automation

18. New Features and Regression Validation
UI Automation
 Selenium
 Faster and Easy
 Compatible with python backend
 Plan to Deliver Smoke Tests by – Early FY 13
 POC and initial submits – coming soon

19. Performance and Scalability Testing
 Native Tool - Simulator
 Simulator - mock hypervisor and will react to
every command sent to it by the MS similar to a
regular hypervisor - easy to setup and run
 Simulator and Perf resources:
http://wiki.cloudstack.org/pages/viewpage.action?pageId=1344953
 2 papers have been published Covering
 Basic Zone
 Advanced Zone

20. Performance Use cases
• Time taken to propagate security group rules in basic zone
• Deploy VM time, CPU, load averages and # of DB connections
• Steady state CPU, load average and # of DB Connections
• Restart MS measures: Time to stop MS, Start MS and rebalance
with 30K Hosts across 4 MS (agent load size to 500 and 1000)
• Restart MS measures : with Host in maintenance mode
• Bandwidth usage collection frequency for routers
• Router Status poll metrics in RVR env

21. Performance Testing
What Next
 Holistic Coverage
 Router
 Storage
 Network
 Realistic Scale Testing

22. Security Validation
 Security validation has been important aspect of ASF CS releases
 All FS should include security considerations so that QA can identify
and cover these areas
 Security Coverage done included the following along with manual
validation and other security reviews

23. Solution Validation
o Current solution Validation use cases include
o reference architecture deployment and
o additional complex deployment scenarios.
o Test plans are posted on wiki
o There is no need to adopt these right away in to Cloudstack but will
monitor if there is a need in future

24. Recovery, Usability and L10N
 Recovery scenarios, Usability Reviews/ L10N - Not prioritized
 Jessica Wang has been doing L10N review along with few other
contributors
 If you have expertise in these areas, do participate in QA forums
 Documentation review
 Focused validation at the end of the cycles
 Watch for QA requests for review

25. Defect Triage and Validation
 You can participate by testing product logging defects here (
ASF JIRA)
 Always log defects when you start discussion on mailing lists
 Add automation for defects that you validate. Tests can be
checked in to appropriate suites based on type of test –
unit/smoke/regression suites
 Participate in Bug fest activities

26. Future

27. Future - Status
Some improvements that QA has been doing Q3/ Q4 FY ‘12
 Automation 
 Functional – BVTs and Regression (Python framework) - goal
700+ TCs
 Unit Test Framework ( Junit ) – Add TCs for ongoing releases +
improve legacy by adding TC for patches
 Integration automation frameworks (ec2 and s3) –
implementation and make it part of regression suite ( Jcloud
Test framework)

28. Future - status
• TCM 
Implementation and loading test cases –
Address Test Case gaps ( total inventory) – Currently 3000 test
cases exist. Goal is to get to 5000
• Performance 
White paper – Use cases collected and release V3 with known use
cases – backlog has been built.
• Tools 
Static code analyzer – In progress
Code coverage – Cobertura
Code inspection -

29. Future - status
 Infrastructure improvements 
 Test Env improvements ( Fresh Install Automation for Functional testing)
 Acquire external devices and standardize test env
 Build infrastructure improvements
 Continuous integration implementation 
 Continuous validation 
 Standardized certifications 
 New versions of HV, NS and other integrations
 Standardized templates 
 Test plan/Test case / Defect writing Guidelines, Test case execution
reports, baseline metrics

30. Future - status
Initiatives for FY ‘13
 Move towards enterprise quality standards 
 Unit Test Coverage + Automation – 70% + Code coverage
 Regression coverage – 90% + coverage
 New features – 100% coverage
 Defects regressed through automation
 Install/Upgrade Automation
 UI automation - selenium
 Standardize QA coverage for enterprise readiness
 Regression
 New functionality
 Automation
 Install/upgrade ( compatibility matrix automation)
 Usability
 Performance ( tools and use case expansion)
 Reliability ( longevity under load)
 L10N ( internal or vendor based)

31. Future - status
 508 ( Accessibility)
 Integration
 Security
 Real world use cases
 Install Upgrade automation 
 Infrastructure improvements to run automation across
multiple configurations 

32. Community Participation

33. Community Participation
 Scheduled QA Meetings on weekly basis – Will be publishing meeting details for
CS 4.1 and expect it to be starting soon. Everyone is welcomed to join and
participate in QA Activities for ASF CS 4.1 release
 David has planned IRC Sessions to drive Quality as a continuous process. Please do
participate and help to drive this continuous test process - timings 1800 UTC in
#cloudstack-dev on Wednesdays
 ASF Cloudstack Dev mailing list is great way to share your ideas and contributions
 cloudstack-dev@incubator.apache.org
 All Dev, Build and QA documents are posted here
 Defects can be logged here

34. Q & A

35. ASF CloudStack – QA Strategy
Apache Cloudstack Collaboration Conference
Dec 1, 2012
Sudha R Ponnaganti,
Sr Manager, SQA Engineering, Citrix Systems Inc.,
Email:sudha.ponnaganti@citrix.com
