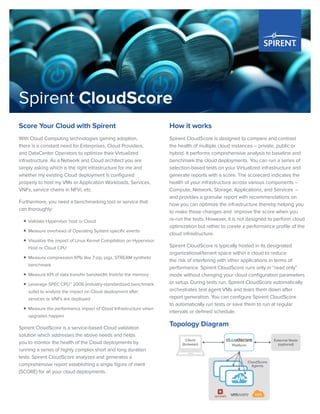

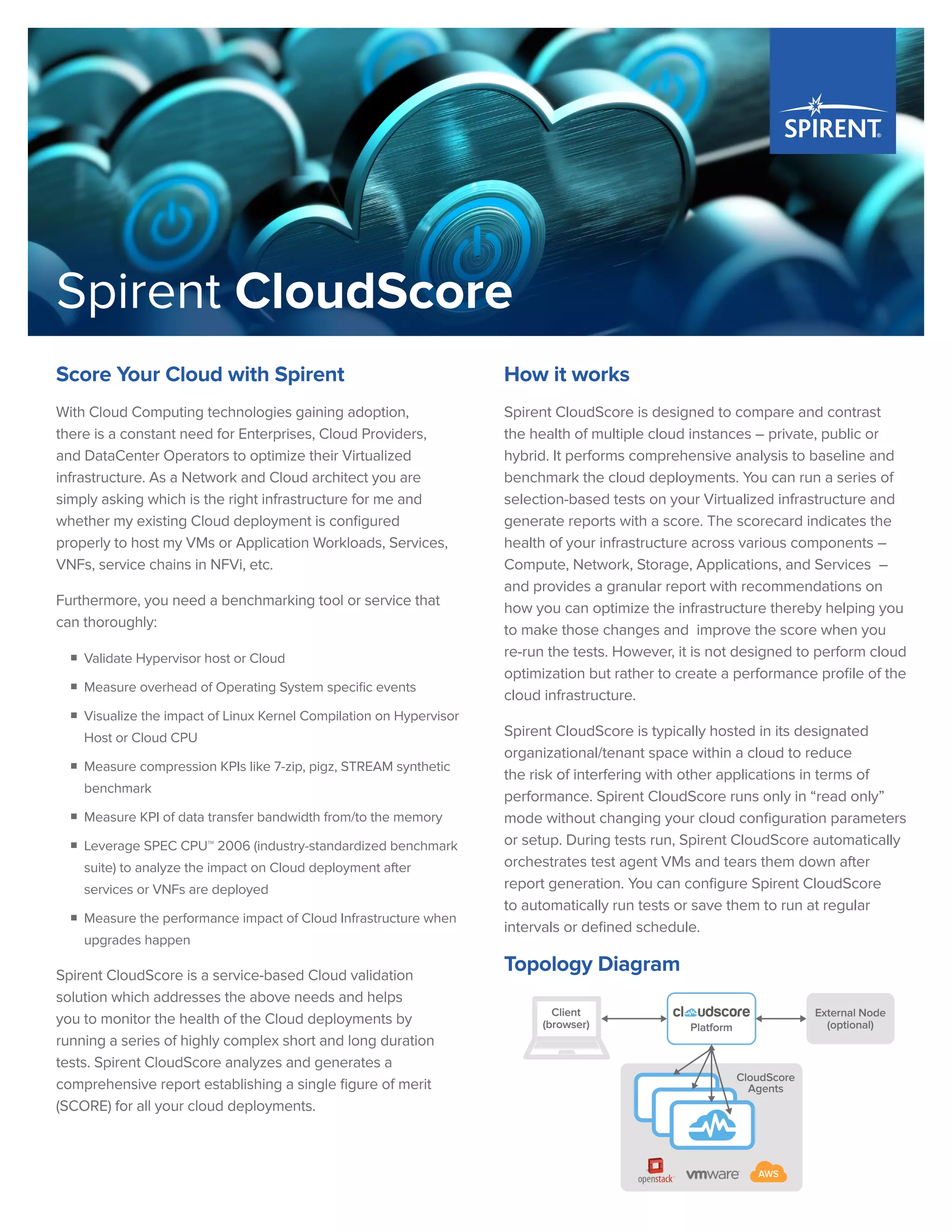

1. Spirent CloudScore
Score Your Cloud with Spirent
With Cloud Computing technologies gaining adoption,
there is a constant need for Enterprises, Cloud Providers,
and DataCenter Operators to optimize their Virtualized
infrastructure. As a Network and Cloud architect you are
simply asking which is the right infrastructure for me and
whether my existing Cloud deployment is configured
properly to host my VMs or Application Workloads, Services,
VNFs, service chains in NFVi, etc.
Furthermore, you need a benchmarking tool or service that
can thoroughly:
ƒƒ Validate Hypervisor host or Cloud
ƒƒ Measure overhead of Operating System specific events
ƒƒ Visualize the impact of Linux Kernel Compilation on Hypervisor
Host or Cloud CPU
ƒƒ Measure compression KPIs like 7-zip, pigz, STREAM synthetic
benchmark
ƒƒ Measure KPI of data transfer bandwidth from/to the memory
ƒƒ Leverage SPEC CPU™ 2006 (industry-standardized benchmark
suite) to analyze the impact on Cloud deployment after
services or VNFs are deployed
ƒƒ Measure the performance impact of Cloud Infrastructure when
upgrades happen
Spirent CloudScore is a service-based Cloud validation
solution which addresses the above needs and helps
you to monitor the health of the Cloud deployments by
running a series of highly complex short and long duration
tests. Spirent CloudScore analyzes and generates a
comprehensive report establishing a single figure of merit
(SCORE) for all your cloud deployments.
How it works
Spirent CloudScore is designed to compare and contrast
the health of multiple cloud instances – private, public or
hybrid. It performs comprehensive analysis to baseline and
benchmark the cloud deployments. You can run a series of
selection-based tests on your Virtualized infrastructure and
generate reports with a score. The scorecard indicates the
health of your infrastructure across various components –
Compute, Network, Storage, Applications, and Services –
and provides a granular report with recommendations on
how you can optimize the infrastructure thereby helping you
to make those changes and improve the score when you
re-run the tests. However, it is not designed to perform cloud
optimization but rather to create a performance profile of the
cloud infrastructure.
Spirent CloudScore is typically hosted in its designated
organizational/tenant space within a cloud to reduce
the risk of interfering with other applications in terms of
performance. Spirent CloudScore runs only in “read only”
mode without changing your cloud configuration parameters
or setup. During tests run, Spirent CloudScore automatically
orchestrates test agent VMs and tears them down after
report generation. You can configure Spirent CloudScore
to automatically run tests or save them to run at regular
intervals or defined schedule.
Topology Diagram
External Node
(optional)Platform
CloudScore
Agents
Client
(browser)
AWS

2. Spirent CloudScore
spirent.com
AMERICAS 1-800-SPIRENT
+1-800-774-7368 | sales@spirent.com
US Government & Defense
info@spirentfederal.com | spirentfederal.com
EUROPE AND THE MIDDLE EAST
+44 (0) 1293 767979 | emeainfo@spirent.com
ASIA AND THE PACIFIC
+86-10-8518-2539 | salesasia@spirent.com
© 2017 Spirent Communications, Inc. All of the company names and/or brand names and/or product names and/or logos referred to in
this document, in particular the name “Spirent” and its logo device, are either registered trademarks or trademarks pending registration in
accordance with relevant national laws. All rights reserved. Specifications subject to change without notice. Rev. A | 04/17
Key Features
ƒƒ Provide baseline score for greenfield or existing cloud
deployments with planned VMs or Application workloads,
Services, VNFs that have been recently deployed on the
cloud.
ƒƒ Test with different (current and future) traffic models and
workloads to assess existing cloud deployments and
comparative benchmarking of alternative configurations.
ƒƒ Periodically benchmark cloud deployments against the
baseline score for event-based changes on the existing
cloud deployments like planned infra or software changes.
ƒƒ Detection of anomaly/deviation of cloud metrics (either from
VNF counters or from cloud/infra monitoring) that triggers
the need for re-verification.
Sample Test Cases
Spirent CloudScore tests are available through “Services”
engagement. The test cases are broadly classified into following
Test Suites.
ƒƒ Compute Infrastructure Tests: Runs a series of tests to
measure CPU performance along with other compute
related tasks. It includes the following main tests.
‚‚ LMBench
‚‚ Kernel Compile
‚‚ Compression
‚‚ STREAM memory
‚‚ SPEC CPU™ 2006
‚‚ Unixbench tests.
ƒƒ Network Tests: Runs various tests to assess network
performance, measuring latency, jitter and throughput. It
includes the following tests.
‚‚ Network Infrastructure Testing – Intra AZ Network, Intra AZ
Network Jitter, Inter AZ Network, Inter AZ Network Jitter.
‚‚ Network Infrastructure Testing (Inter-AZ) – Inter AZ
Network, Inter AZ Network Jitter
‚‚ Network Infrastructure Testing (Single Zone w/o External
Gateway) – Intra AZ Network, Intra AZ Network Jitter.
‚‚ Network Infrastructure Testing (Single Zone) – Intra AZ
Network, Intra AZ Network Jitter, External Network.
‚‚ Network MTU Testing – MTU Benchmark test
ƒƒ Storage Tests: IO performance tests using different tools
and test scenarios to allow deep analysis of cloud related to
storage tasks. It includes the following tests.
‚‚ FIO
‚‚ IOzone
ƒƒ Applications Tests: Runs multiple application specific tests
to gather additional performance metrics. It includes the
following tests.
‚‚ CSD
‚‚ IPSL Sip
ƒƒ Services Tests: Discover and monitor services running in the
cloud. It includes the following tests.
‚‚ Cloud API Performance
‚‚ Service discovery OpenStack
