Accumulation and Overpressure Varun Patel, B.E- Mechanical, PMP® 1

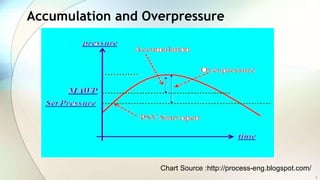

Accumulation and Overpressure 2 Chart Source :http://process-eng.blogspot.com/

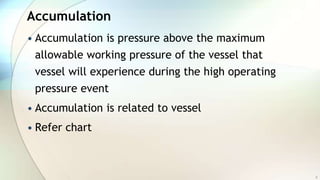

Accumulation • Accumulation is pressure above the maximum allowable working pressure of the vessel that vessel will experience during the high operating pressure event • Accumulation is related to vessel • Refer chart 3
Overpressure • Overpressure is pressure above the setting pressure of the relief valve that relief valve experience before pressure start reducing • Overpressure is related to the pressure relief valve • Refer chart 4

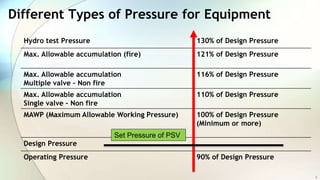

Different Types of Pressure for Equipment 5 Hydro test Pressure 130% of Design Pressure Max. Allowable accumulation (fire) 121% of Design Pressure Max. Allowable accumulation Multiple valve – Non fire 116% of Design Pressure Max. Allowable accumulation Single valve – Non fire 110% of Design Pressure MAWP (Maximum Allowable Working Pressure) 100% of Design Pressure (Minimum or more) Design Pressure Operating Pressure 90% of Design Pressure Set Pressure of PSV
50 % off on my udemy course click on the below link https://www.udemy.com/process- pipe-fittings-for-oil-gas- career/?couponCode=FB10 6 How to be an Expert in Pipe & Fittings for Oil & Gas Career
