2. ACCESSIBILITY TESTING &
CONTINUOUS INTEGRATION
Keyur Shah
Distinguished Member of Technical Staff @ Verizon
https://www.linkedin.com/in/keyurkshah

3. About Me
■ Author (5 Books)
■ Blogger
■ DevOps Architect
■ Open Source
■ Web & Mobile Performance
■ 20+ years in IT & Management
3
Work-in-progress
http://www.slideshare.net/softwareklinic/presentations
https://www.linkedin.com/in/keyurkshah
http://internetmarketing-readme.pricemaniacs.com/

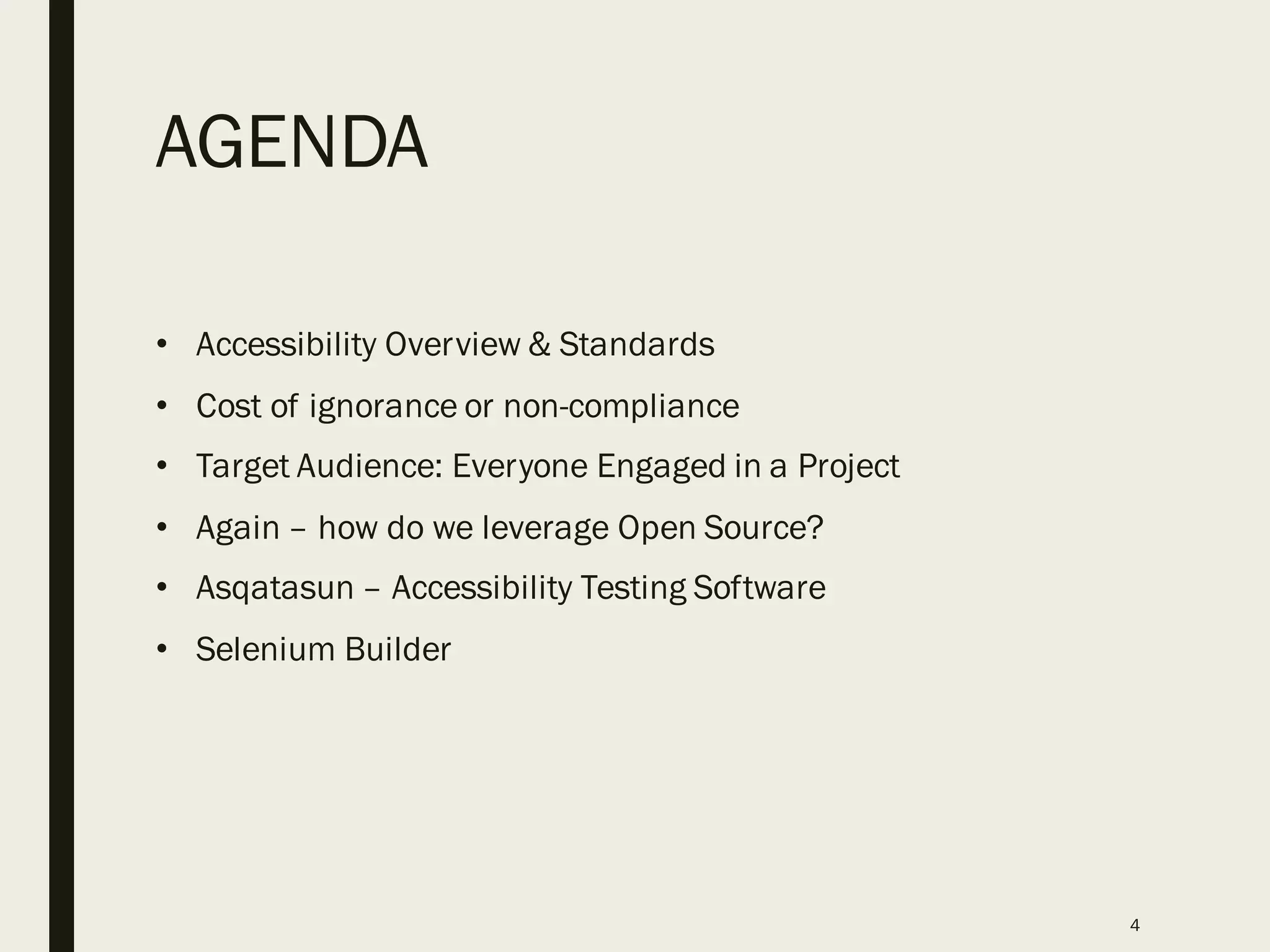

4. AGENDA
• Accessibility Overview & Standards
• Cost of ignorance or non-compliance
• Target Audience: Everyone Engaged in a Project
• Again – how do we leverage Open Source?
• Asqatasun – Accessibility Testing Software
• Selenium Builder
4

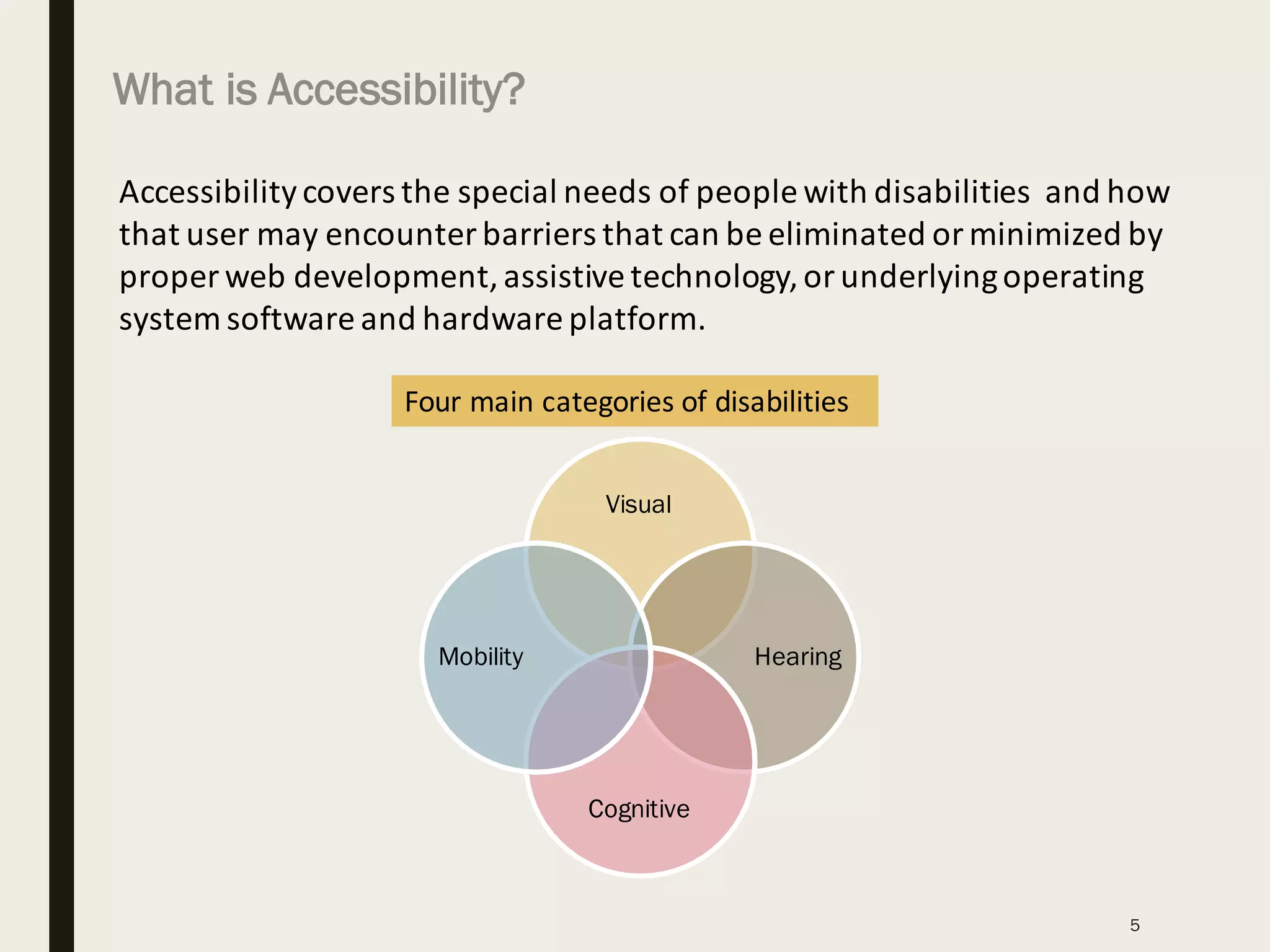

5. Accessibility covers the special needs of people with disabilities and how
that user may encounter barriers that can be eliminated or minimized by
proper web development, assistive technology, or underlying operating
system software and hardware platform.
Four main categories of disabilities
Visual
Hearing
Cognitive
Mobility
What is Accessibility?
5

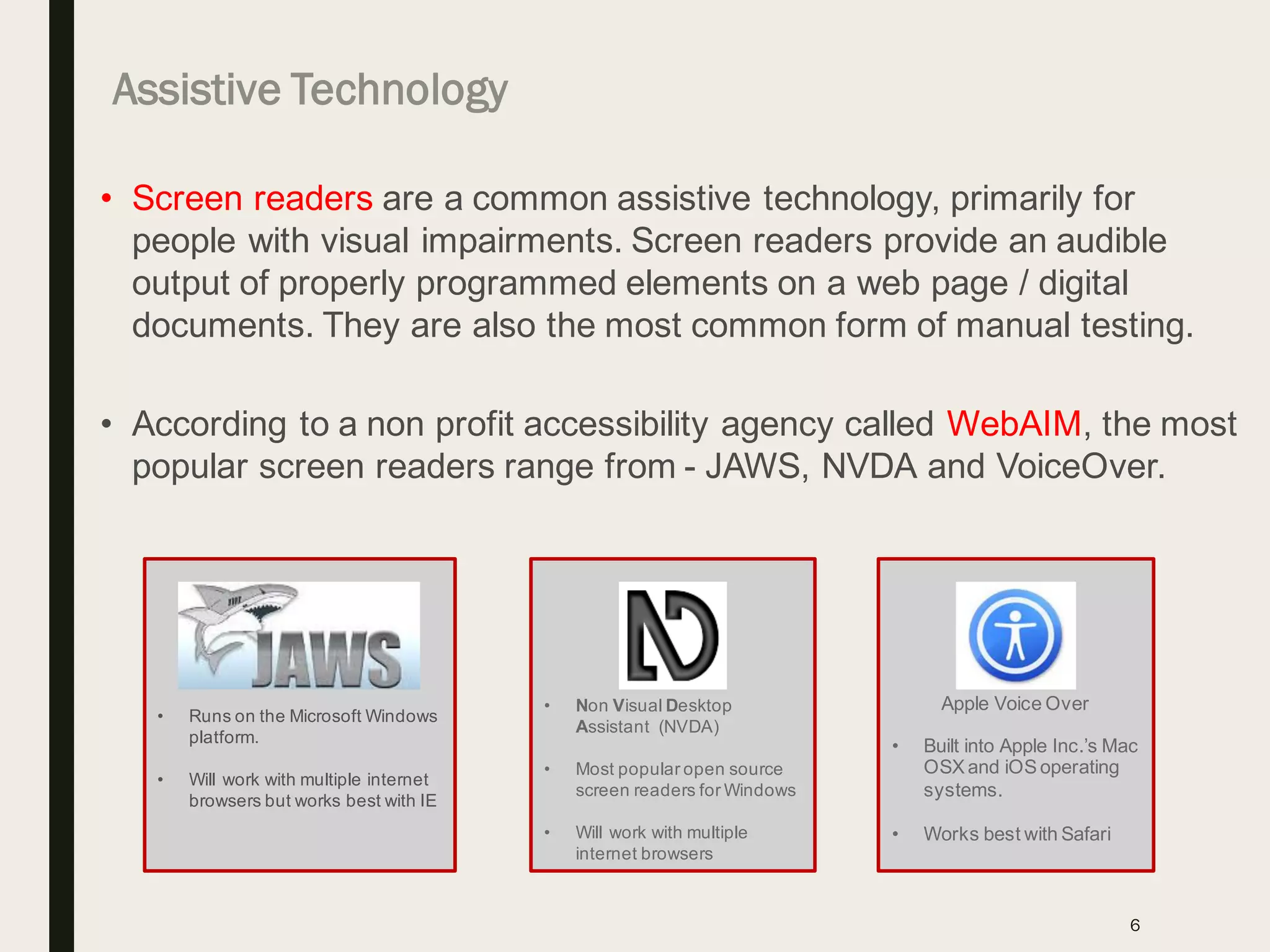

6. 6
• Screen readers are a common assistive technology, primarily for
people with visual impairments. Screen readers provide an audible
output of properly programmed elements on a web page / digital
documents. They are also the most common form of manual testing.
• According to a non profit accessibility agency called WebAIM, the most
popular screen readers range from - JAWS, NVDA and VoiceOver.
• Runs on the Microsoft Windows
platform.
• Will work with multiple internet
browsers but works best with IE
• Non Visual Desktop
Assistant (NVDA)
• Most popular open source
screen readers for Windows
• Will work with multiple
internet browsers
Apple Voice Over
• Built into Apple Inc.’s Mac
OSX and iOS operating
systems.
• Works best with Safari
Assistive Technology

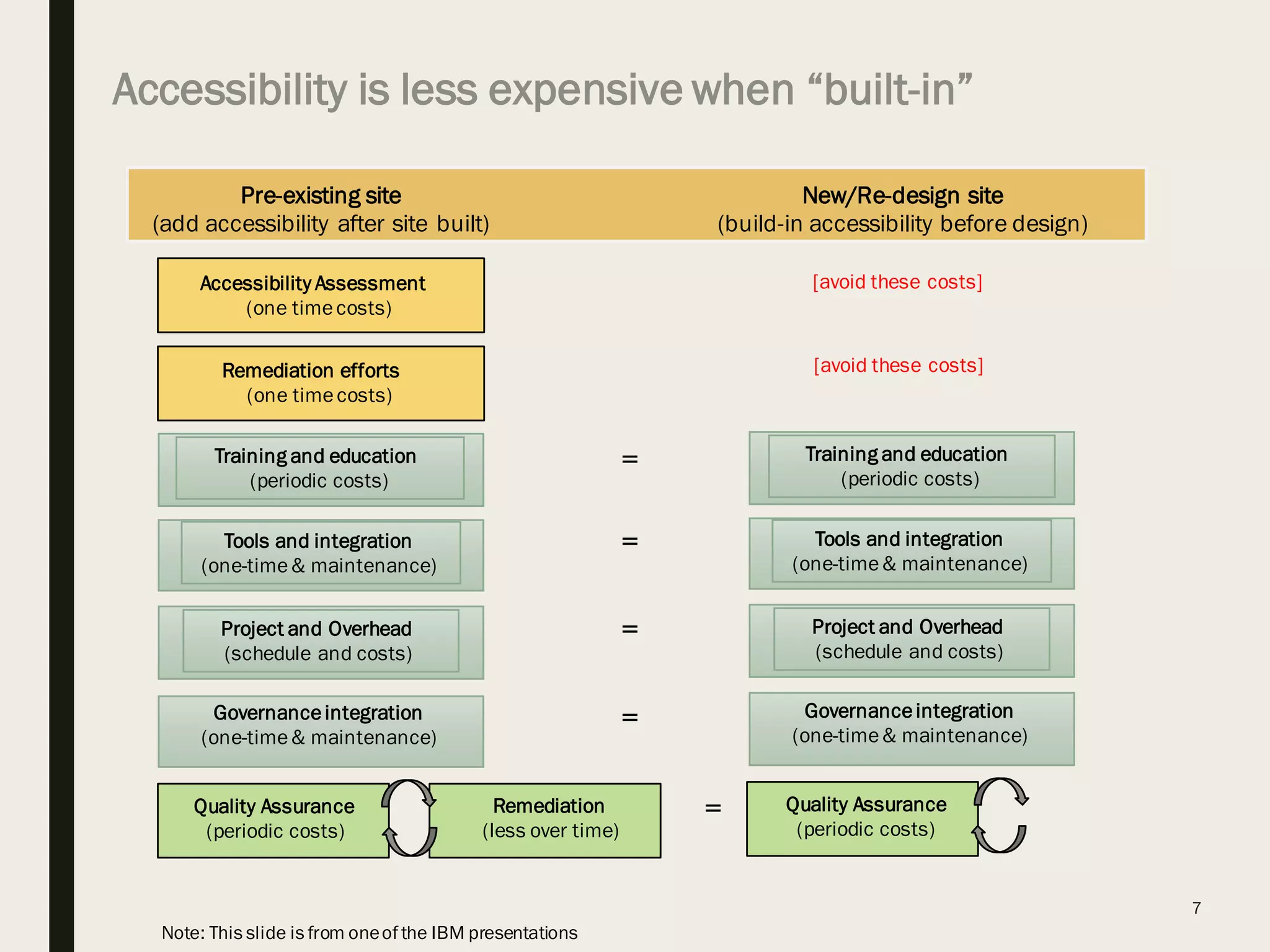

7. 7
Remediation efforts
(one timecosts)
Training and education
(periodic costs)
Accessibility Assessment
(one timecosts)
Pre-existing site
(add accessibility after site built)
New/Re-design site
(build-in accessibility before design)
Tools and integration
(one-time& maintenance)
Governanceintegration
(one-time& maintenance)
Quality Assurance
(periodic costs)
Remediation
(less over time)
Project and Overhead
(schedule and costs)
Training and education
(periodic costs)
Tools and integration
(one-time& maintenance)
Governanceintegration
(one-time& maintenance)
Project and Overhead
(schedule and costs)
Quality Assurance
(periodic costs)
=
=
=
=
=
[avoid these costs]
[avoid these costs]
Accessibility is less expensive when “built-in”
Note: This slide is from oneof the IBM presentations

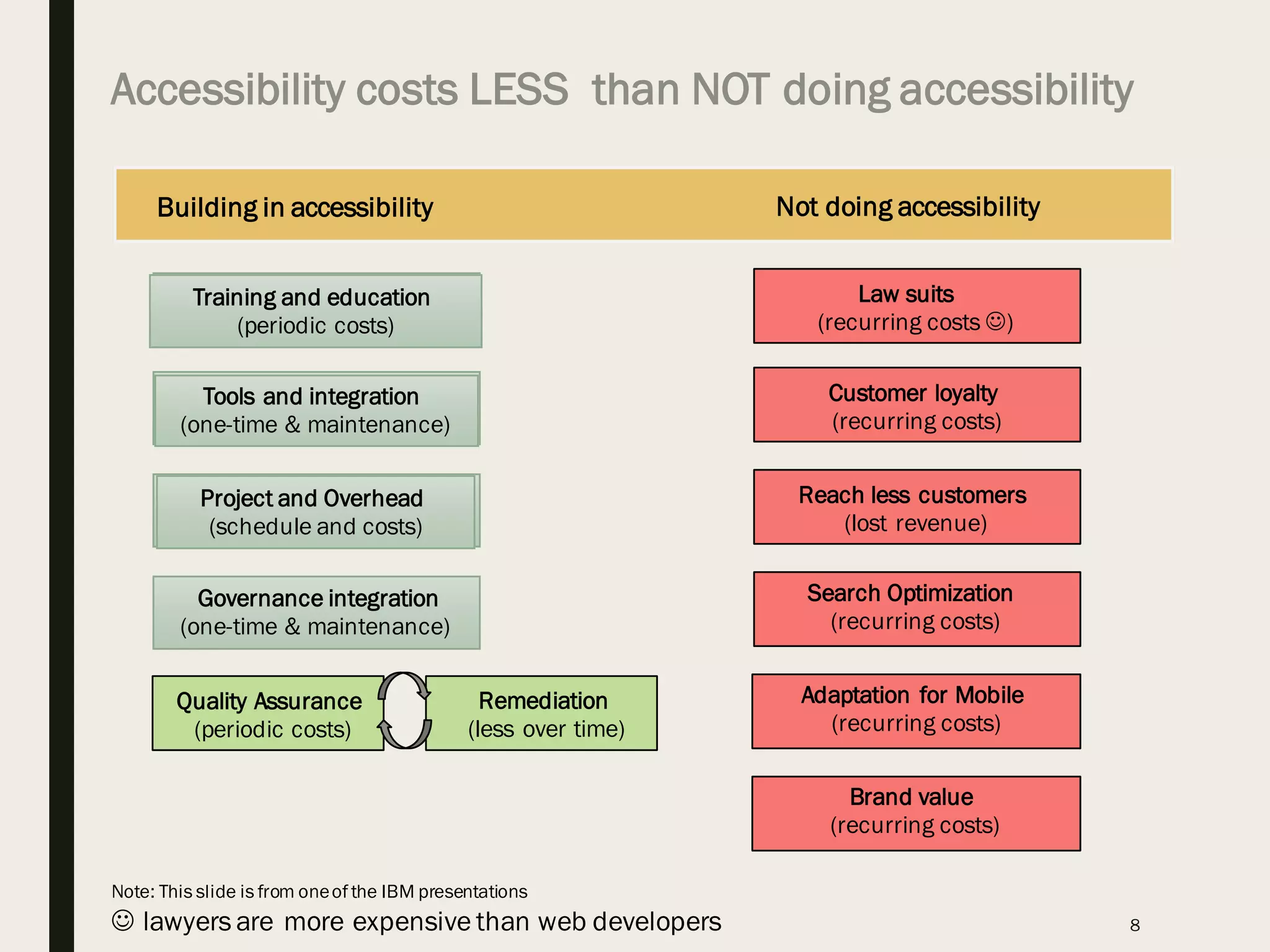

8. Accessibility costs LESS than NOT doing accessibility
8
Training and education
(periodic costs)
Building in accessibility Not doing accessibility
Tools and integration
(one-time & maintenance)
Governance integration
(one-time & maintenance)
Project and Overhead
(schedule and costs)
Law suits
(recurring costs J)
Customer loyalty
(recurring costs)
Search Optimization
(recurring costs)
Reach less customers
(lost revenue)
Adaptation for Mobile
(recurring costs)
Brand value
(recurring costs)
Quality Assurance
(periodic costs)
Remediation
(less over time)
J lawyers are more expensive than web developers
Note: This slide is from oneof the IBM presentations

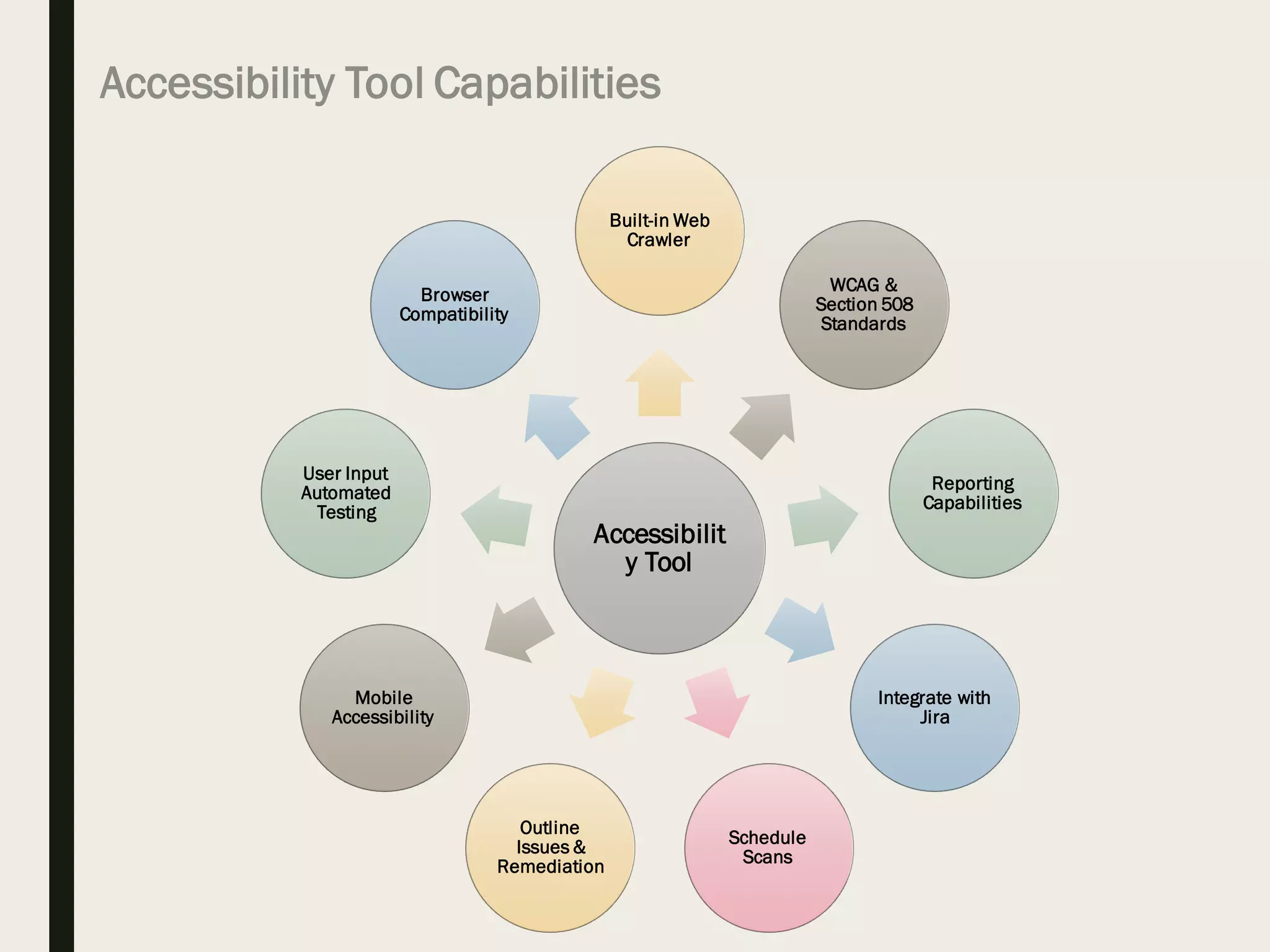

9. Accessibility Tool Capabilities
Accessibilit
y Tool
Built-in Web
Crawler
WCAG &
Section 508
Standards
Reporting
Capabilities
Integrate with
Jira
Schedule
Scans
Outline
Issues &
Remediation
Mobile
Accessibility
User Input
Automated
Testing
Browser
Compatibility

10. W3C Accessibility Demo – Before And After (BAD)
10
https://www.w3.org/WAI/demos/bad/

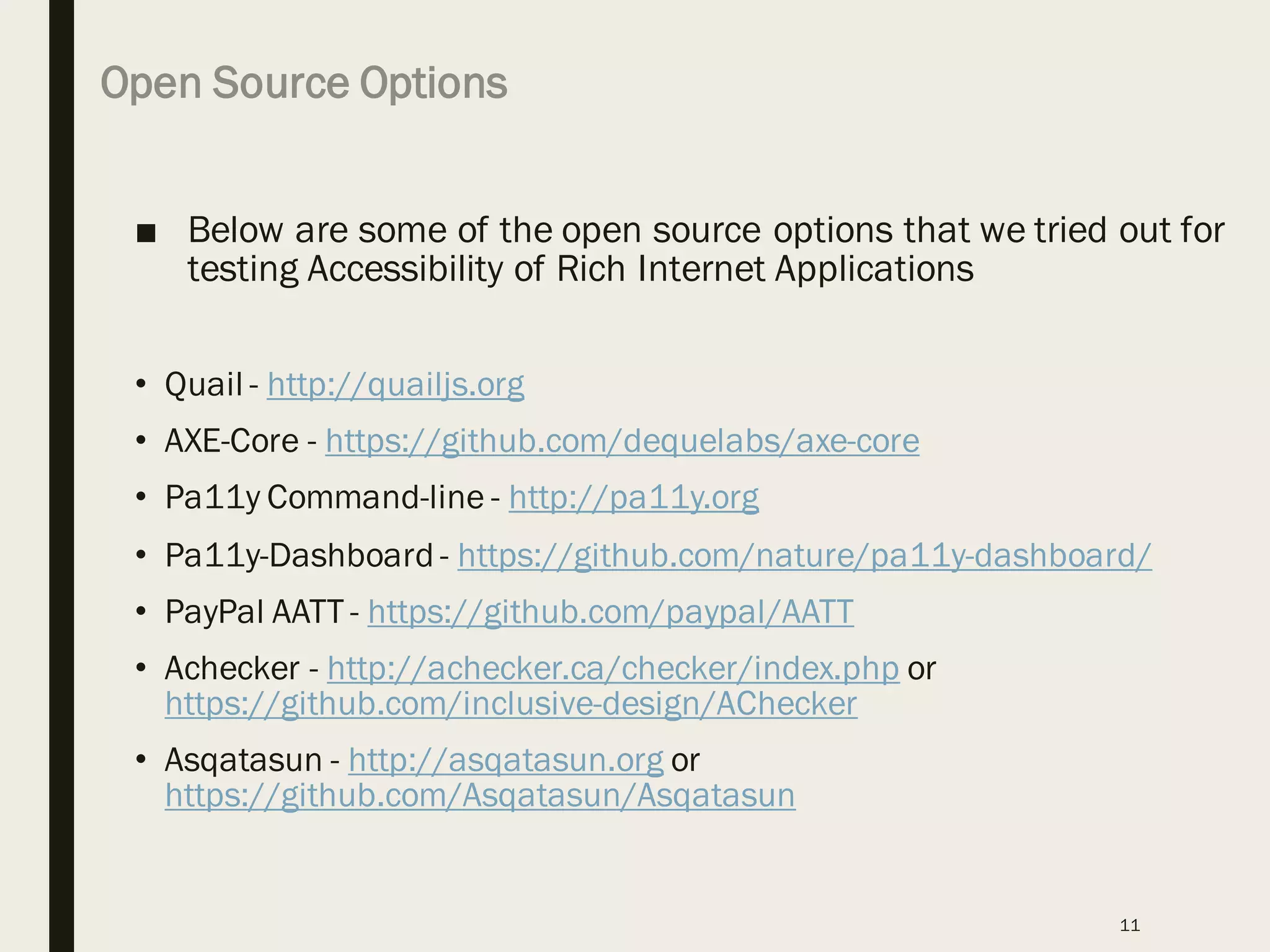

11. Open Source Options
■ Below are some of the open source options that we tried out for
testing Accessibility of Rich Internet Applications
• Quail - http://quailjs.org
• AXE-Core - https://github.com/dequelabs/axe-core
• Pa11y Command-line - http://pa11y.org
• Pa11y-Dashboard - https://github.com/nature/pa11y-dashboard/
• PayPal AATT - https://github.com/paypal/AATT
• Achecker - http://achecker.ca/checker/index.php or
https://github.com/inclusive-design/AChecker
• Asqatasun - http://asqatasun.org or
https://github.com/Asqatasun/Asqatasun
11

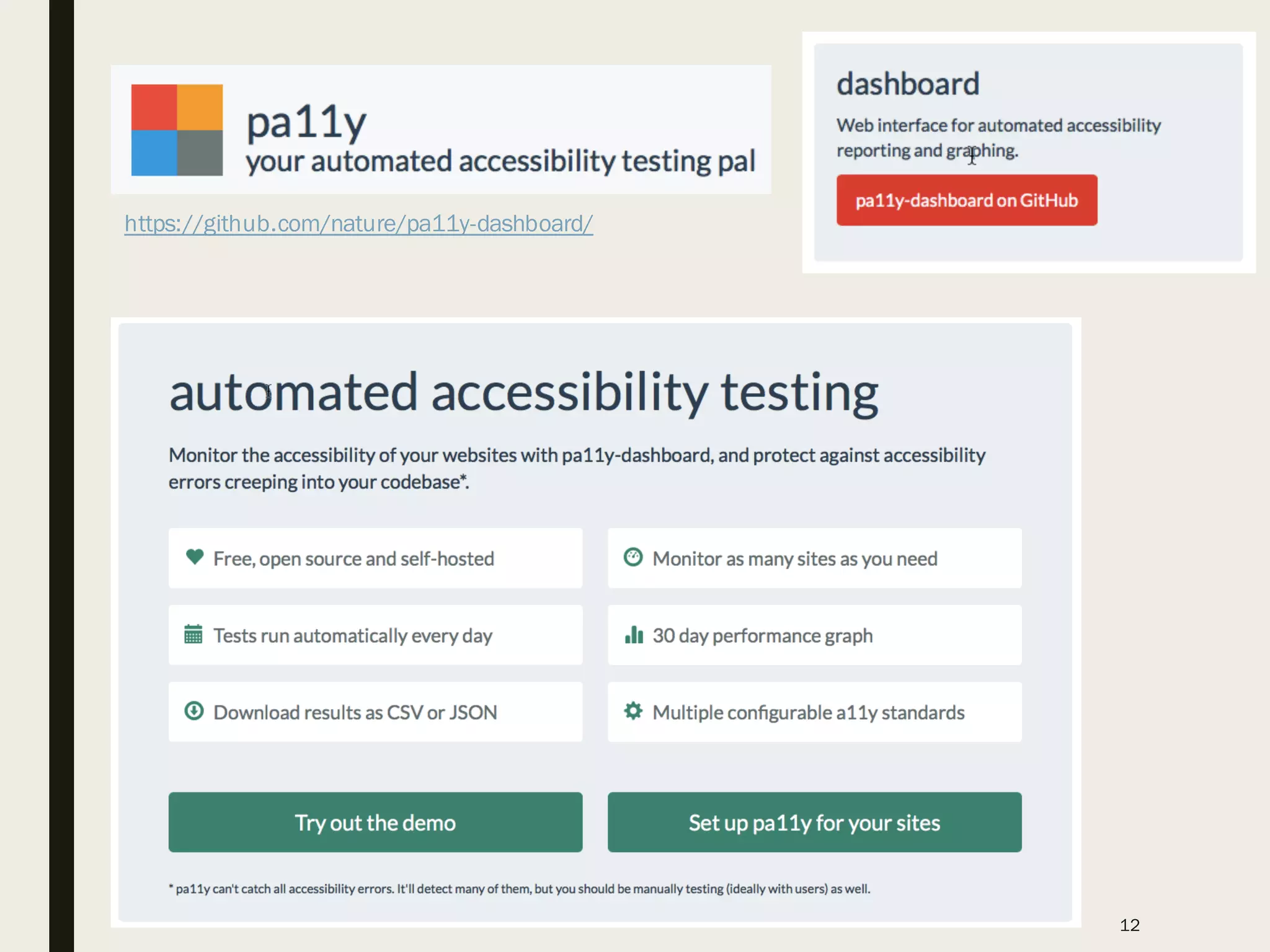

12. https://github.com/nature/pa11y-dashboard/
12

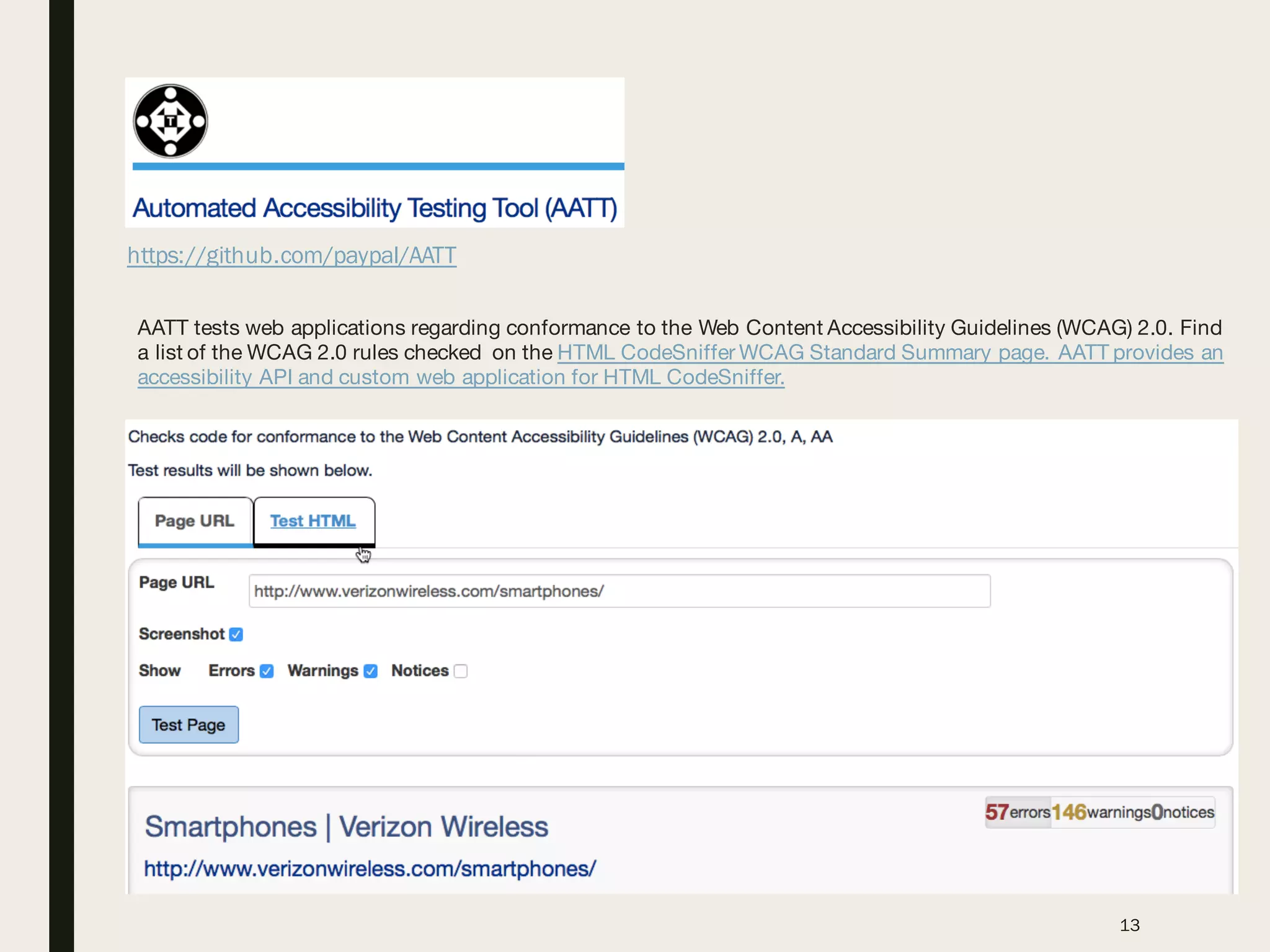

13. https://github.com/paypal/AATT
13
AATT tests web applications regarding conformance to the Web Content Accessibility Guidelines (WCAG) 2.0. Find
a list of the WCAG 2.0 rules checked on the HTML CodeSniffer WCAG Standard Summary page. AATT provides an
accessibility API and custom web application for HTML CodeSniffer.

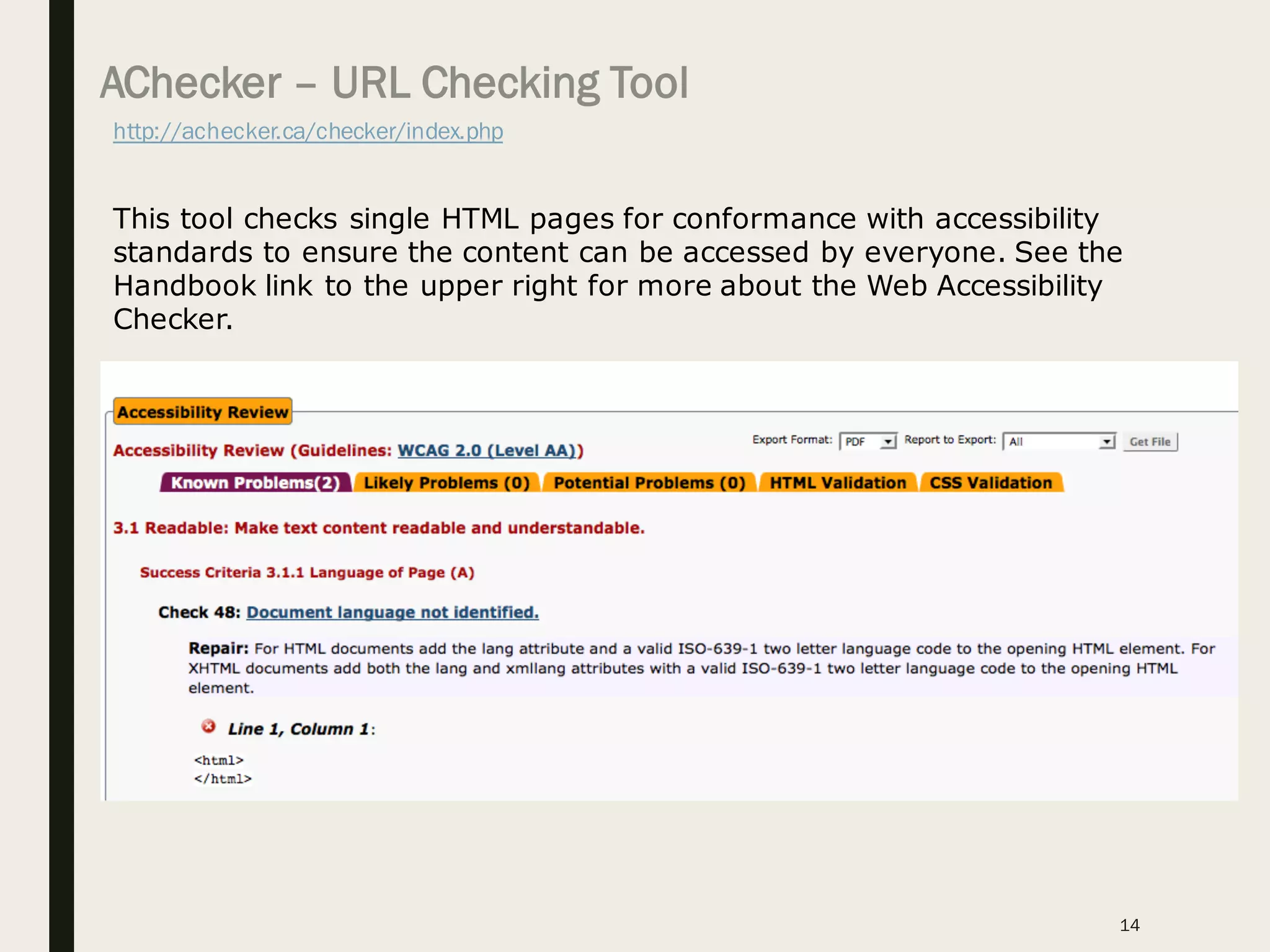

14. AChecker – URL Checking Tool
http://achecker.ca/checker/index.php
14
This tool checks single HTML pages for conformance with accessibility
standards to ensure the content can be accessed by everyone. See the
Handbook link to the upper right for more about the Web Accessibility
Checker.

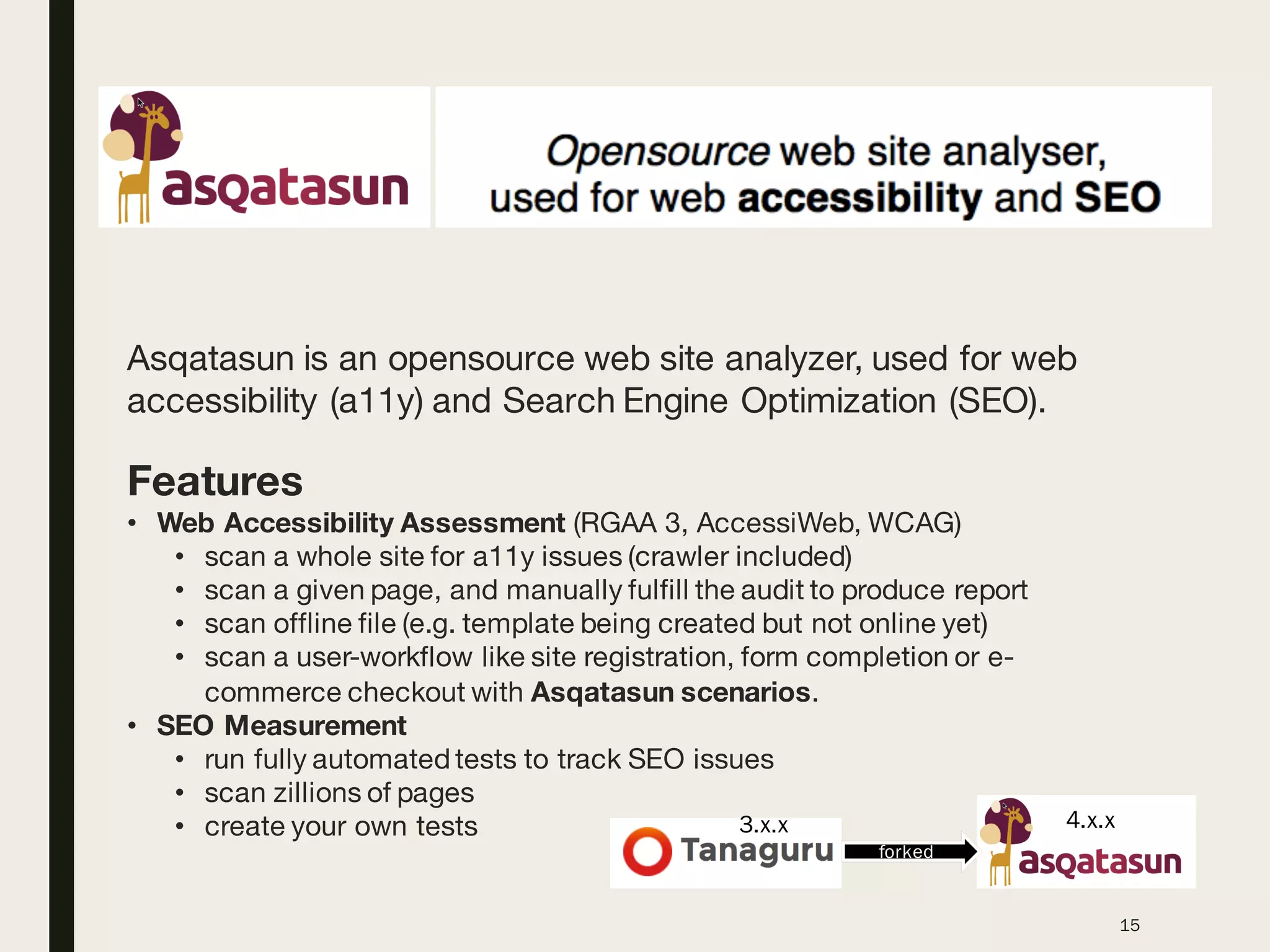

15. 15
Asqatasun is an opensource web site analyzer, used for web
accessibility (a11y) and Search Engine Optimization (SEO).
Features
• Web Accessibility Assessment (RGAA 3, AccessiWeb, WCAG)
• scan a whole site for a11y issues (crawler included)
• scan a given page, and manually fulfill the audit to produce report
• scan offline file (e.g. template being created but not online yet)
• scan a user-workflow like site registration, form completion or e-
commerce checkout with Asqatasun scenarios.
• SEO Measurement
• run fully automated tests to track SEO issues
• scan zillions of pages
• create your own tests
forked
3.x.x 4.x.x

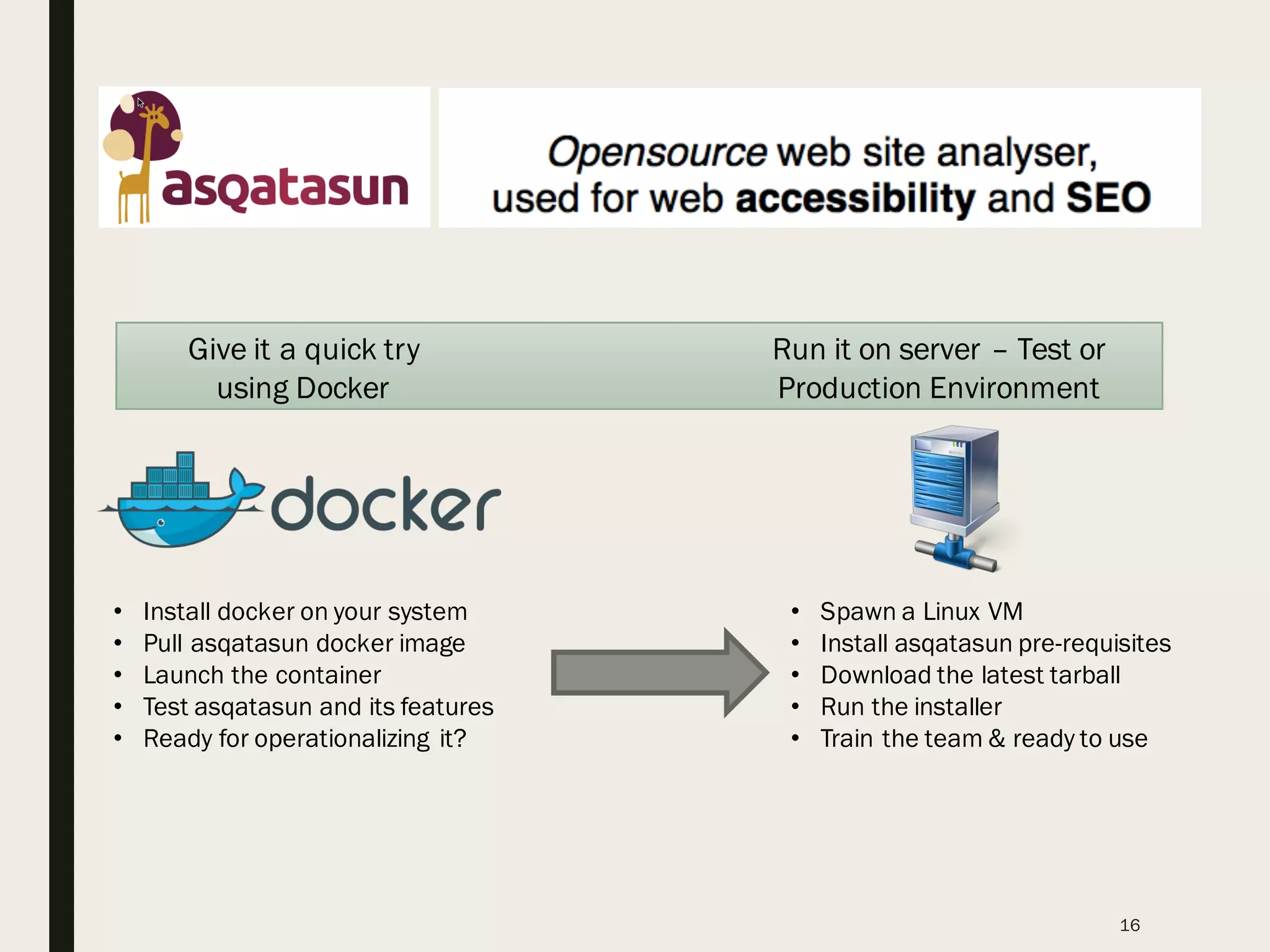

16. 16
Give it a quick try
using Docker
Run it on server – Test or
Production Environment
• Install docker on your system
• Pull asqatasun docker image
• Launch the container
• Test asqatasun and its features
• Ready for operationalizing it?
• Spawn a Linux VM
• Install asqatasun pre-requisites
• Download the latest tarball
• Run the installer
• Train the team & ready to use

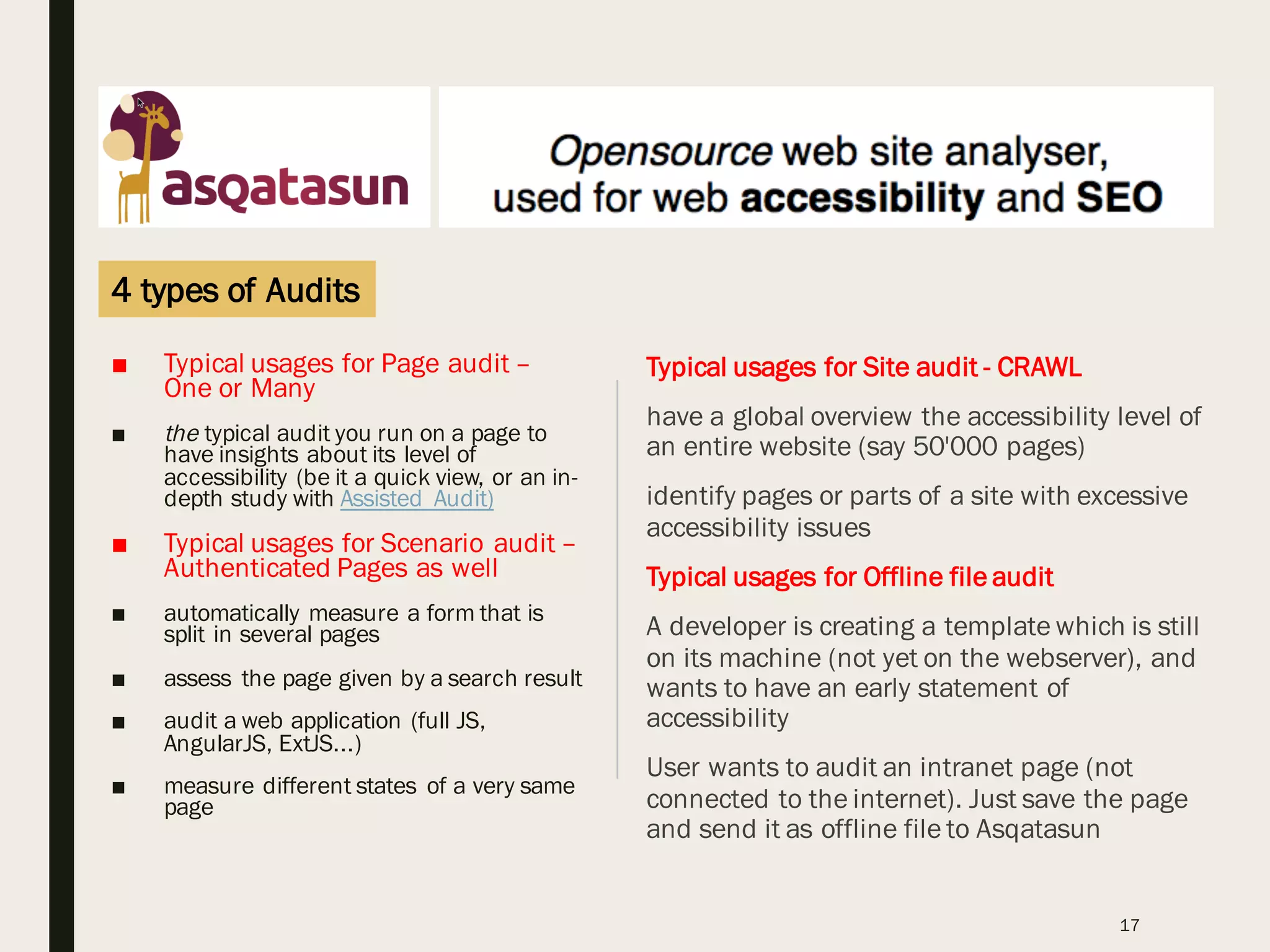

17. ■ Typical usages for Page audit –
One or Many
■ the typical audit you run on a page to
have insights about its level of
accessibility (be it a quick view, or an in-
depth study with Assisted Audit)
■ Typical usages for Scenario audit –
Authenticated Pages as well
■ automatically measure a form that is
split in several pages
■ assess the page given by a search result
■ audit a web application (full JS,
AngularJS, ExtJS...)
■ measure different states of a very same
page
17
Typical usages for Site audit - CRAWL
have a global overview the accessibility level of
an entire website (say 50'000 pages)
identify pages or parts of a site with excessive
accessibility issues
Typical usages for Offline file audit
A developer is creating a template which is still
on its machine (not yet on the webserver), and
wants to have an early statement of
accessibility
User wants to audit an intranet page (not
connected to the internet). Just save the page
and send it as offline file to Asqatasun
4 types of Audits

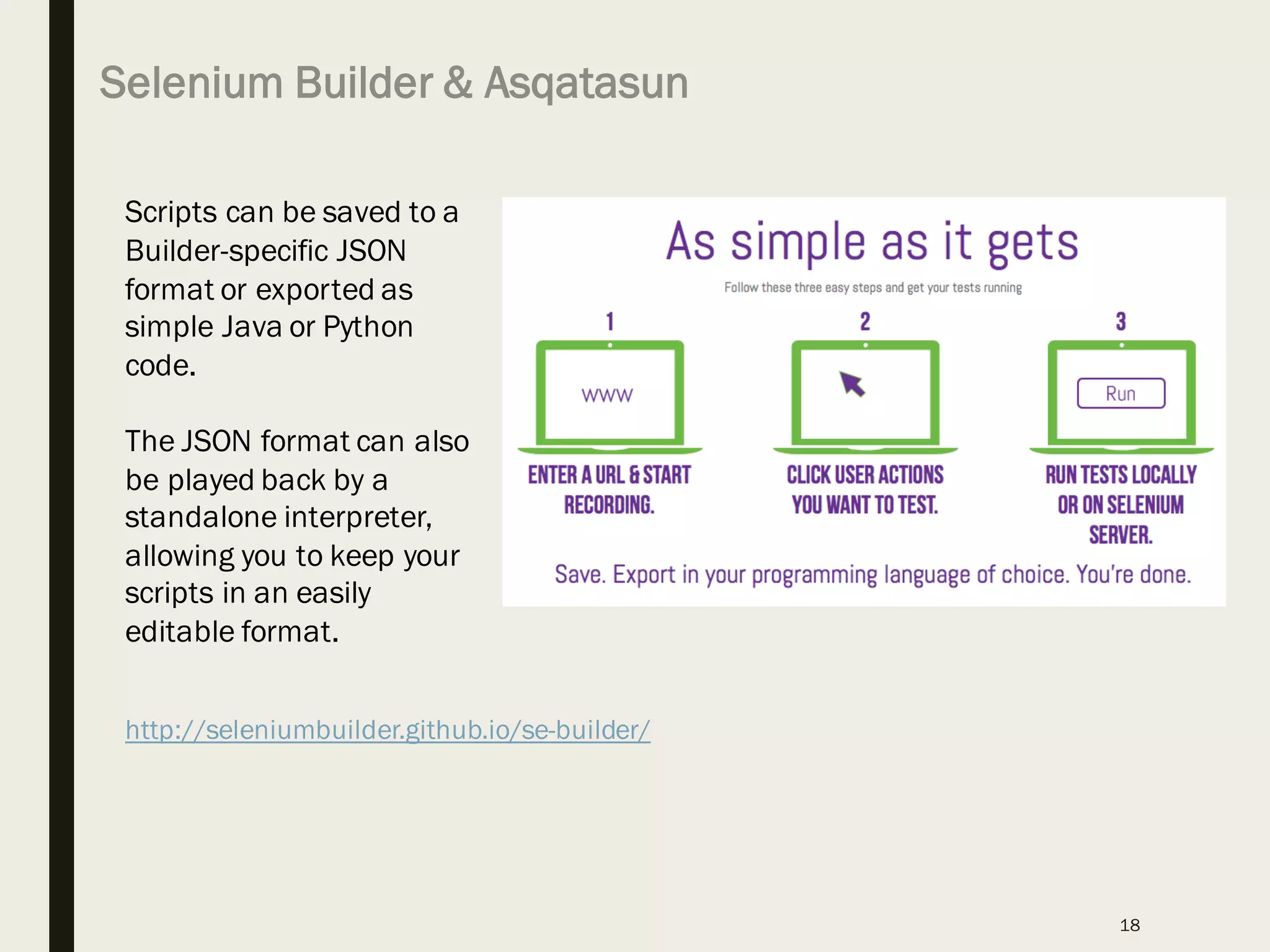

18. Selenium Builder & Asqatasun
18
http://seleniumbuilder.github.io/se-builder/
Scripts can be saved to a
Builder-specific JSON
format or exported as
simple Java or Python
code.
The JSON format can also
be played back by a
standalone interpreter,
allowing you to keep your
scripts in an easily
editable format.

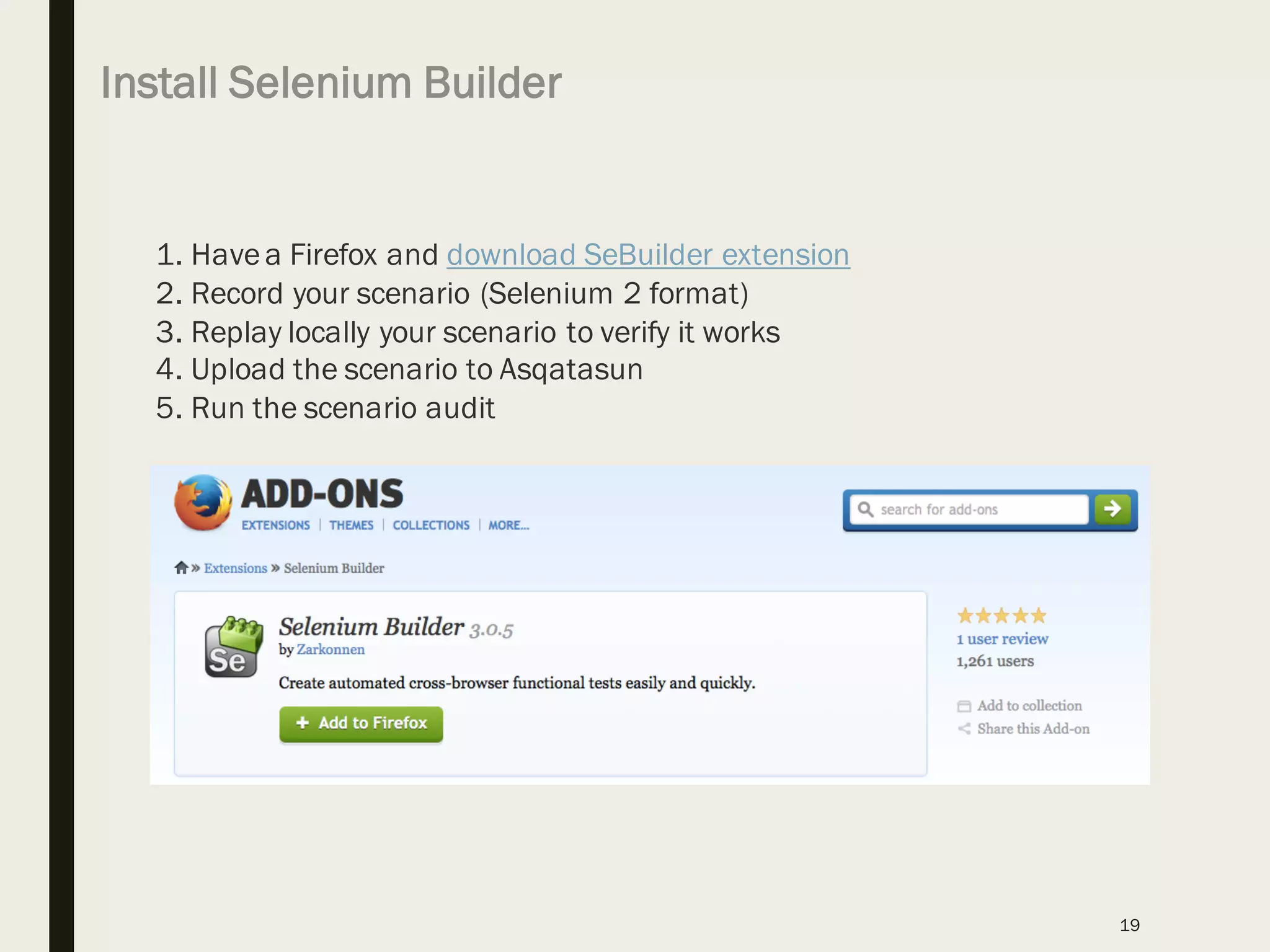

19. Install Selenium Builder
19
1. Havea Firefox and download SeBuilder extension
2. Record your scenario (Selenium 2 format)
3. Replay locally your scenario to verify it works
4. Upload the scenario to Asqatasun
5. Run the scenario audit

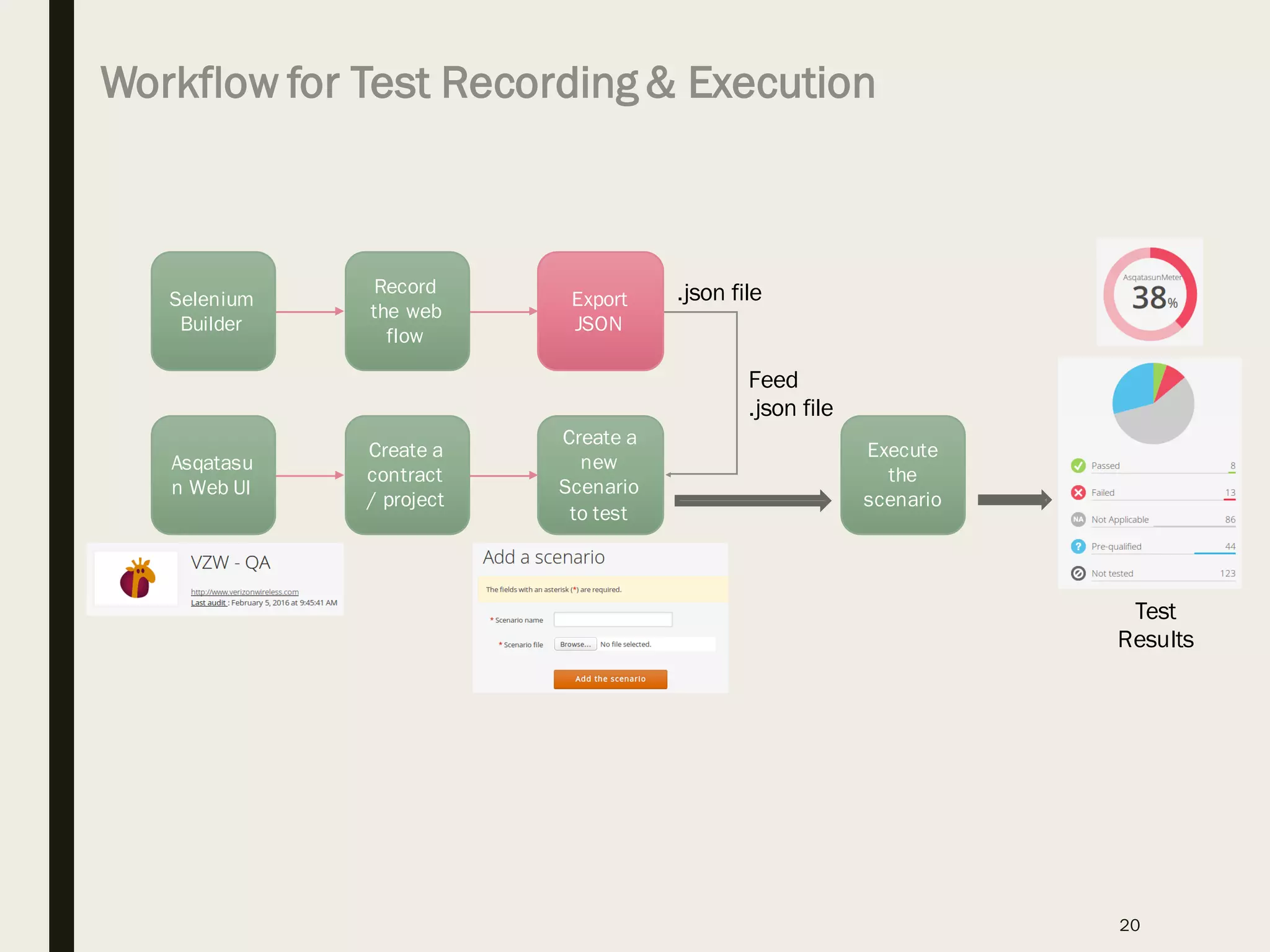

20. Workflow for Test Recording & Execution
20
Selenium
Builder
Record
the web
flow
Export
JSON
Asqatasu
n Web UI
Create a
contract
/ project
Create a
new
Scenario
to test
.json file
Execute
the
scenario
Test
Results
Feed
.json file

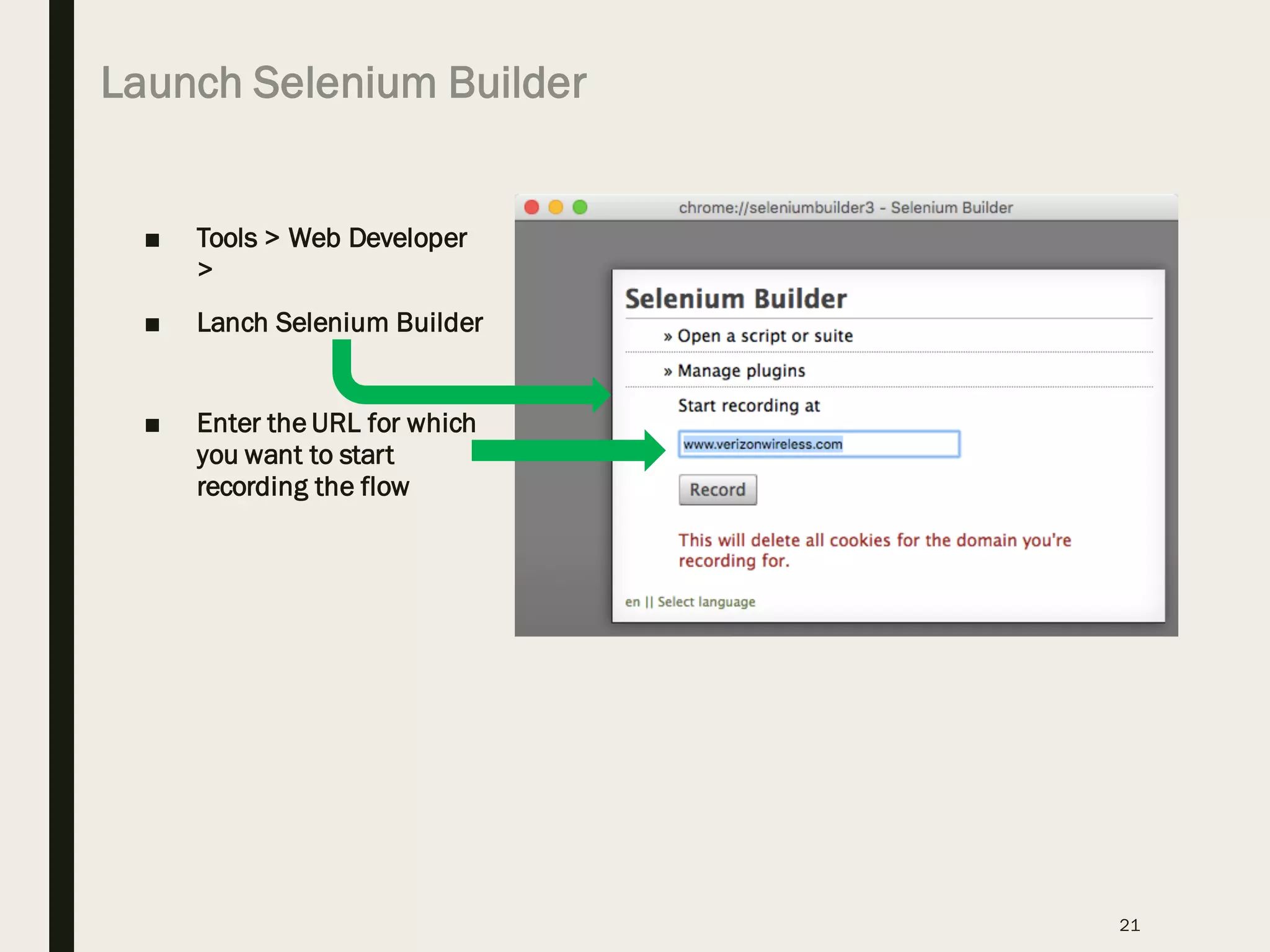

21. Launch Selenium Builder
■ Tools > Web Developer
>
■ Lanch Selenium Builder
■ Enter the URL for which
you want to start
recording the flow
21

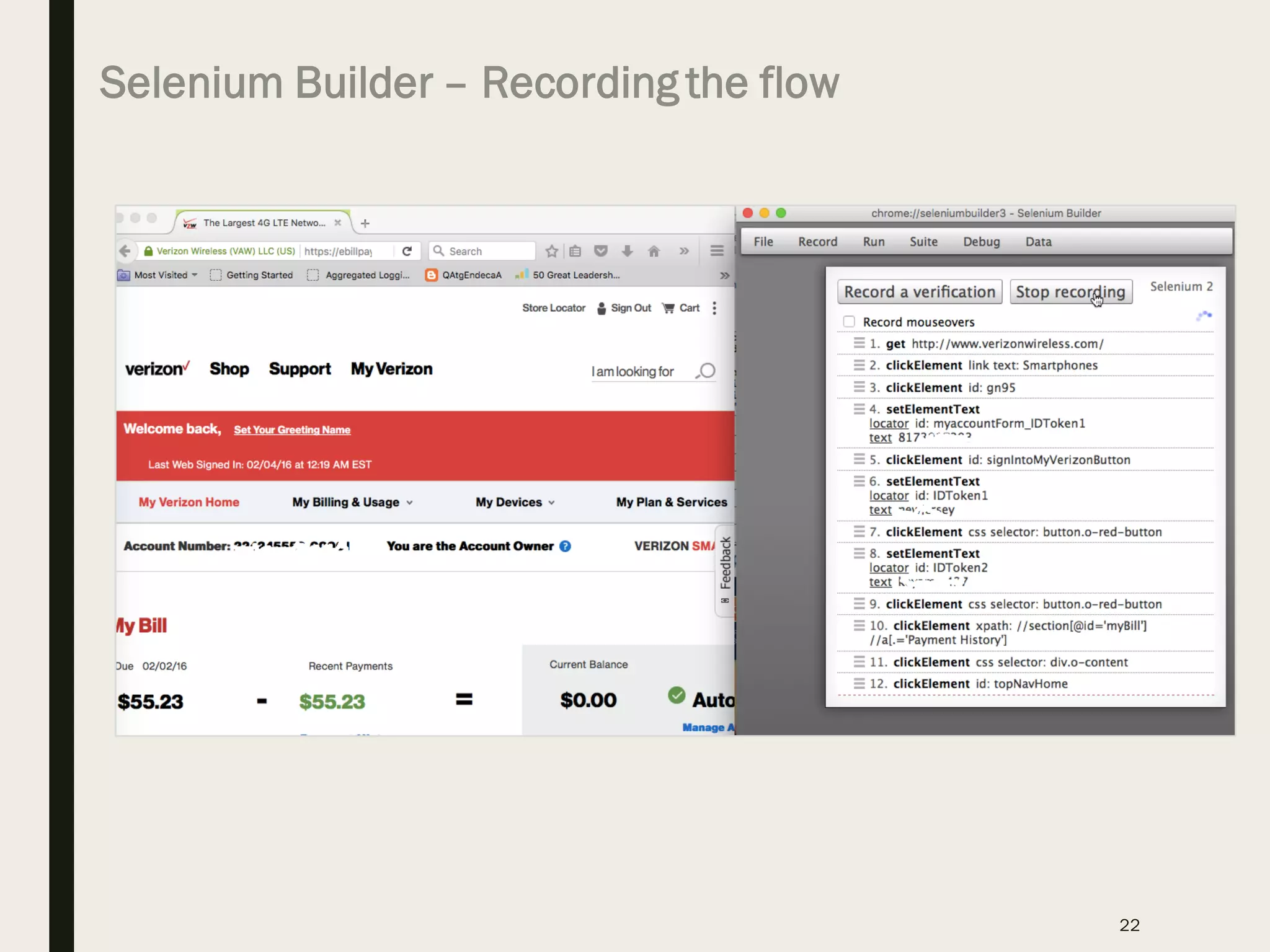

22. Selenium Builder – Recording the flow
22

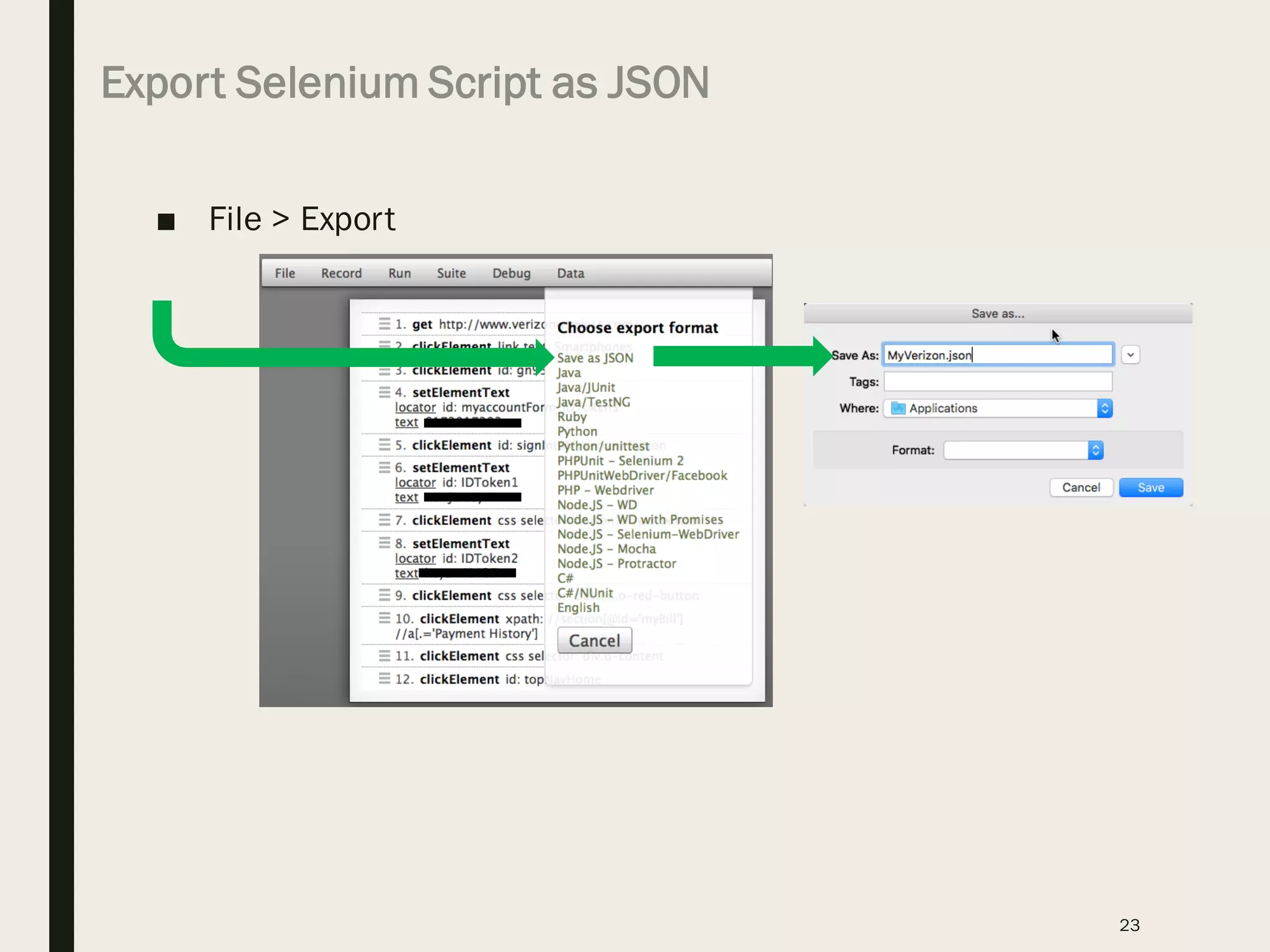

23. Export Selenium Script as JSON
■ File > Export
23

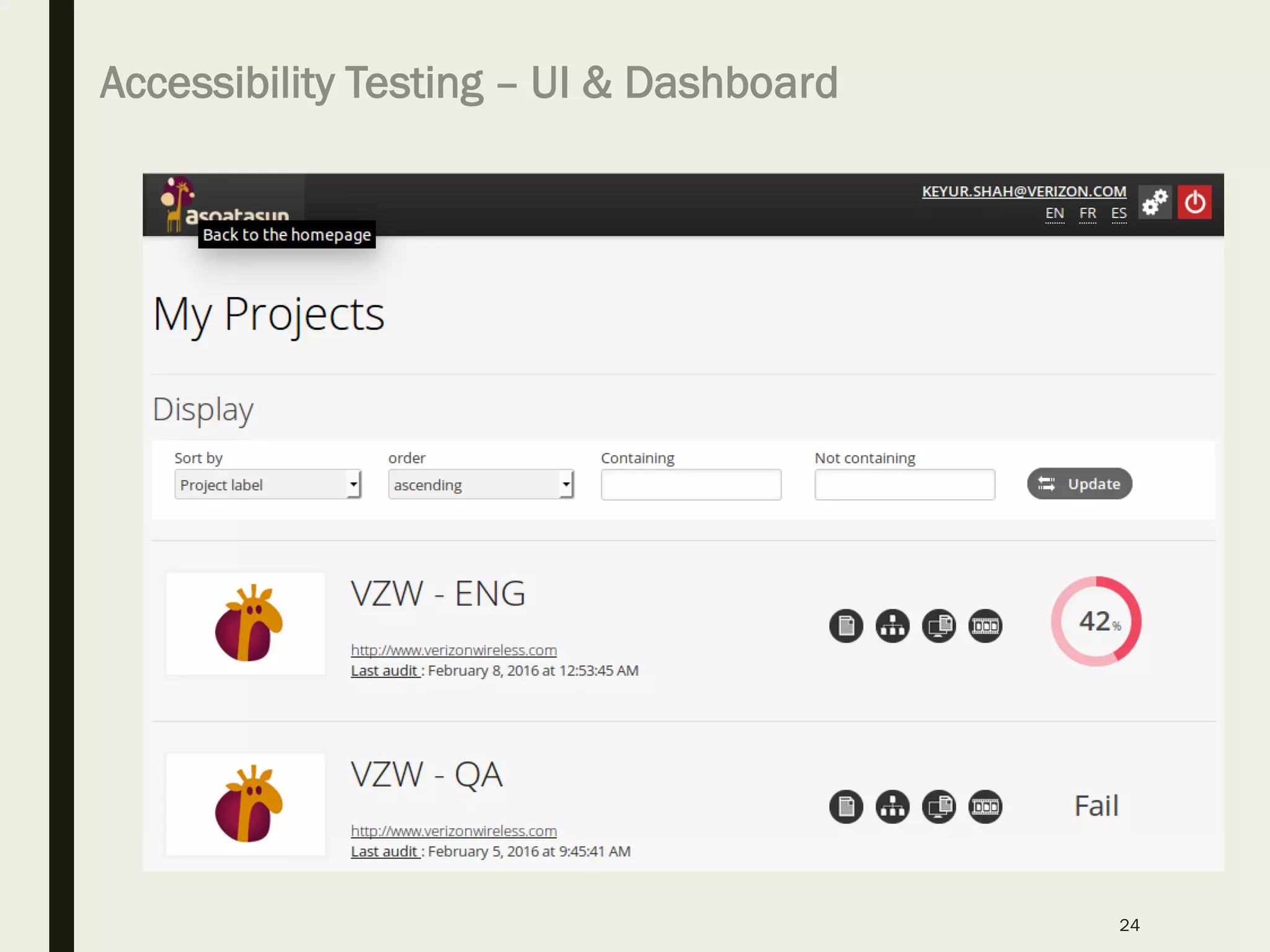

24. Accessibility Testing – UI & Dashboard
24

25. Asqatasun Demo – Accessibility Testing
25

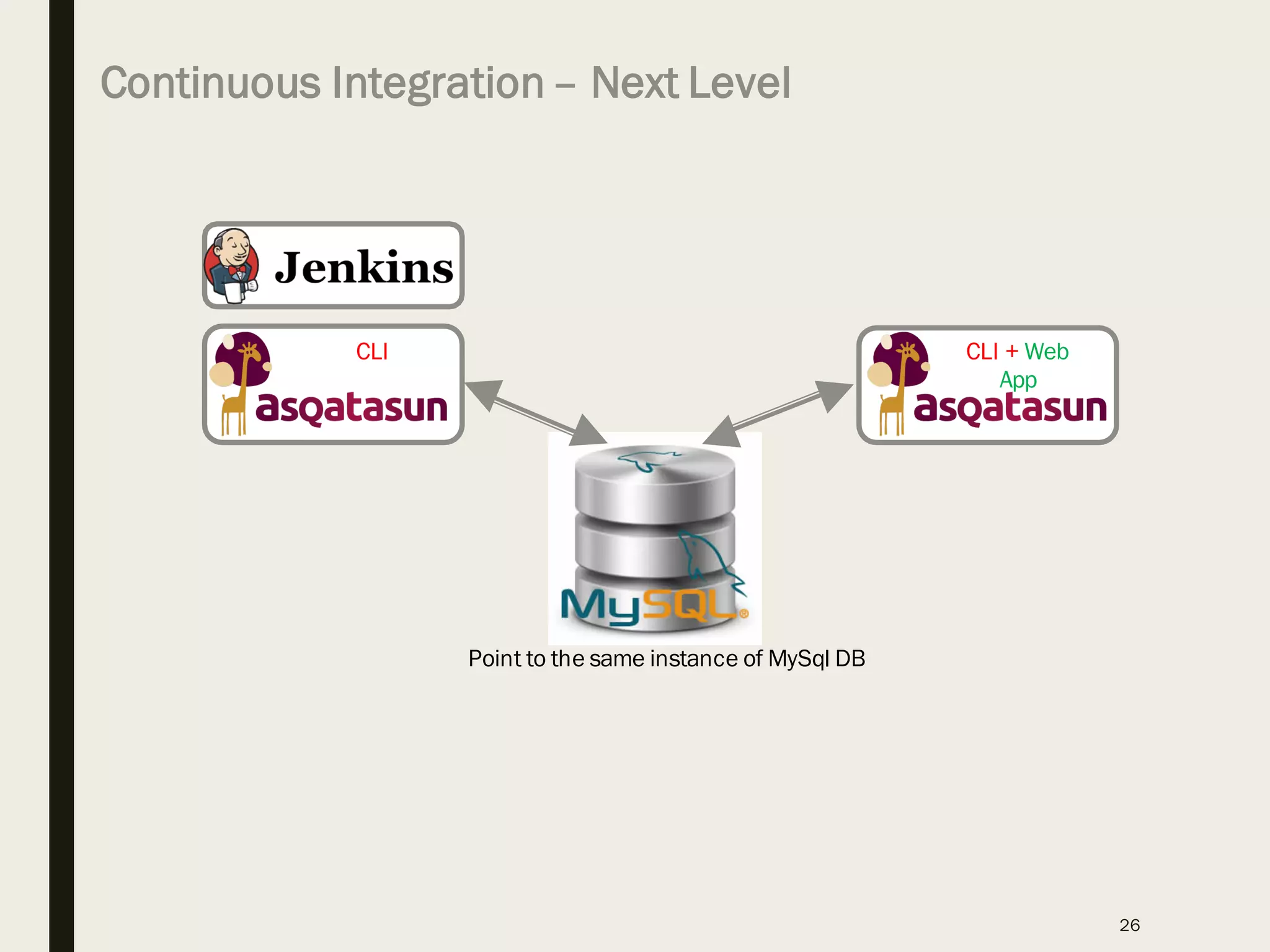

26. Continuous Integration– Next Level
26
CLI CLI + Web
App
Point to the same instance of MySql DB

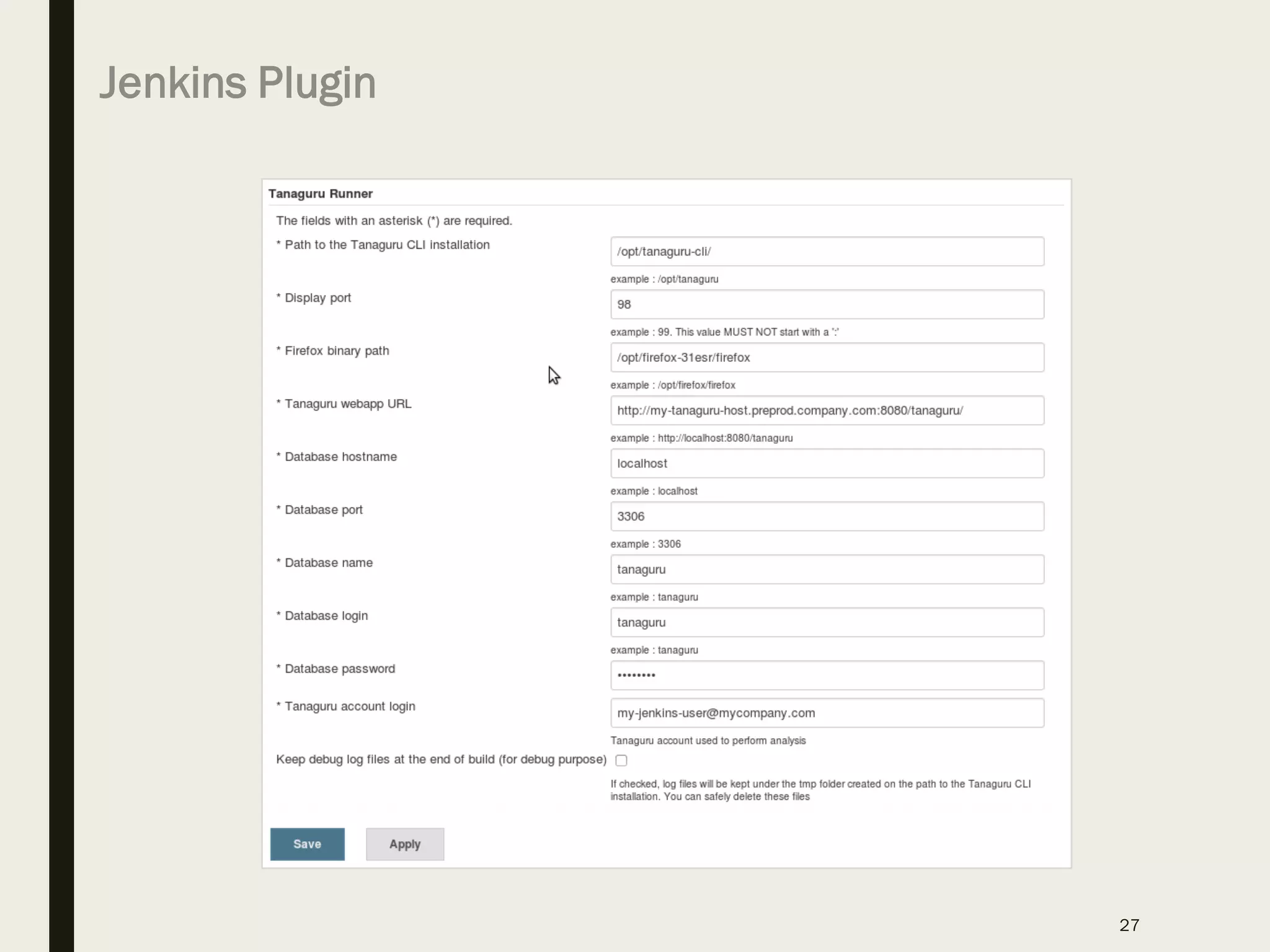

27. Jenkins Plugin
27

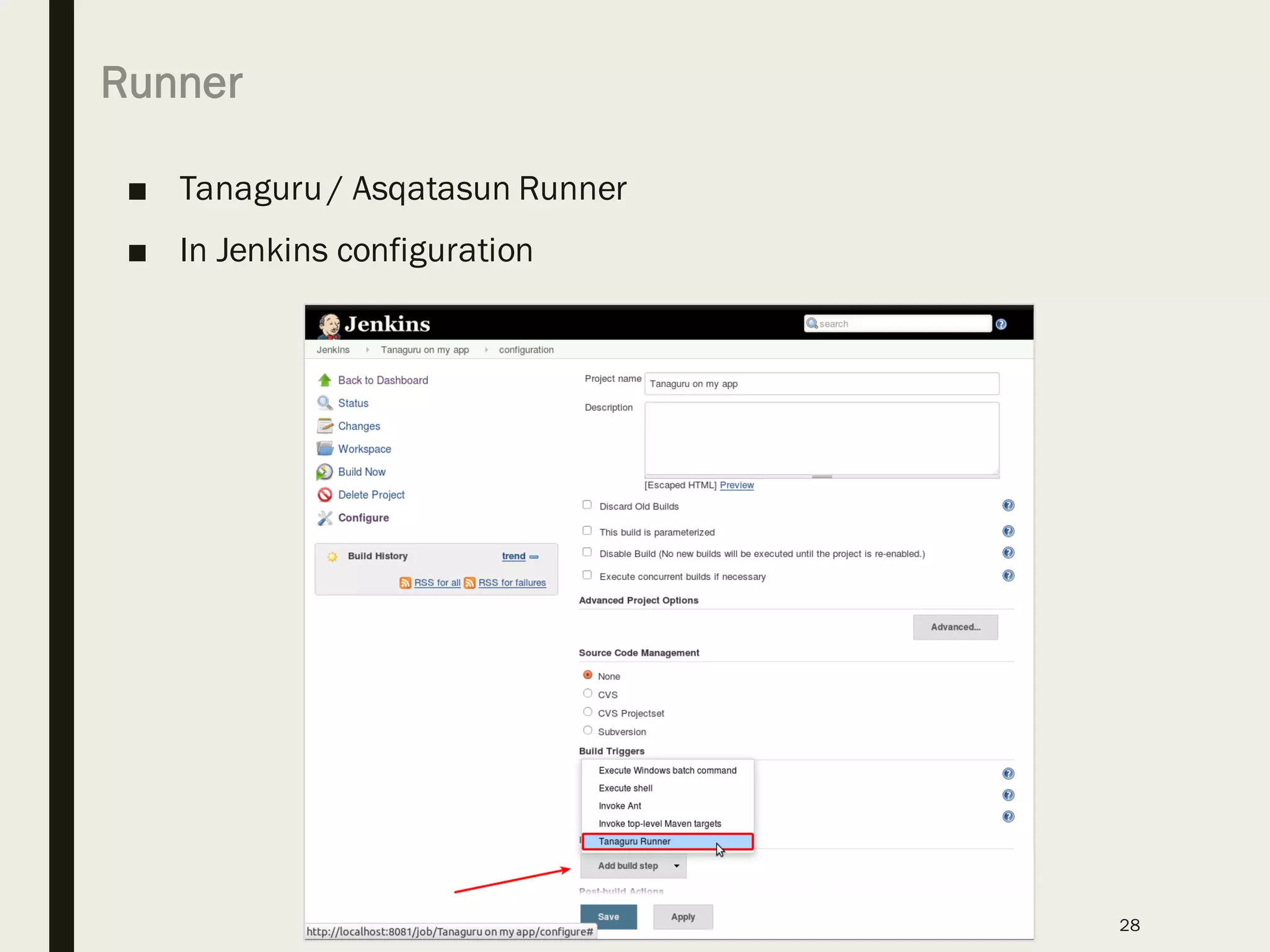

28. Runner
■ Tanaguru / Asqatasun Runner
■ In Jenkins configuration
28

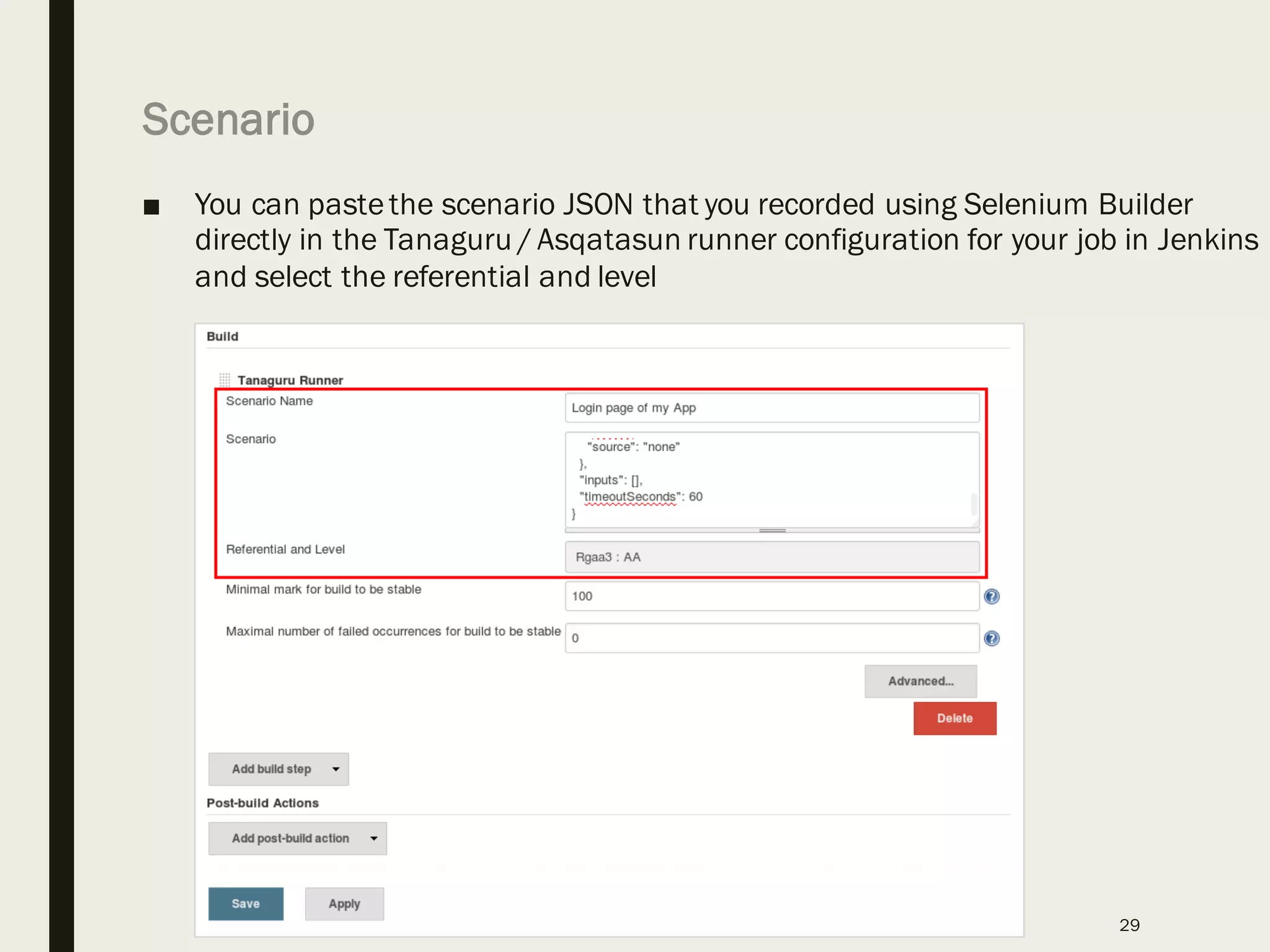

29. Scenario
■ You can pastethe scenario JSON that you recorded using Selenium Builder
directly in the Tanaguru / Asqatasun runner configuration for your job in Jenkins
and select the referential and level
29
