ACCESS CONTROL SYSTEM OR MAGNETIC DOOR TERMINATION
- 1. ACCESS CONTROL SYSTEM OR MAGNETICDOOR LOCKING SUBMITTED BY ASHUTOSH KUMAR 40196204915 EEE

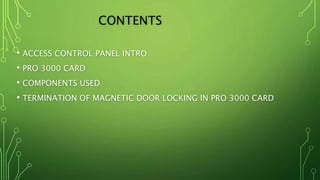

- 2. CONTENTS • ACCESS CONTROLPANEL INTRO • PRO 3000 CARD • COMPONENTS USED • TERMINATION OF MAGNETIC DOOR LOCKING IN PRO 3000 CARD

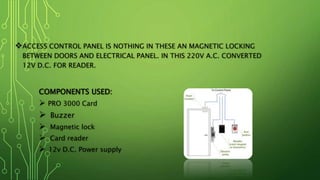

- 3. ACCESS CONTROL PANELIS NOTHING IN THESE AN MAGNETIC LOCKING BETWEEN DOORS AND ELECTRICAL PANEL. IN THIS 220V A.C. CONVERTED 12V D.C. FOR READER. COMPONENTS USED: PRO 3000 Card Buzzer Magnetic lock Card reader 12v D.C. Power supply
- 4. PRO 3000 CARD IN PRO 3000 CARD ALSO USED FOR FIRE ALARM MONITORING & VIDEO SURVEILLANCE SYSTEM. PRO 3000 CARD IS A LATEST VERSION OF ACCESS CARD, BECAUSE IN THIS WE CONNECT TWO DOORS IN A CARD/PANEL. THE PRO 3000 IP-ENABLED CONTROLLER SO OPERATES ANYWHERE. IT IS DESIGNED TO OPERATE OFFLINE MODE, THAT MAKES ACCESS CONTROL INDEPENDENTLY.
- 5. WIRES USED FORREADER TERMINATION BROWN (FOR LED) GREEN (FOR DATA TRANSFERRING D0/485-) WHITE (FOR DATA TRANSFERRING D1/485+) BLACK (FOR -12V D.C. POWER SUPPLY) RED (FOR +12V D.C. POWER SUPPLY)

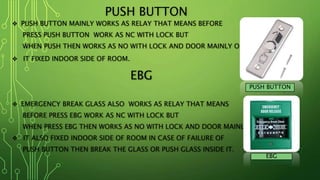

- 6. PUSH BUTTON PUSHBUTTON MAINLY WORKS AS RELAY THAT MEANS BEFORE PRESS PUSH BUTTON WORK AS NC WITH LOCK BUT WHEN PUSH THEN WORKS AS NO WITH LOCK AND DOOR MAINLY OPEN. IT FIXED INDOOR SIDE OF ROOM. EBG EMERGENCY BREAK GLASS ALSO WORKS AS RELAY THAT MEANS BEFORE PRESS EBG WORK AS NC WITH LOCK BUT WHEN PRESS EBG THEN WORKS AS NO WITH LOCK AND DOOR MAINLY OPEN. IT ALSO FIXED INDOOR SIDE OF ROOM IN CASE OF FAILURE OF PUSH BUTTON THEN BREAK THE GLASS OR PUSH GLASS INSIDE IT. PUSH BUTTON EBG
- 7. TERMINATION DIAGRAM: 220V ACPOWER SUPPLY PRO 3000 CARD 12 V DC POWER SUPPLY L O A D BUZZER DPS NO C NC C NO NC B G W B R 1 C 2 RELAY 1&2 READER DOOR1 CRM RE A DE R PUSH BUTTO N EBG LOCK FROM HEAT DETECTOR
