FOSDEM15 SDN developer room talk DPDK performance How to not just do a demo with DPDK The Intel DPDK provides a platform for building high performance Network Function Virtualization applications. But it is hard to get high performance unless certain design tradeoffs are made. This talk focuses on the lessons learned in creating the Brocade vRouter using DPDK. It covers some of the architecture, locking and low level issues that all have to be dealt with to achieve 80 Million packets per second forwarding.

1. DPDK performance
How to not just do a demo with the DPDK
Stephen Hemminger
stephen@networkplumber.org
@networkplumber

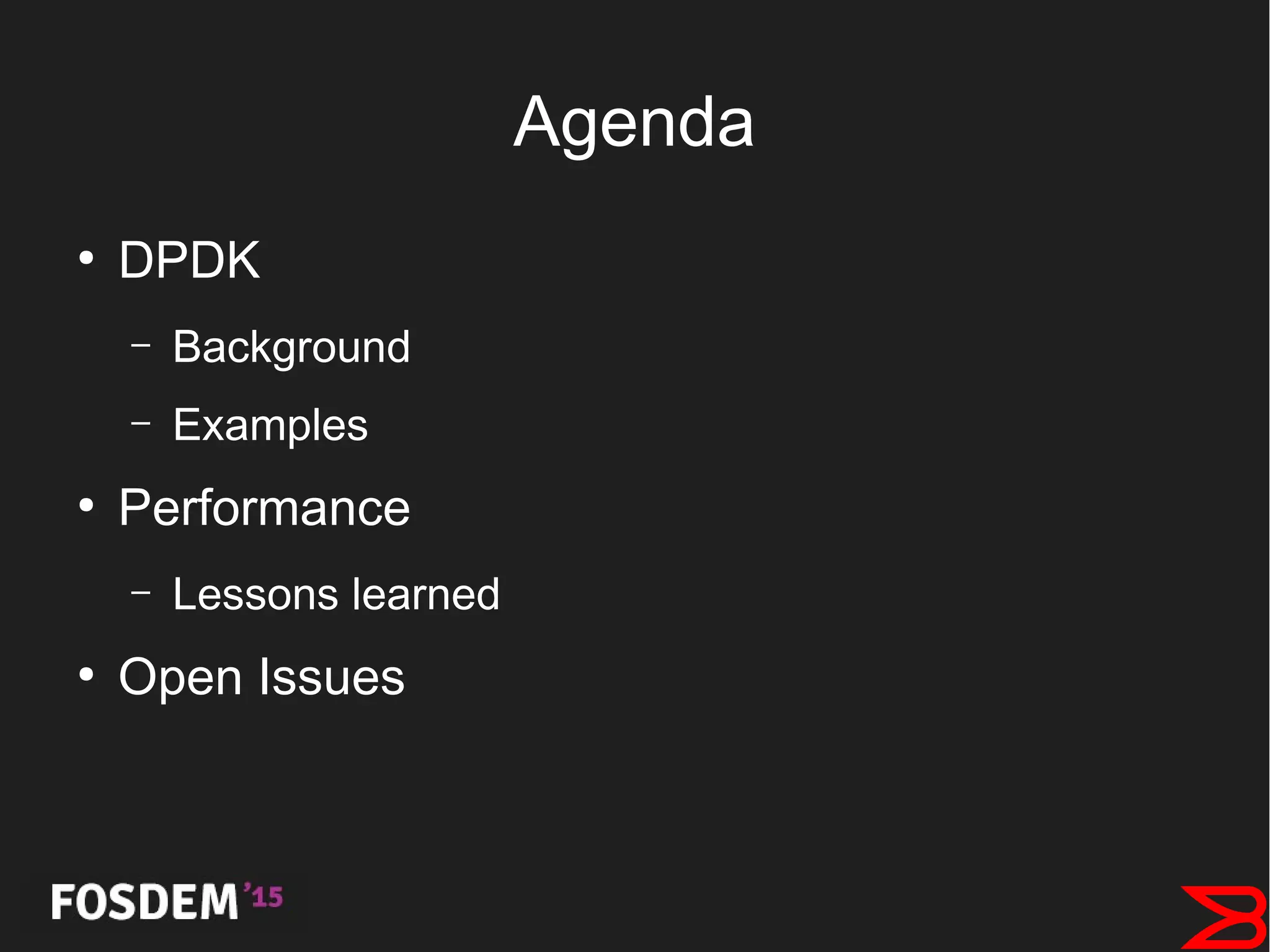

2. Agenda
●
DPDK
– Background
– Examples
●
Performance
– Lessons learned
●
Open Issues

3. 60 160 260 360 460 560 660 760 860 960 1060 1160 1260 1360 1460
0
200
400
600
800
1000
1200
1400
1600
1800
2000
Packet size (bytes)
Time(ns)
Server
Packet
Network
Infrastructure
Packet time vs size

4. Demo Applications
●
Examples
– L2fwd → Bridge/Switch
– L3fwd → Router
– L3fwd-acl → Firewall
– Load_balancer
– qos_sched → Quality Of Service

5. L3fwd
Route
Lookup
Transmit
Transmit
Transmit
TransmitReceive
Receive
Receive
Receive
Receive

6. Forwarding thread
Read Burst
Process Burst
Statistics:
Received Packets
Transmit Packets
Iterations
Packets processed

7. Time Budget
●
Packet
– 67.2ns = 201 cycles @ 3Ghz
●
Cache
– L3 = 8 ns
– L2 = 4.3
●
Atomic operations
– Lock = 8.25 ns
– Lock/Unlock = 16.1
Network stack challenges at increasing speeds – LCA 2015
Jesper Dangaard Brouer

8. Architecture choices
●
Legacy
– Existing proprietary code
●
BSD clone
●
DIY
– Build forwarding engine from scratch

9. Test fixture
Freebsd
(netmap)
Router
Linux
desktop
10G Fibre
192.18.1.0/27
10G Cat6
192.18.0.0/27
Management network

10. Dataplane CPU activity
Core Interface RX Rate TX Rate Idle
--------------------------------------------------------
1 p1p1 14.9M 0
2 p1p1 0 250
3 p33p1 0 250
4 p33p1 1 250
5 p1p1 0 250
6 p33p1 11.9M 1
Internal Instrumentation

11. Linux perf
●
Perf tool part of kernel source
●
Can look at kernel and application
– Drill down if has symbols

12. Perf – active thread
Samples: 16K of event 'cycles', Event count (approx.): 11763536471
14.93% dataplane [.] ip_input
10.04% dataplane [.] ixgbe_xmit_pkts
7.69% dataplane [.] ixgbe_recv_pkts
7.05% dataplane [.] T.240
6.82% dataplane [.] fw_action_in
6.61% dataplane [.] fifo_enqueue
6.44% dataplane [.] flow_action_fw
6.35% dataplane [.] fw_action_out
3.92% dataplane [.] ip_hash
3.69% dataplane [.] cds_lfht_lookup
2.45% dataplane [.] send_packet
2.45% dataplane [.] bit_reverse_ulong

13. Original model
Rx0.0
Rx0.1
Core 1
Core 2
Tx0.0
Rx1.0
Rx1.1
Core 3
Core 4
Tx0.1
Tx0.2
Tx0.3
Tx1.0
Tx1.1
Tx1.2
Tx1.3

14. Split thread model
Rx0.0
Rx0.1
Core 1
Core 5
Tx1
Core 2
Core 6
Tx1
Rx1.0
Rx1.1
Core 3
Core 4

15. Speed killer's
●
I/O
●
VM exit's
●
System call's
●
PCI access
●
HPET
●
TSC
●
Floating Point
●
Cache miss
●
CPU pipeline stall

16. TSC counter
while(1)
cur_tsc = rte_rdtsc();
diff_tsc = cur_tsc – prev_tsc;
if (unlikely(diff_tsc > drain_tsc)) {
for (portid = 0; portid < RTE_MAX_ETHPORTS;
portid++) {
send_burst(qconf,
qconf­>tx_mbufs[portid].len,
portid);
CPU stall
Heisenburg: observing performance slows it down

17. fw_action_in
│ struct ip_fw_args fw_args = {
.m = m,
│ .client = client,
│ .oif = NULL };
1.54 │1d: movzbl %sil,%esi
0.34 │ mov %rsp,%rdi
0.04 │ mov $0x13,%ecx
0.16 │ xor %eax,%eax
57.66 │ rep stos %rax,%es:(%rdi)
4.68 │ mov %esi,0x90(%rsp)
20.45 │ mov %r9,(%rsp)

18. Why is QoS slow?
static inline void
rte_sched_port_time_resync(struct rte_sched_port *port)
{
uint64_t cycles = rte_get_tsc_cycles();
uint64_t cycles_diff = cycles ­ port­>time_cpu_cycles;
double bytes_diff = ((double) cycles_diff) /
port­>cycles_per_byte;
/* Advance port time */
port­>time_cpu_cycles = cycles;
port­>time_cpu_bytes += (uint64_t) bytes_diff;

19. The value of idle
●
All CPU's are not equal
– Hyperthreading
– Cache sharing
– Thermal
If one core is idle, others can go faster

20. Idle sleep
●
100% Poll → 100% CPU
– CPU power limits
– No Turbo boost
– PCI bus overhead
●
Small sleep's
– 0 - 250us
– Based on activity

21. Memory Layout
●
Cache killers
– Linked lists
– Poor memory layout
– Global statistics
– Atomic
●
Doesn't help
– Prefetching
– Inlining

22. Mutual Exclusion
●
Locking
– Reader/Writer lock is expensive
– Read lock more overhead than spin lock
●
Userspace RCU
– Don't modify, create and destroy
– Impacts thread model

23. Longest Prefix Match
Nexthop
1.1.1.1
/24
table
1.1.1.X
If = dp0p9p1
gw = 2.2.33.5
1.1.3.6

24. LPM issues
●
Prefix → 8 bit next hop
●
Missing barriers
●
Rule update
●
Fixed size /8 table

25. PCI passthrough
●
I/O TLB size
– Hypervisor uses IOMMU to map guest
– IOMMU has small TLB cache
– Guest I/O exceeds TLB
●
Solution
– 1G hugepage on host KVM
– Put Guest in huge pages
– Only on KVM – requires manual configuration

26. DPDK Issues
●
Static configuration
– Features
– CPU architecture
– Table sizes
●
Machine specific initialization
– # of Cores, Memory Channels
●
Poor device model
– Works for Intel E1000 like devices

27. Conclusion
●
DPDK can be used to build fast router
– 12M pps per core
●
Lots of ways to go slow
– Fewer ways to go fast

28. Q & A

29. Thank you
Stephen Hemminger
stephen@networkplumber.org
@networkplumber
