1. Cilium - Network security for
microservices. Let's see how it works with
Istio.
by Stanislav Kolenkin

2. Introduction
2
BPF - Next Generation Datapath
• Replaces iptables, fast, flexible, powerful
• Packet, API, process visibility
Cloud Native security
• Identity-based
• API & DNS Aware
Servicemesh Integration
• Uses Envoy and co-operates with Istio
• Secures and accelerates sidecar proxies
Multi cluster and Multi Cloud
• Connects multiple clusters across providers

3. BPF
3

4. BPF
4

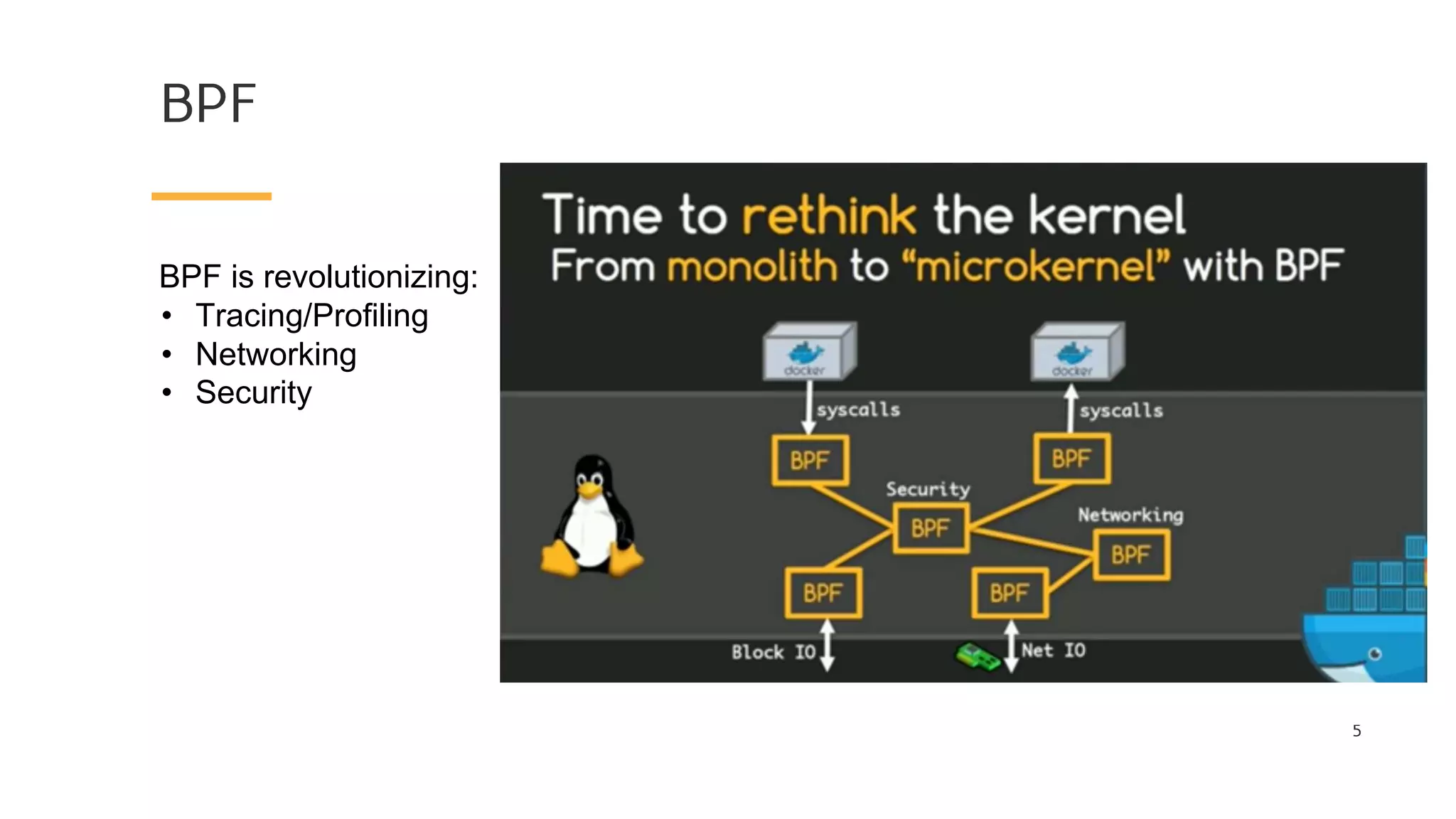

5. BPF

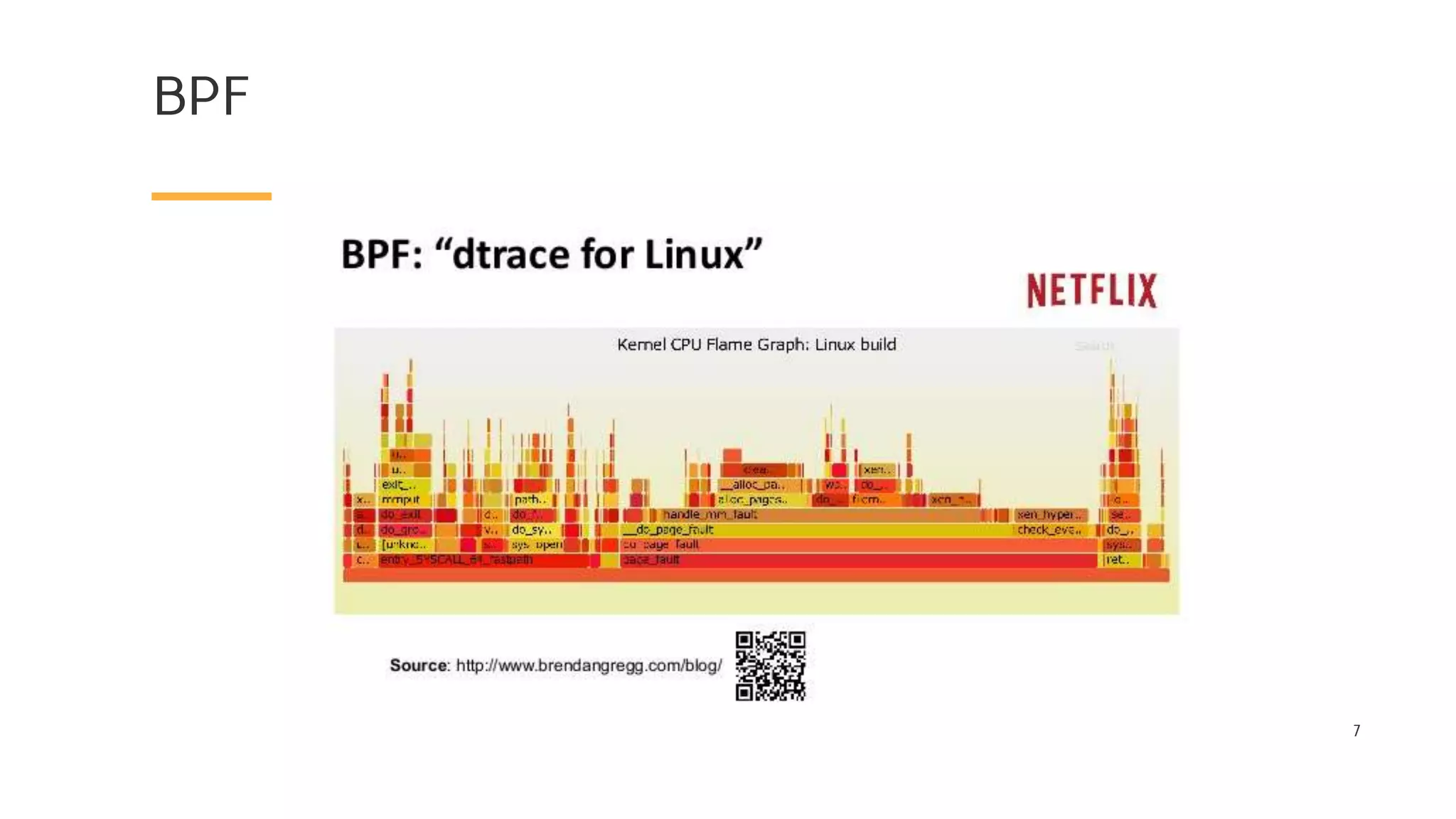

BPF is revolutionizing:
• Tracing/Profiling
• Networking
• Security
5

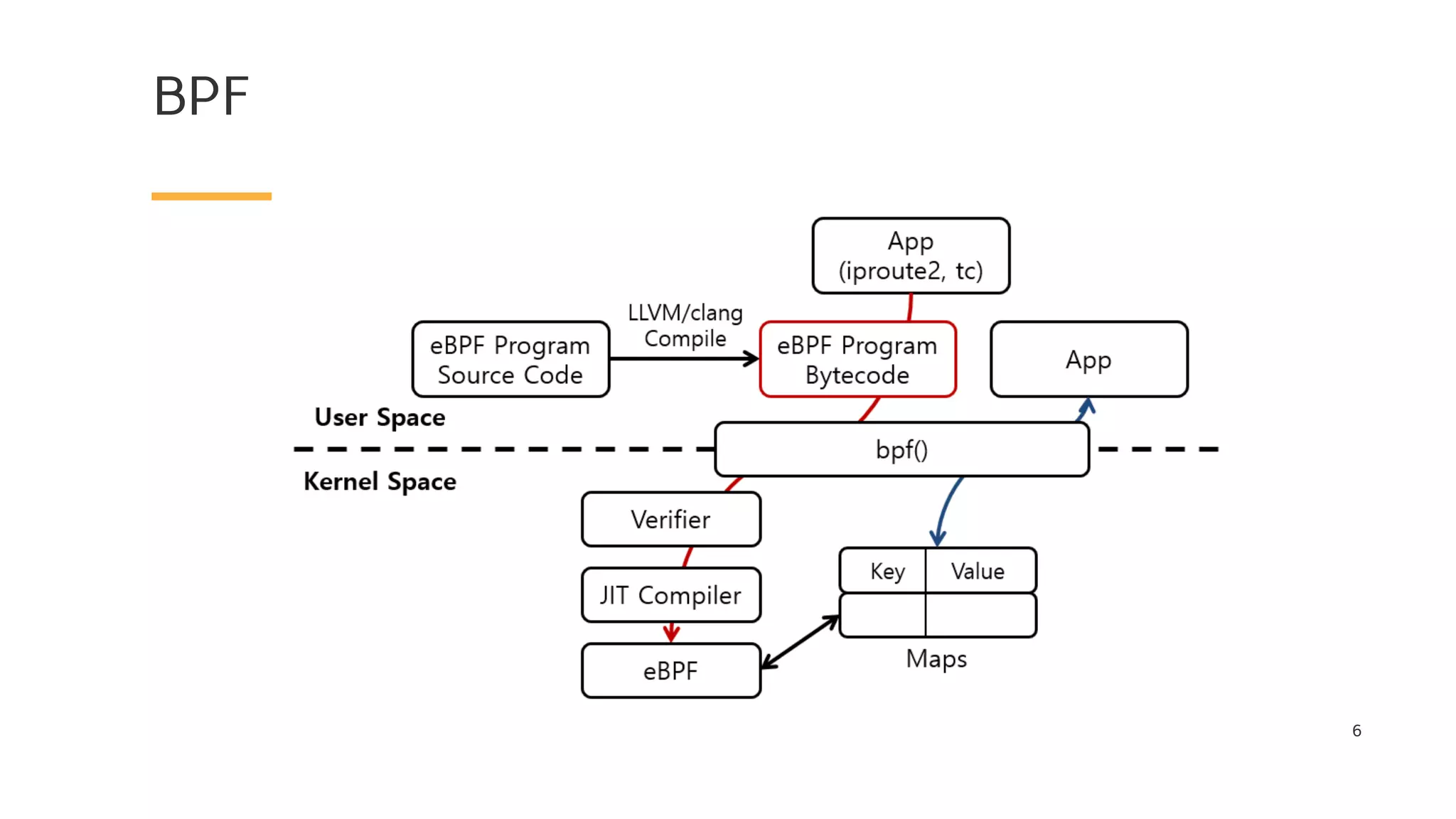

6. BPF
6

7. BPF
7

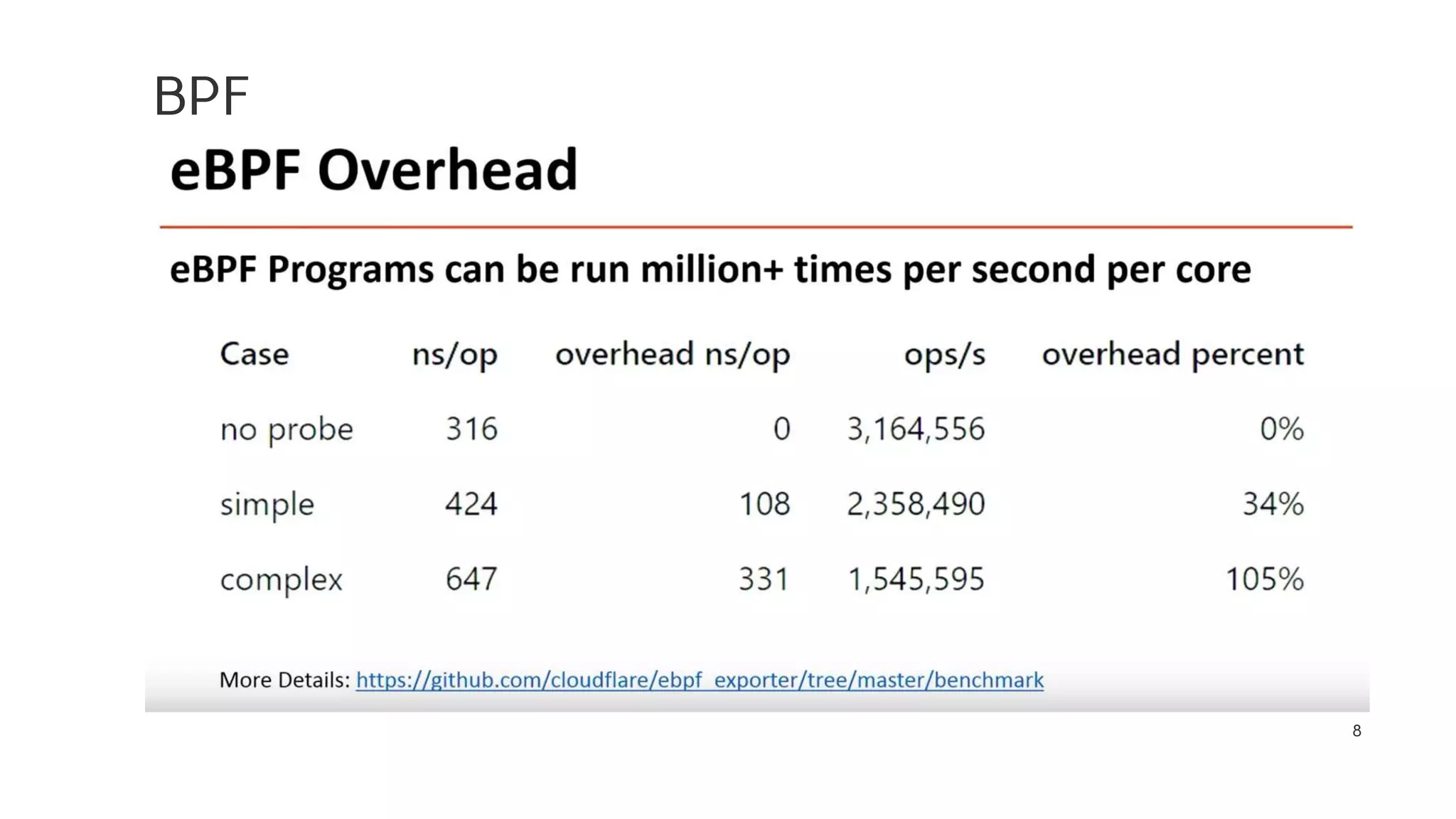

8. BPF
8

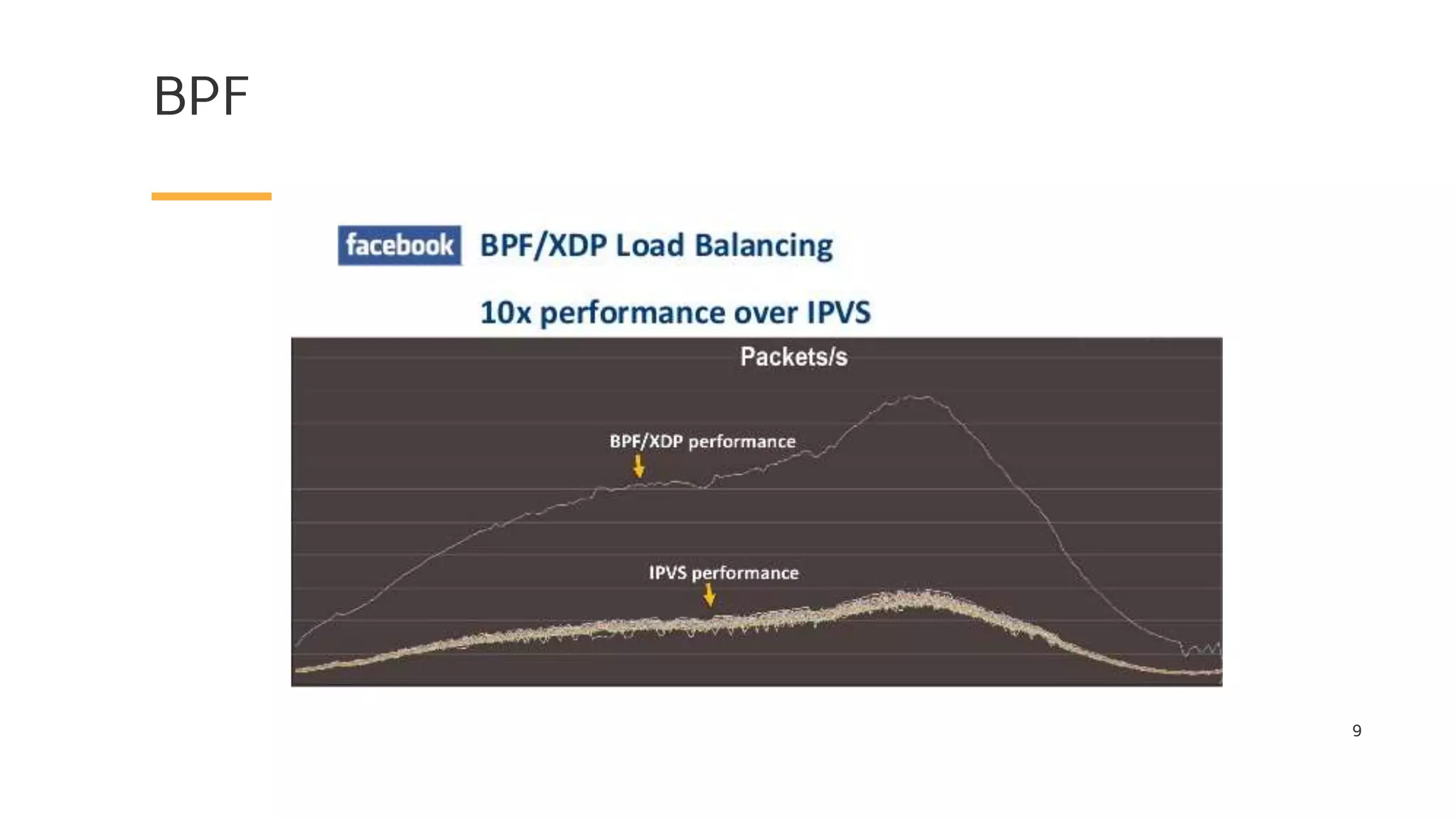

9. BPF
9

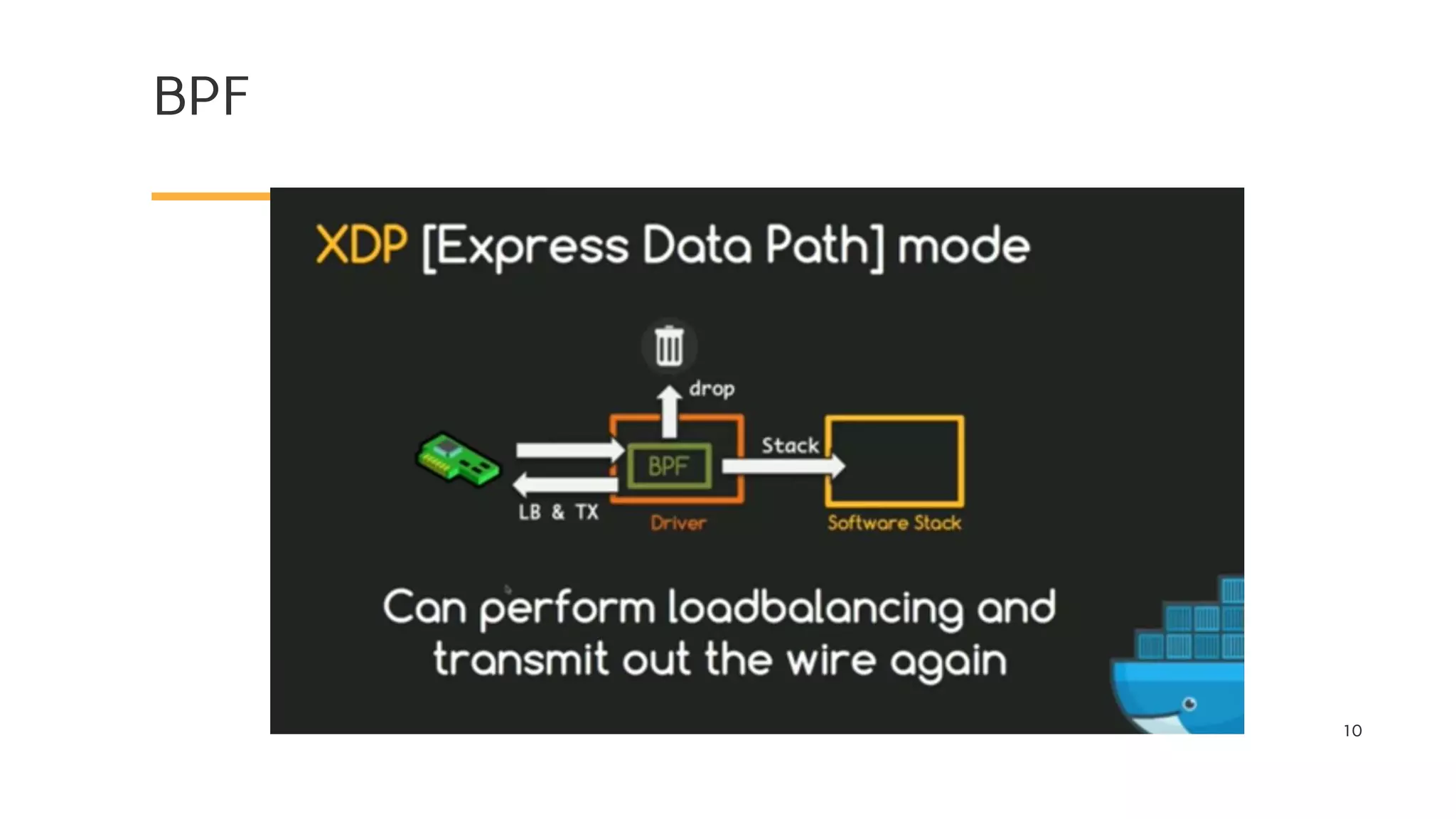

10. BPF
10

11. BPF
11

12. 12

13. BPF
13

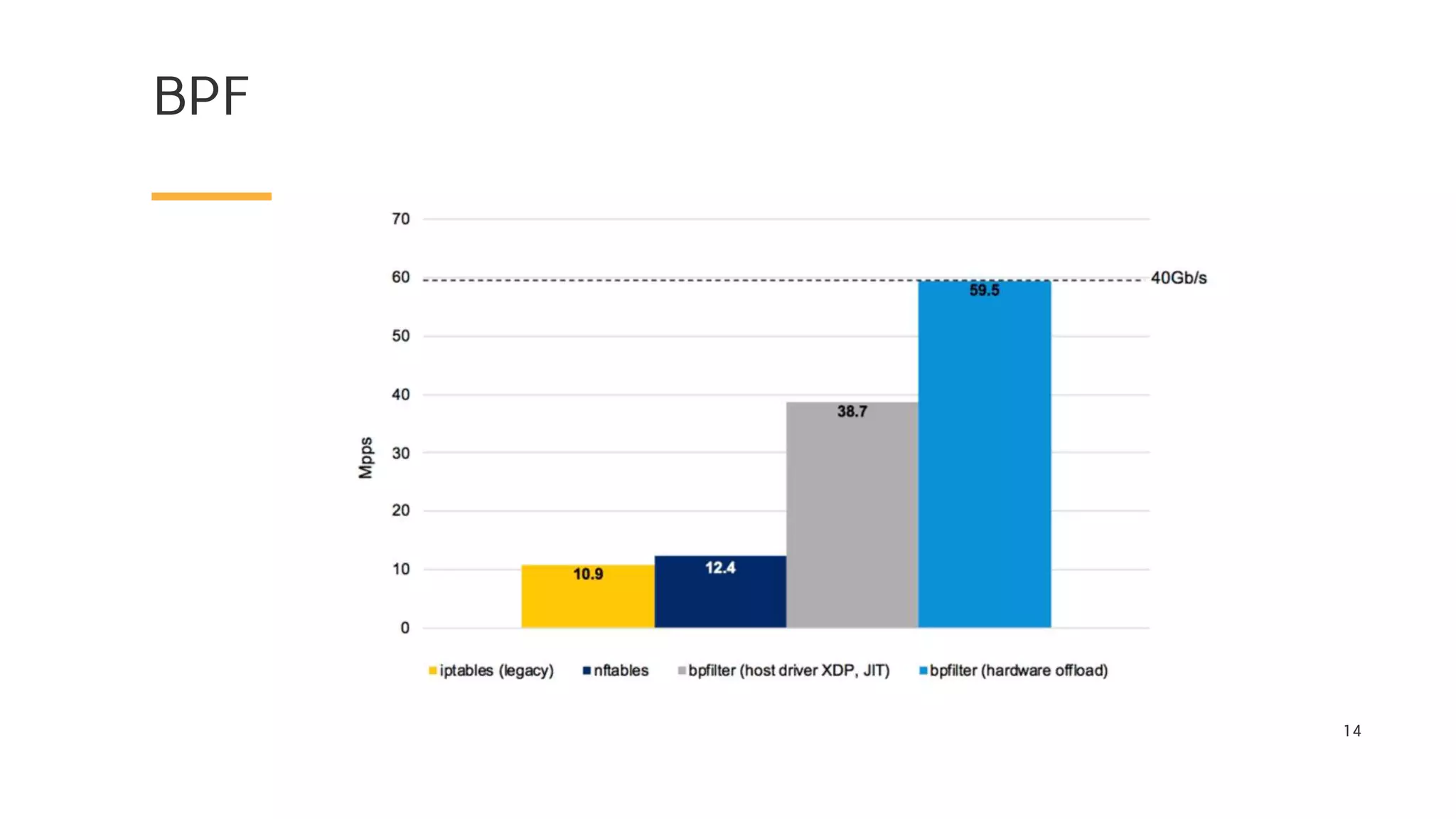

14. BPF
14

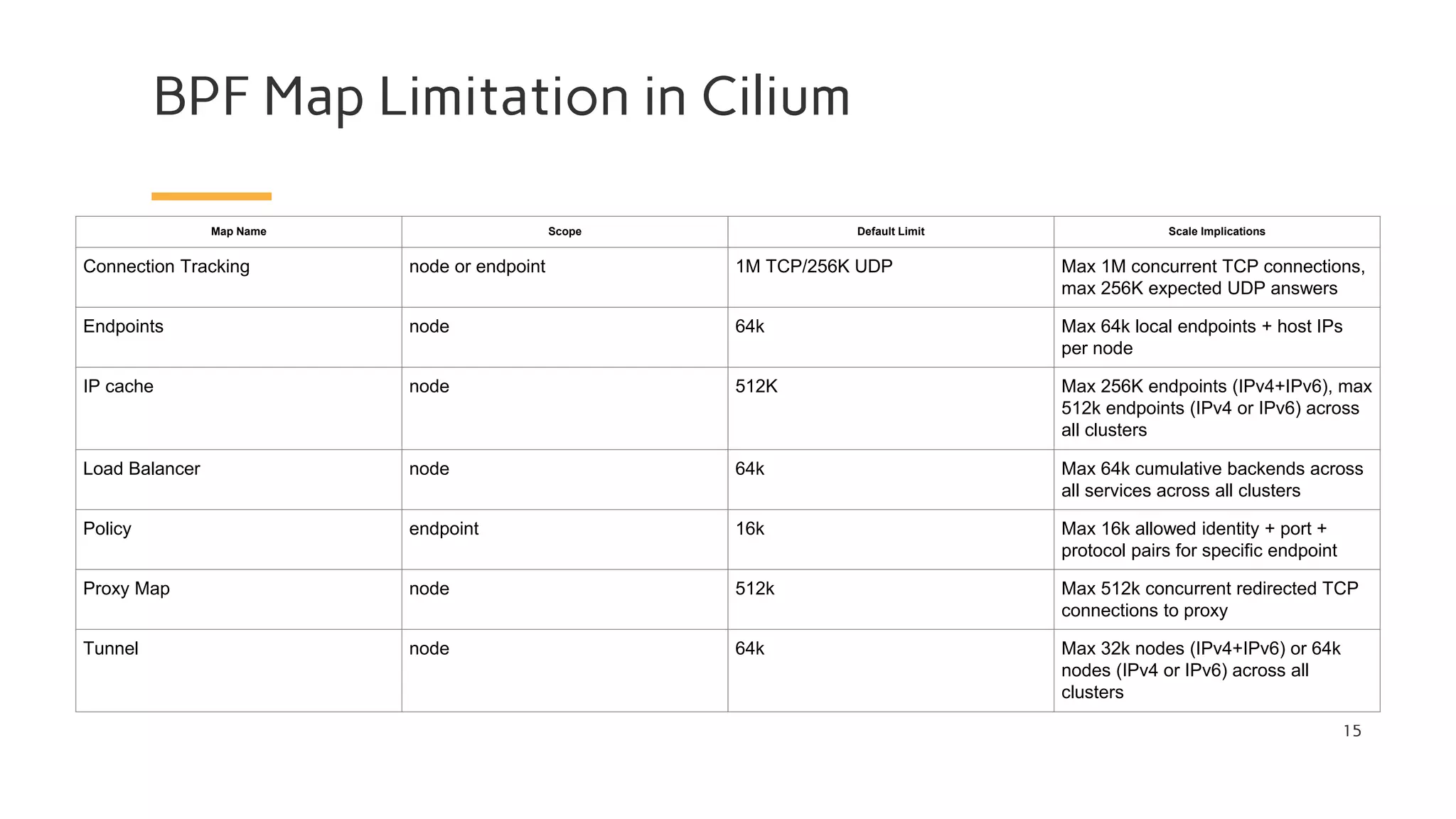

15. BPF Map Limitation in Cilium
15
Map Name Scope Default Limit Scale Implications
Connection Tracking node or endpoint 1M TCP/256K UDP Max 1M concurrent TCP connections,
max 256K expected UDP answers
Endpoints node 64k Max 64k local endpoints + host IPs
per node
IP cache node 512K Max 256K endpoints (IPv4+IPv6), max
512k endpoints (IPv4 or IPv6) across
all clusters
Load Balancer node 64k Max 64k cumulative backends across
all services across all clusters
Policy endpoint 16k Max 16k allowed identity + port +
protocol pairs for specific endpoint
Proxy Map node 512k Max 512k concurrent redirected TCP
connections to proxy
Tunnel node 64k Max 32k nodes (IPv4+IPv6) or 64k
nodes (IPv4 or IPv6) across all
clusters

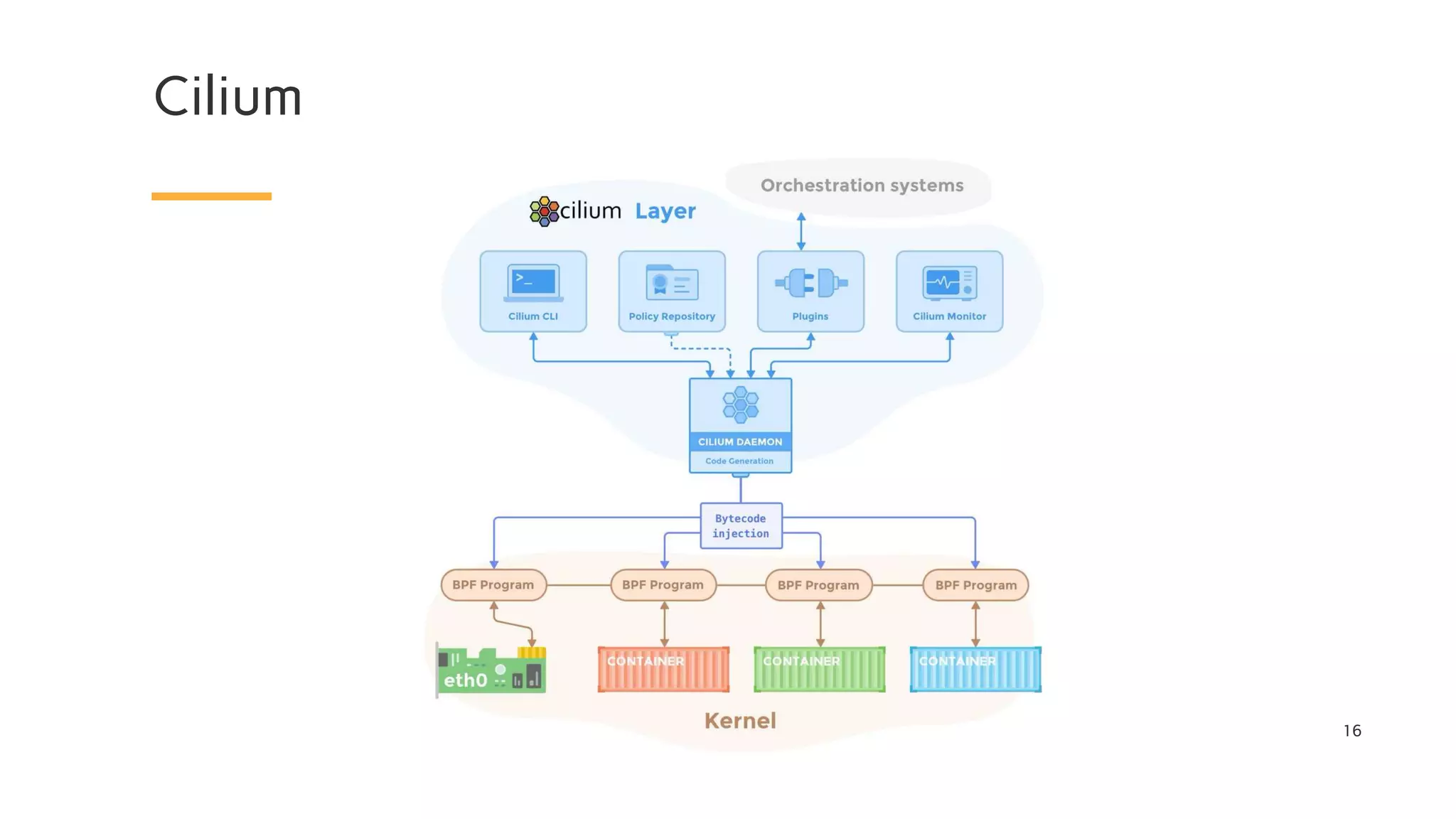

16. Cilium
16

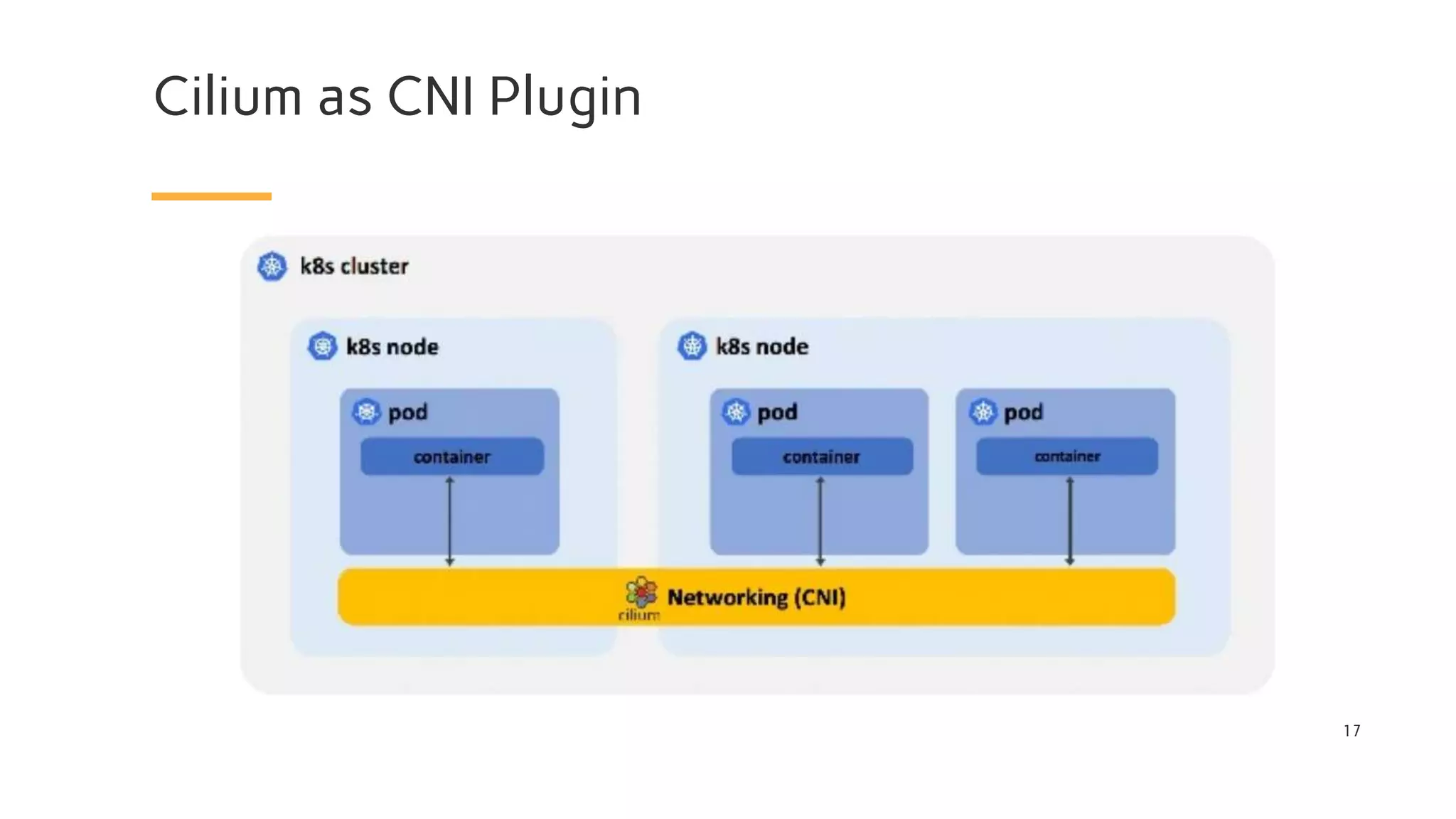

17. Cilium as CNI Plugin
17

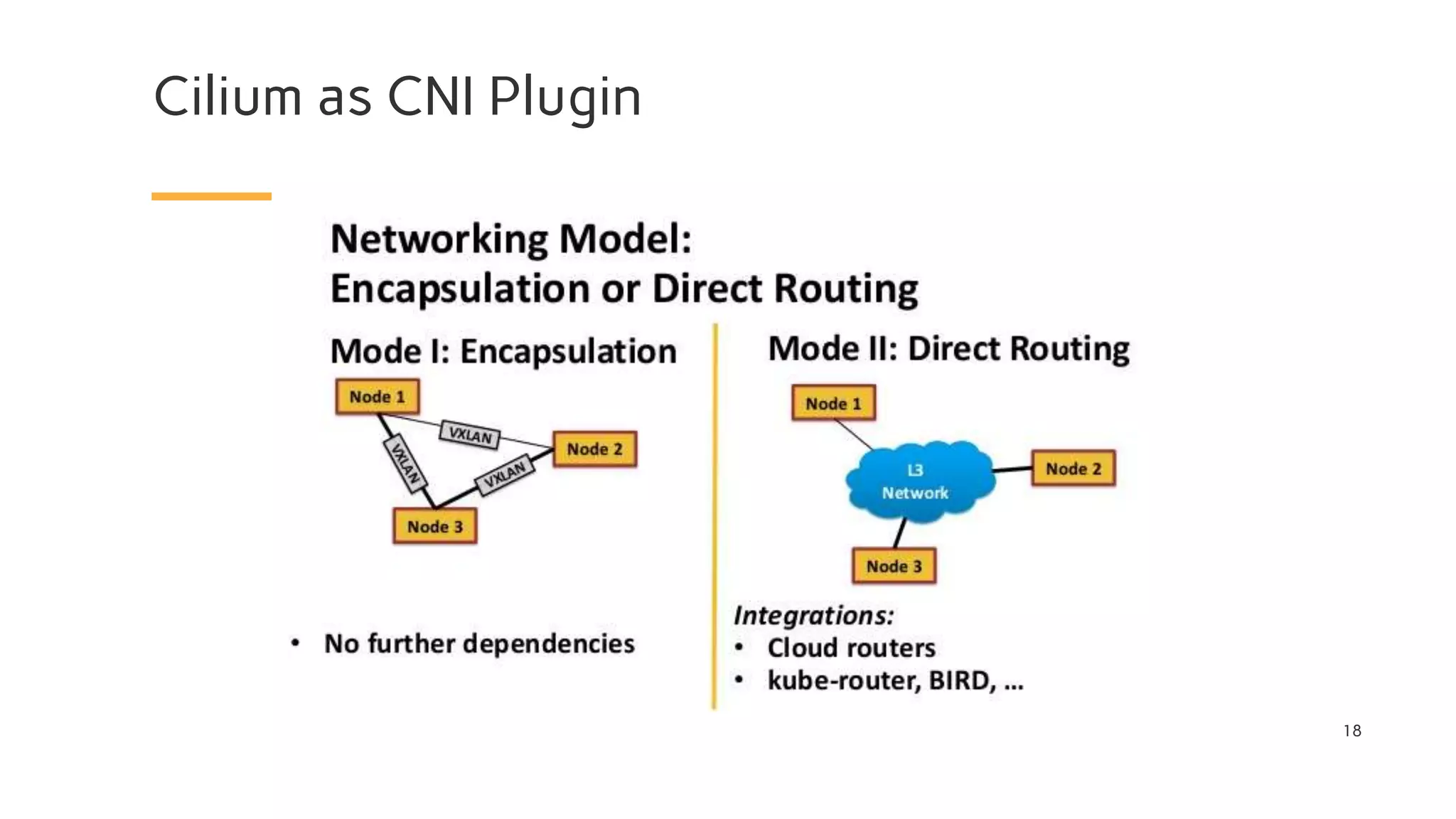

18. Cilium as CNI Plugin
18

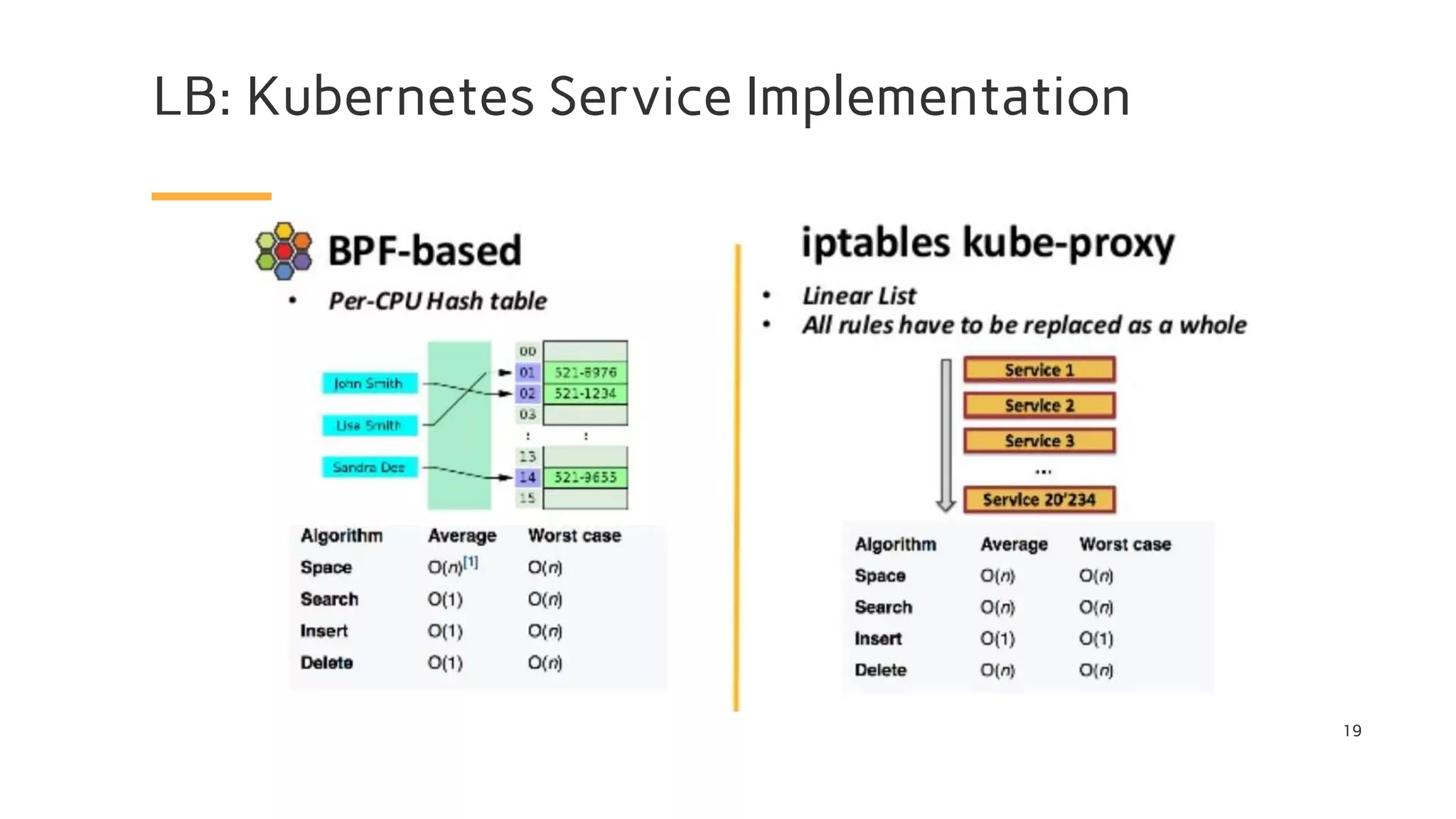

19. LB: Kubernetes Service Implementation
19

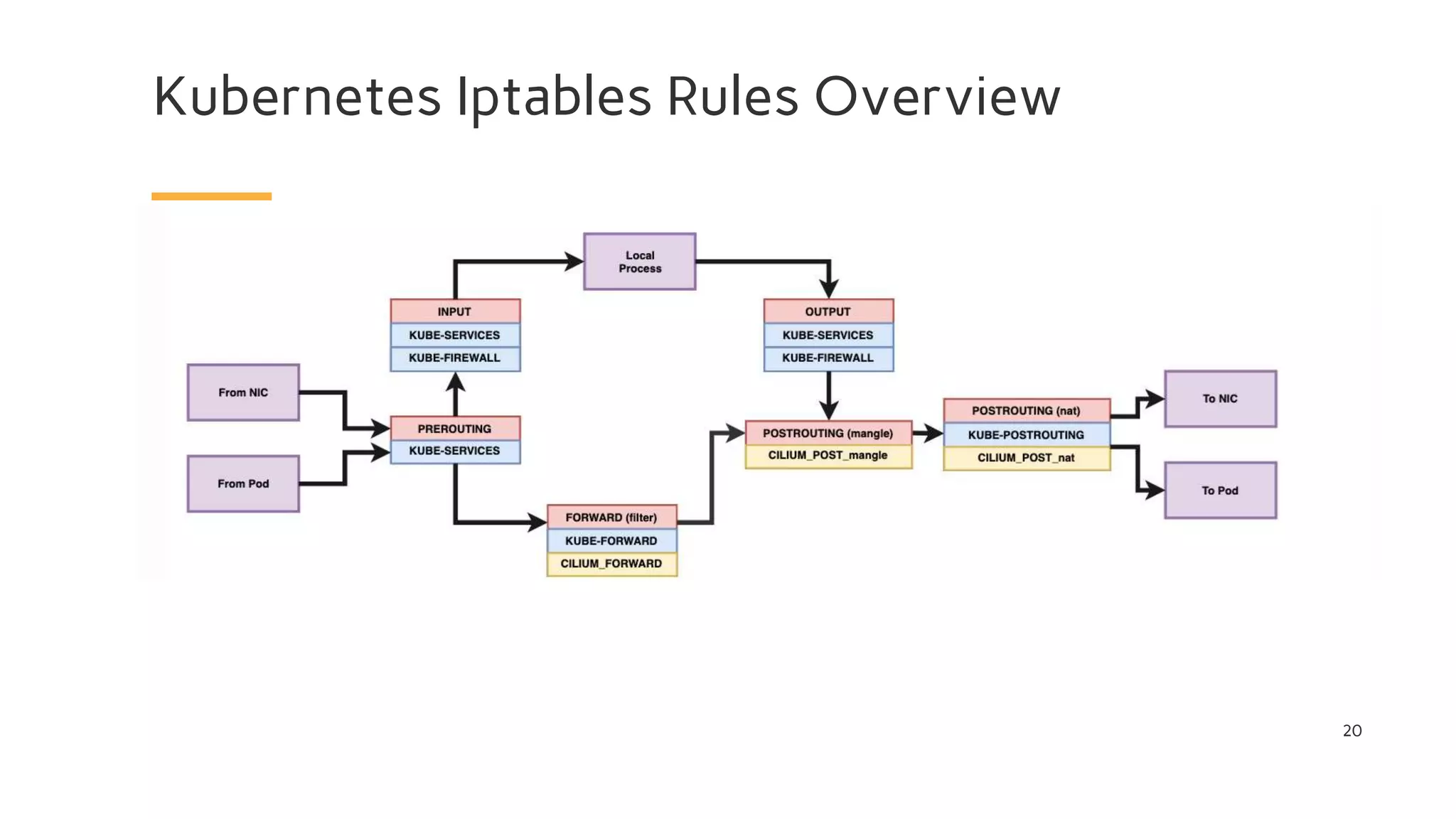

20. Kubernetes Iptables Rules Overview
20

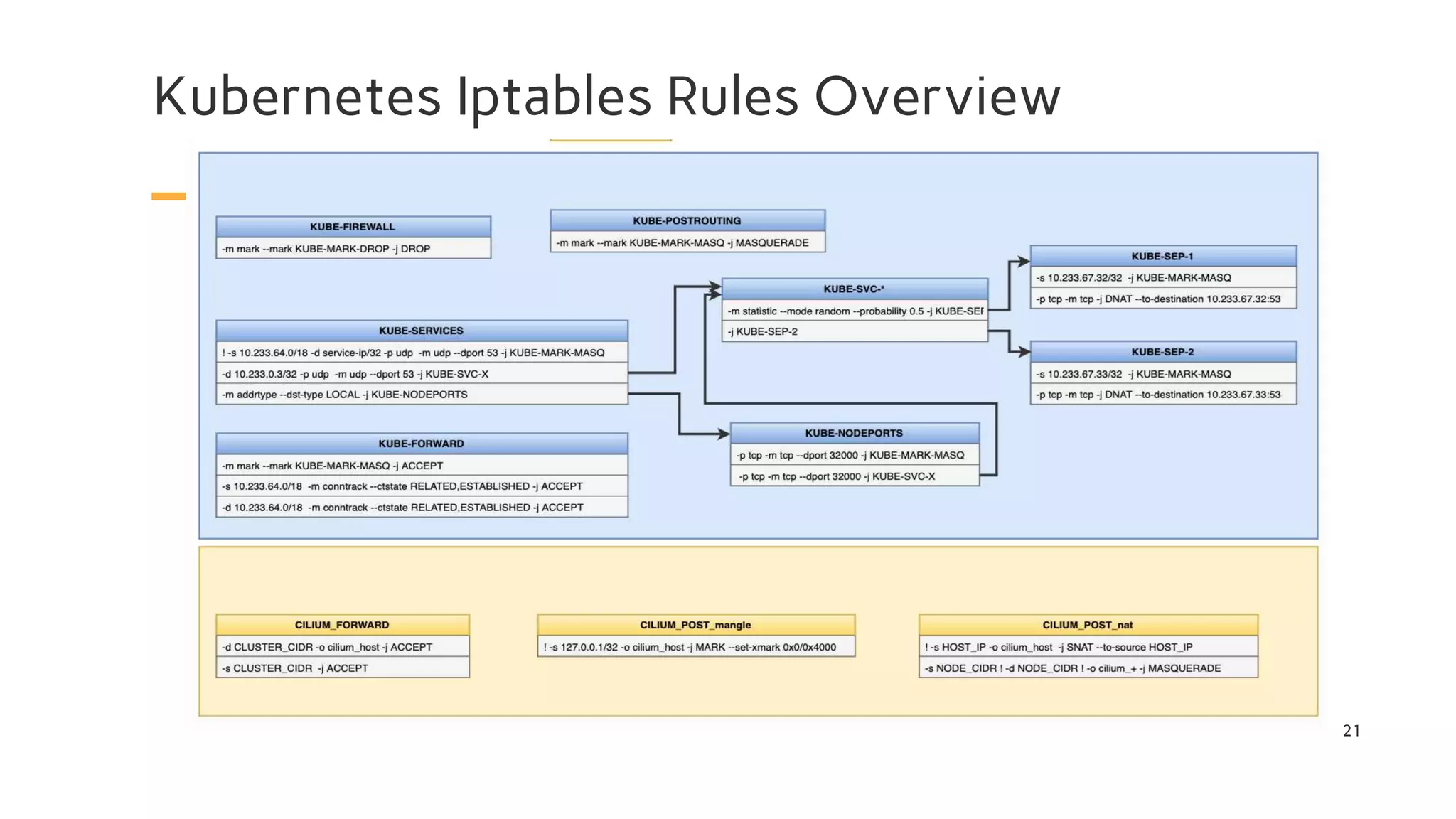

21. Kubernetes Iptables Rules Overview
21

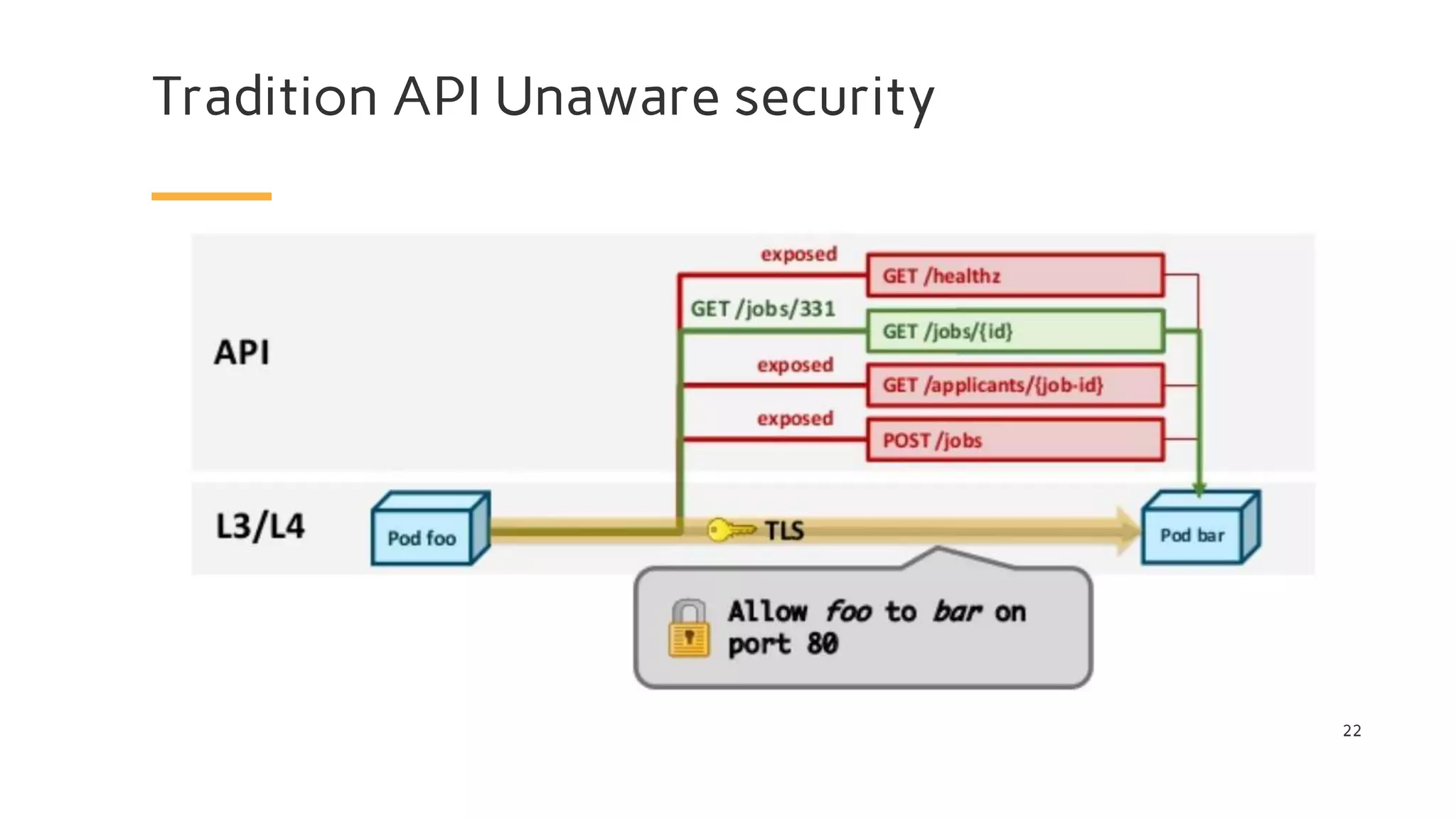

22. Tradition API Unaware security
22

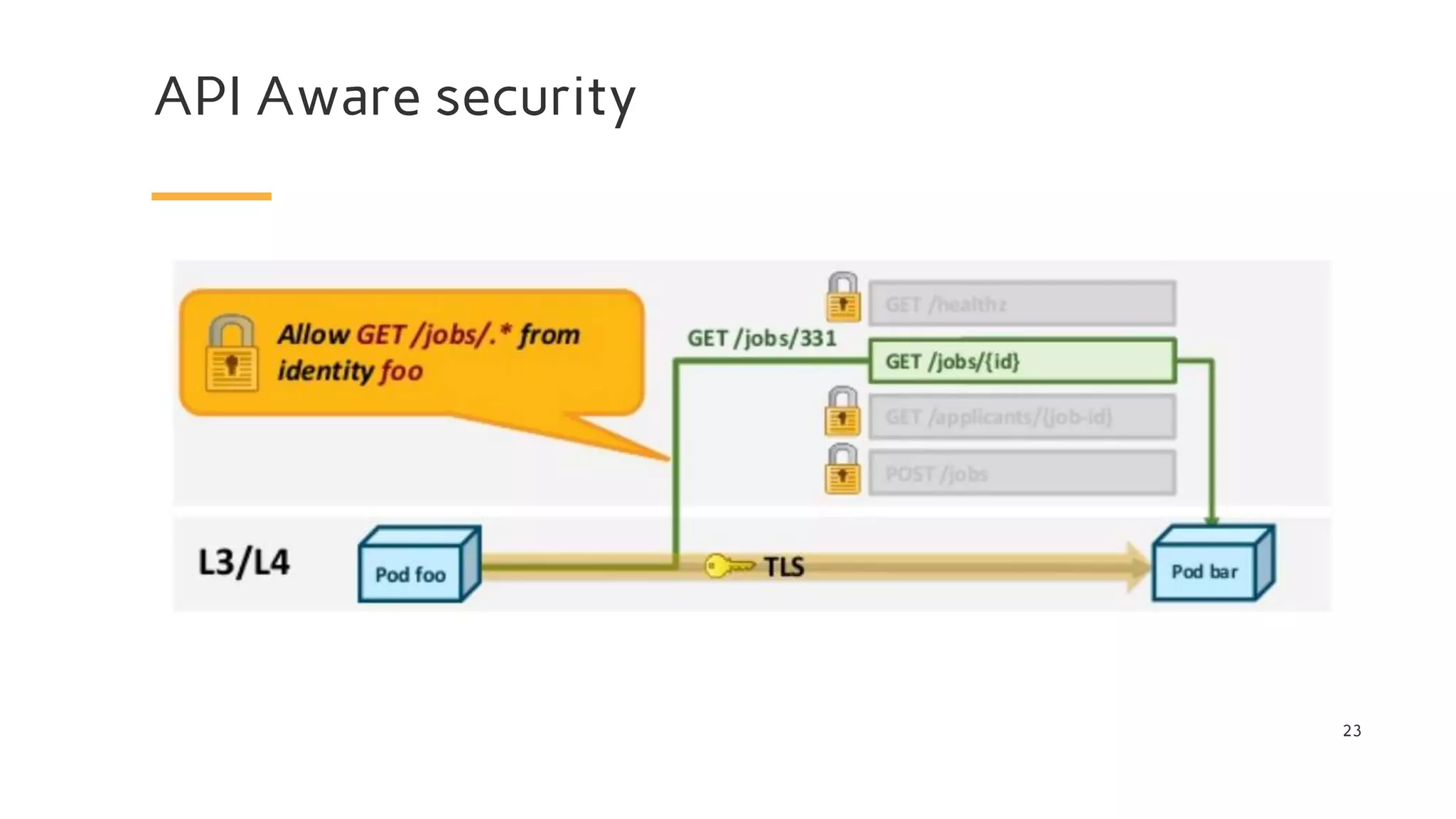

23. API Aware security
23

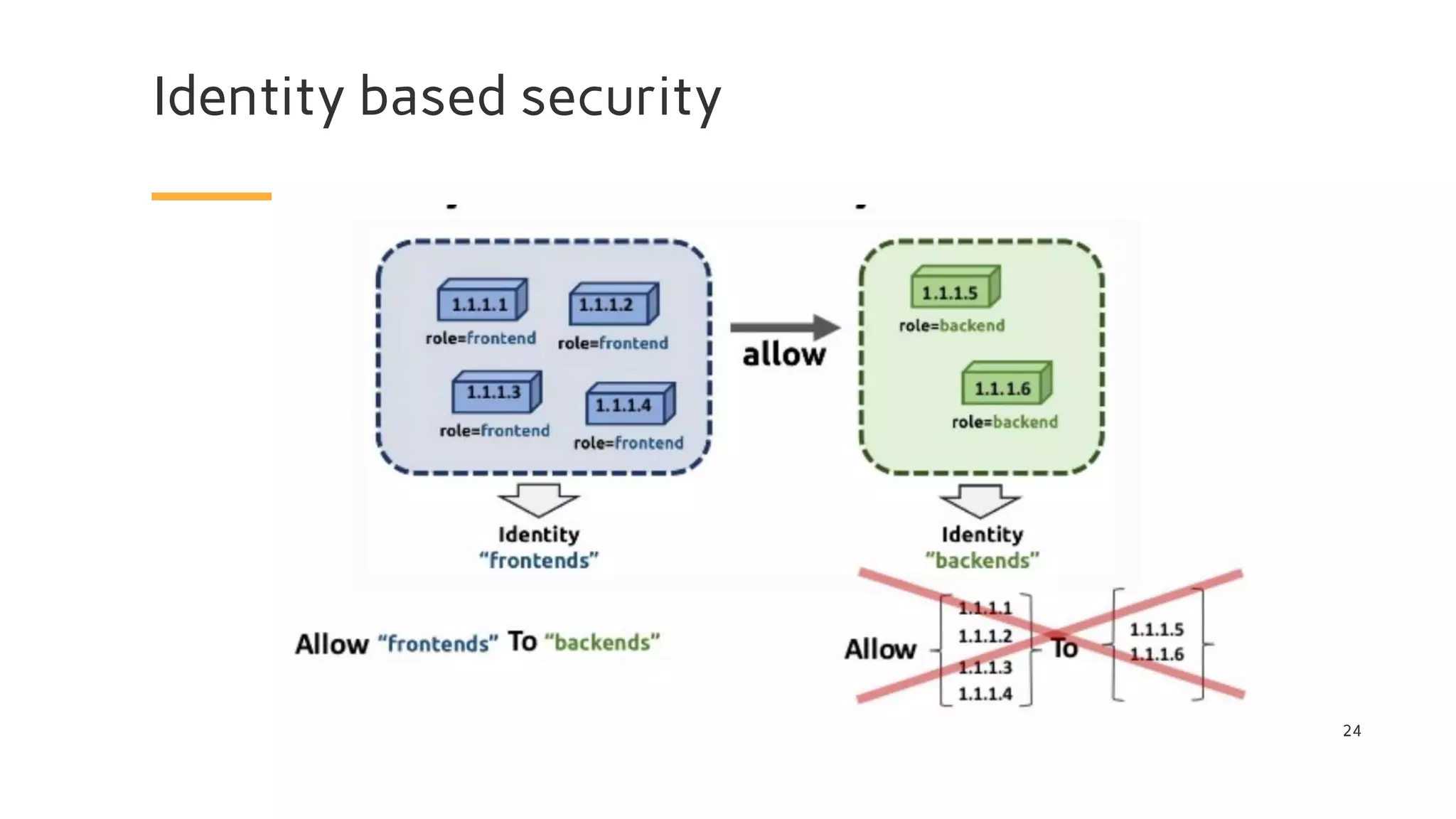

24. Identity based security
24

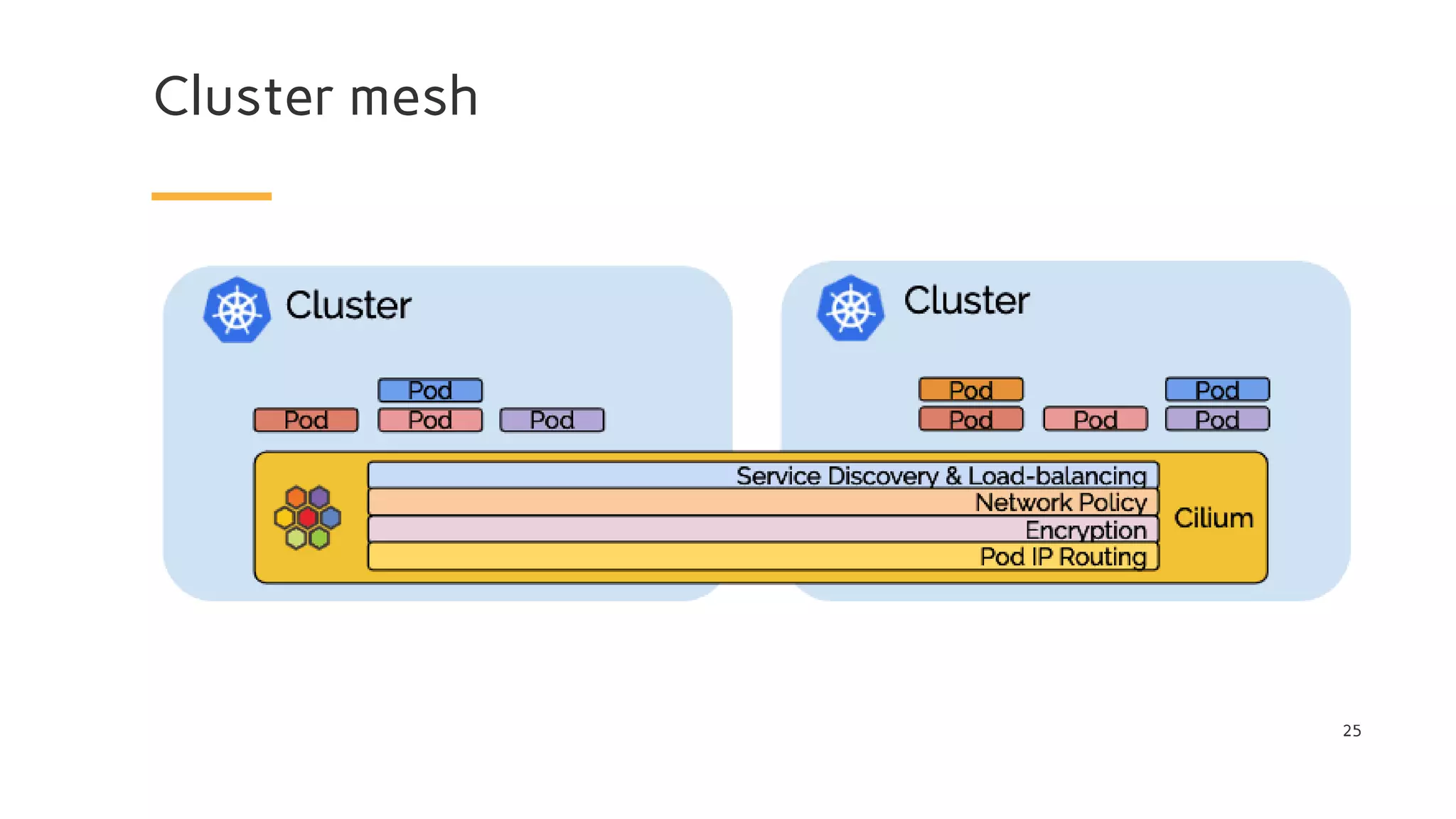

25. Cluster mesh
25

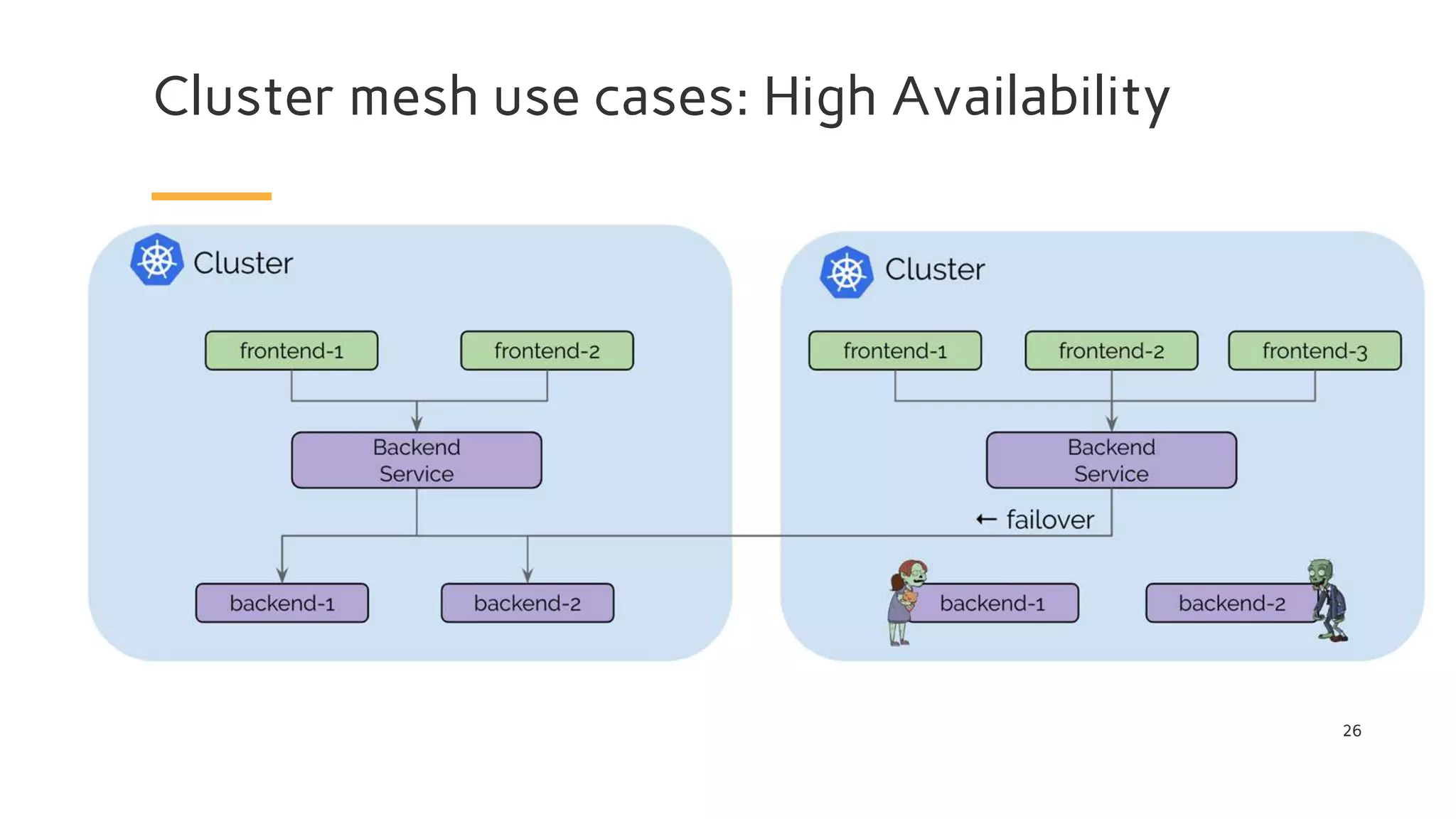

26. Cluster mesh use cases: High Availability
26

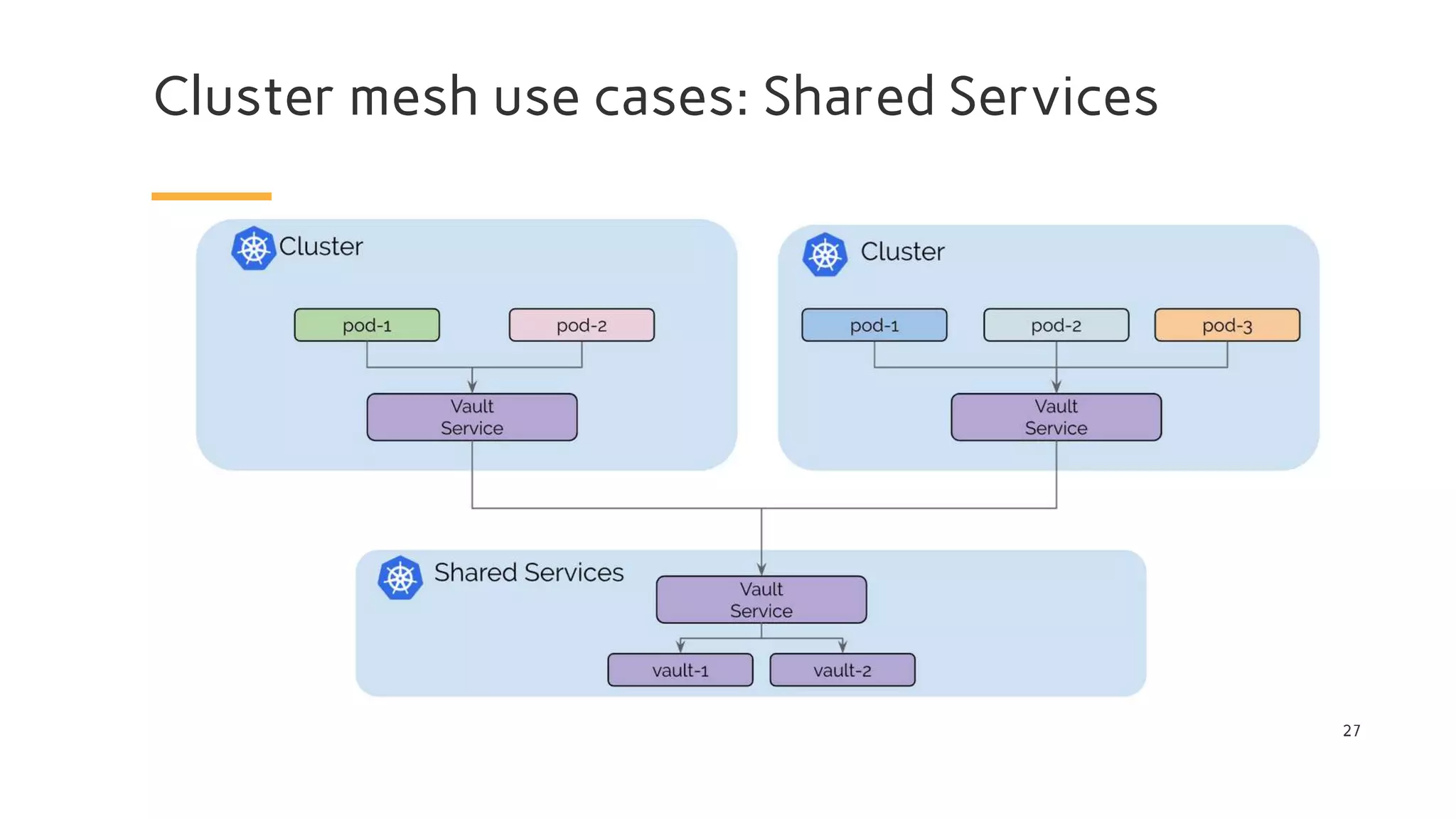

27. Cluster mesh use cases: Shared Services
27

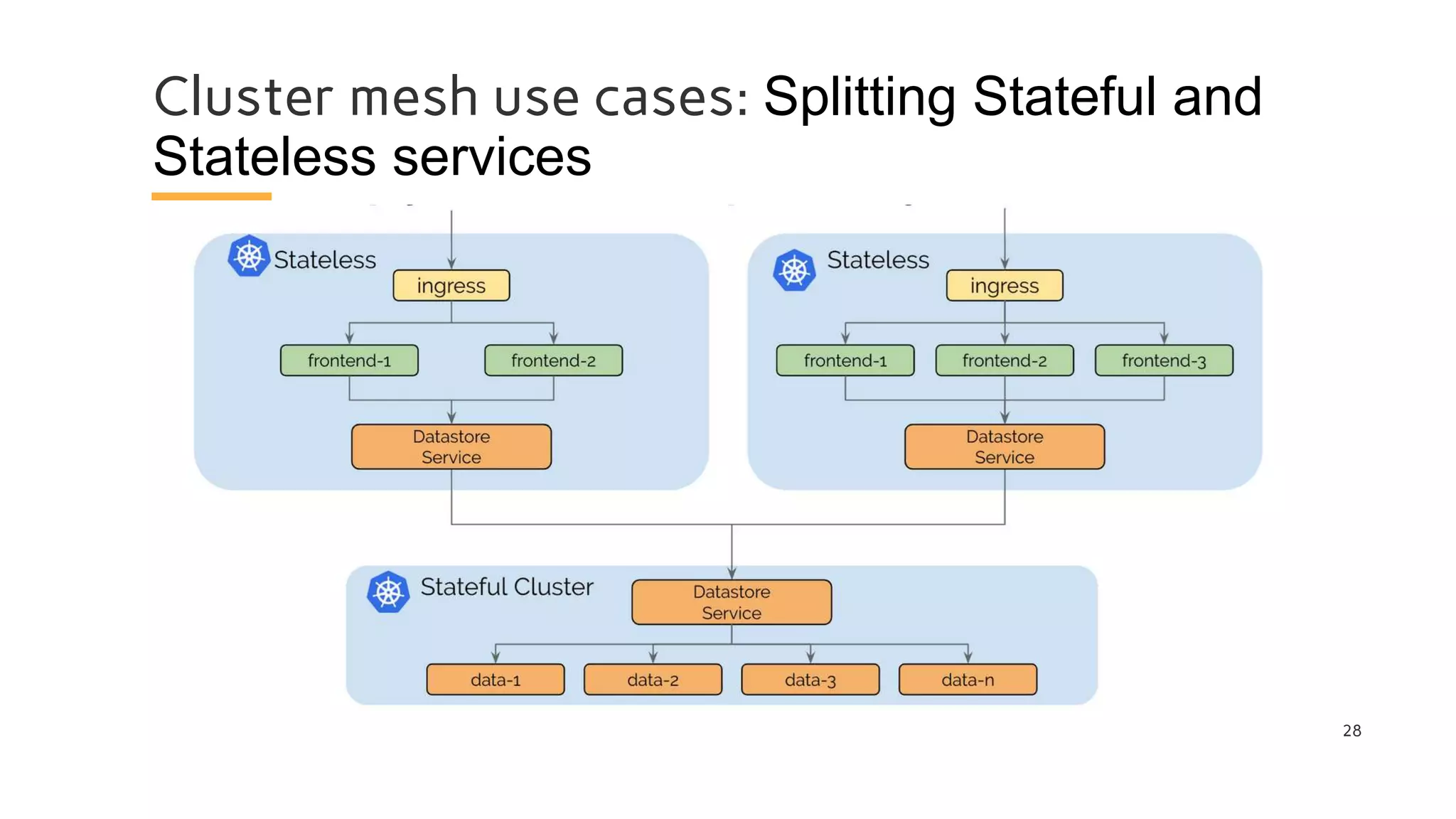

28. Cluster mesh use cases: Splitting Stateful and
Stateless services
28

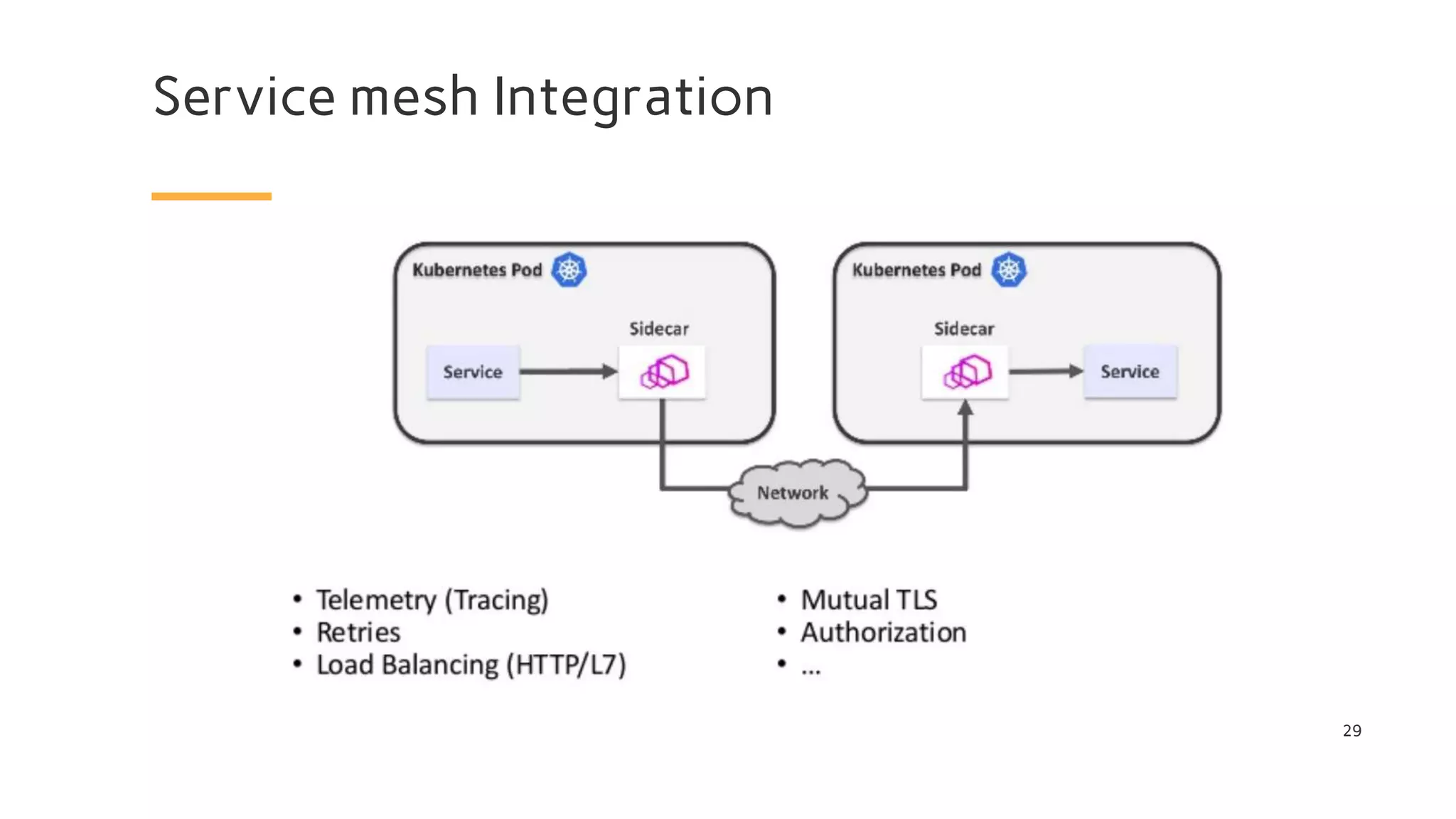

29. Service mesh Integration
29

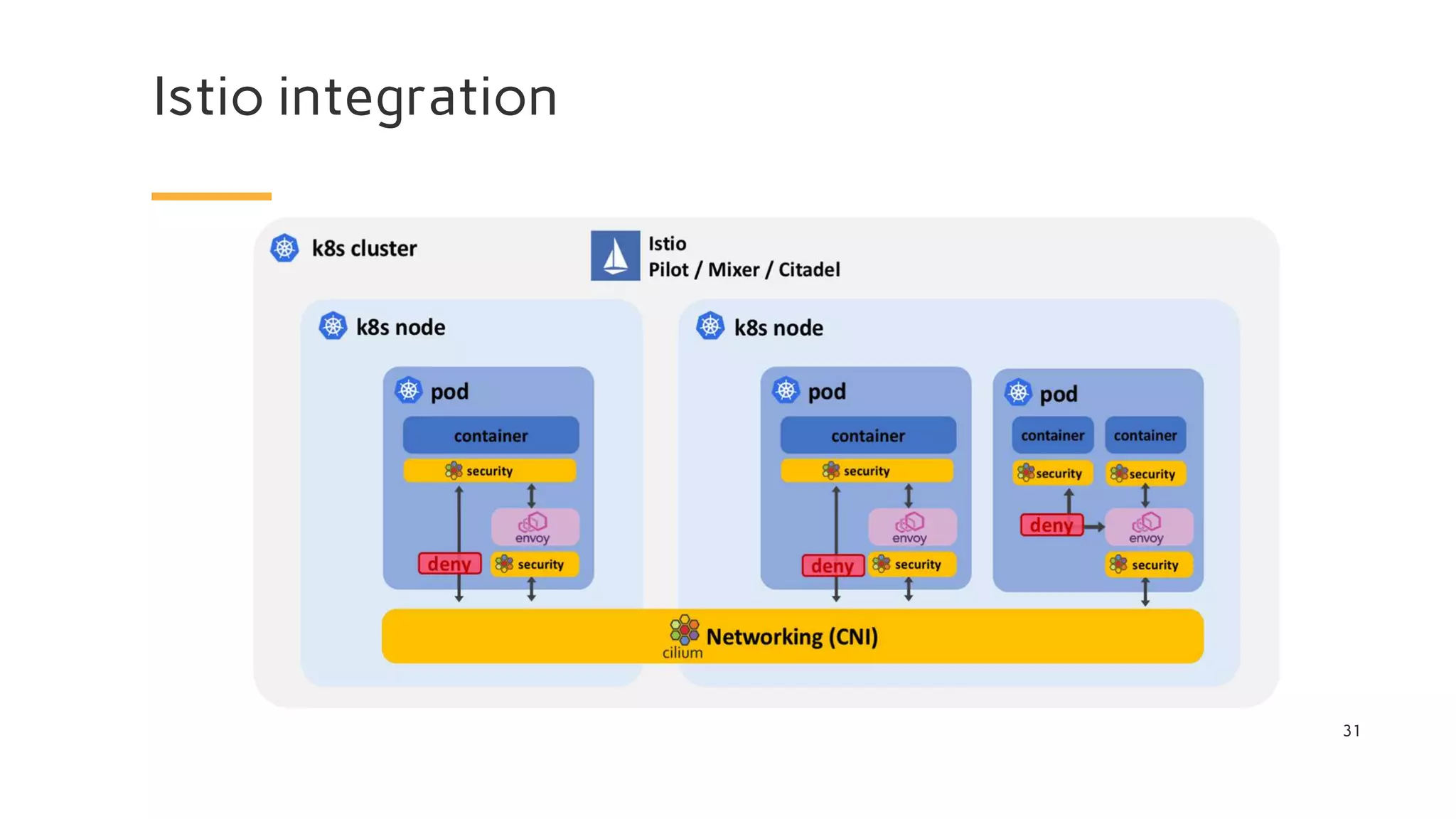

30. Istio integration
31

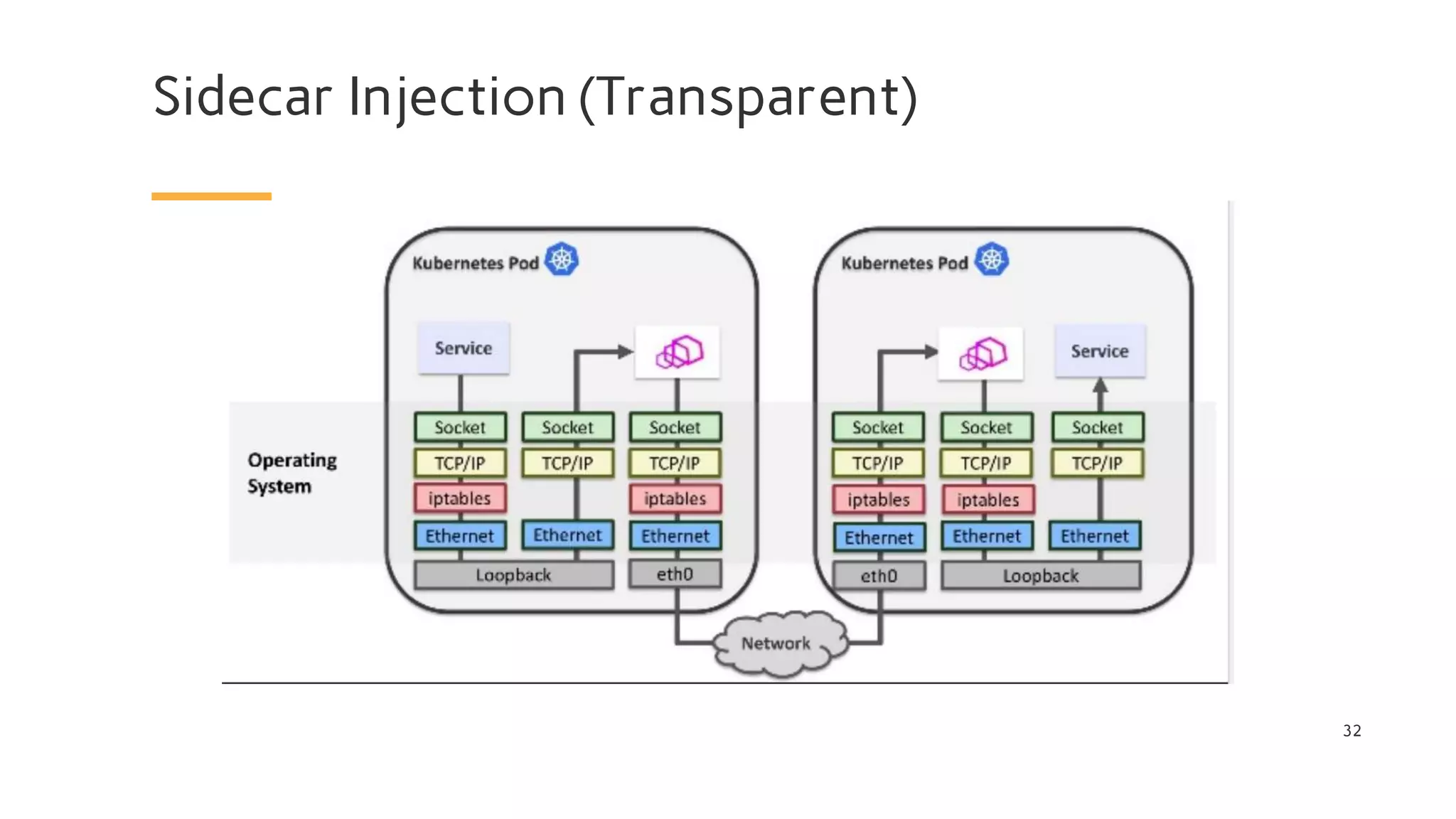

31. Sidecar Injection (Transparent)
32

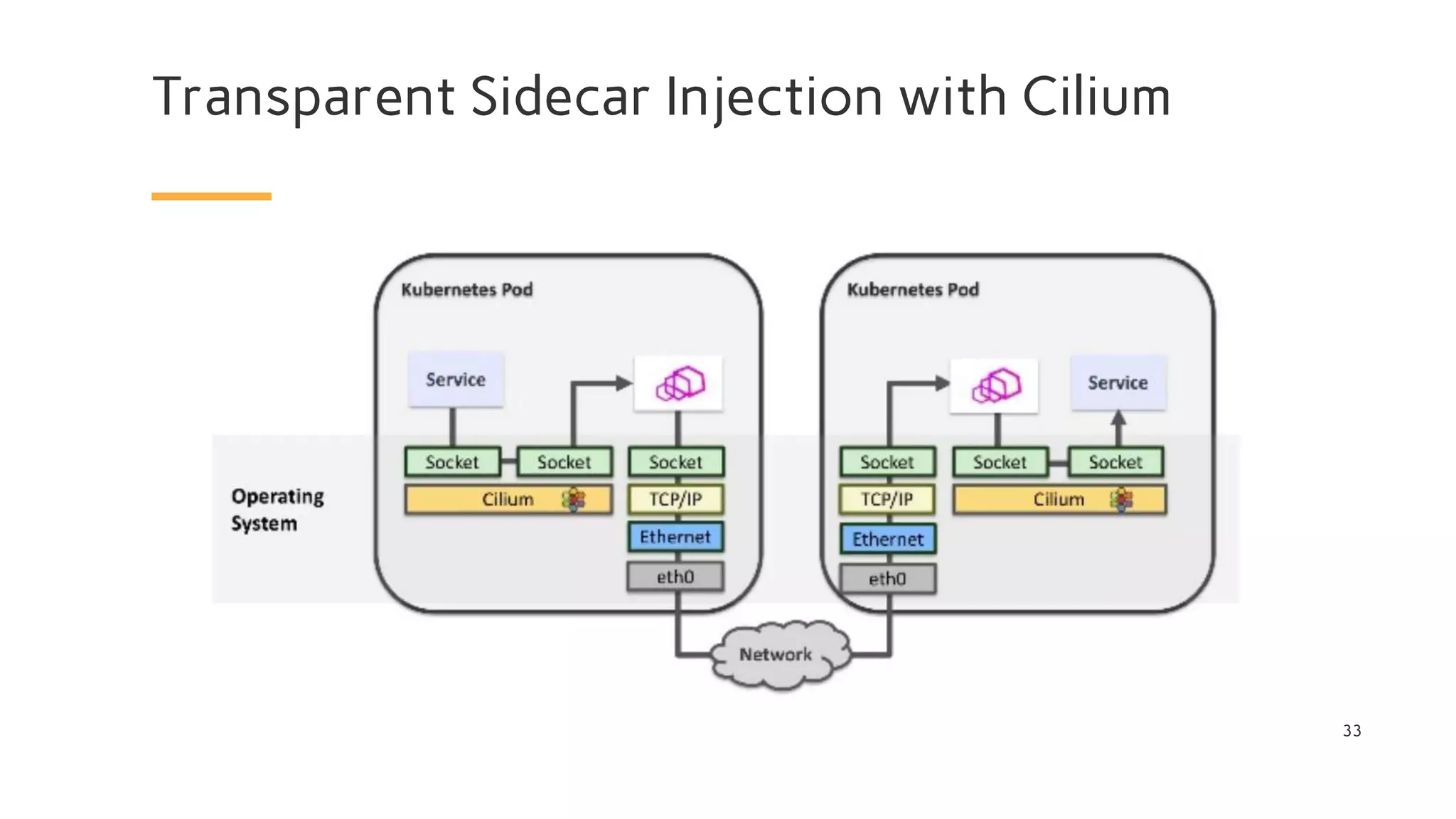

32. Transparent Sidecar Injection with Cilium
33

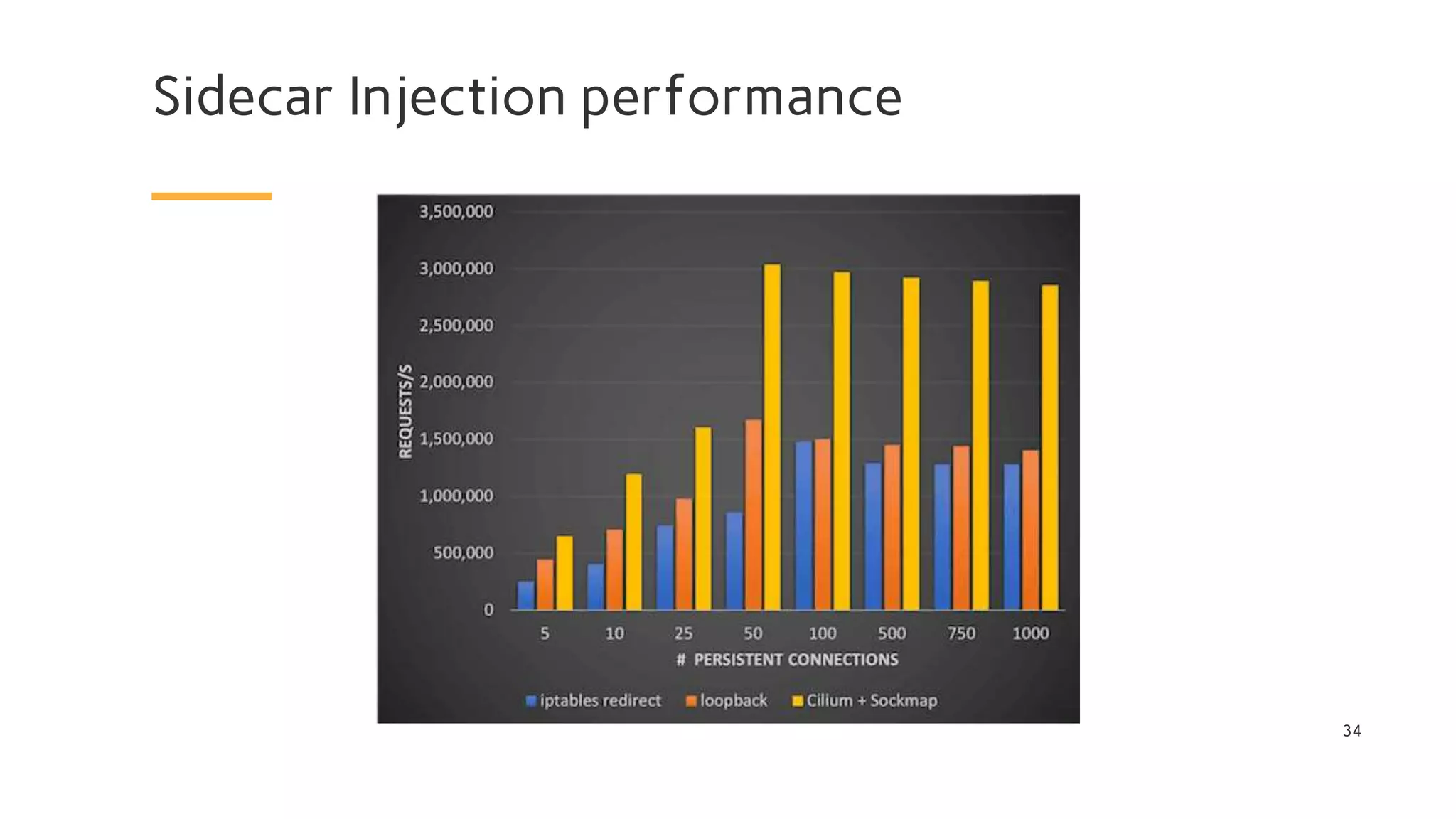

33. Sidecar Injection performance
34

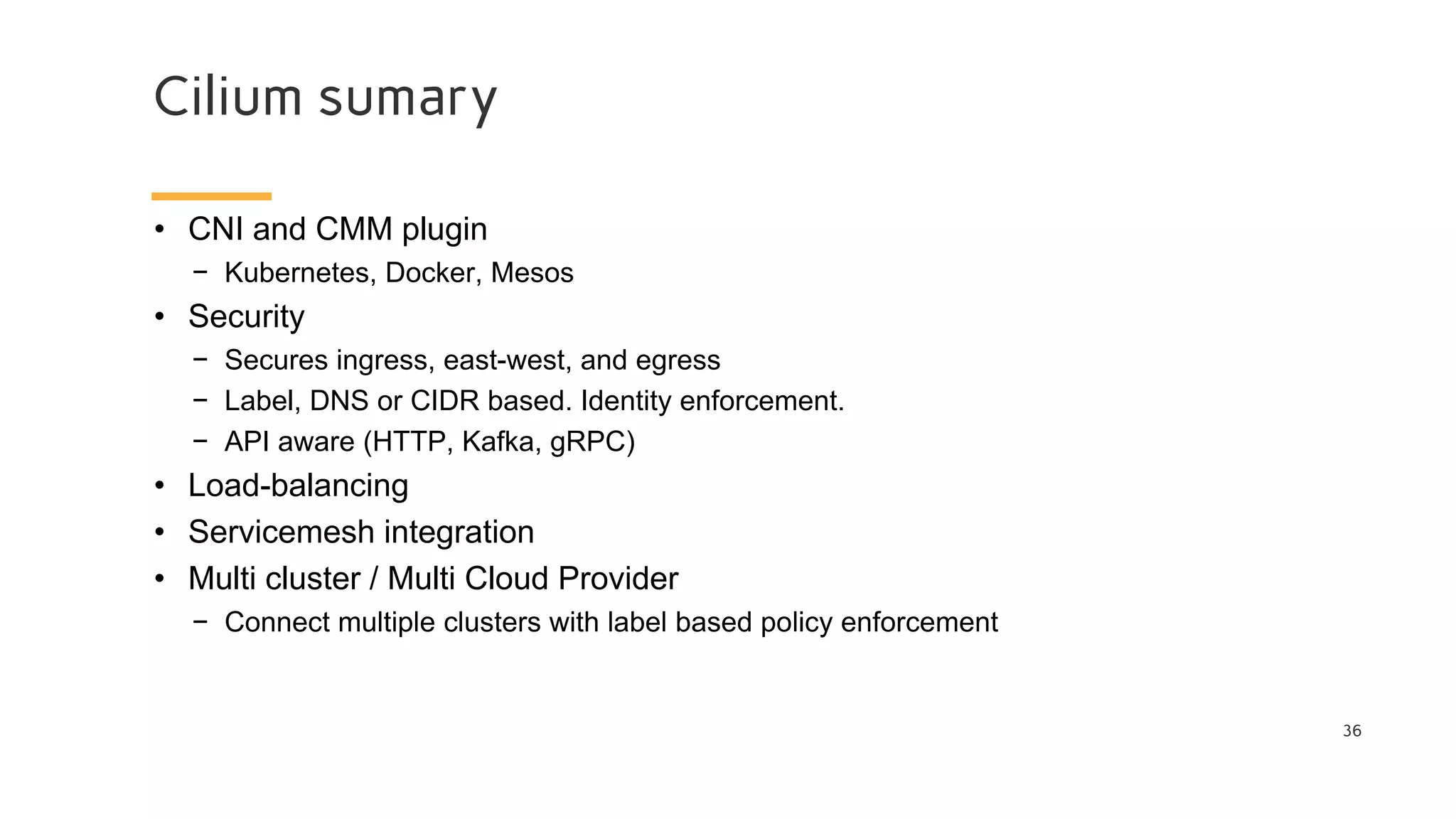

34. Cilium sumary
36
• CNI and CMM plugin
− Kubernetes, Docker, Mesos
• Security
− Secures ingress, east-west, and egress
− Label, DNS or CIDR based. Identity enforcement.
− API aware (HTTP, Kafka, gRPC)
• Load-balancing
• Servicemesh integration
• Multi cluster / Multi Cloud Provider
− Connect multiple clusters with label based policy enforcement

35. Thank you for your attention!
Questions?

36. CONTACTS:
