Abb motors price_list

This document provides pricing and specifications for TEFC squirrel cage motors. It lists various motor models in a table with their prices and export duties. The motors conform to certain standards and are suitable for ambient temperatures up to 50 degrees Celsius. The document also introduces a new line of M2000 energy efficient motors that meet additional efficiency standards.

Embed presentation

Downloaded 424 times
FRSM-57 Effective from 02-04-2011 (Superseding FRSM-56 dated 03-01-2011)

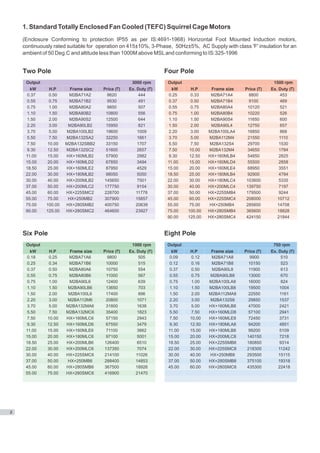

1. Standard Totally Enclosed Fan Cooled (TEFC) Squirrel Cage Motors (Enclosure Conforming to protection IP55 as per IS:4691-1968) Horizontal Foot Mounted Induction motors, continuously rated suitable for operation on 415±10%, 3-Phase, 50Hz±5%, AC Supply with class 'F' insulation for an ambient of 50 Deg.C and altitude less than 1000M above MSL and conforming to IS:325-1996 Price (`) Ex. Duty (`) Price (`) Ex. Duty (`) 0.37 0.50 M2BA71A2 8620 444 0.25 0.33 M2BA71A4 8800 453 0.55 0.75 M2BA71B2 9530 491 0.37 0.50 M2BA71B4 9100 469 0.75 1.00 M2BA80A2 9850 507 0.55 0.75 M2BA80A4 10120 521 1.10 1.50 M2BA80B2 10800 556 0.75 1.00 M2BA80B4 10220 526 1.50 2.00 M2BA90S2 12500 644 1.10 1.50 M2BA90S4 11650 600 2.20 3.00 M2BA90LB2 15950 821 1.50 2.00 M2BA90L4 12750 657 3.70 5.00 M2BA100LB2 19600 1009 2.20 3.00 M2BA100LA4 16850 868 5.50 7.50 M2BA132SA2 32250 1661 3.70 5.00 M2BA112M4 21550 1110 7.50 10.00 M2BA132SBB2 33150 1707 5.50 7.50 M2BA132S4 29700 1530 9.30 12.50 M2BA132SC2 51600 2657 7.50 10.00 M2BA132M4 34650 1784 11.00 15.00 HX+160MLB2 57900 2982 9.30 12.50 HX+160MLB4 54850 2825 15.00 20.00 HX+160MLD2 67850 3494 11.00 15.00 HX+160MLD4 55500 2858 18.50 25.00 HX+160MLE2 87950 4529 15.00 20.00 HX+160MLE4 68950 3551 22.00 30.00 HX+180MLB2 98050 5050 18.50 25.00 HX+180MLB4 92900 4784 30.00 40.00 HX+200MLB2 145650 7501 22.00 30.00 HX+180MLC4 103600 5335 37.00 50.00 HX+200MLC2 177750 9154 30.00 40.00 HX+200MLC4 139750 7197 45.00 60.00 HX+225SMC2 228700 11778 37.00 50.00 HX+225SMB4 179500 9244 55.00 75.00 HX+250MB2 307900 15857 45.00 60.00 HX+225SMC4 208000 10712 75.00 100.00 HX+280SMB2 400750 20639 55.00 75.00 HX+250MB4 285600 14708 90.00 125.00 HX+280SMC2 464600 23927 75.00 100.00 HX+280SMB4 365600 18828 90.00 125.00 HX+280SMC4 424150 21844 Price (`) Ex. Duty (`) Price (`) Ex. Duty (`) 0.18 0.25 M2BA71A6 9800 505 0.09 0.12 M2BA71A8 9900 510 0.25 0.34 M2BA71B6 10000 515 0.12 0.16 M2BA71B8 10150 523 0.37 0.50 M2BA80A6 10750 554 0.37 0.50 M2BA90L8 11900 613 0.55 0.75 M2BA80B6 11000 567 0.55 0.75 M2BA90LB8 13000 670 0.75 1.00 M2BA90L6 12400 639 0.75 1.00 M2BA100LA8 16000 824 1.10 1.50 M2BA90LB6 13650 703 1.10 1.50 M2BA100LB8 19500 1004 1.50 2.00 M2BA100L6 17400 896 1.50 2.00 M2BA112MA8 22550 1161 2.20 3.00 M2BA112M6 20800 1071 2.20 3.00 M2BA132S8 29850 1537 3.70 5.00 M2BA132MA6 31800 1638 3.70 5.00 HX+160MLB8 47000 2421 5.50 7.50 M2BA132MC6 35400 1823 5.50 7.50 HX+160MLD8 57100 2941 7.50 10.00 HX+160MLC6 57150 2943 7.50 10.00 HX+160MLE8 72450 3731 9.30 12.50 HX+160MLD6 67550 3479 9.30 12.50 HX+180MLA8 94200 4851 11.00 15.00 HX+160MLE6 71100 3662 11.00 15.00 HX+180MLB8 99200 5109 15.00 20.00 HX+180MLC6 97100 5001 15.00 20.00 HX+200MLC8 140150 7218 18.50 25.00 HX+200MLB6 126400 6510 18.50 25.00 HX+225SMB8 180850 9314 22.00 30.00 HX+200MLC6 137350 7074 22.00 30.00 HX+225SMC8 218300 11242 30.00 40.00 HX+225SMC6 214100 11026 30.00 40.00 HX+250MB8 293500 15115 37.00 50.00 HX+250MB6 288400 14853 37.00 50.00 HX+280SMB8 375100 19318 45.00 60.00 HX+280SMB6 367500 18926 45.00 60.00 HX+280SMC8 435300 22418 55.00 75.00 HX+280SMC6 416900 21470 2
2. M2000 Energy Efficient Motors Standard TEFC Squirrel Cage Motor Suitable for Ambient temperature of 50 Deg. Centigrade, Horizontal foot mounting and conforming to IS:325-1996 & IS:12615-2005. Price (`) Ex. Duty (`) Price (`) Ex. Duty (`) 110 150 M2BA315SMA2 615300 31688 110 150 M2BA315SMA4 539200 27769 125 170 M2BA315SMB2k 722100 37188 125 170 M2BA315SMB4k 617100 31781 132 180 M2BA315SMB2 756300 38949 132 180 M2BA315SMB4 634700 32687 150 200 M2BA315MLA2k 799600 41179 150 200 M2BA315MLA4k 683650 35208 160 220 M2BA315MLA2 828500 42668 160 220 M2BA315MLA4 742700 38249 180 240 M2BA315MLC2k 871800 44898 180 240 M2BA315MLB4k 792100 40793 200 270 M2BA315MLC2 971500 50032 187 250 M2BA315MLB4 820000 42230 250 340 M2BA355SMA2 1077800 55507 200 270 M2BA315MLC4 904100 46561 315 425 M2BA355MLA2 1174600 60492 225 300 M2BA355SMA4k 925100 47643 250 340 M2BA355SMA4 996450 51317 260 350 M2BA355SMA4h 996500 51320 315 425 M2BA355MLA4 1140700 58746 355 475 M2BA355MLB4 1470400 75726 Price (`) Ex. Duty (`) Price (`) Ex. Duty (`) 75 100 M2BA315SMA6 517000 26626 55 75 M2BA315SMA8 530200 27305 90 125 M2BA315SMB6 650350 33493 75 100 M2BA315SMB8 661750 34080 110 150 M2BA315SMC6 724650 37319 90 125 M2BA315SMC8 746500 38445 125 170 M2BA315SMC6k 789850 40677 110 150 M2BA315MLB8 790300 40700 132 180 M2BA315MLC6 845900 43564 132 180 M2BA355SMA8 965290 49712 160 220 M2BA355SMA6 892050 45941 150 200 M2BA355MLA8k 1036440 53377 180 240 M2BA355SMB6k 993310 51155 160 220 M2BA355MLA8 1063700 54781 200 270 M2BA355SMB6 1004000 51706 180 240 M2BA355MLB8i 1140000 58710 250 340 M2BA355MLA6 1082100 55728 200 270 M2BA355MLB8 1163500 59920 315 425 M2BA355MLB6 1706000 87859 225 300 M2BA355MLB8h 1650000 84975 250* 340 M2BA355MLB8k 1824880 93981 *This rating is suitable for class F temp rise only Enclosure Totally enclosed fan cooled Voltage +/- variation 415+/- 10% Frequency +/- variation 50Hz +/- 5% Combined +/- variation 10% ( Absolute Sum) Mounting Reference As per IS:4691 Frame Dimensions As per IS:1231 : IS:2223 Altitude Upto 1000 M Relative Humidity Upto 100% Degree of Protection Ip55 Class of Insulation Class F Ambient Temperature/ Temperature Rise 50 Deg C/ 70 Deg C Duty S1 / Continuous Position of terminal box Top at drive end Connection / No. of leads Upto 2HP- STAR / 3 Leads > 2 HP- DELTA / 6 Leads Direction of Rotation Bi-directional Grease Type Lithium complex grease Greasing arrangement Online greasing arrangement for frame 225 and above Cooling IC411 (TEFC) Paint Polyurethane( Shade: Munsell Blue) The M2000 Series (Eff1) M2000 motors have been engineered for the twin objective of high power to weight ratio and efficiency at a designed ambient of 50Deg.C. The performance of 'M2BA' is well ahead of relevant IEC & IS standards resulting in lower consumption, reduced operational costs and ultimately faster returns on investment. M2BA motors have a wide range of applications including windmill. 3 Heavy Duty Design The electrical and mechanical design of 'M2BA' motors offer high performance values in all the mounting arrangements, protection class and in all operations. 'M2BA' motors have withstood the test of time and are established for reliability in stringent operating conditions like thermal power plants worldwide.
3. Standard screen protected drip proof squirrel cage motors -Type ’Q’ (Enclosure conforming to IP23 as per IS:4691- 1985). Horizontal foot mounted induction motors, continuously rated suitable for operation on 415V+/-10%,50Hz+/- 5% , 3 Phase, Insulation Class F, suitable for 40 deg centigrade ambient temperature and to confirm IS:325-1996. Price (`) Ex. Duty (`) Price (`) Ex. Duty (`) 11.0 15.0 Q160M2ai 61680 3177 9.3 12.5 Q160M4ai 52990 2729 15.0 20.0 Q160M2a 76950 3963 11.0 15.0 Q160M4a 55750 2871 18.5 25.0 Q160L2am 98430 5069 15.0 20.0 Q160L4a 69430 3576 22.0 30.0 Q160L2bm 107400 5531 18.5 25.0 Q160L4c 91520 4713 30.0 40.0 Q160L2b 114730 5909 22.0 30.0 HQ180L4b 102420 5275 37.0 50.0 Q180L2d 162960 8392 30.0 40.0 Q180L4e 113930 5867 45.0 60.0 Q200M2a 198640 10230 37.0 50.0 Q200M4b 144810 7458 55.0 75.0 HQ200L2a 260100 13395 45.0 60.0 Q200L4b 183430 9447 75.0 100.0 Q225M2a 304540 15684 55.0 75.0 HQ225M4a 225770 11627 90.0 125.0 Q225M2b 324800 16727 75.0 100.0 HQ225M4d 291030 14988 110.0 150.0 Q250M2emi 449970 23173 90.0 125.0 HQ250M4d 323630 16667 132.0 180.0 Q250M2em 523670 26969 110.0 150.0 HQ250M4f 395100 20348 132.0 180.0 Q280M4c 457620 23567 160.0 220.0 Q315M4a 580720 29907 200.0 270.0 Q315M4c 659230 33950 250.0 340.0 Q315M4e 949310 48889 Price (`) Ex. Duty (`) 7.5 10.0 Q160M6b 55390 2853 9.3 12.5 Q160L6bi 63770 3284 11.0 15.0 Q160L6b 70140 3612 15.0 20.0 Q180L6c 97930 5043 18.5 25.0 Q180L6f 115540 5950 22.0 30.0 Q200M6a 149160 7682 30.0 40.0 Q200L6c 185950 9576 37.0 50.0 Q225M6a 232670 11983 45.0 60.0 Q250M6b 285510 14704 55.0 75.0 Q250M6d 326410 16810 75.0 100.0 Q250M6g 405280 20872 90.0 125.0 Q280M6d 444500 22892 110.0 150.0 Q315M6b 571160 29415 132.0 180.0 Q315M6d 661280 34056 160.0 220.0 Q315M6g 781470 40246 4
Totally Encolsed Fan Cooled (TEFC) Squirrel Cage Flame Proof Motors Ex d Enclosure conforming to protection IP55 as per IS:4691-1968, Horizontal foot mounted (B3) induction motors, continuously rated suitable for operation on 415V+/-10%, 3 phase, 50Hz+/-5%A.C supply with class ’F’ insulation for 50 Deg. C ambient temperature in Gas Group IIA & IIB and altitude less than 1000M above MSL and conforming to IS: 2148-2004. Price (`) Ex. Duty (`) Price (`) Ex. Duty (`) 0.37 0.50 JHX71C2 18950 976 0.25 0.33 JHX71B4 18350 945 0.55 0.75 JHX71D2 21200 1092 0.37 0.50 JHX71C4 18650 960 0.75 1.00 JHX80C2 21850 1125 0.55 0.75 JHX80D4 20550 1058 1.10 1.50 JHX80D2 24100 1241 0.75 1.00 JHX80E4 21400 1102 1.50 2.00 JHX90SLC2 27350 1409 1.10 1.50 JHX90SLD4 24400 1257 2.20 3.00 JHX90SLD2 34150 1759 1.50 2.00 JHX90SLE4 26550 1367 3.70 5.00 JHX100LB2 43300 2230 2.20 3.00 JHX100LB4 33700 1736 5.50 7.50 JHX132SMB2 61150 3149 3.70 5.00 JHX112MB4 42300 2178 7.50 10.00 JHX132SMC2 67650 3484 5.50 7.50 JHX132SMC4 58350 3005 9.30 12.50 JHX132SME2 96100 4949 7.50 10.00 JHX132SME4 66350 3417 11.00 15.00 JHX160MLB2 118450 6100 9.30 12.50 JHX160MLB4 101600 5232 15.00 20.00 JHX160MLD2 143550 7393 11.00 15.00 JHX160MLD4 107550 5539 18.50 25.00 JHX160MLE2 162950 8392 15.00 20.00 JHX160MLE4 130750 6734 Price (`) Ex. Duty (`) Price (`) Ex. Duty (`) 0.25 0.33 JHX80D6 21500 1107 0.37 0.50 JHX90SLA8 25500 1313 0.37 0.50 JHX80D6 21950 1130 0.55 0.75 JHX90SLD8 27600 1421 0.55 0.75 JHX80E6 22300 1148 0.75 1.00 JHX100LA8 33250 1712 0.75 1.00 JHX90SLD6 25900 1334 1.10 1.50 JHX100LB8 38700 1993 1.10 1.50 JHX90SLE6 26650 1372 1.50 2.00 JHX112MA8 46300 2384 1.50 2.00 JHX100LB6 38150 1965 2.20 3.00 JHX132SMB8 60950 3139 2.20 3.00 JHX112MB6 44450 2289 3.70 5.00 JHX160MLB8 98400 5068 3.70 5.00 JHX132SMC6 58850 3031 5.50 7.50 JHX160MLD8 113100 5825 5.50 7.50 JHX132SME6 72750 3747 7.50 10.00 JHX160MLE8 137800 7097 7.50 10.00 JHX160MLC6 110600 5696 9.30 12.50 JHX160MLD6 127500 6566 11.00 15.00 JHX160MLE6 135000 6953 Note:- Special Features given below shall not be applicable for Flame Proof Motors. ABB reserves the right to change the price, design, technical specification and dimensions without prior notice 5

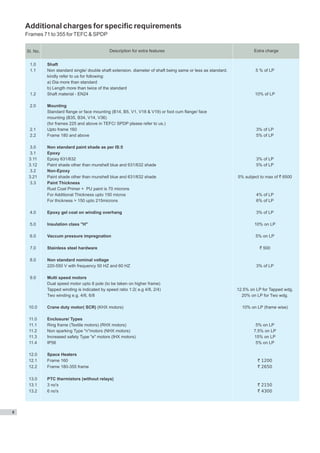

Additional charges for specific requirements Frames 71 to 355 for TEFC & SPDP Sl. No. Description for extra features Extra charge 1.0 Shaft 1.1 Non standard single/ double shaft extension, diameter of shaft being same or less as standard. 5 % of LP kindly refer to us for following: a) Dia more than standard b) Length more than twice of the standard 1.2 Shaft material - EN24 10% of LP 2.0 Mounting Standard flange or face mounting (B14, B5, V1, V18 & V19) or foot cum flange/ face mounting (B35, B34, V14, V36) (for frames 225 and above in TEFC/ SPDP please refer to us.) 2.1 Upto frame 160 3% of LP 2.2 Frame 180 and above 5% of LP 3.0 Non standard paint shade as per IS:5 3.1 Epoxy 3.11 Epoxy 631/632 3% of LP 3.12 Paint shade other than munshell blue and 631/632 shade 5% of LP 3.2 Non-Epoxy 3.21 Paint shade other than munshell blue and 631/632 shade 5% subject to max of ` 6500 3.3 Paint Thickness Rust Coat Primer + PU paint is 70 microns For Additional Thickness upto 150 micros 4% of LP For thickness > 150 upto 215microns 6% of LP 4.0 Epoxy gel coat on winding overhang 3% of LP 5.0 Insulation class "H" 10% on LP 6.0 Vaccum pressure impregnation 5% on LP 7.0 Stainless steel hardware ` 500 8.0 Non standard nominal voltage 220-550 V with frequency 50 HZ and 60 HZ 3% of LP 9.0 Multi speed motors Dual speed motor upto 8 pole (to be taken on higher frame) Tapped winding is indicated by speed ratio 1:2( e.g 4/8, 2/4) 12.5% on LP for Tapped wdg. Two winding e.g. 4/6, 6/8 20% on LP for Two wdg. 10.0 Crane duty motor( SCR) (KHX motors) 10% on LP (frame wise) 11.0 Enclosure/ Types 11.1 Ring frame (Textile motors) (RHX motors) 5% on LP 11.2 Non sparking Type "n"motors (NHX motors) 7.5% on LP 11.3 Increased safety Type "e" motors (IHX motors) 15% on LP 11.4 IP56 5% on LP 12.0 Space Heaters 12.1 Frame 160 ` 1200 12.2 Frame 180-355 frame ` 2650 13.0 PTC thermistors (without relays) 13.1 3 no's ` 2150 13.2 6 no's ` 4300 6

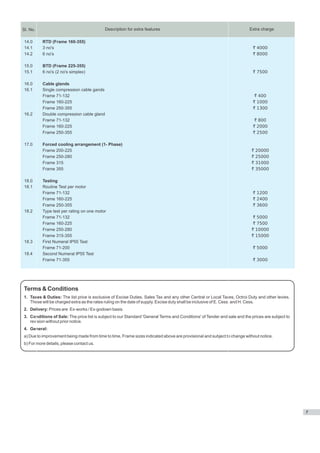

Sl. No. Description for extra features Extra charge 14.0 RTD (Frame 160-355) 14.1 3 no's ` 4000 14.2 6 no's ` 8000 15.0 BTD (Frame 225-355) 15.1 6 no's (2 no's simplex) ` 7500 16.0 Cable glands 16.1 Single compression cable gands Frame 71-132 ` 400 Frame 160-225 ` 1000 Frame 250-355 ` 1300 16.2 Double compression cable gland Frame 71-132 ` 800 Frame 160-225 ` 2000 Frame 250-355 ` 2500 17.0 Forced cooling arrangement (1- Phase) Frame 200-225 ` 20000 Frame 250-280 ` 25000 Frame 315 ` 31000 Frame 355 ` 35000 18.0 Testing 18.1 Routine Test per motor Frame 71-132 ` 1200 Frame 160-225 ` 2400 Frame 250-355 ` 3600 18.2 Type test per rating on one motor Frame 71-132 ` 5000 Frame 160-225 ` 7500 Frame 250-280 ` 10000 Frame 315-355 ` 15000 18.3 First Numeral IP55 Test Frame 71-200 ` 5000 18.4 Second Numeral IP55 Test Frame 71-355 ` 3000 Terms & Conditions 1. Taxes & Duties: The list price is exclusive of Excise Duties, Sales Tax and any other Central or Local Taxes, Octroi Duty and other levies. These will be charged extra as the rates ruling on the date of supply. Excise duty shall be inclusive of E. Cess. and H. Cess. 2. Delivery: Prices are Ex-works / Ex-godown basis. 3. Conditions of Sale: The price list is subject to our Standard 'General Terms and Conditions' of Tender and sale and the prices are subject to revision without prior notice. 4. General: a) Due to improvement being made from time to time, Frame sizes indicated above are provisional and subject to change without notice. b) For more details, please contact us. 7

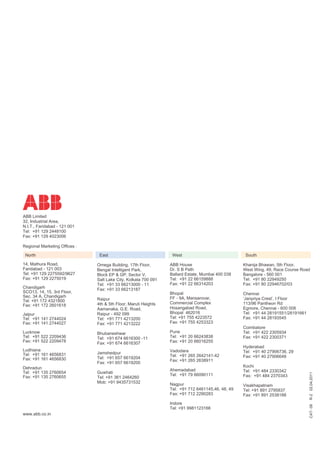

ABB Limited 32, Industrial Area, N.I.T., Faridabad - 121 001 Tel: +91 129 2448100 Fax: +91 129 4023006 Regional Marketing Offices : North East West South 14, Mathura Road, Omega Building, 17th Floor, ABB House Khanija Bhawan, 5th Floor, Faridabad - 121 003 Bengal Intelligent Park, Dr. S B Path West Wing, 49, Race Course Road Tel: +91 129 2275592/9627 Block EP & GP, Sector V, Ballard Estate, Mumbai 400 038 Bangalore - 560 001 Fax: +91 129 2275019 Salt Lake City, Kolkata 700 091 Tel: +91 22 66159888 Tel: +91 80 22949250 Tel: +91 33 66213000 - 11 Fax: +91 22 66314203 Fax: +91 80 22946702/03 Chandigarh Fax: +91 33 66213187 SCO13, 14, 15, 3rd Floor, Bhopal Chennai Sec. 34 A, Chandigarh FF - 9A, Mansarovar, Raipur ‘Janpriya Crest’, I Floor Tel: +91 172 4321800 Commercial Complex Fax: +91 172 2601618 4th & 5th Floor, Maruti Heights 113/96 Pantheon Rd Aamanaka, G.E. Road, Hosangabad Road, Egmore, Chennai - 600 008 Jaipur Raipur - 492 099 Bhopal 462016 Tel: +91 44 28191551/28191661 Tel: +91 141 2744024 Tel: +91 771 4213200 Tel: +91 755 4223572 Fax: +91 44 28193545 Fax: +91 141 2744027 Fax: +91 771 4213222 Fax: +91 755 4253323 Coimbatore Lucknow Bhubaneshwar Pune Tel: +91 422 2305934 Tel: +91 522 2209436 Tel: +91 674 6616300 -11 Tel: +91 20 66243838 Fax: +91 422 2300371 Fax: +91 522 2209478 Fax: +91 674 6616307 Fax: +91 20 66016255 Hyderabad Ludhiana Vadodara Tel: +91 40 27906736, 29 Tel: +91 161 4656831 Jamshedpur Tel: +91 265 2642141-42 Fax: +91 40 27906648 Fax: +91 161 4656830 Tel: +91 657 6619204 Fax: +91 265 2638911 Fax: +91 657 6619200 Dehradun Kochi Ahemadabad Tel: +91 484 2330342 Tel: +91 135 2760654 Guwhati R-2 02.04.2011 Tel: +91 79 66090111 Fax: +91 484 2370343 Fax: +91 135 2760655 Tel: +91 361 2464260 Mob: +91 9435731532 Nagpur Visakhapatnam Tel: +91 712 6461145,46, 48, 49 Tel: +91 891 2795837 Fax: +91 712 2290283 Fax: +91 891 2538188 Indore CAT- 08 Tel: +91 9981123166 www.abb.co.in
