This document provides a conversion table between American Wire Gauge (AWG) measurements and cross-sectional area measurements in square millimeters (mm2). It lists various AWG sizes from 30 to 1000MCM along with their equivalent cross-sectional area in mm2, ranging from 0.05 mm2 for AWG 30 up to 500 mm2 for AWG 1000MCM. This allows one to easily convert between the two common units of measurement for wire gauges.

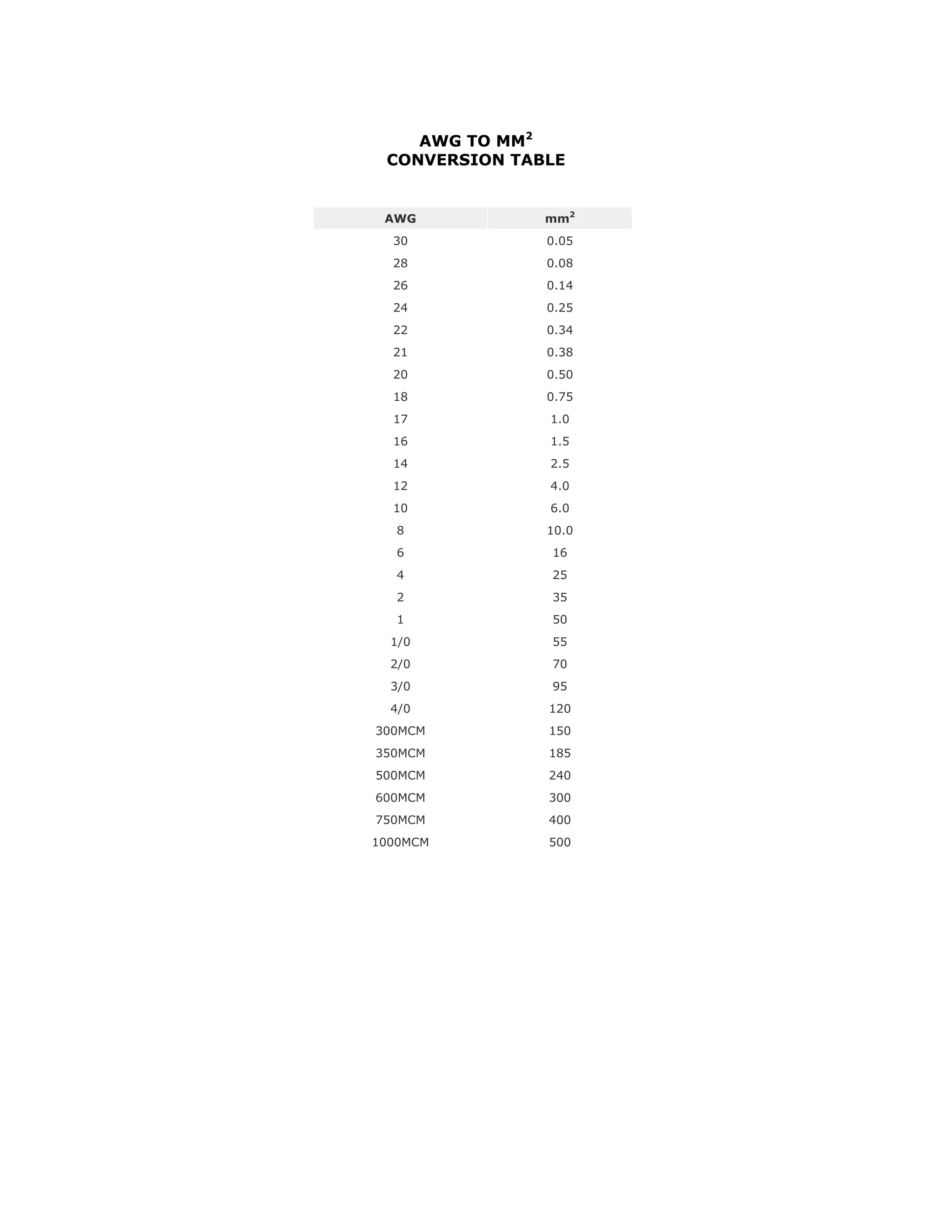

1. AWG TO MM2
CONVERSION TABLE
AWG mm2
30 0.05
28 0.08
26 0.14
24 0.25
22 0.34
21 0.38
20 0.50
18 0.75
17 1.0
16 1.5
14 2.5
12 4.0
10 6.0
8 10.0
6 16
4 25
2 35
1 50
1/0 55
2/0 70
3/0 95
4/0 120
300MCM 150
350MCM 185
500MCM 240
600MCM 300
750MCM 400
1000MCM 500
