A Graph-based Model for Multimodal Information Retrieval

The document summarizes Serwah Sabetghadam's PhD defense presentation on a graph-based model for multimodal information retrieval. The key points are: 1) It proposes a graph model called Astera to support different modalities, relation types, and faceted representations of information objects for multimodal IR. 2) A hybrid search approach is used that combines standard searches with graph traversal on the Astera model. 3) An example query on images of flying birds is presented to illustrate how the collection is modeled and searched using the proposed approach.

Technology◦
Related topics:
Information Retrieval•

Embed presentation

Download as PDF, PPTX
Serwah Sabetghadam PhD Defense Presentation Institute of Software Technology and Interactive Systems (IFS Group) Vienna University of Technology Supervisors Ao.univ.Prof. Dr. Andreas Rauber Dr. Mihai Lupu A Graph-based Model for Multimodal Information Retrieval
Rapid growth of the multimodal content
On average 350 million photos are uploaded daily to Facebook Multimodal Information Retrieval has become a challenge

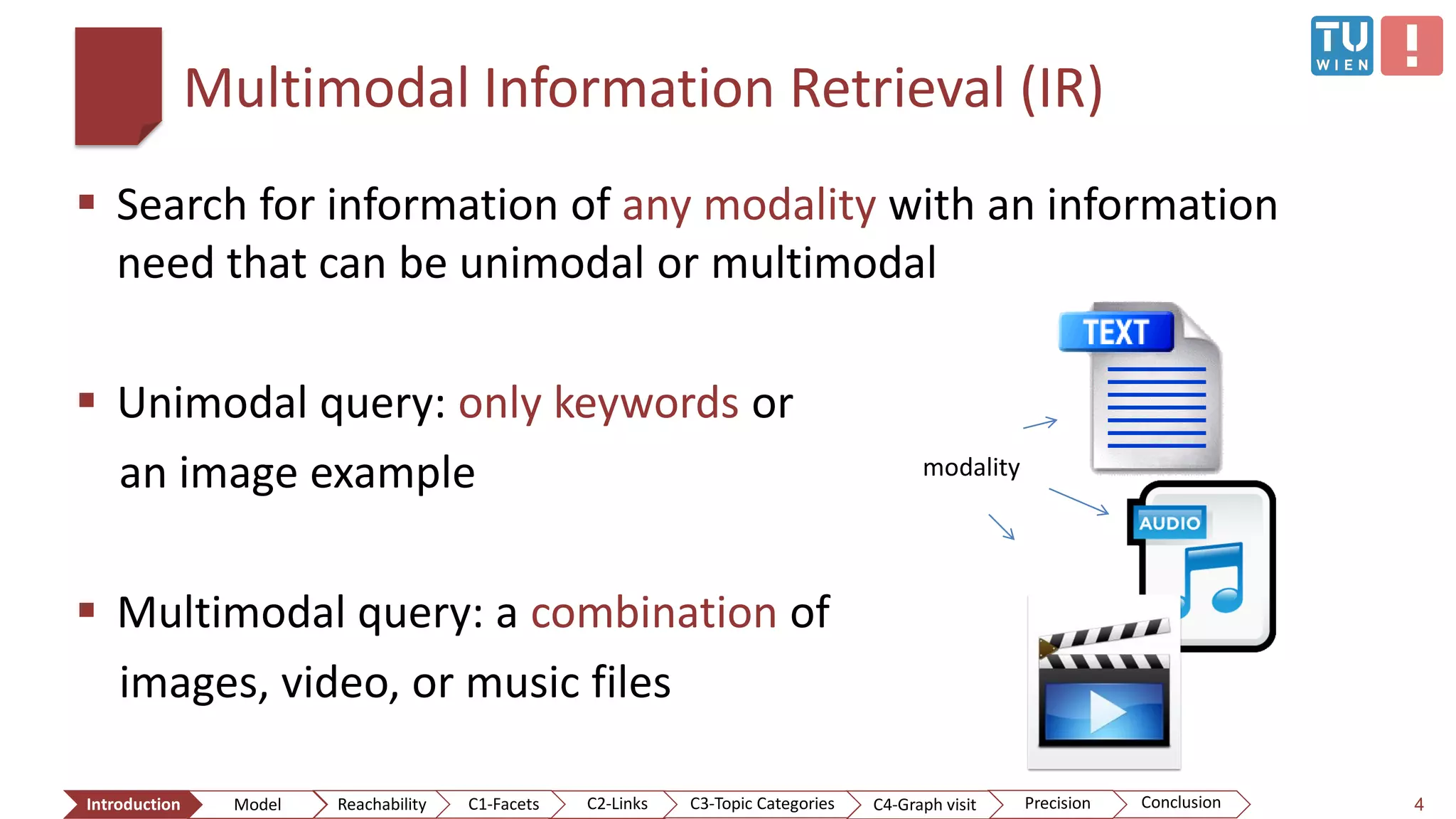

Multimodal Information Retrieval (IR)  Search for information of any modality with an information need that can be unimodal or multimodal  Unimodal query: only keywords or an image example  Multimodal query: a combination of images, video, or music files 4 modality ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

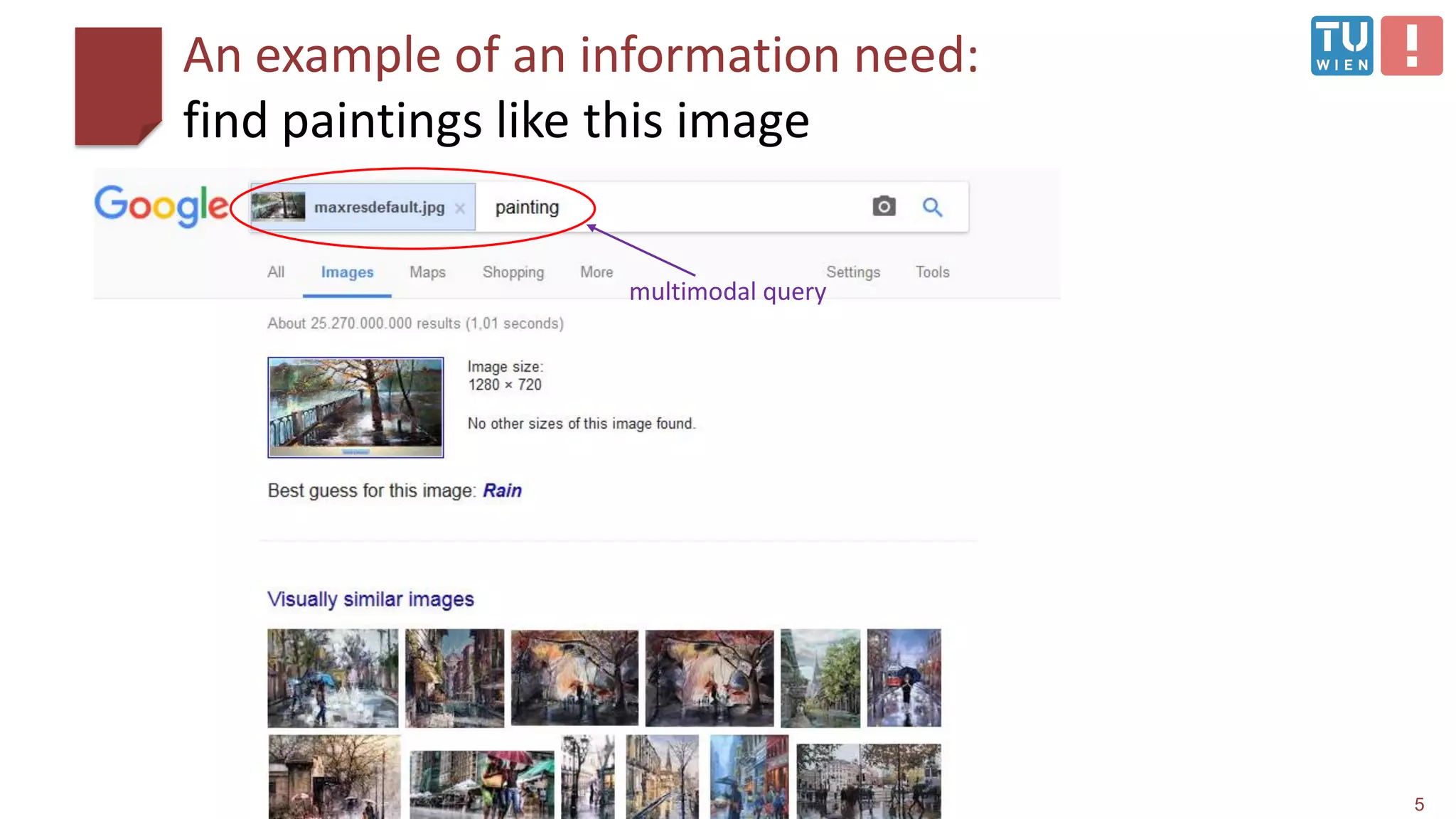

An example of an information need: find paintings like this image 5 multimodal query

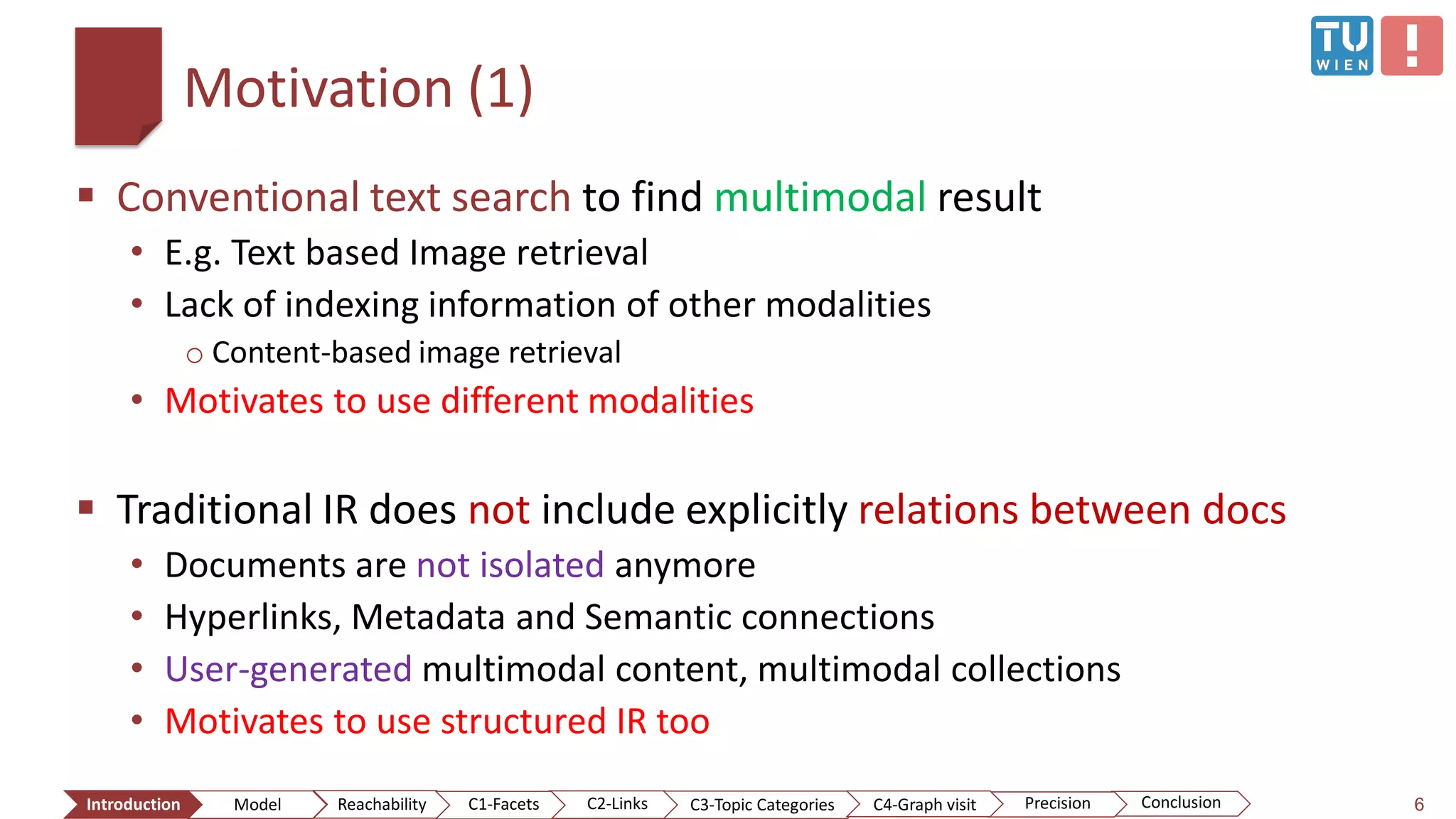

Motivation (1)  Conventional text search to find multimodal result • E.g. Text based Image retrieval • Lack of indexing information of other modalities o Content-based image retrieval • Motivates to use different modalities  Traditional IR does not include explicitly relations between docs • Documents are not isolated anymore • Hyperlinks, Metadata and Semantic connections • User-generated multimodal content, multimodal collections • Motivates to use structured IR too 6ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

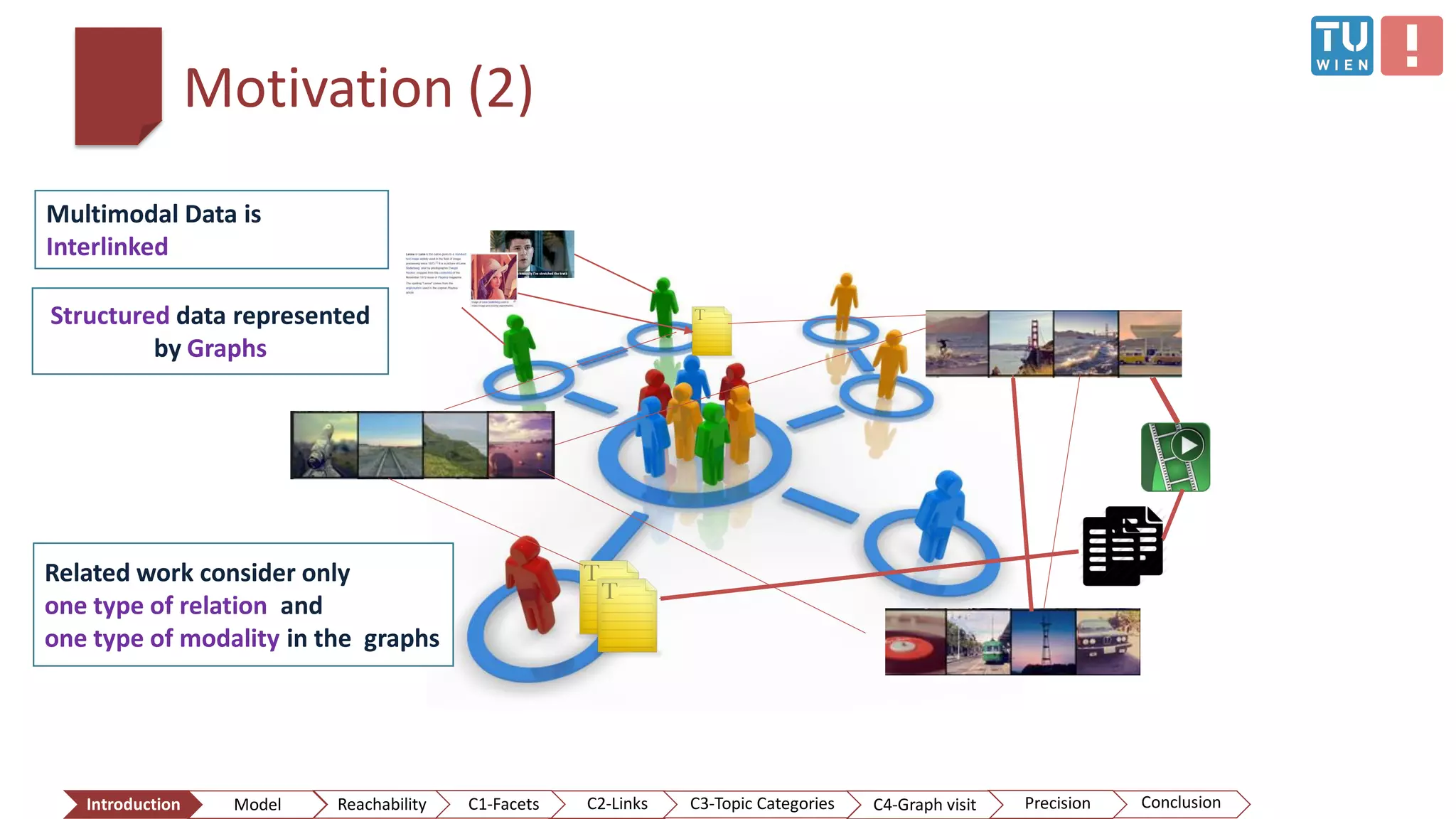

Motivation (2) Multimodal Data is Interlinked Structured data represented by Graphs Related work consider only one type of relation and one type of modality in the graphs ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

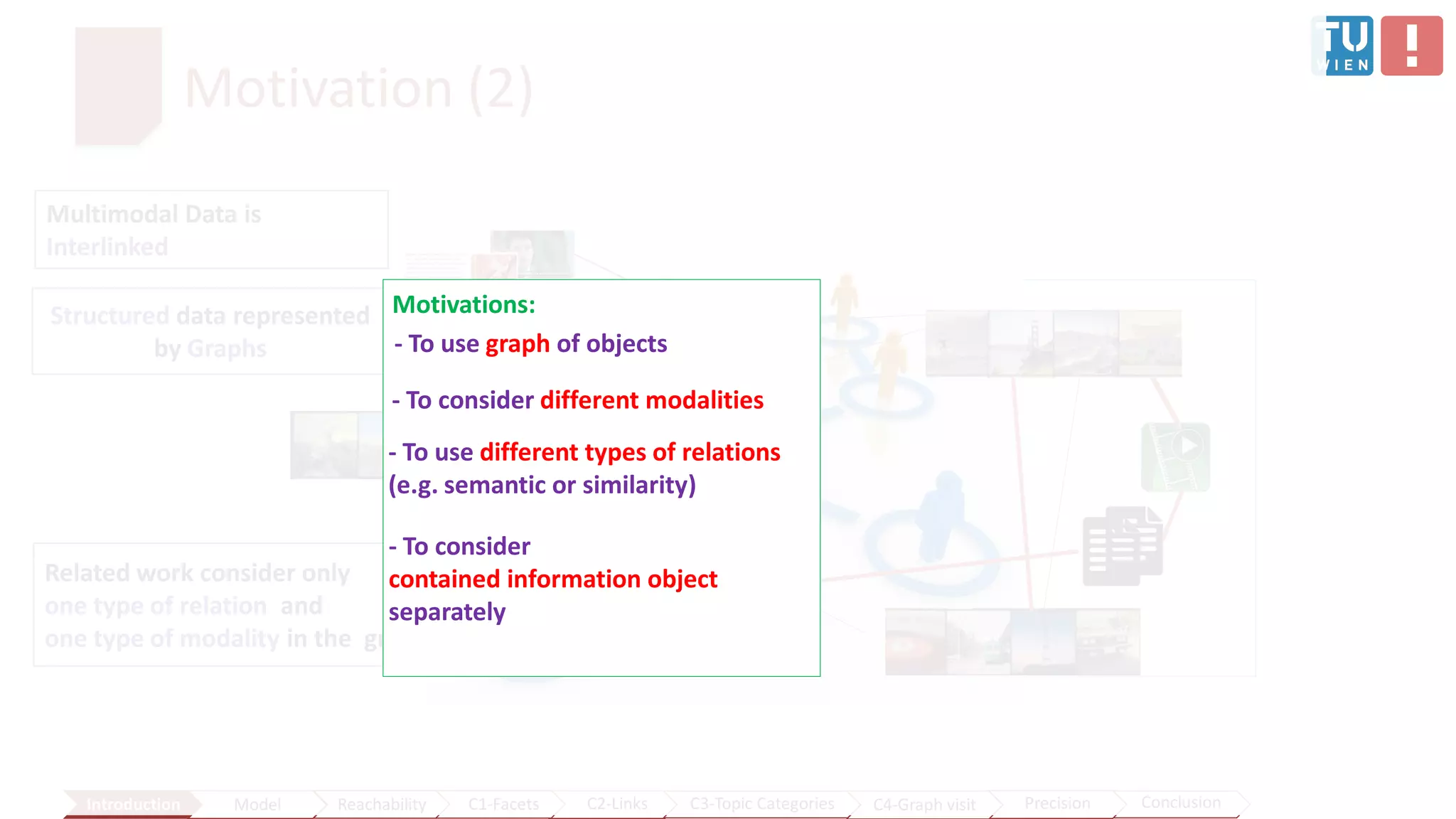

Motivation (2) Multimodal Data is Interlinked Structured data represented by Graphs Related work consider only one type of relation and one type of modality in the graphs ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets Motivations: - To consider different modalities - To use graph of objects - To use different types of relations (e.g. semantic or similarity) - To consider contained information object separately

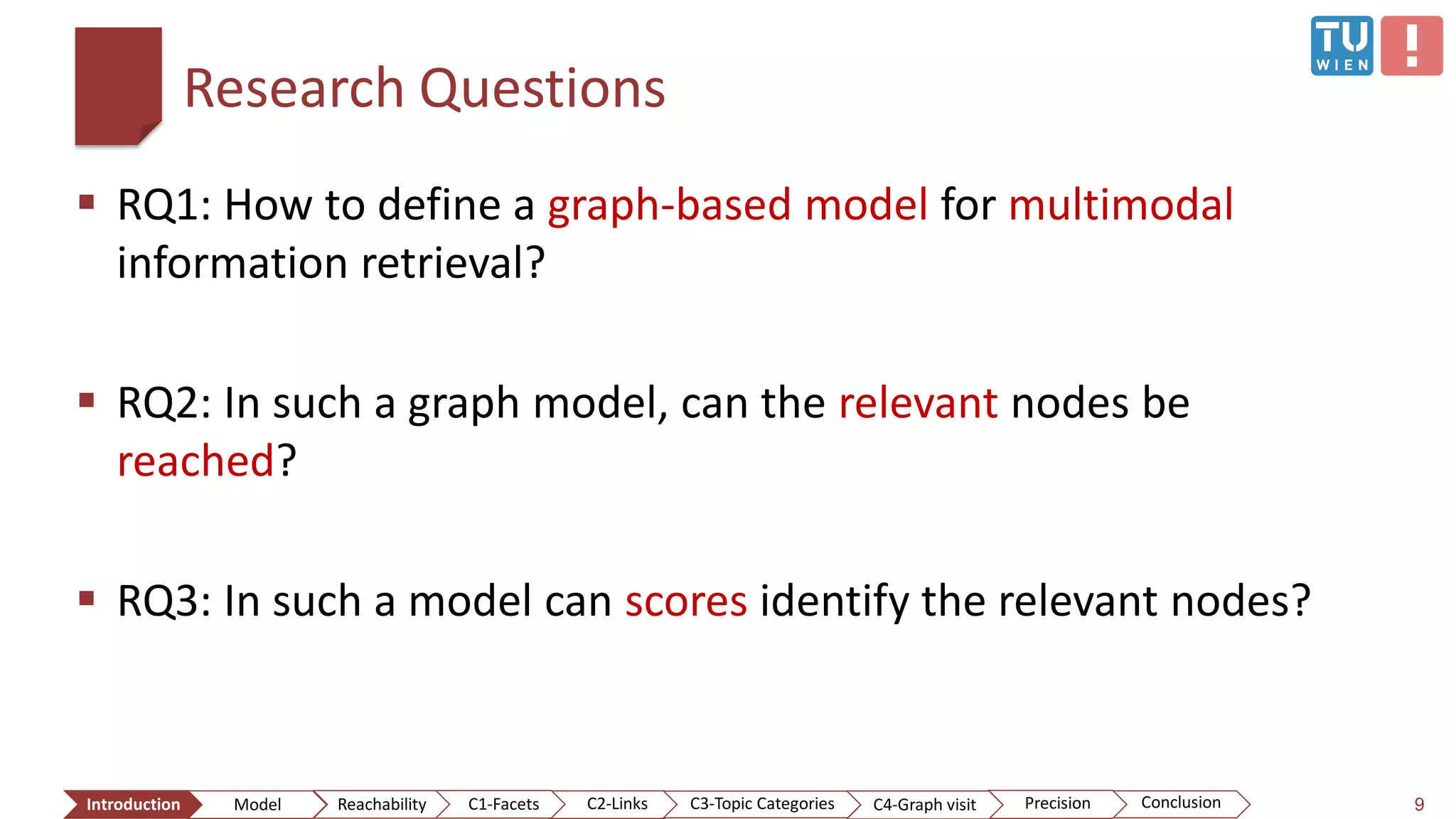

Research Questions  RQ1: How to define a graph-based model for multimodal information retrieval?  RQ2: In such a graph model, can the relevant nodes be reached?  RQ3: In such a model can scores identify the relevant nodes? 9ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets
Contributions 10 [ECIR Workshop 2013] [IRFC 2014] [ICMR 2014] Contributions RQ1: How to define a graph-based model for multi-modal information retrieval (MMIR)? [ECIR 2015] [CLEF 2014] [GBS 2015] [Keystone 2016] Astera model for MMIR Defined search based on facets RQ2: In such a graph model, can the relevant nodes be reached (recall)? Contributions Analysis of the effect of different facets and links on reachability of relevant nodes Model RQ3: In such a model can scores identify the relevant nodes? Contributions Analysis of the effect of different facets on precision. The effect of Query- dependent and – independent routing on precision Reachability Precision

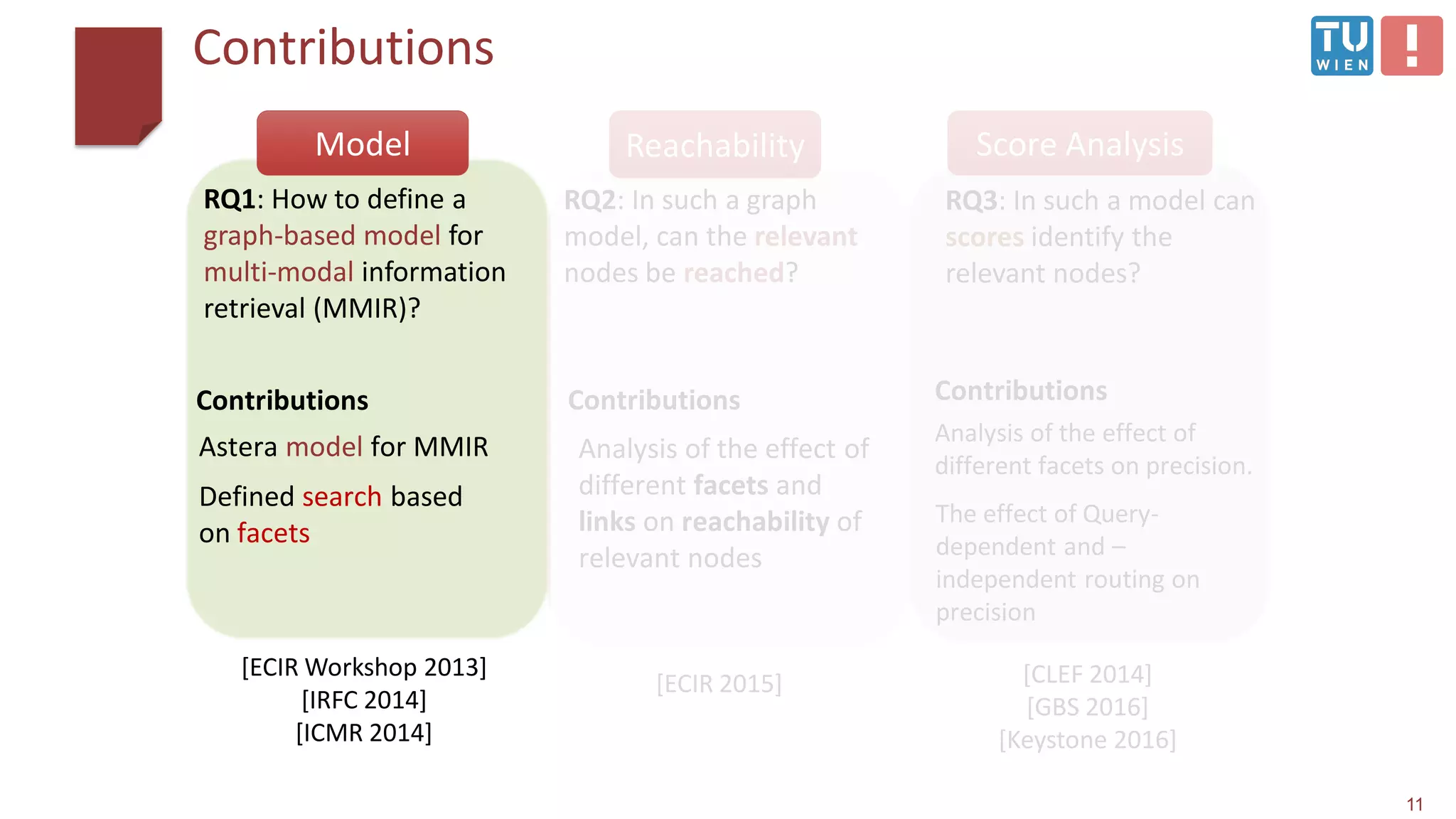

Contributions 11 [ECIR Workshop 2013] [IRFC 2014] [ICMR 2014] Contributions RQ1: How to define a graph-based model for multi-modal information retrieval (MMIR)? [ECIR 2015] [CLEF 2014] [GBS 2016] [Keystone 2016] Astera model for MMIR Defined search based on facets RQ2: In such a graph model, can the relevant nodes be reached? Contributions Analysis of the effect of different facets and links on reachability of relevant nodes Model RQ3: In such a model can scores identify the relevant nodes? Contributions Analysis of the effect of different facets on precision. The effect of Query- dependent and – independent routing on precision Reachability Score Analysis

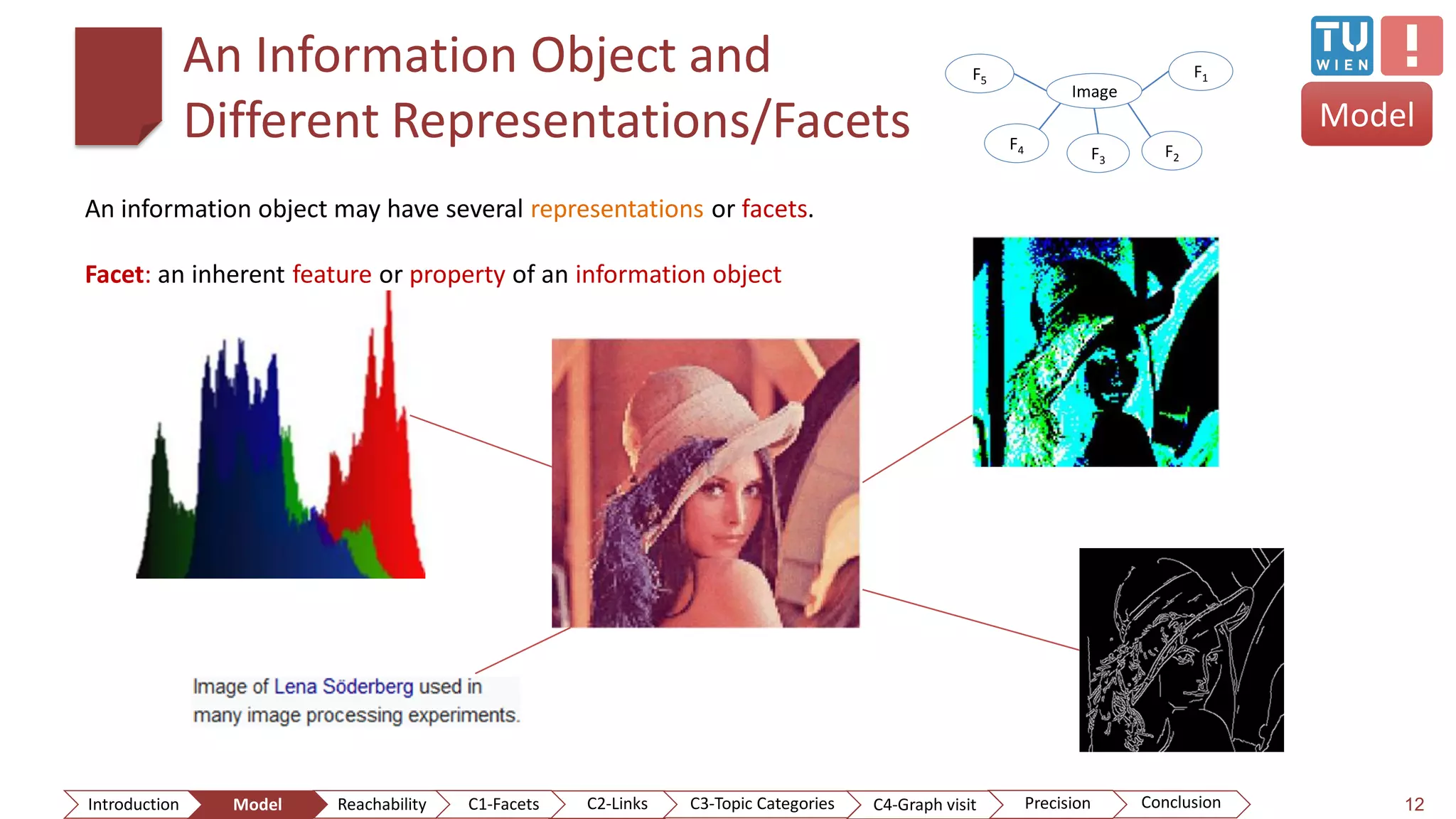

An Information Object and Different Representations/Facets 12 An information object may have several representations or facets. Facet: an inherent feature or property of an information object Image F3 F2 F1 F4 F5 Model ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

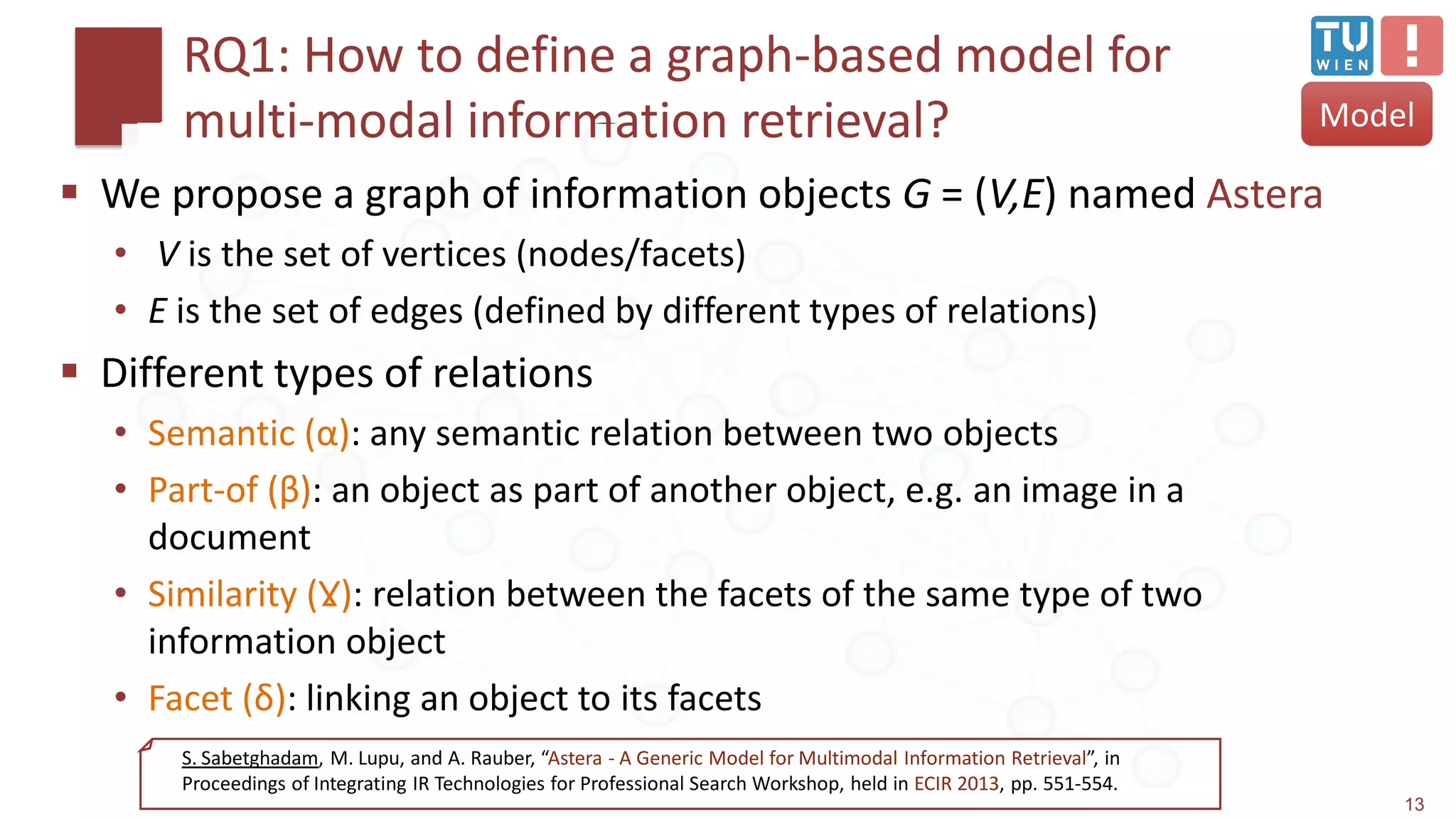

RQ1: How to define a graph-based model for multi-modal information retrieval?  We propose a graph of information objects G = (V,E) named Astera • V is the set of vertices (nodes/facets) • E is the set of edges (defined by different types of relations)  Different types of relations • Semantic (α): any semantic relation between two objects • Part-of (β): an object as part of another object, e.g. an image in a document • Similarity (Ɣ): relation between the facets of the same type of two information object • Facet (δ): linking an object to its facets 13 Model S. Sabetghadam, M. Lupu, and A. Rauber, “Astera - A Generic Model for Multimodal Information Retrieval”, in Proceedings of Integrating IR Technologies for Professional Search Workshop, held in ECIR 2013, pp. 551-554.

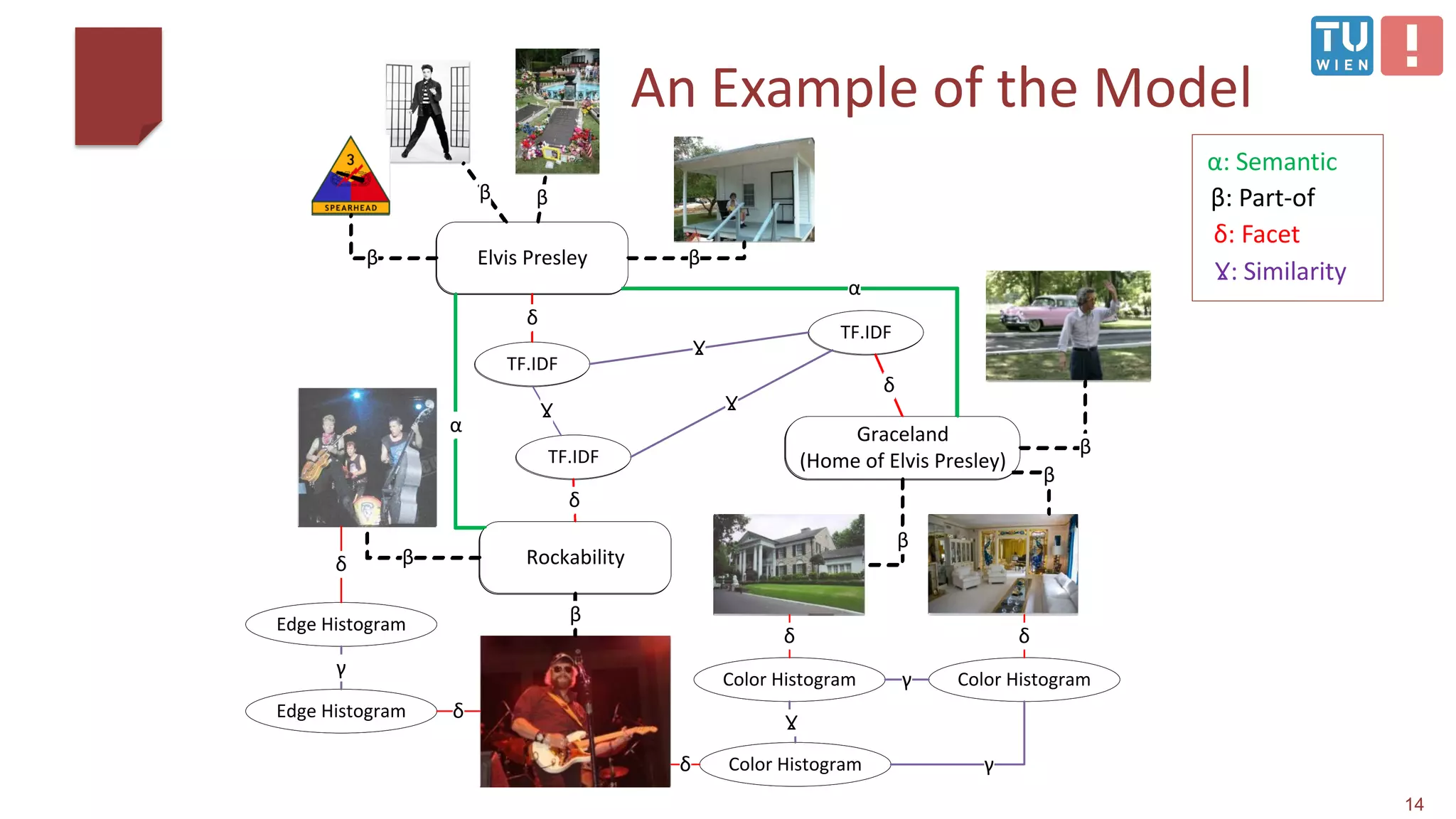

An Example of the Model 14 Elvis Presley Graceland (Home of Elvis Presley) Rockability α α Elvis Presley Graceland (Home of Elvis Presley) Rockability β ββ β β β β β β α α Elvis Presley Graceland (Home of Elvis Presley) Rockability β ββ β β β β β TF.IDF TF.IDF TF.IDF δ δ δ β α α Elvis Presley Graceland (Home of Elvis Presley) Rockability β ββ β β β β β TF.IDF TF.IDF TF.IDF δ δ δ β Color HistogramColor Histogram δδ Edge Histogram Edge Histogram δ δ Color Histogramδ α α Elvis Presley Graceland (Home of Elvis Presley) Rockability β ββ β β β β β TF.IDF TF.IDF TF.IDF δ δ δ Ɣ Ɣ Ɣ β Color HistogramColor Histogram δδ γ Edge Histogram Edge Histogram δ γ δ Color Histogramδ γ α α Ɣ α: Semantic β: Part-of δ: Facet Ɣ: Similarity

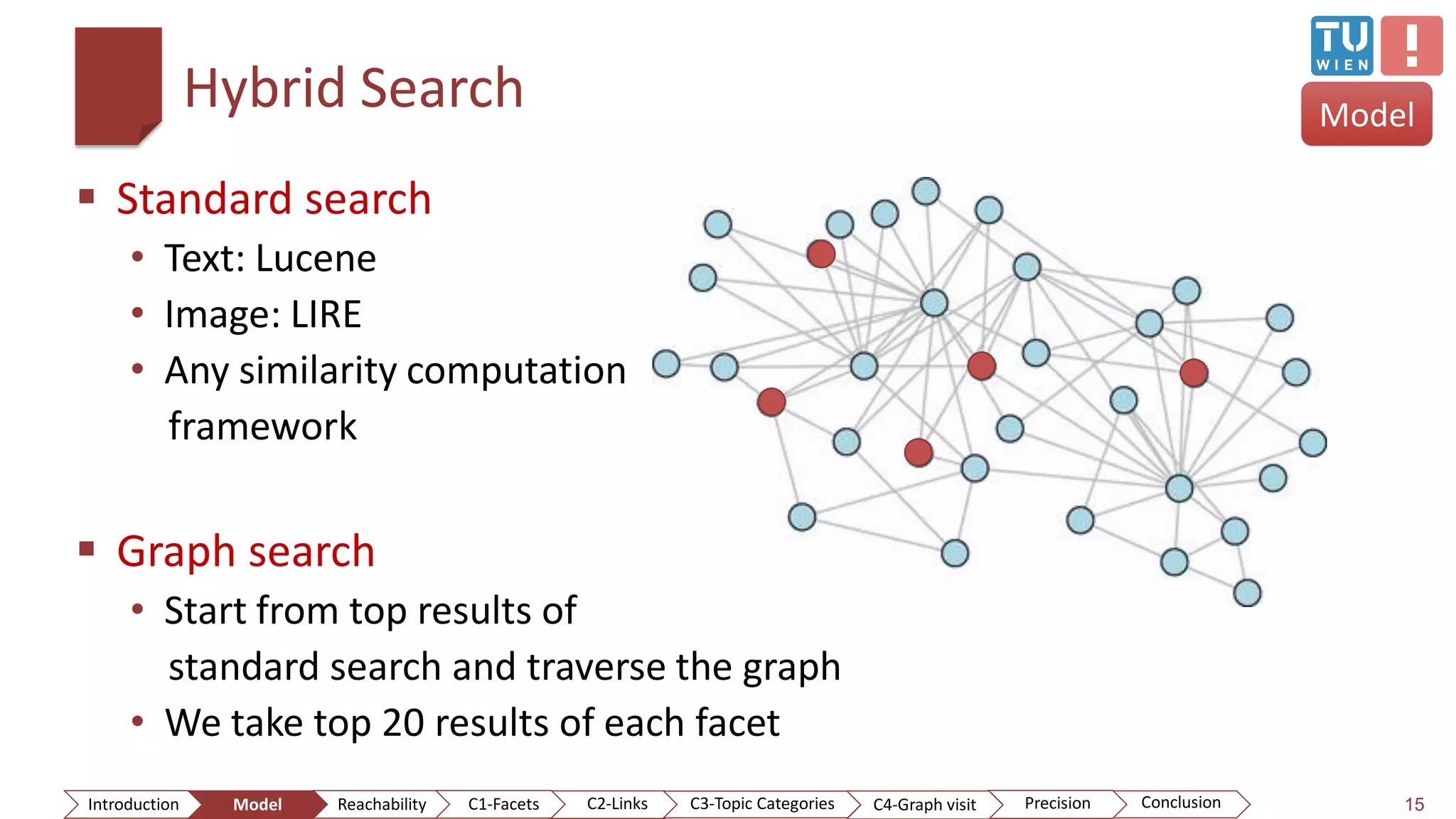

Hybrid Search  Standard search • Text: Lucene • Image: LIRE • Any similarity computation framework  Graph search • Start from top results of standard search and traverse the graph • We take top 20 results of each facet 15 Model ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets
Relevance Score Value Function (RSV) 16   Reaching a node we calculate the similarity of different facets with the query facets  The result is a score given to this node Normalization function Similarity function Weight of facet fi Model S. Sabetghadam, M. Lupu, and A. Rauber, “A Combined Approach of Structured and Non-structured IR in multimodal domain,” in Proceeedings of International Conference on Multimodal Retrieval, ICMR 2014, pp. 491-494.

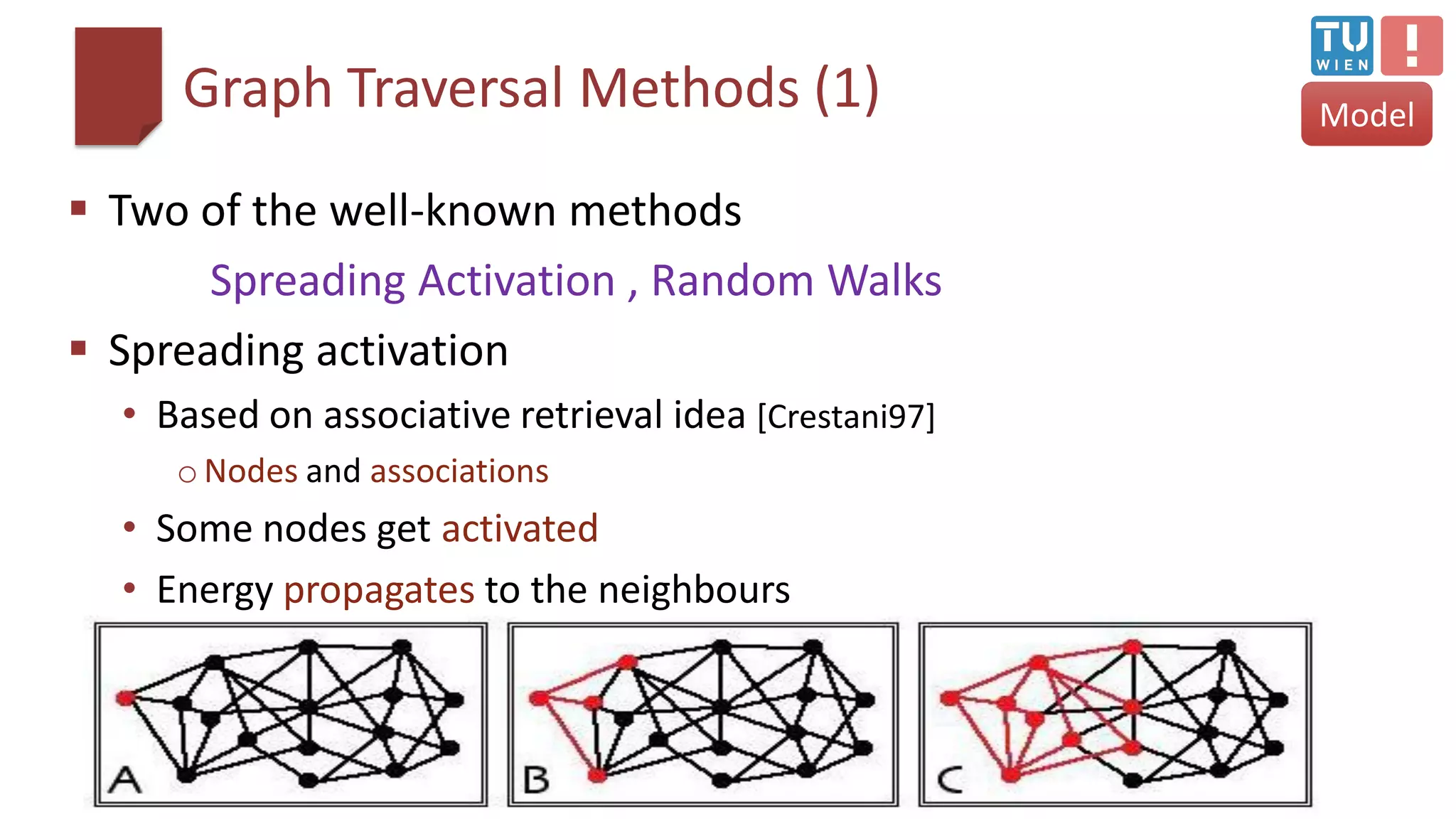

Graph Traversal Methods (1)  Two of the well-known methods Spreading Activation , Random Walks  Spreading activation • Based on associative retrieval idea [Crestani97] o Nodes and associations • Some nodes get activated • Energy propagates to the neighbours 17 Model

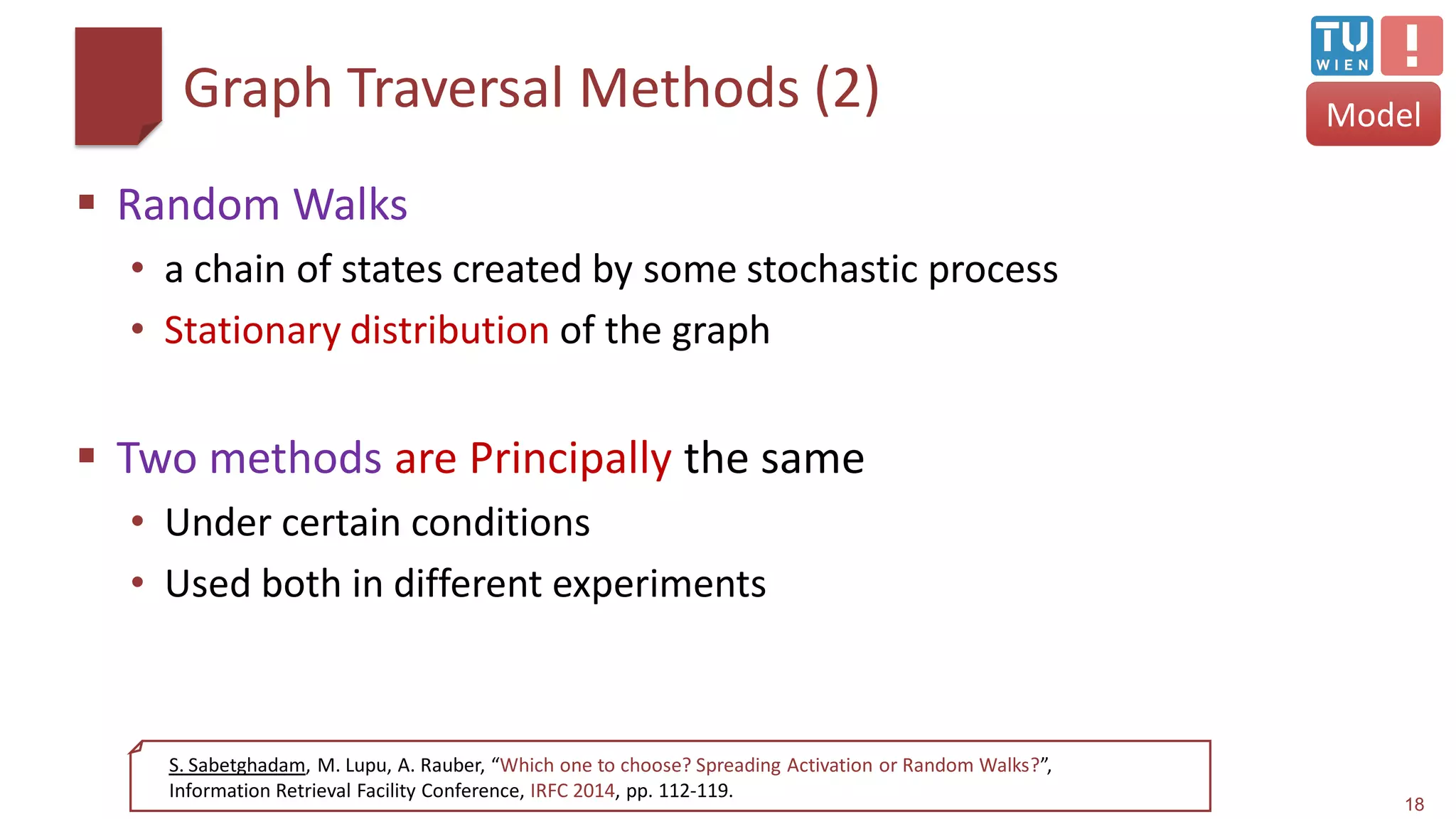

Graph Traversal Methods (2)  Random Walks • a chain of states created by some stochastic process • Stationary distribution of the graph  Two methods are Principally the same • Under certain conditions • Used both in different experiments 18 S. Sabetghadam, M. Lupu, A. Rauber, “Which one to choose? Spreading Activation or Random Walks?”, Information Retrieval Facility Conference, IRFC 2014, pp. 112-119. Model

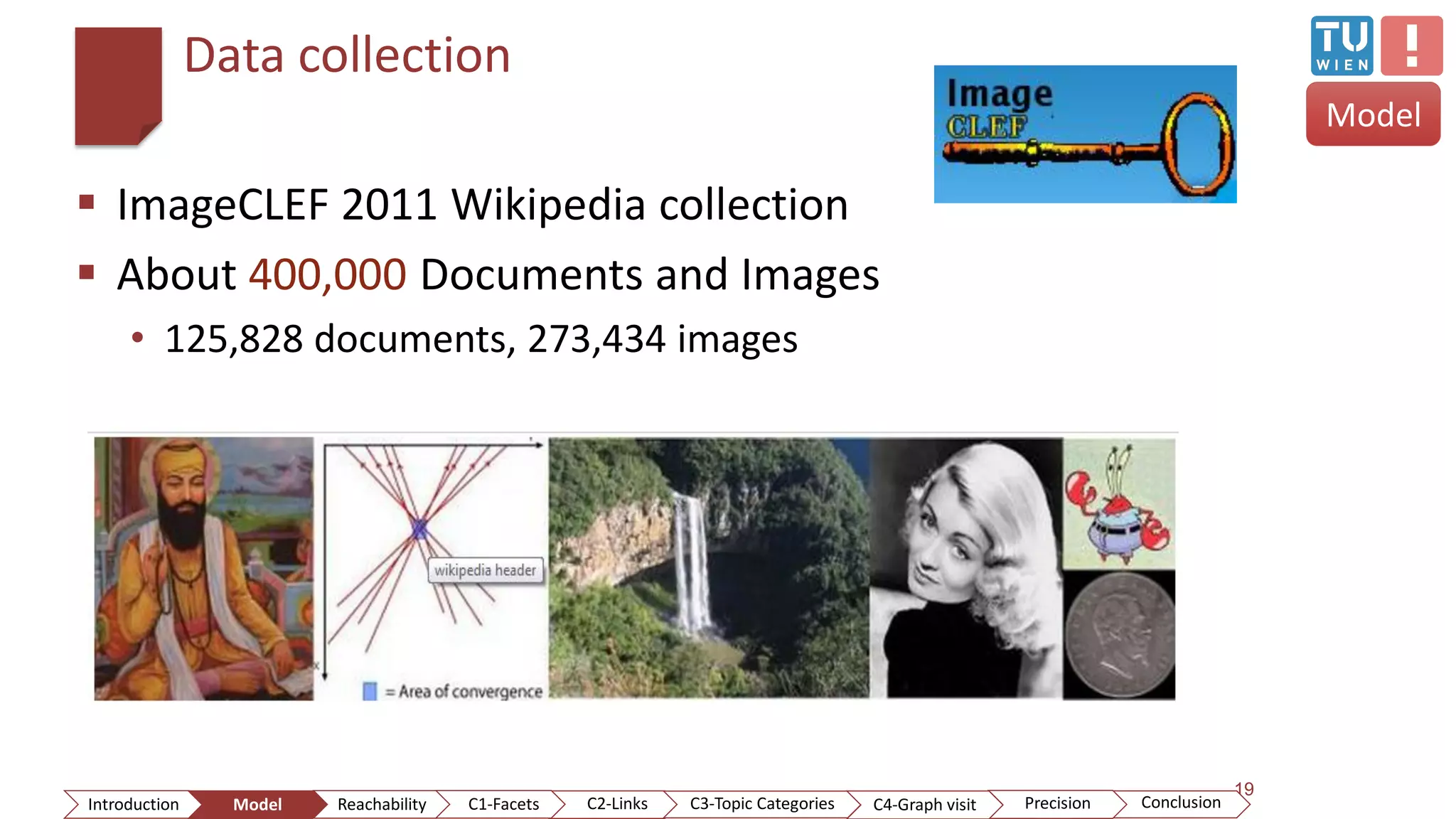

Data collection  ImageCLEF 2011 Wikipedia collection  About 400,000 Documents and Images • 125,828 documents, 273,434 images 19 Model ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

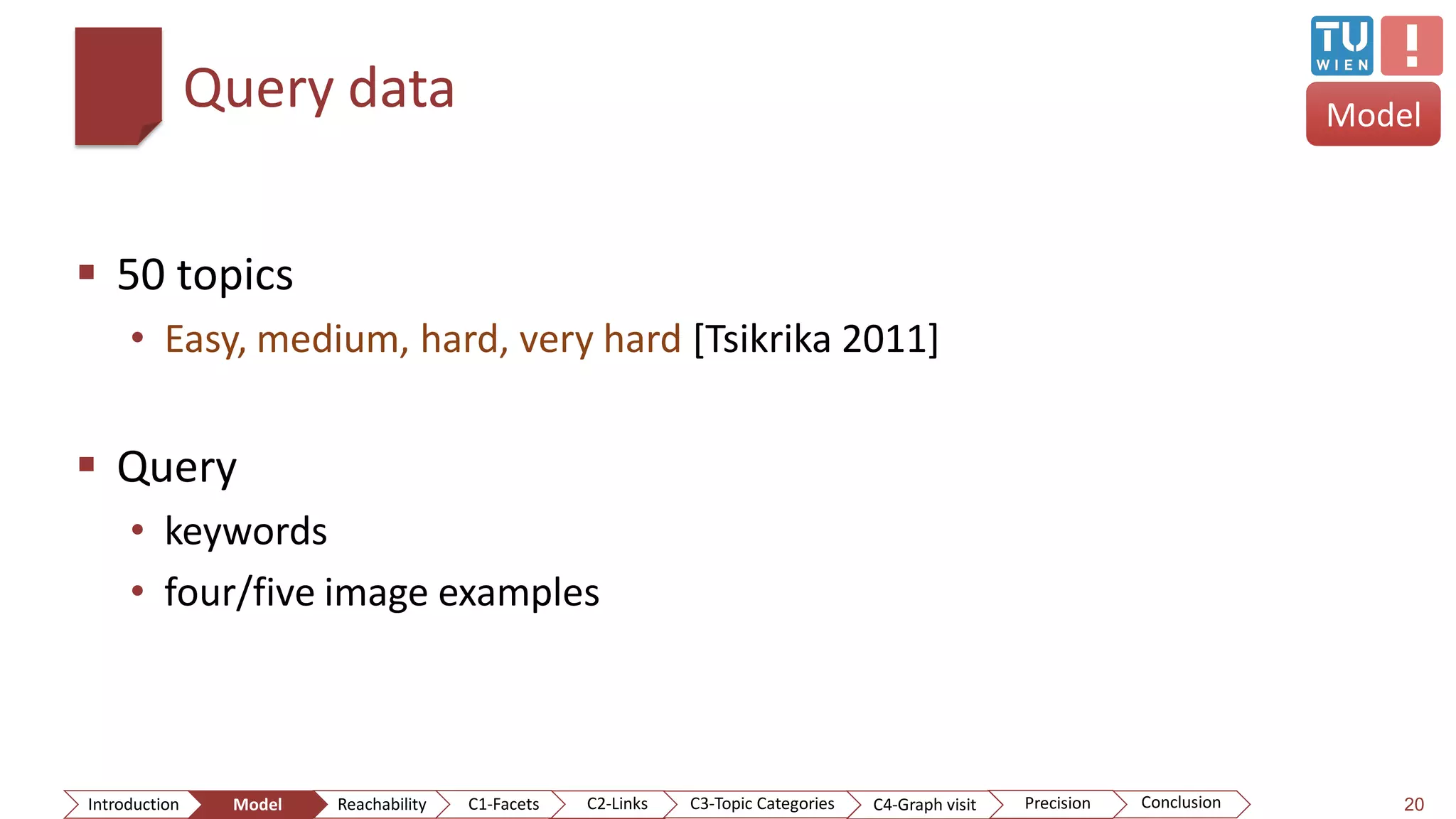

Query data  50 topics • Easy, medium, hard, very hard [Tsikrika 2011]  Query • keywords • four/five image examples 20ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets Model
21 Query example: “Flying bird” Visual features: CEDD, TLEP, SURF, CIME Textual features: TF.IDF, LM, BM25 ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

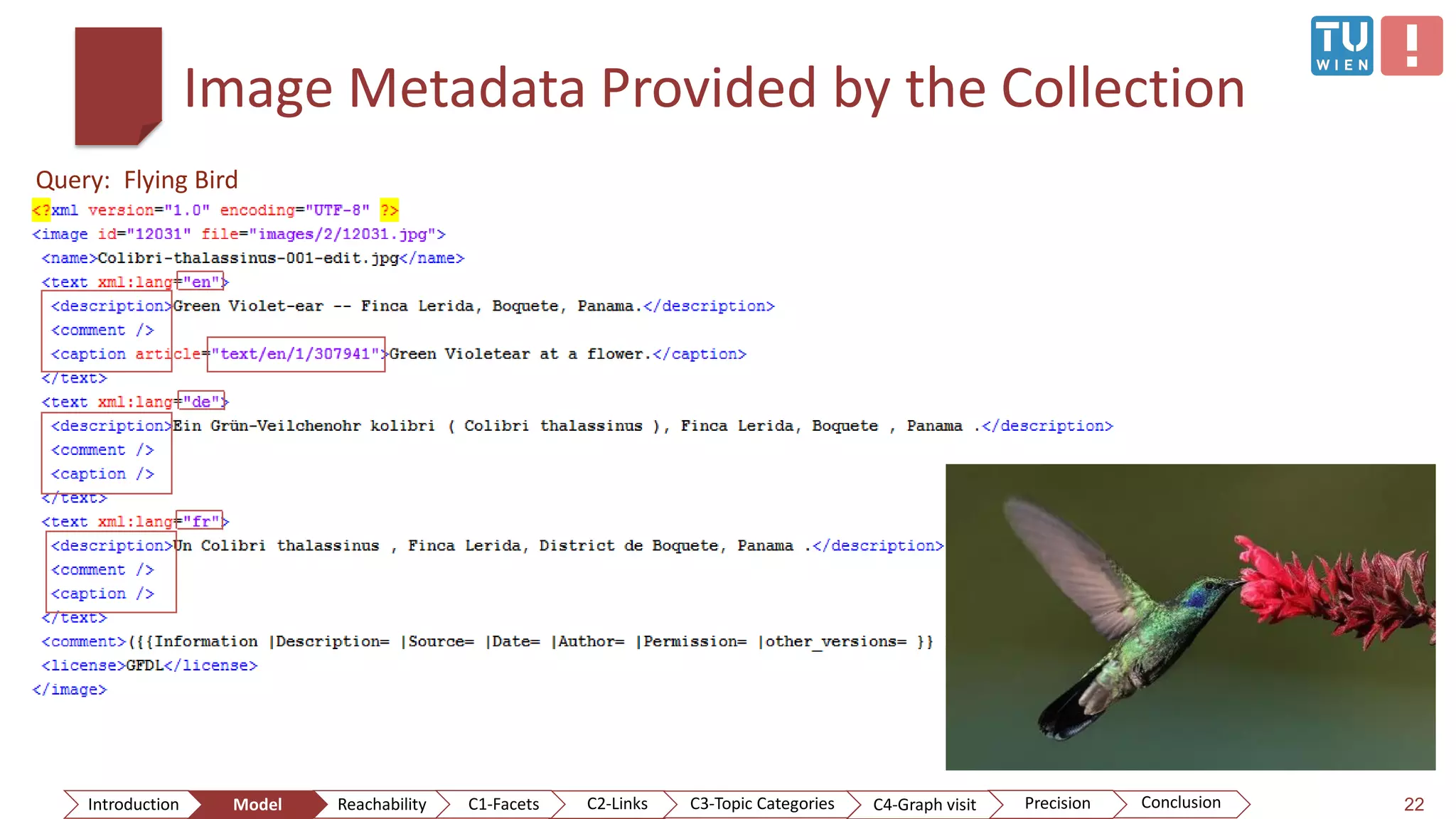

Image Metadata Provided by the Collection 22 Query: Flying Bird ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets
The Collection Mapped to our Model 23 D1D1 D2 D4D3 I1 I2 I4I3 TF.IDF CEDD CEDDTF.IDF TF.IDFCEDD TF.IDF TF.IDF TF.IDF TF.IDF TF.IDF CEDD Facet Part-of Model ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

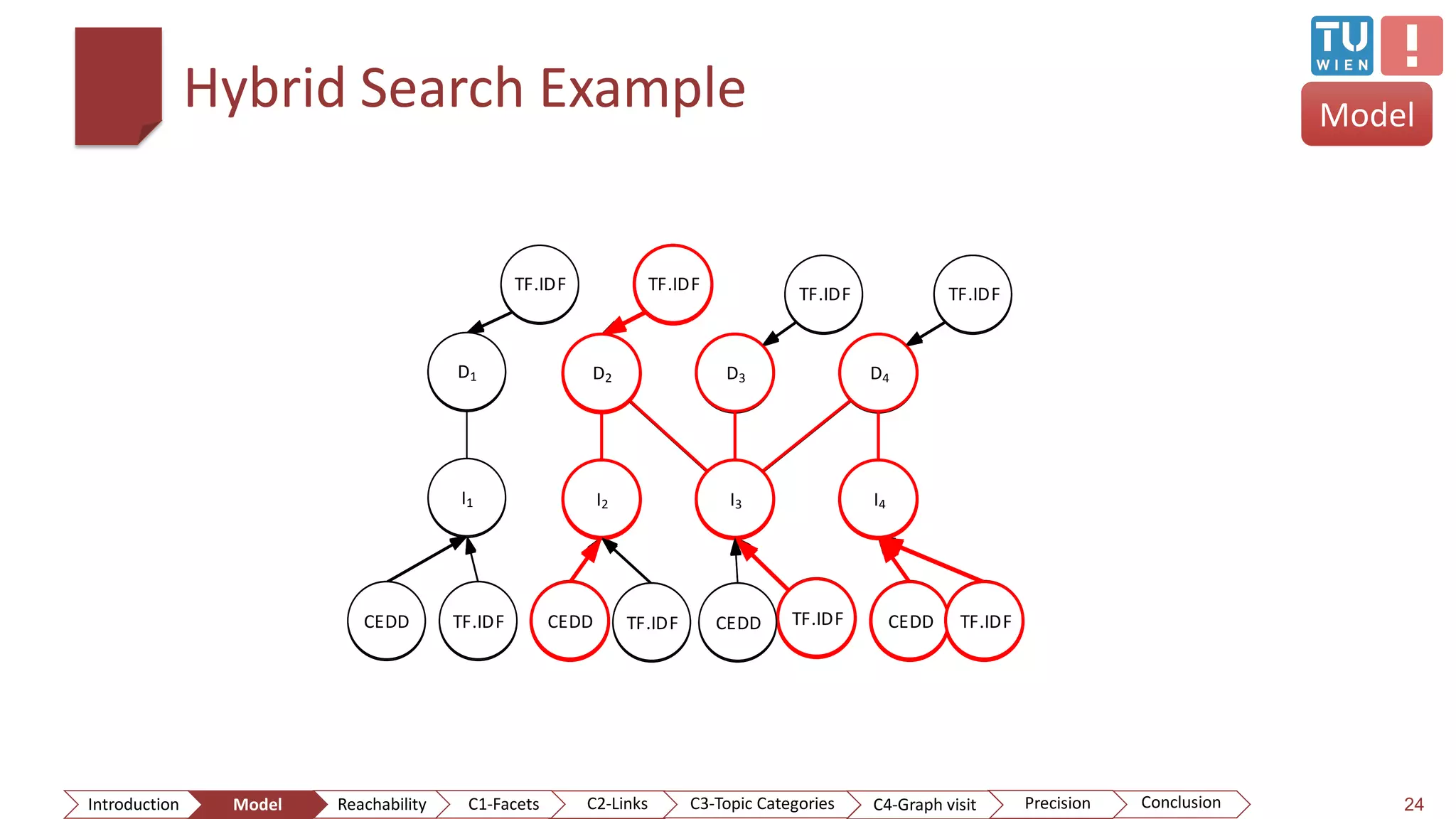

Hybrid Search Example 24 D1D1 D2 D4D3 I1 I2 I4I3 TF.IDF CEDD CEDDTF.IDF TF.IDFCEDD TF.IDF TF.IDF TF.IDF TF.IDF TF.IDF CEDD D1D1 D2 D4D3 I1 I2 I4I3 TF.IDF CEDD CEDDTF.IDF TF.IDFCEDD TF.IDF TF.IDF TF.IDF TF.IDF TF.IDF CEDD Model D1D1 D2 D4D3 I1 I2 I4I3 TF.IDF CEDD CEDDTF.IDF TF.IDFCEDD TF.IDF TF.IDF TF.IDF TF.IDF TF.IDF CEDD D1D1 D2 D4D3 I1 I2 I4I3 TF.IDF CEDD CEDDTF.IDF TF.IDFCEDD TF.IDF TF.IDF TF.IDF TF.IDF TF.IDF CEDD ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

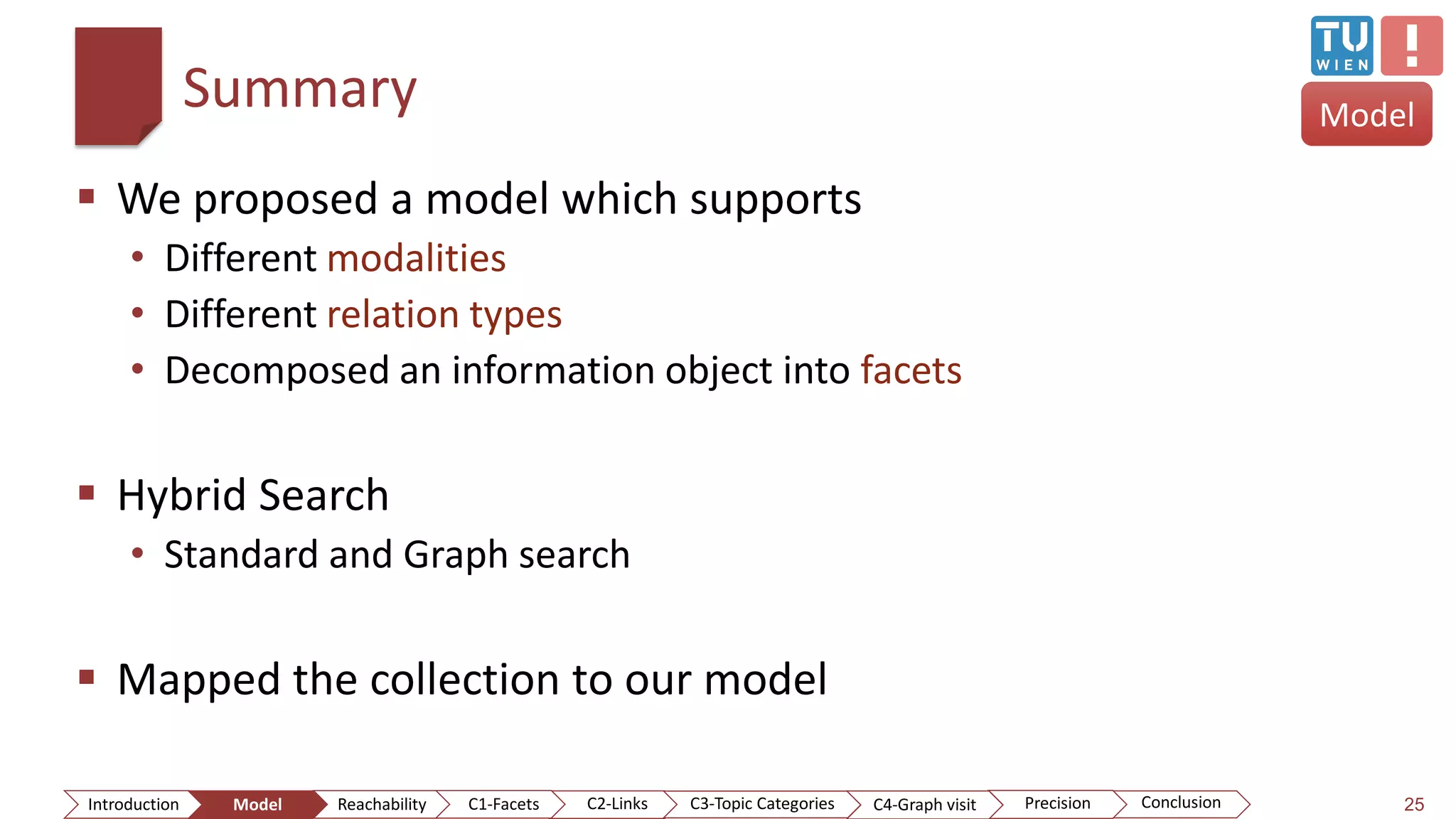

Summary  We proposed a model which supports • Different modalities • Different relation types • Decomposed an information object into facets  Hybrid Search • Standard and Graph search  Mapped the collection to our model 25 Model ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

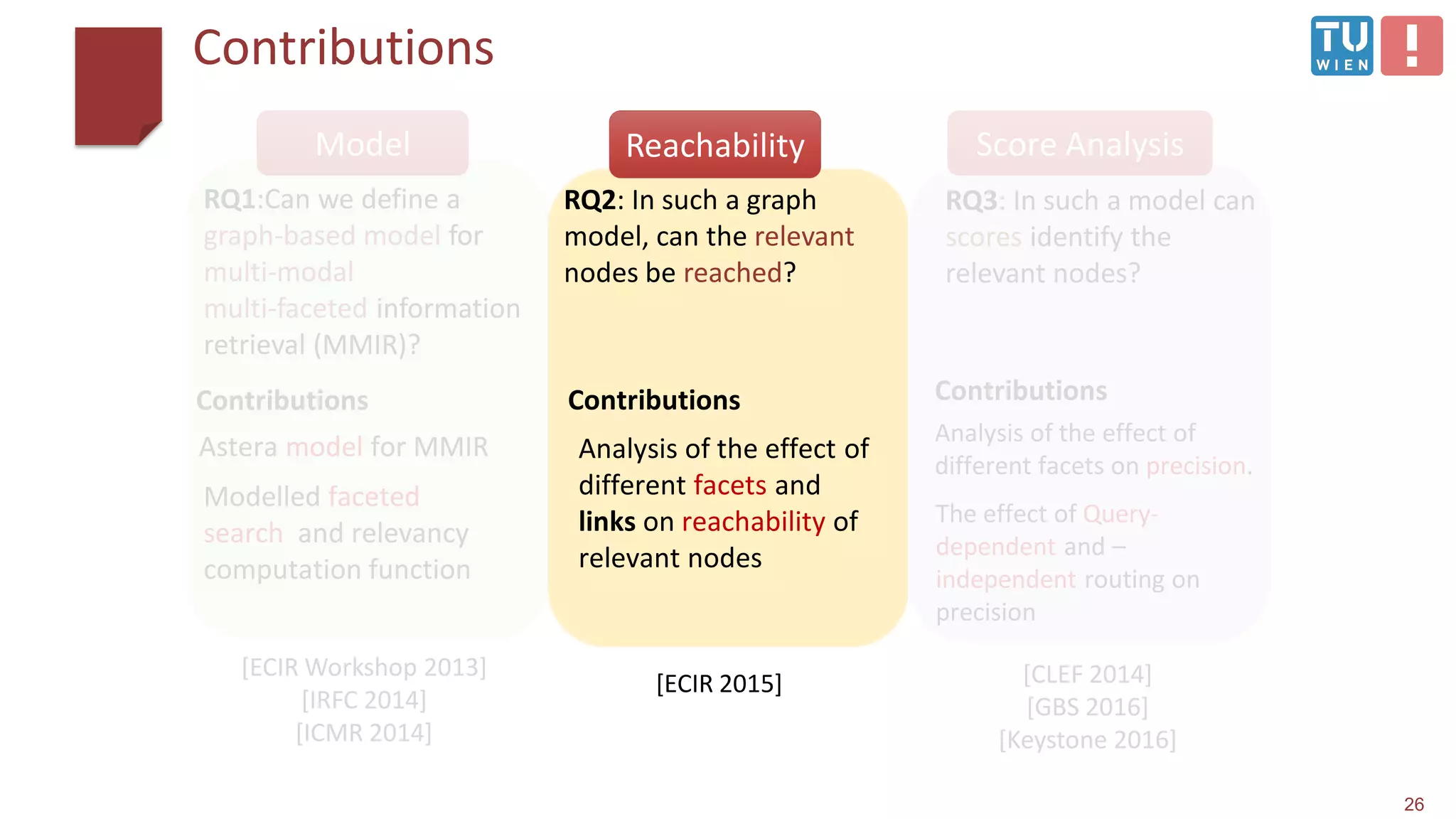

Contributions 26 [ECIR Workshop 2013] [IRFC 2014] [ICMR 2014] Contributions RQ1:Can we define a graph-based model for multi-modal multi-faceted information retrieval (MMIR)? [ECIR 2015] [CLEF 2014] [GBS 2016] [Keystone 2016] Astera model for MMIR Modelled faceted search and relevancy computation function RQ2: In such a graph model, can the relevant nodes be reached? Contributions Analysis of the effect of different facets and links on reachability of relevant nodes Model RQ3: In such a model can scores identify the relevant nodes? Contributions Analysis of the effect of different facets on precision. The effect of Query- dependent and – independent routing on precision Reachability Score Analysis

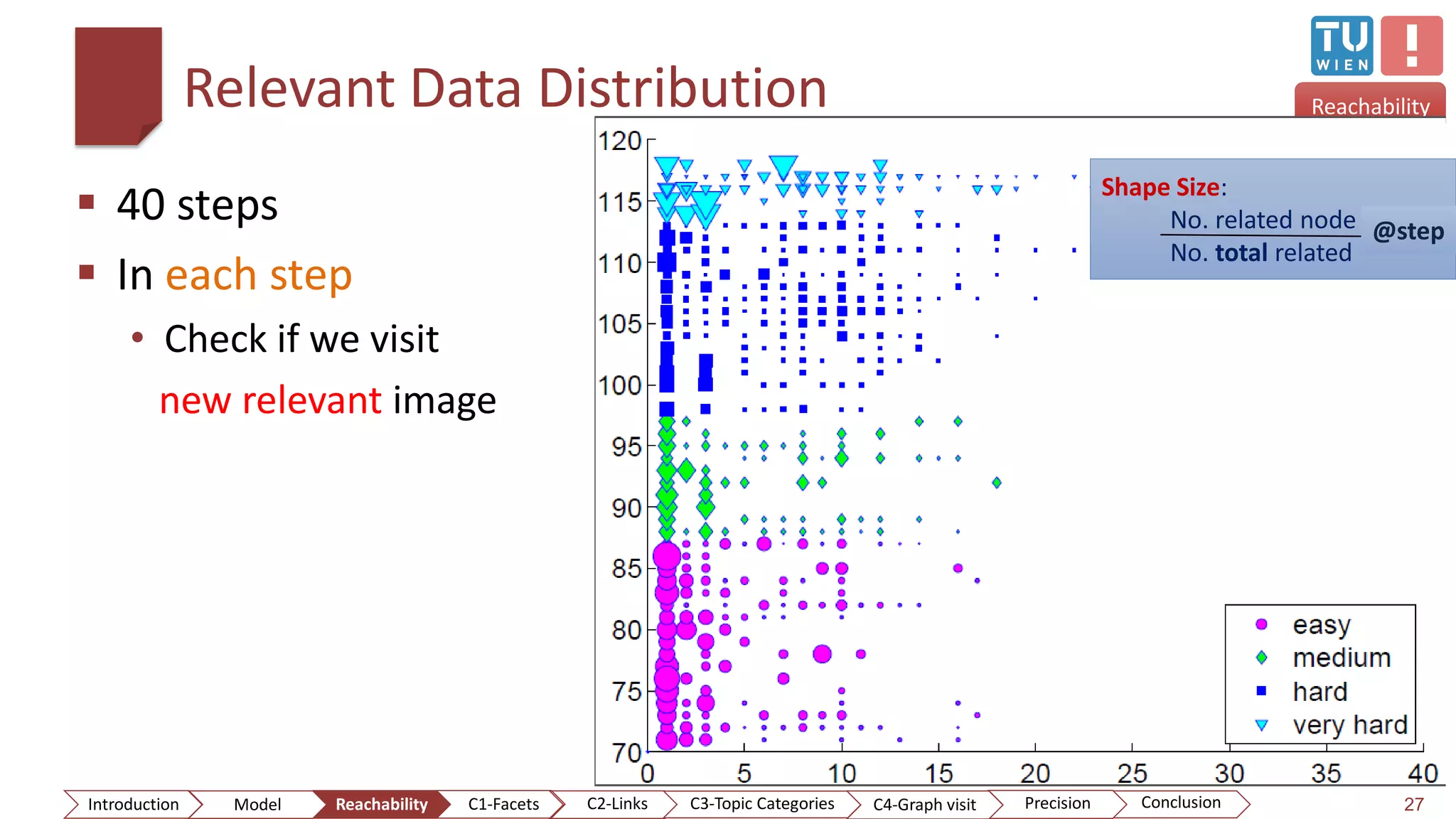

Relevant Data Distribution  40 steps  In each step • Check if we visit new relevant image 27 Reachability Shape Size: No. related node No. total related @step ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

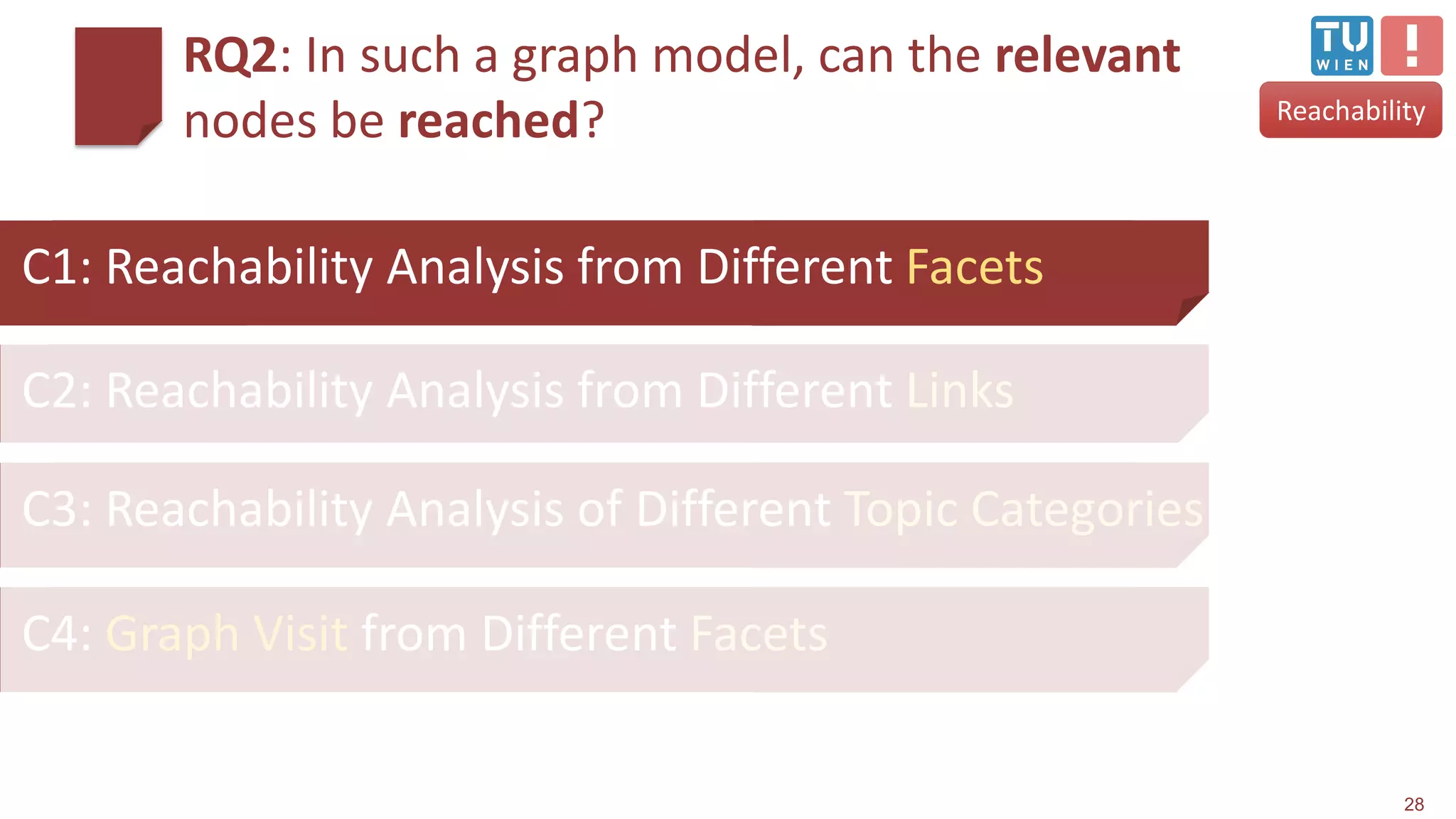

RQ2: In such a graph model, can the relevant nodes be reached? 28 C2: Reachability Analysis from Different Links C1: Reachability Analysis from Different Facets C3: Reachability Analysis of Different Topic Categories C4: Graph Visit from Different Facets Reachability

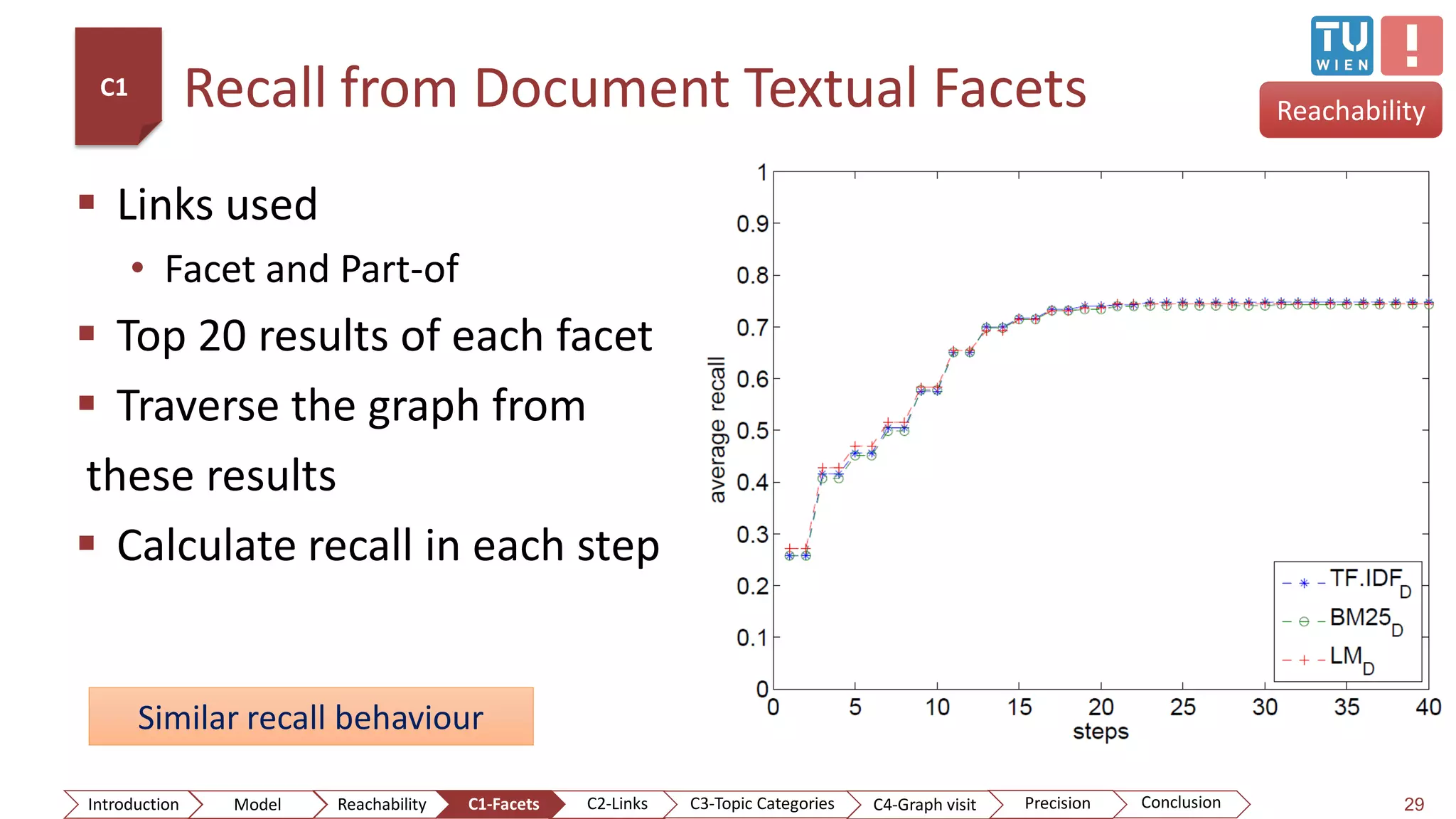

Recall from Document Textual Facets 29 Reachability  Links used • Facet and Part-of  Top 20 results of each facet  Traverse the graph from these results  Calculate recall in each step C1 Similar recall behaviour ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

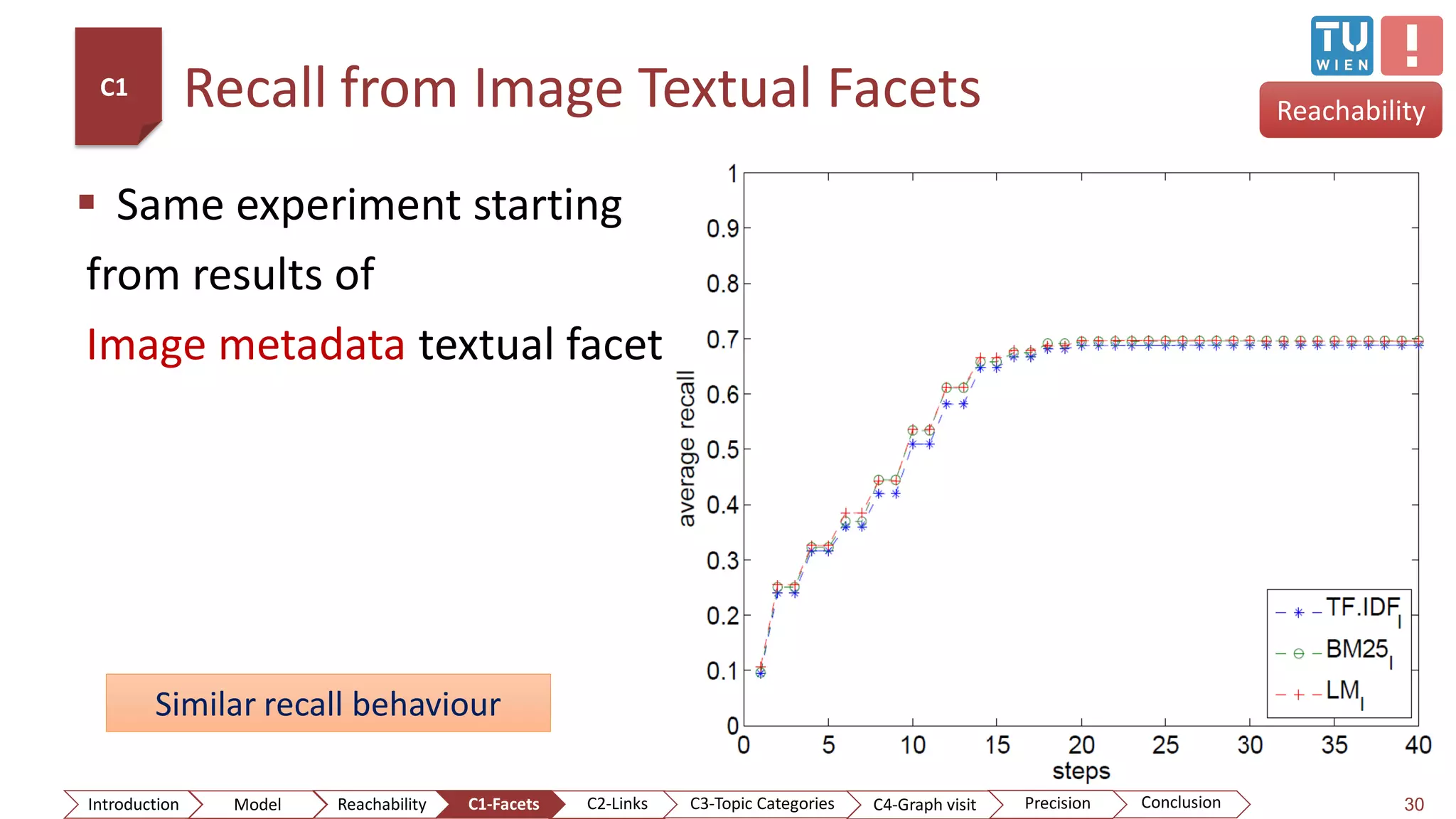

Recall from Image Textual Facets 30 Reachability  Same experiment starting from results of Image metadata textual facet C1 Similar recall behaviour ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

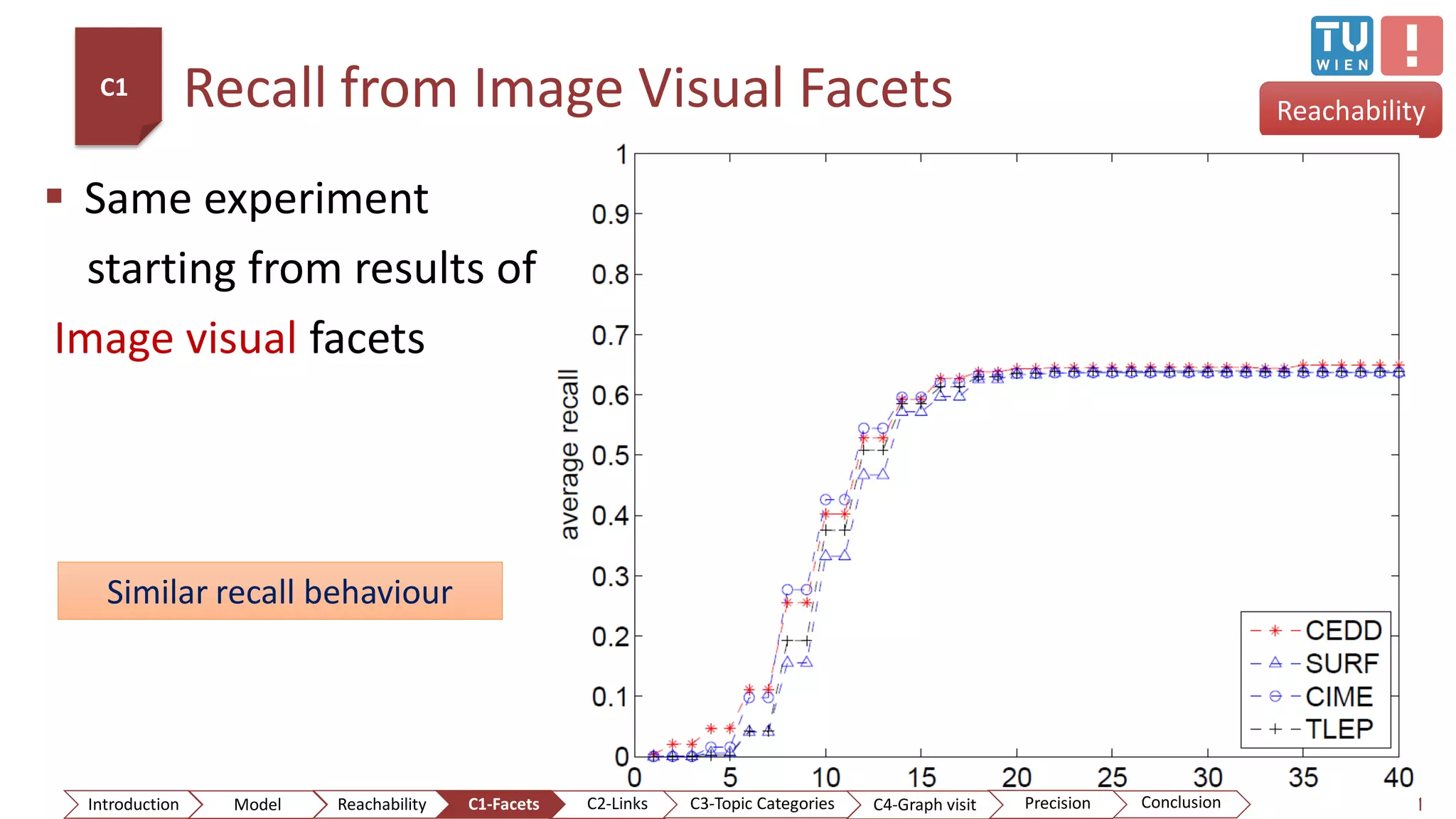

Recall from Image Visual Facets 31 Reachability C1 Similar recall behaviour  Same experiment starting from results of Image visual facets ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

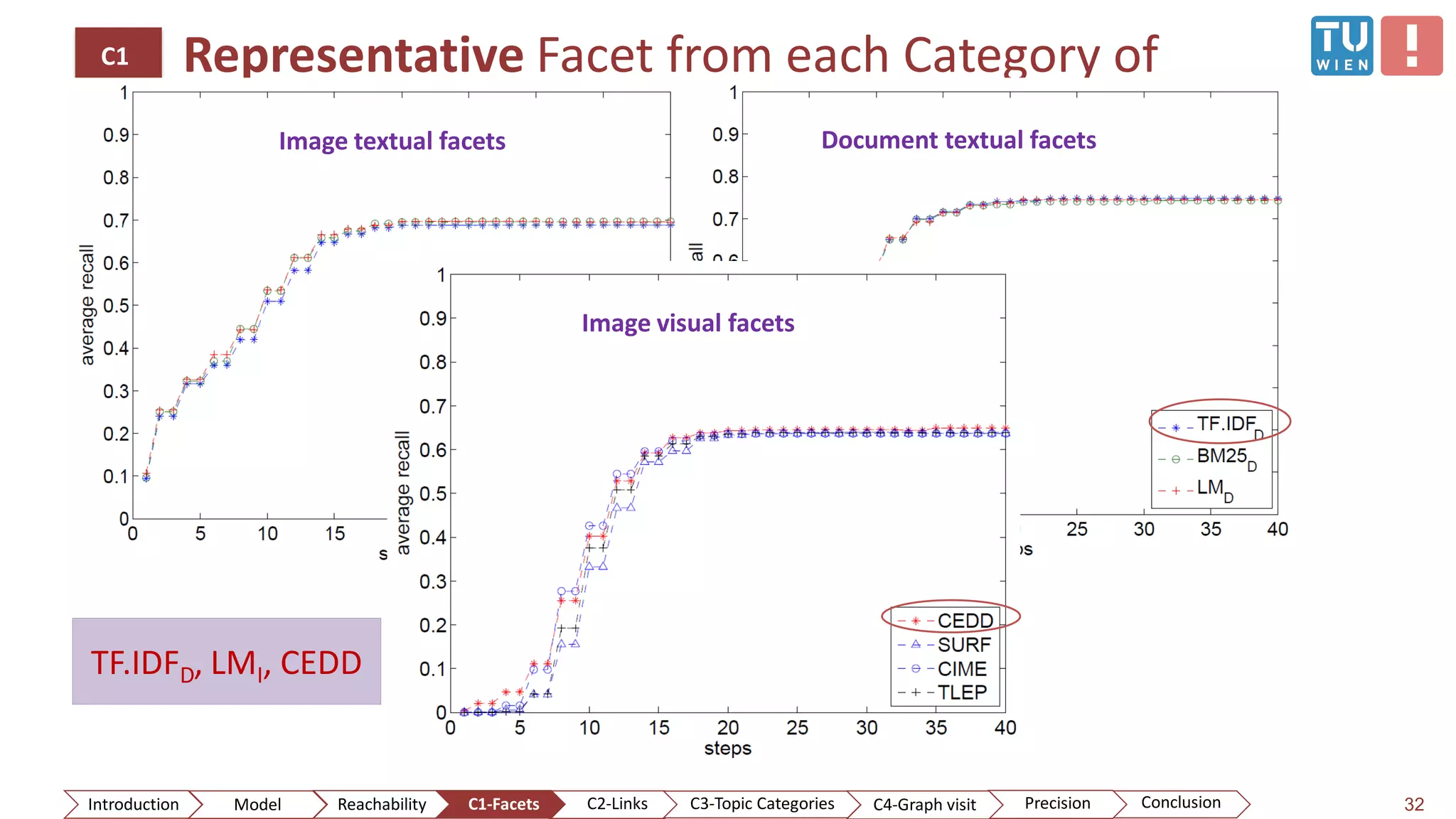

Representative Facet from each Category of Facets 32 Document textual facetsImage textual facets Image visual facets TF.IDFD, LMI, CEDD C1 ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

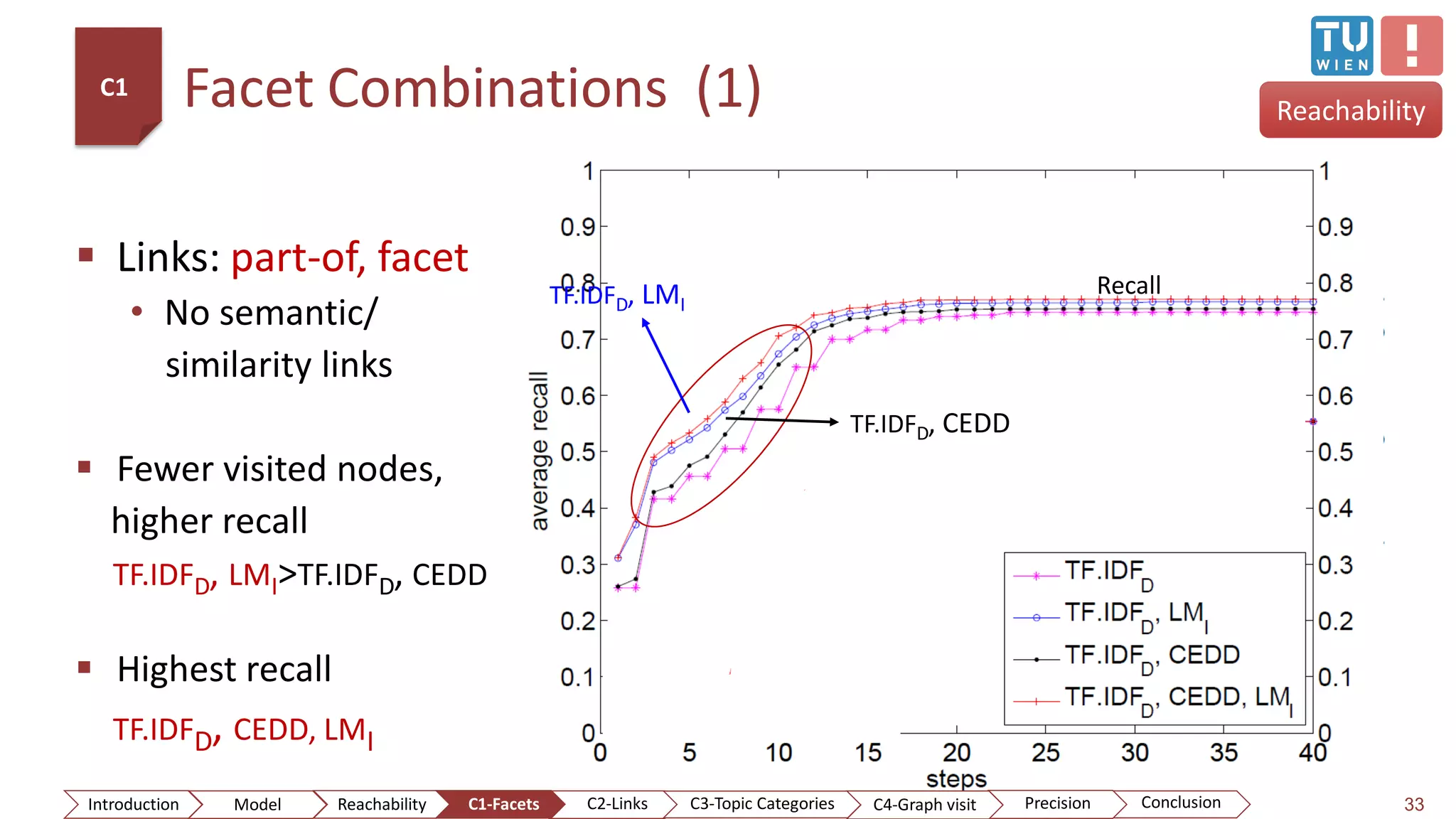

Facet Combinations (1) 33 Reachability  Links: part-of, facet • No semantic/ similarity links  Fewer visited nodes, higher recall TF.IDFD, LMI>TF.IDFD, CEDD  Highest recall TF.IDFD, CEDD, LMI Graph percentage seen Recall TF.IDFD, CEDD TF.IDFD, LMI C1 ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets
Facet Combinations (1) 34 Reachability  Links: part-of, facet • No semantic/ similarity links  Fewer visited nodes, higher recall TF.IDFD, LMI>TF.IDFD, CEDD  Highest recall TF.IDFD, CEDD, LMI Graph percentage seen Recall TF.IDFD, CEDD TF.IDFD, LMI C1 ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

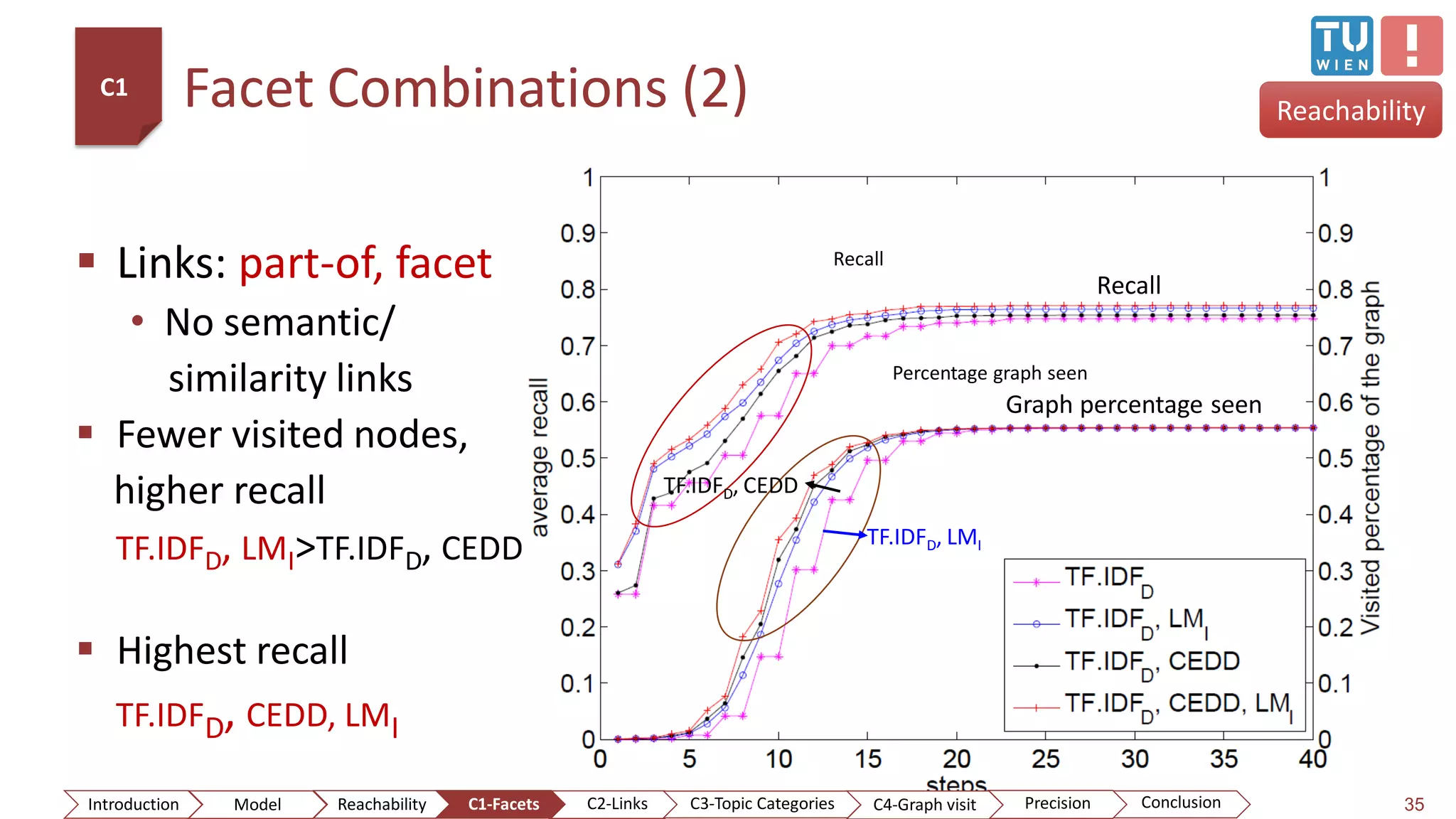

Facet Combinations (2) 35 Reachability  Links: part-of, facet • No semantic/ similarity links  Fewer visited nodes, higher recall TF.IDFD, LMI>TF.IDFD, CEDD  Highest recall TF.IDFD, CEDD, LMI Graph percentage seen Recall Recall Percentage graph seen TF.IDFD, CEDD TF.IDFD, LMI C1 ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

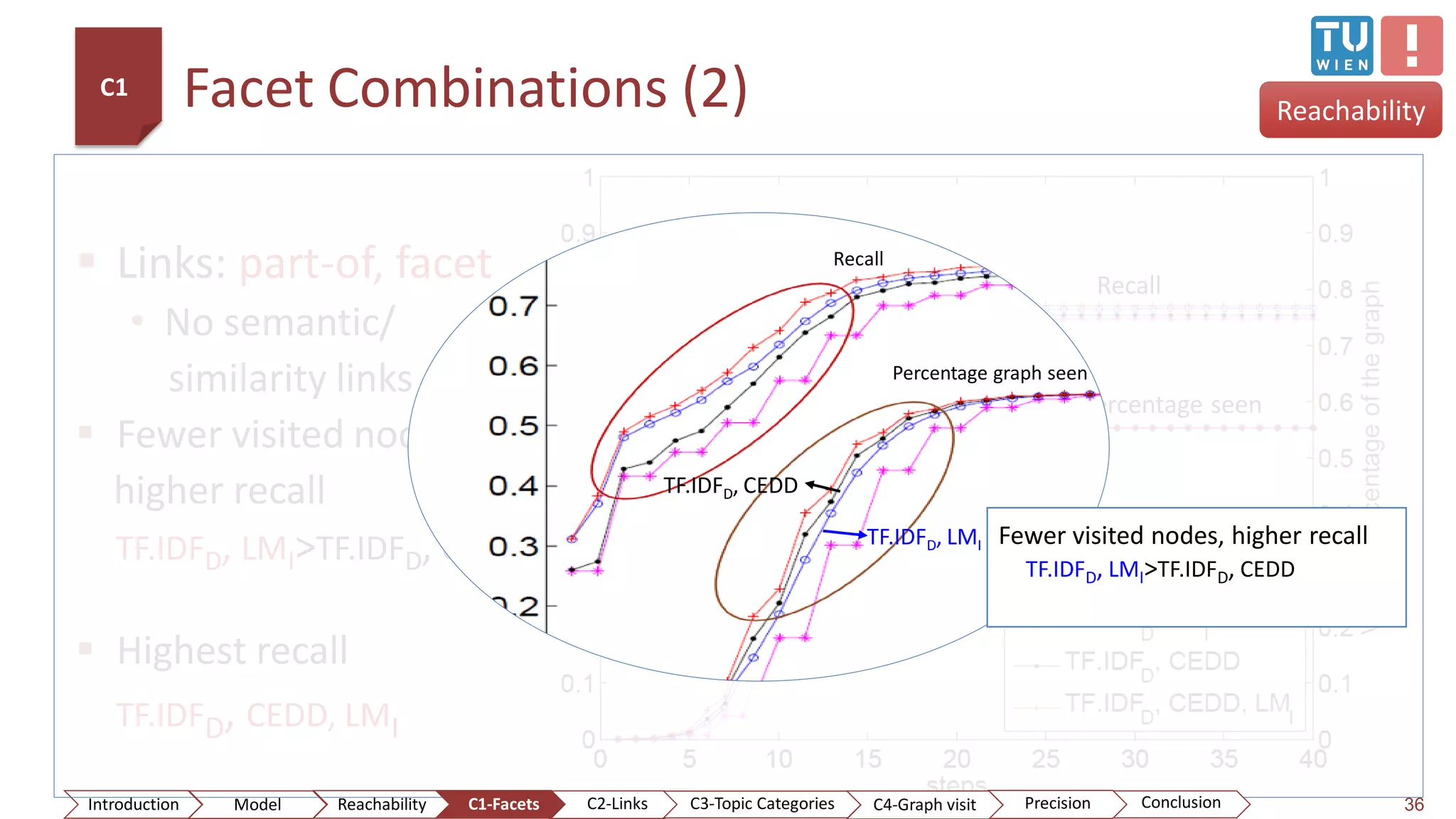

Facet Combinations (2) 36 Reachability  Links: part-of, facet • No semantic/ similarity links  Fewer visited nodes, higher recall TF.IDFD, LMI>TF.IDFD, CEDD  Highest recall TF.IDFD, CEDD, LMI Graph percentage seen Recall Fewer visited nodes, higher recall TF.IDFD, LMI>TF.IDFD, CEDD Recall Percentage graph seen TF.IDFD, CEDD TF.IDFD, LMI C1 ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets
Observations  Different facets leading to visiting different parts of the collection  This reinforces the importance of the poly-representation idea to identify the relevant objects. 37 Sabetghadam S., Lupu M., Bierig R., and Rauber A, ."Reachability Analysis of Graph Modelled Collections". 37th European Conference on Information Retrieval, ECIR 2015, pp. 370-381 C1

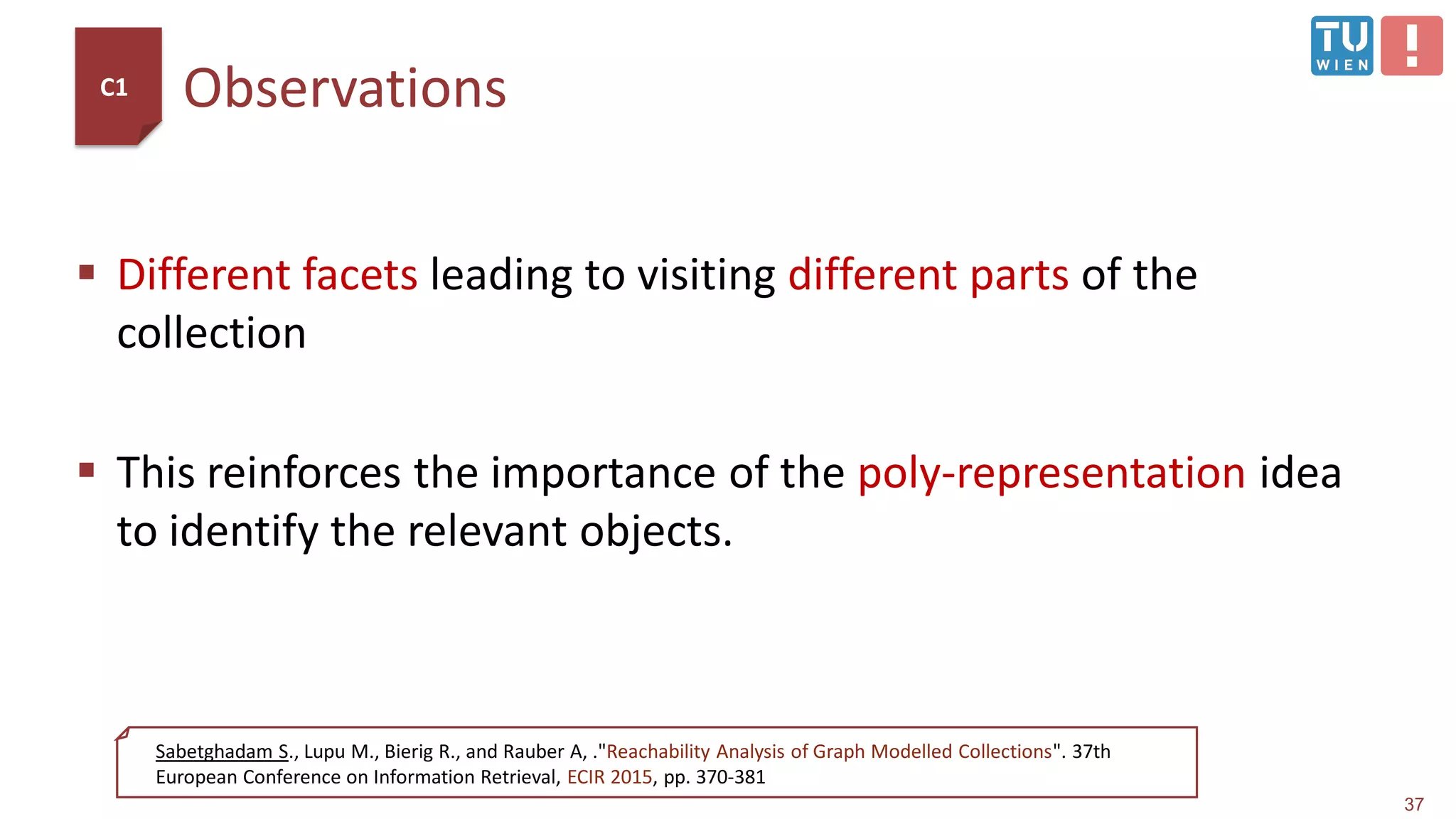

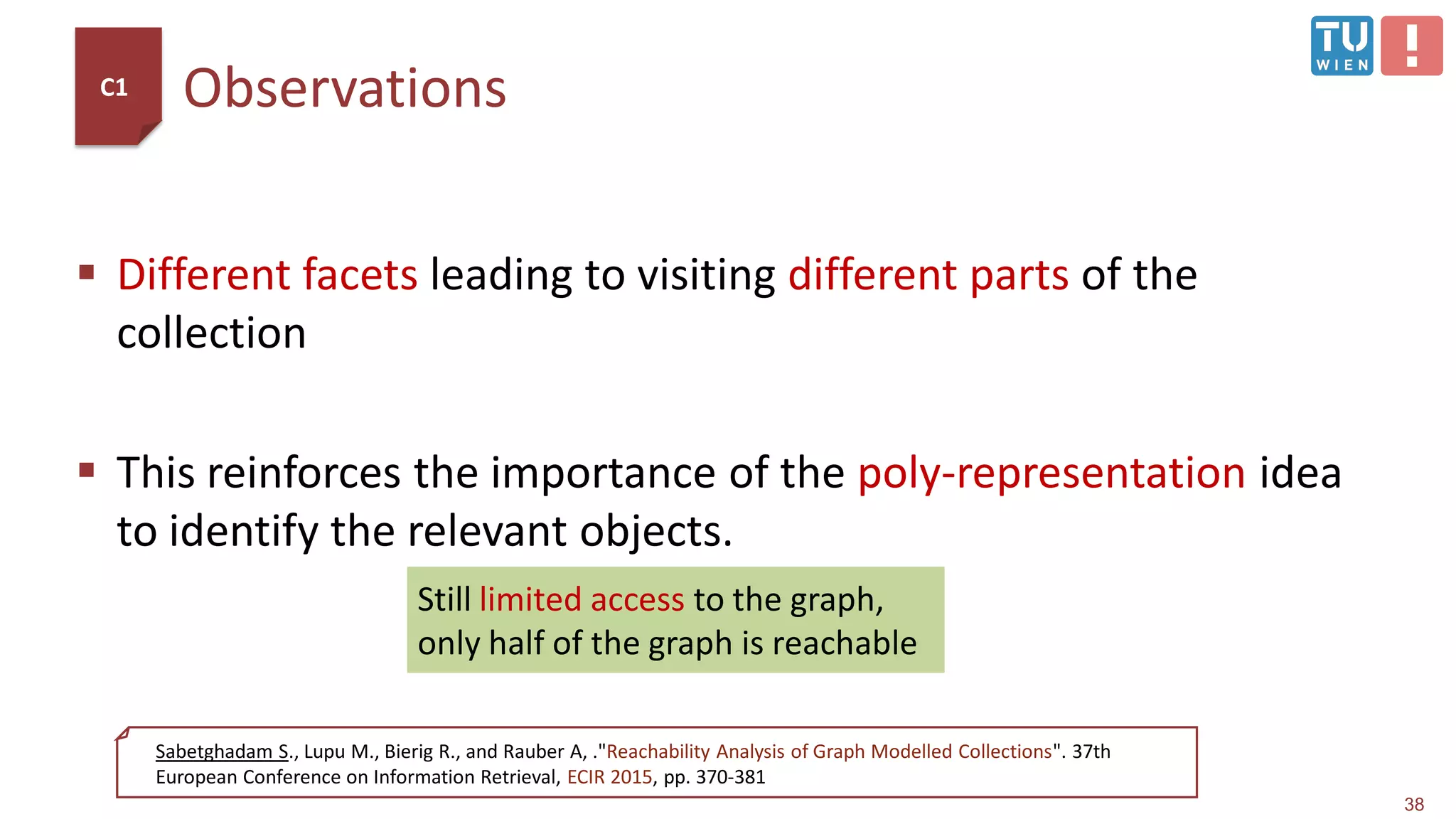

Observations  Different facets leading to visiting different parts of the collection  This reinforces the importance of the poly-representation idea to identify the relevant objects. 38 Sabetghadam S., Lupu M., Bierig R., and Rauber A, ."Reachability Analysis of Graph Modelled Collections". 37th European Conference on Information Retrieval, ECIR 2015, pp. 370-381 Still limited access to the graph, only half of the graph is reachable C1

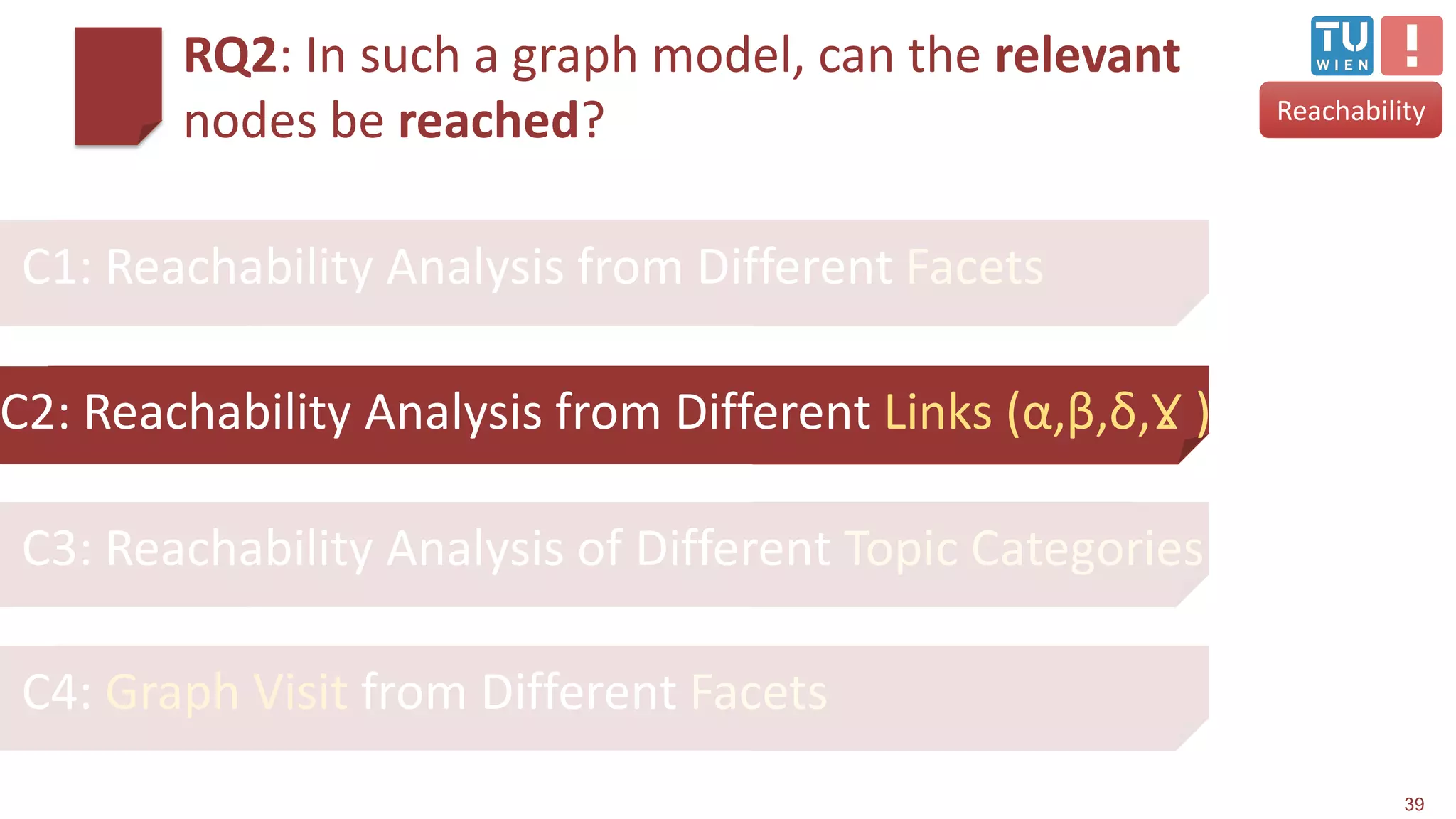

RQ2: In such a graph model, can the relevant nodes be reached? 39 C2: Reachability Analysis from Different Links (α,β,δ,Ɣ ) C1: Reachability Analysis from Different Facets C3: Reachability Analysis of Different Topic Categories C4: Graph Visit from Different Facets Reachability

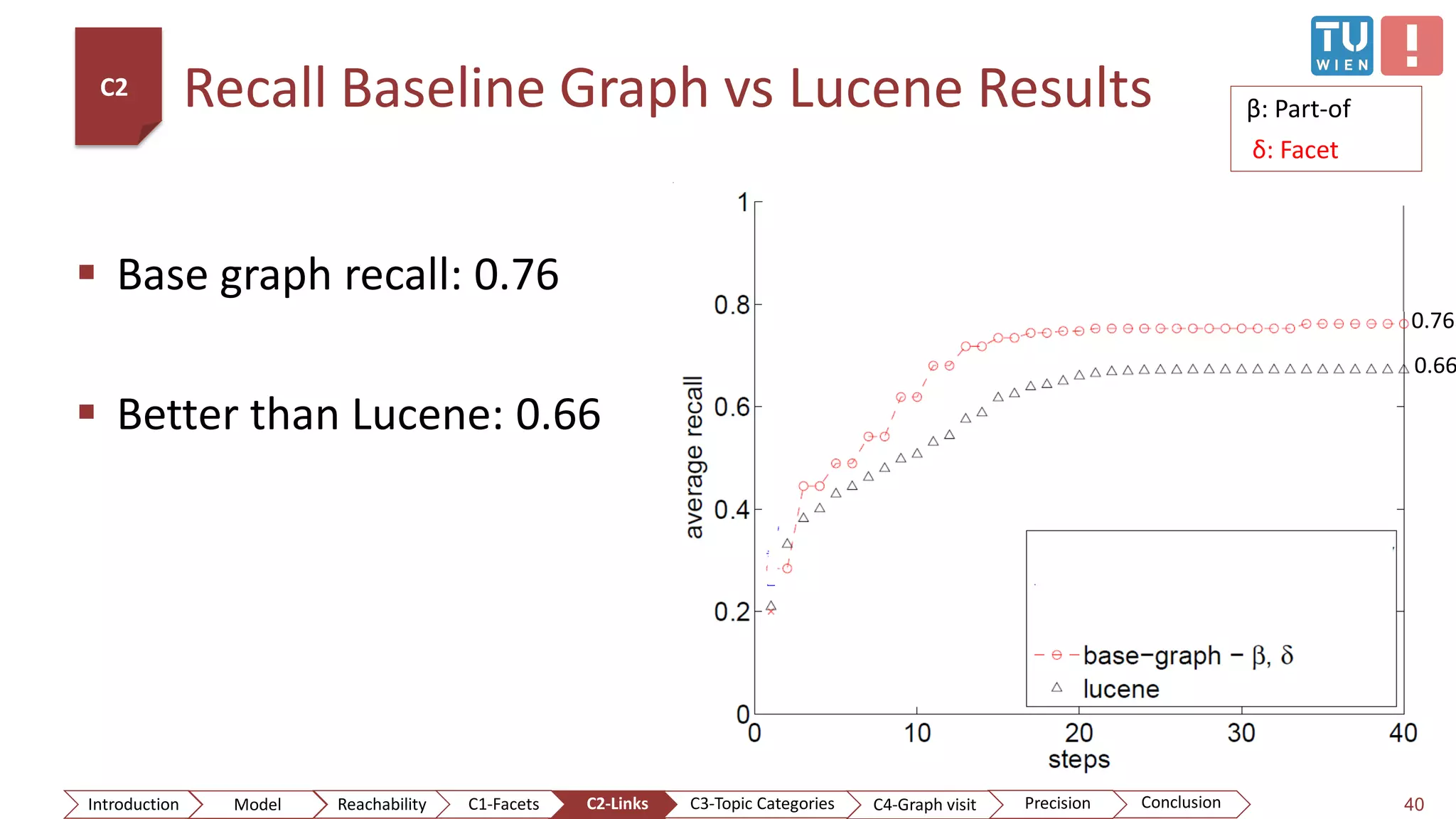

Recall Baseline Graph vs Lucene Results  Base graph recall: 0.76  Better than Lucene: 0.66 40 0.76 0.66 β: Part-of δ: Facet C2 ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

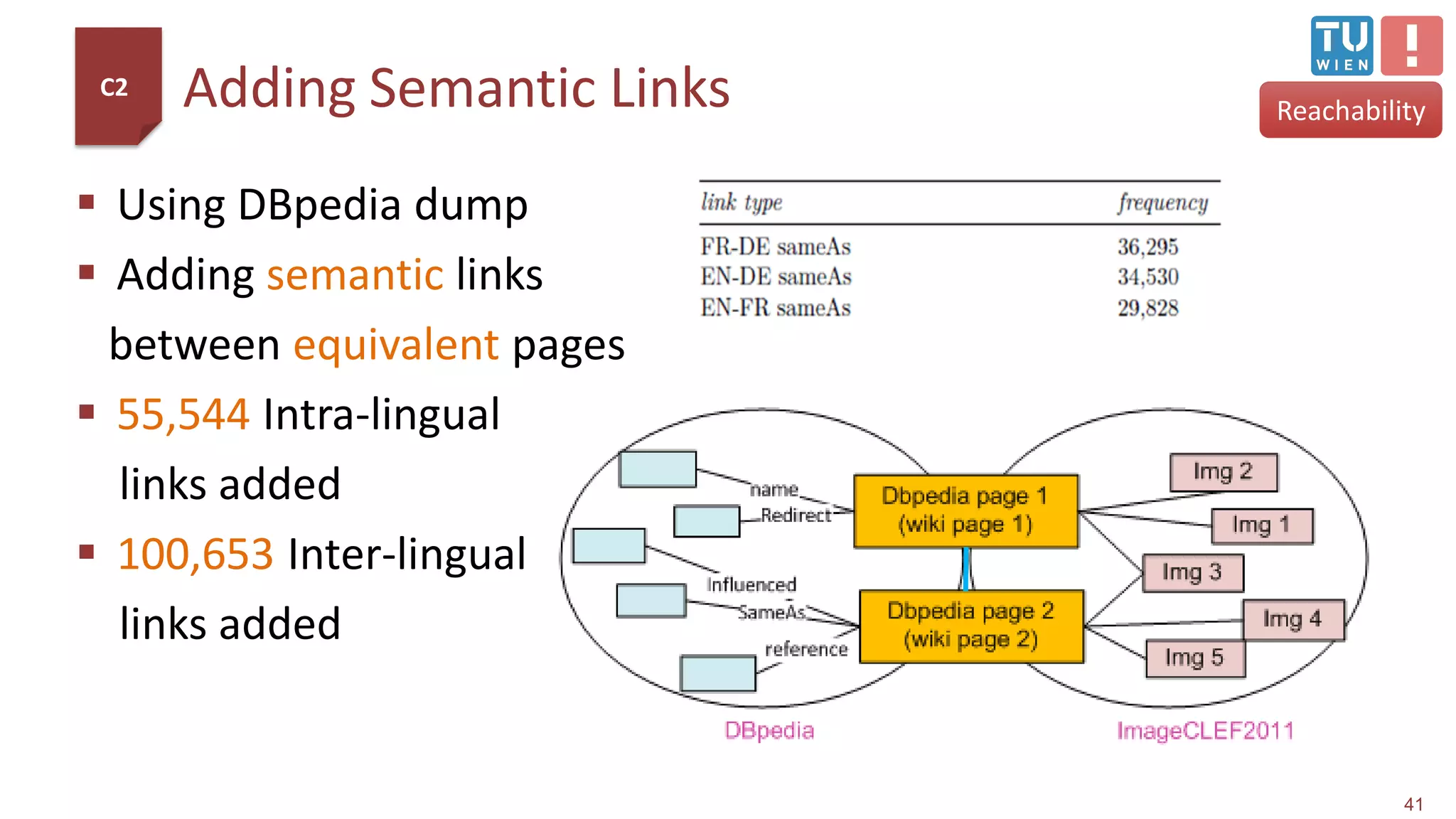

Adding Semantic Links  Using DBpedia dump  Adding semantic links between equivalent pages  55,544 Intra-lingual links added  100,653 Inter-lingual links added 41 C2 Reachability

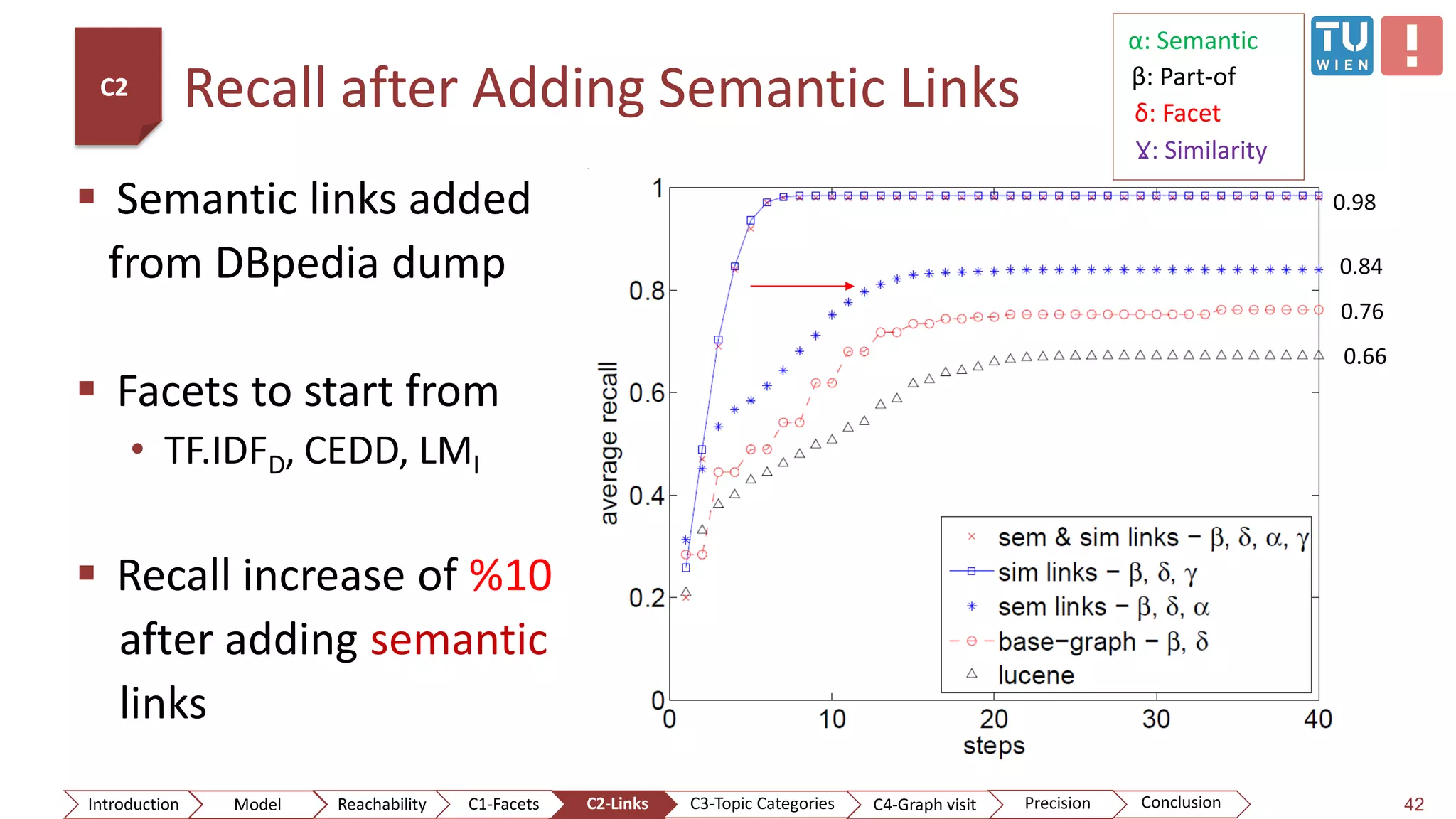

Recall after Adding Semantic Links  Semantic links added from DBpedia dump  Facets to start from • TF.IDFD, CEDD, LMI  Recall increase of %10 after adding semantic links 42 0.76 0.84 0.98 0.66 α: Semantic β: Part-of δ: Facet Ɣ: Similarity C2 ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

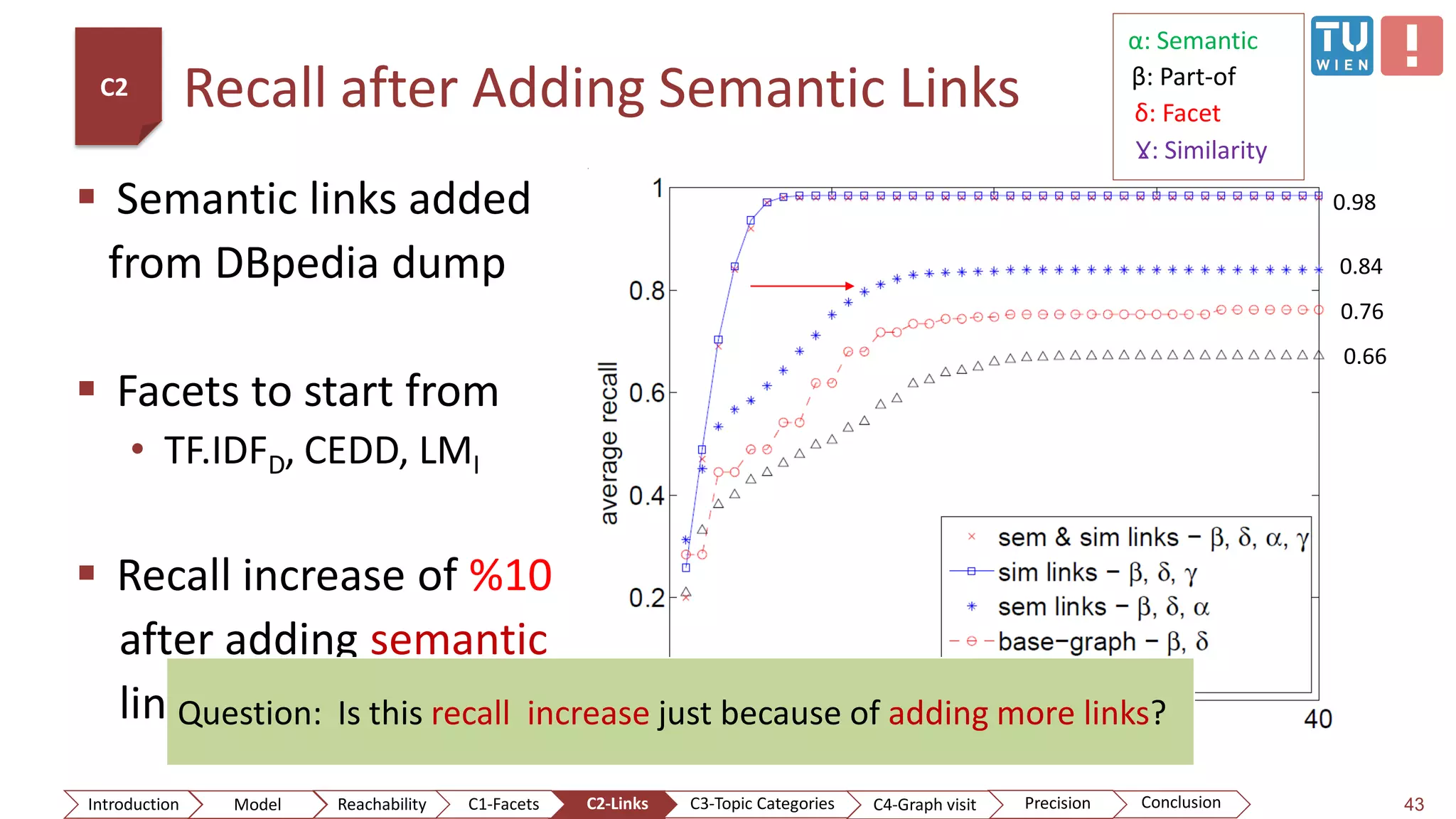

Recall after Adding Semantic Links  Semantic links added from DBpedia dump  Facets to start from • TF.IDFD, CEDD, LMI  Recall increase of %10 after adding semantic links 43 0.76 0.84 0.98 0.66 Question: Is this recall increase just because of adding more links? α: Semantic β: Part-of δ: Facet Ɣ: Similarity C2 ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

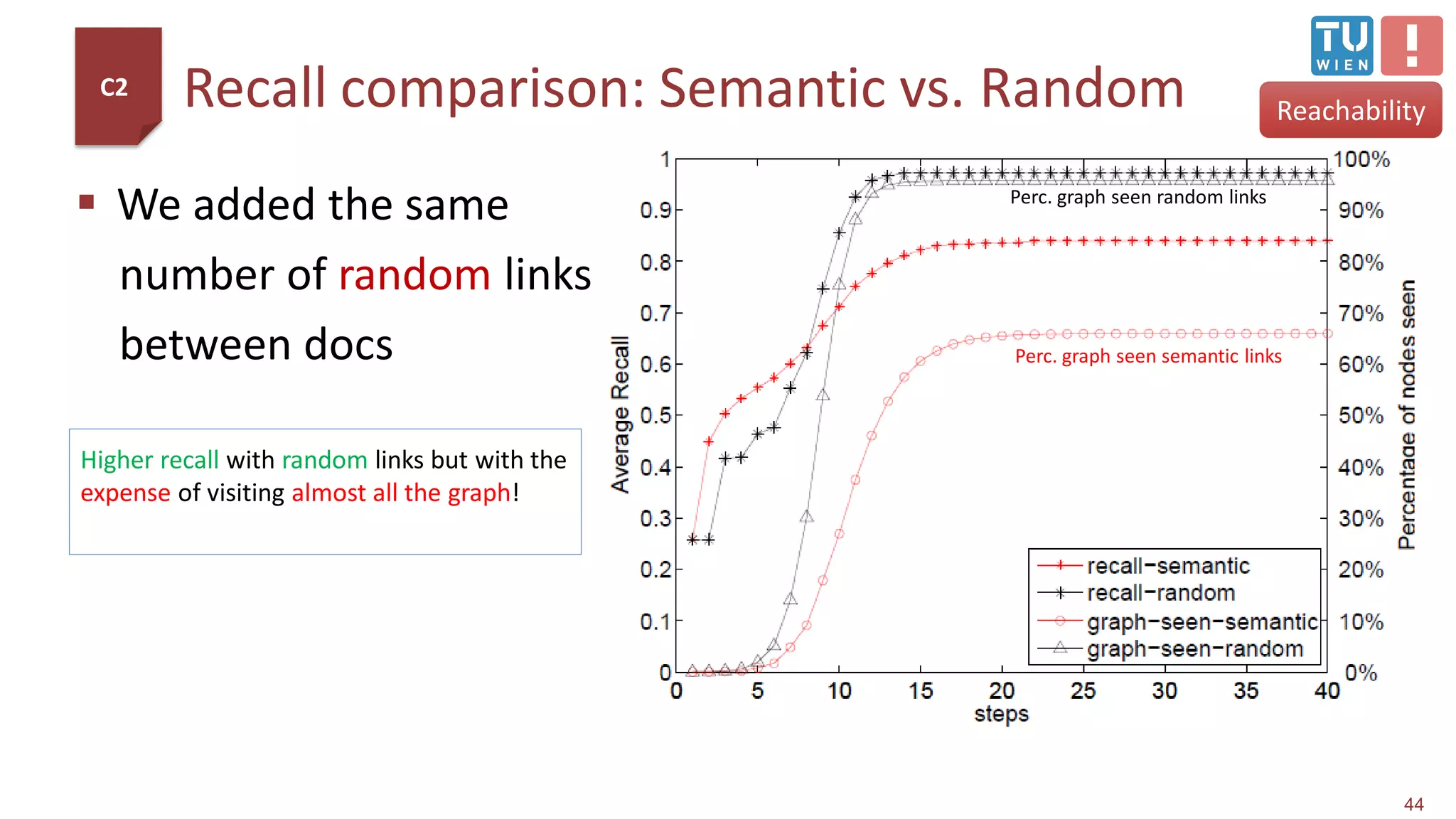

AverageRecall Recall comparison: Semantic vs. Random 44 Reachability  We added the same number of random links between docs Higher recall with random links but with the expense of visiting almost all the graph! Recall Random links Recall Semantic links Perc. graph seen semantic links Perc. graph seen random links C2

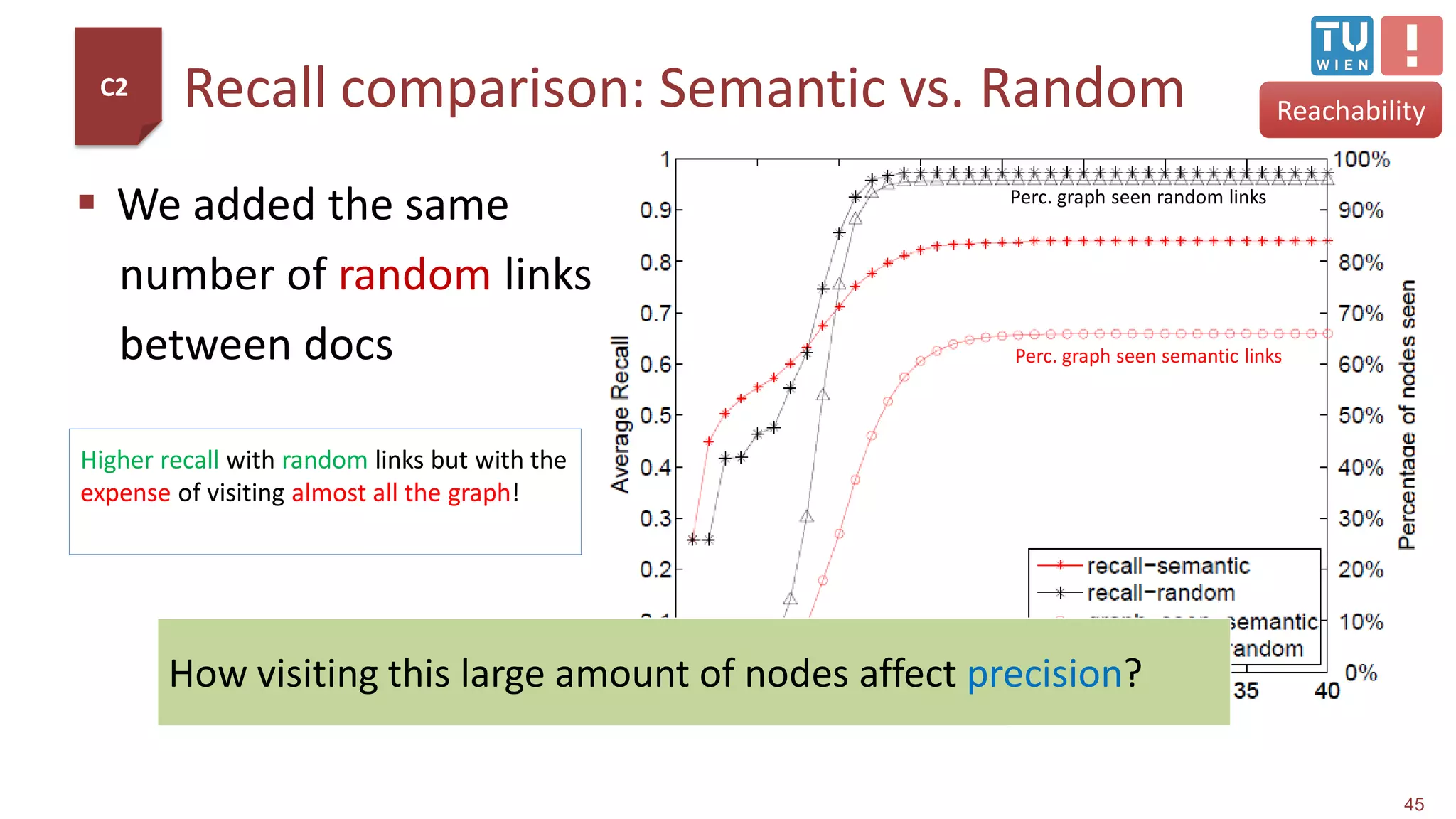

AverageRecall Recall comparison: Semantic vs. Random 45 Reachability  We added the same number of random links between docs Higher recall with random links but with the expense of visiting almost all the graph! Recall Random links Recall Semantic links Perc. graph seen semantic links Perc. graph seen random links How visiting this large amount of nodes affect precision? C2

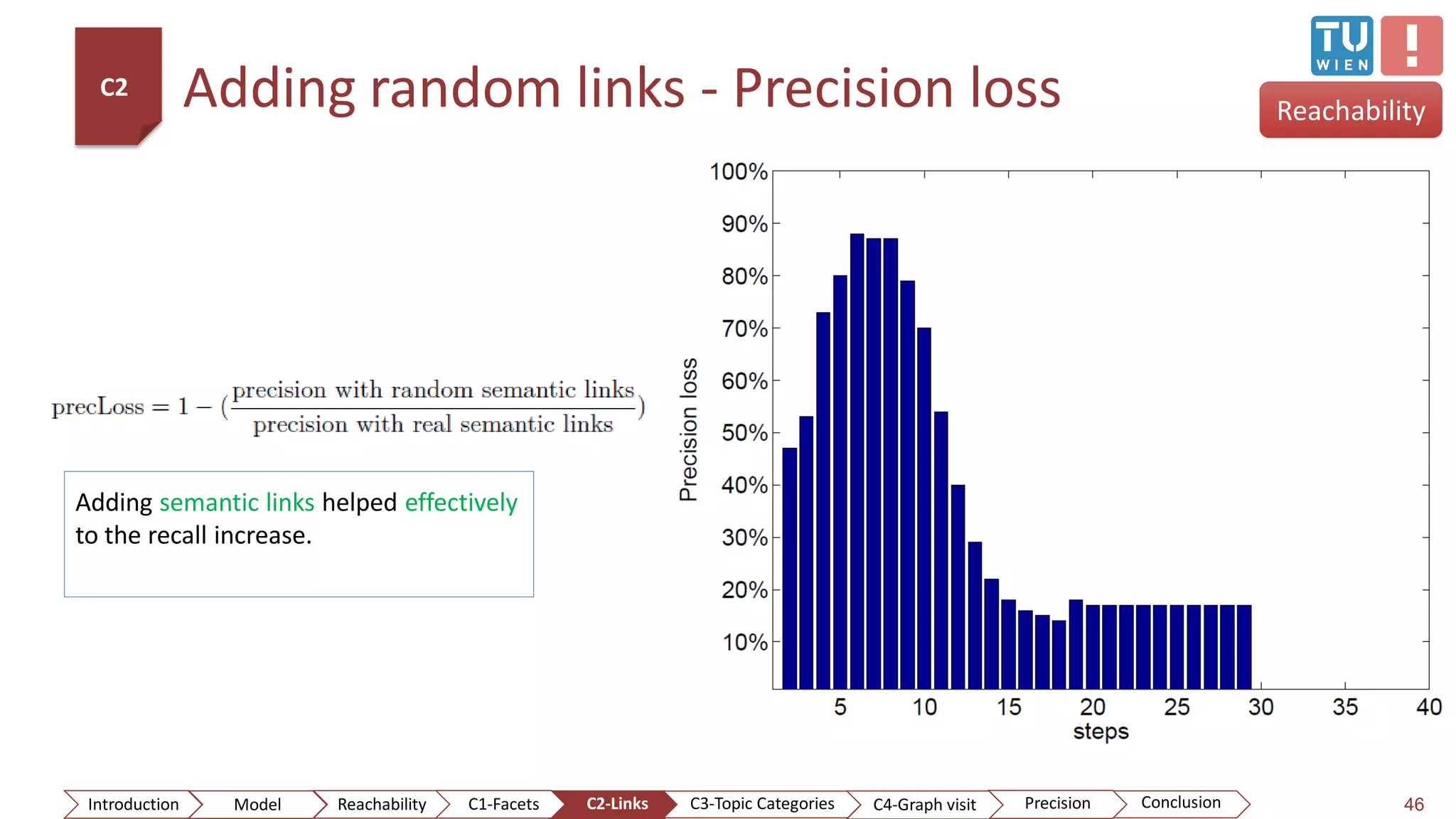

Adding random links - Precision loss 46 Reachability Adding semantic links helped effectively to the recall increase. C2 ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets
Recall after Adding Similarity Links 47 We did the same analysis with adding similarity links They are effectively helpful in reaching more relevant nodes

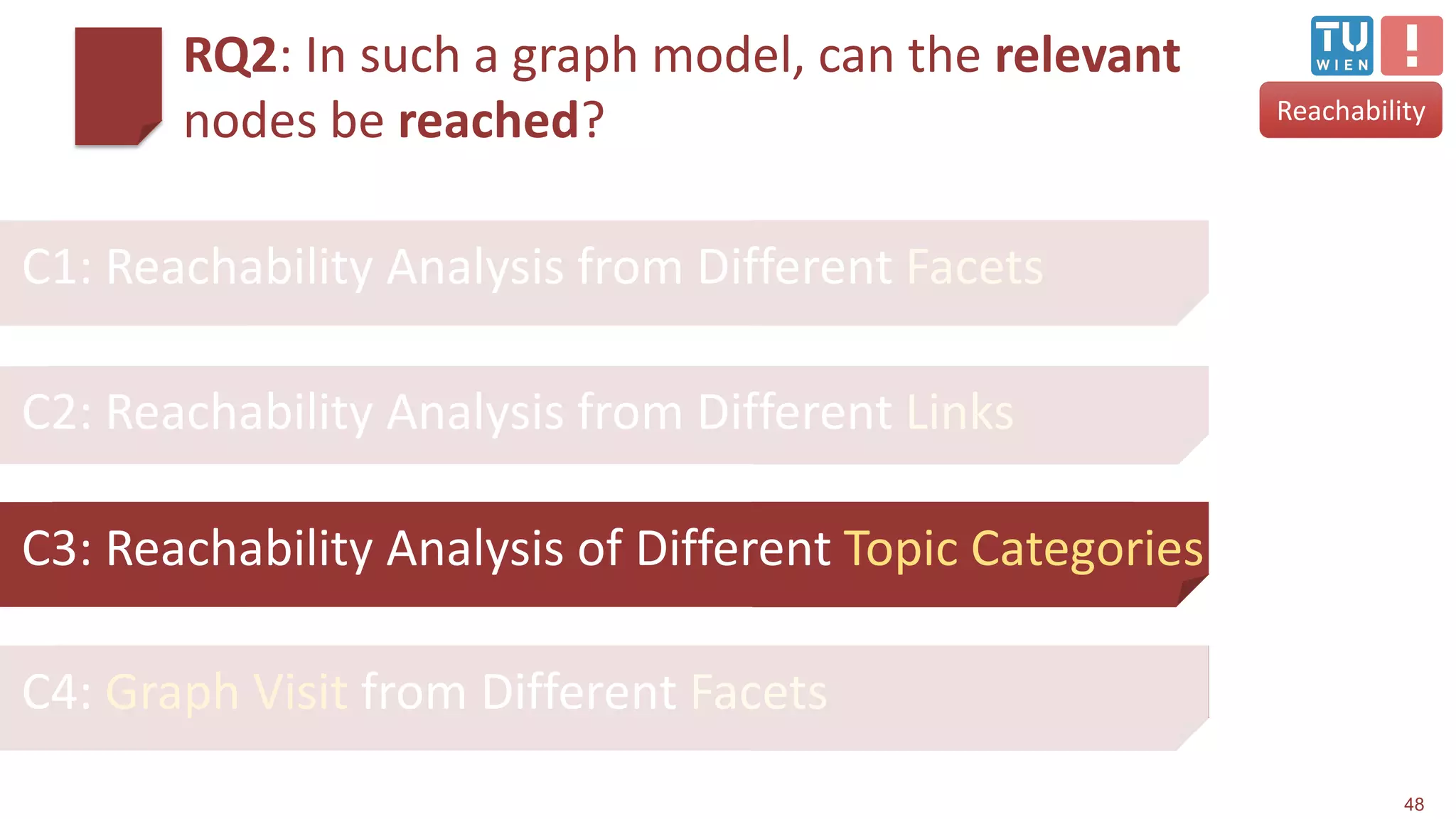

RQ2: In such a graph model, can the relevant nodes be reached? 48 C2: Reachability Analysis from Different Links C1: Reachability Analysis from Different Facets C3: Reachability Analysis of Different Topic Categories C4: Graph Visit from Different Facets Reachability

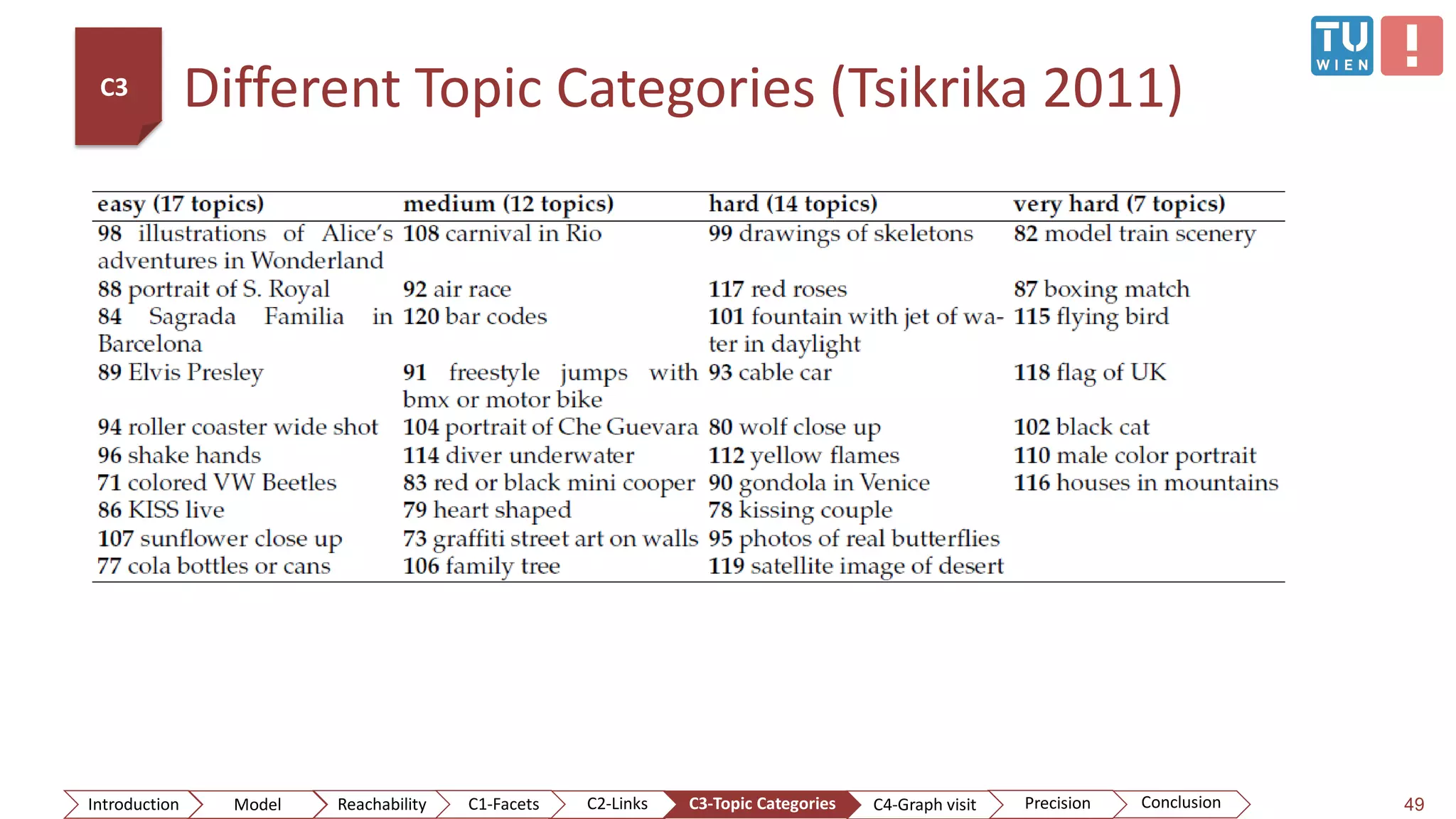

Different Topic Categories (Tsikrika 2011) 49 C3 ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

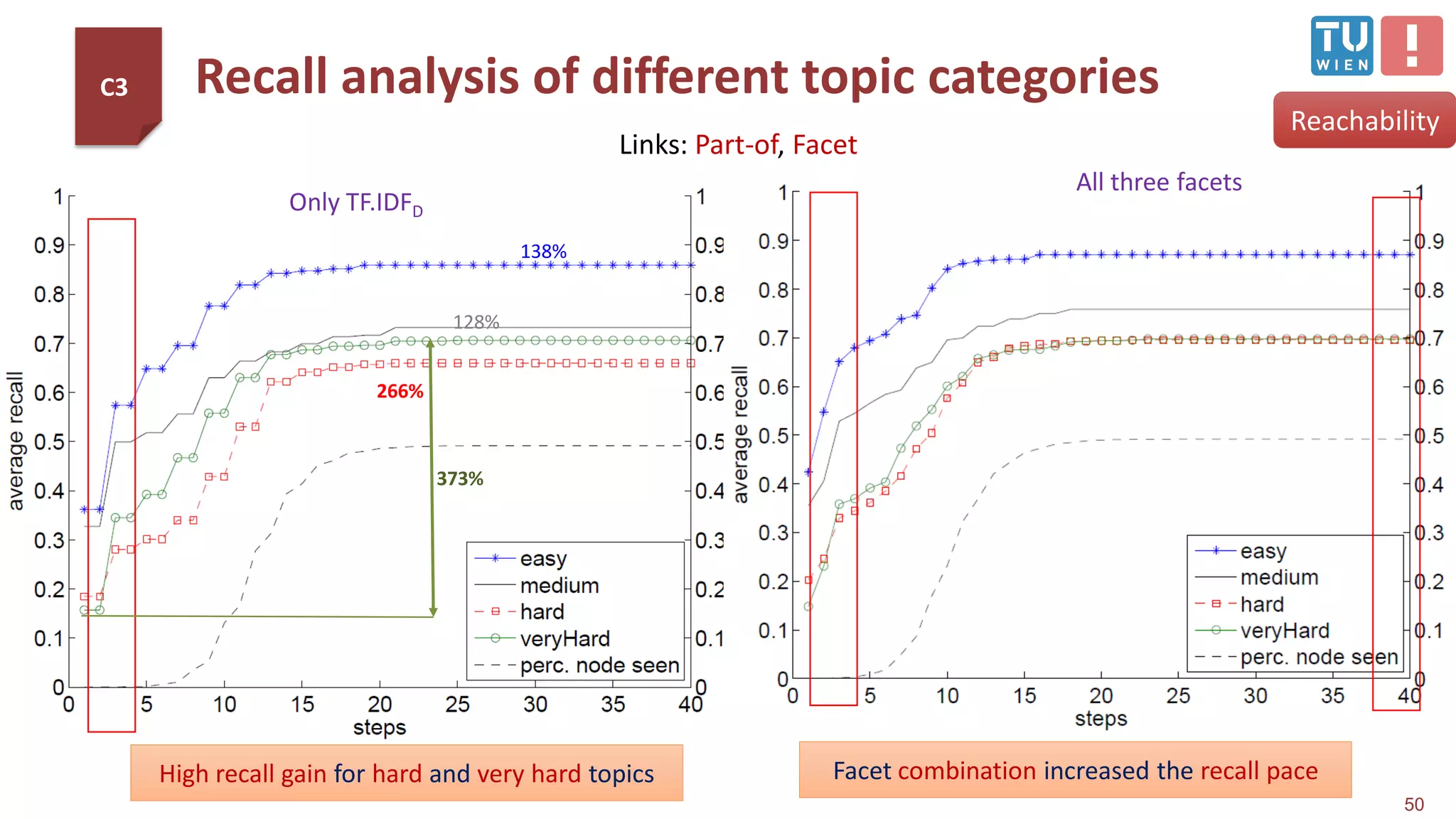

Recall analysis of different topic categories 50 Reachability 138% 128% 373% 266% Only TF.IDFD All three facets High recall gain for hard and very hard topics Facet combination increased the recall pace Links: Part-of, Facet C3

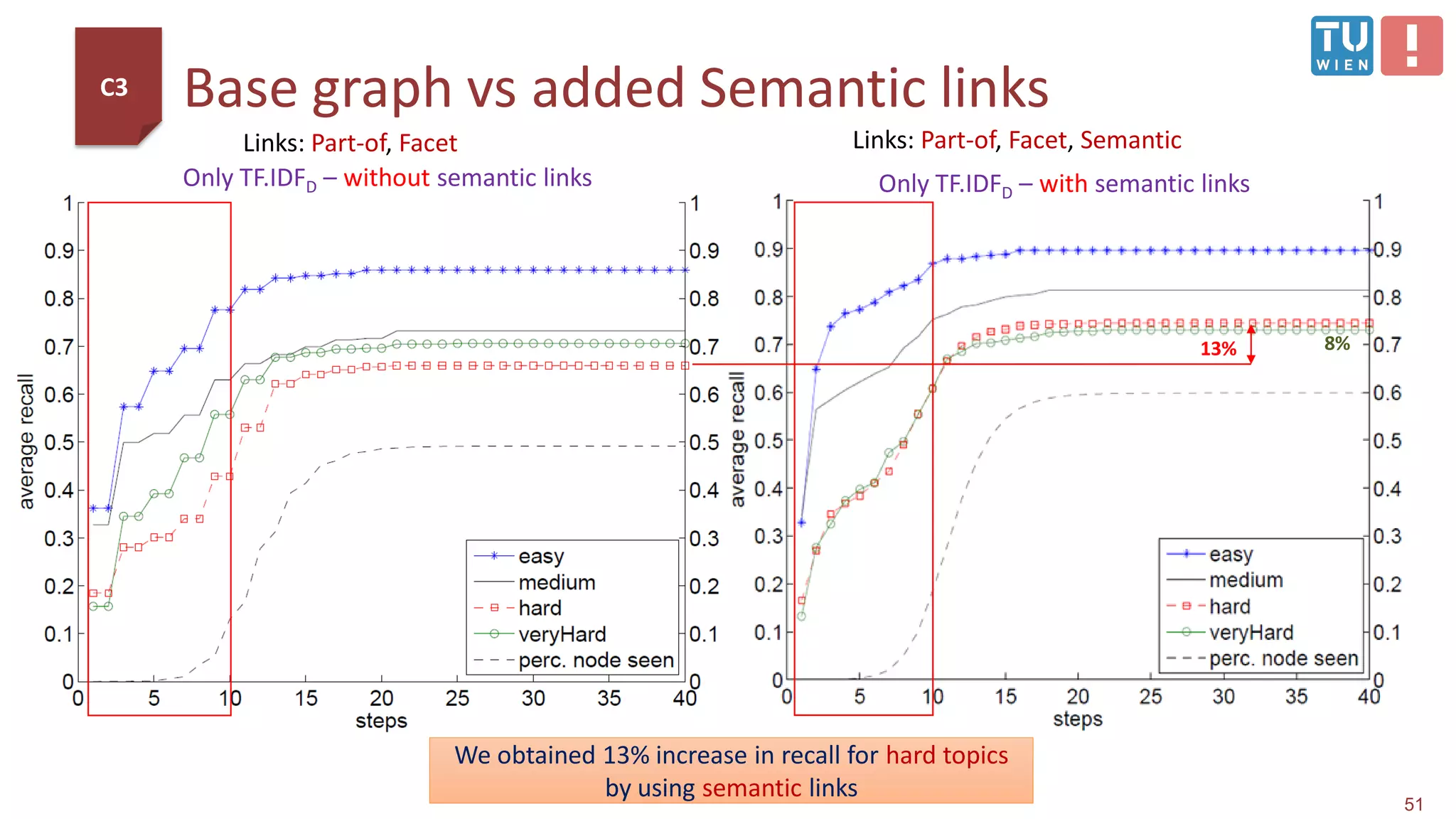

Base graph vs added Semantic links 51 Only TF.IDFD – without semantic links Only TF.IDFD – with semantic links 13% 8% We obtained 13% increase in recall for hard topics by using semantic links Links: Part-of, Facet, Semantic C3 Links: Part-of, Facet

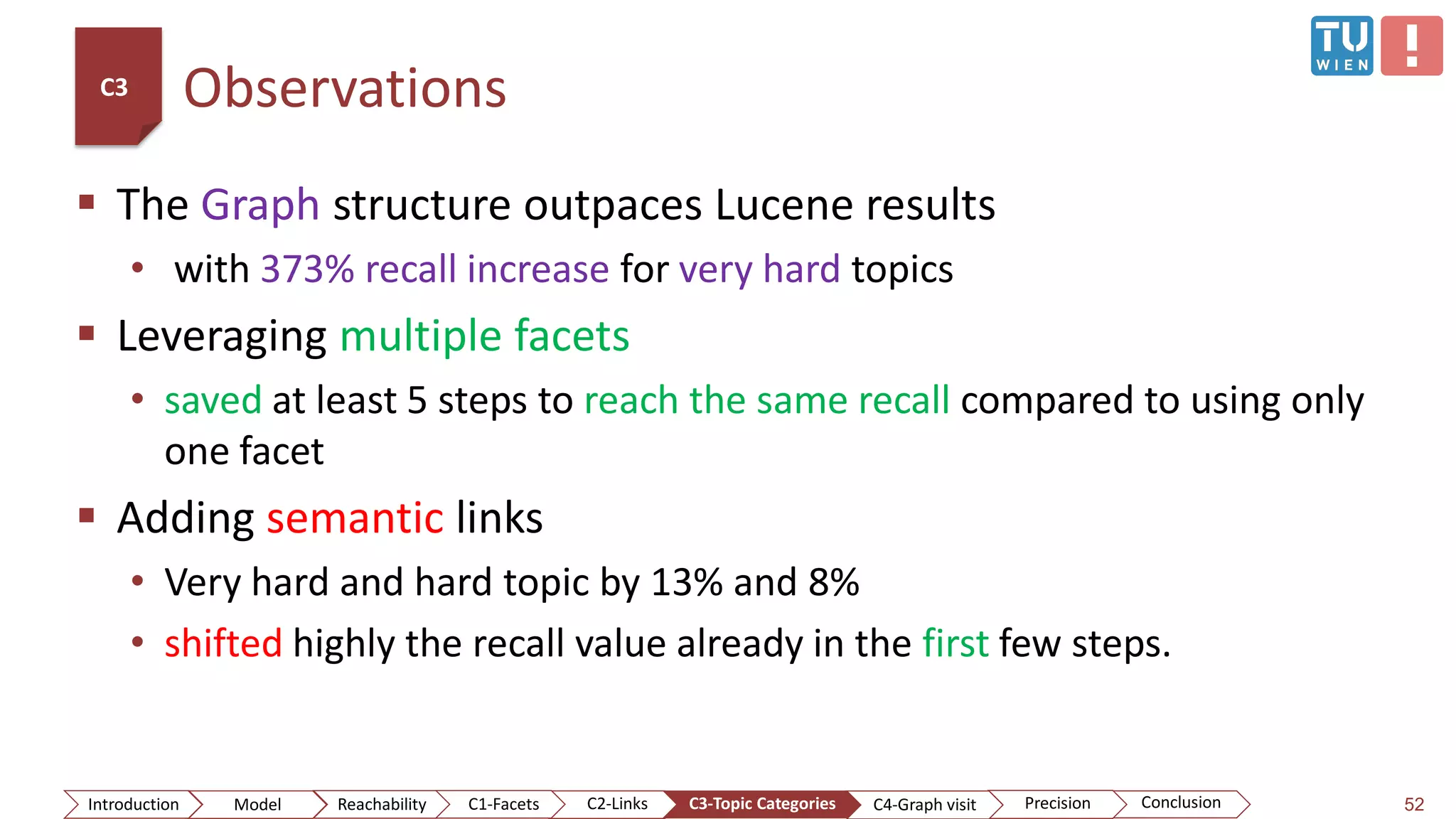

Observations  The Graph structure outpaces Lucene results • with 373% recall increase for very hard topics  Leveraging multiple facets • saved at least 5 steps to reach the same recall compared to using only one facet  Adding semantic links • Very hard and hard topic by 13% and 8% • shifted highly the recall value already in the first few steps. 52 C3 ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

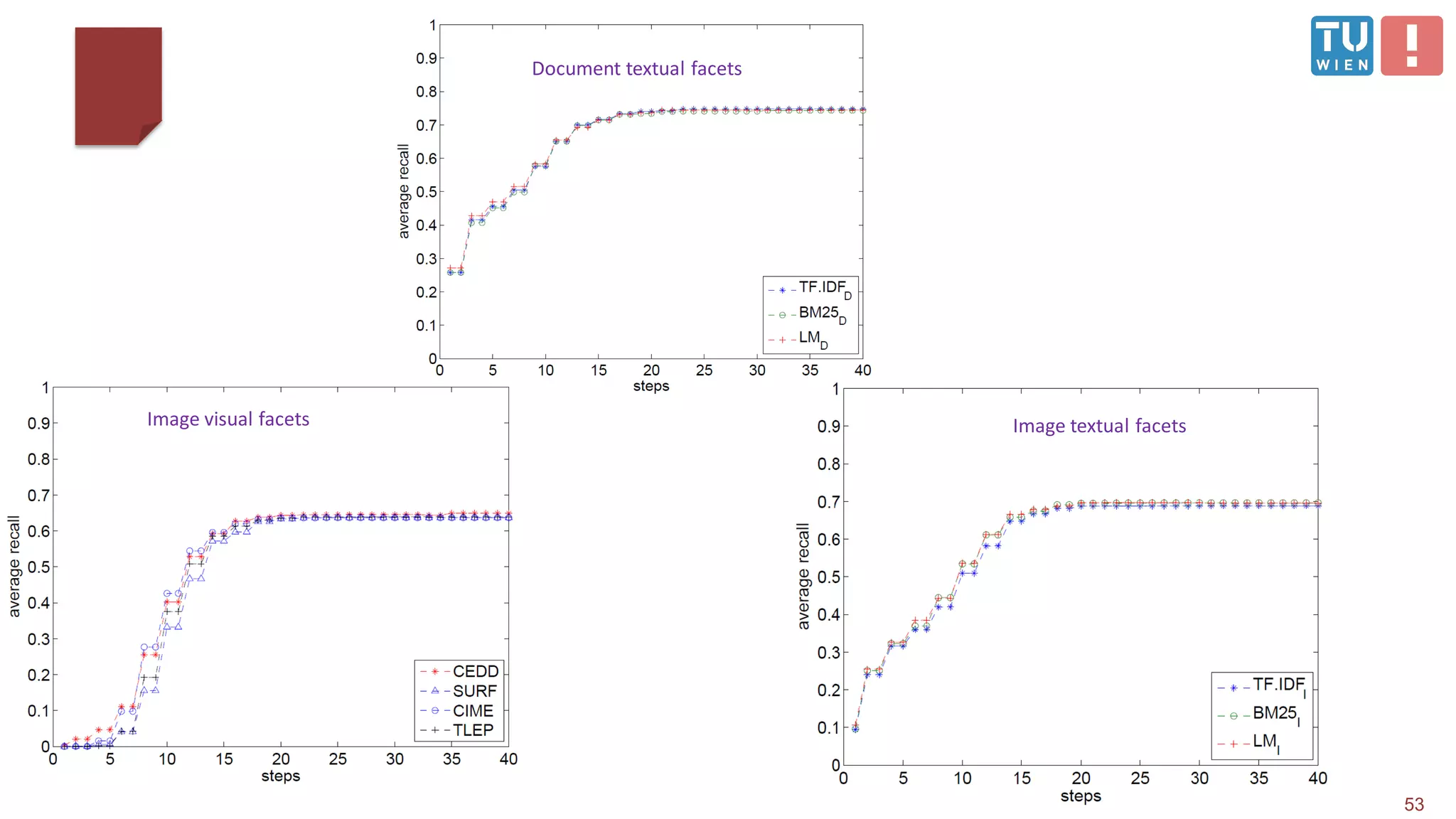

53 Document textual facets Image textual facetsImage visual facets

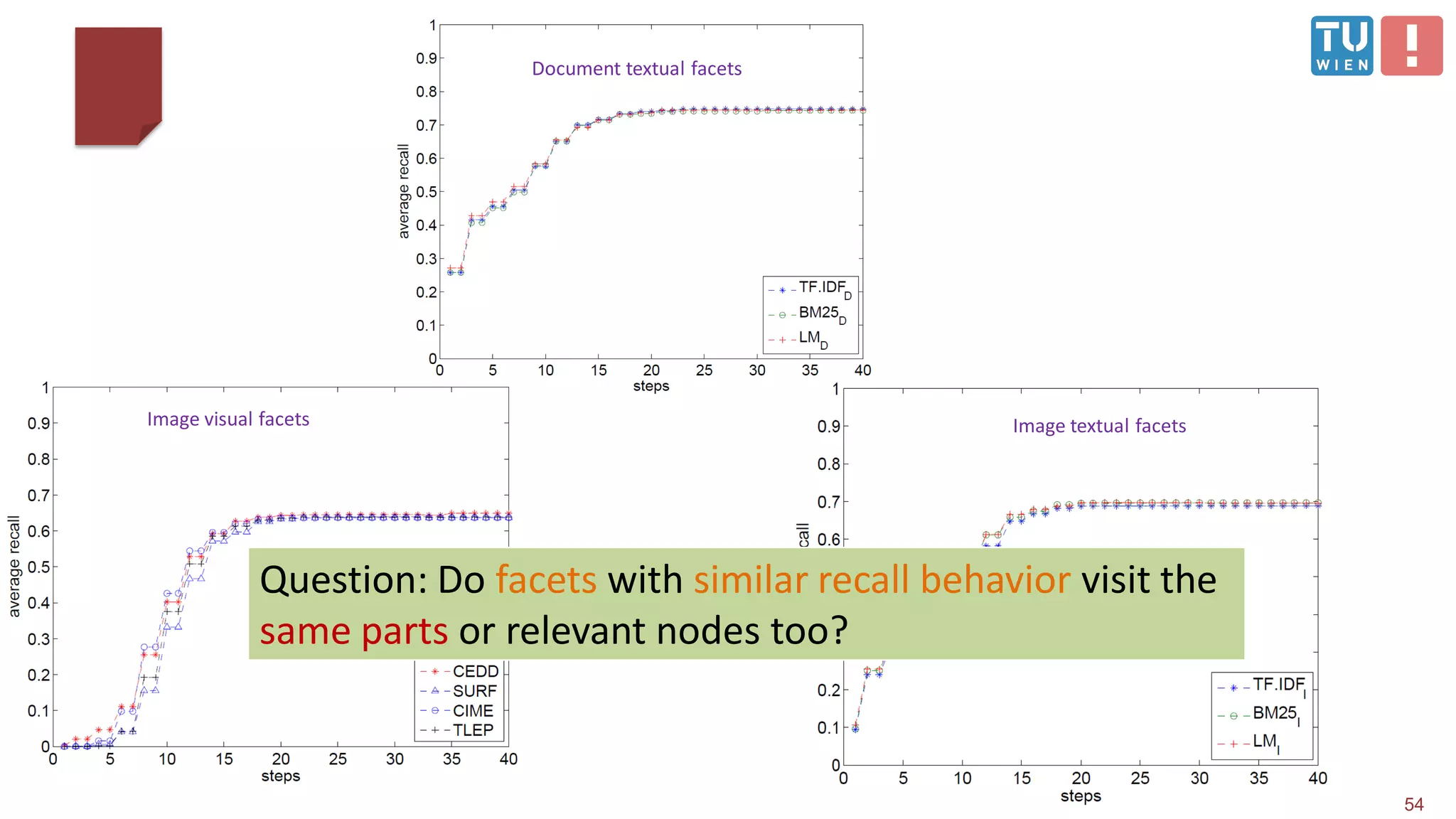

54 Question: Do facets with similar recall behavior visit the same parts or relevant nodes too? Document textual facets Image textual facetsImage visual facets

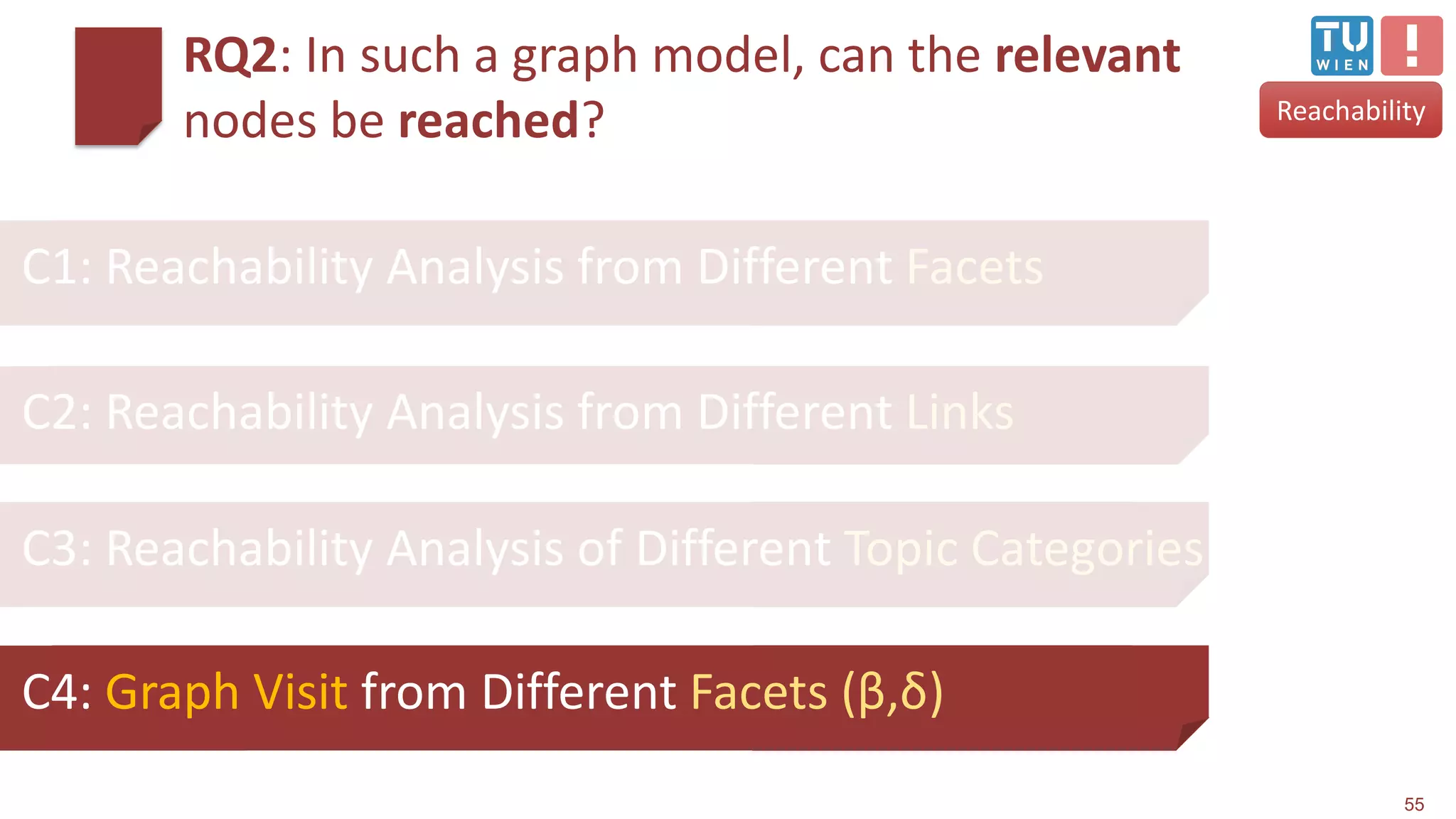

RQ2: In such a graph model, can the relevant nodes be reached? 55 C2: Reachability Analysis from Different Links C1: Reachability Analysis from Different Facets C3: Reachability Analysis of Different Topic Categories C4: Graph Visit from Different Facets (β,δ) Reachability

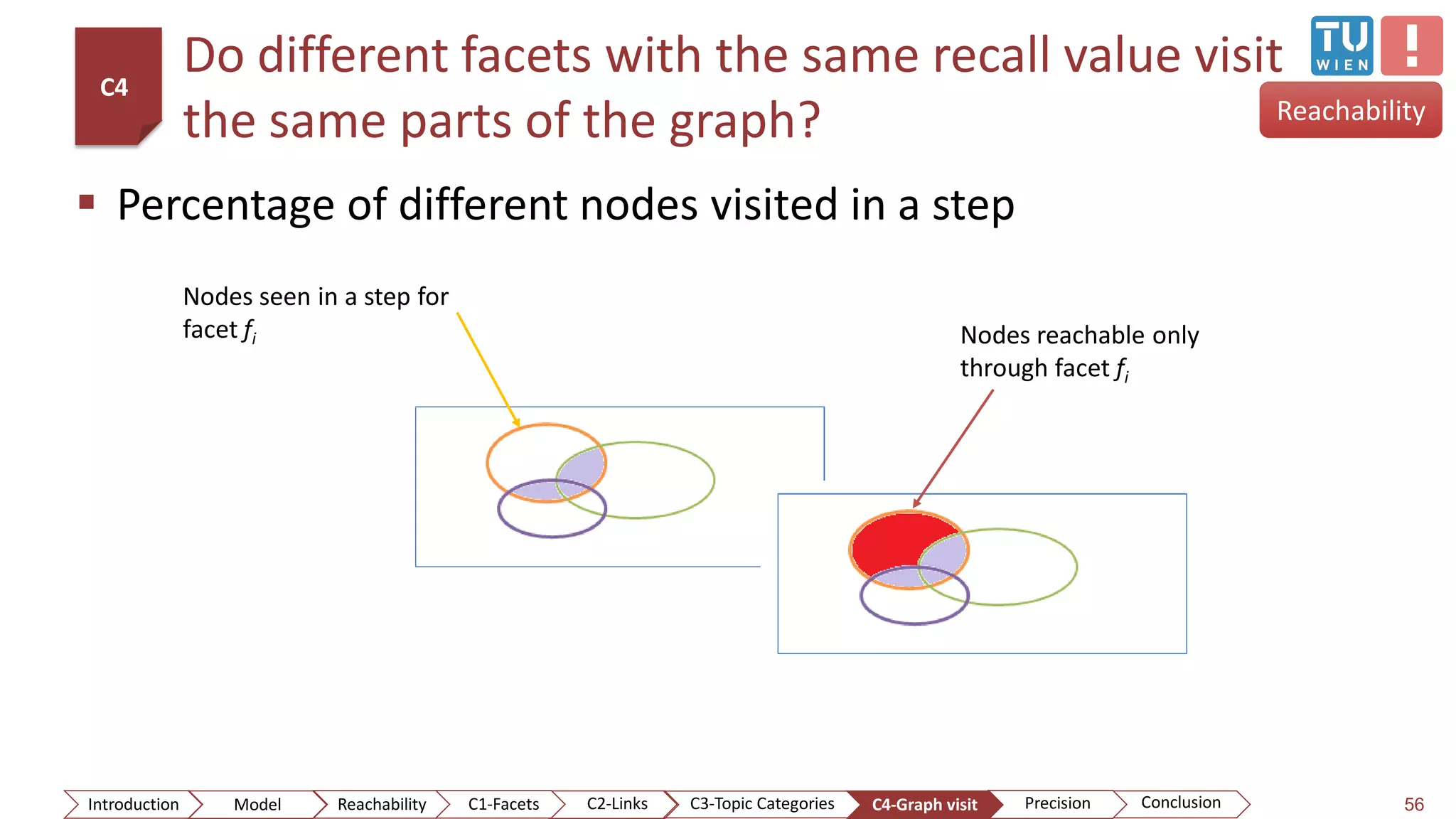

Do different facets with the same recall value visit the same parts of the graph?  Percentage of different nodes visited in a step 56 Reachability Nodes seen in a step for facet fi Nodes reachable only through facet fi C4 ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

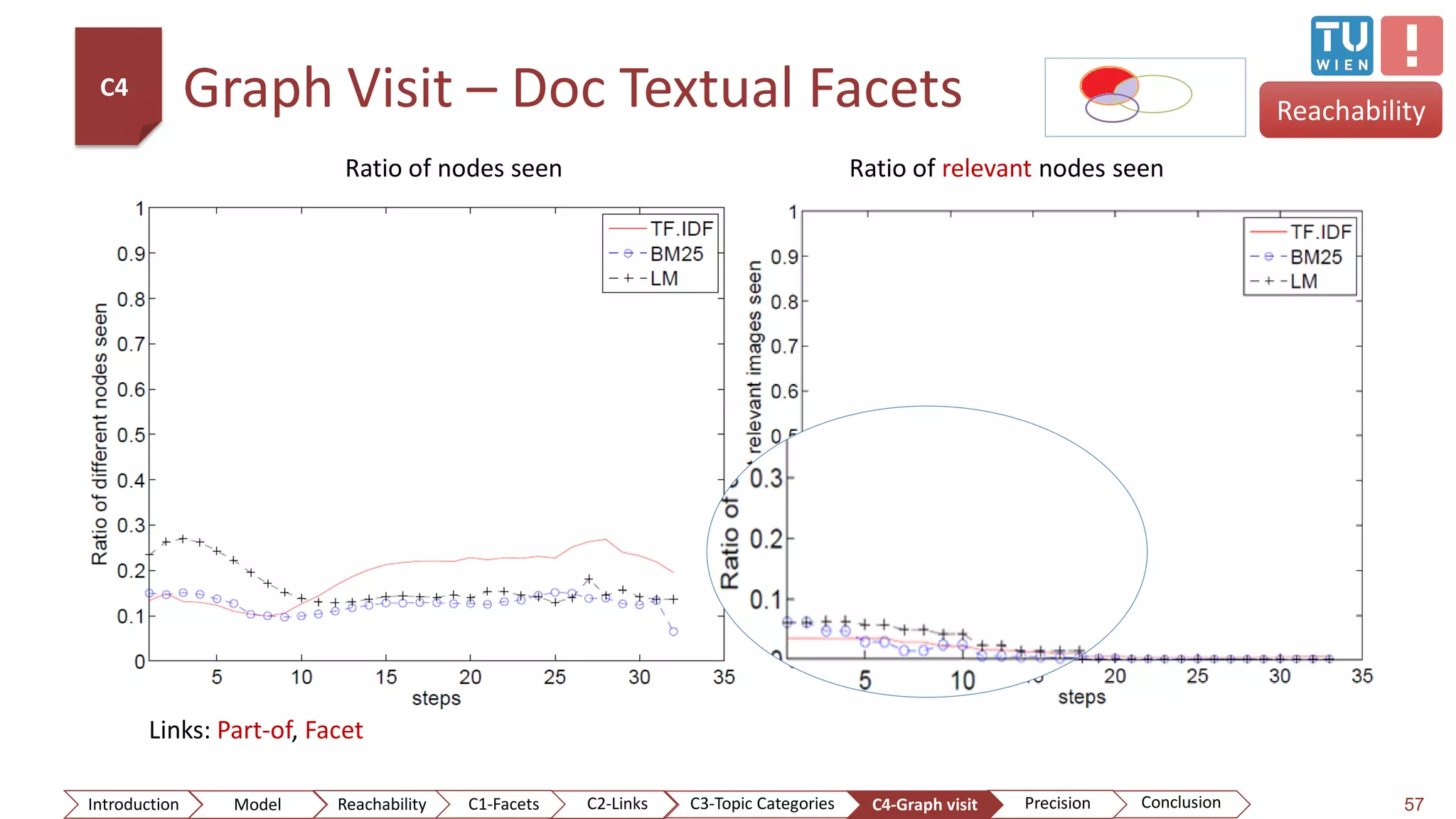

Graph Visit – Doc Textual Facets 57 Reachability Ratio of nodes seen Ratio of relevant nodes seen C4 ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets Links: Part-of, Facet

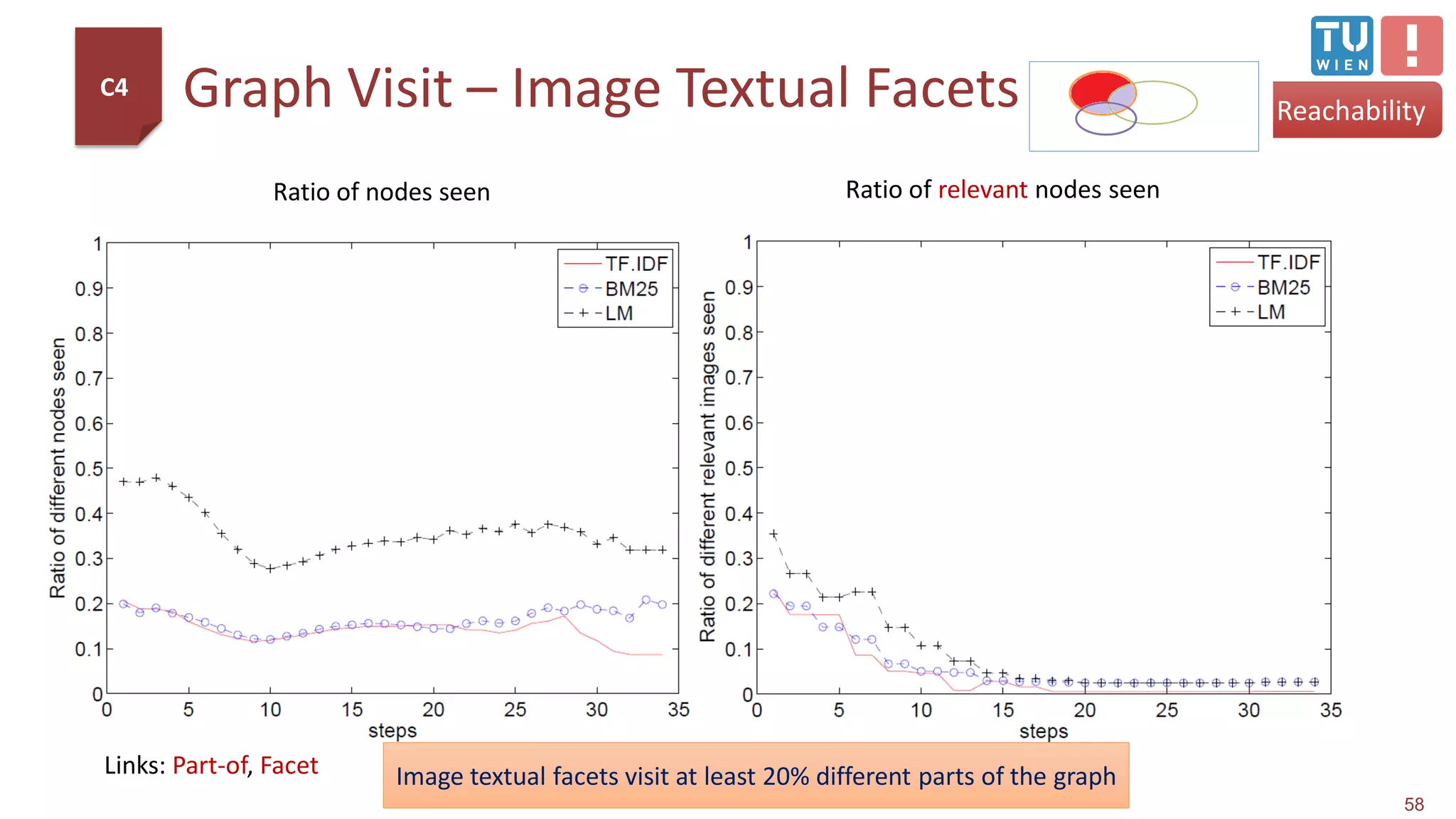

Graph Visit – Image Textual Facets 58 Reachability Ratio of nodes seen Ratio of relevant nodes seen C4 Image textual facets visit at least 20% different parts of the graphLinks: Part-of, Facet

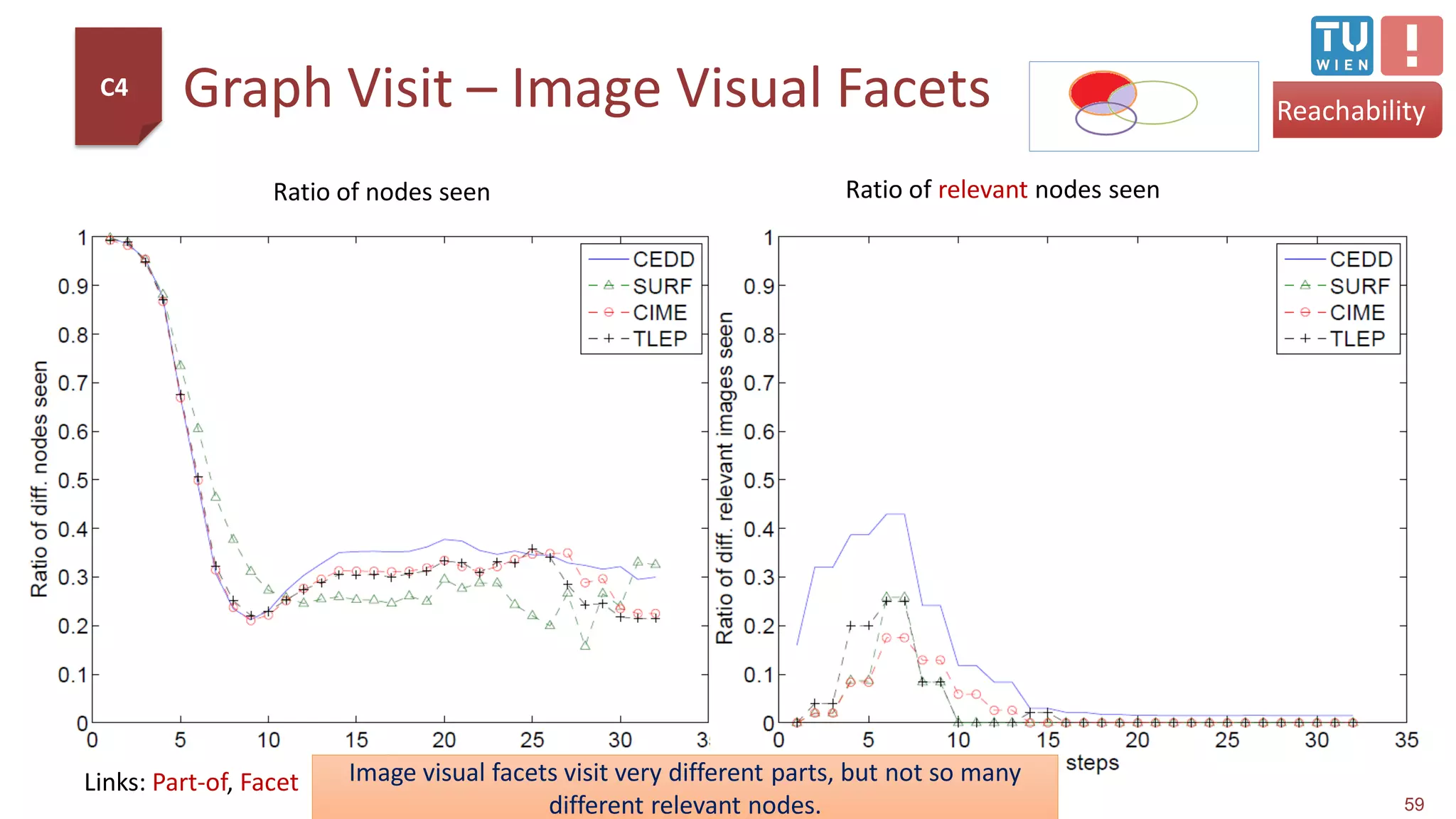

Graph Visit – Image Visual Facets 59 Reachability Ratio of nodes seen Ratio of relevant nodes seen C4 Image visual facets visit very different parts, but not so many different relevant nodes. Links: Part-of, Facet

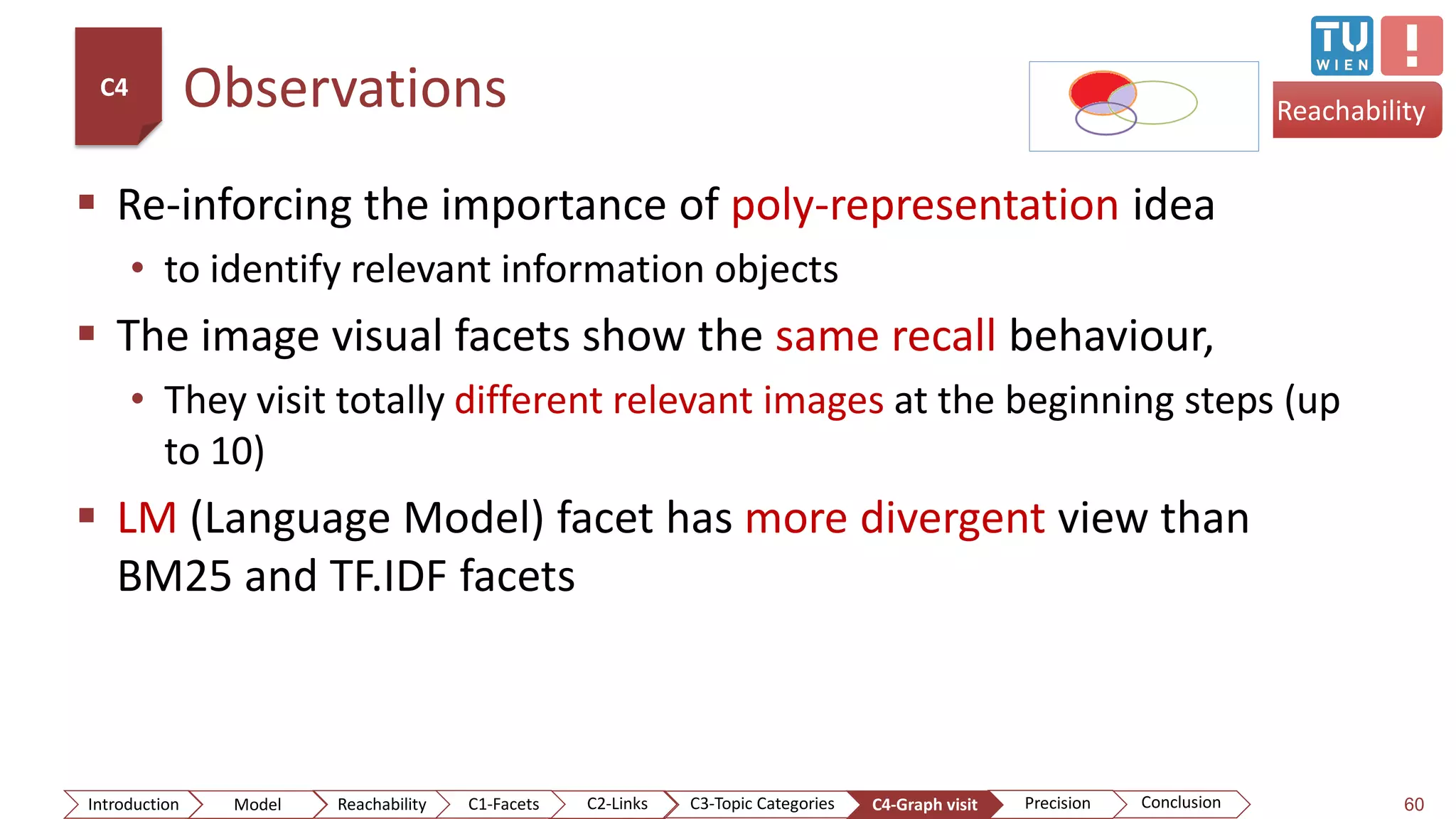

Observations  Re-inforcing the importance of poly-representation idea • to identify relevant information objects  The image visual facets show the same recall behaviour, • They visit totally different relevant images at the beginning steps (up to 10)  LM (Language Model) facet has more divergent view than BM25 and TF.IDF facets 60 Reachability C4 ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

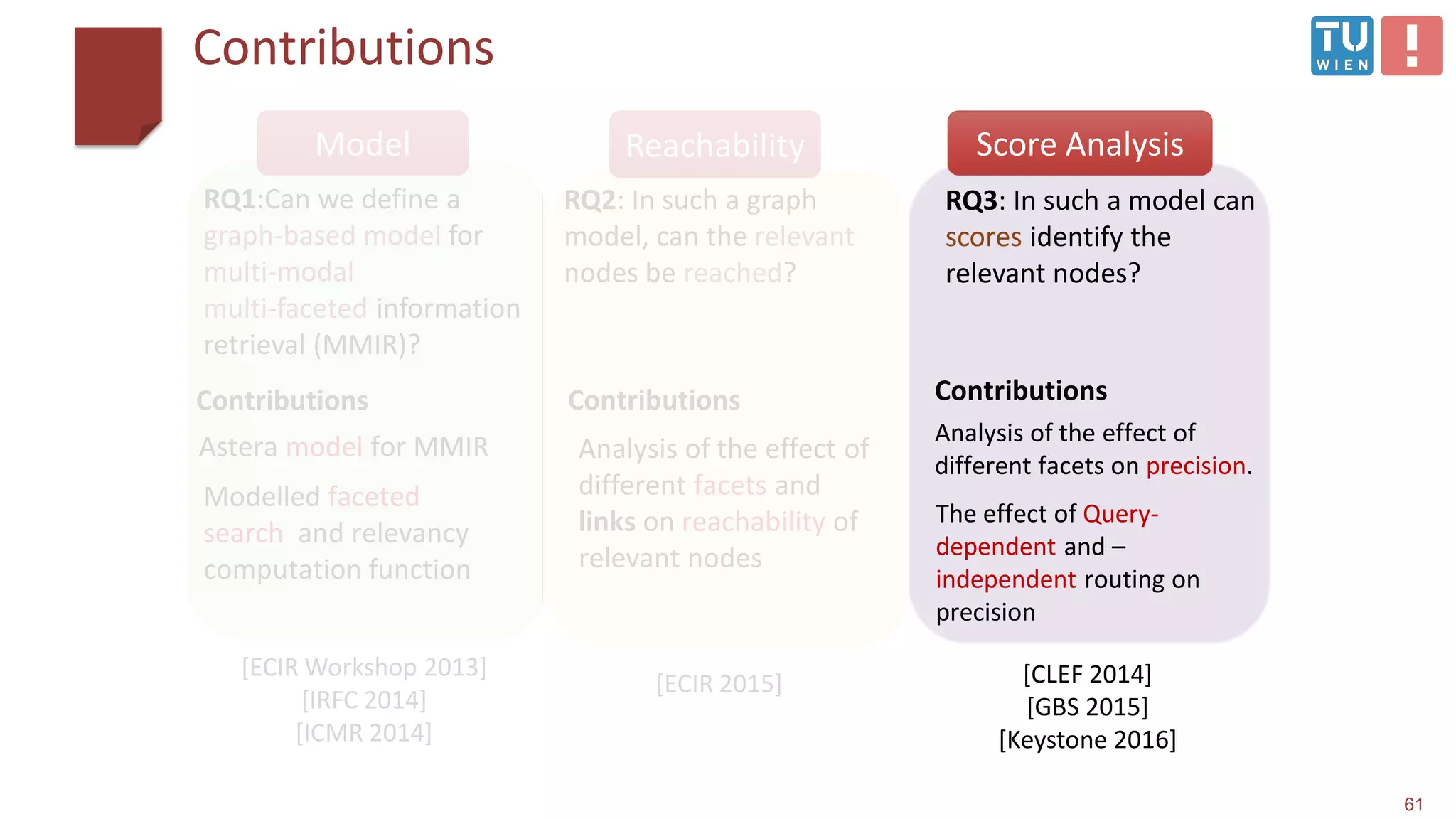

Contributions 61 [ECIR Workshop 2013] [IRFC 2014] [ICMR 2014] Contributions RQ1:Can we define a graph-based model for multi-modal multi-faceted information retrieval (MMIR)? [ECIR 2015] [CLEF 2014] [GBS 2015] [Keystone 2016] Astera model for MMIR Modelled faceted search and relevancy computation function RQ2: In such a graph model, can the relevant nodes be reached? Contributions Analysis of the effect of different facets and links on reachability of relevant nodes Model RQ3: In such a model can scores identify the relevant nodes? Contributions Analysis of the effect of different facets on precision. The effect of Query- dependent and – independent routing on precision Reachability Score Analysis

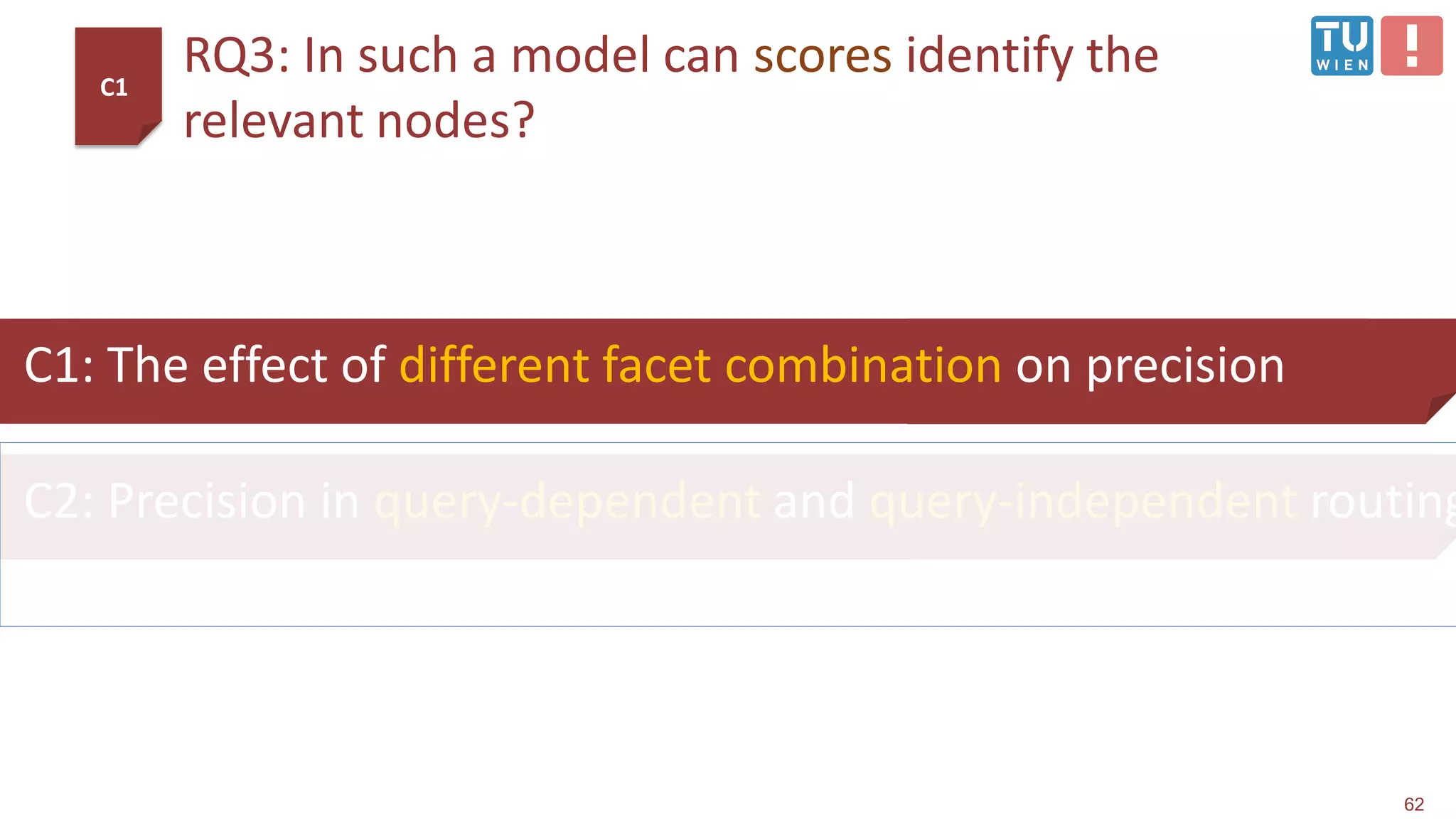

RQ3: In such a model can scores identify the relevant nodes? 62 C2: Precision in query-dependent and query-independent routing C1: The effect of different facet combination on precision C1

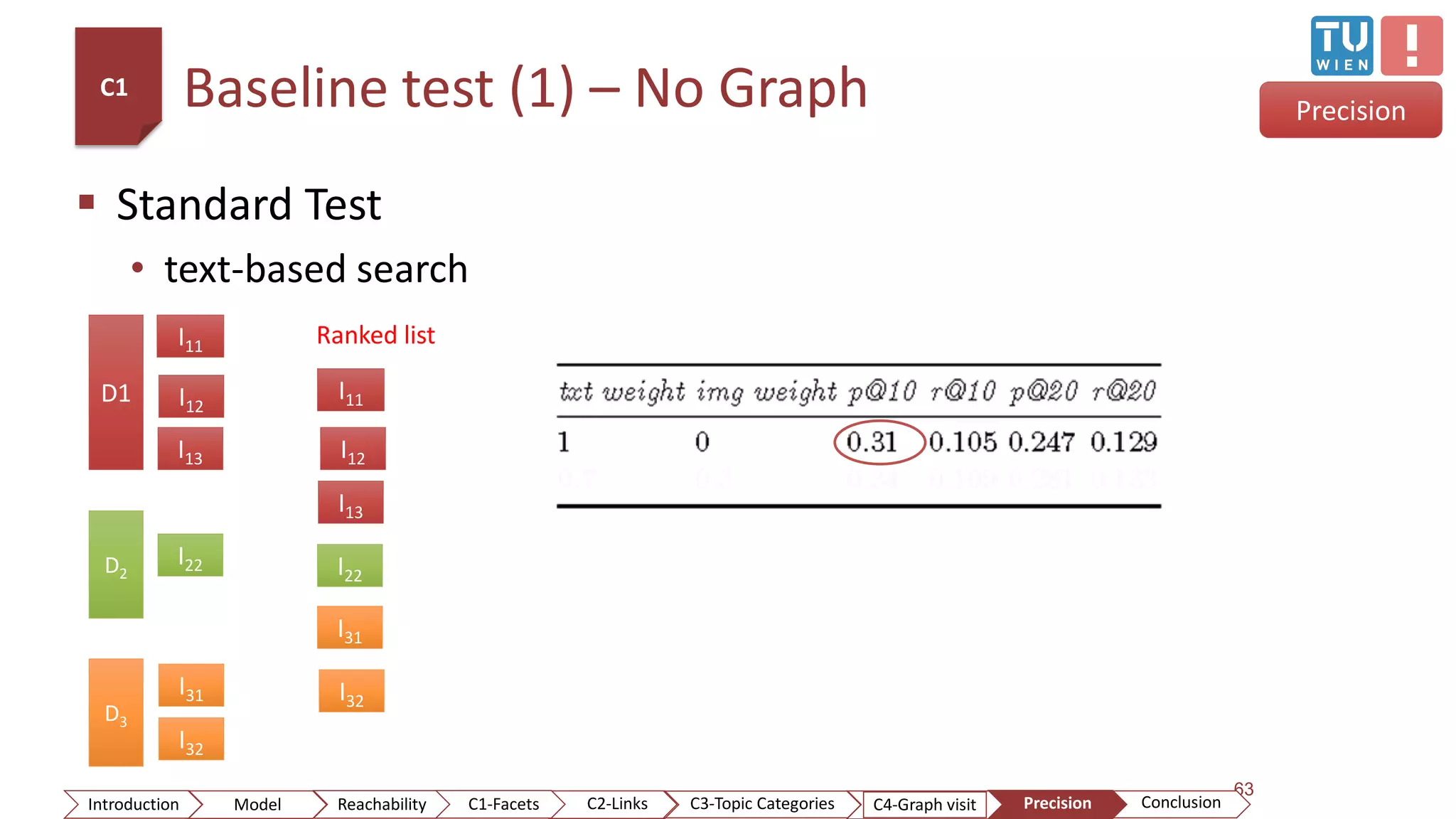

Baseline test (1) – No Graph 63  Standard Test • text-based search Precision C1 D1 D2 D3 I11 I12 I13 I22 I31 I32 I11 I12 I13 I22 I31 I32 Ranked list ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

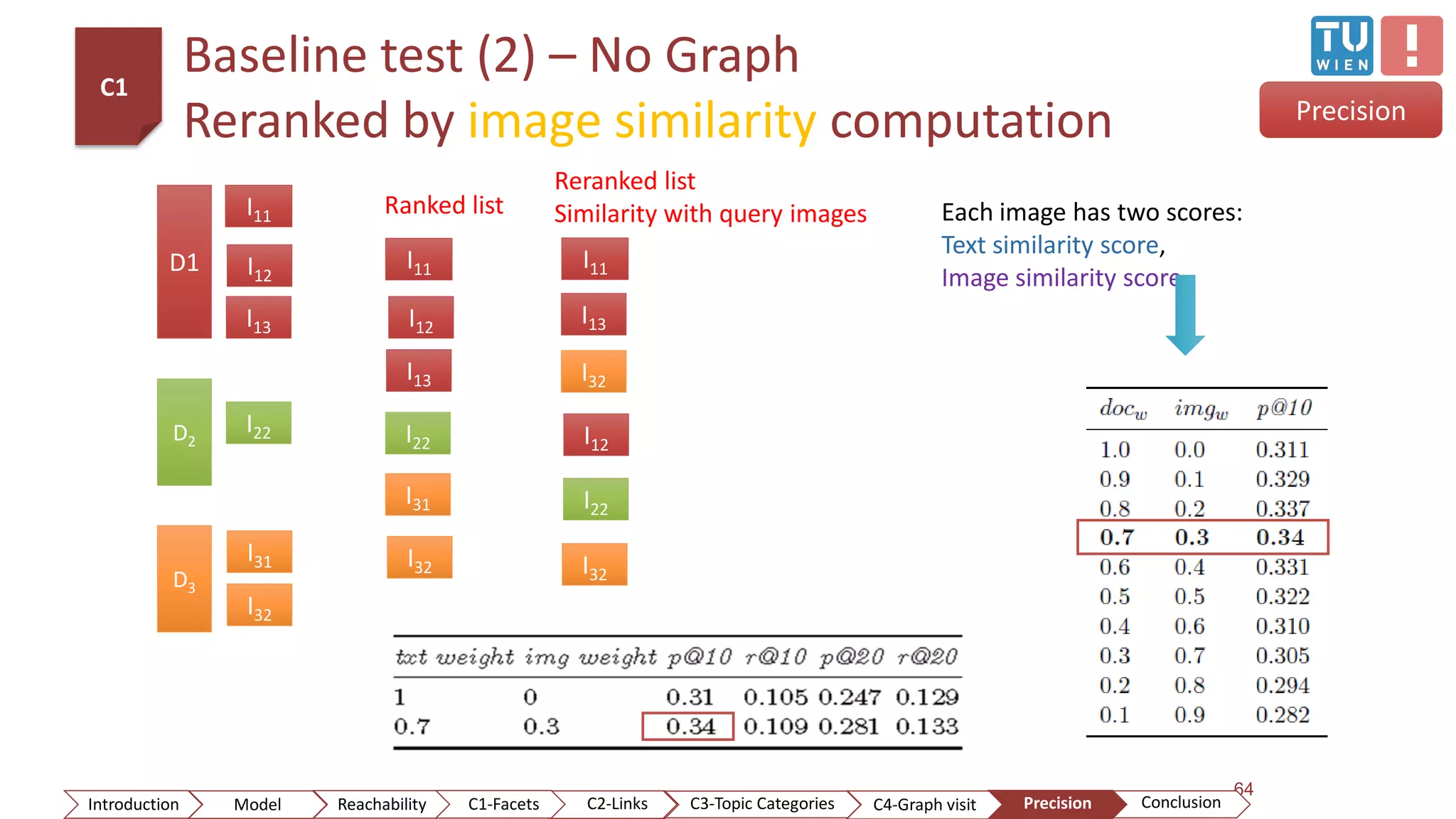

Baseline test (2) – No Graph Reranked by image similarity computation 64 Each image has two scores: Text similarity score, Image similarity score Precision C1 D1 D2 D3 I11 I12 I13 I22 I31 I32 I11 I12 I13 I22 I31 I32 Ranked list Reranked list Similarity with query images I11 I13 I32 I12 I22 I32 ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

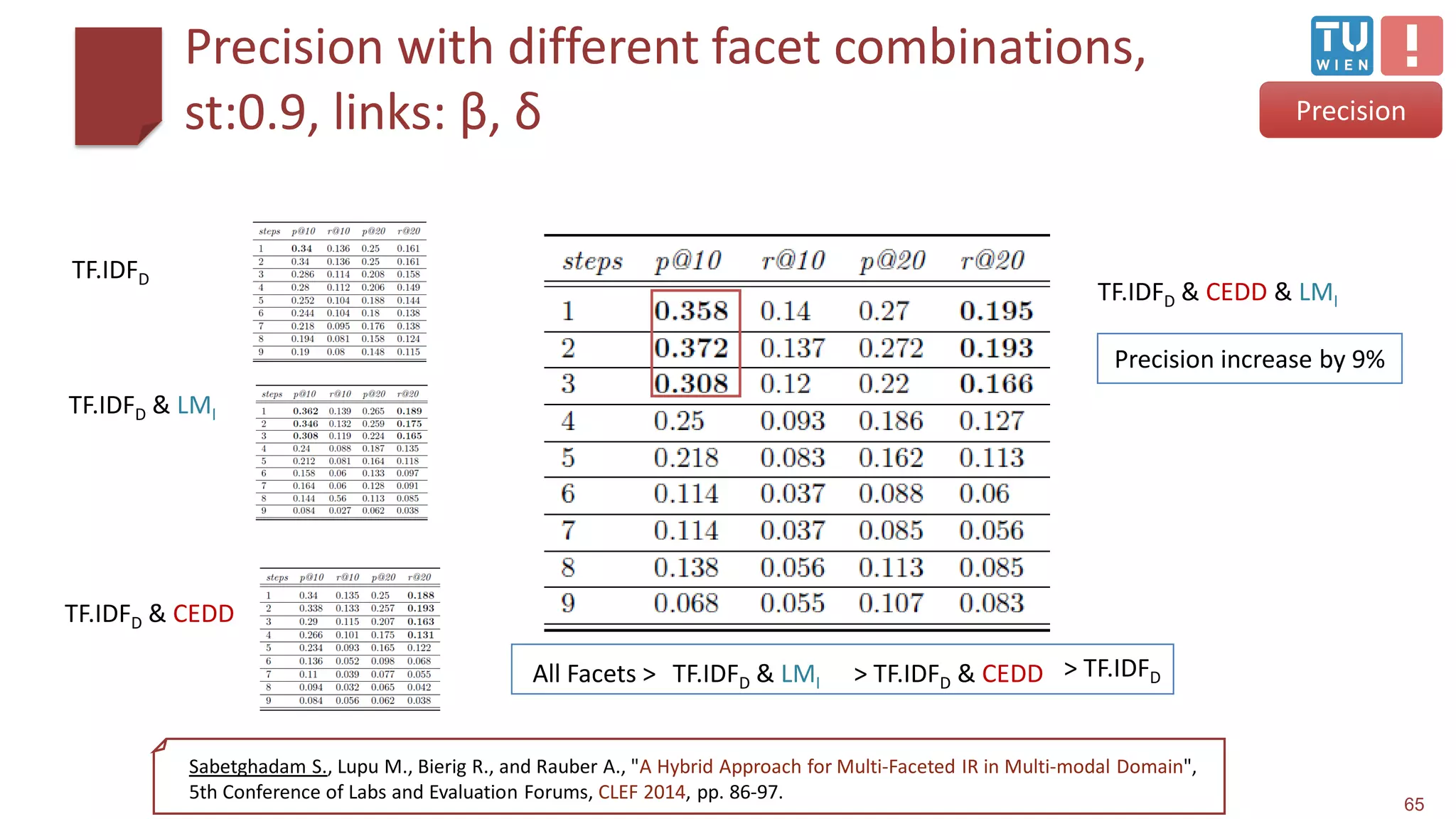

Precision with different facet combinations, st:0.9, links: β, δ 65 TF.IDFD TF.IDFD & CEDD TF.IDFD & LMI TF.IDFD & CEDD & LMI All Facets > TF.IDFD & LMI > TF.IDFD & CEDD > TF.IDFD Precision Precision increase by 9% Sabetghadam S., Lupu M., Bierig R., and Rauber A., "A Hybrid Approach for Multi-Faceted IR in Multi-modal Domain", 5th Conference of Labs and Evaluation Forums, CLEF 2014, pp. 86-97.

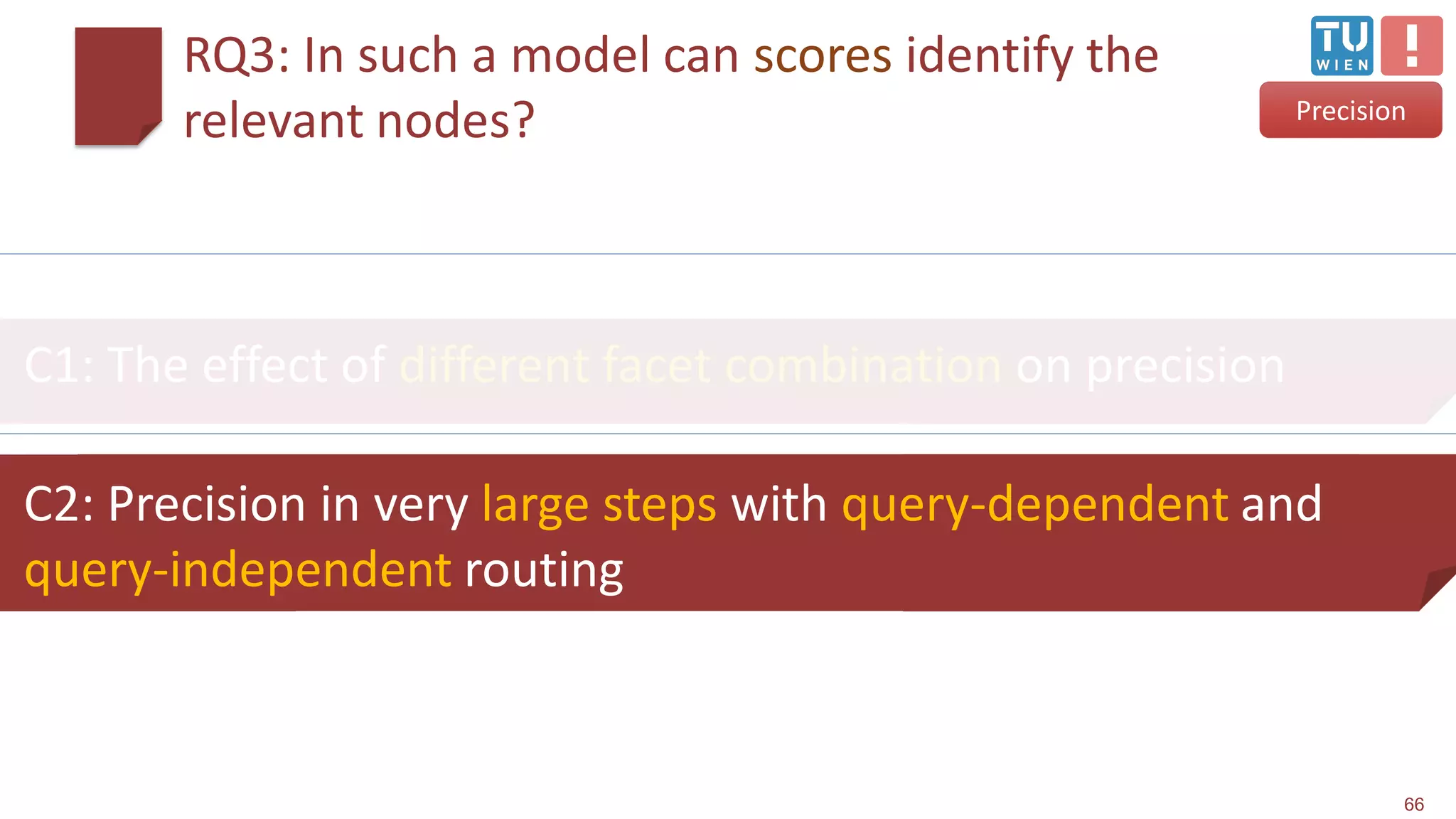

RQ3: In such a model can scores identify the relevant nodes? 66 C2: Precision in very large steps with query-dependent and query-independent routing C1: The effect of different facet combination on precision Precision

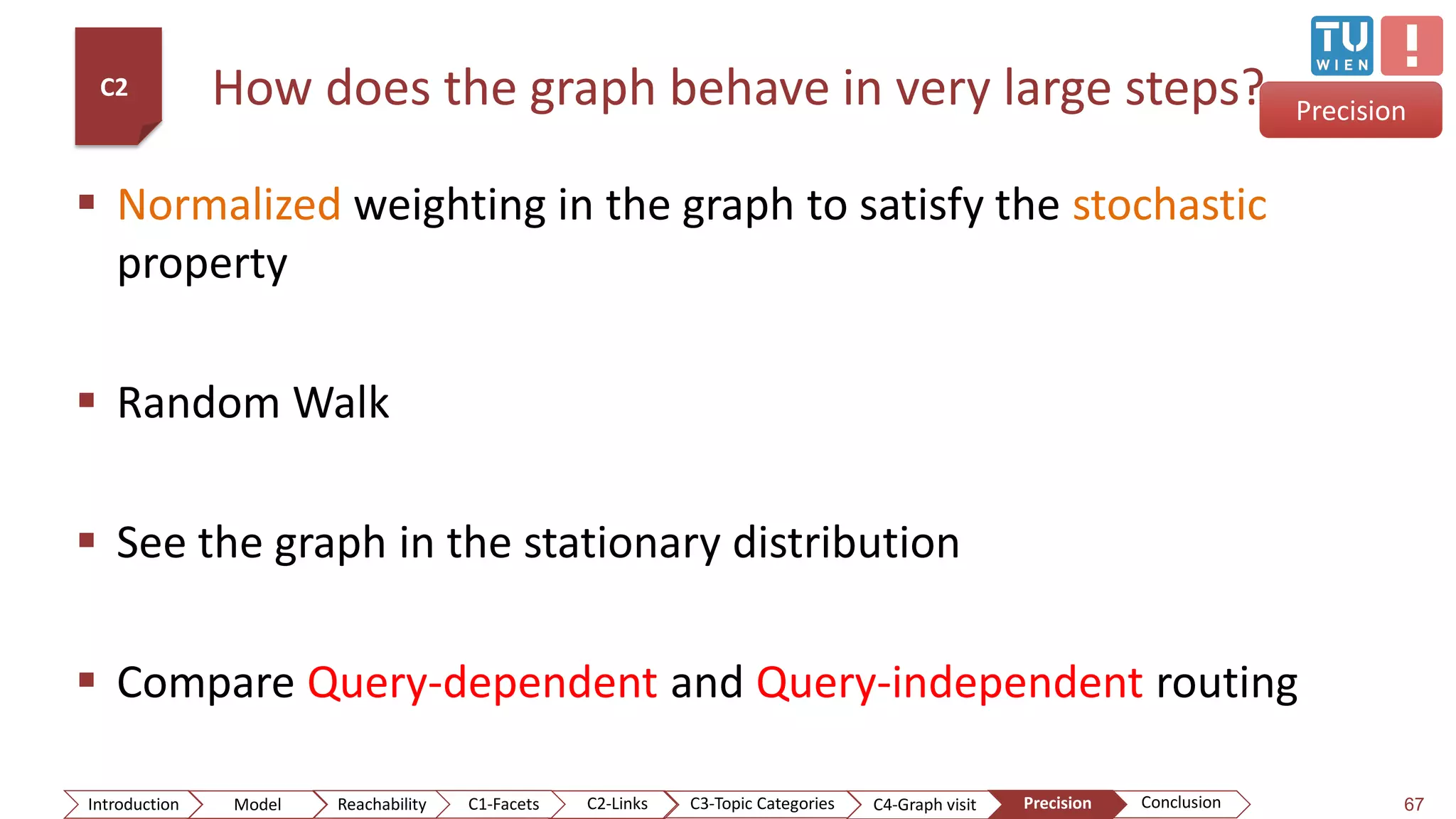

How does the graph behave in very large steps?  Normalized weighting in the graph to satisfy the stochastic property  Random Walk  See the graph in the stationary distribution  Compare Query-dependent and Query-independent routing 67 Precision C2 ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

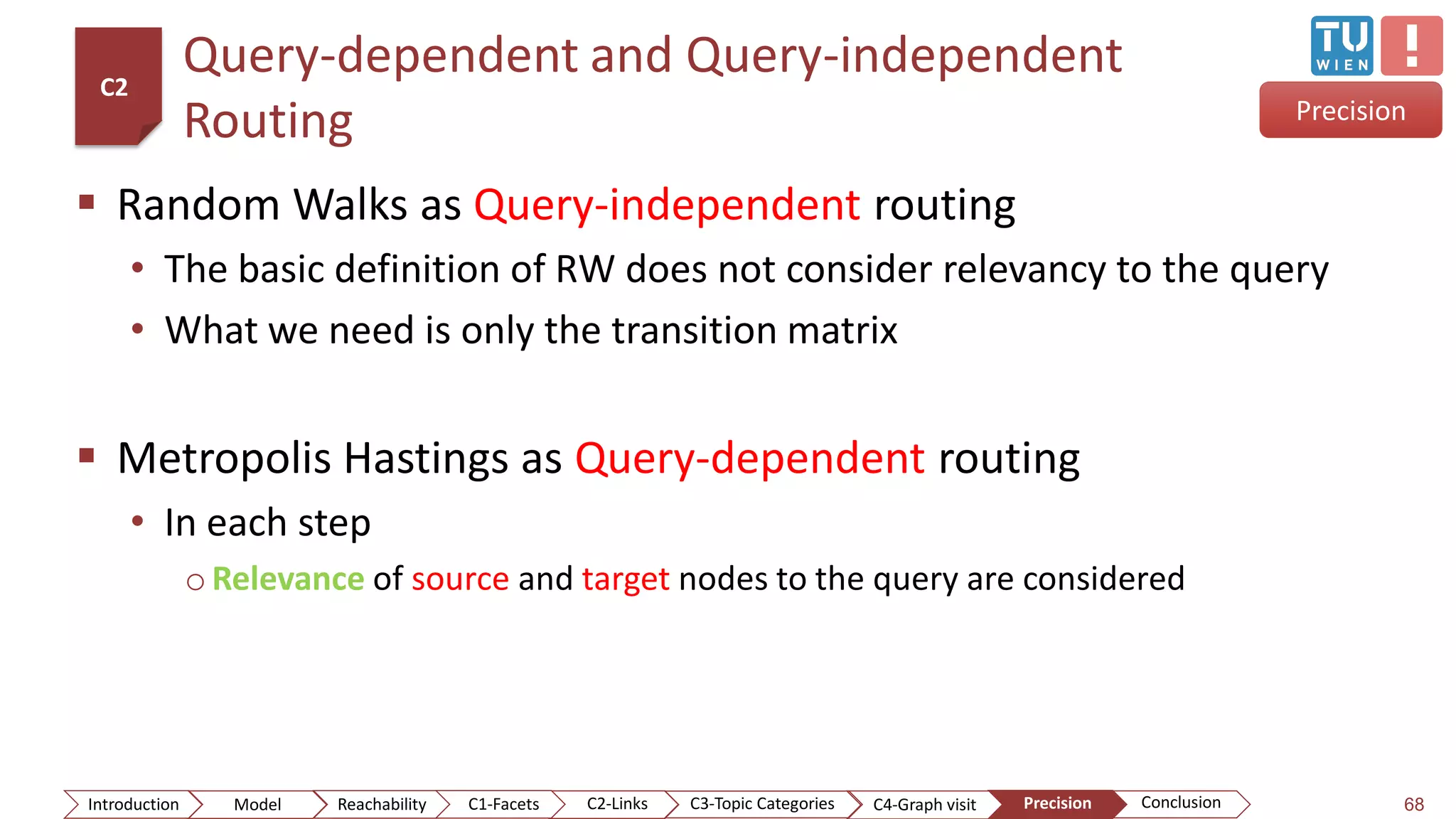

Query-dependent and Query-independent Routing  Random Walks as Query-independent routing • The basic definition of RW does not consider relevancy to the query • What we need is only the transition matrix  Metropolis Hastings as Query-dependent routing • In each step o Relevance of source and target nodes to the query are considered 68 Precision C2 ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

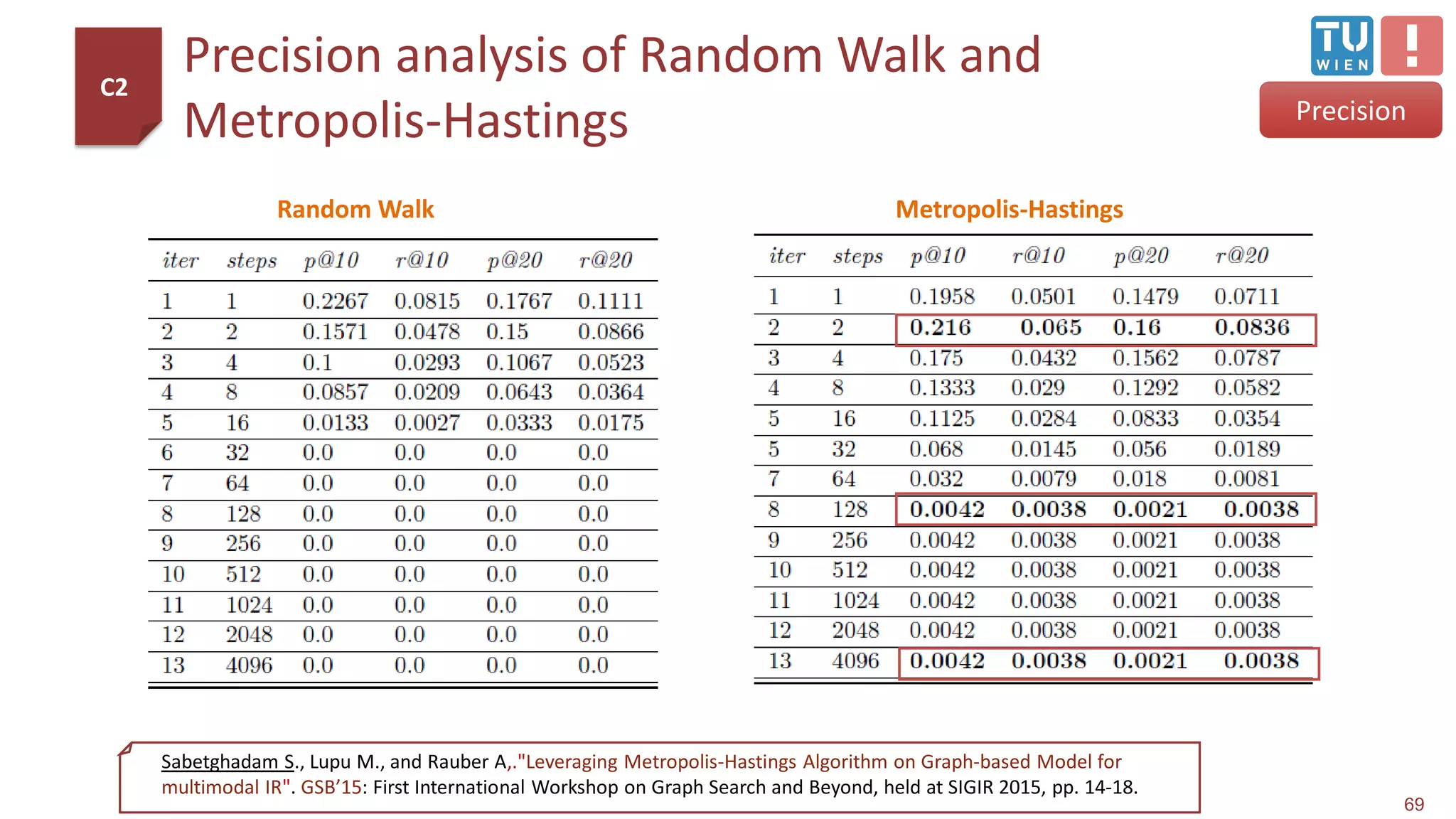

Precision analysis of Random Walk and Metropolis-Hastings 69 Random Walk Metropolis-Hastings Precision C2 Sabetghadam S., Lupu M., and Rauber A,."Leveraging Metropolis-Hastings Algorithm on Graph-based Model for multimodal IR". GSB’15: First International Workshop on Graph Search and Beyond, held at SIGIR 2015, pp. 14-18.

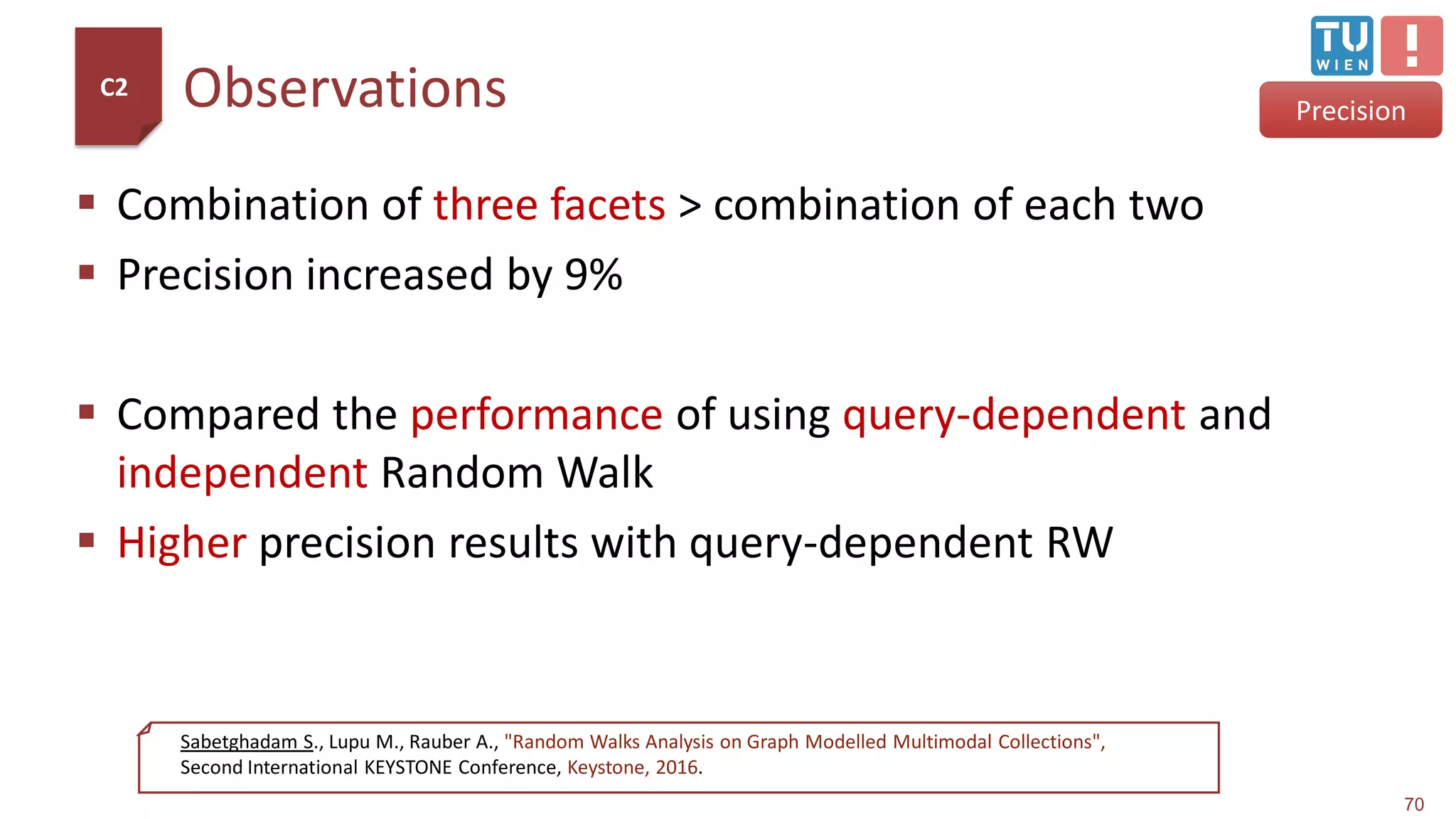

Observations  Combination of three facets > combination of each two  Precision increased by 9%  Compared the performance of using query-dependent and independent Random Walk  Higher precision results with query-dependent RW 70 Precision C2 Sabetghadam S., Lupu M., Rauber A., "Random Walks Analysis on Graph Modelled Multimodal Collections", Second International KEYSTONE Conference, Keystone, 2016.

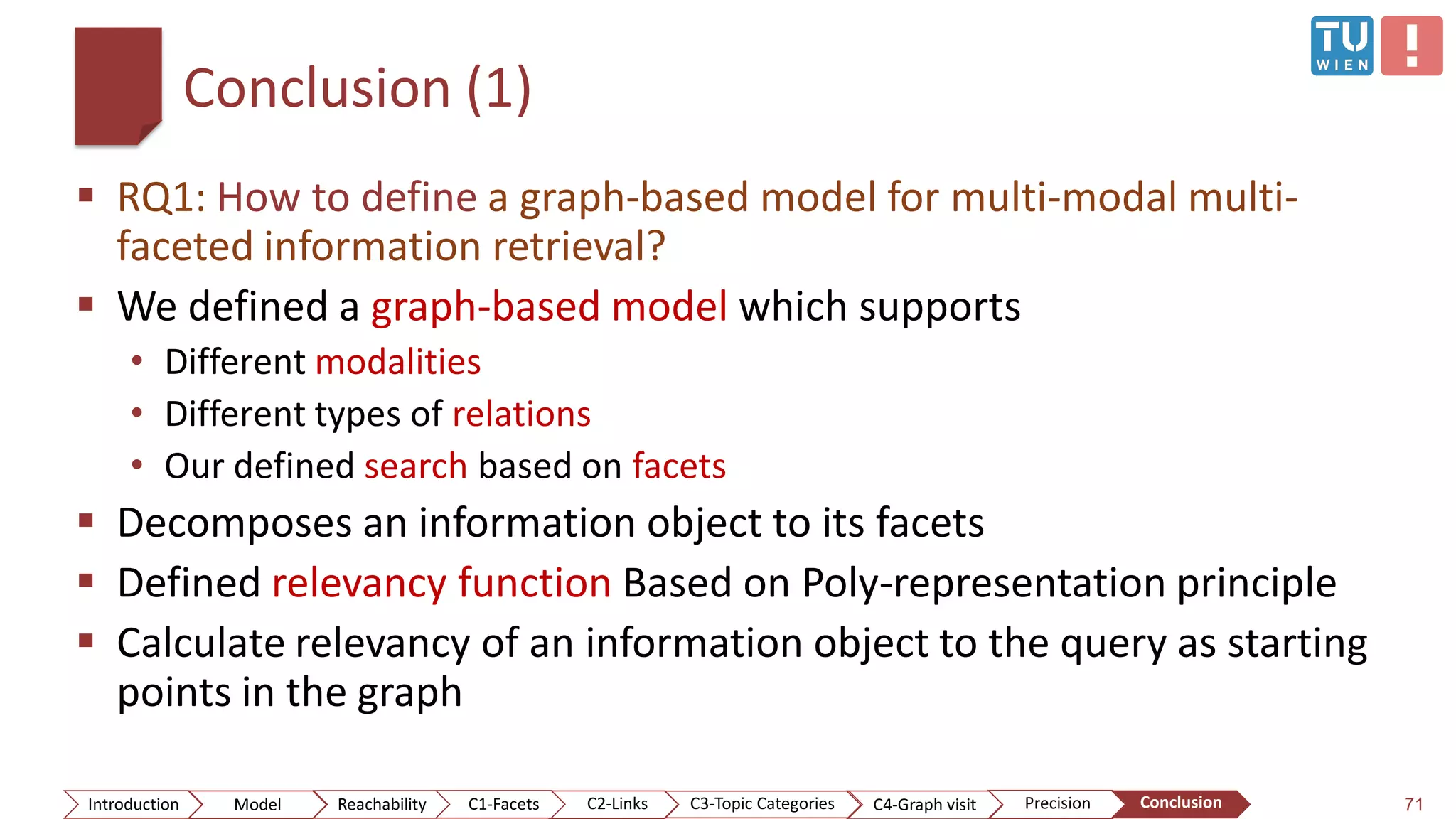

Conclusion (1)  RQ1: How to define a graph-based model for multi-modal multi- faceted information retrieval?  We defined a graph-based model which supports • Different modalities • Different types of relations • Our defined search based on facets  Decomposes an information object to its facets  Defined relevancy function Based on Poly-representation principle  Calculate relevancy of an information object to the query as starting points in the graph 71ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

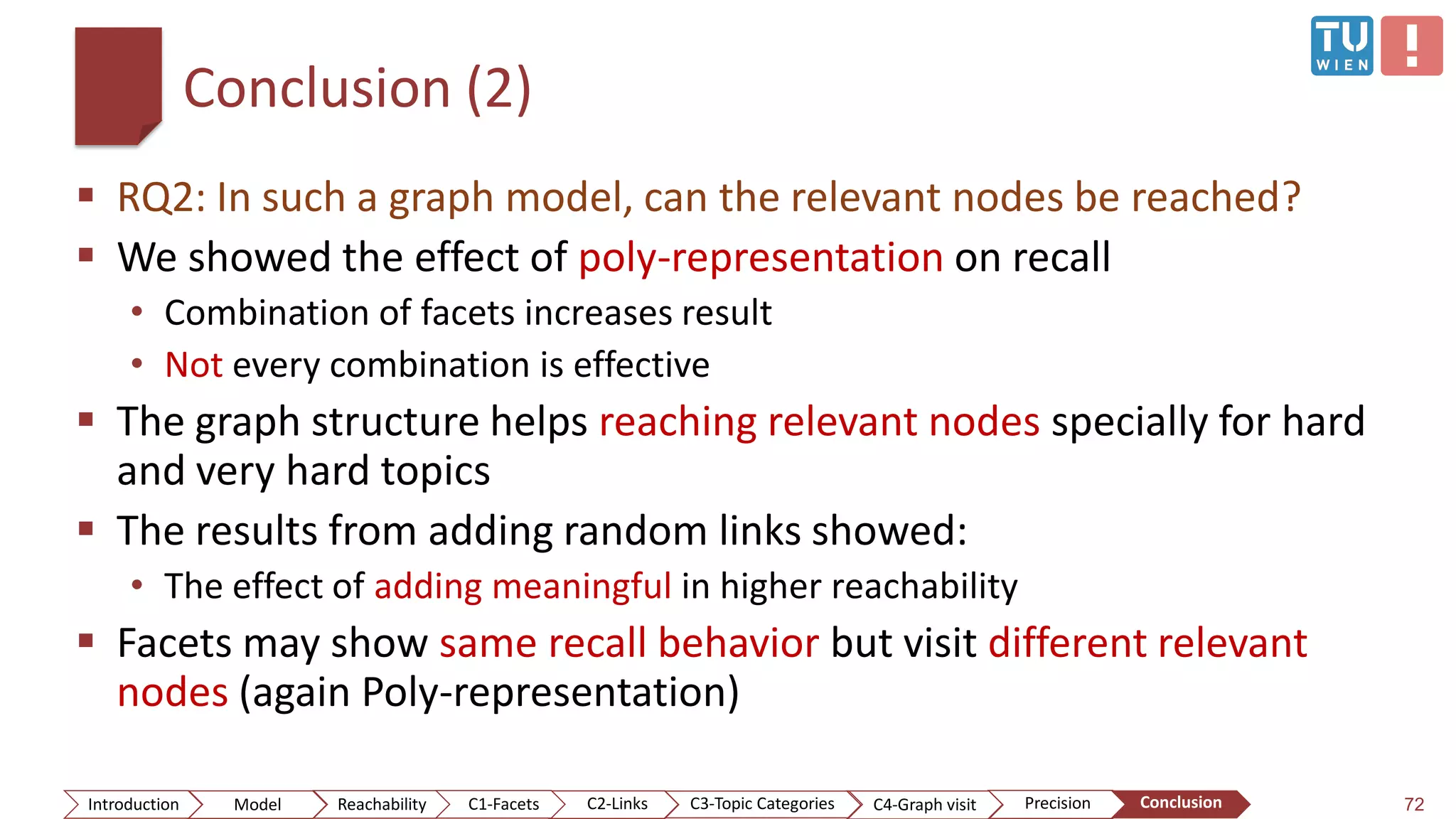

Conclusion (2)  RQ2: In such a graph model, can the relevant nodes be reached?  We showed the effect of poly-representation on recall • Combination of facets increases result • Not every combination is effective  The graph structure helps reaching relevant nodes specially for hard and very hard topics  The results from adding random links showed: • The effect of adding meaningful in higher reachability  Facets may show same recall behavior but visit different relevant nodes (again Poly-representation) 72ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

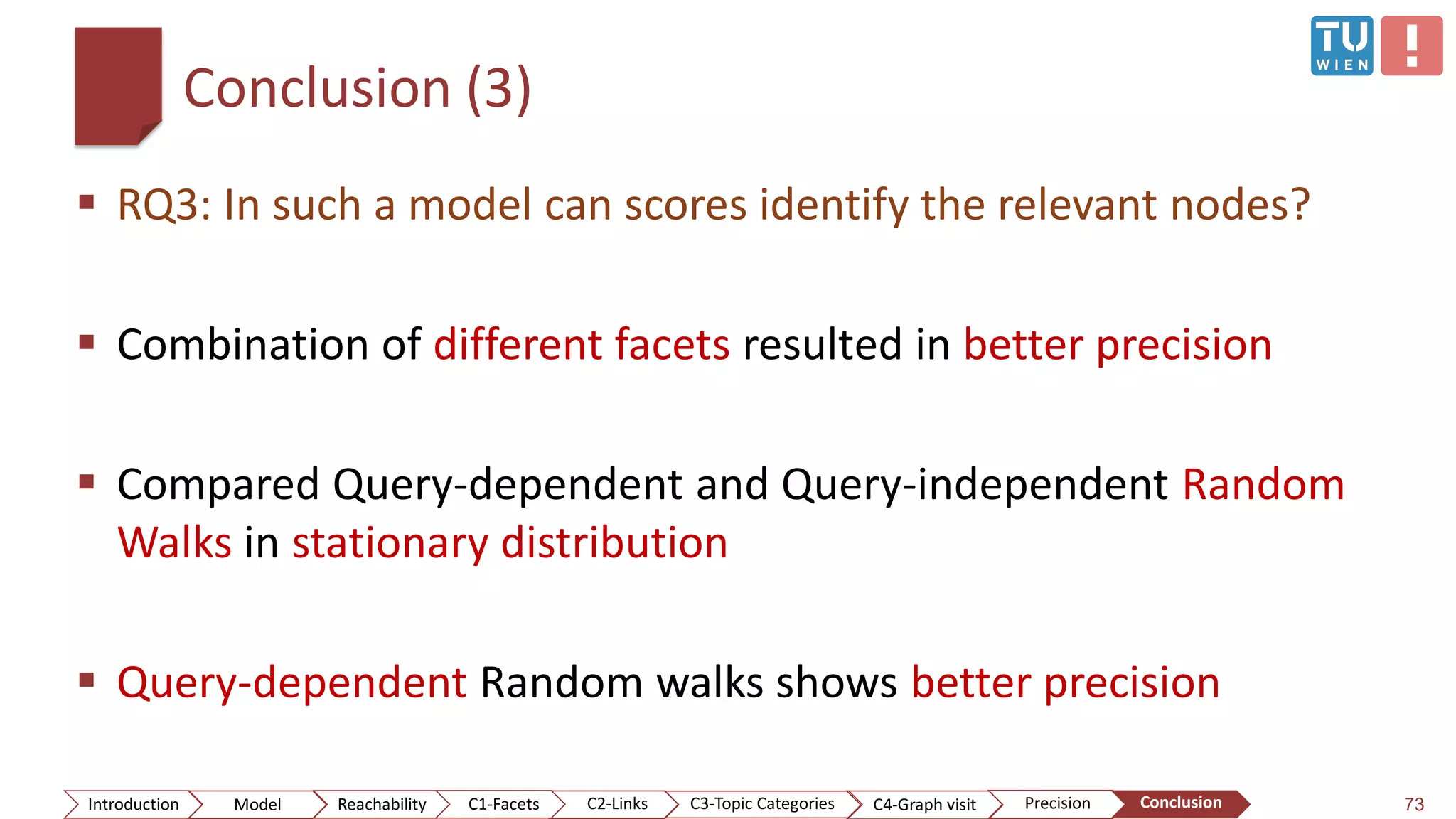

Conclusion (3)  RQ3: In such a model can scores identify the relevant nodes?  Combination of different facets resulted in better precision  Compared Query-dependent and Query-independent Random Walks in stationary distribution  Query-dependent Random walks shows better precision 73ConclusionIntroduction Model Reachability PrecisionC2-Links C3-Topic Categories C4-Graph visitC1-Facets

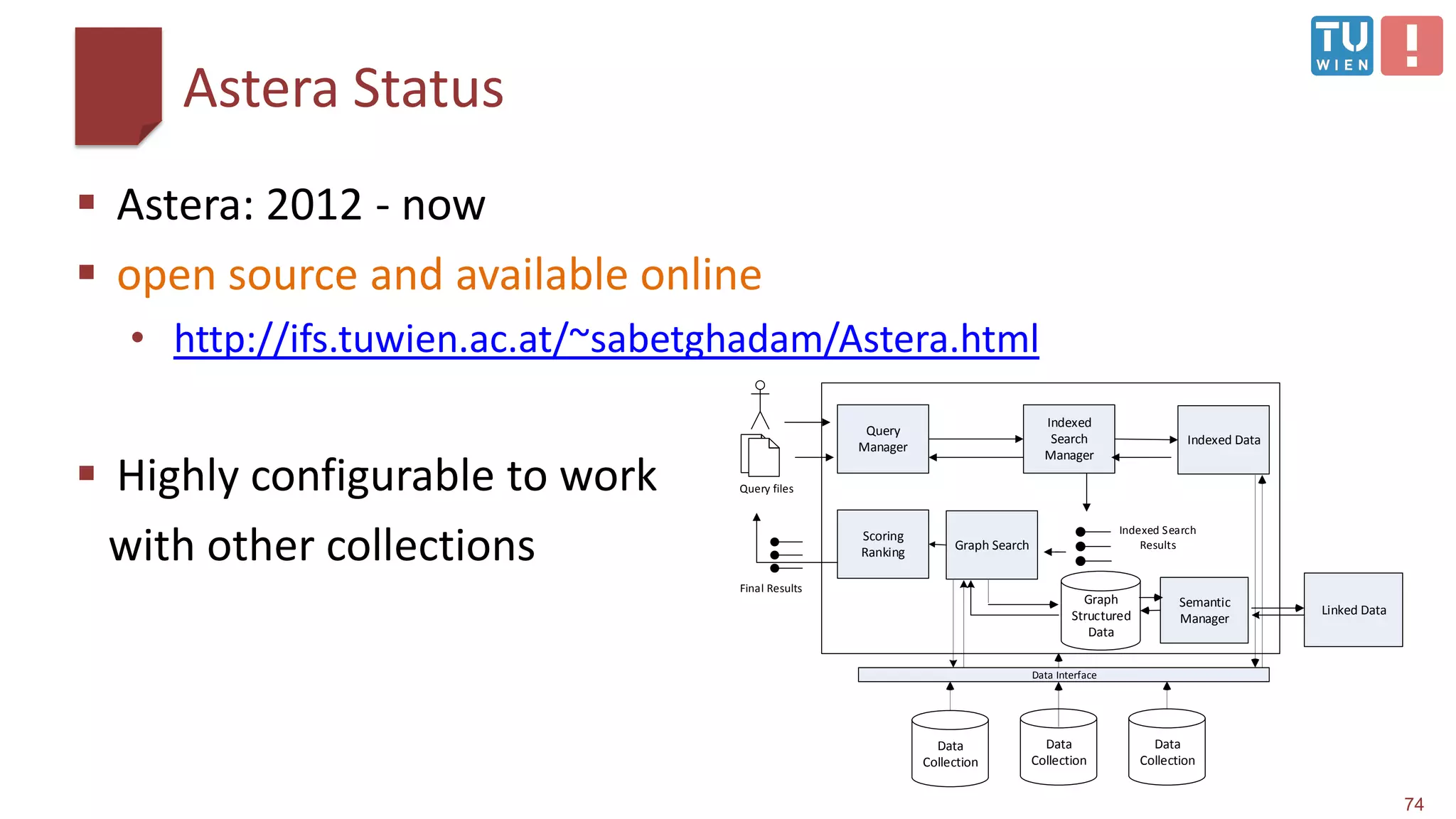

Astera Status  Astera: 2012 - now  open source and available online • http://ifs.tuwien.ac.at/~sabetghadam/Astera.html  Highly configurable to work with other collections 74 Query files Query Manager Indexed Search Manager Indexed Data Graph Search Graph Structured Data Data Collection Data Collection Data Collection Scoring Ranking Linked Data Indexed Search Results Final Results Data Interface Semantic Manager

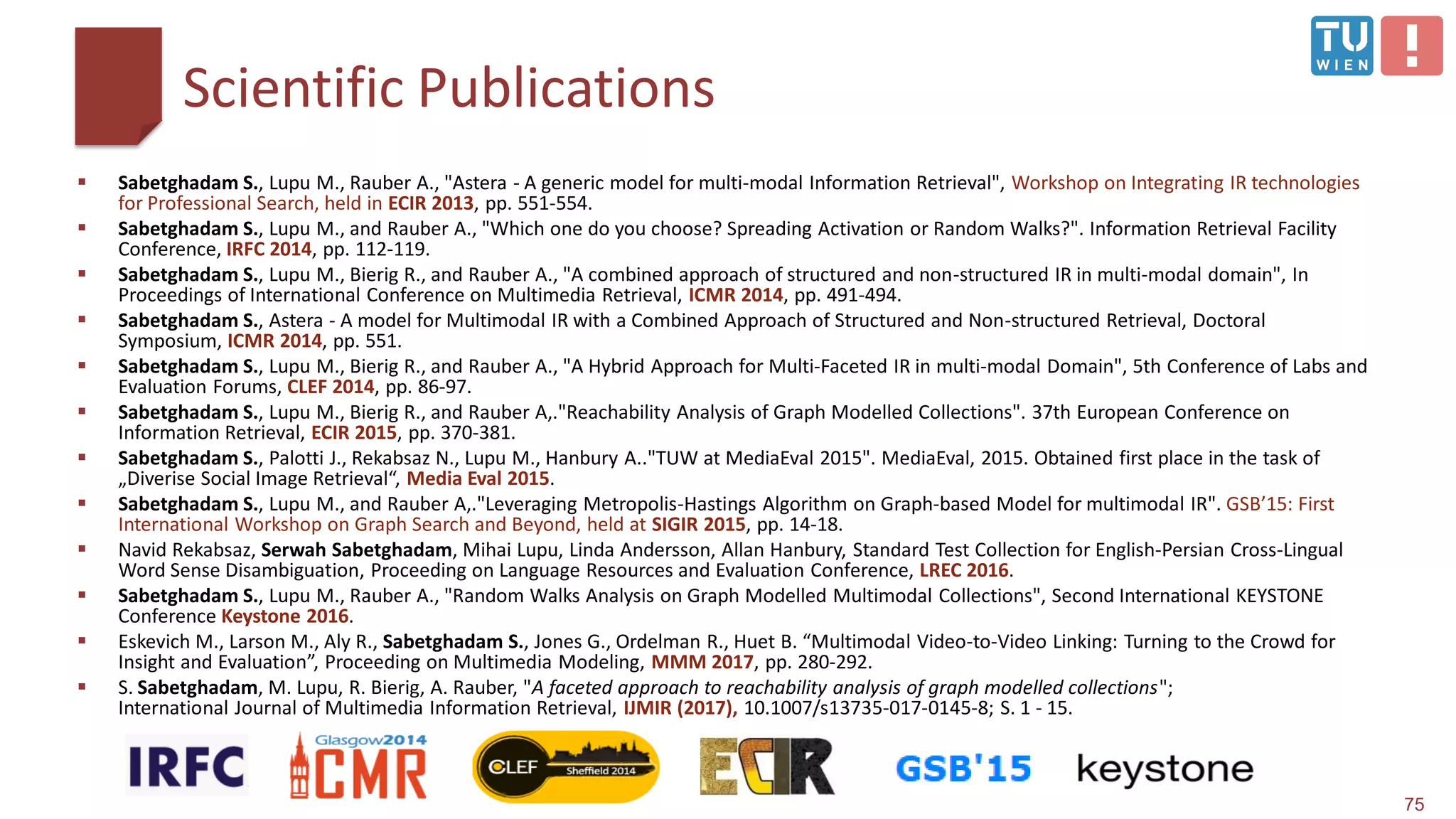

Scientific Publications 75  Sabetghadam S., Lupu M., Rauber A., "Astera - A generic model for multi-modal Information Retrieval", Workshop on Integrating IR technologies for Professional Search, held in ECIR 2013, pp. 551-554.  Sabetghadam S., Lupu M., and Rauber A., "Which one do you choose? Spreading Activation or Random Walks?". Information Retrieval Facility Conference, IRFC 2014, pp. 112-119.  Sabetghadam S., Lupu M., Bierig R., and Rauber A., "A combined approach of structured and non-structured IR in multi-modal domain", In Proceedings of International Conference on Multimedia Retrieval, ICMR 2014, pp. 491-494.  Sabetghadam S., Astera - A model for Multimodal IR with a Combined Approach of Structured and Non-structured Retrieval, Doctoral Symposium, ICMR 2014, pp. 551.  Sabetghadam S., Lupu M., Bierig R., and Rauber A., "A Hybrid Approach for Multi-Faceted IR in multi-modal Domain", 5th Conference of Labs and Evaluation Forums, CLEF 2014, pp. 86-97.  Sabetghadam S., Lupu M., Bierig R., and Rauber A,."Reachability Analysis of Graph Modelled Collections". 37th European Conference on Information Retrieval, ECIR 2015, pp. 370-381.  Sabetghadam S., Palotti J., Rekabsaz N., Lupu M., Hanbury A.."TUW at MediaEval 2015". MediaEval, 2015. Obtained first place in the task of „Diverise Social Image Retrieval“, Media Eval 2015.  Sabetghadam S., Lupu M., and Rauber A,."Leveraging Metropolis-Hastings Algorithm on Graph-based Model for multimodal IR". GSB’15: First International Workshop on Graph Search and Beyond, held at SIGIR 2015, pp. 14-18.  Navid Rekabsaz, Serwah Sabetghadam, Mihai Lupu, Linda Andersson, Allan Hanbury, Standard Test Collection for English-Persian Cross-Lingual Word Sense Disambiguation, Proceeding on Language Resources and Evaluation Conference, LREC 2016.  Sabetghadam S., Lupu M., Rauber A., "Random Walks Analysis on Graph Modelled Multimodal Collections", Second International KEYSTONE Conference Keystone 2016.  Eskevich M., Larson M., Aly R., Sabetghadam S., Jones G., Ordelman R., Huet B. “Multimodal Video-to-Video Linking: Turning to the Crowd for Insight and Evaluation”, Proceeding on Multimedia Modeling, MMM 2017, pp. 280-292.  S. Sabetghadam, M. Lupu, R. Bierig, A. Rauber, "A faceted approach to reachability analysis of graph modelled collections"; International Journal of Multimedia Information Retrieval, IJMIR (2017), 10.1007/s13735-017-0145-8; S. 1 - 15.
