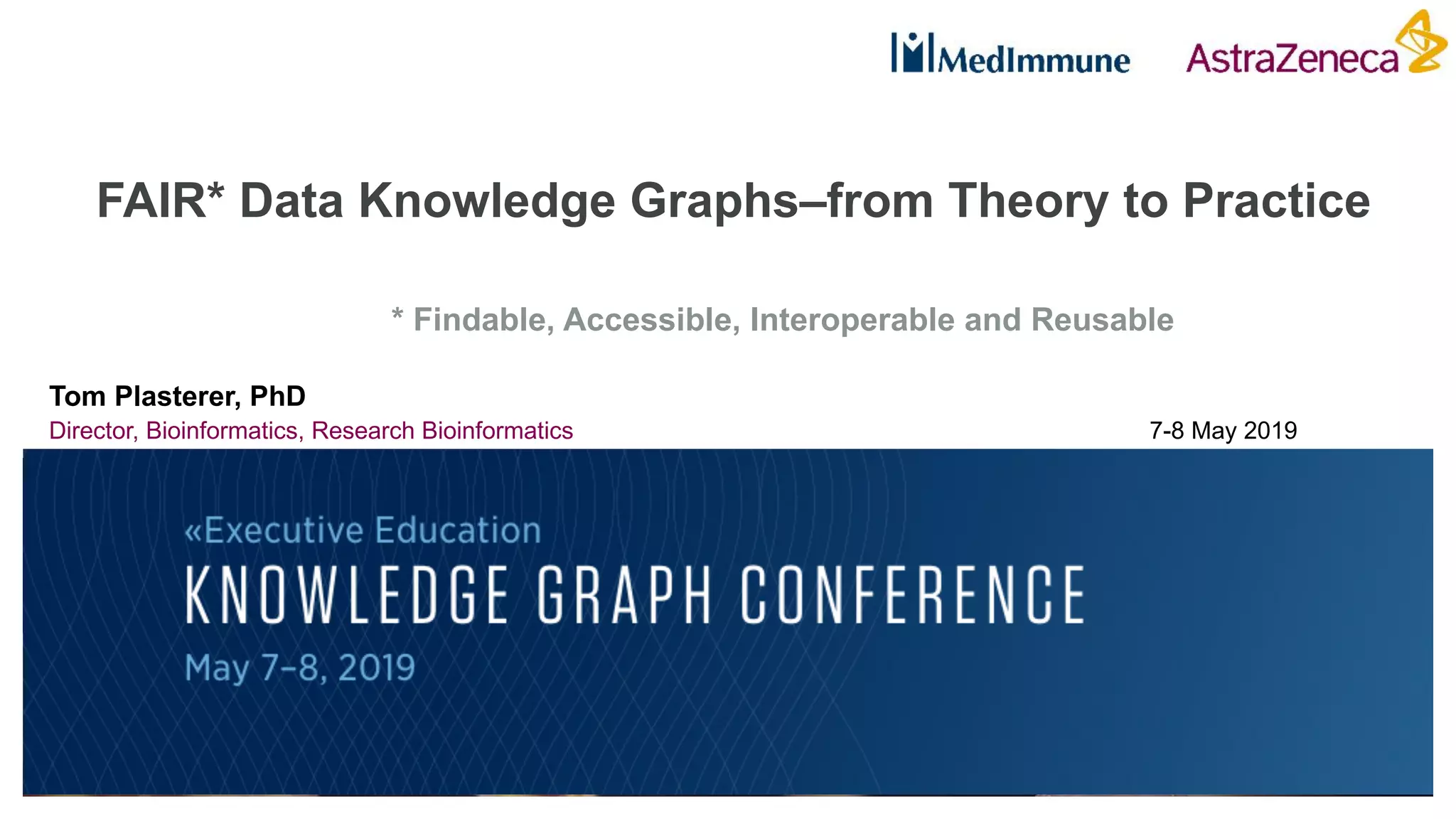

1. FAIR* Data Knowledge Graphs–from Theory to Practice
Tom Plasterer, PhD
Director, Bioinformatics, Research Bioinformatics 7-8 May 2019
* Findable, Accessible, Interoperable and Reusable

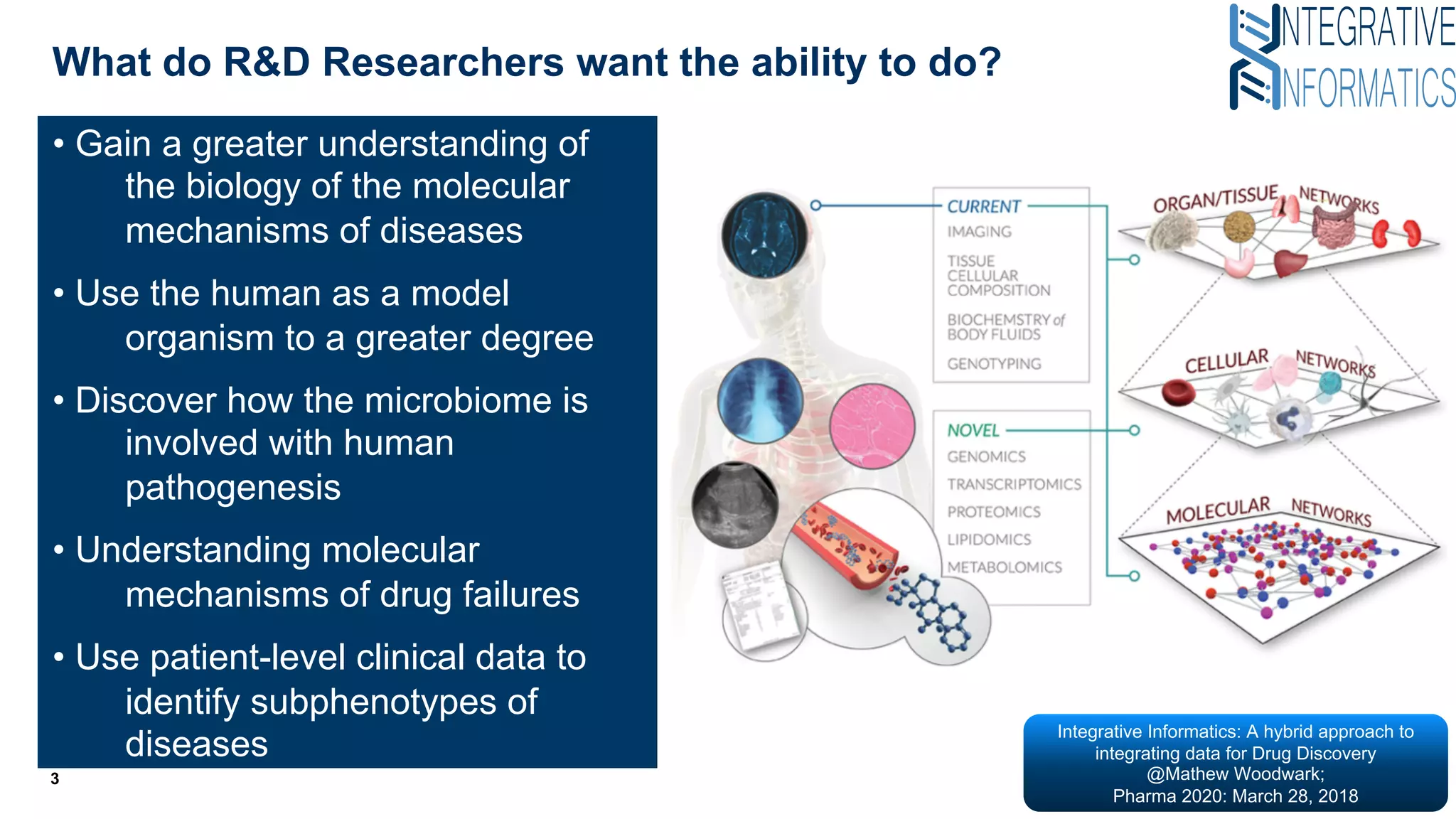

2. What do R&D Researchers want the ability to do?
3
• Gain a greater understanding of
the biology of the molecular
mechanisms of diseases
• Use the human as a model
organism to a greater degree
• Discover how the microbiome is
involved with human
pathogenesis
• Understanding molecular
mechanisms of drug failures
• Use patient-level clinical data to
identify subphenotypes of
diseases
Integrative Informatics: A hybrid approach to
integrating data for Drug Discovery
@Mathew Woodwark;
Pharma 2020: March 28, 2018

3. Can R&D researchers do these things today?
4
• Currently, data exists in file shares, on
laptops, eLN, in silos of managed
systems and unknown places
• The level of data integration is
immature and fragmented
• Using systems biology approaches
requires considerable time and effort
• Bioinformatics groups become a
bottleneck to analyzing data
• Research scientists not empowered
to use information and knowledge to
answer complex questions
Integrative Informatics: A hybrid approach to
integrating data for Drug Discovery
@Mathew Woodwark;
Pharma 2020: March 28, 2018

4. 5
IIx Approach: Build a FAIR Data Knowledge Graph

5. 6
FAIR Principles: One-Slide Overview
Findable:
• F1 (meta)data are assigned a globally
unique and persistent identifier
• F2 data are described with rich metadata
• F3 metadata clearly and explicitly include
the identifier of the data it describes
• F4 (meta)data are registered or indexed in a
searchable resource
The FAIR Guiding Principles for scientific data management and stewardship
Sci. Data 3:160018 doi: 10.1038/sdata.2016.18 (2016)
Accessible:
• A1 (meta)data are retrievable by their identifier
using a standardized communications protocol
• A1.1 the protocol is open, free, and universally
implementable
• A1.2 the protocol allows for an authentication and
authorization procedure, where necessary;
• A2 metadata are accessible, even when the data
are no longer available;
Interoperable:
• I1 (meta)data use a formal, accessible,
shared, and broadly applicable language for
knowledge representation
• I2 (meta)data use vocabularies that follow
FAIR principles
• I3 (meta)data include qualified references to
other (meta)data
Reusable:
• R1 meta(data) are richly described with a plurality
of accurate and relevant attributes
• R1.1 (meta)data are released with a clear and
accessible data usage license
• R1.2 (meta)data are associated with detailed
provenance
• R1.3 (meta)data meet domain-relevant
community standards

6. 7
Knowledge Graph: Definition(s)…

7. 8
Knowledge Graph: Innovation Trigger
Gartner Identifies Five Emerging Technology
Trends That Will Blur the Lines Between
Human and Machine

8. 9
Knowledge Graph: Key Features and Differentiators
Federation:
• Leave Data in place or ETL pipeline?
• URIs, indices really important
Standards Support (Syntactic and Semantic)
• Universal structure or bespoke?
• Universal query language or bespoke?
Analytics Enablement
• Reasoning, inferencing, graph methodologies
Hybrid
• Underlying data in multiple shapes and
repositories
For Machines (and occasionally people)
Cypher

9. 10
Starting Point: Modeling Business Questions
core:Study
core:Project
core:Target
core:Subject
core:Drug
core:Indication core:TherapeuticArea
core:BiologicalSample
core:Measurement core:Technologycore:Visit
bdm:Cohort
core:hasSubject
core:hasProject
core:hasDrug
core:hasIndication
bdm:hasArm
bdm:participatesIn
core:hasTA
core:hasTarget
core:hasMeasurement
core:hasSample
core:hasVisit
core:measuredBy
Find all subjects
diagnosed with SLE
with a disease activity
score > 5
Find all studies evaluating
the target PD-L1 with
RNA Seq Datasets
bnav:measuredInStudy

10. 11
Challenge is determining the “stickiest”
representation for a given instance
• Studies all have a ‘D’-code and then a
number of other internal and external
identifiers
• API calls to an internal clinical study API
and an external (licensed content) API to
obtain the exact matches
(skos:exactMatch)
• Process is abstracted in an Enrichment
Service
• New relationships (triples) are added to
the wrapped data model and pushed into
a knowledge graph
Enrichment: Core Ontology Classes & API mapping
core:Study
http://data.rd.astrazeneca.net/study/bdm/CP1103
http://clinicaltrials.astrazeneca.net/study/D4660C00001
http://identifiers.org/clinicaltrials/NCT01448850
http://trialtrove.citeline.com/ClinicalTrial/154466
skos:exactMatch
"azct:D4660C00001"
"ctg:NCT01448850"
"trialtrove:154466"
dct:identifier

11. 12
Now find “stickiest”
representation for a given
instance from a label
• Use system label for the
indication
• Send to Enrichment API
(augmented public disease
vocabularies) and generate the
preferred URI to obtain the close
matches (skos:closeMatch)
• Process is abstracted in an
Enrichment Service
• New relationships (triples) are
added to the wrapped data
model and pushed into a
knowledge graph
Enrichment: Core Ontology Classes & Label Matching
core:Indication
http://data.rd.astrazeneca.net/indication/bdm/Rheumatoid%20Arthritis
http://purl.obolibrary.org/obo/DOID_7148
http://identifiers.org/mesh/D001172
skos:closeMatch
"Rheumatoid Arthritis (D001172) "
bnav:diseaseNameSymbol
"Rheumatoid Arthritis"
skos:prefLabel

12. 13
Now find “stickiest” representation
for a given instance from a label
without a good vocabulary
• Aligned internal Technology
vocabulary with best public label
and URI
• Send to Enrichment API
(augmented BDM-technology
vocabulary) and generate the
preferred URI to obtain the close
matches (skos:exactMatch)
• Process is abstracted in an
Enrichment Service
• New relationships (triples) are
added to the wrapped data model
and pushed into a knowledge graph
Enrichment: Core Ontology Classes & Mixed Vocabs
core:Technology
http://data.rd.astrazeneca.net/technology/bdm/BDMTECH00005
"Blood Gas"
skos:prefLabel
http://identifiers.org/ncit/C71252
skos:exactMatch
"Arterial Blood Gas Measurement"
skos:prefLabel

13. 14
Key Lesson: Where is Enrichment Critical?
core:Study
core:Project
core:Target
core:Subject
core:Drug
core:Indication core:TherapeuticArea
core:BiologicalSample
core:Measurement core:Technologycore:Visit
bdm:Cohort
core:hasSubject
core:hasProject
core:hasDrug
core:hasIndication
bdm:hasArm
bdm:participatesIn
core:hasTA
core:hasTarget
core:hasMeasurement
core:hasSample
core:hasVisit
core:measuredBy
External
Internal
Mix

14. 15
Dataset Catalogs: Find me Datasets about:
Projects
Study
Indication/
Disease
Technology
Targets
Cohort DatesAgent
Therapeutic
Area
Drugs

15. 16
Dataset Catalog is a collection of Dataset Records
• Catalogs are needed to supporting FAIR (Findable) data
• Catalogs can and should support Enterprise MDM strategies
• Consumers can be internal or external
Dataset Catalogs are needed so data consumers can find Datasets
• Dataset records need sufficient metadata to support discoverability
• Dataset terms are NOT the data instance
Dataset Catalogs surface dataset provenance and enable data access
Dataset Catalogs can provide datasets for multiple consumption patters
• Analytics readiness and fit
• ‘Walking’ across information models
Dataset Catalogs: Findability Starts Here

16. 17
The Backbone: A DCAT conformant Data Catalog
https://www.w3.org/TR/hcls-dataset/
https://www.w3.org/TR/vocab-dcat/#vocabulary-overview
Semantic tagging of datasets with
concepts from taxonomies:
• provides context
• multi-dimensional & flexible
• effective for discoverability
• light-weight semantics
skos:Concept
dcat:Catalog skos:ConceptScheme
dctypes:Dataset (summary)
dct:title
dct:publisher <foaf:Agent>
foaf:page
void:sparqlEndpoint
dct:accrualPeriodicity
dcat:keyword
dcat:dataset
dcat:theme
dctypes:Dataset (version)
dcat:Distribution
(dctypes:Dataset)
void:vocabulary
dct:conformsTo
void:exampleResource
…other void properties
dcat:distribution
dcat:themeTaxonomy
dct:isVersionOf
pav:previousVersion
dct:hasPart
pav:hasCurrentVersion
dct:hasPart
dct:title
dct:publisher <foaf:Agent>
pav:version
dct:creator <foaf:Agent>
dct:created
dct:source
dct:creator <foaf:Agent>
dct:license
dct:format
pav:retrievedFrom
dct:created
pav:createdWith
dcat:accessURL
dcat:downloadURL
void:Dataset
dct:title
dctDescription
dct:publisher <foaf:Agent>

17. Data Discoverability: Multi-phase Filtering
Data Catalog Filter
Phase 1
Experiment Metadata Filter
Phase 2
Ad hoc Analyses Filtering
Phase 3
Outbound
to Data Analytics
Data Science
Tools
Statistical
Filtering
e.g., clinical trial with > 50
participants
Dataset
Catalog
Descriptions

18. 19
DisQover Example

19. R&D | RDI
Multi-Phase Filtering joins the Catalog and Domain Model
• Balance to what belongs in a catalog record vs. instance data
Public Domain Ontologies and Identifiers should be reused
• Consensus is emerging around best practices and cross-mapping
DCTERMS, DCAT, VoID are almost sufficient
• Extend for local needs
Lots of Activity to Learn and Shape Best Practices
• Didn’t reinvent a wheel
FAIR Knowledge Graph: Take-aways

20. R&D | RDI
