9EE105 BASIC ELECTRICAL ENGINEERING POLYTECHINIC

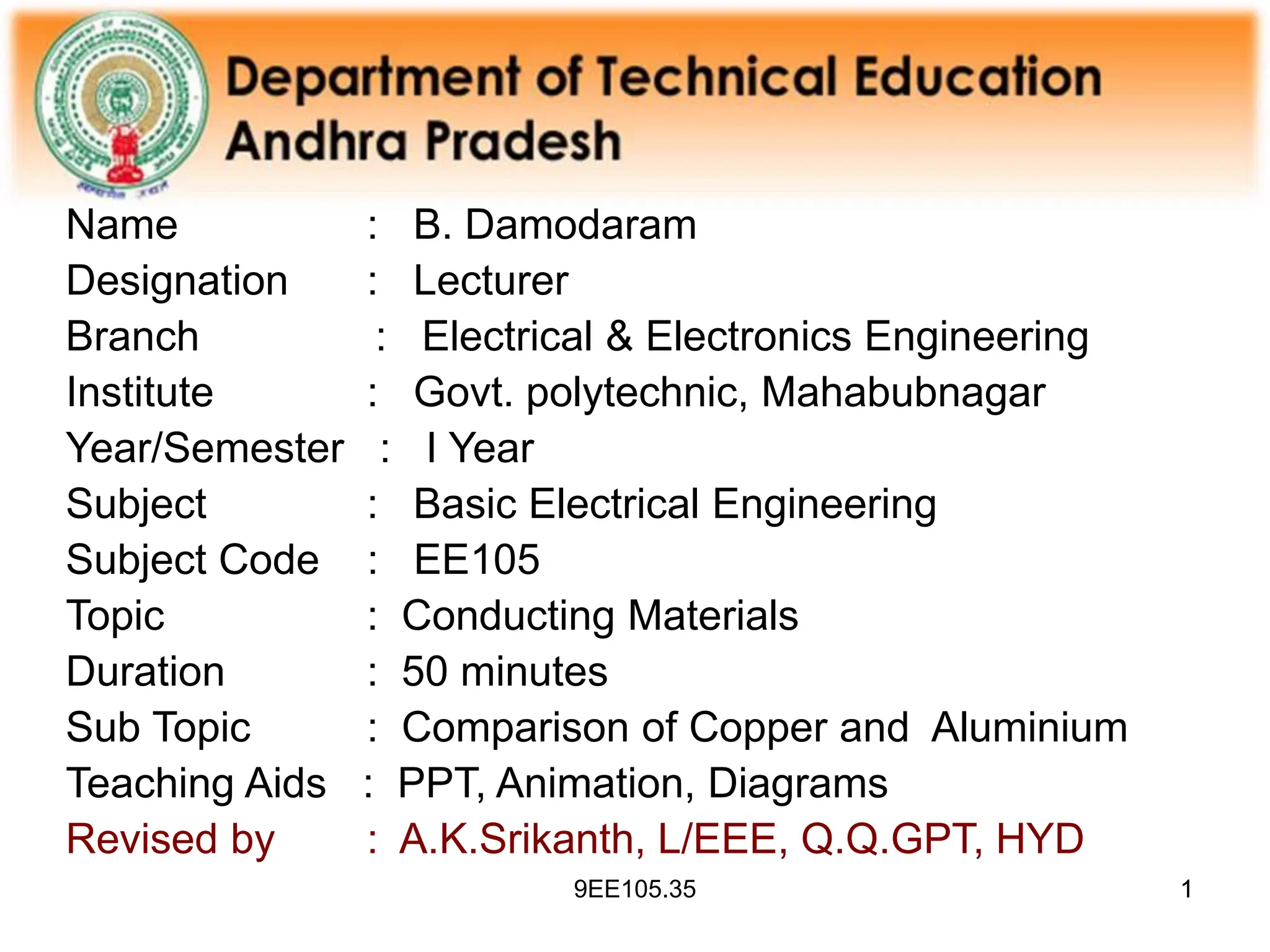

1. 9EE105.35 1
1
Name : B. Damodaram
Designation : Lecturer
Branch : Electrical & Electronics Engineering
Institute : Govt. polytechnic, Mahabubnagar
Year/Semester : I Year
Subject : Basic Electrical Engineering
Subject Code : EE105
Topic : Conducting Materials
Duration : 50 minutes
Sub Topic : Comparison of Copper and Aluminium
Teaching Aids : PPT, Animation, Diagrams
Revised by : A.K.Srikanth, L/EEE, Q.Q.GPT, HYD
2. 9EE105.35 2
• Understand the properties of Copper
• Understand the applications of Copper in
Electrical Engineering.
In previous class we have discussed about
Recap
• Understand the properties of Aluminium
• Understand the applications of Aluminium in
Electrical Engineering.
3. 9EE105.35 3
• Compare Copper and Aluminium in various
Electrical aspects
On completion of this period , you would be
able to
• Understand the Advantages of Copper
over Aluminium
• Understand the Disadvantages of Copper
over Aluminium
3
Objectives
4. 9EE105.35 4
What are the types of conducting materials
used for the following purposes ?
Over head conductors Cables
Copper conductor
Aluminium conductor
4
5. 9EE105.35 5
Which conducting material is suitable for the
windings of Motors and Transformers ?
Copper conductor
5
6. 9EE105.35 6
Comparison of
Copper and Aluminium
COPPER ALUMINIUM
• It is costly • It is cheap
• 100% conductivity • 75% conductivity
• Heavier • Lighter
• Silver white in
colour
• Reddish-brown
in colour
6
7. 9EE105.35 7
• High Tensile
strength
• Low Tensile strength
• Can withstand rough
handling
• Can be soldered and
welded easily
• Ductile and
malleable
• Can not withstand
rough handling
• Cannot be soldered
and welded easily
• Ductile and
malleable
COPPER ALUMINIUM
Comparison of
Copper and Aluminium Contd..
8. 9EE105.35 8
• Good resistance to
corrosion
• Small cross-section
can carry heavy
current
• Less suitable for
cold climate
• 50% more to
carry the same
current
• Good resistance to
corrosion
• More suitable for
cold climate
• Not brittle in nature • Brittle in nature
COPPER ALUMINIUM
Comparison of
Copper and Aluminium Contd..
9. 9EE105.35 9
• Can easily be
twisted repeatedly
• Due to brittleness,
can not be twisted
• Low contact resistance • High contact resistance
• Melting point is 1084 0C • Melting point is 658 0C
• Boiling point is 2927 0C • Boiling point is 1084 0C
COPPER ALUMINIUM
Comparison of
Copper and Aluminium Contd..
10. 9EE105.35 10
• Used in windings of
electrical machines
• Can not be used in
windings of electrical
machines
• Due to smaller cross-
section, effect of snow
and wind pressure is
less
• Due to larger cross-
section effect of snow
and wind pressure is
more
COPPER ALUMINIUM
Comparison of
Copper and Aluminium Contd..
11. 9EE105.35 11
• The conductivity of Aluminium is next to Copper.
• Both forms important alloys with many metals
• Both Copper and Aluminium are the best
Conductors of electricity
• Aluminium can’t be twisted easily than Copper
due to its brittleness
11
Summary
In this period we have discussed about
12. 9EE105.35 12
1. Contact resistance of Aluminium is
a) More than copper
b) Less than copper
c) Equal to copper
d) None of the above
12
Quiz
13. 9EE105.35 13
2. Which material is suitable for cold climate
a) Copper
b) Aluminium
d) none of the above
c) Both (a) & (b)
13
Quiz
14. 9EE105.35 14
1.Compare Copper and Aluminium in various aspects
14
2. What are the advantages of Copper over Aluminium
3. What are the advantages of Aluminium over Copper
Frequently Asked Questions
