BASIC ELECTRICAL ENGINEERING

9EE105.44 1
1

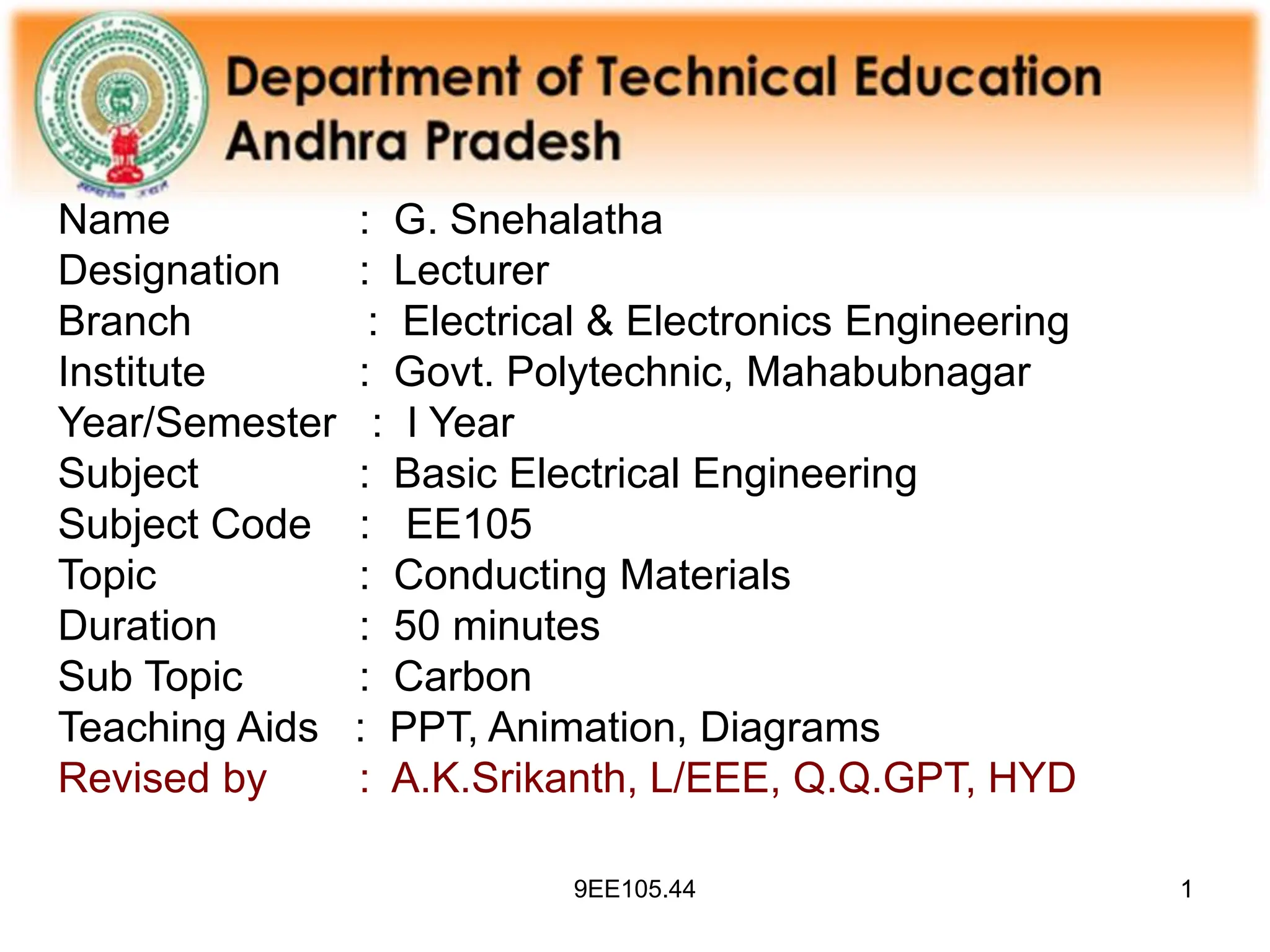

Name : G. Snehalatha
Designation : Lecturer
Branch : Electrical & Electronics Engineering
Institute : Govt. Polytechnic, Mahabubnagar
Year/Semester : I Year
Subject : Basic Electrical Engineering
Subject Code : EE105
Topic : Conducting Materials
Duration : 50 minutes
Sub Topic : Carbon
Teaching Aids : PPT, Animation, Diagrams
Revised by : A.K.Srikanth, L/EEE, Q.Q.GPT, HYD

9EE105.44 2
• Properties of Mercury
• Applications of Mercury
2
Recap
In the previous class we have studied about

9EE105.44 3
• Understand the Properties of Carbon
• Understand the Applications of Carbon
On completion of this period , you would be
able to
3
Objectives

9EE105.44 4
What type of material used for the following
applications ?
• Carbon ( High resistivity conducting material )
4

9EE105.44 5
Carbon
• It is mostly available in the form of Graphite
• Contains about 90% of carbon
• Mostly used as brush for Electric motors
5

9EE105.44 6
1. Carbon is found in the form of coal, coke,
charcoal etc
Properties of Carbon
3. Has negative temperature coefficient of resistance
2. Has very high resistivity of 4600 µΩ-cm
6
4. Melting point is 39000 C
5. Has low surface friction

9EE105.44 7
6. Not affected by moisture, acids and bases
7
7. Has good thermal conductivity
9. Has very good abrasive resistance
8. Gets oxidized in air beyond 3000 C
Properties of Carbon

9EE105.44 8
Applications of Carbon
• Used as brushes in electrical machines
8

9EE105.44 9
• Used as electrodes in cells
9
CARBON ELECTRODES
Applications of Carbon

9EE105.44 10
• It is used as brushes in electrical machines,
Electrodes in cells etc.,
• Has very good abrasive resistance
• Carbon is found in the form of coal, coke,
charcoal etc.,
10
Summary
In this period we have discussed about

9EE105.44 11
1. Carbon has
a) High surface friction
b) Low surface friction
c) No surface friction
d) None of the above
11
Quiz

9EE105.44 12
a) Positive temperature coefficient of resistance
c) Both (a) & (b)
d) None of the above
2. Carbon has
b) Negative temperature coefficient of resistance
12
Quiz

9EE105.44 13
1. State the properties of Carbon
2. State the applications of Carbon
13
Frequently Asked Questions

9EE105.44 14
The will to win, the desire to
succeed, the urge to reach your
full potential... these are the
keys that will unlock the door to
personal excellence.
Eddie Robinson
