The document discusses number systems and binary arithmetic operations. It provides information on r's and r-1's complements used for simplifying subtraction. It gives examples of binary, octal and decimal addition and subtraction. It also provides practice problems on converting between decimal, binary, octal and 2's complement representations and performing arithmetic operations in these number systems.

1. Number System

2. 08/23/152

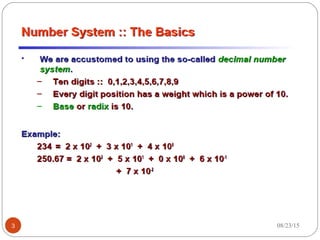

3. 08/23/153

4. 08/23/154

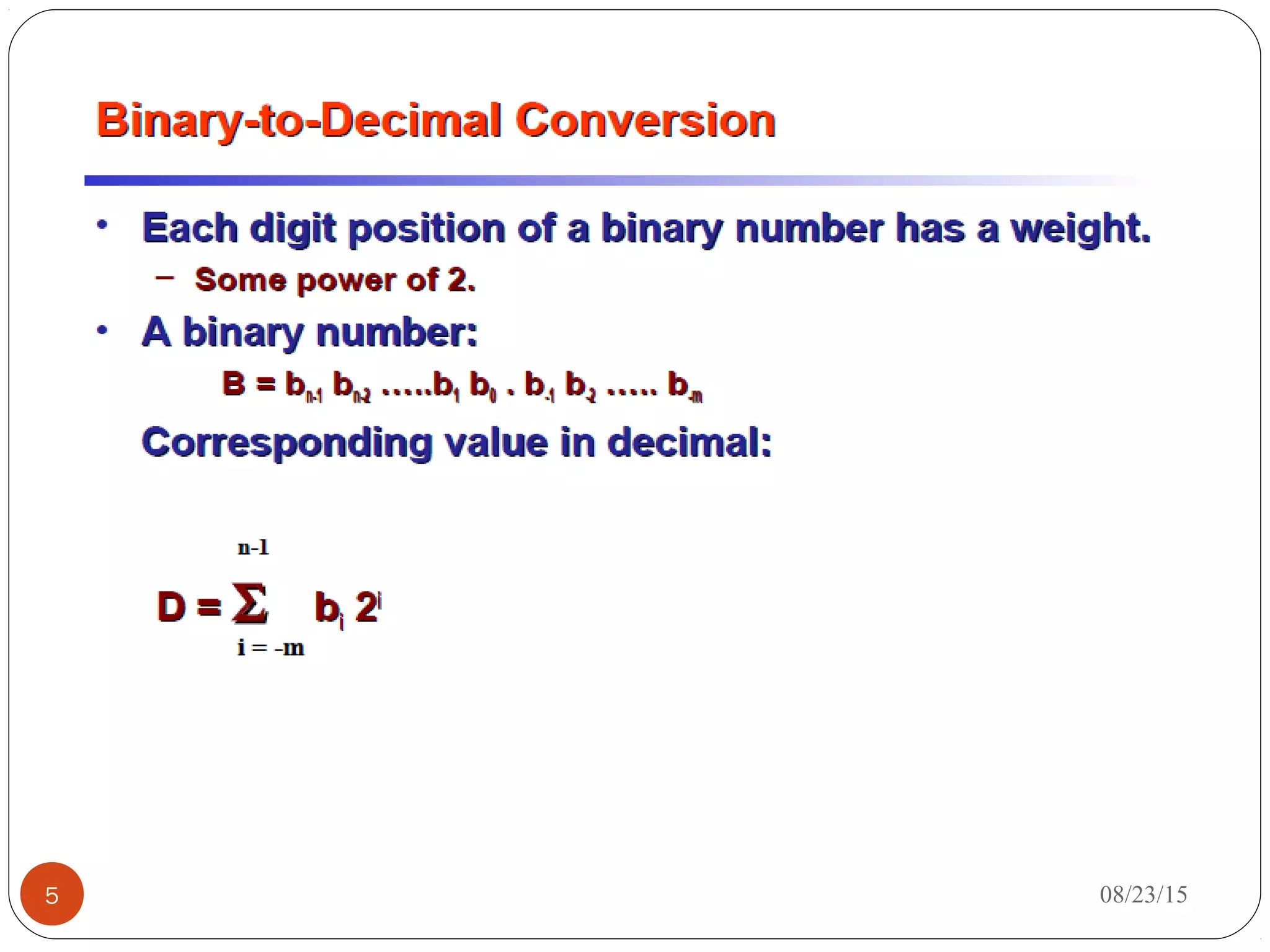

5. 08/23/155

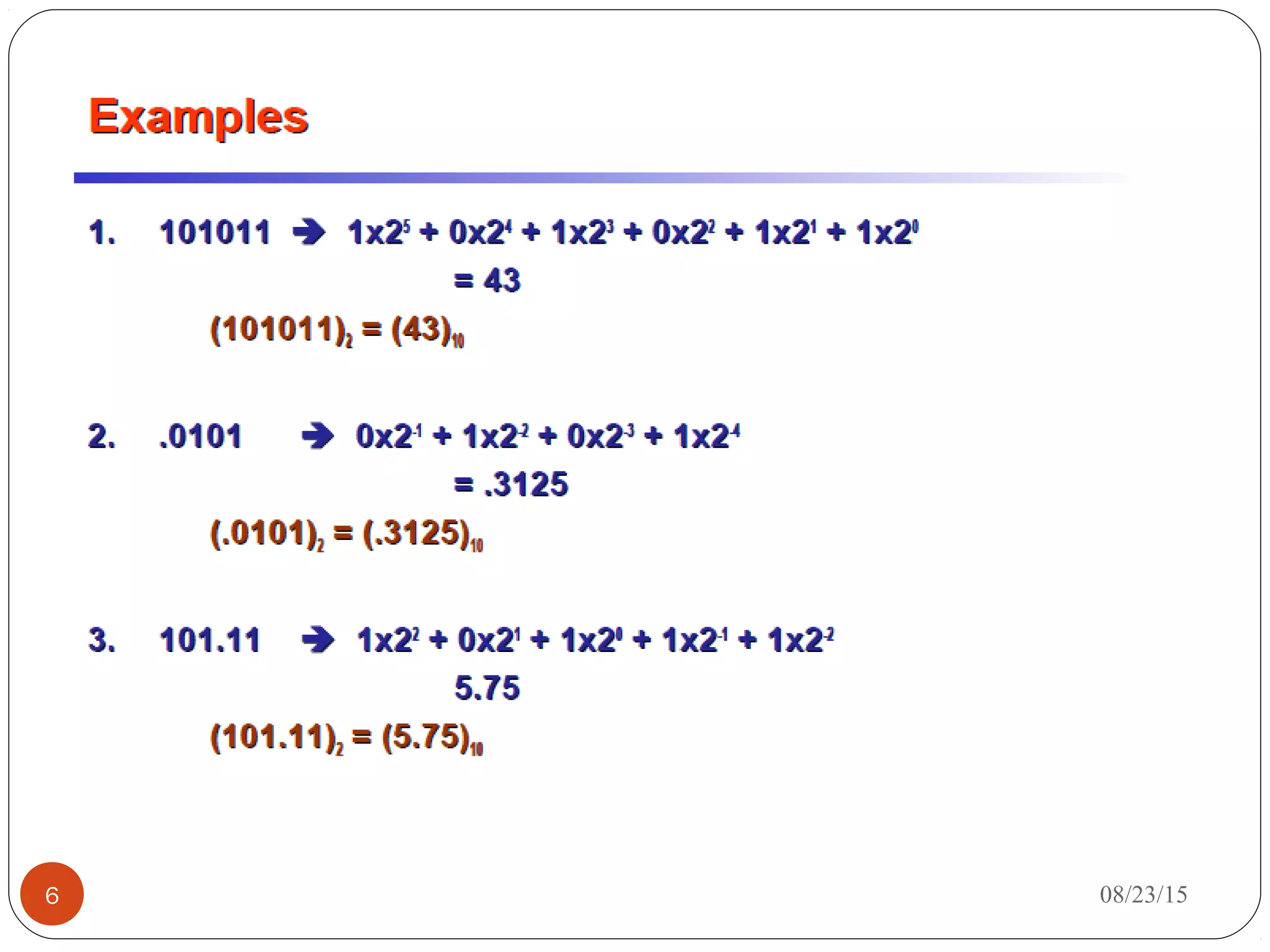

6. 08/23/156

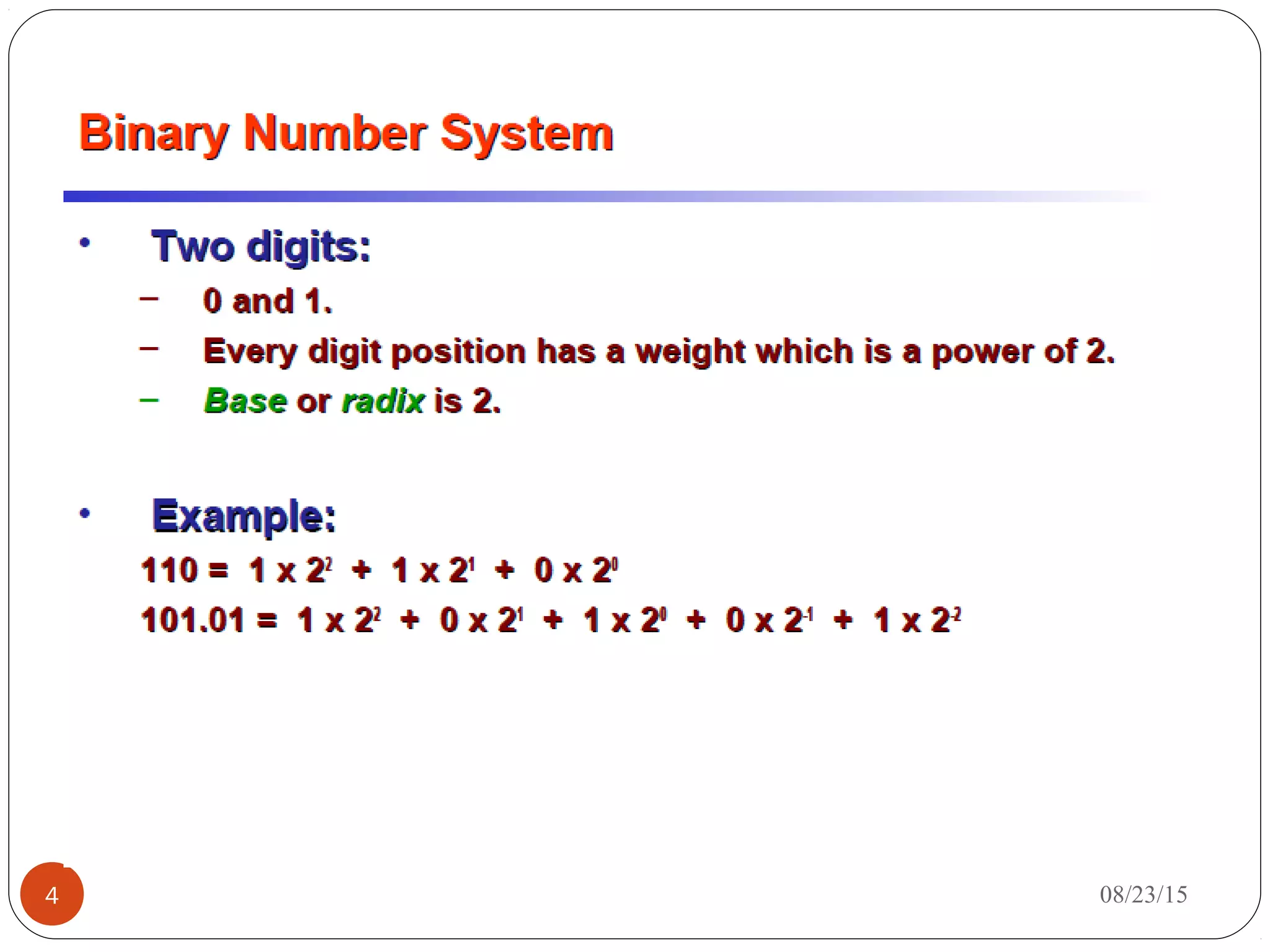

7. 08/23/157

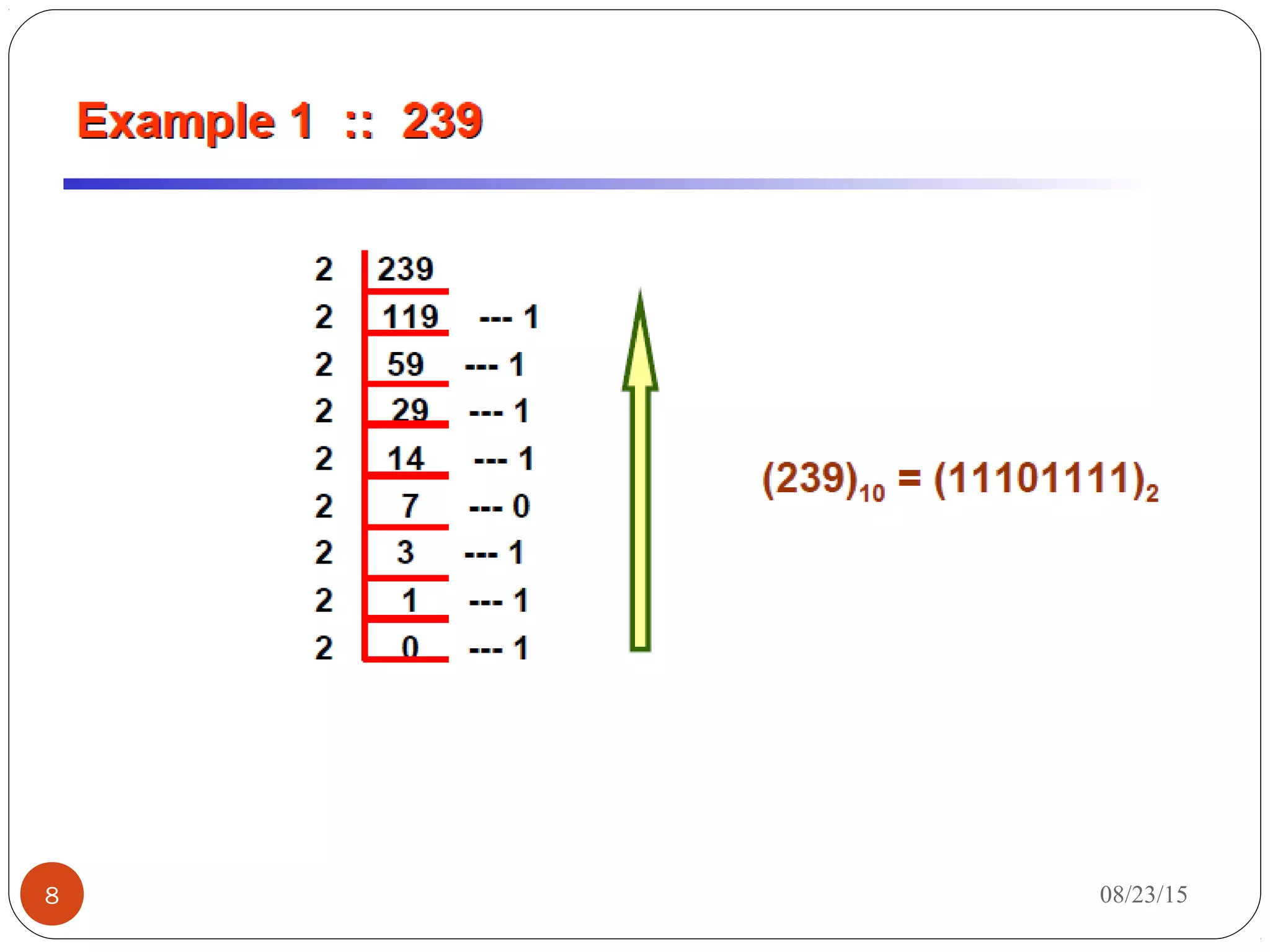

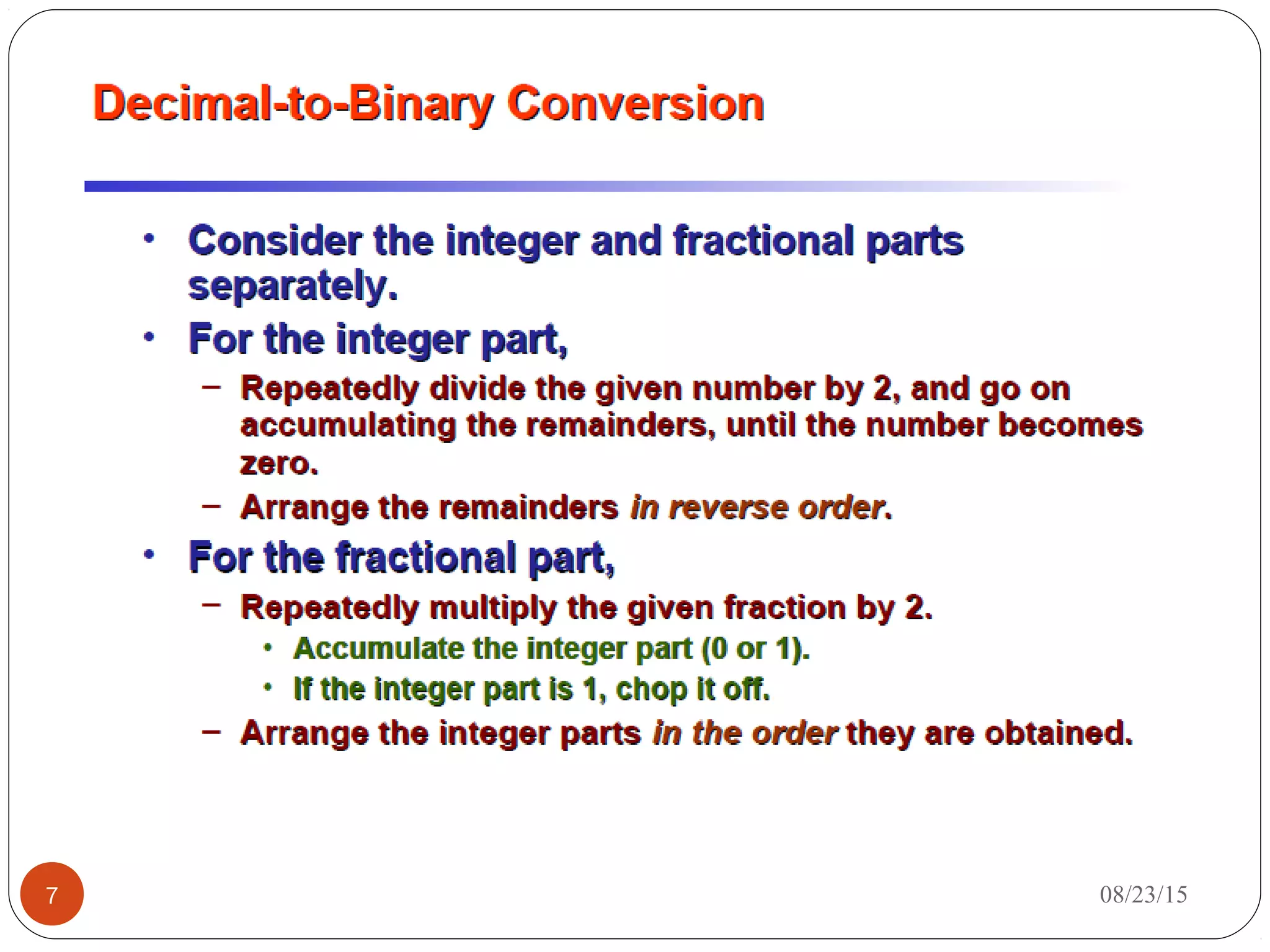

8. 08/23/158

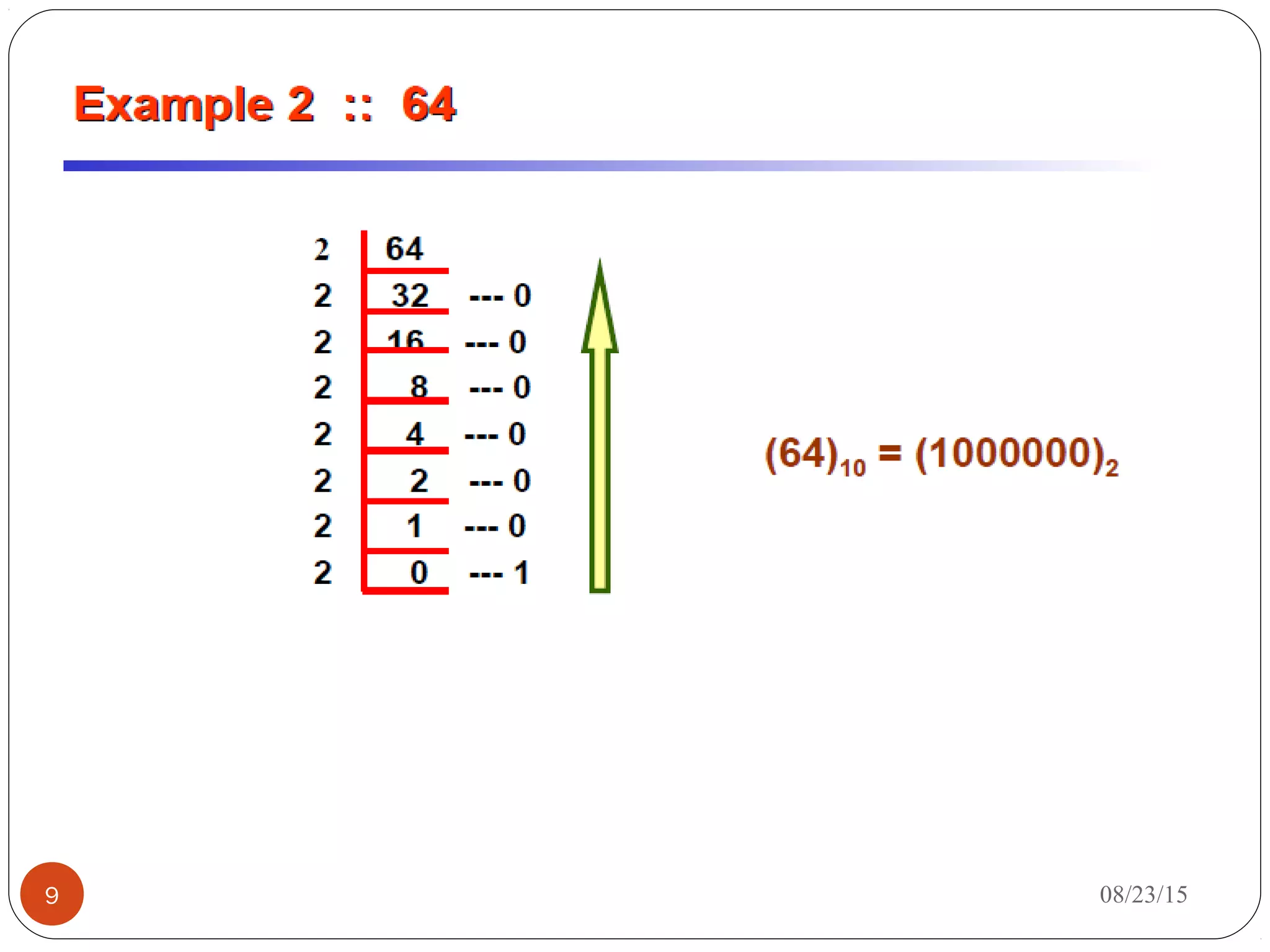

9. 08/23/159

10. 08/23/1510

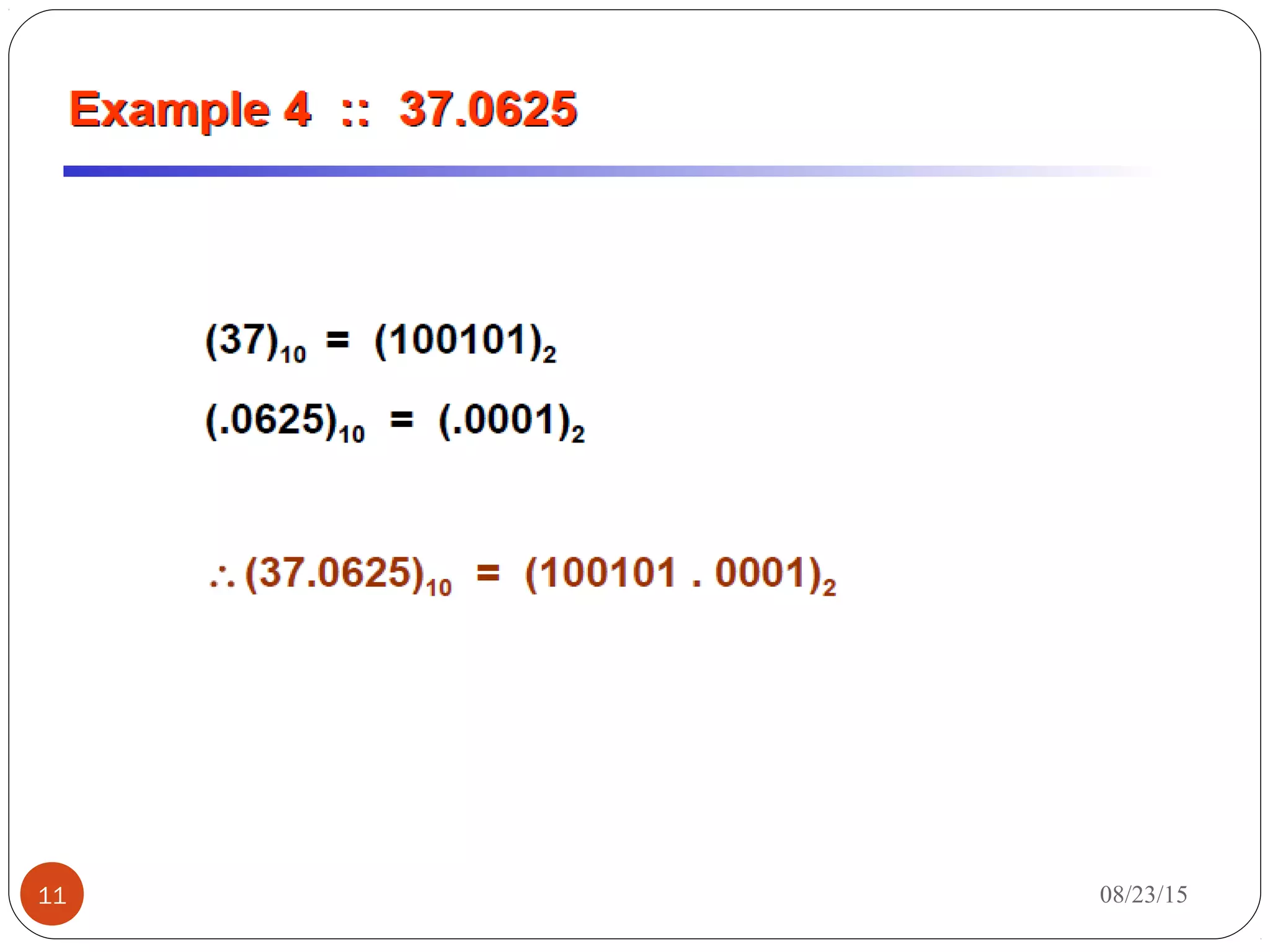

11. 08/23/1511

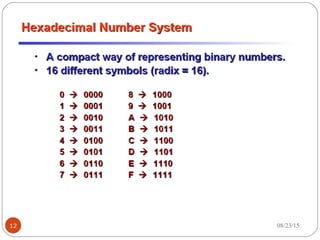

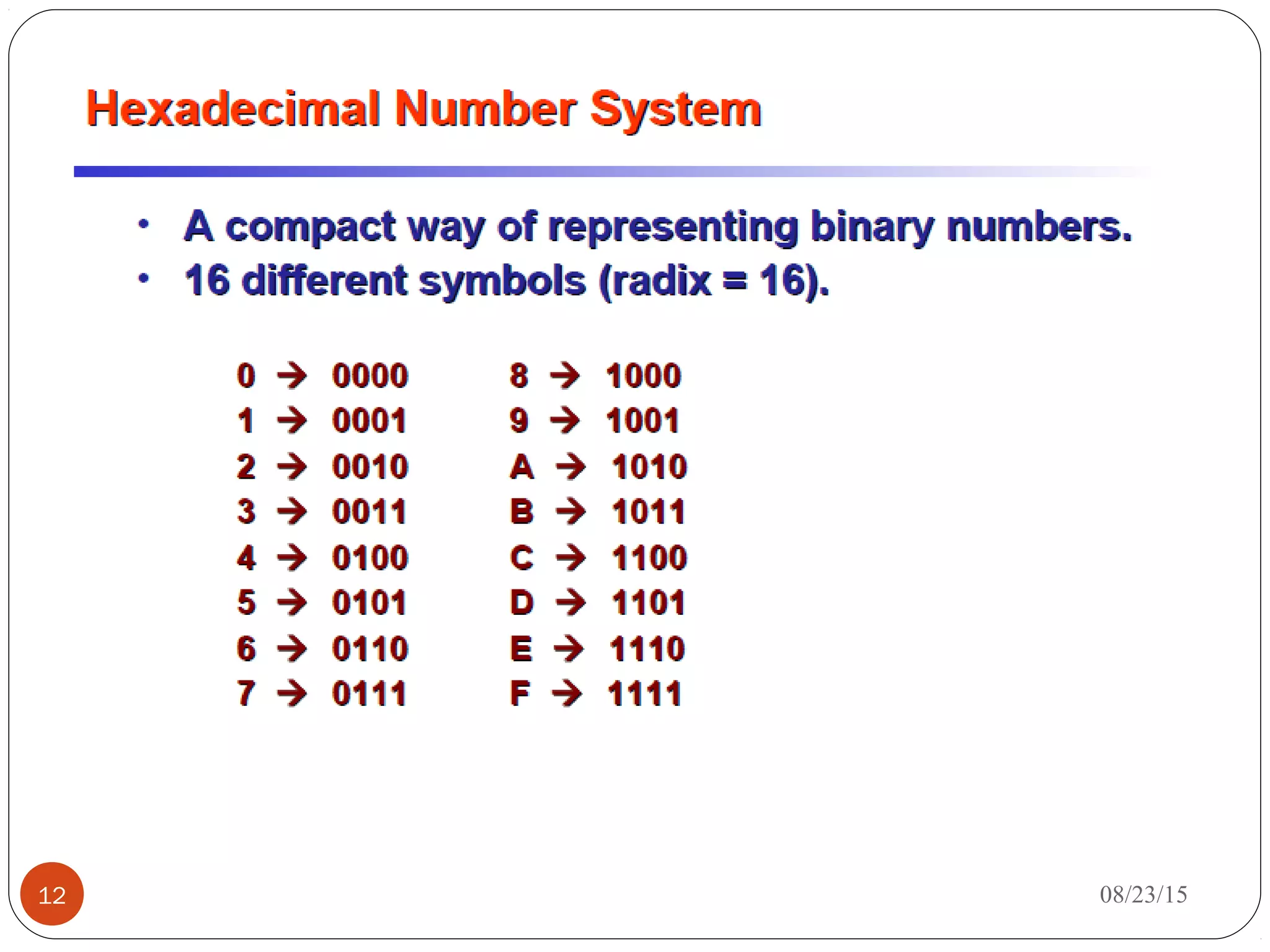

12. 08/23/1512

13. 08/23/1513

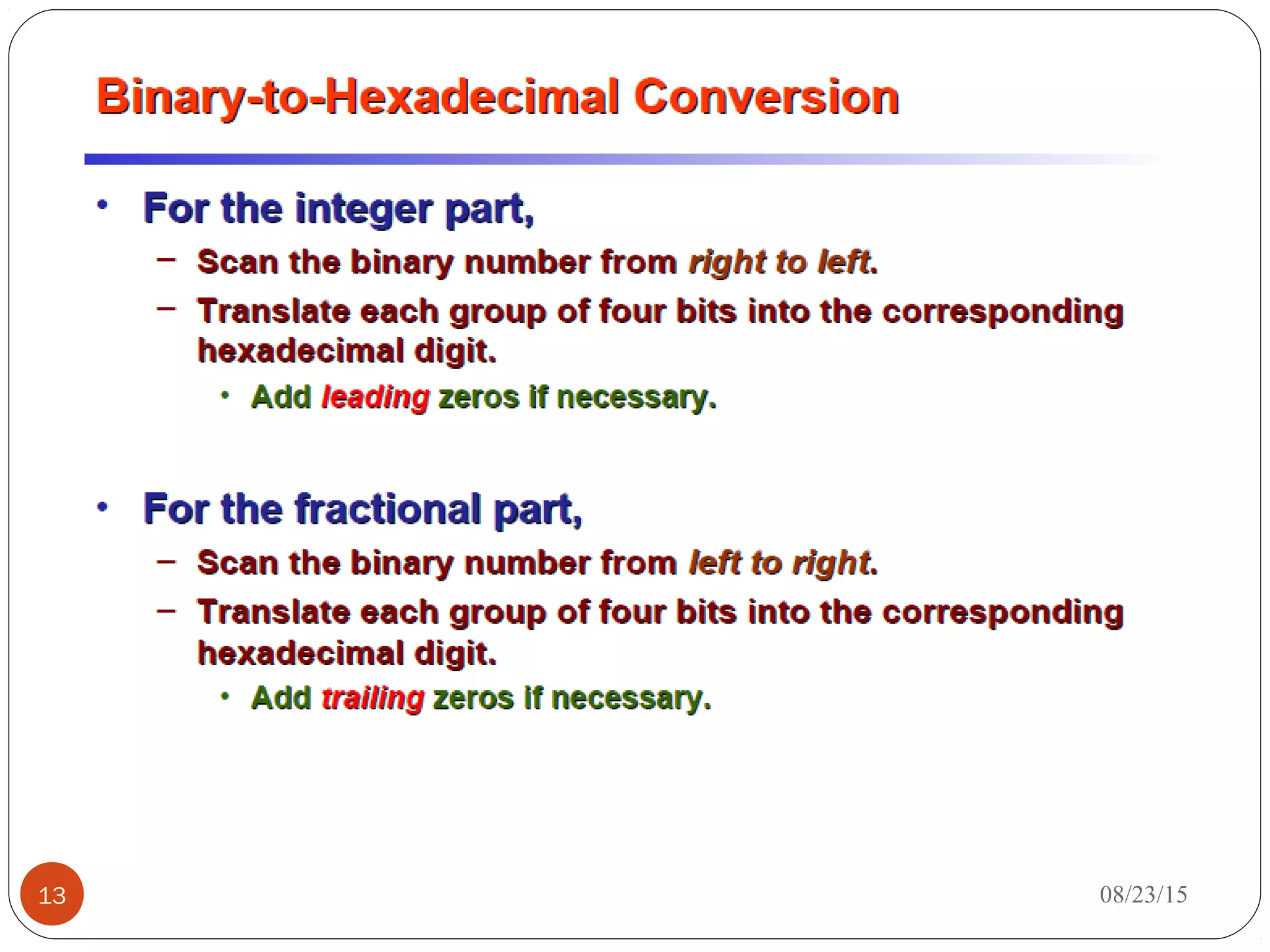

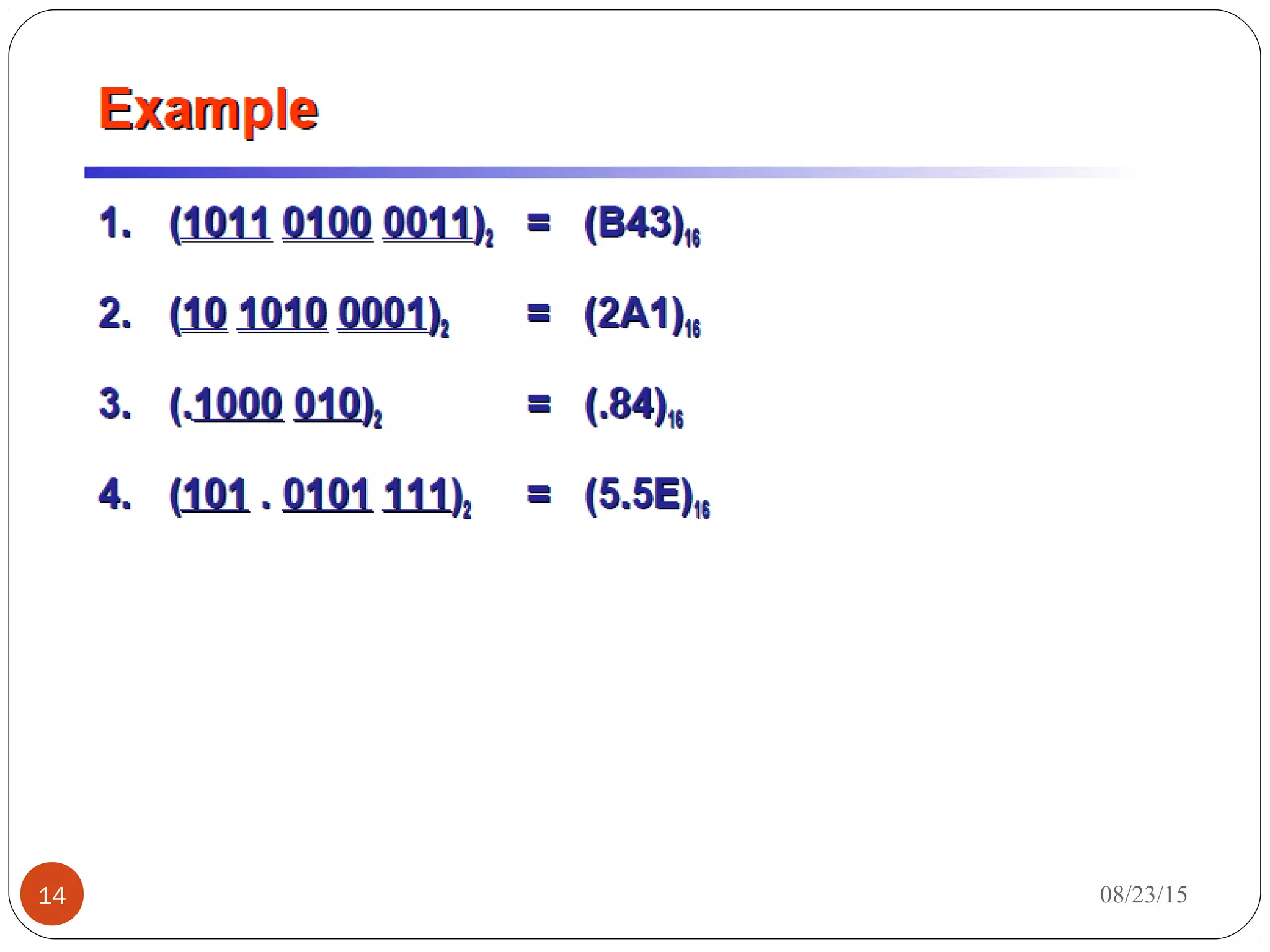

14. 08/23/1514

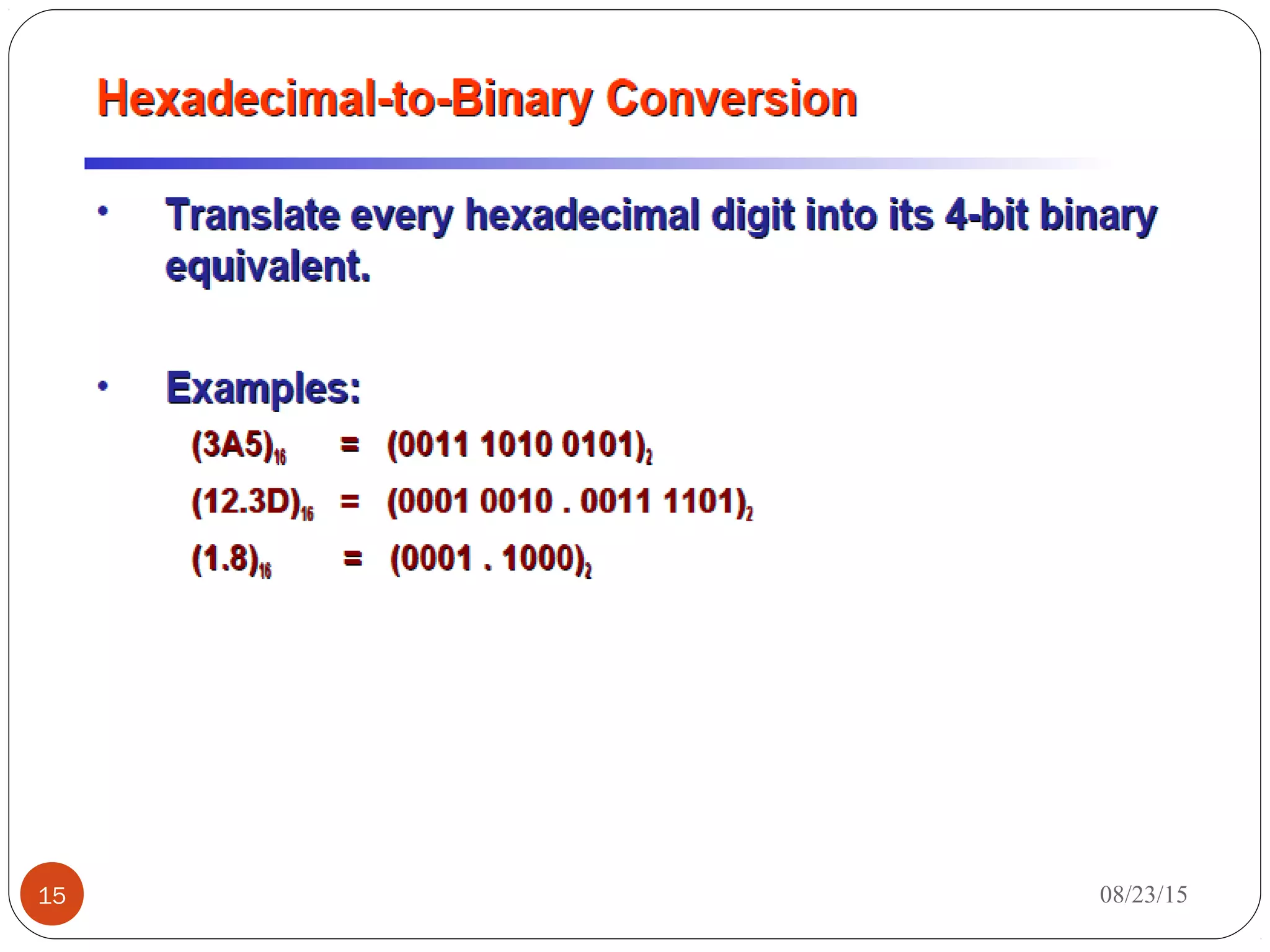

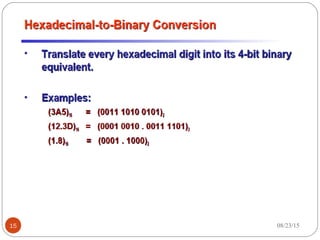

15. 08/23/1515

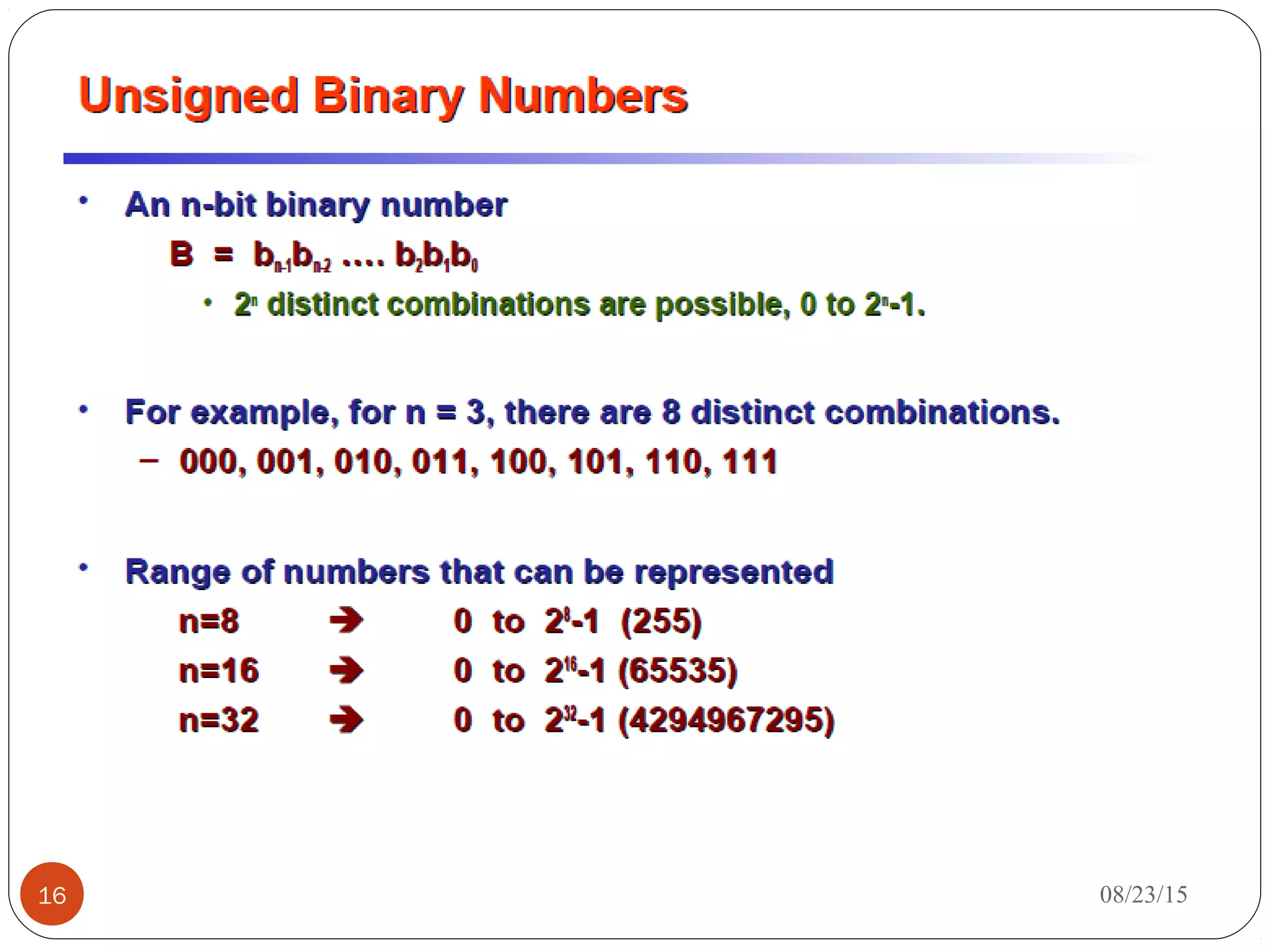

16. 08/23/1516

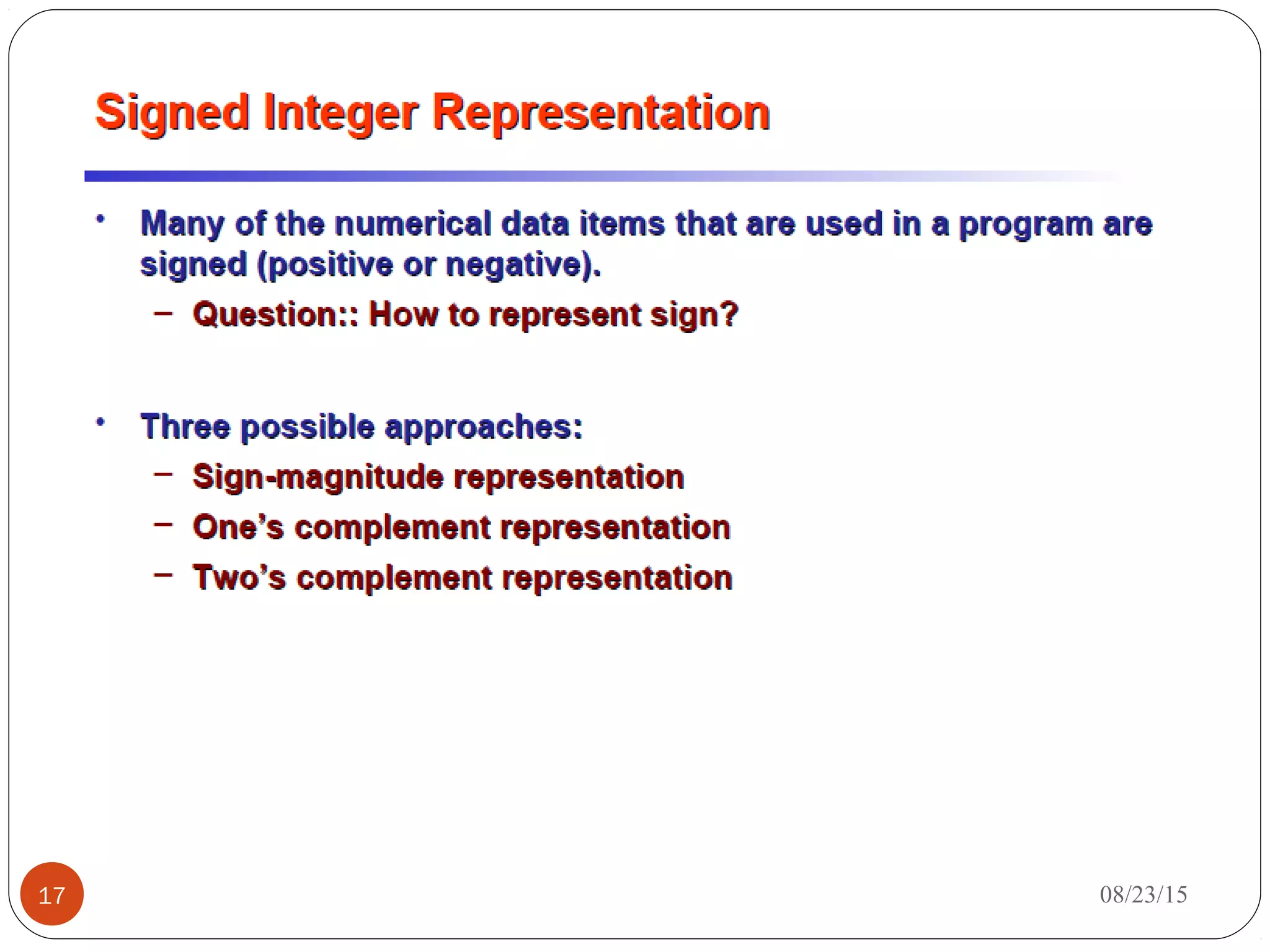

17. 08/23/1517

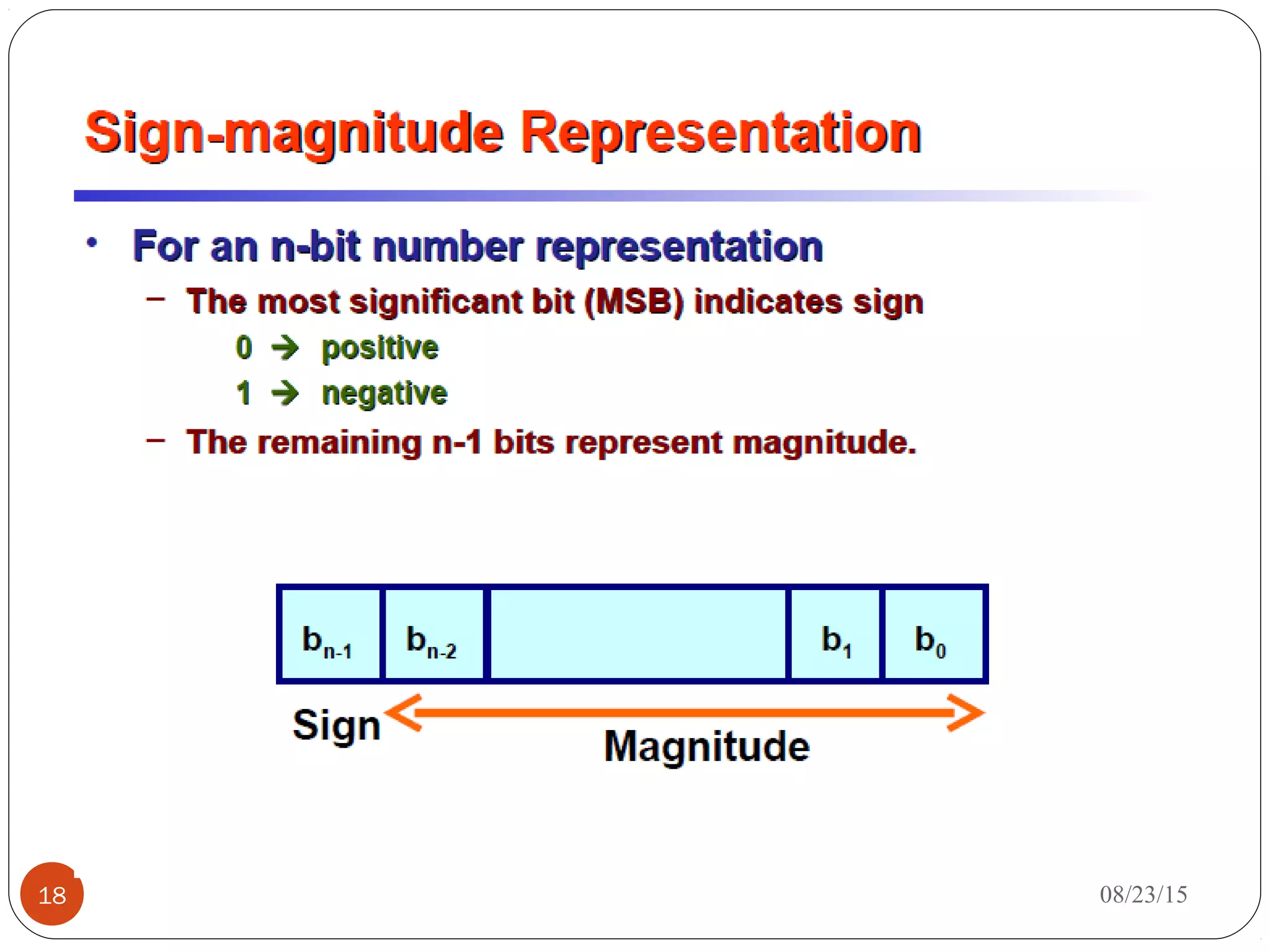

18. 08/23/1518

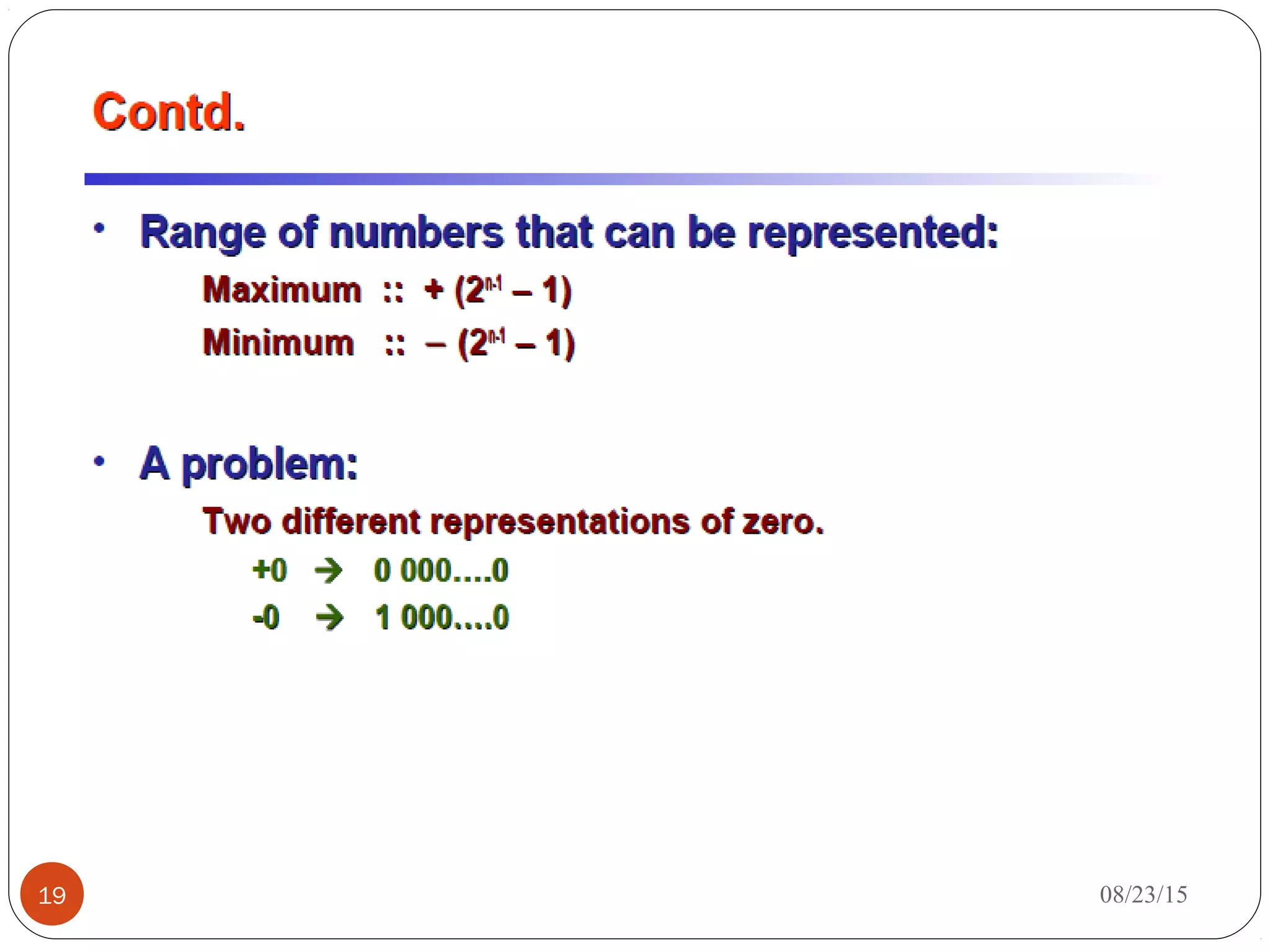

19. 08/23/1519

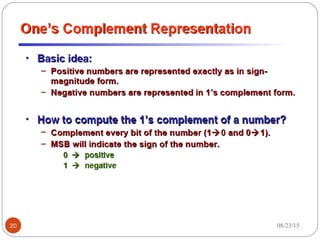

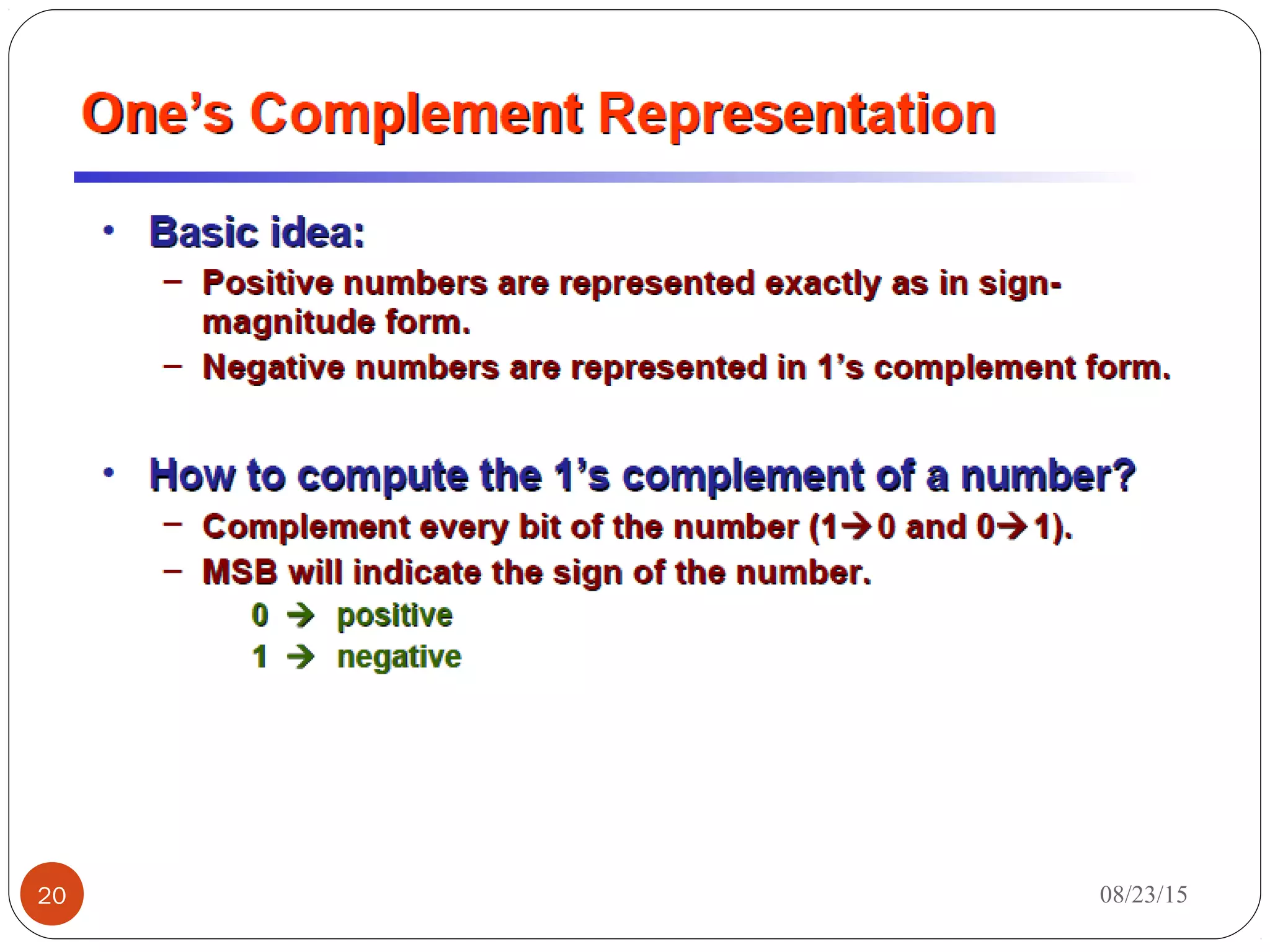

20. 08/23/1520

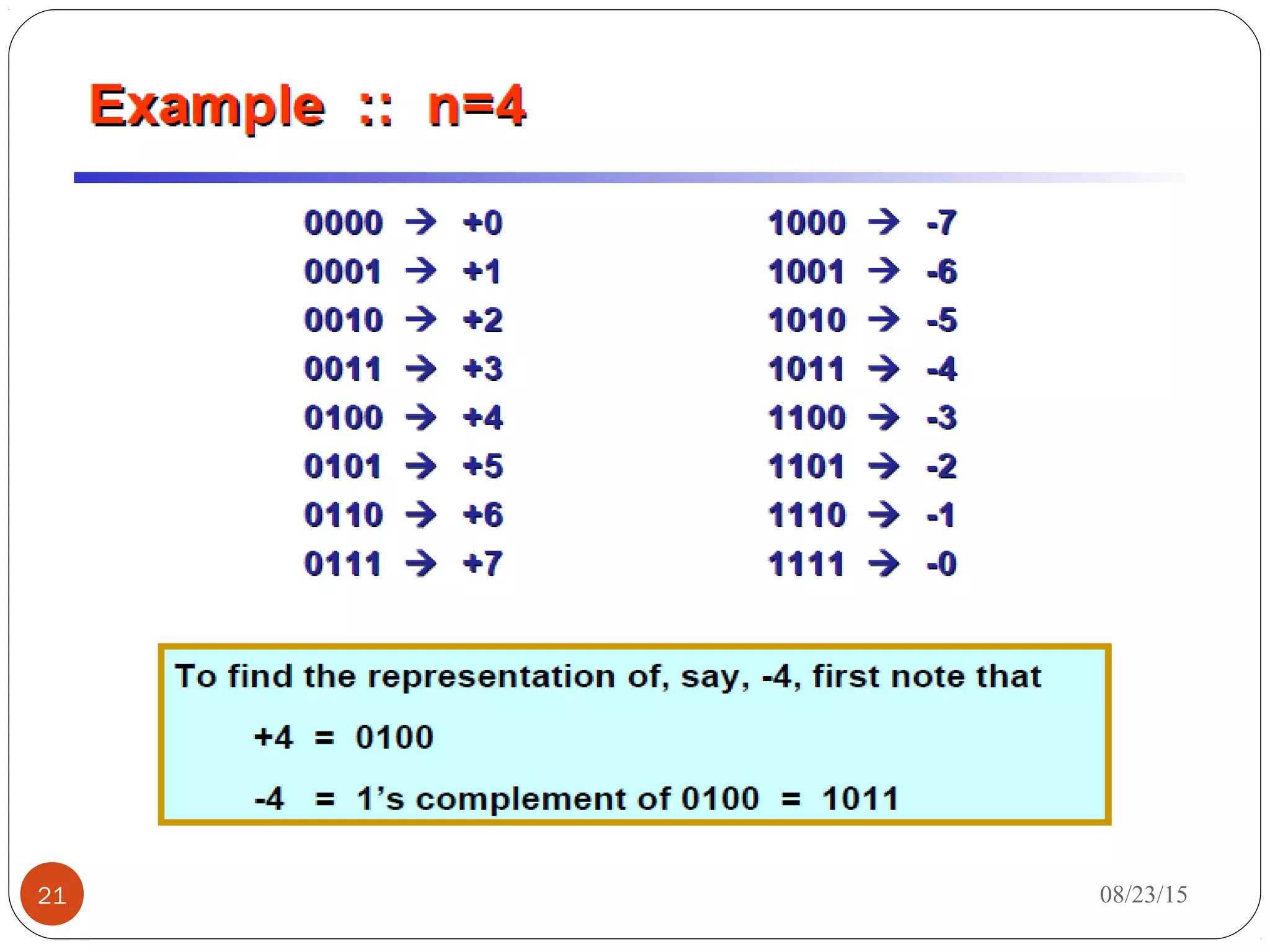

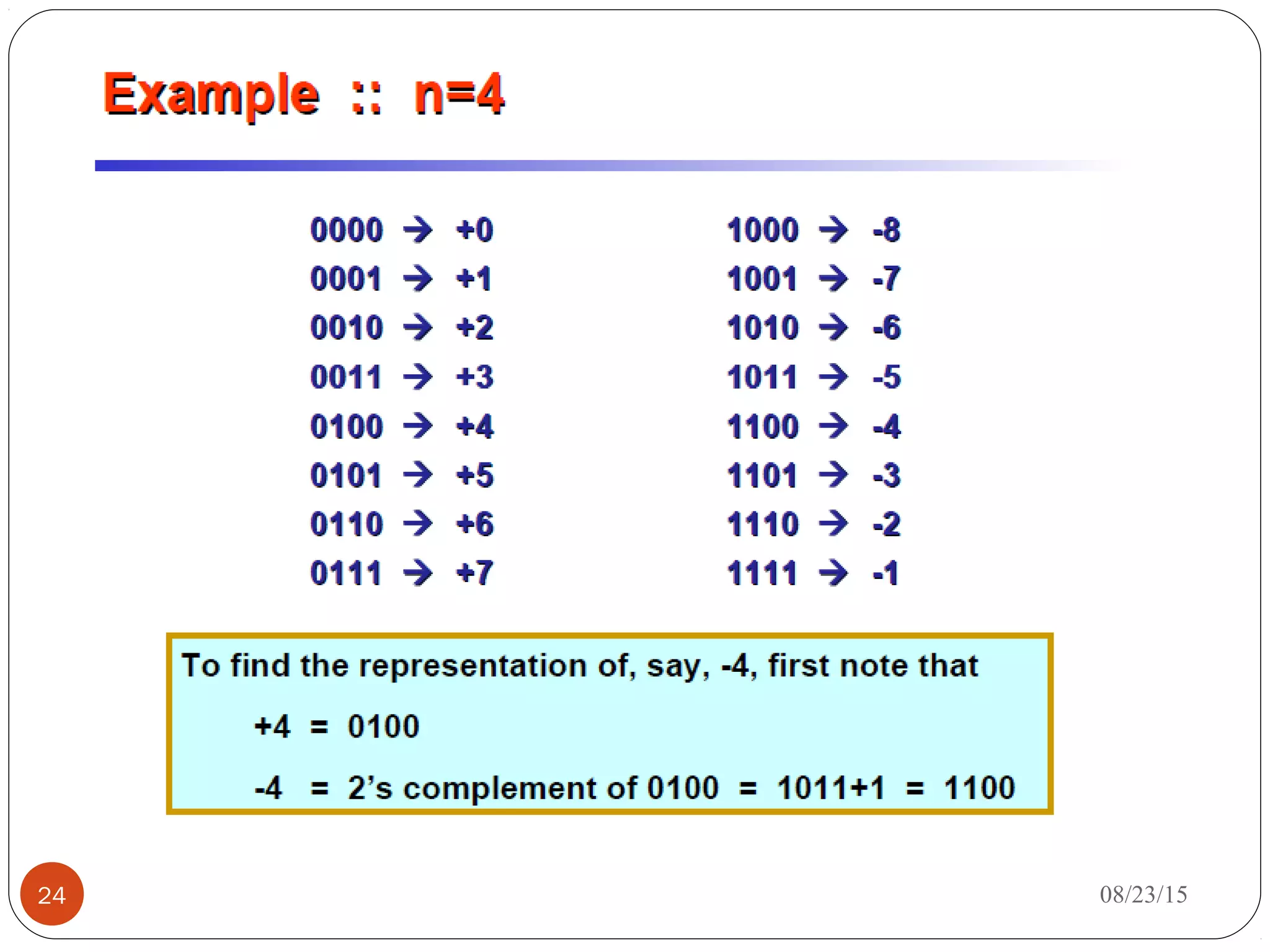

21. 08/23/1521

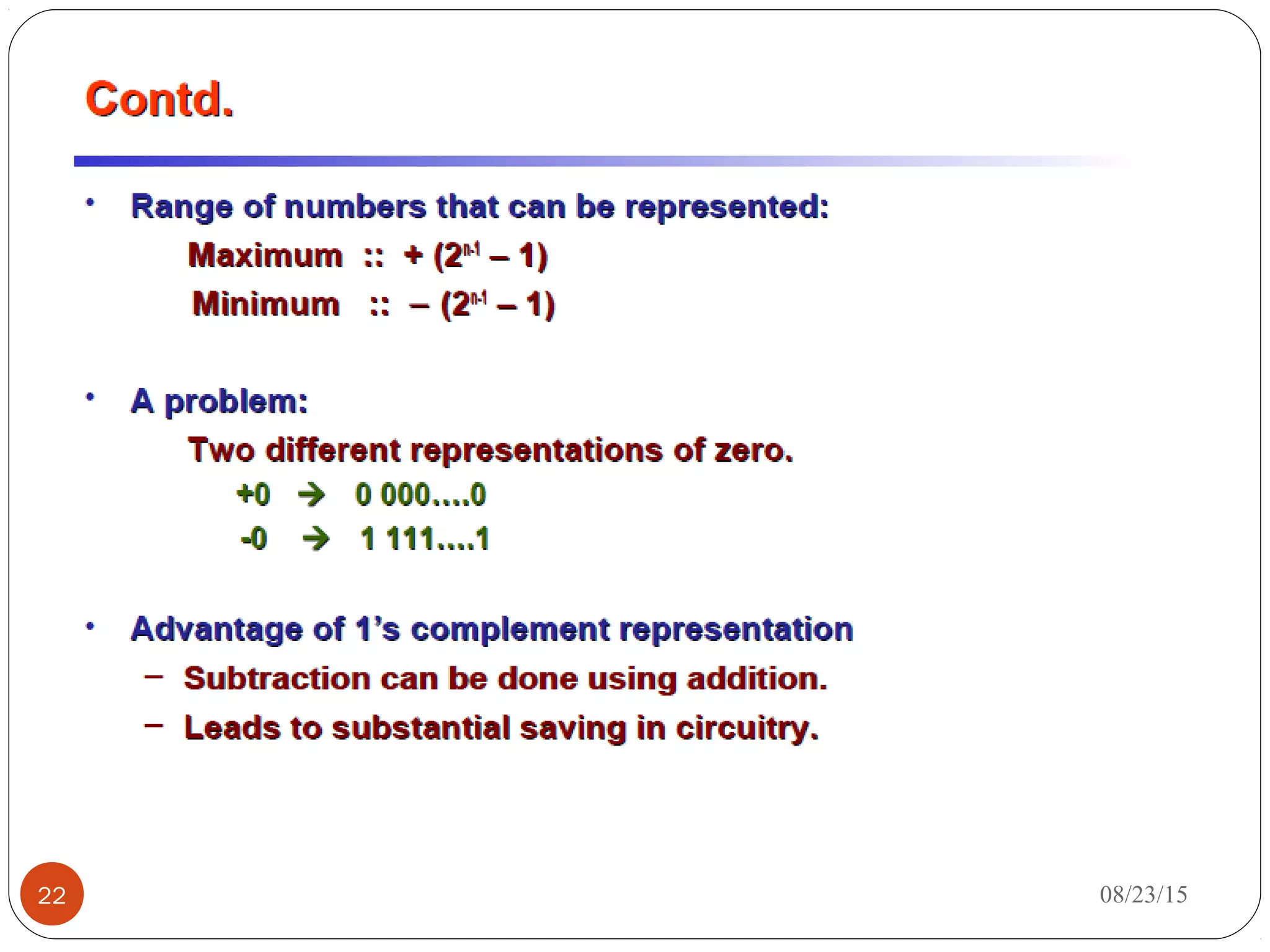

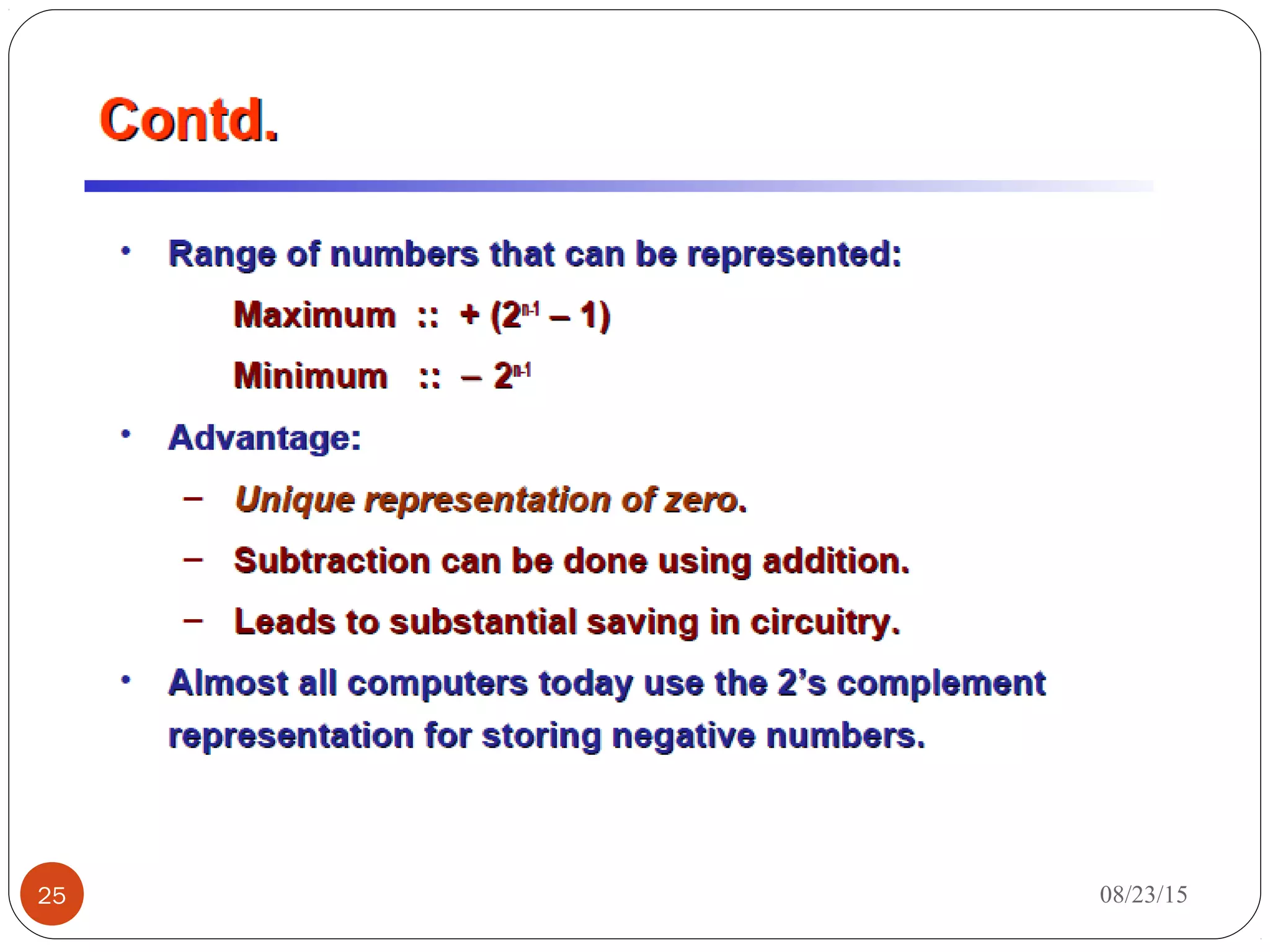

22. 08/23/1522

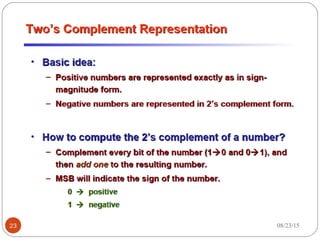

23. 08/23/1523

24. 08/23/1524

25. 08/23/1525

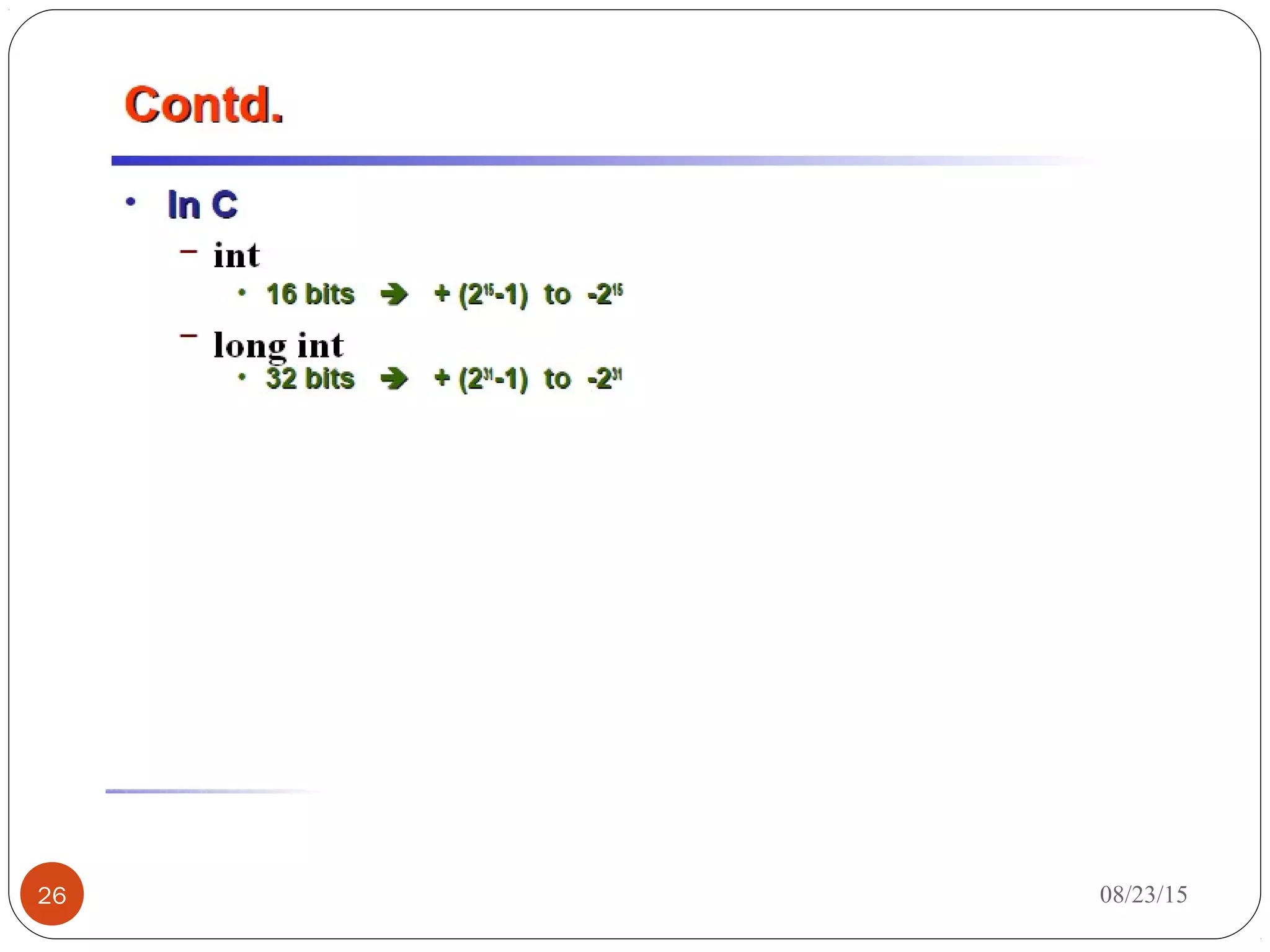

26. 08/23/1526

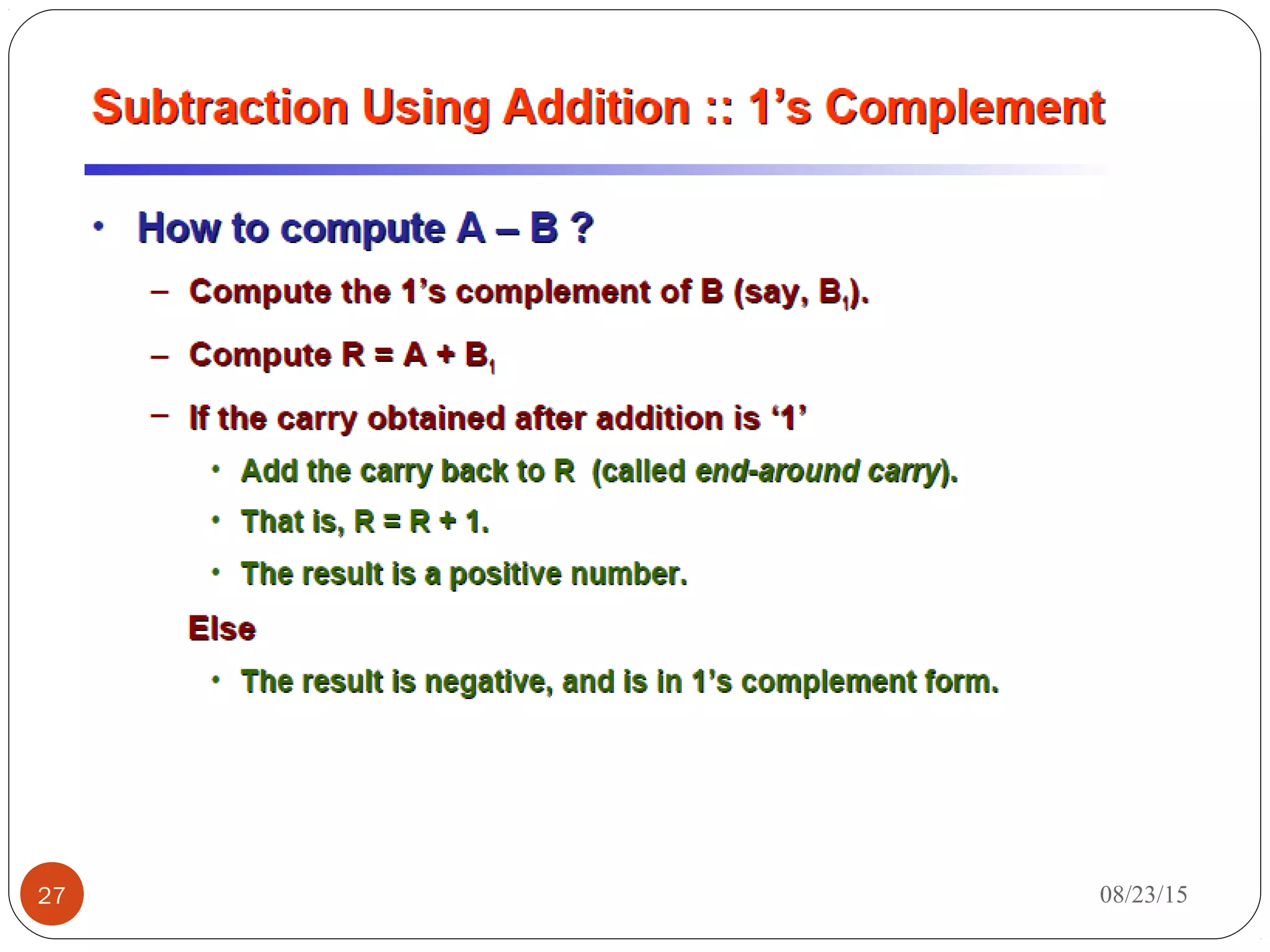

27. 08/23/1527

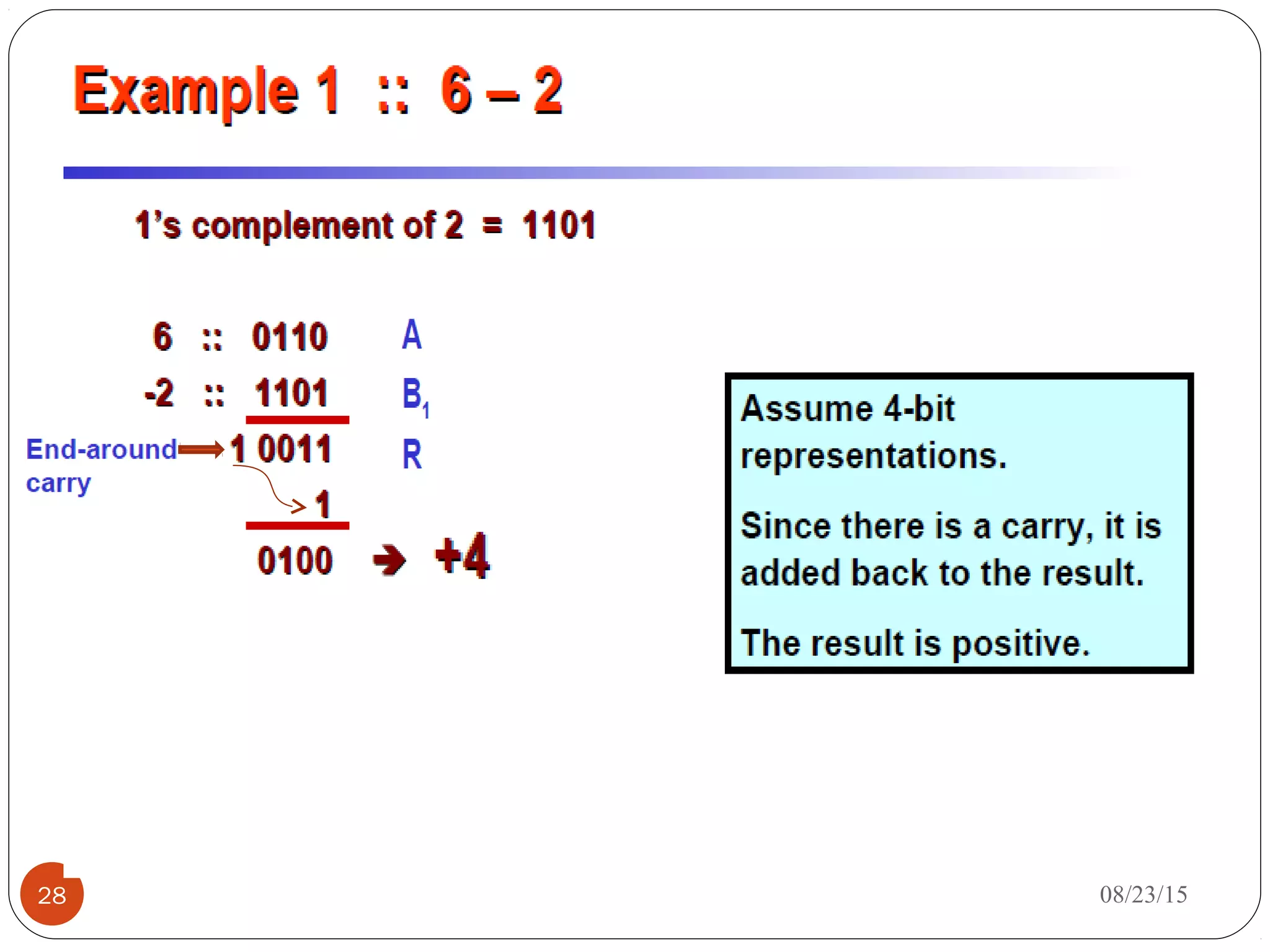

28. 08/23/1528

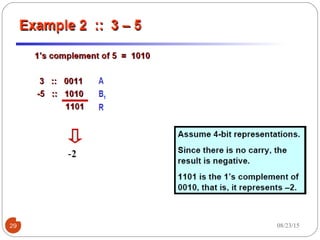

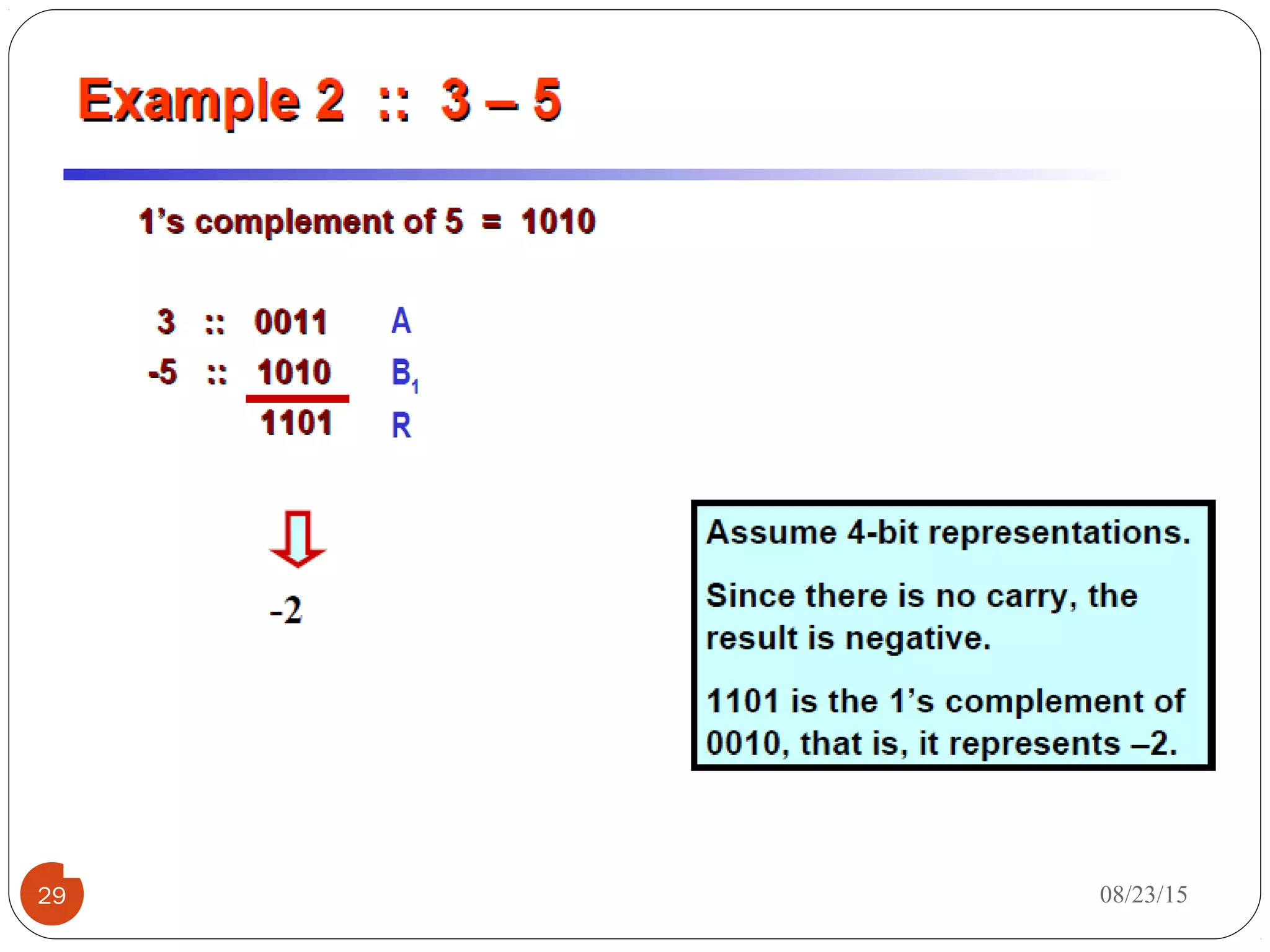

29. 08/23/1529

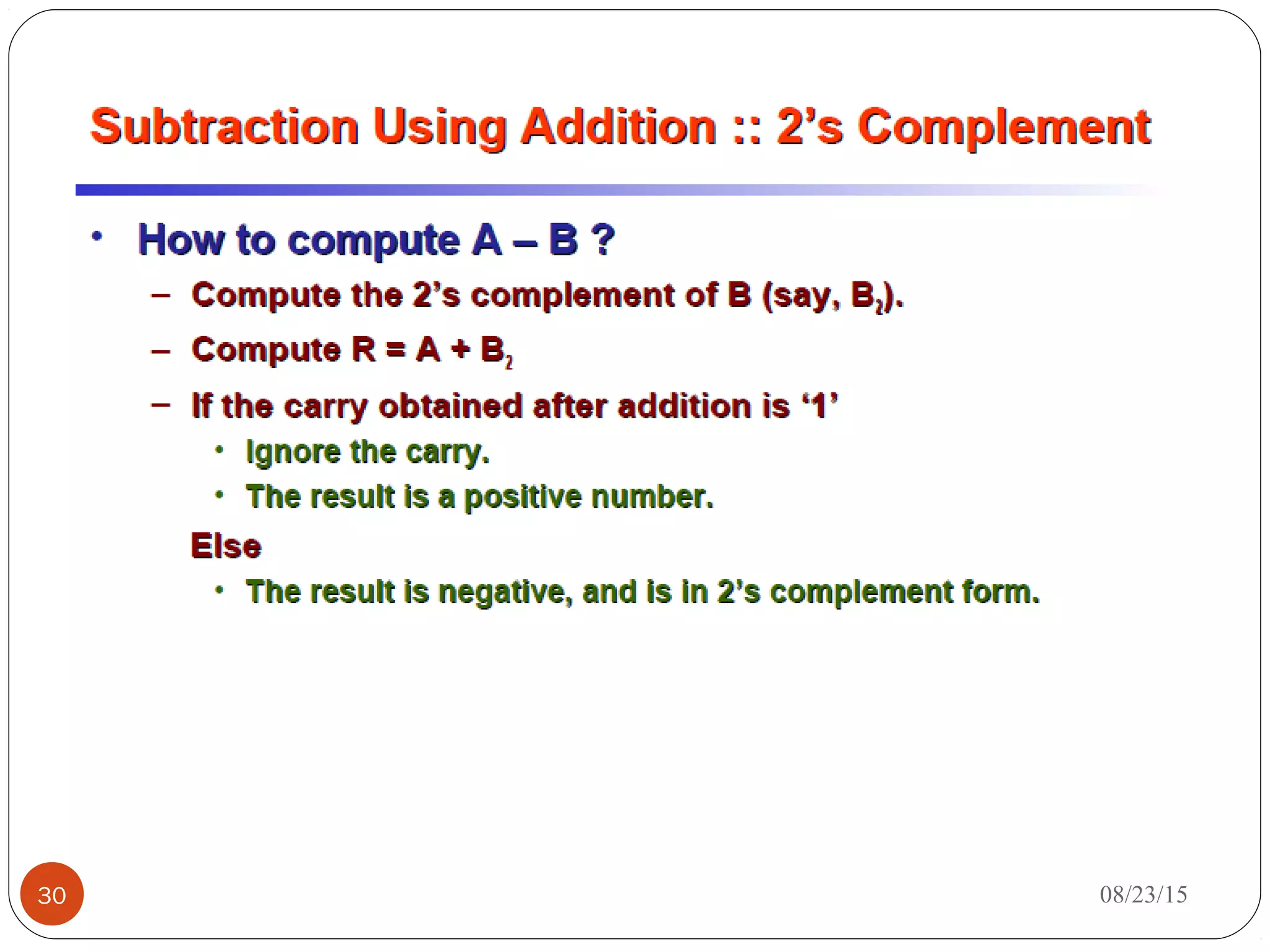

30. 08/23/1530

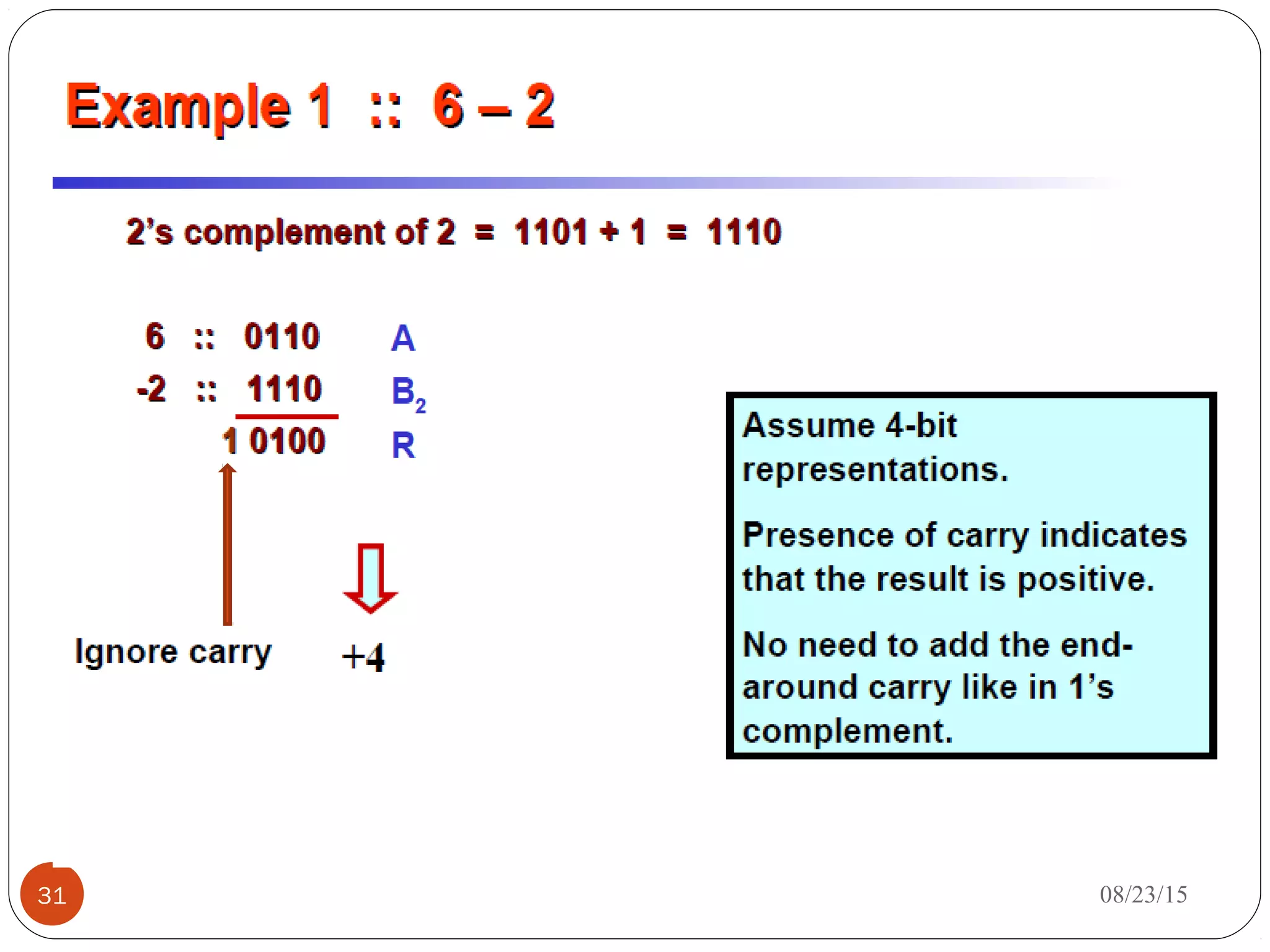

31. 08/23/1531

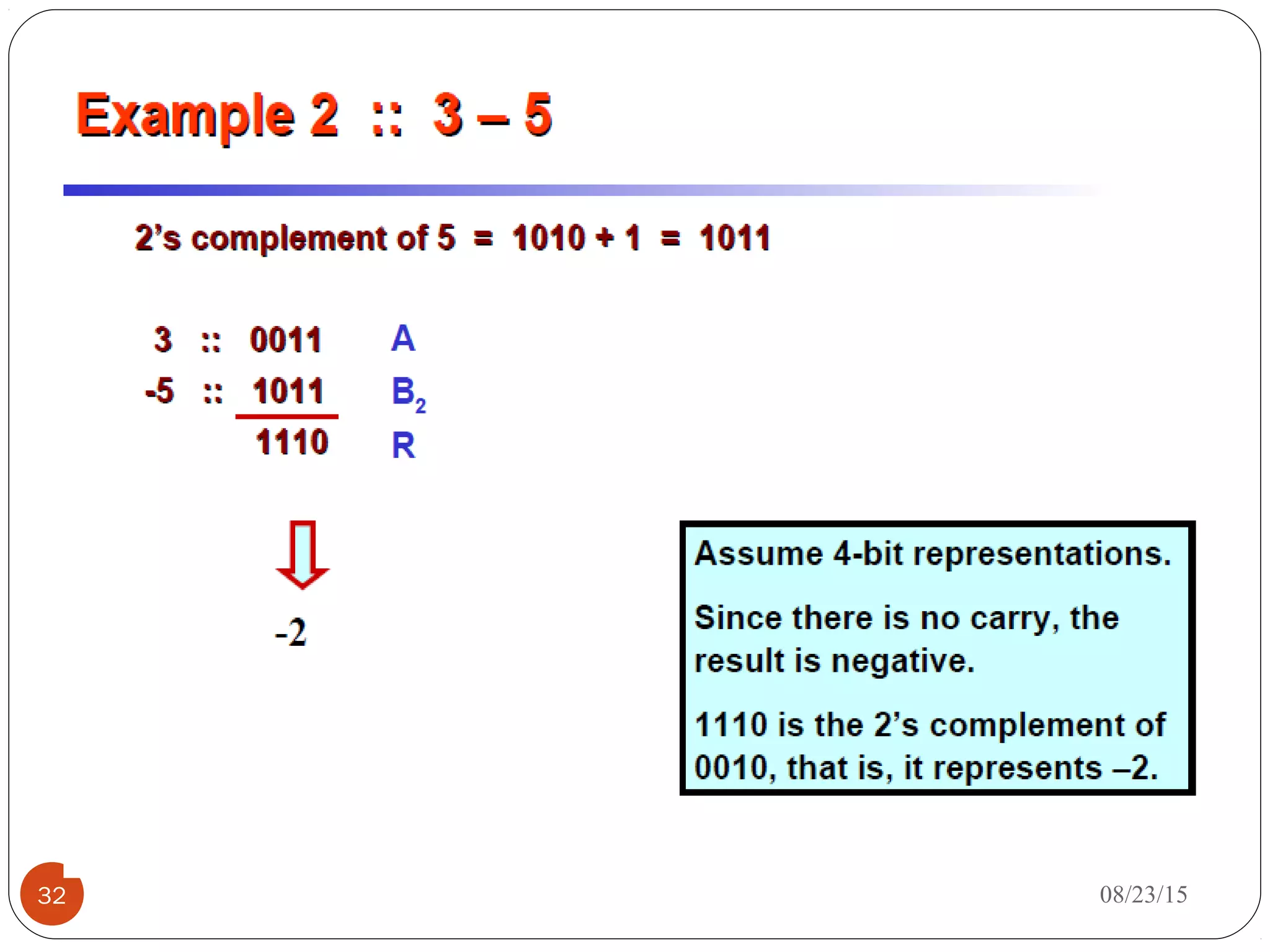

32. 08/23/1532

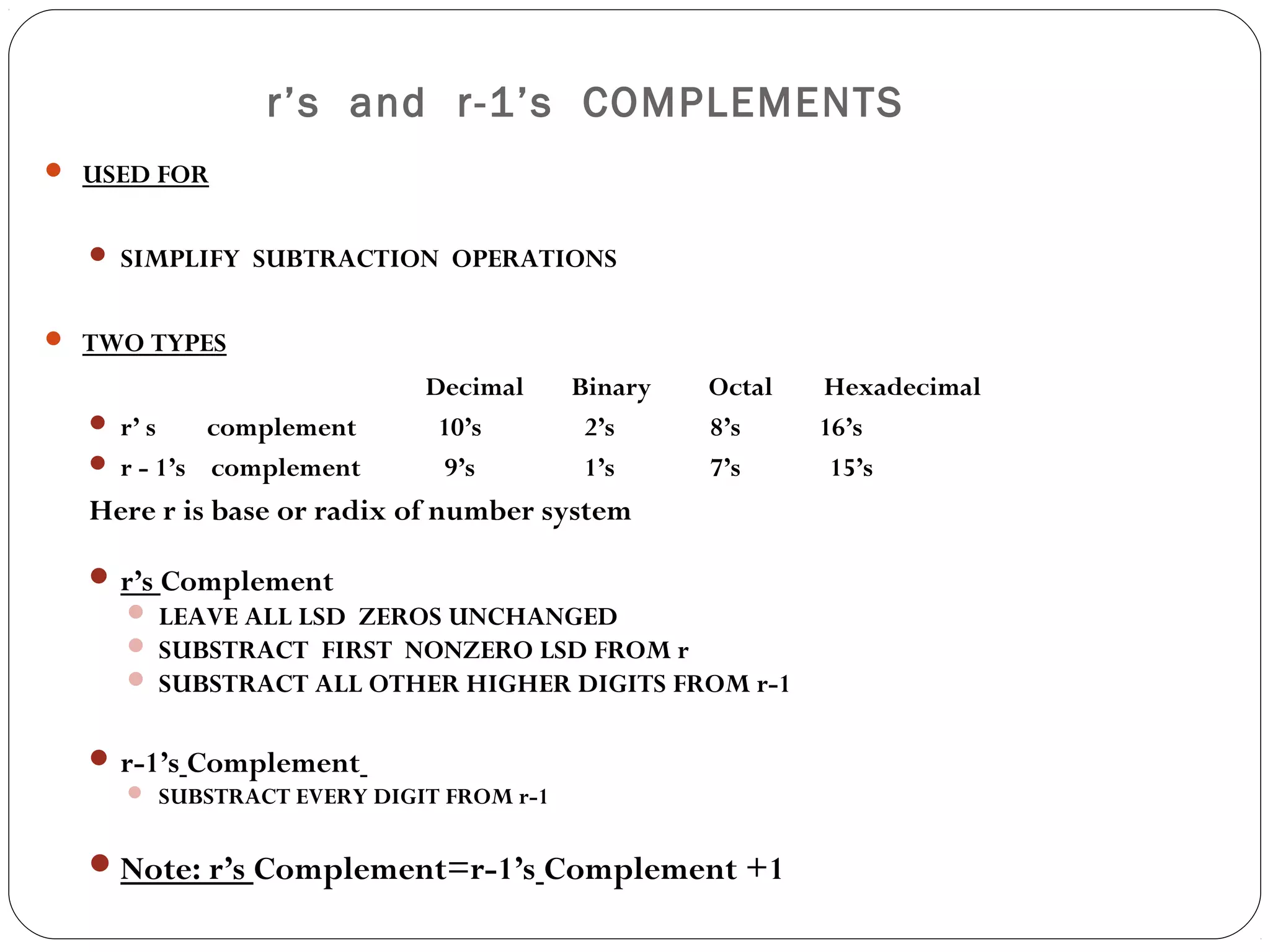

33. r’s and r-1’s COMPLEMENTS
 USED FOR
 SIMPLIFY SUBTRACTION OPERATIONS
 TWO TYPES
Decimal Binary Octal Hexadecimal
 r’ s complement 10’s 2’s 8’s 16’s
 r - 1’s complement 9’s 1’s 7’s 15’s
Here r is base or radix of number system
 r’s Complement
 LEAVE ALL LSD ZEROS UNCHANGED
 SUBSTRACT FIRST NONZERO LSD FROM r
 SUBSTRACT ALL OTHER HIGHER DIGITS FROM r-1
 r-1’s Complement
 SUBSTRACT EVERY DIGIT FROM r-1
Note: r’s Complement=r-1’s Complement +1

34. 34

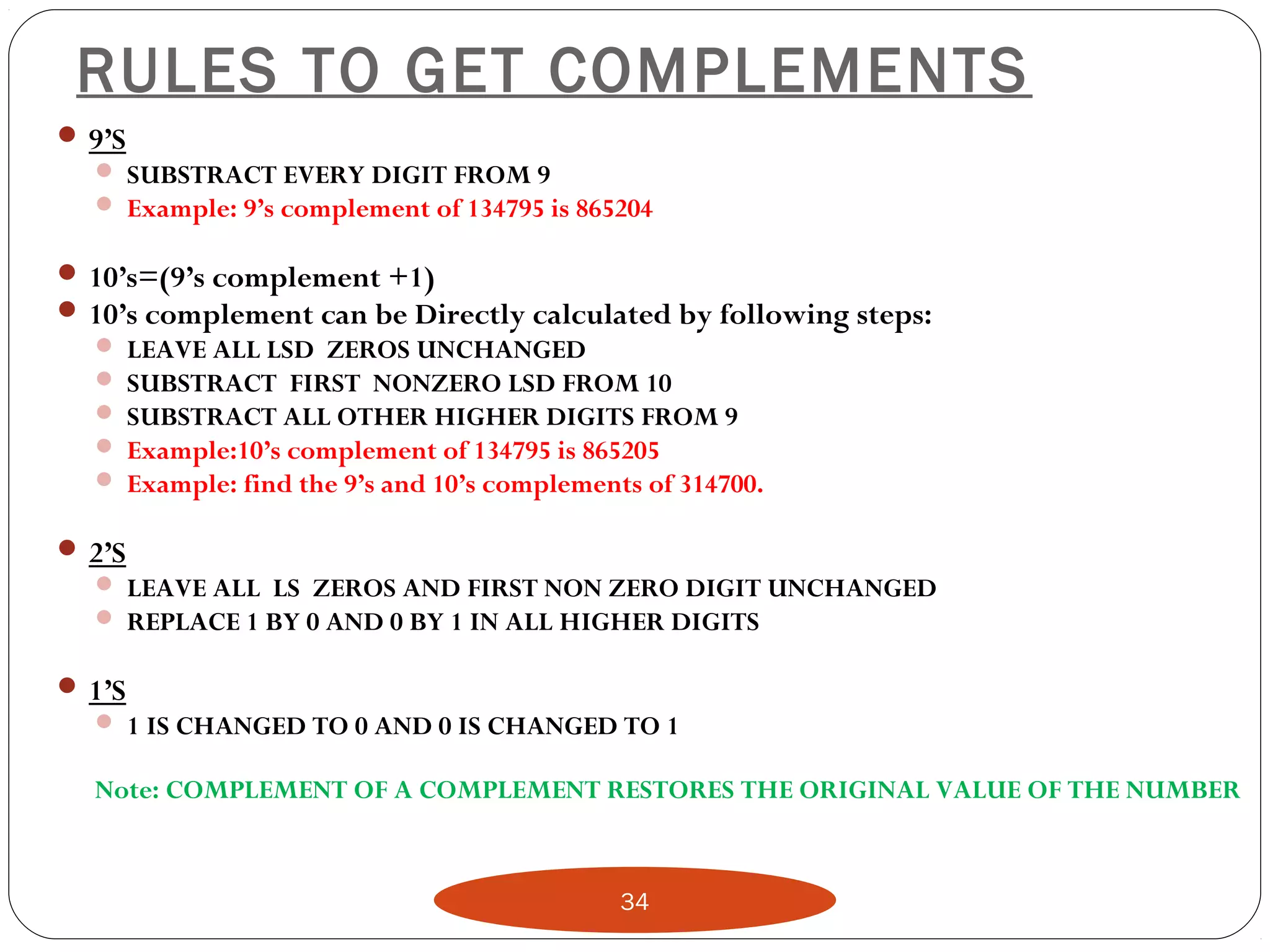

RULES TO GET COMPLEMENTS
 9’S
 SUBSTRACT EVERY DIGIT FROM 9
 Example: 9’s complement of 134795 is 865204
 10’s=(9’s complement +1)
 10’s complement can be Directly calculated by following steps:
 LEAVE ALL LSD ZEROS UNCHANGED
 SUBSTRACT FIRST NONZERO LSD FROM 10
 SUBSTRACT ALL OTHER HIGHER DIGITS FROM 9
 Example:10’s complement of 134795 is 865205
 Example: find the 9’s and 10’s complements of 314700.
 2’S
 LEAVE ALL LS ZEROS AND FIRST NON ZERO DIGIT UNCHANGED
 REPLACE 1 BY 0 AND 0 BY 1 IN ALL HIGHER DIGITS
 1’S
 1 IS CHANGED TO 0 AND 0 IS CHANGED TO 1
Note: COMPLEMENT OF A COMPLEMENT RESTORES THE ORIGINAL VALUE OF THE NUMBER

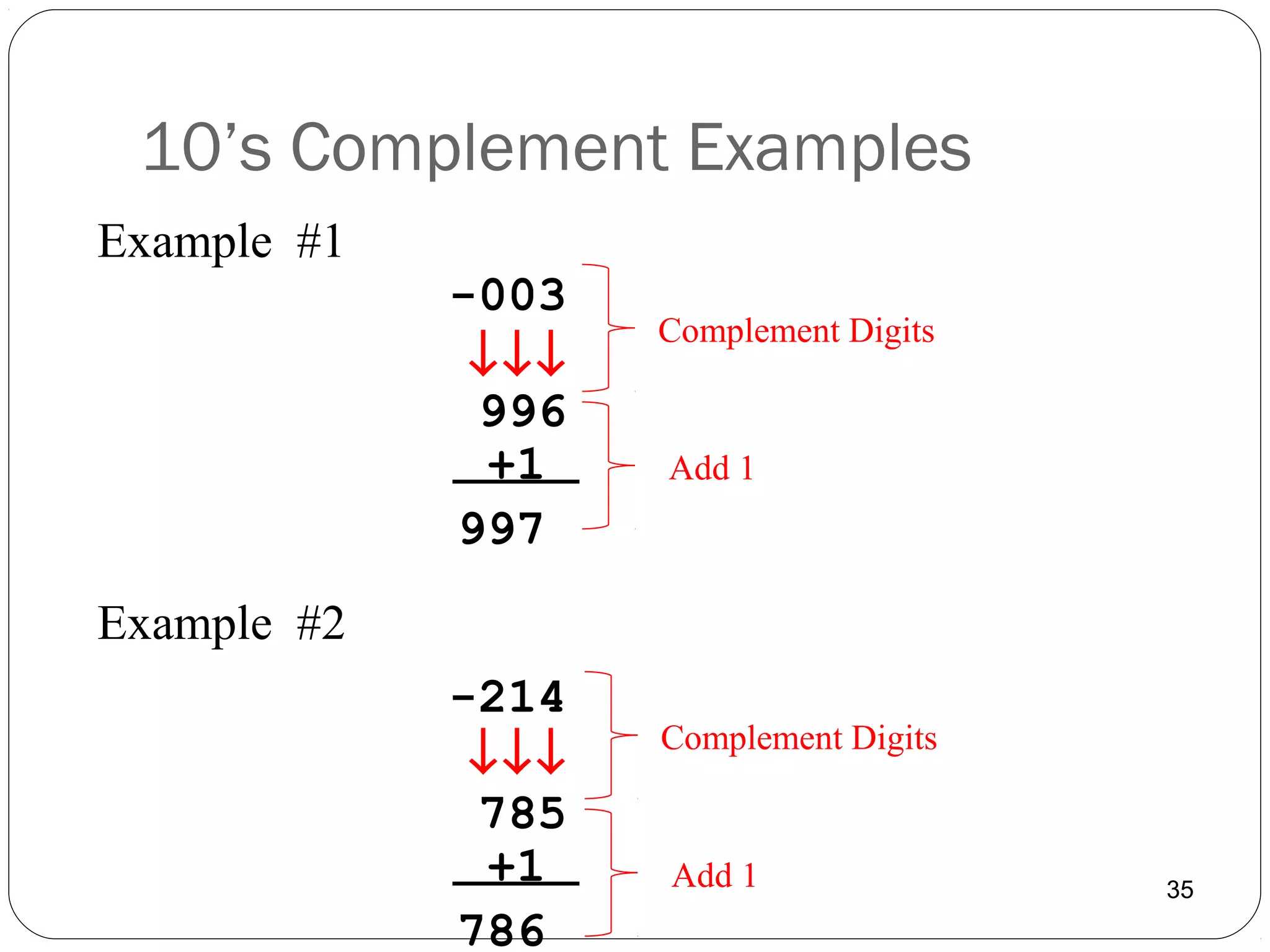

35. 10’s Complement Examples
35
-003
+1
↓↓↓
996
997
-214
+1
↓↓↓
785
786
Example #1
Example #2
Complement Digits
Add 1
Complement Digits
Add 1

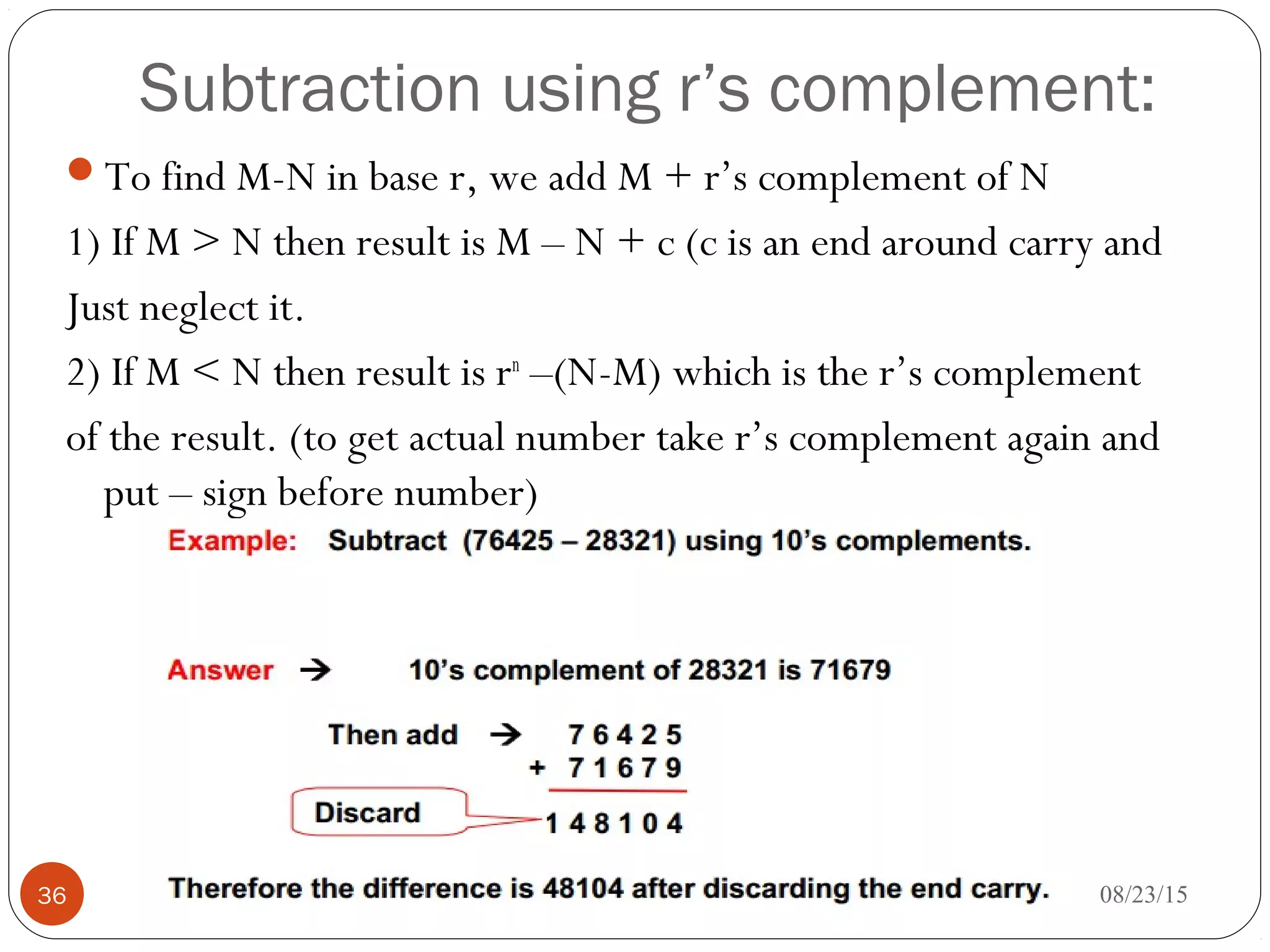

36. Subtraction using r’s complement:
To find M-N in base r, we add M + r’s complement of N
1) If M > N then result is M – N + c (c is an end around carry and
Just neglect it.
2) If M < N then result is rn
–(N-M) which is the r’s complement
of the result. (to get actual number take r’s complement again and
put – sign before number)
08/23/1536

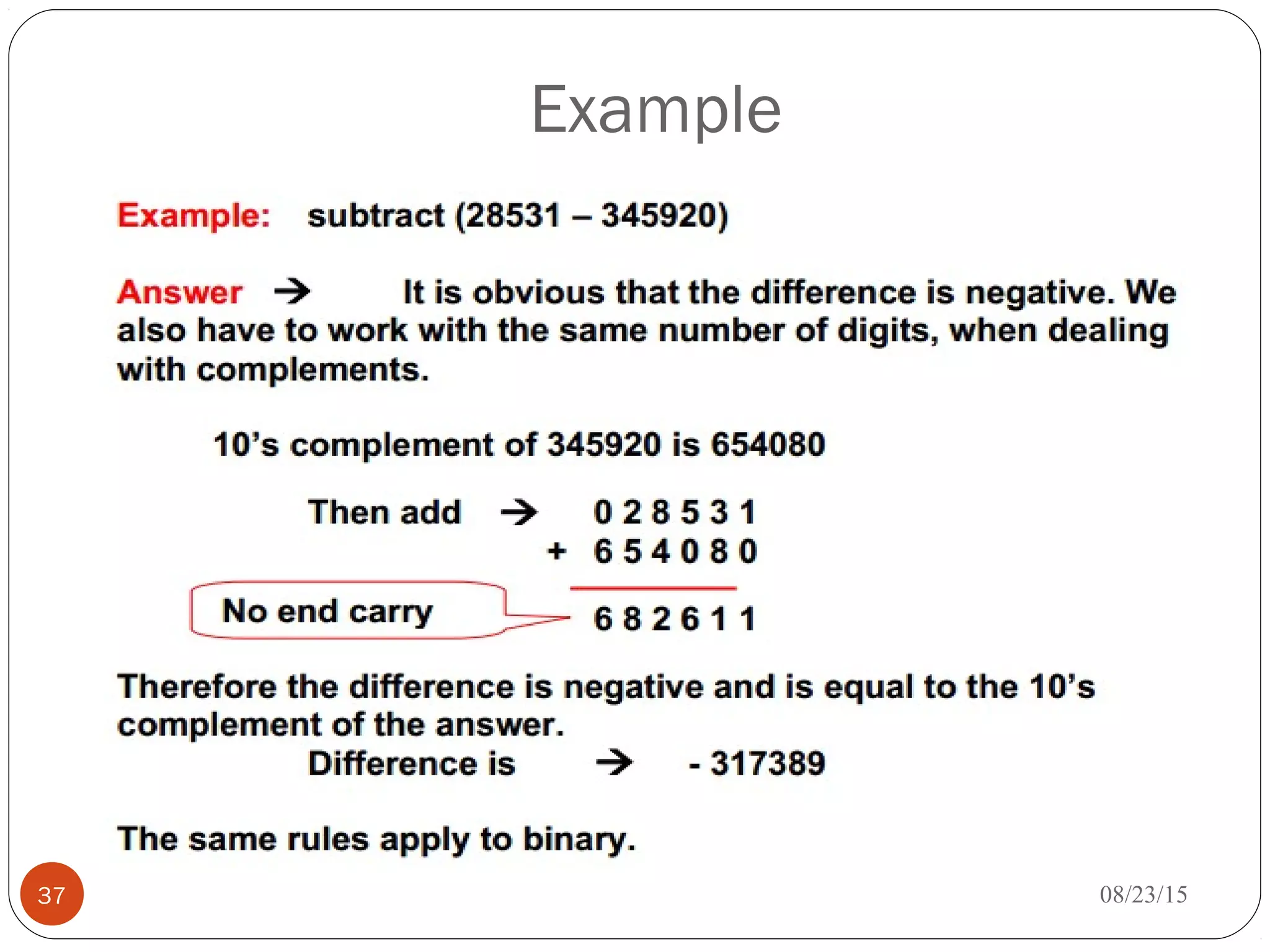

37. Example
08/23/1537

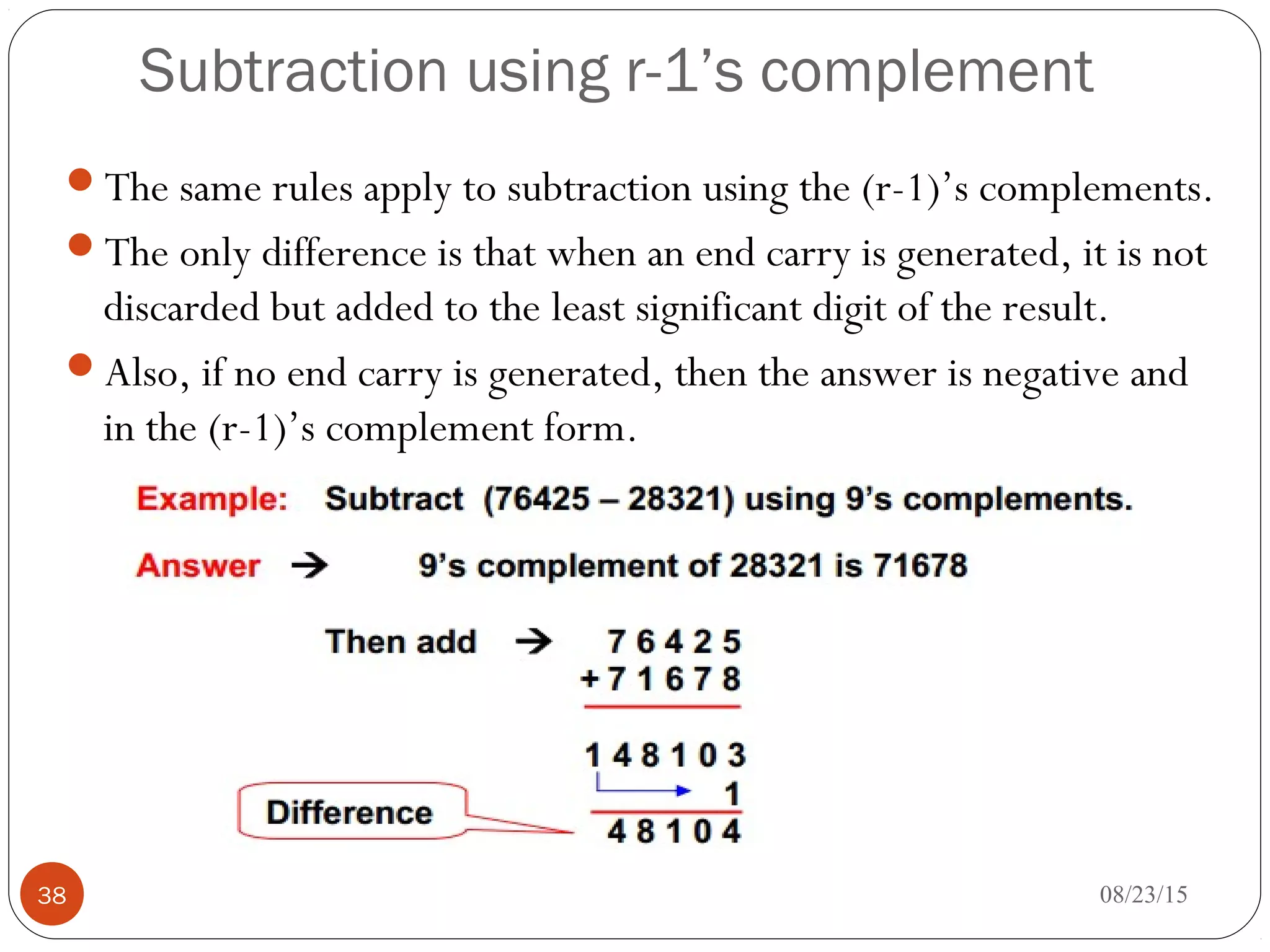

38. Subtraction using r-1’s complement
The same rules apply to subtraction using the (r-1)’s complements.
The only difference is that when an end carry is generated, it is not
discarded but added to the least significant digit of the result.
Also, if no end carry is generated, then the answer is negative and
in the (r-1)’s complement form.
08/23/1538

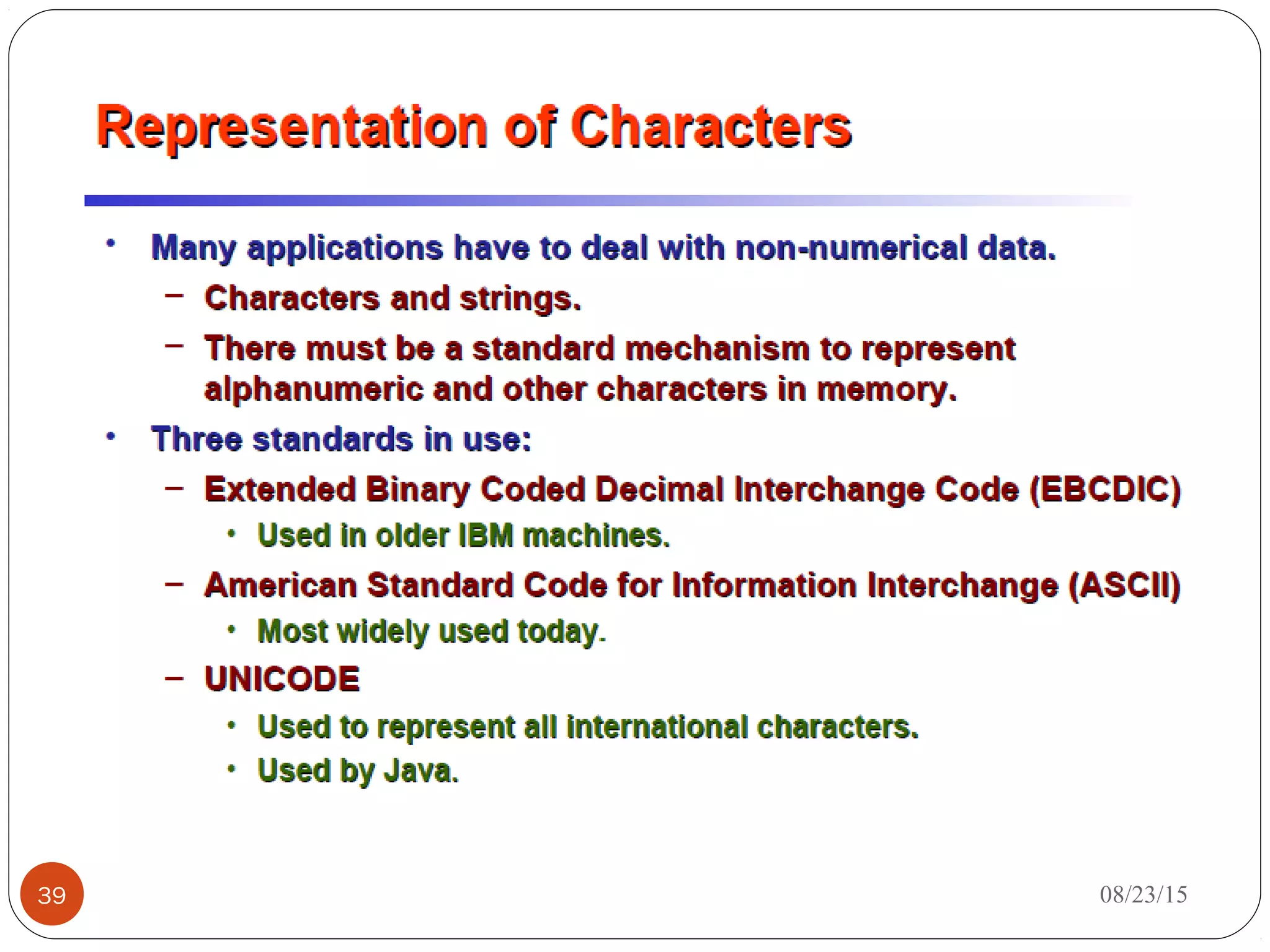

39. 08/23/1539

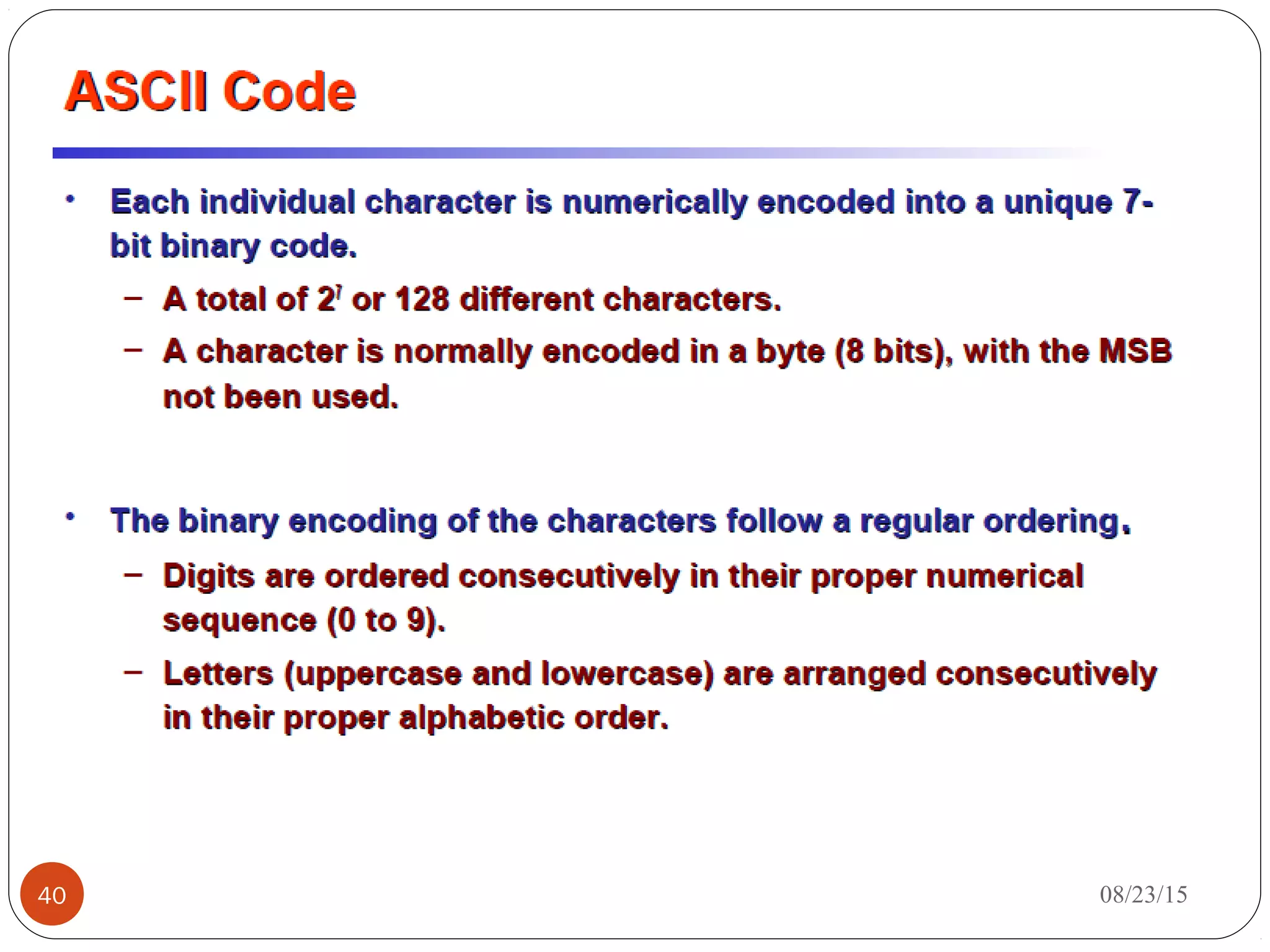

40. 08/23/1540

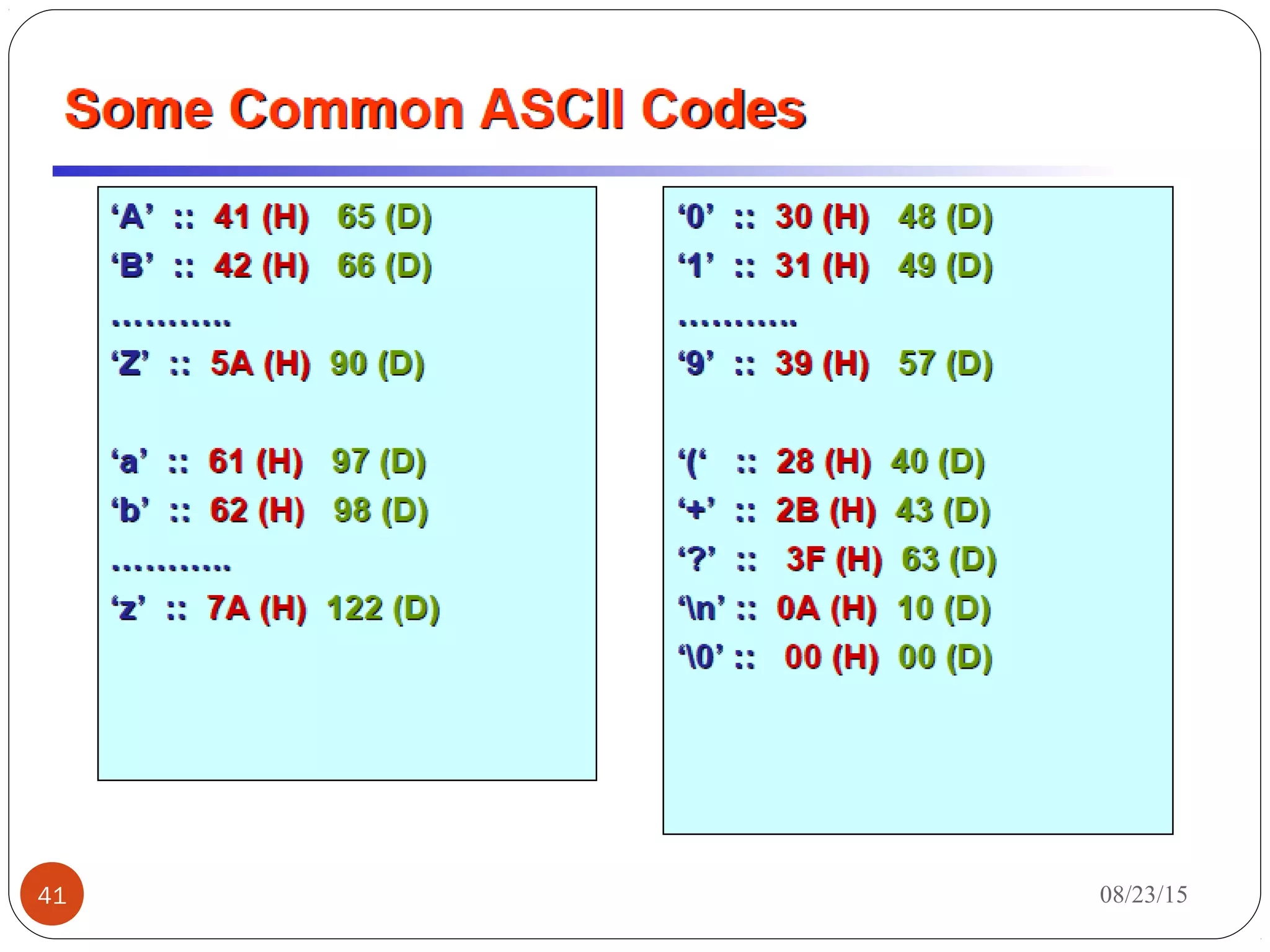

41. 08/23/1541

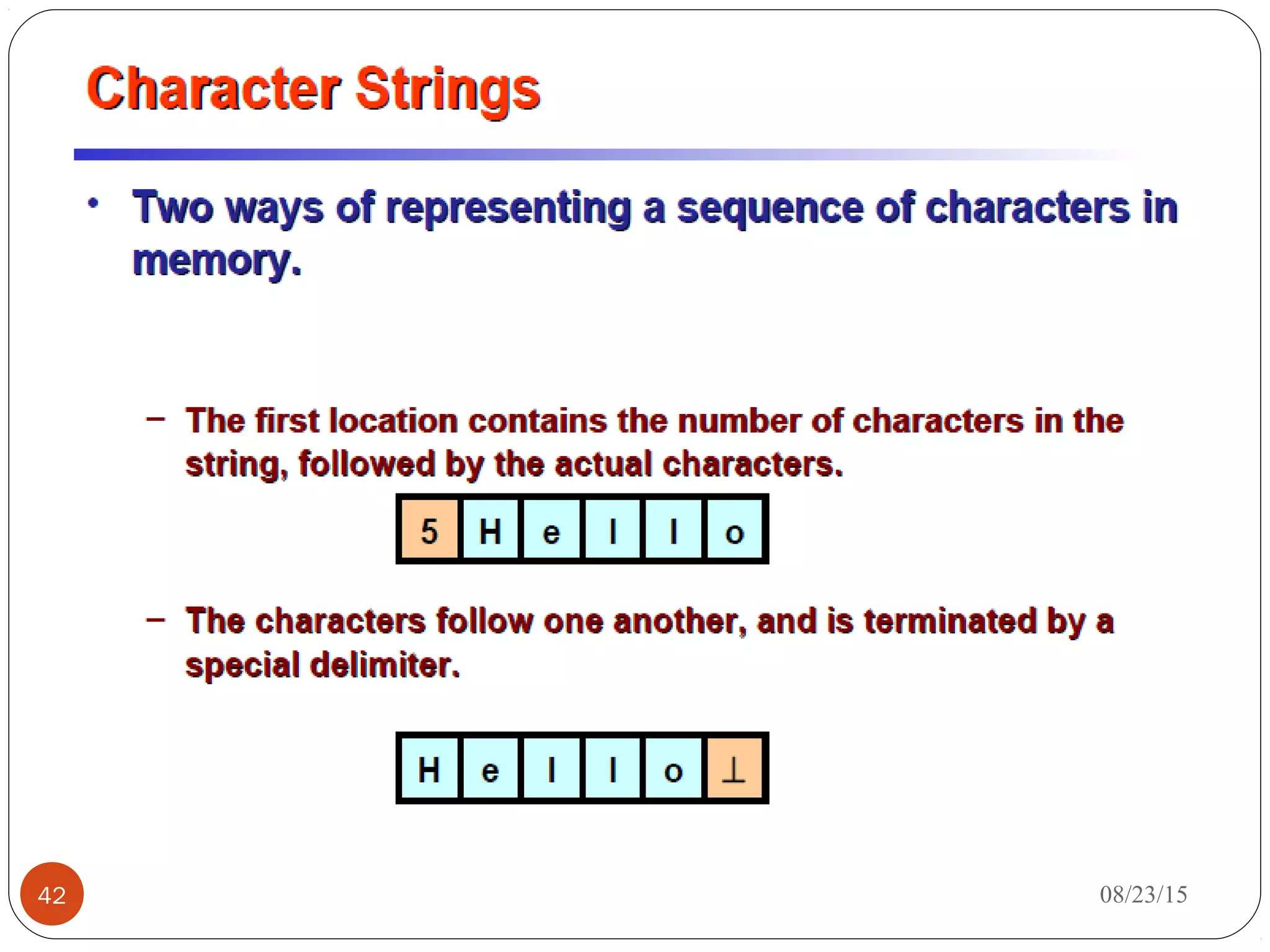

42. 08/23/1542

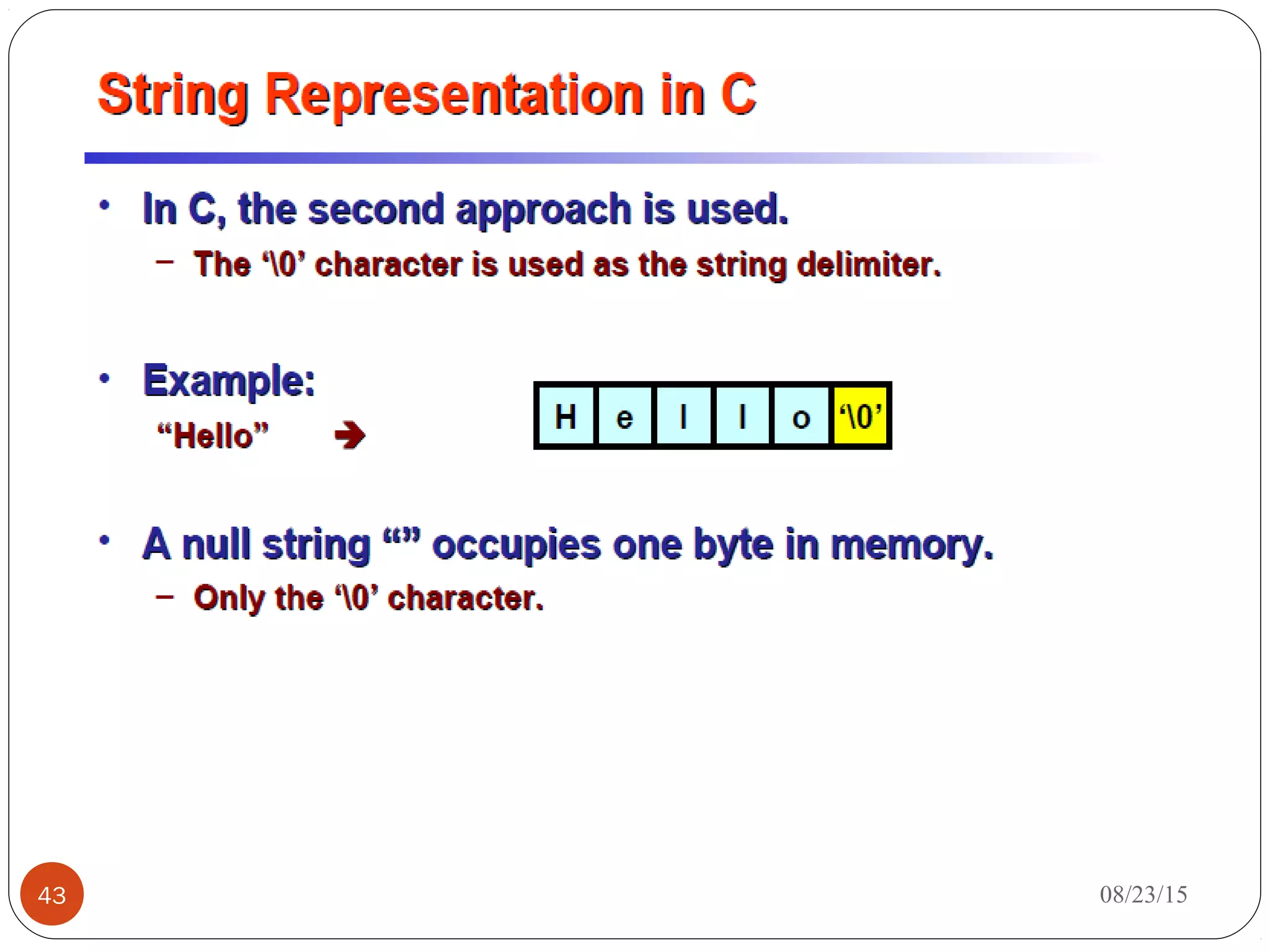

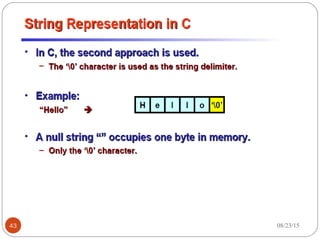

43. 08/23/1543

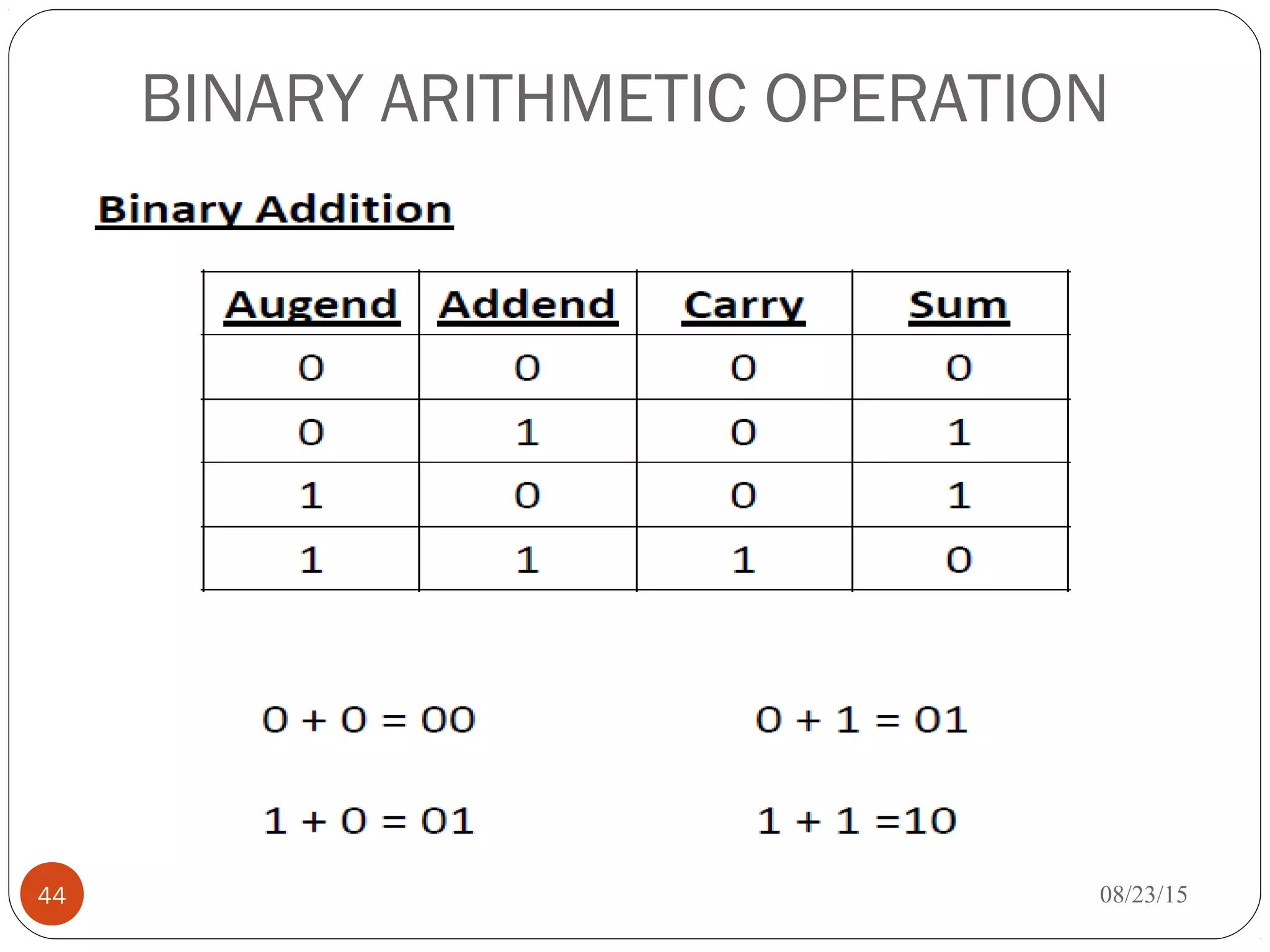

44. BINARY ARITHMETIC OPERATION
08/23/1544

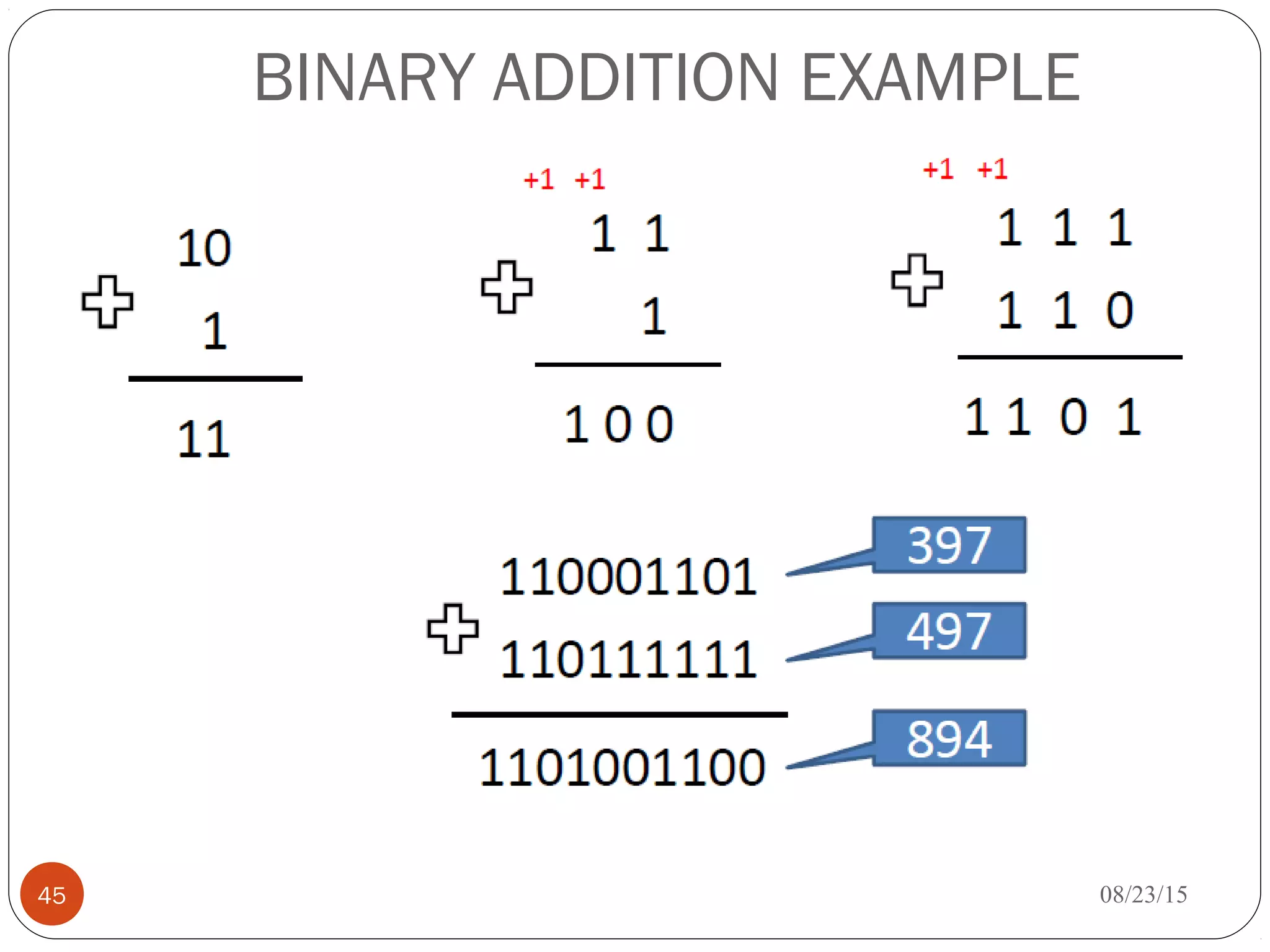

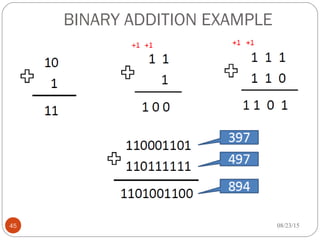

45. BINARY ADDITION EXAMPLE
08/23/1545

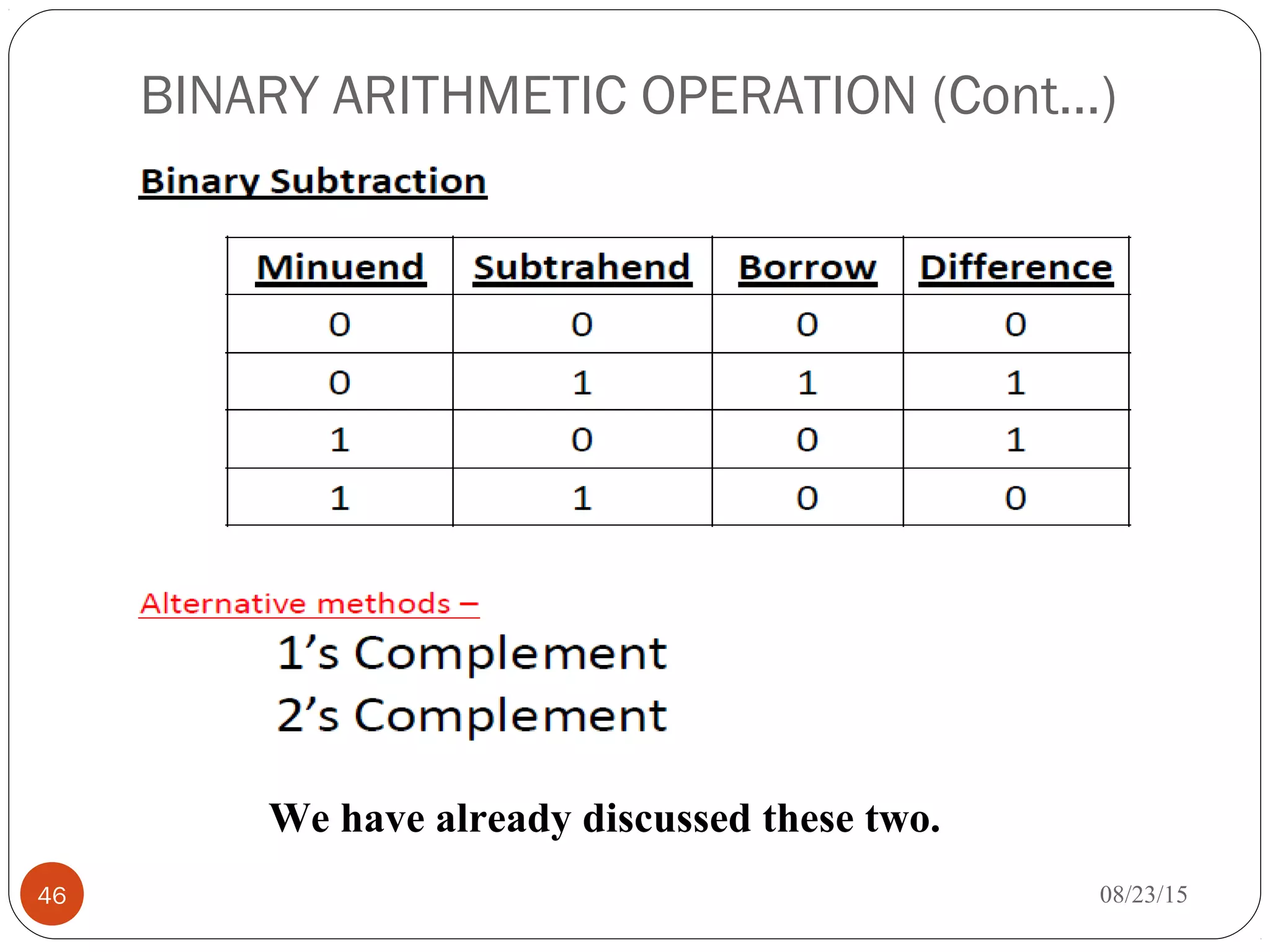

46. BINARY ARITHMETIC OPERATION (Cont…)
08/23/1546
We have already discussed these two.

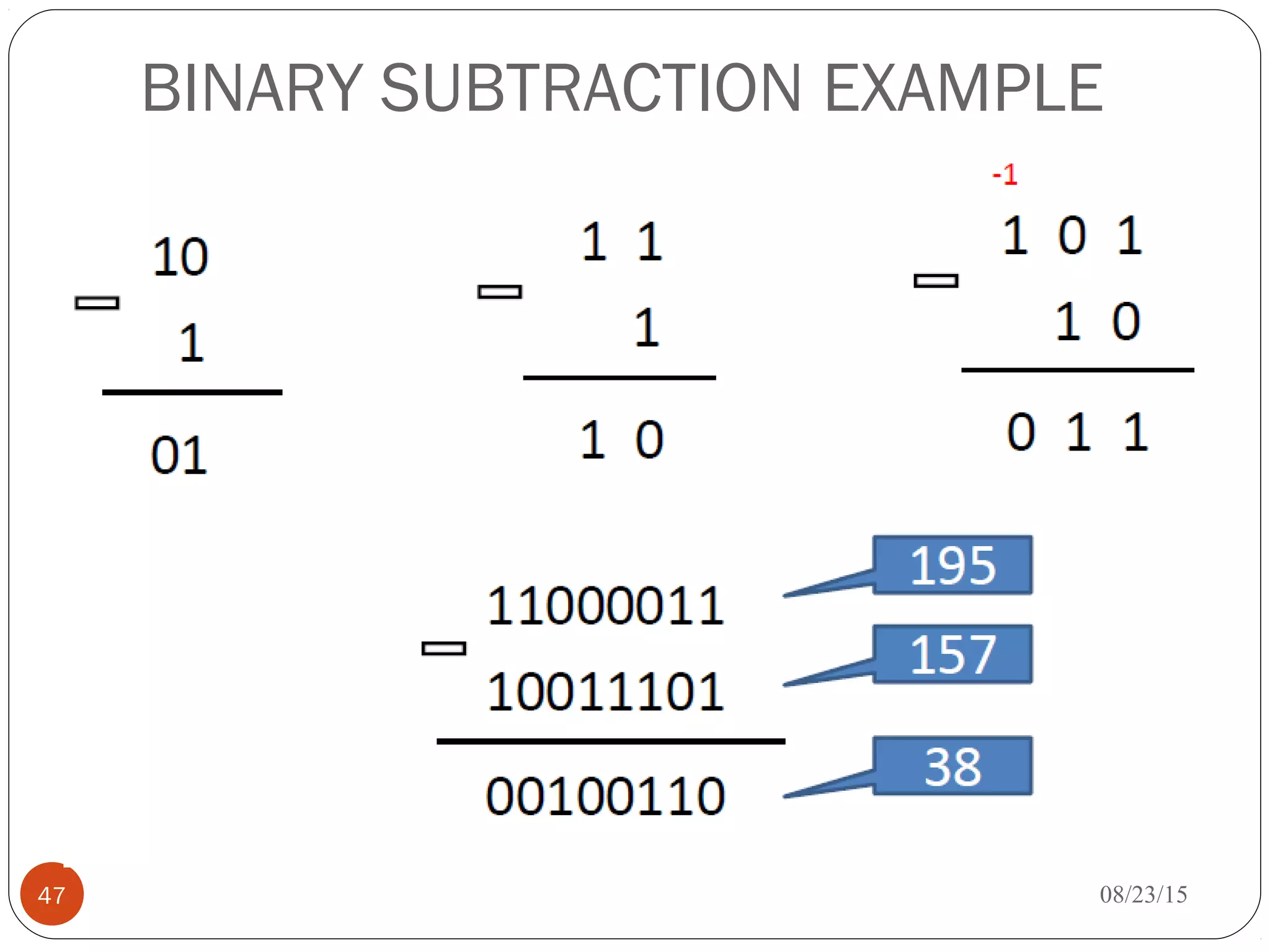

47. BINARY SUBTRACTION EXAMPLE
08/23/1547

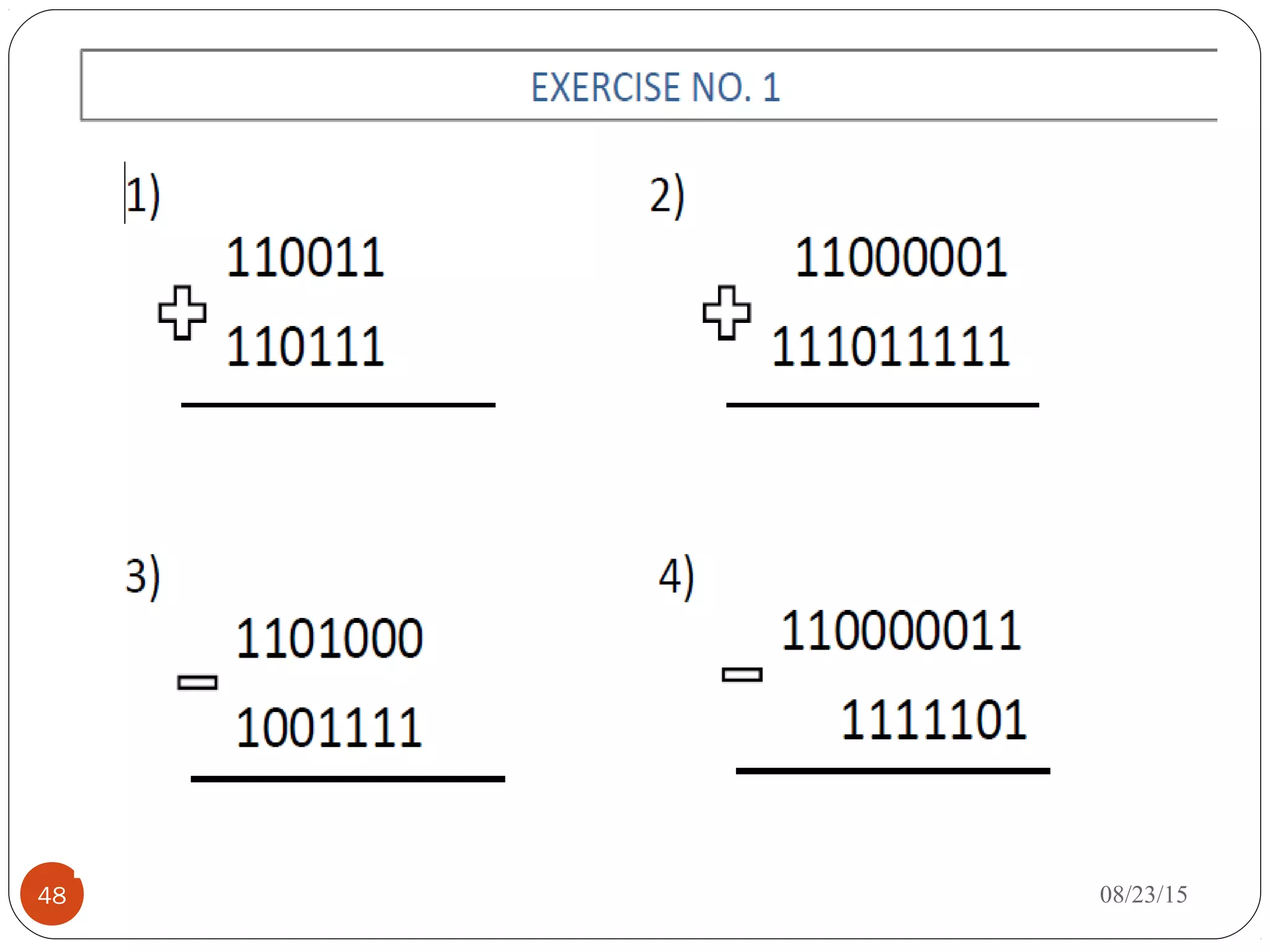

48. 08/23/1548

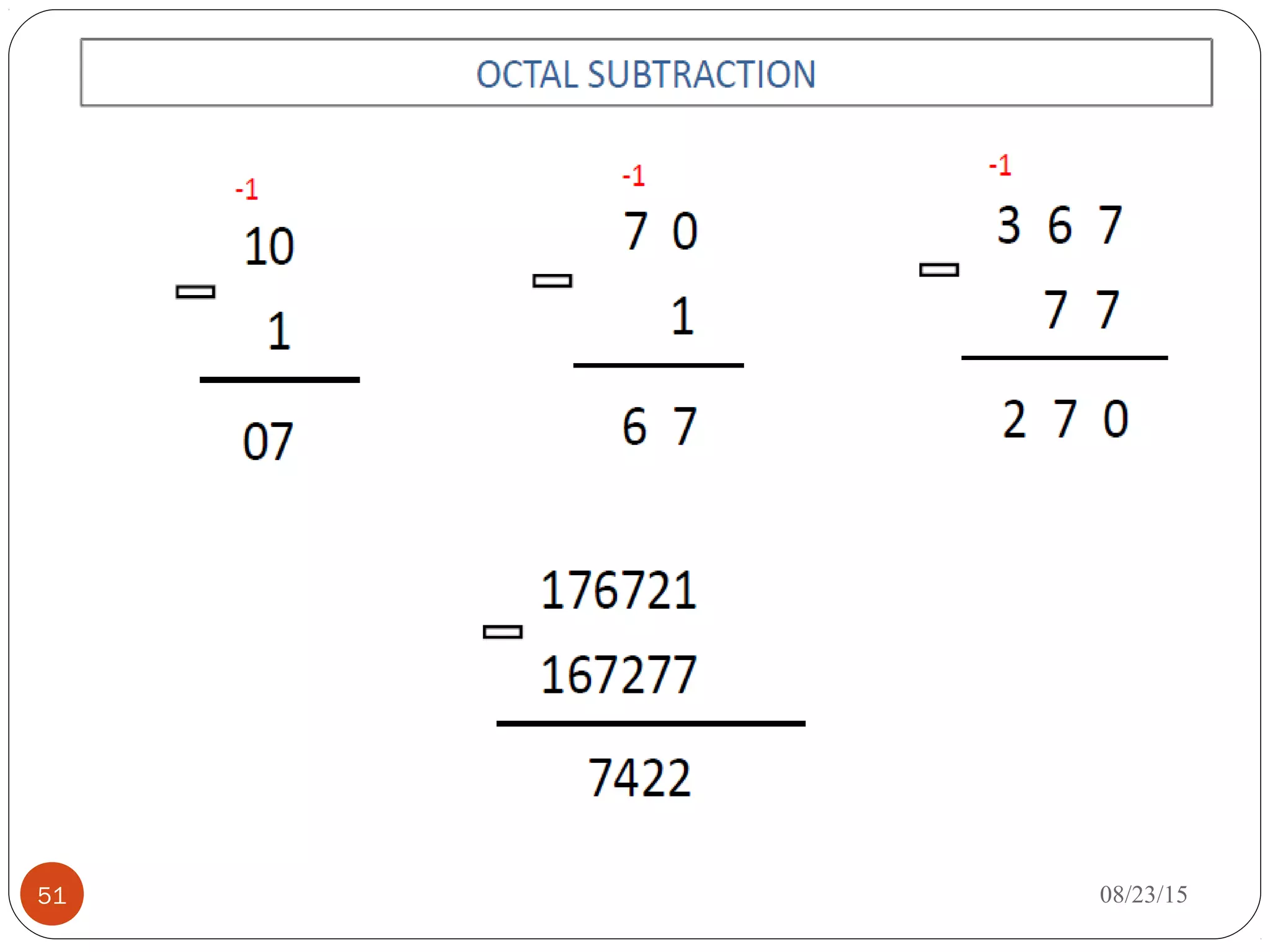

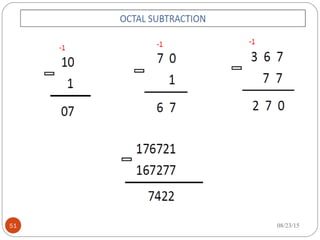

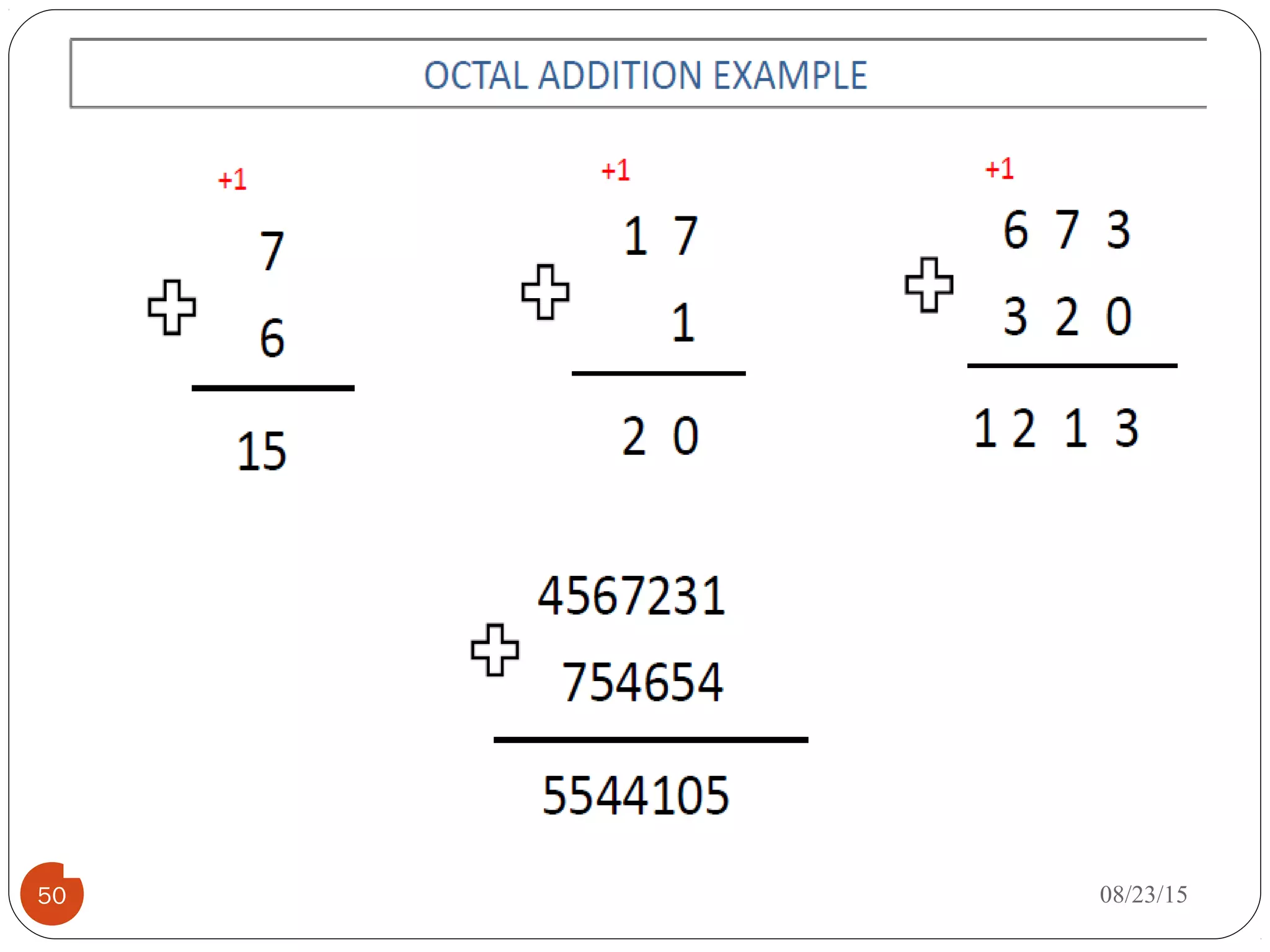

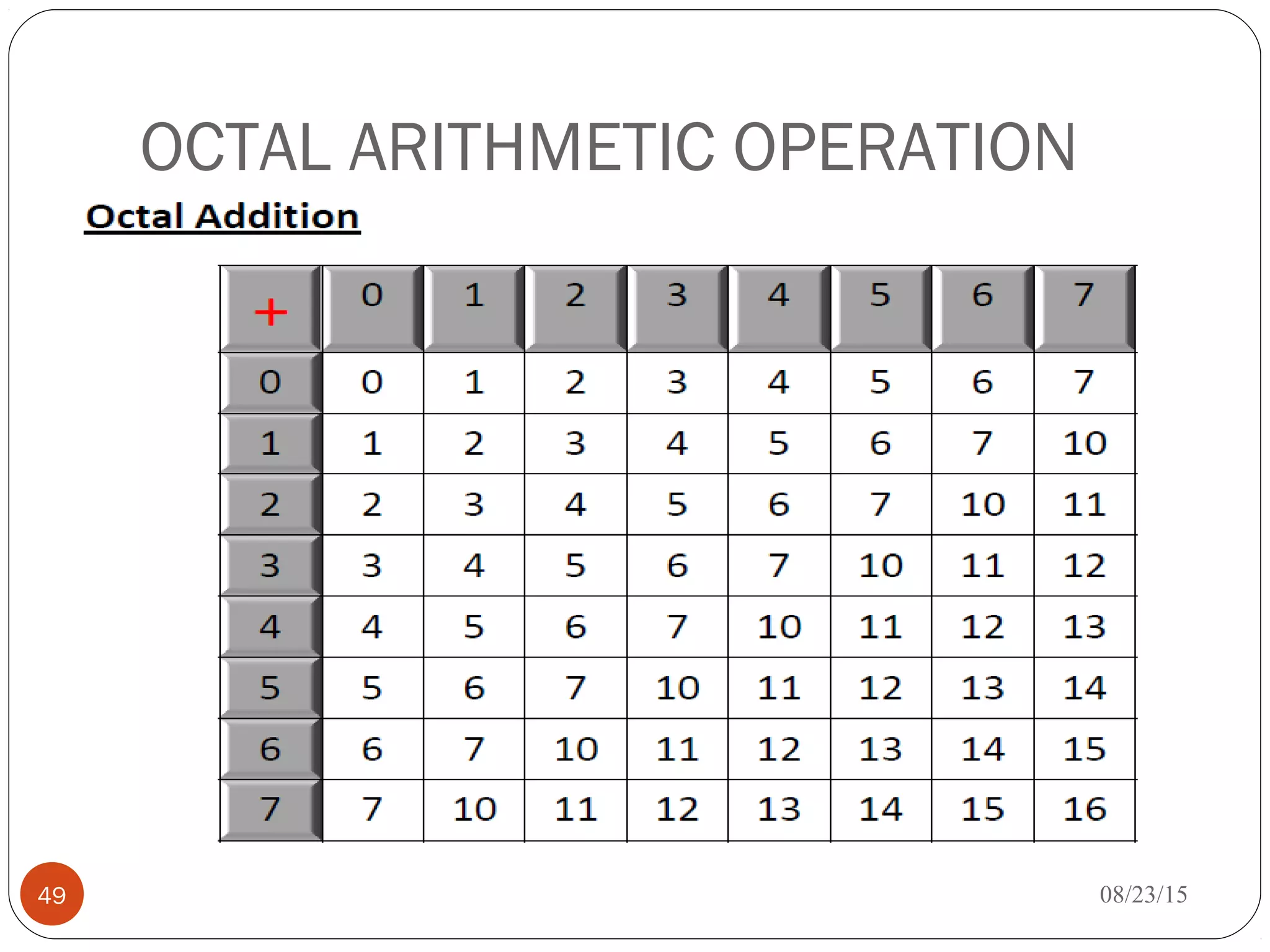

49. OCTAL ARITHMETIC OPERATION
08/23/1549

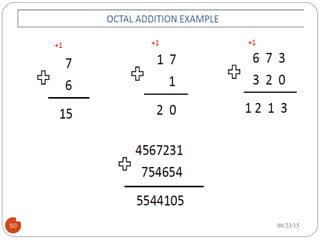

50. 08/23/1550

51. 08/23/1551

52. 08/23/1552

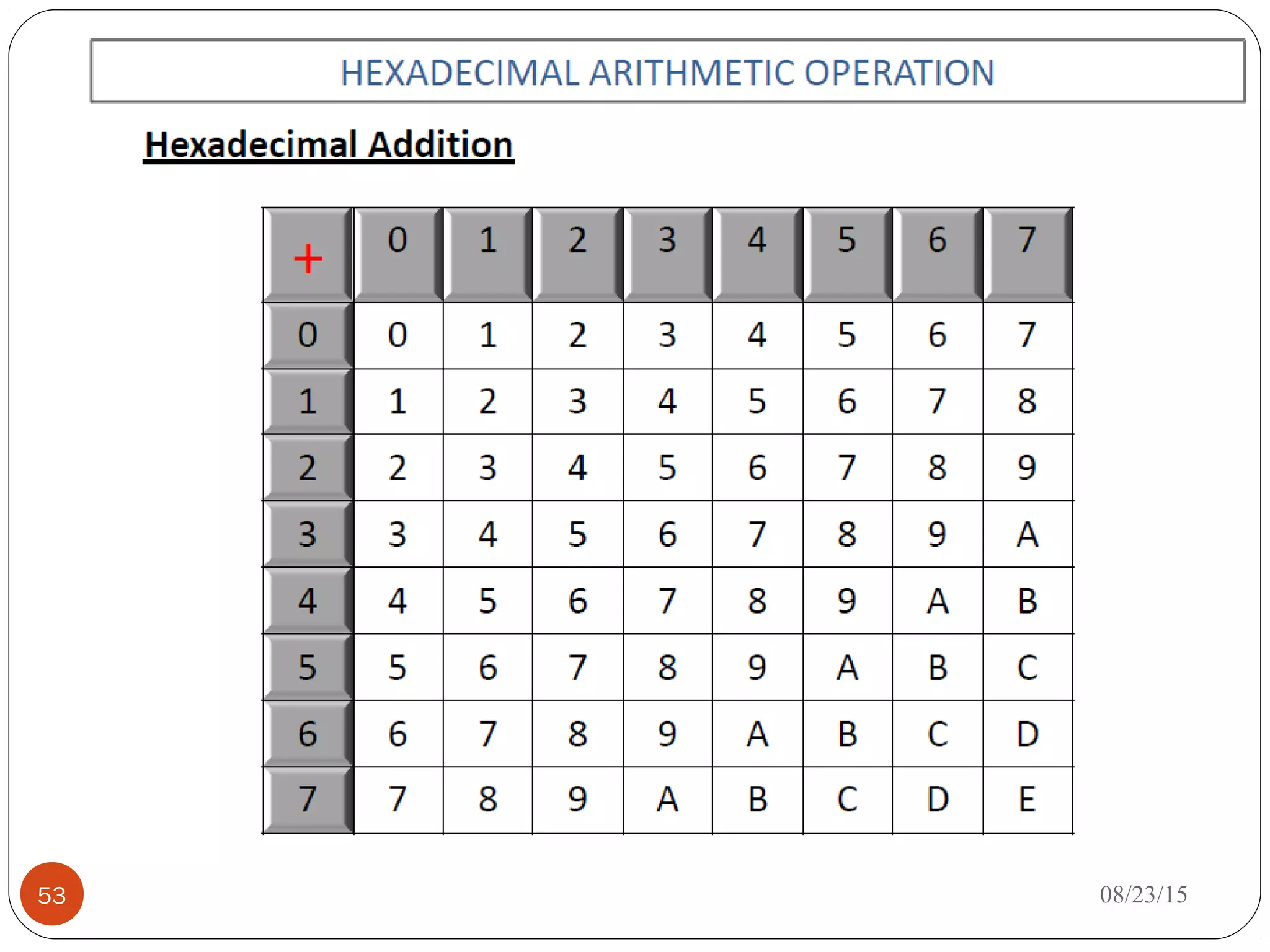

53. 08/23/1553

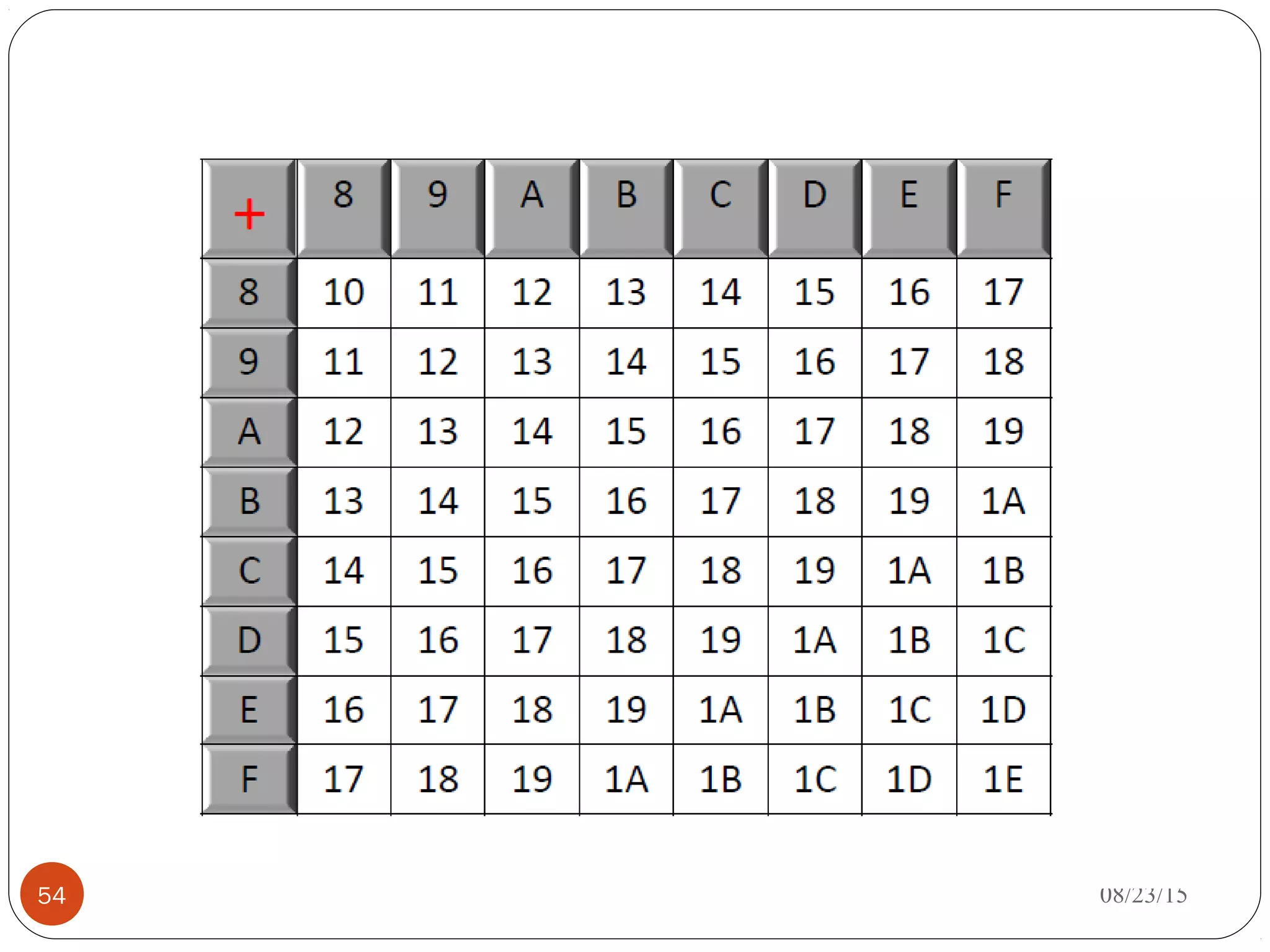

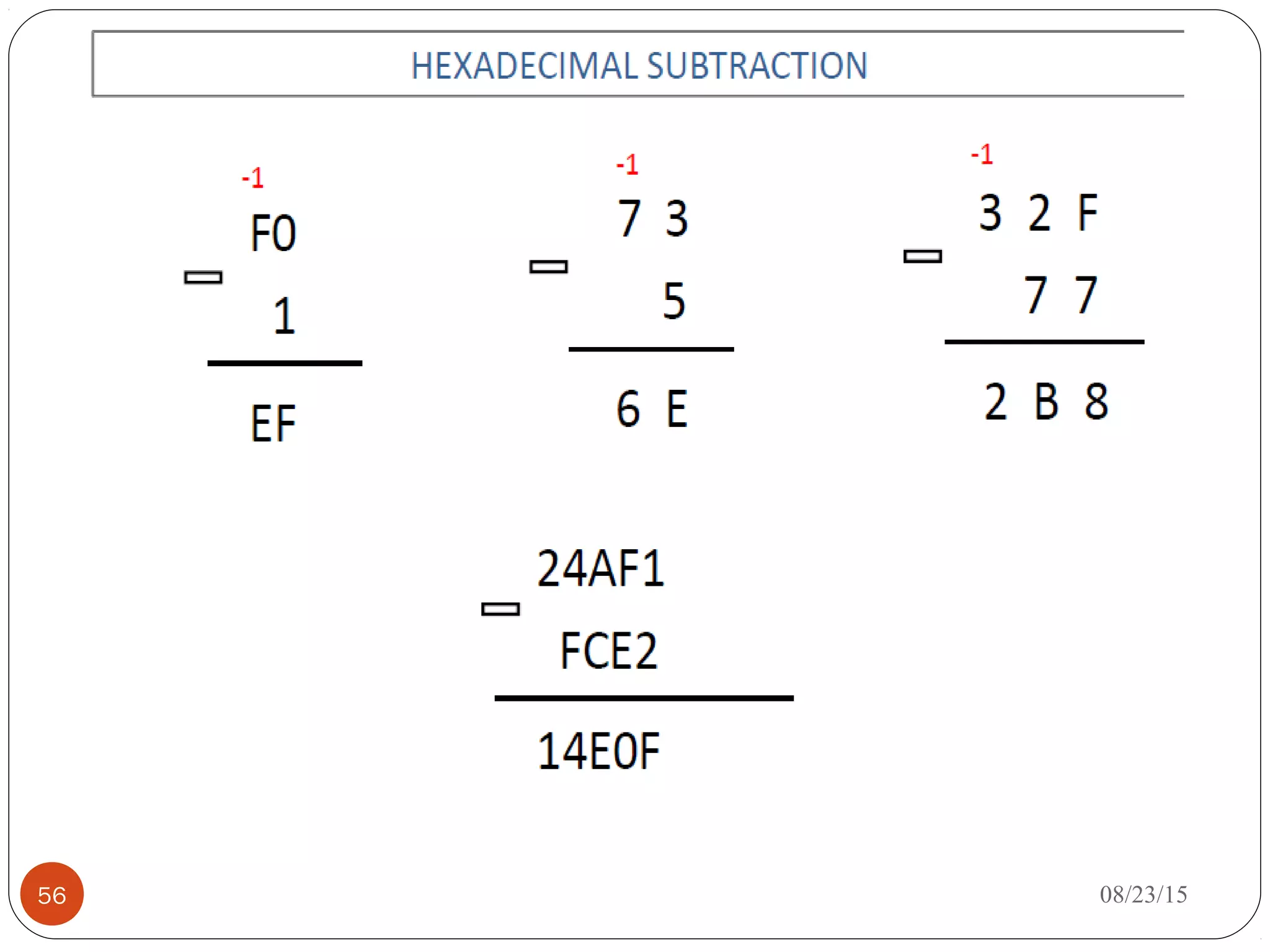

54. 08/23/1554

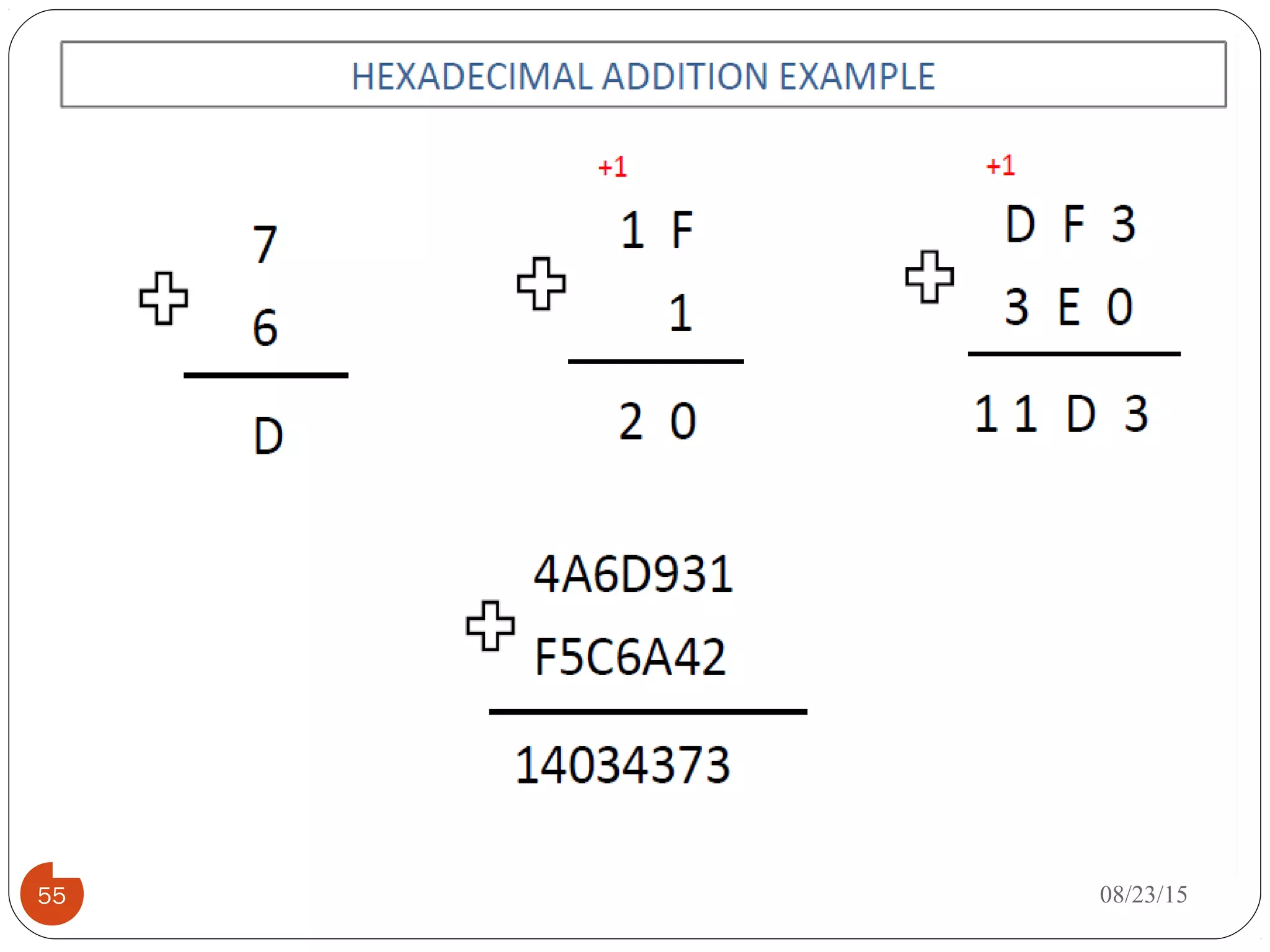

55. 08/23/1555

56. 08/23/1556

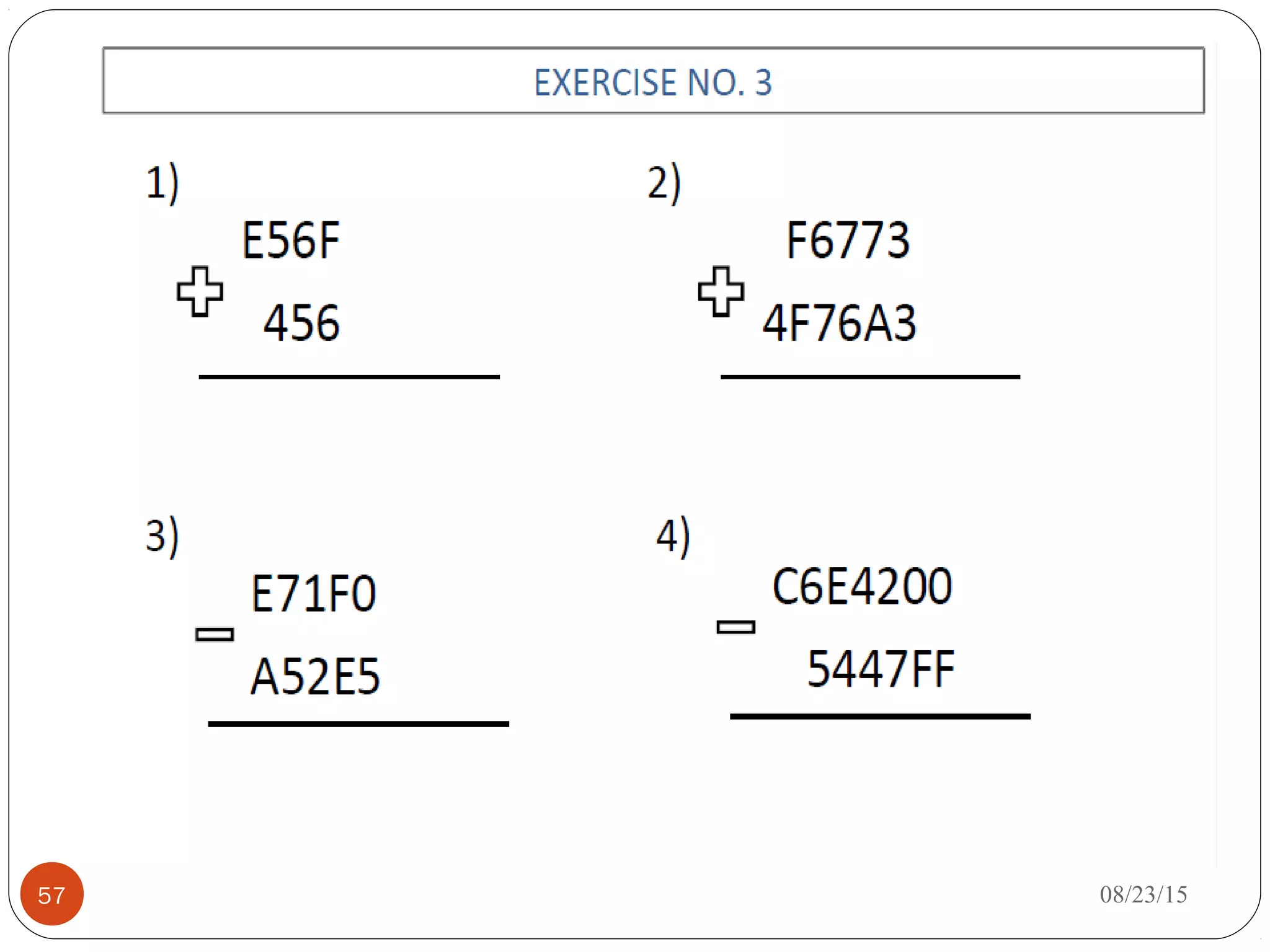

57. 08/23/1557

58. 08/23/1558

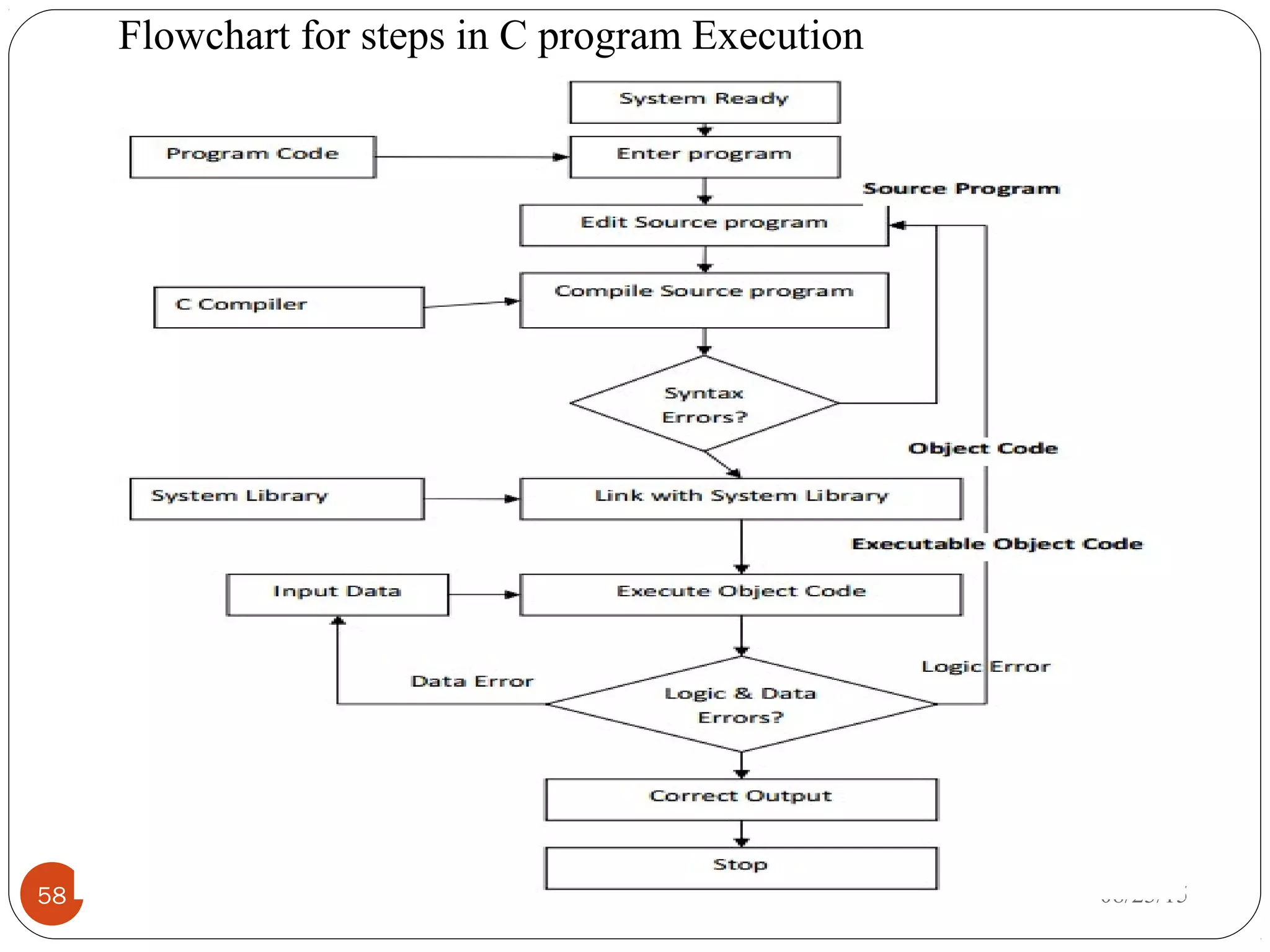

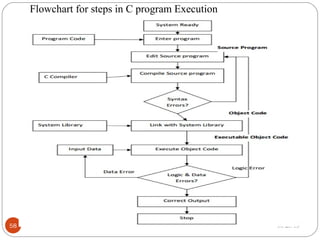

Flowchart for steps in C program Execution

59. Practice problems

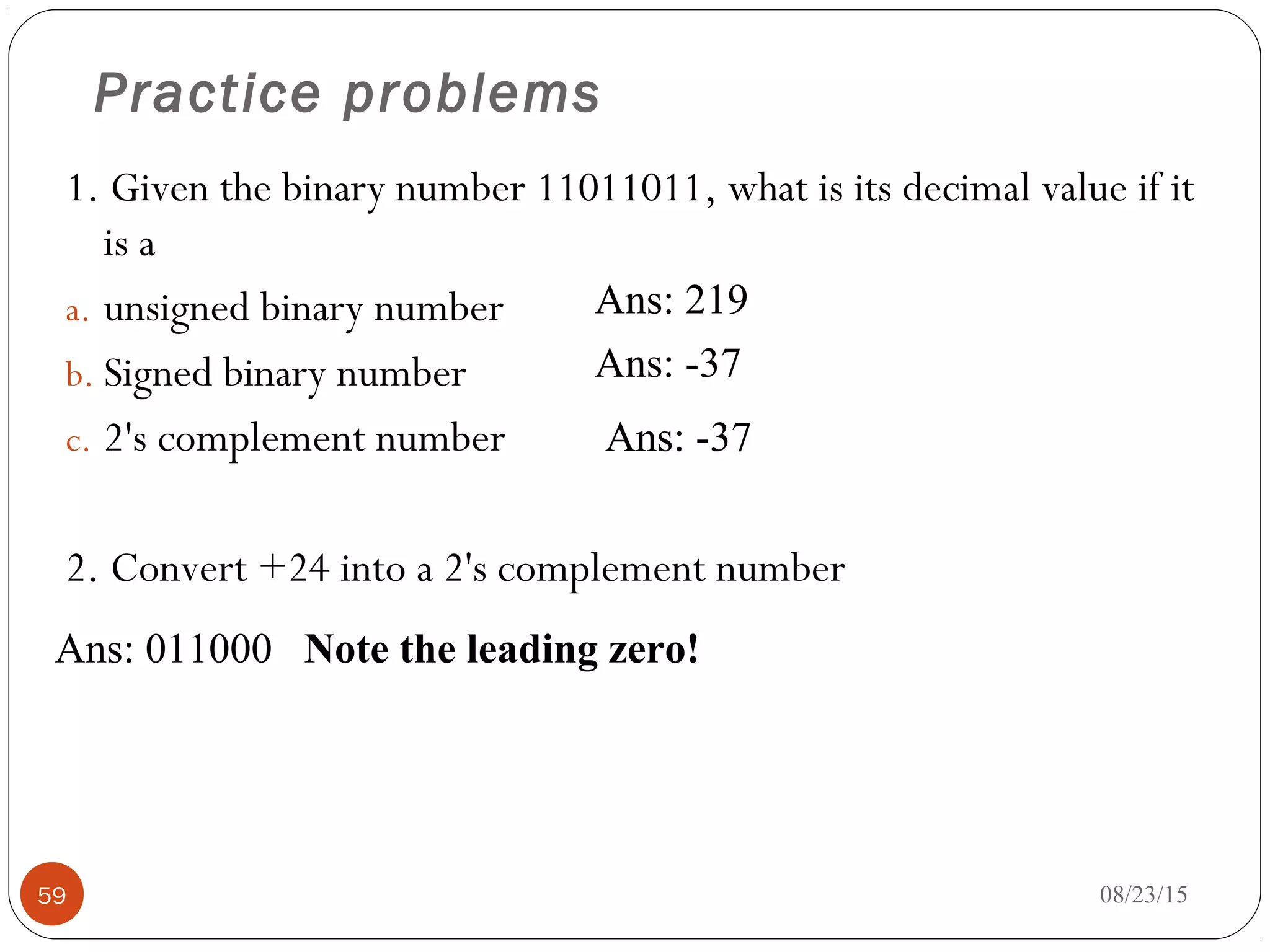

1. Given the binary number 11011011, what is its decimal value if it
is a
a. unsigned binary number
b. Signed binary number
c. 2's complement number
2. Convert +24 into a 2's complement number
08/23/1559
Ans: 219
Ans: -37
Ans: -37
Ans: 011000 Note the leading zero!

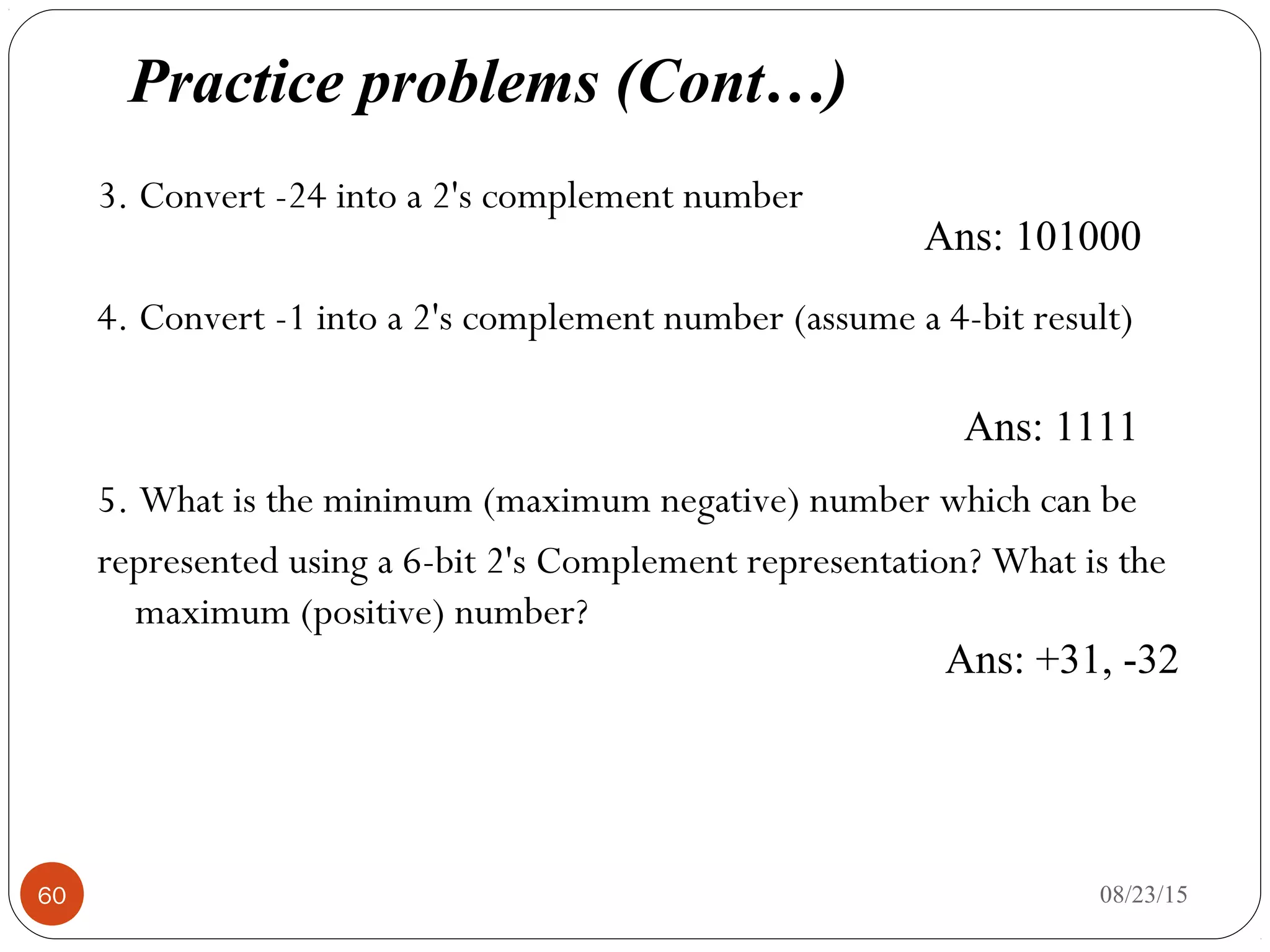

60. 3. Convert -24 into a 2's complement number
4. Convert -1 into a 2's complement number (assume a 4-bit result)
5. What is the minimum (maximum negative) number which can be
represented using a 6-bit 2's Complement representation? What is the
maximum (positive) number?
08/23/1560
Ans: 1111
Ans: 101000
Ans: +31, -32
Practice problems (Cont…)

61. Practice problems (Cont…)

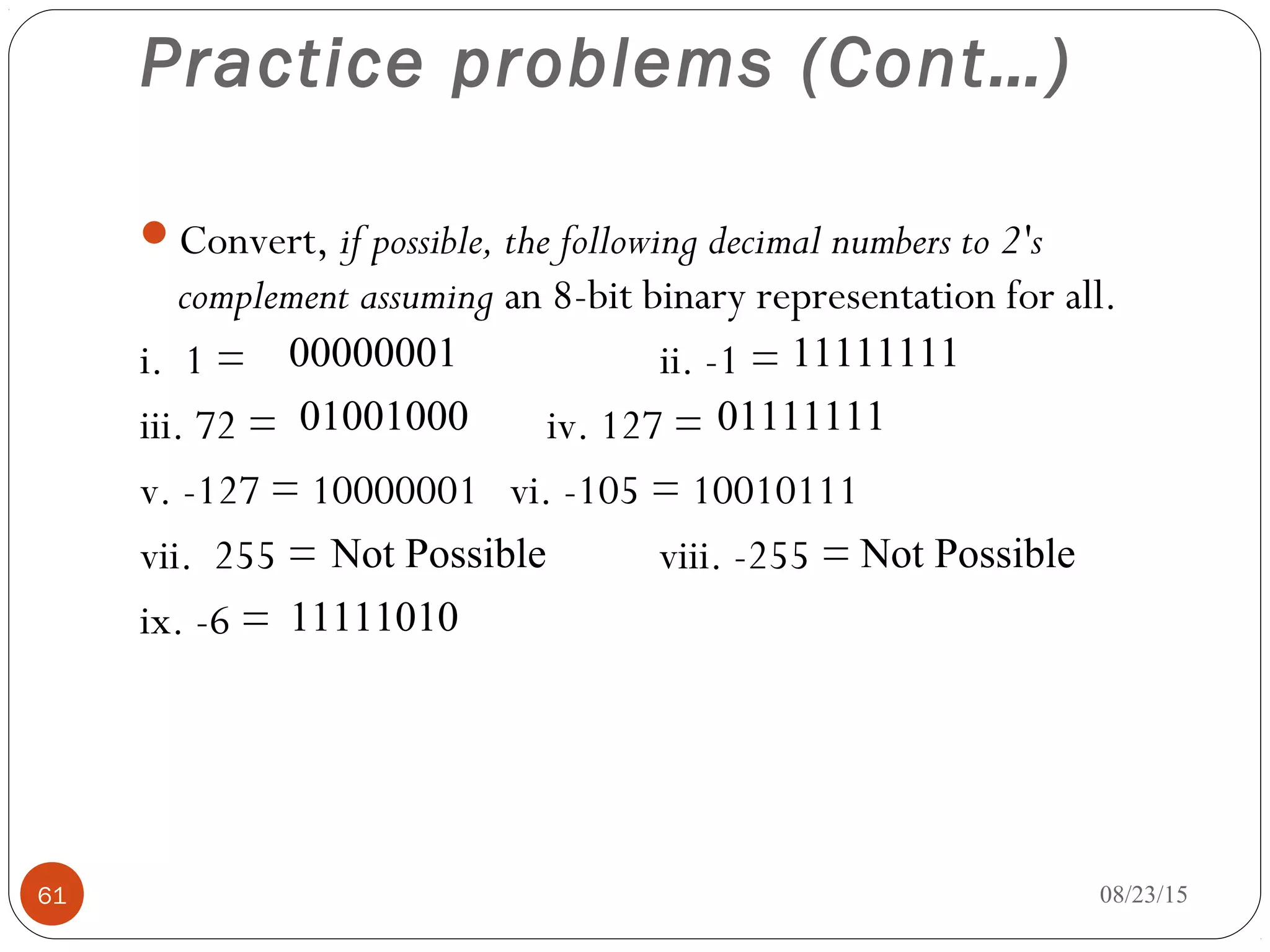

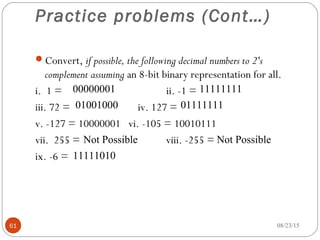

Convert, if possible, the following decimal numbers to 2's
complement assuming an 8-bit binary representation for all.
i. 1 = ii. -1 =
iii. 72 = iv. 127 =
v. -127 = 10000001 vi. -105 = 10010111
vii. 255 = viii. -255 =
ix. -6 =
08/23/1561
00000001 11111111
01001000 01111111
Not Possible
11111010
Not Possible

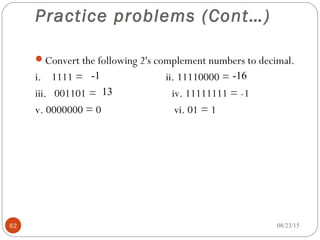

62. Practice problems (Cont…)

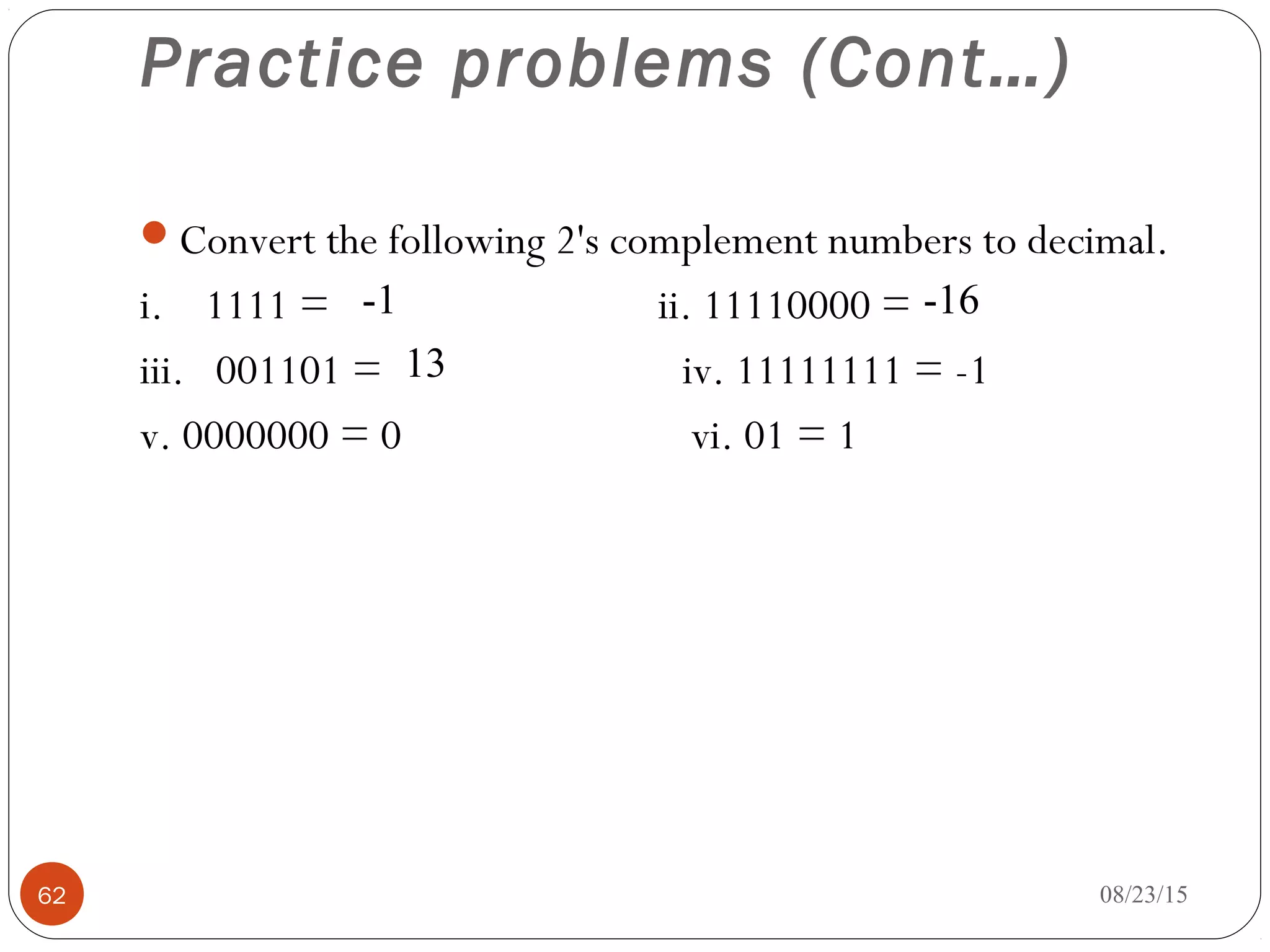

Convert the following 2's complement numbers to decimal.
i. 1111 = ii. 11110000 =
iii. 001101 = iv. 11111111 = -1
v. 0000000 = 0 vi. 01 = 1
08/23/1562
-1 -16
13

63. 08/23/1563

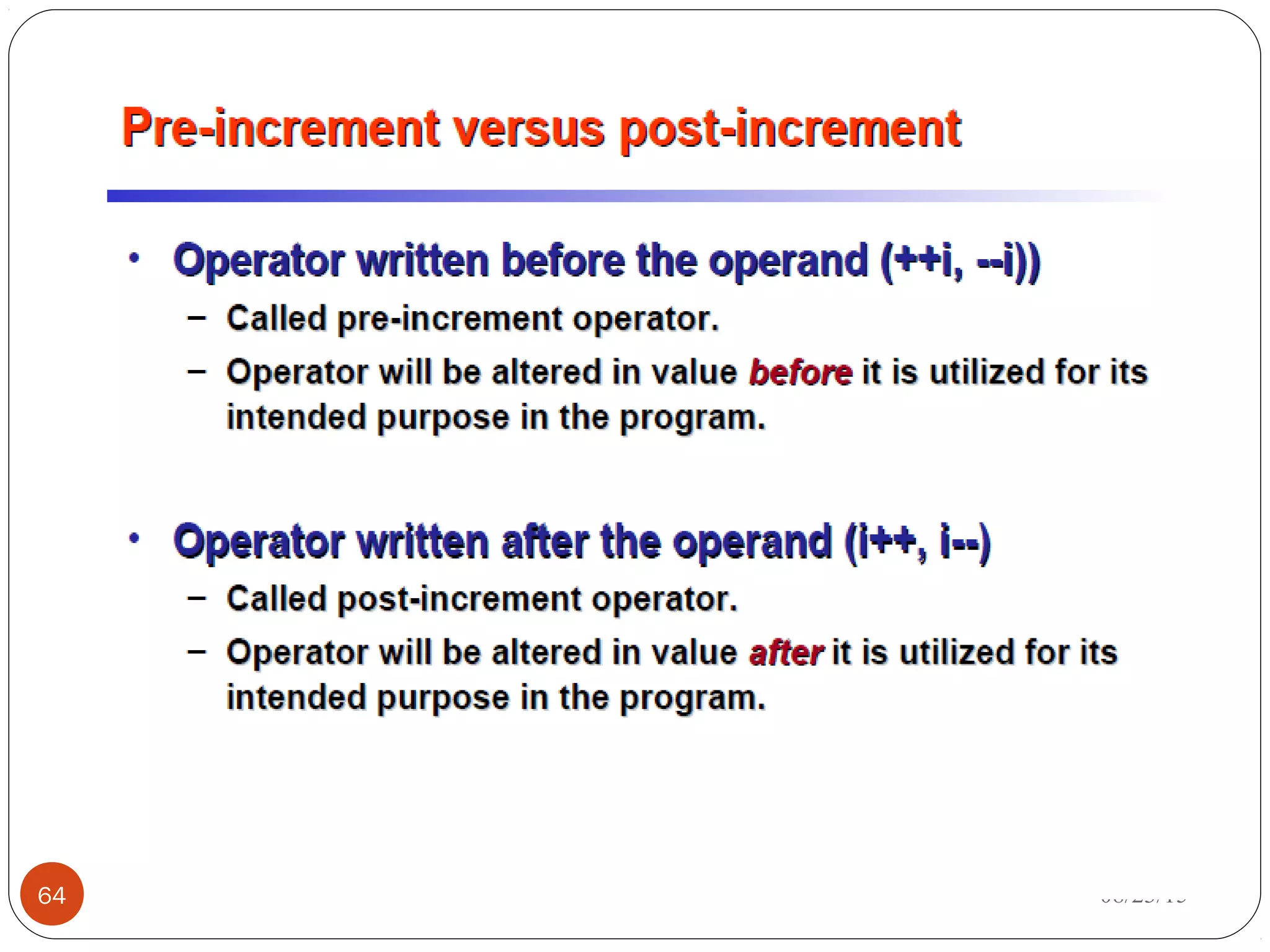

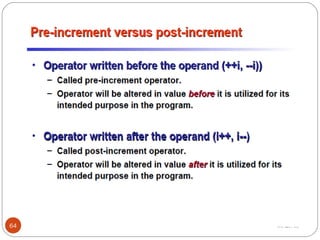

64. 08/23/1564

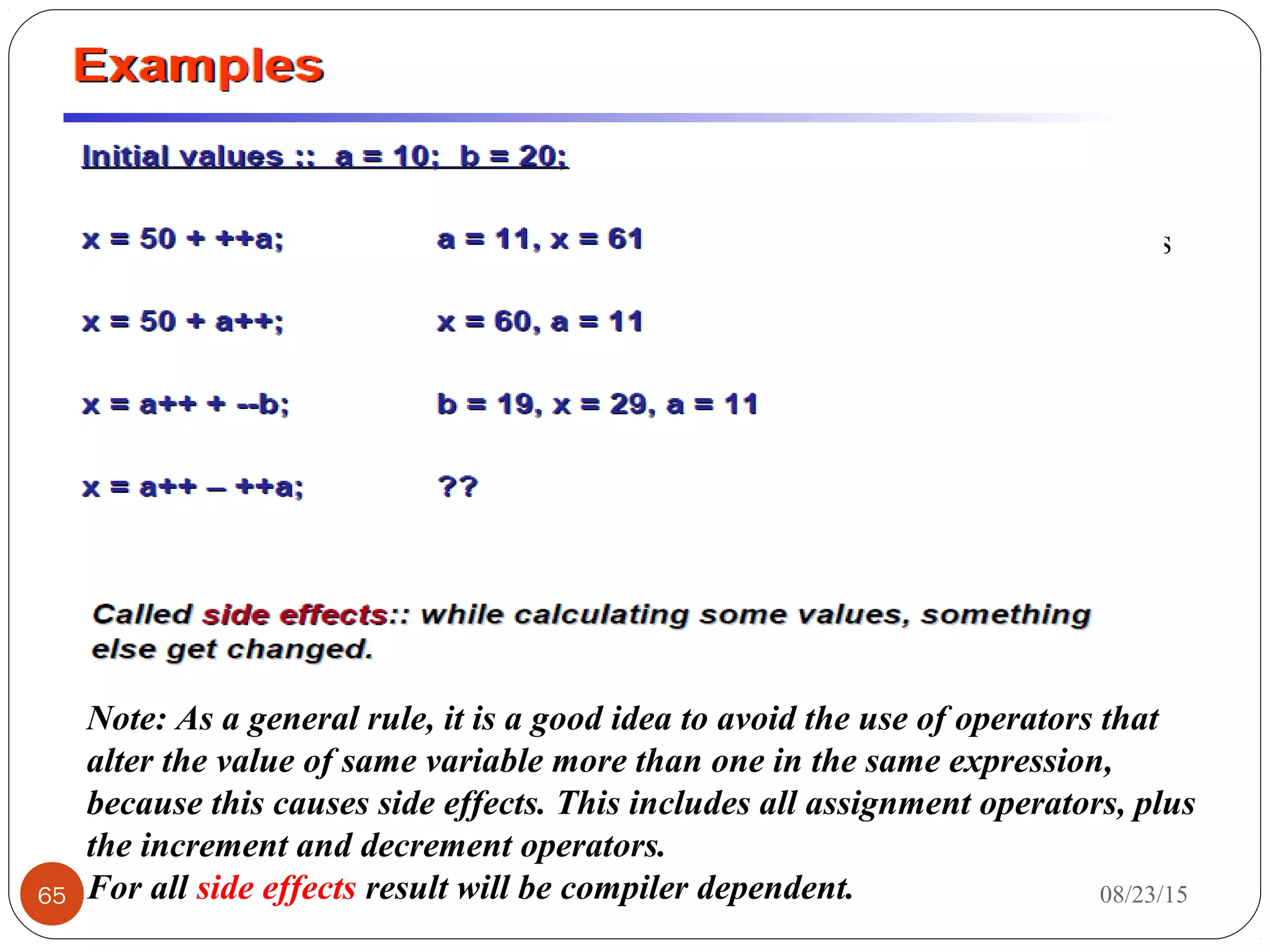

65. As a general rule, it is a good idea to avoid the use operators
that cause side effects inside of compound expressions. This
includes all assignment operators, plus the increment and
decrement operators.
08/23/1565

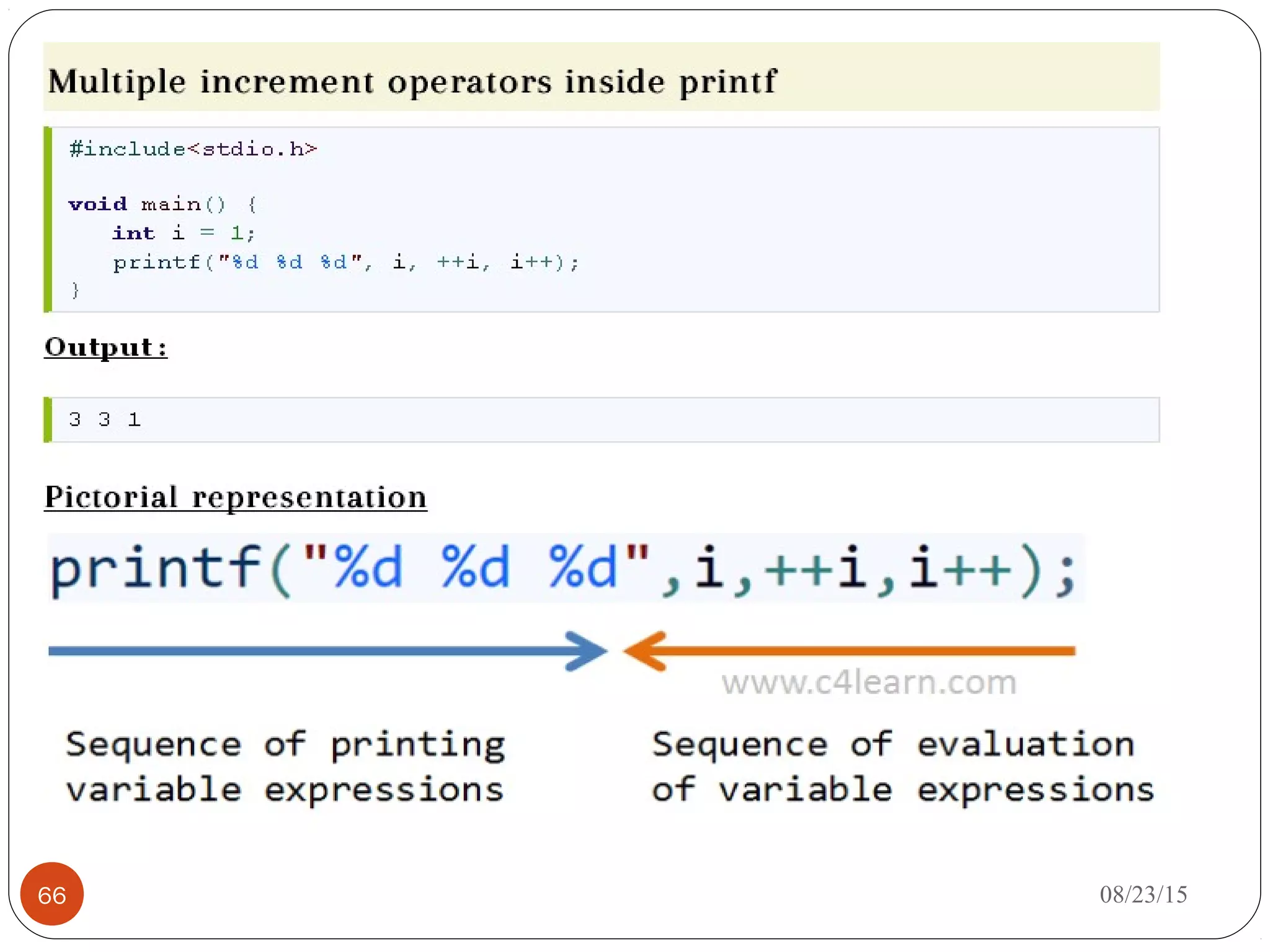

Note: As a general rule, it is a good idea to avoid the use of operators that
alter the value of same variable more than one in the same expression,
because this causes side effects. This includes all assignment operators, plus
the increment and decrement operators.
For all side effects result will be compiler dependent.

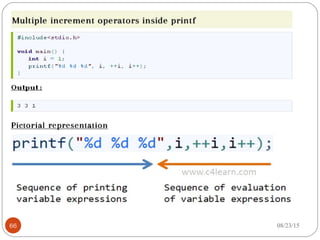

66. 08/23/1566

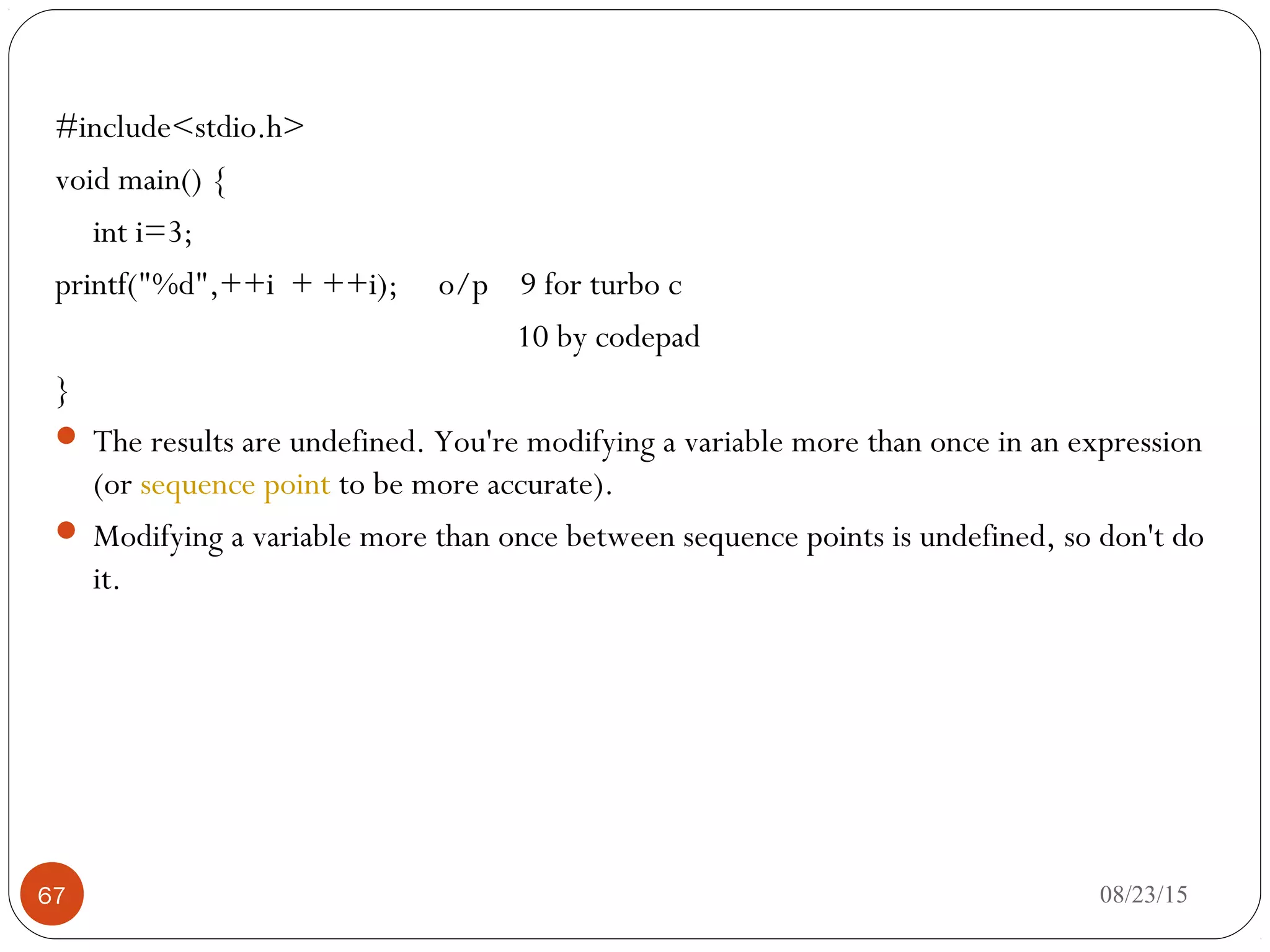

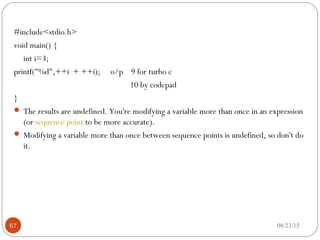

67. #include<stdio.h>
void main() {
int i=3;
printf("%d",++i + ++i); o/p 9 for turbo c
10 by codepad
}
 The results are undefined. You're modifying a variable more than once in an expression
(or sequence point to be more accurate).
 Modifying a variable more than once between sequence points is undefined, so don't do
it.
08/23/1567

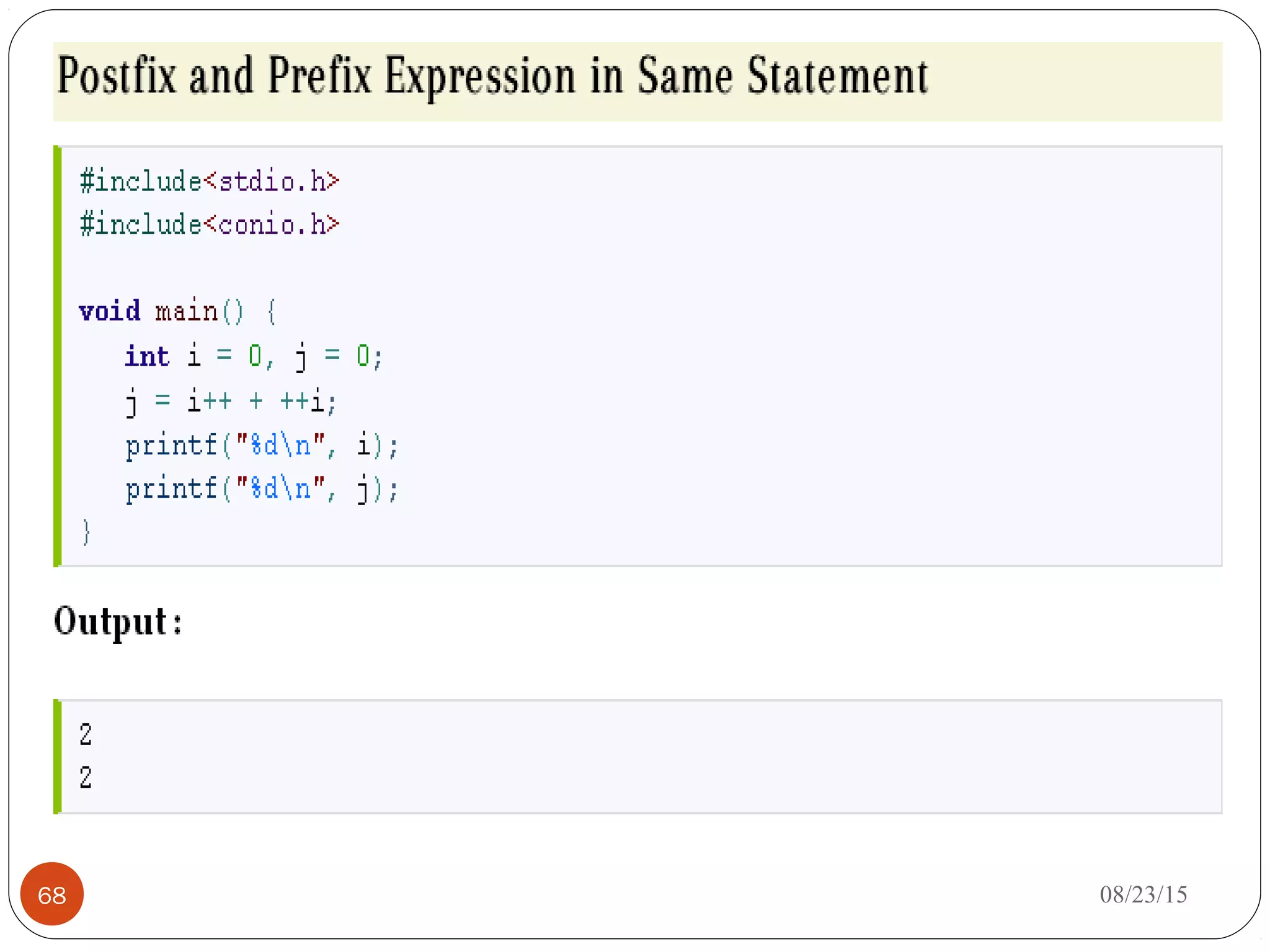

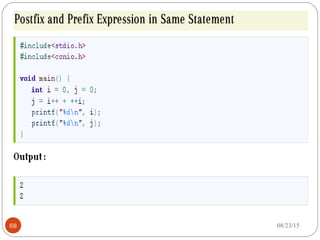

68. 08/23/1568
