Course Title: Introduction to Computer and
Programming
Course Code: 14B11CI111
08/24/151

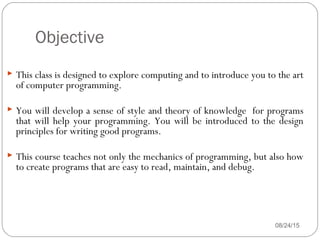

Objective
08/24/152
 This class is designed to explore computing and to introduce you to the art
of computer programming.
 You will develop a sense of style and theory of knowledge for programs
that will help your programming. You will be introduced to the design
principles for writing good programs.
 This course teaches not only the mechanics of programming, but also how
to create programs that are easy to read, maintain, and debug.

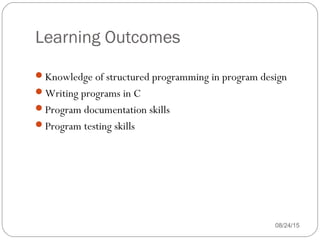

Learning Outcomes
08/24/153
Knowledge of structured programming in program design
Writing programs in C
Program documentation skills
Program testing skills

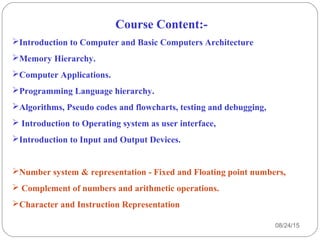

Course Content:-
Introduction to Computer and Basic Computers Architecture
Memory Hierarchy.
Computer Applications.
Programming Language hierarchy.
Algorithms, Pseudo codes and flowcharts, testing and debugging,
 Introduction to Operating system as user interface,
Introduction to Input and Output Devices.
Number system & representation - Fixed and Floating point numbers,
 Complement of numbers and arithmetic operations.
Character and Instruction Representation
08/24/154

Course Content (cont..)
C-programming:-Data types, User interaction.
Structured programming, Selection.
 Control flow. Looping control structure
Arrays and strings
Pointers.
Functions Structures and Unions.
Enumerations. Preprocessor.
Iteration and Recursion.
08/24/155

08/24/15
6

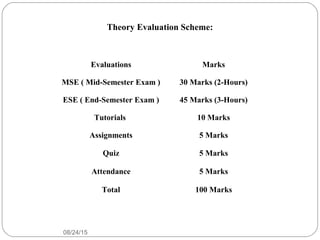

Evaluations Marks
MSE ( Mid-Semester Exam ) 30 Marks (2-Hours)
ESE ( End-Semester Exam ) 45 Marks (3-Hours)
Tutorials 10 Marks
Assignments 5 Marks
Quiz 5 Marks
Attendance 5 Marks
Total 100 Marks
Theory Evaluation Scheme:

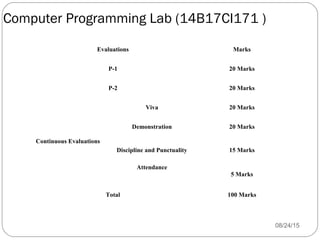

Computer Programming Lab (14B17CI171 )
08/24/157
Evaluations Marks
P-1 20 Marks
P-2 20 Marks
Continuous Evaluations
Viva 20 Marks
Demonstration 20 Marks
Discipline and Punctuality 15 Marks
Attendance
5 Marks
Total 100 Marks

Text Book:
T1. “Introduction to computers”, Peter Norton
T2. “Let Us C”, 8th
edition, Yashwant Kanetkar, BPB Publiction
T3. “Programming in ANCI C”, Balaguruswamy, TMH
References:
R1. “Fundamental of Computers” V. Raja Raman
R2. “Spirit of C”, H. Cooper and H. Mullish, Jaico Publishing House
R3. “Programming with C”, Bryon Gottfried, TMH
R4. “A book on C”, AL Kelley, IRA Pohl, Pearson Education
R5. “Programming in ANCI C”, Balaguruswamy, TMH
R6. “Understanding Pointers in C”, Yashwant Kanetkar
08/24/158

08/24/159

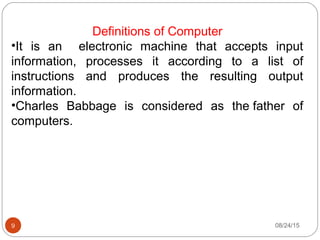

Definitions of Computer
•It is an electronic machine that accepts input
information, processes it according to a list of
instructions and produces the resulting output
information.
•Charles Babbage is considered as the father of
computers.

08/24/1510

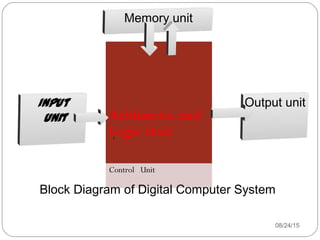

Arithmetic and
Logic Unit
Control Unit
Input
unit
Output unit
Memory unit
Block Diagram of Digital Computer System

08/24/1511

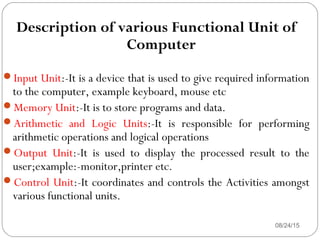

Description of various Functional Unit of
Computer
Input Unit:-It is a device that is used to give required information
to the computer, example keyboard, mouse etc
Memory Unit:-It is to store programs and data.
Arithmetic and Logic Units:-It is responsible for performing
arithmetic operations and logical operations
Output Unit:-It is used to display the processed result to the
user;example:-monitor,printer etc.
Control Unit:-It coordinates and controls the Activities amongst
various functional units.

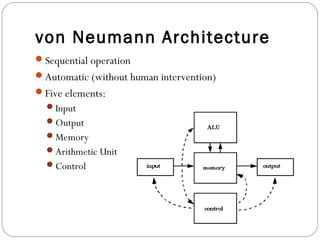

von Neumann Architecture
08/24/1512
Sequential operation
Automatic (without human intervention)
Five elements:
Input
Output
Memory
Arithmetic Unit
Control

• A complete computer system includes four distinct
parts:
 Hardware
 Software
 Data
 User
The Parts of a Computer System
08/24/1513

08/24/1515

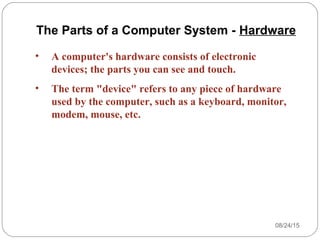

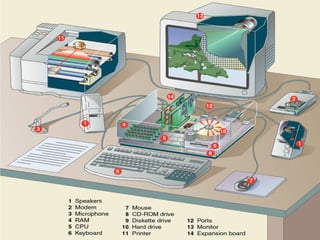

• A computer's hardware consists of electronic
devices; the parts you can see and touch.
• The term "device" refers to any piece of hardware
used by the computer, such as a keyboard, monitor,
modem, mouse, etc.
The Parts of a Computer System - Hardware

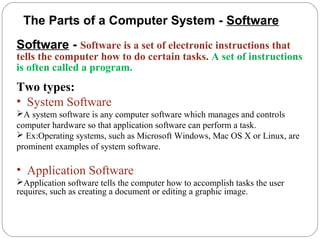

Software - Software is a set of electronic instructions that
tells the computer how to do certain tasks. A set of instructions
is often called a program.
Two types:
• System Software
A system software is any computer software which manages and controls
computer hardware so that application software can perform a task.
 Ex:Operating systems, such as Microsoft Windows, Mac OS X or Linux, are
prominent examples of system software.
• Application Software
Application software tells the computer how to accomplish tasks the user
requires, such as creating a document or editing a graphic image.
The Parts of a Computer System - Software

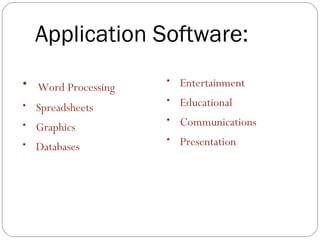

Application Software:
• Word Processing
• Spreadsheets
• Graphics
• Databases
• Entertainment
• Educational
• Communications
• Presentation

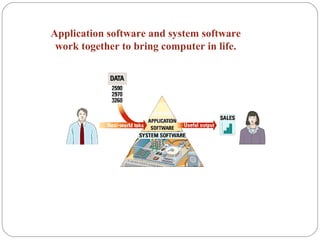

Application software and system software
work together to bring computer in life.

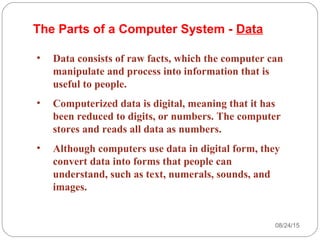

• Data consists of raw facts, which the computer can
manipulate and process into information that is
useful to people.
• Computerized data is digital, meaning that it has
been reduced to digits, or numbers. The computer
stores and reads all data as numbers.
• Although computers use data in digital form, they
convert data into forms that people can
understand, such as text, numerals, sounds, and
images.
The Parts of a Computer System - Data
08/24/1520

08/24/1521

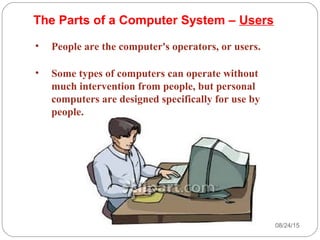

• People are the computer's operators, or users.
• Some types of computers can operate without
much intervention from people, but personal
computers are designed specifically for use by
people.
The Parts of a Computer System – Users

08/24/1522

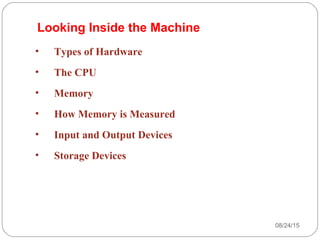

Looking Inside the Machine
• Types of Hardware
• The CPU
• Memory
• How Memory is Measured
• Input and Output Devices
• Storage Devices

08/24/1523

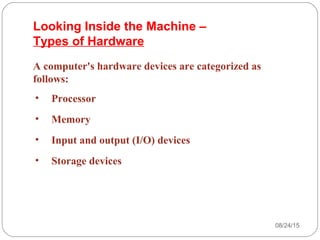

A computer's hardware devices are categorized as
follows:
• Processor
• Memory
• Input and output (I/O) devices
• Storage devices
Looking Inside the Machine –
Types of Hardware

08/24/1524

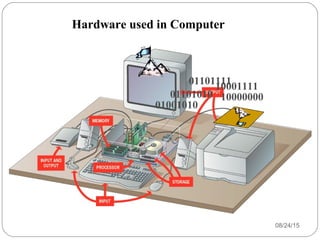

01001010
01101010
01101111
10001111
10000000
Hardware used in Computer

08/24/1525

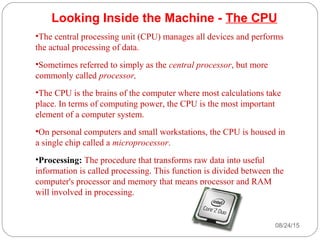

Looking Inside the Machine - The CPU
•The central processing unit (CPU) manages all devices and performs
the actual processing of data.
•Sometimes referred to simply as the central processor, but more
commonly called processor,
•The CPU is the brains of the computer where most calculations take
place. In terms of computing power, the CPU is the most important
element of a computer system.
•On personal computers and small workstations, the CPU is housed in
a single chip called a microprocessor.
•Processing: The procedure that transforms raw data into useful
information is called processing. This function is divided between the
computer's processor and memory that means processor and RAM
will involved in processing.

08/24/1526

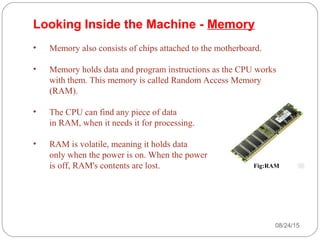

• Memory also consists of chips attached to the motherboard.
• Memory holds data and program instructions as the CPU works
with them. This memory is called Random Access Memory
(RAM).
• The CPU can find any piece of data
in RAM, when it needs it for processing.
• RAM is volatile, meaning it holds data
only when the power is on. When the power
is off, RAM's contents are lost.
Looking Inside the Machine - Memory
Fig:RAM

08/24/1527

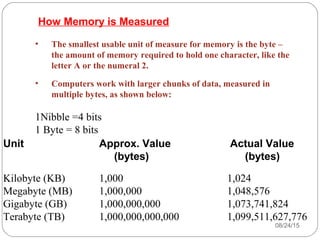

• The smallest usable unit of measure for memory is the byte –
the amount of memory required to hold one character, like the
letter A or the numeral 2.
• Computers work with larger chunks of data, measured in
multiple bytes, as shown below:
1Nibble =4 bits
1 Byte = 8 bits
Unit Approx. Value Actual Value
(bytes) (bytes)
Kilobyte (KB) 1,000 1,024
Megabyte (MB) 1,000,000 1,048,576
Gigabyte (GB) 1,000,000,000 1,073,741,824
Terabyte (TB) 1,000,000,000,000 1,099,511,627,776
How Memory is Measured

08/24/1528

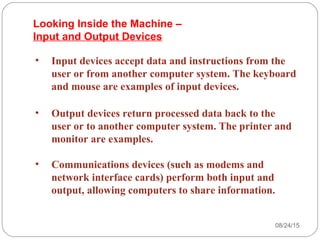

• Input devices accept data and instructions from the
user or from another computer system. The keyboard
and mouse are examples of input devices.
• Output devices return processed data back to the
user or to another computer system. The printer and
monitor are examples.
• Communications devices (such as modems and
network interface cards) perform both input and
output, allowing computers to share information.
Looking Inside the Machine –
Input and Output Devices

08/24/1529

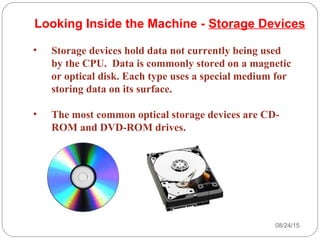

• Storage devices hold data not currently being used
by the CPU. Data is commonly stored on a magnetic
or optical disk. Each type uses a special medium for
storing data on its surface.
• The most common optical storage devices are CD-
ROM and DVD-ROM drives.
Looking Inside the Machine - Storage Devices

08/24/15Dr.Vishnu Sharma30

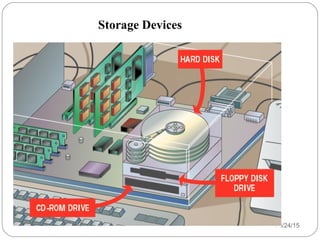

Storage Devices

Computer Generation
08/24/1531
Generation in computer terminology is a change in technology a
computer is/was being used.
 Initially, the generation term was used to distinguish between
varying hardware technologies.
But nowadays, generation includes both hardware and software,
which together make up an entire computer system.
There are totally five computer generations known till date:
 Generation 1 ( the first digital computer)
 Generation 2
 Generation 3
 Generation 4
 Generation 5

First Generation (1940-1956)
08/24/1532
 First generation of computers started with using vacuum tubes as the basic
components for memory and circuitry for CPU (Central Processing Unit).
 These tubes like electric bulbs produced a lot of heat and were prone to
frequent fusing of the installations,
 Therefore, were very expensive and could be afforded only by very large
organizations.
 In this generation, mainly batch processing operating systems were used.
 In this generation, Punched cards, Paper tape, Magnetic tape Input & Output
device were used.
 Some computers of this generation were:
 ENIAC(Electronic Numerical Integrator And Computer)
 UNIVAC(UNIVersal Automatic Computer.)
 IBM-701
 IBM-650

First Generation (1940-1956)
08/24/1533

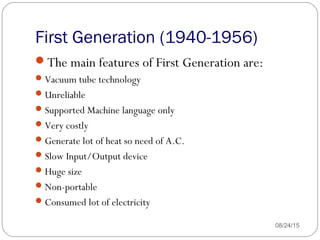

The main features of First Generation are:
Vacuum tube technology
Unreliable
Supported Machine language only
Very costly
Generate lot of heat so need of A.C.
Slow Input/Output device
Huge size
Non-portable
Consumed lot of electricity

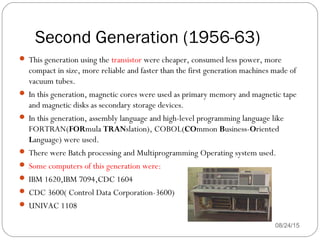

Second Generation (1956-63)
08/24/1534
 This generation using the transistor were cheaper, consumed less power, more
compact in size, more reliable and faster than the first generation machines made of
vacuum tubes.
 In this generation, magnetic cores were used as primary memory and magnetic tape
and magnetic disks as secondary storage devices.
 In this generation, assembly language and high-level programming language like
FORTRAN(FORmula TRANslation), COBOL(COmmon Business-Oriented
Language) were used.
 There were Batch processing and Multiprogramming Operating system used.
 IBM 1620,IBM 7094,CDC 1604
 CDC 3600( Control Data Corporation-3600)
 UNIVAC 1108

Second Generation (1956-63)
08/24/1535

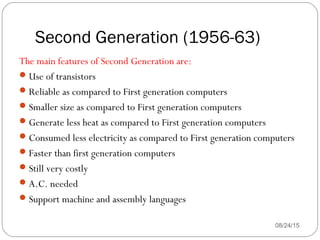

The main features of Second Generation are:
Use of transistors
Reliable as compared to First generation computers
Smaller size as compared to First generation computers
Generate less heat as compared to First generation computers
Consumed less electricity as compared to First generation computers
Faster than first generation computers
Still very costly
A.C. needed
Support machine and assembly languages

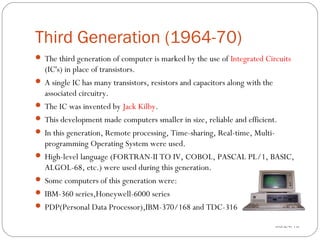

Third Generation (1964-70)
08/24/1536
 The third generation of computer is marked by the use of Integrated Circuits
(IC's) in place of transistors.
 A single IC has many transistors, resistors and capacitors along with the
associated circuitry.
 The IC was invented by Jack Kilby.
 This development made computers smaller in size, reliable and efficient.
 In this generation, Remote processing, Time-sharing, Real-time, Multi-
programming Operating System were used.
 High-level language (FORTRAN-II TO IV, COBOL, PASCAL PL/1, BASIC,
ALGOL-68, etc.) were used during this generation.
 IBM-360 series,Honeywell-6000 series
 PDP(Personal Data Processor),IBM-370/168 and TDC-316

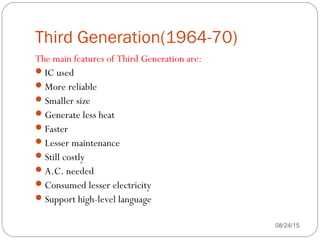

Third Generation(1964-70)
08/24/1537
The main features of Third Generation are:
IC used
More reliable
Smaller size
Generate less heat
Faster
Lesser maintenance
Still costly
A.C. needed
Consumed lesser electricity
Support high-level language

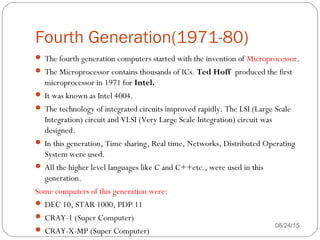

Fourth Generation(1971-80)
08/24/1538
 The fourth generation computers started with the invention of Microprocessor.
 The Microprocessor contains thousands of ICs. Ted Hoff produced the first
microprocessor in 1971 for Intel.
 It was known as Intel 4004.
 The technology of integrated circuits improved rapidly. The LSI (Large Scale
Integration) circuit and VLSI (Very Large Scale Integration) circuit was
designed.
 In this generation, Time sharing, Real time, Networks, Distributed Operating
System were used.
 All the higher level languages like C and C++etc., were used in this
generation.
Some computers of this generation were:
 DEC 10, STAR 1000, PDP 11
 CRAY-1 (Super Computer)
 CRAY-X-MP (Super Computer)

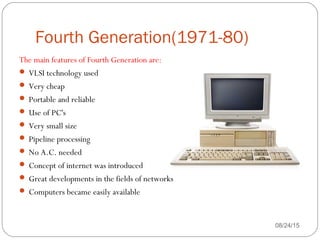

Fourth Generation(1971-80)
08/24/1539
The main features of Fourth Generation are:
 VLSI technology used
 Very cheap
 Portable and reliable
 Use of PC's
 Very small size
 Pipeline processing
 No A.C. needed
 Concept of internet was introduced
 Great developments in the fields of networks
 Computers became easily available

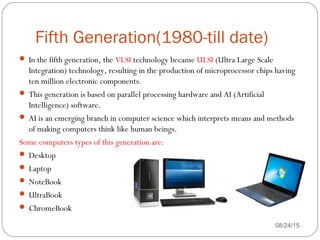

Fifth Generation(1980-till date)
08/24/1540
 In the fifth generation, the VLSI technology became ULSI (Ultra Large Scale
Integration) technology, resulting in the production of microprocessor chips having
ten million electronic components.
 This generation is based on parallel processing hardware and AI (Artificial
Intelligence) software.
 AI is an emerging branch in computer science which interprets means and methods
of making computers think like human beings.
Some computers types of this generation are:
 Desktop
 Laptop
 NoteBook
 UltraBook
 ChromeBook

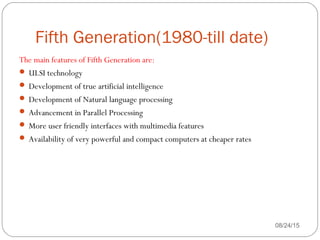

Fifth Generation(1980-till date)
08/24/1541
The main features of Fifth Generation are:
 ULSI technology
 Development of true artificial intelligence
 Development of Natural language processing
 Advancement in Parallel Processing
 More user friendly interfaces with multimedia features
 Availability of very powerful and compact computers at cheaper rates

Classification of Computers
08/24/1542

08/24/1543

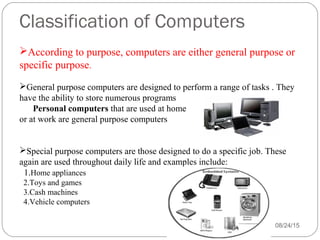

According to purpose, computers are either general purpose or
specific purpose.
General purpose computers are designed to perform a range of tasks . They
have the ability to store numerous programs
Personal computers that are used at home
or at work are general purpose computers
Special purpose computers are those designed to do a specific job. These
again are used throughout daily life and examples include:
1.Home appliances
2.Toys and games
3.Cash machines
4.Vehicle computers

08/24/1544

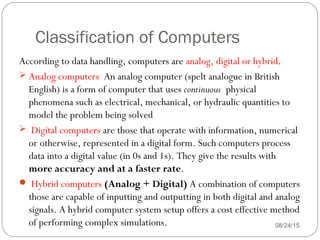

According to data handling, computers are analog, digital or hybrid.
 Analog computers An analog computer (spelt analogue in British
English) is a form of computer that uses continuous physical
phenomena such as electrical, mechanical, or hydraulic quantities to
model the problem being solved
 Digital computers are those that operate with information, numerical
or otherwise, represented in a digital form. Such computers process
data into a digital value (in 0s and 1s). They give the results with
more accuracy and at a faster rate.
 Hybrid computers (Analog + Digital) A combination of computers
those are capable of inputting and outputting in both digital and analog
signals. A hybrid computer system setup offers a cost effective method
of performing complex simulations.

08/24/1545

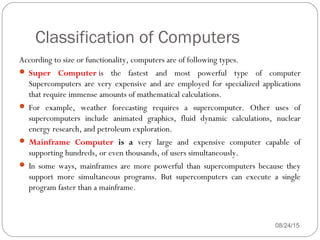

According to size or functionality, computers are of following types.
 Super Computer is the fastest and most powerful type of computer
Supercomputers are very expensive and are employed for specialized applications
that require immense amounts of mathematical calculations.
 For example, weather forecasting requires a supercomputer. Other uses of
supercomputers include animated graphics, fluid dynamic calculations, nuclear
energy research, and petroleum exploration.
 Mainframe Computer is a very large and expensive computer capable of
supporting hundreds, or even thousands, of users simultaneously.
 In some ways, mainframes are more powerful than supercomputers because they
support more simultaneous programs. But supercomputers can execute a single
program faster than a mainframe.

08/24/1546

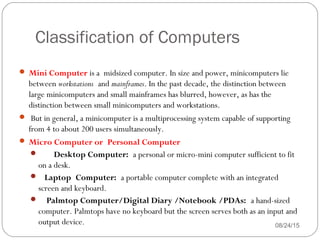

 Mini Computer is a midsized computer. In size and power, minicomputers lie
between workstations and mainframes. In the past decade, the distinction between
large minicomputers and small mainframes has blurred, however, as has the
distinction between small minicomputers and workstations.
 But in general, a minicomputer is a multiprocessing system capable of supporting
from 4 to about 200 users simultaneously.
 Micro Computer or Personal Computer
    Desktop Computer: a personal or micro-mini computer sufficient to fit
on a desk.
   Laptop Computer: a portable computer complete with an integrated
screen and keyboard.
    Palmtop Computer/Digital Diary /Notebook /PDAs: a hand-sized
computer. Palmtops have no keyboard but the screen serves both as an input and
output device.

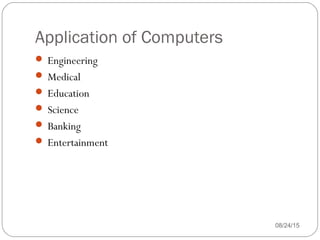

Application of Computers
08/24/1547
 Engineering
 Medical
 Education
 Science
 Banking
 Entertainment

1 introduction-to-computer

More Related Content

What's hot

Viewers also liked

Similar to 1 introduction-to-computer

More from Rohit Shrivastava

1 introduction-to-computer

Editor's Notes
