The document discusses wireless connectivity options for device-to-cloud applications. It compares different wireless technologies like LTE-M, LTE Cat M1, and LTE Cat 0-6 in terms of speed, power consumption, bandwidth, and rollout timing. LTE Cat M1 offers the best combination of low cost, power efficiency, coverage enhancement, and speeds from 300kbps to 1Mbps. It is expected to see initial rollouts in 2016-2017, followed by mass build-out from 2017 onwards, making it very well suited for applications requiring long battery life and deep indoor coverage like package trackers, security systems, and industrial sensors.

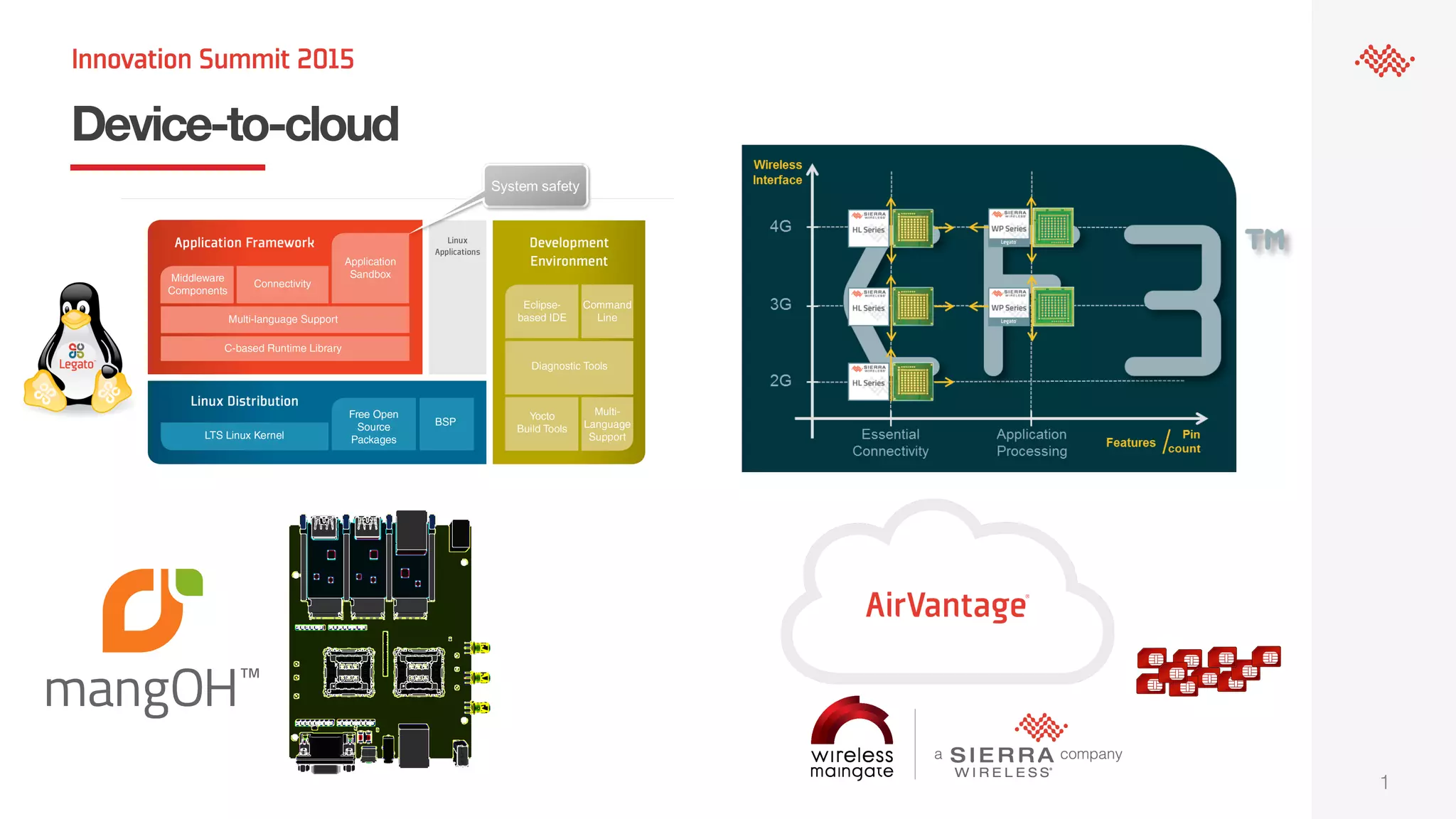

1. Device-to-cloud
1

2. Why are we doing all this
2

3. Why are we doing all this
3

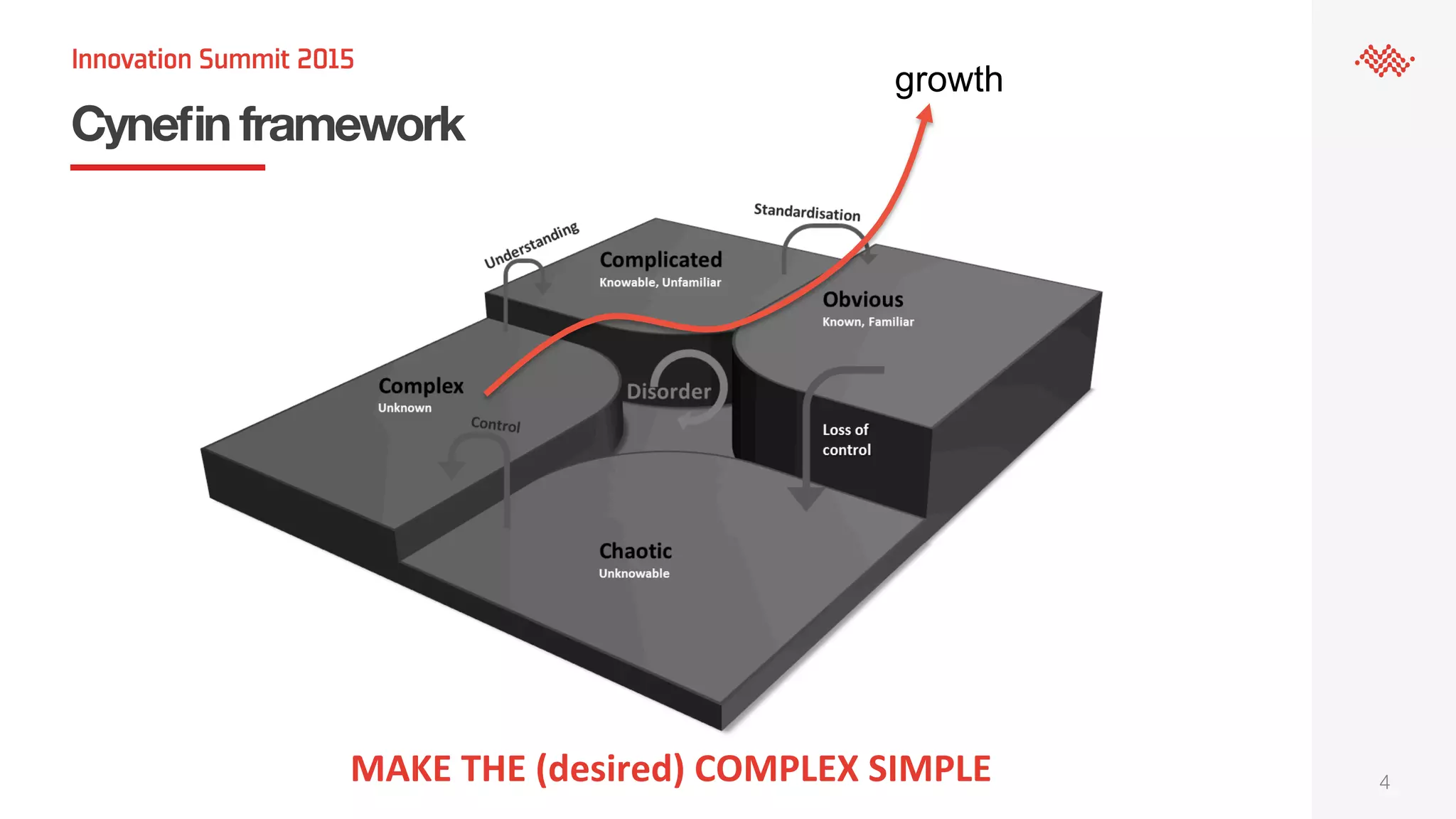

4. Cynefin framework
MAKE
THE
(desired)
COMPLEX
SIMPLE
4
growth

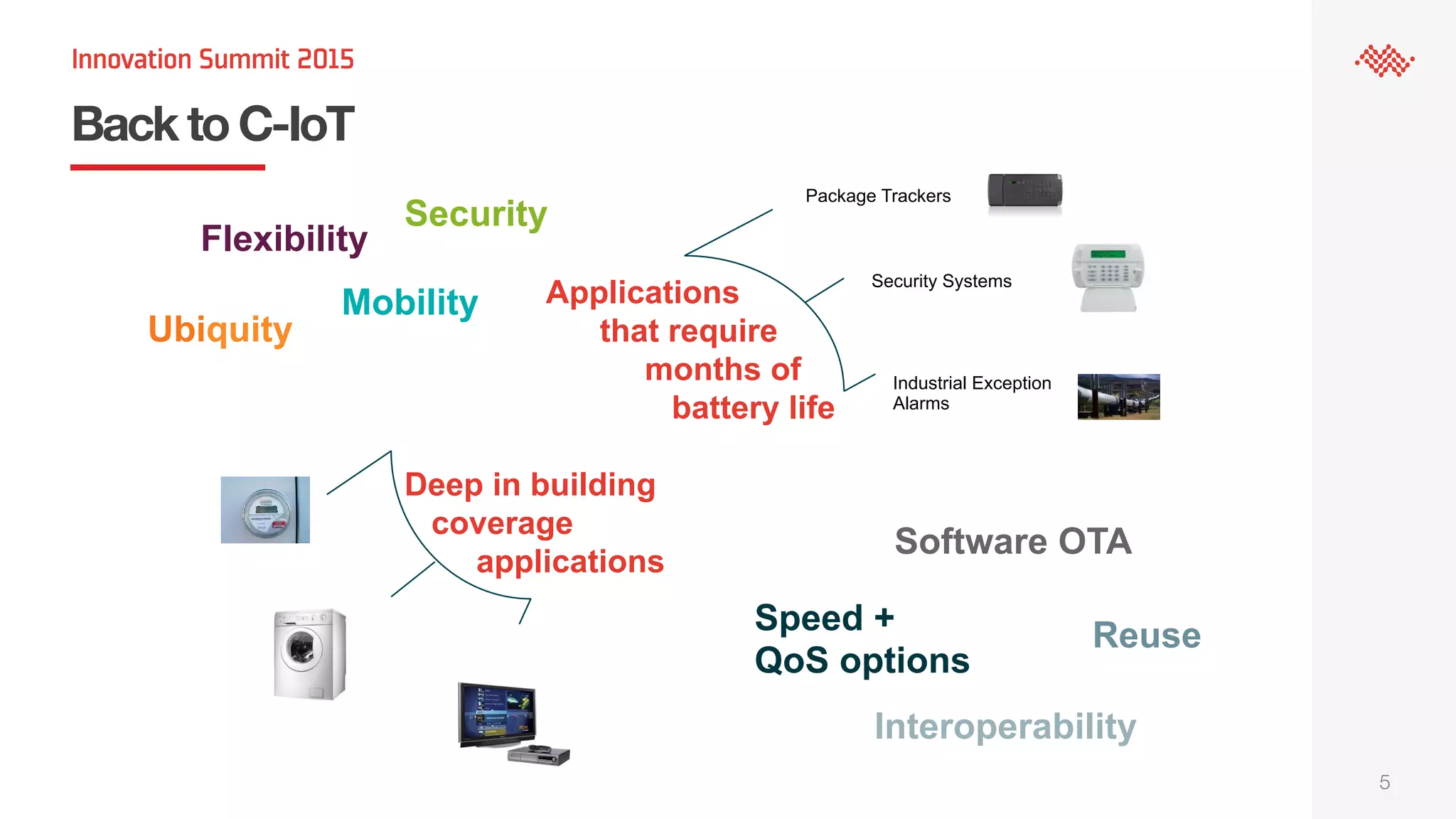

5. Back to C-IoT
5
Package Trackers
Security Systems
Industrial Exception
Alarms
Applications
that require
months of
battery life
Deep in building
coverage
applications
Mobility
Security
Ubiquity
Software OTA
Speed +
QoS options
Reuse
Interoperability
Flexibility

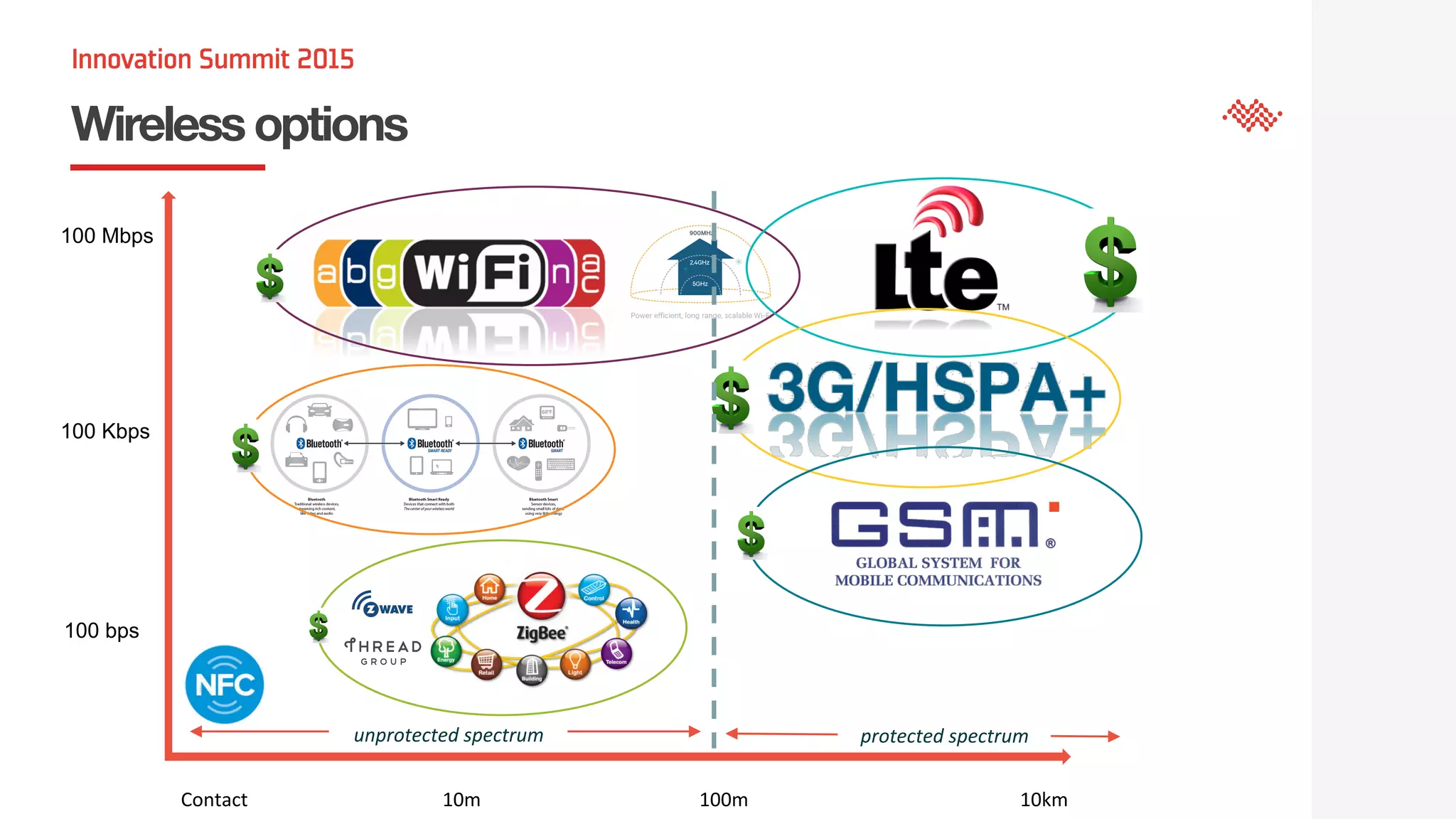

6. Wireless options
Contact
10m
100m
10km
100 Mbps
100 Kbps
100 bps
unprotected
spectrum
protected
spectrum

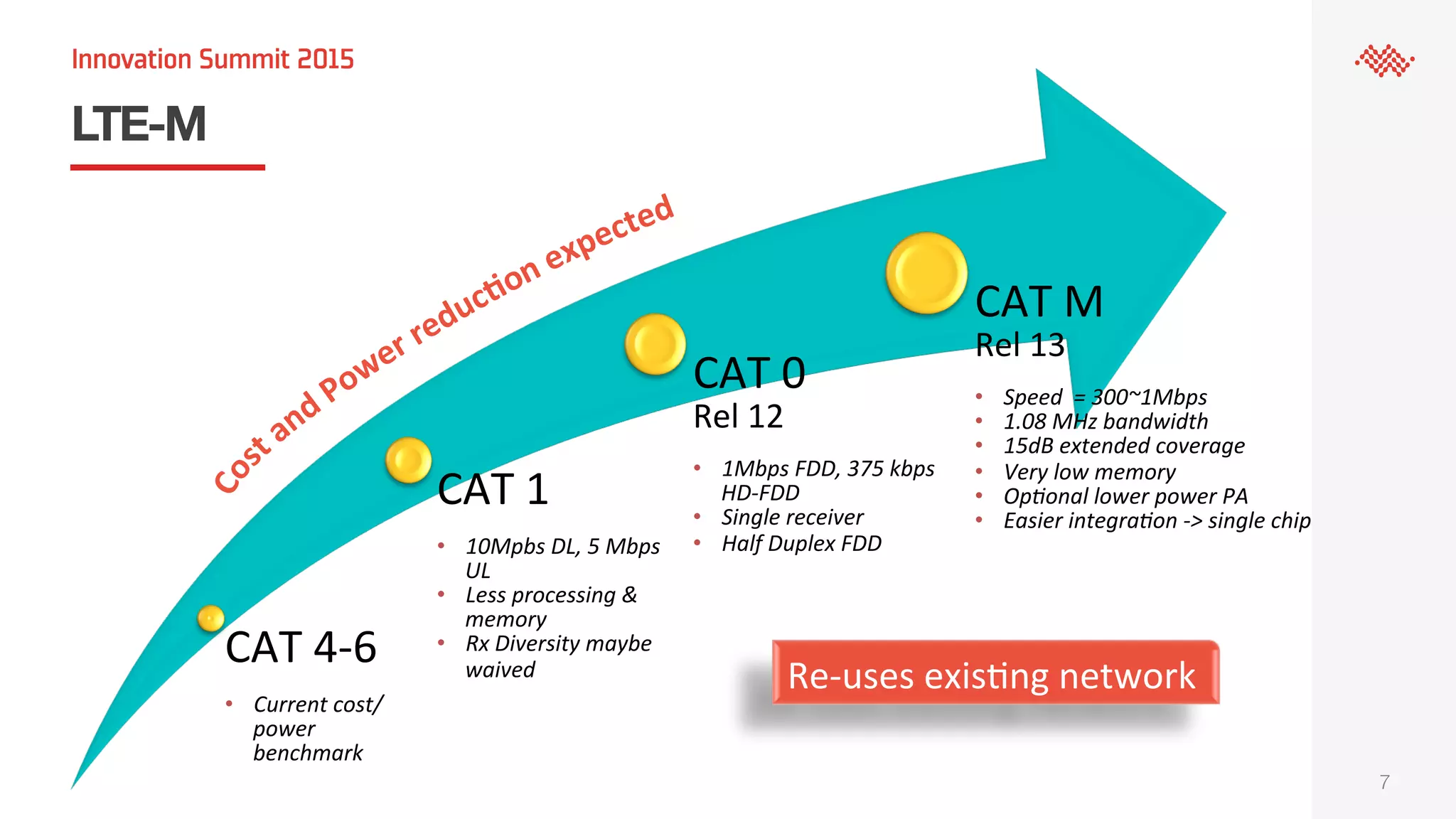

7. LTE-M
7
CAT
4-­‐6
• Current
cost/
power
benchmark
CAT
1
• 10Mpbs
DL,
5
Mbps
UL
• Less
processing
&
memory
• Rx
Diversity
maybe
waived
CAT
0
Rel
12
• 1Mbps
FDD,
375
kbps
HD-­‐FDD
• Single
receiver
• Half
Duplex
FDD
CAT
M
Rel
13
• Speed
=
300~1Mbps
• 1.08
MHz
bandwidth
• 15dB
extended
coverage
• Very
low
memory
• OpSonal
lower
power
PA
• Easier
integraSon
-­‐>
single
chip
Re-­‐uses
exis;ng
network

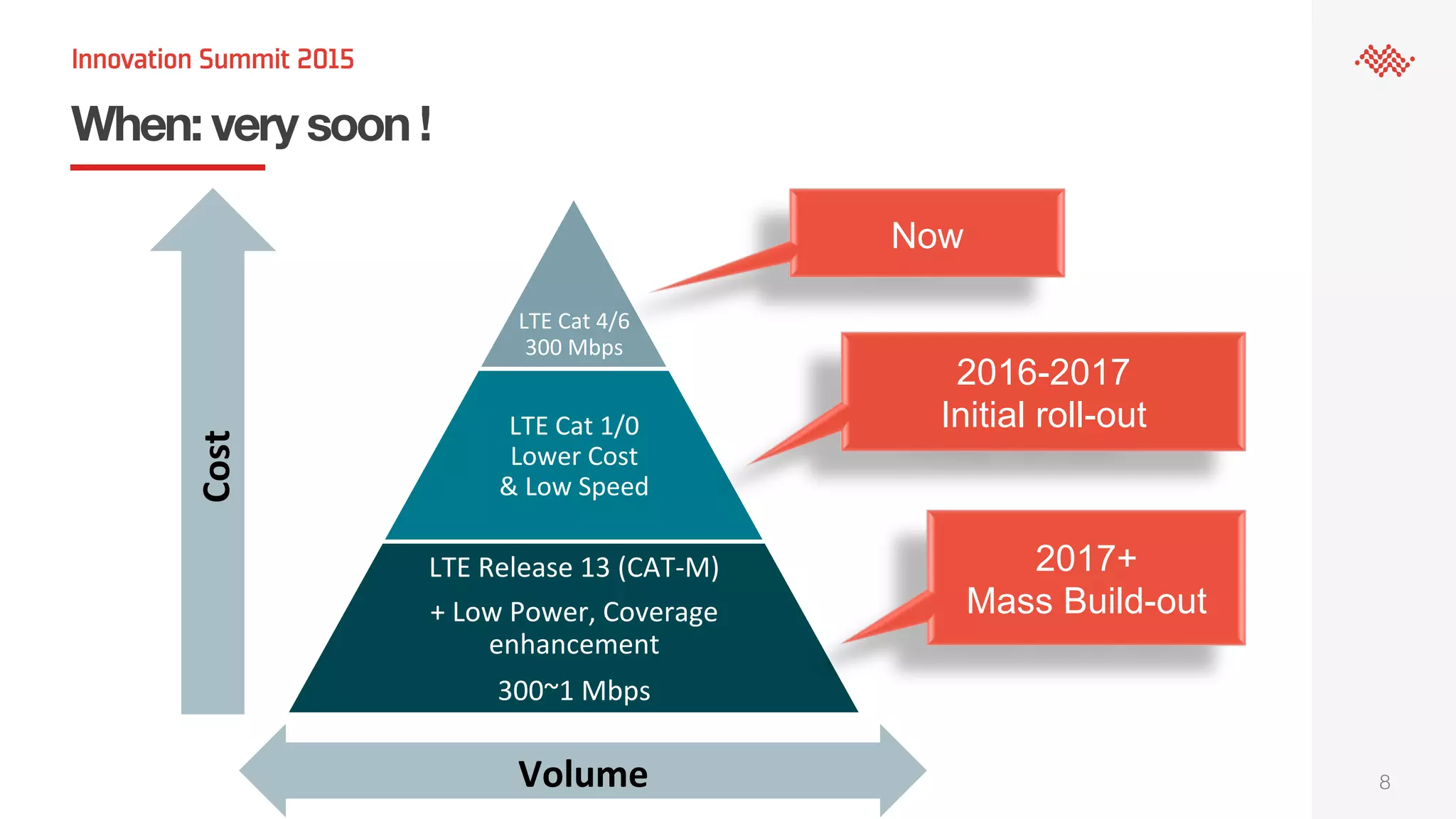

8. When: very soon !
8
LTE
Cat
4/6
300
Mbps
LTE
Cat
1/0
Lower
Cost
&
Low
Speed
LTE
Release
13
(CAT-­‐M)
+
Low
Power,
Coverage
enhancement
300~1
Mbps
Now
2016-2017
Initial roll-out
2017+
Mass Build-out
Volume
Cost

9. PLATINUM
SPONSOR
GOLD
SPONSORS
Innovation Summit 2015
