5G RAN Equipment Evolution and Roadmap
- 1. 5G RAN Equipment Evolution July 2019

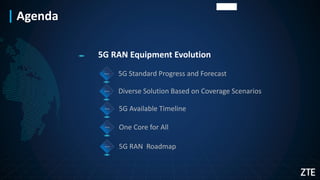

- 2. Agenda … 5G Standard Progress and Forecast … Diverse Solution Based on Coverage Scenarios … 5G Available Timeline 5G RAN Equipment Evolution … One Core for All … 5G RAN Roadmap 机密▲
- 3. 5G Standard Progress and Forecast 2017 2018 2019 2020+ R15 WI Phase 1 R16 WI Phase 2 R17 eMBB URLLC mMTC NSA SA (5GC) Continuous Enhancement Continuous Enhancement Enhancement UR Initial 5G launch will mainly focus on eMBB. LLC Last drop 机密▲

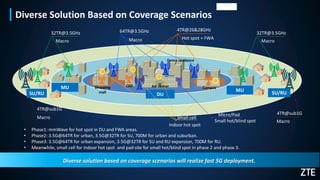

- 4. Diverse Solution Based on Coverage Scenarios Dense residence U N I V E R S I T Y U N I V E R S I T Y DU MU SU/RU MU SU/RU Ad. center 64TR@3.5GHz Macro 32TR@3.5GHz Macro Small cell Indoor hot spot Micro/Pad Small hot/blind spot 4TR@sub1G Macro Campus CBD Shopping mall 4TR@26&28GHz Hot spot + FWA 32TR@3.5GHz Macro 4TR@sub1G Macro • Phase1: mmWave for hot spot in DU and FWA areas. • Phase2: 3.5G@64TR for urban, 3.5G@32TR for SU, 700M for urban and suburban. • Phase3: 3.5G@64TR for urban expansion, 3.5G@32TR for SU and RU expansion, 700M for RU. • Meanwhile, small cell for indoor hot spot and pad site for small hot/blind spot in phase 2 and phase 3. Diverse solution based on coverage scenarios will realize fast 5G deployment. 机密▲

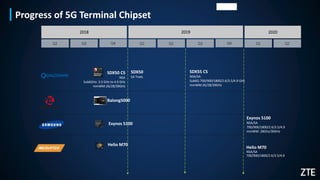

- 5. Progress of 5G Terminal Chipset 2018 Q2 Q3 Q4 2019 Q2 Q3 Q4 Q1 2020 Q1 Q2 SDX50 CS NSA Sub6GHz: 3.3 GHz to 4.9 GHz mmWM:26/28/39GHz SDX50 SA Trials SDX55 CS NSA/SA Sub6G:700/900/1800/2.6/3.5/4.9 GHz mmWM:26/28/39GHz Exynos 5100 Exynos 5100 NSA/SA 700/900/1800/2.6/3.5/4.9 mmWM: 28Ghz/30GHz Balong5000 Helio M70 Helio M70 NSA/SA 700/900/1800/2.6/3.5/4.9 机密▲

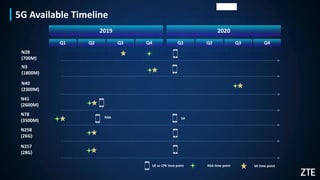

- 6. N28 (700M) N3 (1800M) N41 (2600M) N40 (2300M) N78 (3500M) 2019 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 2020 NSA time point SA time point 5G Available Timeline UE or CPE time point N258 (26G) N257 (28G) SA NSA 机密▲

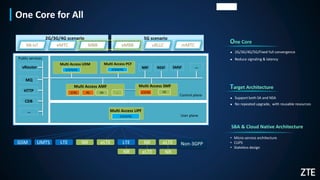

- 7. One Core for All Multi Access UPF 2/3/4/5G Multi Access UDM 4G … Multi Access AMF 5G Multi Access SMF Multi Access PCF NRF NSSF SMSF … 5G 2/3/4/5G 2/3/4/5G 2/3G 2/3/4G eMBB uRLLC mMTC MBB NB-IoT eMTC vRouter HTTP MQ … CDB 2G/3G/4G scenario 5G scenario User plane Control plane Public services Non-3GPP LTE NR eLTE eLTE NR LTE NR eLTE NR UMTS GSM Support both SA and NSA No repeated upgrade, with reusable resources • Micro-service architecture • CUPS • Stateless design 2G/3G/4G/5G/Fixed full convergence Reduce signaling & latency 机密▲

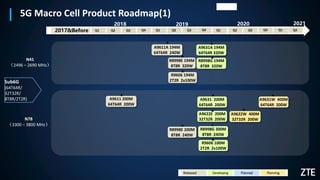

- 9. 2018 2017&Before 2019 2020 N78 （3300 – 3800 MHz） 5G Macro Cell Product Roadmap(1) Released Developing Planned Planning Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 N41 （2496 – 2690 MHz） A9611A 194M 64T64R 240W A9631A 194M 64T64R 320W R8998E 194M 8T8R 320W A9611 200M 64T64R 200W A9631 200M 64T64R 200W A9622E 200M 32T32R 200W R8998G 194M 8T8R 320W R8998G 300M 8T8R 240W R8998E 200M 8T8R 240W A9622W 400M 32T32R 200W R9606 194M 2T2R 2x100W R9606 100M 2T2R 2x100W A9631W 400M 64T64R 200W Q1 Q2 2021 Sub6G (64T64R/ 32T32R/ 8T8R/2T2R) 机密▲

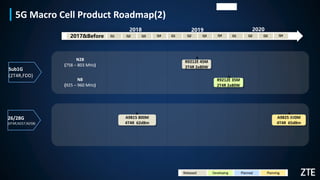

- 10. 2018 2017&Before 2019 2020 N28 (758 – 803 MHz) N8 (925 – 960 MHz) Released Developing Planned Planning R9212E 45M 2T4R 2x80W A9815 800M 4T4R 62dBm R9212E 35M 2T4R 2x80W A9825 800M 4T4R 65dBm Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 5G Macro Cell Product Roadmap(2) Sub1G (2T4R,FDD) 26/28G (4T4R,N257,N258) 机密▲
- 11. Outdoor Pad RRU N78 N258 2019 2020 2021&later Micro BTS N257 /N258 Indoor Qcell LTE + NR pBrige pRRU Connection & Power Supply Released Developing Planned Planning R8139 M182135 LTE + NR 100M 2T2R(L) +2T2R(L)+ 4T4R(NR) 2x100mw+2*100mw+4x250mw PB1124F 8*10GE Port R9105 200M 4T4R 4x10W R8139 LTE + NR LAA (TBD) BS9316 2T2R@800M/4T4R@400M 51dBm (TBD) R9115 200M (TBD) R8139 100M, 4T4R, 4x250mw NR Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 A9316 2T2R@800M/4T4R@400M 51dBm A9306 S26/28 800M 2T2R 40dBm N41 R9105 194M 4T4R 4x10W R8139 M90182326 LTE + NR 100M 2T2R(L) +2T2R(L)+2T2R(L)+ 4T4R(NR) 2x100mw+2*100mw+2*250mw+4x250mw 5G Small Cell Product Roadmap 机密▲
- 12. © ZTE All Rights Reserved THANK YOU ! 机密▲
- 13. Band Number UL DL Duplex Mode n1 1920 – 1980 MHz 2110 – 2170 MHz FDD n2 1850 – 1910 MHz 1930 – 1990 MHz FDD n3 1710 – 1785 MHz 1805 – 1880 MHz FDD n5 824 – 849 MHz 869 – 894MHz FDD n7 2500 – 2570 MHz 2620 – 2690 MHz FDD n8 880 – 915 MHz 925 – 960 MHz FDD n12 699 – 716 MHz 729 – 746 MHz FDD n20 832 – 862 MHz 791– 821MHz FDD n25 1850 – 1915 MHz 1930 – 1995MHz FDD n28 703 – 748 MHz 758 – 803 MHz FDD n34 2010 – 2025 MHz 2010 – 2025 MHz TDD n38 2570 – 2620 MHz 2570 – 2620 MHz TDD n39 1880 – 1920 MHz 1880 – 1920 MHz TDD n40 2300 – 2400 MHz 2300 – 2400 MHz TDD n41 2496 – 2690 MHz 2496 – 2690 MHz TDD n50 1432 – 1517 MHz 1432 – 1517 MHz TDD n51 1427 – 1432 MHz 1427 – 1432 MHz TDD n66 1710 – 1780 MHz 2110 – 2200 MHz FDD n70 1695 – 1710 MHz 1995– 2020 MHz FDD n71 663 – 698 MHz 617 – 652 MHz FDD n74 1427 – 1470 MHz 1475 – 1518 MHz FDD n75 N/A 1432 – 1517 MHz SDL n76 N/A 1427 – 1432 MHz SDL n77 3300 – 4200 MHz 3300 – 4200 MHz TDD n78 3300 – 3800 MHz 3300 – 3800 MHz TDD n79 4400 – 5000 MHz 4400 – 5000 MHz TDD n80 1710 – 1785 MHz N/A SUL n81 880 – 915 MHz N/A SUL n82 832 – 862 MHz N/A SUL n83 703 – 748 MHz N/A SUL n84 1920 – 1980 MHz N/A SUL n86 1710 – 1780MHz N/A SUL Band List 机密▲
- 14. V9200 BBU • Industry leading BBU platform, supporting 5G SA/NSA and 2G/3G/4G • Highest integrated level, largest capacity (15 x 100 MHz x 64T64R Cells) and smallest size (2U) • Powerful interfaces: 2 x 25 Gbps + 2 x 100 Gbps The ZXRAN V9200 UMTS FDD LTE 5G TD-LTE GSM NB-IoT 机密▲

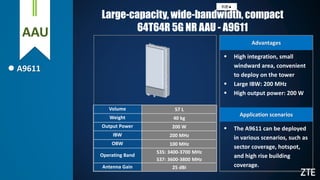

- 15. AAU A9611 Large-capacity, wide-bandwidth, compact 64T64R 5G NR AAU - A9611 High integration, small windward area, convenient to deploy on the tower Large IBW: 200 MHz High output power: 200 W The A9611 can be deployed in various scenarios, such as sector coverage, hotspot, and high rise building coverage. Advantages Application scenarios Volume 57 L Weight 40 kg Output Power 200 W IBW 200 MHz OBW 100 MHz Operating Band S35: 3400-3700 MHz S37: 3600-3800 MHz Antenna Gain 25 dBi 机密▲
- 16. RRU R9212E 2G/3G/4G/5G NR multi-mode 2T4R RRU - R9212E Large capacity Faster deployment High Efficiency, Lower TCO eMBB and uRLLC 2G/3G/4G/5G NR multi- mode RRU Volume 12 L Weight 15 kg Output Power 2 x 80 W Channel Bandwidth (LTE) S9000: 1.4/3/5/10 MHz S7200: 3/5/10/15/20 MHz Channel Bandwidth (NR) S9000: 5/10 MHz S7200: 5/10/15/20 MHz Operating Band S9000: B8/n8 S7200: B28/n28 The R9212E is deployed for low latency, wide coverage, and multimode macro cell areas. Advantages Application scenarios 机密▲
- 17. AAU A9611A Large-capacity, wide-bandwidth, compact 64T64R 5G NR AAU - A9611A Volume 76 L Weight 43 kg Output Power 240 W IBW 194 MHz OBW 160 MHz Operating Band S26: 2496-2690 MHz Antenna Gain 24.5 dBi • The A9611A can be deployed in large capacity macro scenarios. Advantages Application scenarios High integration, small windward area, convenient to deploy on the tower Large IBW: 194 MHz High output power: 240 W 机密▲
- 18. RRU R8998E 5G NR 8T8R RRU – R8998E Large Capacity High Spectrum Efficiency Highly Integrated, Easy Site Acquiring Cost-effective Volume M3537/S3700: 30 L S2600: 25 L Weight M3537/S3700: 28 kg S2600: 23 kg Output Power M3537/S3700: 8x30W S2600: 8x40W IBW M3537: 210 MHz S3700: 200 MHz S2600: 194 MHz OBW M3537/S3700: 120 MHz S2600: 160 MHz Operating Band M3537:3400-3700 MHz S3700:3600-3800 MHz S2600:2496-2690 MHz The R8998E can be deployed for cost-effective, large capacity, and wide coverage macro cell areas. Advantages Application scenarios 机密▲

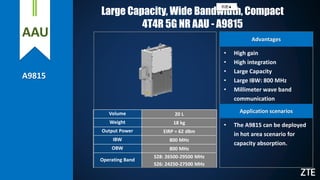

- 19. AAU A9815 Large Capacity, Wide Bandwidth, Compact 4T4R 5G NR AAU - A9815 Volume 20 L Weight 18 kg Output Power EIRP = 62 dBm IBW 800 MHz OBW 800 MHz Operating Band S28: 26500-29500 MHz S26: 24250-27500 MHz • The A9815 can be deployed in hot area scenario for capacity absorption. Advantages Application scenarios • High gain • High integration • Large Capacity • Large IBW: 800 MHz • Millimeter wave band communication 机密▲
- 20. R8139 PB1124F Small Cell Remote Radio Unit (PicoRRU) of the Qcell – R8139 Quick deployment, low cost 4G and NR Compatible Smallest Pico RRU Optical and electrical cable compatible Cascading capability Volume 1.6 L Weight 1.6 kg Output Power 4 x 250 mW IBW 100 MHz OBW 100 MHz Operating Band 3300-3600 MHz The Qcell is used for indoor large-area coverage, such as railway stations, airports, commercial centers, gymnasiums, etc. Advantages Application scenarios 机密▲

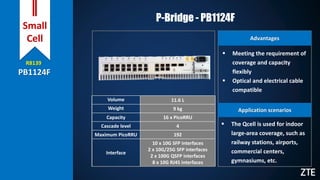

- 21. R8139 PB1124F Small Cell P-Bridge - PB1124F The Qcell is used for indoor large-area coverage, such as railway stations, airports, commercial centers, gymnasiums, etc. Volume 11.6 L Weight 9 kg Capacity 16 x PicoRRU Cascade level 4 Maximum PicoRRU 192 Interface 10 x 10G SFP interfaces 2 x 10G/25G SFP interfaces 2 x 100G QSFP interfaces 8 x 10G RJ45 interfaces Meeting the requirement of coverage and capacity flexibly Optical and electrical cable compatible Advantages Application scenarios
Editor's Notes
- LLC 低时延, UR超可靠 ，两个不同的功能 ，有的业务需要同时满足。
- Slide give a general picture on 5G eco-system. About 19 verdors provides 7 categories totally 34 commercial terminals, including 11 5G smart phones, mainly based on Qualcomm X50. 19家供应商提供7大类大概34款终端，其中11款5G智能手机，6款5G热点，9款5G CPE，5款5G模块，2款5G dongles，1款USB可插拔终端。 From system side, products are ready in 18Q3 for both SA and NSA architecture. Bottleneck is mainly in terminal side. The chipset for NSA will be available in Q4 2018 from Qualcomm and Hisense. The SA chipset will be available in Q1 2019, from Qualcomm, Intel and MTK The commercial 5G CPEs are expected in Q2 2019, based on chipset from Qualcomm, Intel or MTK The 5G smart phone will be one quarter later in Q3 2019 It is expected that the terminal voice solution will only support EPS Fallback in 2019 and support VoNR in 2020.
