We are going to cover complete list of VoLTE IMS KPI and performance Indicators . This includes :-
VoLTE IMS Control Plane KPI
- RSR : Registration Success Ratio (%)
- CSSR : Call Setup Success Rate (%)
- CST : Call Setup Time (s)
- MHT/ACD : Average Call duration (s)
VoLTE IMS User Plane KPI
- Mute Rate (%)
- MOS Score (1-5)
- RTP Packet Loss (%)
- One Way Calls (%)
Packet Core 4G Network LTE KPI
- Volte Attach Success Rate (%)
- VoLTE QCI=5 Paging Success Rate (%)
- Dedicated Bearer Activation Success Rate (%)
- IMS IP POOL Utilization (%)
- Create Bearer Success Rate (%)
Radio VoLTE KPI
- Call Drop rate (%)
- SRVCC Success Rate (%)
- Handover SR (%)
The document discusses the basic software architecture of a digital switching system. It describes the operating system, database management, and classification of digital switch software. It also provides an overview of a basic call model, including the connect sequence, and discusses the software linkages required during a typical call. Finally, it presents a simplified flow diagram for a call forwarding feature.
The document provides an overview and analysis process for optimizing the W-Paging problem in a network. It begins with collecting network information such as traffic statistics and alarms. The analysis process involves identifying optimization goals, locating specific paging problems, analyzing typical cases, and verifying optimization solutions. Key performance indicators for paging include success rates for various paging types initiated by the core network or radio access network.
9Tuts.Com New CCNA 200-120 New CCNA New Questions 2Lori Head
The output "MTU 1500 bytes" refers to the maximum transmission unit, which is the maximum size of a packet or frame that can be sent in a single piece over a link in a network.
The correct answer is F. The maximum frame size that can traverse this interface is 1500 bytes.
Syed Idrish has over 2 years of experience in network support roles. He currently works at Samsung Electronics troubleshooting backhaul issues like low throughput and VoLTE call quality. Previously he worked at Tikona Digital Network and Vedang Cellular Service in network support and project engineering roles. He has skills in Linux, routing protocols, switching, and troubleshooting networking issues. He is pursuing a CCNP in routing and switching and holds a BE in Electronics and Communications.
The document discusses optimization of a 3G UMTS HSPA radio network in a BSNL service area. It explains that optimization is a continuous process of maintaining and improving network performance by analyzing statistics and drive test data. Successful optimization requires understanding reasons for call failures, capturing call parameters prior to drops, and analyzing call flows. The document outlines parameters used in optimization like BSIC, LAI, latency, and describes the drive test procedure and post-processing tools used to analyze network performance data.
Shajeer P is seeking a position in electronics, communication, or allied software fields. He has over 5 years of experience in telecommunications engineering, including roles with Batco Telecom and Integrated Wireless Solutions. His experience includes tasks like network fault troubleshooting, equipment configuration and software upgrades, radio link installation and optimization, and drive testing to analyze network performance. He is proficient in telecom software like OMS 1410 and has a Bachelor's degree in Electronics and Communication Engineering.
IBM Streams V4.1 and Incremental Checkpointinglisanl
Fang Zheng is a member of the IBM Streams development team. In his presentation, Fang provides an introduction to the incremental checkpointing feature that is available in IBM Streams V4.1, including how it works and how to use it.
The document discusses network audit of a radio access network (RAN) in a GSM system. It provides details on:
1) The benefits of network audits in identifying issues, improving quality and processes, and optimizing network design.
2) The steps of a network audit including information gathering, analysis, and recommendations.
3) Key performance indicators measured for the RAN including accessibility, retainability, neighbor parameters, frequency planning, and competitive benchmarks.
4) An example audit of a city's network where data was collected and analyzed to identify problems and make recommendations for optimization.
Basics of performance measurement in umtsEkwere Udoh
This document discusses performance measurement in UMTS networks. It provides definitions for key performance indicators (KPIs) and explains how KPIs can be calculated from raw performance data collected from network elements. Specifically, it notes that proper KPI definitions require considering factors like protocol message types, network topology, and how measurements are aggregated. The document also outlines the basic approach for performance measurement equipment to capture and filter relevant data from UTRAN interfaces in order to compute meaningful KPIs.
Maruthi Prithivirajan, Head of ASEAN & IN Solution Architecture, Neo4j
Get an inside look at the latest Neo4j innovations that enable relationship-driven intelligence at scale. Learn more about the newest cloud integrations and product enhancements that make Neo4j an essential choice for developers building apps with interconnected data and generative AI.
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdfPaige Cruz
Monitoring and observability aren’t traditionally found in software curriculums and many of us cobble this knowledge together from whatever vendor or ecosystem we were first introduced to and whatever is a part of your current company’s observability stack.
While the dev and ops silo continues to crumble….many organizations still relegate monitoring & observability as the purview of ops, infra and SRE teams. This is a mistake - achieving a highly observable system requires collaboration up and down the stack.
I, a former op, would like to extend an invitation to all application developers to join the observability party will share these foundational concepts to build on:
Dr. Sean Tan, Head of Data Science, Changi Airport Group
Discover how Changi Airport Group (CAG) leverages graph technologies and generative AI to revolutionize their search capabilities. This session delves into the unique search needs of CAG’s diverse passengers and customers, showcasing how graph data structures enhance the accuracy and relevance of AI-generated search results, mitigating the risk of “hallucinations” and improving the overall customer journey.
Threats to mobile devices are more prevalent and increasing in scope and complexity. Users of mobile devices desire to take full advantage of the features
available on those devices, but many of the features provide convenience and capability but sacrifice security. This best practices guide outlines steps the users can take to better protect personal devices and information.
Driving Business Innovation: Latest Generative AI Advancements & Success StorySafe Software
Are you ready to revolutionize how you handle data? Join us for a webinar where we’ll bring you up to speed with the latest advancements in Generative AI technology and discover how leveraging FME with tools from giants like Google Gemini, Amazon, and Microsoft OpenAI can supercharge your workflow efficiency.
During the hour, we’ll take you through:
Guest Speaker Segment with Hannah Barrington: Dive into the world of dynamic real estate marketing with Hannah, the Marketing Manager at Workspace Group. Hear firsthand how their team generates engaging descriptions for thousands of office units by integrating diverse data sources—from PDF floorplans to web pages—using FME transformers, like OpenAIVisionConnector and AnthropicVisionConnector. This use case will show you how GenAI can streamline content creation for marketing across the board.
Ollama Use Case: Learn how Scenario Specialist Dmitri Bagh has utilized Ollama within FME to input data, create custom models, and enhance security protocols. This segment will include demos to illustrate the full capabilities of FME in AI-driven processes.
Custom AI Models: Discover how to leverage FME to build personalized AI models using your data. Whether it’s populating a model with local data for added security or integrating public AI tools, find out how FME facilitates a versatile and secure approach to AI.
We’ll wrap up with a live Q&A session where you can engage with our experts on your specific use cases, and learn more about optimizing your data workflows with AI.
This webinar is ideal for professionals seeking to harness the power of AI within their data management systems while ensuring high levels of customization and security. Whether you're a novice or an expert, gain actionable insights and strategies to elevate your data processes. Join us to see how FME and AI can revolutionize how you work with data!
Goodbye Windows 11: Make Way for Nitrux Linux 3.5.0!SOFTTECHHUB
As the digital landscape continually evolves, operating systems play a critical role in shaping user experiences and productivity. The launch of Nitrux Linux 3.5.0 marks a significant milestone, offering a robust alternative to traditional systems such as Windows 11. This article delves into the essence of Nitrux Linux 3.5.0, exploring its unique features, advantages, and how it stands as a compelling choice for both casual users and tech enthusiasts.
UiPath Test Automation using UiPath Test Suite series, part 6DianaGray10
Welcome to UiPath Test Automation using UiPath Test Suite series part 6. In this session, we will cover Test Automation with generative AI and Open AI.
UiPath Test Automation with generative AI and Open AI webinar offers an in-depth exploration of leveraging cutting-edge technologies for test automation within the UiPath platform. Attendees will delve into the integration of generative AI, a test automation solution, with Open AI advanced natural language processing capabilities.
Throughout the session, participants will discover how this synergy empowers testers to automate repetitive tasks, enhance testing accuracy, and expedite the software testing life cycle. Topics covered include the seamless integration process, practical use cases, and the benefits of harnessing AI-driven automation for UiPath testing initiatives. By attending this webinar, testers, and automation professionals can gain valuable insights into harnessing the power of AI to optimize their test automation workflows within the UiPath ecosystem, ultimately driving efficiency and quality in software development processes.
What will you get from this session?
1. Insights into integrating generative AI.
2. Understanding how this integration enhances test automation within the UiPath platform
3. Practical demonstrations
4. Exploration of real-world use cases illustrating the benefits of AI-driven test automation for UiPath
Topics covered:
What is generative AI
Test Automation with generative AI and Open AI.
UiPath integration with generative AI
Speaker:
Deepak Rai, Automation Practice Lead, Boundaryless Group and UiPath MVP
UiPath Test Automation using UiPath Test Suite series, part 5DianaGray10
Welcome to UiPath Test Automation using UiPath Test Suite series part 5. In this session, we will cover CI/CD with devops.
Topics covered:
CI/CD with in UiPath
End-to-end overview of CI/CD pipeline with Azure devops
Speaker:
Lyndsey Byblow, Test Suite Sales Engineer @ UiPath, Inc.
AI 101: An Introduction to the Basics and Impact of Artificial IntelligenceIndexBug
Imagine a world where machines not only perform tasks but also learn, adapt, and make decisions. This is the promise of Artificial Intelligence (AI), a technology that's not just enhancing our lives but revolutionizing entire industries.
Removing Uninteresting Bytes in Software FuzzingAftab Hussain
Imagine a world where software fuzzing, the process of mutating bytes in test seeds to uncover hidden and erroneous program behaviors, becomes faster and more effective. A lot depends on the initial seeds, which can significantly dictate the trajectory of a fuzzing campaign, particularly in terms of how long it takes to uncover interesting behaviour in your code. We introduce DIAR, a technique designed to speedup fuzzing campaigns by pinpointing and eliminating those uninteresting bytes in the seeds. Picture this: instead of wasting valuable resources on meaningless mutations in large, bloated seeds, DIAR removes the unnecessary bytes, streamlining the entire process.
In this work, we equipped AFL, a popular fuzzer, with DIAR and examined two critical Linux libraries -- Libxml's xmllint, a tool for parsing xml documents, and Binutil's readelf, an essential debugging and security analysis command-line tool used to display detailed information about ELF (Executable and Linkable Format). Our preliminary results show that AFL+DIAR does not only discover new paths more quickly but also achieves higher coverage overall. This work thus showcases how starting with lean and optimized seeds can lead to faster, more comprehensive fuzzing campaigns -- and DIAR helps you find such seeds.
- These are slides of the talk given at IEEE International Conference on Software Testing Verification and Validation Workshop, ICSTW 2022.
Programming Foundation Models with DSPy - Meetup SlidesZilliz
Prompting language models is hard, while programming language models is easy. In this talk, I will discuss the state-of-the-art framework DSPy for programming foundation models with its powerful optimizers and runtime constraint system.
In the rapidly evolving landscape of technologies, XML continues to play a vital role in structuring, storing, and transporting data across diverse systems. The recent advancements in artificial intelligence (AI) present new methodologies for enhancing XML development workflows, introducing efficiency, automation, and intelligent capabilities. This presentation will outline the scope and perspective of utilizing AI in XML development. The potential benefits and the possible pitfalls will be highlighted, providing a balanced view of the subject.
We will explore the capabilities of AI in understanding XML markup languages and autonomously creating structured XML content. Additionally, we will examine the capacity of AI to enrich plain text with appropriate XML markup. Practical examples and methodological guidelines will be provided to elucidate how AI can be effectively prompted to interpret and generate accurate XML markup.
Further emphasis will be placed on the role of AI in developing XSLT, or schemas such as XSD and Schematron. We will address the techniques and strategies adopted to create prompts for generating code, explaining code, or refactoring the code, and the results achieved.
The discussion will extend to how AI can be used to transform XML content. In particular, the focus will be on the use of AI XPath extension functions in XSLT, Schematron, Schematron Quick Fixes, or for XML content refactoring.
The presentation aims to deliver a comprehensive overview of AI usage in XML development, providing attendees with the necessary knowledge to make informed decisions. Whether you’re at the early stages of adopting AI or considering integrating it in advanced XML development, this presentation will cover all levels of expertise.
By highlighting the potential advantages and challenges of integrating AI with XML development tools and languages, the presentation seeks to inspire thoughtful conversation around the future of XML development. We’ll not only delve into the technical aspects of AI-powered XML development but also discuss practical implications and possible future directions.
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...SOFTTECHHUB
The choice of an operating system plays a pivotal role in shaping our computing experience. For decades, Microsoft's Windows has dominated the market, offering a familiar and widely adopted platform for personal and professional use. However, as technological advancements continue to push the boundaries of innovation, alternative operating systems have emerged, challenging the status quo and offering users a fresh perspective on computing.
One such alternative that has garnered significant attention and acclaim is Nitrux Linux 3.5.0, a sleek, powerful, and user-friendly Linux distribution that promises to redefine the way we interact with our devices. With its focus on performance, security, and customization, Nitrux Linux presents a compelling case for those seeking to break free from the constraints of proprietary software and embrace the freedom and flexibility of open-source computing.
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc
How does your privacy program stack up against your peers? What challenges are privacy teams tackling and prioritizing in 2024?
In the fifth annual Global Privacy Benchmarks Survey, we asked over 1,800 global privacy professionals and business executives to share their perspectives on the current state of privacy inside and outside of their organizations. This year’s report focused on emerging areas of importance for privacy and compliance professionals, including considerations and implications of Artificial Intelligence (AI) technologies, building brand trust, and different approaches for achieving higher privacy competence scores.
See how organizational priorities and strategic approaches to data security and privacy are evolving around the globe.
This webinar will review:
- The top 10 privacy insights from the fifth annual Global Privacy Benchmarks Survey
- The top challenges for privacy leaders, practitioners, and organizations in 2024
- Key themes to consider in developing and maintaining your privacy program
HCL Notes and Domino License Cost Reduction in the World of DLAUpanagenda
Webinar Recording: https://www.panagenda.com/webinars/hcl-notes-and-domino-license-cost-reduction-in-the-world-of-dlau/
The introduction of DLAU and the CCB & CCX licensing model caused quite a stir in the HCL community. As a Notes and Domino customer, you may have faced challenges with unexpected user counts and license costs. You probably have questions on how this new licensing approach works and how to benefit from it. Most importantly, you likely have budget constraints and want to save money where possible. Don’t worry, we can help with all of this!
We’ll show you how to fix common misconfigurations that cause higher-than-expected user counts, and how to identify accounts which you can deactivate to save money. There are also frequent patterns that can cause unnecessary cost, like using a person document instead of a mail-in for shared mailboxes. We’ll provide examples and solutions for those as well. And naturally we’ll explain the new licensing model.
Join HCL Ambassador Marc Thomas in this webinar with a special guest appearance from Franz Walder. It will give you the tools and know-how to stay on top of what is going on with Domino licensing. You will be able lower your cost through an optimized configuration and keep it low going forward.
These topics will be covered
- Reducing license cost by finding and fixing misconfigurations and superfluous accounts
- How do CCB and CCX licenses really work?
- Understanding the DLAU tool and how to best utilize it
- Tips for common problem areas, like team mailboxes, functional/test users, etc
- Practical examples and best practices to implement right away
Unlocking Productivity: Leveraging the Potential of Copilot in Microsoft 365, a presentation by Christoforos Vlachos, Senior Solutions Manager – Modern Workplace, Uni Systems

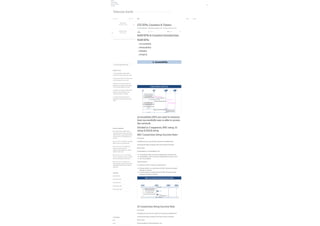

1. Telecom Earth Your One Stop for Telecom Updates, Forum, Discussion and Job Portal
LTE 0
LTE KPIs, Counters & Timers
BY TELECOMEARTH · PUBLISHED DECEMBER 7, 2016 · UPDATED JANUARY 18, 2017
0
SHARES
RAN KPIs & Counters Introduction
RAN KPIs
1. Accessibility
2. Retainability
3. Mobility
4. Integrity
Accessibility KPIs are used to measure
how successfully user is able to access
the network.
Divided in 3 segments, RRC setup, S1
setup & ERAB setup
RRC Connection Setup Success Rate:-
Description
Probability success rate for RRC Connections establishment.
Successful attempts compared with total number of attempts.
KPI Formula
[ConnEstabSucc/ ConnEstabAtt] * 100
ConnEstabAtt: RRC connection establishments attempt count
ConnEstabSucc: RRC connection establishments success count
Unit: Percentage(%)
Measuring point
For statistics on RRC connection establishment
Attempt statistic is counted when the RRC Connection Request
message is received.
Success statistic is counted when the RRC Connection Setup
Complete message is received.
S1 Connection Setup Success Rate
Description
Probability success rate for Logical S1-Connections establishment.
Successful attempts compared with total number of attempts.
KPI Formula
[S1ConnEstabSucc/S1ConnEstabAtt] * 100
Share Tweet +
Book Tata Sky Connection
Choose From Over 600 Channels
And Services With Superior Picture
& Sound Quality
MOREFOLLOW:
RECENT POSTS
One More Merger: BSNL, MTNL
merger plan back on discussion table
Stop buying that new 4G phone now
!!! 5G Smartphone is on the way
Reliance Jio’s massive small cell
deployment to enable smooth change
to 5G: President Mathew Oommen
Reliance Jio impact: Indian telecom
market to have ve players, says
Telecom Secretary J S Deepak
Freedom 251 phone:Director of
Ringing Bells Mohit Goel detained for
‘fraud’
RECENT COMMENTS
One More Merger: BSNL, MTNL
merger plan back on discussion table |
Telecom Earth on Stop buying that new
4G phone now !!! 5G Smartphone is on
the way
telecomearth on Reliance Jio Impact:
Bharti Airtel to buy Telenor India
Tinku Sharma on Vodafone has
signed a massive deal of 4G
deployment and expansion to Nokia,
Ready For New Jobs
Gyanendra kumar on The telecom
sector is expected to create two million
jobs this year,Thanks to New Entry
Kuldeep verma on Reliance Jio
offers free SIM, instant activation after
Amitabh Bachchan tweets Vodafone
SMS down
ARCHIVES
March 2017
February 2017
January 2017
December 2016
November 2016
CATEGORIES
2G
3G
NEXT STORY
WCDMA Channel
PREVIOUS STORY
LTE Channel
To search type and hit enter
Home
Technology
Telecom Tools
Forums

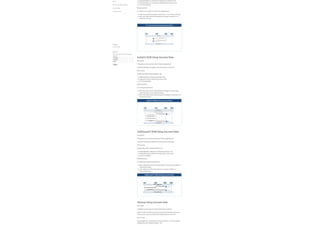

2. S1ConnEstabAtt: S1-connection establishment attempt count
S1ConnEstabSucc: S1-connection establishment success count
Unit: Percentage(%)
Measuring point
For statistics on Logical S1-connection establishment
when the Initial UE message is transmitted, it is counted as Attempt;
when the Initial Context Setup Request message is received, it is
counted as Success.
Initial E-RAB Setup Success Rate
Description
Probability success rate for initial E-RABs establishment.
Successful attempts compared with total number of attempts.
KPI Formula
[EstablnitSuccNbr/ EstablnitAttNbr] * 100
EstablnitAttNbr: E-RAB setup attempt count
EstablnitSuccNbr: E-RAB setup success count
Unit: Percentage(%)
Measuring point
For E-RAB setup statistics
When the Initial Context Setup Request message is received upon
initial call setup, it is counted as Attempt.
When the Initial Context Setup Response message is transmitted, it is
counted as Success.
Additional E-RAB Setup Success Rate
Description
Probability success rate for additional E-RABs establishment.
Successful attempts compared with total number of attempts.
KPI Formula
[EstabAddSuccNbr/ EstabAddAttNbr] * 100
EstabAddAttNbr: Additional E-RAB setup attempt count
EstabAddSuccNbr: Additional E-RAB setup success count
Unit: Percentage(%)
Measuring point
For Additional E-RAB setup statistics
When eNBreceives the E-RAB Setup Request message from MME, it is
counted as Attempt.
After eNBsends E-RAB Setup Response message to MME, it is
counted as Success.
Session Setup Success Rate
Description
Probability success rate of overall initial attach procedure.
Product of RRC connection setup success rate, S1 signaling connection
setup success rate and initial E-RAB establishment success rate.
KPI Formula
(ConnEstabSucc/ ConnEstabAtt) * (S1ConnEstabSucc / S1ConnEstabAtt) *
(EstablnitSuccNbr/ EstablnitAttNbr) * 100
LTE
News and telecom Update
Technology
Telecom Tools
FORUMS
Lte Discussion
SIGN UP
Pureit Water Purifier -
Pureit Official Website
Complete Range of Pureit
Product Available. Get Free
Home Demo Now!
pureitwater.com
Sign Up to Telecom Earth for Telecom
Updates.
First Name
Last Name
E-Mail
Submit

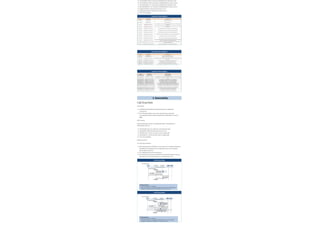

3. ConnEstabAtt: RRC connection establishments attempt count
ConnEstabSucc: RRC connection establishments success count
S1ConnEstabAtt: S1-connection establishment attempt count
S1ConnEstabSucc: S1-connection establishment success count
EstablnitAttNbr: E-RAB setup attempt count
EstablnitSuccNbr: E-RAB setup success count
Unit: Percentage(%)
Call Drop Rate
Description
Probability abnormally released(call drop) for established
connections.
The call drop statistics are on the calls that are connected
successfully but abnormally dropped due to eNB failure or by the
MME.
KPI Formula
[Call Drop(All type id sum) / (EstabInitSuccNbr+ InterX2InSucc +
InterS1InSucc)] * 100
Call Drop(All type id) : Call Drop count about all type
EstablnitSuccNbr: E-RAB setup success count
InterX2InSucc : X2 HO success count in target eNB
InterS1InSucc : S1 HO success count in target eNB
Unit: Percentage(%)
Measuring point
For Call Drop statistics,
Calls released by the eNB due to user inactivity, normally released by
the MME, and released by the UE duplication are not considered
abnormally terminated.
For established connection statistics,
Successful call connection indicates that the default bearer setup is
successful or incoming handover is successful for a call.
4. ERAB Drop Rate
Description
Probability abnormally released E-RAB for established connections.
This formula expresses E-RAB drop rate with respect to successful E-
RAB attempts, as R2 expresses E-RAB drop rate with respect to total E-
RAB session time.
KPI Formula
ErabDropRate= RelActive/ (EstabInitSuccNbr+ EstabAddSuccNbr) * 100
RelActive: Number of active E-RABs, for which a call is released due
to abnormal operation in eNB.
EstabInitSuccNbr: Number of successfully established initial E-RAB.
EstabAddSuccNbr: Number of successfully established added E-RAB.
Unit: Percentage(%)
Measuring point
For E-RAB drop statistics
E-RABs released by the eNB due to user inactivity and normally
released by the MME are not considered abnormally terminated.
For established E-RAB statistics,
Successful E-RAB establishment considers both of the default and
additional bears setup successful.
Handover Success Rate-Intra LTE
Description
Success rate of overall handover.
Successful attempts compared with total number of handover attempts.
KPI Formula
HO Success Rate = [(IntraEnbSucc+ InterX2OutSucc + InterS1OutSucc) /
(IntraEnbAtt+ InterX2OutAtt + InterS1OutAtt)] * 100
IntraEnbAtt: Intra eNB Handover attempt count
IntraEnbSucc: Intra eNB Handover success count
InterX2OutAtt : X2 Handover attempt count in source eNB
InterX2OutSucc : X2 Handover success count in source eNB
InterS1OutAtt : S1 Handover attempt count in source eNB
InterS1OutSucc : S1 Handover success count in source eNB
Unit: Percentage(%)
Measuring point
Please refer to the following slides for the details of measuring points of
each parameter.
Intra-eNB Handover
Description
Success rate for intra-eNB handover.
Successful attempts compared with total number of attempts.
KPI Formula
[IntraEnbSucc/ IntraEnbAtt] * 100
IntraEnbAtt: Intra eNBHandover attempt count
IntraEnbSucc: Intra eNBHandover success count
Unit: Percentage(%)
Measuring point
For intra-eNB HO statistics
when an intra-handover is decided after the Measurement Report
message arrival, it is counted as Attempt;
When the target cell successfully receives the RRC Connection
Recon guration Complete message from the UE, it is counted as
Success.

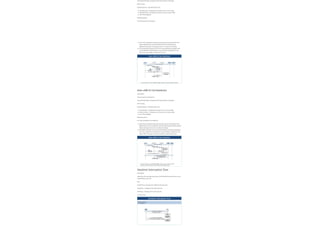

Inter-eNB X2 Out Handover
Description
Success rate for X2 Out handover.
5. Successful attempts compared with total number of attempts.
KPI Formula
[InterX2OutSucc / InterX2OutAtt] * 100
InterX2OutAtt : X2 Handover attempt count in source eNB
InterX2OutSucc : X2 Handover success count in source eNB
Unit: Percentage(%)
Measuring point
For X2 handover out statistics
when the X2 Handover Request message can be transmitted to the
target eNB after the inter X2 handover decision following the
Measurement Report message arrival, it is counted as Attempt;
The target eNB transmits the X2 UE Context Release message to the
source eNB when the handover is successfully completed. At this
point, the source eNB is counted as Success.
Inter-eNB S1 Out Handover
Description
Success rate for S1 handover.
Successful attempts compared with total number of attempts.
KPI Formula
[InterS1OutSucc / InterS1OutAtt] * 100
InterS1OutAtt : S1 Handover attempt count in source eNB
InterS1OutSucc : S1 Handover success count in source eNB
Unit: Percentage(%)
Measuring point
For inter S1 handover out statistics
when the S1 Handover Required message can be transmitted to the
MME after the inter S1 handover decision following the Measurement
Report message arrival, it is counted as Attempt;
The MME transmits the S1 UE Context Release Command message to
the source eNB when the handover is successfully completed in the
target eNB. At this point, the source eNB is counted as Success.
Handover Interruption Time
Description
Statistics of the average setup time of the handover interrupt time in the
target eNB for each cell.
PEG
IntraHOTime: Average Inter-eNB HO interrupt time
X2HOTime : Average X2 HO interrupt time
S1HOTime : Average S1 HO interrupt time
Unit: msec
6.

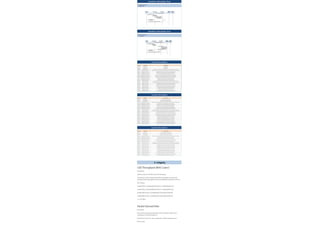

Cell Throughput (MAC Layer)
Description
Statistics data for the MAC layer cell throughput
Average size of the transport block (TB) successfully sent/received,
among the downlink/uplink TBs that the eNB’sMAC allocated to the UE
KPI Formula
AirMacUlThru= [(AirMacByteUl* 8)/(5.12 * AirMacByteUlCnt)]
AirMacDlThru= [(AirMacByteDl* 8)/(5.12 * AirMacByteDlCnt)]
AirMacUlEfctivThru= [(AirMacByteUl* 8)/AirMacTtiUl]*1000
AirMacDlEfctivThru= [(AirMacByteDl* 8)/AirMacTtiUl]*1000
Unit: Kbps

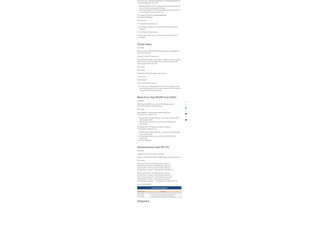

Packet Discard Rate
Description
Drop rate for downlink packet drops of the user plane traf c, and is
counted by E-RAB QoS level(QCI).
Packet drops can occur due to congestion, traf c management etc.
KPI Formula
7. Packet Drop Rate = {[PdcpSduDropRateDl+ (1 –PdcpSduDropRateDl/ 10^6)
* PdcpPduDropRateDl] / 10^6} x 100
PdcpSduDropRateDl: DL PDCP SDU packet drop rate on the downlink
that occurred for one minute at PDCP layer
PdcpPduDropRateDl: DL PDCP PDU packet drop rate on the downlink
that occurred for 10 seconds at RLC layer
Unit: Packet Drop Rate (%), PdcpSduDropRateDl&
PdcpPduDropRateDl(ppm)
Measuring point
For PDCP SDU Drop Rate statistics
When buffer over ow occurs at the PDCP layer, PDCP SDU will be
discarded.
For PDCP PDU Drop Rate statistics,
When buffer over ow occurs at the RLC layer, PDCP PDU will be
discarded.
Packet Delay
Description
Statistics data for the DL PDCP SDU delay de ned in the standard 3GPP
TS 36.314 for each QCI.
Average DL PDCP SDU delay per QCI
This measurement refers to packet delay for DRBs. For arrival of packets
the reference point is PDCP upper SAP. For successful reception the
reference point is MAC lower SAP
KPI Formula
Packet Delay
PdcpSduDelay: PDCP SDU delay on the downlink.
Unit: msec
Measuring point
For DL PDCP SDU delay statistics
From the point in time when PDCP SDU arrives to the point in time
when the last piece of PDCP SDU was received by the UE according to
received HARQ feedback information.
Block Error Rate (BLER)-Post HARQ
Description
Block Error Rate (BLER) is an error rate of data transmission of
PDSCH/PUSCH after all HARQ procedures.
KPI Formula
DlResidualBLER= [ DlTransmission_Nacked_Retrans3 /
DlTransmission_Retrans0 ] * 100
DlTransmission_Nacked_Retrans3 : Count of the 3rd PDSCH HARQ
retransmission failure
DlTransmission_Retrans0 : Count of the initial PDSCH HARQ
transmissions
UlResidualBLER= [ UlTransmission_Nacked_Retrans27 /
UlTransmission_Retrans0 ] * 100
UlTransmision_Nacked_Retrans27 : Count of the 27th PUSCH HARQ
retransmission failure
UlTransmission_Retrans0 : Count of the initial PUSCH HARQ
transmission
Unit: Percentage(%)
Retransmission Rate (DL/UL)
Description
Retransmission rate of DL and UL user traf c.
Number of retransmitted blocks compared with total transmitted blocks.
KPI Formula
Retransmission Rate DL = [(DlTransmission_Retrans1 +
DlTransmission_Retrans2 + DlTransmission_Retrans3) /
(DlTransmission_Retrans0 + DlTransmission_Retrans1 +
DlTransmission_Retrans2 + DlTransmission_Retrans3)] * 100
Retransmission Rate UL =[(UlTransmission_Retrans1 +
UlTransmission_Retrans2 + UlTransmission_Retrans3 + … +
UlTransmission_Retrans27) / (UlTransmission_Retrans0 +
UlTransmission_Retrans1 + UlTransmission_Retrans2 +
UlTransmission_Retrans3 + … + UlTransmission_Retrans27)] * 100
Unit: Percentage(%)
Summary
SHARE
0
0
0
8.

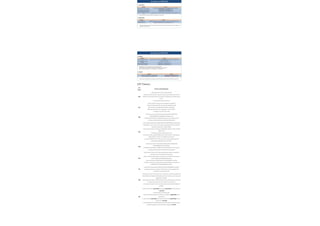

LTE Timers:-
LTE
Timers
Function at Start/Stop/Expiry
T300
>>Starts at the RRC connection REQ transmit
>>Stops at the Receipt of RRC connection setup or reject message OR at the cell
reselection time OR upon abortion of connection establishment by Higher layers
(L2/L3).
>>At the expiry performs the actions
T301
>>Starts at the RRC Connection Re-establishment REQUEST
>>Stops at the Receipt of RRC Connection Re-establishment OR
RRC Connection Re-Establishment REJECT message OR
When selected cell becomes unsuitable to continue further
>>At expiry, it Go to RRC_IDLE mode
T303
>>Starts when access is barred while performing RRC CONNECTION
ESTABLISHMENT for MO(Mobile Originating) calls
>>Stops while entering RRC_CONNECTED and upon cell re-selection mode
>>At expiry, Informs higher layers about barring alleviation
T304
>>Starts at the Receipt of RRC CONNECTION RECONFIGURATION message along
with Mobility Control Info OR at the receipt of mobility from EUTRA command
message including CELL CHANGE ORDER
>>Stops at the successful completion of HANDOVER to EUTRA or CELL CHANGE
ORDER is met
>>At expiry, it performs action based on need.
1. In the case of CELL CHANGE ORDER from E-UTRA OR intra E-UTRA handover,
initiate the RRC connection re-establishment procedure.
2. In case of HANDOVER to E-UTRA, perform the actions de ned as per the
speci cations applicable for the source RAT.
T305
>>starts when access is barred while performing RRC CONNECTION
ESTABLISHMENT for MO signaling
>>Stops when entering RRC_CONNECTED and when UE does cell re-selection
>> At expiry, Informs higher layers about barring alleviation
T310
>>Starts when UE detects PHY layer related problems (when it receives N310
consecutive out-of-sync INDs from lower layers)
>>Stops 1. When UE receives N311 consecutive in-sync INDs from lower layers/
2. Upon triggering the HANDOVER procedure
3. Upon initiating the CONNECTION RE-ESTABLISHMENT procedure
>> At expiry, if security is not activated it goes to RRC IDLE else it initiates the
CONNECTION RE-ESTABLISHMENT Procedure
T311
>>Starts while initiating RRC CONNECTION RE-ESTABLISHMENT procedure
>>stops upon selection of suitable E-UTRA cell OR a cell using another RAT
>>At expiry it enters RRC IDLE state
T320
>> Starts upon receipt of t320 or upon cell re- selection to E-UTRA from another RAT
with validity time con gured for dedicated priorities (in which case the remaining
validity time is applied).
>>Stops upon entering RRC_CONNECTED state, when PLMN selection is performed
on request by NAS OR upon cell re-selection to another RAT
>> At expiry, it discards the cell re-selection priority info provided by dedicated
signaling
T321
>>starts upon receipt of measCon g including a reportCon g with the purpose set
to reportCGI
>> Stops at either of following cases:
1. Upon acquiring the information needed to set all elds of globalCellId for the
requested cell
2. upon receipt of measCon g that includes removal of the reportCon g with the
purpose set to reportCGI
>> At expiry initiates the measurement reporting procedure, stop performing the
related measurements and remove the corresponding measID
