1. Chemiosmotic theory of oxidative
phosphorylation. Inhibitors and
uncouplers of oxidative
phosphorylation.

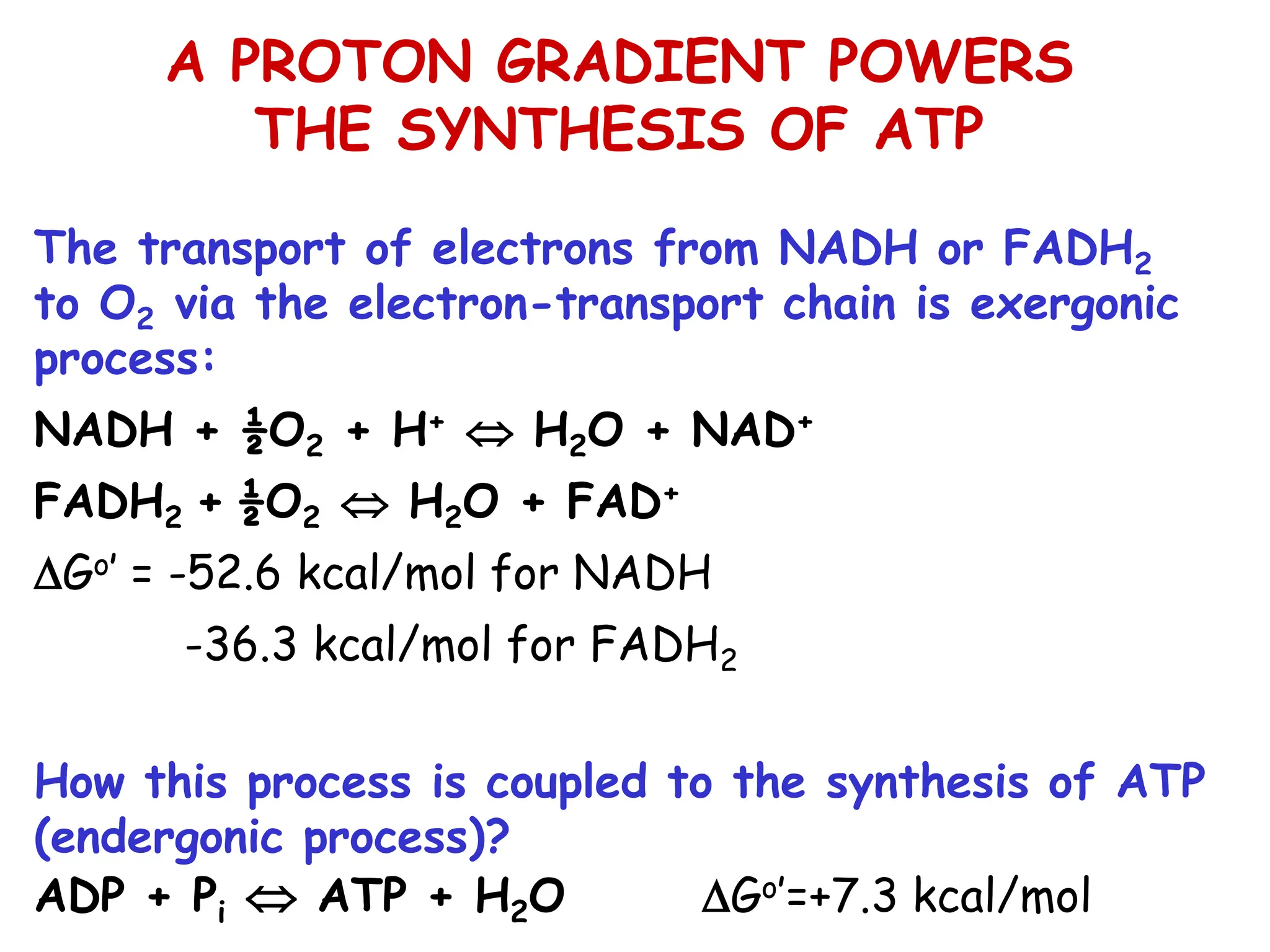

2. A PROTON GRADIENT POWERS
THE SYNTHESIS OF ATP
The transport of electrons from NADH or FADH2
to O2 via the electron-transport chain is exergonic
process:
NADH + ½O2 + H+  H2O + NAD+
FADH2 + ½O2  H2O + FAD+
Go’ = -52.6 kcal/mol for NADH
-36.3 kcal/mol for FADH2
How this process is coupled to the synthesis of ATP
(endergonic process)?
ADP + Pi  ATP + H2O Go’=+7.3 kcal/mol

3. • Proposed by Peter Mitchell in the
1960’s (Nobel Prize, 1978)
• Chemiosmotic theory: electron
transport and ATP synthesis
are coupled by a proton
gradient across the inner
mitochondrial membrane
Mitchell’s postulates for chemiosmotic theory
1. Intact inner mitochondrial membrane is required
2. Electron transport through the ETC generates a proton
gradient
3. ATP synthase catalyzes the phosphorylation of ADP in a
reaction driven by movement of H+ across the inner
membrane into the matrix
The Chemiosmotic Theory

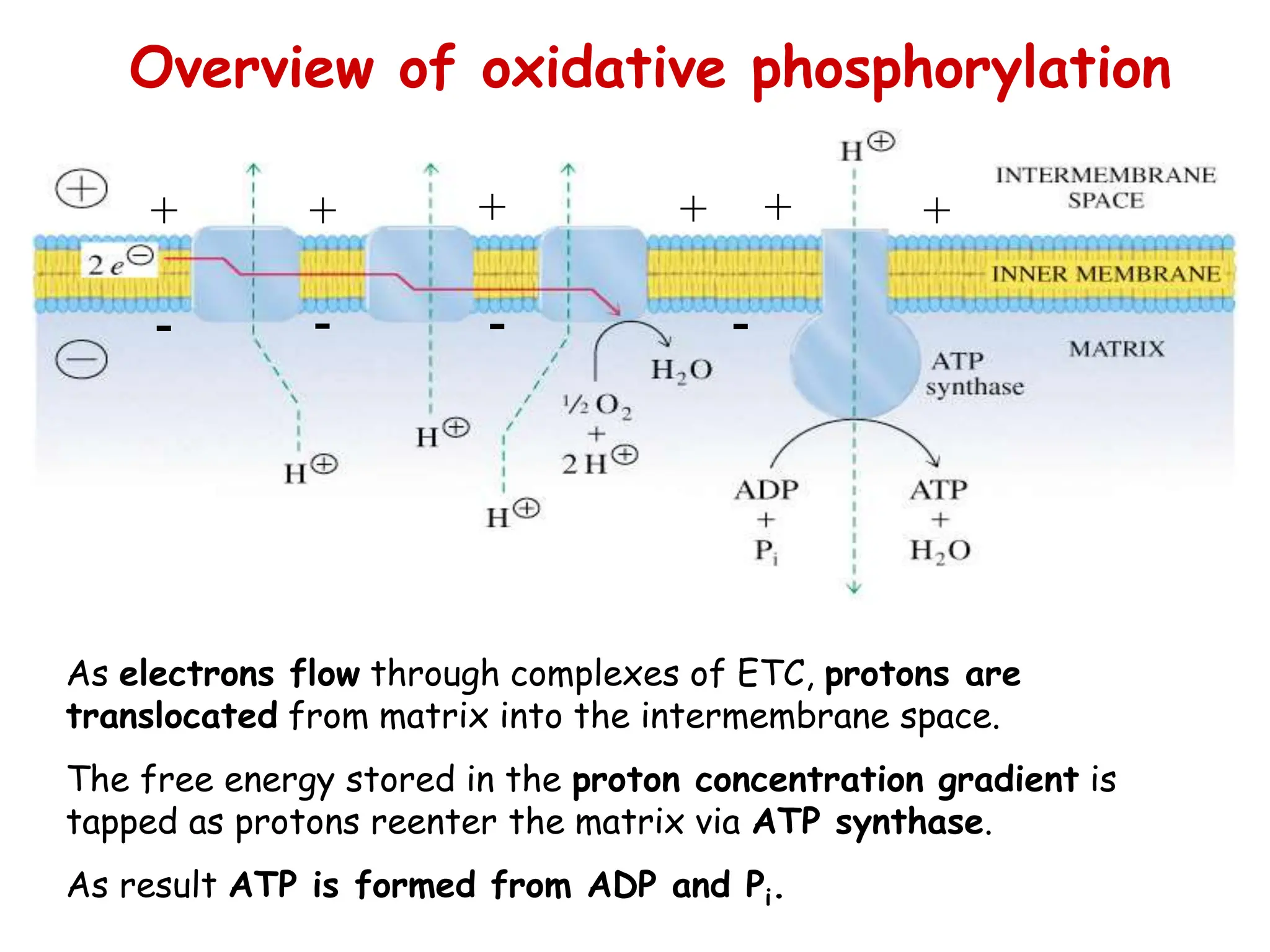

4. As electrons flow through complexes of ETC, protons are
translocated from matrix into the intermembrane space.
The free energy stored in the proton concentration gradient is
tapped as protons reenter the matrix via ATP synthase.
As result ATP is formed from ADP and Pi.
+
+ + +
+ +
-
-
-
-
Overview of oxidative phosphorylation

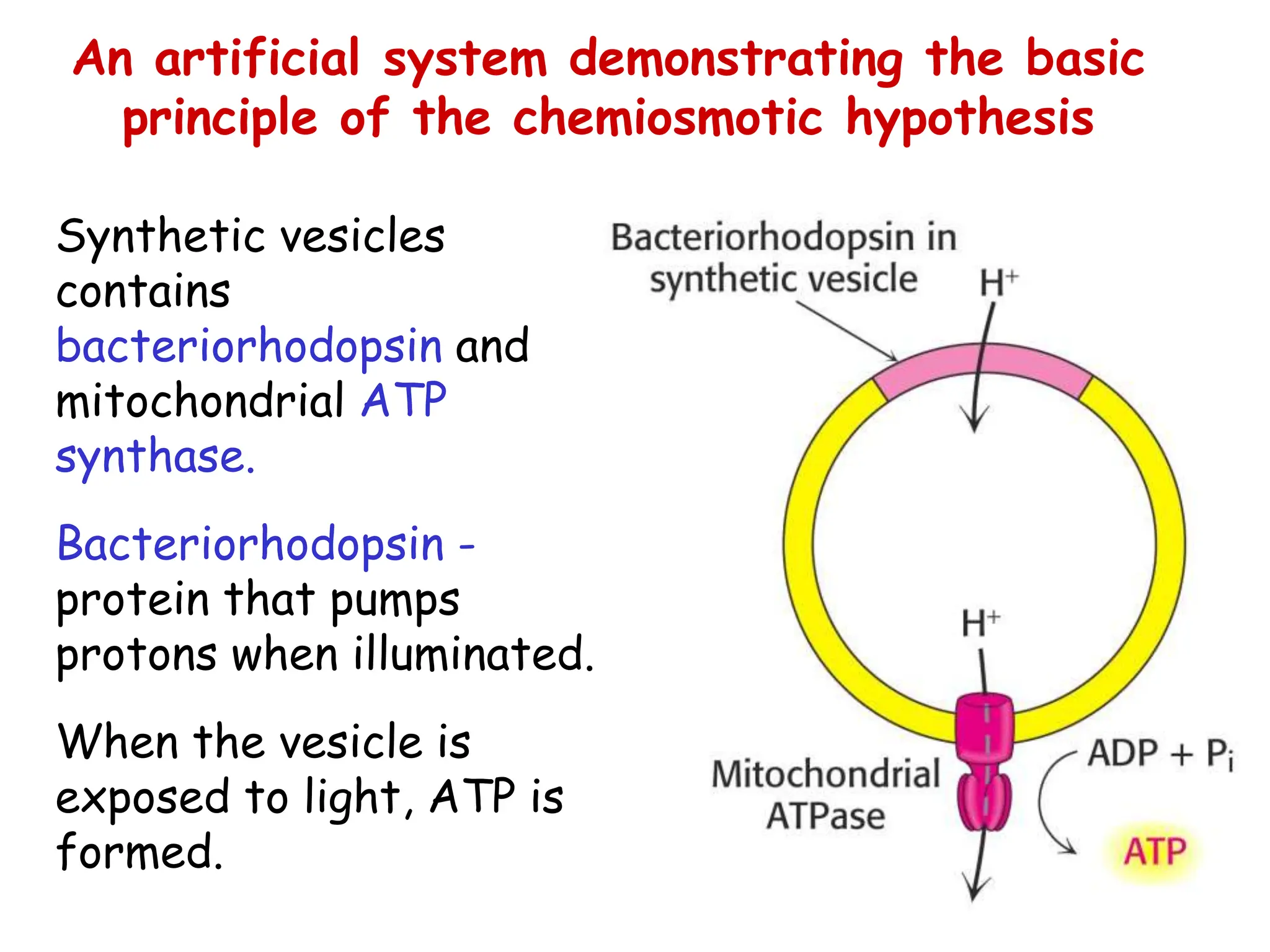

5. An artificial system demonstrating the basic
principle of the chemiosmotic hypothesis
Synthetic vesicles
contains
bacteriorhodopsin and
mitochondrial ATP
synthase.
Bacteriorhodopsin -
protein that pumps
protons when illuminated.
When the vesicle is
exposed to light, ATP is
formed.

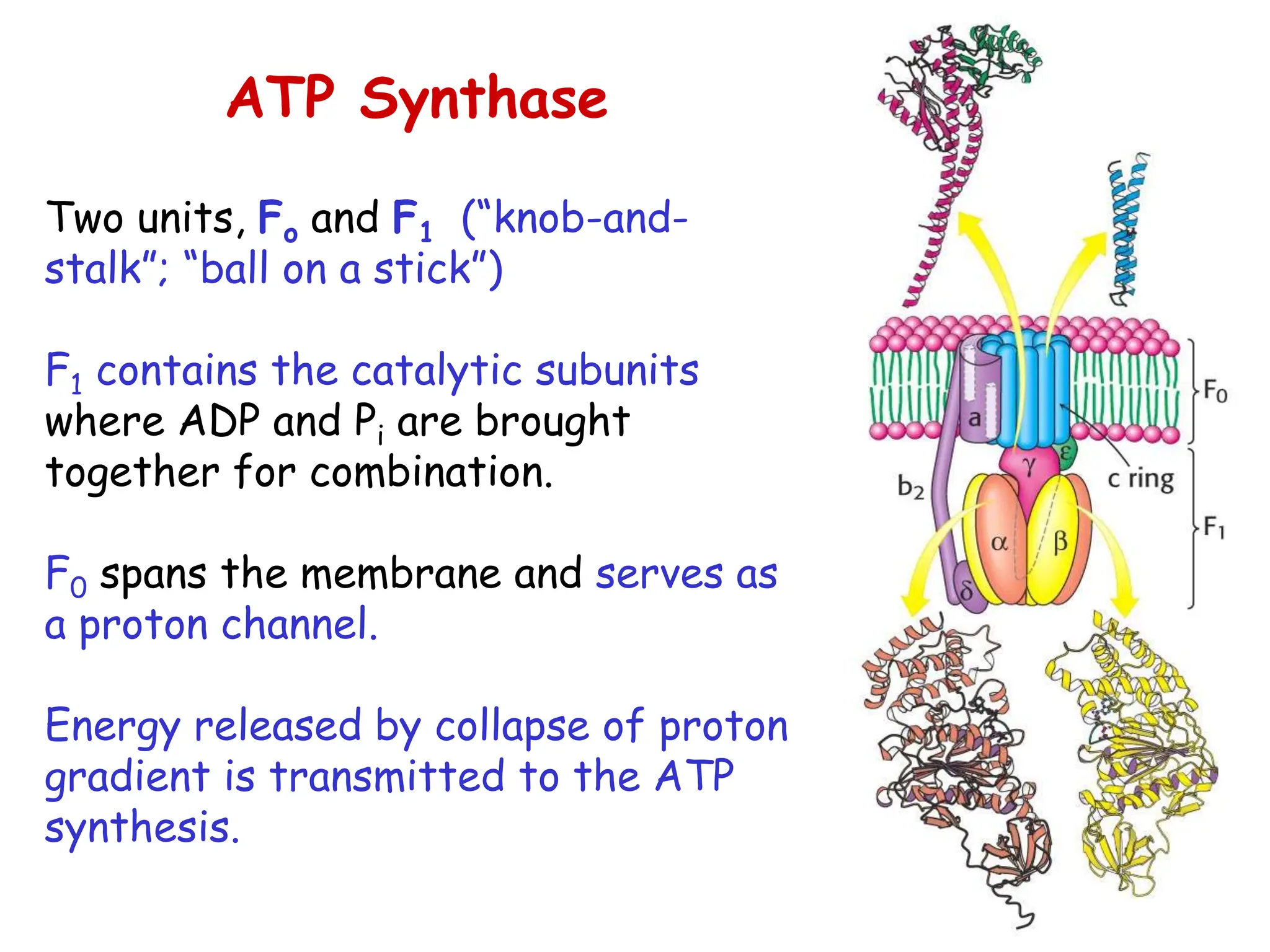

6. ATP Synthase
Two units, Fo and F1 (“knob-and-
stalk”; “ball on a stick”)
F1 contains the catalytic subunits
where ADP and Pi are brought
together for combination.
F0 spans the membrane and serves as
a proton channel.
Energy released by collapse of proton
gradient is transmitted to the ATP
synthesis.

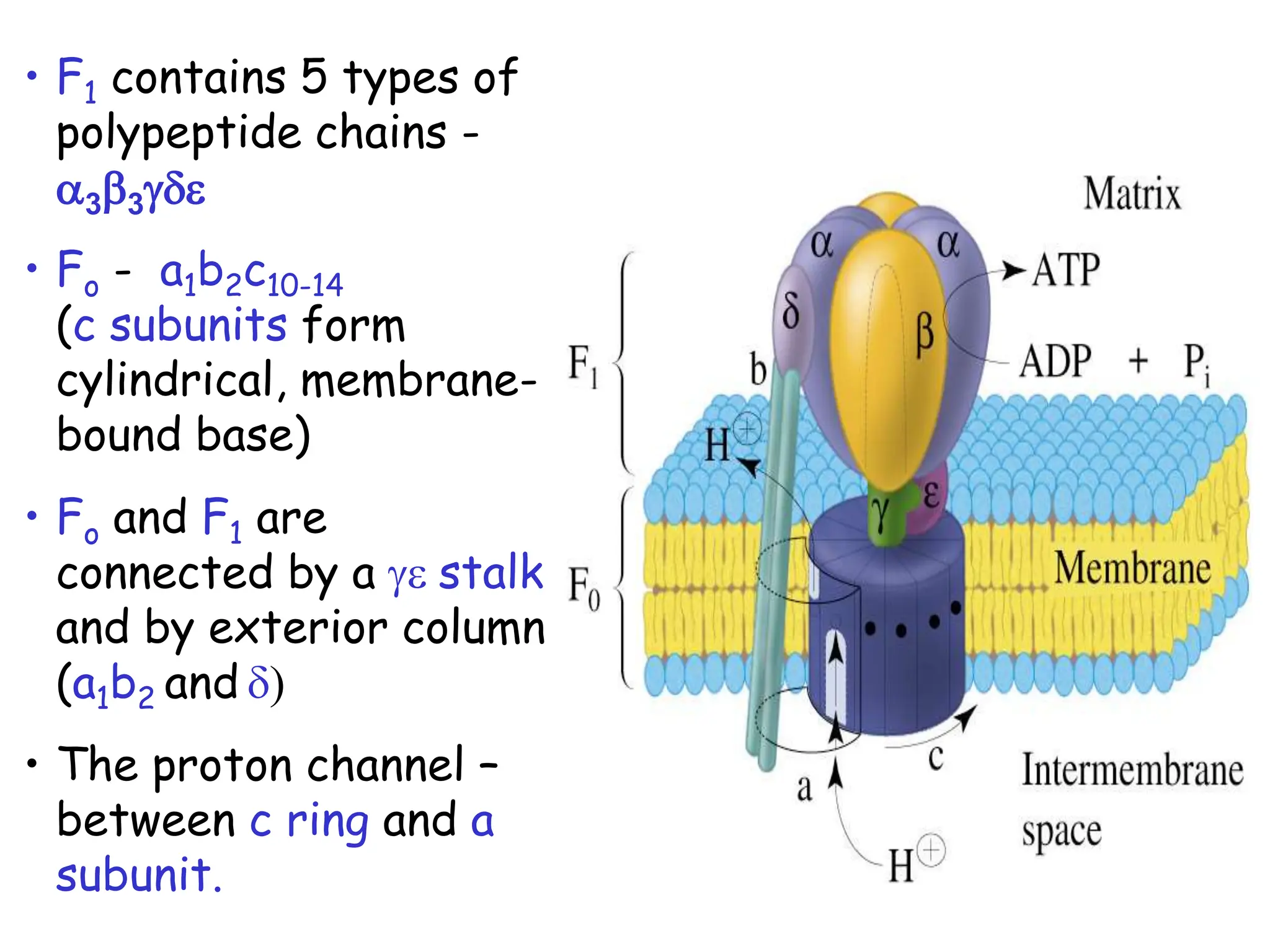

7. • F1 contains 5 types of
polypeptide chains -
a3b3gde
• Fo - a1b2c10-14
(c subunits form
cylindrical, membrane-
bound base)
• Fo and F1 are
connected by a ge stalk
and by exterior column
(a1b2 and d)
• The proton channel –
between c ring and a
subunit.

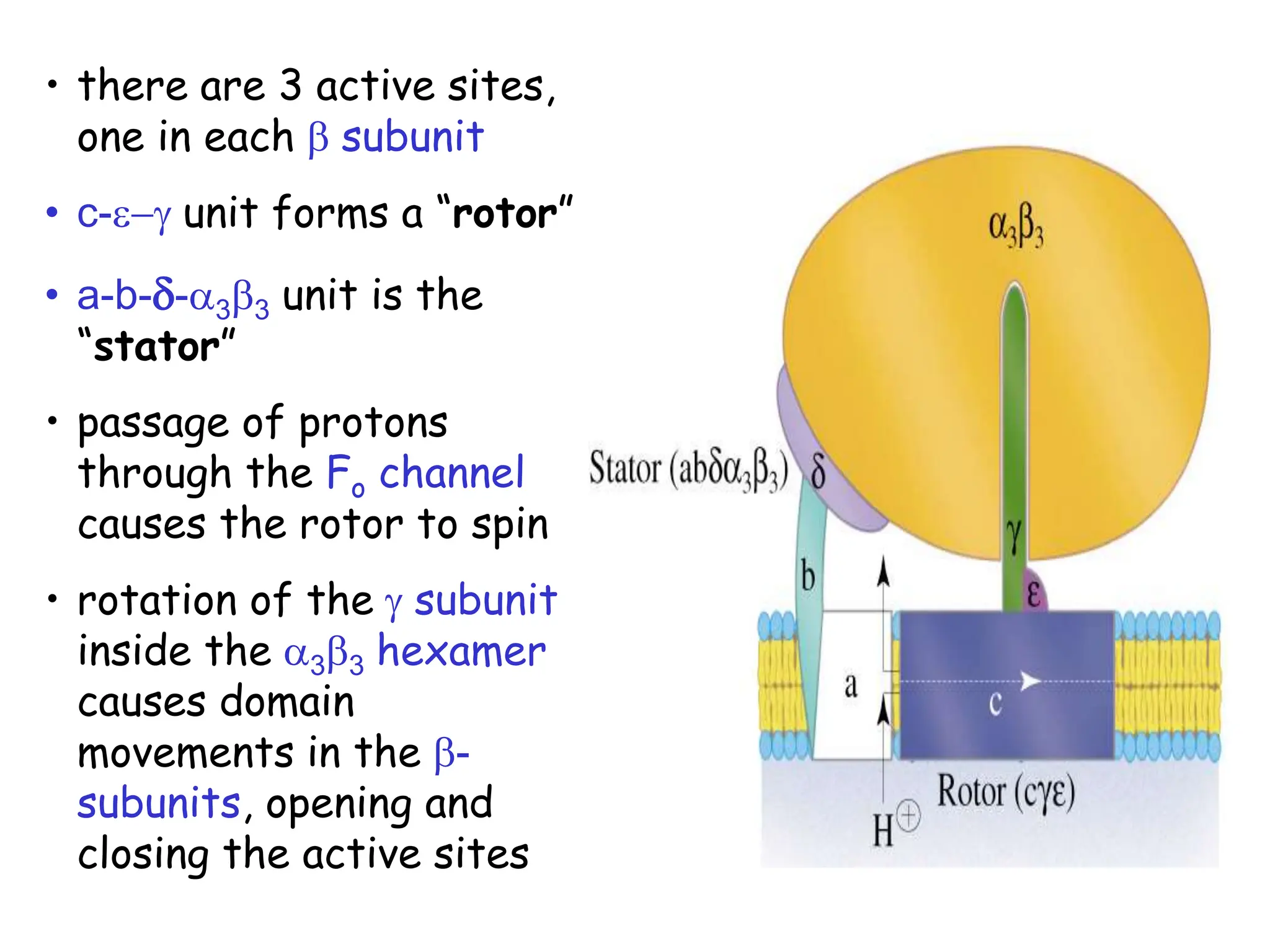

8. • there are 3 active sites,
one in each b subunit
• c-e-g unit forms a “rotor”
• a-b-d-a3b3 unit is the
“stator”
• passage of protons
through the Fo channel
causes the rotor to spin
• rotation of the g subunit
inside the a3b3 hexamer
causes domain
movements in the b-
subunits, opening and
closing the active sites

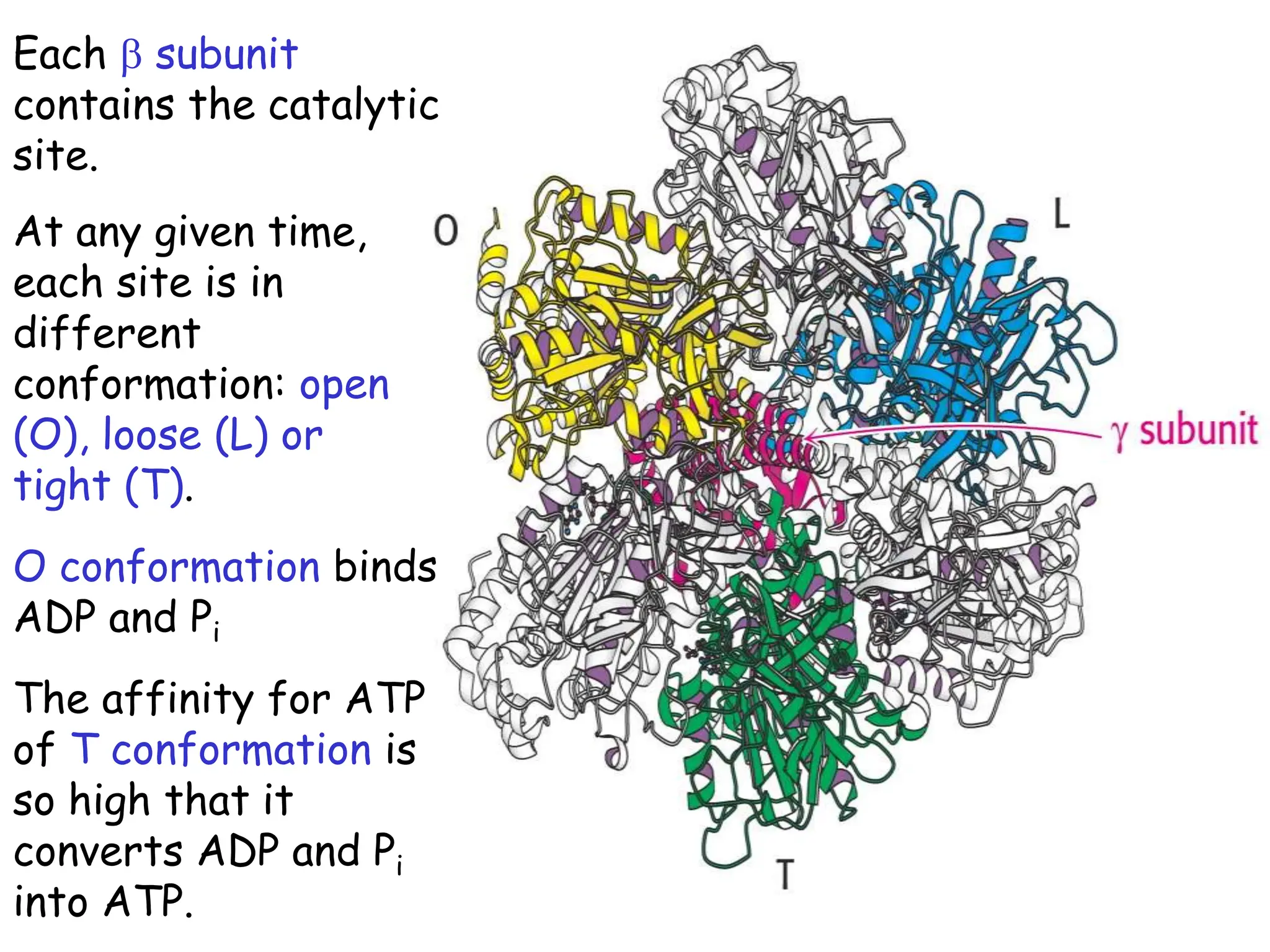

9. Each b subunit
contains the catalytic
site.
At any given time,
each site is in
different
conformation: open
(O), loose (L) or
tight (T).
O conformation binds
ADP and Pi
The affinity for ATP
of T conformation is
so high that it
converts ADP and Pi
into ATP.

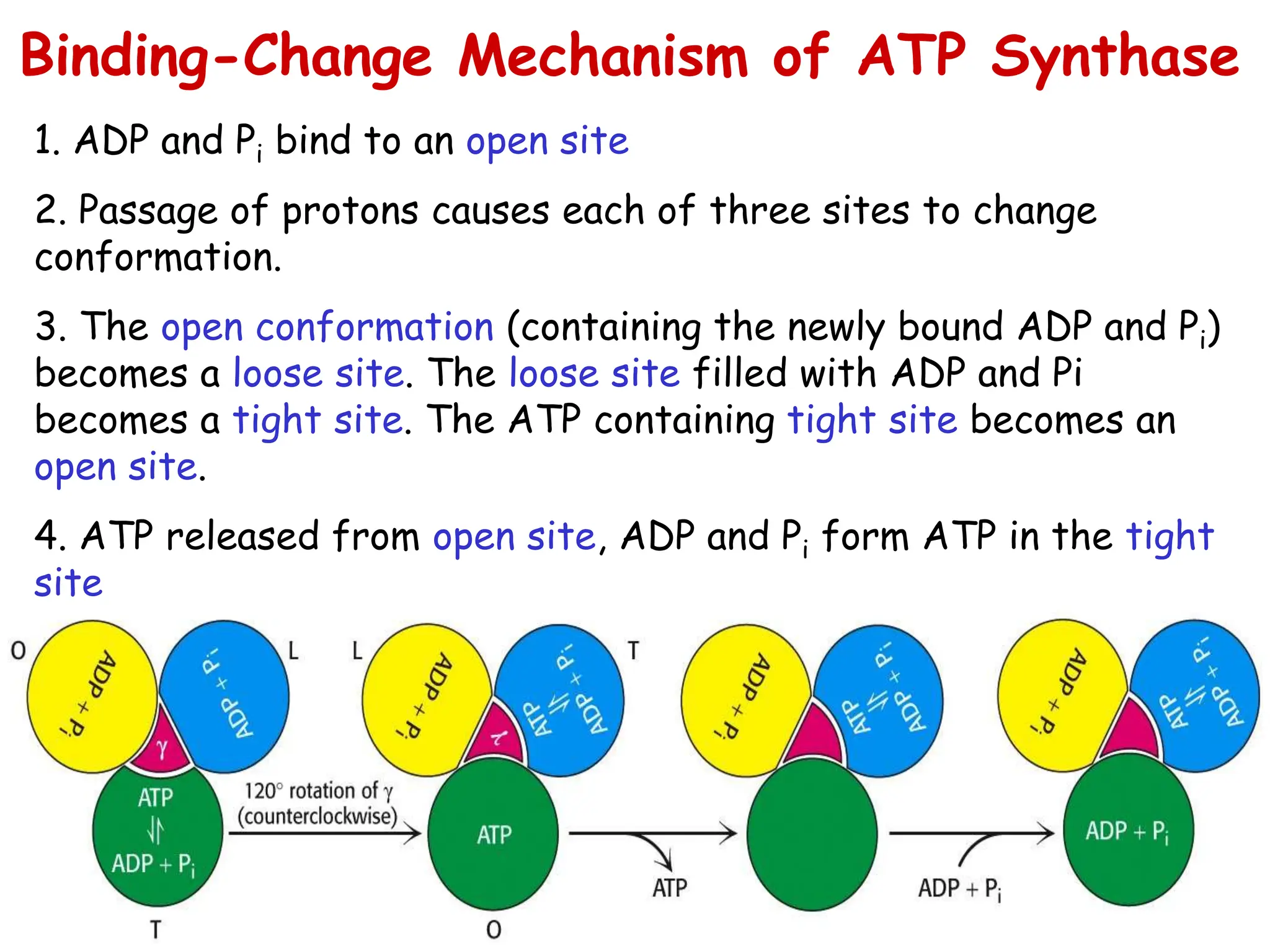

10. 1. ADP and Pi bind to an open site
2. Passage of protons causes each of three sites to change
conformation.
3. The open conformation (containing the newly bound ADP and Pi)
becomes a loose site. The loose site filled with ADP and Pi
becomes a tight site. The ATP containing tight site becomes an
open site.
4. ATP released from open site, ADP and Pi form ATP in the tight
site
Binding-Change Mechanism of ATP Synthase

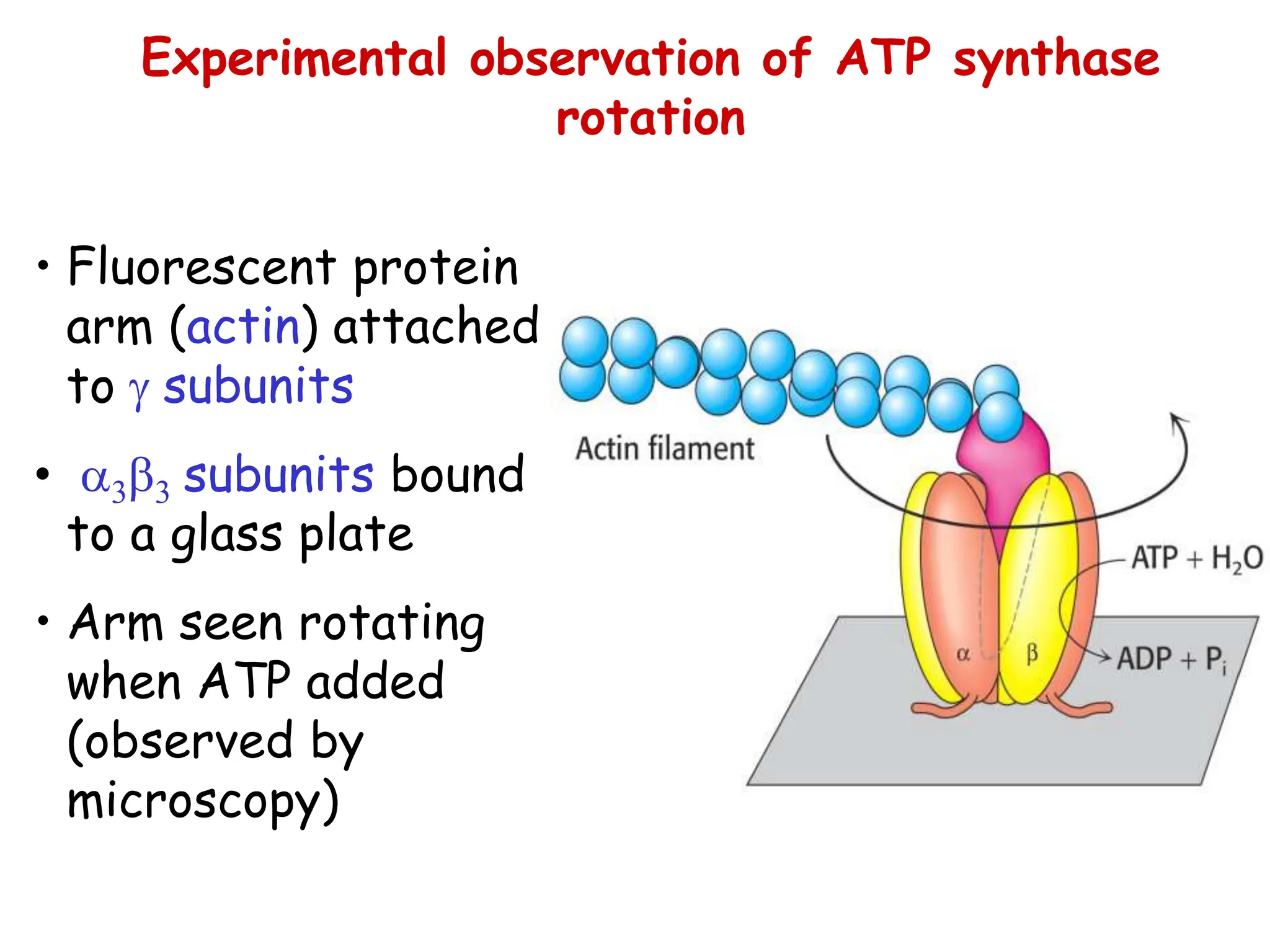

11. Experimental observation of ATP synthase
rotation
• Fluorescent protein
arm (actin) attached
to g subunits
• a3b3 subunits bound
to a glass plate
• Arm seen rotating
when ATP added
(observed by
microscopy)

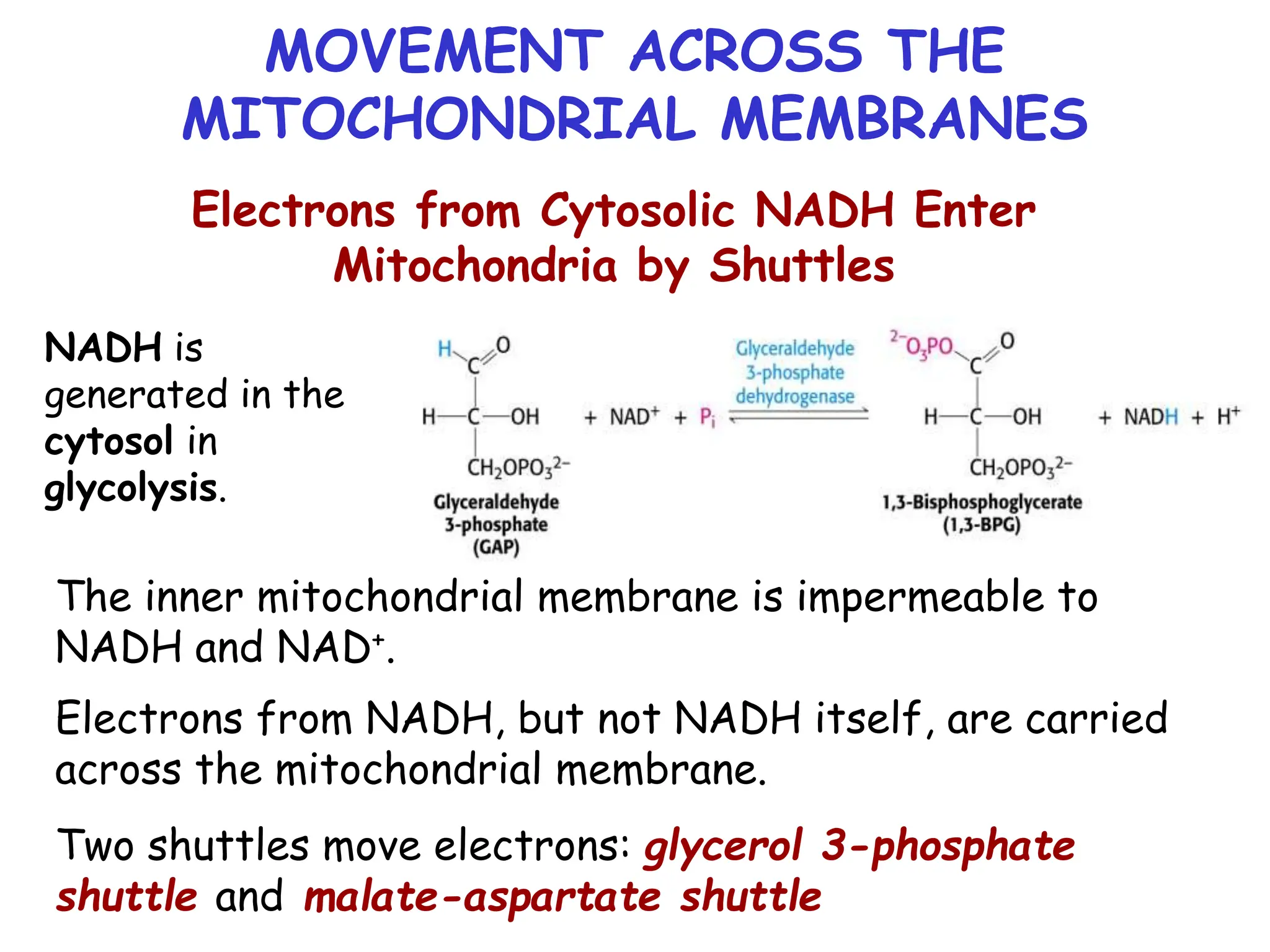

12. MOVEMENT ACROSS THE
MITOCHONDRIAL MEMBRANES
Electrons from Cytosolic NADH Enter
Mitochondria by Shuttles
NADH is
generated in the
cytosol in
glycolysis.
The inner mitochondrial membrane is impermeable to
NADH and NAD+.
Electrons from NADH, but not NADH itself, are carried
across the mitochondrial membrane.
Two shuttles move electrons: glycerol 3-phosphate
shuttle and malate-aspartate shuttle

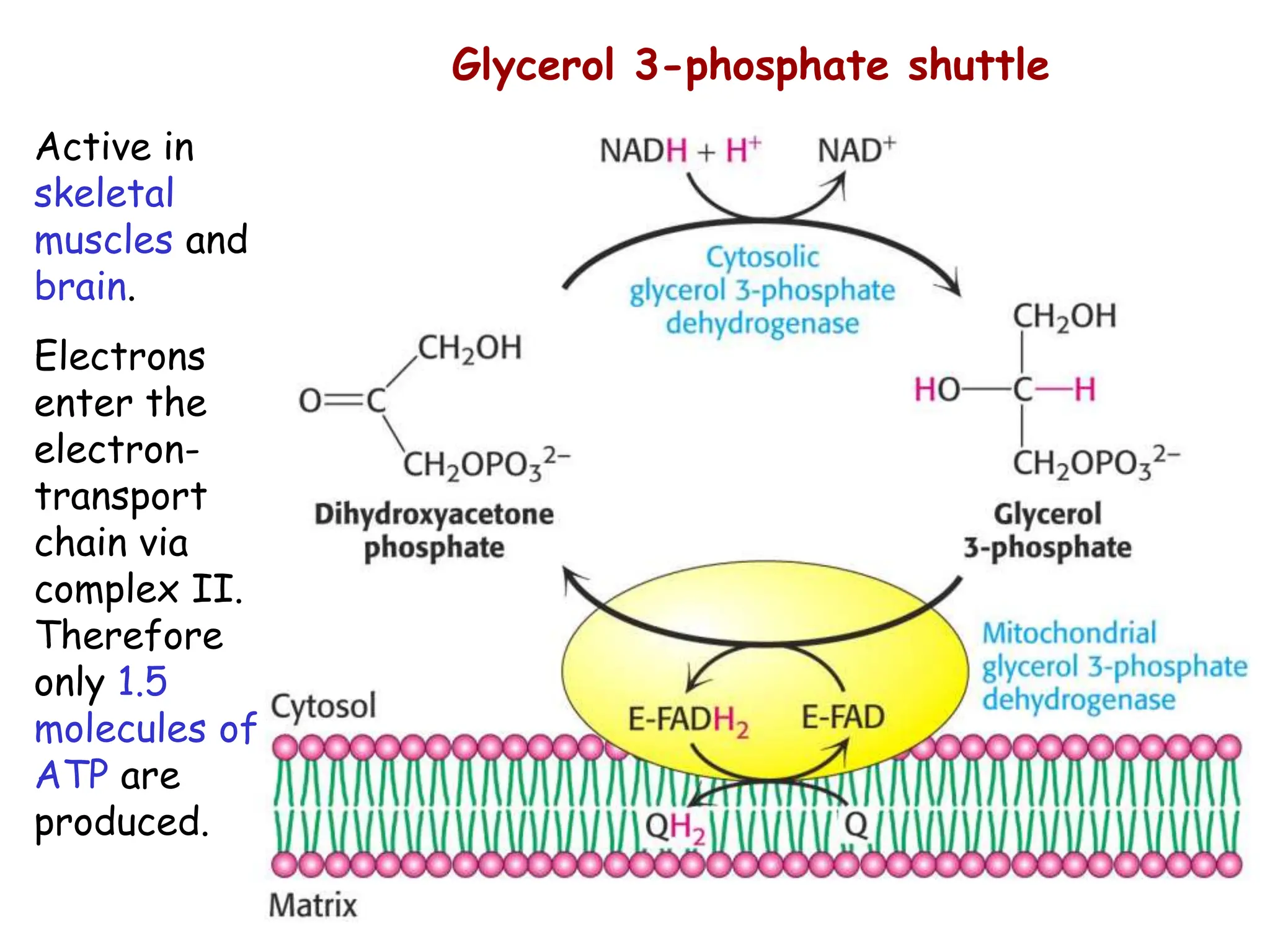

13. Glycerol 3-phosphate shuttle
Active in
skeletal
muscles and
brain.
Electrons
enter the
electron-
transport
chain via
complex II.
Therefore
only 1.5
molecules of
ATP are
produced.

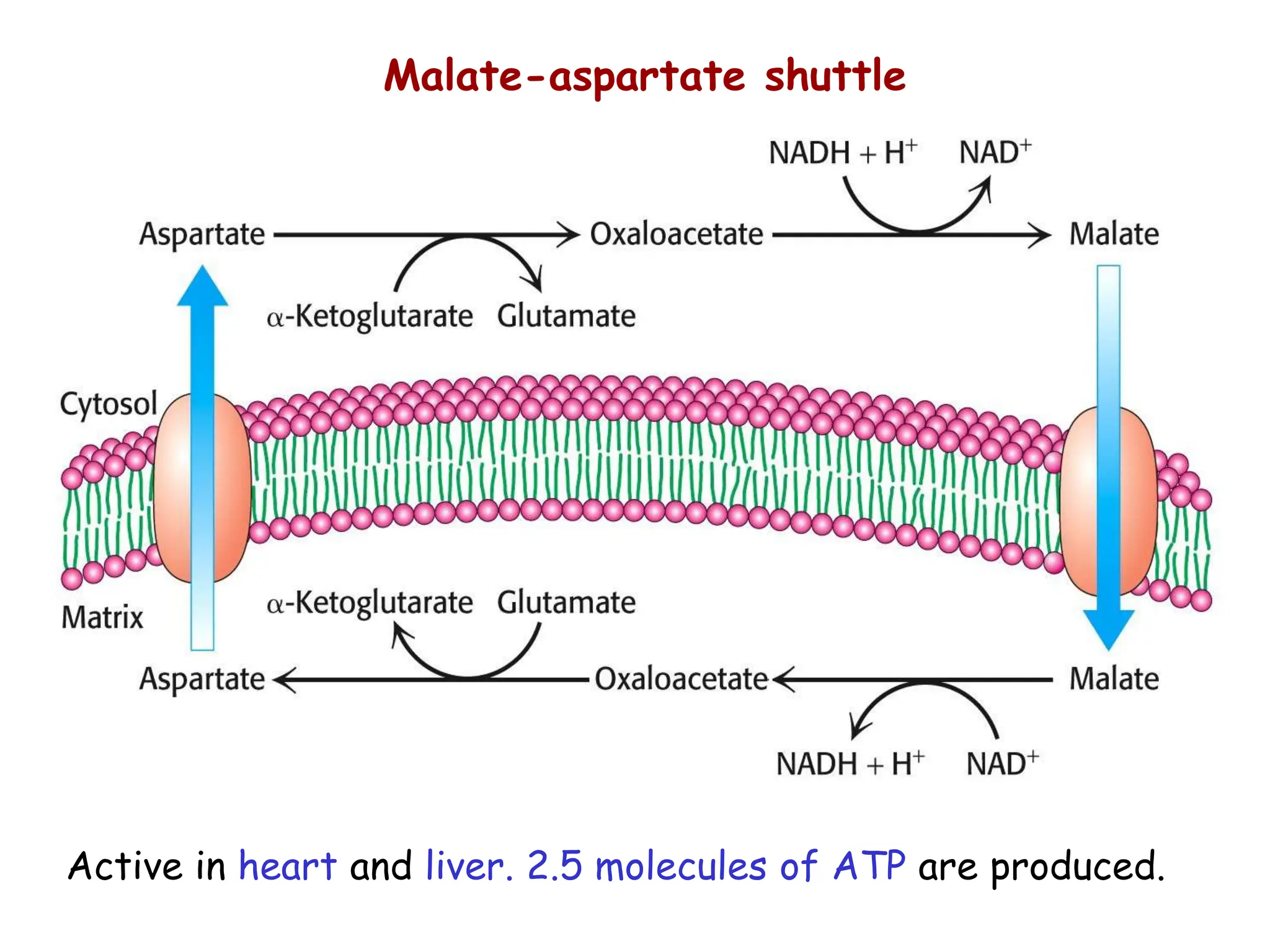

14. Active in heart and liver. 2.5 molecules of ATP are produced.
Malate-aspartate shuttle

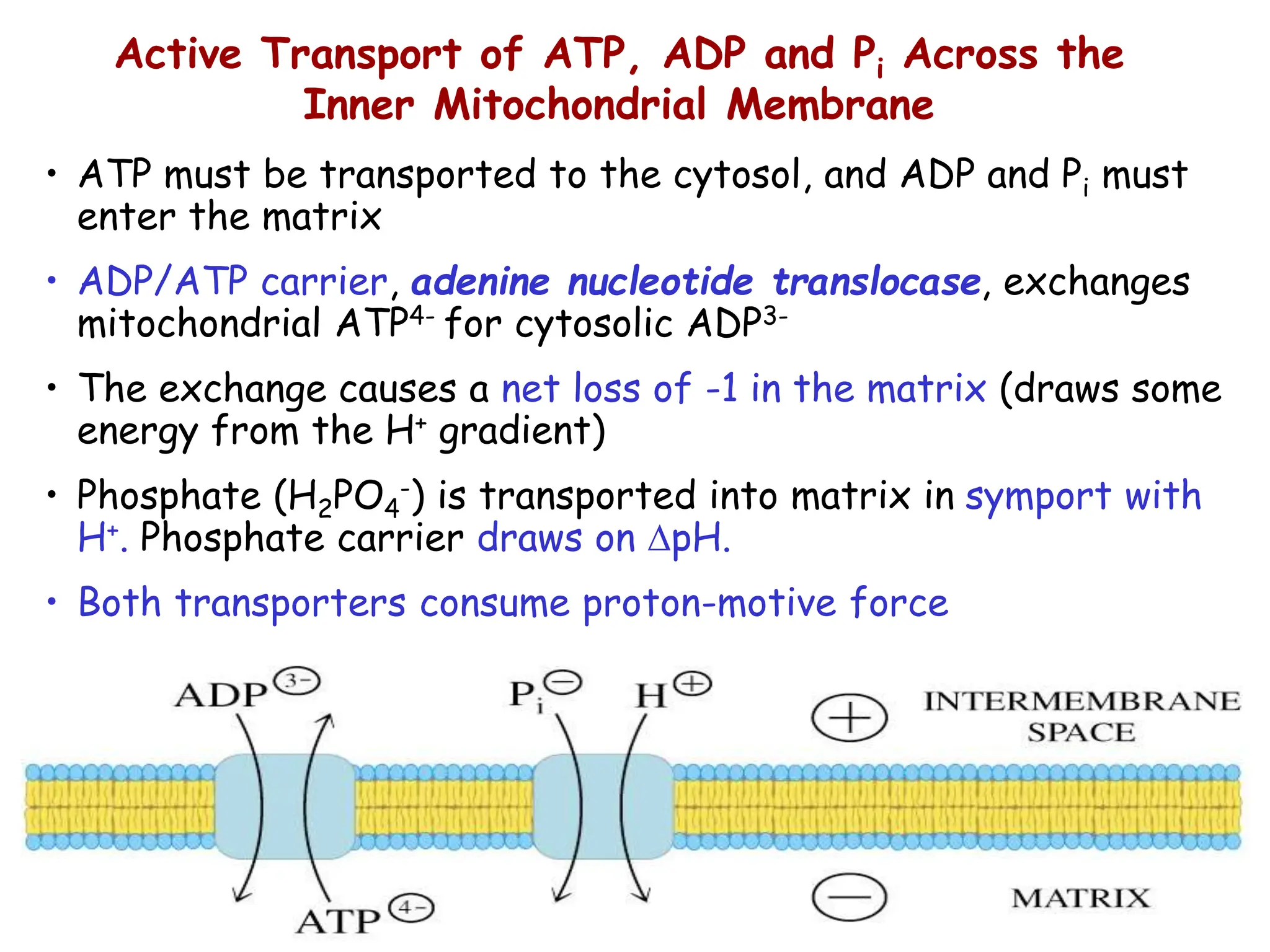

15. • ATP must be transported to the cytosol, and ADP and Pi must
enter the matrix
• ADP/ATP carrier, adenine nucleotide translocase, exchanges
mitochondrial ATP4- for cytosolic ADP3-
• The exchange causes a net loss of -1 in the matrix (draws some
energy from the H+ gradient)
• Phosphate (H2PO4
-) is transported into matrix in symport with
H+. Phosphate carrier draws on pH.
• Both transporters consume proton-motive force
Active Transport of ATP, ADP and Pi Across the
Inner Mitochondrial Membrane

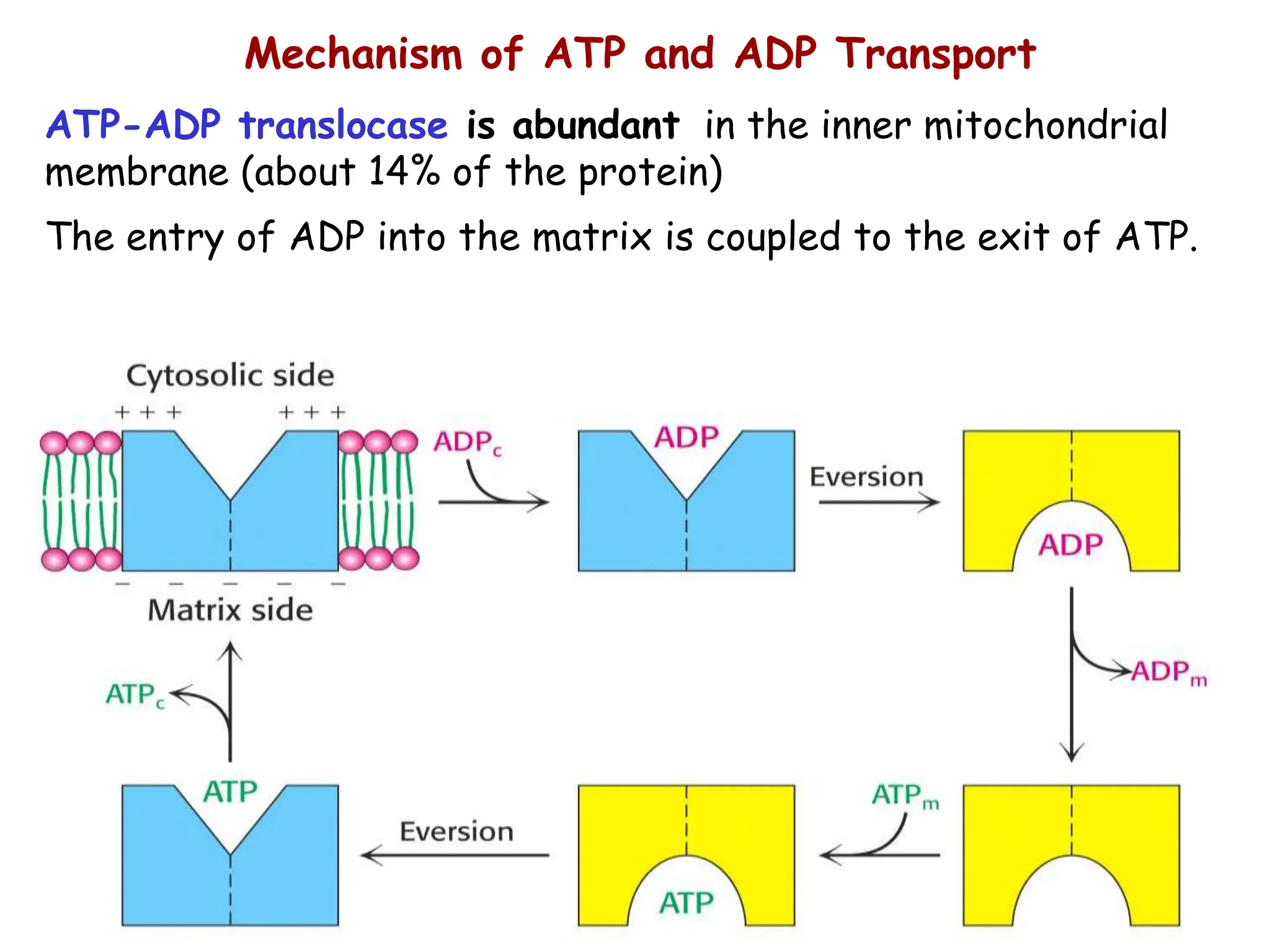

16. Mechanism of ATP and ADP Transport
ATP-ADP translocase is abundant in the inner mitochondrial
membrane (about 14% of the protein)
The entry of ADP into the matrix is coupled to the exit of ATP.

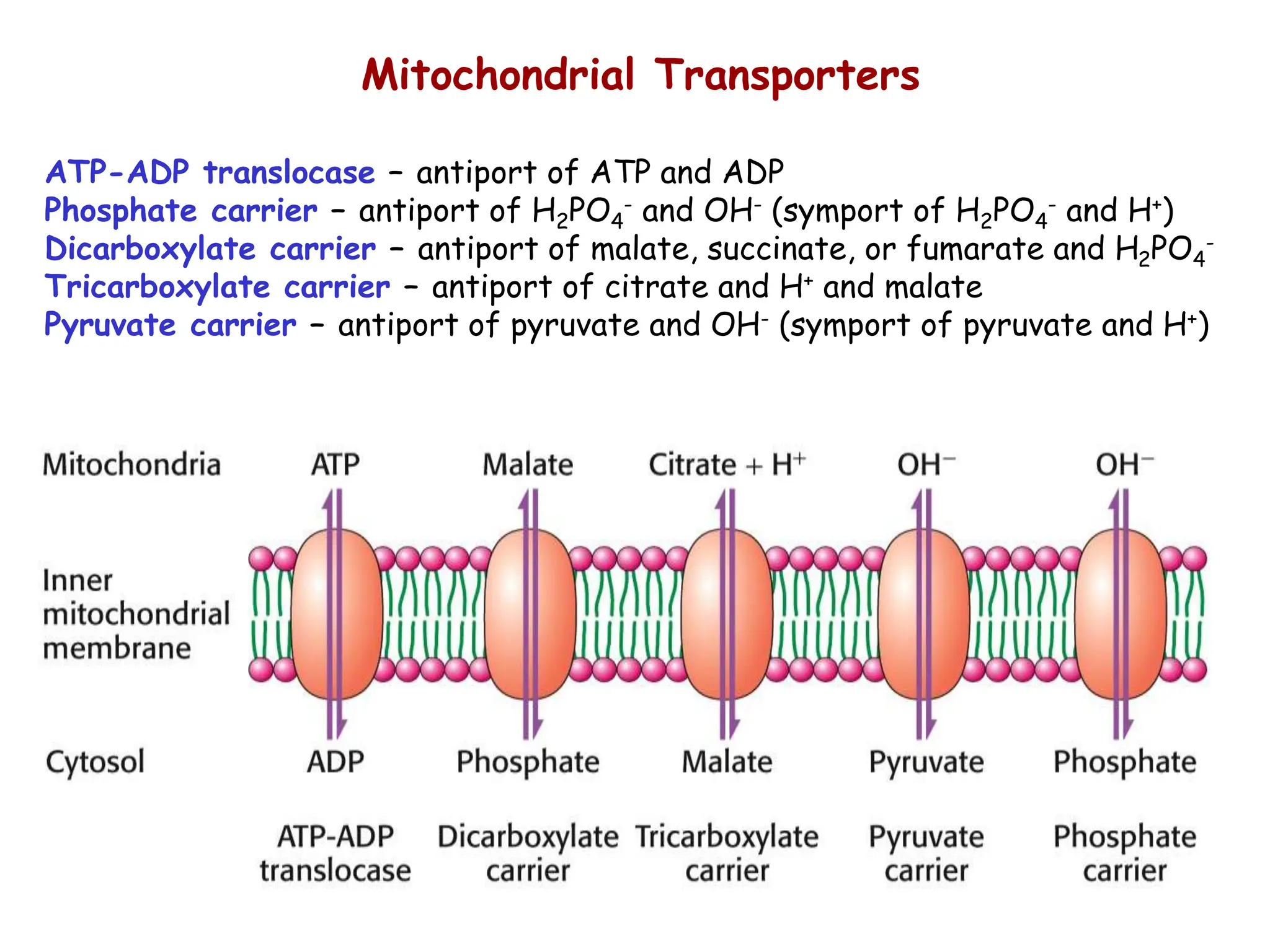

17. Mitochondrial Transporters
ATP-ADP translocase – antiport of ATP and ADP
Phosphate carrier – antiport of H2PO4
- and OH- (symport of H2PO4
- and H+)
Dicarboxylate carrier – antiport of malate, succinate, or fumarate and H2PO4
-
Tricarboxylate carrier – antiport of citrate and H+ and malate
Pyruvate carrier – antiport of pyruvate and OH- (symport of pyruvate and H+)

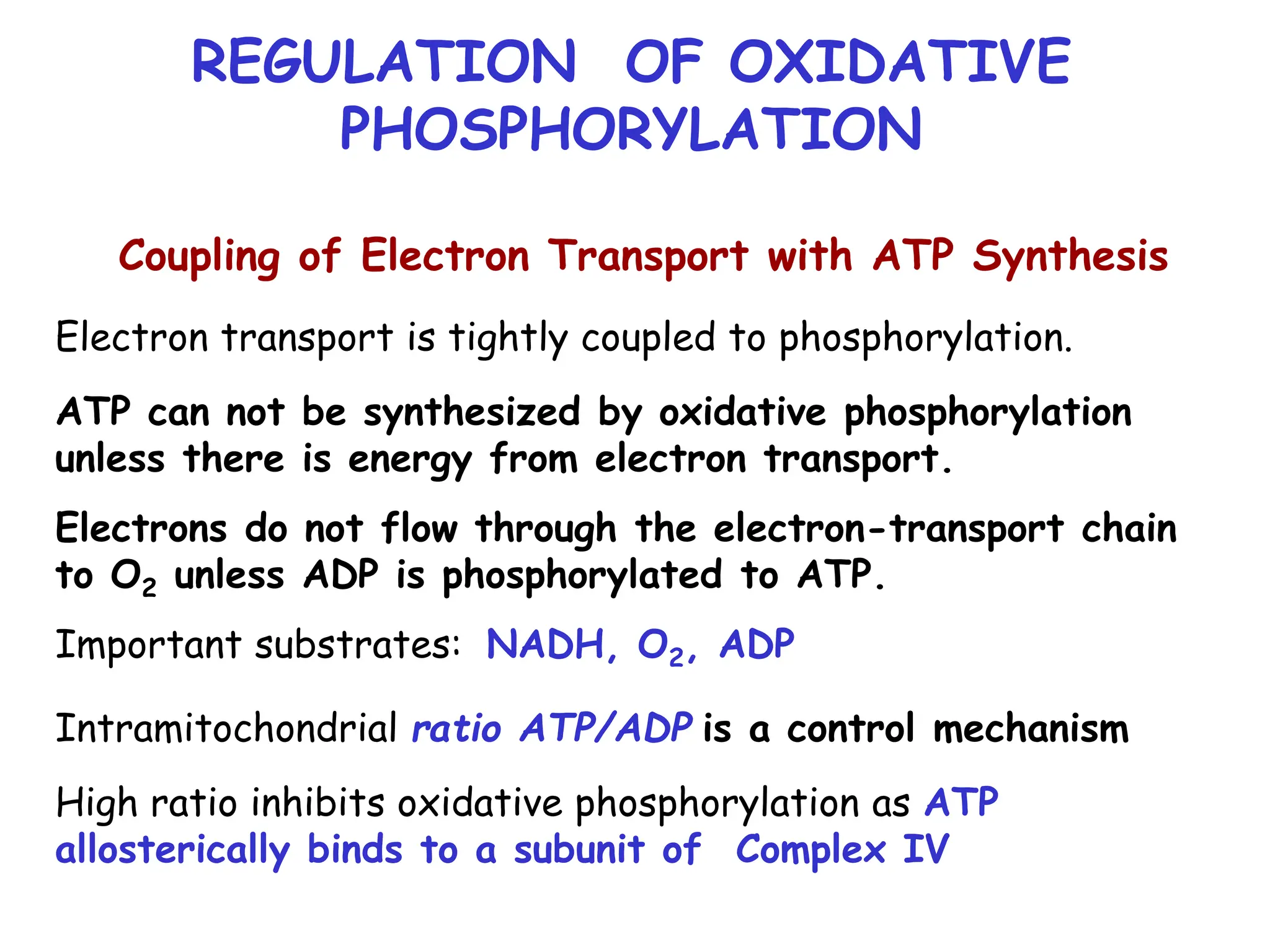

18. REGULATION OF OXIDATIVE
PHOSPHORYLATION
Coupling of Electron Transport with ATP Synthesis
Electron transport is tightly coupled to phosphorylation.
ATP can not be synthesized by oxidative phosphorylation
unless there is energy from electron transport.
Electrons do not flow through the electron-transport chain
to O2 unless ADP is phosphorylated to ATP.
Important substrates: NADH, O2, ADP
Intramitochondrial ratio ATP/ADP is a control mechanism
High ratio inhibits oxidative phosphorylation as ATP
allosterically binds to a subunit of Complex IV

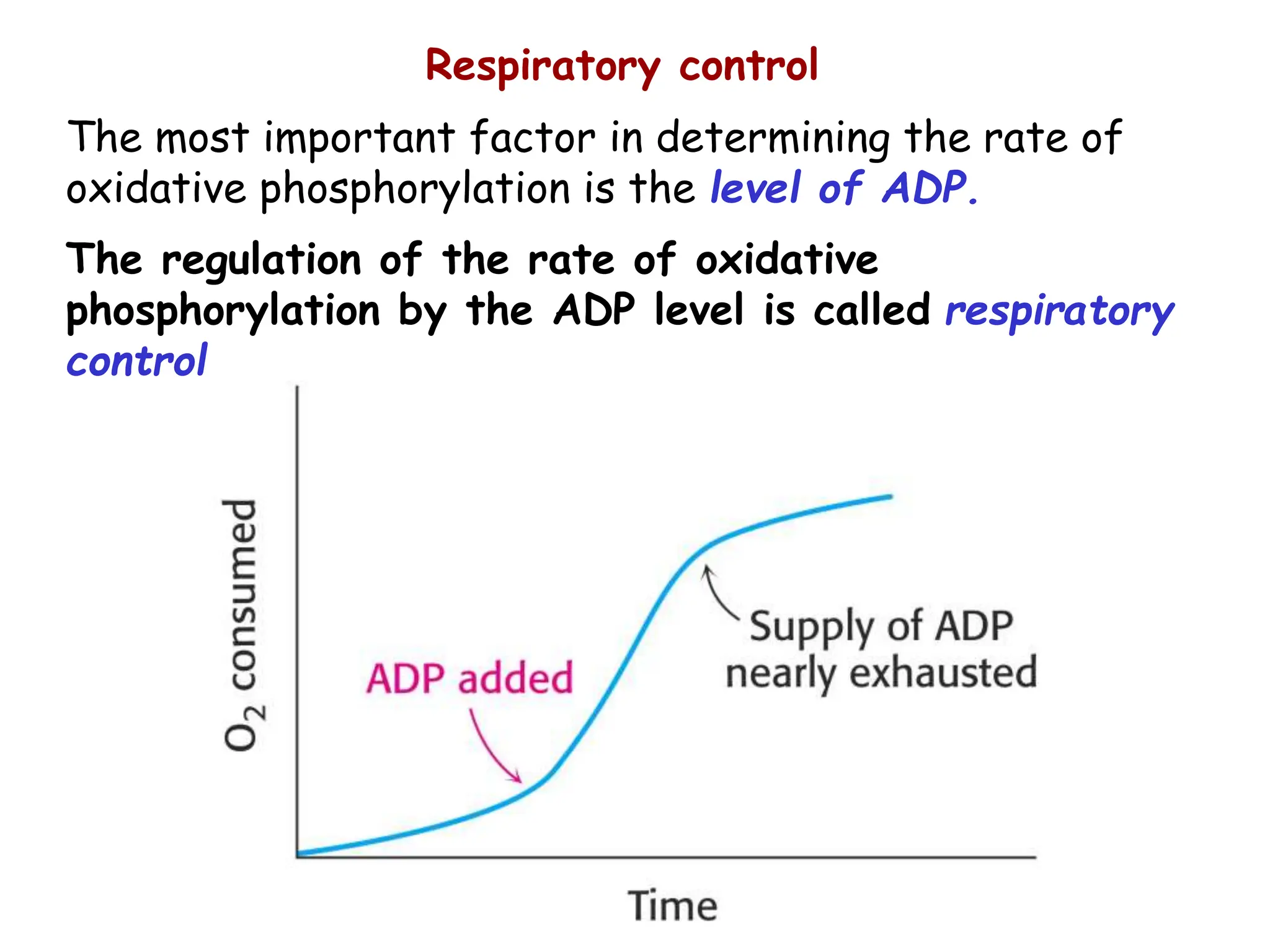

19. The most important factor in determining the rate of
oxidative phosphorylation is the level of ADP.
The regulation of the rate of oxidative
phosphorylation by the ADP level is called respiratory
control
Respiratory control

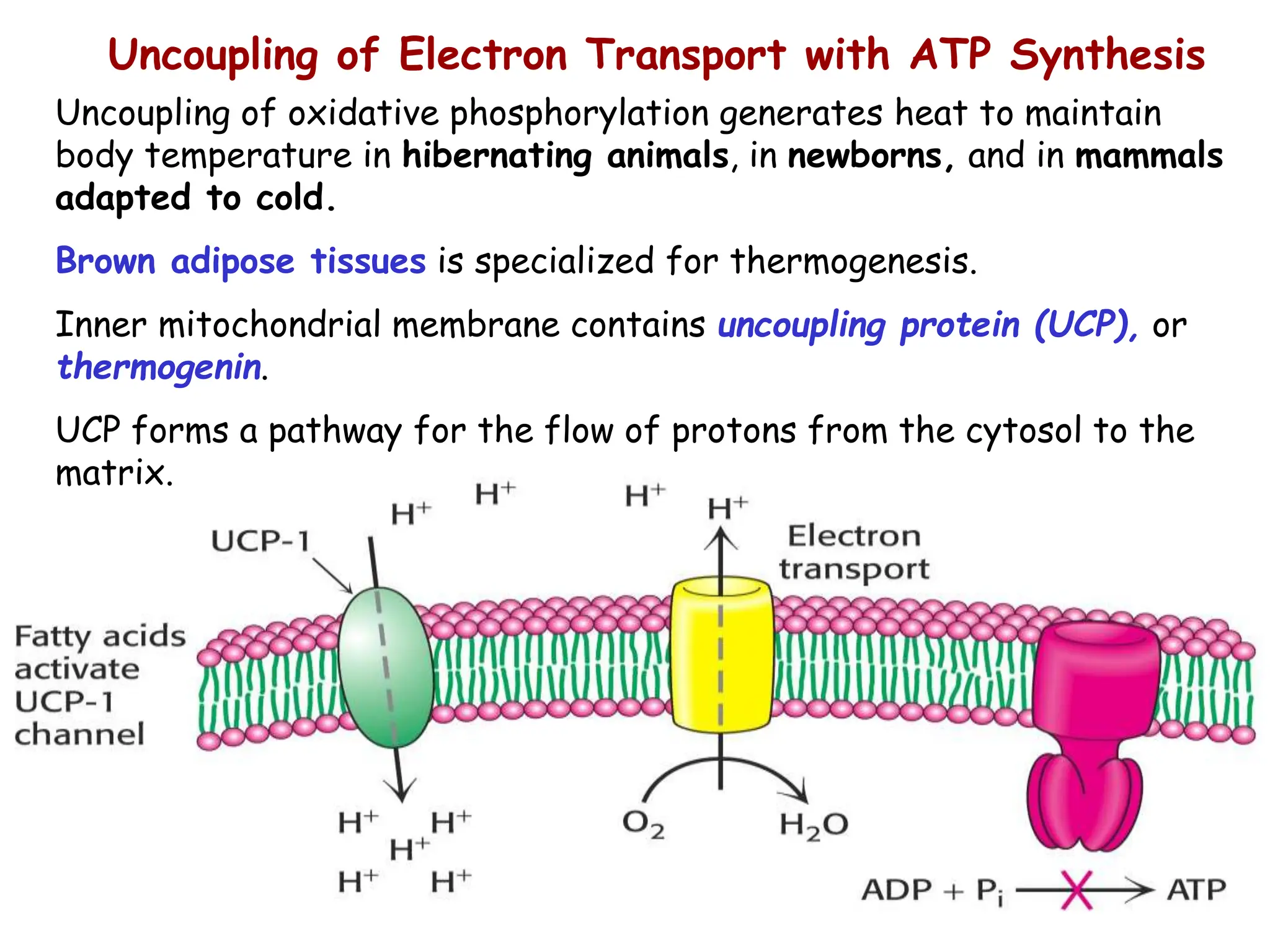

20. Uncoupling of Electron Transport with ATP Synthesis
Uncoupling of oxidative phosphorylation generates heat to maintain
body temperature in hibernating animals, in newborns, and in mammals
adapted to cold.
Brown adipose tissues is specialized for thermogenesis.
Inner mitochondrial membrane contains uncoupling protein (UCP), or
thermogenin.
UCP forms a pathway for the flow of protons from the cytosol to the
matrix.

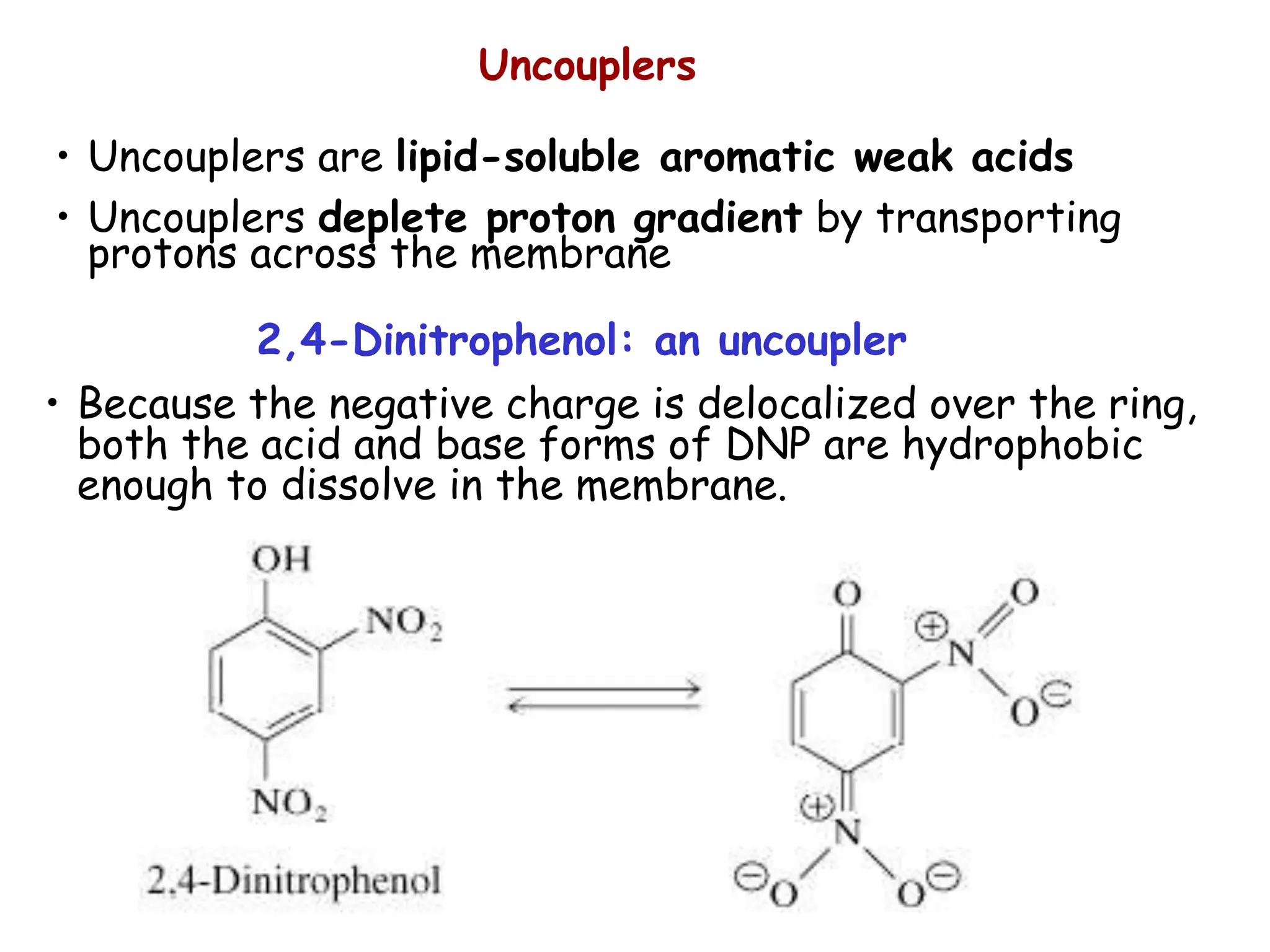

21. • Uncouplers are lipid-soluble aromatic weak acids
• Uncouplers deplete proton gradient by transporting
protons across the membrane
Uncouplers
2,4-Dinitrophenol: an uncoupler
• Because the negative charge is delocalized over the ring,
both the acid and base forms of DNP are hydrophobic
enough to dissolve in the membrane.

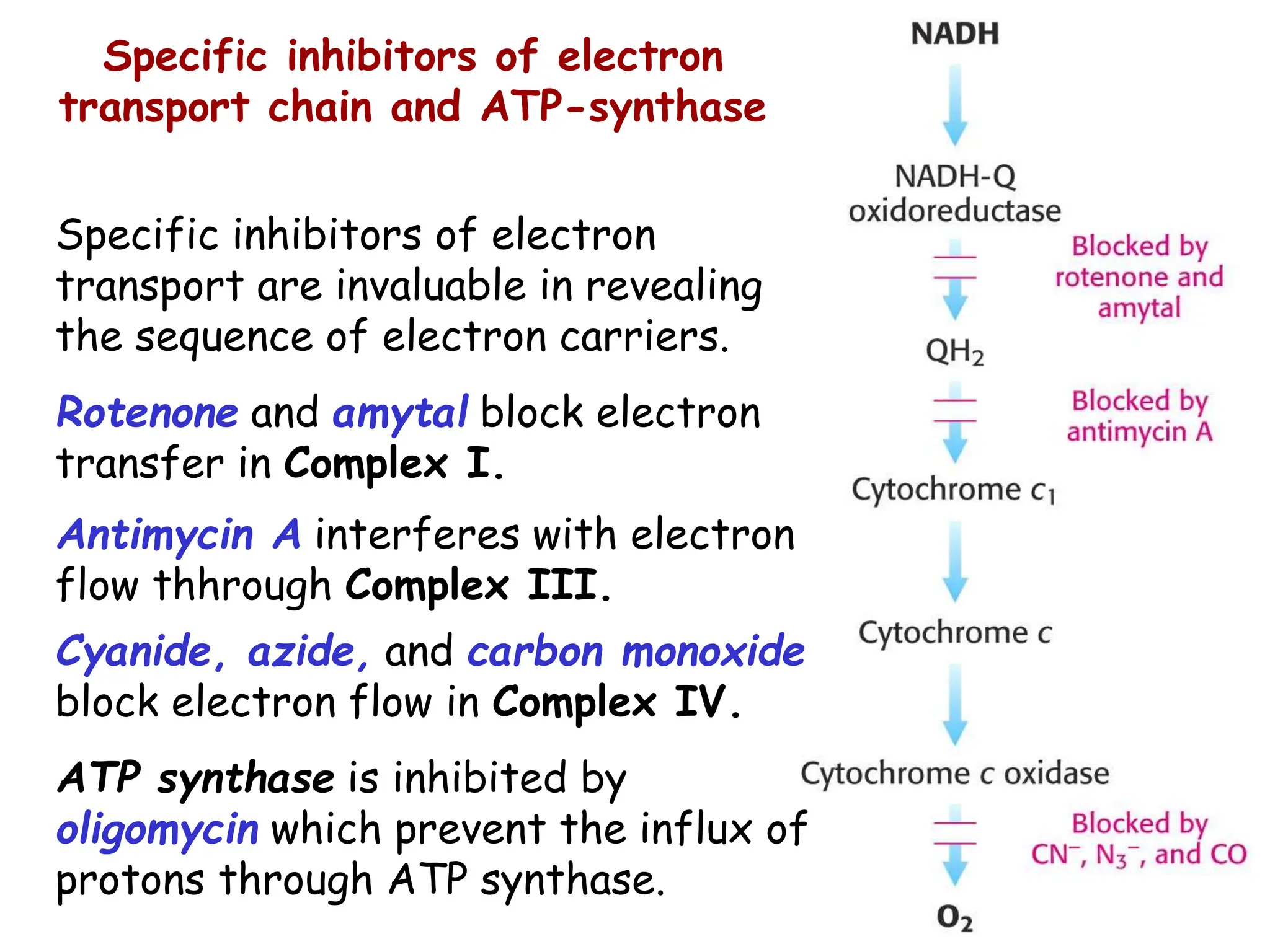

22. Specific inhibitors of electron
transport are invaluable in revealing
the sequence of electron carriers.
Rotenone and amytal block electron
transfer in Complex I.
Antimycin A interferes with electron
flow thhrough Complex III.
Cyanide, azide, and carbon monoxide
block electron flow in Complex IV.
ATP synthase is inhibited by
oligomycin which prevent the influx of
protons through ATP synthase.
Specific inhibitors of electron
transport chain and ATP-synthase

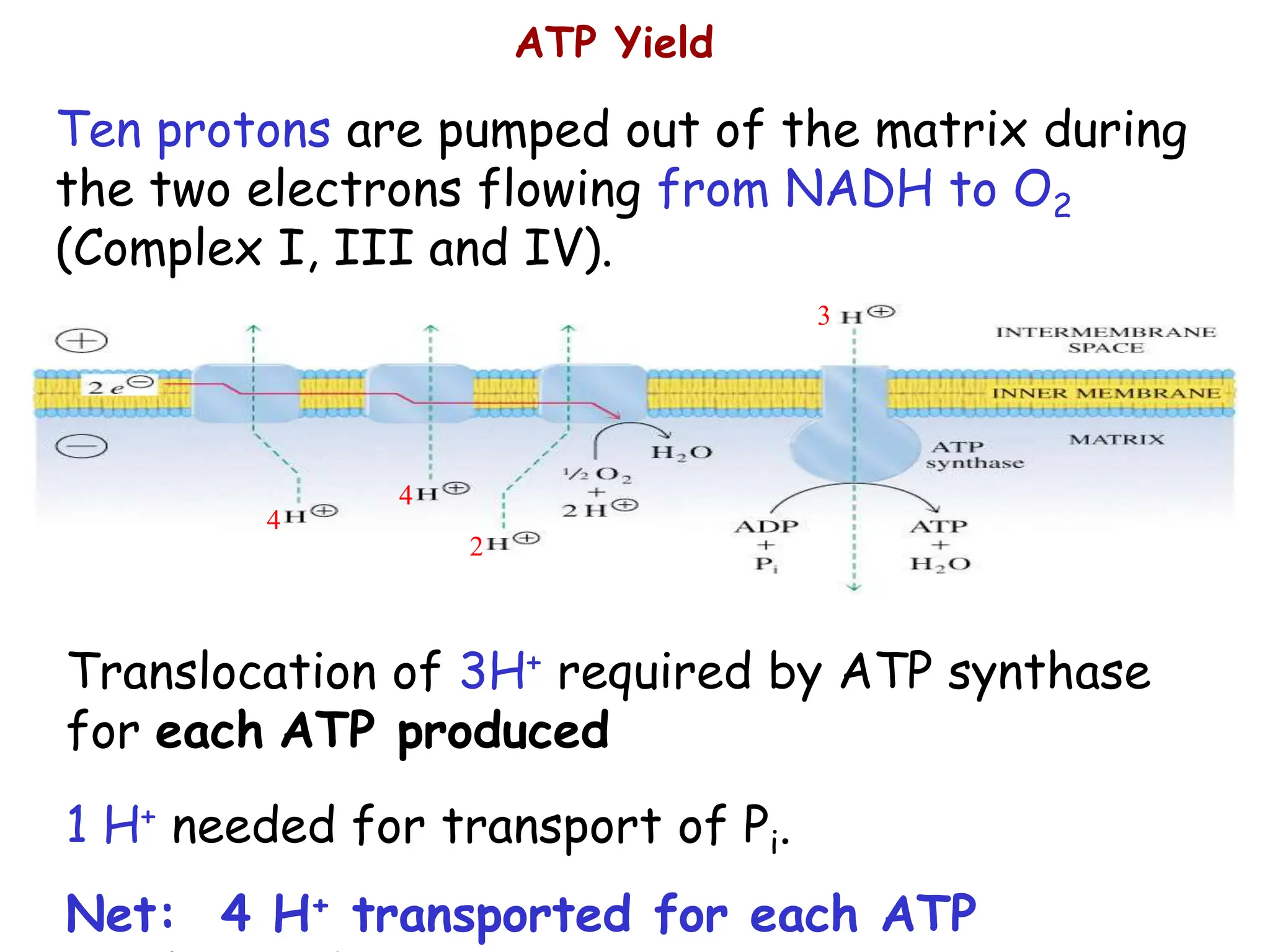

23. Translocation of 3H+ required by ATP synthase
for each ATP produced
1 H+ needed for transport of Pi.
Net: 4 H+ transported for each ATP
ATP Yield
Ten protons are pumped out of the matrix during
the two electrons flowing from NADH to O2
(Complex I, III and IV).
Six protons are pumped out of the matrix during
the two electrons flowing from FADH2 to O2
(Complex III and IV).
3
4
2
4

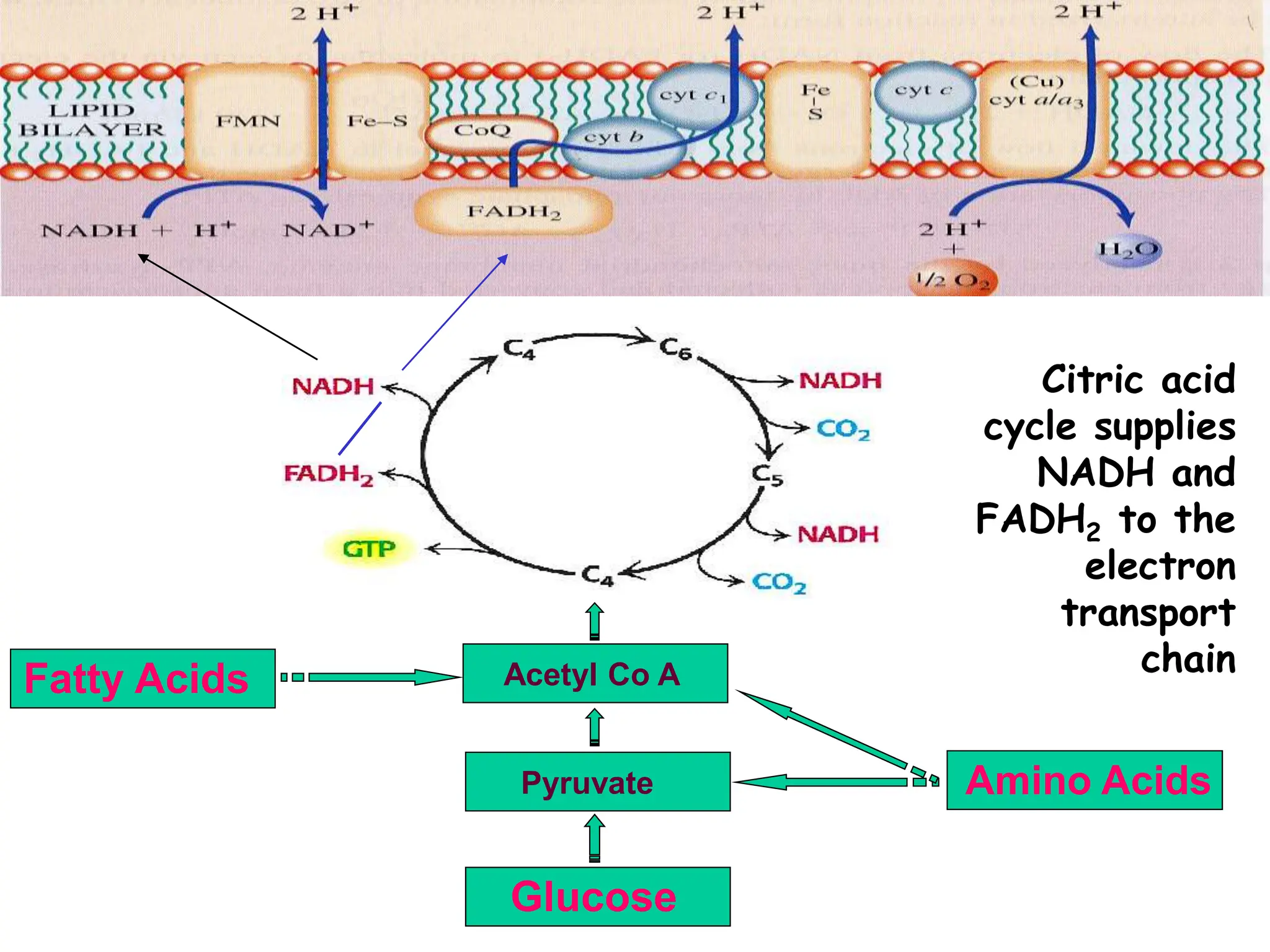

25. Glucose
Pyruvate
Acetyl Co A
Fatty Acids
Amino Acids
Citric acid
cycle supplies
NADH and
FADH2 to the
electron
transport
chain

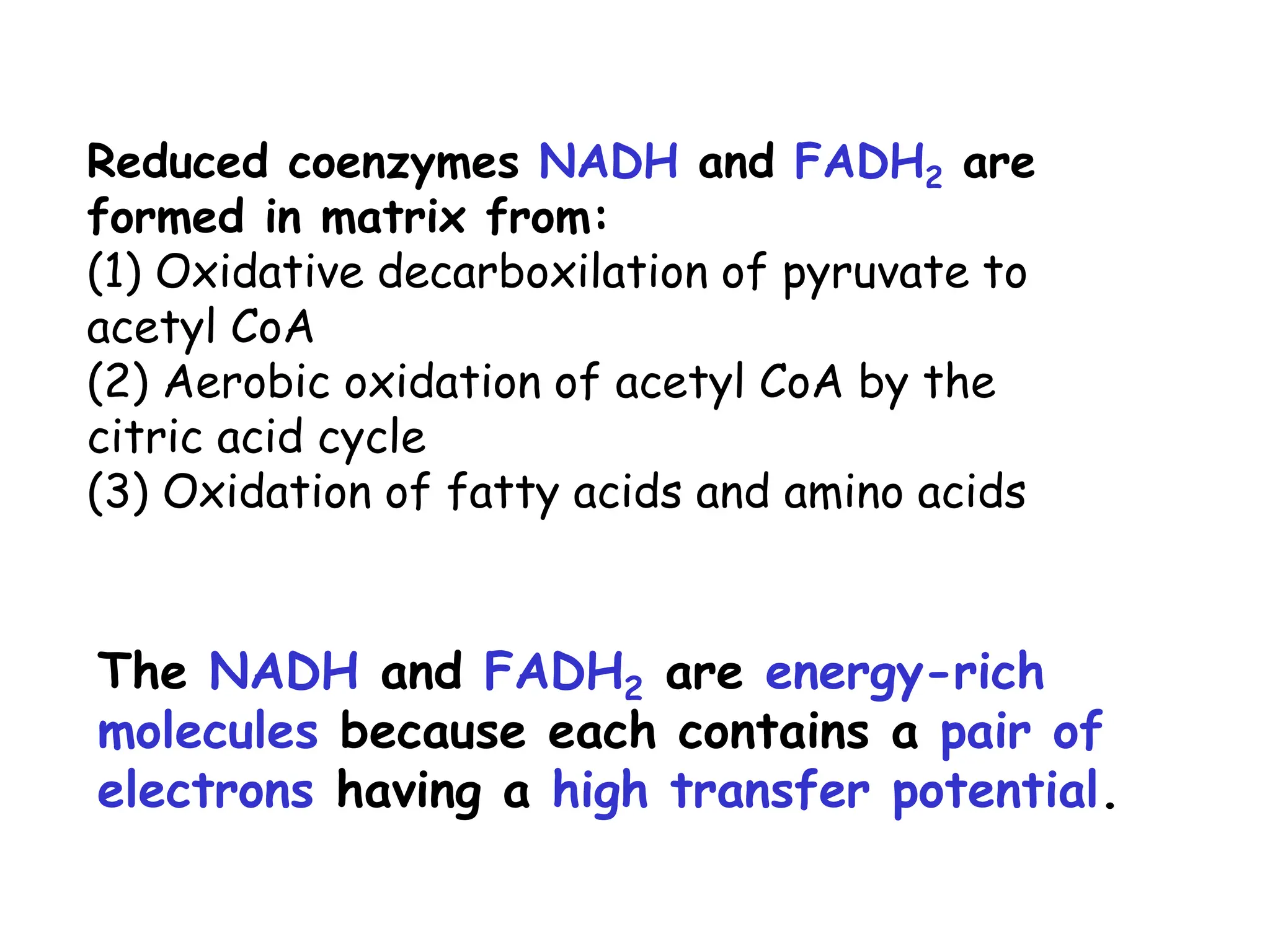

26. Reduced coenzymes NADH and FADH2 are
formed in matrix from:
(1) Oxidative decarboxilation of pyruvate to
acetyl CoA
(2) Aerobic oxidation of acetyl CoA by the
citric acid cycle
(3) Oxidation of fatty acids and amino acids
The NADH and FADH2 are energy-rich
molecules because each contains a pair of
electrons having a high transfer potential.

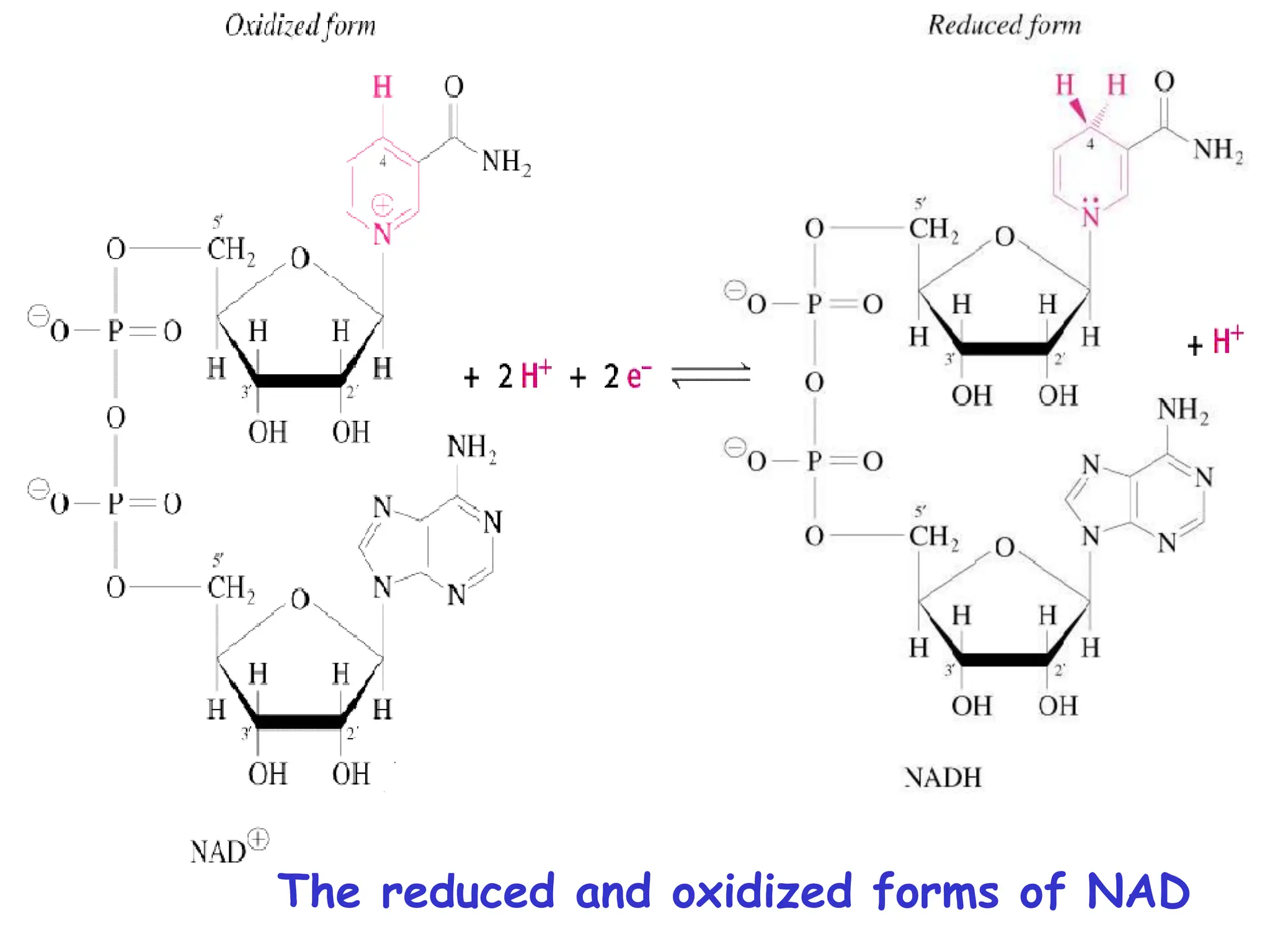

27. The reduced and oxidized forms of NAD

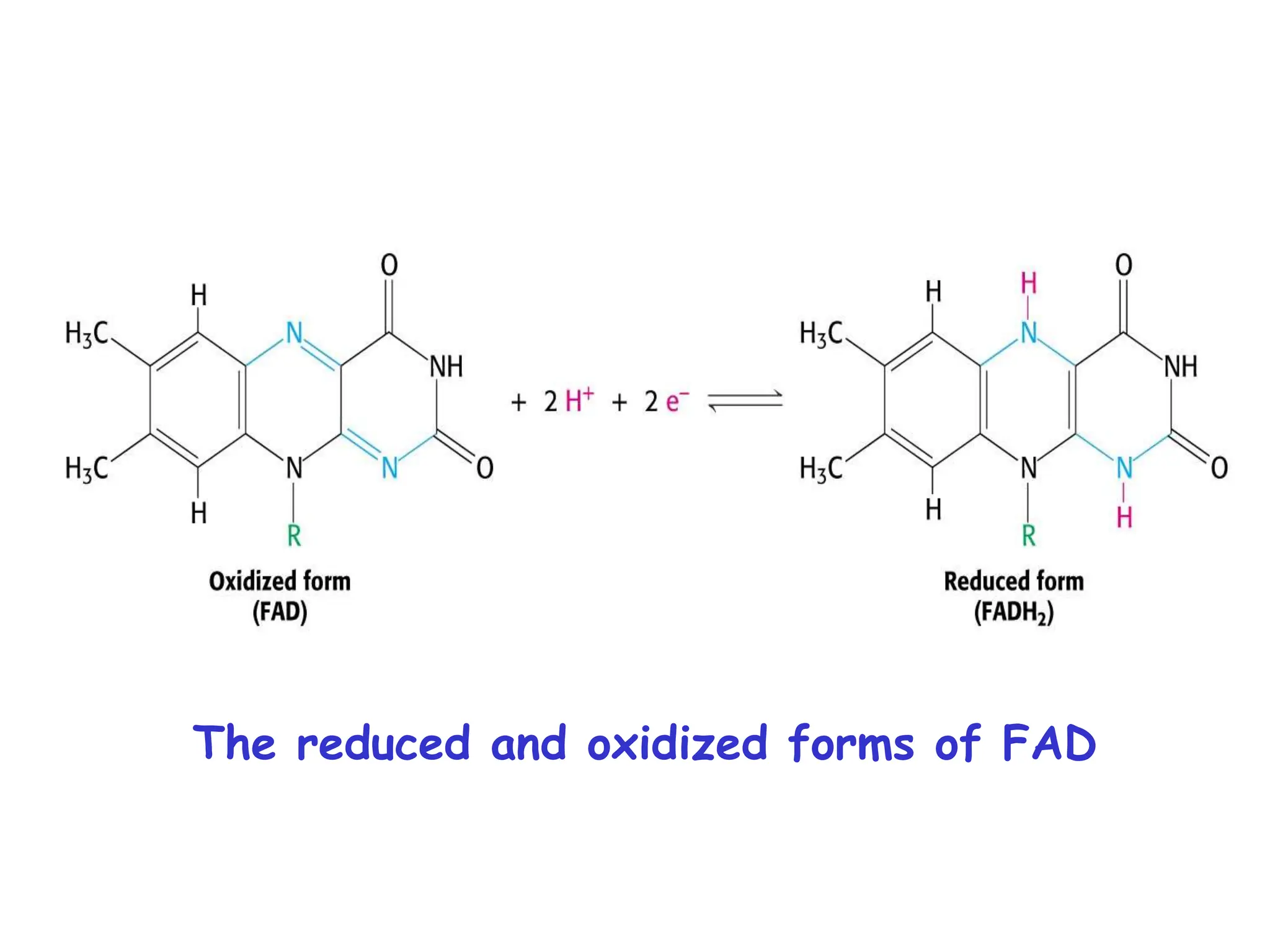

28. The reduced and oxidized forms of FAD

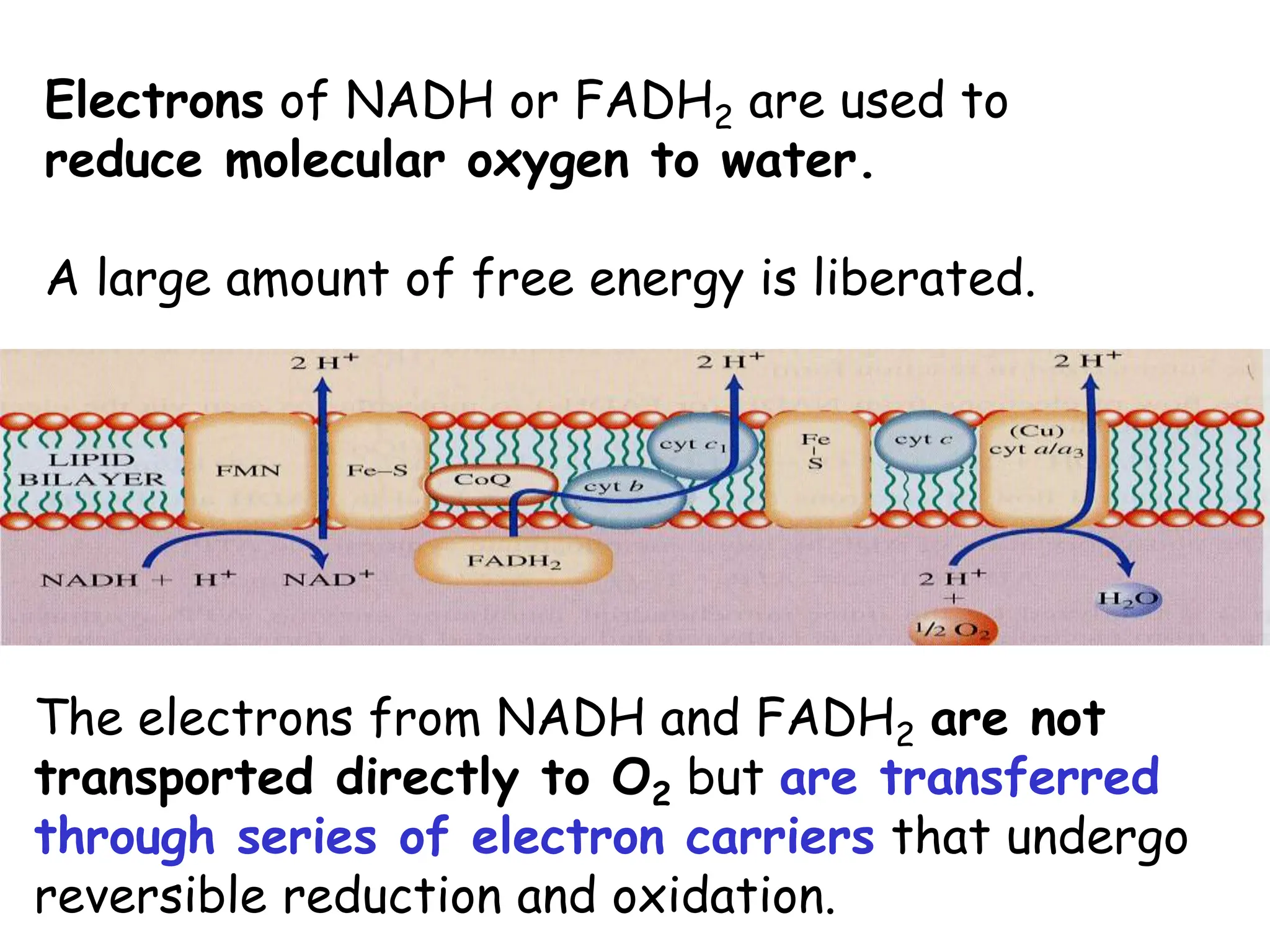

29. Electrons of NADH or FADH2 are used to
reduce molecular oxygen to water.
A large amount of free energy is liberated.
The electrons from NADH and FADH2 are not
transported directly to O2 but are transferred
through series of electron carriers that undergo
reversible reduction and oxidation.

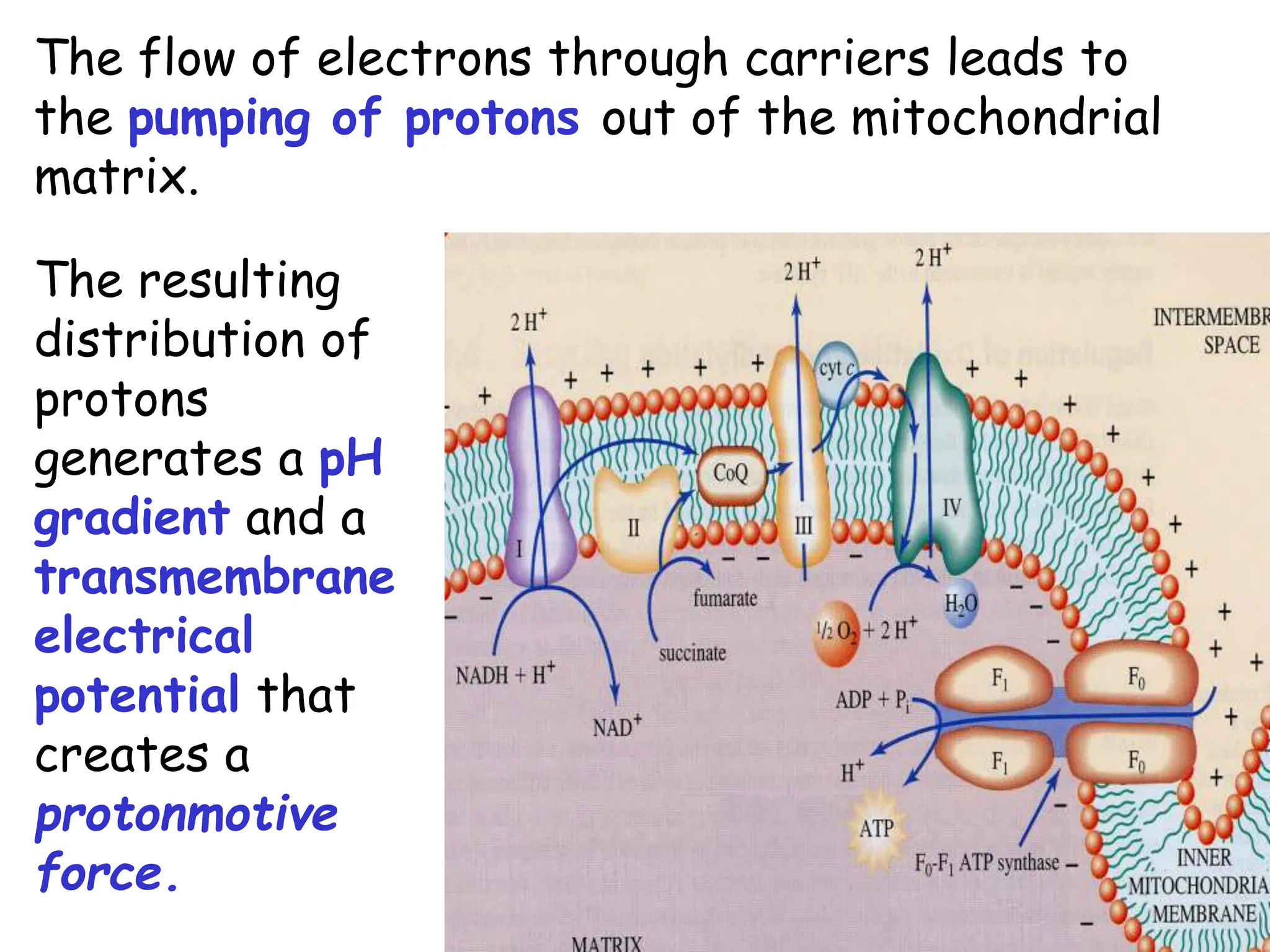

30. The flow of electrons through carriers leads to
the pumping of protons out of the mitochondrial
matrix.
The resulting
distribution of
protons
generates a pH
gradient and a
transmembrane
electrical
potential that
creates a
protonmotive
force.

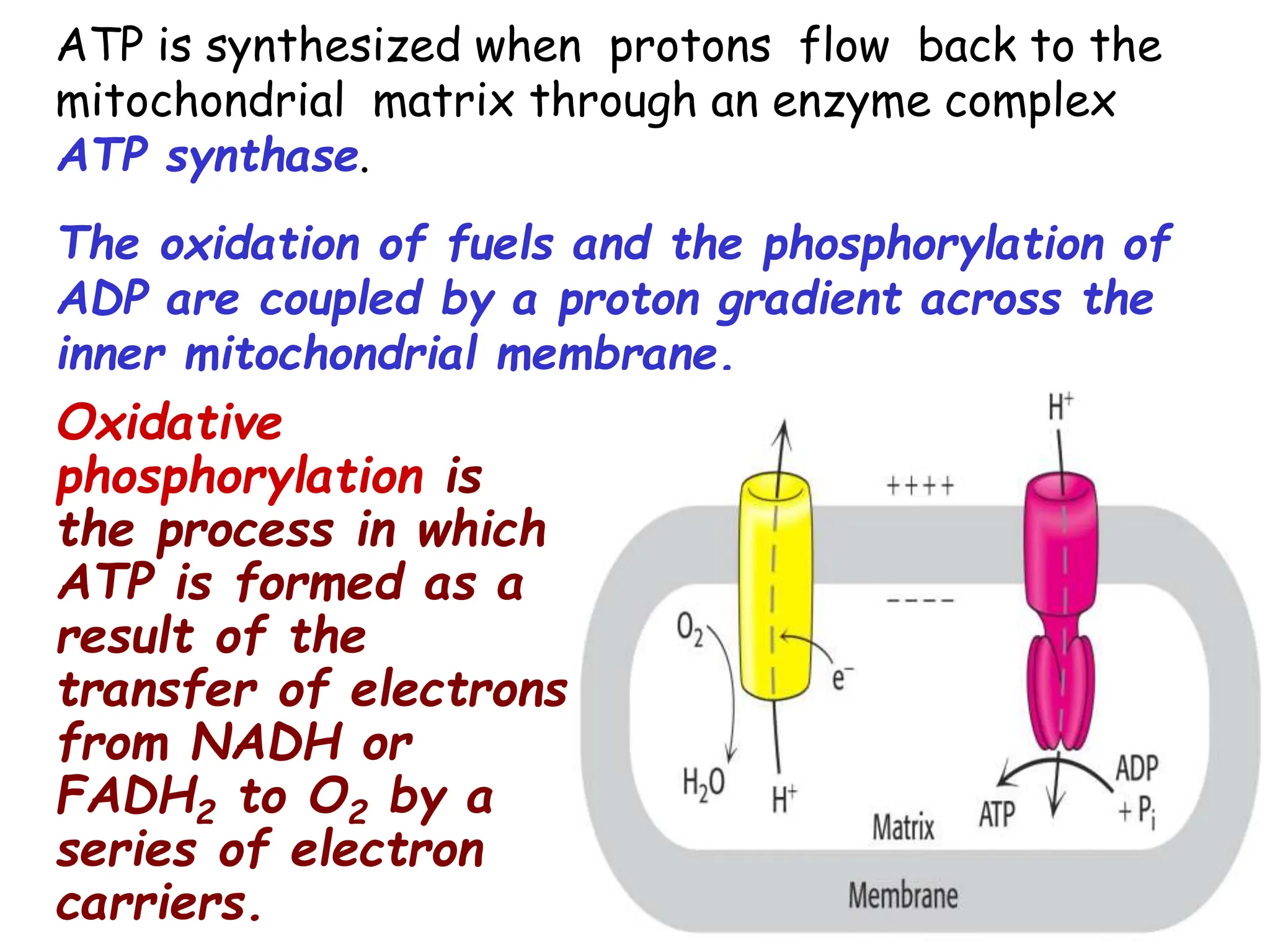

31. ATP is synthesized when protons flow back to the
mitochondrial matrix through an enzyme complex
ATP synthase.
The oxidation of fuels and the phosphorylation of
ADP are coupled by a proton gradient across the
inner mitochondrial membrane.
Oxidative
phosphorylation is
the process in which
ATP is formed as a
result of the
transfer of electrons
from NADH or
FADH2 to O2 by a
series of electron
carriers.

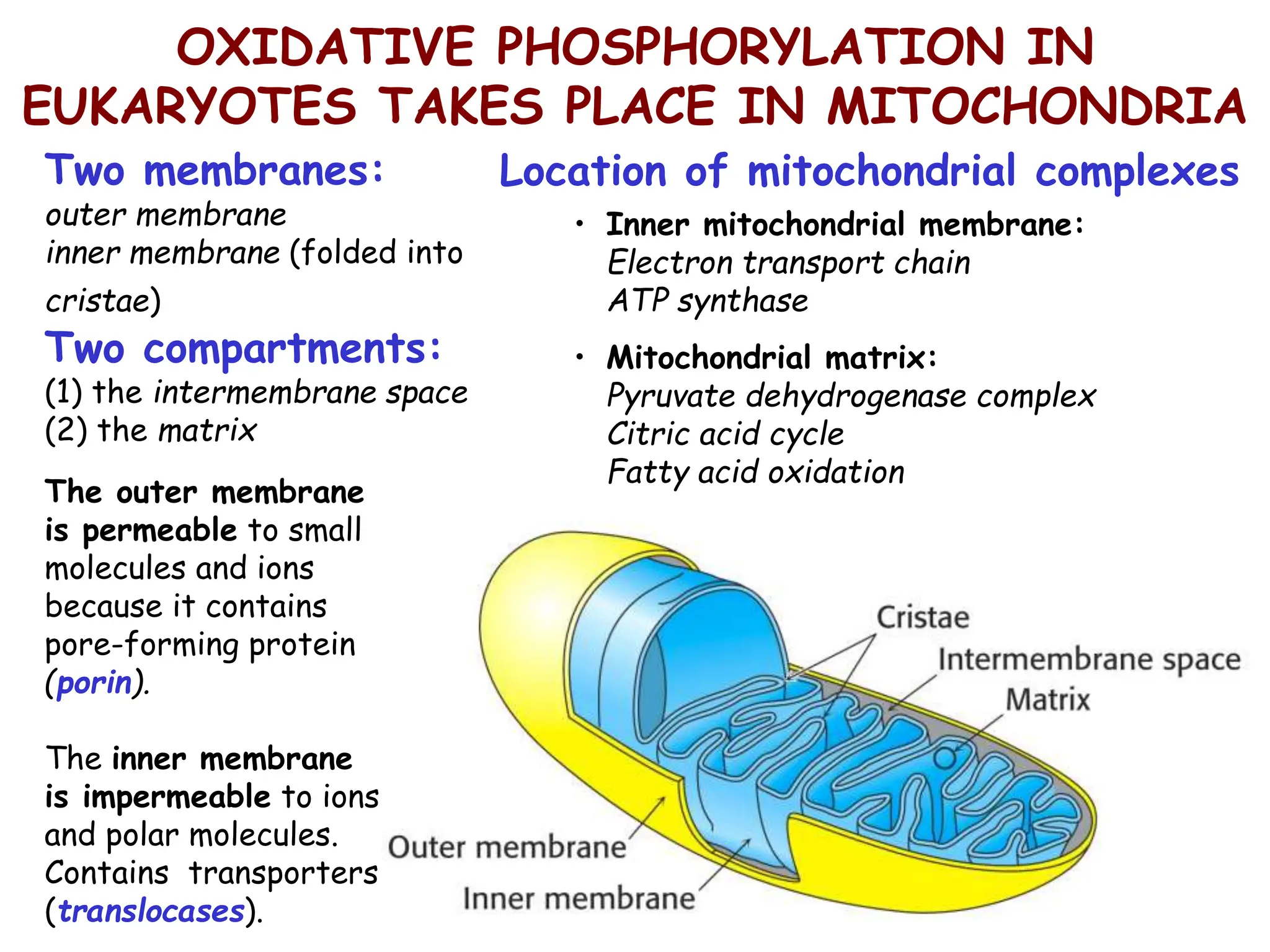

32. OXIDATIVE PHOSPHORYLATION IN
EUKARYOTES TAKES PLACE IN MITOCHONDRIA
Two membranes:
outer membrane
inner membrane (folded into
cristae)
Two compartments:
(1) the intermembrane space
(2) the matrix
• Inner mitochondrial membrane:
Electron transport chain
ATP synthase
• Mitochondrial matrix:
Pyruvate dehydrogenase complex
Citric acid cycle
Fatty acid oxidation
Location of mitochondrial complexes
The outer membrane
is permeable to small
molecules and ions
because it contains
pore-forming protein
(porin).
The inner membrane
is impermeable to ions
and polar molecules.
Contains transporters
(translocases).

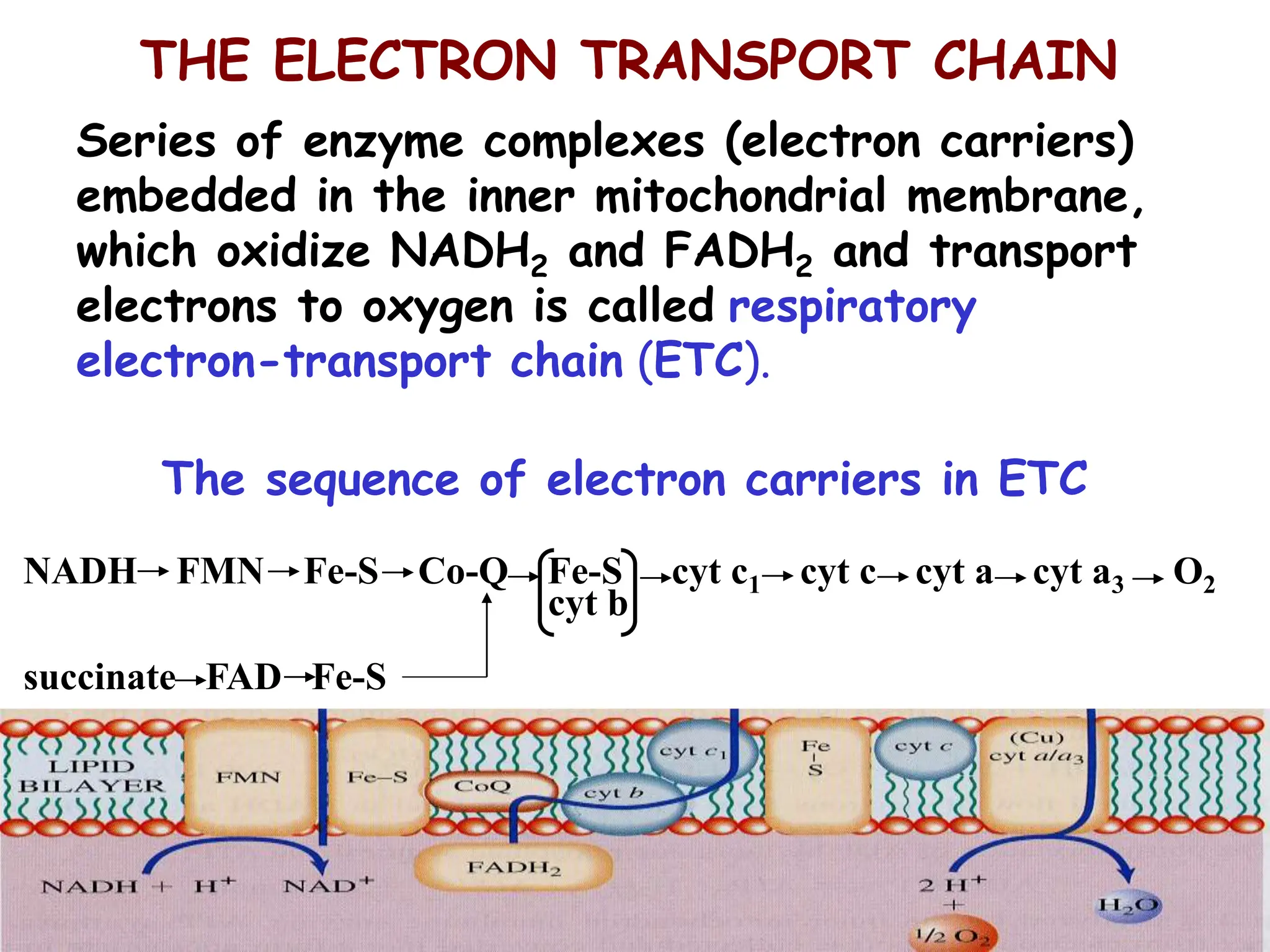

33. THE ELECTRON TRANSPORT CHAIN
Series of enzyme complexes (electron carriers)
embedded in the inner mitochondrial membrane,
which oxidize NADH2 and FADH2 and transport
electrons to oxygen is called respiratory
electron-transport chain (ETC).
The sequence of electron carriers in ETC
cyt b
NADH FMN Fe-S Co-Q Fe-S cyt c1 cyt c cyt a cyt a3 O2
succinate FAD Fe-S

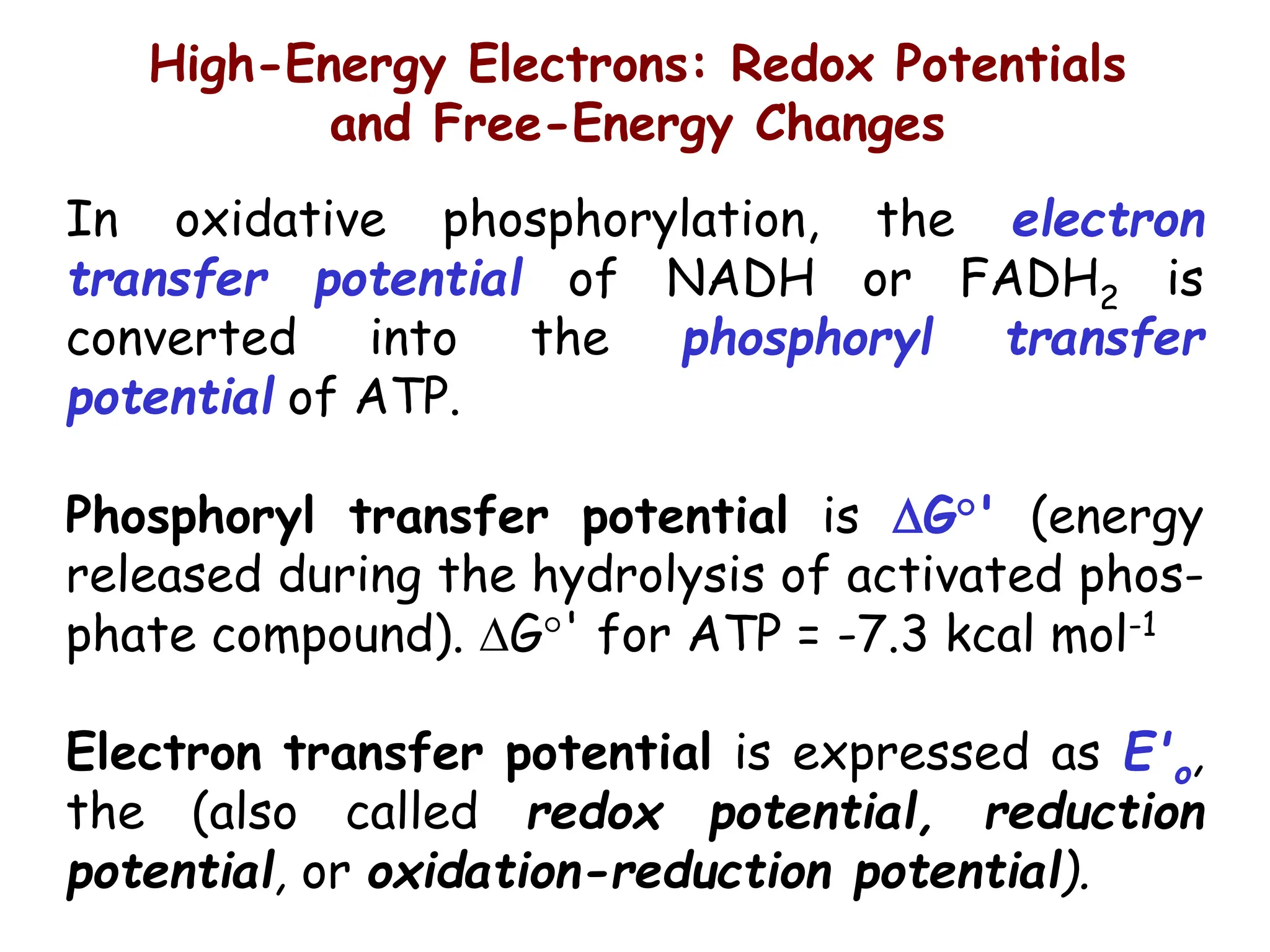

34. High-Energy Electrons: Redox Potentials
and Free-Energy Changes
In oxidative phosphorylation, the electron
transfer potential of NADH or FADH2 is
converted into the phosphoryl transfer
potential of ATP.
Phosphoryl transfer potential is G°' (energy
released during the hydrolysis of activated phos-
phate compound). G°' for ATP = -7.3 kcal mol-1
Electron transfer potential is expressed as E'o,
the (also called redox potential, reduction
potential, or oxidation-reduction potential).

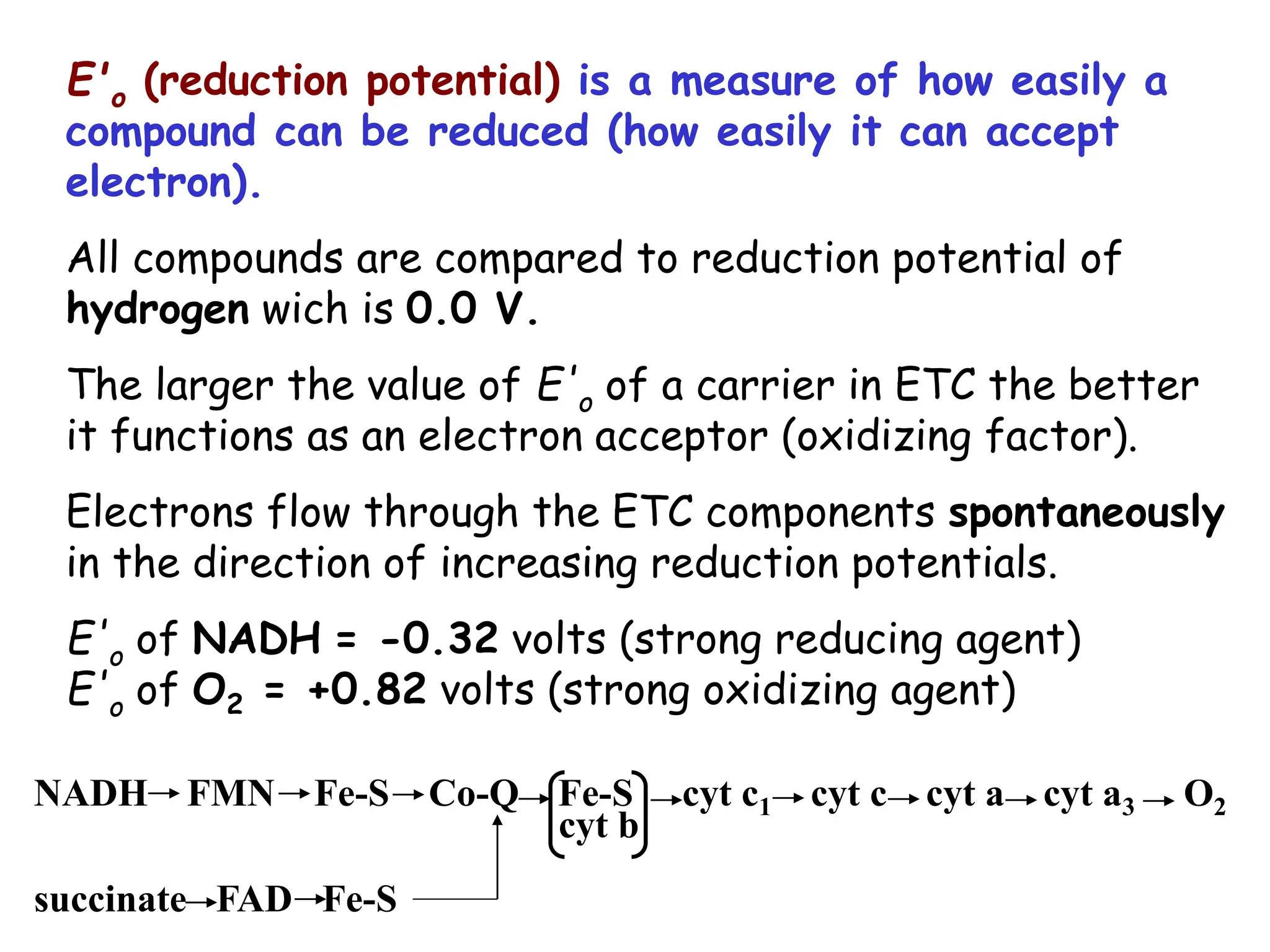

35. E'o (reduction potential) is a measure of how easily a
compound can be reduced (how easily it can accept
electron).
All compounds are compared to reduction potential of
hydrogen wich is 0.0 V.

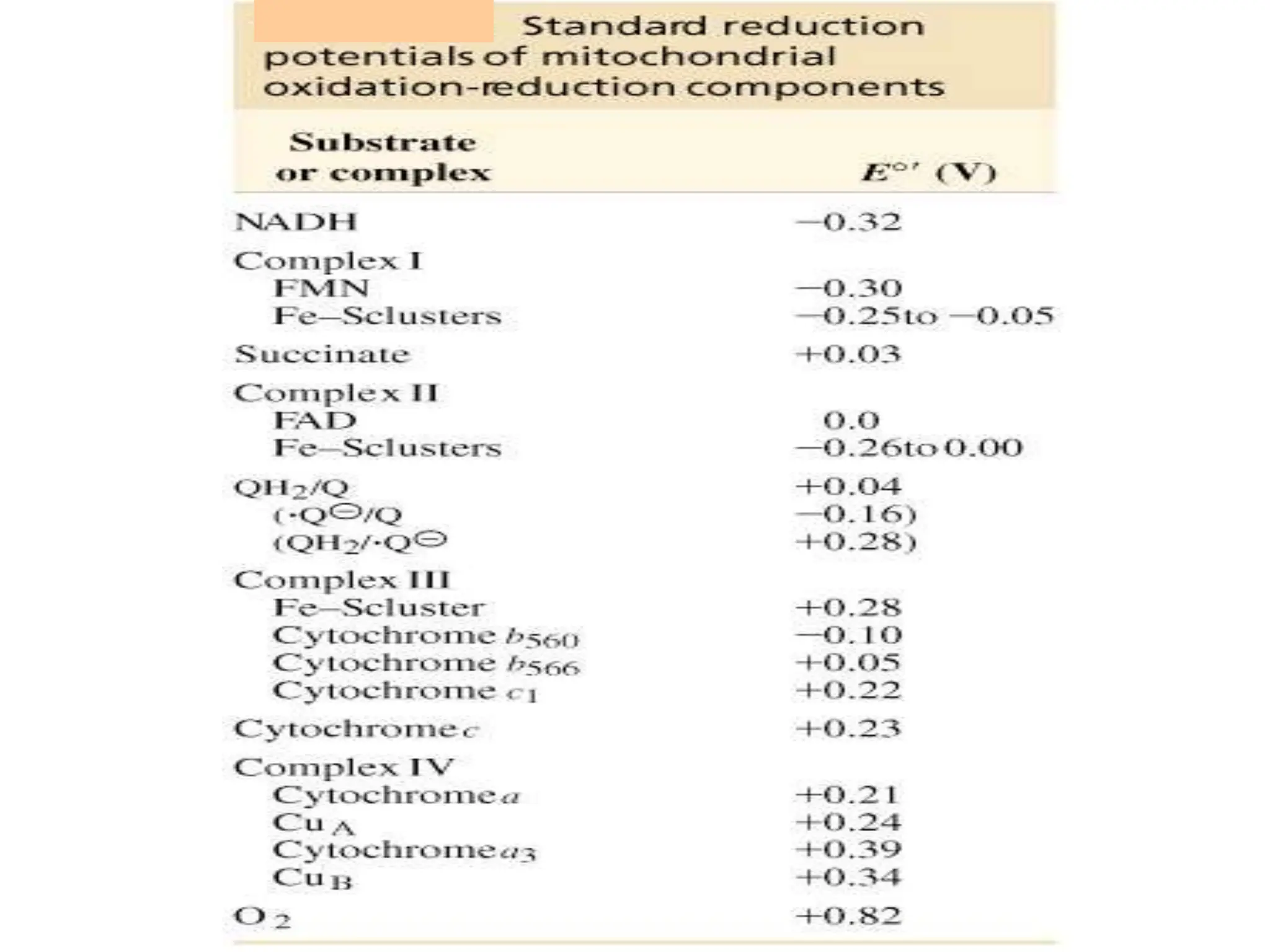

The larger the value of E'o of a carrier in ETC the better
it functions as an electron acceptor (oxidizing factor).
Electrons flow through the ETC components spontaneously
in the direction of increasing reduction potentials.
E'o of NADH = -0.32 volts (strong reducing agent)
E'o of O2 = +0.82 volts (strong oxidizing agent)
cyt b
NADH FMN Fe-S Co-Q Fe-S cyt c1 cyt c cyt a cyt a3 O2
succinate FAD Fe-S

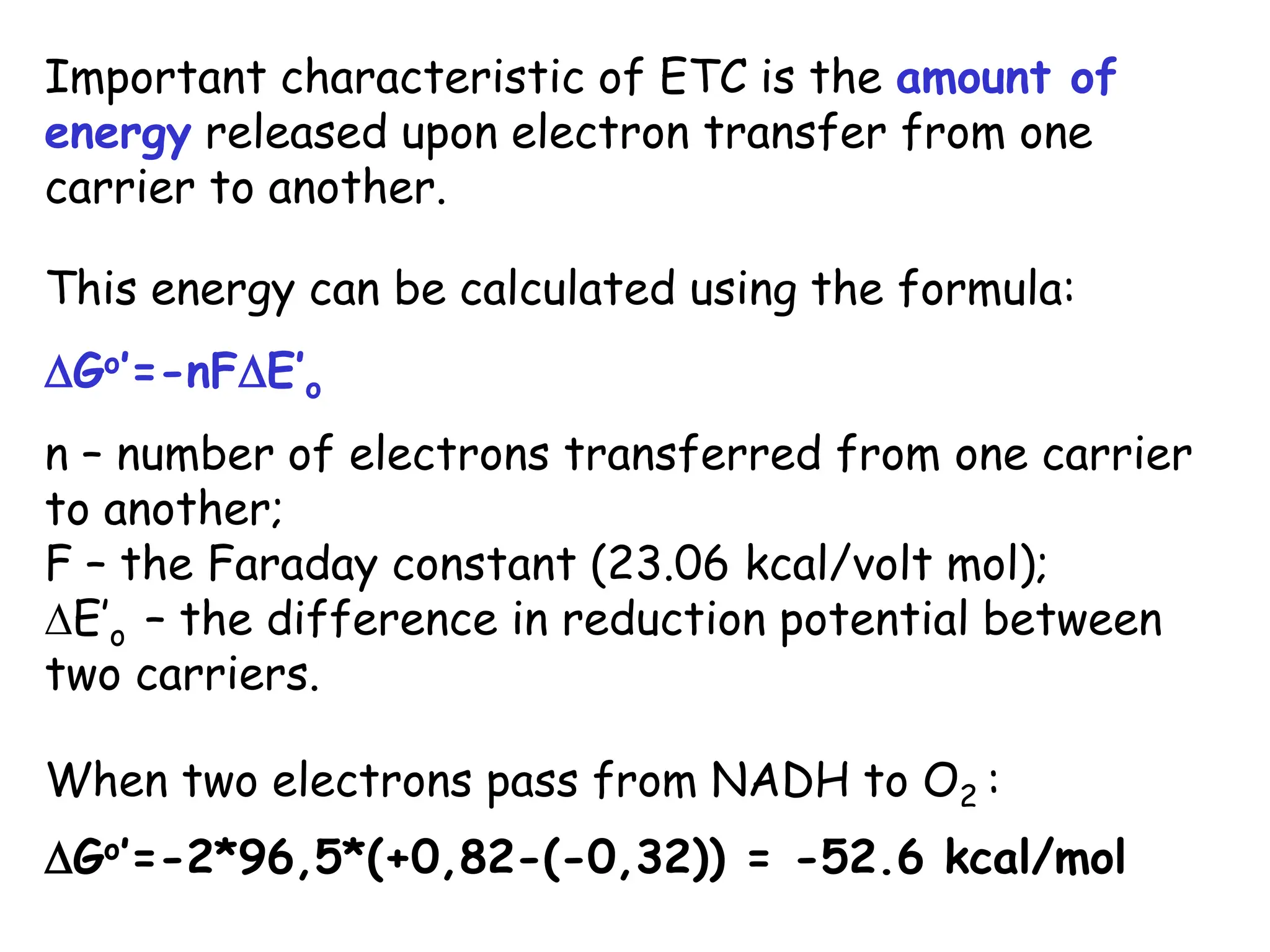

37. Important characteristic of ETC is the amount of
energy released upon electron transfer from one
carrier to another.
This energy can be calculated using the formula:
Go’=-nFE’o
n – number of electrons transferred from one carrier
to another;
F – the Faraday constant (23.06 kcal/volt mol);
E’o – the difference in reduction potential between
two carriers.
When two electrons pass from NADH to O2 :
Go’=-2*96,5*(+0,82-(-0,32)) = -52.6 kcal/mol
