This document discusses six theorems for proving that two lines are parallel: (1) the corresponding angles converse theorem, (2) the alternate interior angles converse theorem, (3) the alternate exterior angles converse theorem, (4) the consecutive interior angles converse theorem, (5) using a paragraph proof, and (6) the transitive property of parallel lines theorem. It also assigns homework problems from page 165 involving using these theorems to prove lines are parallel.

Technology

3.3 Prove Lines are Parallel September 26, 2011

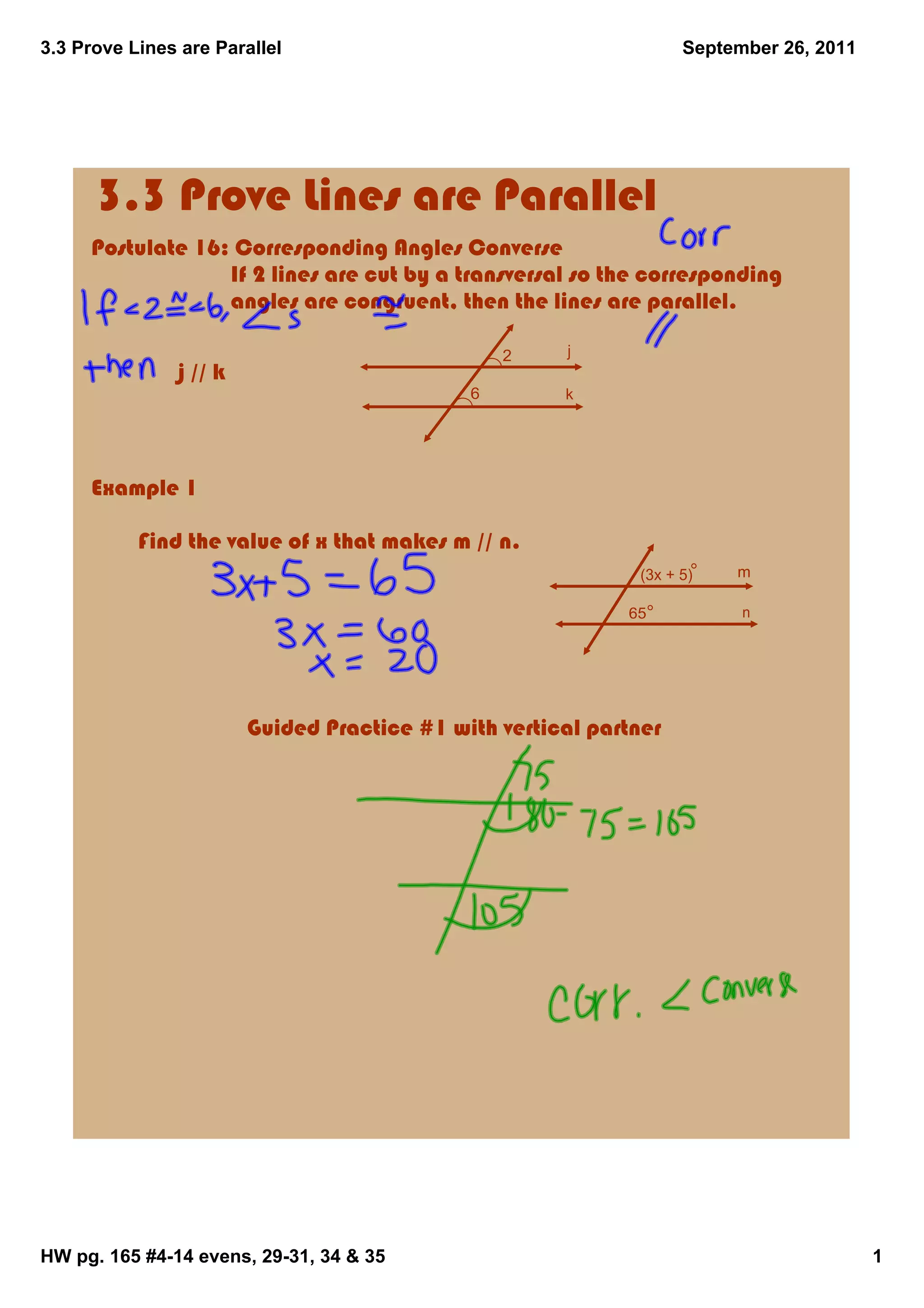

3.3 Prove Lines are Parallel
Postulate 16: Corresponding Angles Converse
                        If 2 lines are cut by a transversal so the corresponding
                        angles are congruent, then the lines are parallel.

2 j
j // k
6 k

Example 1

Find the value of x that makes m // n.
(3x + 5) m

65 n

                           Guided Practice #1 with vertical partner

HW pg. 165 #414 evens, 2931, 34 & 35 1

3.3 Prove Lines are Parallel September 26, 2011

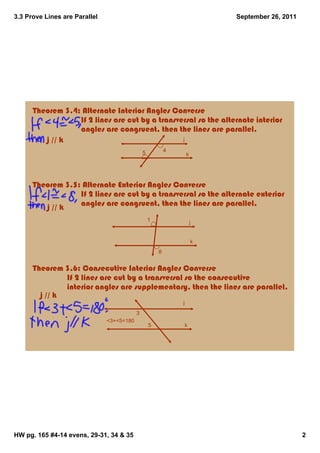

Theorem 3.4: Alternate Interior Angles Converse
                        If 2 lines are cut by a transversal so the alternate interior
                        angles are congruent, then the lines are parallel.
j // k j

5 4
k

Theorem 3.5: Alternate Exterior Angles Converse
                        If 2 lines are cut by a transversal so the alternate exterior
                        angles are congruent, then the lines are parallel.
j // k
1 j

k
8

Theorem 3.6: Consecutive Interior Angles Converse
                 If 2 lines are cut by a transversal so the consecutive
                 interior angles are supplementary, then the lines are parallel.
j // k
j
3
<3+<5=180
5 k

HW pg. 165 #414 evens, 2931, 34 & 35 2

3.3 Prove Lines are Parallel September 26, 2011

HW pg. 165 #414 evens, 2931, 34 & 35 3

3.3 Prove Lines are Parallel September 26, 2011

HW pg. 165 #414 evens, 2931, 34 & 35 4

3.3 Prove Lines are Parallel September 26, 2011

Paragraph Proof: written in paragraph form and in sentences
explaining the logical flow of argument

HW pg. 165 #414 evens, 2931, 34 & 35 5

3.3 Prove Lines are Parallel September 26, 2011

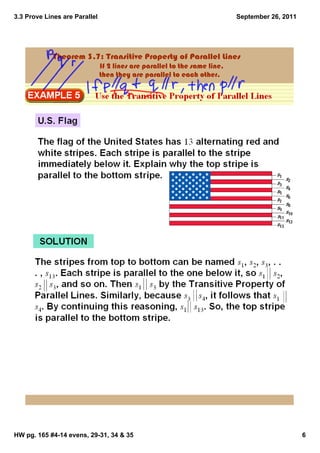

Theorem 3.7: Transitive Property of Parallel Lines
If 2 lines are parallel to the same line,
then they are parallel to each other.

HW pg. 165 #414 evens, 2931, 34 & 35 6

3.3 Prove Lines are Parallel September 26, 2011

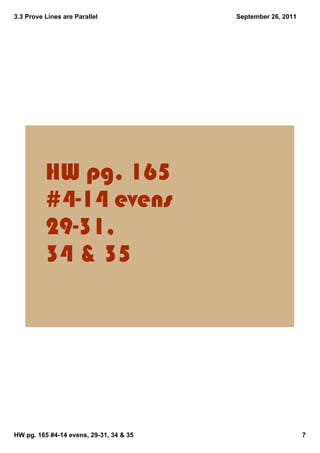

HW pg. 165
#414 evens
2931,
34 & 35

HW pg. 165 #414 evens, 2931, 34 & 35 7
