32 bit linux-system

Doc. NoDoc. NoDoc. NoDoc. No::::
Date:Date:Date:Date:JanJanJanJan.... 7777, 2011, 2011, 2011, 2011
Revision:Revision:Revision:Revision:1.01.01.01.02222
ASUSTeK COMPUTERASUSTeK COMPUTERASUSTeK COMPUTERASUSTeK COMPUTER
INC.INC.INC.INC.
32323232----bitbitbitbit LinuxLinuxLinuxLinux systemsystemsystemsystem
Standard OperationStandard OperationStandard OperationStandard Operation ProcedureProcedureProcedureProcedure
Page:Page:Page:Page: 34343434 Grade::::
Authorize
by
Review
by
Originator
By Ariel
Form No: T2-009-01 Rev.01

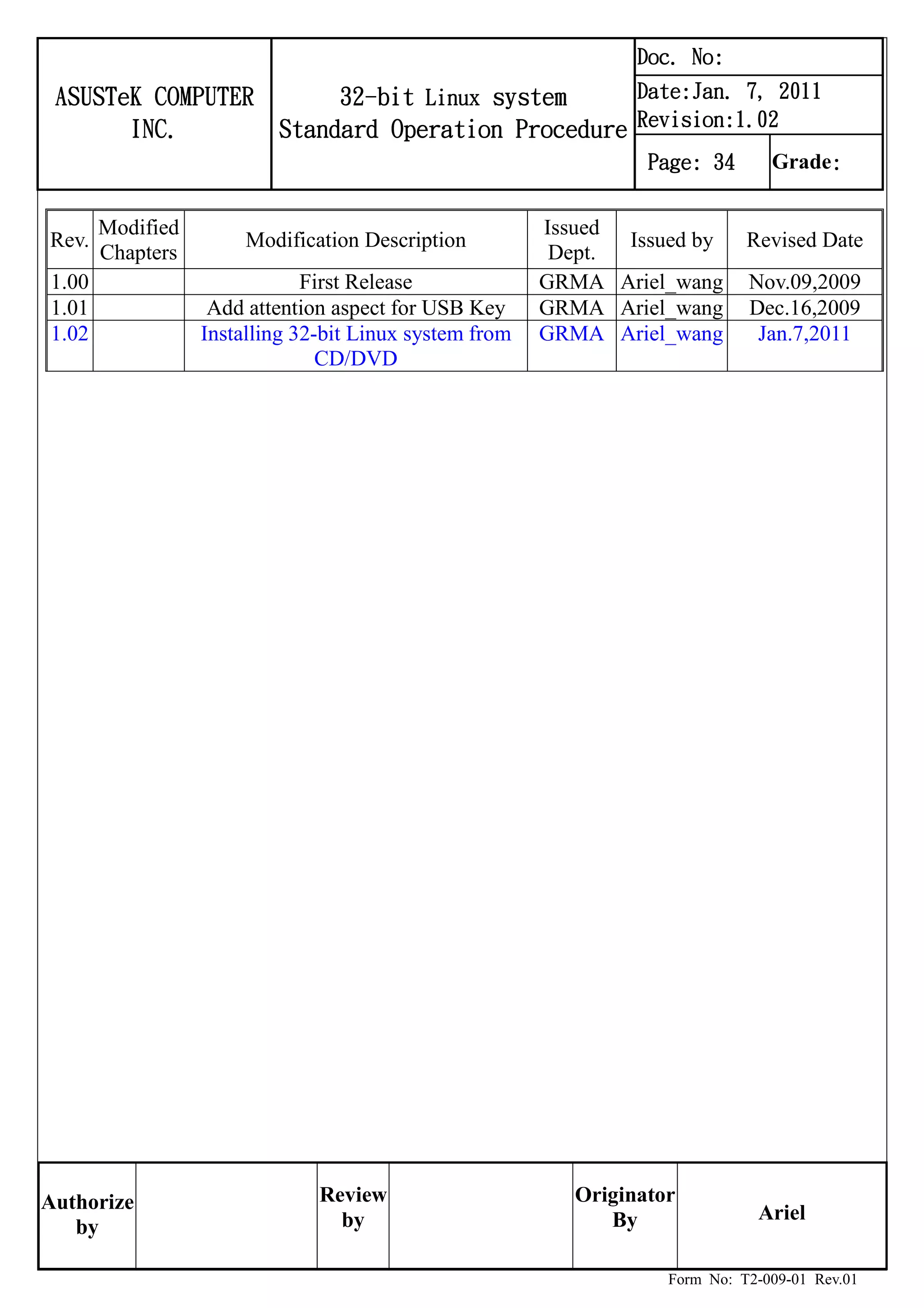

Rev.
Modified
Chapters
Modification Description
Issued
Dept.
Issued by Revised Date
1.00 First Release GRMA Ariel_wang Nov.09,2009
1.01 Add attention aspect for USB Key GRMA Ariel_wang Dec.16,2009
1.02 Installing 32-bit Linux system from
CD/DVD
GRMA Ariel_wang Jan.7,2011

Doc. No:
ASUSTeK COMPUTER INC 32-bit Linux system
Standard Operation Procedure
Date: Jan. 7, 2011
Rev.: 1.02 Page: 1

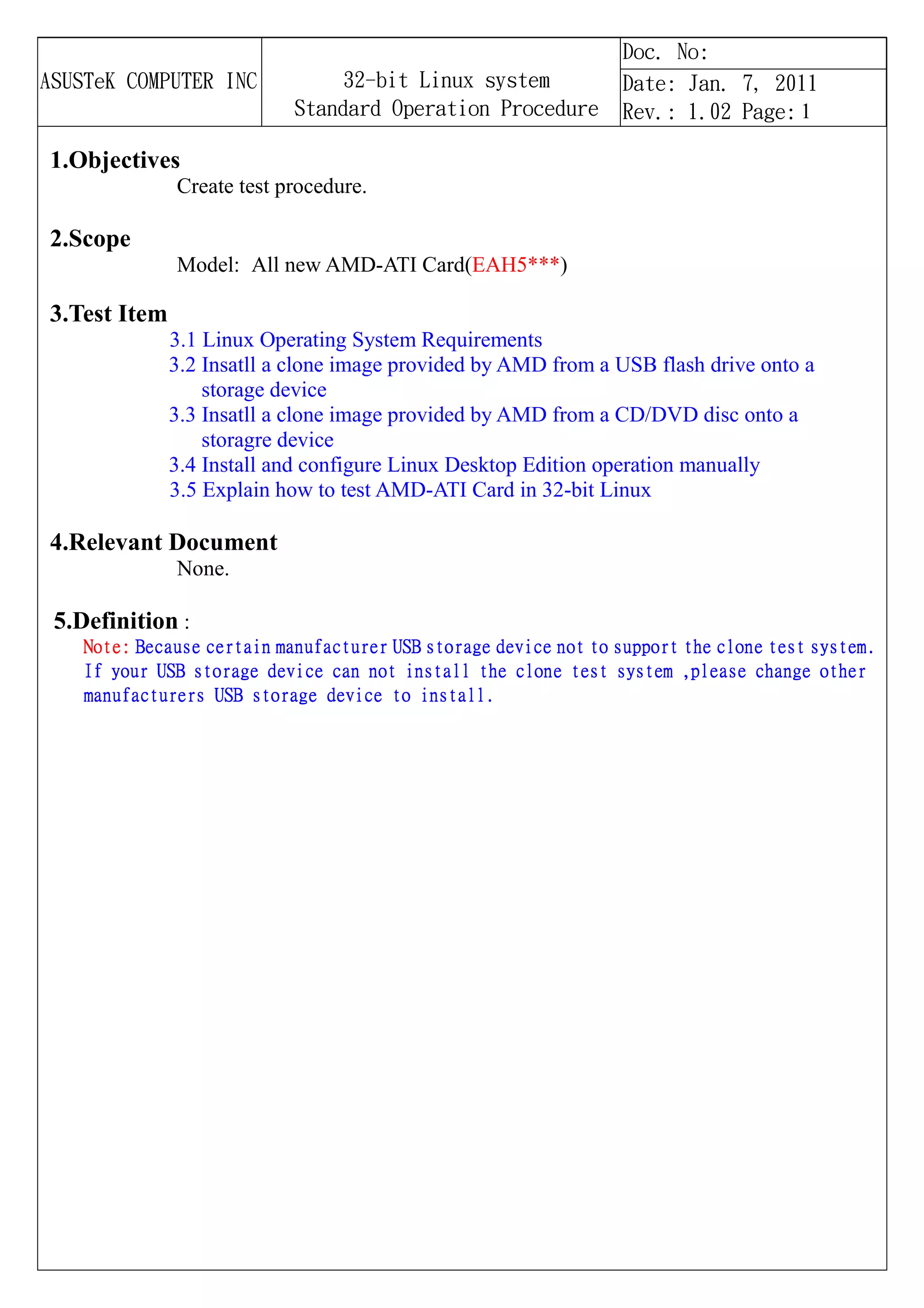

1.Objectives
Create test procedure.
2.Scope
Model: All new AMD-ATI Card(EAH5***)
3.Test Item
3.1 Linux Operating System Requirements
3.2 Insatll a clone image provided by AMD from a USB flash drive onto a
storage device
3.3 Insatll a clone image provided by AMD from a CD/DVD disc onto a
storagre device
3.4 Install and configure Linux Desktop Edition operation manually
3.5 Explain how to test AMD-ATI Card in 32-bit Linux
4.Relevant Document
None.
5.Definition :
Note:Note:Note:Note: Because certain manufacturer USBBecause certain manufacturer USBBecause certain manufacturer USBBecause certain manufacturer USB sssstorage device not to support the clone test systemtorage device not to support the clone test systemtorage device not to support the clone test systemtorage device not to support the clone test system....
IIIIf youf youf youf yourrrr USBUSBUSBUSB sssstorage device cantorage device cantorage device cantorage device can not install the clone test systemnot install the clone test systemnot install the clone test systemnot install the clone test system ,,,,pleasepleasepleaseplease changechangechangechange otherotherotherother
manufacturers USBmanufacturers USBmanufacturers USBmanufacturers USB sssstorage device to installtorage device to installtorage device to installtorage device to install....

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 2
6. Overview
The document explains how to execute the AMD VGA Card diagnostics in 32-bit
Linux system, and provides a list of frequently used Linux commands for you.
6.1 Hardware Requirements
• System Memory: 1GB for a single GPU test station; please add an additional
512MB of system memory for each additional GPU used for the test configuration
• CPU: 32/64 bit Processor and compatible motherboard‐
• Storage device: 8GB or larger hard drive
6.2 Additional Notes
• Do not perform any of the Linux automatic updates as it may cause the diagnostics
to not work,or operate as intended.
• Do not try to run the tserver diagnostics through graphical mode (the tserver
diagnostic suite has not been validated in graphical mode, and any issues
discovered in graphical mode will not be supported by AMD)
• The Linux drive should have a swap partition, with a required MINIMUM size of
twice the system memory size (i.e. A test station which employs the minimum
system memory of 1GB requires the use a Linux swap partition of at least 2GB)
7. Operation Procedures:
7.1Cloning Storage Device with USB Key
This section lists the hardware and software requirements, and provides a
step by step procedure to‐ ‐ clone a test machine’s storage device with a USB key.
7.1.1 Hardware Requirements
Component Hardware Requirement
Cloning System • USB 2.0 Ports
Cloning USB Key • USB 2.0 device
• 512MB or larger capacity (Note: all data on the USB
device will be erased as a result)
Test System • 32 bit or 64 bit processor (Intel P4/AMD Athlon or newer)
• 1GB of DDR2 system memory
• Storage device with 8GB or larger capacity – either
SATA/IDE hard drive or USB 2.0 Key (Note: it is required
to have only one storage device other than the cloning
USB Key connected to test system during cloning)

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 3
7.1.2 Software Requirements
Component Software Requirement
USB Key Cloning
System
• System with Windows XP SP2 installed
• Cloning utilities (can be downloaded from sip)
(usb.clone.binaries.zip)& (ub904-serverx86-8g-v101.zip)
Test System • System BIOS that supports booting from USB key
7.1.3 Cloning Procedure
The cloning procedure is divided into two phases:
1. Installing the automated cloning software and clone image onto a USB key.
2. Booting a test system from the configured USB key, which will automatically
install the clone image onto the attached storage device.
Below is a step by step breakdown of how to perform each phase.‐ ‐
7.1.3.1 Installing Cloning Software and Disk Image onto USB Key
Format the USB key
• Insert USB key into system(Please install windows XP environment)
• Open “My Computer”
• Right click on the Drive mapped to the USB key and select Format
• Please select the “FAT32 partition” option
• A popup window will appear, click on Start to begin Formatting the USB key

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 4
• Downloaded the files(usb.clone.binaries.zip) & (ub904-serverx86-8g-v101.zip)
from sip and extracted the file(usb.clone.binaries.zip),then copy them onto
Windows XP(Please install windows XP environment for use).
• Copy the vb6stkit.dll file(from usb.clone.binaries) to Windows XP/system
directory.
• Please run LUSBH‐0.0.8.exe (from usb.clone.binaries)as following,then select
Next to continue.

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 5

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 6
Please select install location (USB storage device)
Please select ‘Live Usb Help’ to install

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 7
Please select “Run Live Usb Helper 0.0.8”,then click “Finish” to continue.
•Please select “English” from Select a Language and select the USB flash driver,
then click the 'Install The Image File' button.

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 8
•Select ‘Browse' to find the 32-bit Linux disk image previously downloaded
• Next, click the 'Install The Image File' button and wait until the process is finished
( takes between 4 8 minutes depending on the system/USB key)‐

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 9
• Click the 'Back' button one the process has completed
• Click the 'Make USB Flash Drive Bootable' button followed by the 'Make USB
Flash Drive Bootable' button
• When completed, click 'Confirm' and followed by the 'Back' button
• Exit the Live USB Helper application by clicking 'Exit' button

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 10
• Install setuppad.exe (from usb.clone.binaries) by running the program and don't
change preset values
Click “Change Folder” to select D: (USB Key)

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 11
Please click the large button to start installing.
Please press “Microsoft ActiveX Control Pad” to proceed to the next step.
7.1.3.2 Clone Test System’s Storage Device from USB Key
• Insert the USB key prepared in the previous section into test machine.(eg:P5E)
• Ensure the test system’s BIOS has been configured to boot from the prepared USB
key.
• Ensure that there is only one storage device (either IDE hard drive, SATA hard
drive or USB key) attached to test machine other than the prepared USB key.
• Boot the test system and ensure it boots from the prepared USB key. From here

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 12
onwards, the cloning progress is completely automated (requires 5 10 minutes‐
depending on the system) and when completed, the user will be prompted to
remove the USB key
• Remove USB key from the test system and press enter to power down the system.

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 13
For some systems, users may see a “System Halted” prompt on the bottom of the
screen. If this is the case,the test machine must be physically rebooted.
7.2 Cloning Storage Device with CD/DVD-ROM image & Installing 32-bit
Linux Desktop Edition Manually Onto a Storage Device
This section lists the hardware and software requirements,and provide a step-by-step
procedure to clone a test machine’s storage device with a CD/DVD-ROM disc.
7.2.1 Hardware Requirements
Component Hardware Requirement
CD/DVD-ROM
Burning Station
• CD/DVD-ROM
CD/DVD Disc • 700MB or greater storage capacity
Test System • P5 CPU.
• P5E Motherboard.
• 1GB of DDR2 system memory.
• Storage device with 8GB or larger capacity.
• ATI Display Card.
• 600W Power.
• SAMSUMG LCD

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 14
7.2.2 Software Requirements
Component Software Requirement
CD/DVD-ROM
Burning Station
• System with Windows XP SP2 installed
•Application to burn an ISO image onto the CD/DVD(can be
downloaded from sip)
Test System • System BIOS that supports booting from CD/DVD-ROM
7.2.3 Cloning Procedure
Below is a step-by-step breakdown of how to perform each phase
7.2.3.1 Download desired Linux clone image ISO file from sip.
7.2.3.2 Launch pre-installed CD/DVD burning software that supports burning an ISO
image to CD/DVD disc.
7.2.3.3 Follow the pre-installed software’s instructions for burning an ISO image onto
CD/DVD disc.
7.2.3.4 Put the DVD that have been burned OK into CD-ROM. And booting from
CD-ROM.
7.2.3.5 Press F10 to save and reboot.

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 15
7.2.3.6 Enter into the installing interface. Choose “English ” firstly, and then click
“Install Ubuntu 10.04.1. LTS”.
7.2.3.7 choose the correct local and time, and click “Forward”
7.2.3.8 Enter into the keyboard testing interface. Click “Forward”

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 16
7.2.3.9 Enter into the Disk partition interface, choose“Specify partitions manually”,
and then click“Forward”
7.2.3.10 Hard disk partition, new hard disk will show the picture as following.
Otherwise delete all partition, and then click “Add”

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 17
7.2.3.11 Hard disk must be divides two partition. One is “Swap”, other is “/”. Divides
partition of Swap firstly. If don’t has Swap option, please add it by yourself.
Swap size is about 2G. click “OK”after setting finished.
7.2.3.12 For the second partition, please choose “free space”,and then click “Add”

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 18
7.2.3.13 Setting the second partition:Click the menu below the “Mount point”, choose
“/” , and then click “OK”
7.2.3.14 After setting hard finished, please click “Forward”.
(Notice: if hard disk isn't the new one, it will show warning, you can click “continue”).

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 19
7.2.3.15 Set user and password. Password must be put two times, and the same one.
And then click “Forward”
7.2.3.16 To the install interface, choose “install”

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 20
7.2.3.17 Begin to install 32-bit Linux system.
7.2.3.18 Installed ok, it will show the menu as picture, click “Restart Now”to reboot.

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 21
7.2.3.19 After install system OK ,to set it now.
7.2.3.20 choose the user, and input the password that set before.
7.2.3.21 input the password of“user”，click“Log In” inter into the system

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 22
7.2.3.22 Click “Applications”at the desktop of 32-bit Linux ,click “Accessories”
to choose “Terminal”
7.2.3.23 In GUI mode, open a terminal windows by clicking Applications
Accessories Terminal. Edit the main grub instruction file by typing sudo
pico /etc/default/grub. If prompted for a password, use the login password.
1. Change the value of “GRUB DEFAULT” to “1” so that recovery mode is the
default entry
2. To show the GRUB menu, comment the line “GRUB_HIDDEN_TIMEOUT=0” by
typing the “#”symbol at the beginning of the line.
3. To show the menu countdown, change “GRUB_HIDDEN_TIMEOUT_QUIET”
from “true” to “false”
4. To configure the menu countdown, set “GRUB_TIMEOUT” to the number of
seconds for which you want to menu show
5. Change the argument for “GRUB_CMDLINE_LINUX_DEFAULT” to quiet splash
“mem=512M”

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 23
6. Change the argument for “GRUB_CMDLINE_LINUX” to “mem=512M”
7. Press “Ctrl+X” to exit the file editor. When prompted, press “Y” followed by Enter
to save your changes.
7.2.3.24 Remove the Friendly-Recovery Menu by doing the following so that when
recovery mode is selected, you are directed to a terminal windows rather than
prompted with different options for system recovery:
•In GUI mode, open a terminal windows by clicking “Applications Accessories
Terminal “
•In a terminal windows, type “sudo apt-get remove friendly-recovery”
•If prompted, type your password, and then select “Yes” to complete the removal.

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 24
7.2.3.25 Update the GRUB configuration file with your changes by typing “sudo
update-grub”, and Enter.
7.2.3.26 Disable the “fbcon” and “vga16fb” frame buffers to allow the diagnostic to
run properly by doing the following:
In a terminal windows, type “sudo pico /etc/modprobe.d/blacklist-framebuffer.conf”
Press “Ctrl+V” to next

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 25
Type the following two lines at the end of the file:
blacklist fbcon
blacklist vga16fb
Press “Ctrl+X” to exit the file editor. When prompted, press “Y” followed by Enter
to save your changes.
7.2.3.27 Close “Terminal” window. Click “close-down” at the desktop of 32-bit
Linux, choose “Restart” to reboot.

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 26
7.2.3.28 Restart, and choose the second item, enter into the 32-bit linux test
environment

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 27
7.2.3.29 Enter into the 32-bit linux test environment
Now Installation is complete.
7.3 Test AMD card in linux(EAH5750 for example)
7.3.1 Fixture connect
7.3.1.1 Install Intel P5 CPU & CPU Fan.
7.3.1.2 Install DDR2 1GB Memory to DIMM1~4. (a minimum memory of 2GB for Linux test)
7.3.1.3 Plug USB Mouse and PS/2 Keyboard into MB.(P5E)
7.3.1.4 Plug VGA Card EAH5750 into PCIEX16_1.
7.3.1.5 Connect power con of VGA card & Power supply via bundled power cable.
(6 PIN of Power supply to 6 PIN of VGA card)
C1CNP0
7.3.1.6 Connect SATA HDD & SATA con via SATA cable
SATA

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 28
7.3.1.7 Plug 4PIN 12V power(a minimum power of 600W) cable into CON12V.
7.3.1.8 Plug ATX Power on Power(a minimum power of 600W) Connector.
7.3.1.9 Please connect LCD monitor & card’s DVI CON via a DVI cable.
Dual link DVI cable
7.3.2 When start 32-bit linux system,it show below picture
If you Insert the USB key(include the test program: eah5750.tar.gz),please check the
Usb key.
Please use next command to look at all storage devices inserted.
ls /dev/sd*
all storage devices:sda sdb, sda1 & sda2 are the partitions of the storage device sda.
Create a directory to access the USB Storage Device, enter the command:
mkdir /mnt/usbkey
Once the USB storage device has been mounted, enter the command cd /mnt/usbkey
to enter into the directory of the USB storage device.
To view files in the USB storage device, enter the command ls /mnt/usbkey/*.*
mkdir /mnt/usbkey
mount /dev/sdb1 /mnt/usbkey
ls /mnt/usbkey/*.tar.gz

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 29
To copy a file from the USB storage device to the local hard drive, enter the following
command:cp –piv /mnt/usbkey/eah5750.tar.gz ./
Then to extract the file, enter the following command:tar –xzvf eah5750.tar.gz ./
7.3.3 Run test program in linux.
Path:eah5750c1cnp0a0.sh
Please enter into the file of eah5750, enter the following command:cd ./eah5750
Then,please run ./c1cnp0a0.sh
7.3.4 Memory test
If you want to test memory,please run ./tserver-exec –test=memfa1.1
Path:eah5750
7.3.5 BIOS Version
If you want to see the version of bios,please run ./atiflash.sh.
Path:eah5750
7.3.6 BIOS flash
Please use the following command to flash bios and notice the size of character.
Path:eah5750
Command:./atiflash -p -f 0 xxx.rom
Notice:
If you can not flash bios because of the bios locked, please use ./atiflash –unlockrom
0 to unlock bios. And then, please use ./atiflash –lockrom 0 to lock bios after updating
latest bios.

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 30
7.4 Frequently Used Linux Commands
DOS Command UNIX or Bash
Command
Action
DIR ls ‐l (or use ls ‐lF)(‐a all
files)
(df ‐k Space remaining
on
filesystem)
List directory contents
DIR *.* /o‐d
DIR *.* /v /os
DIR /s
DIR /aa
ls ‐tr
ls ‐ls
ls ‐R
ls ‐a
List directory contents by reverse time of
modification/creation.
List files and size
List directory/sub‐directory contents recursively.
List hidden files.
TREE ls ‐R List directory recursivly
CD cd Change directory
MKDIR
MD
mkdir Make a new directory
ASSIGN ln Create a file or directory link
RMDIR
RD
rmdir Remove a directory
CHDIR pwd Display directory location
DEL
ERASE
rm ‐iv Remove a file
RMDIR /S (NT)
DELTREE (Win 95...)
rm ‐R Remove all directories and files below given
directory
COPY cp ‐piv Copy a file
XCOPY cp ‐R Copy all file of directory recursivly
RENAME or MOVE mv ‐iv Rename/move a file
TYPE cat Dump contents of a file to users screen
MORE more Pipe output a single page at a time
HELP or COMMAND /? man Online manuals
CLS clear
ctrl‐l
Clear screen
EXIT
EXIT0
exit
exit 0
Exit a shell
FIND
FINDSTR
grep Look for a word in files given in command line
COMP diff Compare two files and show differences. Also
see comm, cmp, mgdiff and tkdiff.
FC diff Compare two files and show differences. Also
see comm, cmp, mgdiff and tkdiff.
SET set and env List all environment variables
SET variable=value
echo %variable%
set
export variable=value
echo $variable
Set environment variables
Show environment variables
ECHO text echo text Echo text to screen
SET variable setenv (for C shell) or
export
VAR=val (for Korn
shell. Also
Set environment variables

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 31
VAR=val)
PATH
PATH %PATH%;C:DIR
echo $PATH
PATH=$PATH:/dir
Display search path for executables.
Set PATH environment variable.
PROMPT $p$g export PS1='h(u)W> ' Set user command prompt.
DATE or TIME date Show date. (also set date ‐ DOS only)
DOSKEY /h history List command history
DOSKEY
NAME=command
alias NAME=command Set command alias
BREAK ON trap Trap ctrl‐break / Trap signals.
SORT sort Sort data alphabetically/numerically
EDLIN ed Line mode editor
EDIT filename.txt pico, gnp, vi, xedit,
xemacs,dtpad
Edit a file. The Linux editor which looks most
like DOS edit is probably Pico. (Not a
recomendation!)
BACKUP files A: tar ‐cvf /dev/fd0 files
mdir, mcopy
doswrite ‐a file (AIX
only)
Save files to floppy.
RESTORE A: files tar ‐xvf /dev/fd0 files
mdir, mcopy
dosread ‐a file (AIX only)
Read files from floppy.
ATTRIB [+r|‐r] [+a|‐a]
[+s|‐s] [pathfile] /s
chmod Change file permissions. DOS: +:set to ‐
:remove r:Read only a:Archive s:System
/s:recursively
ATTRIB +h or ‐h mv file .file Change file to a hidden file ‐ rename file with
prefix "."
PRINT lpr Print a file
CALL
COMMAND /C (DOS),
CMD (NT)
source script (cshrc)
. script (bash)
sh script
Execute script from within batch shell.
MEM free
top
Show free memory on system
TASKLIST (WIN2K, XP) ps ‐aux
top
List executable name, process ID number and
memory usage of active processes
MSD lsdev Show system info (Command borrowed from AIX)
SCANDISK
DEFRAG C:
fsck
debugfs
Check and repair hard drive file system
CHDISK du ‐s Disk usage.
FDISK fdisk Tool to partition a hard drive.
SUBST V:
C:directorypath
mount Mount a drive letter to a folder/directory on
your hard drive.
FORMAT mke2fs
See: fdformat and
mformat for floppies
Format drive file system.
VER uname ‐a
echo $SHELL
cat /etc/issue
Operating system/shell version
pkzip tar and zip Compress and uncompress files/directories.
Use tar to create compilation of a directory
before compressing. Linux also has compress,
gzip
HOSTNAME hostname Print host name of computer

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 32
PING ping Send packets to a network host
TRACERT traceroute Show routes and router hops to given
network destination.
IPCONFIG (NT)
WINIPCFG (Win 95...)
ifconfig Display/configure network interface
NBTSTAT (Netbios
info: ‐n, ‐c)
NBTSTAT ‐a host‐name
NBTSTAT ‐A IP‐address
nslookup host‐name
host host‐name
Print DNS info for host.
ROUTE PRINT route ‐n Print routing table.
NET HELP START chkconfig ‐‐list |grep on List services.
NET STARTservicename
NET STOPservicename
service service‐name
start
service service‐name
stop
Start/stop service/daemon.
NET SHARES df Show mounted shares/filesystems.
NET SEND <nodename>
<message>
(NT)
smbclient ‐M MS‐
Windowshost‐
name
talk
Send pop‐up to a MS/Windows PC
Send message to another Unix/Linux user.
WIN startx Start X‐Windows.
REBOOT shutdown ‐r now Reboot system.

Doc. No:
Date: Jan. 7, 2011
Rev.: 1.02 Page: 33
8.Appendix
NO# Equipment Description ASUS Part# Supplier Quantity Remarks
1 Dell 30 inches (3008WFP) 1
2 USB MOUSE 1
3 PS/2 KEYBOARD 1
4
ATX POWER SUPPLY(a
minimum power of 500W)
1
5 INTEL Celeron E1200 1
6 Heat sink + FAN 22-240000160 1
7 DDR2(667/800) 1G
04G0016169A9NE
/22-T00642404
4
8 TEST HDD 1
9 SATA HDD Cable 14-000107070 ASUS 1
10 PCIEX16 VGA CARD 1
11
Dual link DVI cable
(Buying a local DVI cable by
yourself)
1
12
HDMI extend cable
(Buying a local HDMI cable
by yourself)
1
13
Display port cable
(Buying a local HDMI cable
by yourself)
1
14 P5E MB 80- MBB7X0-* 1

32 bit linux-system

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (13)

Similar to 32 bit linux-system

Similar to 32 bit linux-system (20)

32 bit linux-system
